16 Terms
1
New cards

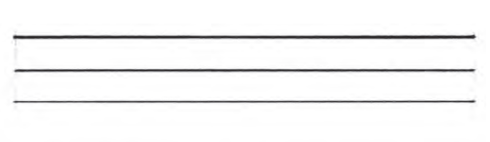

solid/visible lines
delineate the form of objects
2
New cards

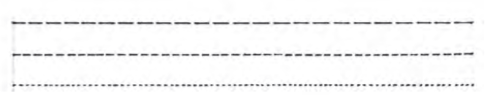

hidden/dashed lines
indicate hidden or removed (from view) elements
3
New cards
section lines
indicate a cut surface of a section view using hatching lines
4
New cards
center lines
indicates axis of symmetry
5
New cards

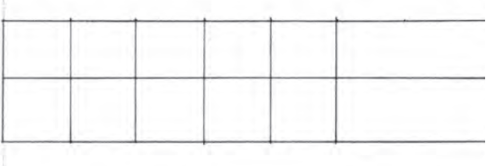

grid lines
used to locate or regulate the elements of a plan
6
New cards
property lines
indicate legally defined/recorded boundary of land
7
New cards

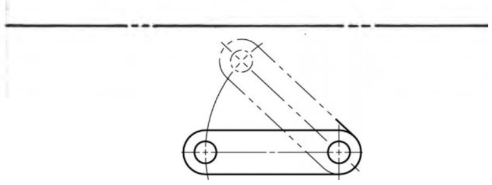

phantom lines
indicate alternate position of movable part/object
8
New cards

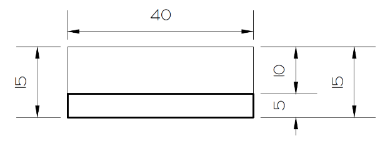

dimension lines
indicate distance
9
New cards
extension lines
indicate extent of dimensions
10
New cards

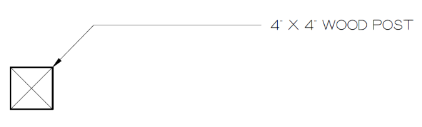

leader lines
indicate part, dimension, reference, or specification of materials
11
New cards

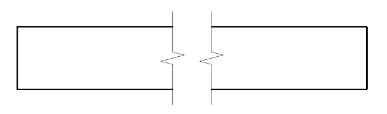

break lines
indicate the cutoff of a drawing partition
12
New cards

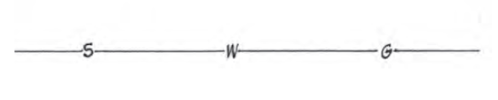

utility lines
lines with letters indicating the type of utility
13
New cards
heavy
line weight used to delineate profiles of plan and section cuts, and spatial edges
14
New cards
medium
line weight that indicate edges and intersection of planes
15
New cards
light
line weight that suggests a change in material, color, or texture without a change in form of an object
16
New cards
very light
line weight that either depict lay-out drawings or establish organizing grids and indicate surface textures
