Experiment to investigate the relationship between frequency and length for a stretched string
0.0(0)
Studied by 0 people
Call Kai
Learn
Practice Test
Spaced Repetition
Match
Flashcards
Knowt PlayCard Sorting
1/6
There's no tags or description
Looks like no tags are added yet.
Last updated 5:11 PM on 5/30/25
Name | Mastery | Learn | Test | Matching | Spaced | Call with Kai |
|---|
No analytics yet
Send a link to your students to track their progress
7 Terms
1
New cards

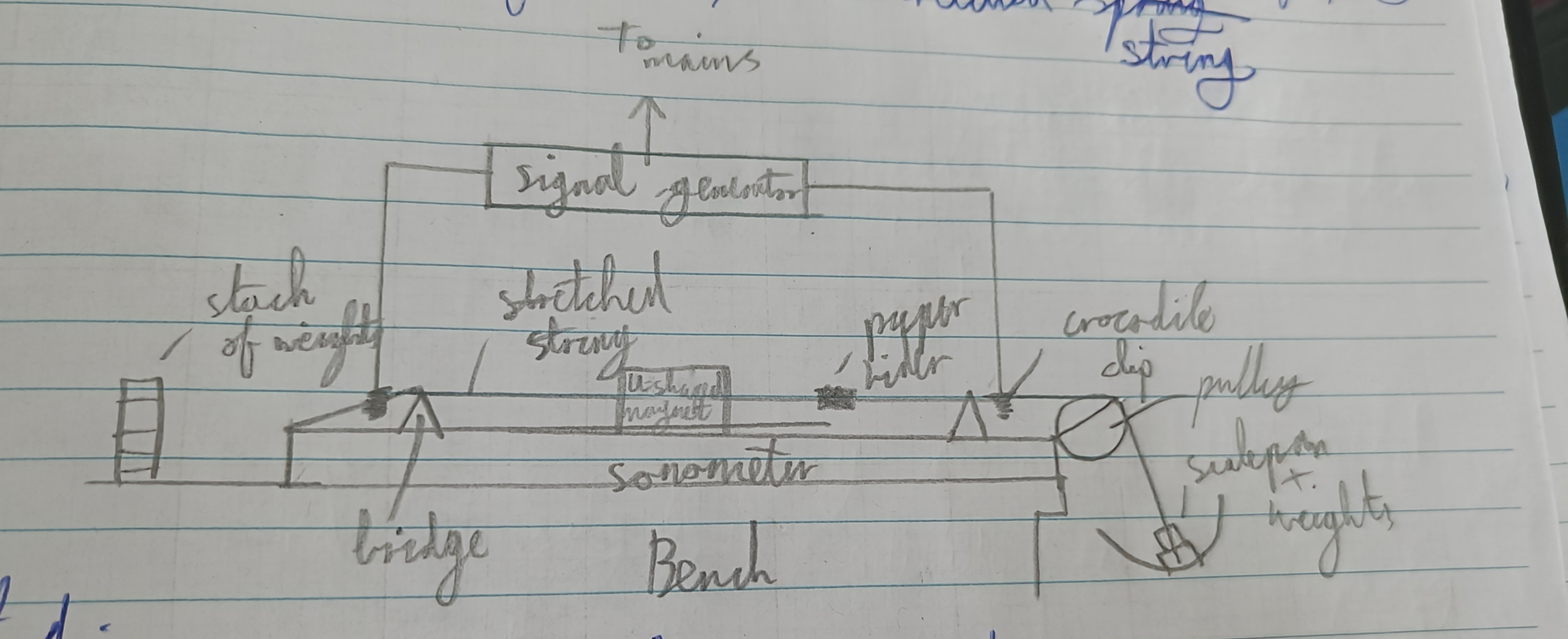

Draw a diagram of this experiment
2
New cards
Step 1
Set up apparatus as shown and turn on power
3
New cards
Step 2
Starting at 0Hz turn up the frequency until the paper rider falls off (Resonance) and record this frequency and the length between the bridges
4
New cards
Step 3
Move one of the bridges and repeat step 2
5
New cards
Step 4
Repeat step 3 four more times
6
New cards
Step 5
Plot a graph of f Vs. 1/l
7
New cards
Conclusion
A graph of f Vs 1/l produces a straight line through the origin. Therefore f is inversely proportional to l
