Appendicular Skeleton- Ankle and Foot Joints, Ligaments and Cartilages

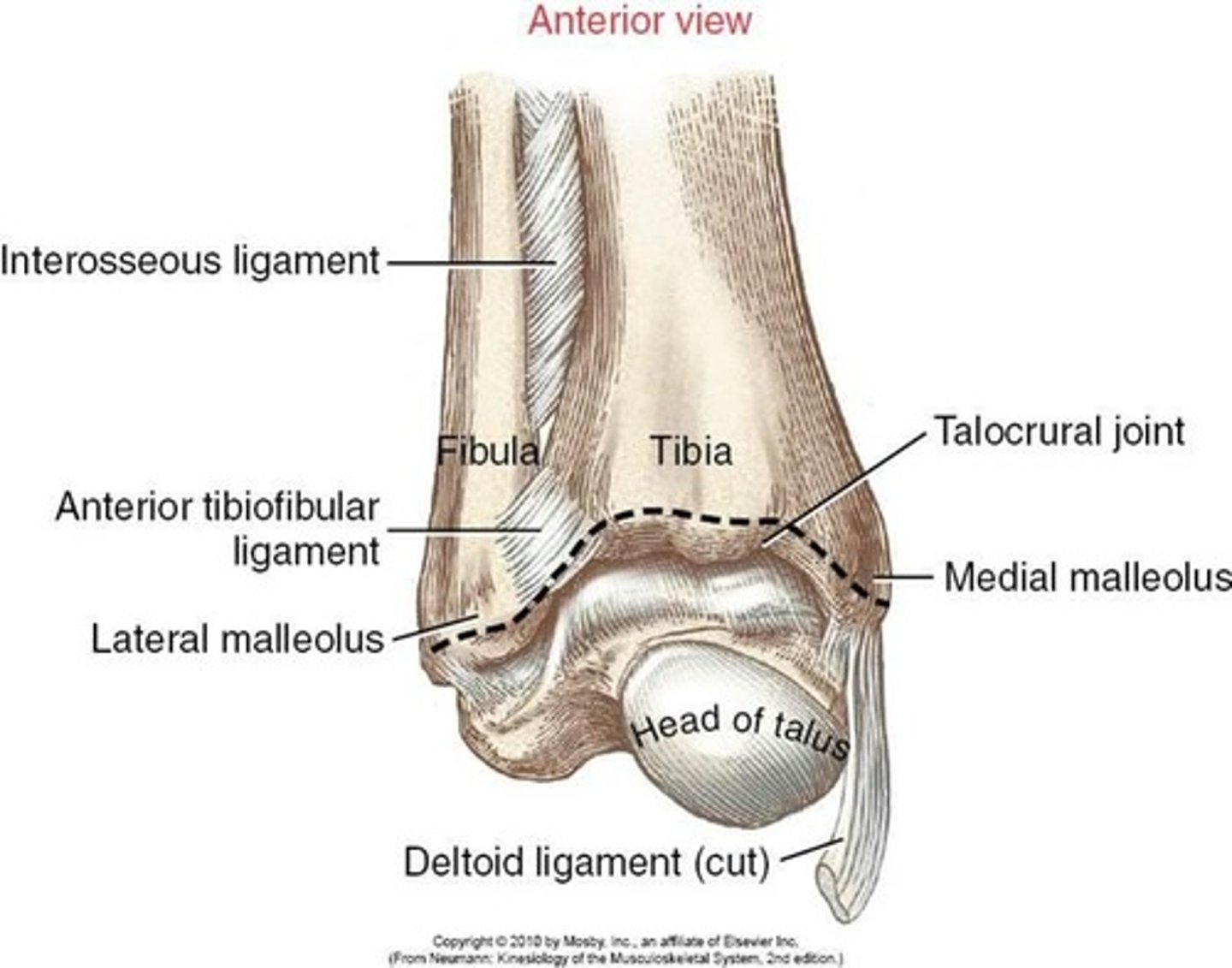

Talocrural (ankle) J

articulation between the talus and the crural space created by the tibia and the fibula

Subtalar (ankle) J

articulation between the talus and the calcaneus

Transverse Tarsal (midtarsal) J

articulation between the talus and the tarsal bones

Intertarsal (foot) J

articulation between the tarsal bones

Tarsometatarsal (foot) J

articulation between the tarsal bones and the metatarsals

Metatarsophalangeal (foot) J

articulation between the metatarsals and the phalanges of the foot

Interphalangeal (toes) J

articulation between the phalanges of the foot

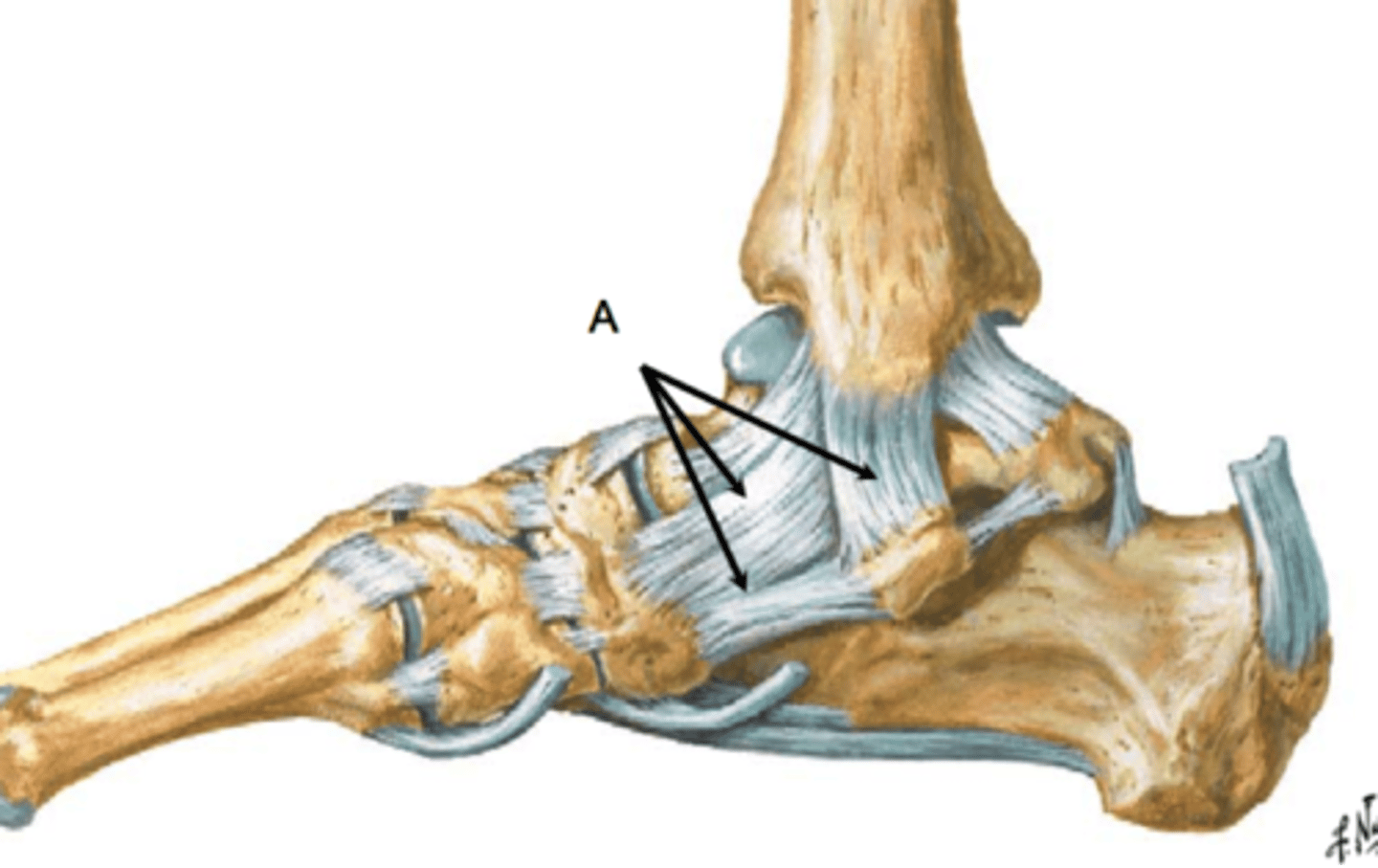

Deltoid Ligs (medial side)

forms the medial part of the ankle joint and attaches the medial malleolus to multiple tarsal bones

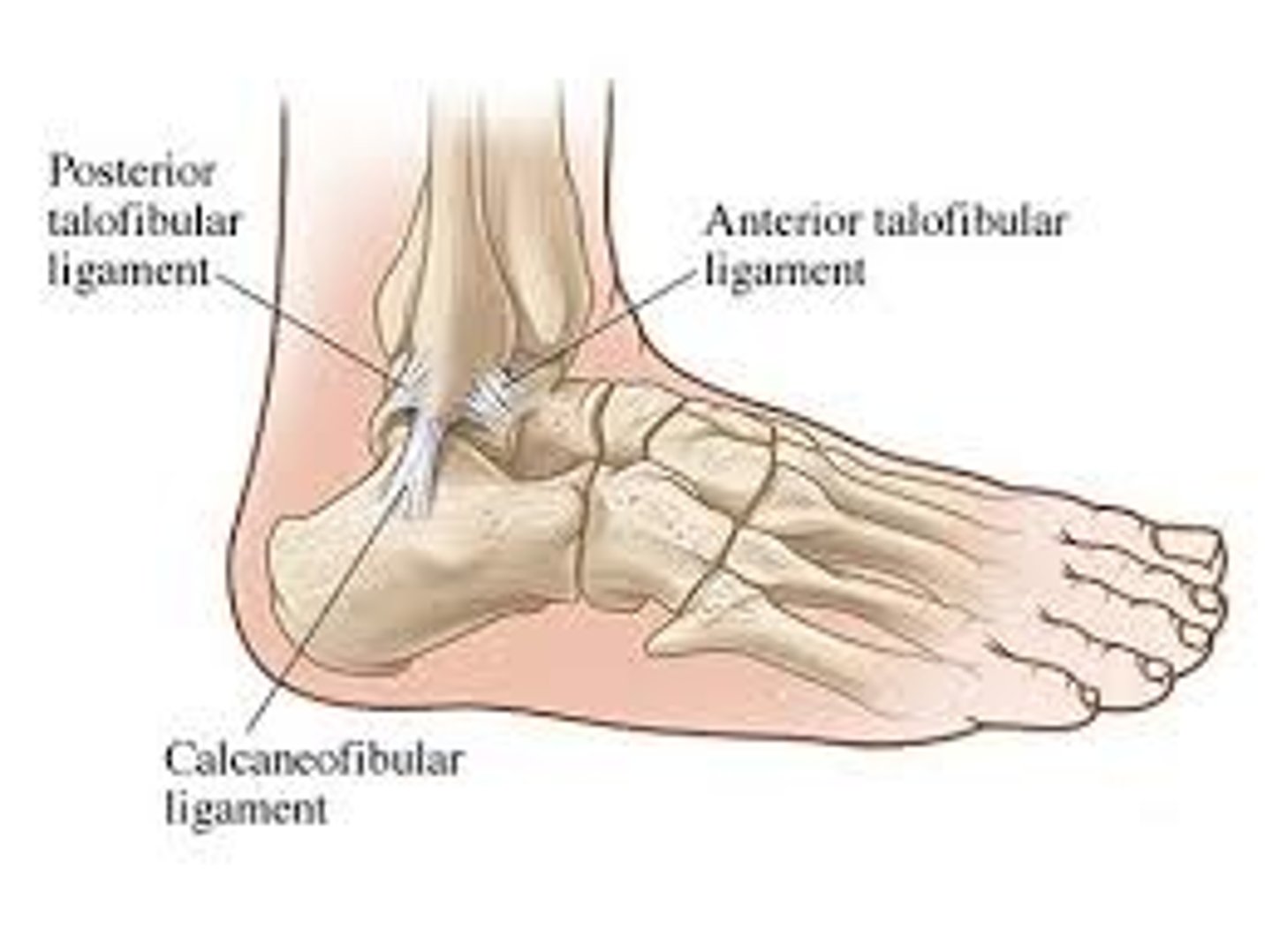

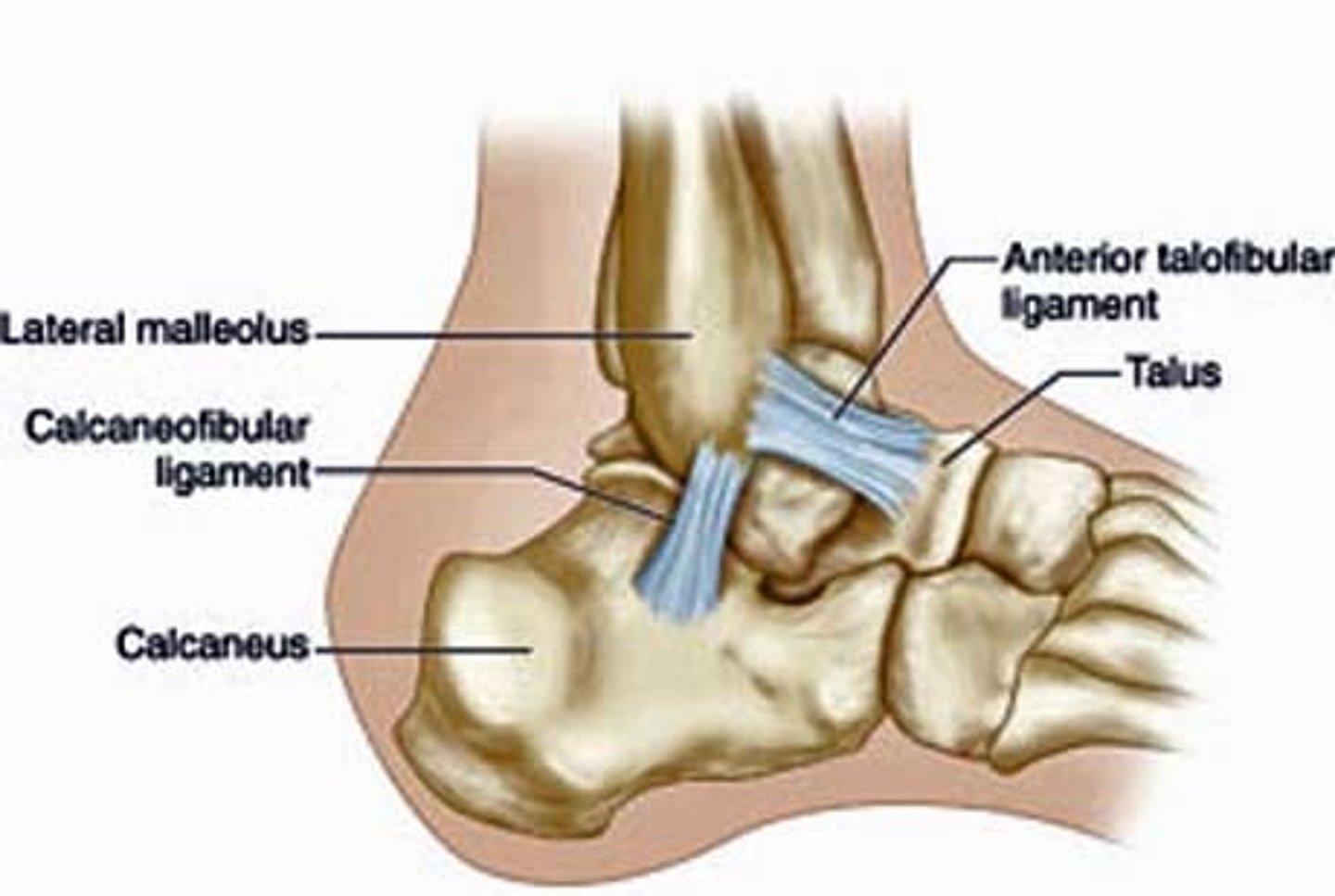

Anterior Talofibular Lig (lateral side)

it passes from the anterior margin of the fibular malleolus, anteriorly and medially, to the talus none, in front of it lateral articular facet

Calcaneofibular Lig (lateral side)

a narrow, rounded cord running from the tip of the lateral malleolus of the fibula, downward and slightly backward to a tubercle on the lateral surface of the calcaneus

Posterior Talofibular Lig (lateral side)

attaches the lateral malleolus of the fibula to the talus
