axial skeleton midterm review

Define the yellow portion

external auditory canal

Define the green portion

mastoid process of the temporal bone

Define the green portion

carotid canal

Define the blue portion

internal auditory canal

define the blue portion

carotid canal

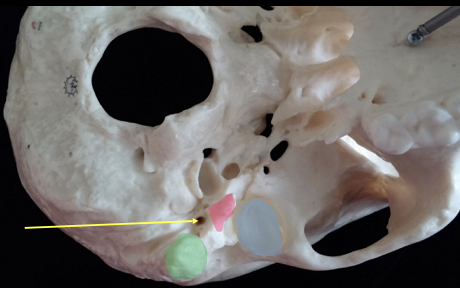

define the green portion

stylomastoid foramen of the temporal bone

define the blue portion

mandibular fossa of the temporal bone

define the pink portion

styloid process of the temporal bone

define the yellow section

stylomastoid foramen of the temporal bone

define the green portion

mastoid process of the temporal bone

red/orange section

optic canal

define the blue section

sella turcica of the sphenoid bone

define the yellow portion

hypophyseal of the sphenoid bone

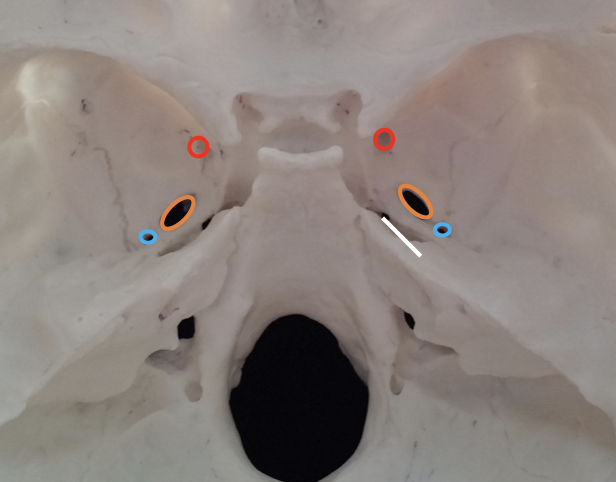

define the red circle

foramen rotundum of the sphenoid bone

define the orange circle

foramen ovale of the sphenoid bone

define the blue circle

foramen spinosum of the sphenoid bone

define the white line

foramen lacerum of the sphenoid bone

superior orbital fissure of the sphenoid bone

define the blue portion

medial pterygoid plate of the sphenoid bone

define the yellow portion

lateral pterygoid plate of the sphenoid bone

define the green portion

coronoid process of the mandible

define the yellow portion

ramus of the mandible

define the pink portion

mandibular angle of the mandible

define the orange portion

alveolar process of the mandible

define the blue circles

mental foramen of the mandible

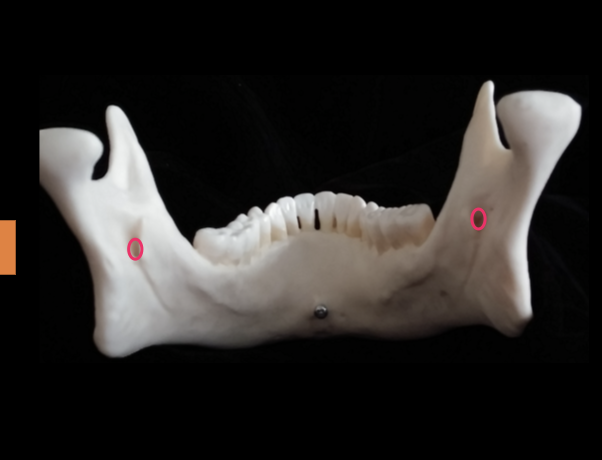

define the red circles

mandibular foramen of the mandible

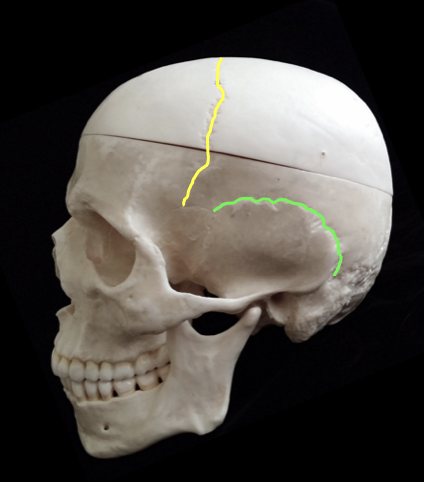

yellow line

coronal suture

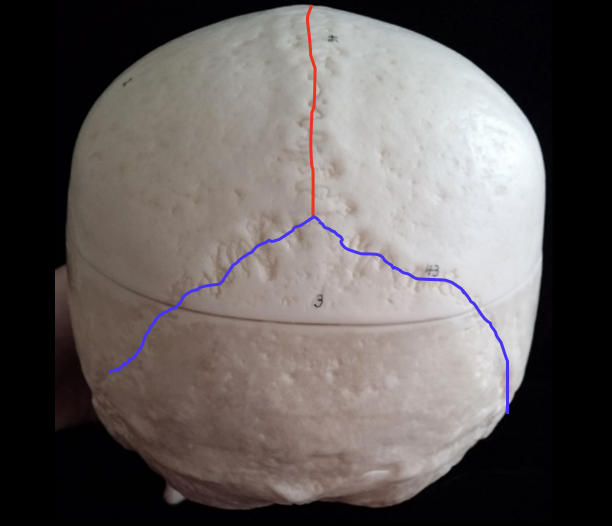

red line

sagittal suture

green line

squamous suture

blue line

lambdoidal suture

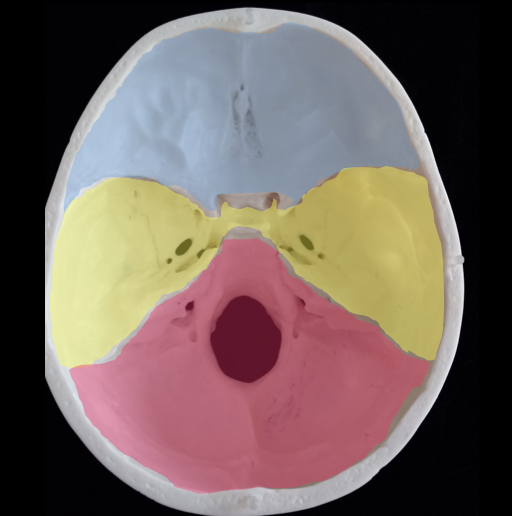

these are called the anterior, middle, and posterior ________?

cranial fossa

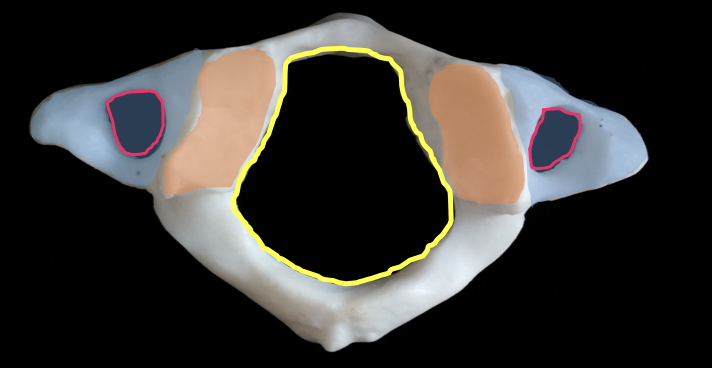

pink circle

transverse foramina of the c1 atlas

blue portion

traverse process of the c1 atlas

orange portion

superior articulating facets of the c1 atlas

yellow circle

vertebral foramen of the c1 atlas

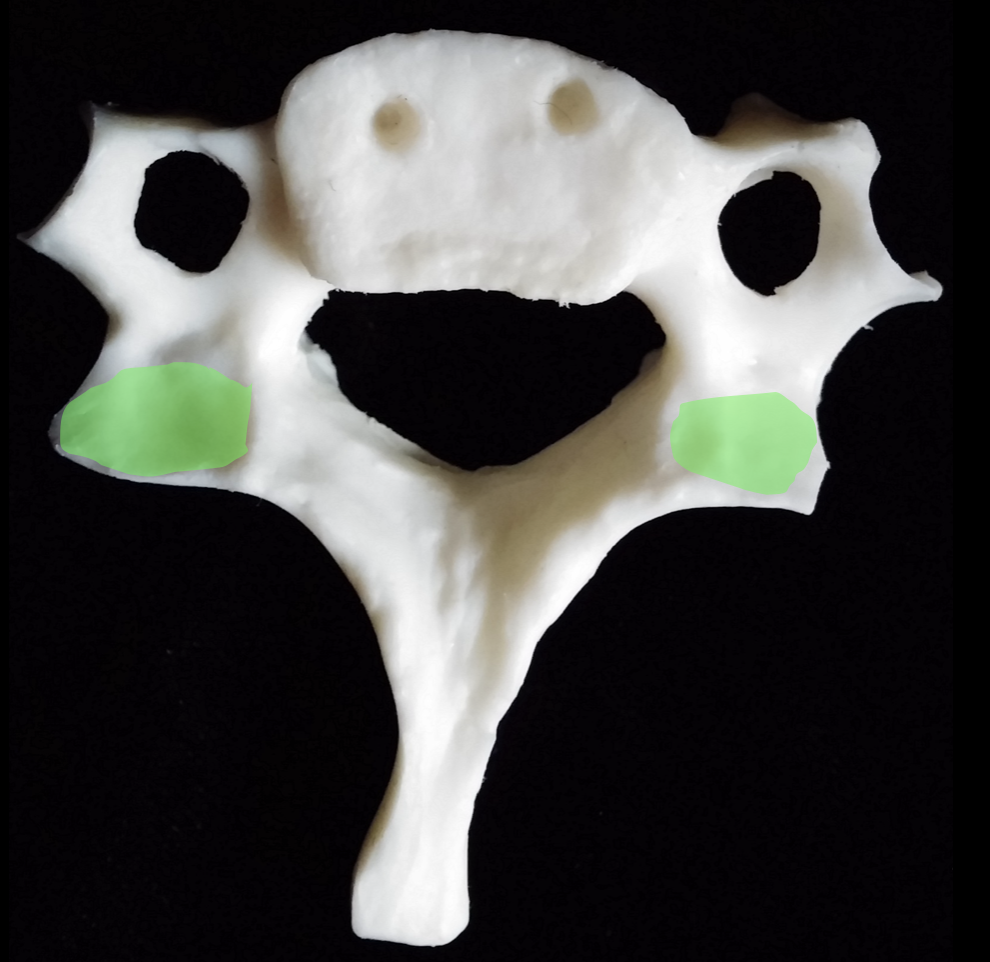

green portion

inferior articulating facets of the c1 atlas

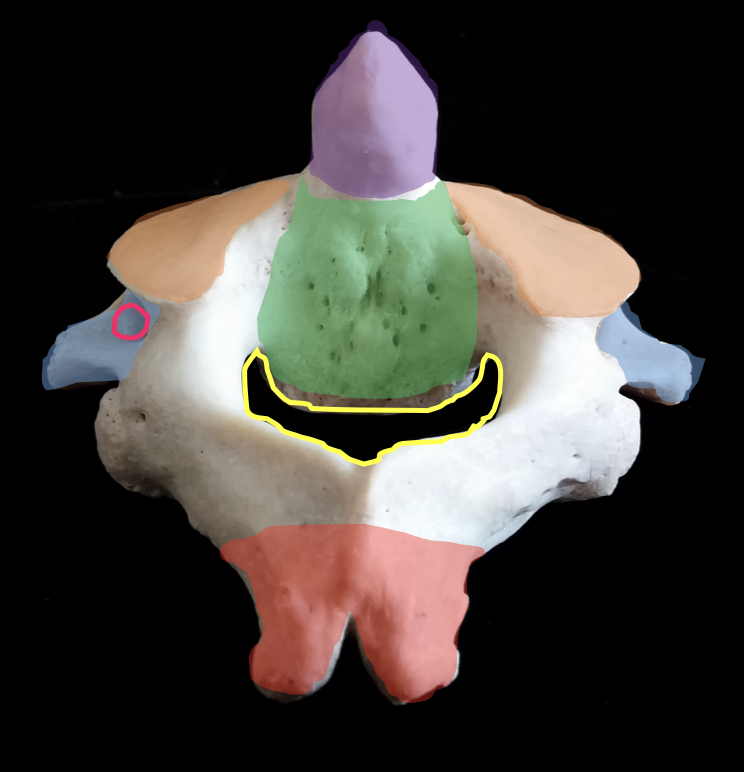

purple portion

dens of the c2 axis

yellow circle

vertebral foramen of the c2 axis

blue portion

transverse process of the c2 axis

pink circle

transverse foramina of the c2 axis

coral portion

spinous process of the c2 axis

green portion

body of the c2 axis

orange portion

superior articulating facet of the c2 axis

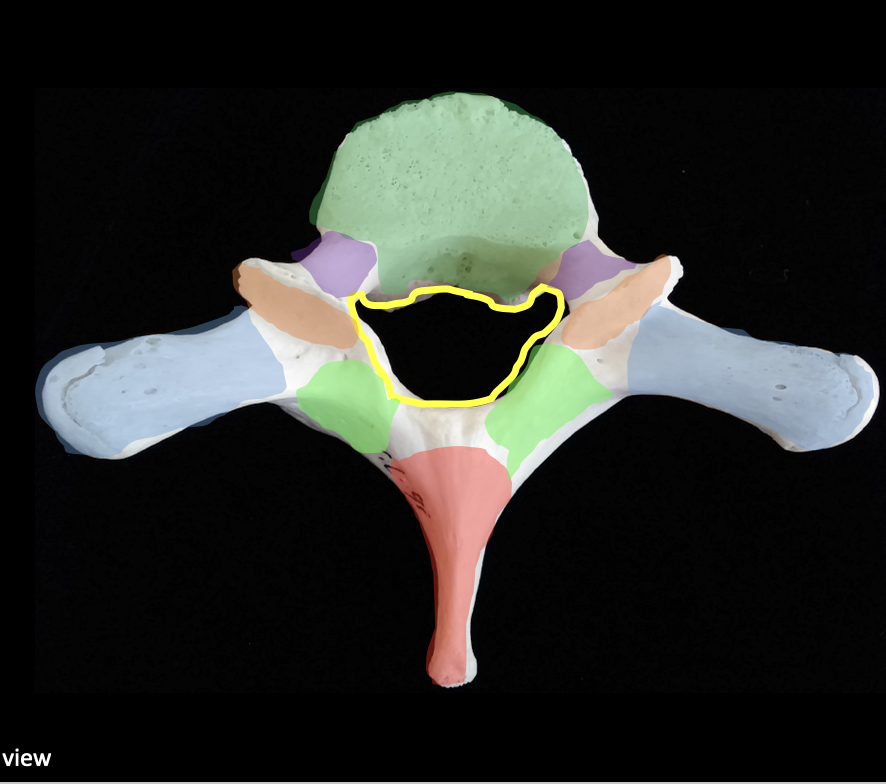

upper green portion

Boyd of the cervical vertebrae

blue portion

transverse process of the cervical vertebrae

pink circle

transverse foramina of the cervical vertebrae

purple portion

pedicle of the cervical vertebrae

orange portion

superior articulating facet of the cervical vertebrae

lower green portion

lamina of the cervical vertebrae

coral portion

spinous process of the cervical vertebrae

yellow circle

vertebral foramen of the cervical vertebrae

inferior articulating facets of the cervical vertebrae

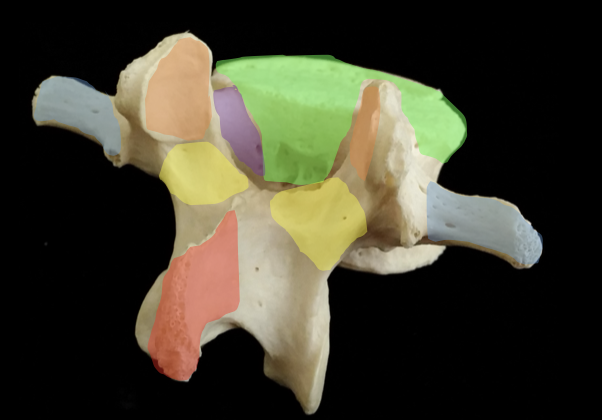

blue portion

transverse process of the thoracic vertebrae

upper green portion

body of the thoracic vertebrae

purple portion

pedicle of the thoracic vertebrae

yellow hole

vertebral foramen of the thoracic vertebrae

orange portion

superior articulating facet of the thoracic vertebrae

lower green portion

lamina of the thoracic vertebrae

coral portion

spinous process of the thoracic vertebrae

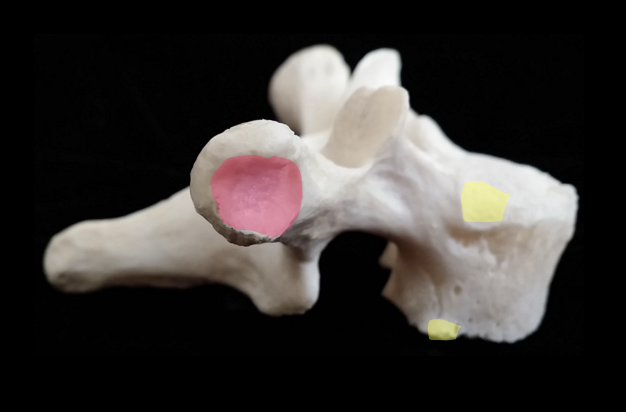

pink portion

costal facets for tubercle of rib

yellow portion

articulating surface for head of rib

inferior articulating facets of the thoracic vertebrae

green portion

Body of the lumbar vertebrae

purple portion

pedicle of the lumbar vertebrae

orange portion

superior articulating facet of the lumbar vertebrae

blue portion

transverse process of the lumbar vertebrae

yellow portion

lamina of the lumbar vertebrae

coral portion

spinous process of the lumbar vertebrae

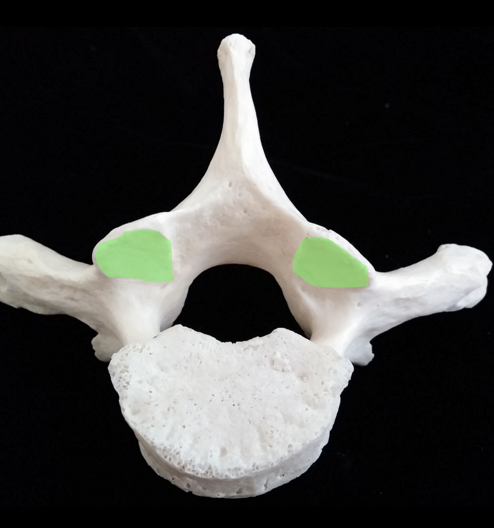

green portion

inferior articulating facets of the lumbar vertebrae

yellow circle

vertebral foramen of the lumbar vertebrae

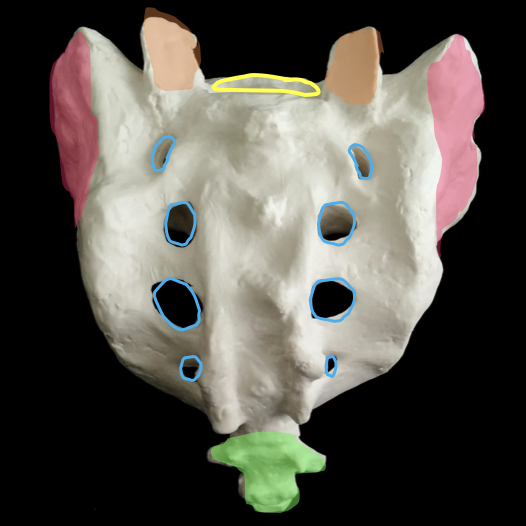

yellow circle

sacral canal of the sacrum

orange portion

superior articulating facets of the sacrum

pink portion

auricular surface of the sacrum

blue circles

sacral foramina of the sacrum

green portion

coccyx

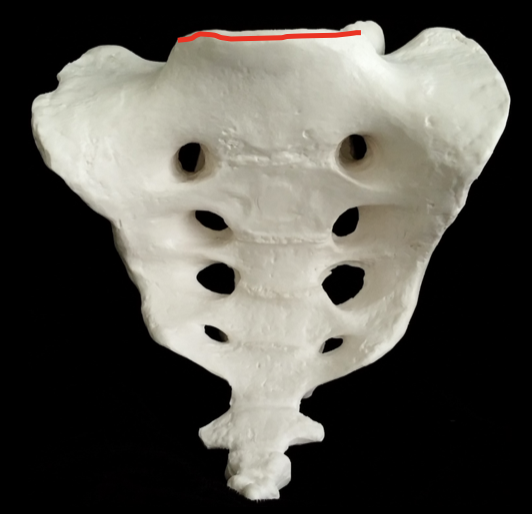

red line

sacral promontory of the sacrum

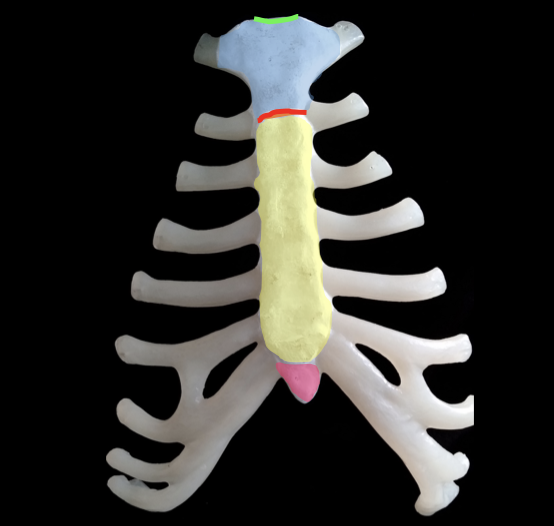

green line

jugular notch of the sternum

blue portion

manubrium of the sternum

red line

sternal angle of the sternum

yellow portion

body of the sternum

pink portion

xiphoid process of the sternum

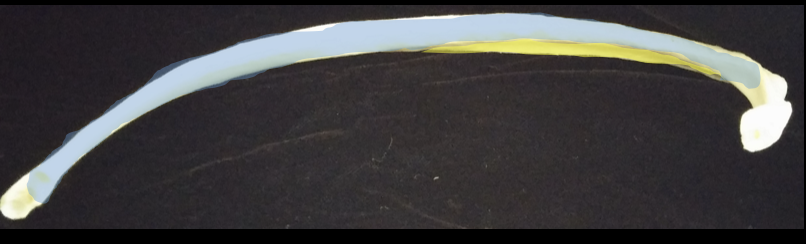

yellow portion

costal groove

name these three “blue, yellow, pink”

head, neck, tubercle
