ANHB1101 - Human Evolution

This is a human skull. Identify what is A, C, D and E

A = frontal bone

C = parietal bone

D = occipital bone

E = temporal bone

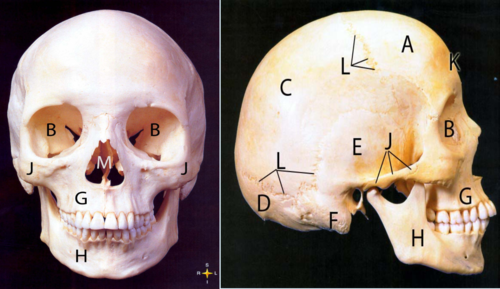

This is a human skull. Identify what is G, H, L and J

G = Maxilla
H = Mandible

L = Suture lines

J = Zygomatic arch

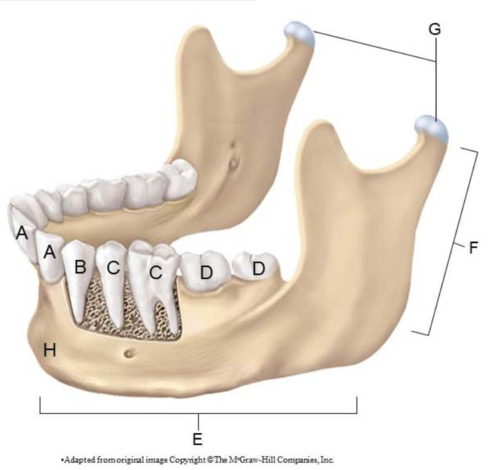

This is a human mandible. Identify what is A, B, C, D

A = incisor
B= Canine
C = Premolar
D = Molar

This is a human mandible. Identify what is E, F, G, H

E = Body of Mandible
F = Ramus of Mandible
G = Condyle of mandible
H = Chin

This is a gorilla skull. Identify what is A, B, C, and D

A = Nuchal crest
B = Sagittal crest
C = Supra-orbital torus
D = Orbits

This is a gorilla skull. Identify what is E, F, G, H

E = Maxilla
F = Nasal Cavity
G = Zygomatic Arch
H = Mastoid Process

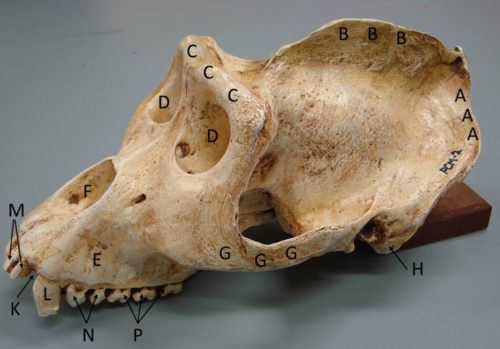

This is a gorilla skull. Identify what is L, M, N, P

L = Canine
M = Incisors
N = Premolars
P = Molars

Size & features of a human skull

1350cm3

Orthognathic

Parabolic dental arcade

Size & features of a gorilla skull

500 cm3

Prognathic

Parallel dental arcade

This is a human femur. Identify what is A, B, F

A = Head of the femur
B = Neck of femur
F = Shaft of Femur

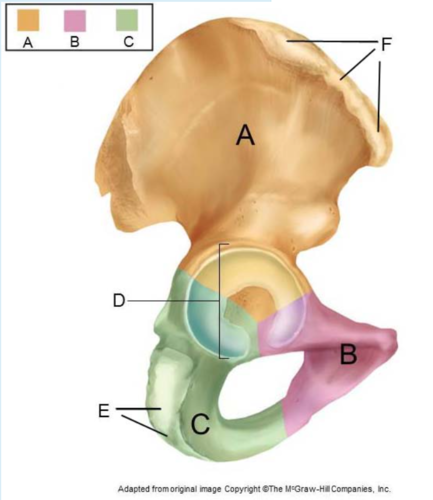

This is a hip. Identify what is A, B, C, E, F

A = Ilium
B = Pubis
C = Ischium
E = Ischial Tuberosity

F = Iliac Crest

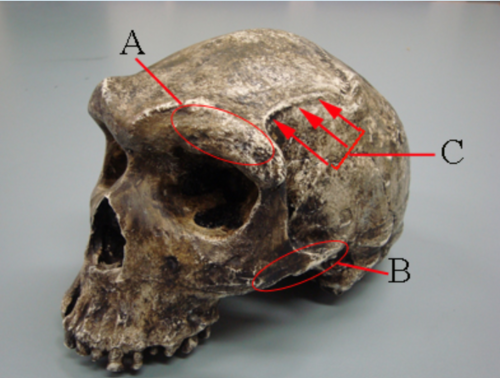

This is a skull. Identify what is A and B

A = Supra-orbital ridge
B = Zygomatic Arch

This is a human skull. Identify A, B, C, G

A = Temporal bone
B = Frontal bone
C = Parietal bone

G = Occipital bone

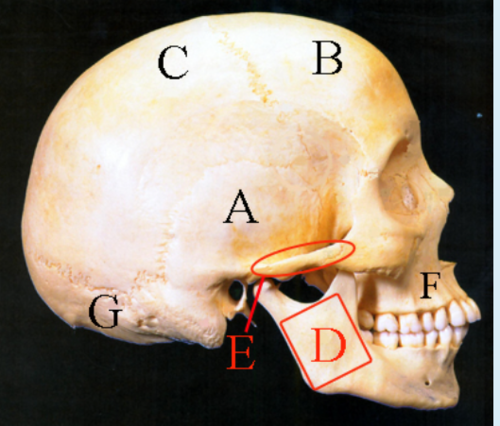

This is a human skull. Identify D, E, F

D = Ramus of mandible
E = Zygomatic arch
F = Maxilla
