VES(2) - Main Control Room Emergency Habitability

0.0(0)
studied byStudied by 0 people
learnLearn
examPractice Test
spaced repetitionSpaced Repetition
heart puzzleMatch
flashcardsFlashcards
Card Sorting

1/10

encourage image

There's no tags or description

Looks like no tags are added yet.

Study Analytics
Name
Mastery
Learn
Test
Matching
Spaced

No study sessions yet.

11 Terms

1
New cards

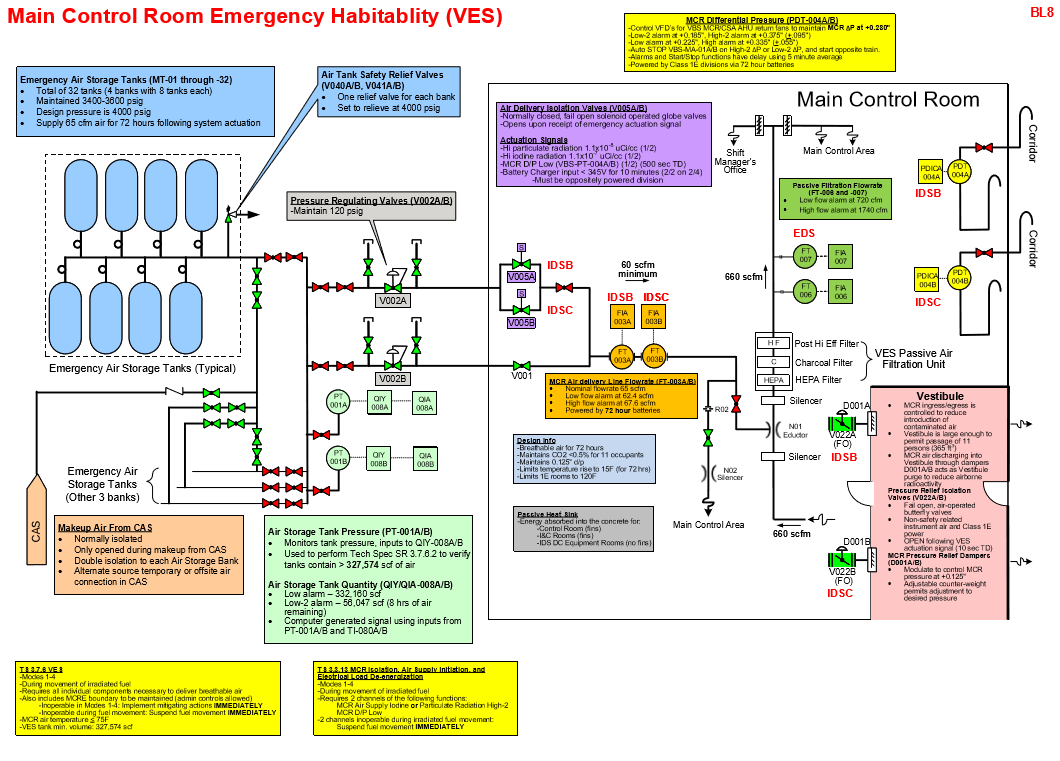

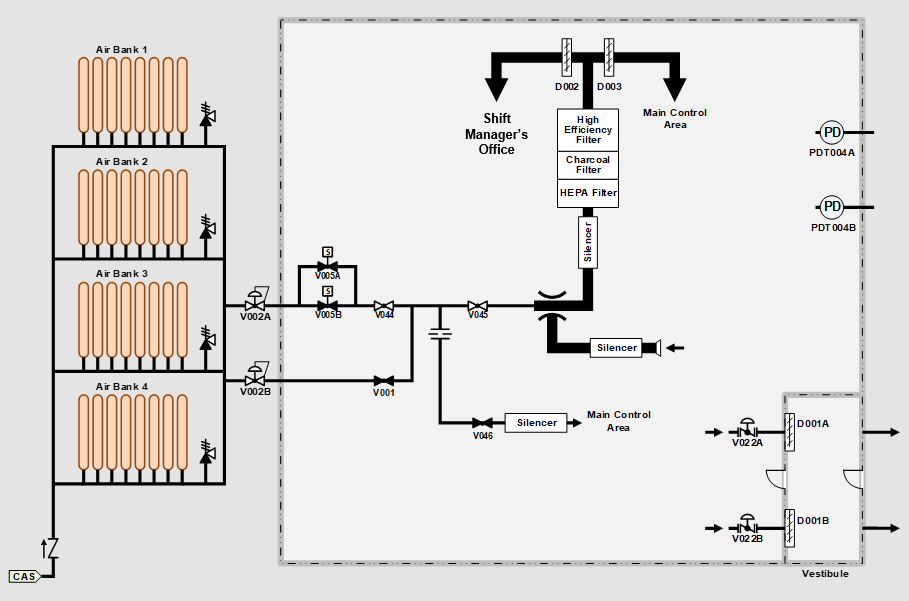

Simplified Diagram

knowt flashcard image
2
New cards

VES Big Note

knowt flashcard image
3
New cards

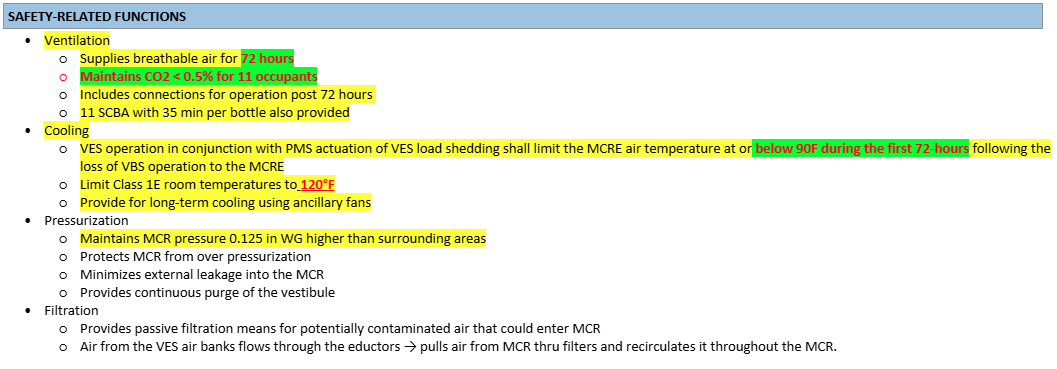

Design Ratings

72hrs

<0.5% CO2 for 11 Occupants

Combined with Load shedding: maintain <90°F for first 72hrs

Maintain +0.125”WG

<p>72hrs</p><p>&lt;0.5% CO<sub>2</sub> for 11 Occupants</p><p>Combined with Load shedding: maintain &lt;90°F for first 72hrs</p><p>Maintain +0.125”WG</p>
4
New cards

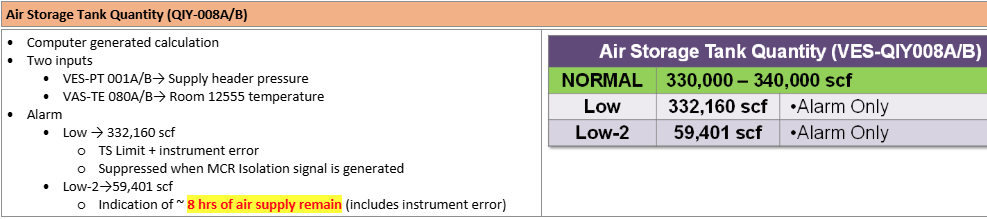

Air Banks

4 Banks, 8 tanks per bank

3,400-4,000psig

<p>4 Banks, 8 tanks per bank</p><p>3,400-4,000psig</p>
5
New cards

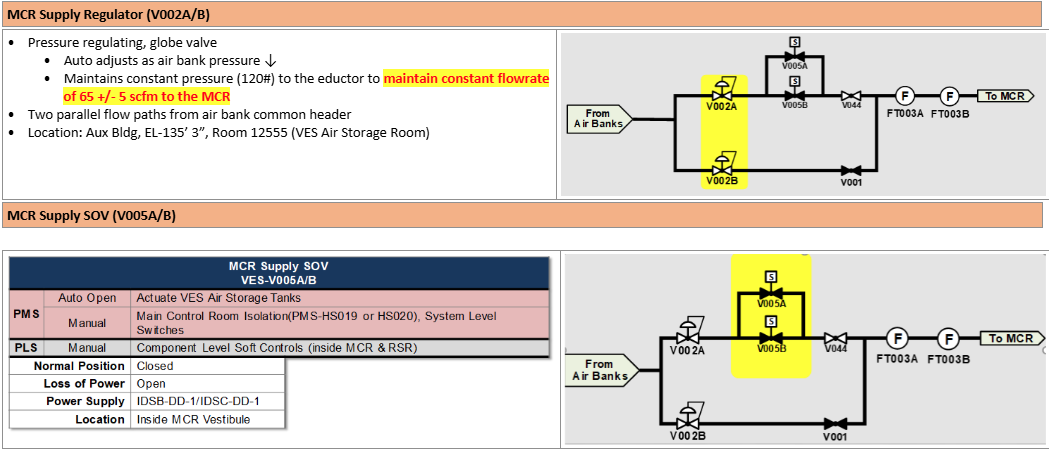

MCR Supply Regulator (V002A/B)

MCR Supply SOV (V005A/B)

knowt flashcard image
6
New cards

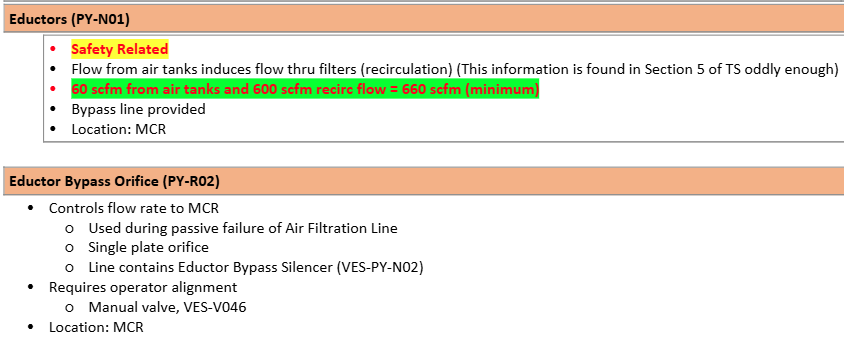

Eductors (Py-N01)

Eductor Bypass Orifice (PY-R02)

knowt flashcard image
7
New cards

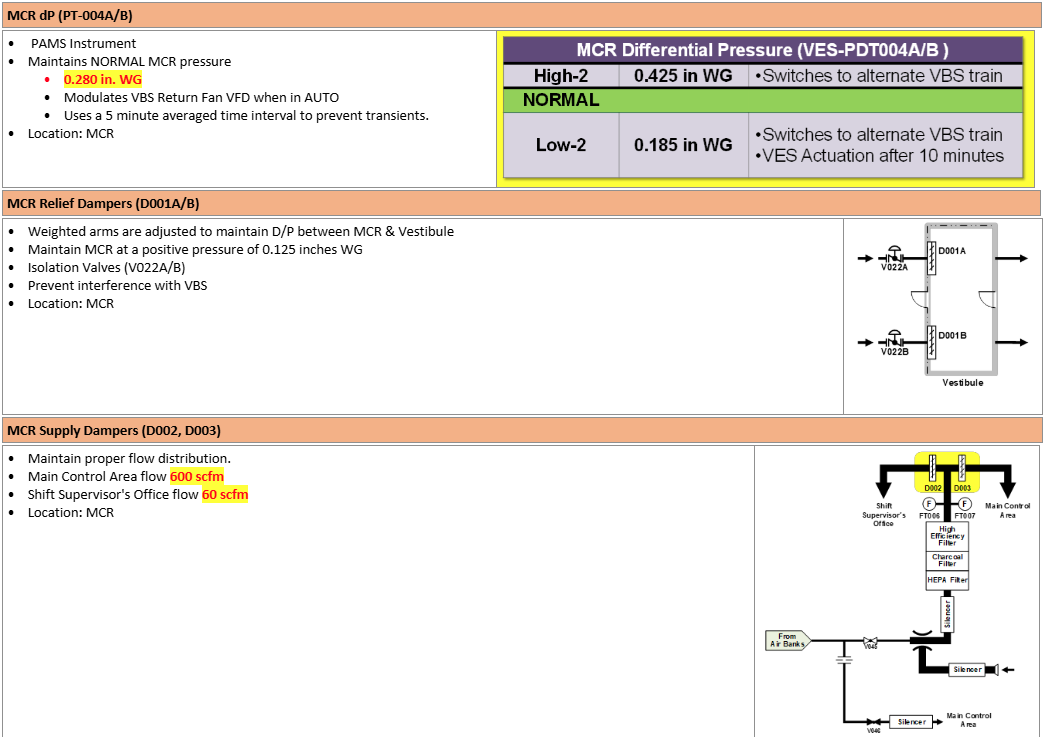

MCR Differential Pressure (PT-004A/B)

knowt flashcard image
8
New cards

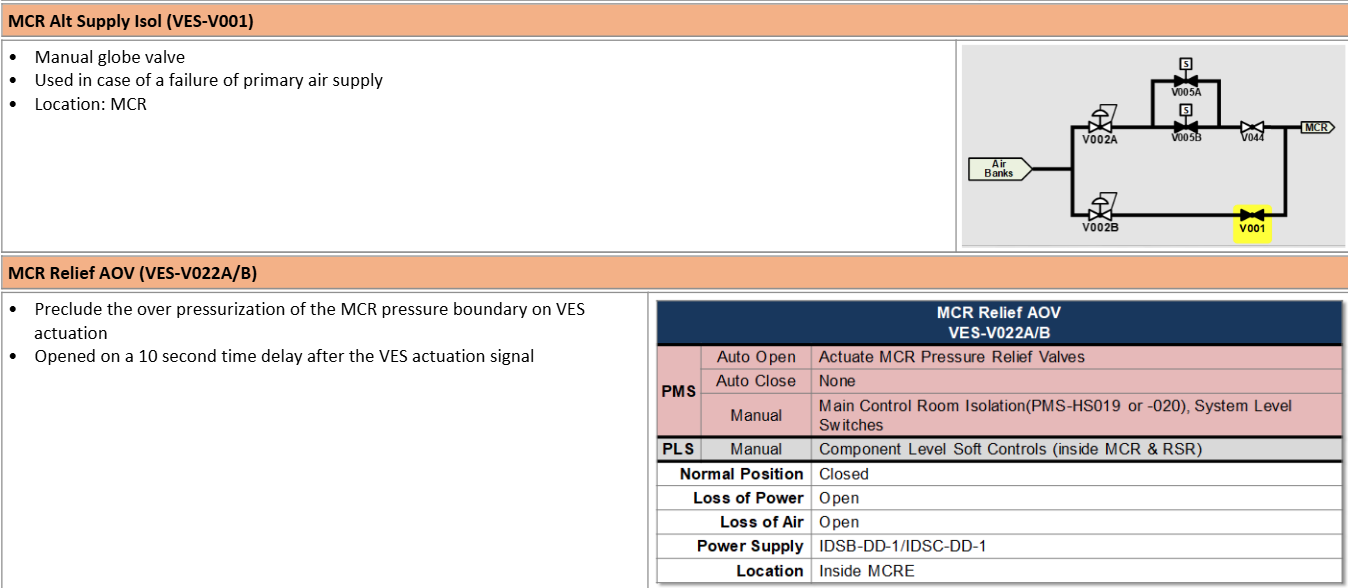

MCR Alternat Supply Isolation (VES-V001)

MCR Relief AOV (VES-V022A/B)

knowt flashcard image
9
New cards

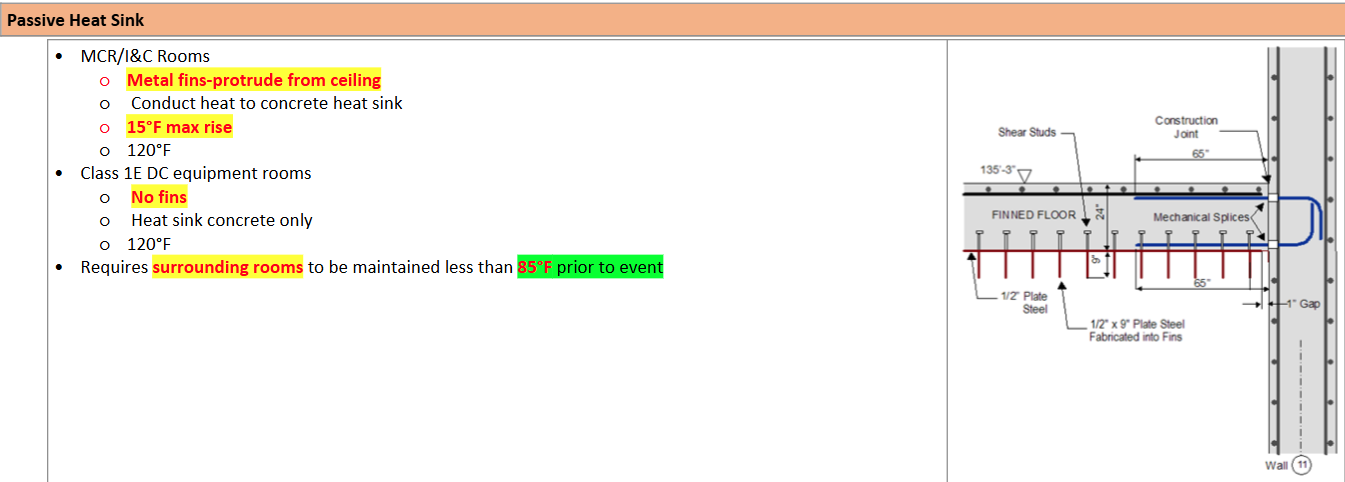

Passive Heat Sink and Design Temperature Assumption

knowt flashcard image
10
New cards

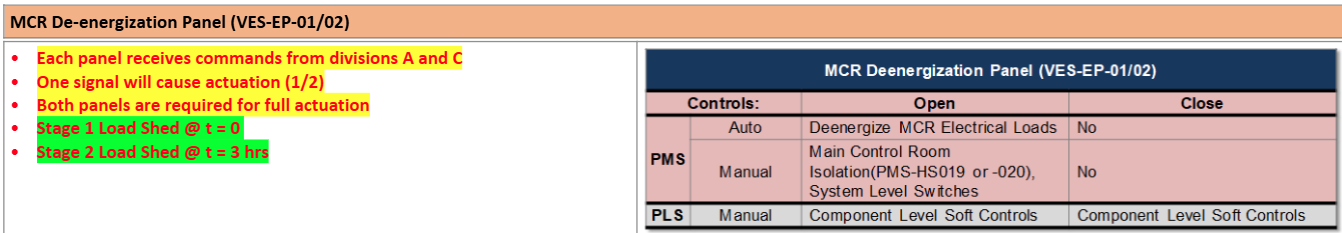

MCR De-energization

knowt flashcard image
11
New cards

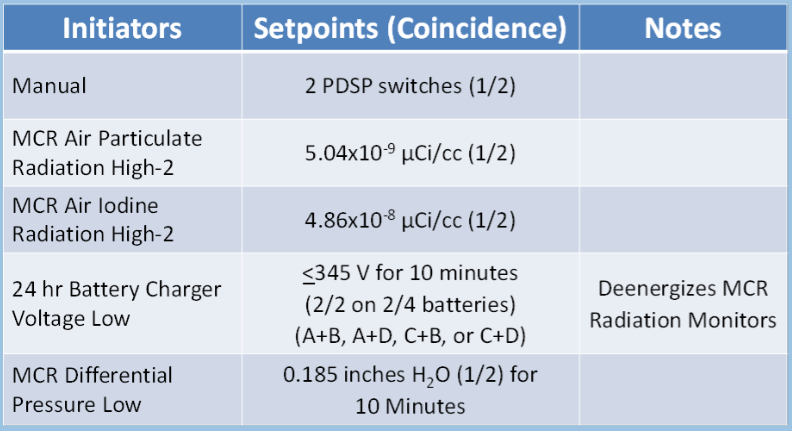

MCR Isolation and Air Supply Initiation

knowt flashcard image
