Memory, Pointers, Records

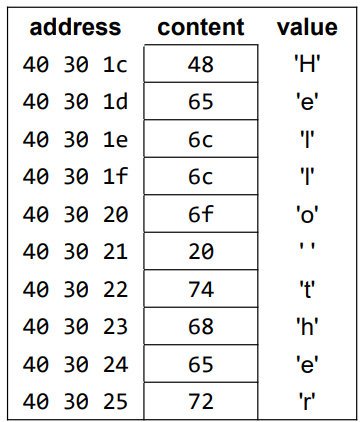

Byte Addressable Memory

Computer memory is usually byte addressable

That is to say memory can be thought of as an array of bytes, and each memory “cell” has a unique address

You can think of this as a character array, where the address is the index of the element (memory cell)

Words

• size can differ from machine to machine

• we are assuming a word is 32 bits (4 bytes) long

• integer values are usually word size

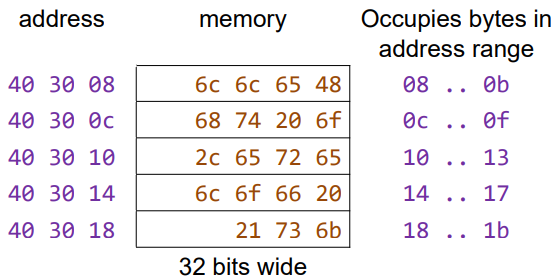

Memory in terms of Words

Here we are looking at memory in terms of “words” (or 32-bit values, which occupy 4 bytes)

The addresses go up in steps of 4

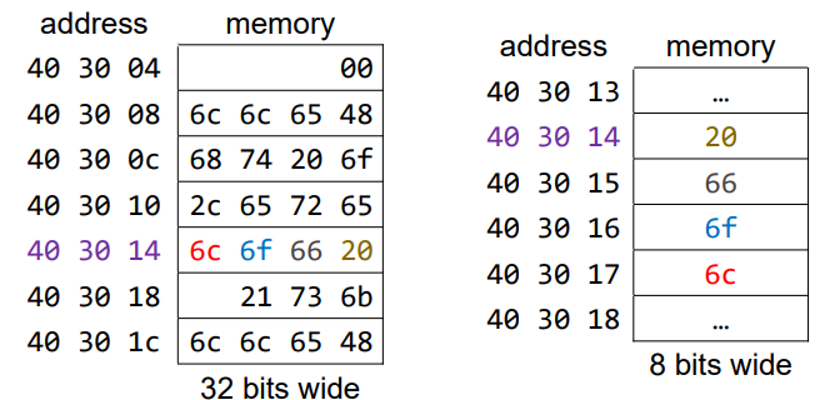

Words Mapping to Bytes

This is little-endian format – least significant byte stored at first memory address

Variables

three aspects:

• a symbolic name

• a value it contains

• an address where it resides in memory

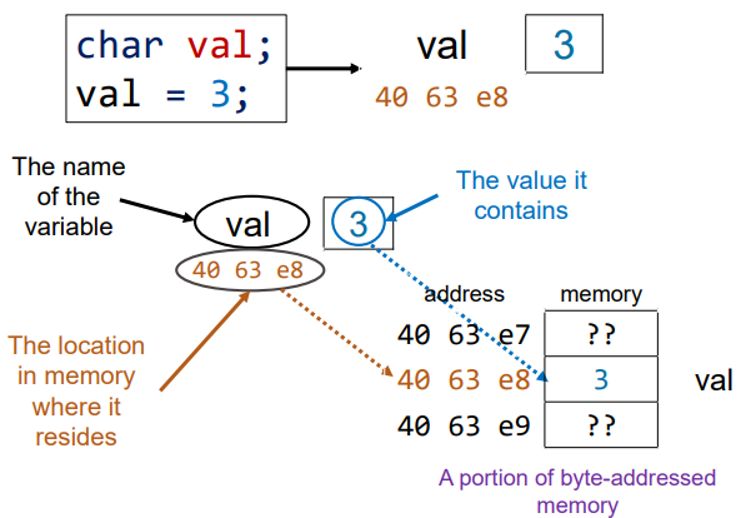

Variable in Memory

Assignment Statements

val = val + 2;

The way we interpret the variable “val” is different depending on which side of the assignment statement it appears

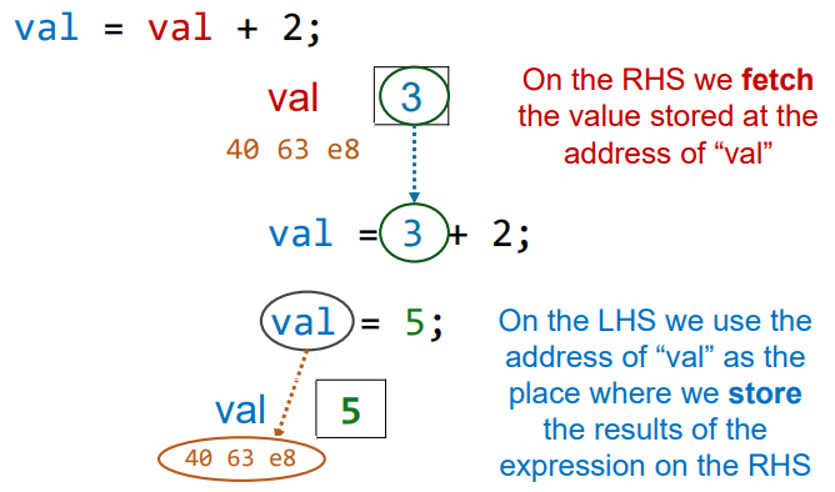

Fetch and Store

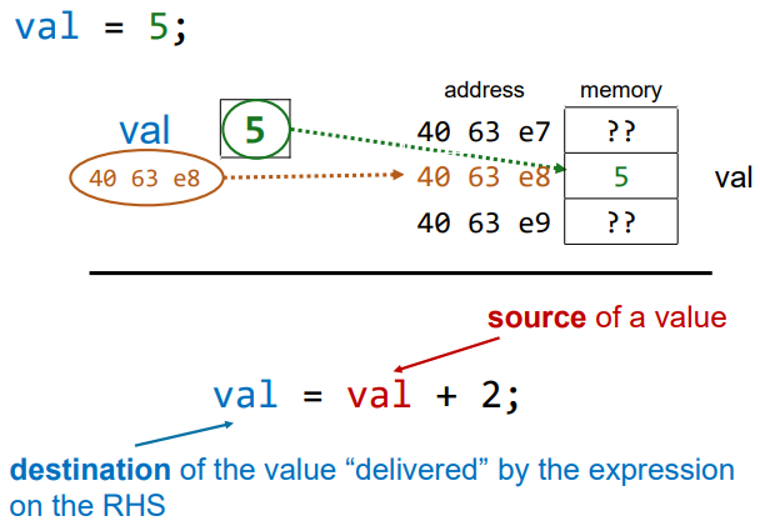

Source and Destination

Pointers

let programmers pass memory addresses to the objects as values

char val;
char* addr;

val = 3;
addr = &val;
printf("val = %d, addr = %x\n", val, addr);
*addr = *addr + 2;
printf("val = %d, addr = %x\n", val, addr);

/* val = 3, addr = 4063e8
*  val = 5, addr = 4063e8
*/

&

returns the address of its operand

*

returns the value stored at the address contained within its operand

used to indicate that a variable is a pointer

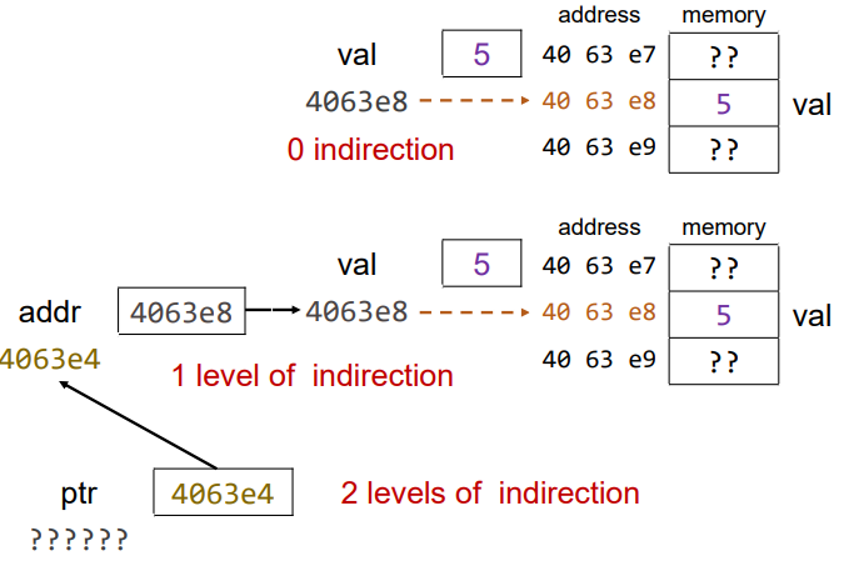

Levels of Indirection

Notation

int* x;
int *x;
int * x;

• All of the above are equivalent (C ignores the whitespace)

• Can be read as “x is a pointer to an int”

Records

•  A compound item

• Unlike an array (which is homogeneous), it is heterogeneous – i.e., components of various types:

  • components are called fields

  • each field is identified using a name (not an index)

• Holds various different properties of a single entity

Defining Records in C

#define MAXSIZE 20

//type define a structure named Student
typedef struct student {
	char name[MAXSIZE];
	int age;
	char gender;
	int entryYear;
	char subject[MAXSIZE];
	char maritalStatus;
} Student; //name of the type

Allocating Space for a Record

Student* newStudent()
//allocates space for a new Student record
//returns pointer to allocated space
{
	Student* pt = malloc(sizeof(Student));
	return pt;
}

creates the space for a new Student record, and returns a pointer to that space

malloc and sizeof Functions

dynamically allocates memory from an area within your program’s space called the heap

Student* pt = malloc(sizeof(Student));

use sizeof function to tell us how many bytes a Student record occupies

use malloc to actually allocate the space we require, returning the base address of the area of memory allocated

The Arrow (->) Operator

selects an attribute or field of the record

Student* stu = newStudent();
strcpy(stu->name, "James T. Kirk");
stu->age = 19; //(*stu).age = 19
stu->gender = 'M';
stu->entryYear = 2252;
strcpy(stu->subject, "Space Command");
stu->maritalStatus = 'm';

The Dot (.) Operator

used to access fields when a variable is declared directly

Student stu2;
strcpy(stu2.name, "Nyota Uhura");
stu2.age = 18;
stu2.gender = 'F';
stu2.entryYear = 2257;
strcpy(stu2.subject, "Communications");
stu2.maritalStatus = 's';
