Climate graphs Bis 2b

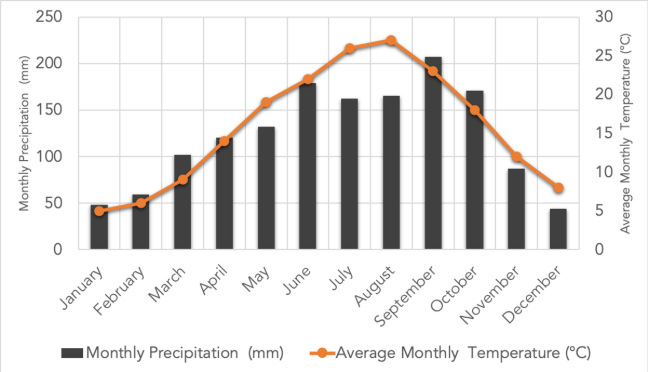

Temperate deciduous forest

medium precip (higher than grassland but not as high as

rainforest) with little/no seasonality; medium temp with seasonality

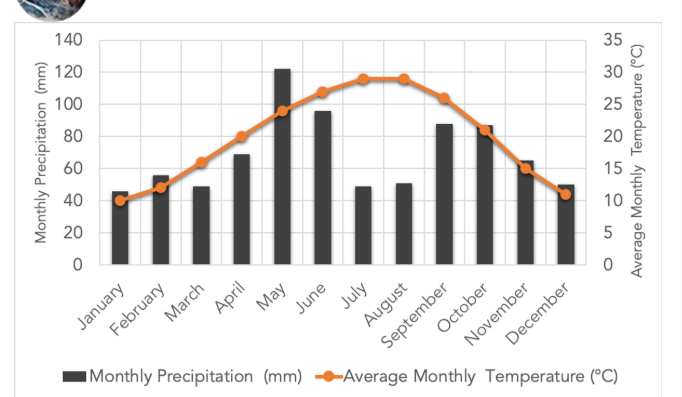

Grasslands

high seasonality in temp and precip; wet season is during the warm season

Tropical rainforest

high precip with little/no seasonality, high temp with no seasonality

Temperate grassland/cold desert

high seasonality in temp and precip; wet season is during the warm season

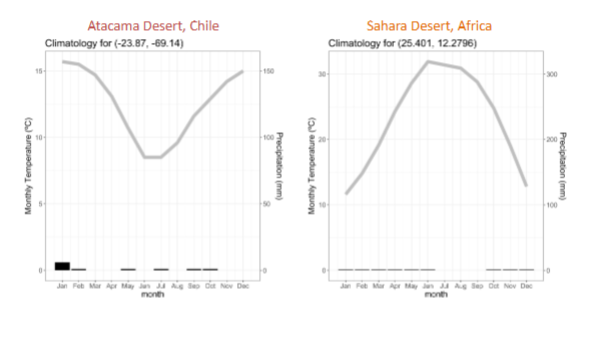

Desert

extremely low precip with little/no seasonality, high temp with high seasonality

(note: while cold deserts do exist, I will not use them in these climatographs as they are extremely difficult to differentiate from other cold dry systems solely by climatograph)

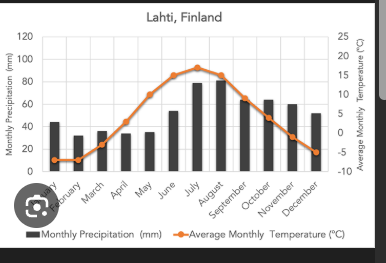

Boreal forest

low precip with some seasonality; generally low temperatures (~6 months

below 0 C) and high seasonality in temp

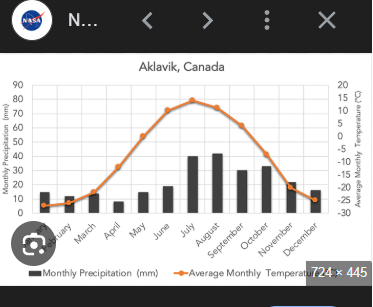

Tundra

low precip with some seasonality; very low temperatures (~9 months below 0 C)

and high seasonality in temp

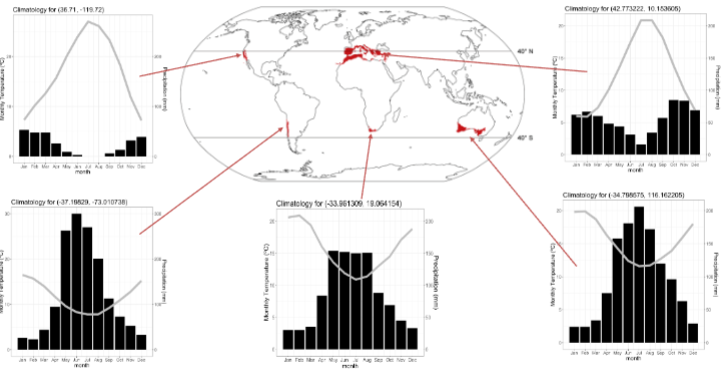

Mediterranean

High seasonality in temp and precip; wet season is during cold season

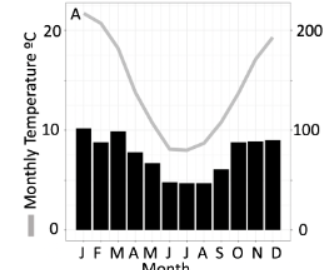

Grasslands South hemisphere

Tropical rainforest-equatorial

Desert-Northern Hemisphere

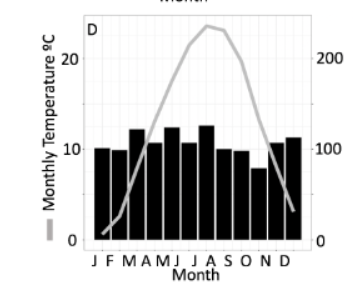

Temperate deciduous forest-Northern hemisphere

Desert-Southern Hemisphere

Mediterranean -Northern Hemisphere

Grassland; Northen Hemisphere

Mediterranean, Northern Hemisphere

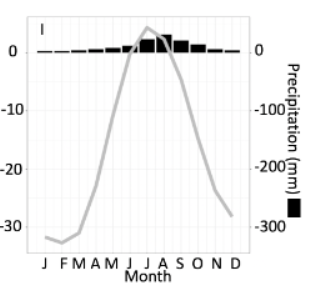

Tundra; Northern Hemisphere

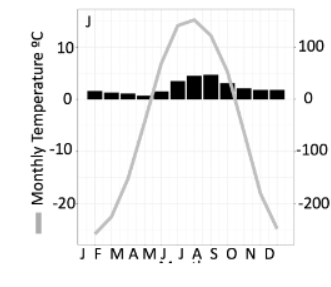

Boreal Forest; Northern Hemisphere

Tropical rainforest; Equatorial

Mediterranean; Southern Hemisphere
