CT Cross Sectional Anatomy

https://www.reddit.com/r/Radiology/comments/3mcbeb/websites_for_crosssectional_anatomy/

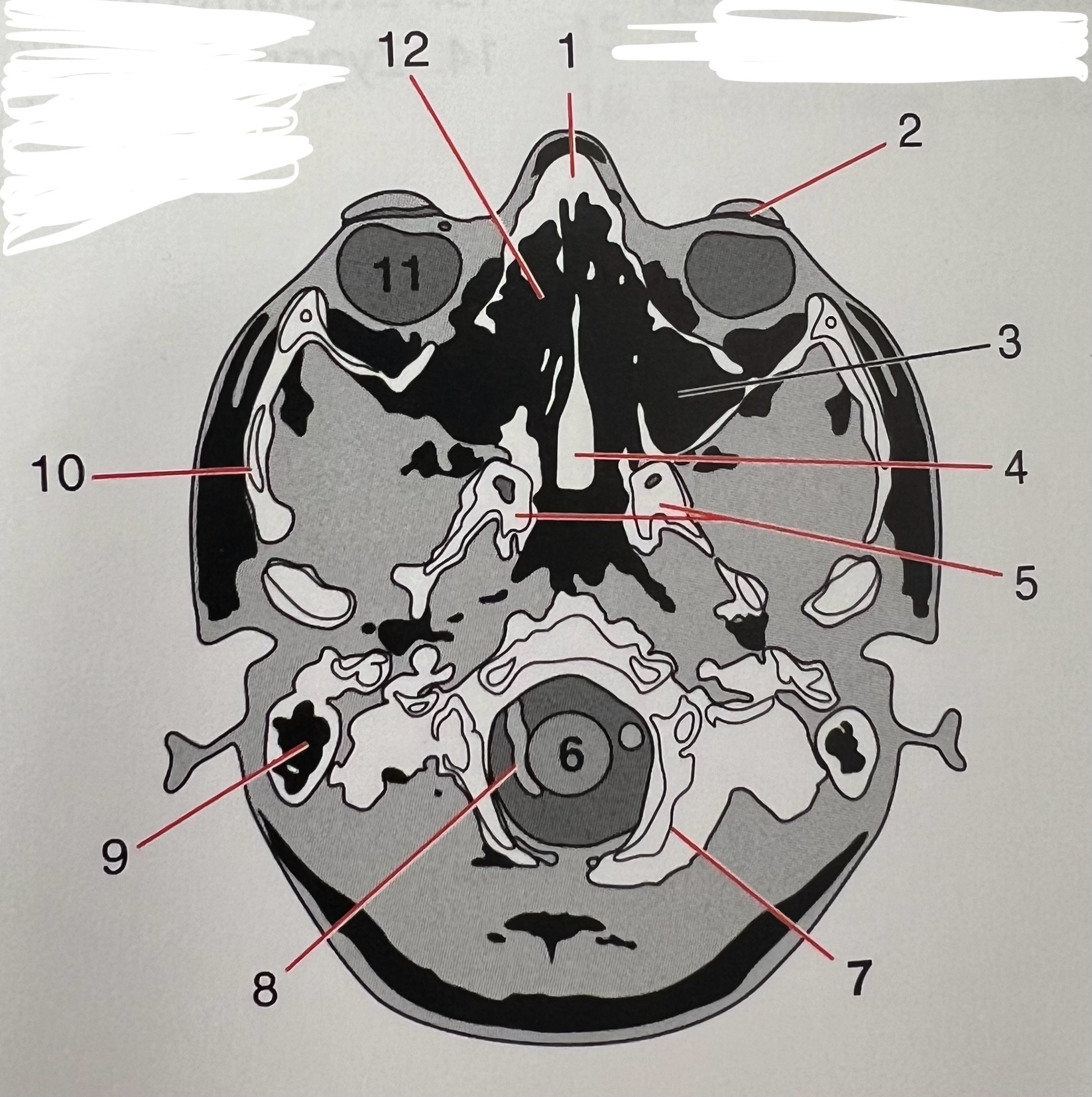

1

Nasal Bones

2

Eye, lens

3

Maxillary Sinus

4

Vomer

5

Sphenoid Bone

6

Medulla Oblongata

7

Occipital Bone

8

Vertebral Artery

9

Mastoid Air Cells

10

Zygoma

11

Eye, globe

12

Ethmoid Sinus

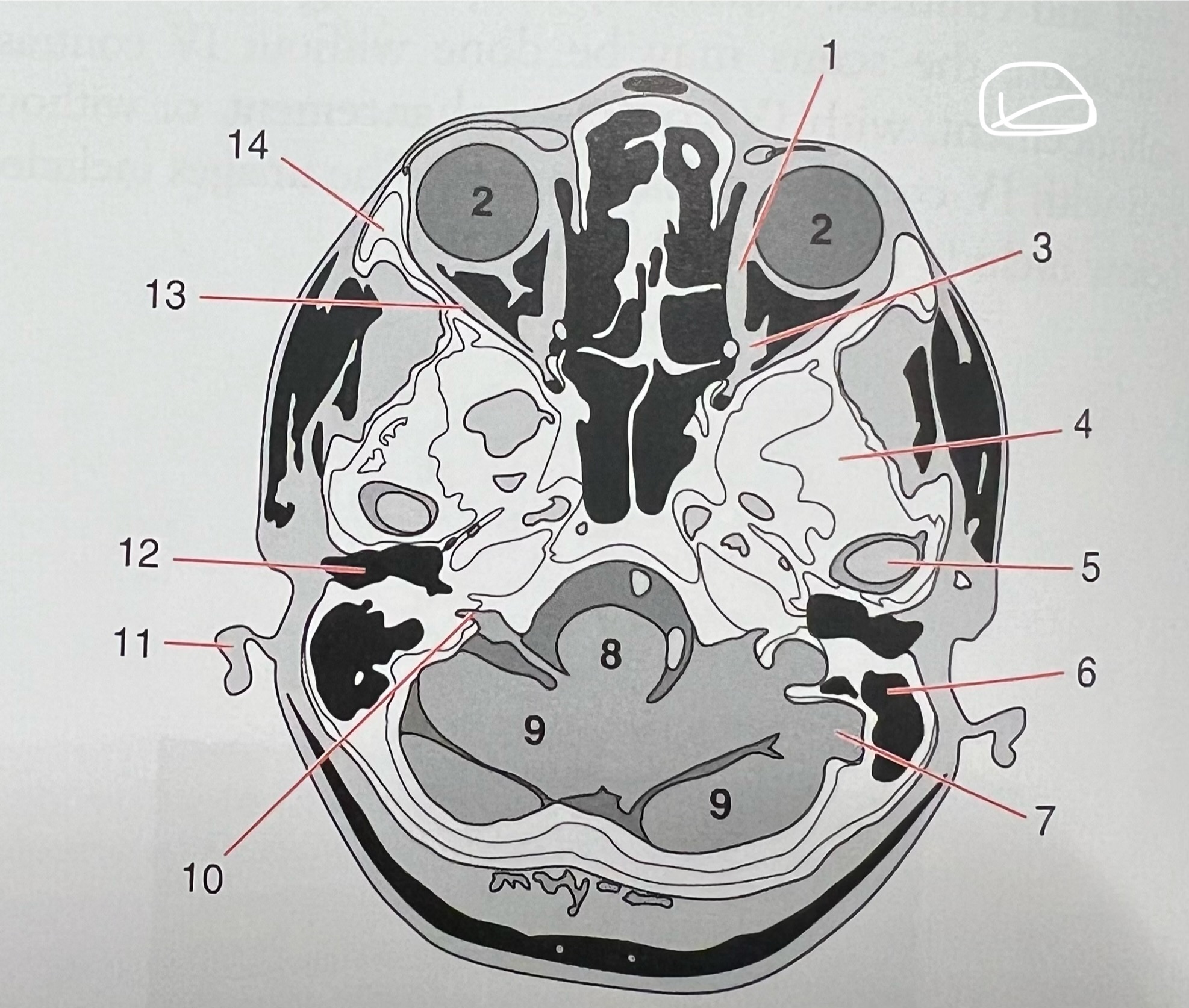

1

Medial Rectus m.

2

Globe of Eye

3

Optic nerve

4

Greater wing of Sphenoid bone

5

Mandibular condyle

6

Mastoid air cells (Left temporal bone)

7

Sigmoid sinus

8

Pons

9

Cerebellum

10

Internal Auditory canal

11

Auricle

12

External auditory meatus

13

Lateral rectus m.

14

Zygoma

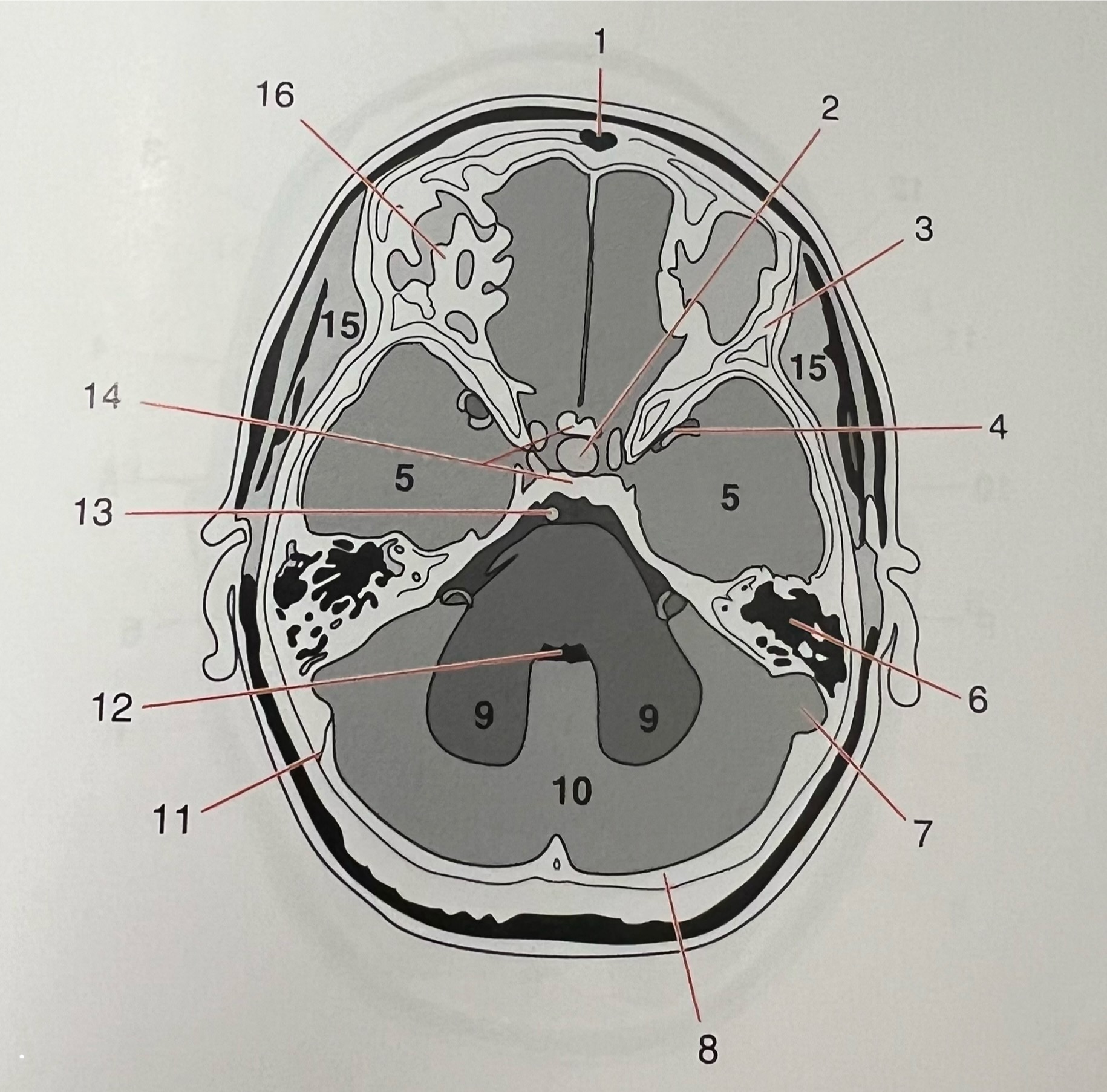

1

Frontal Sinus

2

Pituitary

3

Sphenoid bone

4

Middle cerebral a.

5

Temporal lobe

6

Mastoid air cells (Left temporal bone)

7

Sigmoid sinus

8

Occipital Bone

9

Cerebellar peduncles

10

Cerebellum

11

Right lambdoid suture

12

4th ventricle

13

Basilar a.

14

Sella turcica

15

Temporalis m.

16

Frontal bone, orbital roof

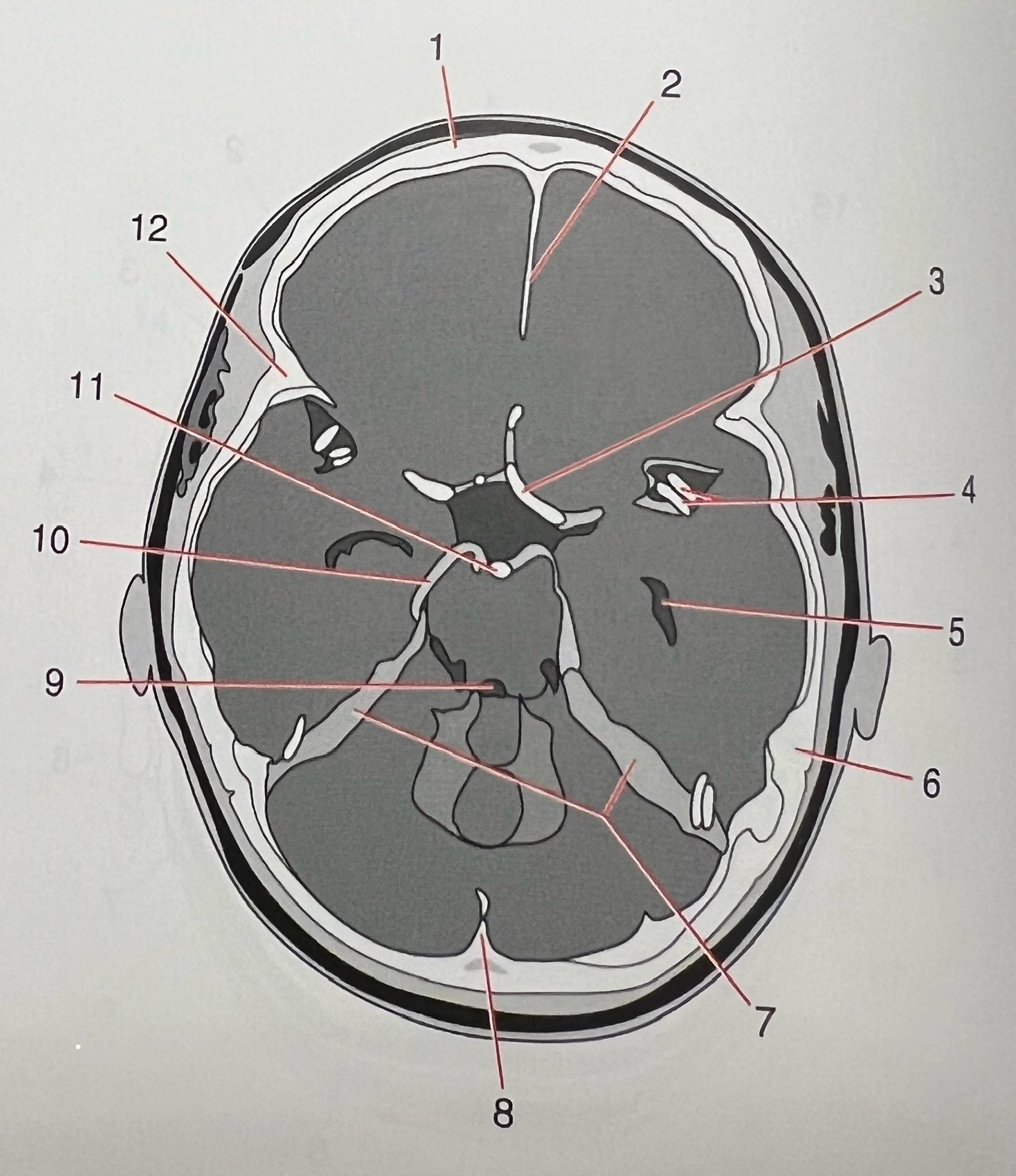

1

Frontal bone

2

Falx cerebri

3

anterior cerebral a.

4

middle cerebral a.

5

lateral ventricle, temporal horn

6

Parietal bone

7

cerebellum, tentorium

8

Internal occipital protuberance

9

4th ventricle

10

Posterior cerebral a.

11

Basilar a.

12

Temporal bone

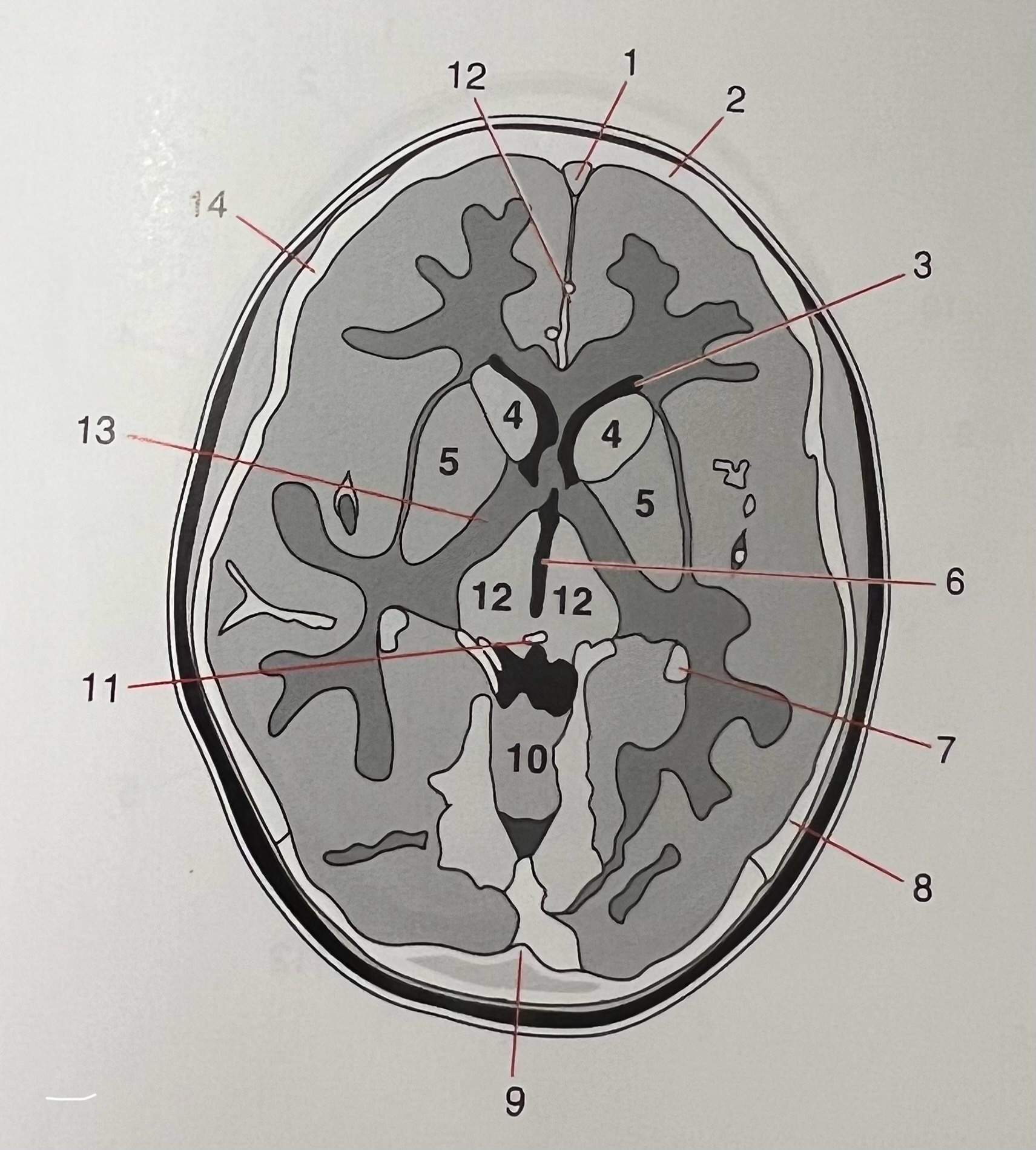

1

Superior sagittal sinus

2

frontal bone

3

lateral ventricle, anterior horn

4

Caudate nucleus, head

5

Putamen, globus pallidus

6

3rd ventricle

7

Choroid plexus

8

Parietal bone

9

Internal occipital protuberance

10

Cerebellar vermis

11

Pineal body

12

Thalamus

13

Internal capsule

14

Temporal bone

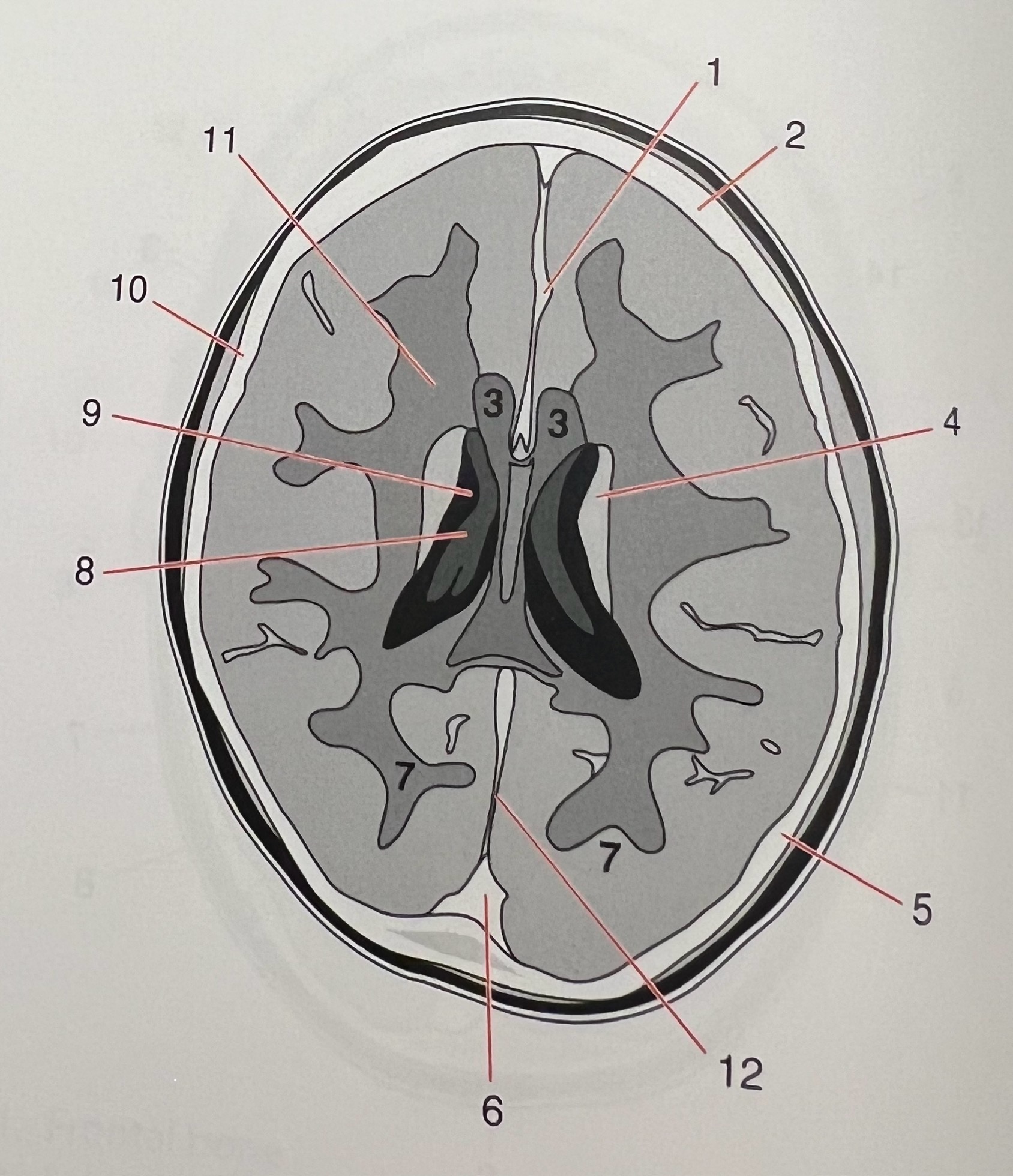

1

Falx cerebri

2

Frontal bone

3

Corpus callosum

4

Caudate nucleus

5

Parietal bone

6

Torcula

7

Occipital bone

8

Choroid plexus

9

Lateral ventricle body

10

Temporal bone

11

Corona radiata

12

Straight sinus

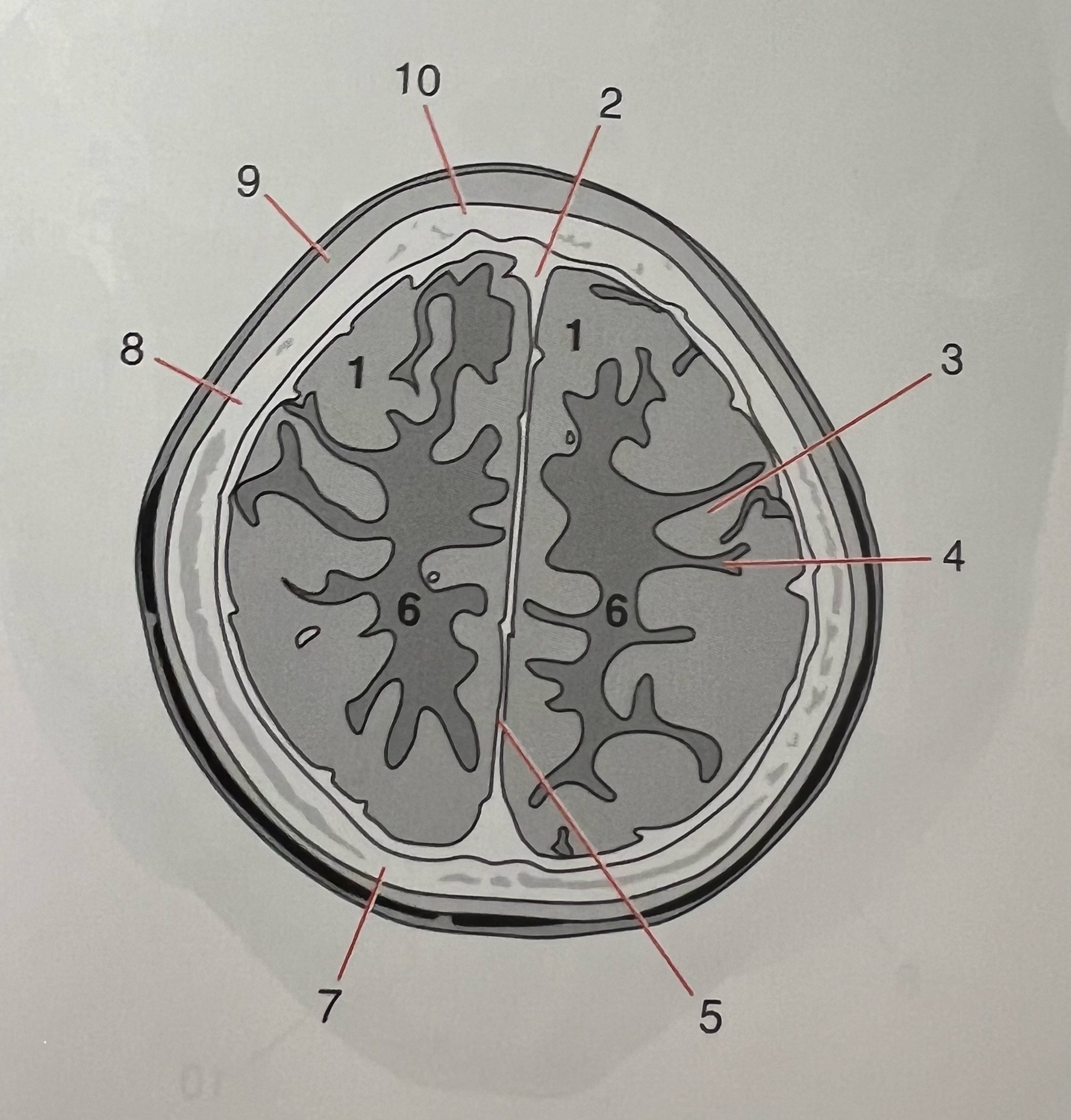

1

Frontal lobe

2

Superior sagittal sinus

3

Precentral gyrus

4

Central sulcus

5

Falx cerebri

6

Parietal lobe

7

Parietal bone

8

Temporal bone

9

Scalp

10

Frontal bone

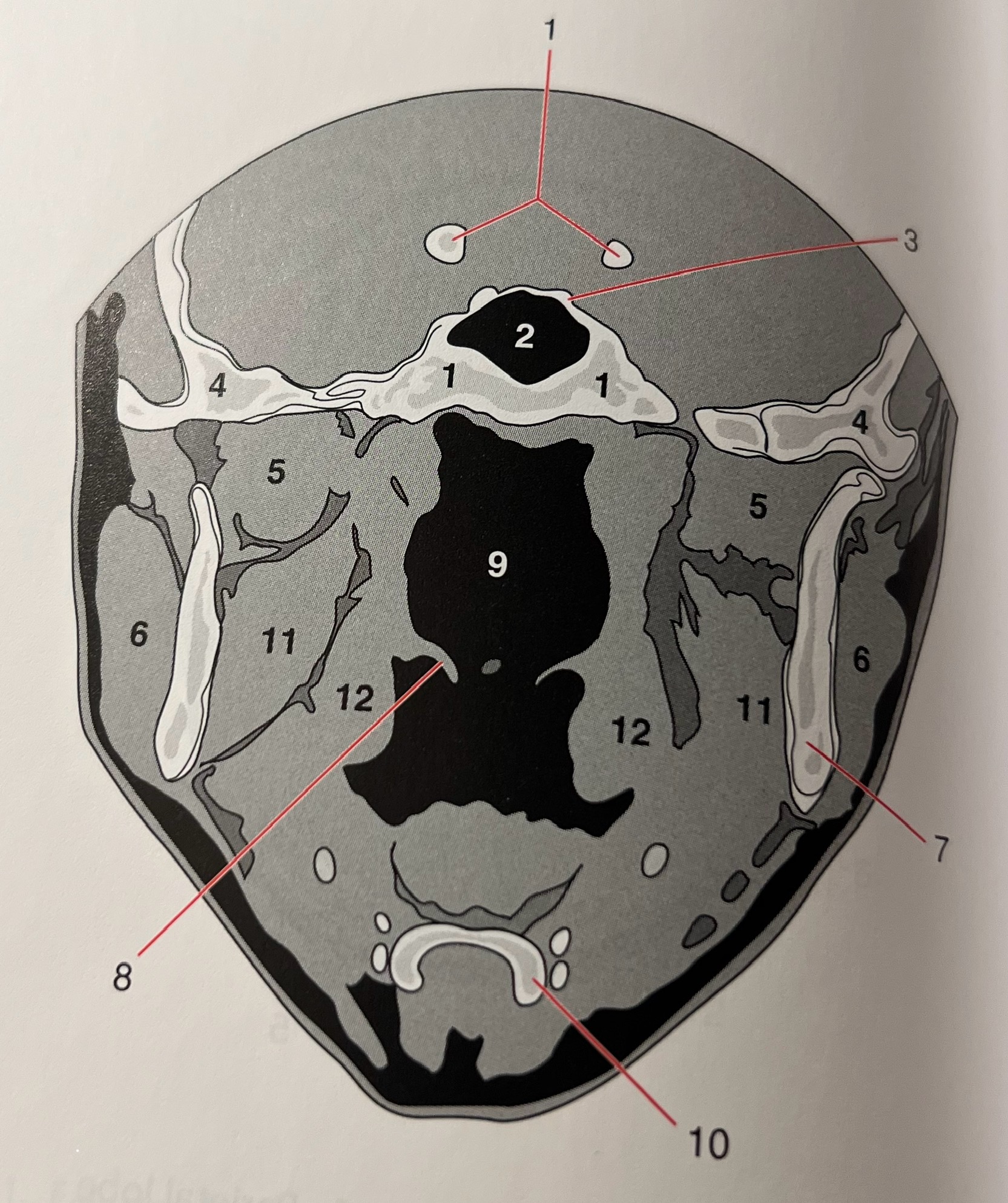

1

Sphenoid Bone

2

Sphenoid sinus

3

Sella turcica, floor

4

Zygoma

5

Medial pterygoid m.

6

Masseter m.

7

Mandible

8

Aryepiglottic fold

9

Pharynx

10

Hyoid bone
