Lab 12: Angiosperms (tissues, roots, stems)

1. cell name

2. specific example

1. Epidermis ell

2. Onion Epidermis

1. What is the tissue function

2. alive or dead

1. protection

2. alive

1. Name the part

cell wall

1. Name the part

cytoplasm

1. Name the part

nucleus

1. cell name

2. specific example

1. Parenchyma cell

2. banana

1. cell name

2. specific example

1. Parenchyma cell

2. banana

1. What is the tissue function

2. alive or dead

1. store food

2. alive

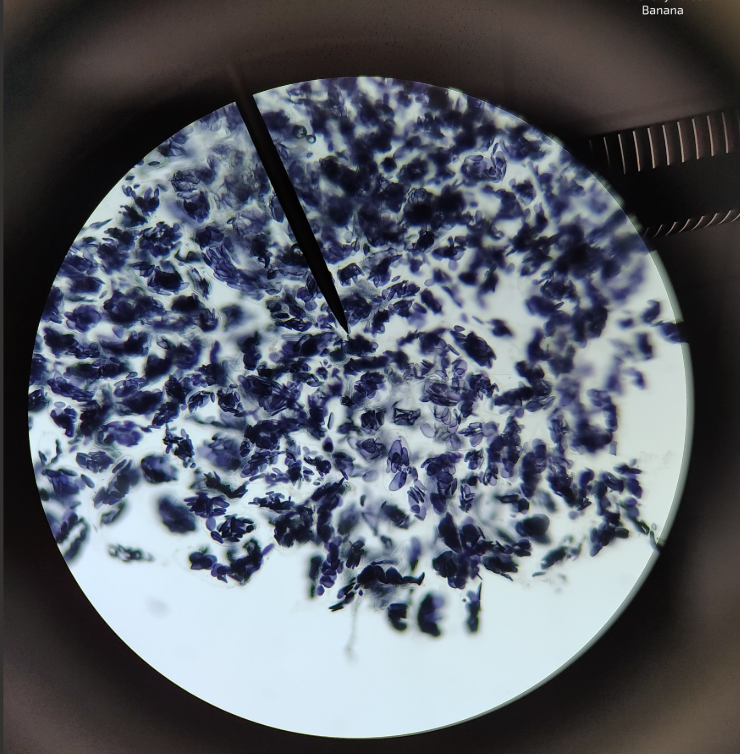

1. cell name

2. specific example

3. what are the dark spots

1. Parenchyma cell

2. banana

3. amyloplast (starch grain)

What is it testing for with iodine?

starch

1. cell name

2. specific example

3. what are the red spots

1. Parenchyma cell

2. Red Peeper

3. chromoplast

1. What is the tissue function

2. alive or dead

1. store food

2. alive

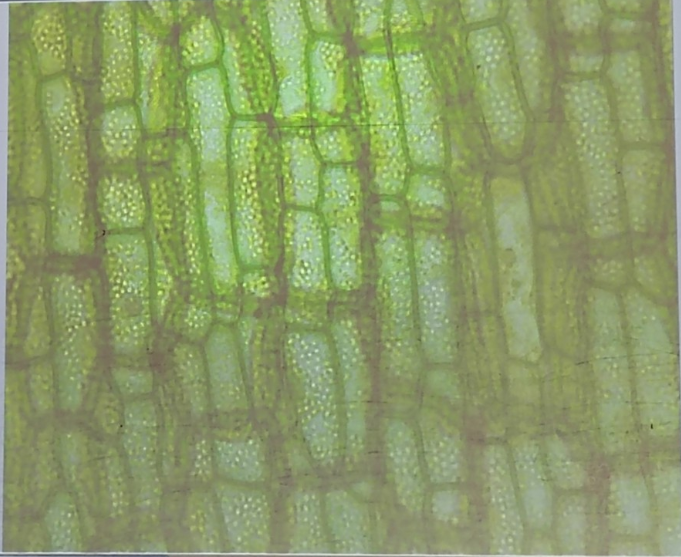

1. cell name

2. specific example

3. what are the green spots

1. Epidermis cell

2. Elodea

3. chloroplast

1. What is the tissue function

2. alive or dead

1. photosynthetic

2. alive

1. Cell name

parenchyma

1. tissue name

2. Alive or dead

3. cell name

4. function

1. Sclerenchyma

2. dead

3. Stone

4. structure

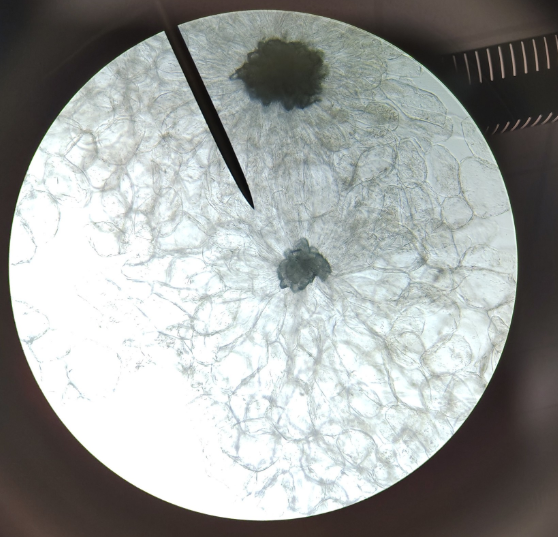

Cell name specific

Function

Pear

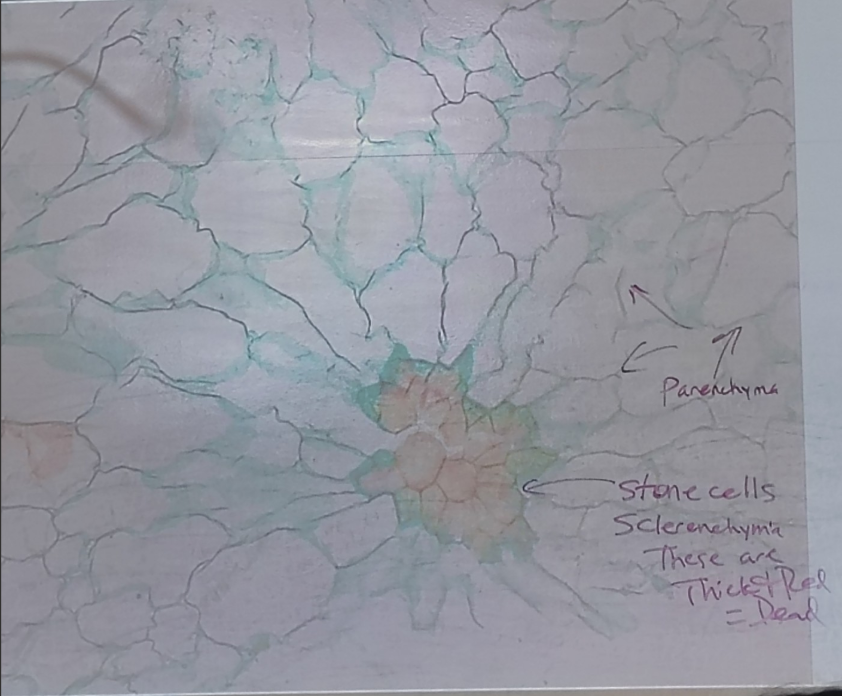

Example of parenchyma and sclerenchyma

If we should stain the per it would be red and stone cells sclerenchyma are

thick red dead

1. Tissue

2. Cell name

3. Specific Name

1. Sclerenchyma

2. Fiber cell

3. Acer rubrum

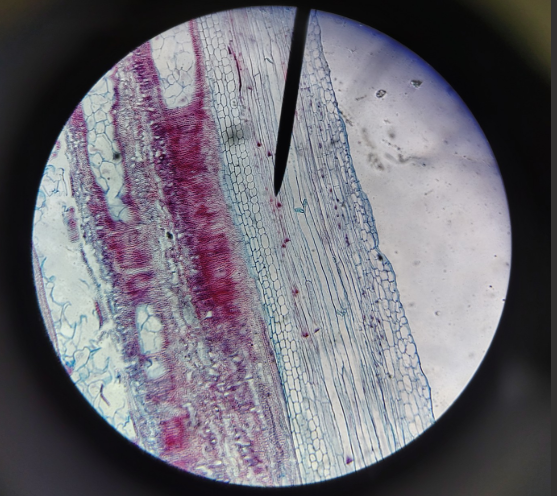

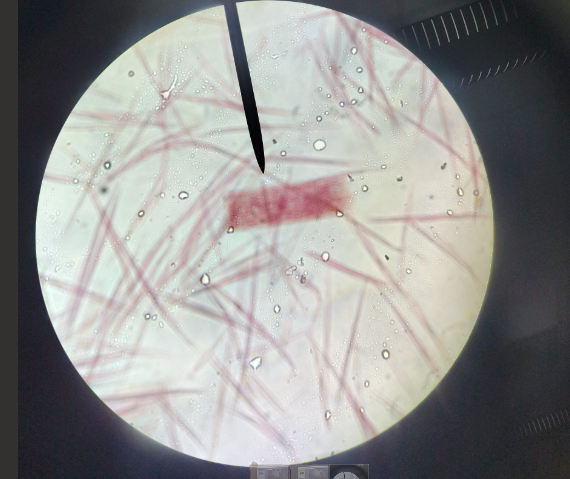

1. Alive or dead

2. function

1. Dead

2. structure

Questions about what its pointing at

1. Tissue

2. Cell name

3. Specific Name

1. Xylem

2. vessel

3. Acer rubrum

1. Alive or dead

2. function

1. dead

2. transport H2O (water)

1. Tissue

2. Cell name

3. Specific Name

1. Xylem

2. Tracheid cells

3. Pinus australis

What is it?

bordered pits

1. Alive or dead

2. function

1. dead

2. transport H2O (water)

1. Tissue

2. Cell name

3. Specific Name

1. Phloem

2. Sieve Tube membrane + companion cell

3. Cucurbita

1. Alive or dead

2. function

1. alive

2. transport food

what is it pointing at?

p-plugs

All plant tissues are

"vessel seed"; seeds, vascular, flowering

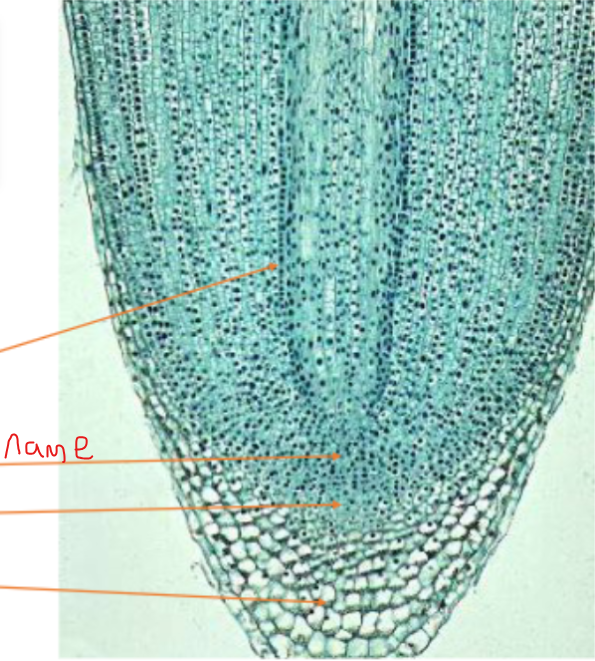

1. Name

Corn root tip

What is this called?

zone of elongation

What is this called?

zone of cell division

What is this called?

meristematic

What is this called?

root cap

1. Tissue

2. alive or dead

3. function

1. meristematic

2. alive

3. cell division

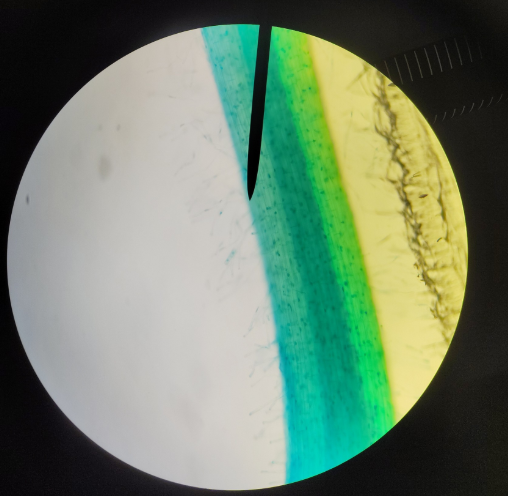

What are they?

root hairs

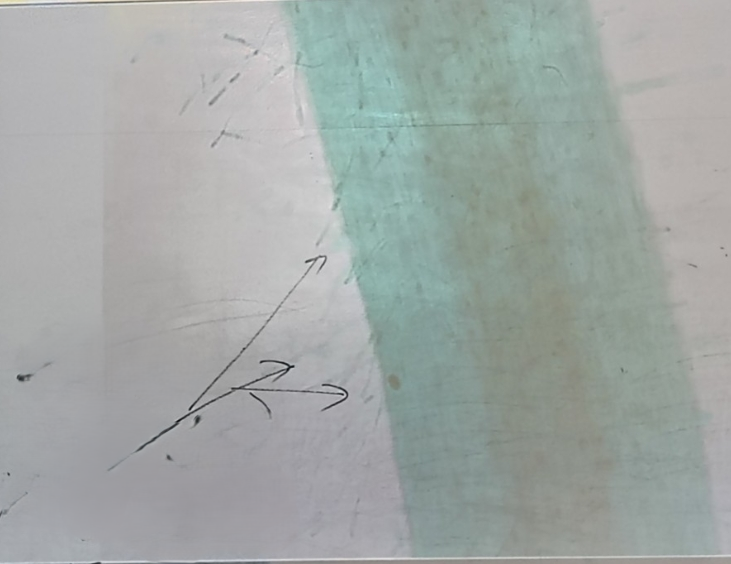

Pointing at

1. cell

2. specialized

3. zone of

1. root hairs

2. epidermis to absorb water

3. maturation

1. name root

2. dicot or monocot root

3. vascular or avascular

1. Ranunculus

2. dicot

3. vascular

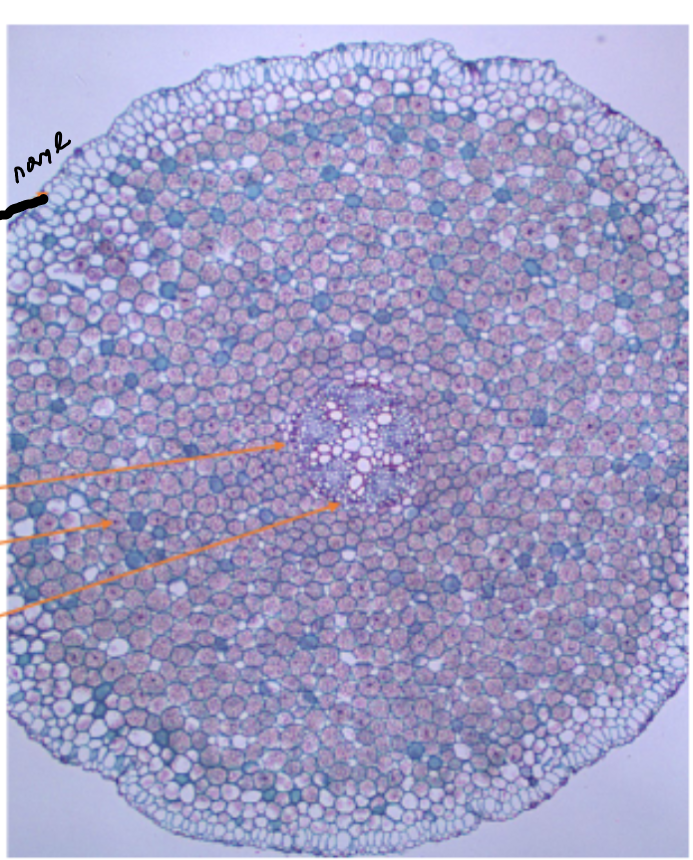

1. Name this part

Epidermis

1. Name this part

parenchyma

1. Name this part

endodermis

1. Name this part (big holes in X)

Xylem

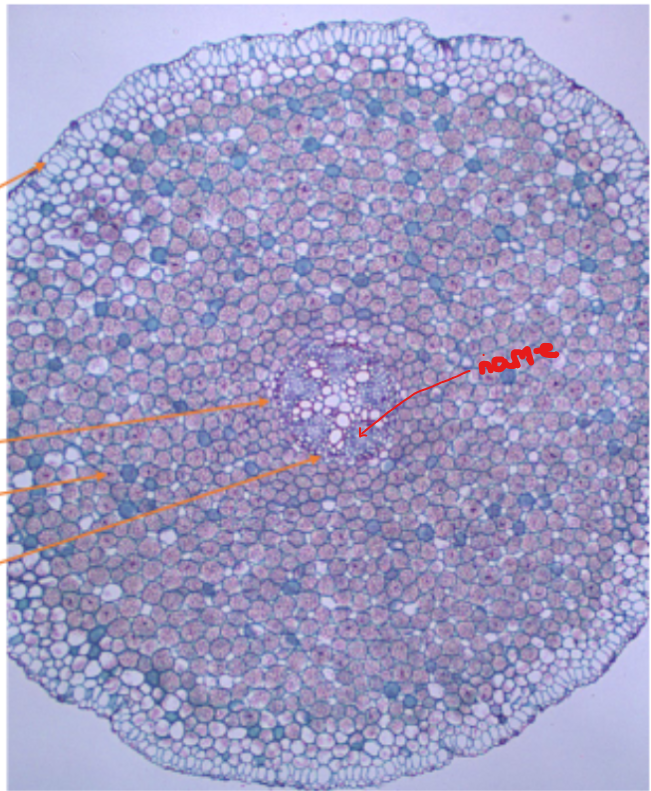

1. Name this part (small holes in X)

phloem

1. name root

2. dicot or monocot root

1. Smilax root

2. monocot

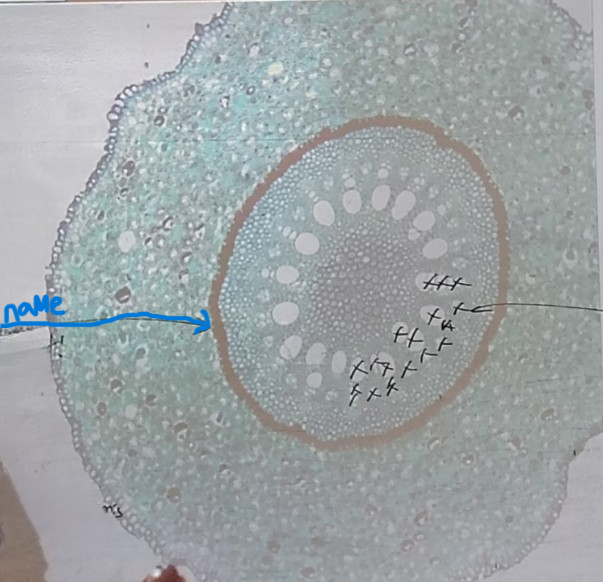

1. Name what its pointing at

endodermis

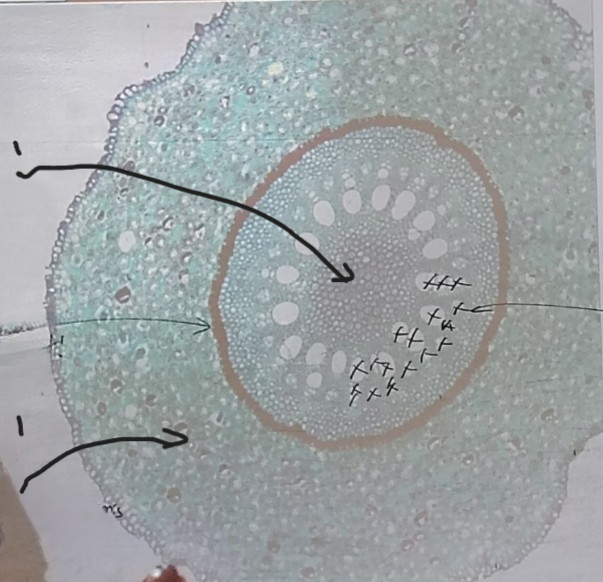

Name what the two arrows are pointing at

parenchyma

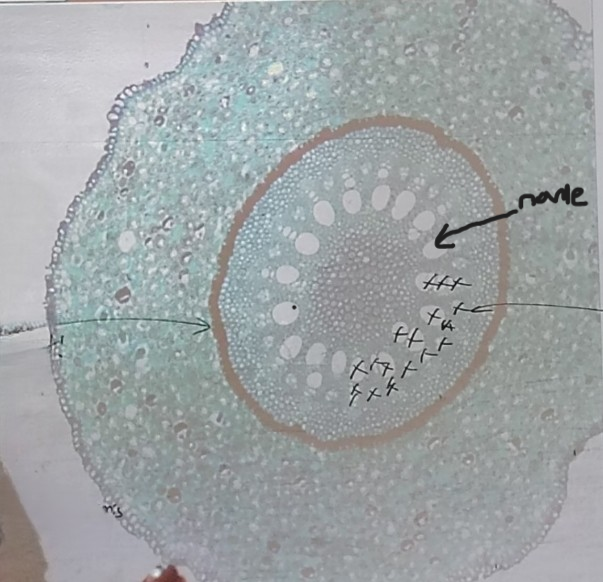

1. Name what the arrow is pointing at (big holes)

Xylem

1. Name what the arrow is pointing at (little holes)

Phloem

1. Name what the arrow is pointing at

epidermis

1. name

2. dicot or monocot root

1. Helianthus stem

2. dicot

1. Name 1

2. Name 2

1. epidermis

2. parenchyma

3. Name 5

4. Name 6

5. Phloem

6. Xylem

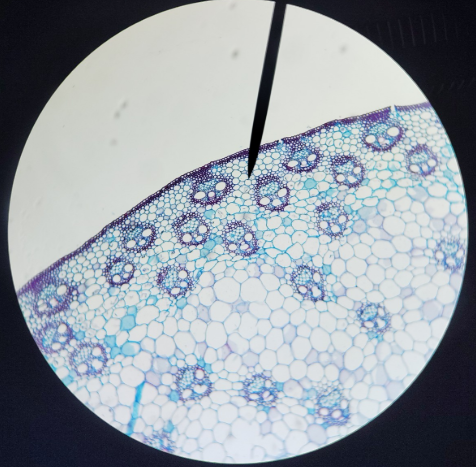

1. name

2. dicot or monocot stem

(Hint monkey faces)

1. Zea stem

2. monocot

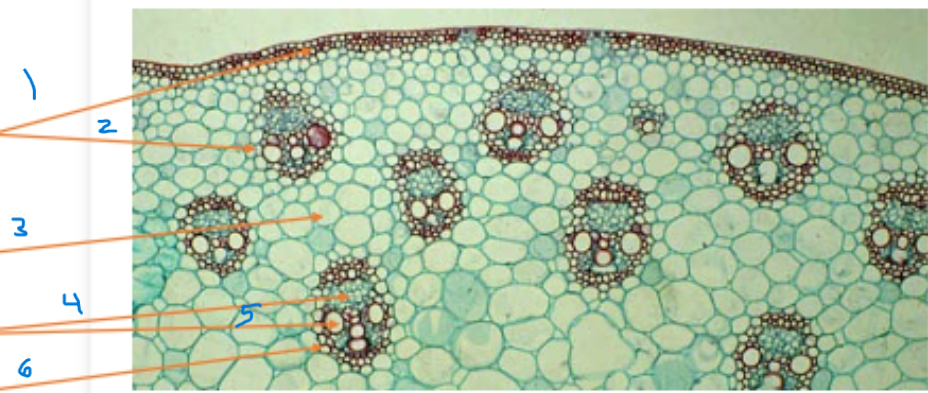

1. Name 1

2. name 3

1. epidermis

2. parenchyma

1. Name 4

2. name 5

1. Phloem

2. Xylem

1. Name 6

sclerenchyma frames

corm

Tuber

bulb

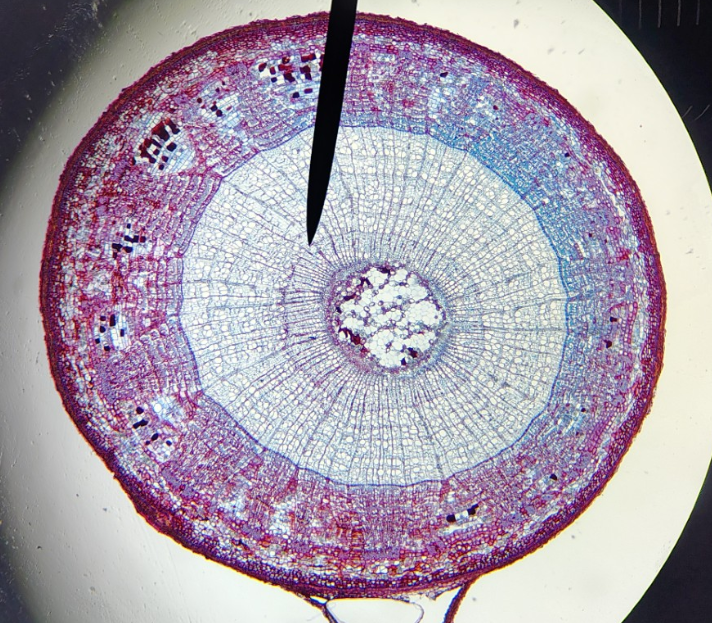

1. name

2. dicot or monocot stem

1. Tilia stem

2. Woody Dicot Stem

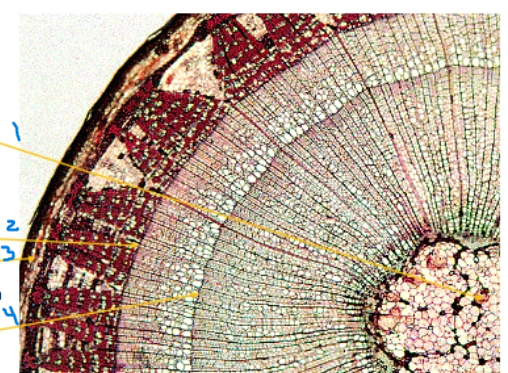

1. Name 1

2. Name 2

1. primary green core

2. vascular cambium

1. Name 3

2. Name 4

1. cork cambium

Name part

cork

Name part

cortex

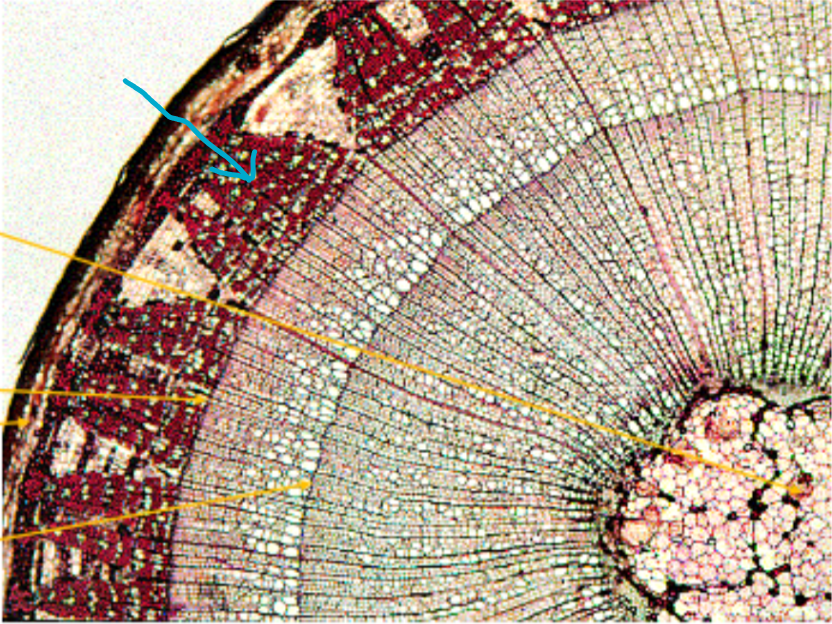

Name part

phloem

Name part

Xylem

All tissues, roots, stems are

“vessel seed”: seeds: vascular: flowering

Number 1

“heartwood” (not transportive)

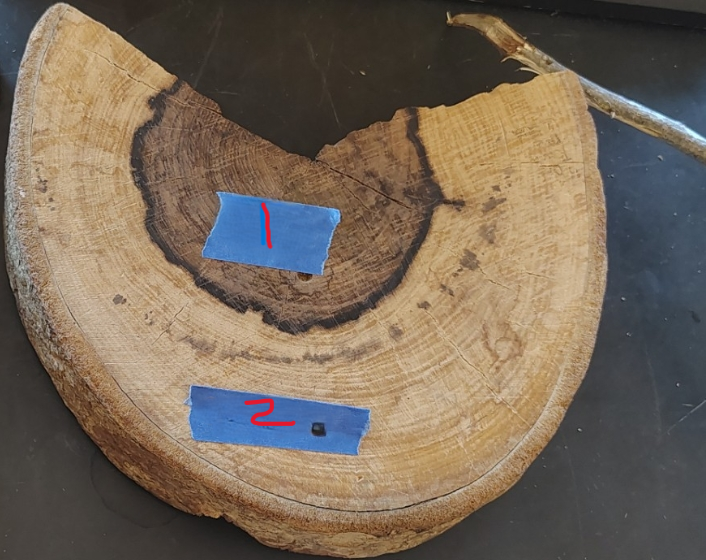

Name 2

“sapwood” (transportive)

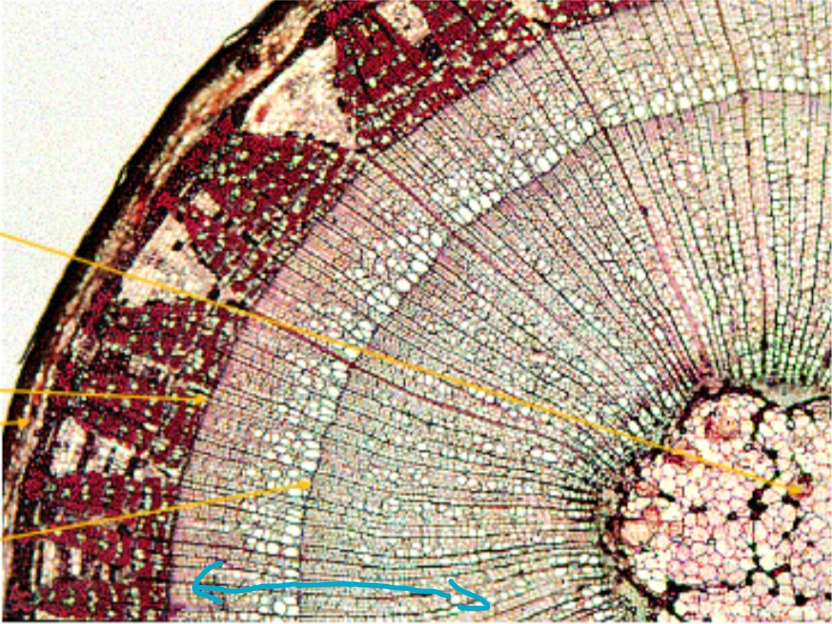

Name wood 1

Hint light rings

spring wood

Name wood 2

Hint dark rings

summer wood
