Lab Practical 2

Identify

Identify + describe the nerve

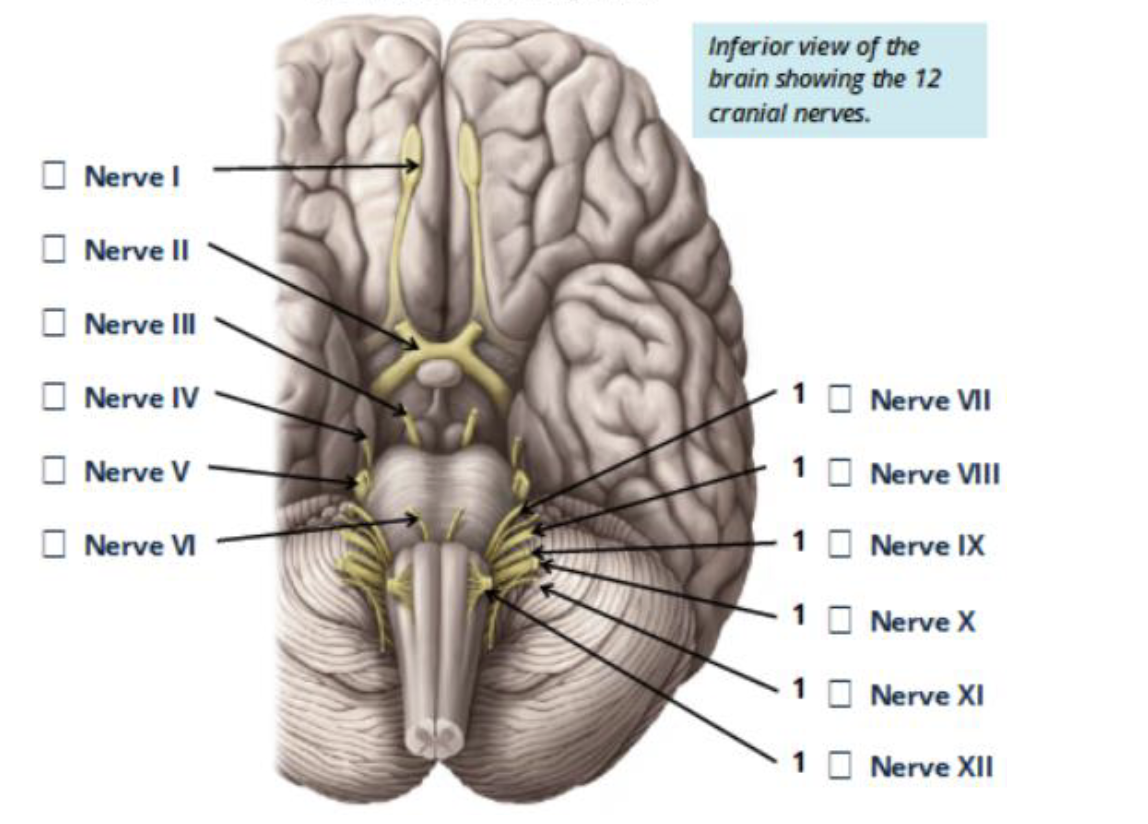

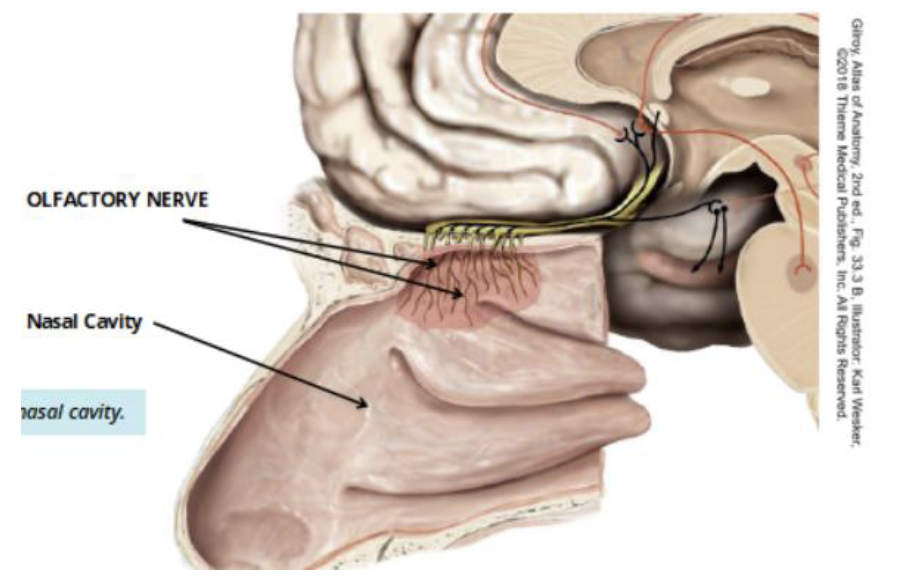

CN I: Olfactory Nerve

• sensory: smell

Identify + describe the nerve

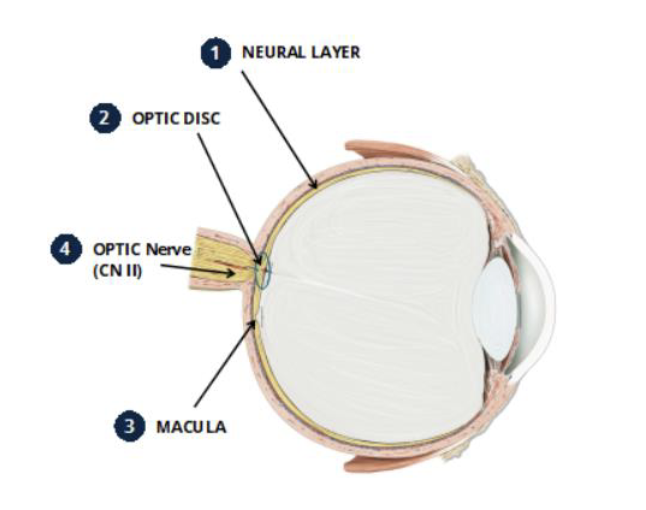

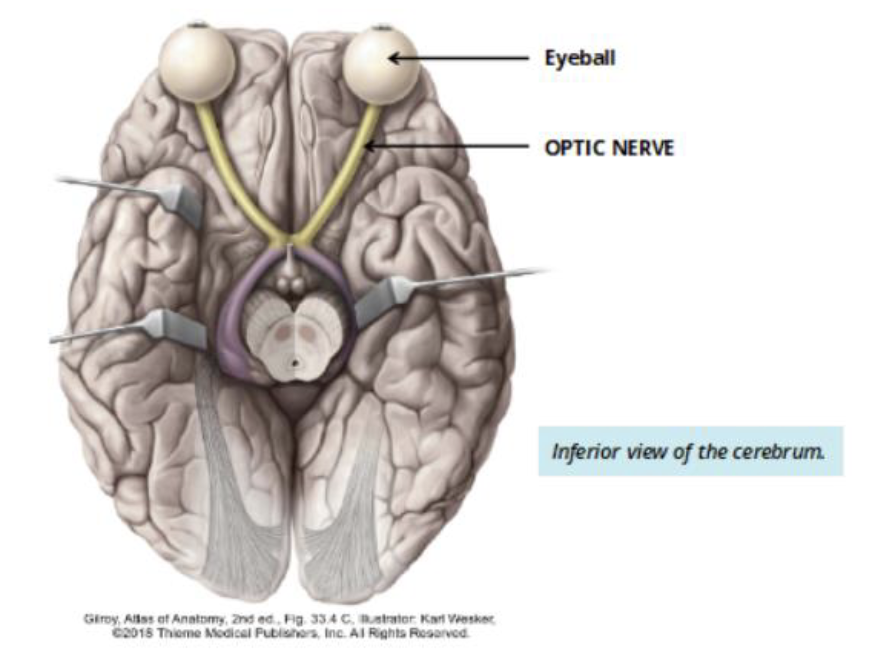

CN II: Optic nerve

• sensory: vision

Identify + describe the nerve

CN III: Oculomotor nerve

• motor: movement of eye

Identify + describe the nerve

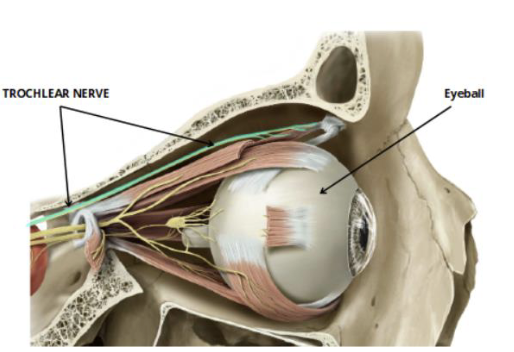

CN IV: trochlear

• motor: movement of eye

Identify + describe the nerve

CN V: Trigeminal nerve

• Sensory: forehead, eye, upper + lower jaw

• motor: muscles of mastication

Identify + describe the nerve

CN VI: Abducens Nerve

• motor: movement of they eye

Identify + describe the nerve

CN VII: Facial nerve

• sensory: taste anterior 2/3 tongue

• motor: muscles of facial expression, parasympathetic innervation of tear + salivary glands

Identify + describe the nerve

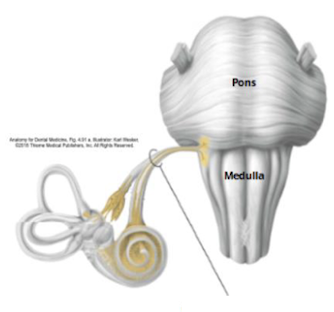

CN VIII: Vestibulocochlear nerve

• Sensory: Equilibrium and hearing

Identify + describe the nerve

CN IX: Glossopharyngeal nerve

• Sensory: sensory innervation of the pharynx, taste from posterior 1/3 tongue

• Motor: pharynx muscles, parasympathetic innervation of salivary glands

Identify + describe the nerve

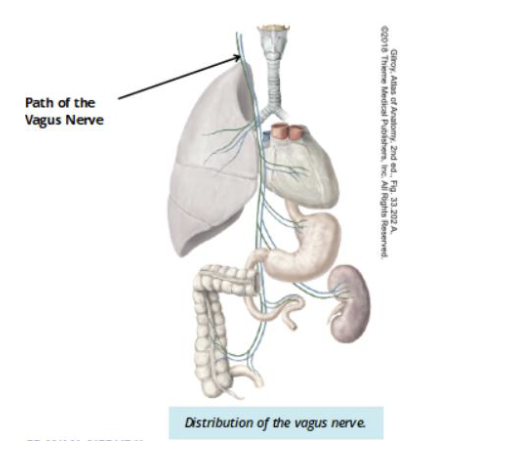

CN X: Vagus nerve

• Sensory: sensory innervation of the larynx

• motor: pharynx + larynx muscles, parasympathetic innervation of the thoracic + abdominal organs

Identify + describe the nerve

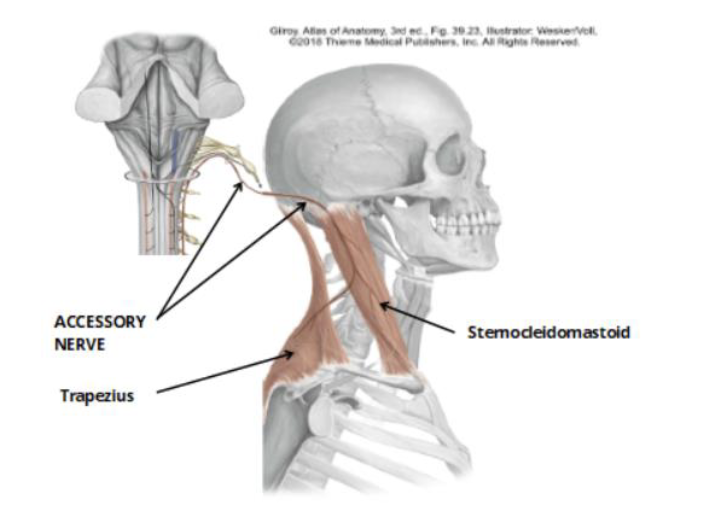

CN XI: Accessory nerve

• motor: trapezius + sternocleodimastoid muscles

Identify + describe the nerve

CN XII: Hypoglossal nerve

• motor: muscles of the tounge

Identify

Identify

Identify

Identify

Identify

Identify

Identify

Identify

Identify

Identify

Identify

Identify

Identify

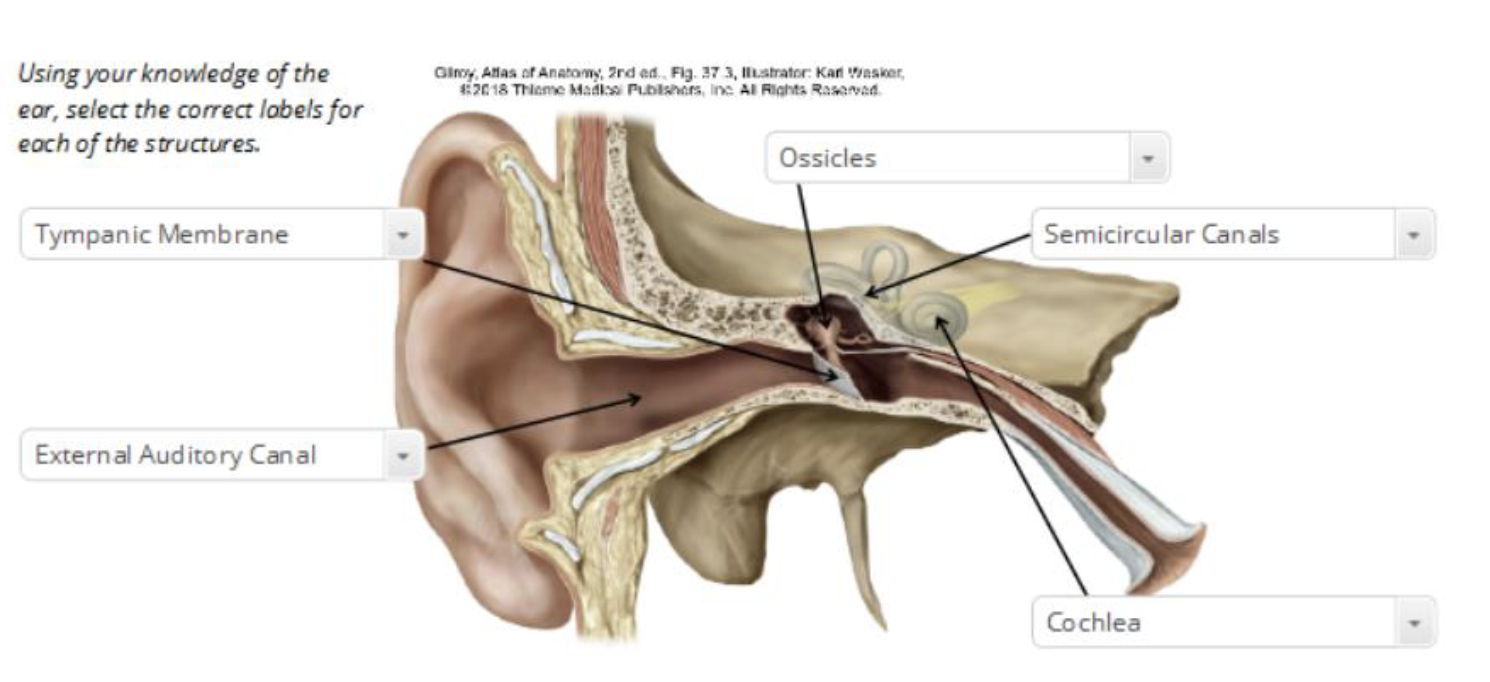

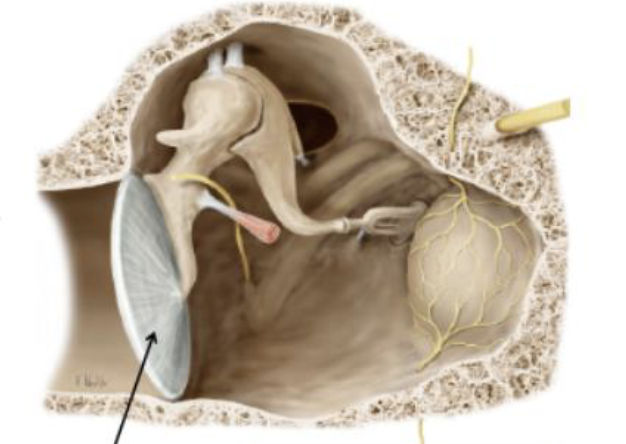

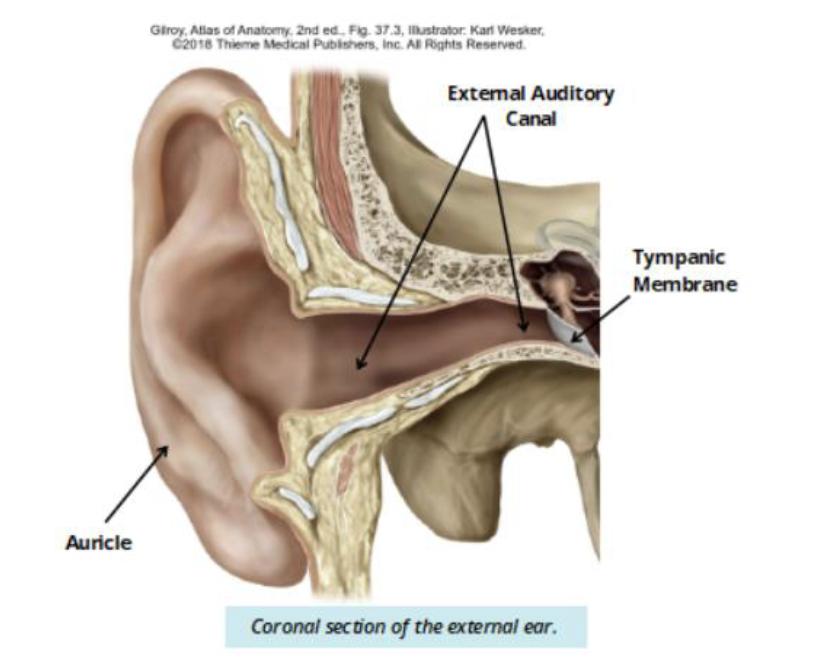

Tympanic membrane

Identify

Identify

Identify

Identify

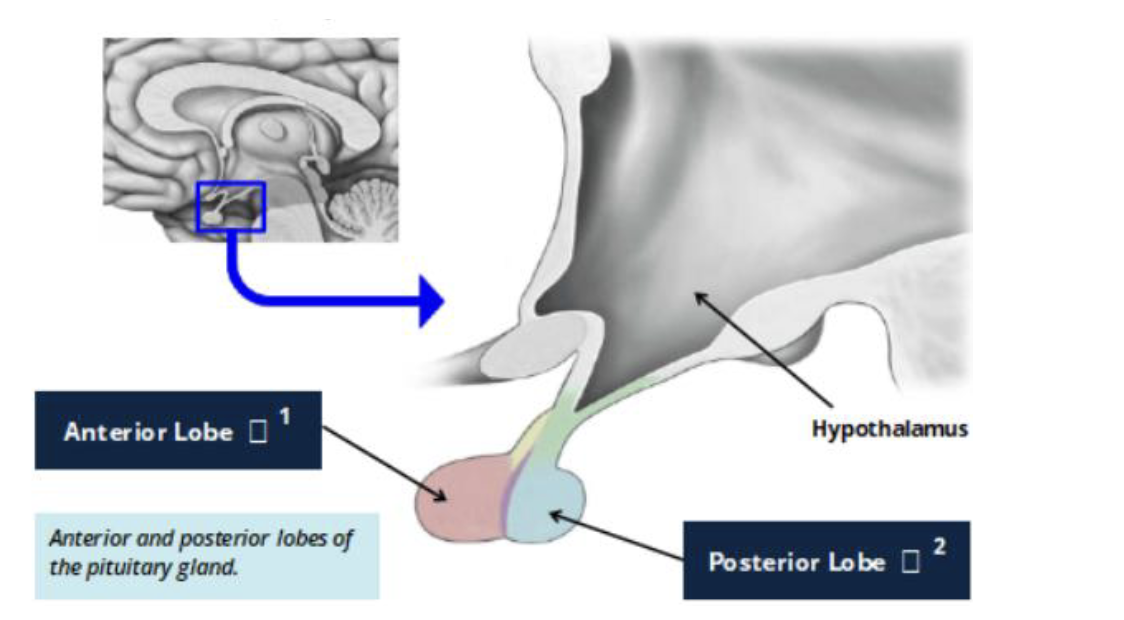

Hormones released by posterior lobe

• Oxytocin

• Antidiuretic hormone

Hormones released by anterior lobe

• Thyroid stimulating hormone

• prolactin

• adrenocorticotropic hormone

• growth hormones

• follicle stimulating hormone

• melanocyte stimulating hormone

• luteinizing hormone

Identify

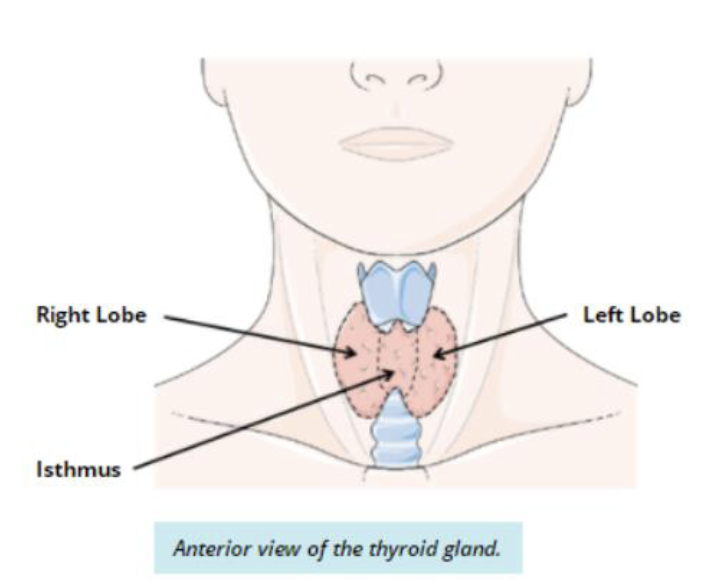

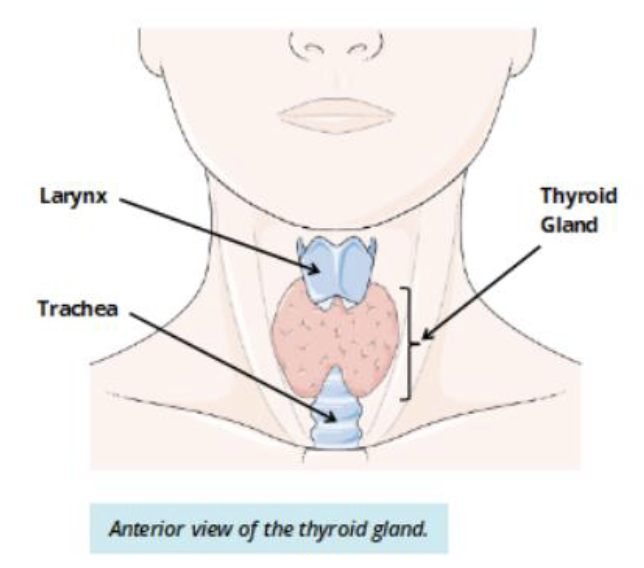

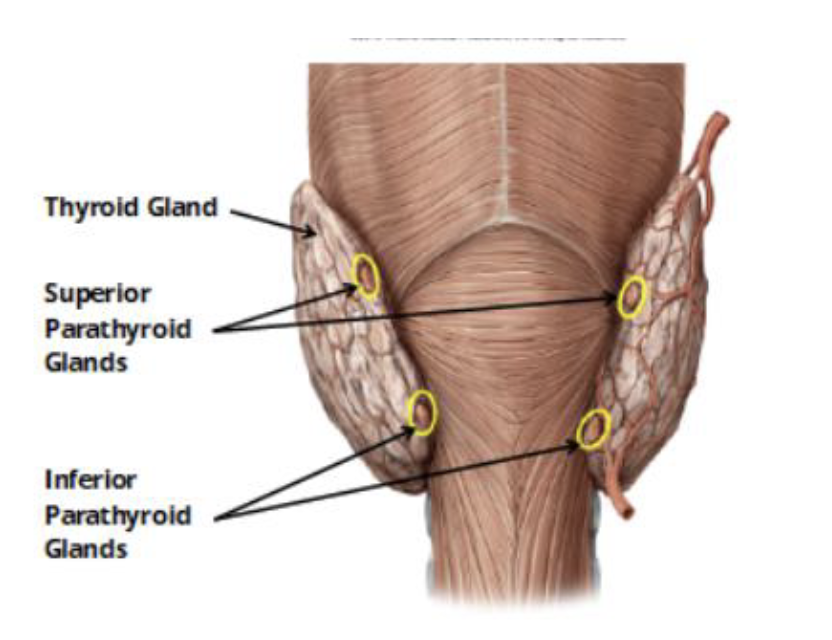

thyroid

Identify

Identify

Identify

Identify

Identify

Identify

Identify

What is circled?

Platelets

What cell is this

Neutrophils

What cell is this?

Eosinophils

Identify

Basophils

Identify

Identify

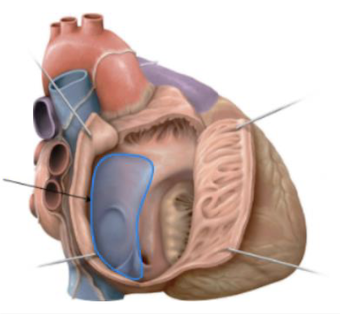

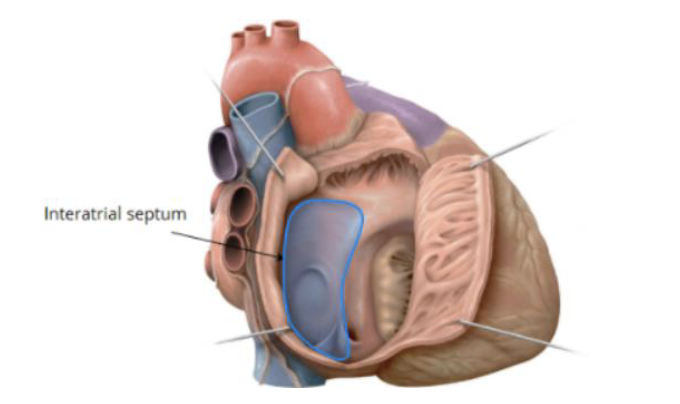

What is this? where is it found?

the wall between the left and right atria

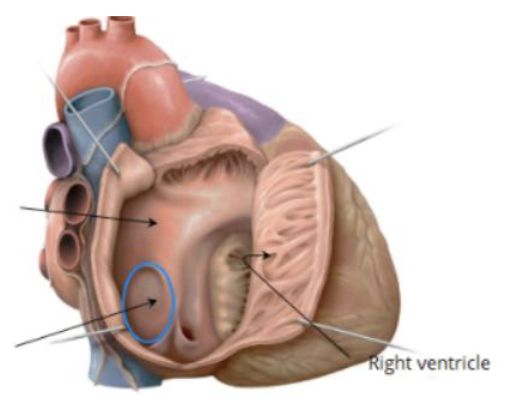

What is circled?

Fossa ovalis

• depression in the interatrial septum of the right atrium

Identify

Identify? what are its identification factors

Trabeculae Carneae

• irregular muscular ridges on the internal walls of each ventricle

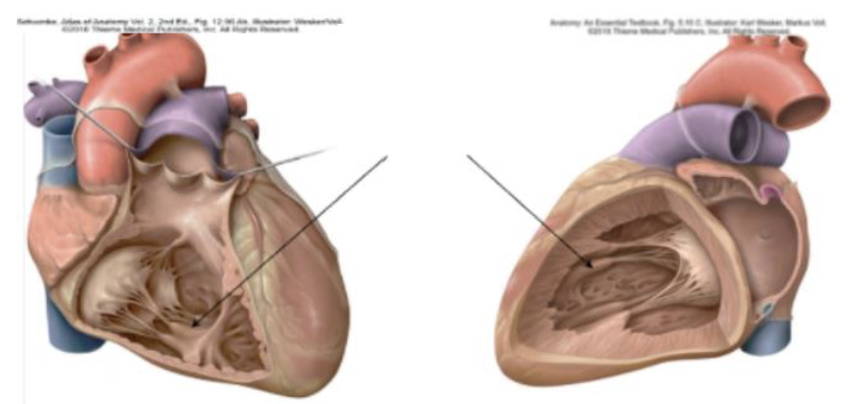

Identify? what is its identification factor

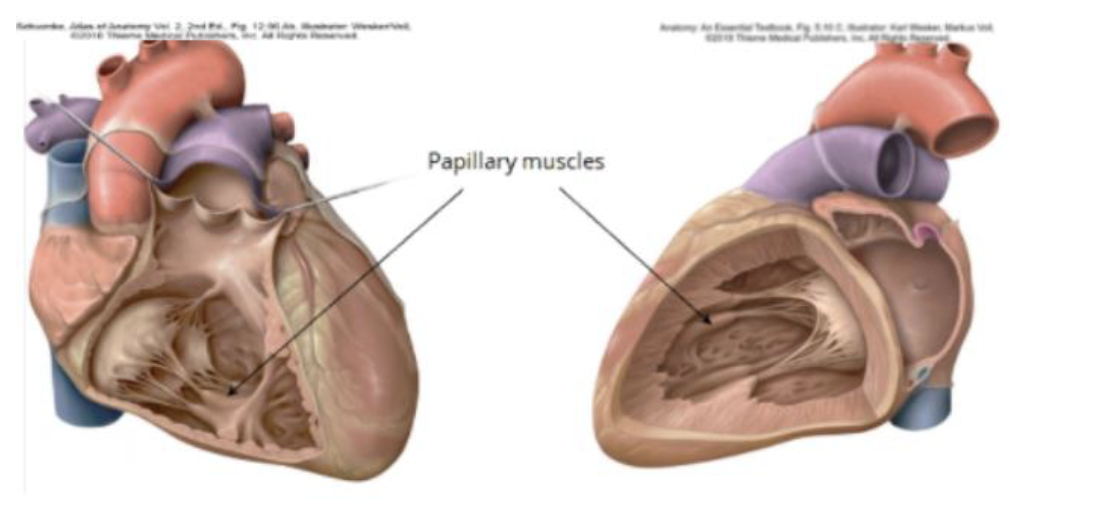

Papillary muscles

• smaller muscular projection on the internal walls of ventricles that attach to valves of heart

Identify

Identify

Identify

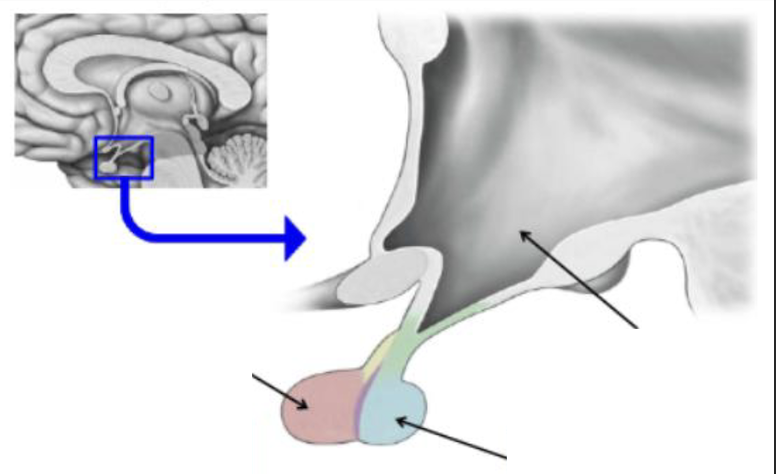

Identify

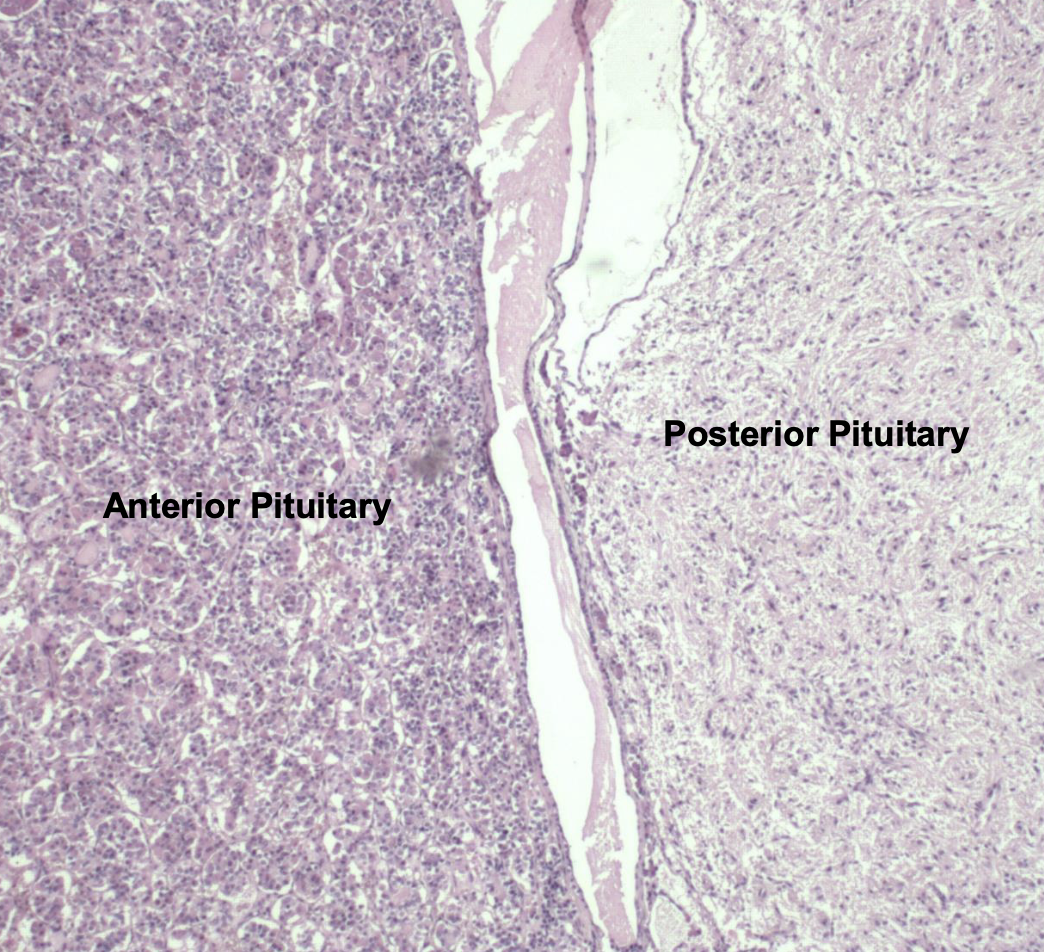

Anterior pituitary

Identify

Posterior pituitary

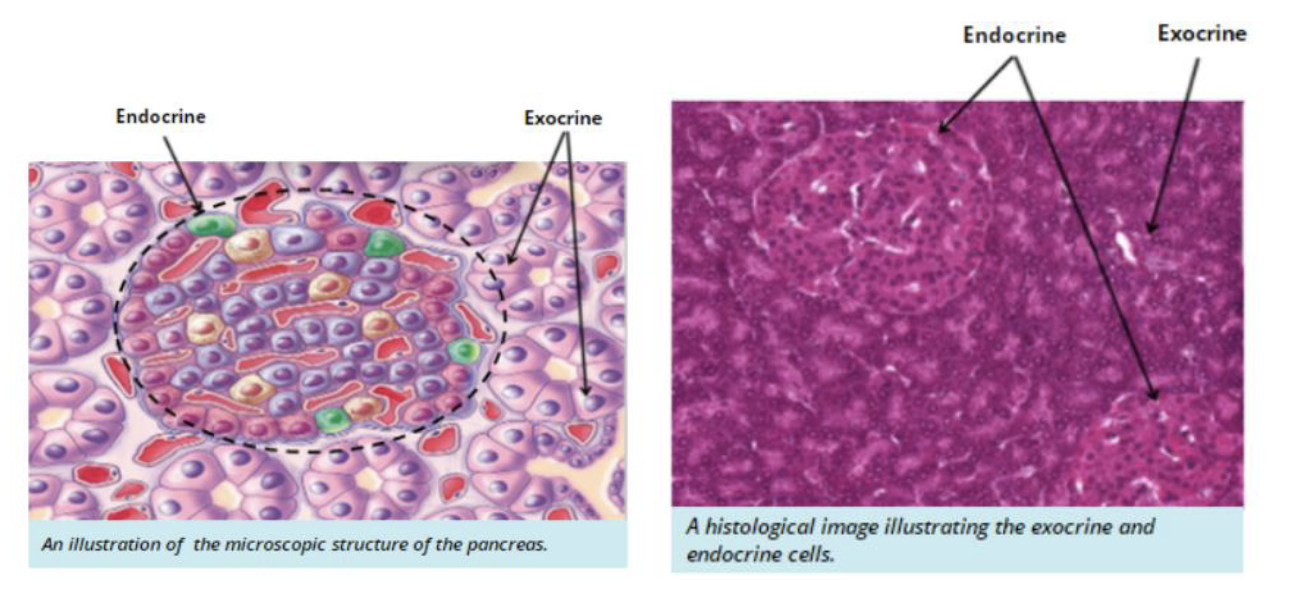

What is circled in yellow

Acinar cells

Identify

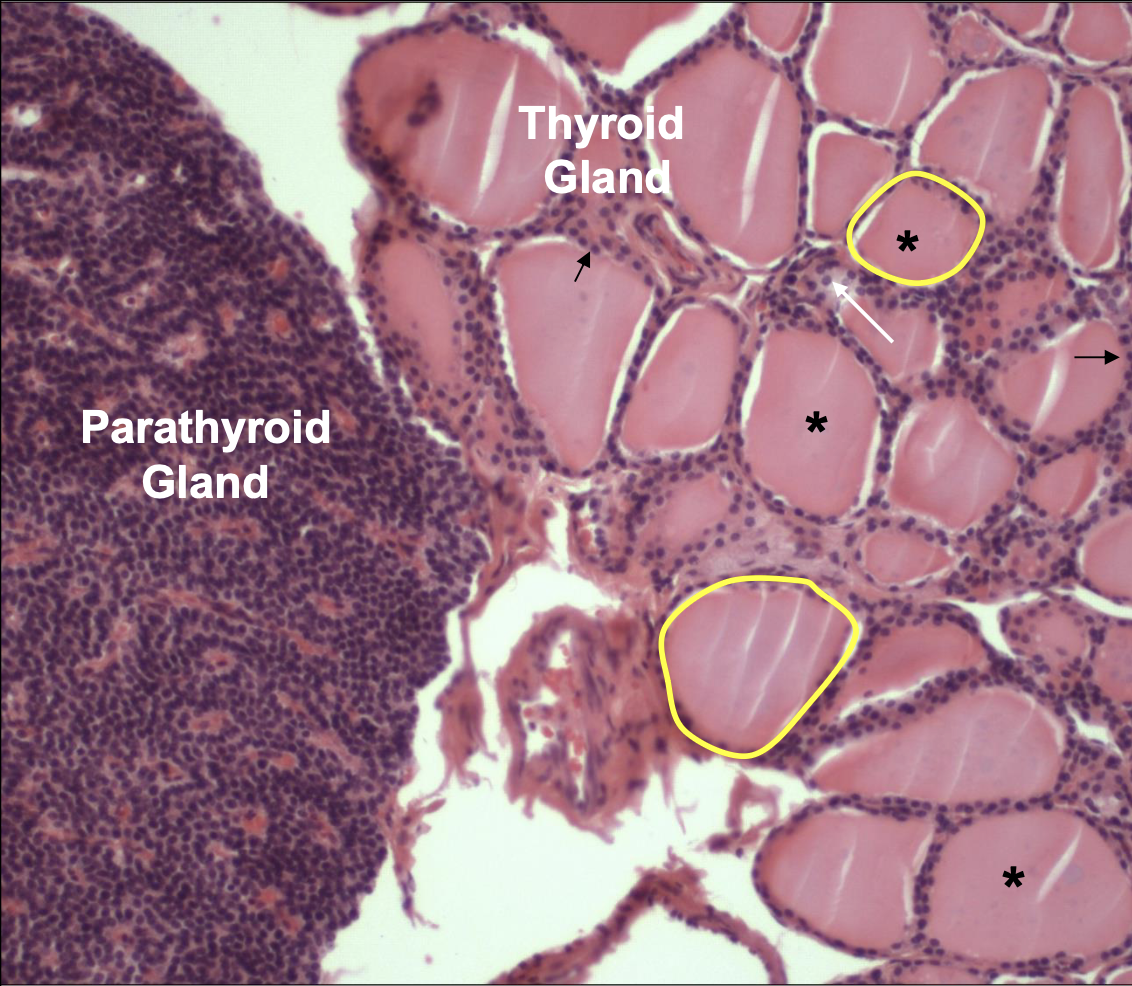

What is circled in yellow

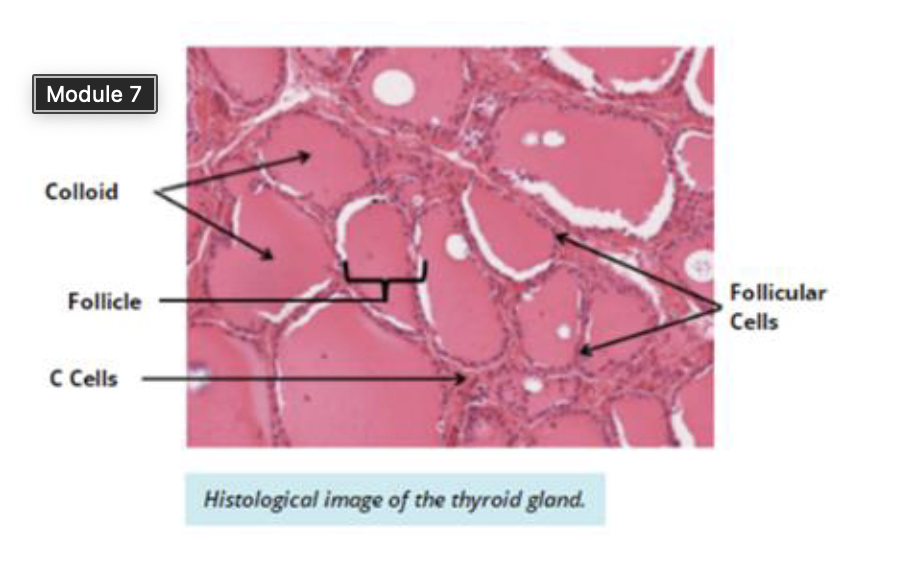

Colloid-filled Follicles

What is this?

Thyroid gland

What cells are these? what do they make up?

Principal (chief) cells

• Parathyroid gland
