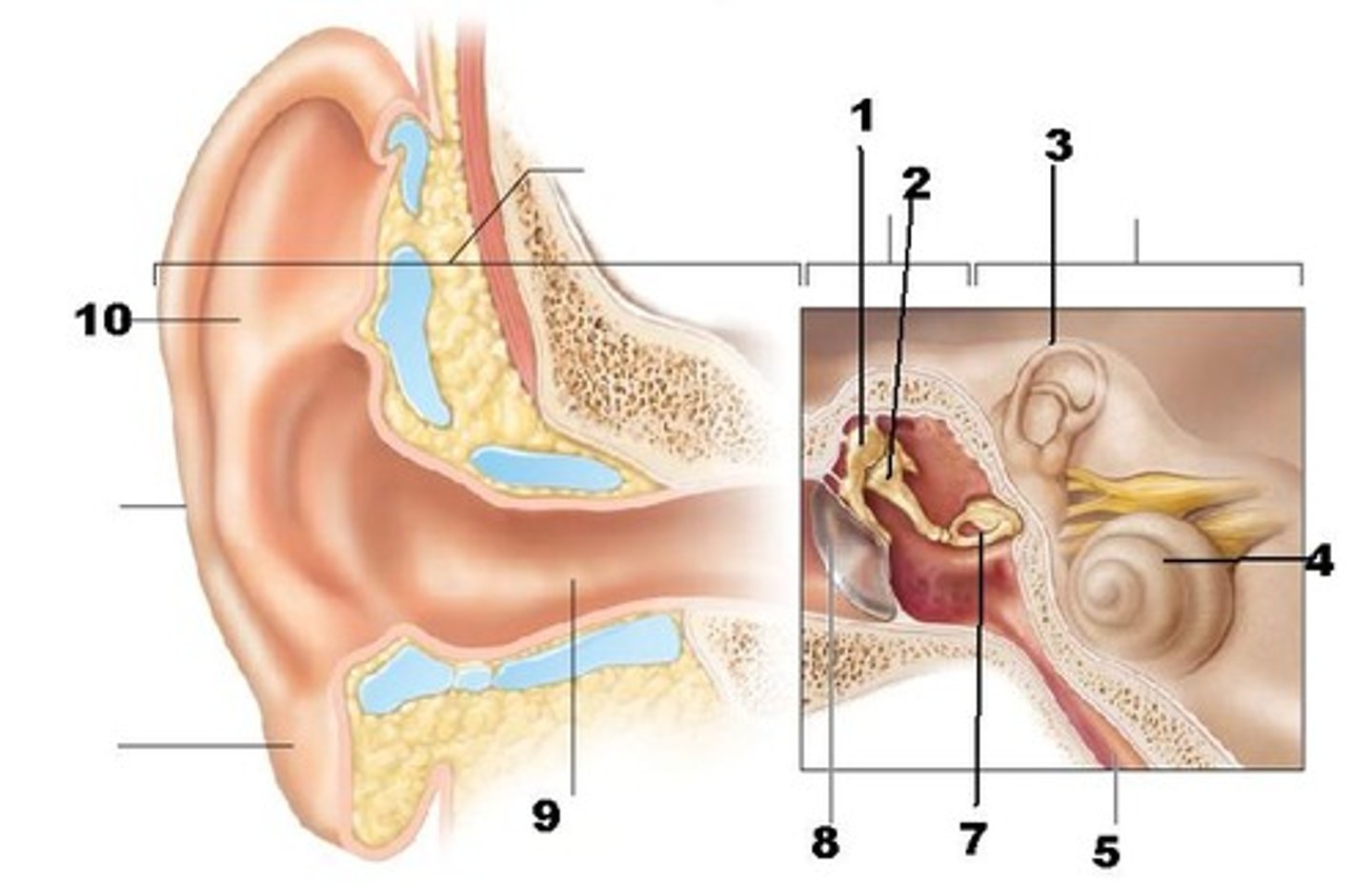

Special Senses: Hearing, Balance

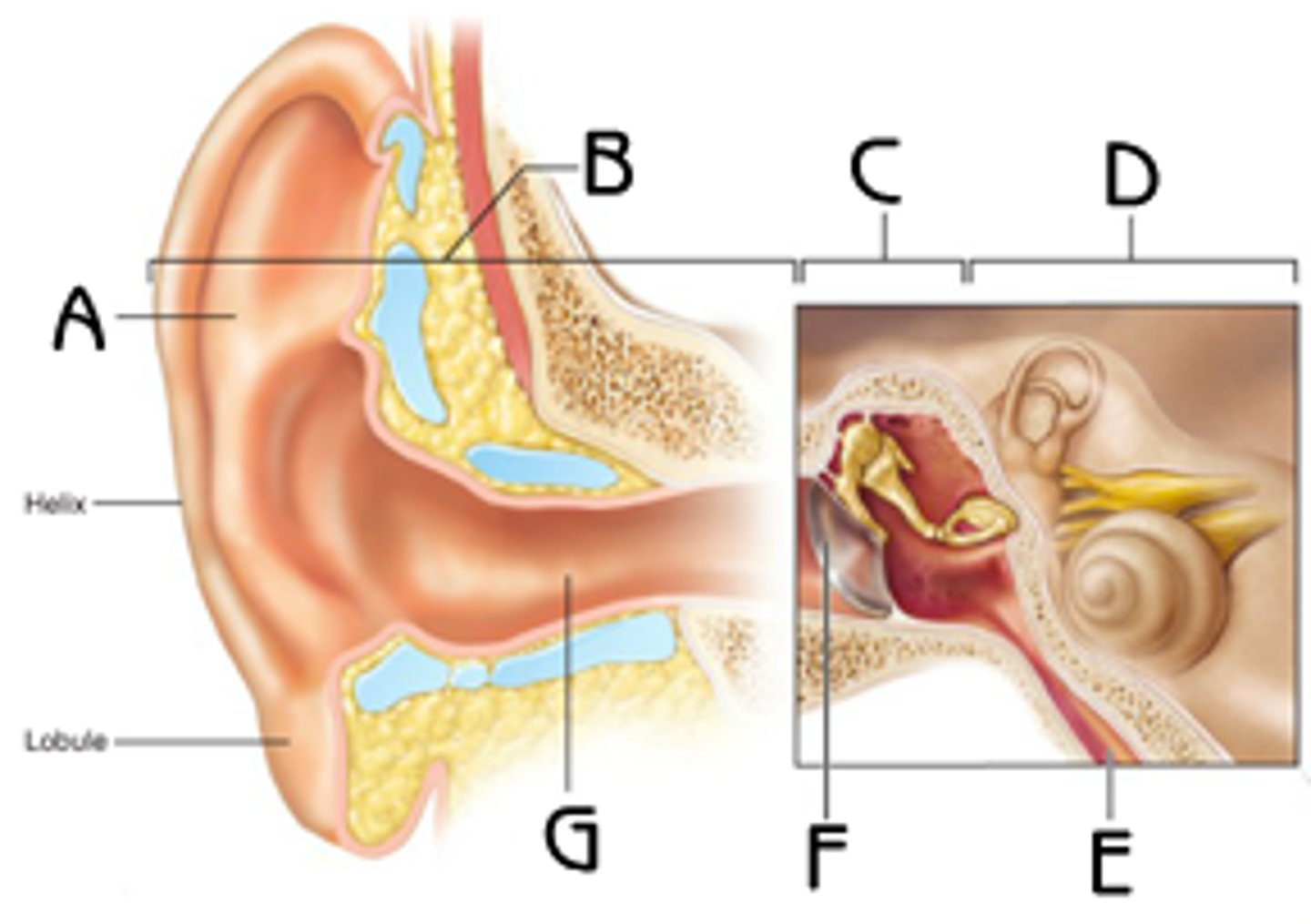

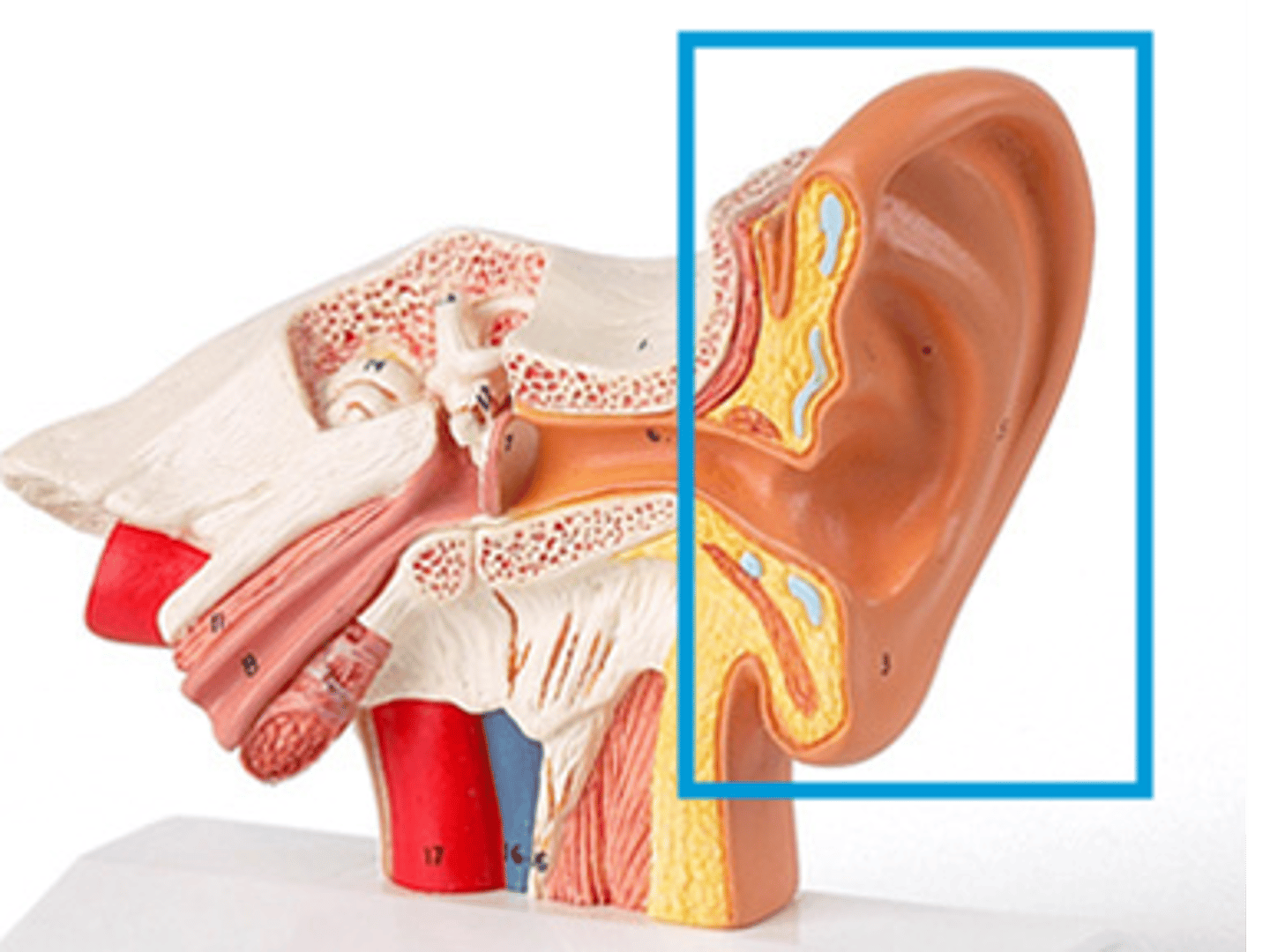

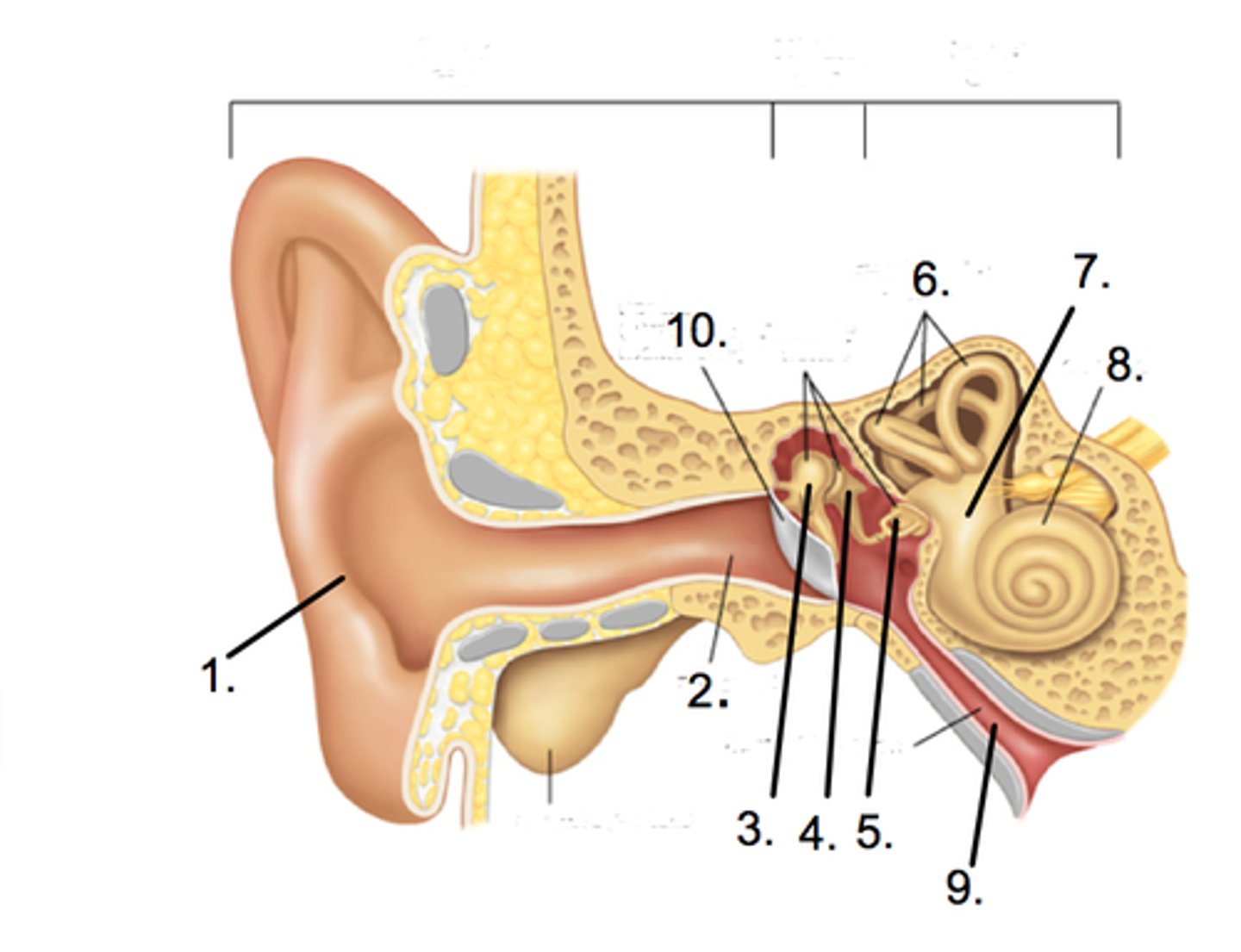

External Ear

B

Middle Ear

C

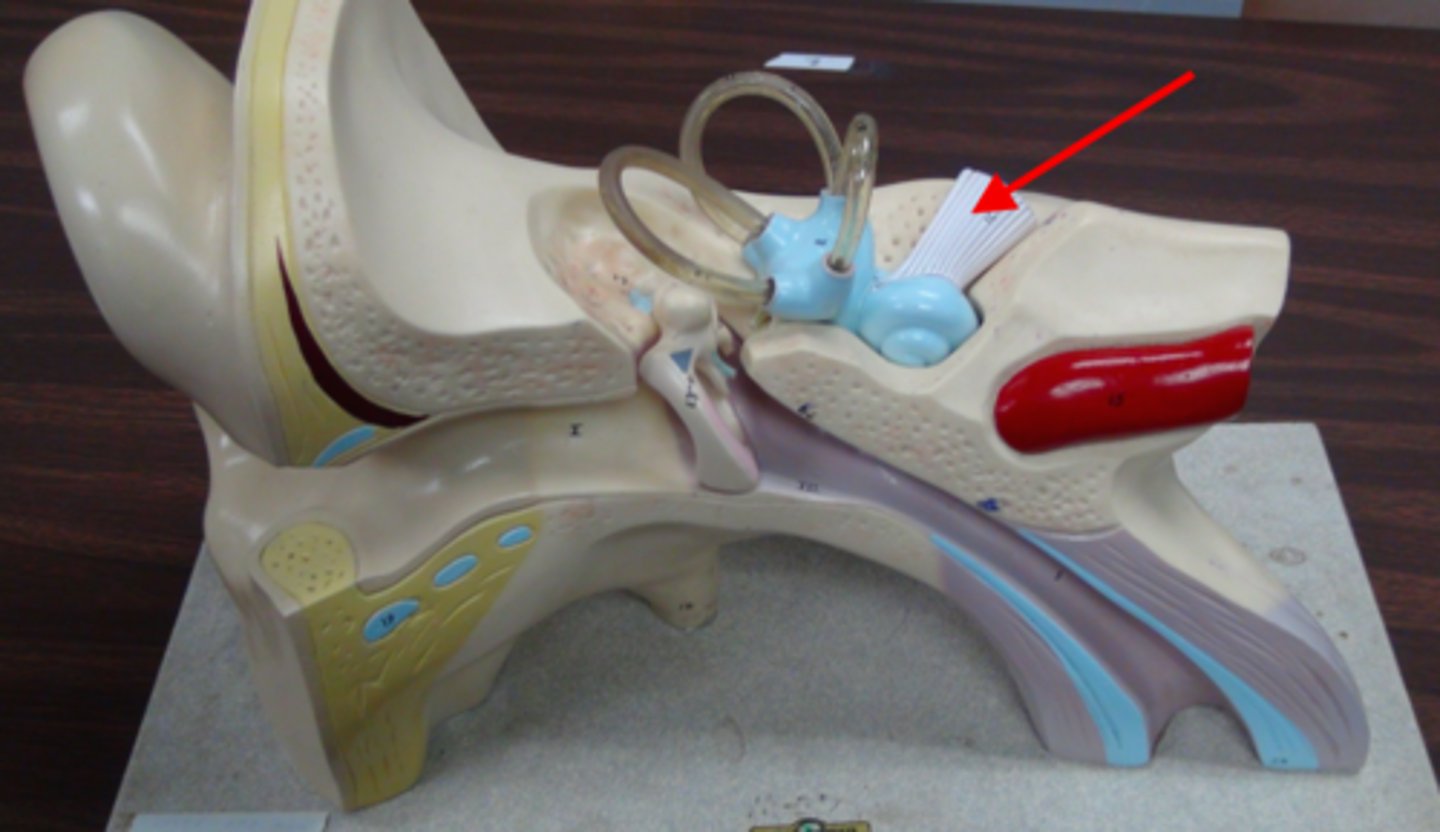

Inner Ear

D

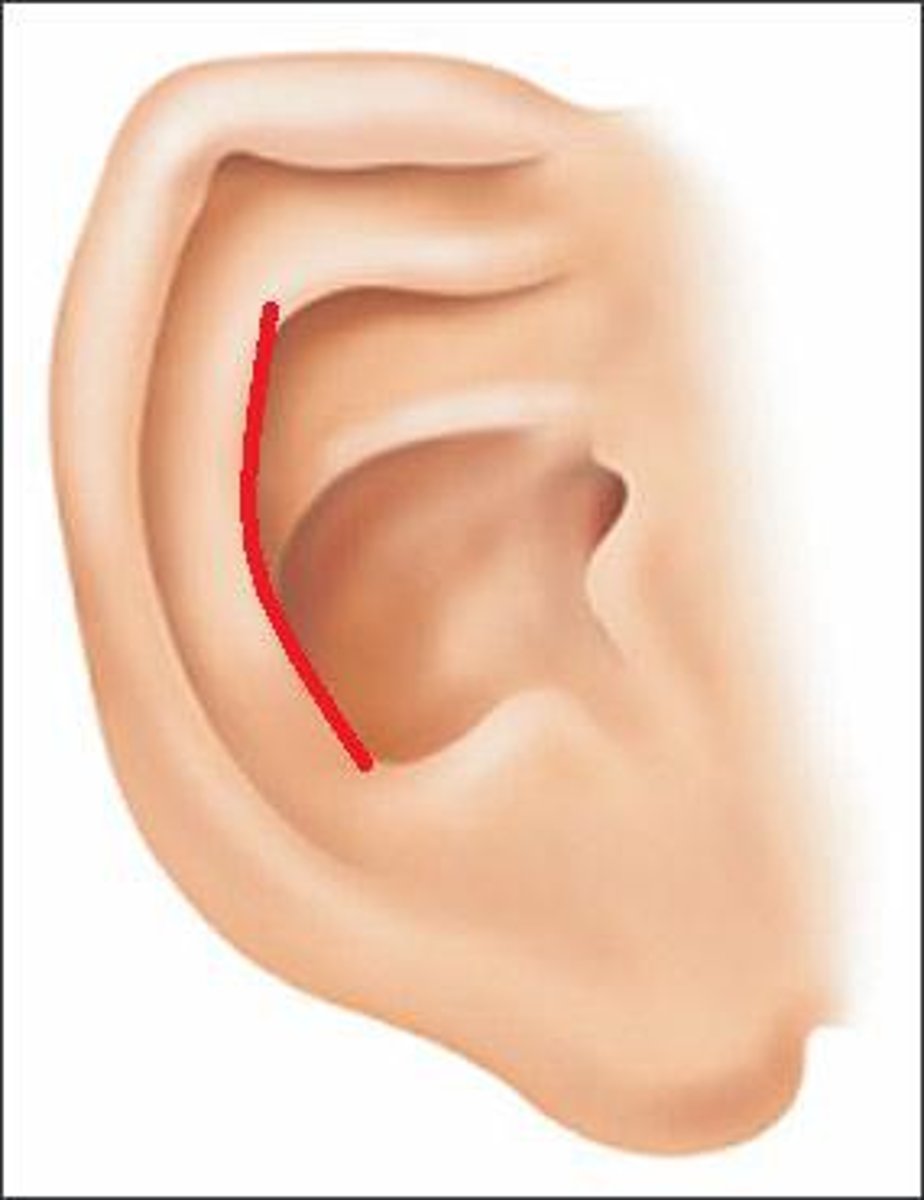

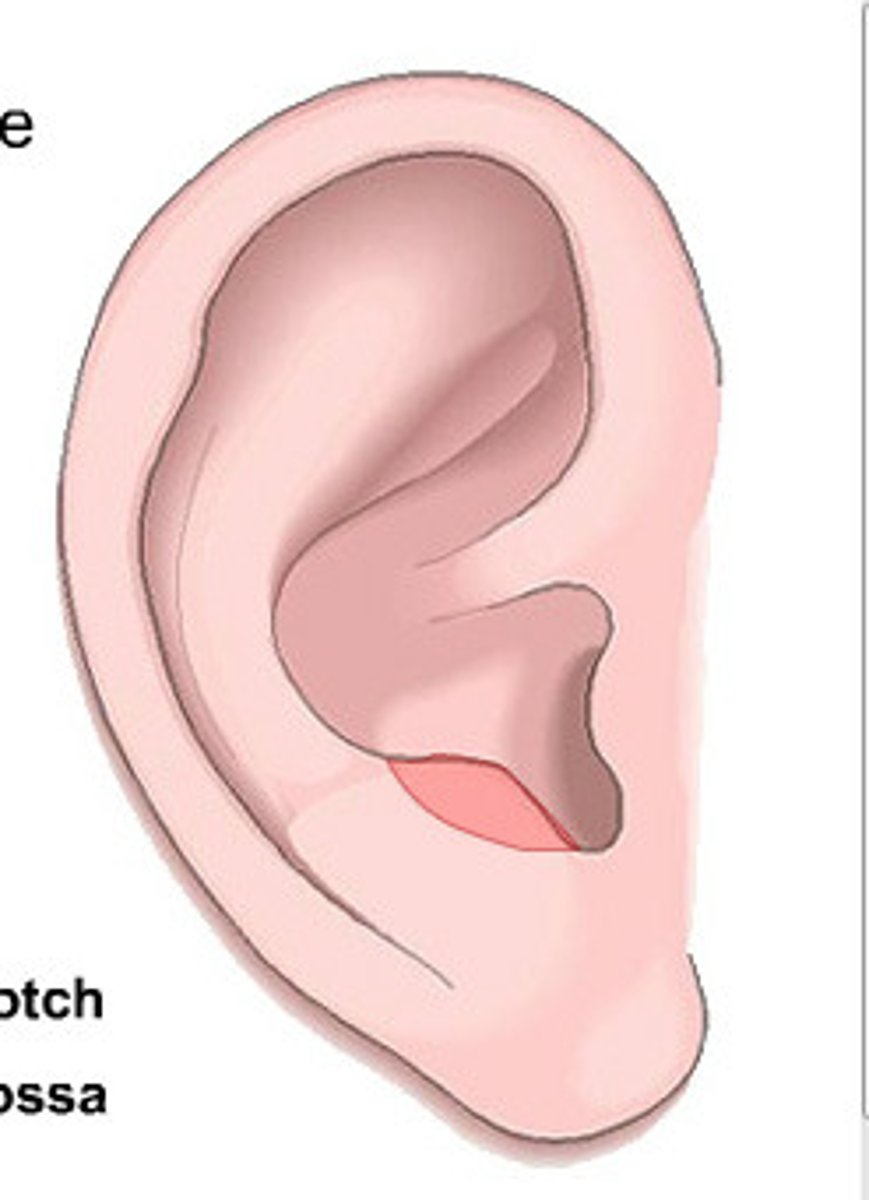

Auricle

Helix

Antihelix

Lobule

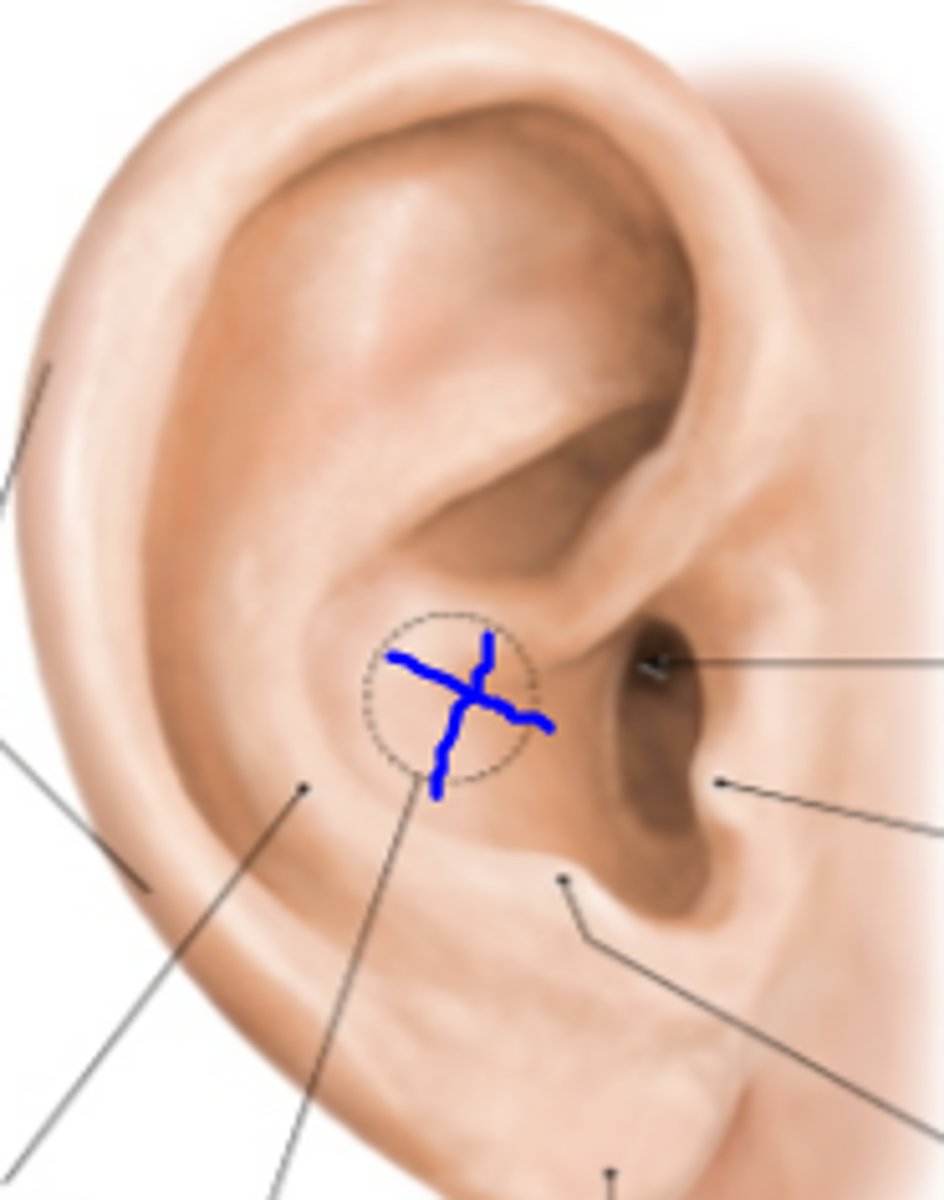

Concha

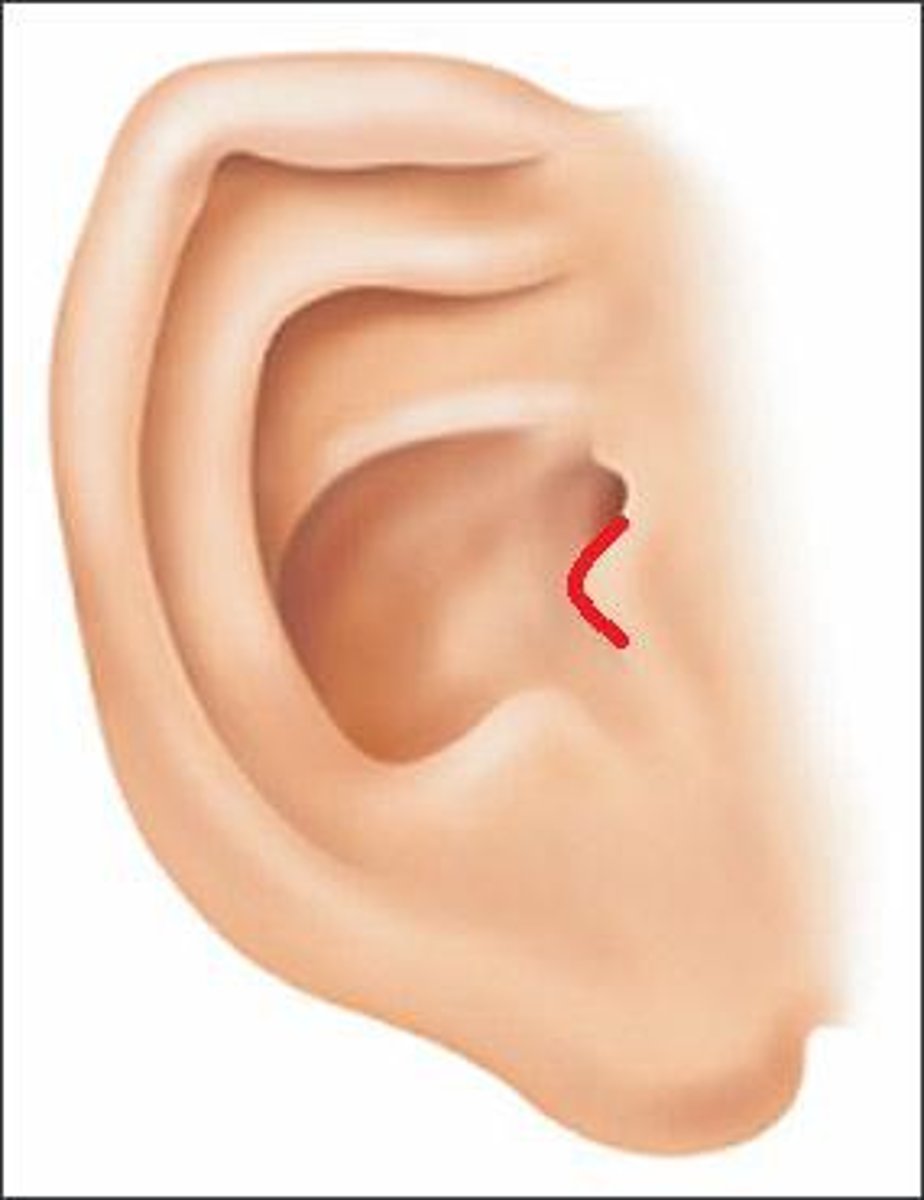

Tragus

Antitragus

1. Posterior Auricular A

2. Superficial Temporal A

3. Occipital A

Vessels to the Auricle

Superficial

1. Cervical Plexus

2. Mandibular Trigeminal N

Deep

1. Vagus N

2. Facial N

Innervation of Auricle

External Acoustic Meatus

9

1. Mandibular Trigeminal

2. Vagus N

3. Facial N

Innervation of External Auditory Meatus

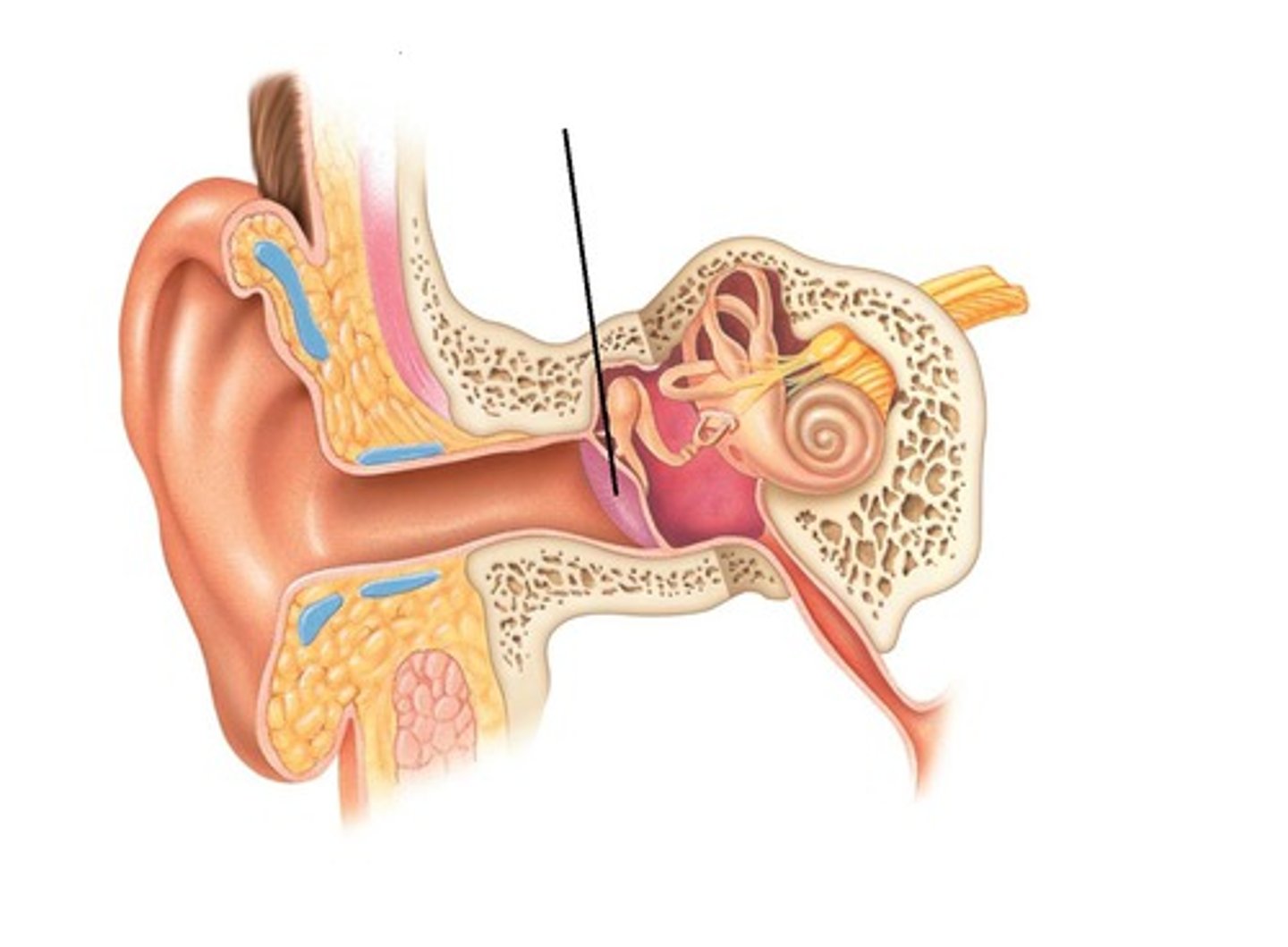

Tympanic Membrane

1. Mandibular Trigeminal N

2. Vagus N

3. Facial N

Innervation of External Tympanic Membrane

Glossopharyngeal N

Innervation of Internal Tympanic Membrane

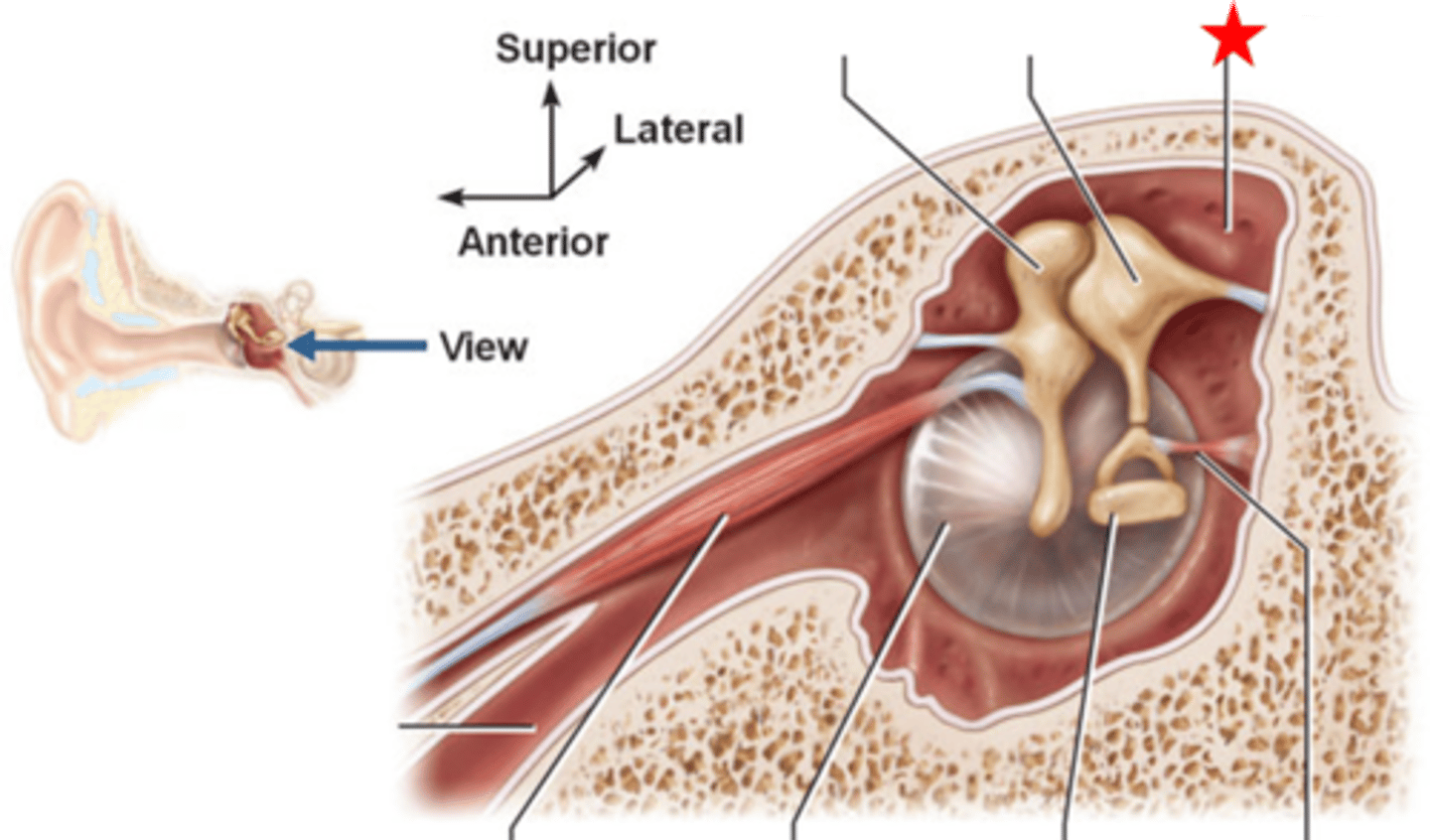

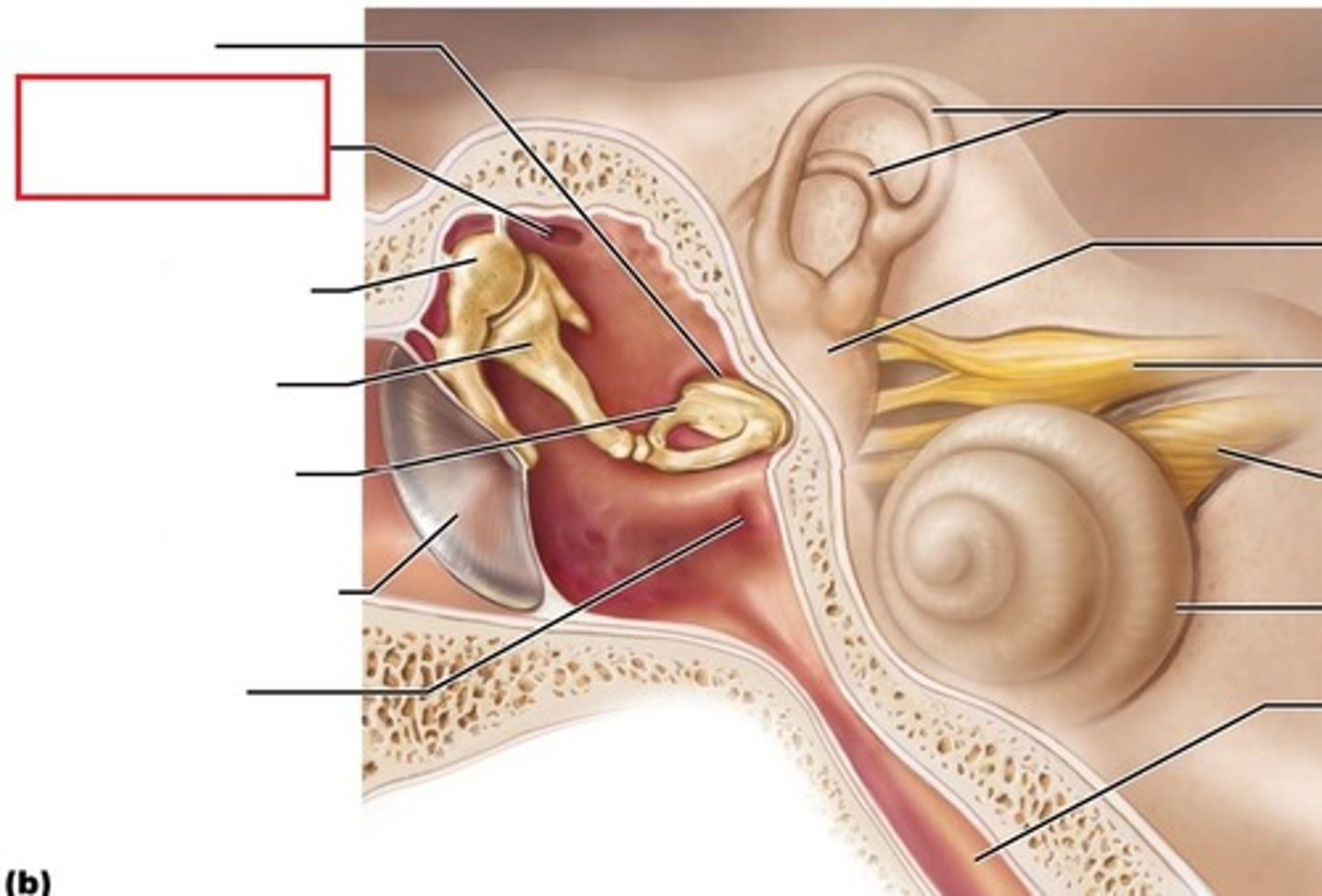

Tympanic Cavity

Epitympanic Recess

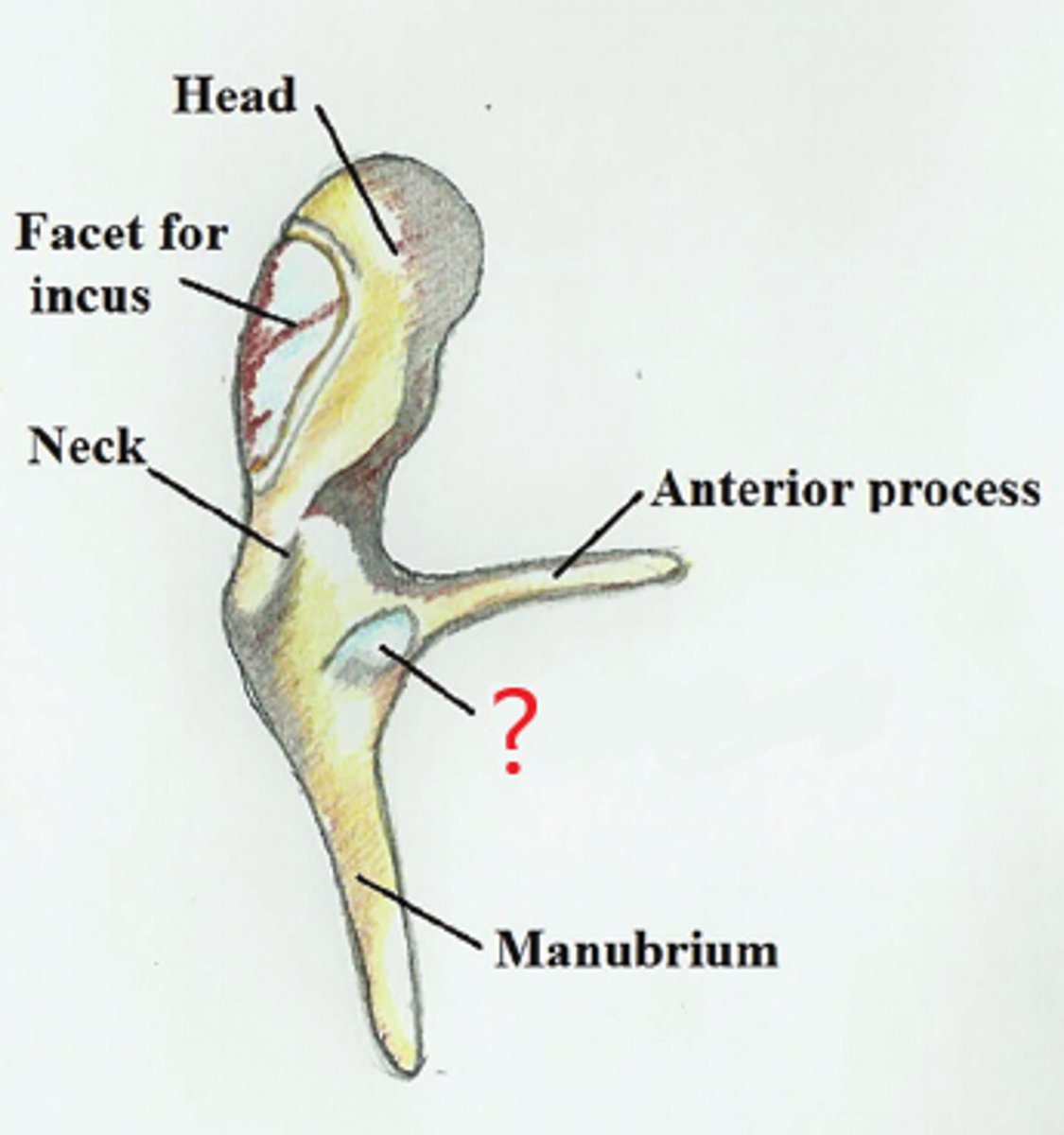

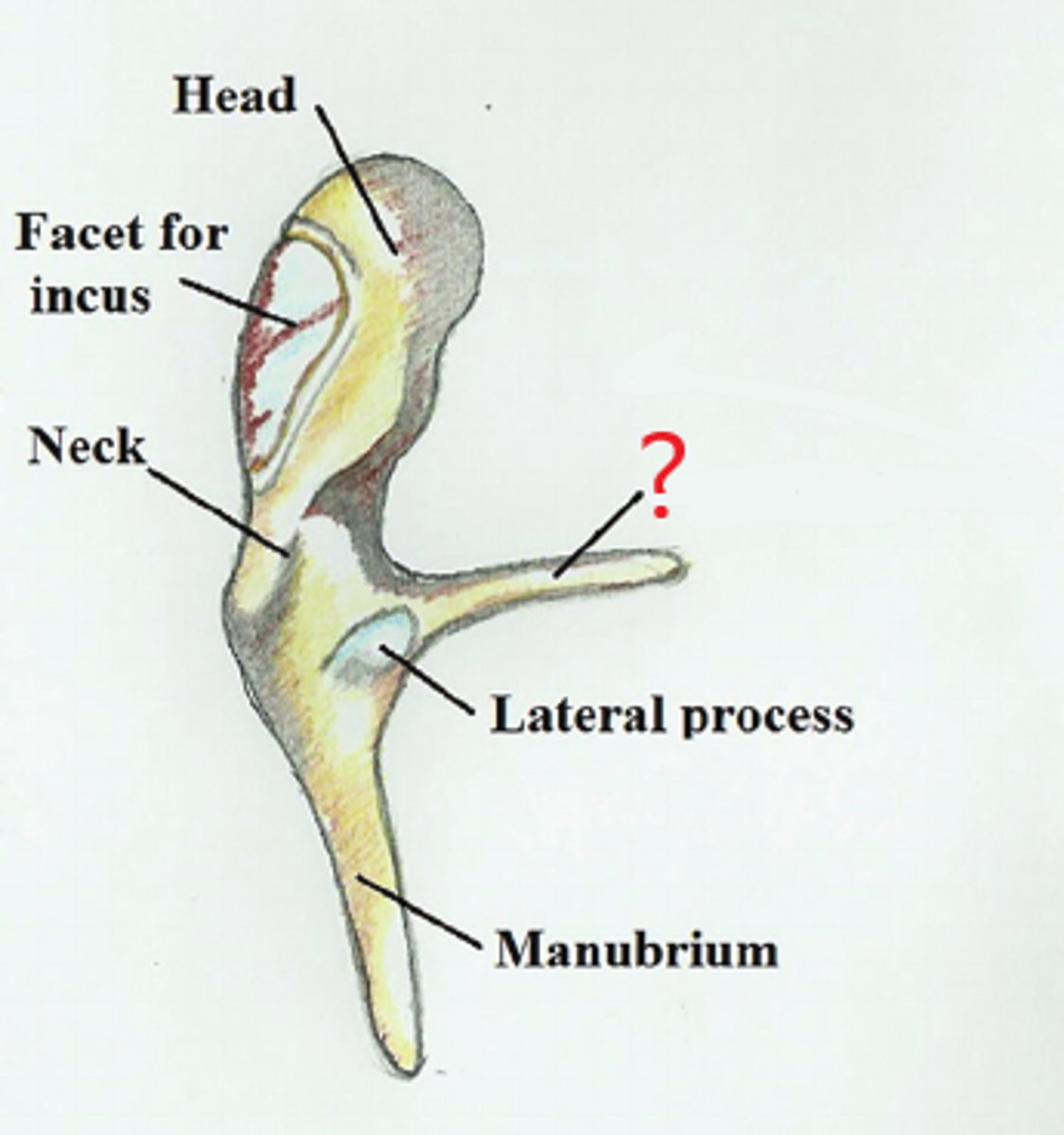

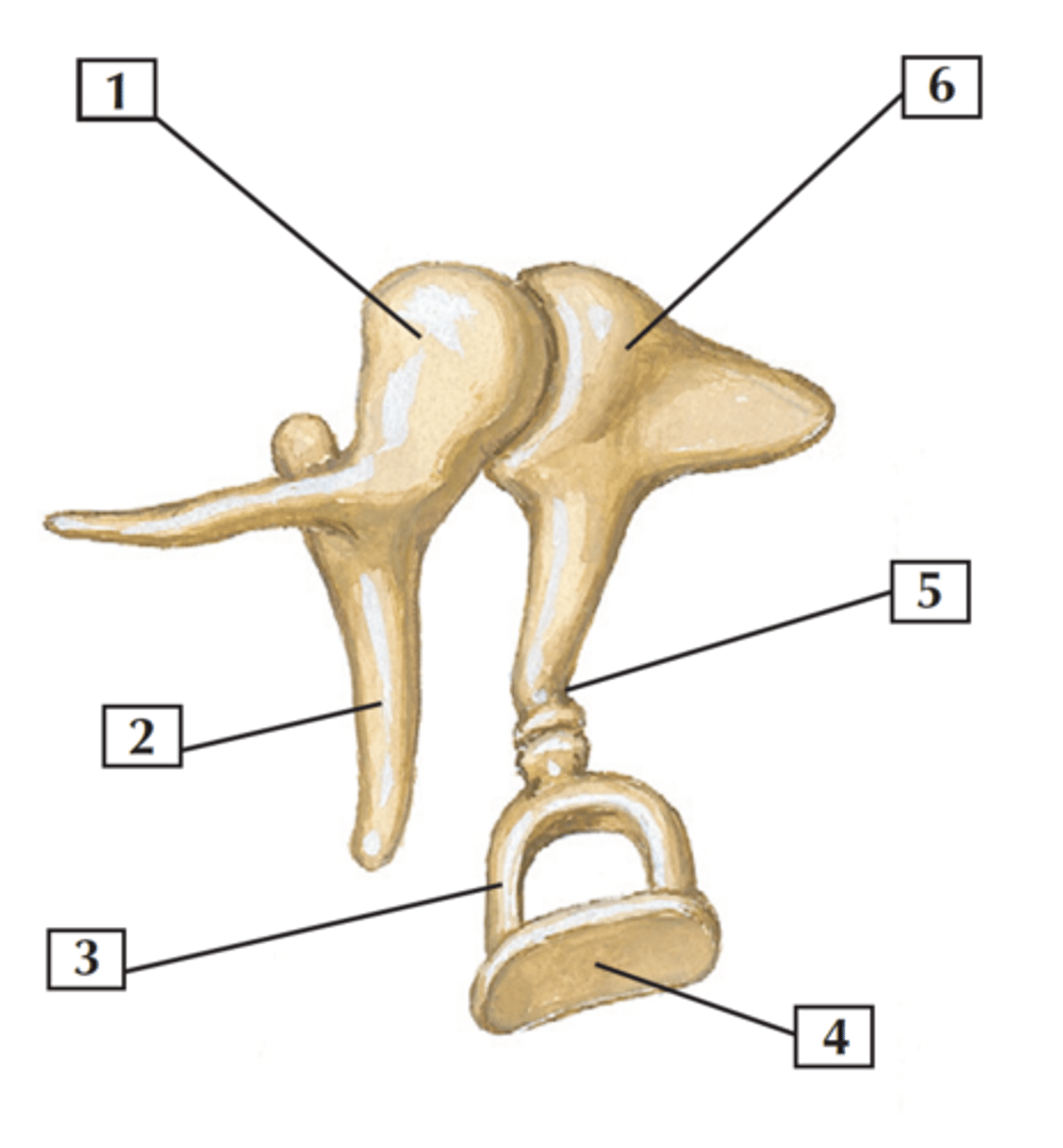

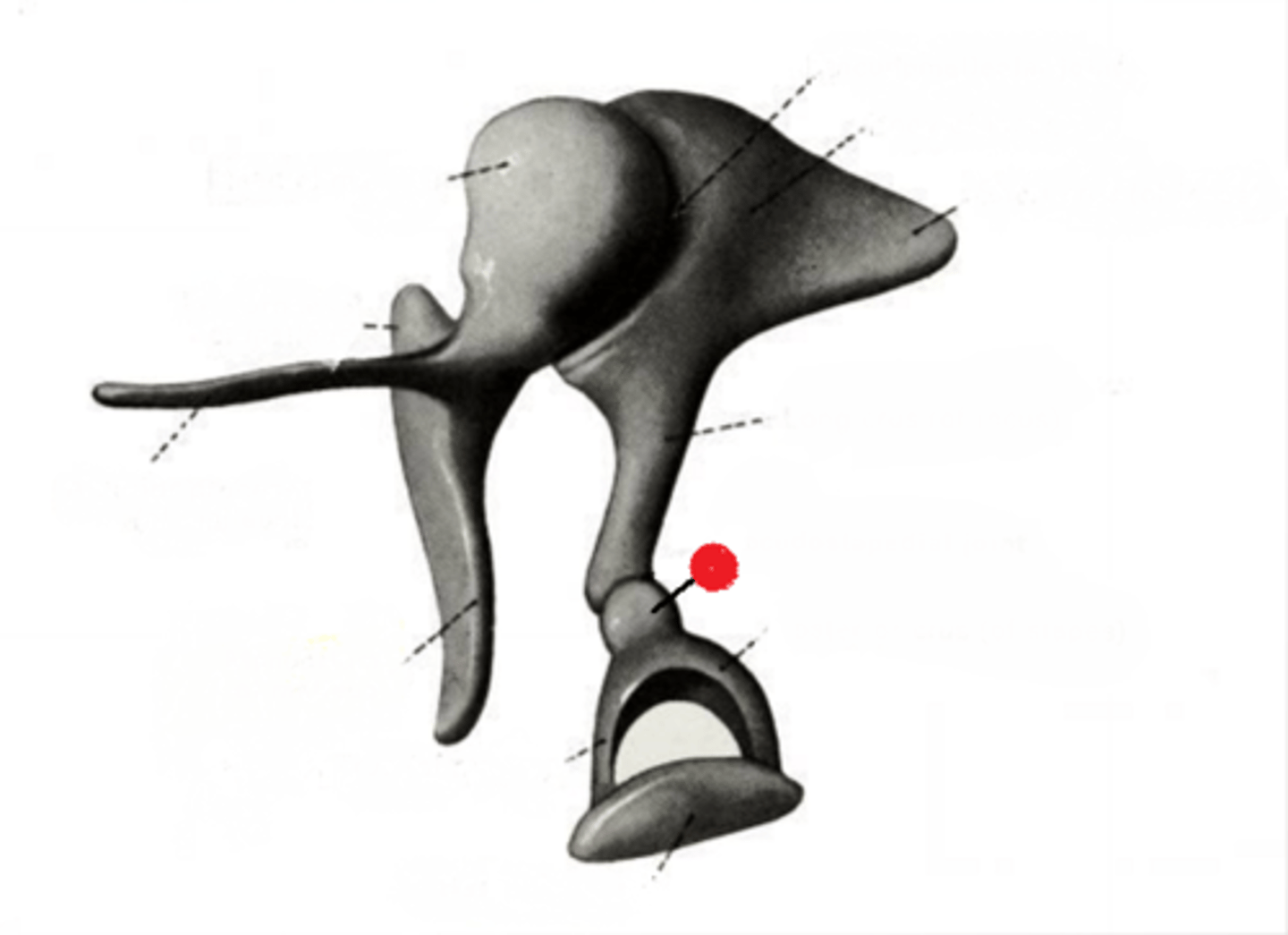

Malleus

1

Anterior Process of Malleus

Lateral Process of Malleus

Handle of Malleus

2

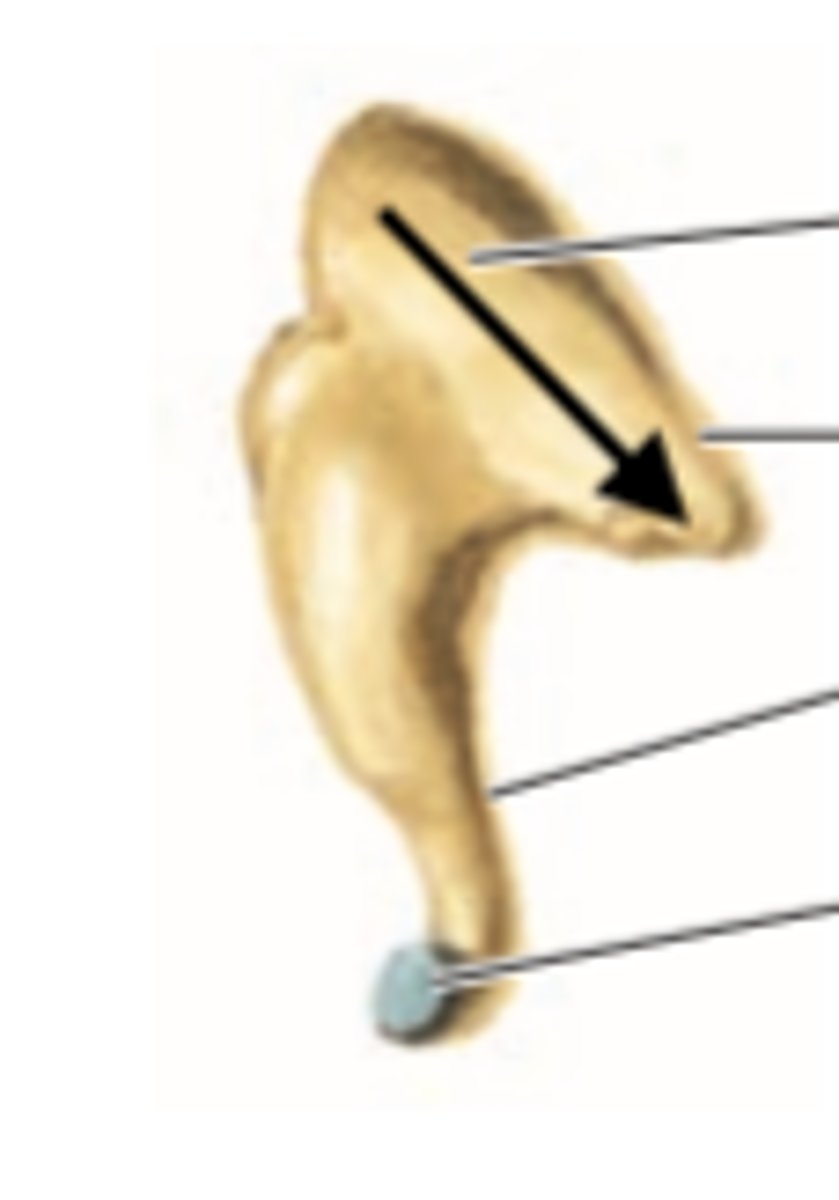

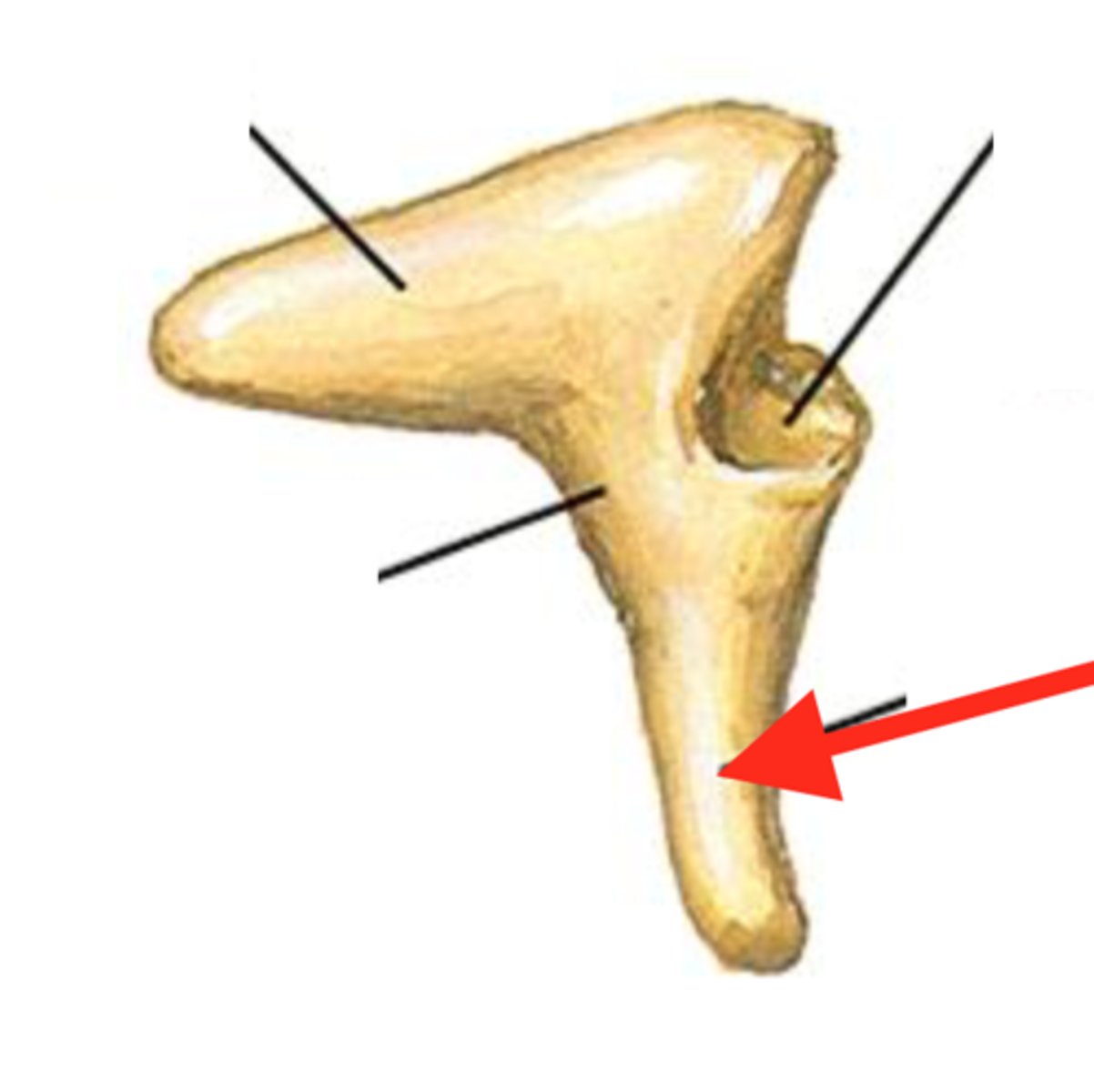

Incus

2

Body of Incus

(Articulates with Malleus)

Short Limb of Incus

Long Limb of Incus

(Articulates with Stapes)

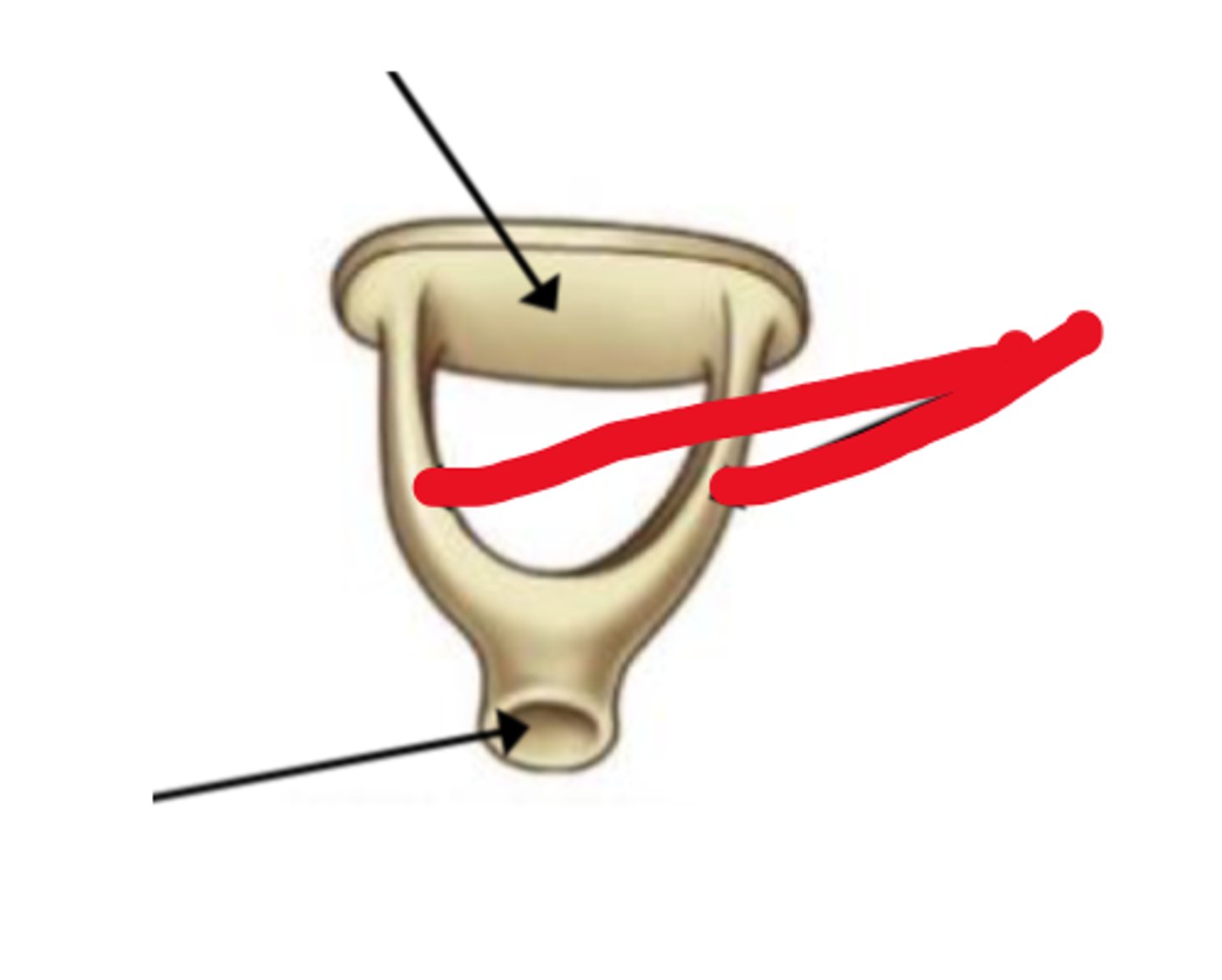

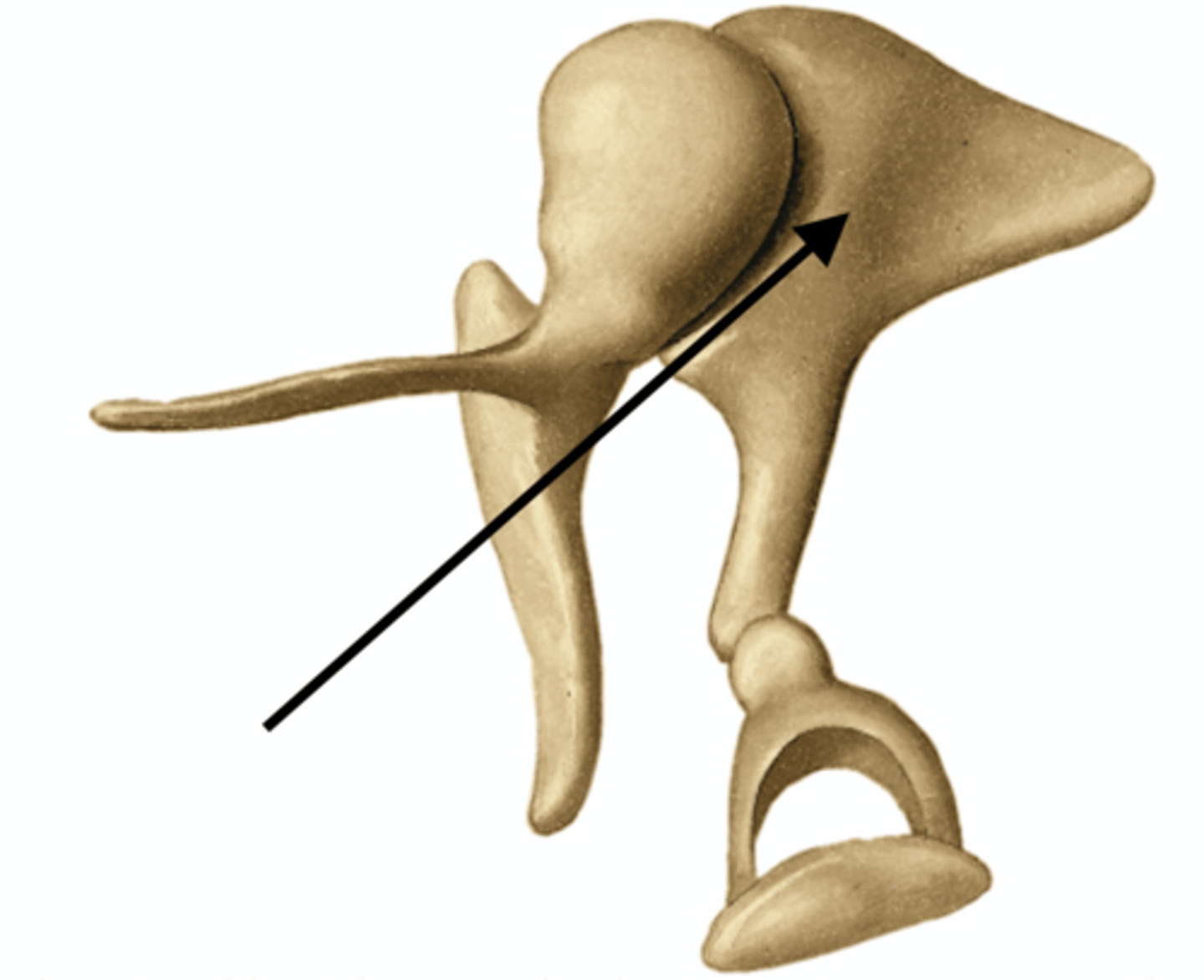

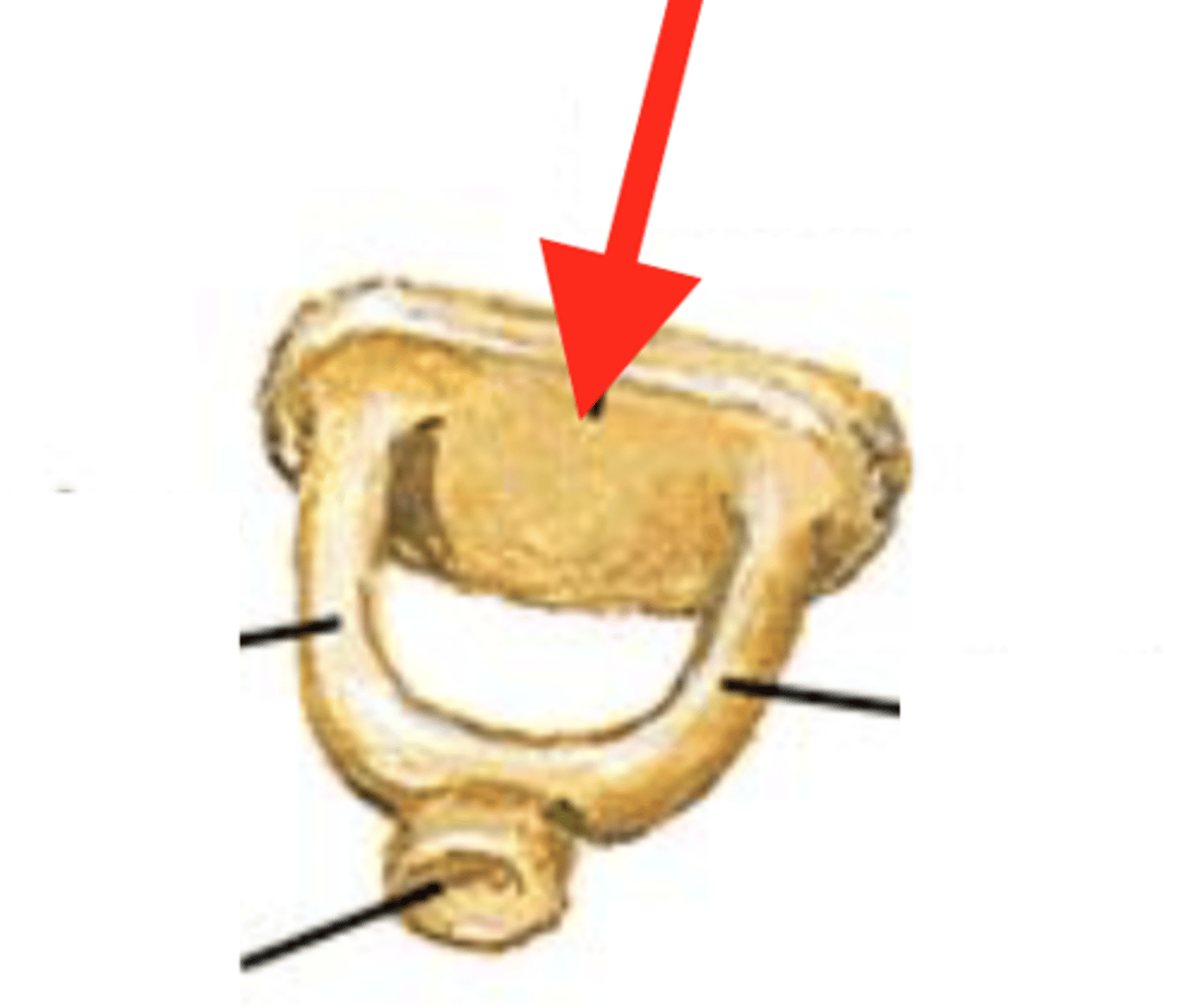

Stapes

7

Head of Stapes

(Articulates with Long Limb Incus)

Limbs of Stapes (Anterior/Posterior)

Base of Stapes

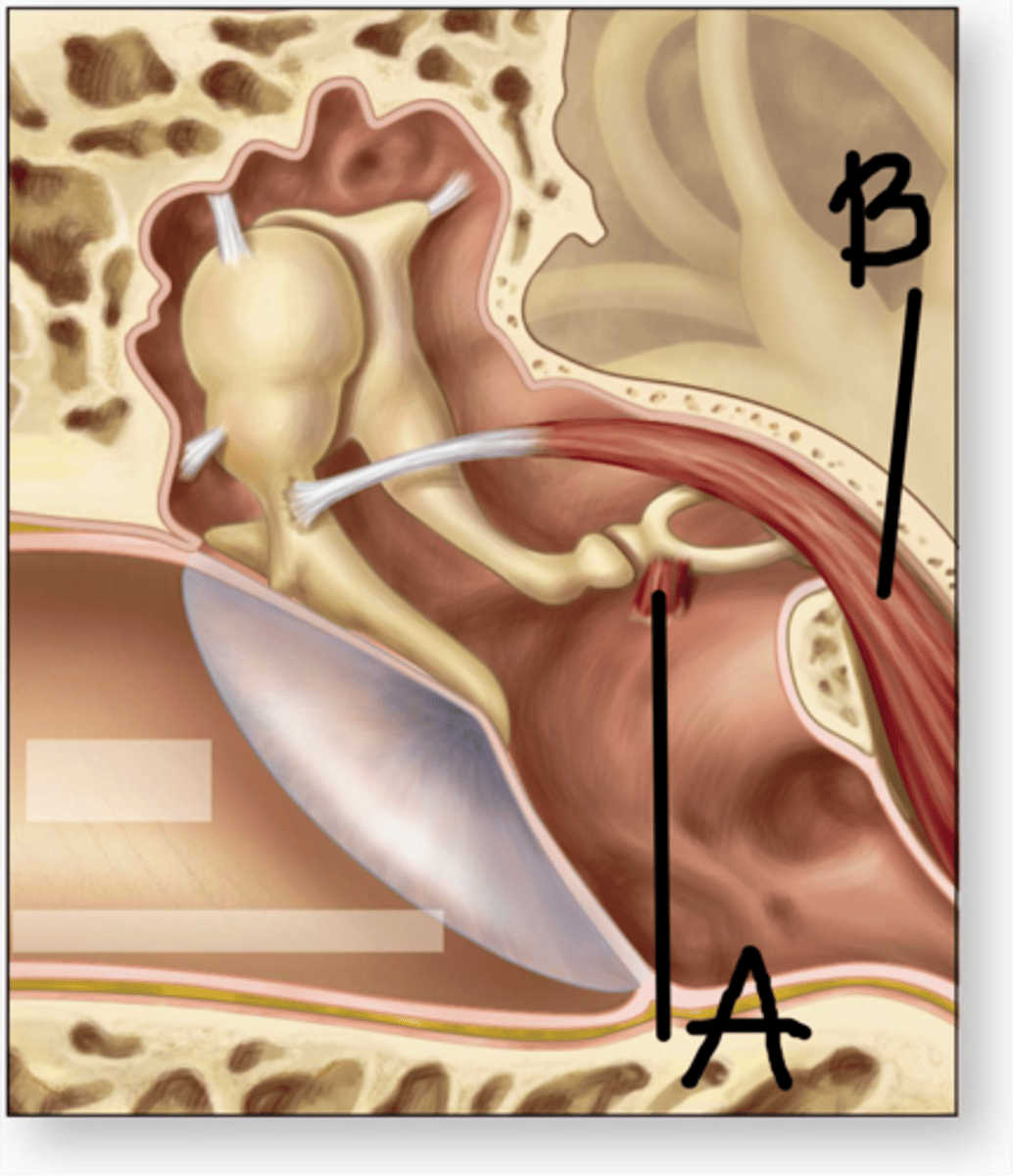

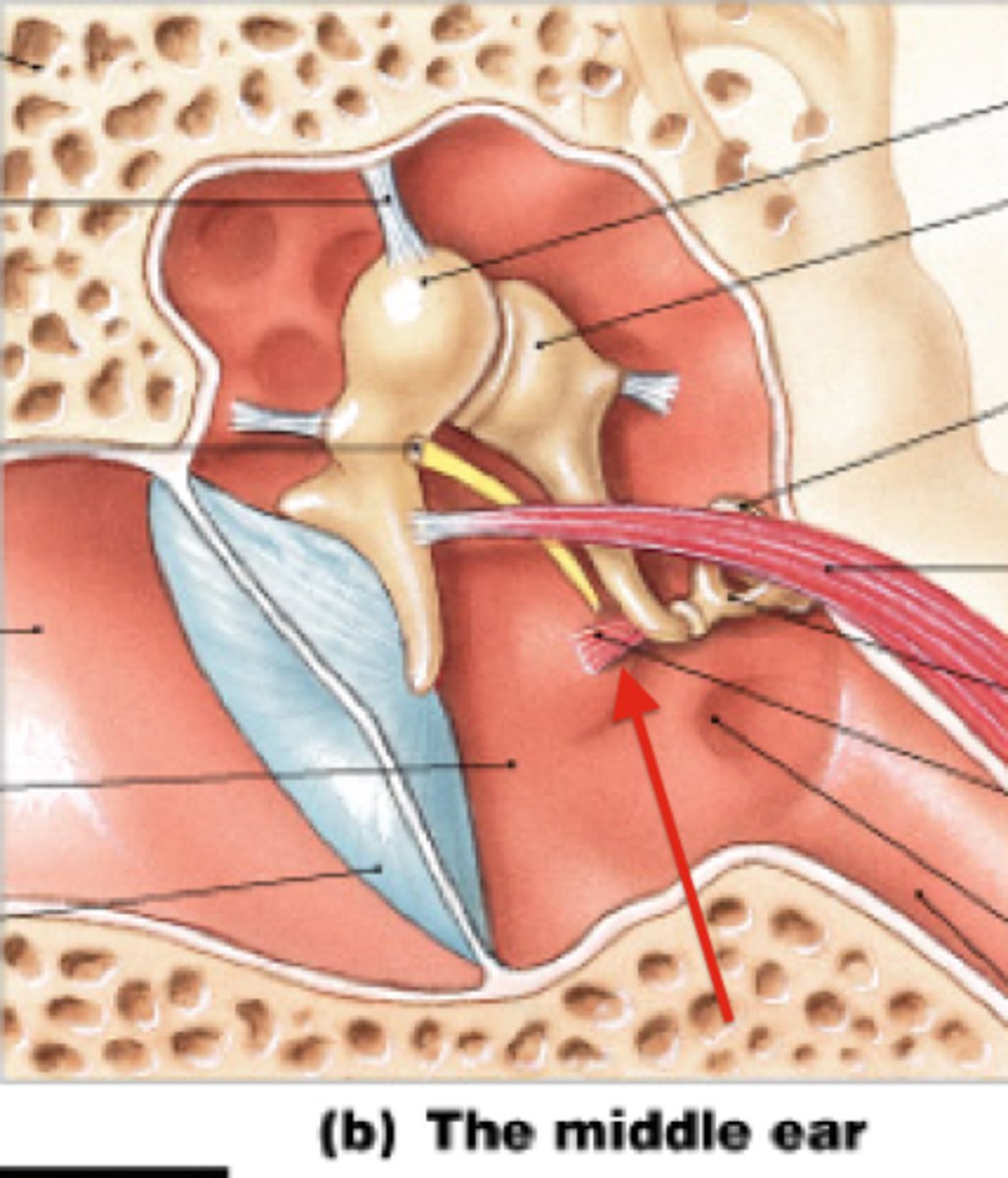

Tensor Tympani

(Tenses TM in Loud Noises)

Stapedius

(Pull Stapes posteriorly to protect from over vibration/loud noises)

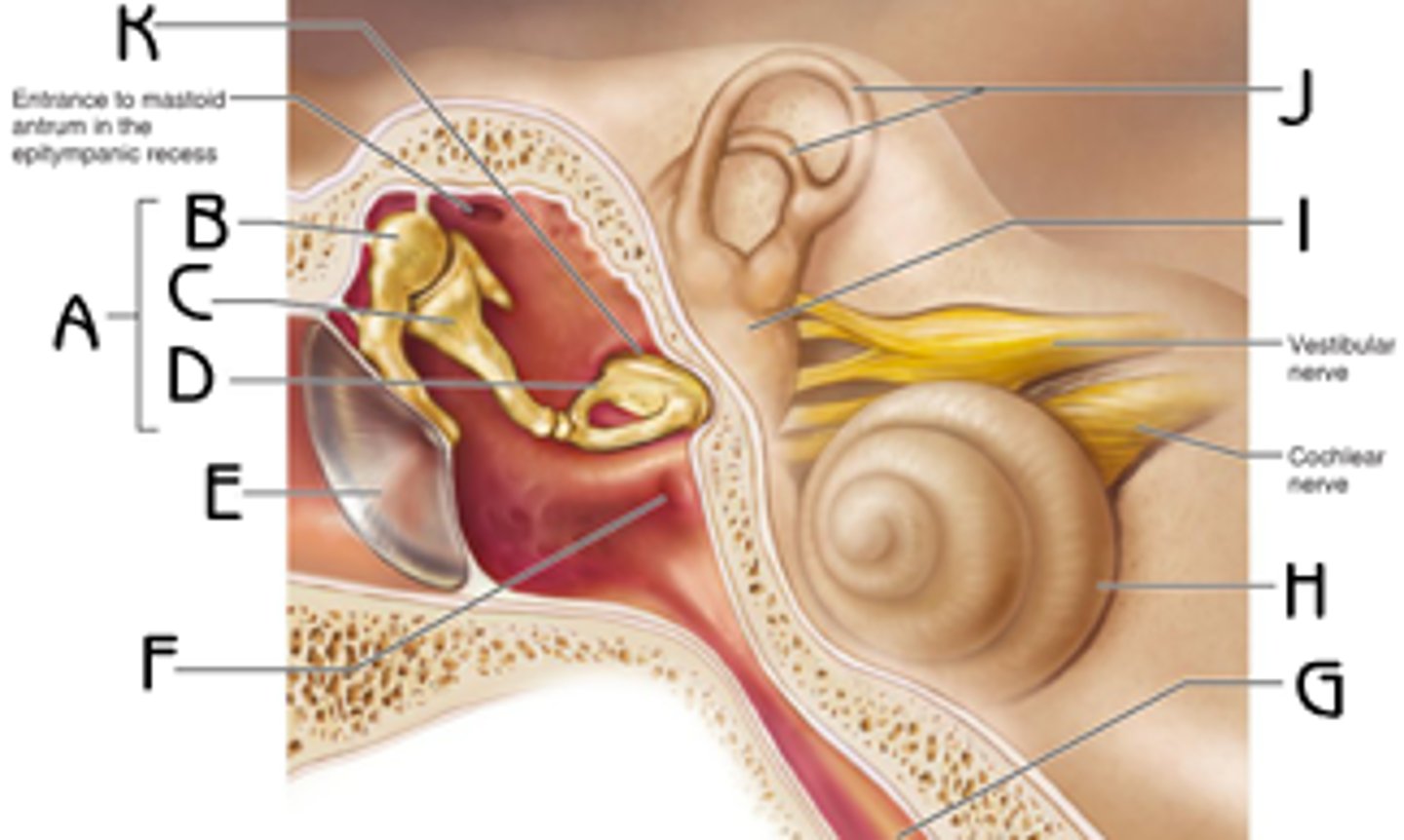

Oval Window

K (Not Bone)

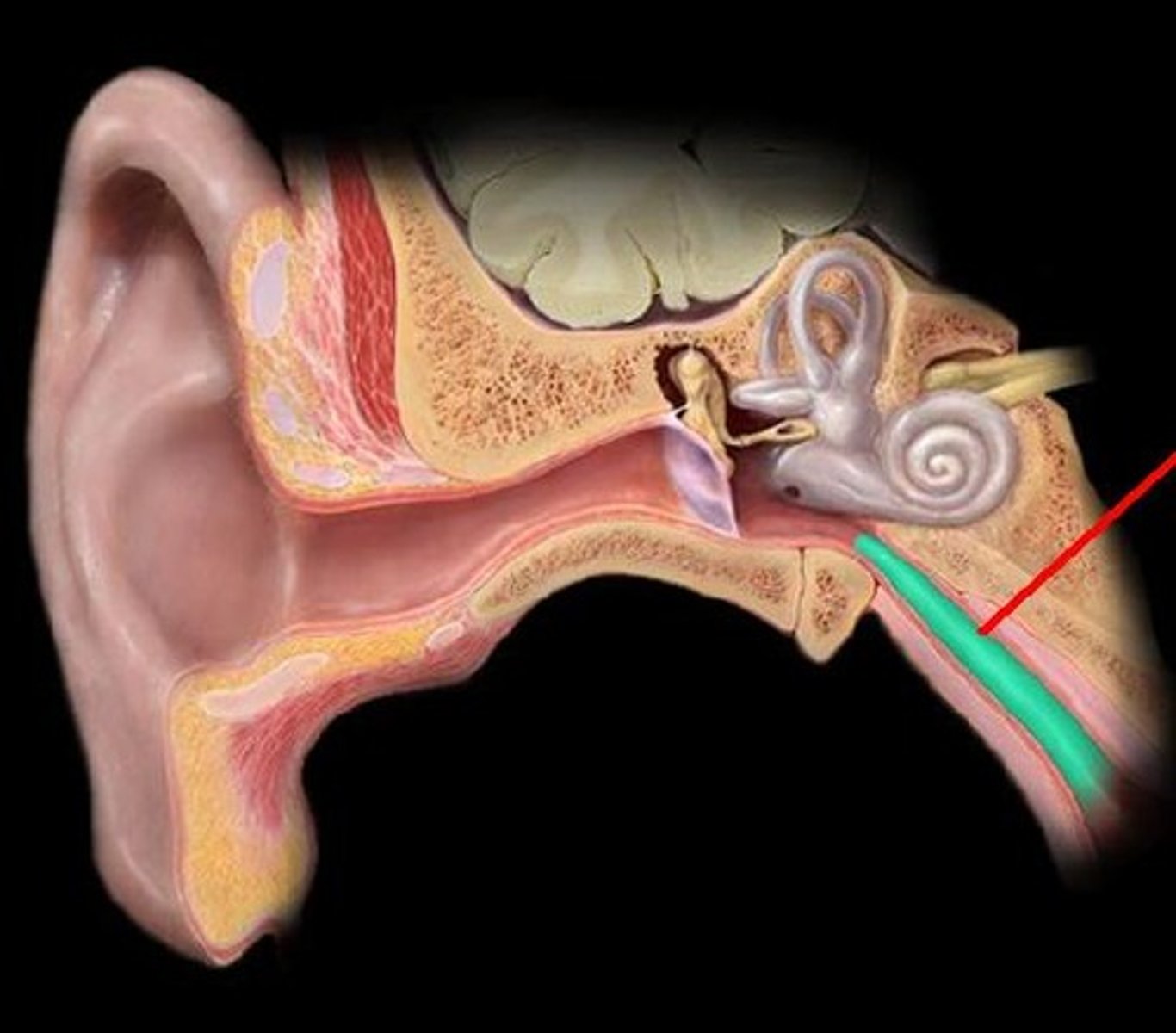

Eustachian Tube/Pharyngotympanic Tube

(Pressure Control)

Aditus Mastoid Antrum

Mastoid Antrum

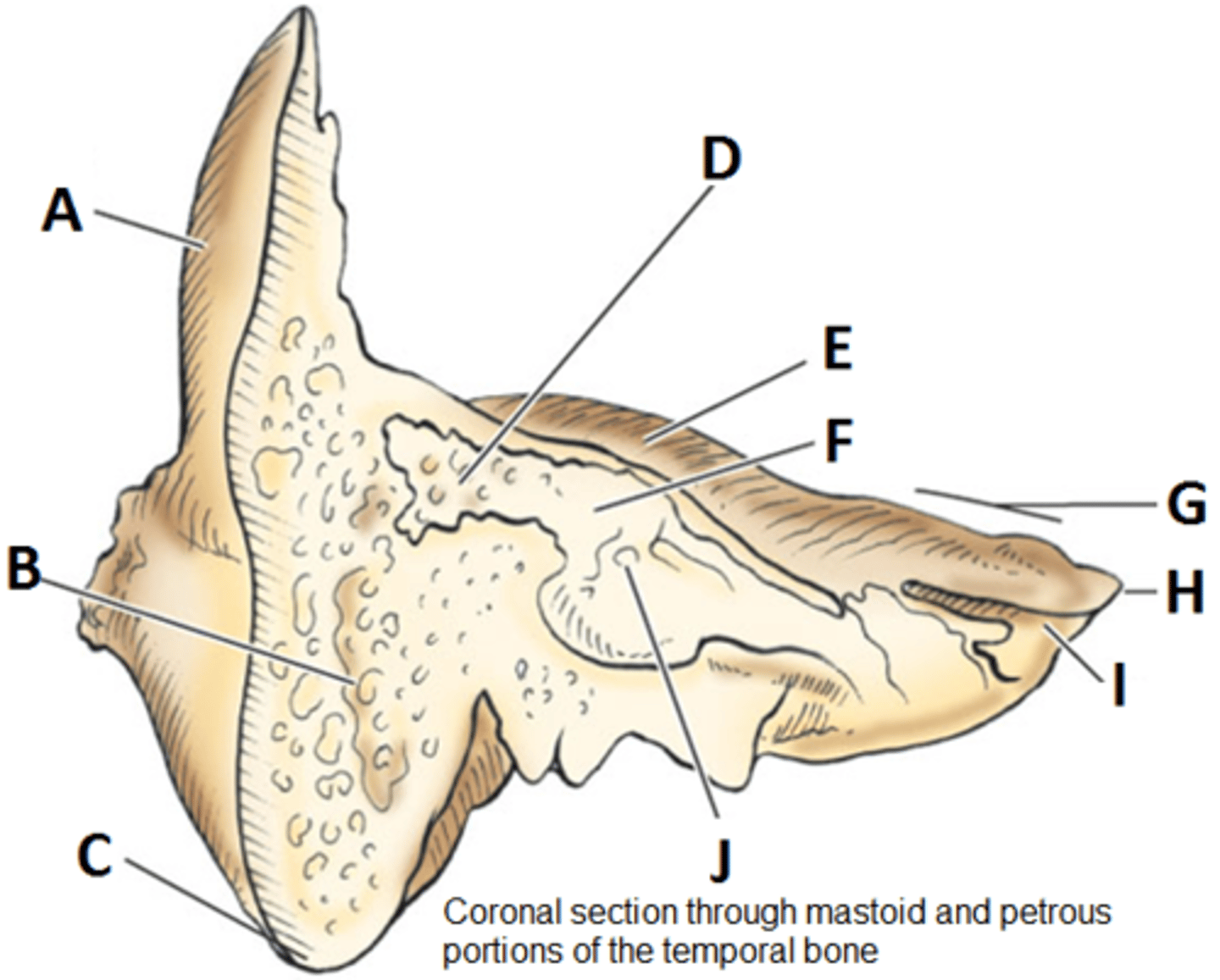

D

Round Window

F

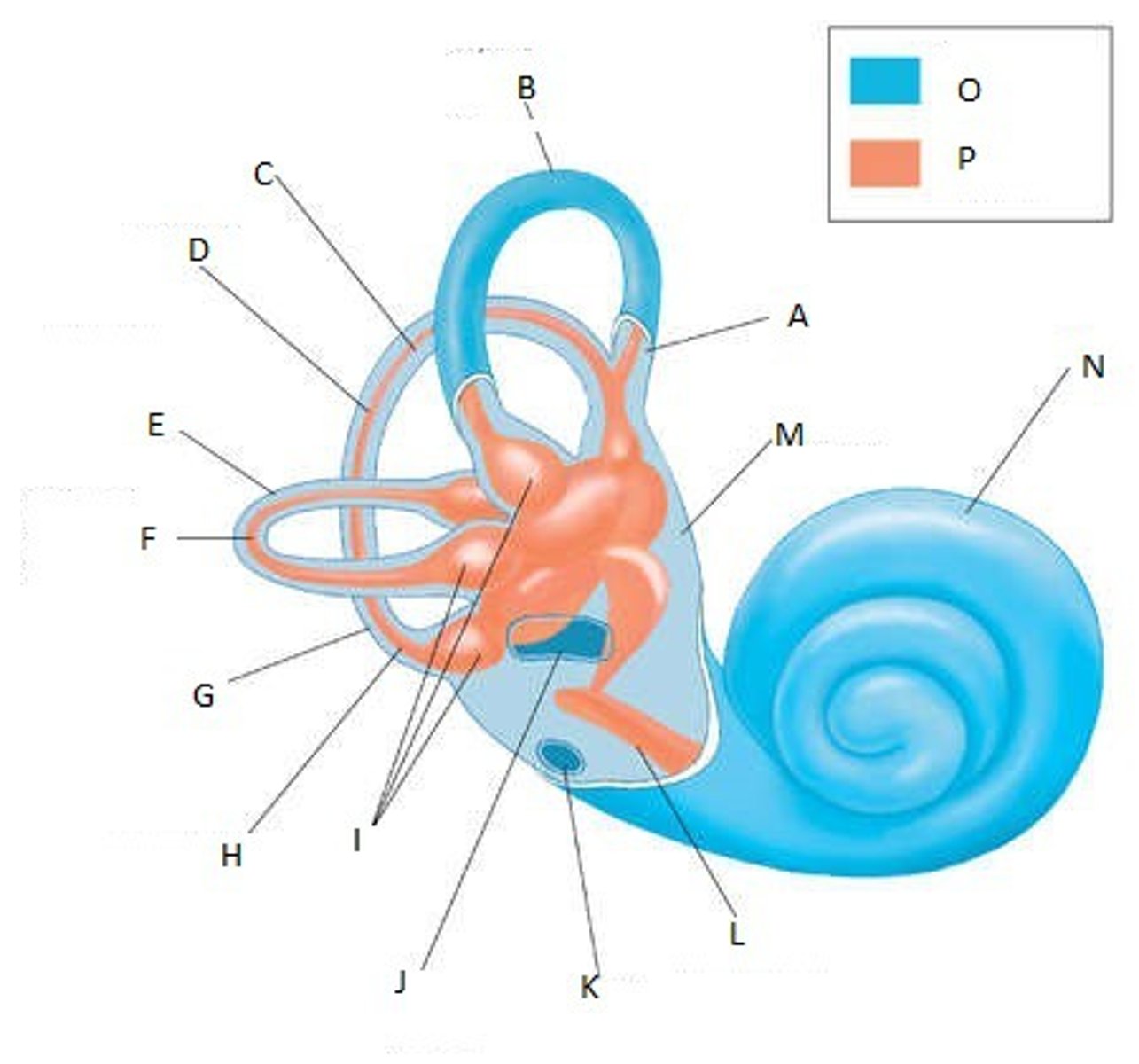

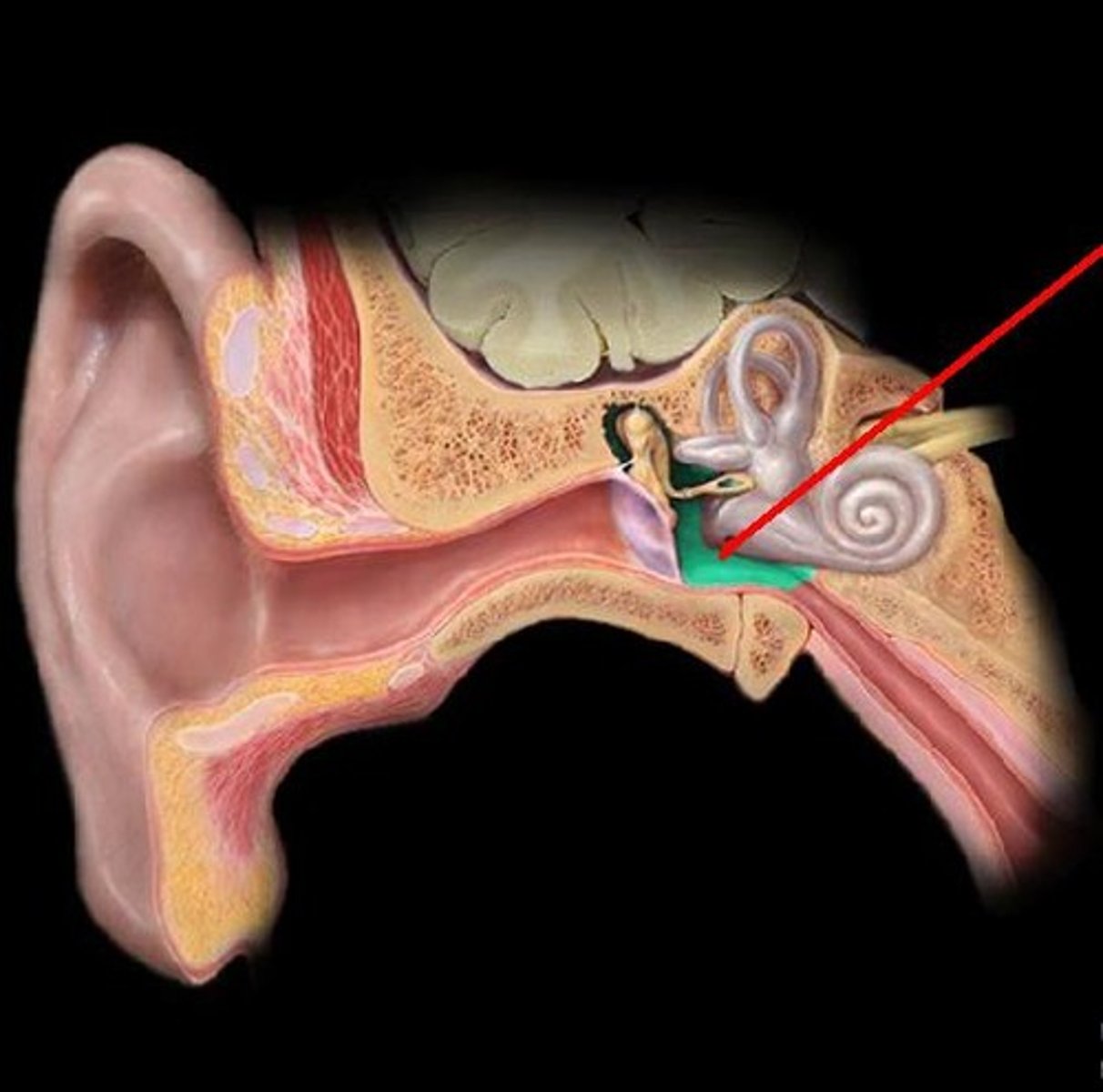

Bony Labyrinth

Blue

Membranous Labyrinth

(Perilymph)

Red

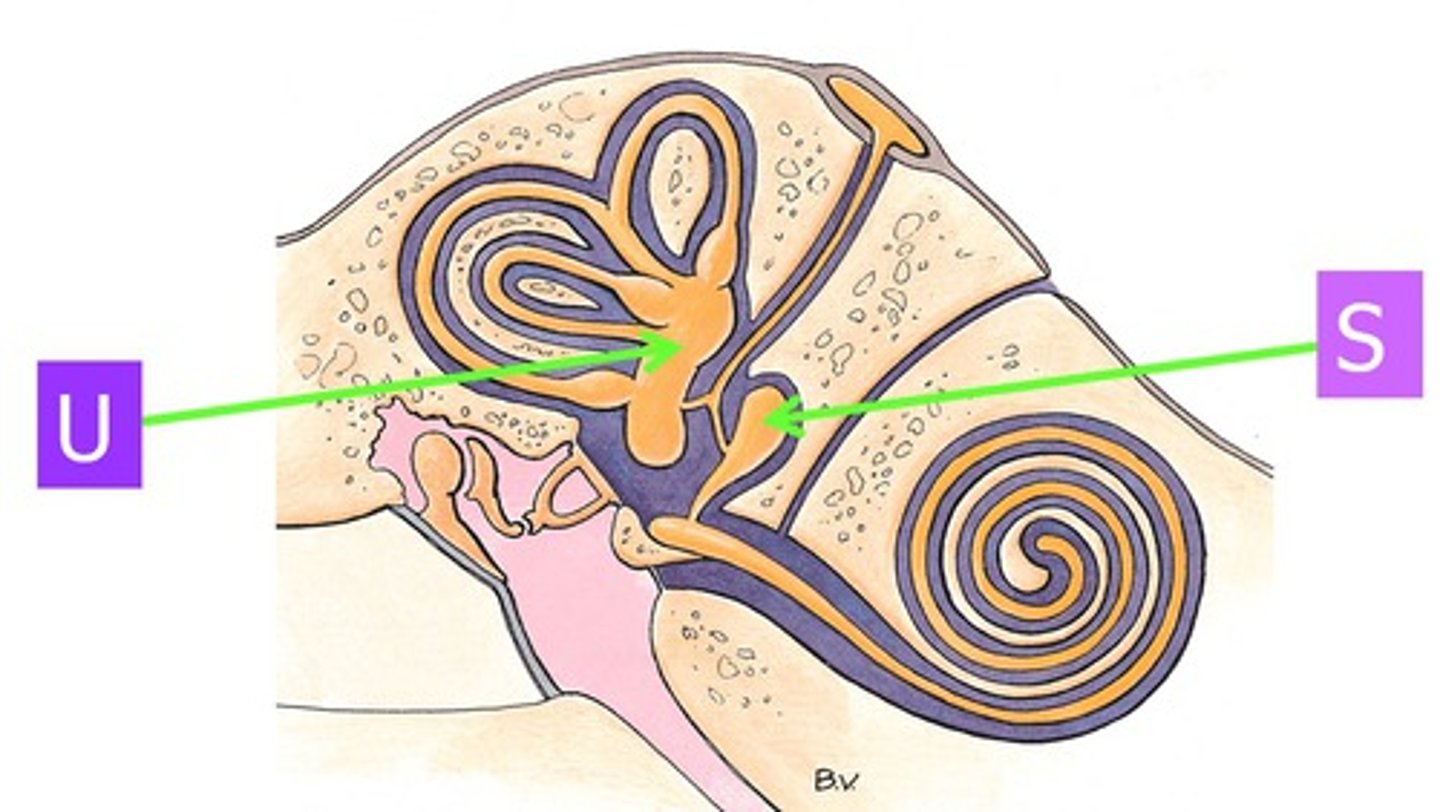

Utricle

(Linear Acceleration, Head in Respect to Gravity)

(Head Tilting)

U

Saccule

(Linear Acceleration, Head in Respect to Gravity)

(Head Tilting)

S

Vestibule

7

Semicircular Canals

(Dynamic Equilibrium)

6

Semicircular Duct

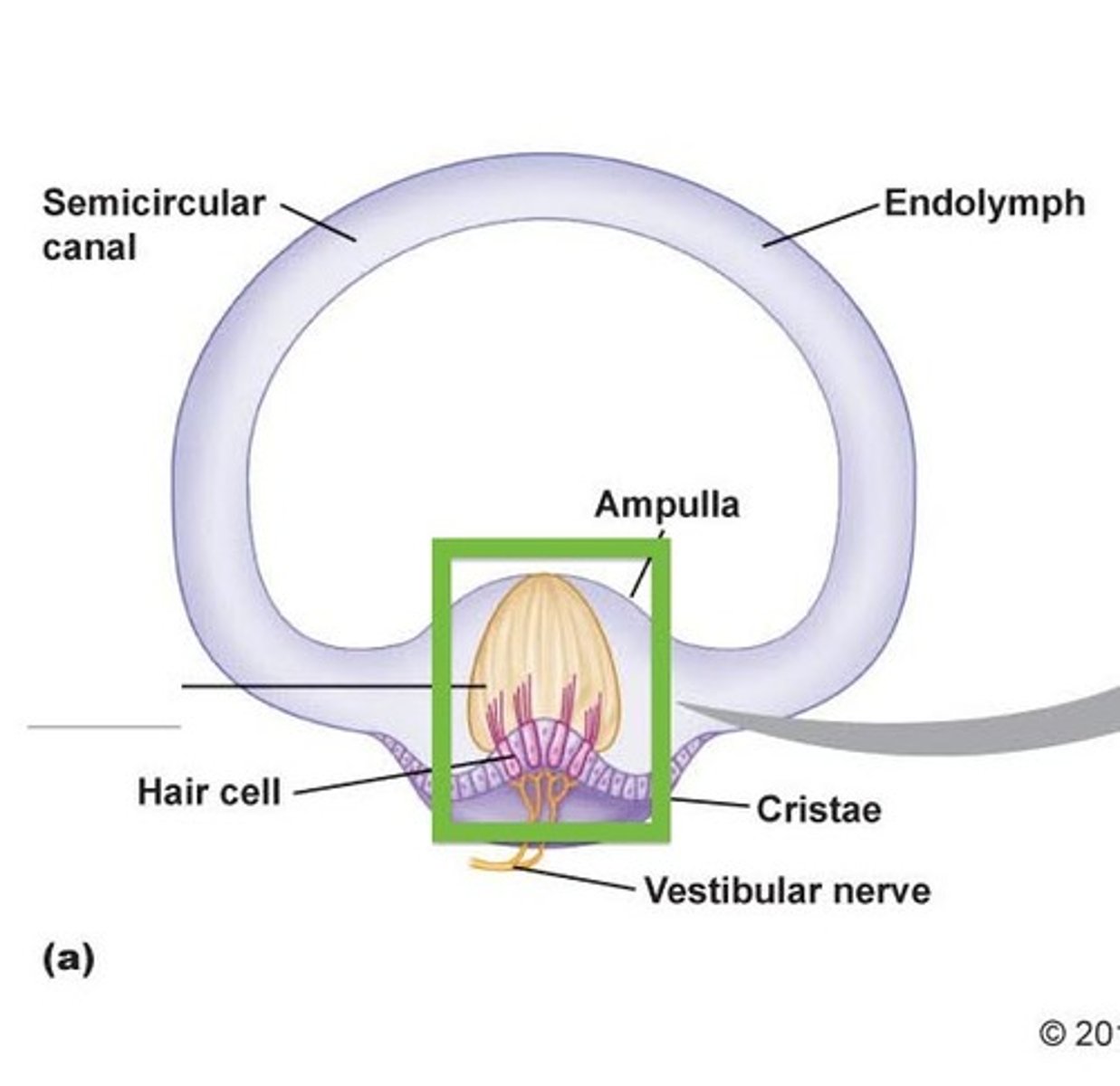

Crista Ampularis

Ampullary Cupula

(Rotational Movement)

1. Otoliths

2. Otolith Membrane

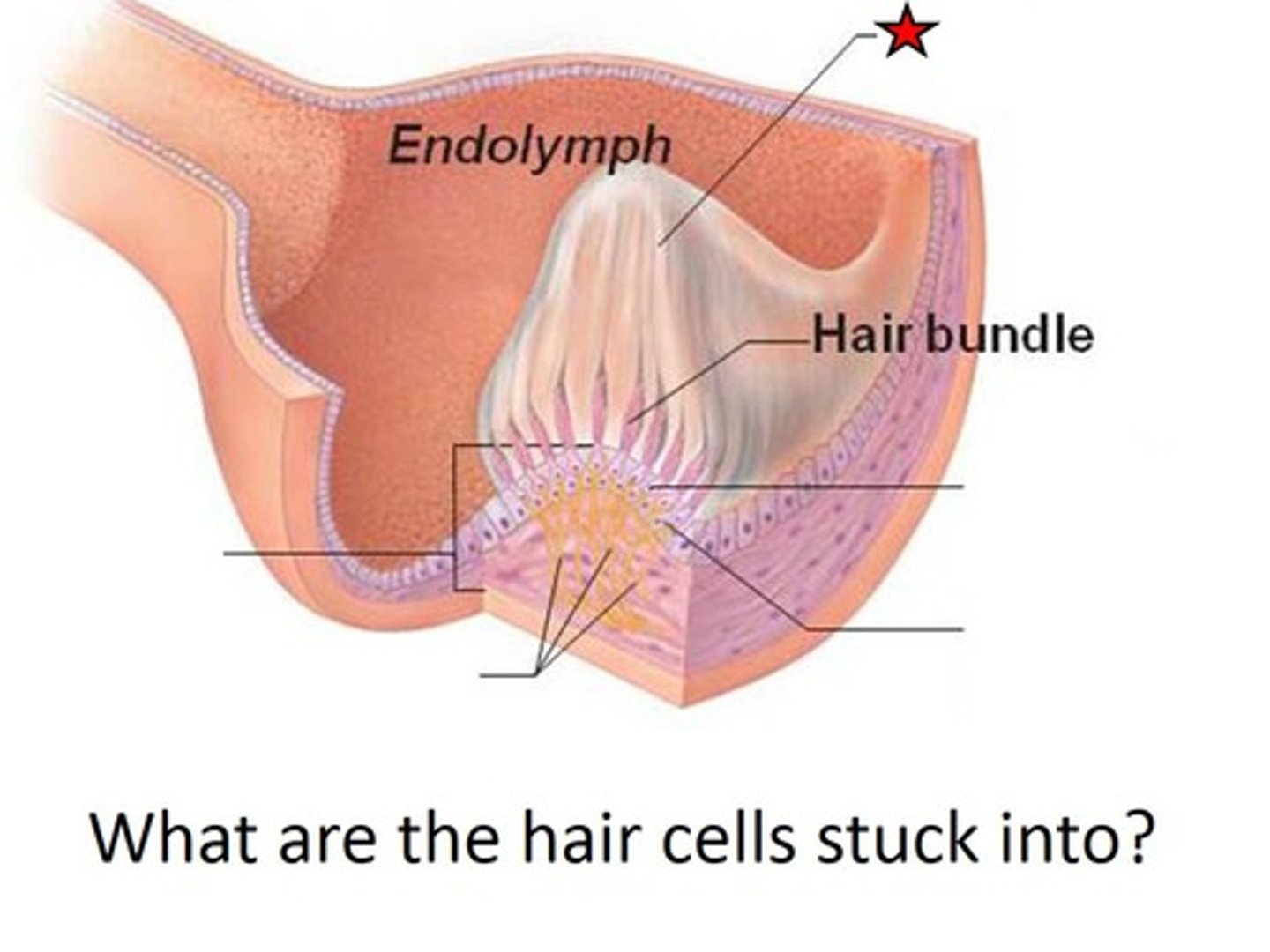

3. Hair-Like Sensory Cells

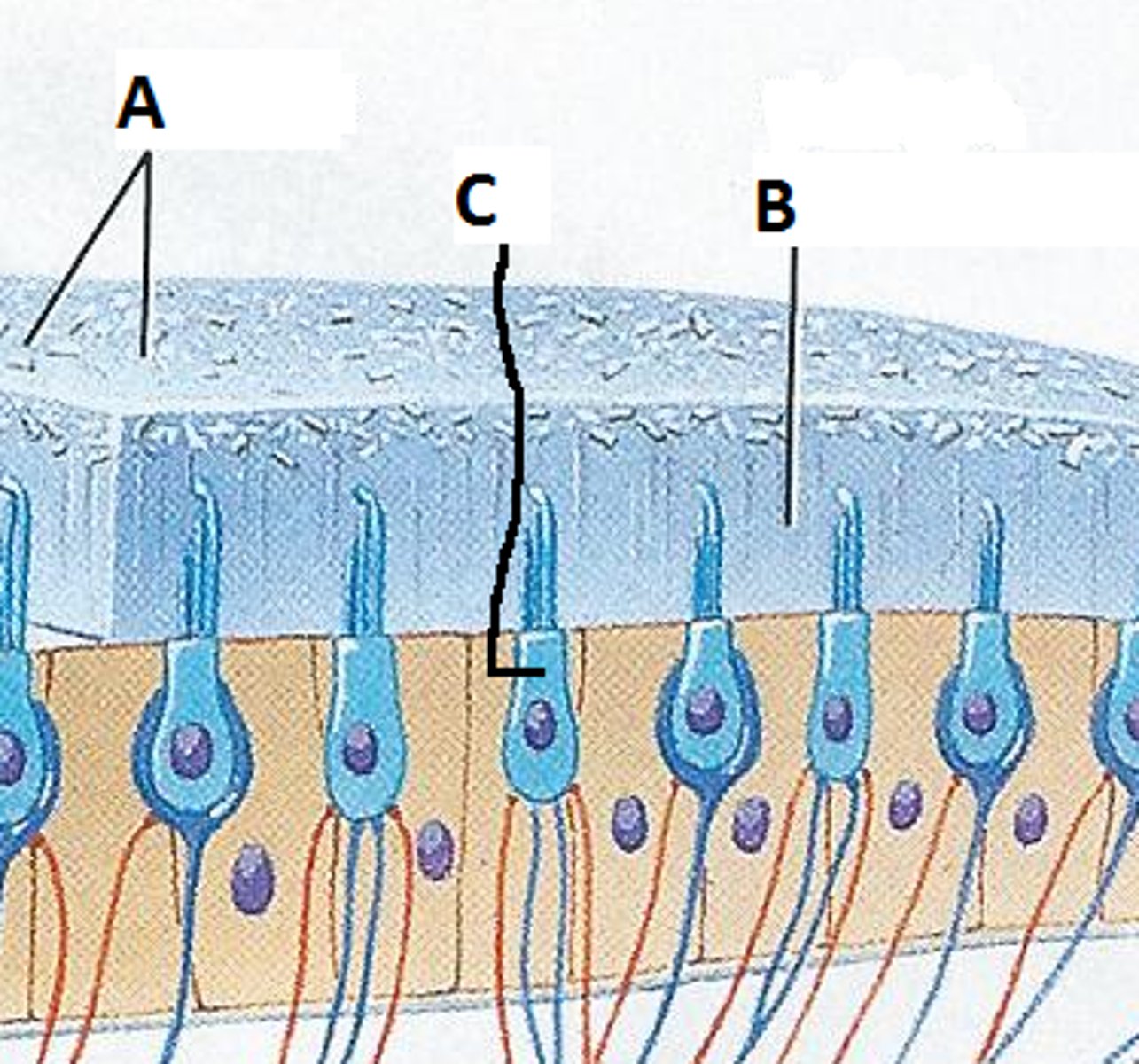

Maculae Composed of:

Otoliths

A

Otolith Membrane

Hair-Like Sensory Cells

C

Utricle: Horizontal

Saccule: Up & Down

Orientation of Maculae

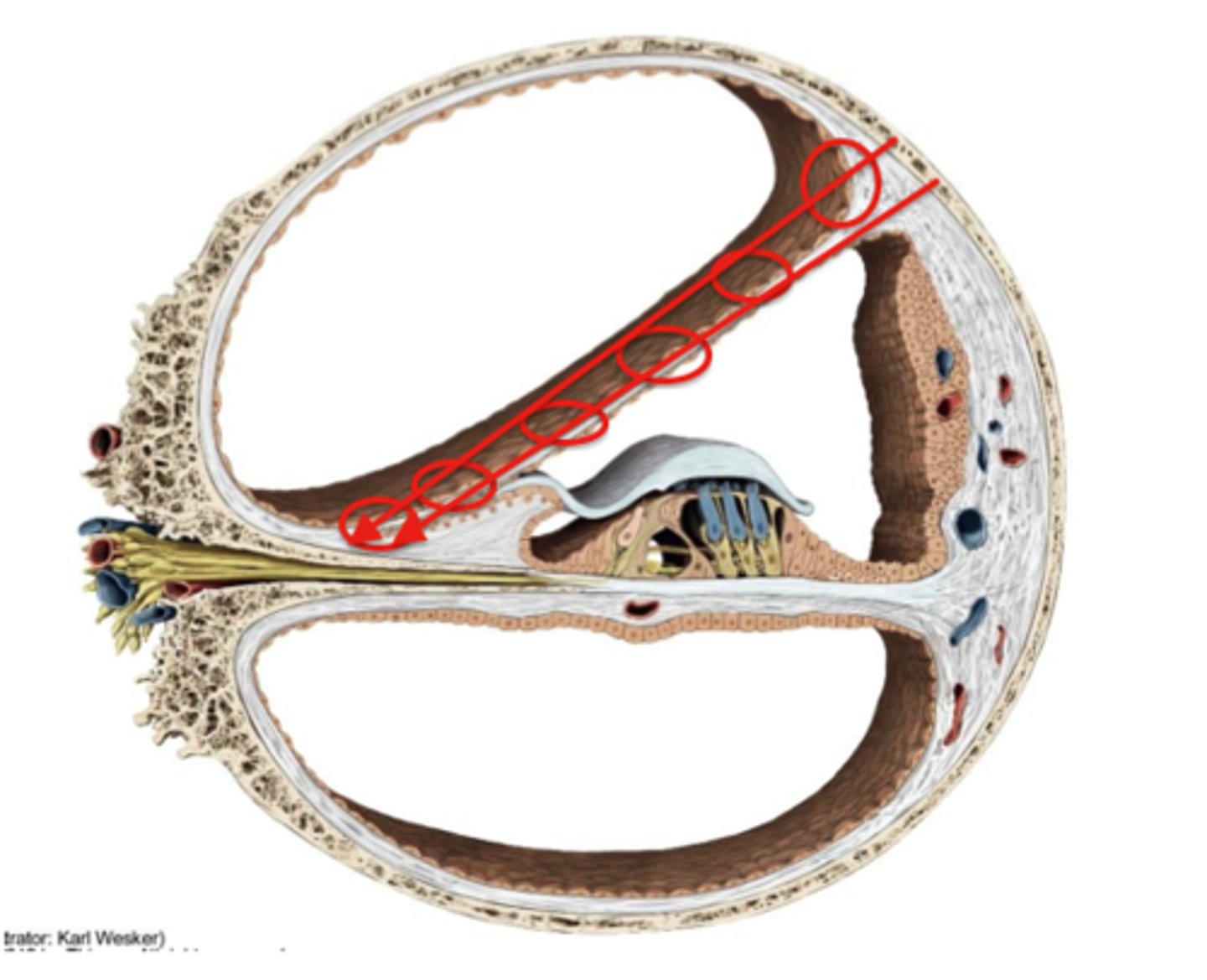

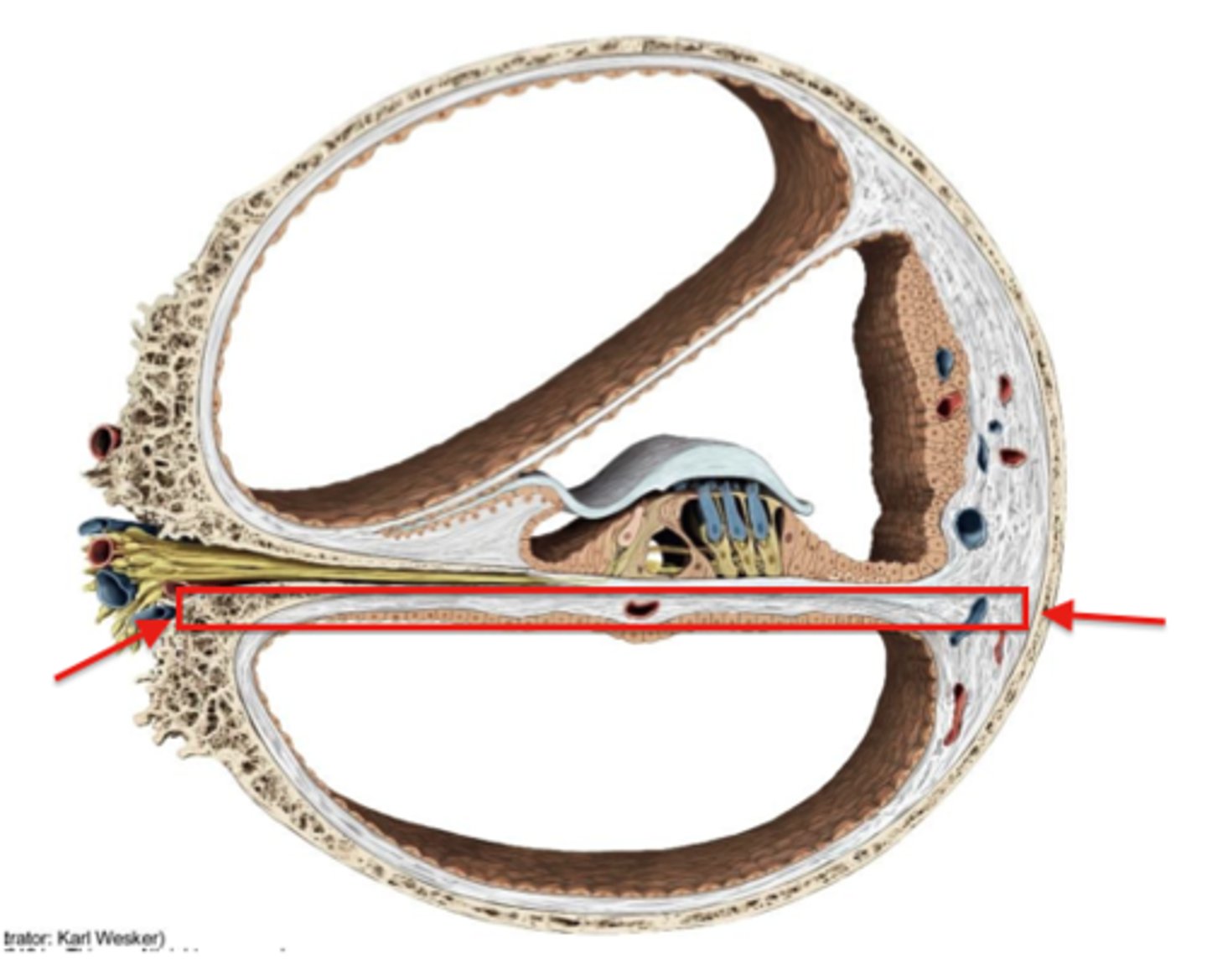

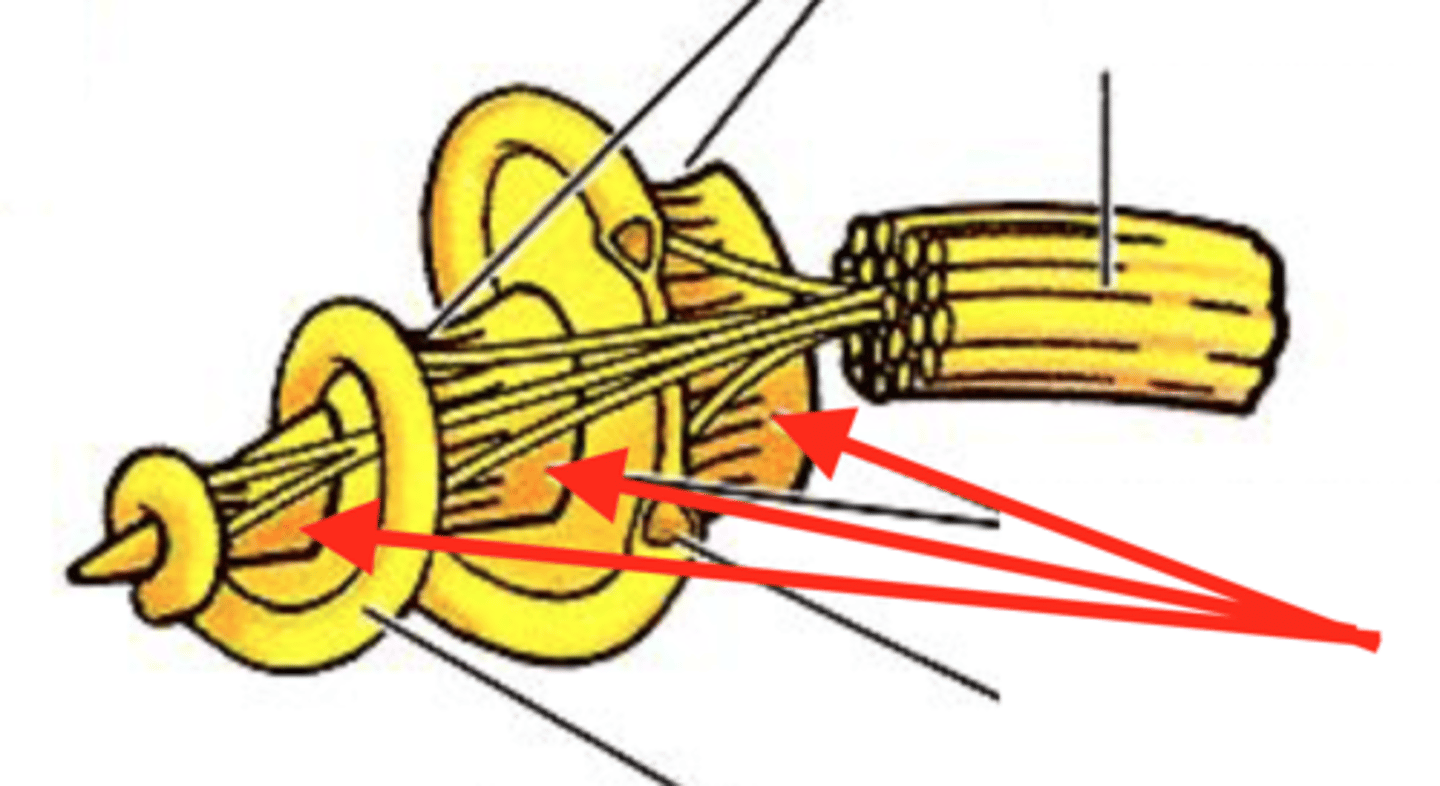

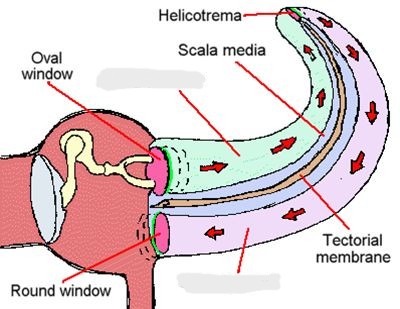

Cochlea

(Endolymph)

8

Scala Vestibuli

(Perilymph)

Green

Scala Tympani

(Perilymph)

Purple

Modiolus

(Cochlea Swirls around Column)

Vestibular Membrane of Cochlea

Basilar Membrane of Cochlea

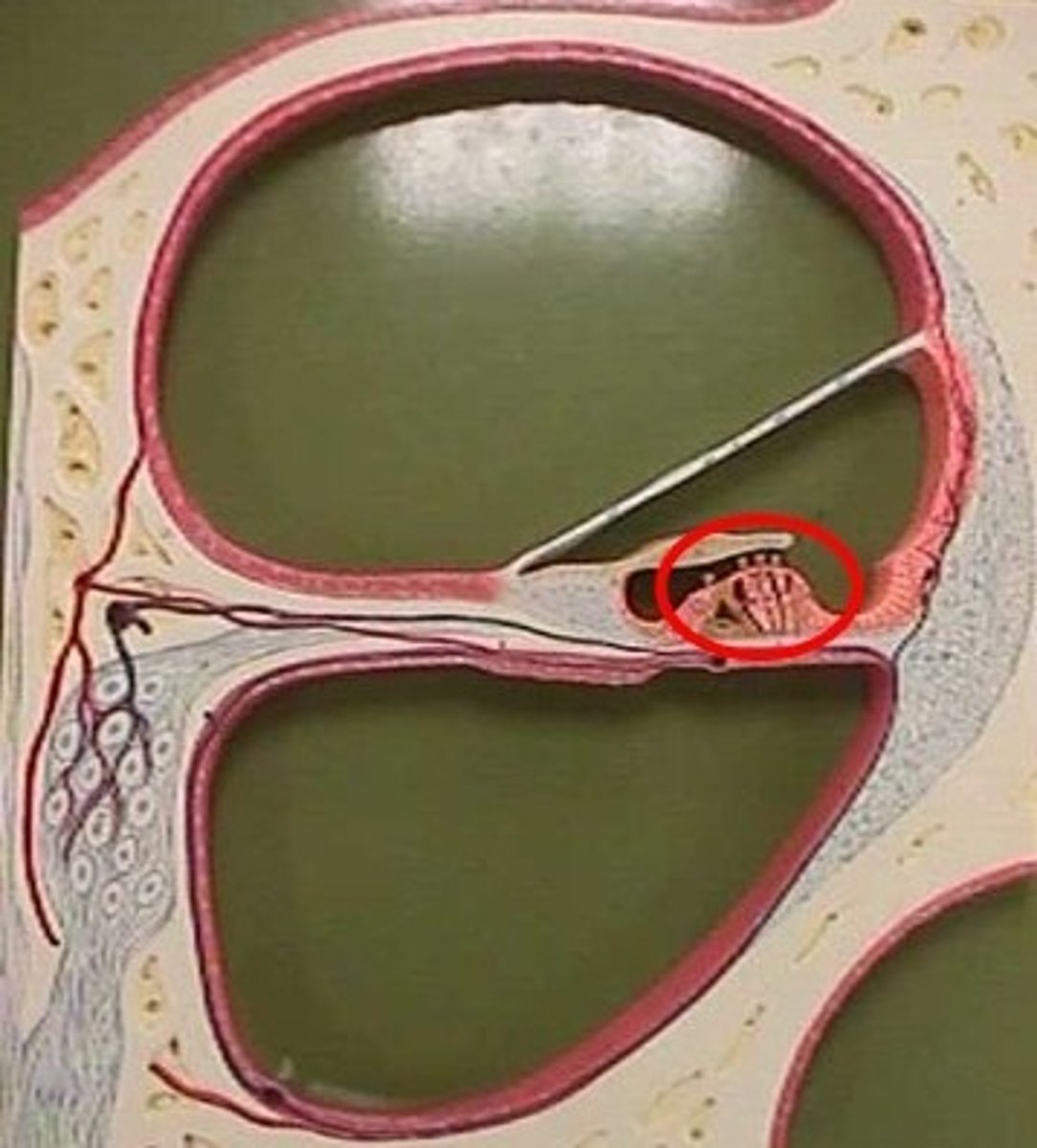

Spiral Organ

(Hair Cells)

Vestibulocochlear N
