Vascular Pictures exam #2

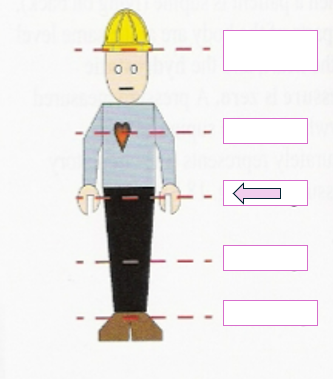

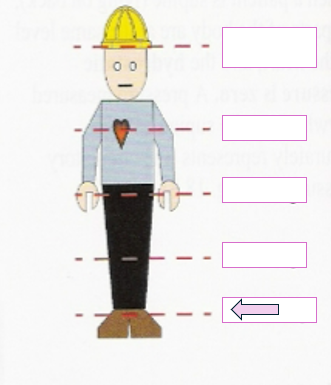

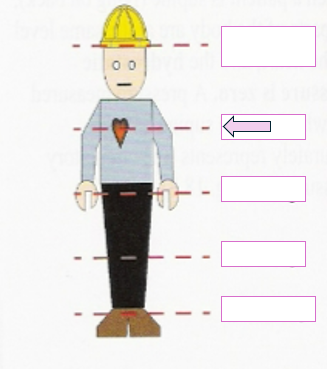

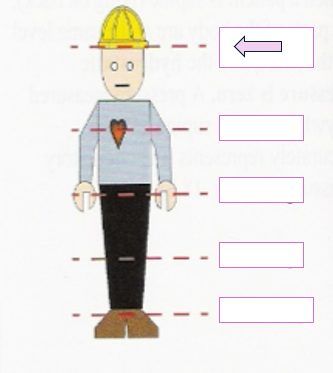

When standing, the hydrostatic pressure at the indicated level is approximately ___mmHg

-30 mmHg

When standing, the hydrostatic pressure at the indicated level is approximately ___mmHg

0 mmHg

When standing, the hydrostatic pressure at the indicated level is approximately ___mmHg

50 mmHg

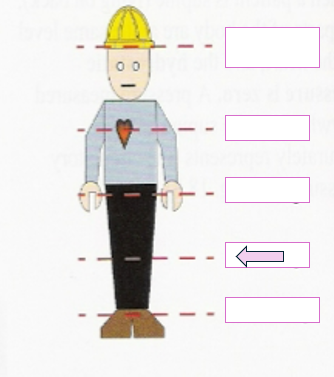

When standing, the hydrostatic pressure at the indicated level is approximately ___mmHg

75 mmHg

When standing, the hydrostatic pressure at the indicated level is approximately ___mmHg

100 mmHg

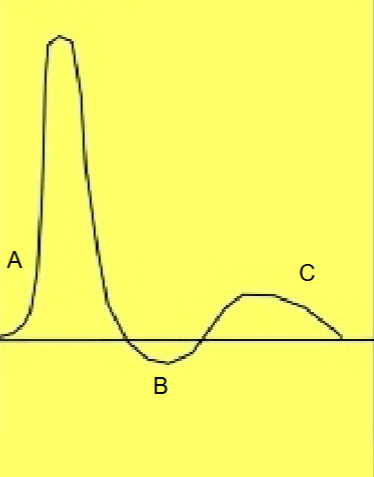

Identify the phase & direction of flow at point A

Systole- forward flow

Identify the phase & direction of flow at point B

Late systole/early diastole- Temporary reverse flow due to phase shift

Identify the phase & direction of flow at point C

Late diastole- forward flow

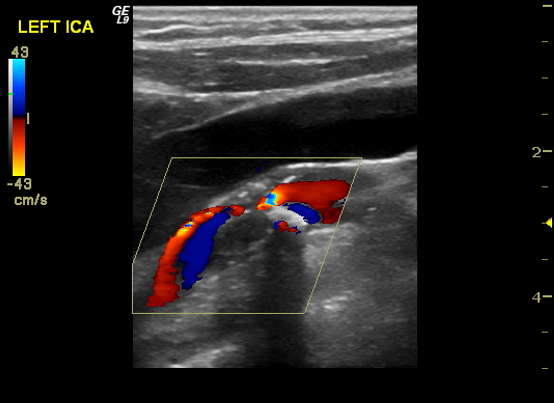

What pathology is being shown in this image?

Stenosis

What Doppler feature is demonstrated in the spectral waveform?

Spectral broadening indicating disturbed/turbulent flow

Based on the Doppler image, which finding best characterizes the hemodynamics at the sampled site?

Focal flow acceleration with spectral broadening consistent with a stenotic jet

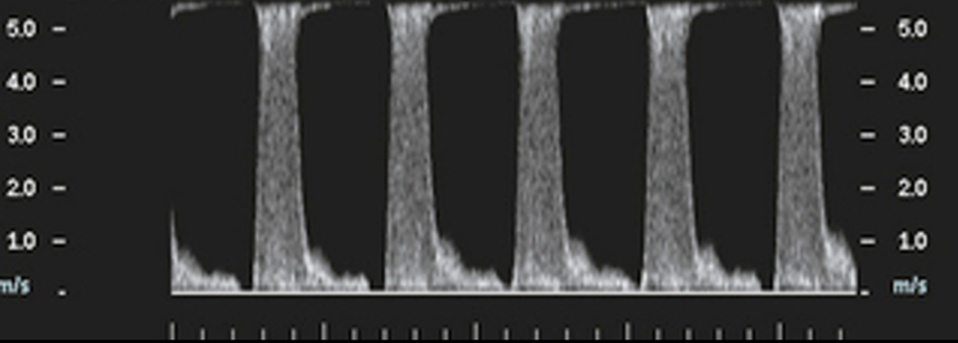

Elevated velocities associated with this finding may be detected:

Within the stenosis and extending into adjacent proximal and distal segments

Which combination of Doppler findings most strongly supports hemodynamically significant stenosis in this image?

Elevated peak velocities with spectral broadening and evidence of flow disturbance

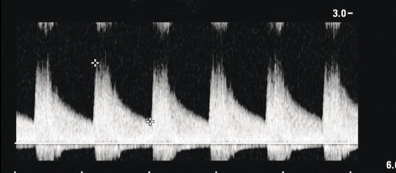

The Doppler sample volume in this image is most likely located:

Distal to a stenosis

Identify TWO abnormal Doppler findings present in this image.

Spectral broadening + turbulent/chaotic flow with eddy currents

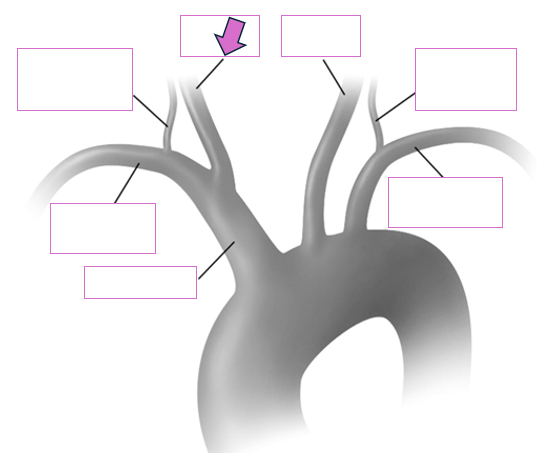

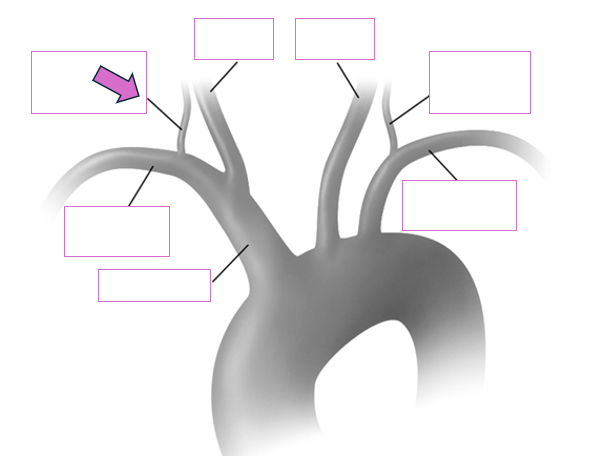

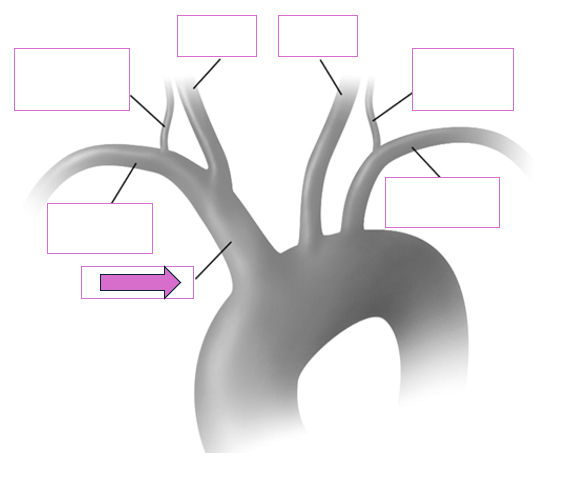

Based on the indicated area, identify this vessel

Brachiocephalic/innominate artery

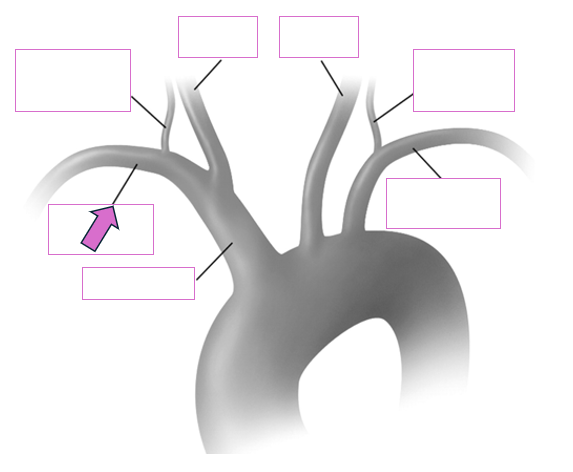

Based on the indicated area, identify this vessel

Right subclavian artery

Based on the indicated area, identify this vessel

Right vertebral artery

Based on the indicated area, identify this vessel

Right carotid artery

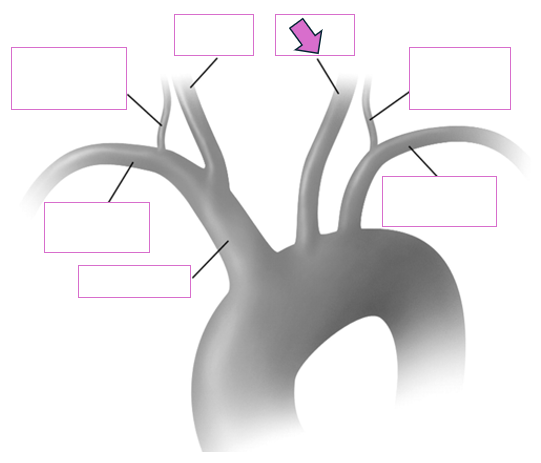

Based on the indicated area, identify this vessel

Left carotid artery

Based on the indicated area, identify this vessel

Left vertebral artery

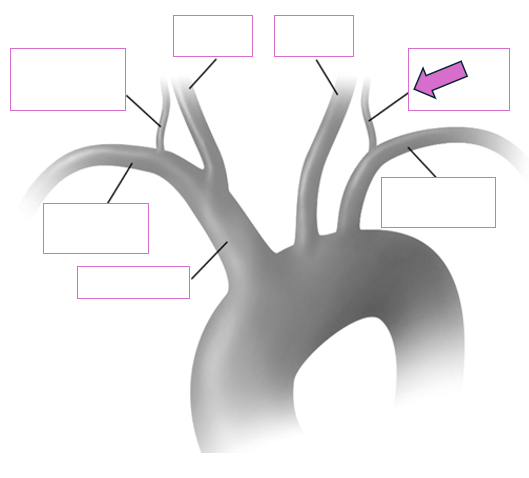

Based on the indicated area, identify this vessel

Left subclavian artery

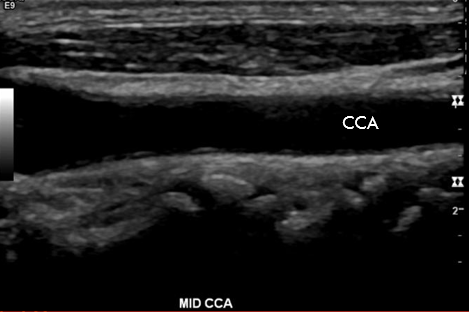

True or False: This image shows a Long CCA sonographic appearance

True

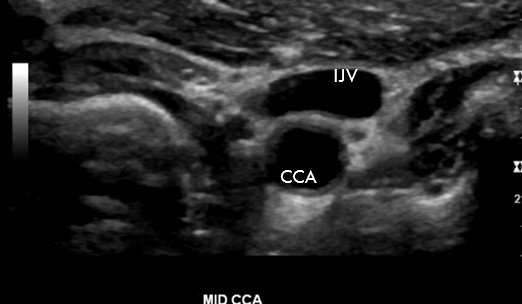

True or False: This image shows a Trans CCA sonographic appearance

True

In this picture, what is the arrow pointing at?

Bulb

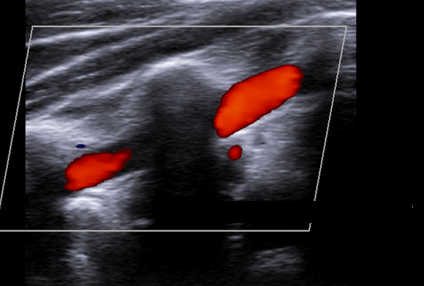

What vessel is being shown in this image?

Vertebral

Based on the waveforms, which vessel do they belong to?

CCA

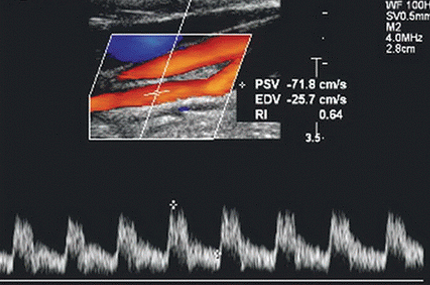

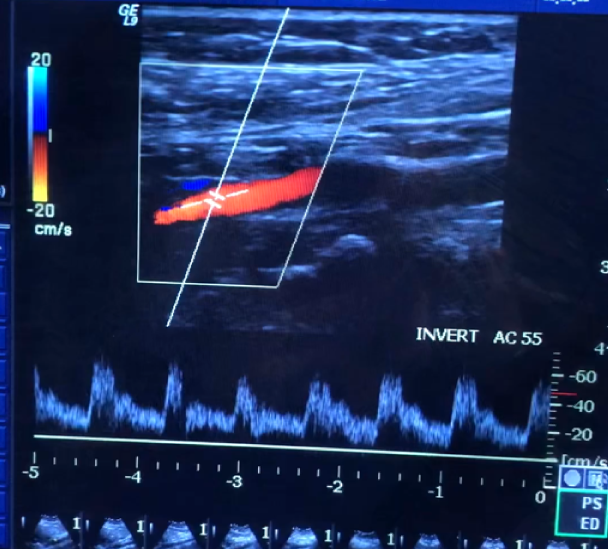

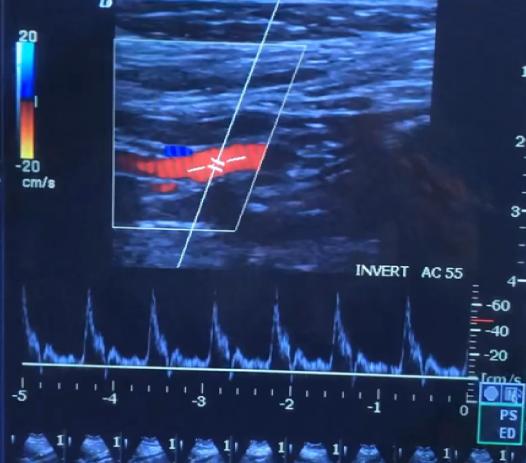

Identify the vessel

CCA

Based on the waveforms, Which vessel do they belong to?

ICA

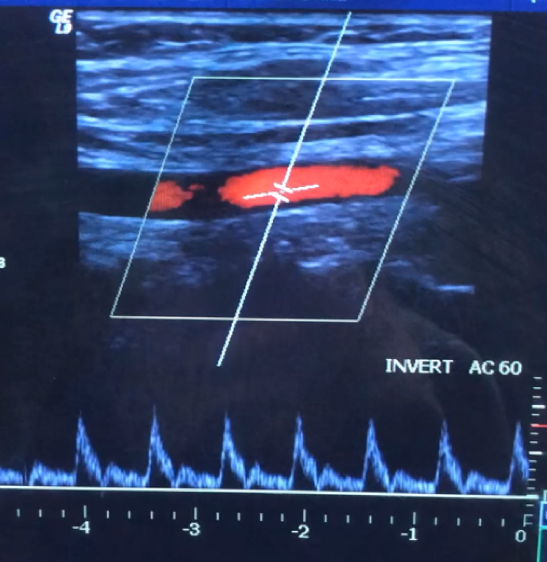

Identify the vessel

ICA

Based on the waveforms, which vessel do these belong to?

ECA

Identify the vessel

ECA

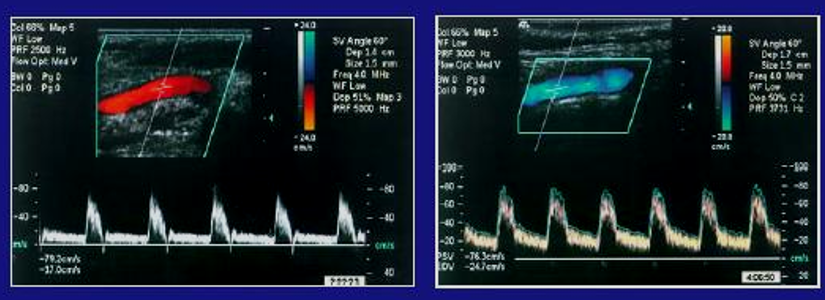

True or False: The picture on the left shows an ICA flow pattern

False

True or False: The picture on the right shows a vertebral flow pattern

False

True or False: The picture on the left shows an ECA flow pattern

True

True or False: The picture on the right shows an ICA flow pattern

True

Based on this image, which vessel is being shown?

Vertebral

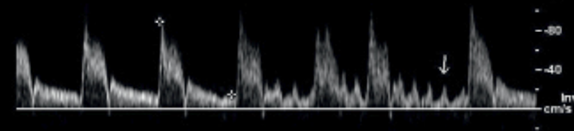

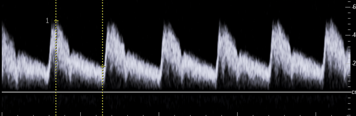

Based on the waveforms, which vessel do these belong to?

Vertebral

Identify the vessel

ICA

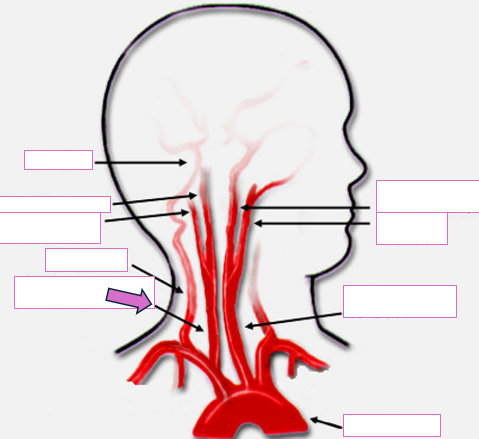

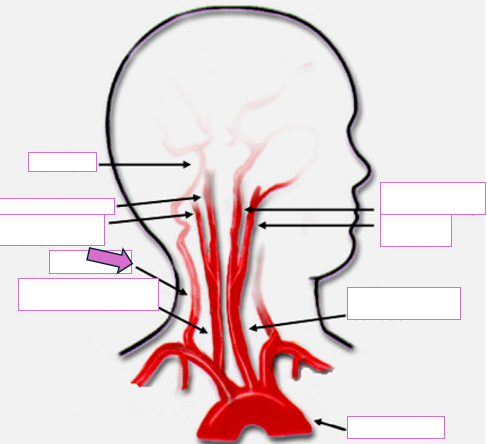

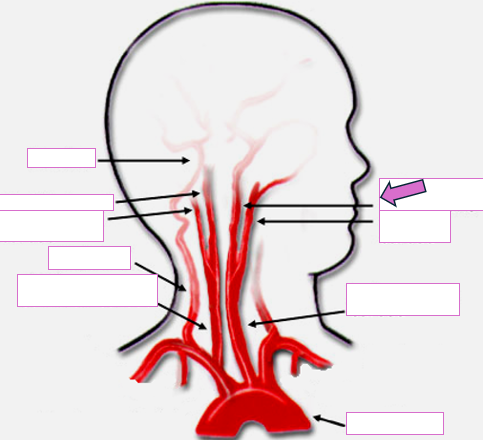

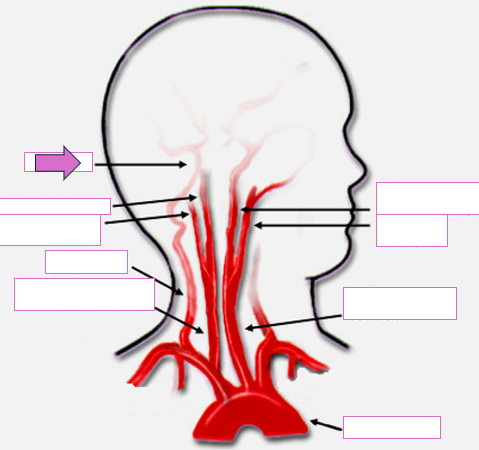

Based on the indicated area, identify this vessel

Basilar

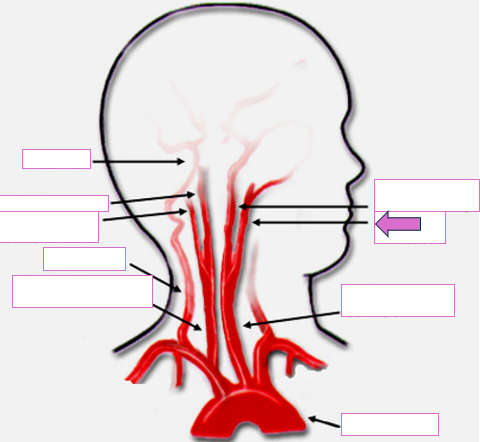

Based on the indicated area, identify this vessel

Right internal carotid

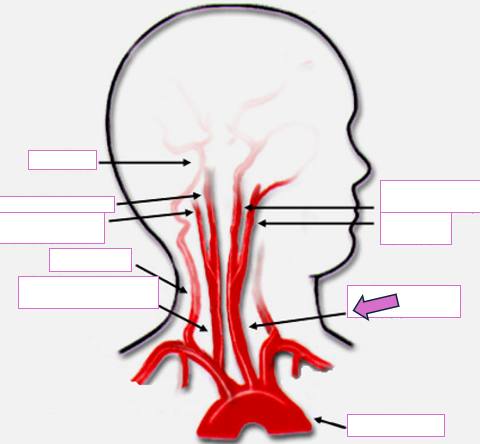

Based on the indicated area, identify this vessel

Right external carotid

Based on the indicated area, identify this vessel

Vertebral

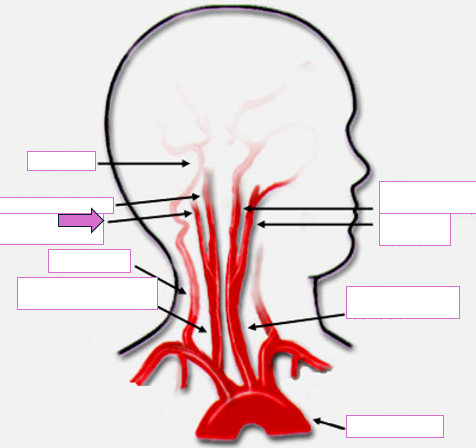

Based on the indicated area, identify this vessel

Right common carotid

Based on the indicated area, identify this vessel

Left internal carotid

Based on the indicated area, identify this vessel

Left external carotid

Based on the indicated area, identify this vessel

Left common carotid

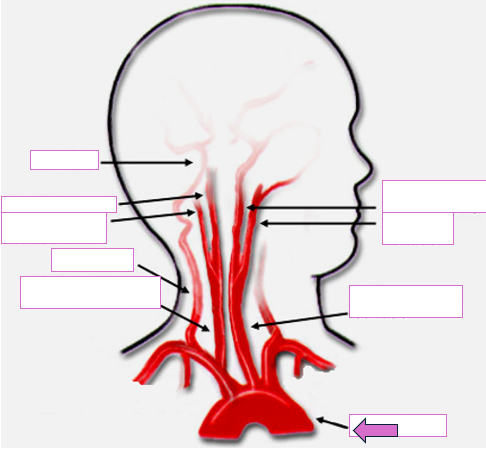

Based on the indicated area, identify this vessel

Aortic arch
