UNIT 2 - Dental Notation

What are the different names of tooth notation ?

• Universal or ADA

• Palmer

• Haderup

• FDI

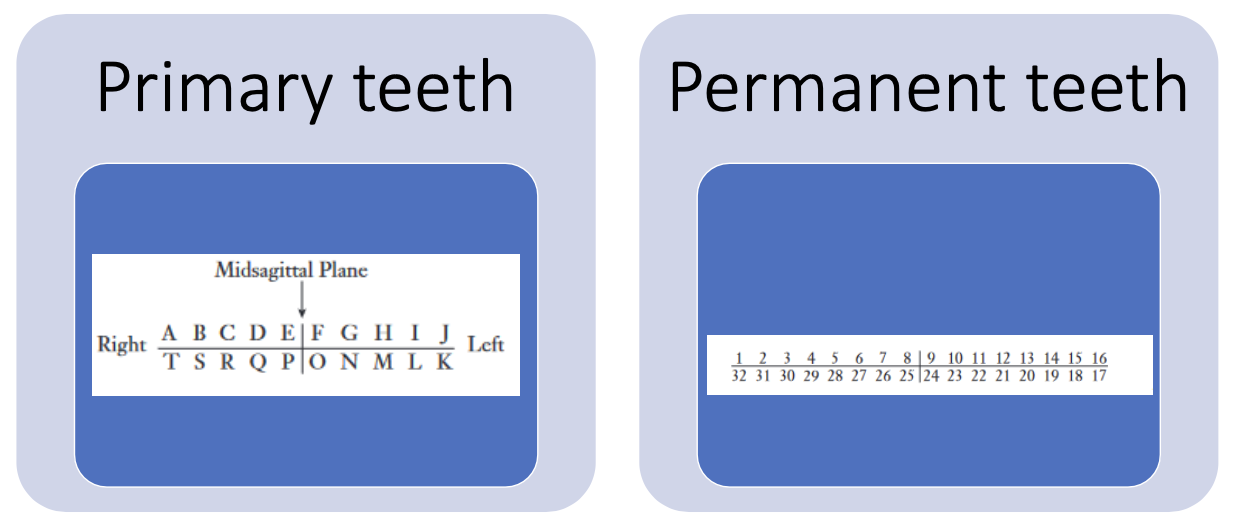

How does Universal system works ?

Primary teeth :

• Maxillary : A through J

• Mandibular K to T

Permanent teeth :

• Maxillary : 1 to 16

• Mandibular : 17 to 32

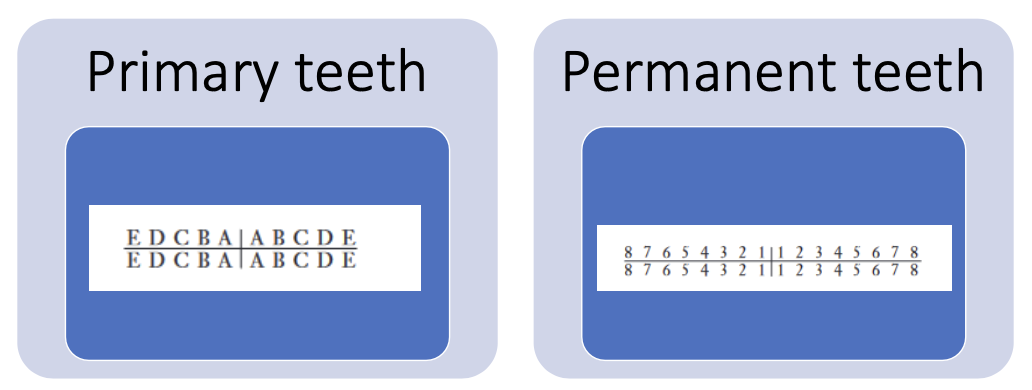

How does Palmer system works ?

Primary teeth :

• Maxillary & Mandibular : A through E starting at the midline (incisors)

Permanent teeth :

• Maxillary & Mandibular : 1 through 8 starting at the midline (incisors)

THE NUMBER OF THE TOOTH IS WRITTEN IN AN ANGLE ACCORDING TO THE QUADRANT IT IS IN

⎡ : lower left

⎤: lower right

⎣ : upper left

⎦: upper right

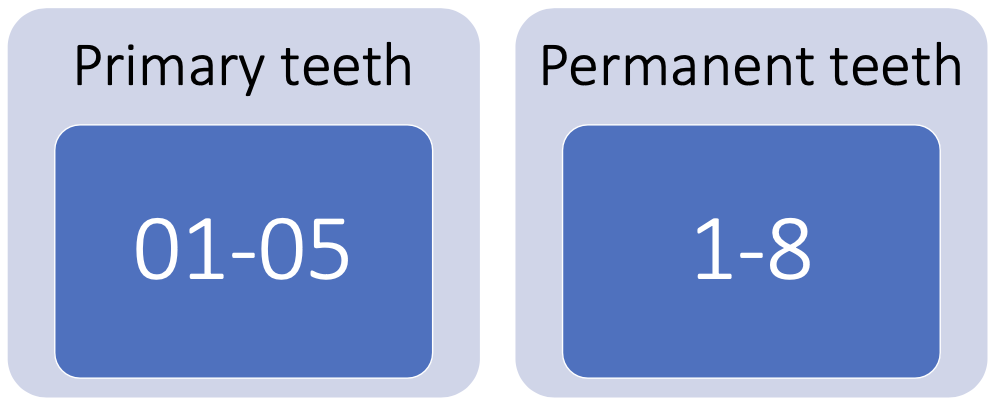

How does Haderup system works ?

Primary teeth :

• 01 through 05

Permanent teeth :

• 1 through 8

PLUS (UPPER) & MINUS (LOWER) WRITTEN WHERE THE MIDLINE IS

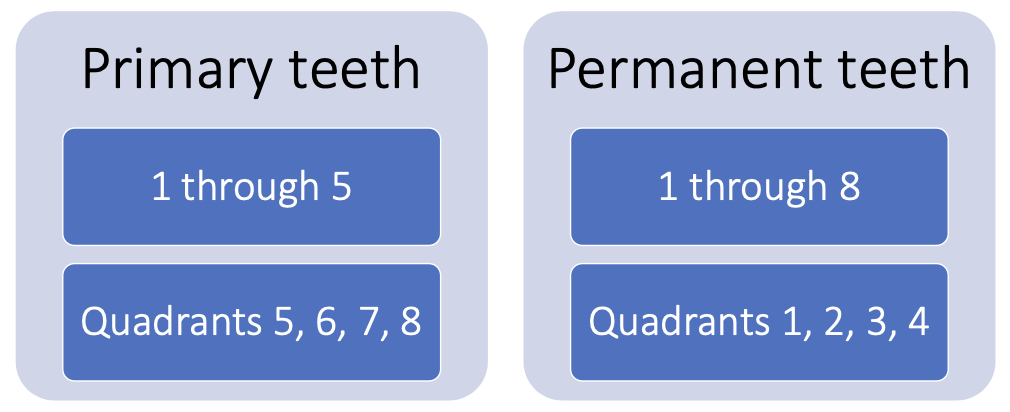

How does FDI system works ?

Primary teeth :

• 1 through 5

• Quadrants : 5, 6, 7, 8

Permanent teeth :

• 1 through 8

• Quadrants : 1, 2, 3, 4

Where is the 03- ?

What is this tooth (HADERUP)?

+05

Where is the 18 (UNIVERSAL) ?

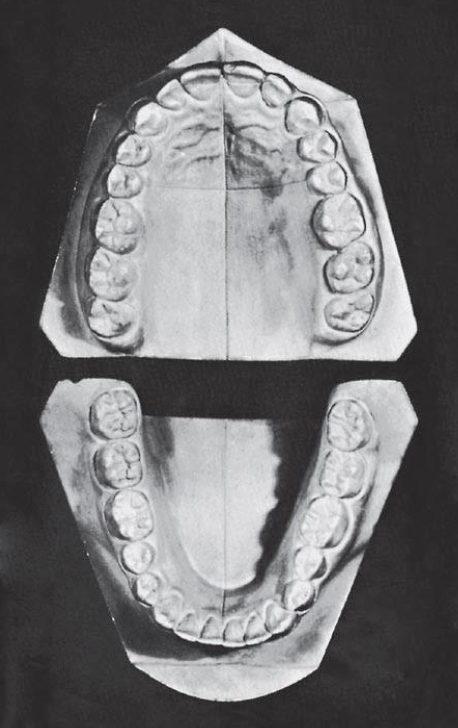

What is the missing tooth ? (in every notation)

Haderup : 5+

FDI : 1.5

Palmer : 5⎦

Universal : 4
