Lab Practical 3

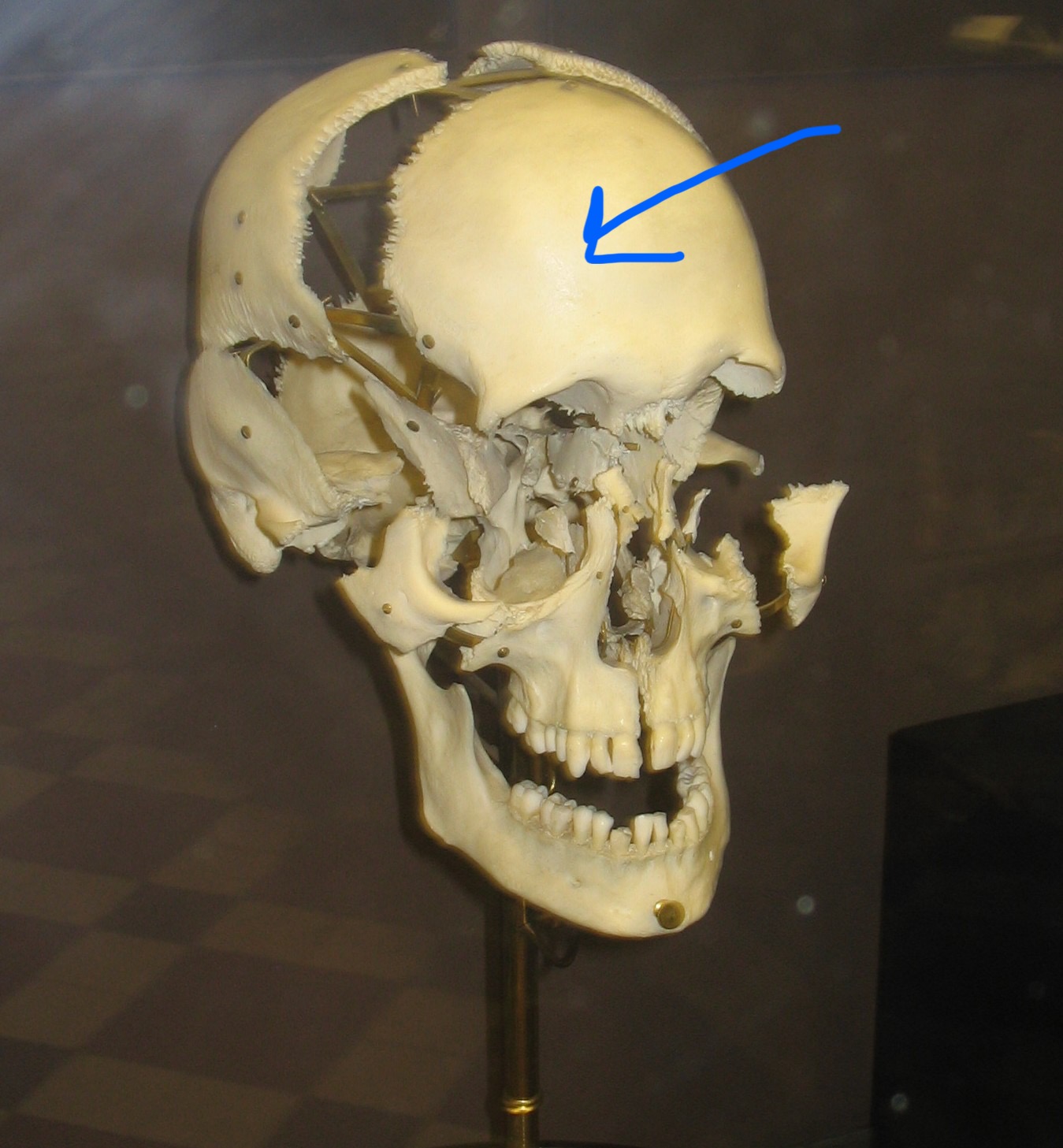

what is this?

frontal bone

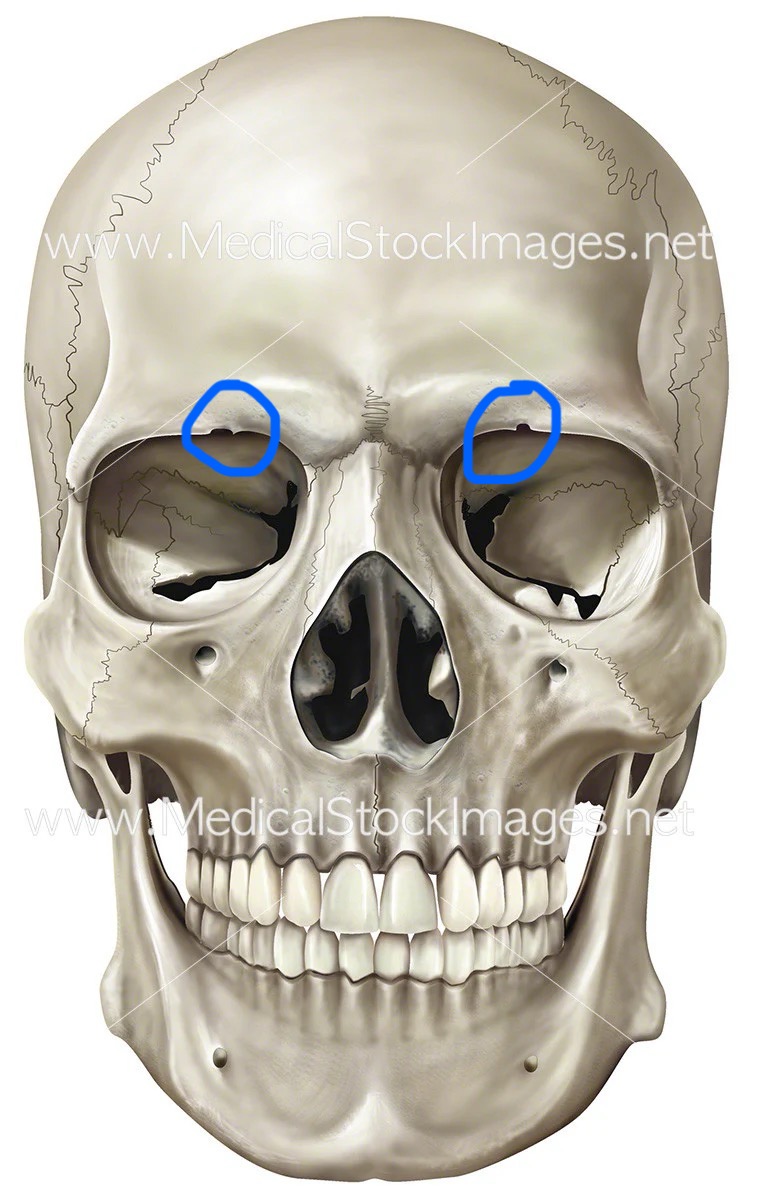

what is this?

supraorbital foramen / notch

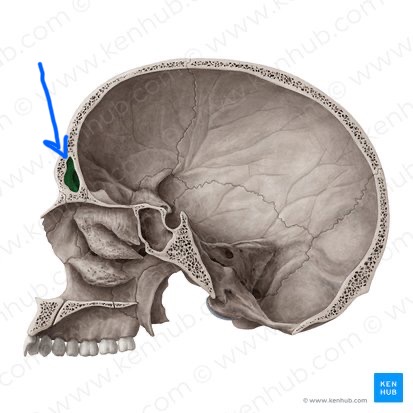

what is this?

frontal sinus

what is this?

parietal bone

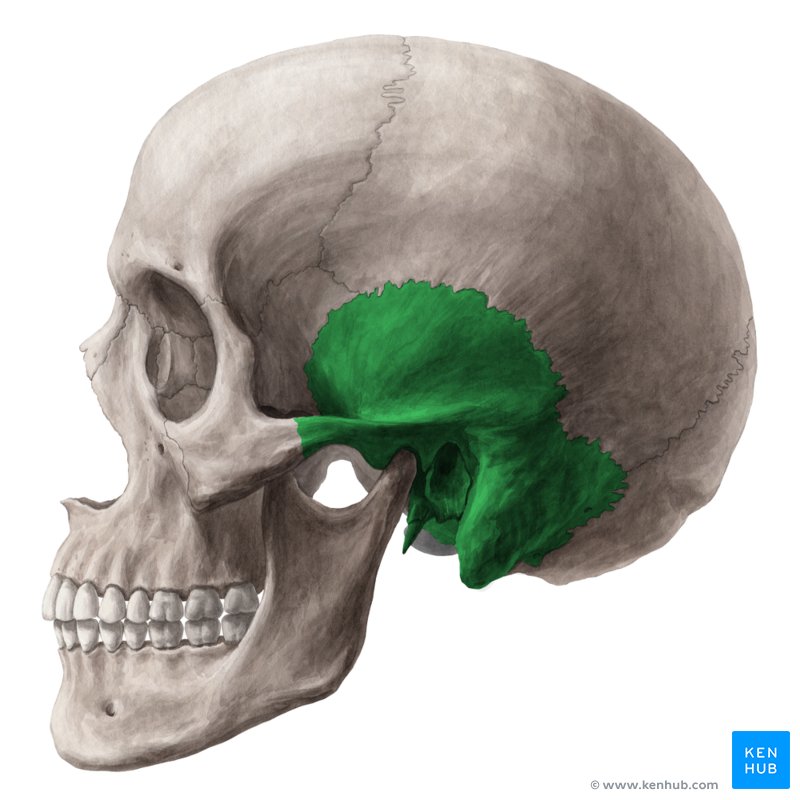

what is this?

temporal bone

what is this?

zygomatic process of temporal bone

what is this?

petrous portion

what is this?

carotid foramen / canal

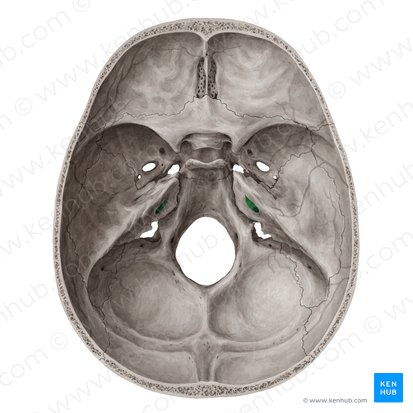

what is this?

jugular foramen

what is this?

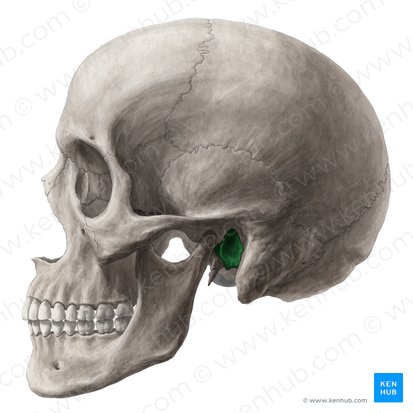

mandibular fossa

what is this?

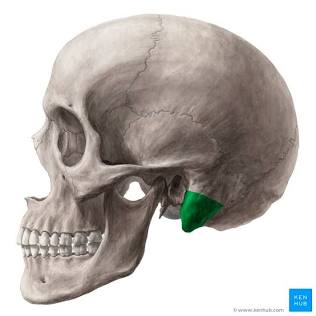

mastoid process

what is this?

external auditory meatus

what is this?

internal auditory meatus

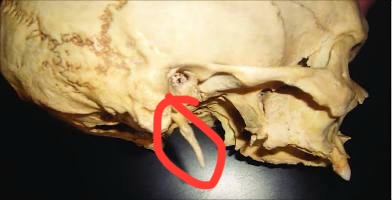

what is this?

styloid process

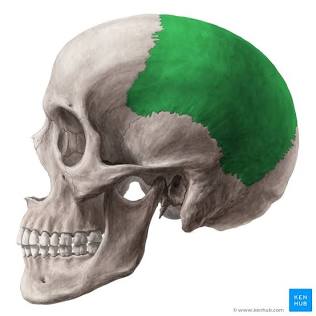

what is this?

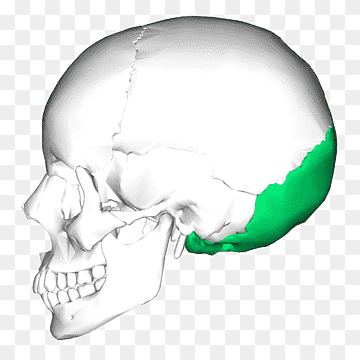

occipital bone

what is this?

foramen magnum

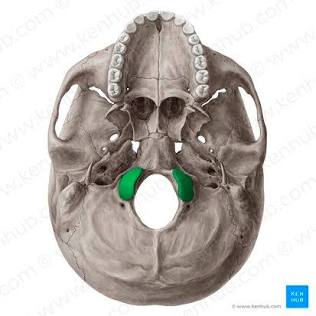

what is this?

occipital condyles

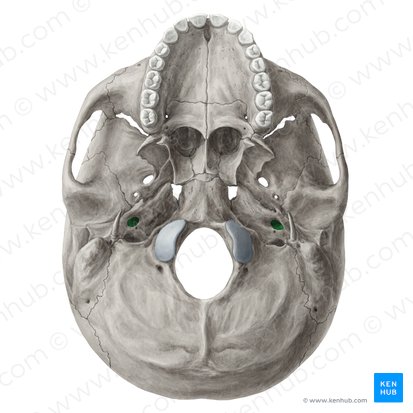

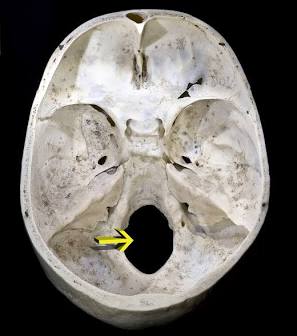

what is this?

hypoglossal foramen / canal

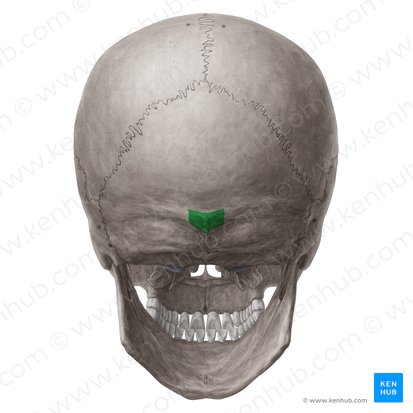

what is this?

external occipital protuberance

what is this?

superior nuchal line

what is this?

inferior nuchal line

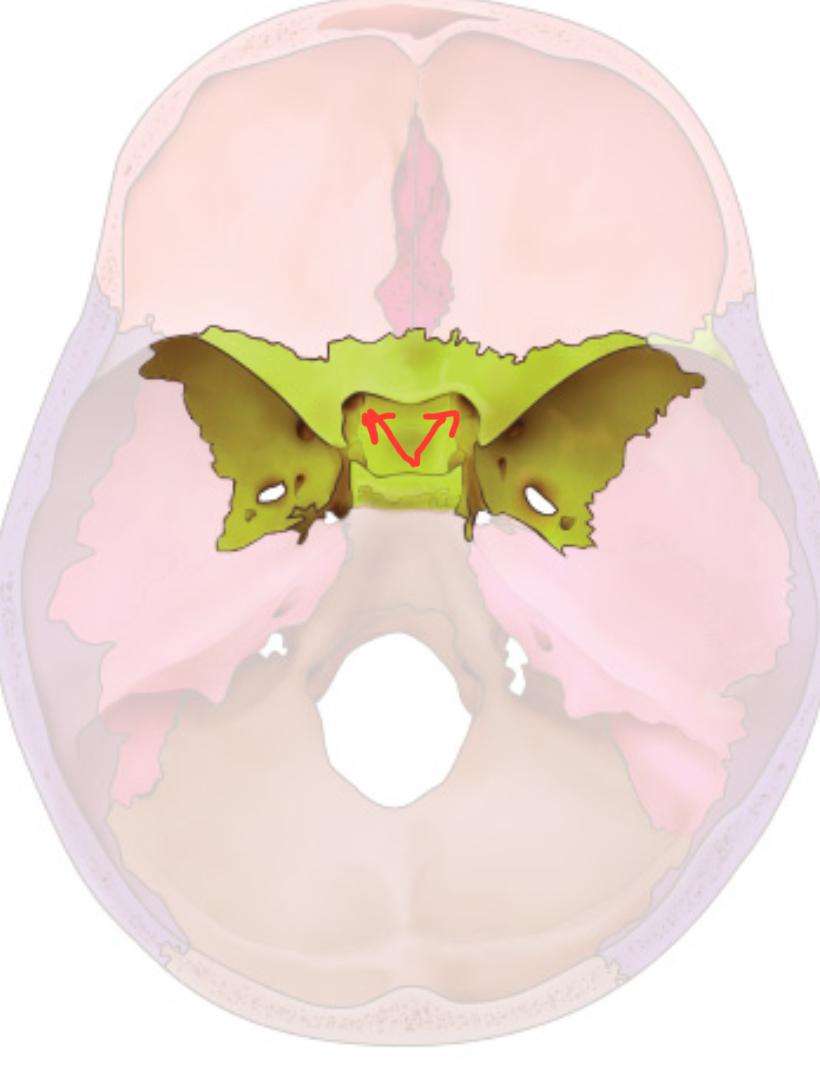

what is this?

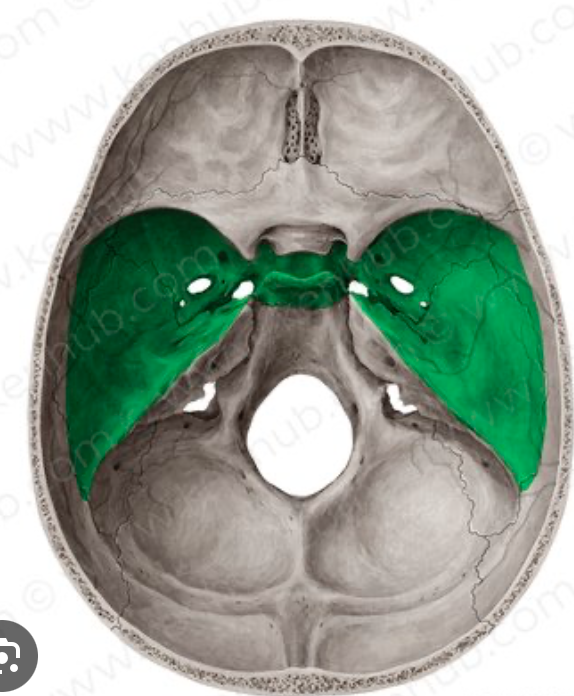

sphenoid bone

what is this?

sphenoid bone

what is this?

sphenoid bone

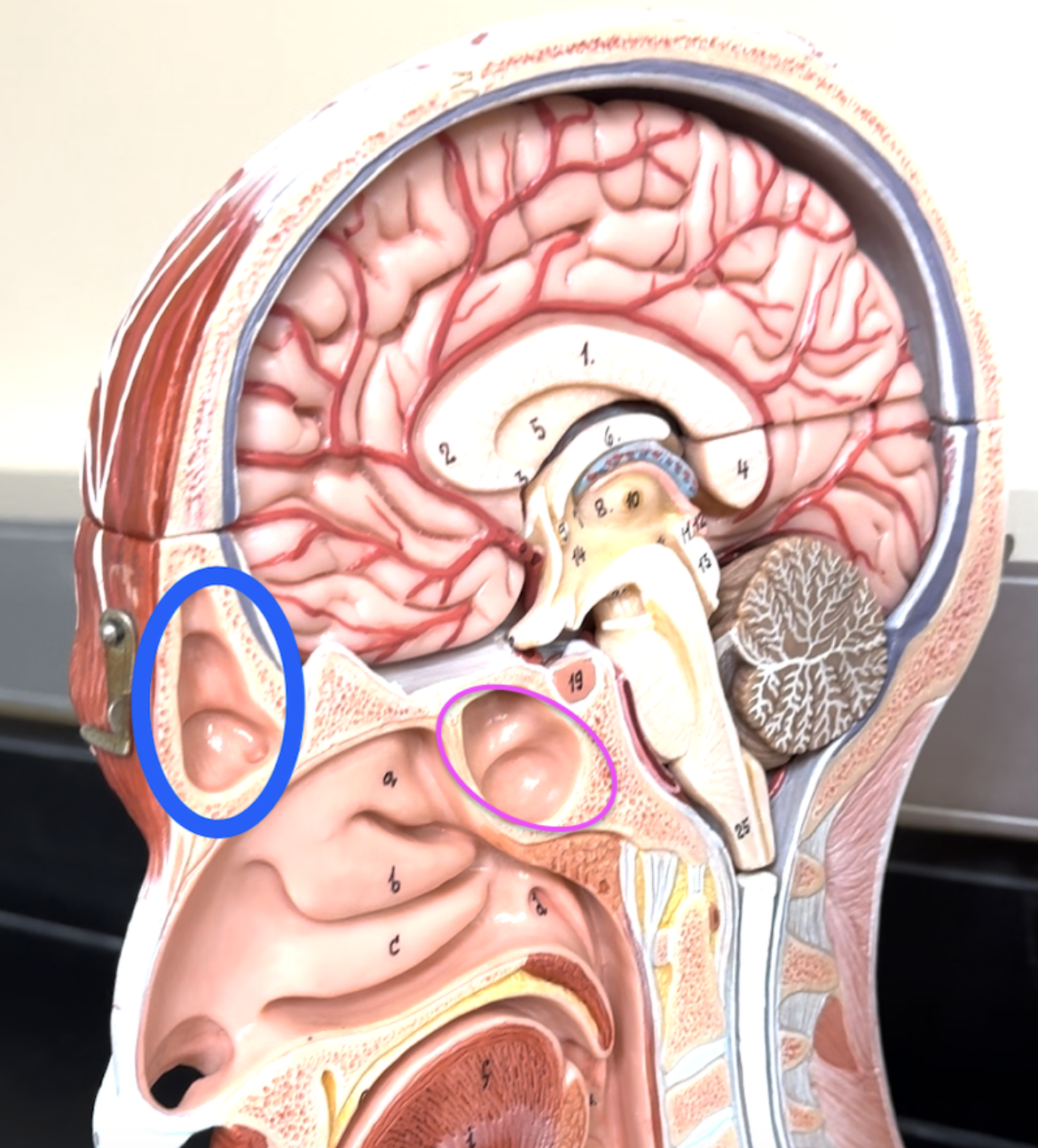

what is the pink?

sphenoid sinus

what is this?

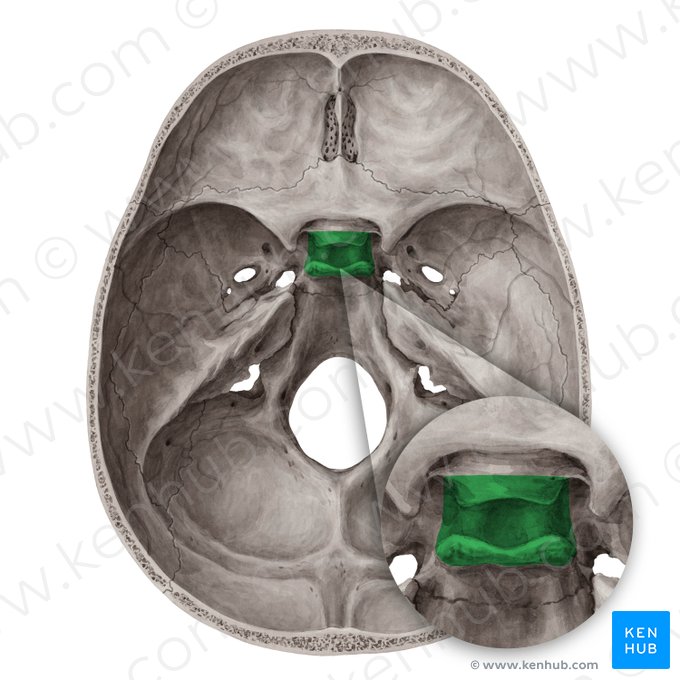

sella turcica of sphenoid bone

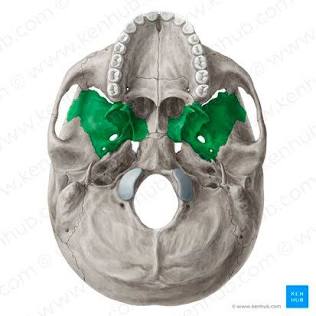

what is this?

greater wings of sphenoid bone

what is this?

greater wing of sphenoid bone

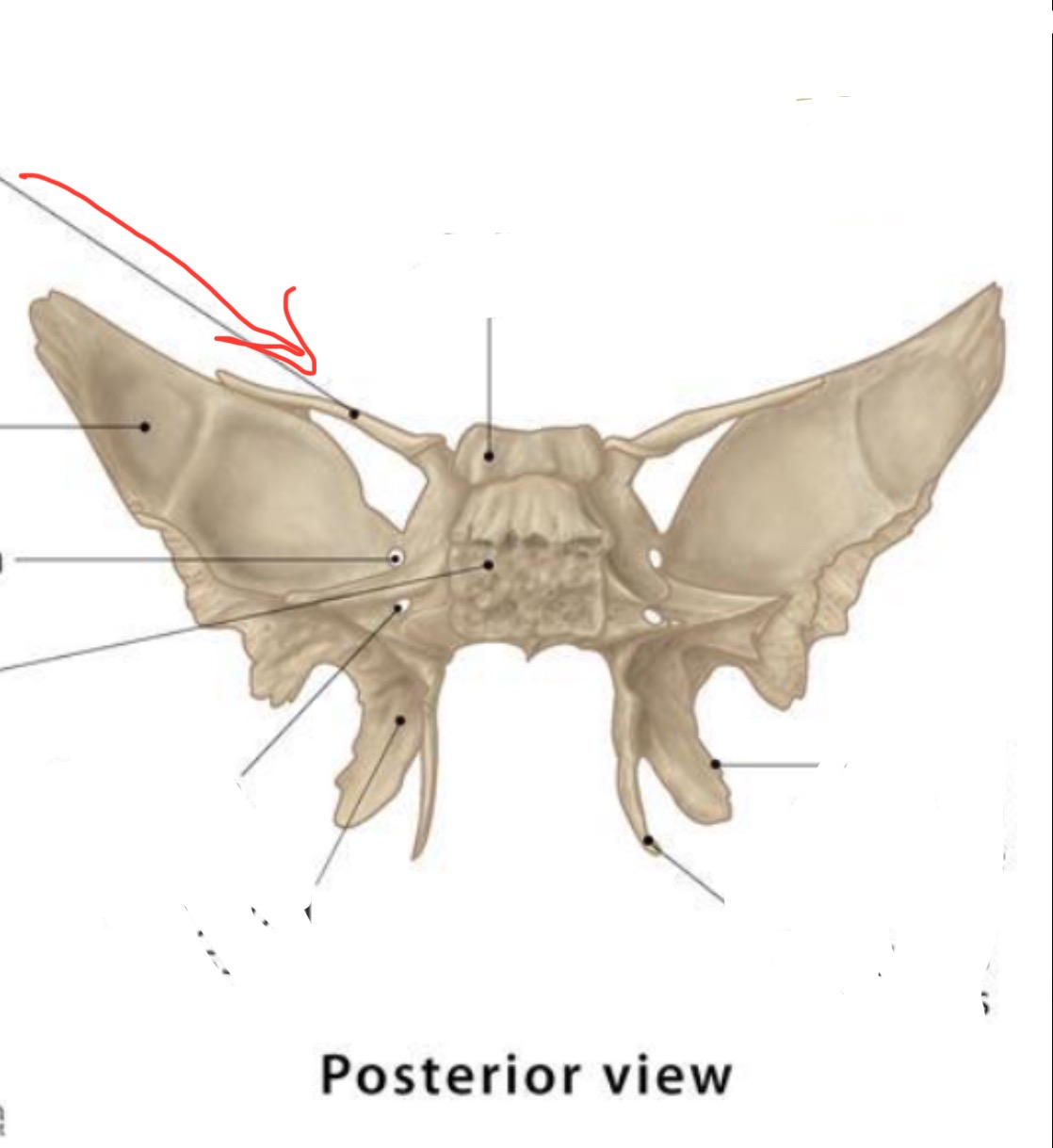

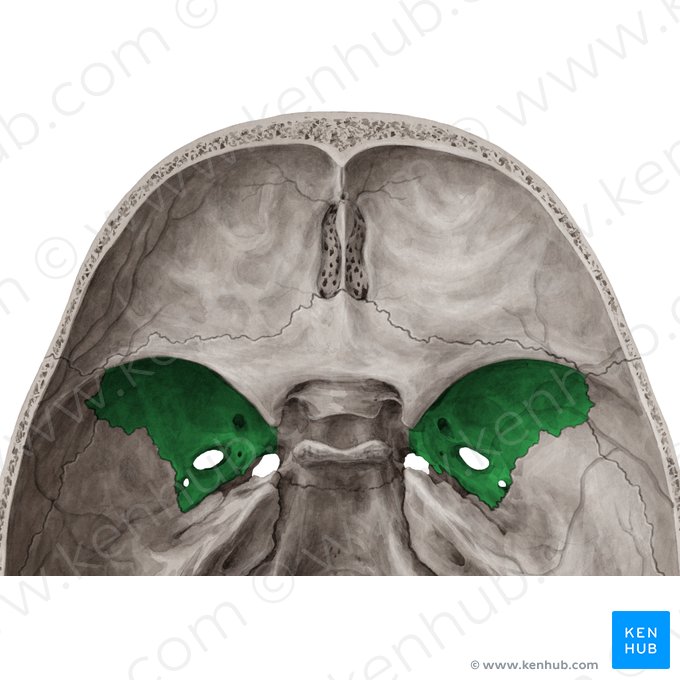

what is this?

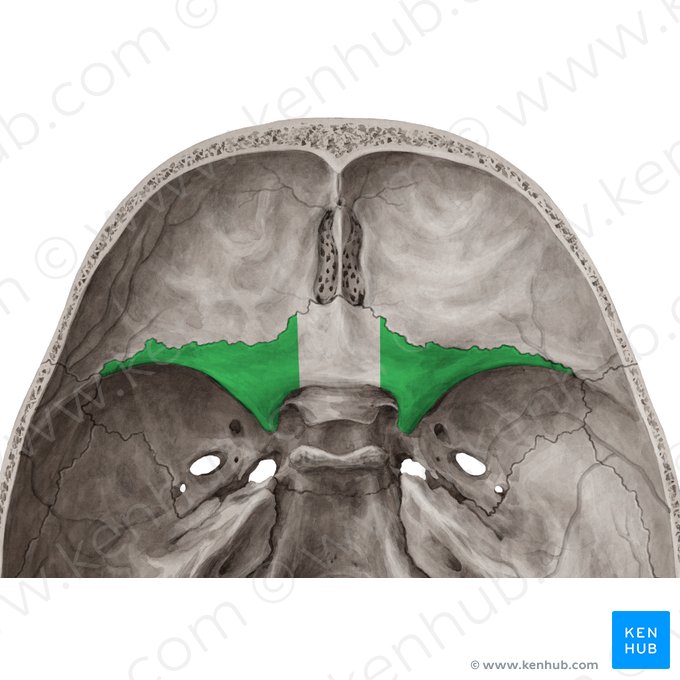

lesser wings of sphenoid bone

what is this?

lesser wing of sphenoid bone

what is this?

optic foramen / canal

what is this?

optic foramen / canal

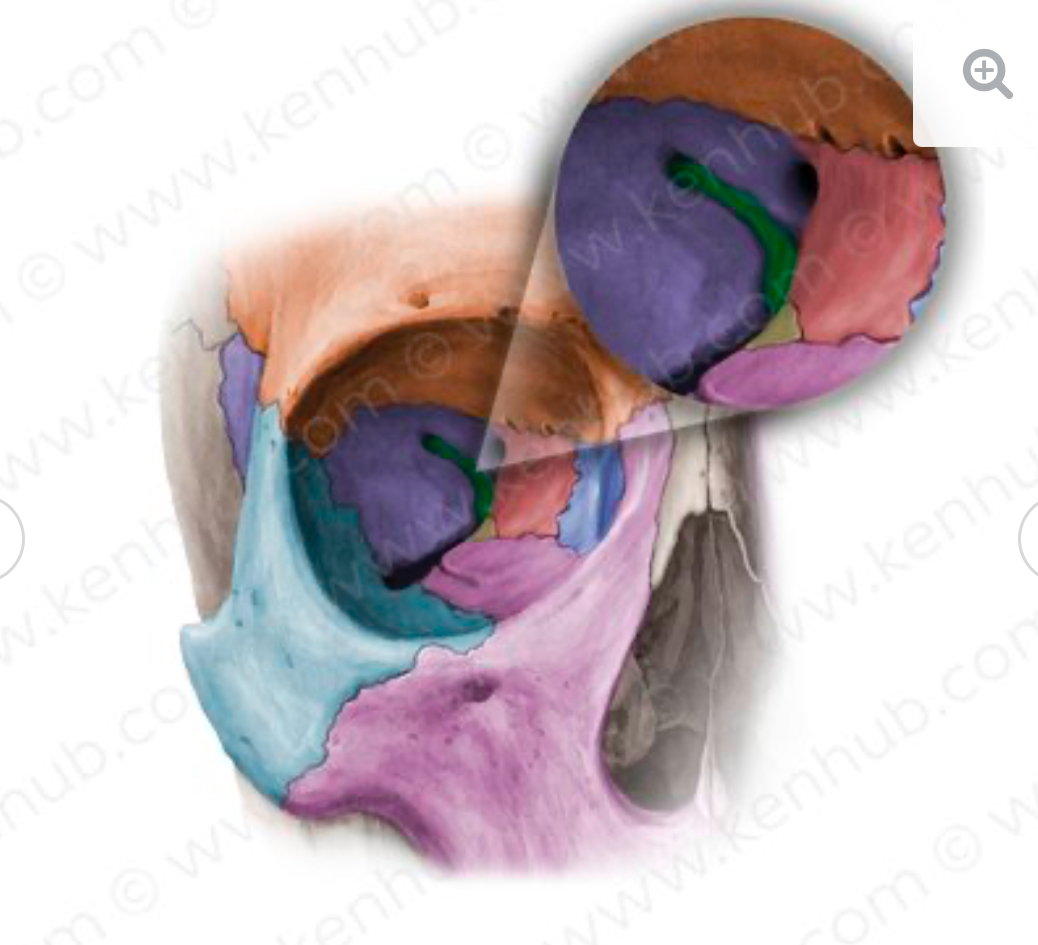

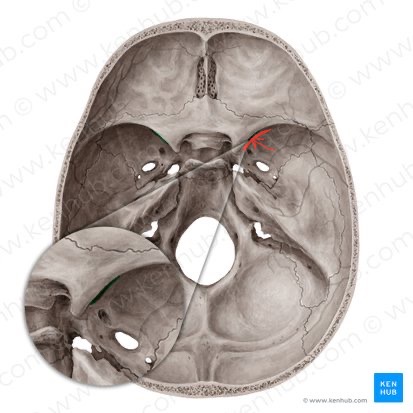

what is the green?

superior orbital fissure

what is this?

superior orbital fissure

what is this?

superior orbital fissure

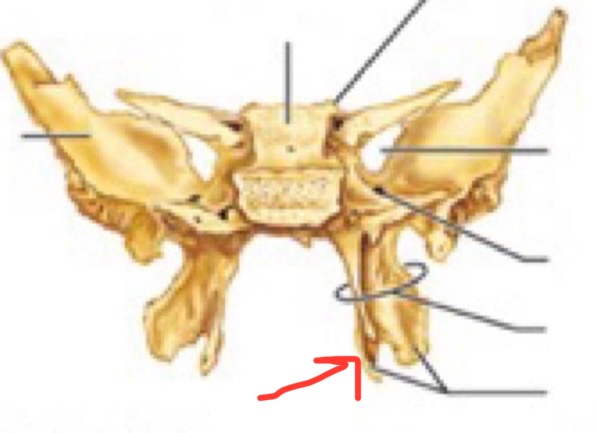

what is this?

medial pterygoid process

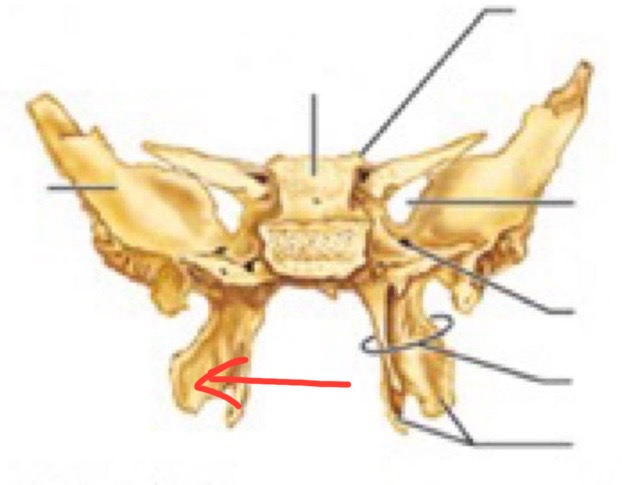

what is this?

lateral pterygoid process

what is this?

lateral pterygoid process

what is this?

foramen ovale

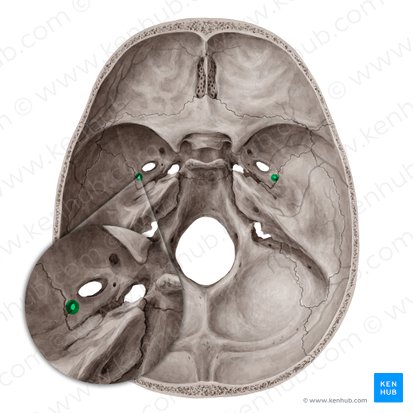

what is this?

foramen spinosum

what is this?

foramen rotundum

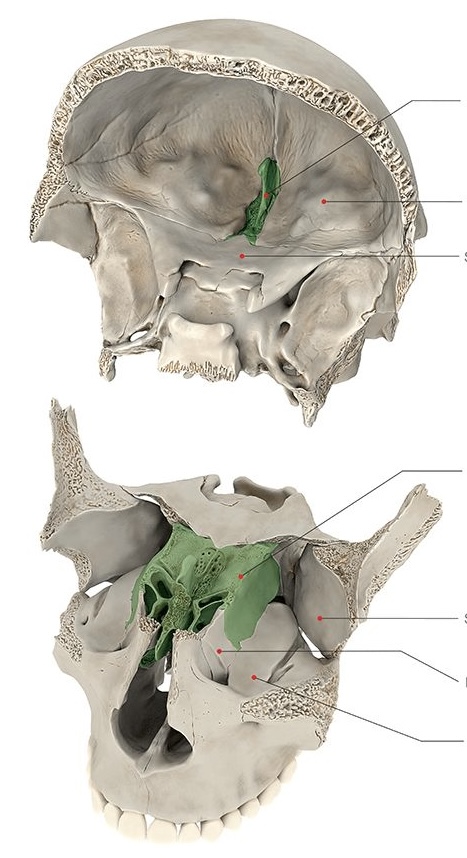

what is this?

ethmoid bone

what is green?

ethmoid sinus

what is this?

cribriform plate

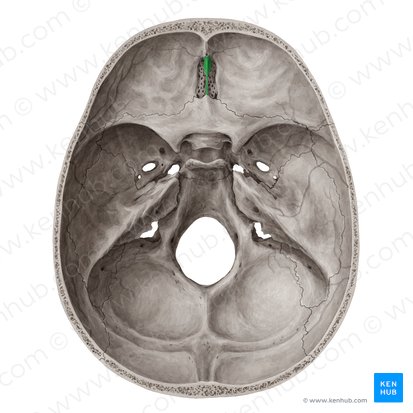

what is this?

crista galli

what is this?

superior nasal concha(ae)

what is this?

middle nasal concha(ae)

what is this?

inferior nasal concha(e)

what is this?

nasal bone

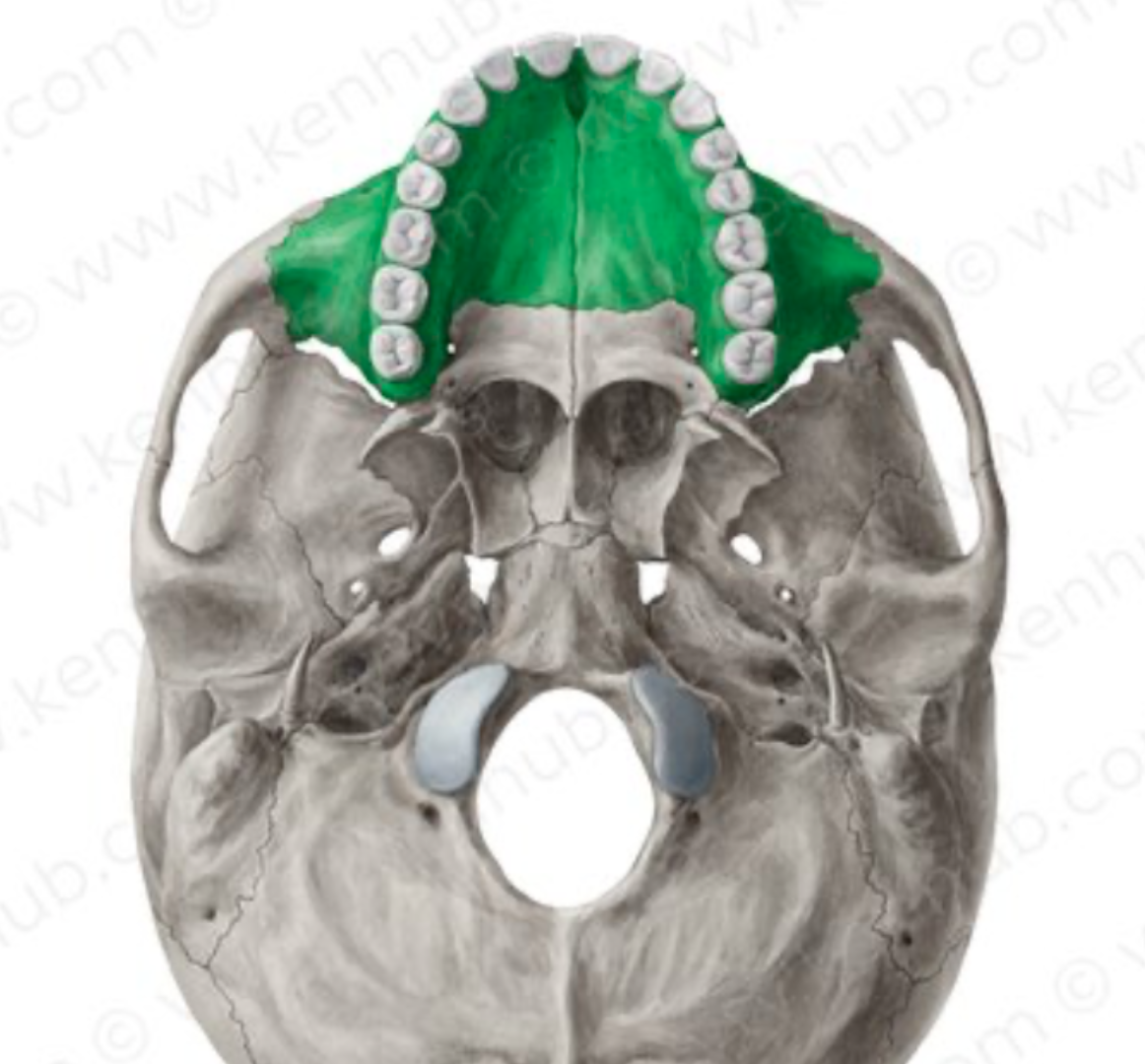

what is this?

maxilla bone

what is this?

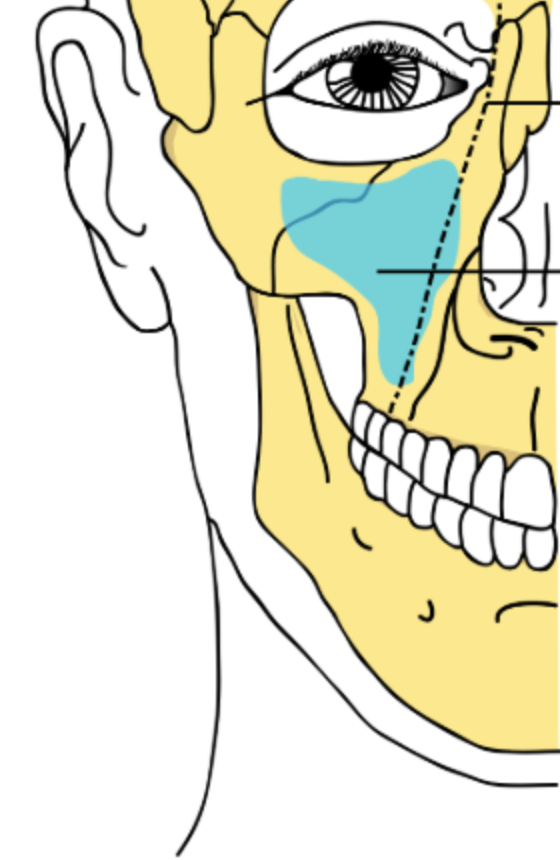

maxillary sinus

what is this?

palatine process of maxillary bone

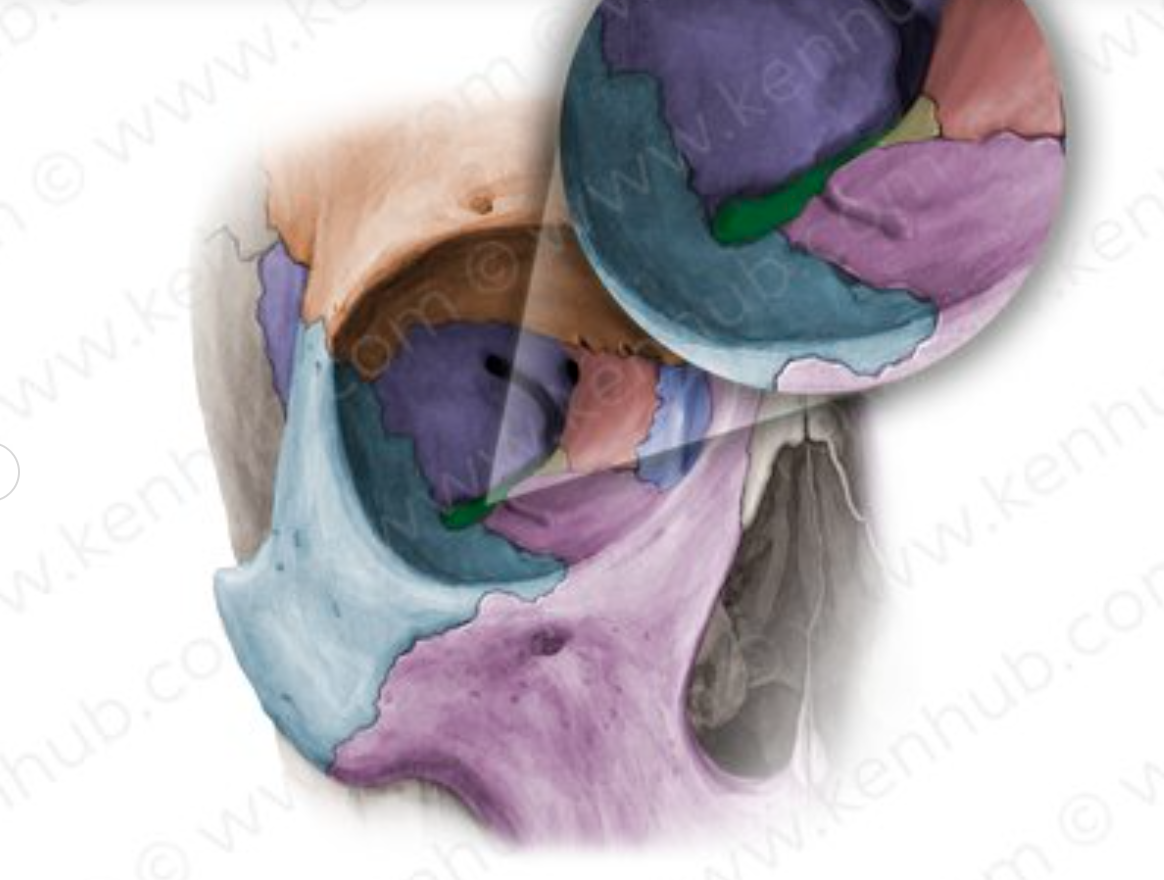

what is the green?

inferior orbital fissure

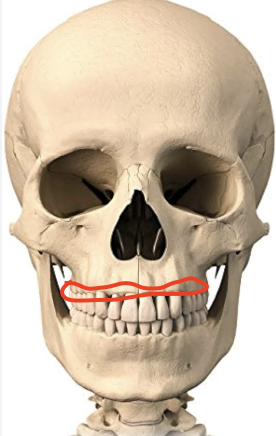

what is this?

alveoli of maxilla

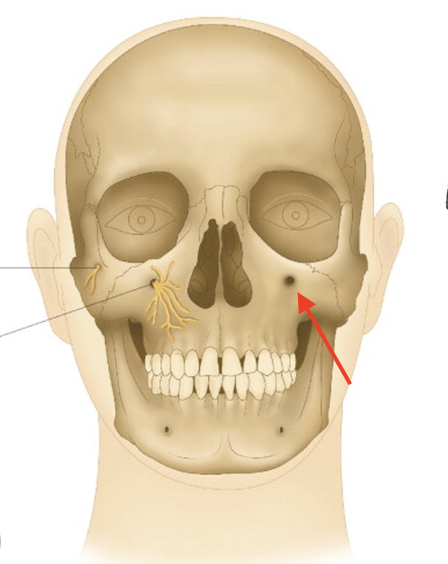

what is this?

infraorbital foramen

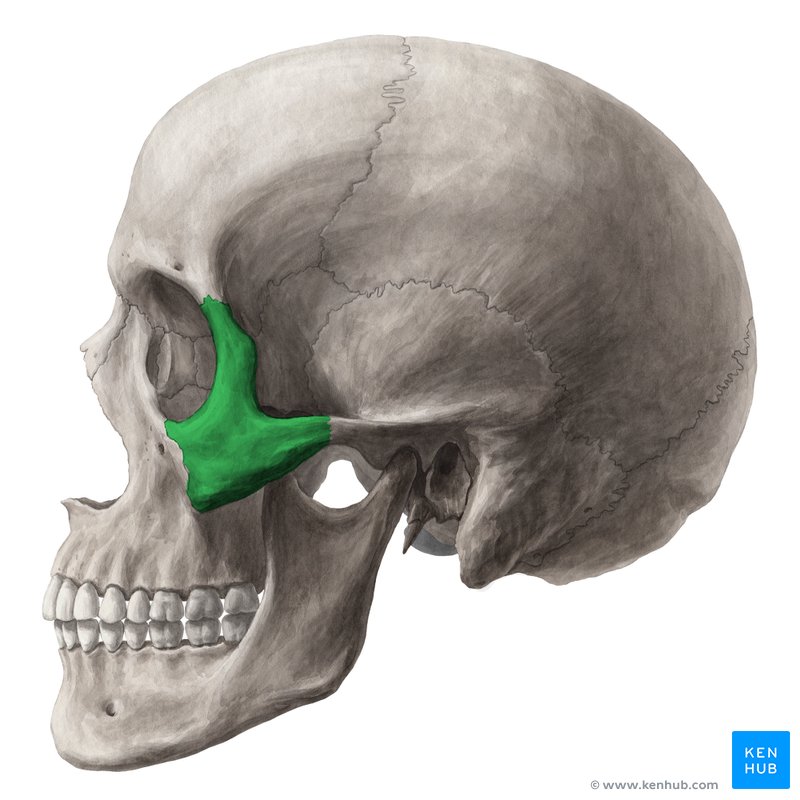

what is this?

zygomatic bone

what is this bone?

palatine bone

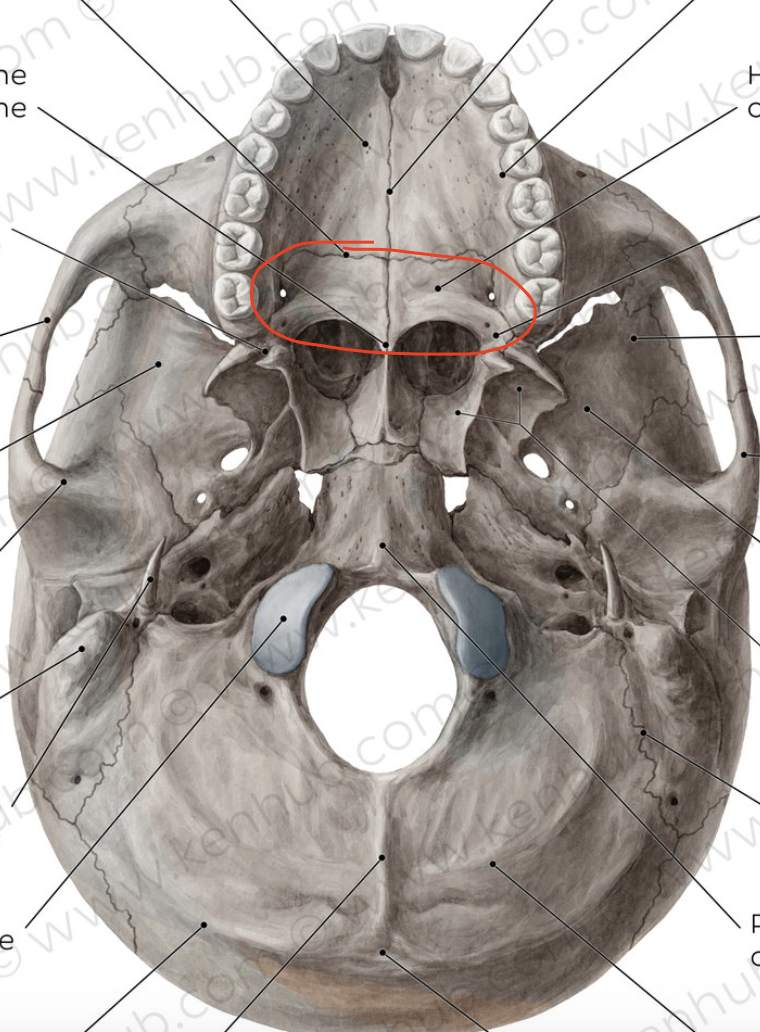

what is this structure?

horizontal plate of palatine bone

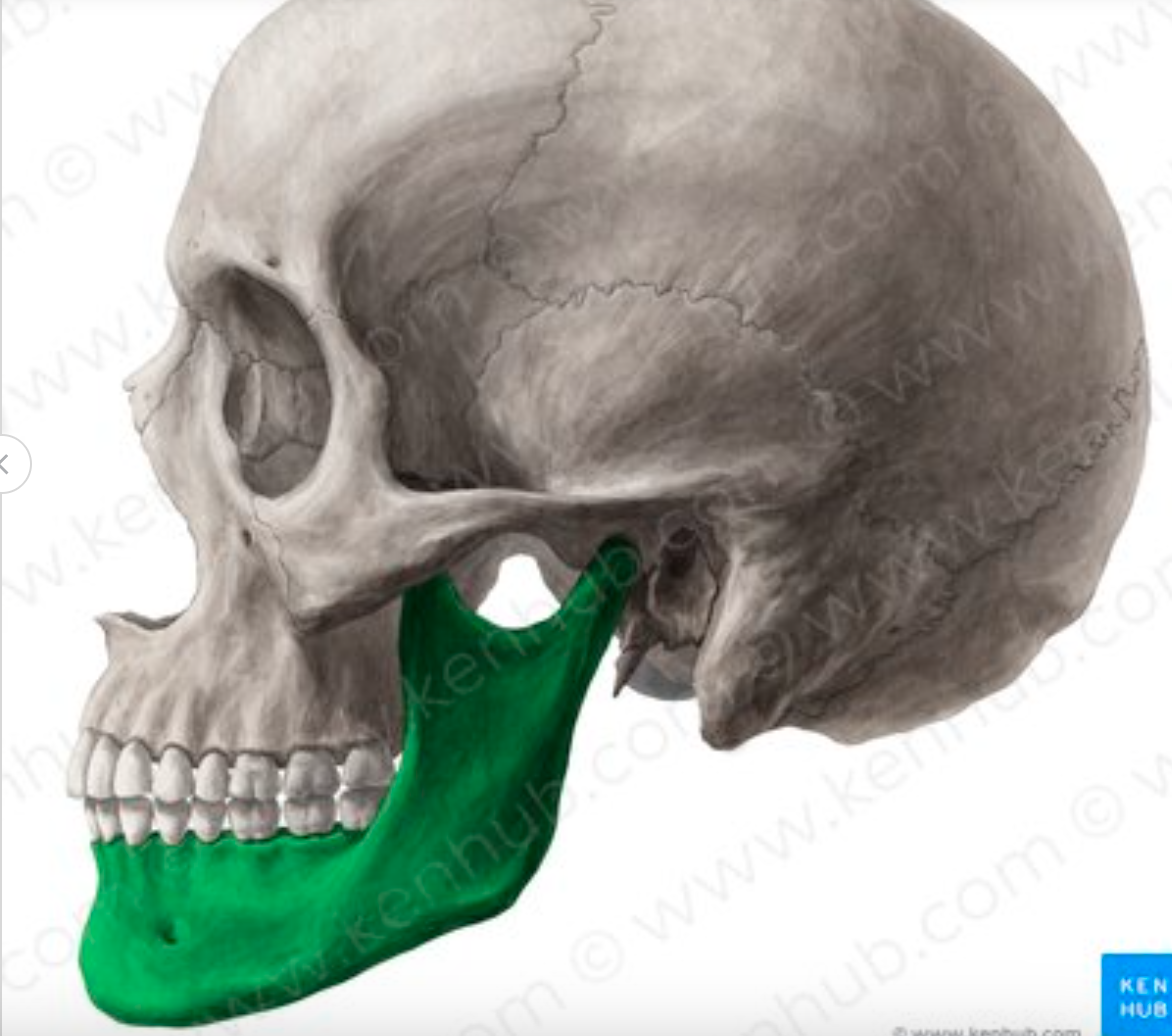

what is this?

mandible

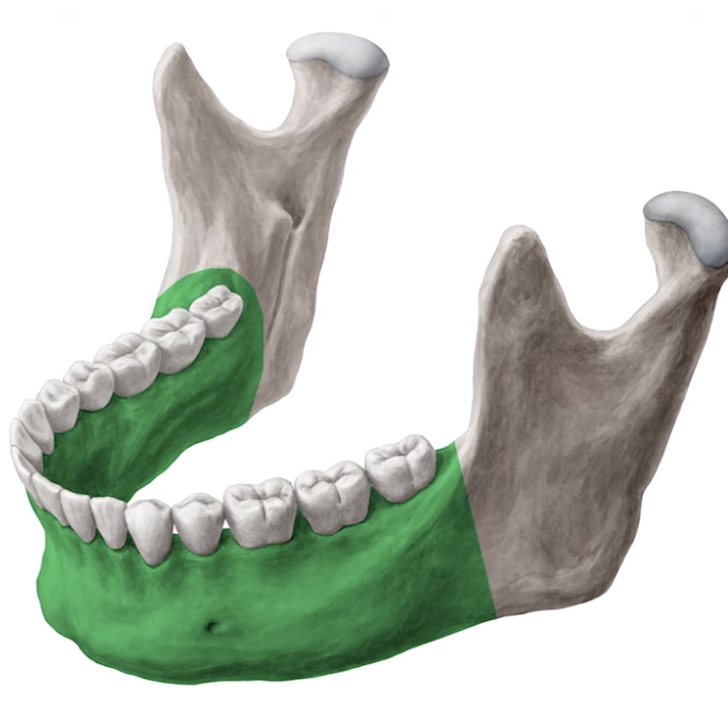

what is this?

body of mandible

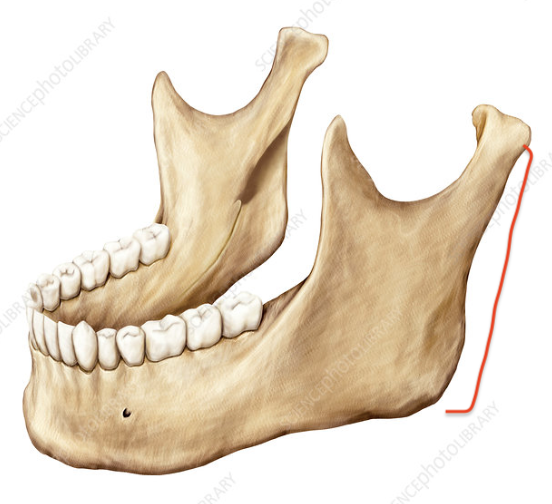

what is this?

ramus(i) of mandible

what is this?

angle of mandible

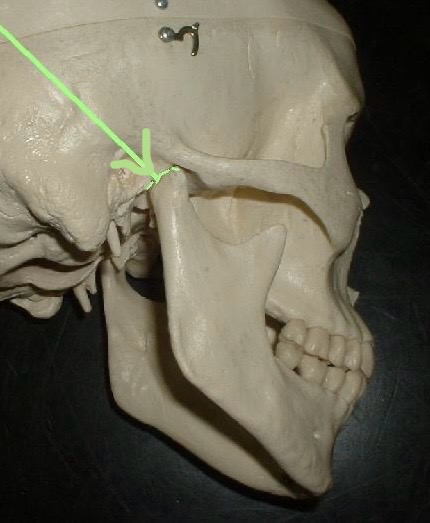

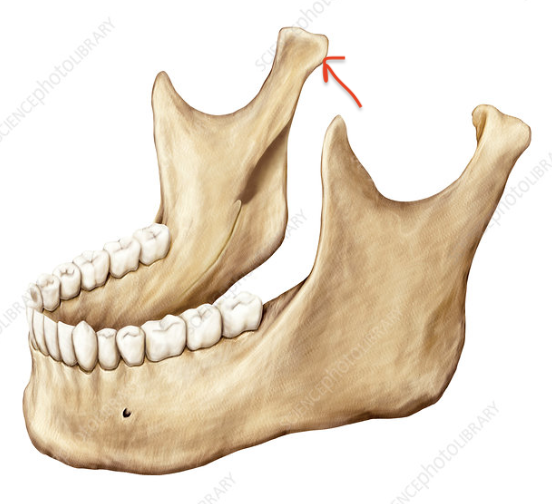

what is this?

condylar process of mandible

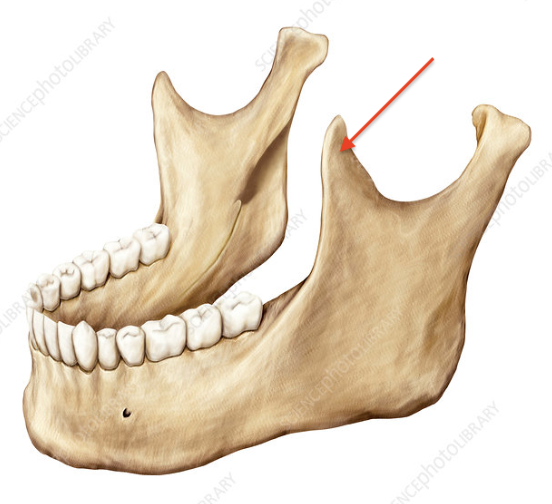

what is this?

coronoid process of mandible

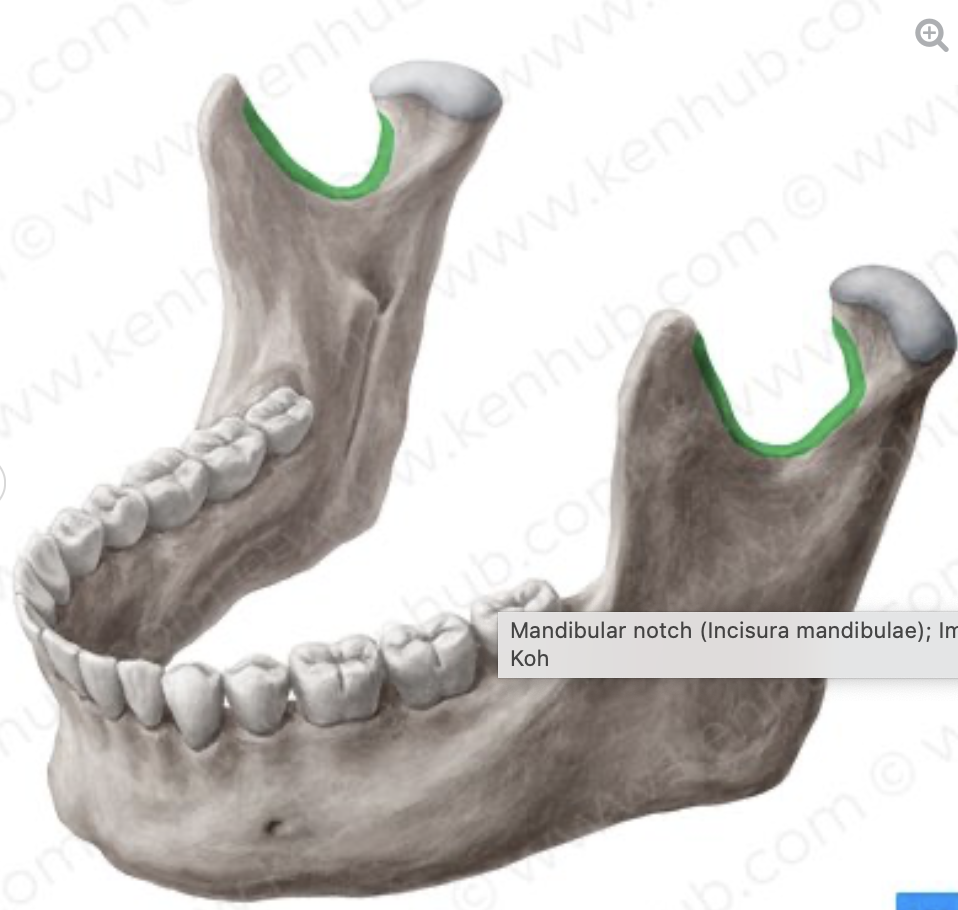

what is this?

mandibular notch

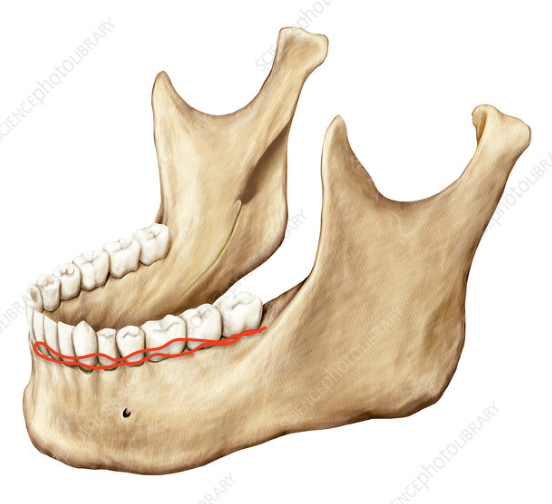

what is this?

alveoli of mandible

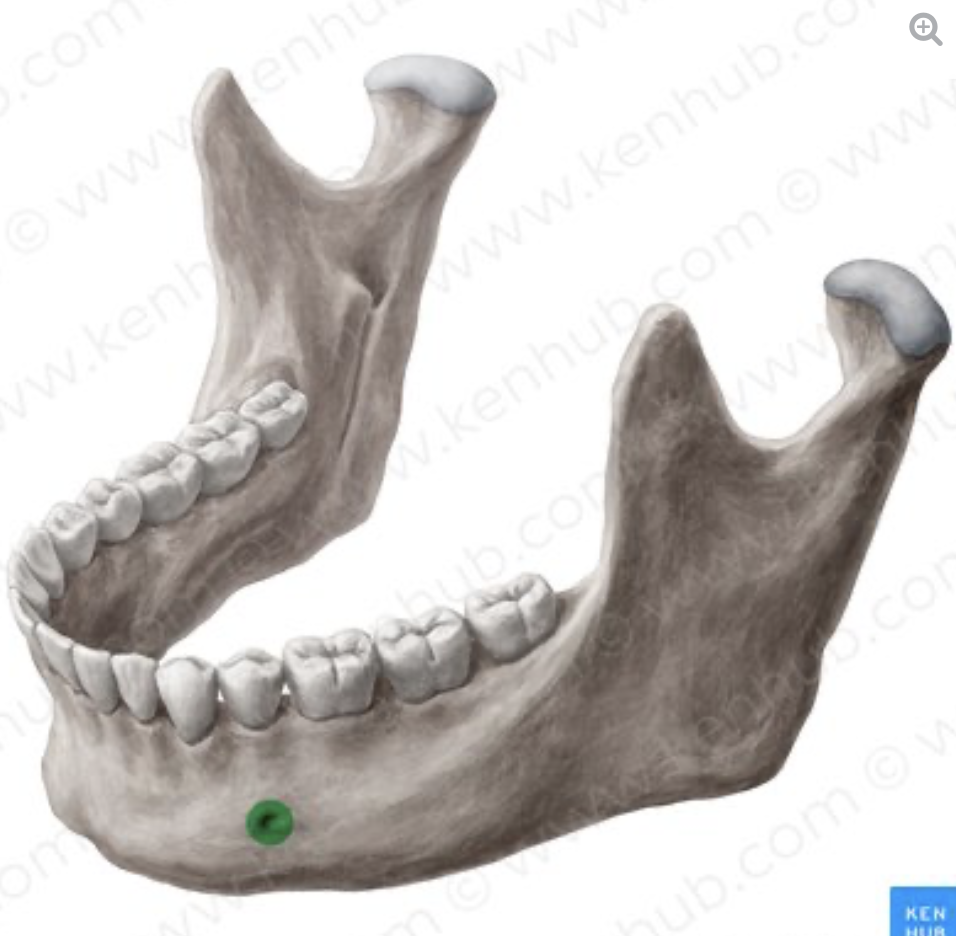

what is this?

mental foramen

what is this?

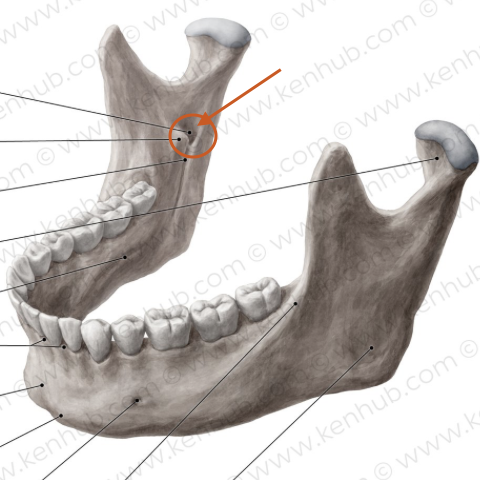

mandibular foramen

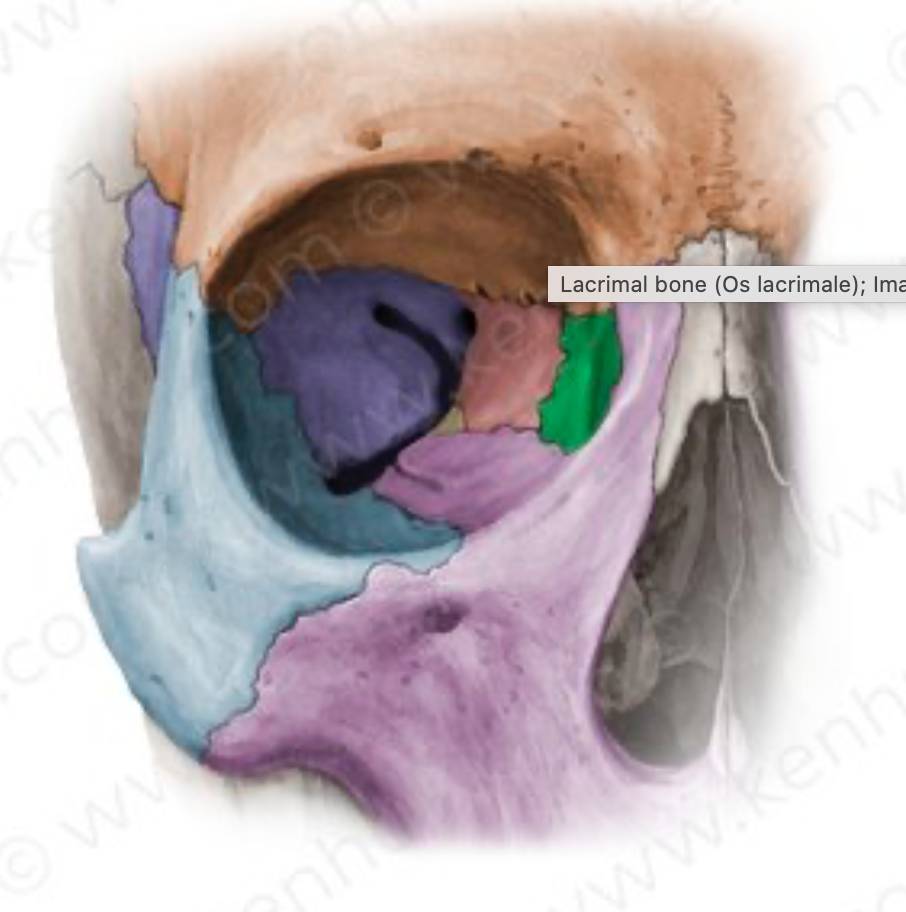

what is the green?

lacrimal bone

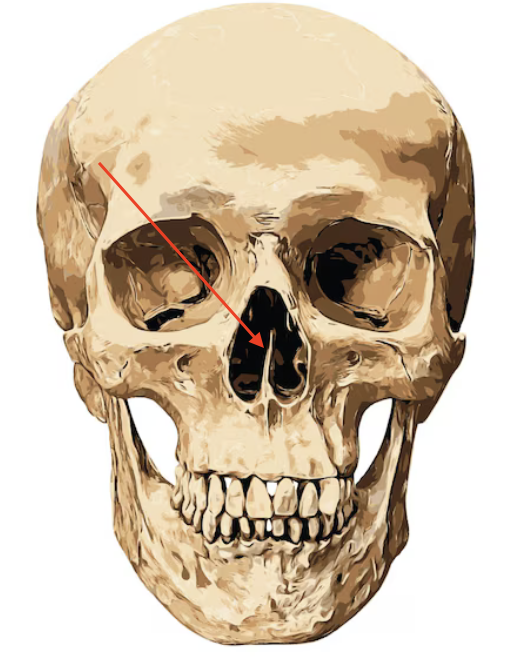

what is this?

vomer bone

what is this skull feature?

orbit

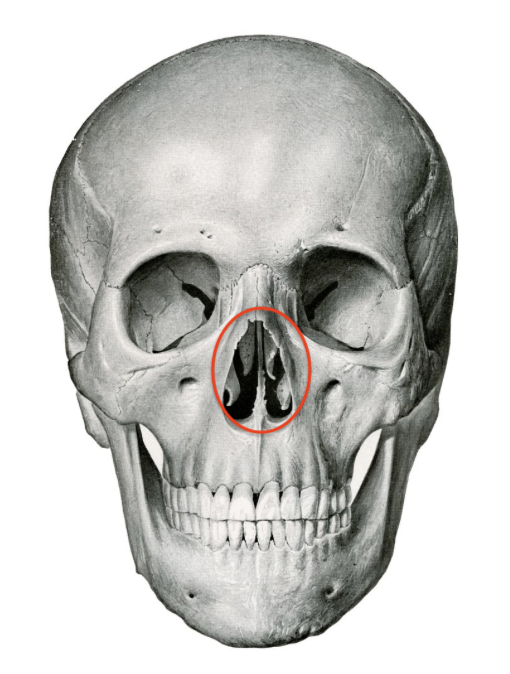

what is this skull feature?

nasal cavity

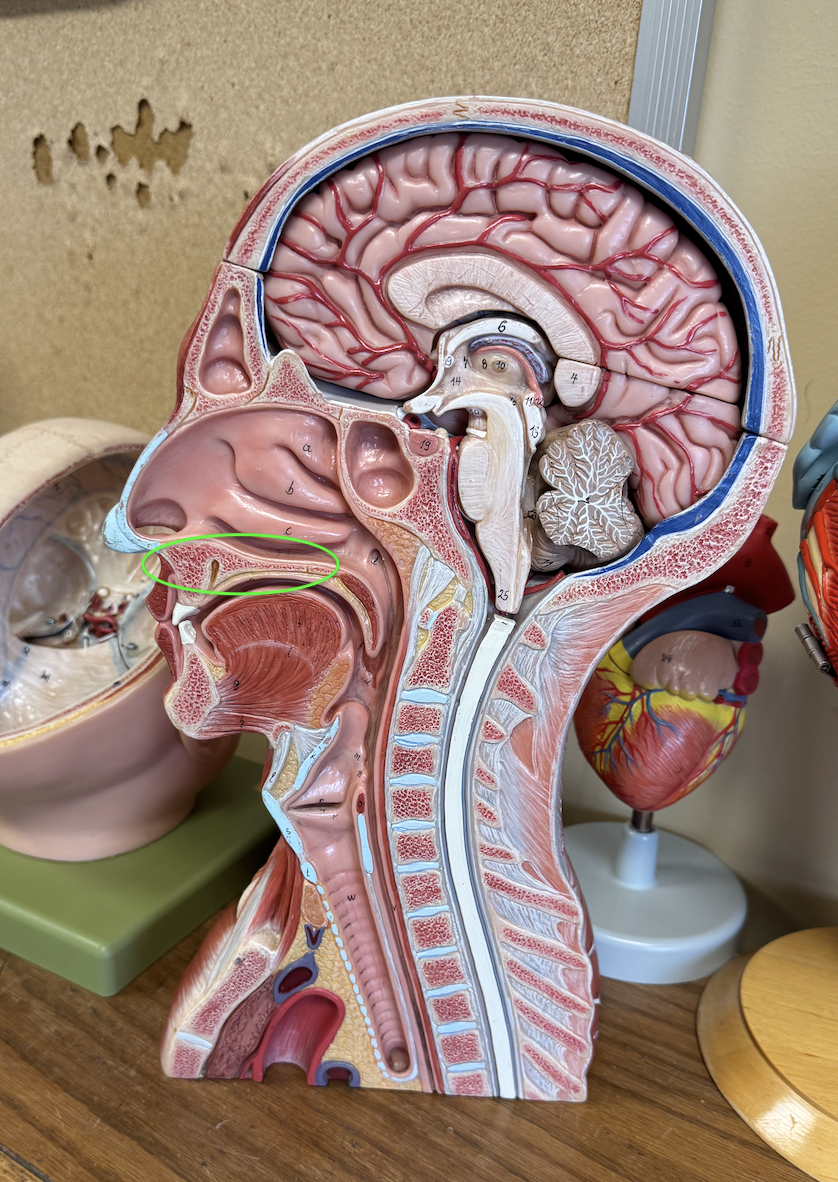

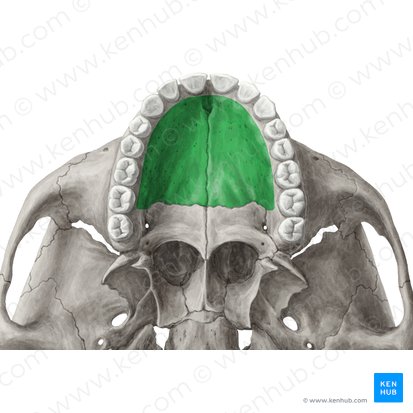

what is this skull feature?

hard palate

what is this?

hard palate

what is this skull feature?

temporal fossa

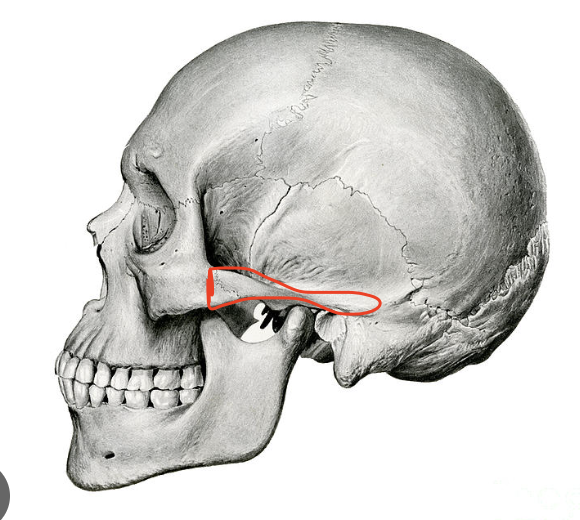

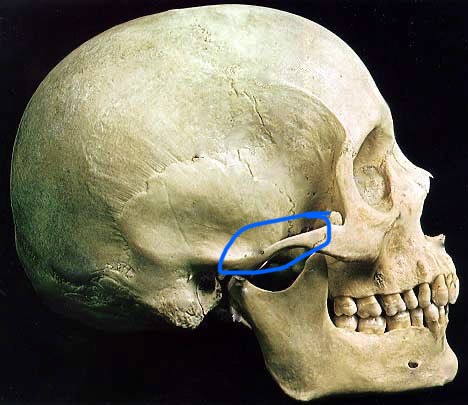

what is this skull feature?

zygomatic arch

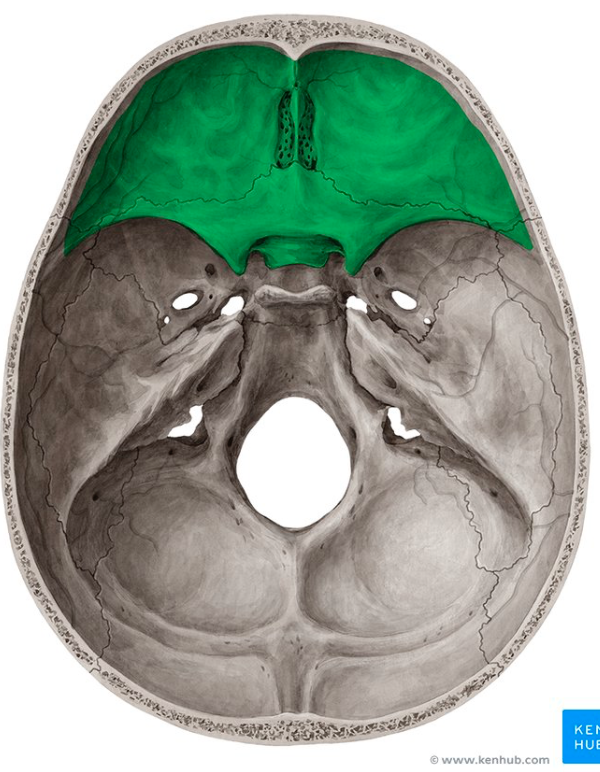

what is this skull feature?

anterior cranial fossa

what is this skull feature?

middle cranial fossa

what is this skull feature?

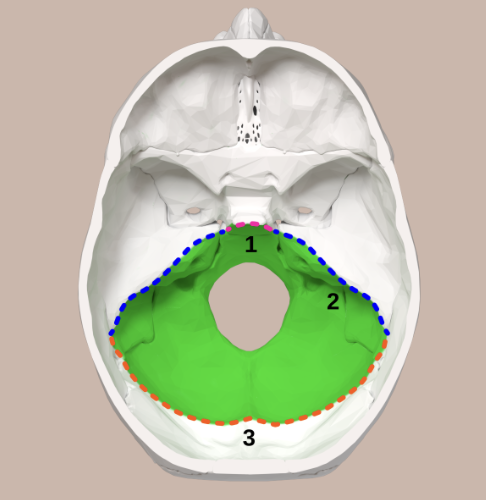

posterior cranial fossa

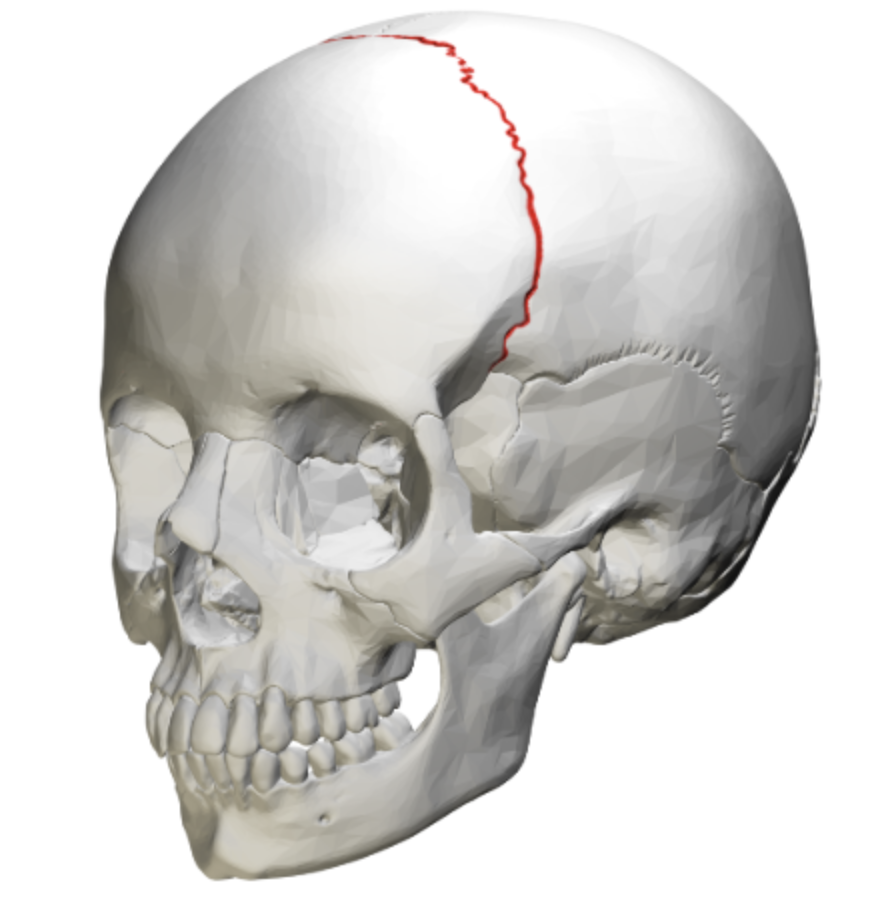

what is this skull feature?

coronal suture

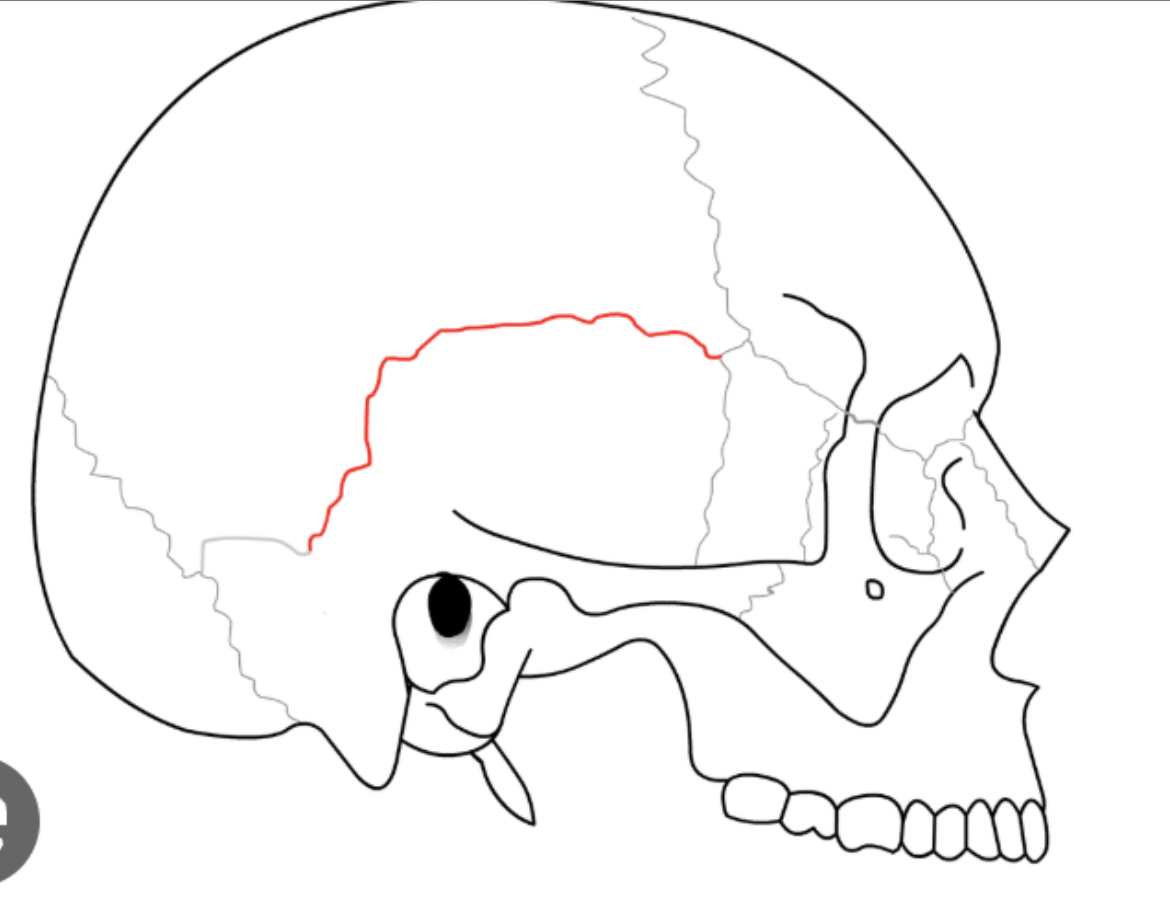

what is this skull feature?

squamosal suture

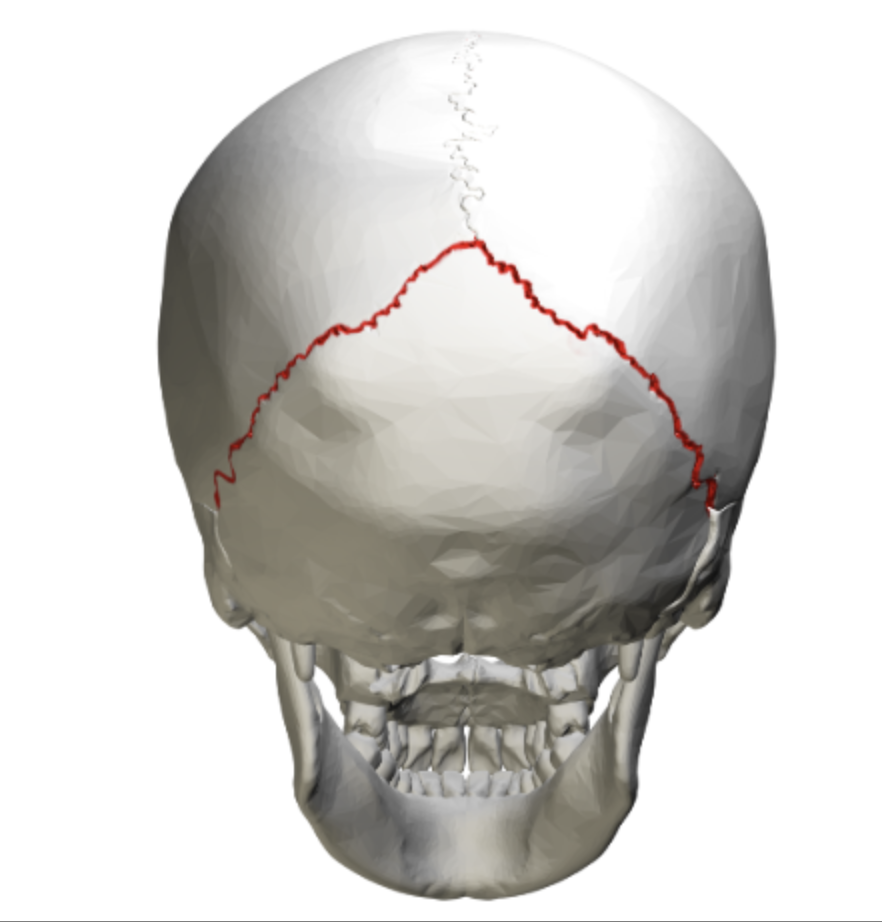

what is this skull feature?

lambdoidal suture

what is this skull feature?

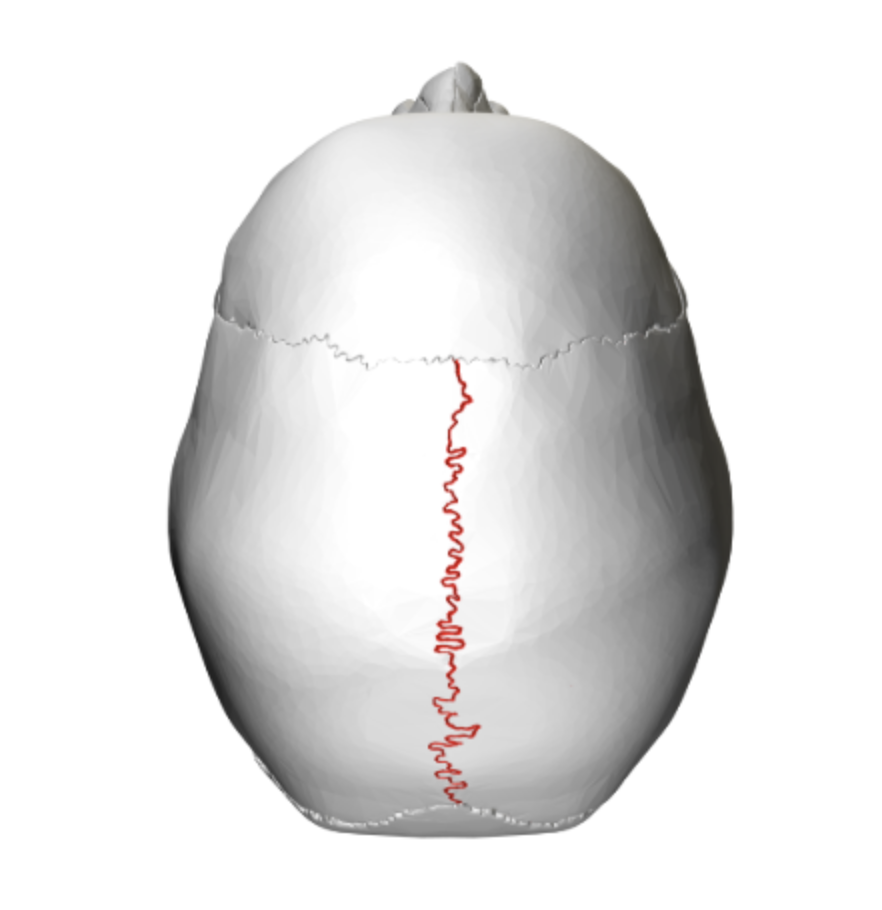

sagittal suture

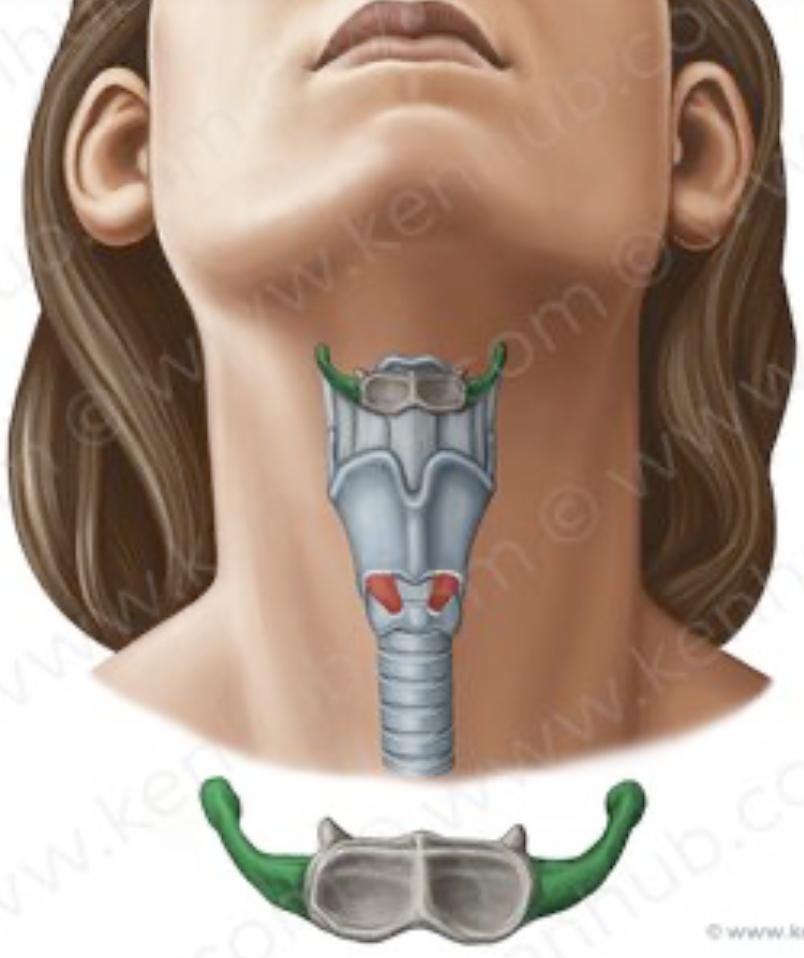

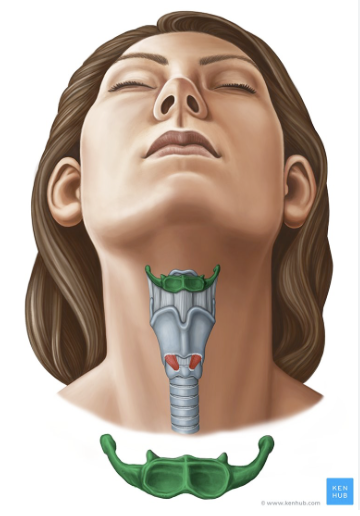

what is this?

hyoid bone

what is this?

greater horn of hyoid bone

what is this?

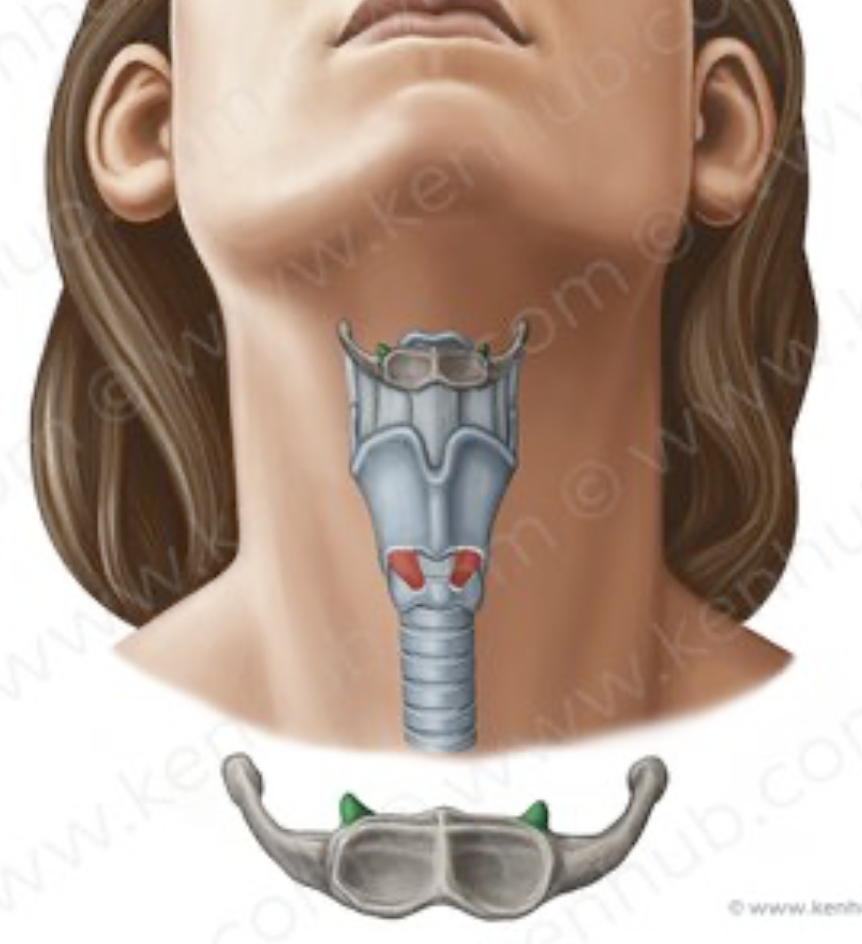

lesser horn of hyoid bone

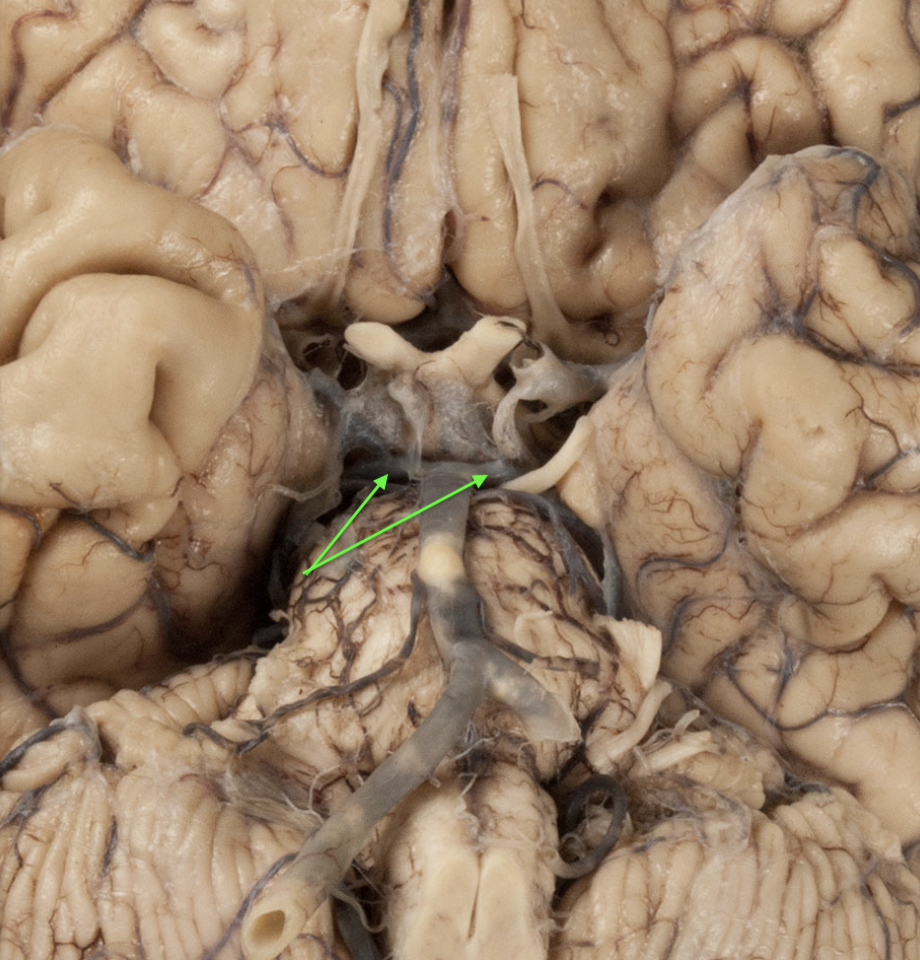

what are these?

vertebral arteries

what is this?

basilar artery

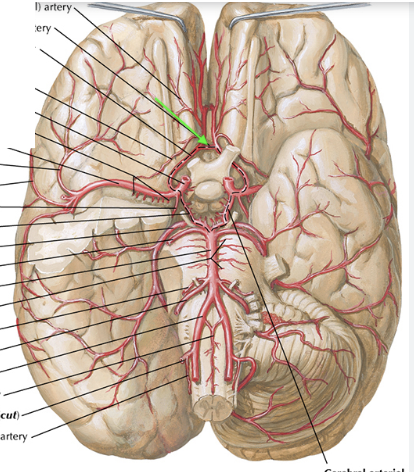

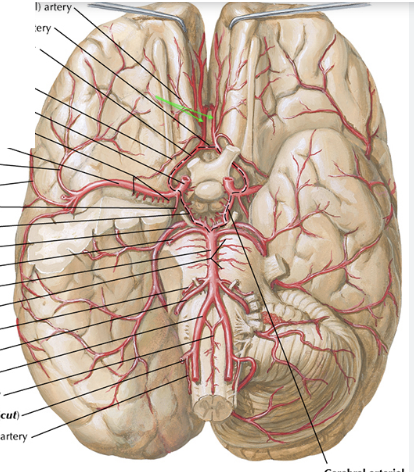

what is this?

anterior cerebral artery

what is the circle of willis formed from?

the basilar and internal carotid arteries

what is the basilar artery formed from?

the vertebral arteries

what is this?

middle cerebral arteryw

what is this?

posterior cerebral artery

what is this?

posterior communicating artery

what is this?

anterior communicating artery

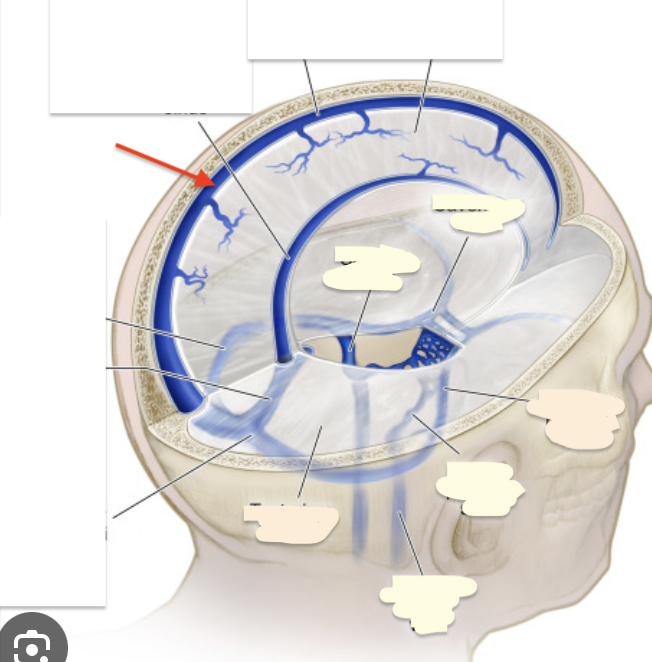

what is this?

superior sagittal sinus

what is this?

inferior sagittal sinus

what is this?

straight sinus

what is this?

transverse sinus
