BP 344 APPENDIX ILLUSTRATIONS

0.90 M

Dropped curbs at crossings should have a

length corresponding to the width of the

crossing, otherwise, the minimum width

should be?

1:12

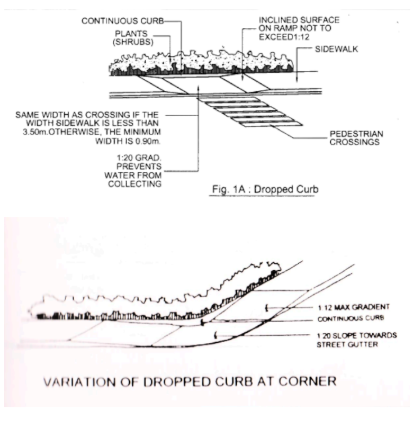

Dropped curbs shall be ramped towards

adjoining curbs with a gradient not more

than?

1:20

Dropped curbs shall be sloped towards

the road with a maximum cross gradient of??to prevent water from collecting at the

walk-way

The lowest point of a dropped curb

should not exceed???height above the

road or gutter

90 m

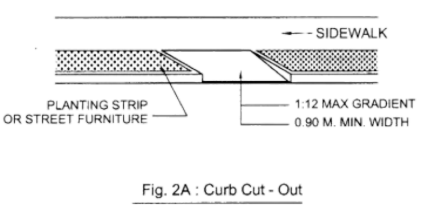

The minimum width of a curb cut-out

should be

1:12

Curb cut-outs should not have a gradient

not more than?

2.50 m

minimum pedestrian crossing

90°

turn for dropped curb corners

WALKWAYS

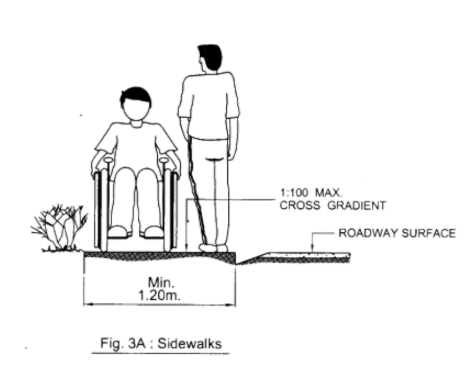

should be kept as level as

possible and provided with slip-resistant

material

1:20 or 5%

Whenever and wherever possible,

walkways should have a gradi-ent no more

than?

1:100

Walkways should have a maximum cross

gradient of?

1.20 m

Walkways should have a minimum width

of ??

6.5 mm

Walkways should have a continuing

surface without abrupt pitches in angle or

interruptions by cracks or breaks creating

edges above??

1.50 m

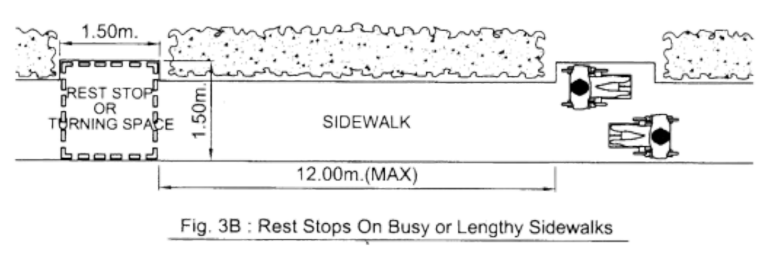

In lengthy or busy walkways, spaces should be provided at some

point along the route so that a wheelchair may pass another or turn

around, these spaces should have a minimum dimension of??

and should be spaced at a maximum distance of 12.00 meters between

stops

straight forward routes with right angle turns

To guide the blind, walkways should as much as possible follow??

2 m

Walkway headroom should be less than

????m and should prefer-ably be higher

1.00 m to 1.06 m

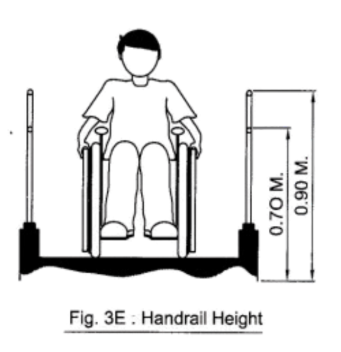

Handrails shall be installed at 0.90 m and

0.70 m above steps or ramps, handrails for

protection at great heights may be installed at

0.30 m

long extension of the handrail

should be provided at the start and end of

ramps and stairs

30 cm to 50 cm

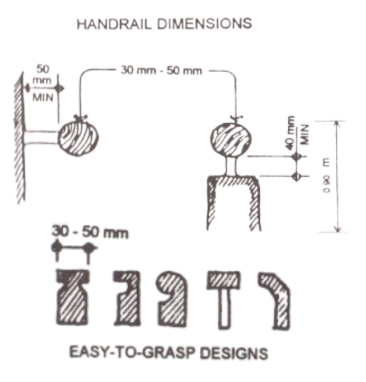

Handrails that require full grip should

have a dimension of

planters with dwarf walls, or a grass

Where open spaces are provided,

the blind can become particularly

disoriented. Therefore, it is extremely

helpful if any walkway or paths can be

given defined edges either by the use

of ??

1.60 meters and a minimum height of

1.40 meters

Signs on walls and doors should

be located at a maximum height of

3.70

pwd Accessible parking slots should have a

minimum width of

6.20 m

The length of a ramp should not

exceed

0.80

All doors shall have a minimum

clear width of
