ghost/double image- guest speaker

do ghost or real images lie between the center of rotation and the receptor

real images

do ghost or real images lie between the source and the center of rotation

ghost image

in general, what description can be used to describe how and where a ghost image will appear

opposite of the ture location, higher up, blurred, and magnified

in general, what description can be used to describe how and where a double image will appear

will be similar in height and sharpness of the real object image

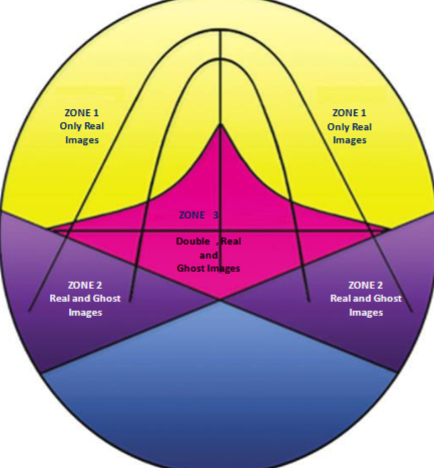

describe where zone 1 is in the focal trough and what will it appear as on a pano

the anterior part of the focal trough- real images only

describe where zone 2 is in the focal trough and what will it appear as on a pano

posterior part of the focal trough; real and ghost image

describe where zone 3 is in the focal trough and how it will appear as on a pano

in the center, posterior of the focal trough; will show double, real, and ghost images

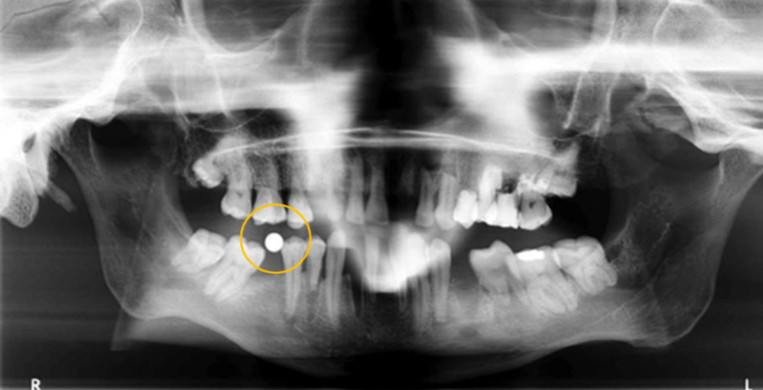

what zone is this in of the focal trough? is it real or a ghost image or a double image

real image bc it is the only one- object is in zone 1

what zone is this in of the focal trough? is it real or a ghost image or a double image

two objects shown- the one on the pt L is the ghost and the one on pt R is real → object is in zone 2

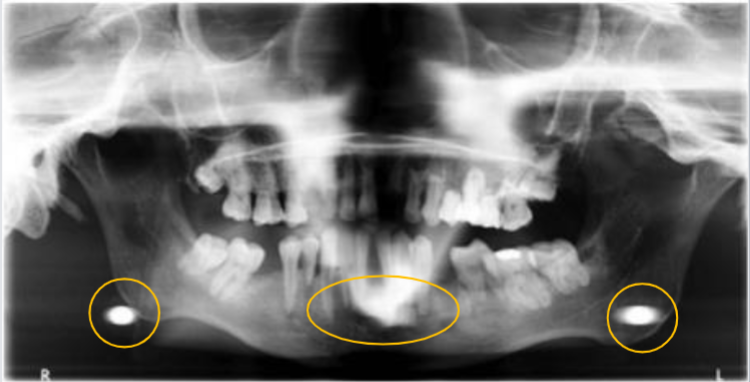

what zone is this in of the focal trough? is it real or a ghost image or a double image

three objects seen- on pt R is real, on pt L is a double image, in center is the ghost image; object is in zone 3 closer to the medial (the R object is the sharpest so we can assume that is the side the object is closest to)

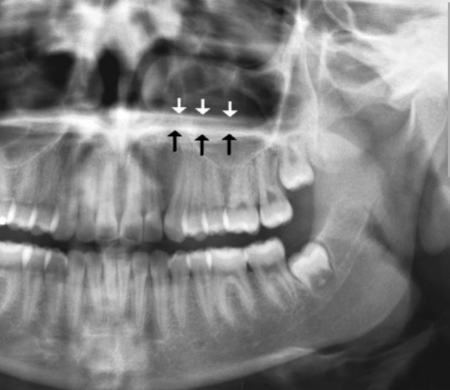

which is the ghost object and which the the real based on the arrows

white arrows are pointing to the ghost is the hard palate→ ghost is always higher (doesn’t always happen- depends on pt positioning)

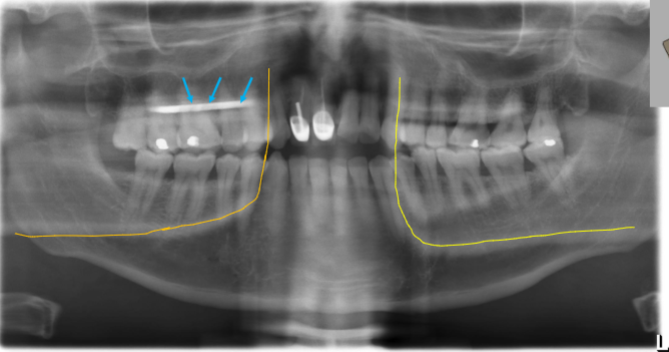

what is happening here

orange: is the ghost image of yellow- mandible posterior border

blue arrows: ghost of #17 amalgam

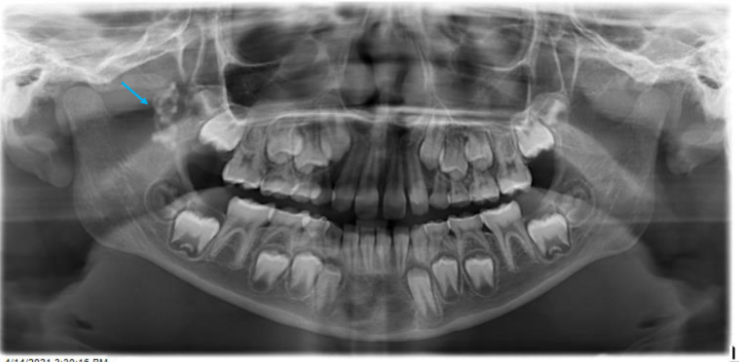

what object is creating this ghost image

#16 wizzy- the tooth is sticking out of the focal trough so it can create this

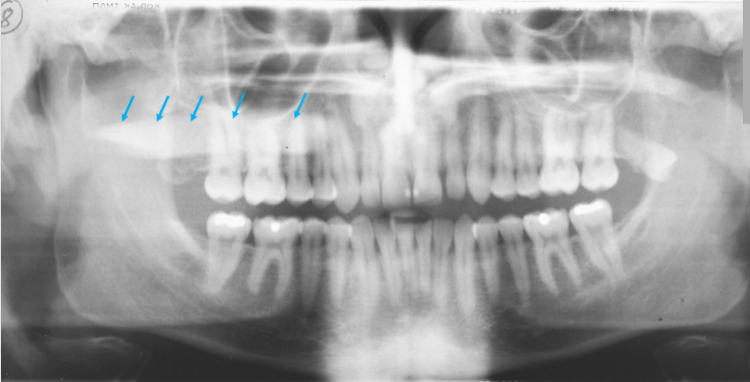

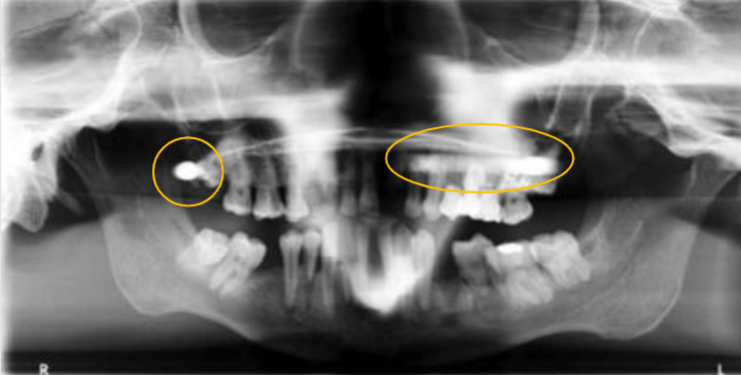

what object is creating this ghost image

#1 crown- the jaw is very big so the tooth is probs out of the focal trough

what is going on here

red arrow is a ghost image of R earring, blue arrow is a ghost image of the L earring

dental structures are also overlapping → head is bent backwards

this is pointing to chewing gum, but how can we make sure that this is not something pathological or that it is not a ghost image

• if you follow the line of the structure, it goes outside of the coronoid process so it is not even contained in the bone so we rule out pathological

• the object is blurry but it is not horizontally streaking so it is not a ghost image
