palate & toungue

what form the hard palate

1) maxilla ( palatine process )

2) palatine bone (horizontal plate)

what continue posterior to the hard palate?

soft palate

what relations does hard palate form with cavities?

• floor of nasal cavity

• roof of oral cavity

is the hard palate covered?

yes, by mucous membrane

• with inf. median raphe and corrugations on both sides

is the soft palate covered?

yes , by mucous membrane

what the soft palate ends posteriolrly

uvula

what continue with the soft palate on both sides?

lateral walls of pharynx

contents of soft palate (easy)

• muscles

• palatine aponeurosis

• vessels

• nerves

• lymphoid tissue

WTF is palatine apponeurosis

fibrous sheet attached to post border of hard palate (just for support)

• it is an expanded tendon of tensor palati muscle

• give attachment to all palatine muscles

what also the palatine apponeurosis do

split to cover the musculus uvala muscle

does the palate contain muscles?

yes , in soft palate

tell me the names of soft palate muscles

• tensor palati

• levator palati

• palato-glossus

• palato-pharyngeus

• musculas uvala

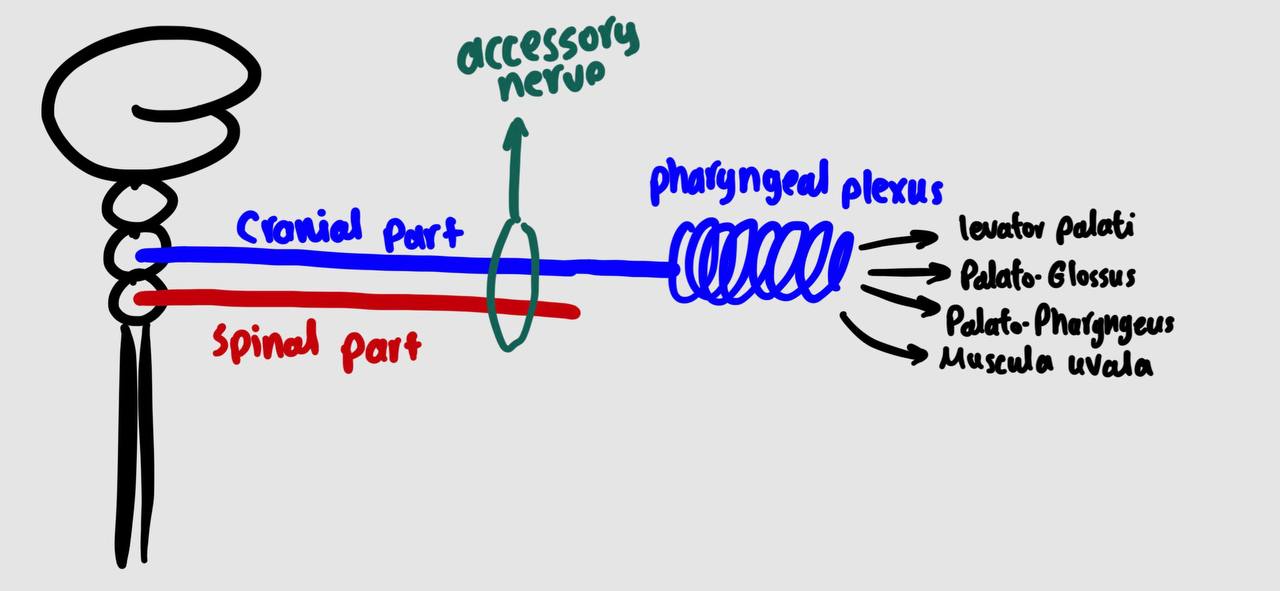

nerve supply of muscles of soft palate

by cranial part of accessory nerve ( through pharyngeal plexus )

• EXEPT : tensor palati by trunk of mandibular nerve

action of tensor palati muscle

• tense the soft palate

• open the auditory tube

action of levator palati

• elevate the soft palate

• open the auditory tube

what auditory tube need to be open ?

to equalize the pressure between middle ear and nasopharynx

action of palato-glossus muscle

• deppress the palate

• elevate the root of the tonge

-narrow the oro-pharyngeal isthmus

action of palato-pharyngeous muscle

• elevate the pharynx

-narrow the naso-pharyngeal isthmus

action of musculus uvulae

retraction of uvala لورا

elevation of uvula لفوق

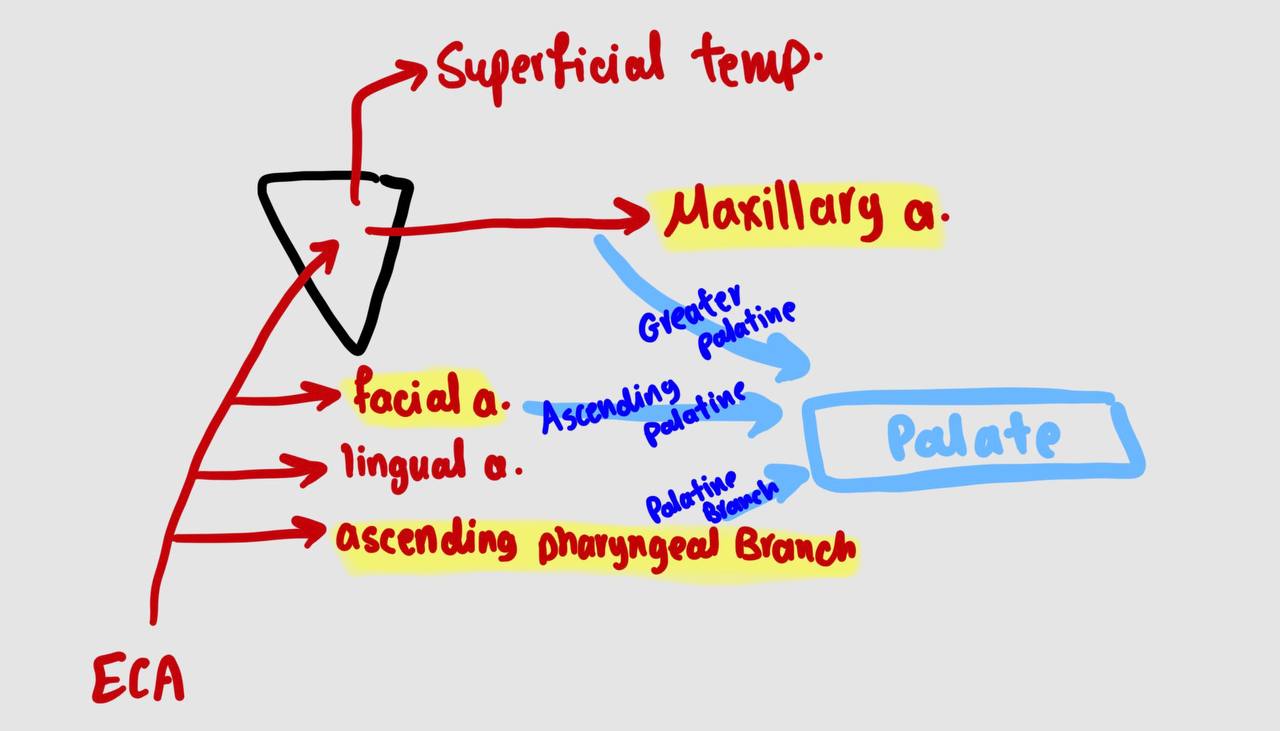

arterial supply of the palate

Greater palatine artery: branch from maxillary a.

2- Ascending palatine artery: branch from facial a.

3- Palatine branch of ascending pharyngeal a.

venous drainage of palat:

1- pterygoid plexus of veins

2- pharyngeal plexus of veins

lymphatic drainage of the palate

Hard palate : submandibular LN

Soft palate :

• upper deep cervical LN

• retro pharyngeal LN

motor nerve supply of the palate

all by cranial part of accesory n. exept tensor palati

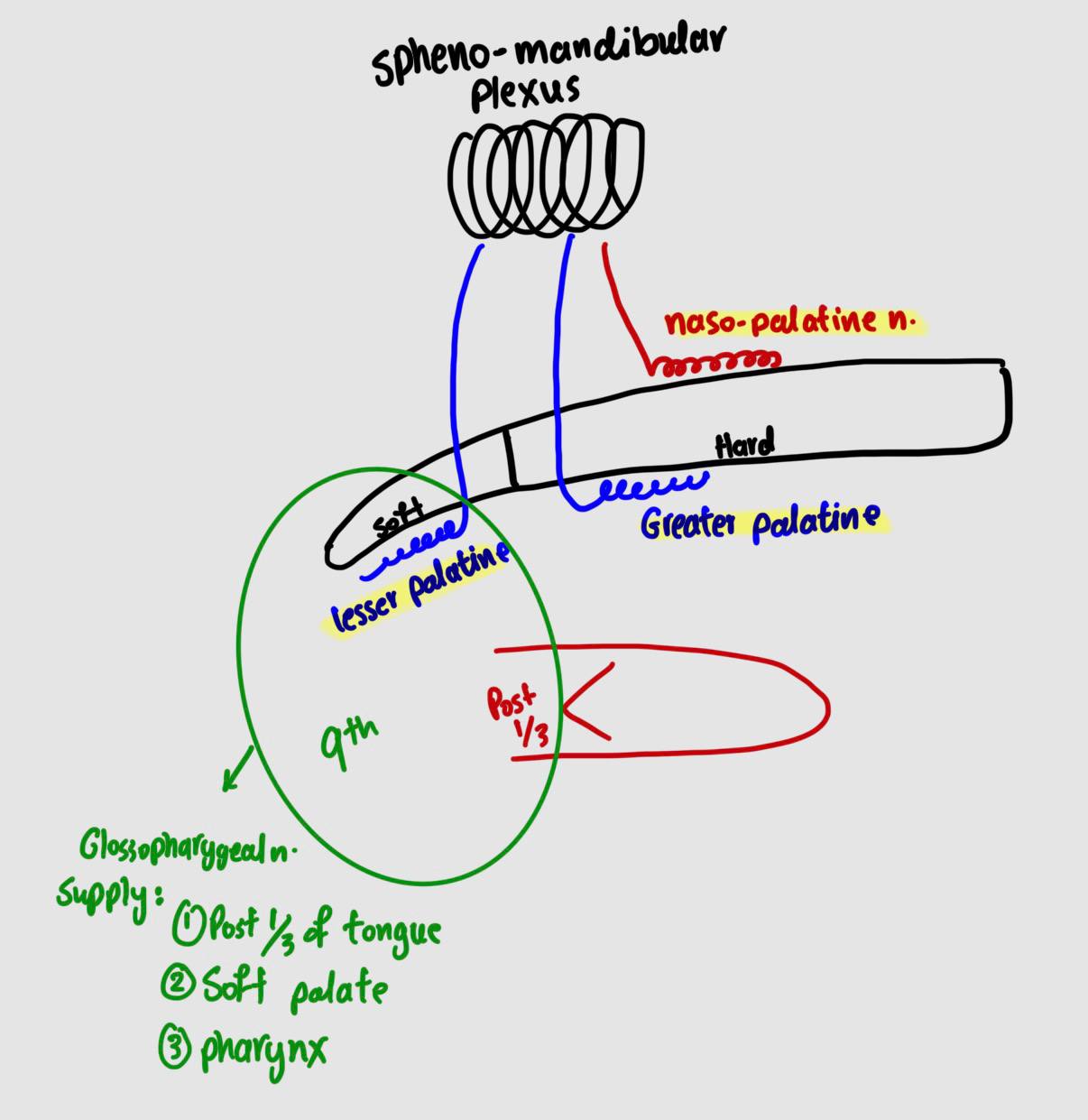

sensory supply of palate

Hard palate :

• greater palatine artery

• naso palatine nerve

Soft palate :

• lesser palatine nerve

• glosso pharyngeal nerve

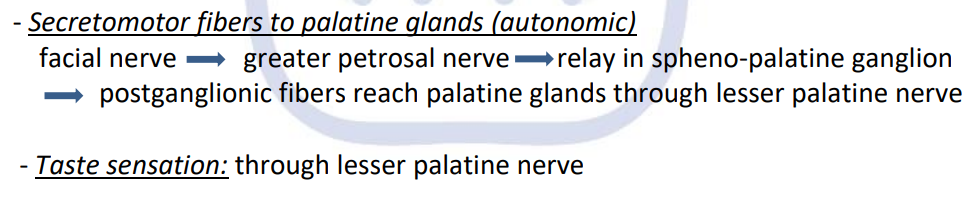

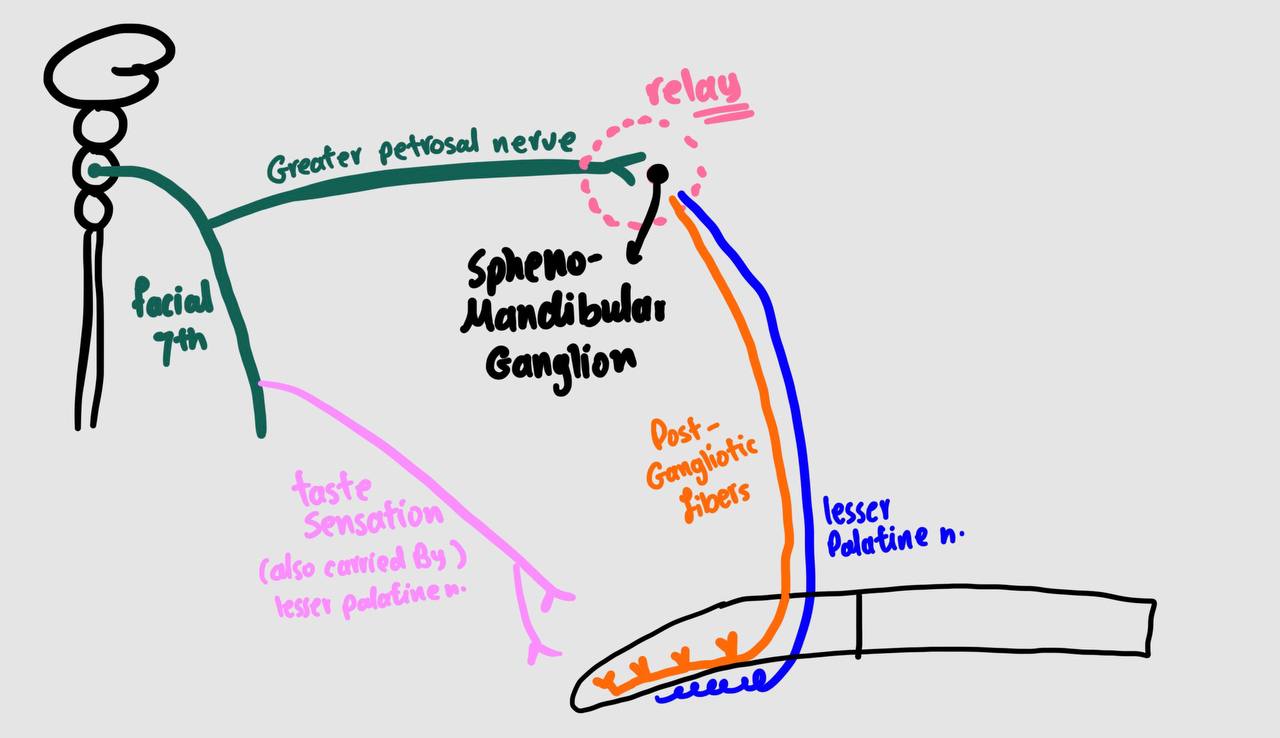

talk about the secretory motor fibers to the palatine glands (autonomic {involantery by ANS} )

draw the secretory motor fibers to the palatine glands (autonomic {involantery by ANS} )

TOUNGUE is consist of:

striated muscles with mucous membrane

parts of tongue

1) tip + root

2) dorsal surface (superior)]

3) ventral surface ((inferior)

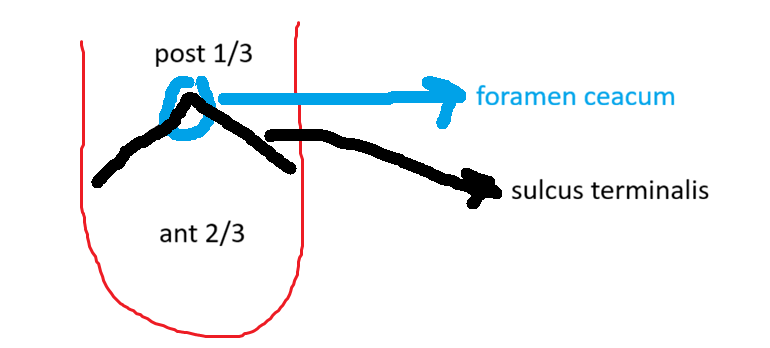

dorsal surface of the tingue is seperated to ant and post parts by what ?

sulcus terminalis

what the apex of sulcus marked with?

foramen caecum

anterior 2/3 is covered by

papilae

posterior 1/3 is covered by:

lingual tonsils

what connect the ventral surface of tongue to the floor of the mouth

lingual frenulum

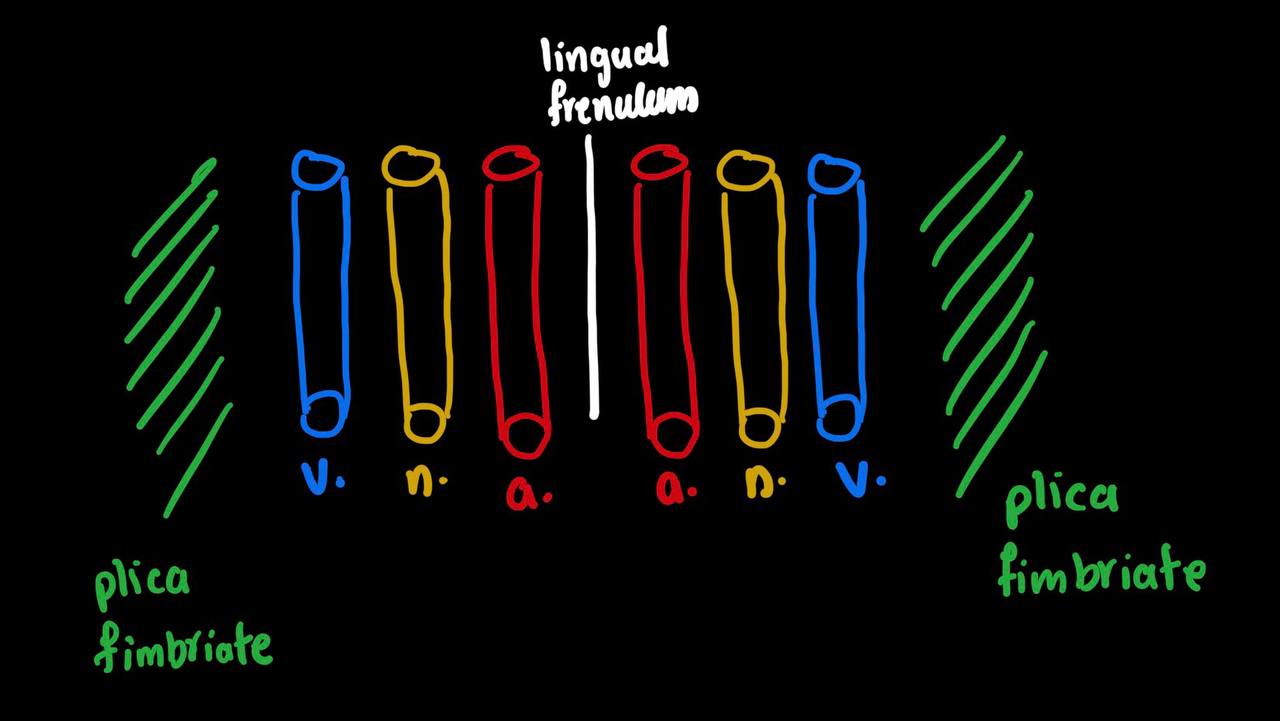

what structures are present on both sides of lingual frenalum ( from medial to lateral )

ANV

• lingual artery

• lingual nerve

• lingual vein

-then on medial on lingual vein there is the plica fimbriate

what sturcture is medial to lingual vein

plica fimbrate

what are the muscles of the tongue

• intrinsic for shape

• extrinsic for position

list the intrinsic tongue muscle

1) transverse m.

2) longitudinal m.

3) vertical m.

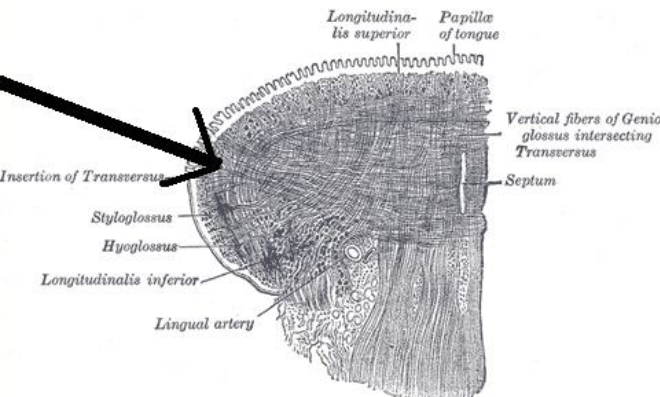

function of transvese m. of the tongue

narrowing of the tongue

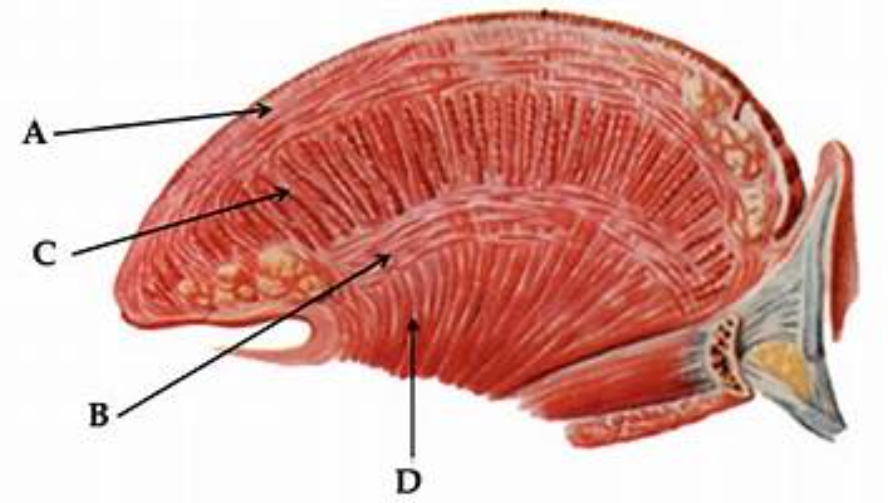

function of the longuitudinal m. of the tongue

shortening ( point A )

function of the vertical m. of the tongue

thinning (point C)

what is the supply of the intrinsic muscles of the tongue

hypoglossal nerve

list the external muscles of the tongue

• genio-glossus

• stylo-glossus

• hyoglossus

• palato-glossus

origin of geniogloussus muscle

superior genial tubercle

orgigin of styloglossus muscle

styloid proccess

origin of hyoglossus muscle

hyoid bone

origin of palatoglossus muscle

palatine apponeurosis

• it give origin to all muscles of soft palate

• palatoglossus muscle is in softpalate and also in the tongue as extrinsic muscle

insertion of all exctrinsic muscles of the tongue

tongue

nerve supply of extrinsic muscles of the tongue

hypoglossal nerve

• exept palatoglossus by cranial part of accesory nerve(it is a soft plate muscle)

action of genioglossus muscle

• depression of the tongue

• protraction of the tongue (protrusion outward)

action of styloglossus muscle

• elevation of the tongue

• retraction of tongue

action of hyoglossus muscle

• depression of the tongue

• NO PROTRUSION

action of palato-glossus muscle

• depresion of palate

• elevation of tongue

• narrowing the oro-pharyngeal isthmus

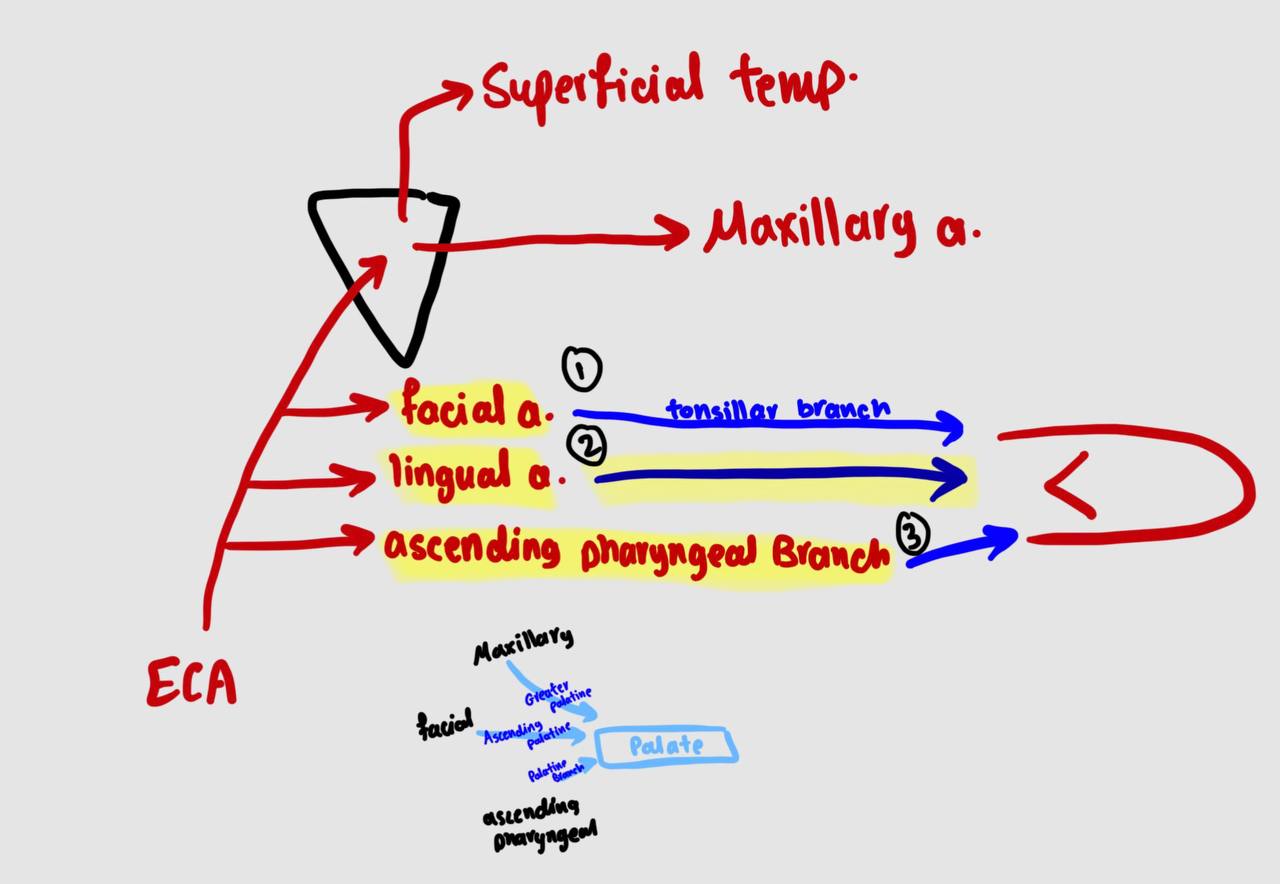

arterial supply of the tongue

1) lingual artery

2) acsending pharyngeal branch

3) tonsillar branch of facial artery

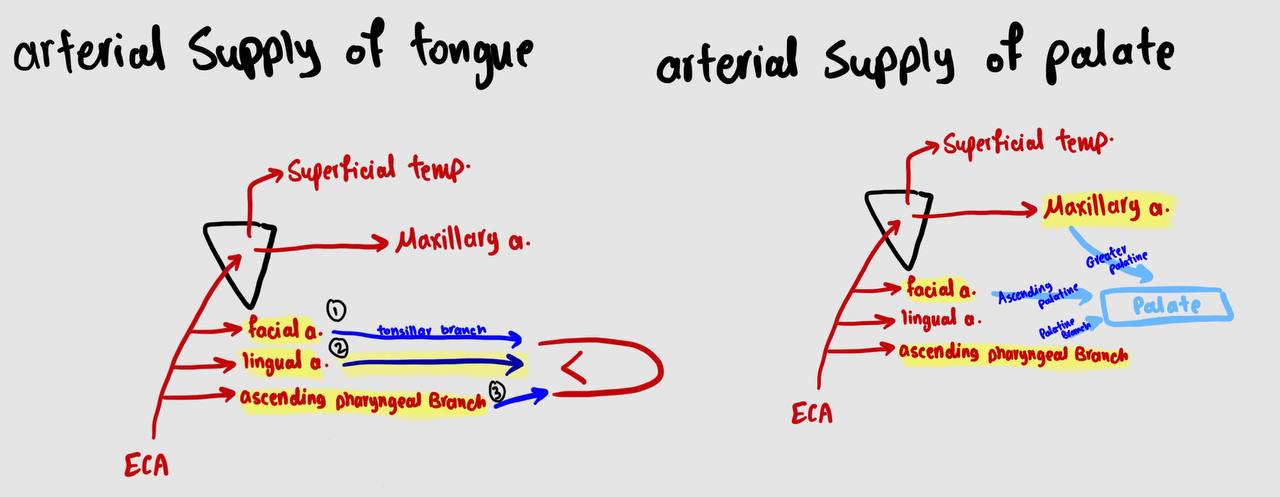

for a revision draw the arterial supply of palate and tongue

venous drainage of the tongue?

into lingual vein

• which drain into internal jugular vein

tongue —→ lingual vein —→ internal jugular vein

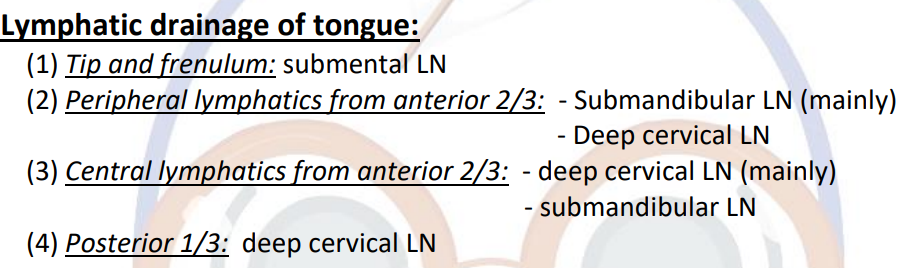

lymphatic drainage of the tongue

nerve supply of the tongue (motor)

all muscles of tongue are supplied by hypoglossal nerve except palatoglossus which is supplied by cranial part of accessory nerve through pharyngeal plexus

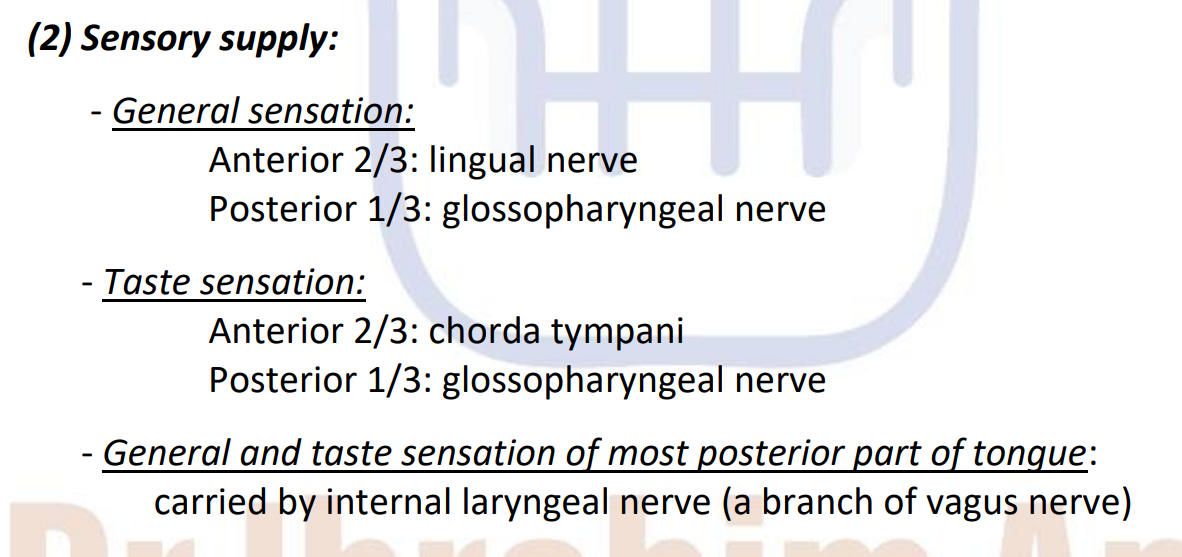

nerve supply of the tongue (sensory)

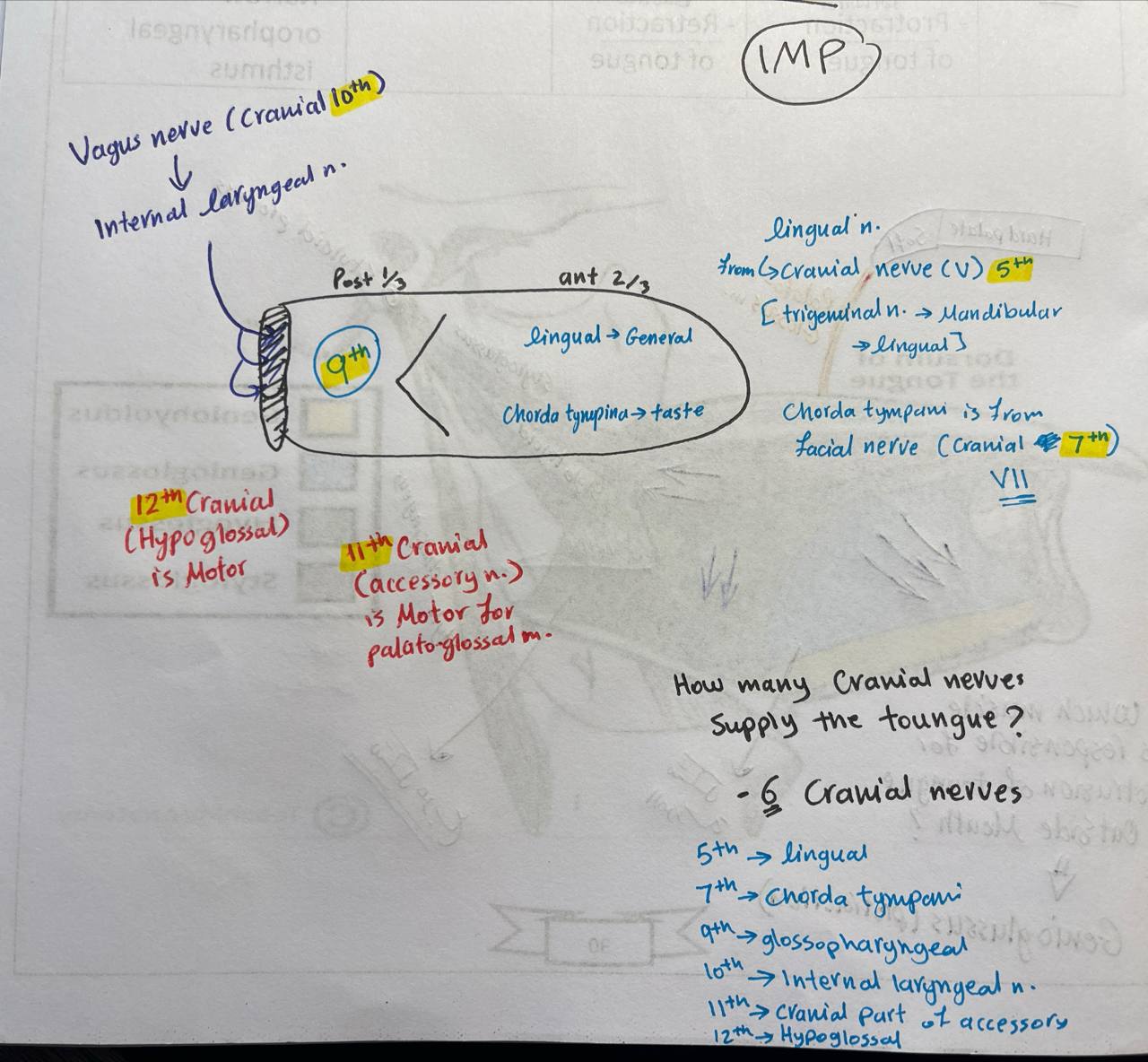

IMP IMP , how many cranial nerves supply the tongue?

6 cranial nerves

• 5th trigeminal ( for lingual nerve)

• 7th facial (for chorda tympina)

• 9th glossopharyngeal

• 10th vagus (for interal laryngeal n)

• 11th accessory (cranial part )
