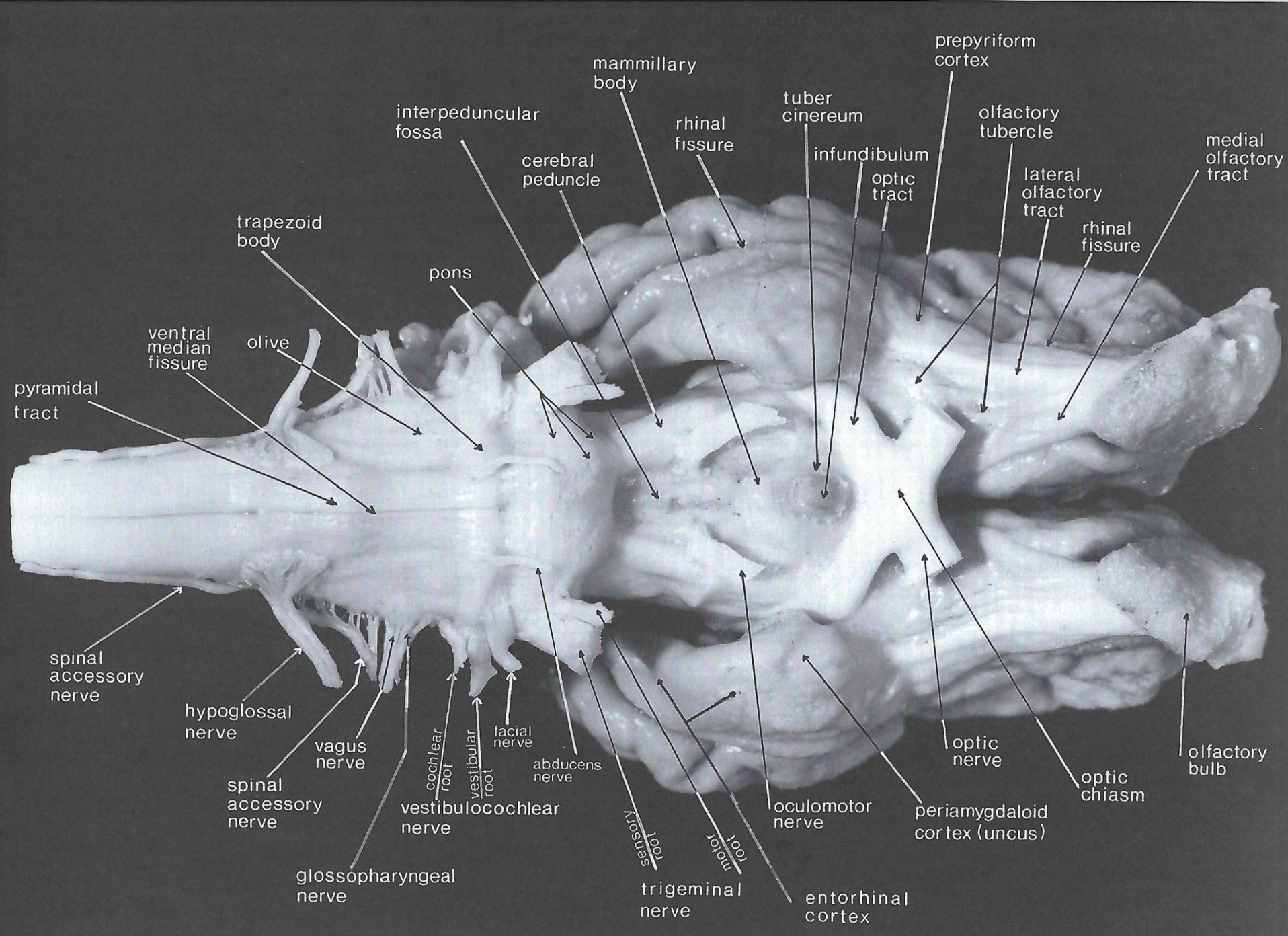

ventral structures of the sheep brain

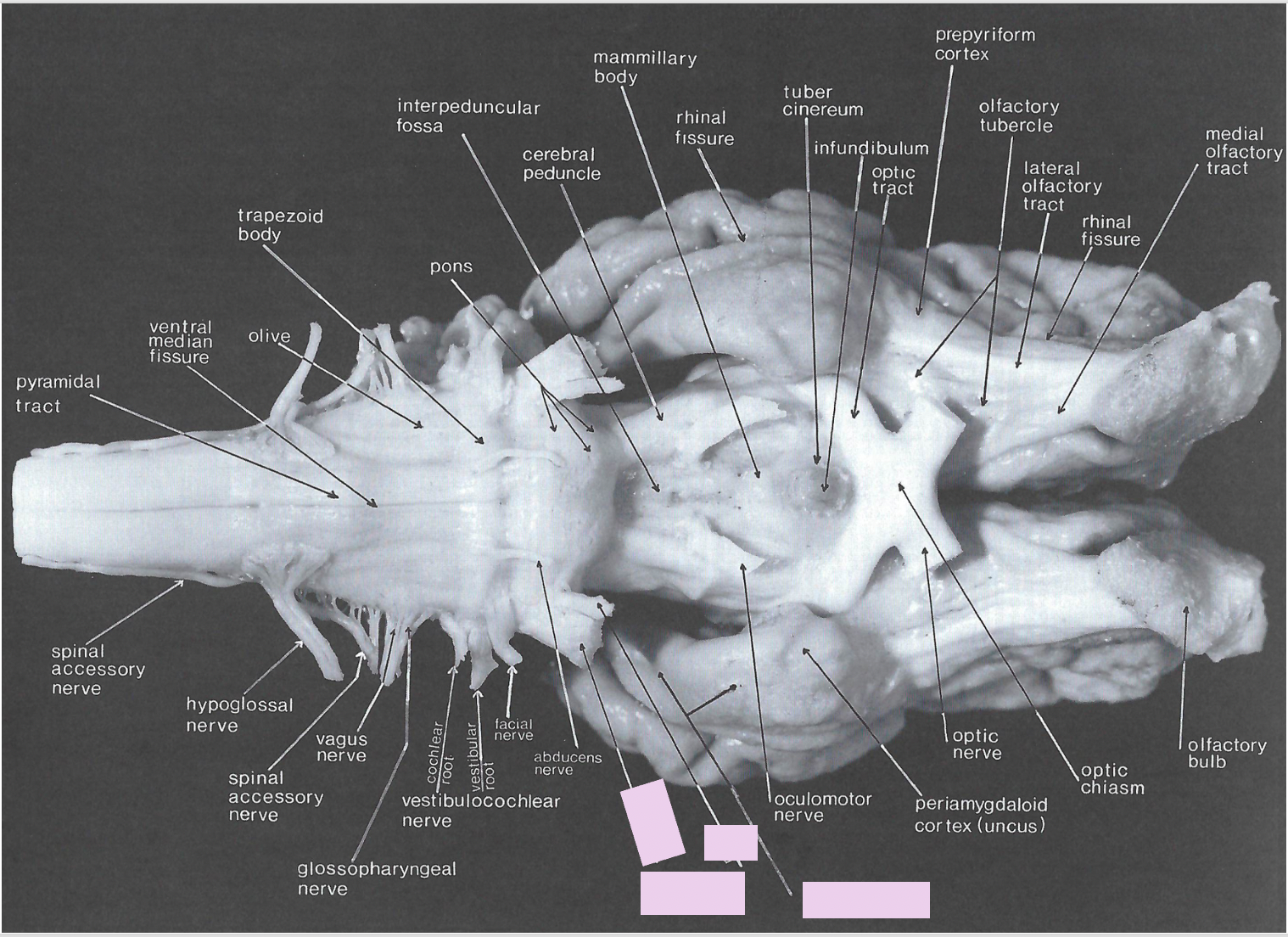

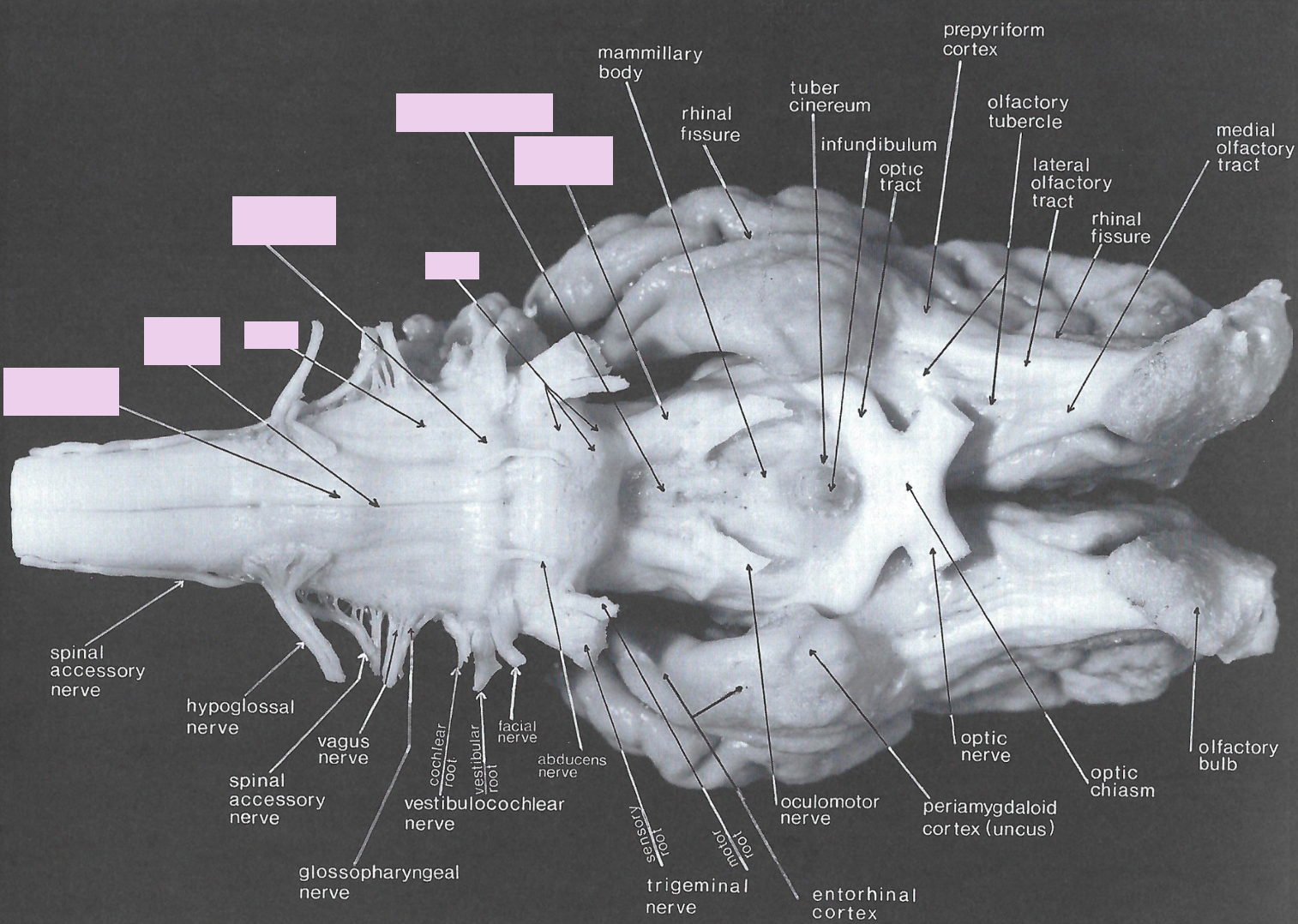

identify the missing structures

1. pyramidal tract

2. ventral median fissure

3. olive

4. trapezoid body

5. pons

6. interpeduncular fossa

7. cerebral peduncle

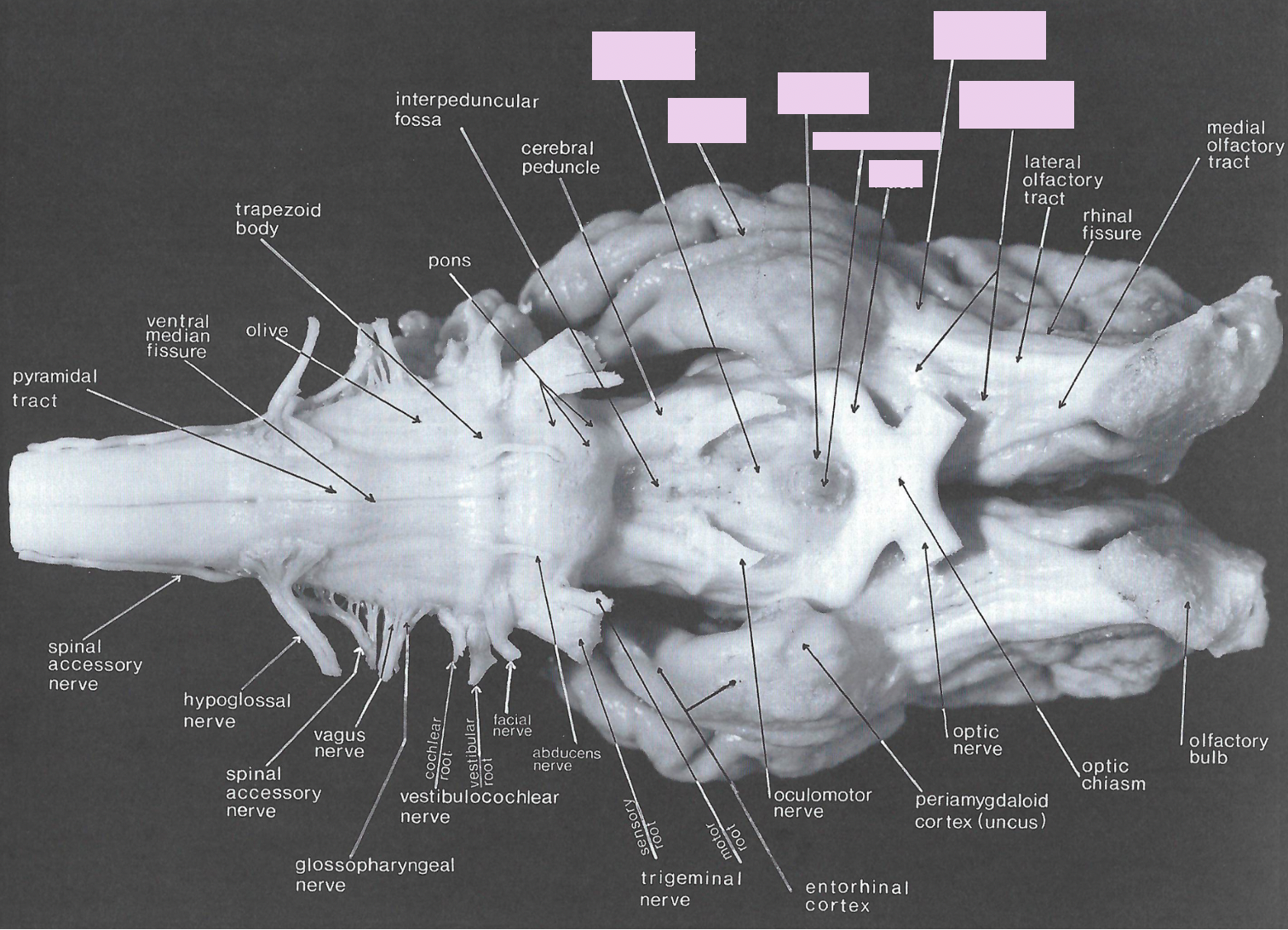

identify the missing structures

1. mammillary body

2. rhinal fissure

3. tuber cinereum

4. infundibulum

5. optic tract

6. prepyriform cortex

7. olfactory tubercule

identify the missing structures

1. lateral olfactory tract

2. rhinal fissure

3. medial olfactory tract

4. olfactory bulb

5. optic chiasm

6. optic nerve

7. periamygdaloid cortex (uncus)

8. oculomotor nerve

identify the missing structures

1. entorhinal cortex

2. motor root

3. sensory root

4. trigeminal nerve

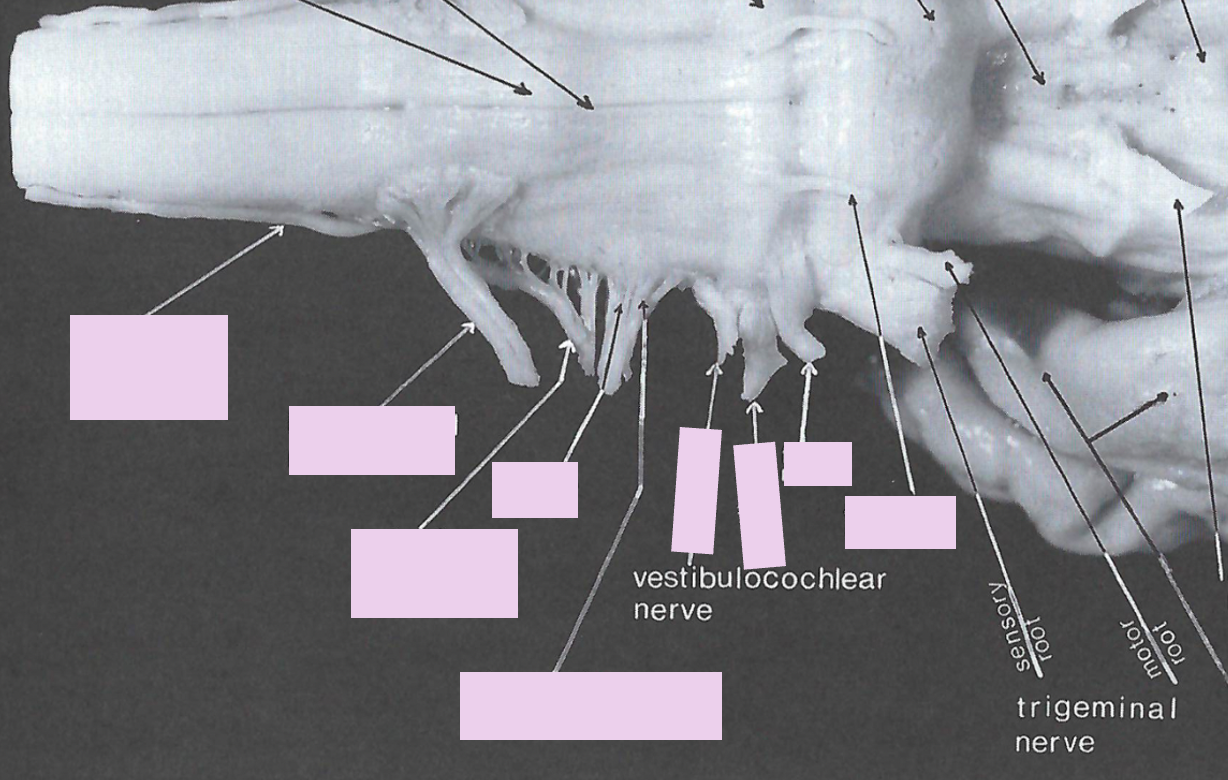

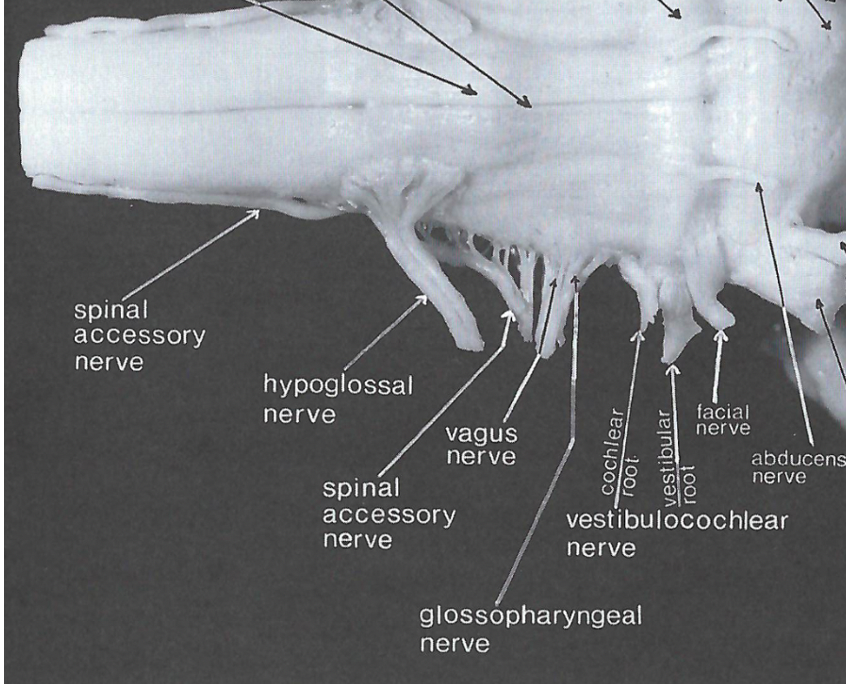

identify all the nerves seen from the ventral view (AFVCGVSH)

1. abducens nerve

2. facial nerve

3. vestibular root

4. cochlear root

5. glossopharyngeal nerve

6. vagus nerve

7. spinal accessory nerve

8. hypoglossal nerve

9. spinal accessory nerve
