12 Terms

1
New cards

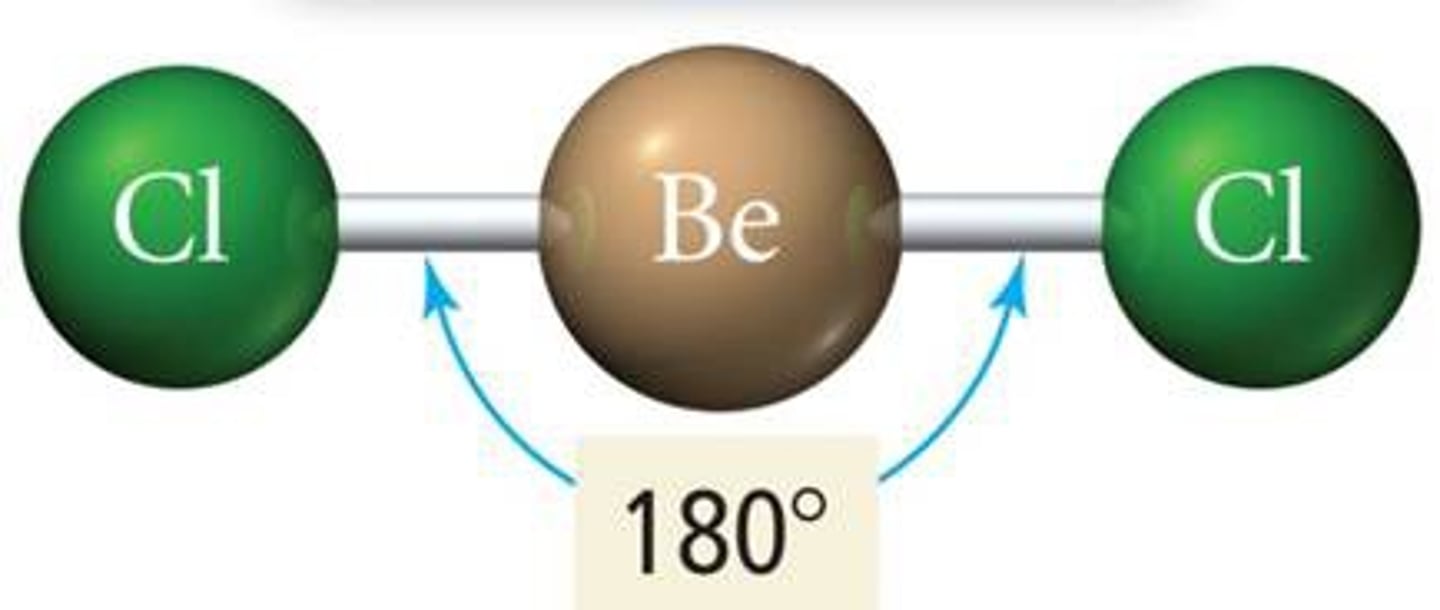

Linear

- Two regions of negative charge on central atom and no lone pairs.

- 180 degree bond angle

<p>- Two regions of negative charge on central atom and no lone pairs.</p><p>- 180 degree bond angle</p>
2
New cards

Bent (120)

- Three regions of negative charge, two bonding and one lone pair.

- 120 degree bond angle

<p>- Three regions of negative charge, two bonding and one lone pair.</p><p>- 120 degree bond angle</p>
3
New cards

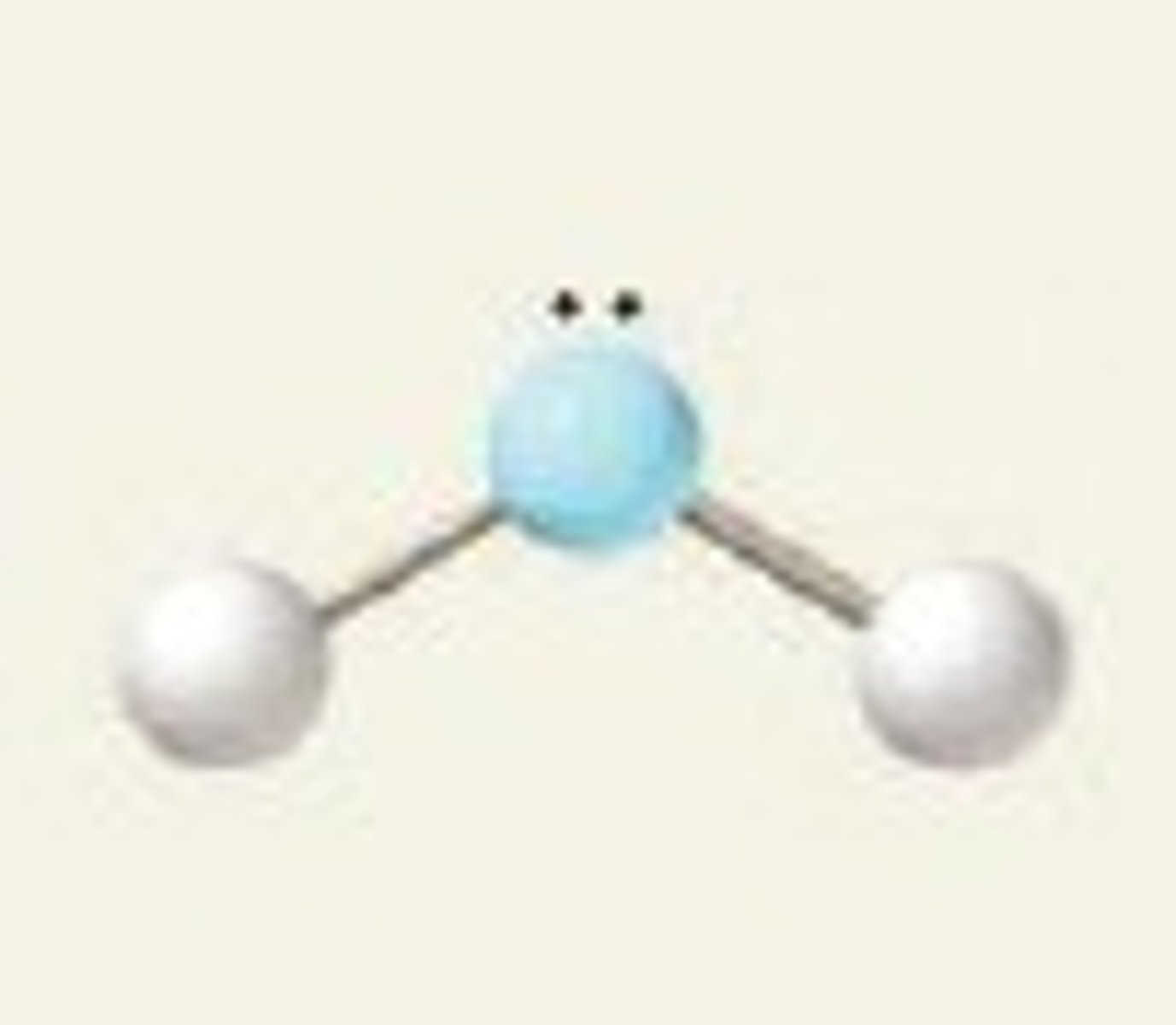

Bent (109)

- Four regions of negative charge, two bonding and two lone pairs.

- 109 degree bond angle.

<p>- Four regions of negative charge, two bonding and two lone pairs.</p><p>- 109 degree bond angle.</p>
4
New cards

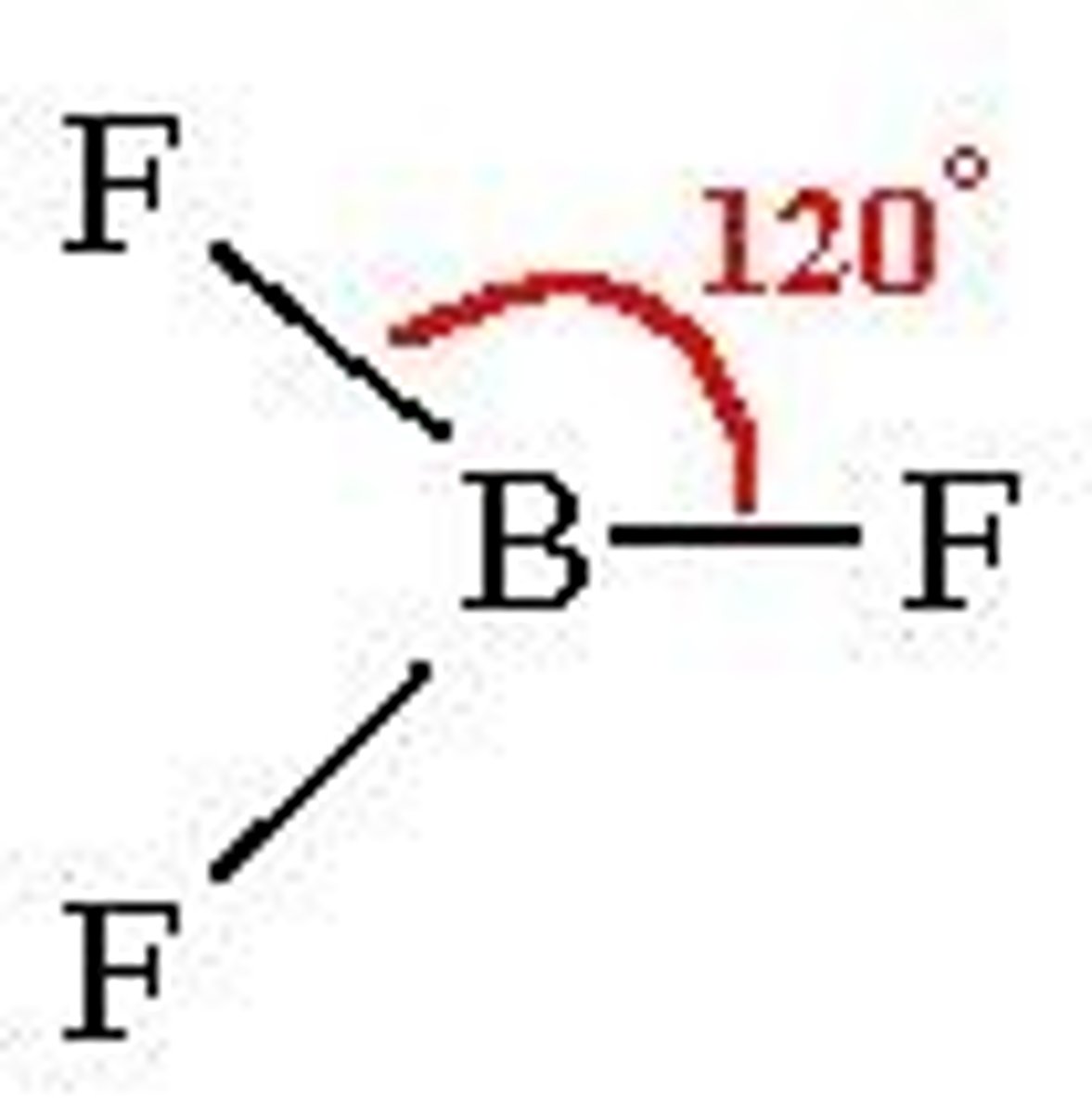

Trigonal Planar

- Three regions of negative charge on the central atom, all are bonding with no lone pairs.

- 120 degree bond angle.

<p>- Three regions of negative charge on the central atom, all are bonding with no lone pairs.</p><p>- 120 degree bond angle.</p>
5
New cards

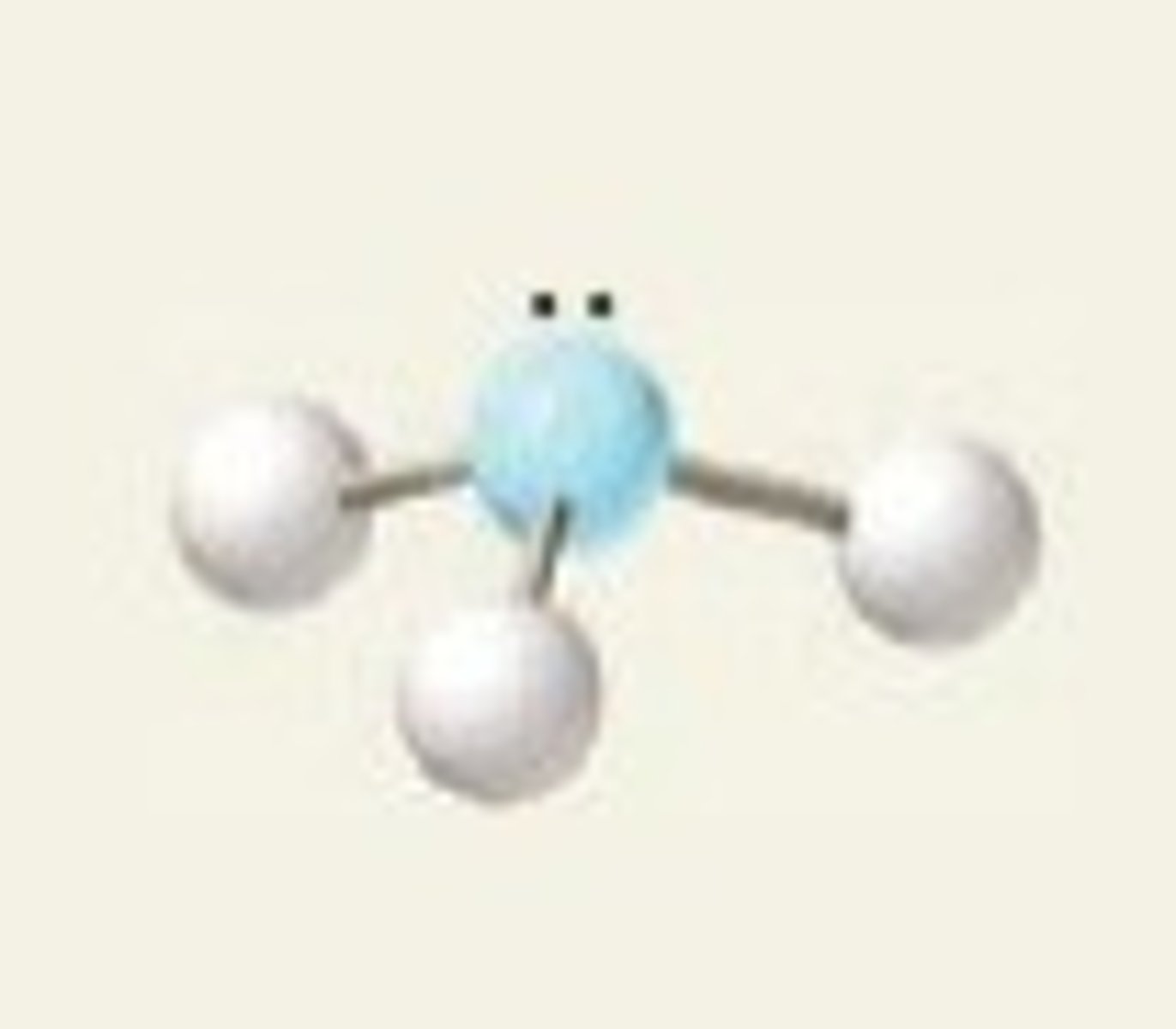

Trigonal Pyramid

- Four regions of negative charge on the central atom, three bonding and one lone pair.

- 109 degree bond angle

<p>- Four regions of negative charge on the central atom, three bonding and one lone pair.</p><p>- 109 degree bond angle</p>
6
New cards

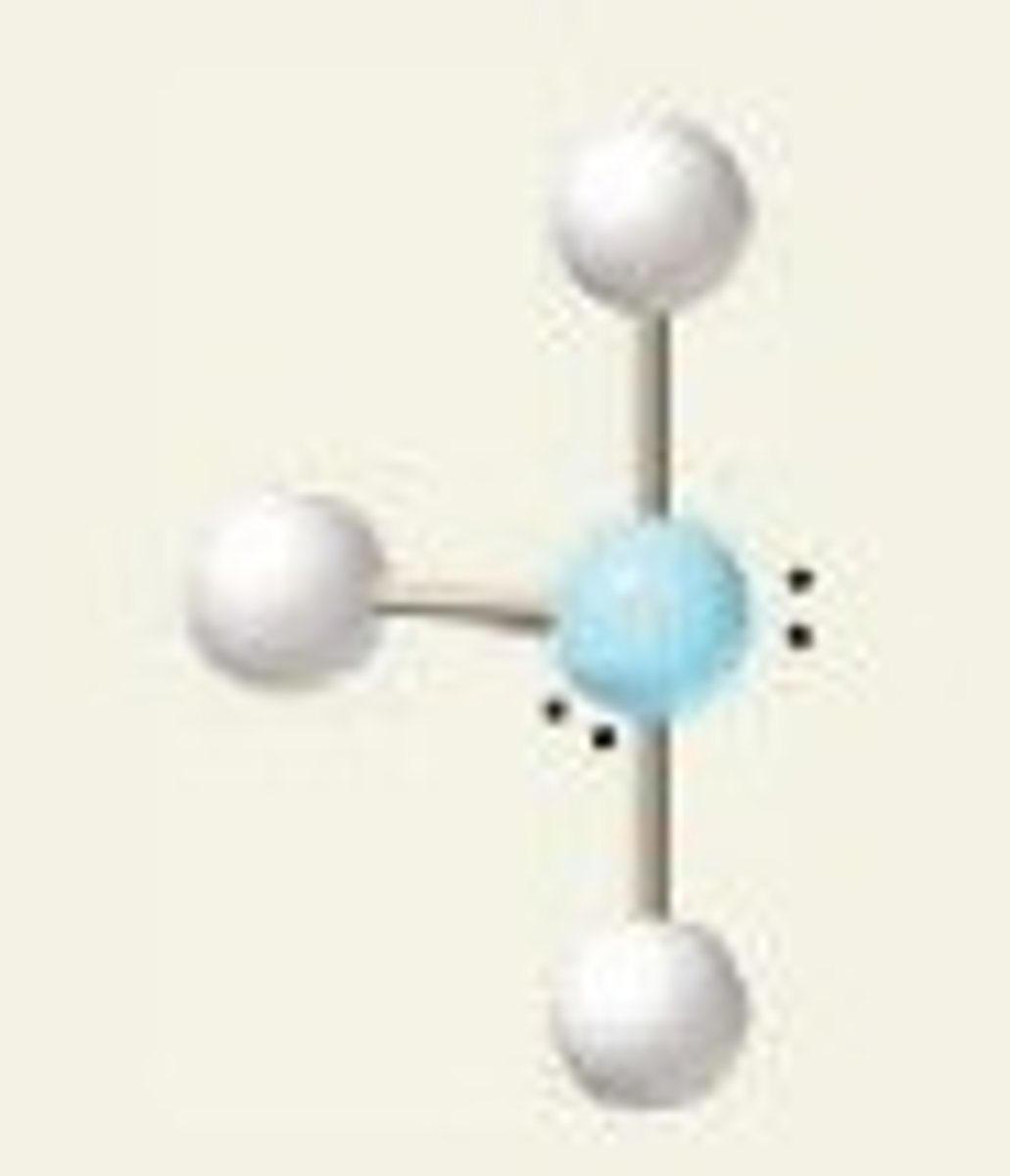

T-Shaped

- Five regions of negative charge on the central atom, four bonding and two lone pairs.

- 90 degree bond angle

<p>- Five regions of negative charge on the central atom, four bonding and two lone pairs.</p><p>- 90 degree bond angle</p>
7
New cards

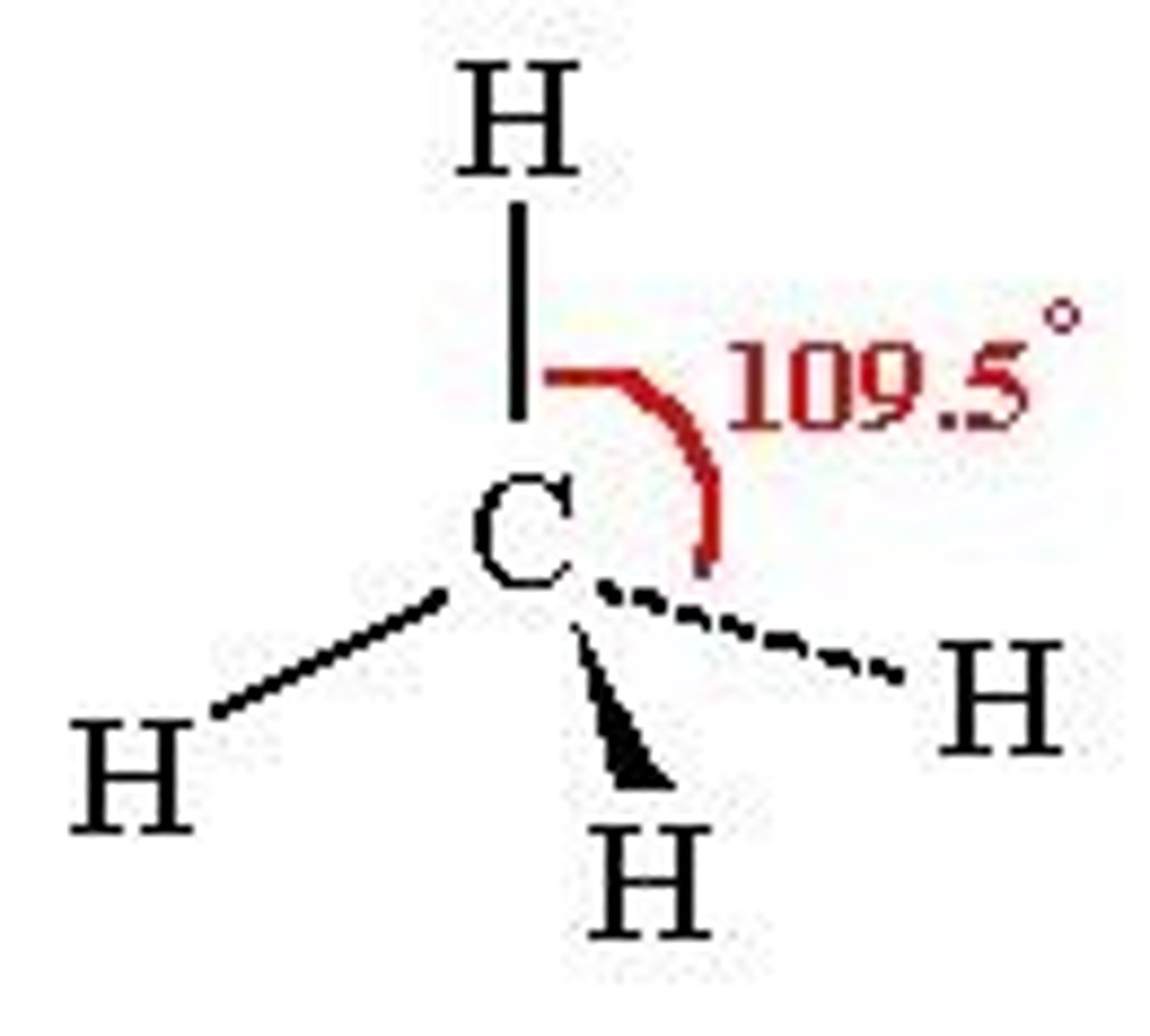

Tetrahedral

- Four regions of negative charge on the central atom, all are bonding with no lone pairs.

- 109 degree bond angle

<p>- Four regions of negative charge on the central atom, all are bonding with no lone pairs.</p><p>- 109 degree bond angle</p>
8
New cards

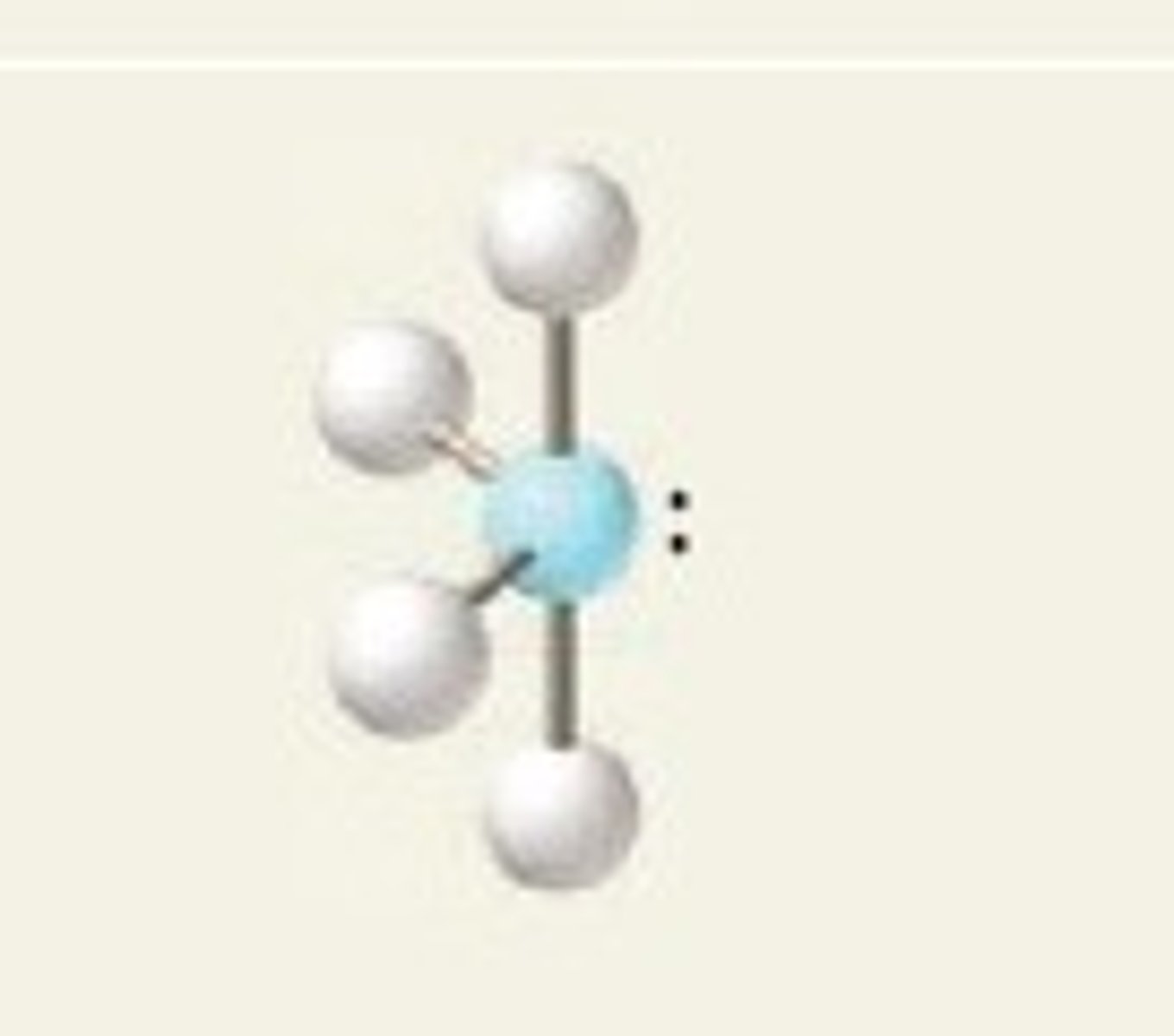

See-saw

- Five regions of negative charge on the central atom, four bonding and one lone pair.

- Both 90 degree and 120 bond angles

<p>- Five regions of negative charge on the central atom, four bonding and one lone pair.</p><p>- Both 90 degree and 120 bond angles</p>
9
New cards

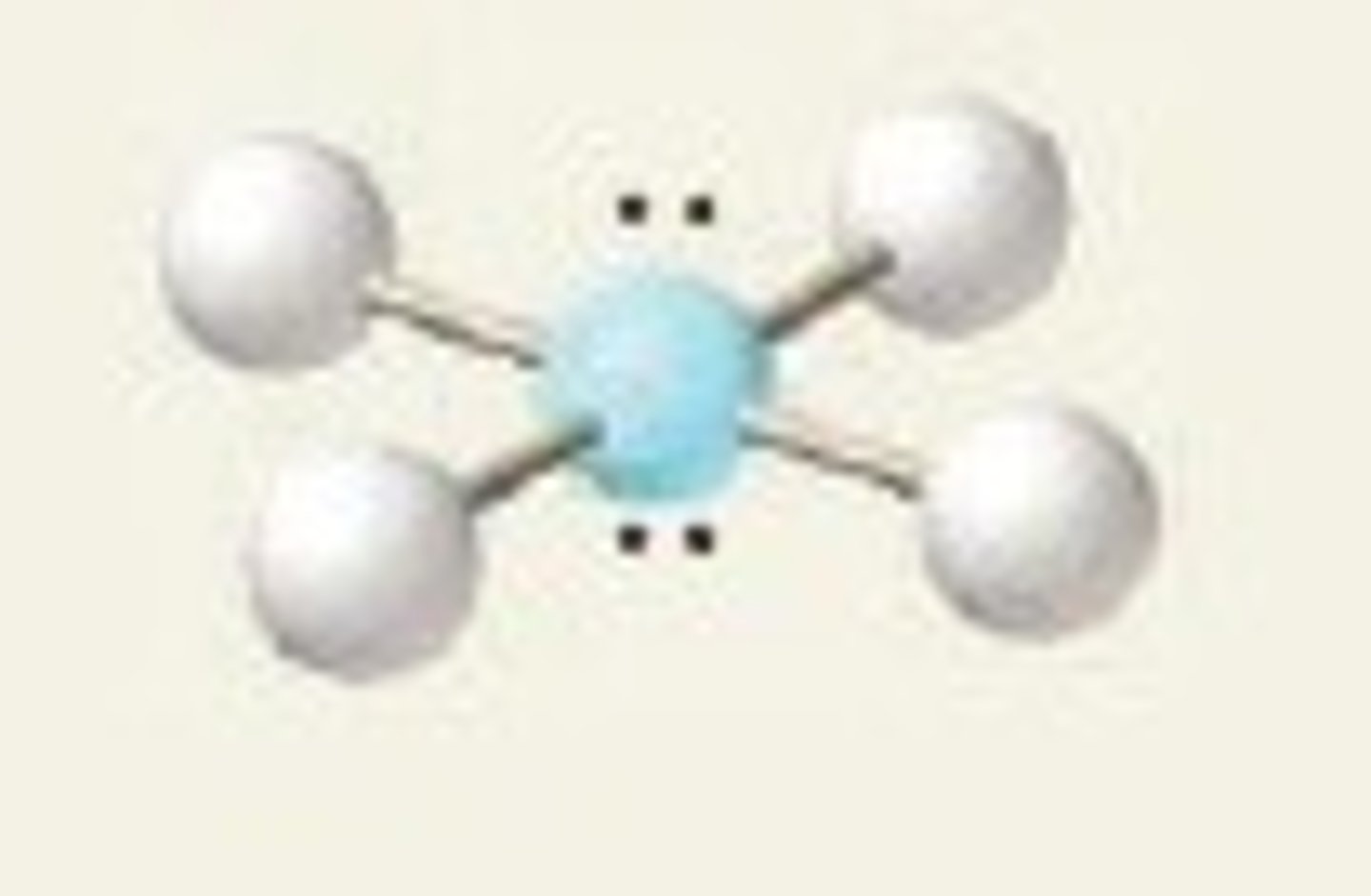

Square Planar

- Six regions of negative charge on the central atom, four bonding and two lone pairs.

- 90 degree bond angle

<p>- Six regions of negative charge on the central atom, four bonding and two lone pairs.</p><p>- 90 degree bond angle</p>
10
New cards

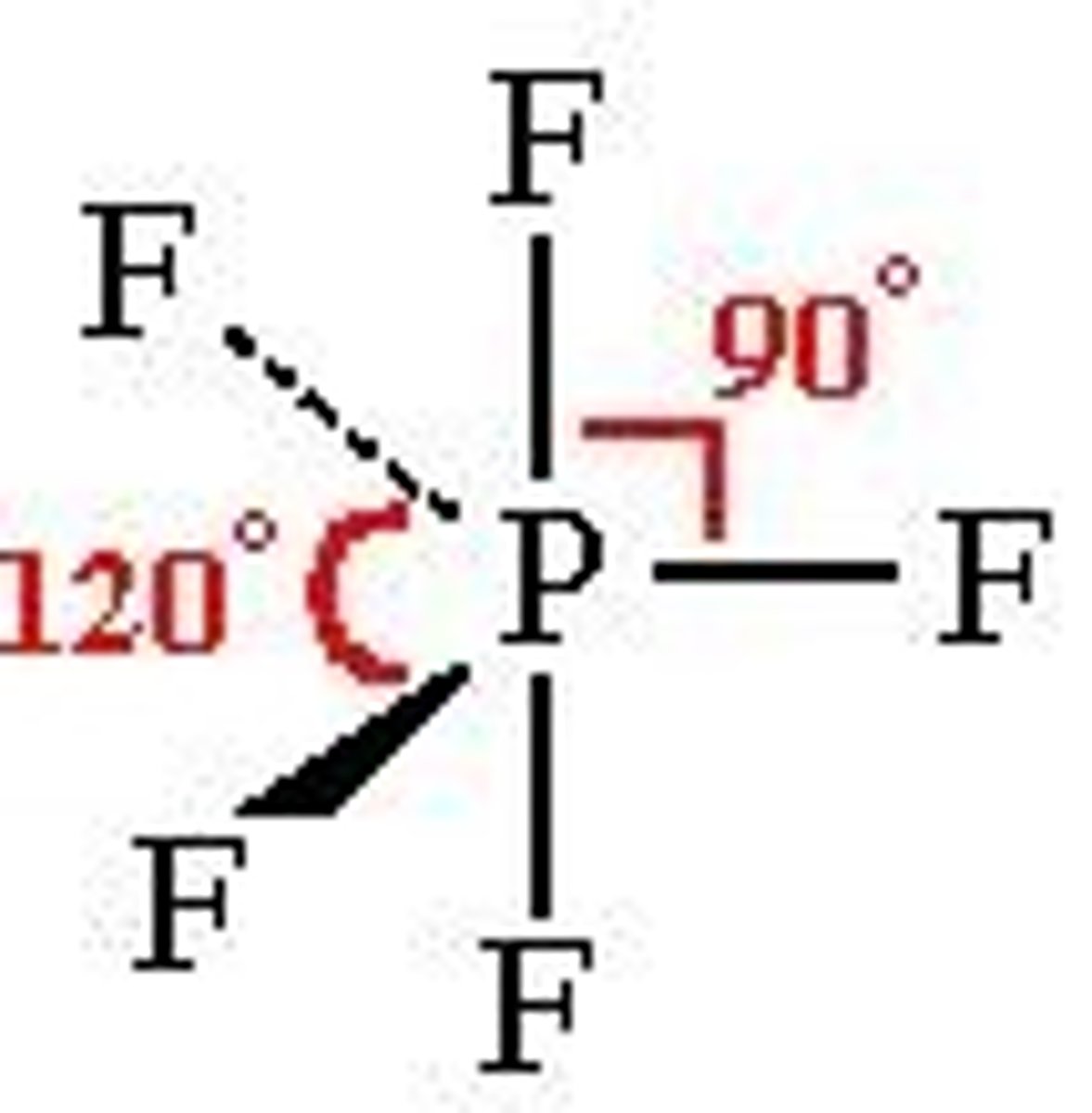

Trigonal Bipyramidal

- Five regions of negative charge around the central atom, five bonding and no lone pairs.

- Both 90 and 120 bond angles

<p>- Five regions of negative charge around the central atom, five bonding and no lone pairs.</p><p>- Both 90 and 120 bond angles</p>
11
New cards

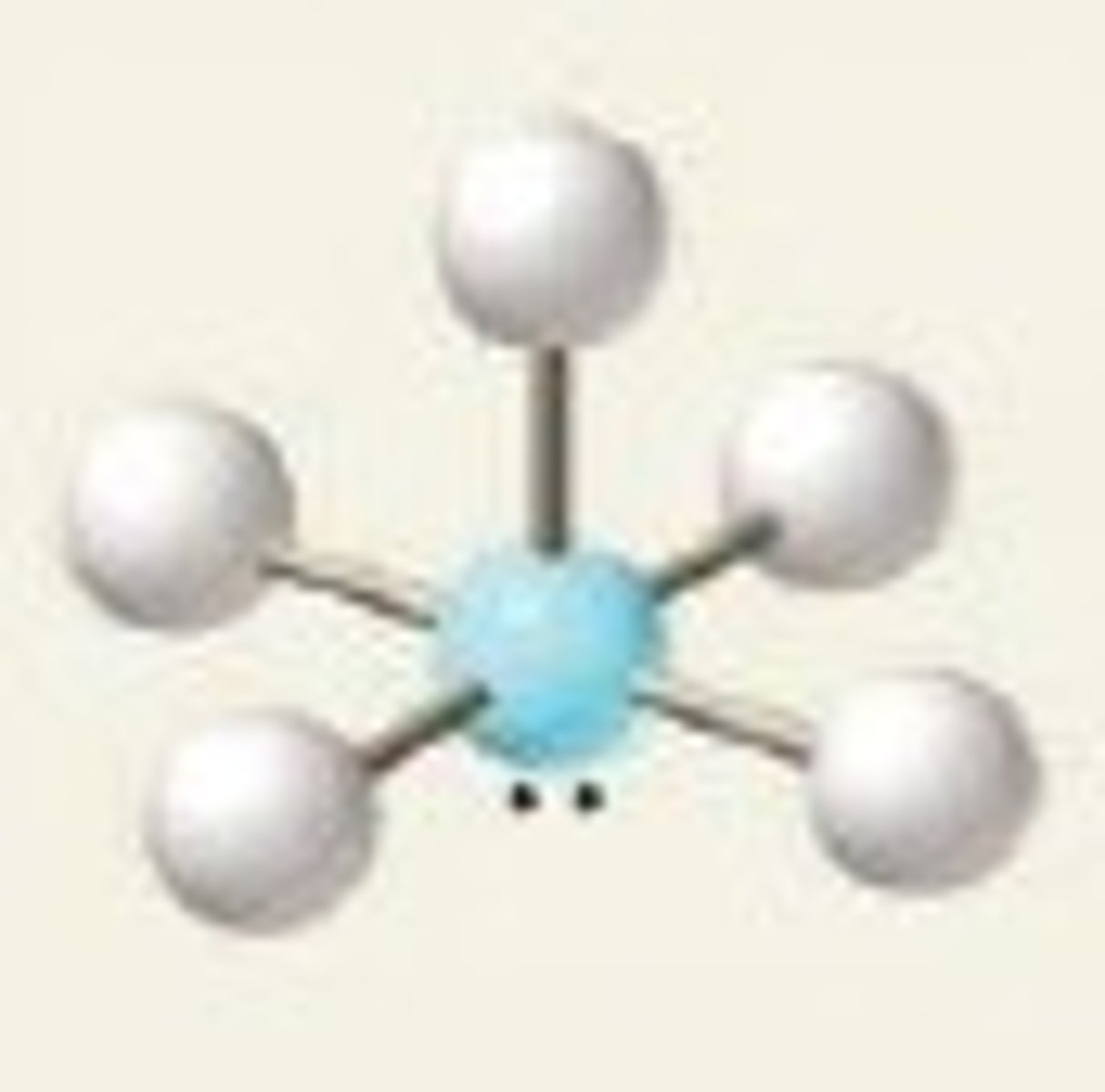

Square Pyramid

- Six regions of negative charge around the central atom, five bonding and one lone pair.

- 90 degree bond angle

<p>- Six regions of negative charge around the central atom, five bonding and one lone pair.</p><p>- 90 degree bond angle</p>
12
New cards

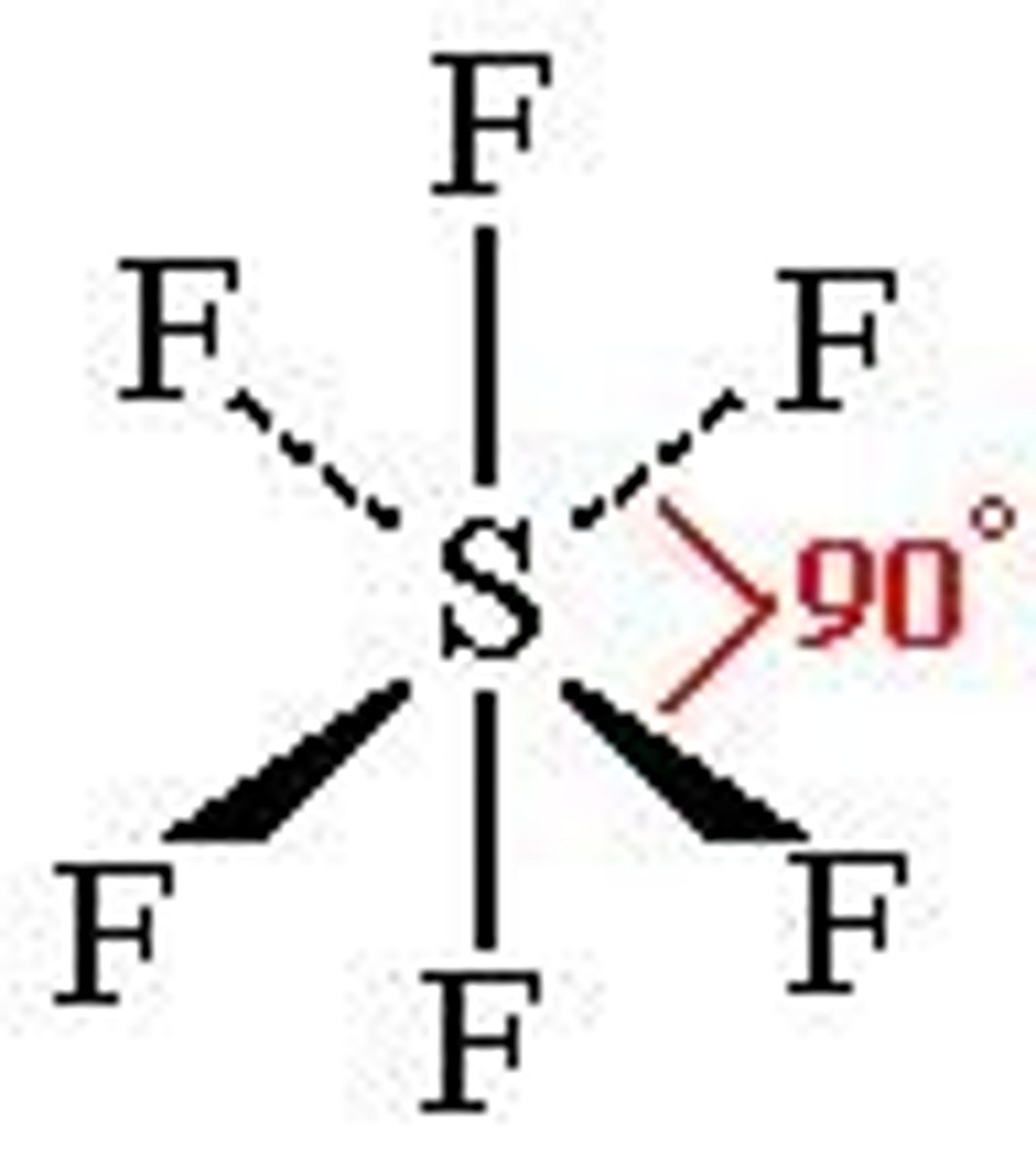

Octahedral

- Six regions of negative charge around the central atom, six bonding and no lone pairs.

- 90 degree bond angles

<p>- Six regions of negative charge around the central atom, six bonding and no lone pairs.</p><p>- 90 degree bond angles</p>
