BASIC ELECTRONICS QUIZ 1

overview of basic electronics and electrical symbols

the fundamental unit of a chemical element, the smallest part of an element that retains its chemical properties

atom

central core of an atom

nucleus

potential difference between two charged points per unit charge in an electric field, also known as Potential Difference or Pressure

voltage

the flow of electricity in an electronic circuit

current

force that counteracts the flow of current

resistance

water analogy

pressure represents voltage

water represents electrons

faucet represents resistance

and the flow of water represents current

“Current is directly proportional to voltage, and inversely proportional to resistance.”

Georg Simon Ohm

current is directly proportional to

voltage

current is inversely proportional to

resistance

a visual representation used to explain how something works, how it's connected, or how it's structured

diagram

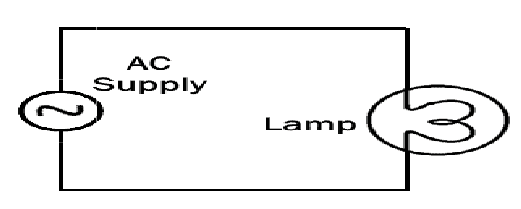

shows how an electrical or electronic circuit works using standardized symbols

schematic diagram

type of diagram

schematic diagram

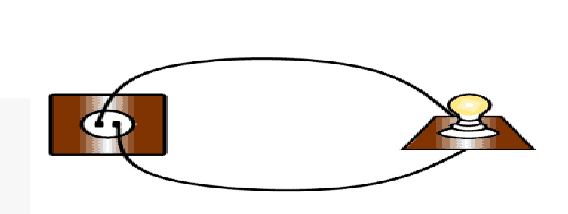

uses images or realistic drawings of components rather than symbols

pictorial diagram

type of diagram

pictorial diagram

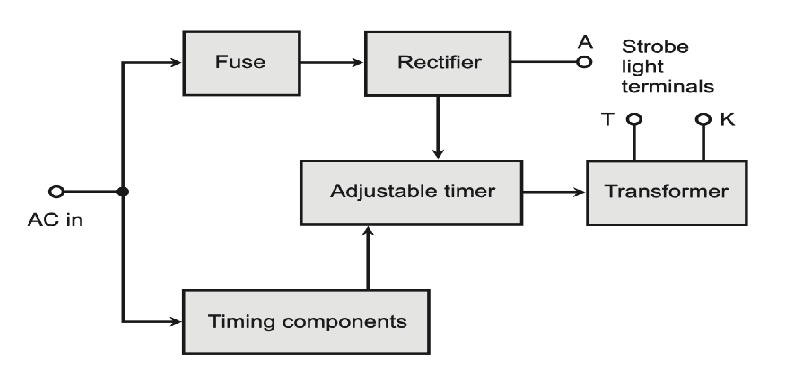

a simplified, high-level view of a system showing major components (blocks) and their relationships

block diagram

type of diagram

block diagram

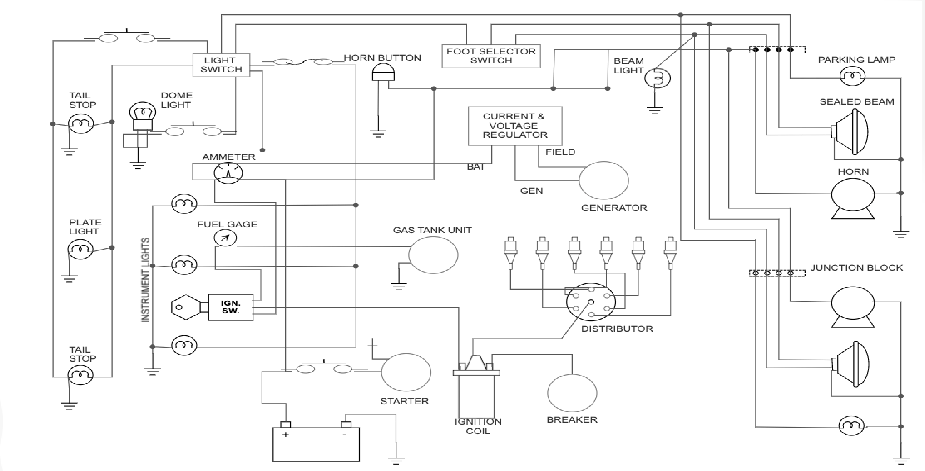

shows the physical connections and layout of an electrical circuit or system

wiring diagram

type of diagram

wiring diagram

electrical and electronics symbols

wires

represents a conductor that conducts electrical current, also called a power line or electrical line

electrical and electronics symbols

connected wires

represents the connection of two conductors, dot shows the junction point

electrical and electronics symbols

unconnected wires

represents two unconnected wires/conductors

electrical and electronics symbols

push button (normally open)

this switch is ON state when the button is pressed otherwise it is in OFF state

electrical and electronics symbols

push button (normally closed)

this switch is initially in ON state, goes to OFF state when it is released

electrical and electronics symbols

SPST switch

Single Pole Single Throw

acts as ON/OFF switch used to control a single electrical circuit, poles define the number of circuits it can be connected to and throws the number of positions that a pole connects

electrical and electronics symbols

SPDT switch

Single Pole Double Throw

this switch allows the current to flow in any one of the two directions by adjusting its position and can connect a single circuit to two different outputs.

electrical and electronics symbols

DPST switch

Double Pole Single Throw

this switch can drive two circuits at a time

electrical and electronics symbols

DPDT switch

Double Pole Double Throw

this switch can connect two separate inputs to two different outputs, allowing current to flow in multiple directions

electrical and electronics symbols

relay switch

can control the AC Loads using the DCvoltage input to activate a magnetic coil, which opens or closes contacts in the circuit

electrical and electronics symbols

AC supply

an alternating current supply, which periodically reverses direction

electrical and electronics symbols

DC supply

a direct current supply, which flows in a single direction

electrical and electronics symbols

constant current source

an independent current source which delivers constant current

electrical and electronics symbols

controlled current source

a dependent current source

electrical and electronics symbols

controlled voltage source

a dependent voltage source

electrical and electronics symbols

single cell battery

provides supply to the circuit

electrical and electronics symbols

multi cell battery

provides a higher voltage supply by combining multiple single cell batteries in a series or parallel configuration

electrical and electronics symbols

ground

equivalent to theoretical 0V and is used zero potential reference, it is the potential of perfectly conducting earth

electrical and electronics symbols

signal ground

a reference point from which the signal is measured

electrical and electronics symbols

chassis ground

acts as a barrier between user and the circuit and prevents electric shock

electrical and electronics symbols

fixed resistor

a device that opposes the flow of current in a circuit

electrical and electronics symbols

rheostat

a two terminal variable resistor which are generally used to control the current in the circuit

electrical and electronics symbols

preset

a mini variable resistor, also called Trimmer Resistor or Trim Pot used for adjusting circuit parameters or sensitivity of the circuit, like temperature or light

electrical and electronics symbols

thermistor

a temperature sensitive resistor used in temperature sensing, current limiting circuits, over-current protection circuits etc.

electrical and electronics symbols

varistor

a Voltage Dependent Resistor generally used in circuit protection from voltage surges and excessive transient voltages

electrical and electronics symbols

magneto resistor

also called as Magnetic Dependent Resistor (MDR) used in electronic compass, ferrous material detection, position sensors, etc.

electrical and electronics symbols

LDR

also called as Photo Resistors generally used in light sensing applications

electrical and electronics symbols

Non-Polarized Capacitor

big in size with small capacitance, they can be used in both AC and DC circuits

(capacitor stores the charge in the form of electrical energy)

electrical and electronics symbols

Polarized Capacitor

small in size but have high capacitance used in DC circuits

electrical and electronics symbols

electrolytic capacitor

a type of polarized capacitor that uses an electrolyte to achieve a larger capacitance value in a small size, they are used in DC circuits

electrical and electronics symbols

feed-through capacitor

they provide low impedance path to ground for high frequency signals

electrical and electronics symbols

variable capacitor

its capacitance can be adjusted by turning the knob, widely used to adjust the frequency that is for tuning

electrical and electronics symbols

iron core inductor

electrical and electronics symbols

ferrite core inductors

electrical and electronics symbols

center tapped inductors

electrical and electronics symbols

variable inductors

electrical and electronics symbols

pn junction diode

electrical and electronics symbols

zener diode

electrical and electronics symbols

photodiode

electrical and electronics symbols

led

electrical and electronics symbols

varactor diode

electrical and electronics symbols

shockley diode

electrical and electronics symbols

schottky diode

electrical and electronics symbols

tunnel diode

electrical and electronics symbols

thyristor

electrical and electronics symbols

constant current diode

electrical and electronics symbols

laser diode

electrical and electronics symbols

NPN

electrical and electronics symbols

PNP

electrical and electronics symbols

N-Channel JFET

electrical and electronics symbols

P-Channel JFET

electrical and electronics symbols

enhancement MOSFET

electrical and electronics symbols

depletion MOSFET

electrical and electronics symbols

phototransistor

electrical and electronics symbols

photo darlington

electrical and electronics symbols

darlington transistor

electrical and electronics symbols

basic amplifier

electrical and electronics symbols

operational amplifier

electrical and electronics symbols

transformer

electrical and electronics symbols

iron core

electrical and electronics symbols

center tapped

electrical and electronics symbols

step up transformer

electrical and electronics symbols

step down transformer

electrical and electronics symbols

buzzer

electrical and electronics symbols

loud speaker

electrical and electronics symbols

light bulb

electrical and electronics symbols

motor

electrical and electronics symbols

fuse
