IT-341 Module-10 Chapter 3 VLANs (Cisco)

True or False? VLANs improve network performance by segmenting broadcast domains.

True

False

True

True or False? VLANs can improve security by isolating sensitive data from the rest of the network.

True

False

True

Which type of VLAN is assigned to 802.1Q trunk ports to carry untagged traffic?

a. Default

b. Native

c. Data

d. Management

b. Native

True or False? It is a best practice to configure the native VLAN as VLAN 1.

True

False

False

Which is true of VLAN 1? (Choose all that apply.)

a. All switch ports are assigned to VLAN 1 by default.

b. The native VLAN is VLAN 1 by default.

c. The management VLAN is VLAN 1 by default.

d. VLAN 1 cannot be renamed or deleted.

a. All switch ports are assigned to VLAN 1 by default.

b. The native VLAN is VLAN 1 by default.

c. The management VLAN is VLAN 1 by default.

d. VLAN 1 cannot be renamed or deleted.

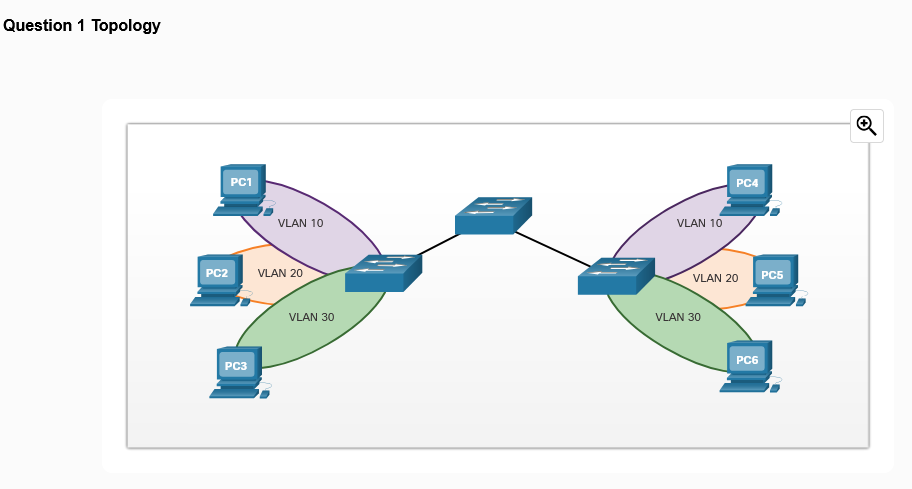

Refer to the exhibit Question 1 Topology. PC1 sends an ARP broadcast frame. Which PC will receive the ARP broadcast frame?

a. PC2

b. PC3

c. PC4

d. PC5

e. PC6

c. PC4

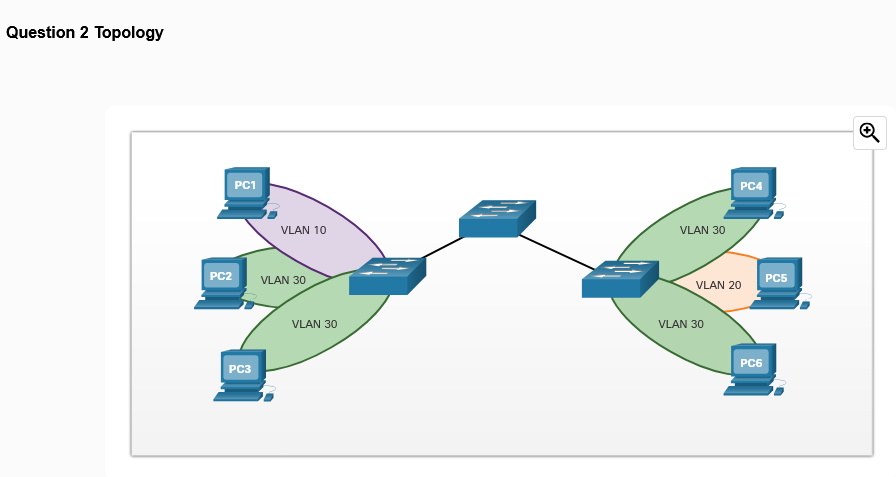

Refer to the exhibit Question 2 Topology. PC2 sends an ARP broadcast frame. Which PCs will receive the ARP broadcast frame? (Choose all that apply.)

a. PC1

b. PC3

c. PC4

d. PC5

e. PC6

b. PC3

c. PC4

e. PC6

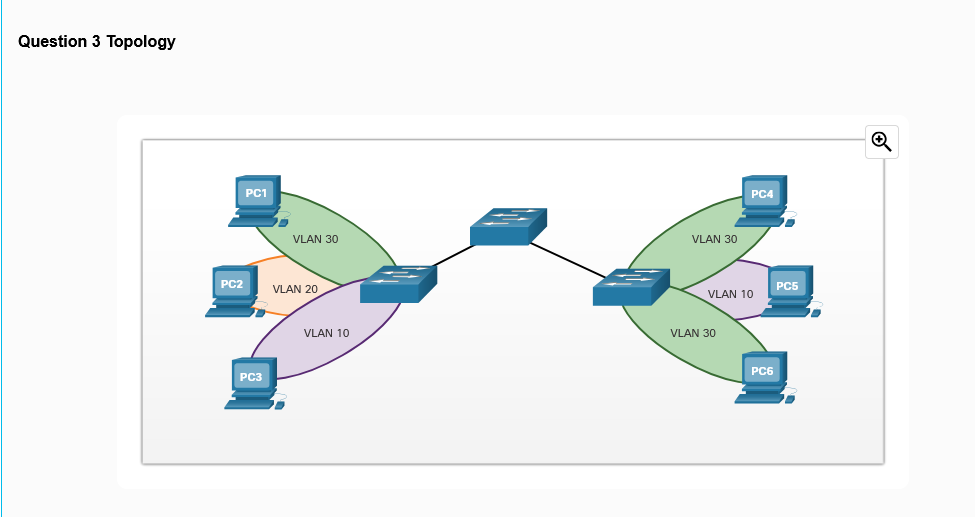

Refer to the exhibit Question 3 Topology. PC3 sends an ARP broadcast frame. Which PC will receive the ARP broadcast frame?

a. PC1

b. PC2

c. PC4

d. PC5

e. PC6

d. PC5

True or false? DTP is an open standard IEEE protocol that specifies auto negotiation of switch trunk links.

True

False

False

What is the default switchport mode for Cisco Catalyst switches?

a. Access

b. Trunk

c. Dynamic auto

d. Dynamic desirable

c. Dynamic auto

True or false? Two switchports on a link both configured as dynamic auto will successfully negotiate a trunk.

True

False

False

Which two DTP modes will form a trunk with an interface that is configured as dynamic auto? (Choose two.)

a. Access

b. Trunk

c. Dynamic auto

d. Dynamic desirable

b. Trunk

d. Dynamic desirable

What happens to a port that is associated with VLAN 10 when the administrator deletes VLAN 10 from the switch?

a. The port becomes inactive.

b. The port goes back to the default VLAN.

c. The port automatically associates itself with the native VLAN.

d. The port creates the VLAN again.

a. The port becomes inactive.

In which memory location are the VLAN configurations of normal range VLANs stored on a Catalyst switch?

a. Flash

b. NVRAM

c. RAM

d. ROM

a. Flash

An administrator is investigating a failure on a trunk link between a Cisco switch and a switch from another vendor. After a few show commands, the administrator notices that the switches are not negotiating a trunk. What is a probable cause for this issue?

a. Both switches are in trunk mode.

b. Both switches are in nonegotiate mode.

c. Switches from other vendors do not support DTP.

d. DTP frames are flooding the entire network.

c. Switches from other vendors do not support DTP.

What is the purpose of the vlan.dat file on a switch?

a. It holds the running configuration.

b. It holds the saved configuration.

c. It holds the VLAN database.

d. It holds the operating system.

c. It holds the VLAN database.

What is the purpose of setting the native VLAN separate from data VLANs?

a. The native VLAN is for carrying VLAN management traffic only.

b. The security of management frames that are carried in the native VLAN can be enhanced.

c. A separate VLAN should be used to carry uncommon untagged frames to avoid bandwidth contention on data VLANs.

d. The native VLAN is for routers and switches to exchange their management information, so it should be different from data VLANs.

c. A separate VLAN should be used to carry uncommon untagged frames to avoid bandwidth contention on data VLANs.

When a Cisco switch receives untagged frames on a 802.1Q trunk port, which VLAN ID is the traffic switched to by default?

a. Unused VLAN ID

b. Native VLAN ID

c. Data VLAN ID

d. Management VLAN ID

b. Native VLAN ID

A network administrator is determining the best placement of VLAN trunk links. Which two types of point-to-point connections utilize VLAN trunking?​ (Choose two.)

a. Between two switches that utilize multiple VLANs

b. Between a switch and a client PC

c. Between a switch and a server that has an 802.1Q NIC

d. Between a switch and a network printer

e. Between two switches that share a common VLAN

a. Between two switches that utilize multiple VLANs

c. Between a switch and a server that has an 802.1Q NIC

What are three primary benefits of using VLANs? (Choose three.)

a. Security

b. A reduction in the number of trunk links

c. Cost reduction

d. End user satisfaction

e. Improved IT Staff efficiency

a. Security

c. Cost reduction

e. Improved IT Staff efficiency

On a Cisco switch, where is extended range VLAN information stored?

a. Running configuration file

b. Startup configuration file

c. NVRAM

d. Flash

a. Running configuration file

In which location are the normal range VLANs stored on a Cisco switch by default?

a. Flash memory

b. Startup-config

c. Running-config

d. RAM

a. Flash memory

Which distinct type of VLAN is used by an administrator to access and configure a switch?

a. Default VLAN

b. Native VLAN

c. Data VLAN

d. Management VLAN

d. Management VLAN

For what reason would a network administrator use the show interfaces trunk command on a switch?

a. To view the native VLAN

b. To examine DTP negotiation as it occurs

c. To verify port association with a particular VLAN

d. To display an IP address for any existing VLAN

a. To view the native VLAN

Where is the vlan.dat file stored on a switch?

a. In RAM

b. In NVRAM

c. In flash memory

d. On the externally attached storage media or internal hard drive

c. In flash memory

If an organization is changing to include Cisco IP phones in its network, what design feature must be considered to ensure voice quality?

a. Voice traffic needs to be tagged with the native VLAN.

b. A separate VLAN is needed for voice traffic.

c. Additional switch ports that are dedicated to Cisco IP phones are required.

d. Voice traffic and data traffic require separate trunk links between switches.

b. A separate VLAN is needed for voice traffic.

A Cisco switch currently allows traffic tagged with VLANs 10 and 20 across trunk port Fa0/5. What is the effect of issuing a switchport trunk allowed vlan 30 command on Fa0/5?

a. It allows VLANs 1 to 30 on Fa0/5.

b. It allows VLANs 10, 20, and 30 on Fa0/5.

c. It allows only VLAN 30 on Fa0/5.

d. It allows a native VLAN of 30 to be implemented on Fa0/5.

c. It allows only VLAN 30 on Fa0/5.
