Trusses and Funicular structures ILLUSTRATION
Studied by 0 people
Call with Kai
Learn
Practice Test
Spaced Repetition
Match
Flashcards
Knowt Play1/15
There's no tags or description
Looks like no tags are added yet.
Name | Mastery | Learn | Test | Matching | Spaced | Call with Kai |
|---|
No study sessions yet.
16 Terms
Unstable square panel deforms under load.

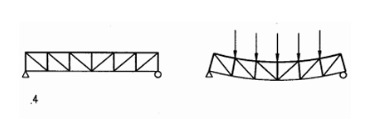

Truss of triangular panels with inward sloping diagonal bars that elongate in tension under load (preferred configuration)
Outward sloping diagonal bars compress (disadvantage)
Top chords shorten in compression
Bottom chords elongate in tension under gravity load
Gable truss with top compression and bottom tension
Warren trusses
Prismatic trusses
Space trusses
Funicular tension triangle under single load
Funicular compression triangle under single load
Funicular tension trapezoid under twin loads
Funicular compression trapezoid under twin loads
Funicular tension polygon under point loads
Funicular compression polygon under point load
Funicular tension parabola under uniform load
Funicular compression parabola under uniform load
