Anatomy of the Tarsal and Metatarsal Bones

Talus bone

talar head

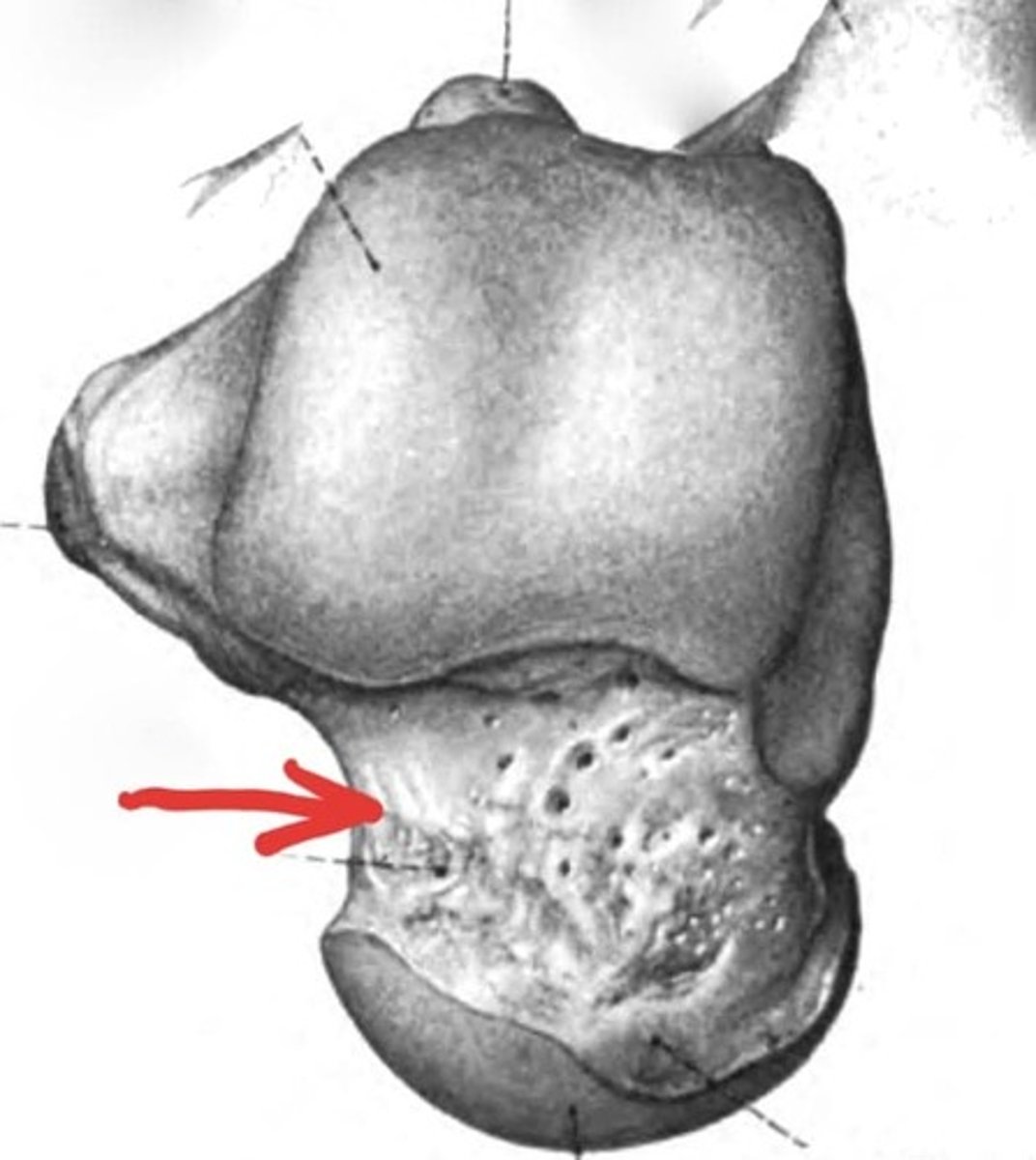

talar neck

talar body

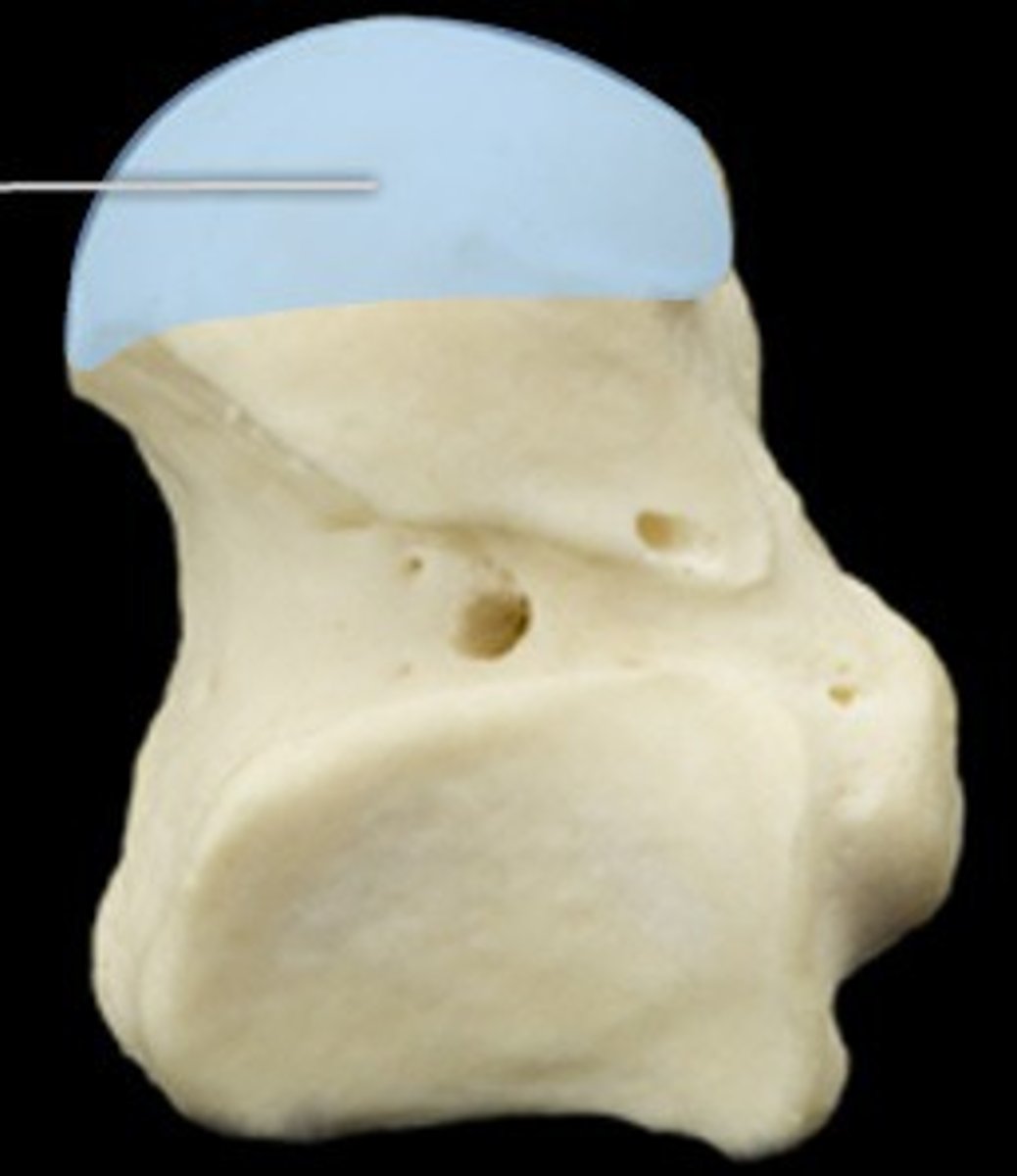

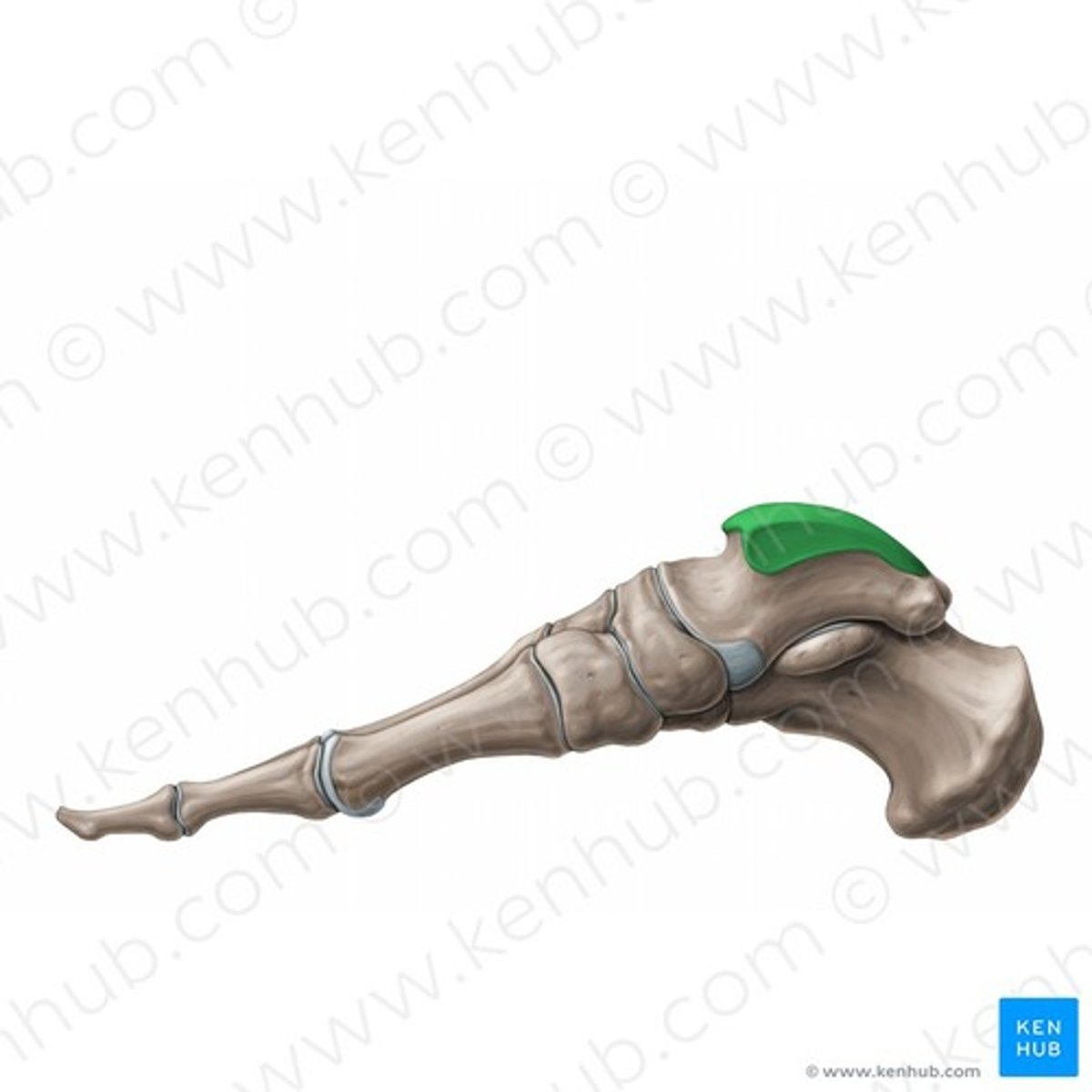

talar trochlea

calcaneus bone

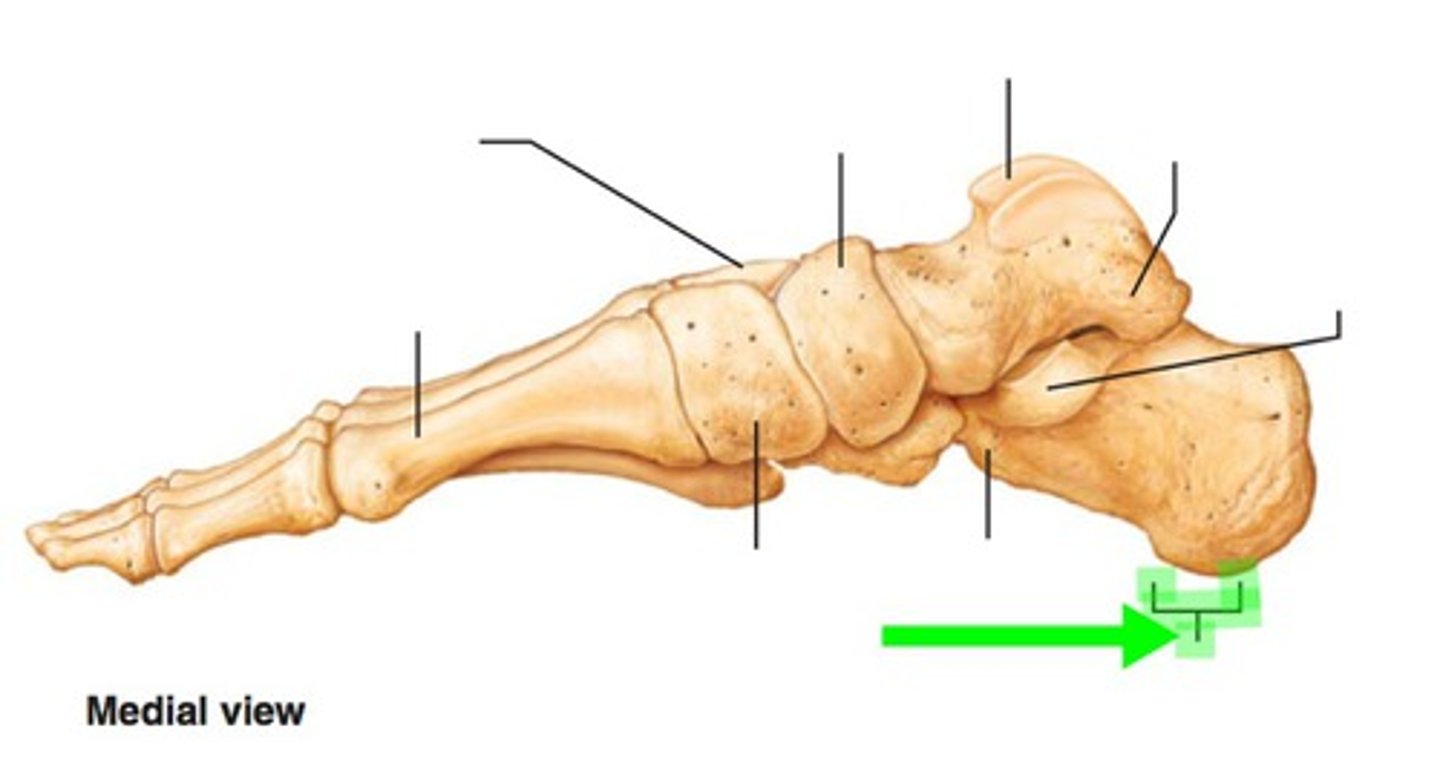

calcaneal tuberosity

sustentaculum tali

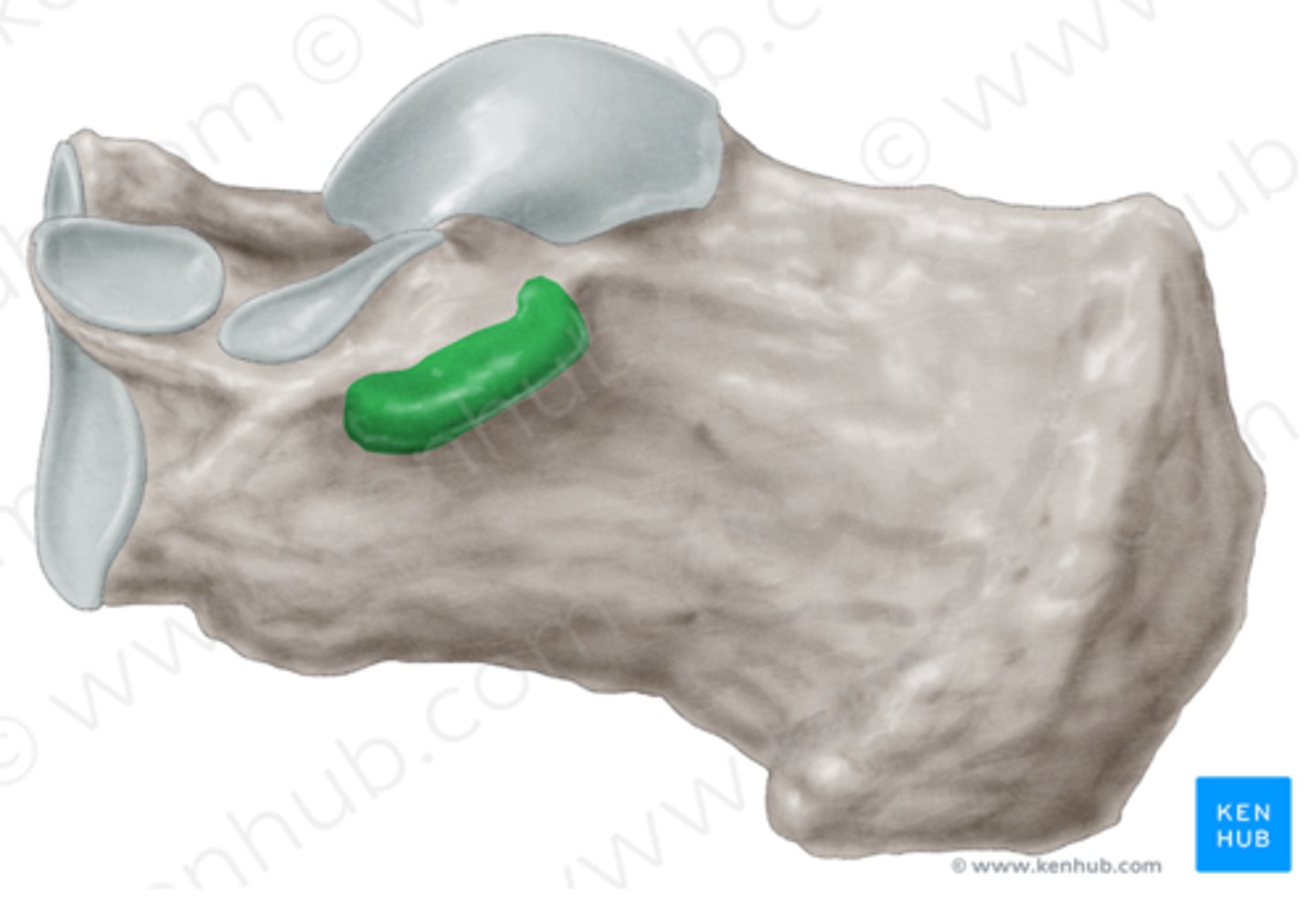

sustentaculum sulcus (bottom)

cuboid bone

navicular bone

medial (1st) cuneiform bone

intermediate (2nd) cuneiform bone

lateral (3rd) cuneiform bone

MT1 hallux

MT5

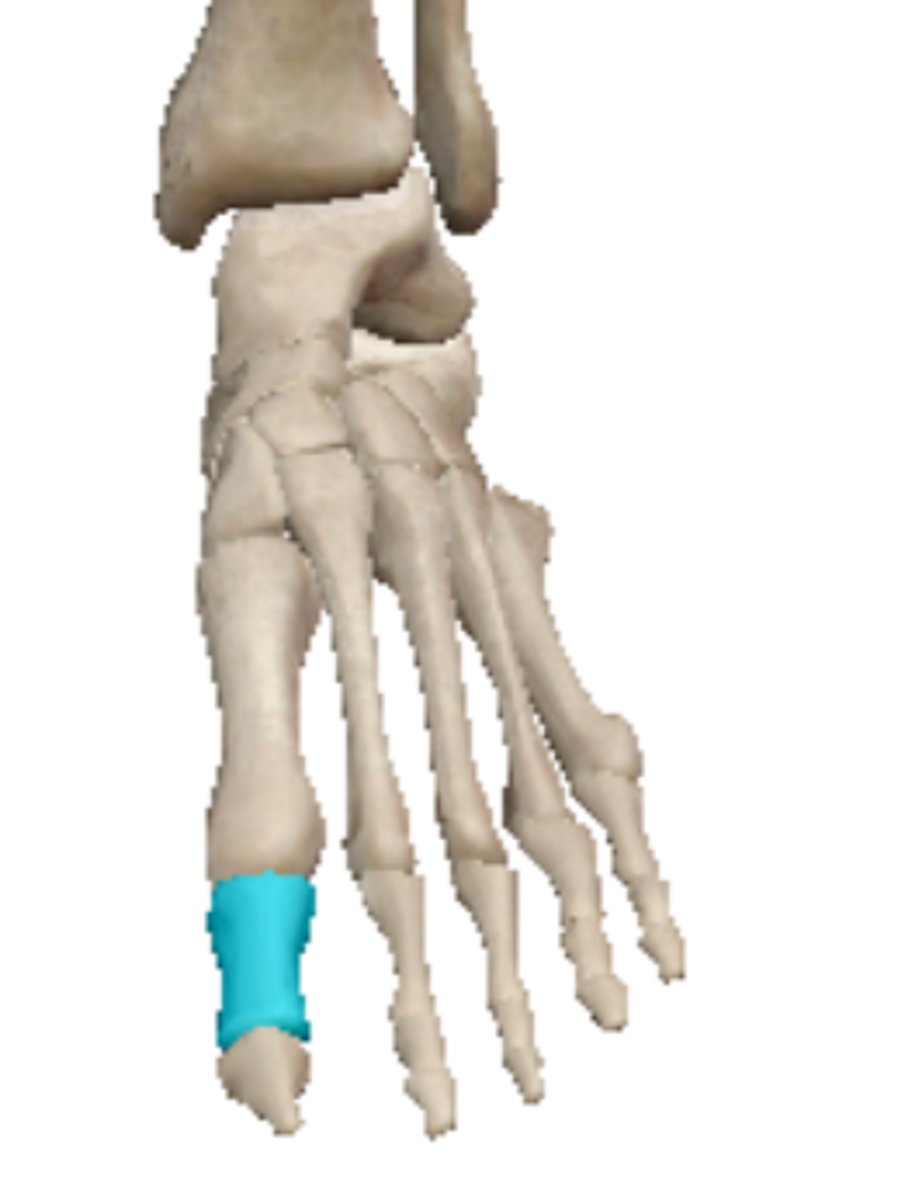

1st (hallux) proximal

intermediate phalange

Planter

sole of foot (inferior)

dorsal

opposite surface (superior)

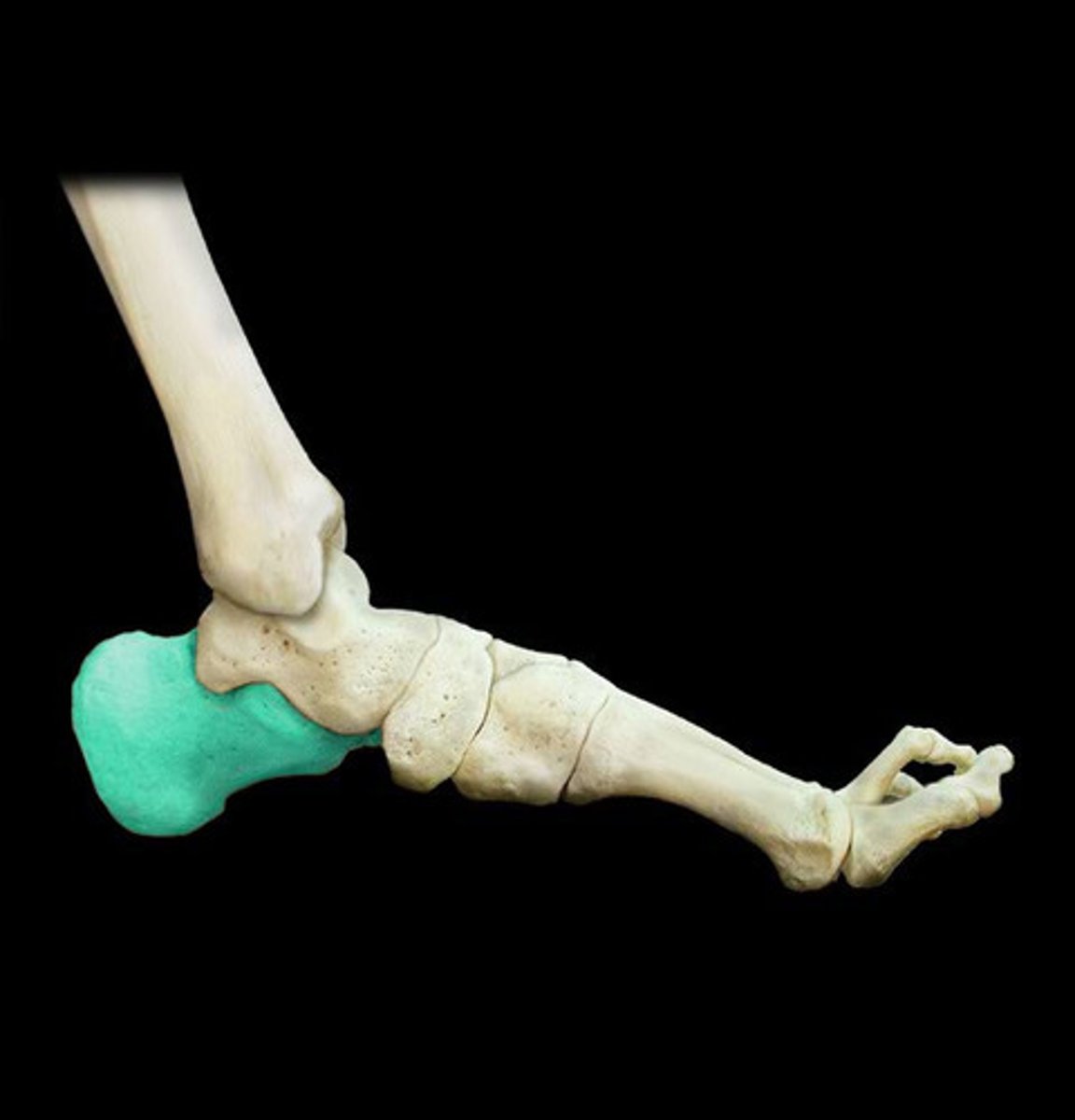

calcaneus

heel bone, largest. Articulates superiorly with talus and anteriorly with cuboid

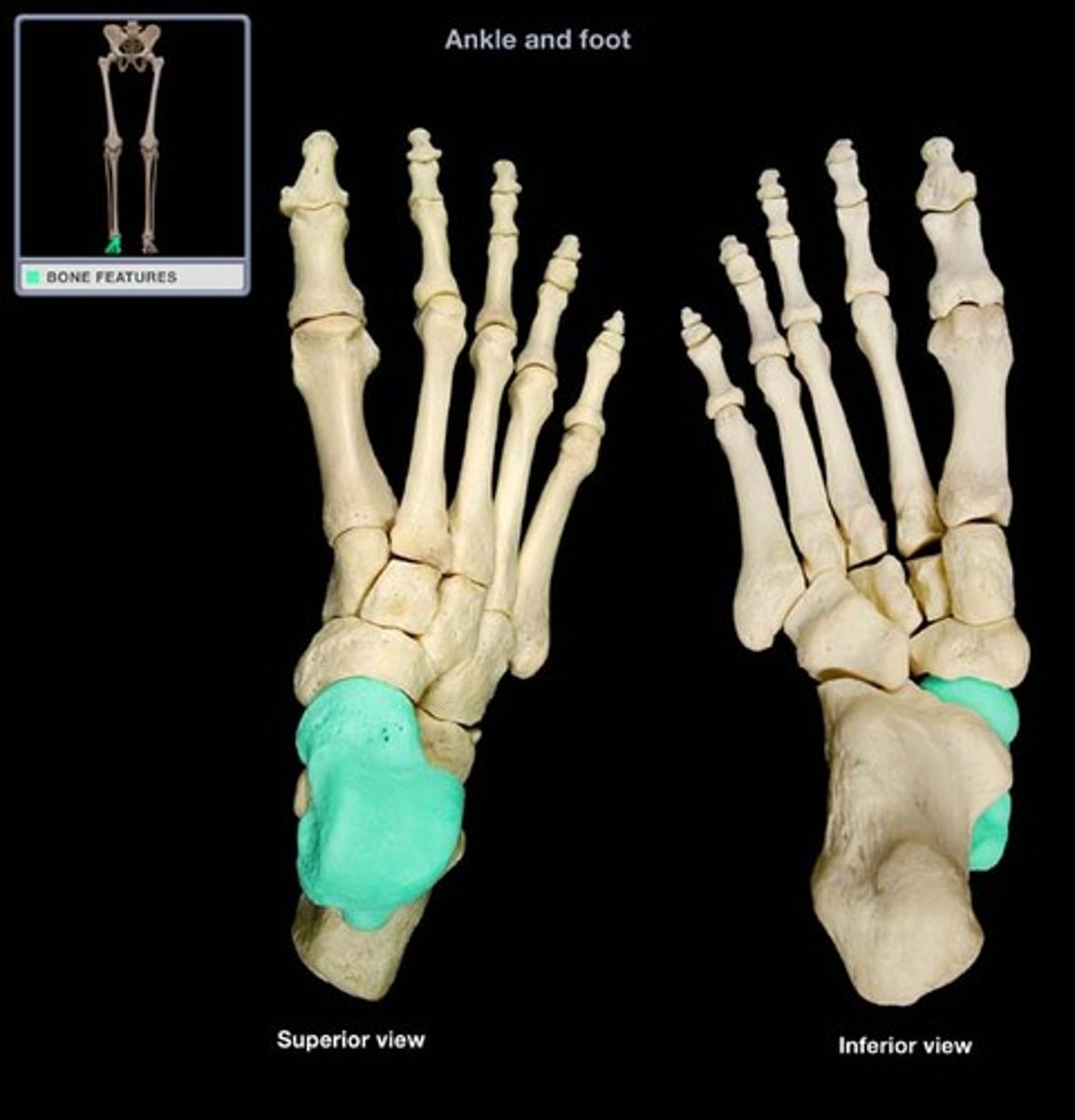

Talus

astragalus in animals, 2nd largest. Articulates superiorly with tibia, laterally with fibula, inferiorly with calcaneus

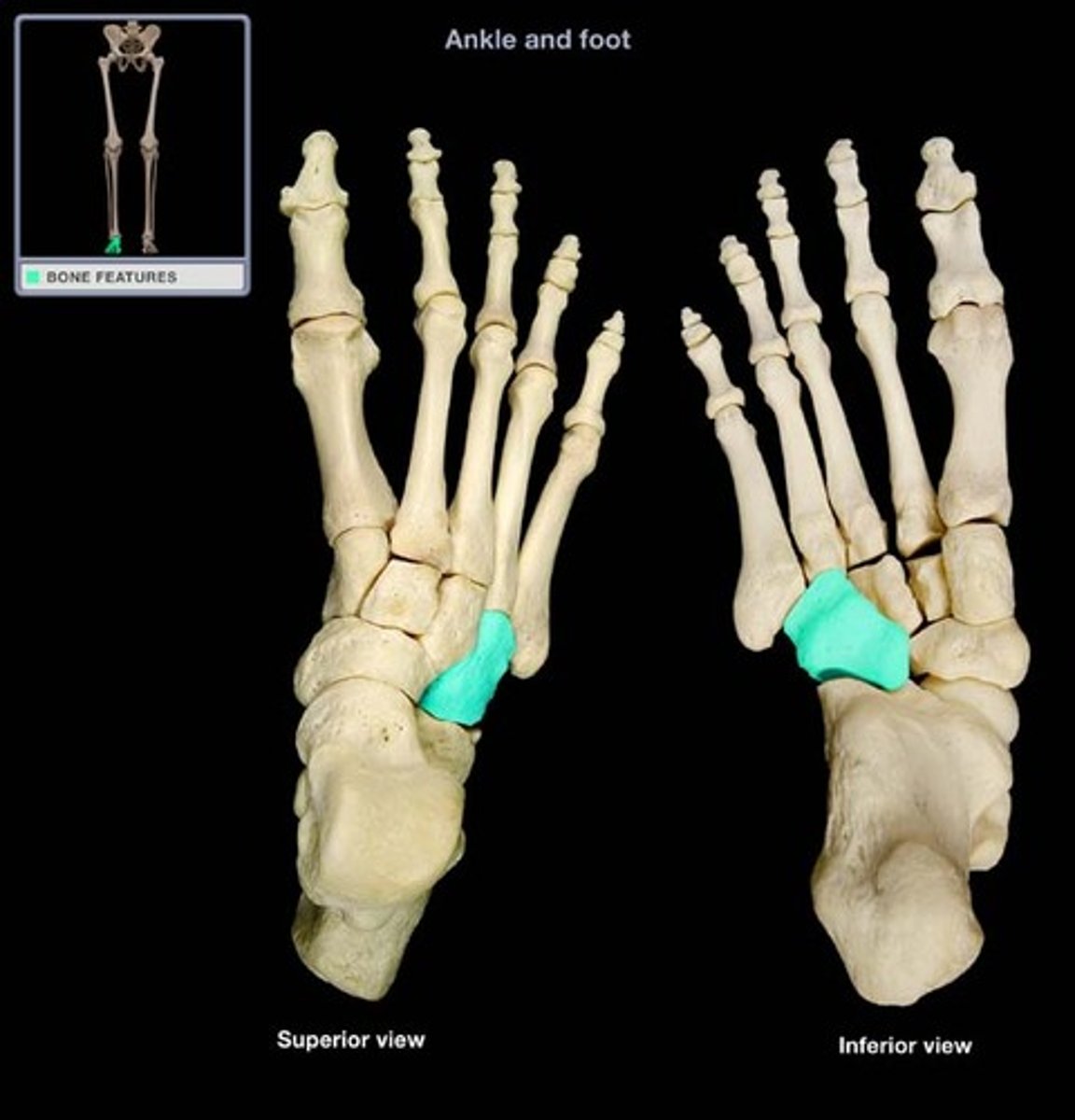

cuboid

cube shaped, lateral side of foot. Articulates posteriorly with calcaneus, anteriorly with 4 and 5 metacarpals

navicular

flat oval bone between proximal and distal tarsals, Named for strongly concave proximal surface. Articulates proximally with facet for talar head of talus, distally with 3 cuneiforms

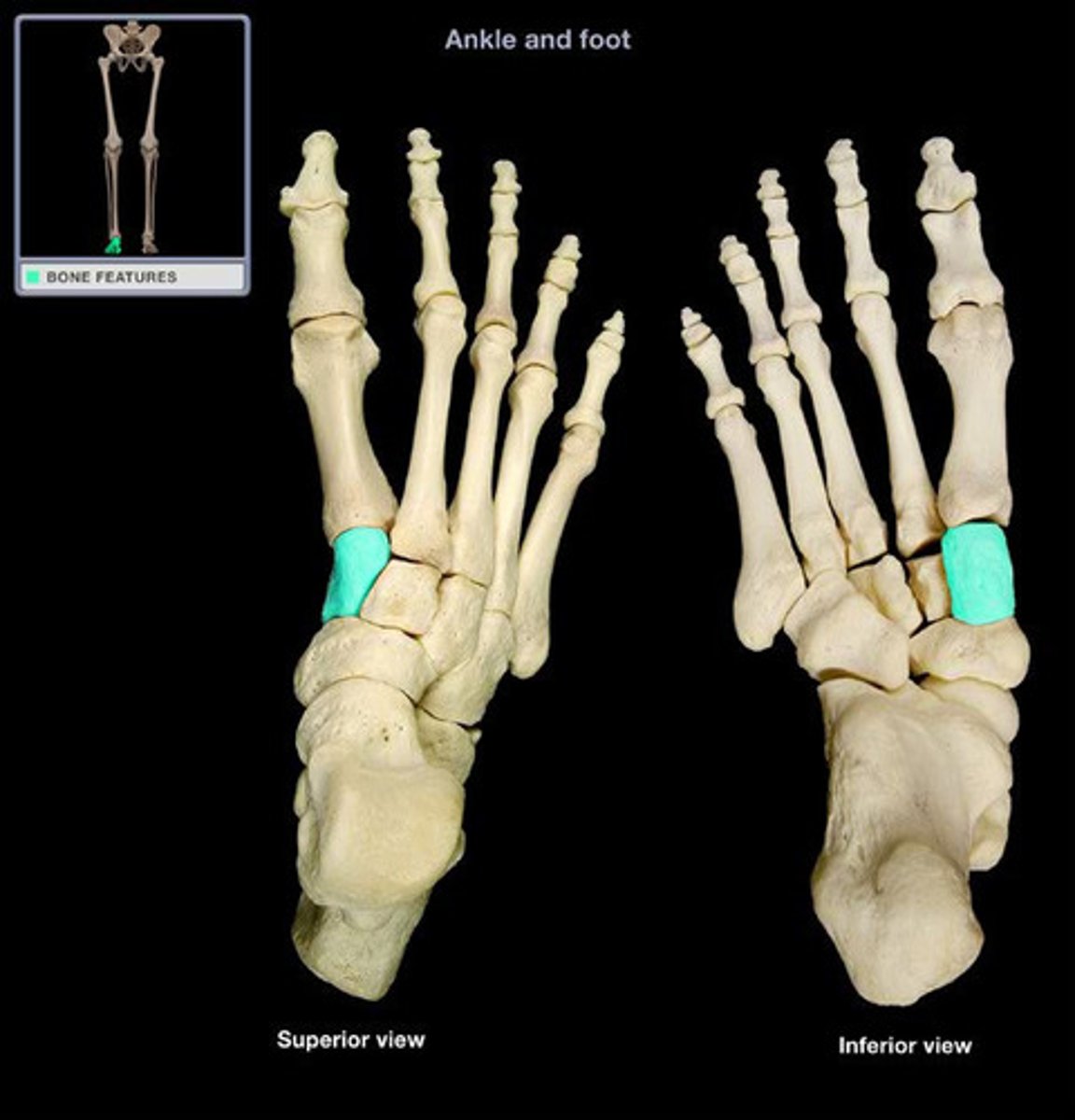

media 1st cuneiform

largest out of the three. Articulates proximally with navicular, distally with base of 1st metatarsal, and laterally with the second cuneiform also the base of the second metatarsal

intermediate 2nd cuneiform

smallest of the three, wedge shapes. Articulates proximally with navicular, distally with second metatarsal. Articulates medially with medial cuneiform and lateral with the lateral cuneiform

Lateral 3rd cuneiform

at the center of the foot, intermediate in size. Articulates proximally with navicular and distally with 2nd, 3rd, and 4th metatarsals. Articulates medially with intermediate cuneiform and laterally with the cuboid.
