RADSCI 3672 - pelvis imaging

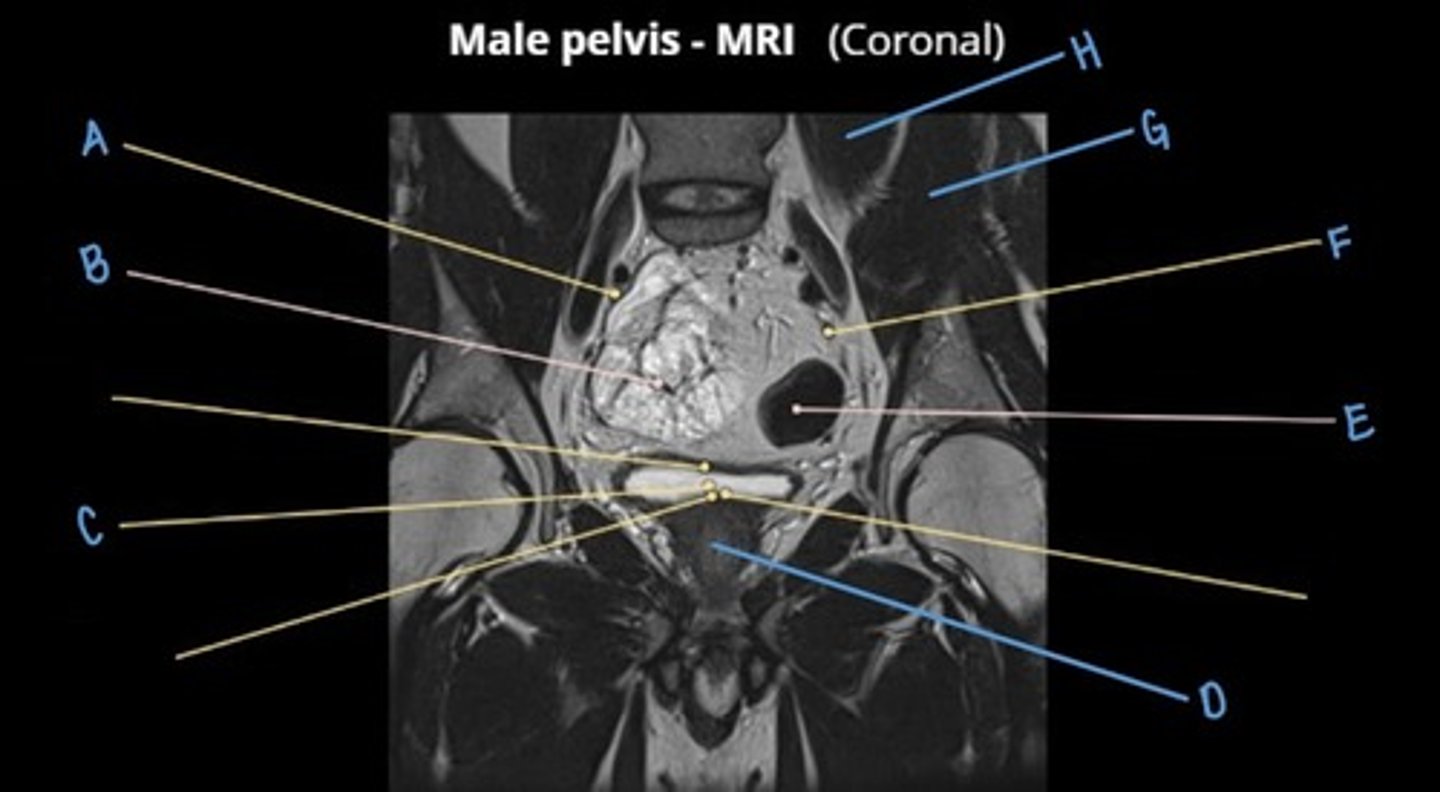

ureter

A & F

small intestine

B

bladder

C

prostate

D

sigmoid colon

E

iliacus muscle

G

psoas major muscle

H

sigmoid colon

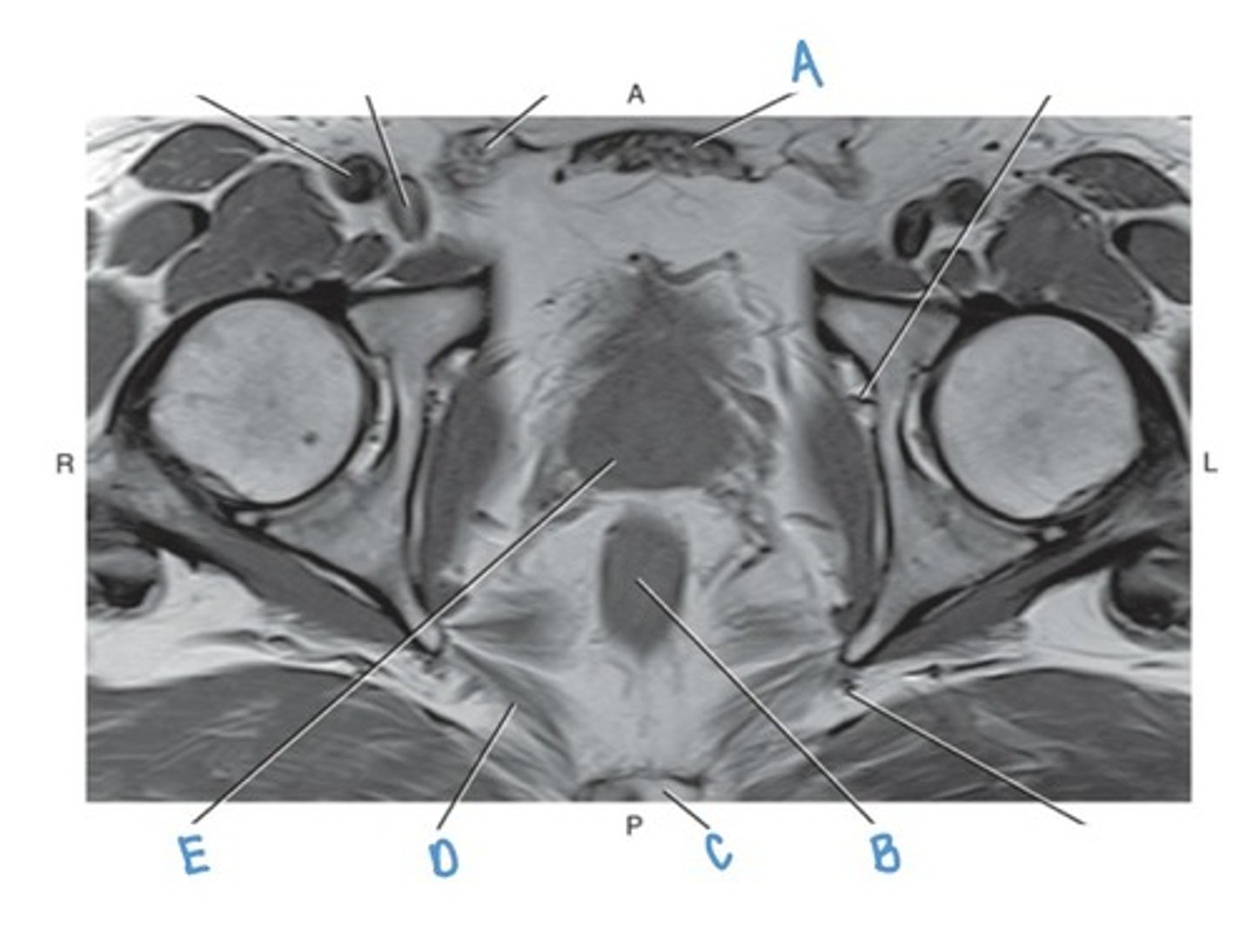

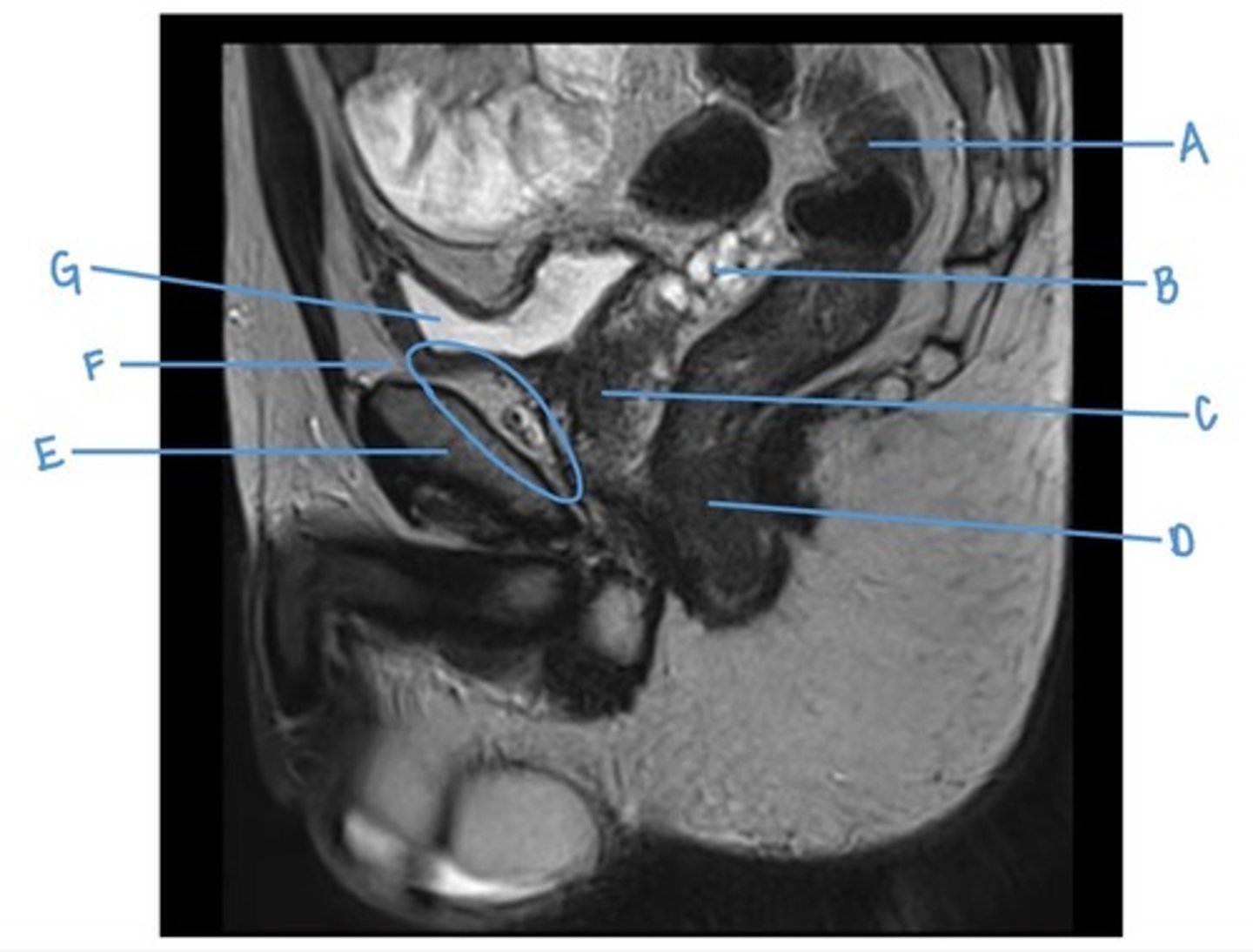

A

seminal vesicles

B

prostate

C

rectum

D

pubic symphysis

E

retro-pubic space

F

bladder

G

obturator externus muscle

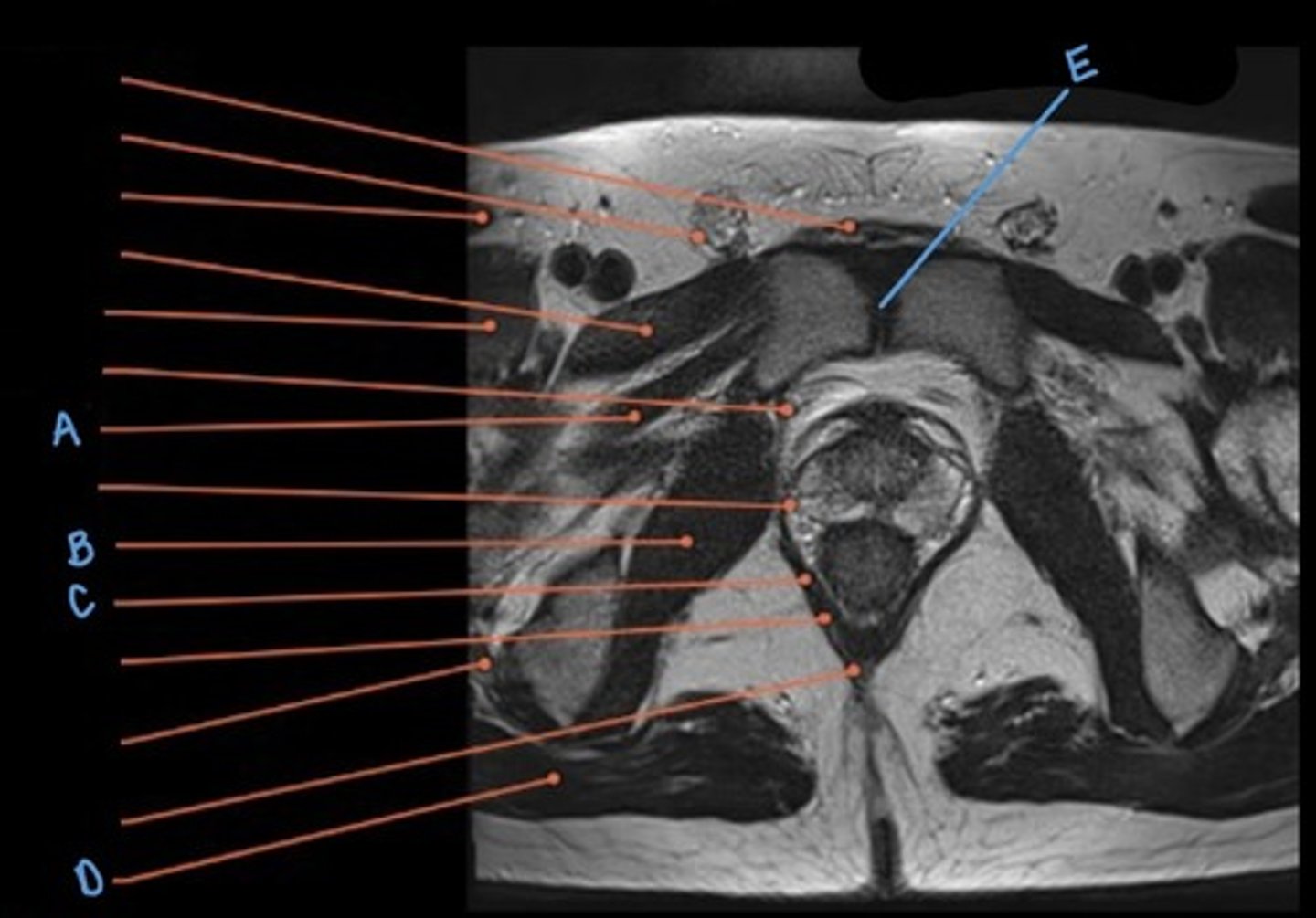

A

obturator internus muscle

B

levator ani muscle (pubic diaphragm)

C

gluteus maximus muscle

D

pubic symphysis

E

rectus abdominus muscle

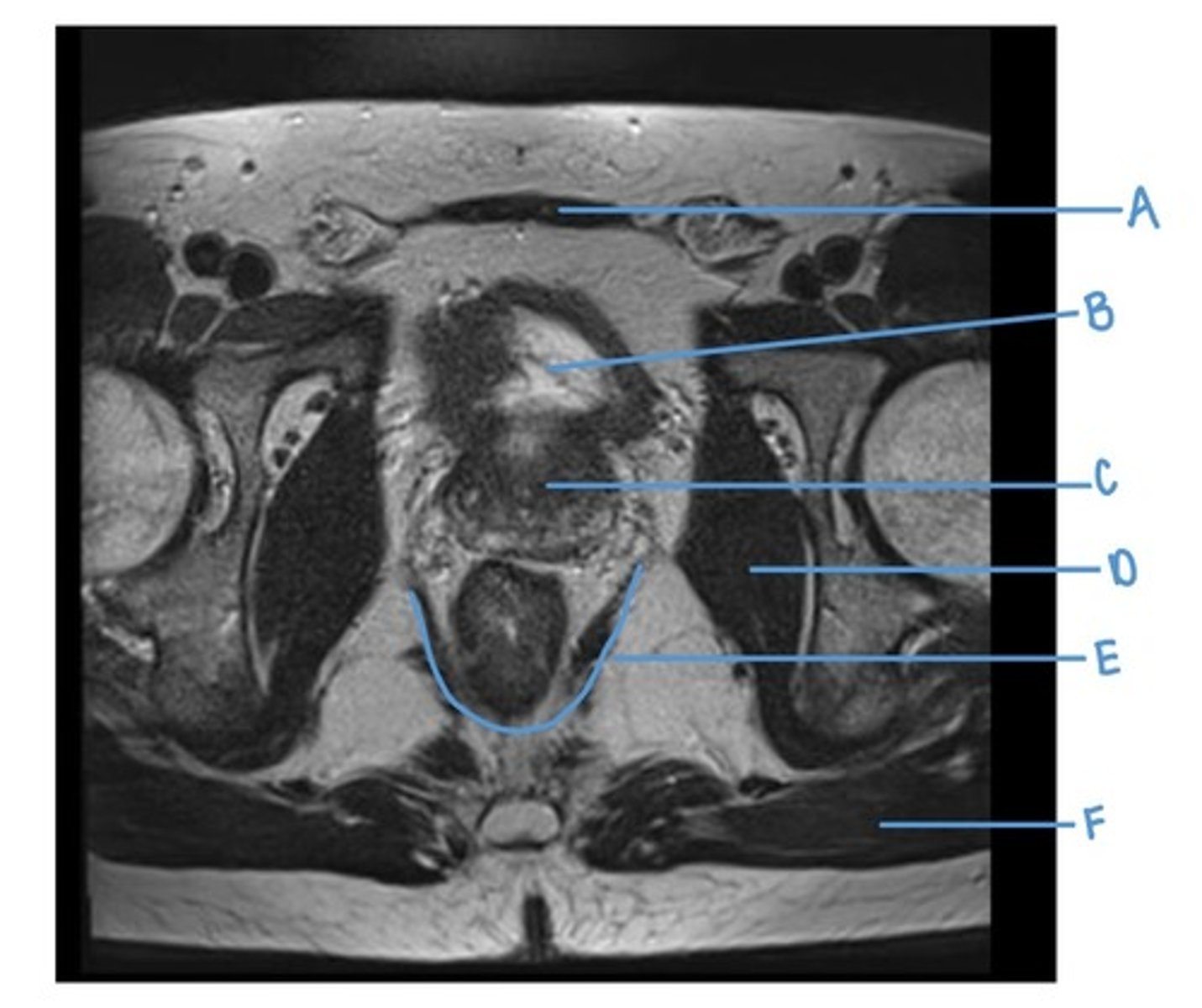

A

bladder

B

prostate

C

obturator internus muscle

D

levator ani muscle (pubic diaphragm)

E

gluteus maximus muscle

F

seminal vesicles

C

rectum

D

bladder

E

trigone of the bladder

F

obturator internus muscle

G

gluteus maximus muscle

H

bladder

A

ureter

B & E

seminal vesicles

C

rectum

D

coccyx

F

psoas major muscle

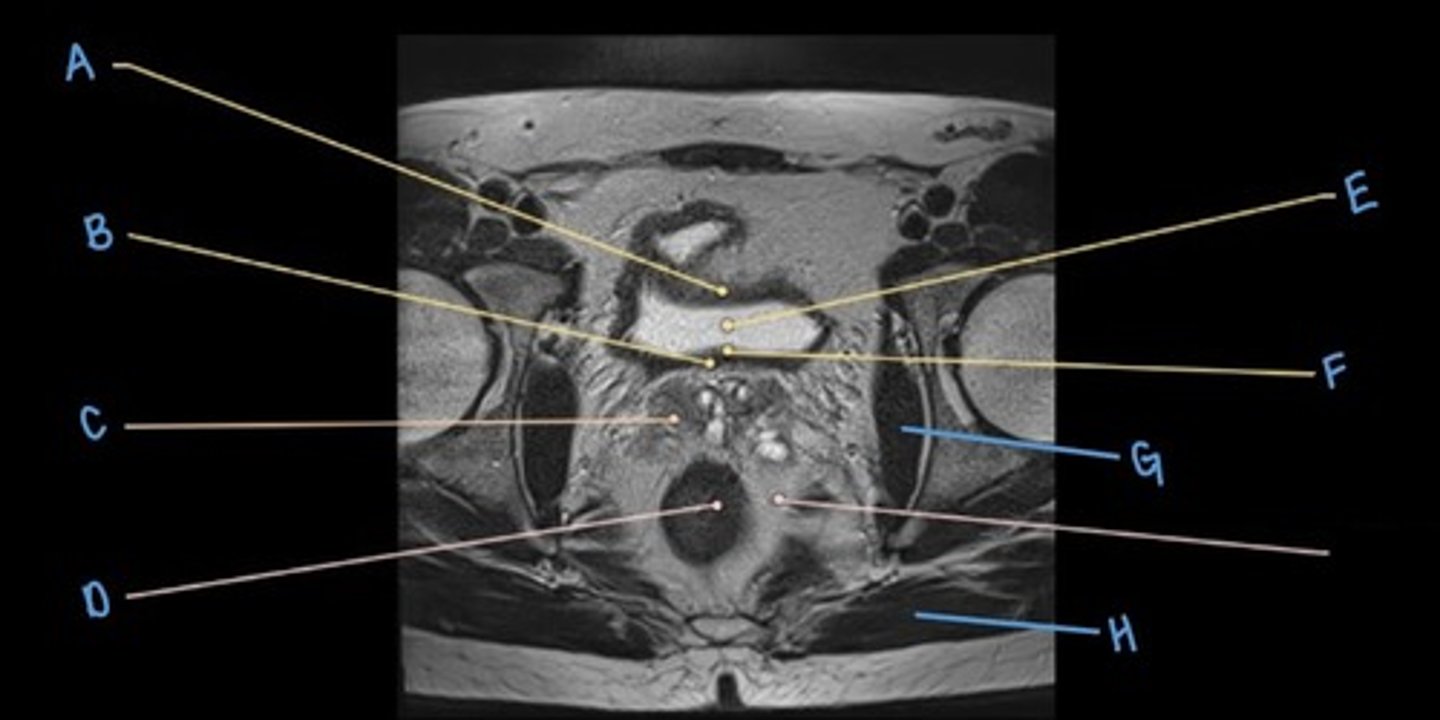

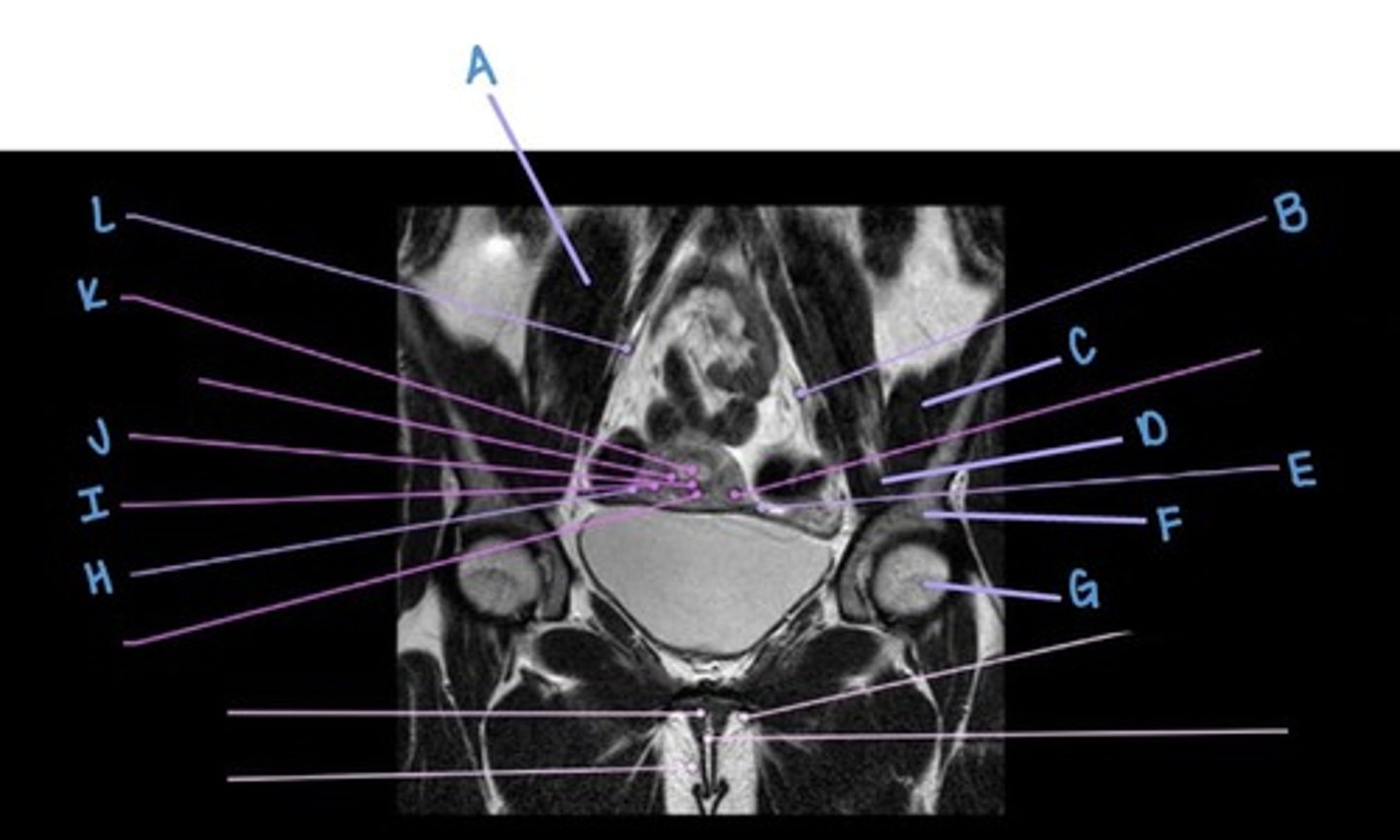

A

suspensory ligament of the ovaries

B & L

iliacus muscle

C

iliopsoas muscle

D

uterine (fallopian) tube

E & H

ilium

F

femoral head

G

myometrium

I

uterus

J

endometrium

K

bladder

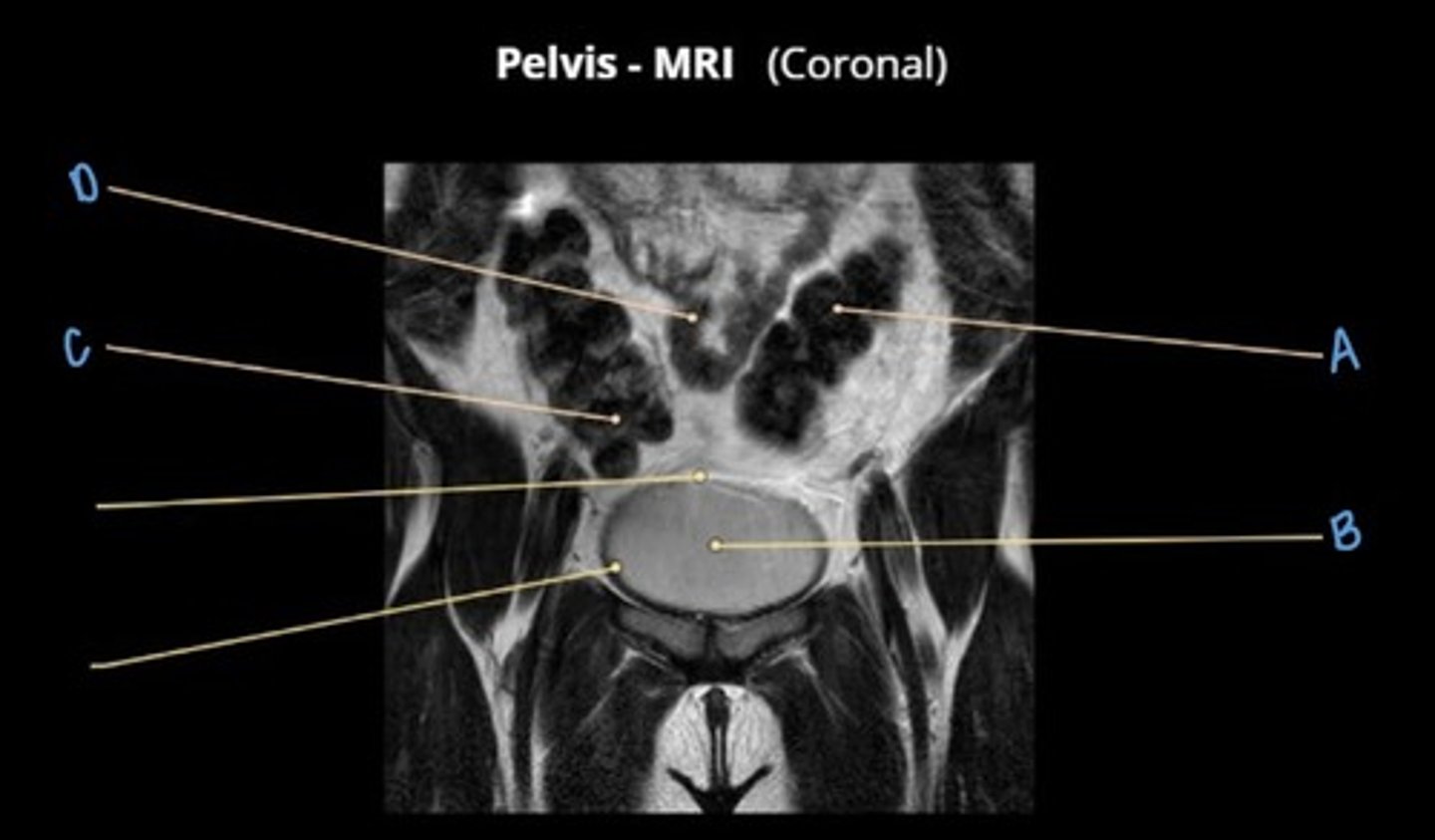

B

descending colon

A

cecum

C

ileum

D

sacral promontory

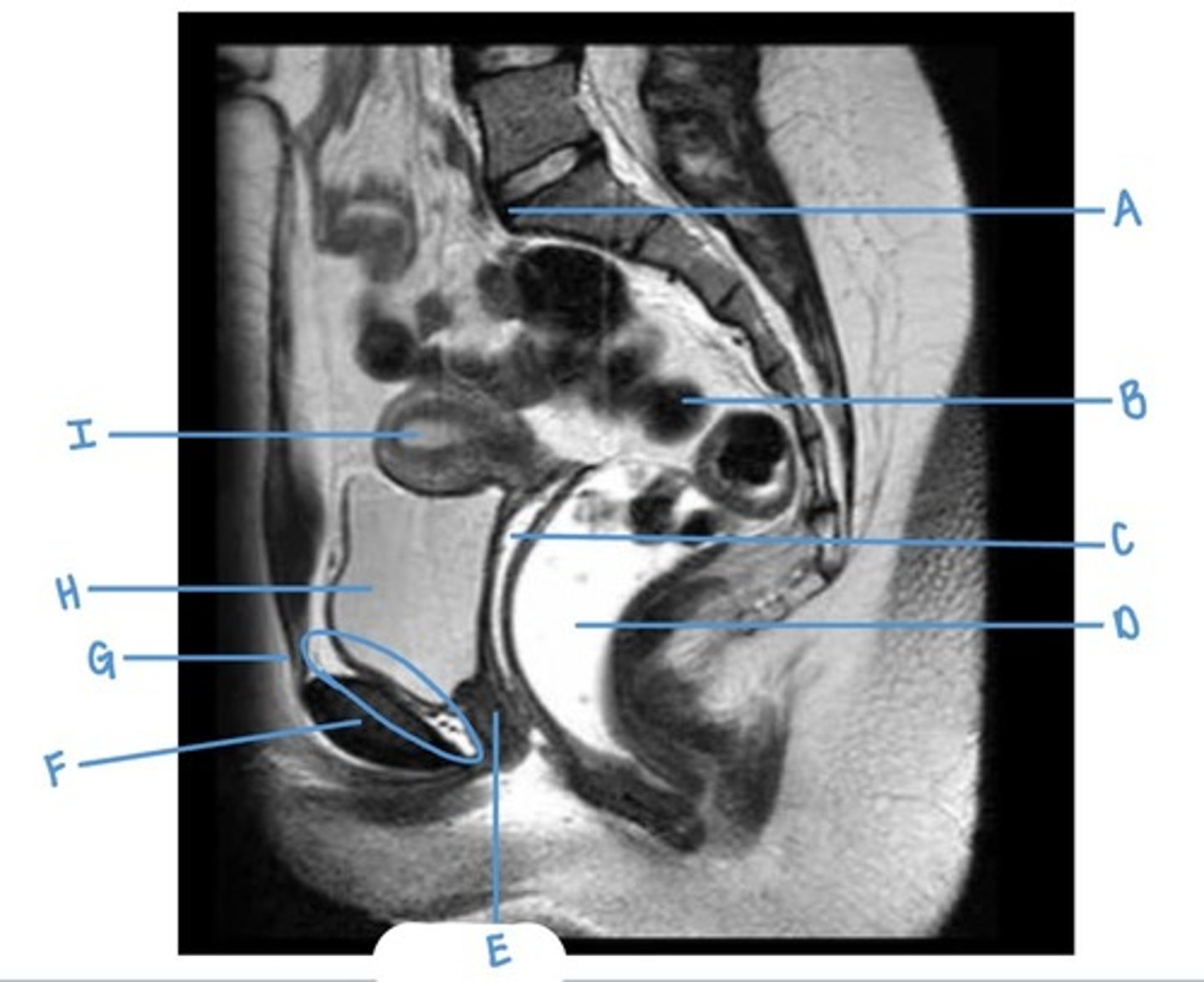

A

sigmoid colon

B

vagina

C

rectum

D

urethra

E

pubic symphysis

F

retro-pubic space

G

bladder

H

uterus

I

ilium

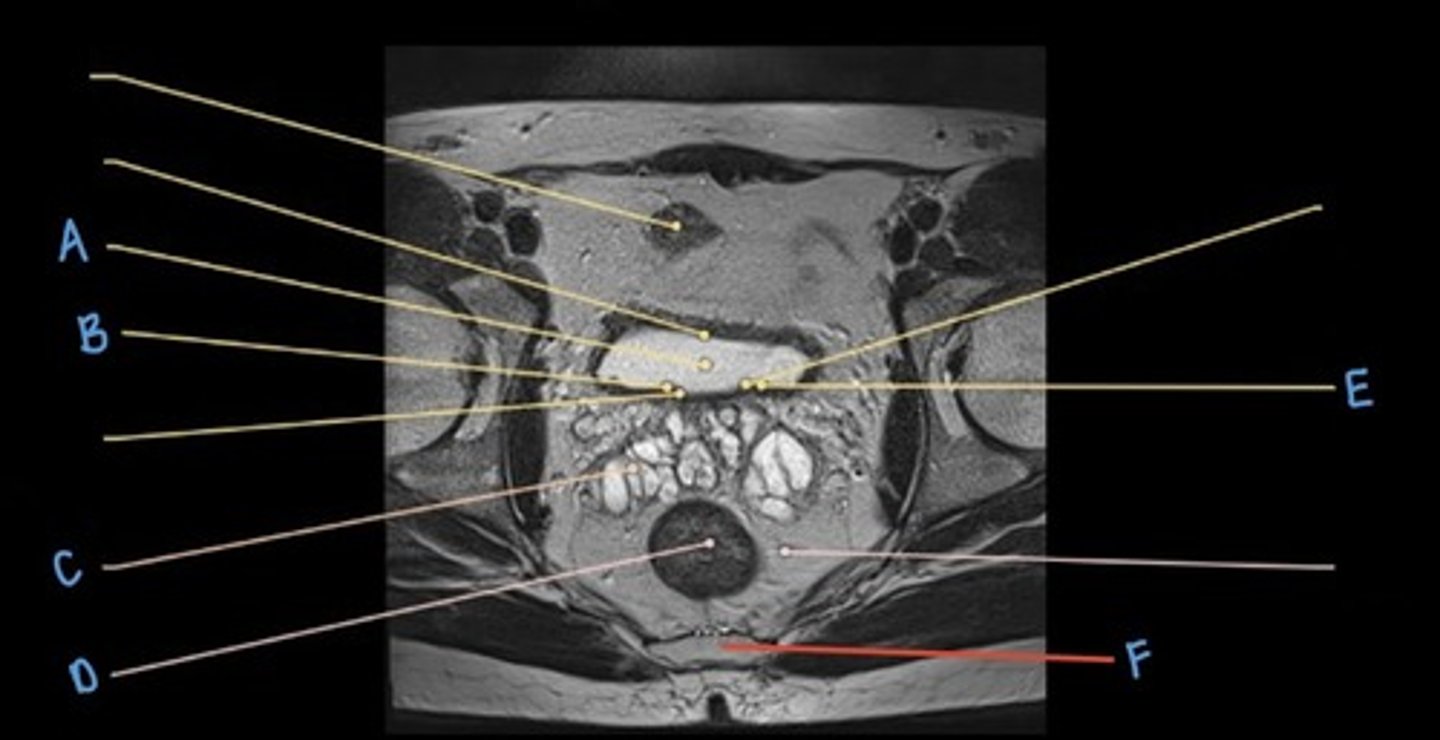

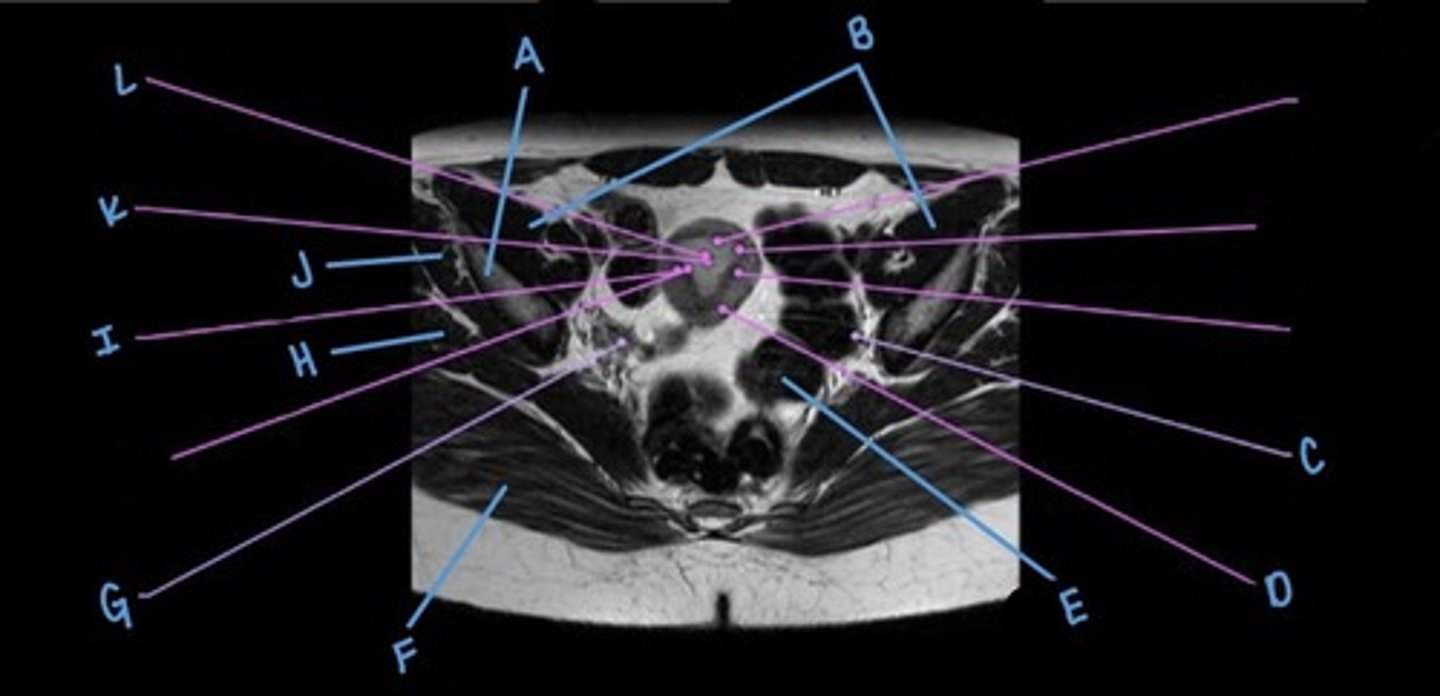

A

iliacus muscle

B

suspensory ligament of the ovaries

C

perimetrium

D

sigmoid colon

E

gluteus maximus muscle

F

ovary

G

gluteus medius muscle

H

myometrium

I

gluteus minimus muscle

J

endometrium

K

uterus

L

rectus abdominus muscle

A

rectum

B

coccyx

C

coccygeus muscle

D

prostate

E

recto-uterine pouch

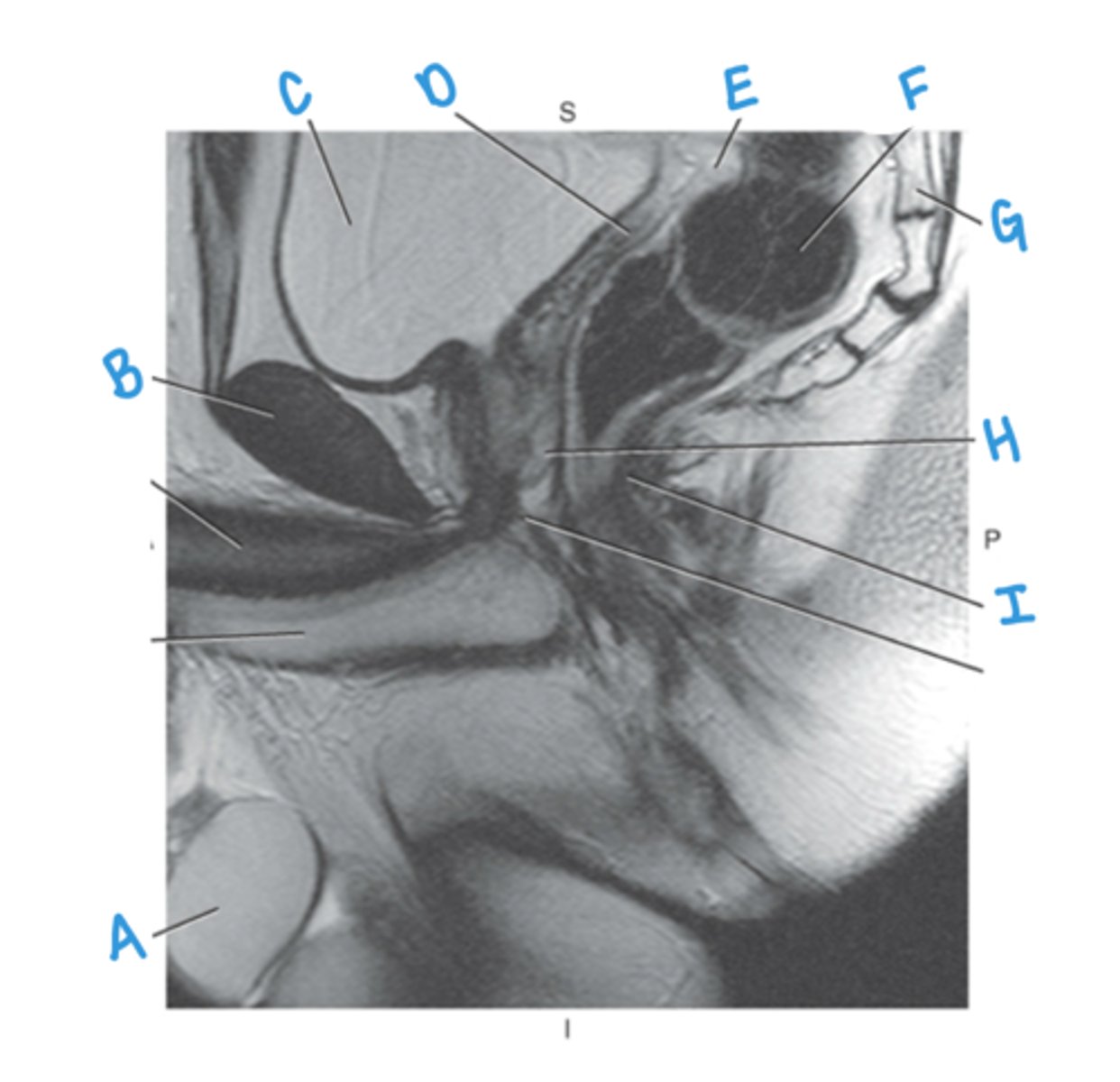

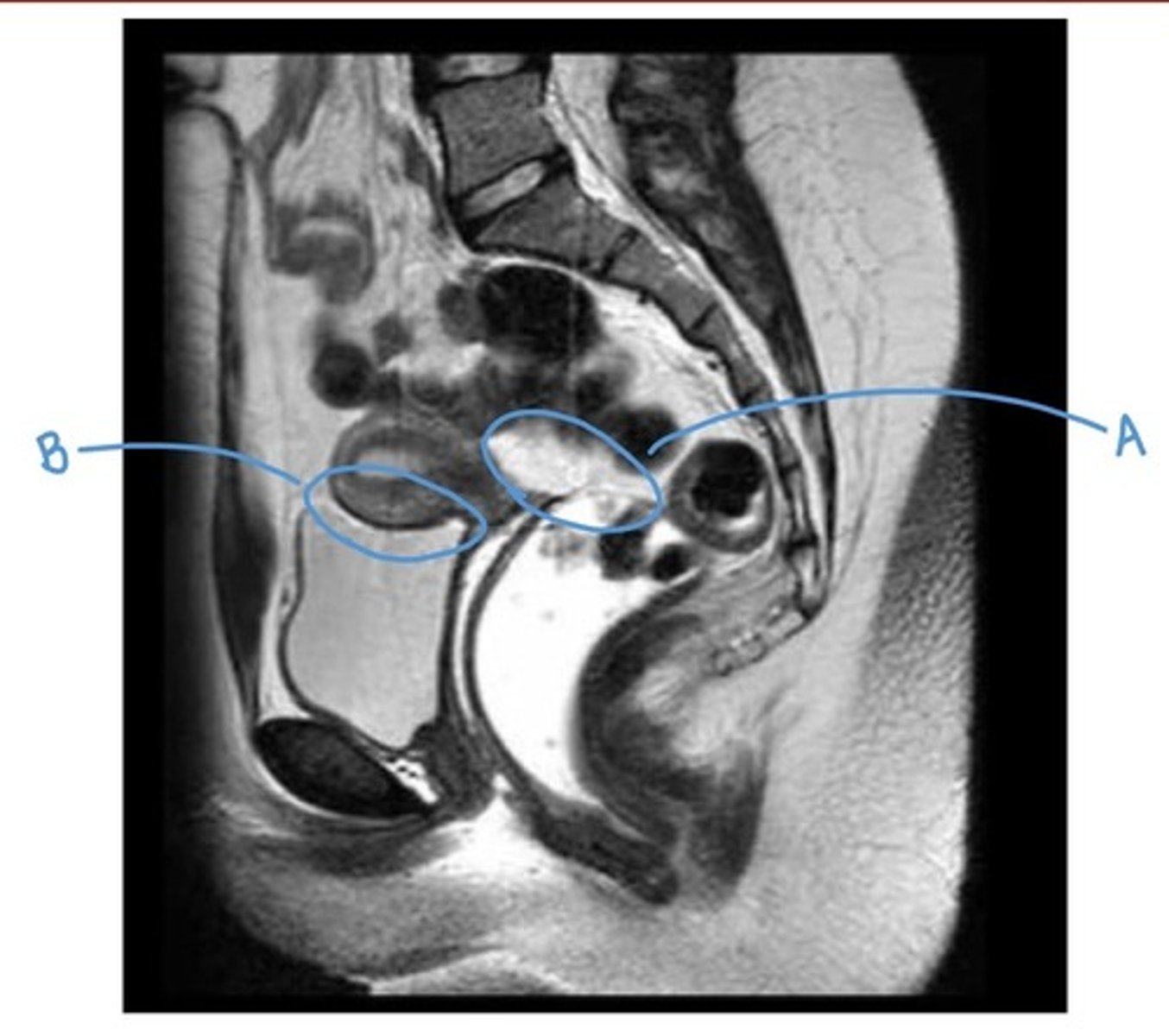

A

vesico-uterine pouch

B

testis

A

pubic symphysis

B

bladder

C

seminal vesicles

D

retro-vesicle pouch

E

rectum

F

sacrum

G

prostate

H

levator ani muscle (pubic diaphragm)

I

ilium

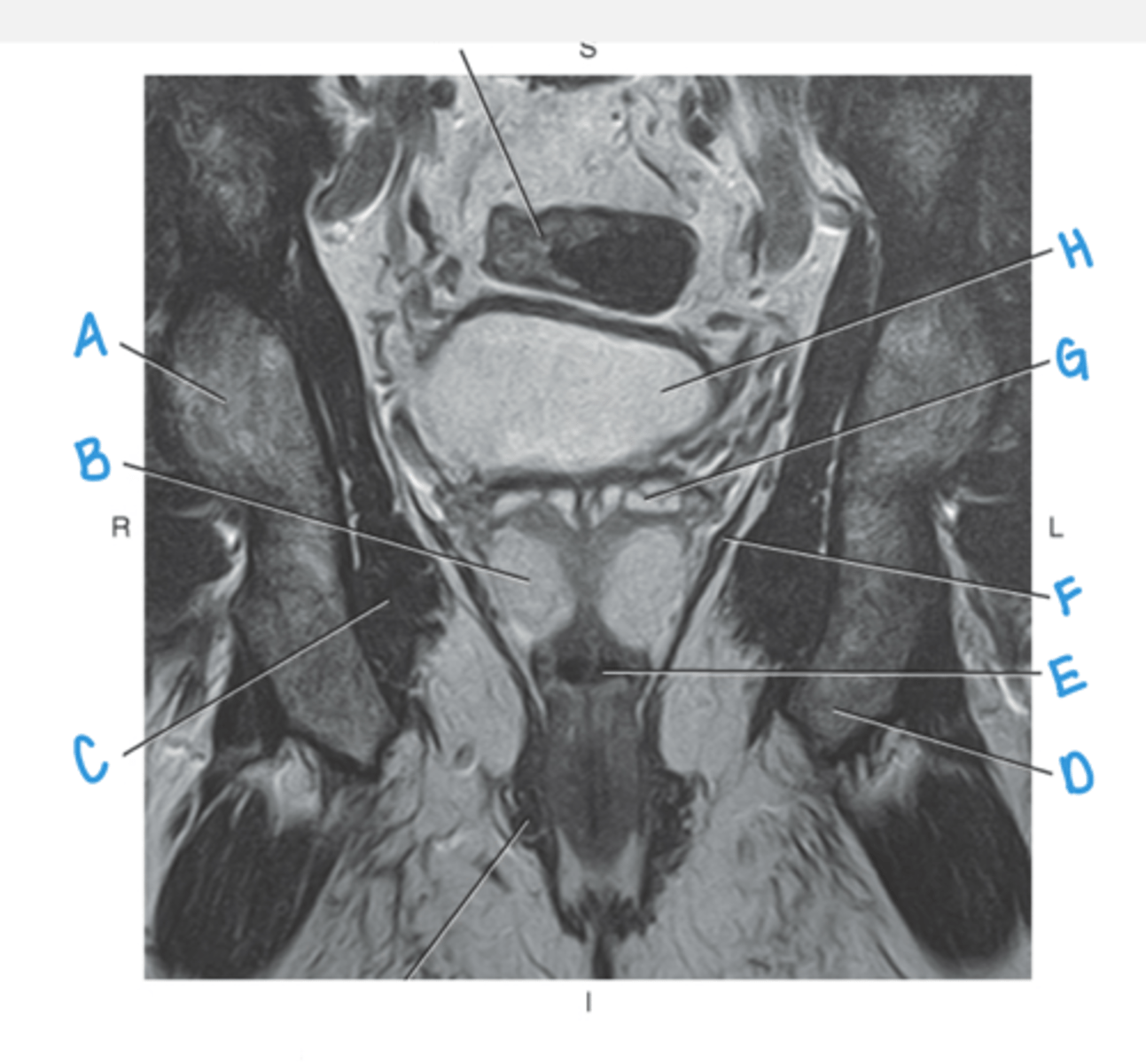

A

prostate

B

obturator internus muscle

C

ischium

D

rectum

E

levator ani muscle (pubic diaphragm)

F

seminal vesicles

G

bladder

H

superior pubic ramus

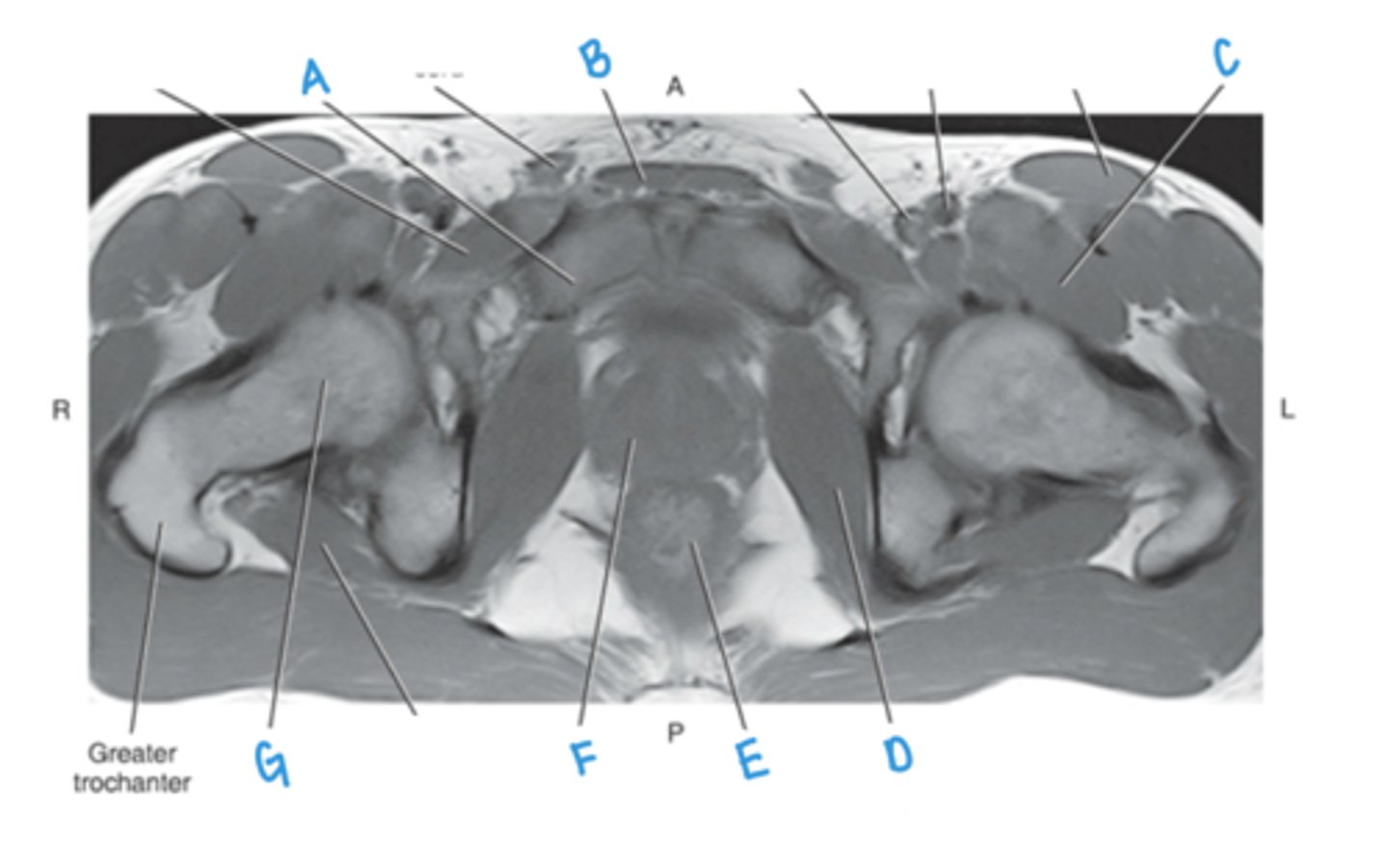

A

rectus abdominus muscle

B

iliopsoas muscle

C

obturator internus muscle

D

rectum

E
