Software Engineering I - Final

Responsibilities in responsibility-driven design

Knowing and doing responsibilities

Creator pattern

Focuses on who should create an instance of a class

When should Class B create Class A according to the Creator pattern?

When Class B aggregates or contains instances of Class A

Primary goal of the Low Coupling pattern

To reduce the impact of changes in one element on other elements

Risk of high coupling between objects

Greater likelihood of ripple effects when one class changes

GRASP

General Responsibility Assignment Software Patterns

Primary goal of GRASP patterns

To assign responsibilities to classes and objects in a design

Responsibility in object-oriented design

A function or duty assigned to a class or object

Assigning responsibilities helps determine

The methods and properties each class should have

Benefit of thinking in responsibilities in OO design

Leads to more understandable and maintainable code

GRASP 'Controller' Pattern

Assign responsibility for handling system events to a non-UI object

Primary responsibility of a controller

Handle system events and delegate work to other objects

Good controller class

A class with minimal logic that coordinates tasks

High cohesion in a class

The class focuses on a single, well-defined task

Benefit of high cohesion

Better encapsulation and easier maintenance

Purpose of an abstract class in UML

Serve as a template without allowing direct instantiation

Interface in UML

A special class type with only method definitions and no implementation

Representation of an interface in UML class diagram

Rectangle with the stereotype <>

Dependency in UML

A change in one class may require changes in another

Symbol representing a dependency in UML class diagrams

Dashed arrow from dependent to independent class

UML class diagram

A static structure diagram showing classes, attributes, and relationships

Association in UML

A relationship between two classes

Purpose of multiplicity in UML class diagrams

Shows how many instances of a class relate to another

Invalid UML visibility modifier

* (Global)

Operations in UML class diagrams

Methods or functions that a class can perform

Valid UML basic message expression syntax

return = message(parameter : parameterType) : returnType

Iteration over a collection in a sequence diagram

Sending the same message to all members of a collection

Nesting of frames in UML sequence diagrams

Placing one frame inside another

Messages to static methods in sequence diagrams

Messages sent to a 'metaclass'

Key trait of polymorphic messages in UML

They require multiple sequence diagrams

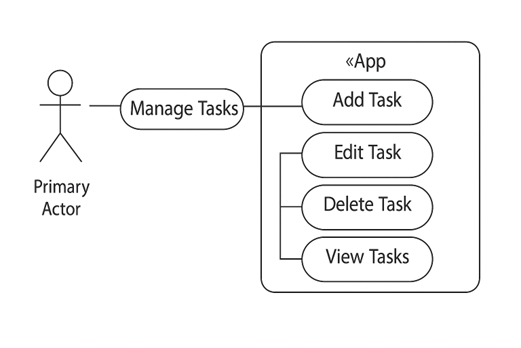

Use Case Diagram

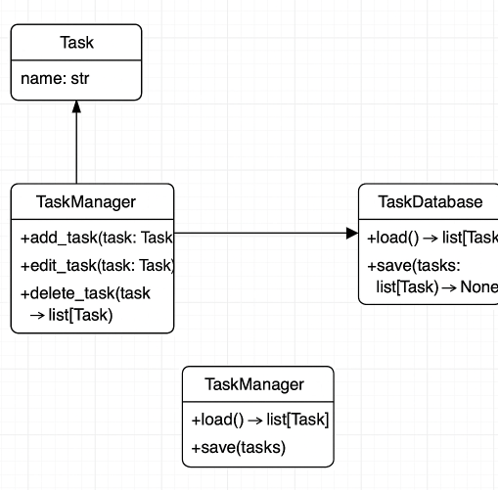

UML Class Diagram

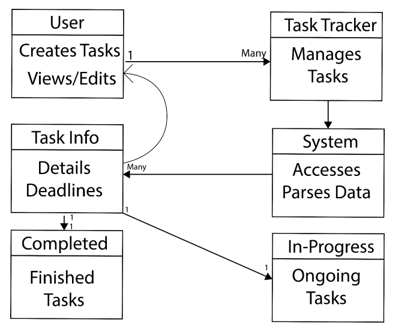

Domain Model

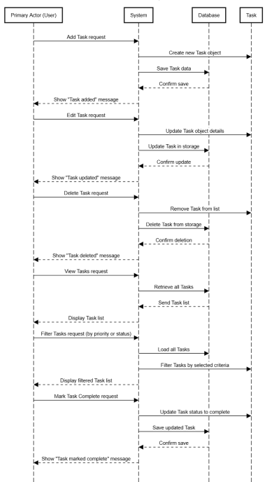

UML Interaction Diagram

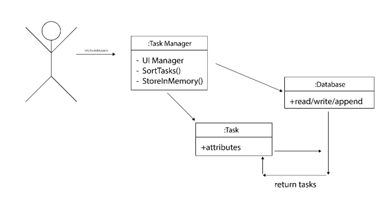

Communication Diagram

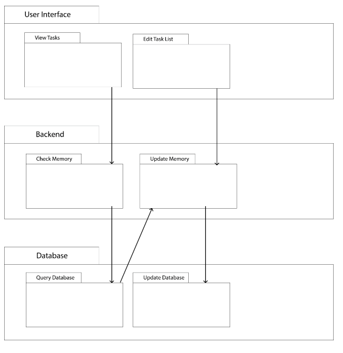

Logical Architecture

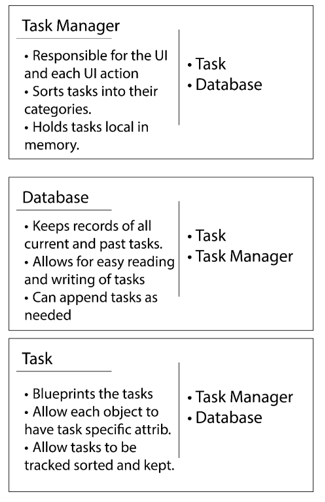

Class Responsibility Cards (CRC)
