EOP-FR-H.4 Response to Loss of Normal Steam Release Capabilities

0.0(0)
studied byStudied by 0 people
learnLearn
examPractice Test
spaced repetitionSpaced Repetition
heart puzzleMatch
flashcardsFlashcards
Card Sorting

1/4

encourage image

There's no tags or description

Looks like no tags are added yet.

Study Analytics
Name
Mastery
Learn
Test
Matching
Spaced

No study sessions yet.

5 Terms

1
New cards

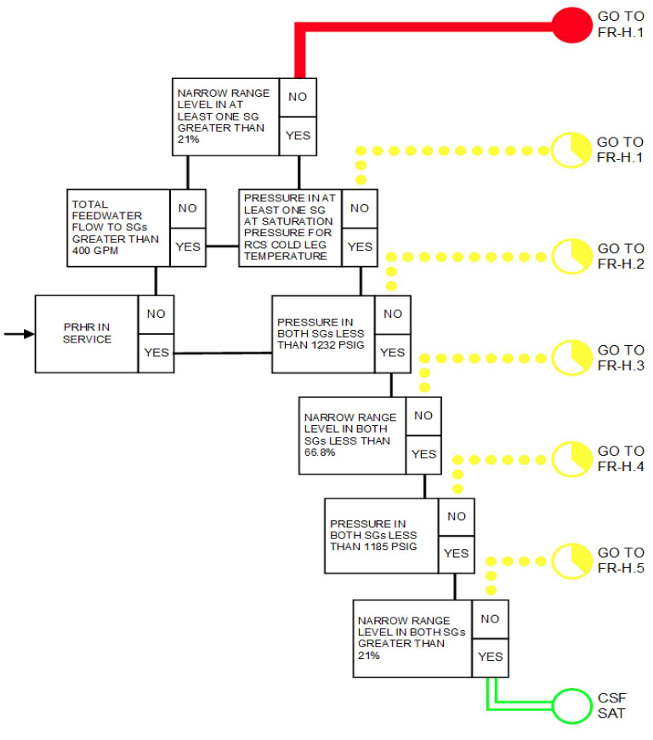

Entry Path

PRHR in, <1232psig, <66.8%, BUT >1185psig

<p>PRHR in, &lt;1232psig, &lt;66.8%, BUT &gt;1185psig</p>
2
New cards

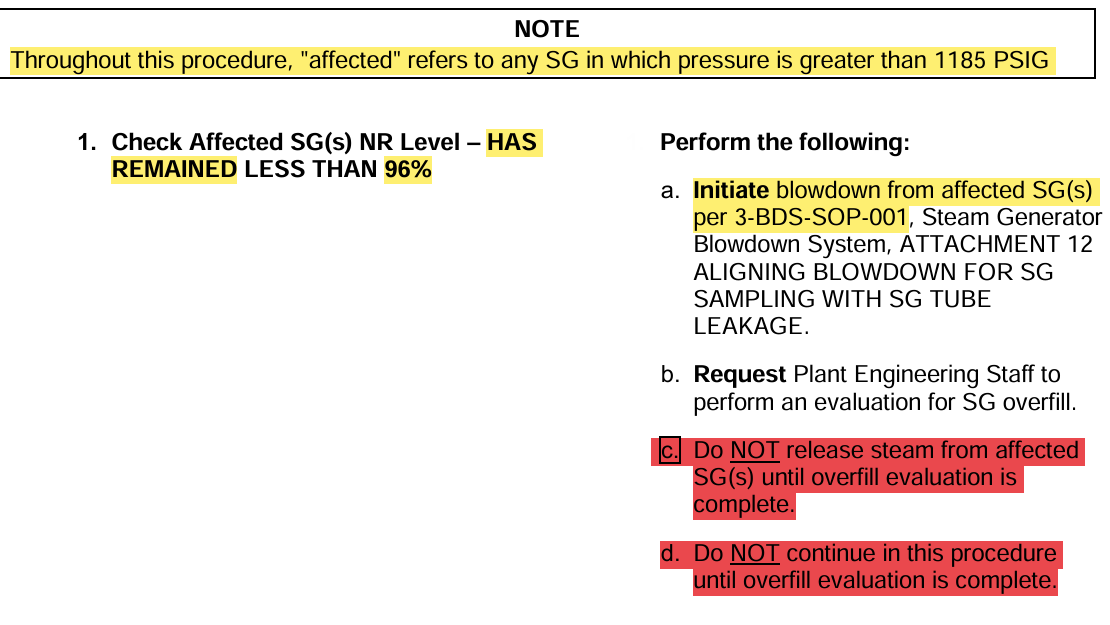

What if the affected SG was/is overfilled?

(Step 1 and RNO)

knowt flashcard image
3
New cards

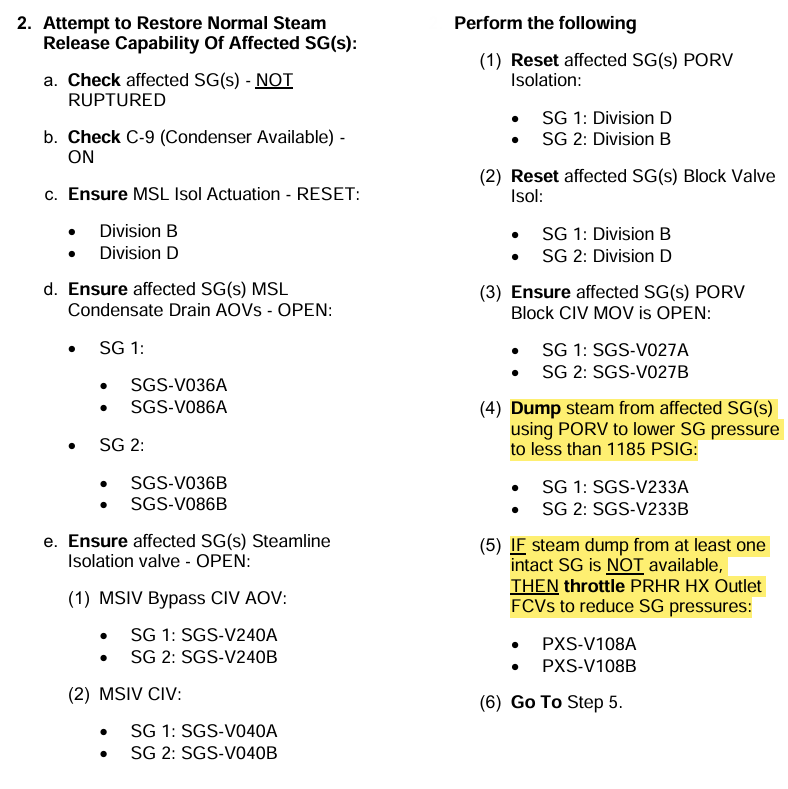

How to restore normal SG pressure/capability

(Step 2 and RNO)

knowt flashcard image
4
New cards

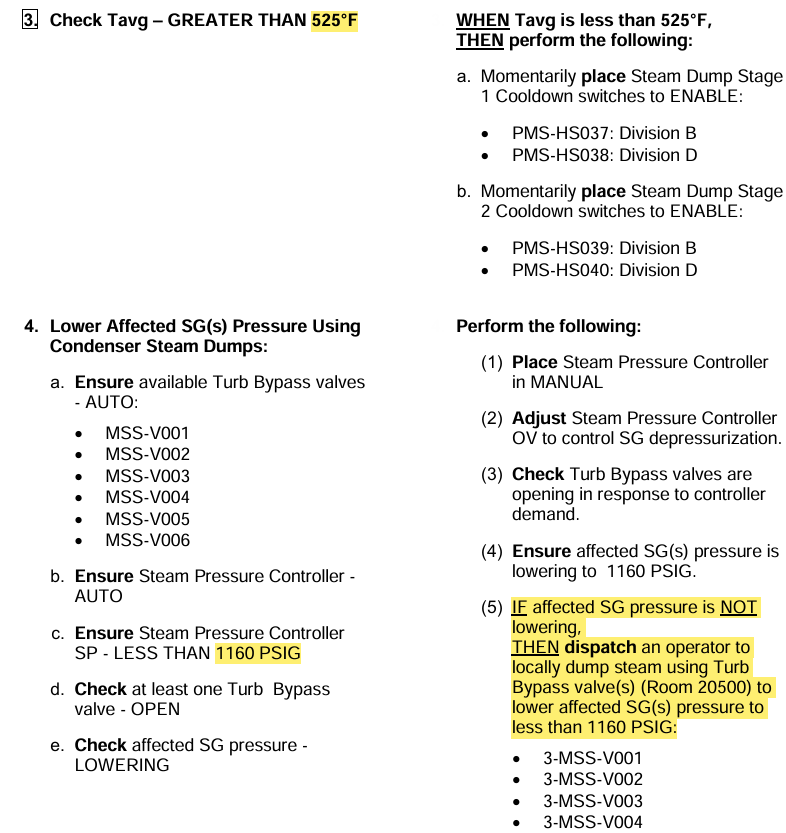

Depressurization Priorities

  1. Steam Dumps in AUTO (Step 4)

  2. PORV (Auto/Man) (Step 3 RNO)

  3. Dumps in Man. (Step 4 RNO)

<ol><li><p>Steam Dumps in AUTO (Step 4)</p></li><li><p>PORV (Auto/Man) (Step 3 RNO)</p></li><li><p>Dumps in Man. (Step 4 RNO)</p></li></ol><p></p>
5
New cards

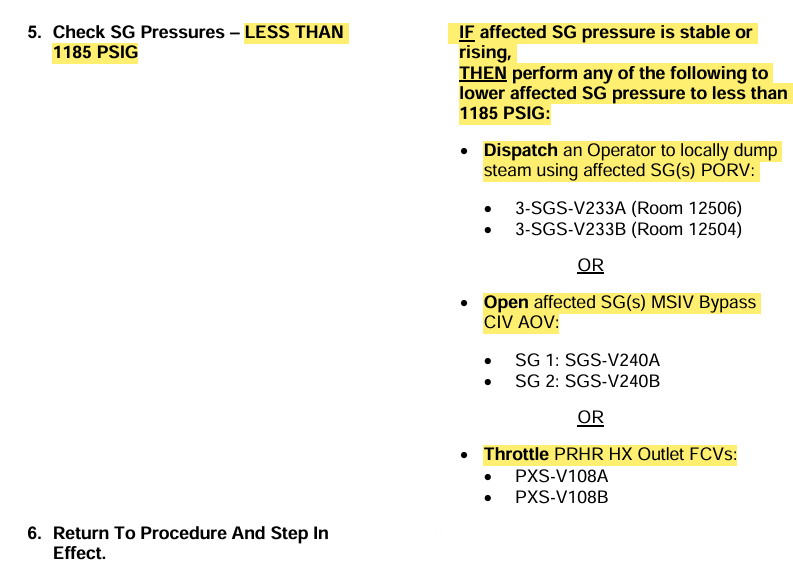

Procedure End/Exit

(Step 5 & 6)

Procedure will not be exited until <1185psig

<p>Procedure will not be exited until &lt;1185psig</p>
