12 Terms

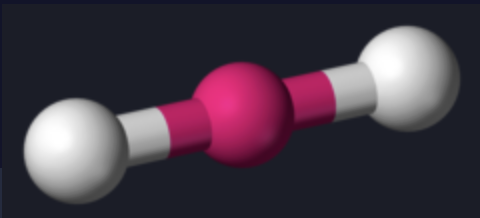

linear
2 electron domains
2 bonding domains
0 lone pairs
180 degree angles

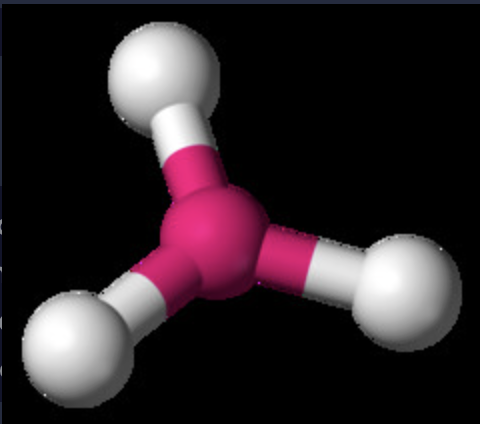

trigonal planar
3 electron domains
3 bonding domains
0 lone pairs
120 degree angle

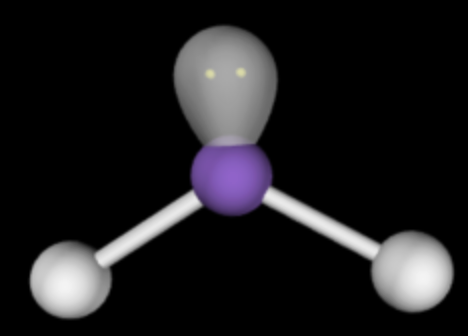

trigonal planar: bent
3 electron domains
2 bonding domains
1 lone pair
less than 120 degree angles

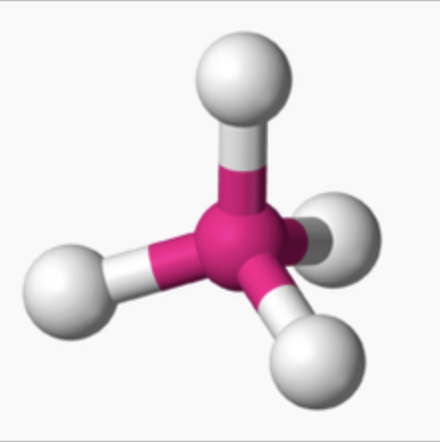

tetrahedral
4 electron domains
4 bonding domains
0 lone pairs
109.5 degree angles

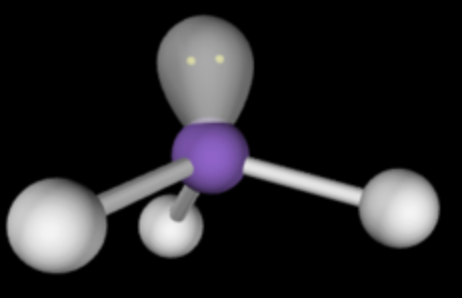

tetrahedral: trigonal pyramidal
4 electron domains
3 bonding domans
1 lone pair
less than 109.5 degree angles

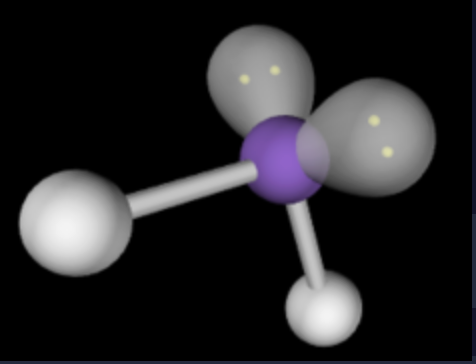

tetrahedral: bent
4 electron domains
2 bonding domains
2 lone pairs
less than 109.5 degree angles = smaller than trigonal pyramidal

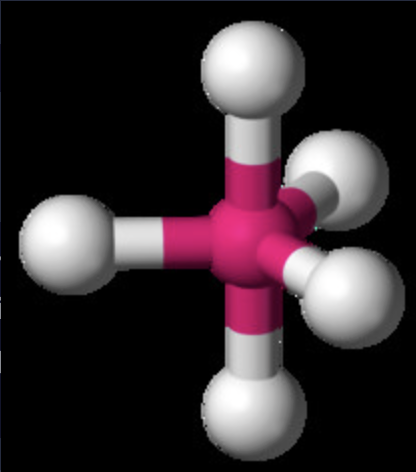

trigonal bipyramidal
5 electron domains
5 bonding domains
0 lone pairs
90 and 120 degree angles

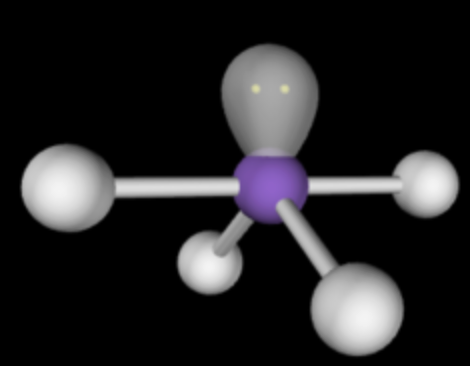

trigonal bipyramidal: seesaw
5 electron domains
4 bonding domains
1 lone pair
90 and 120 degree angles

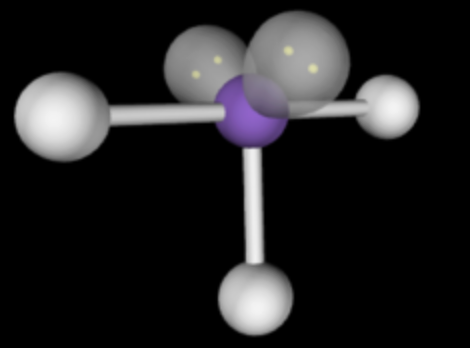

trigonal bipyramidal: t-shaped
5 electron domains
3 bonding domains
2 lone pairs
90 degree angles

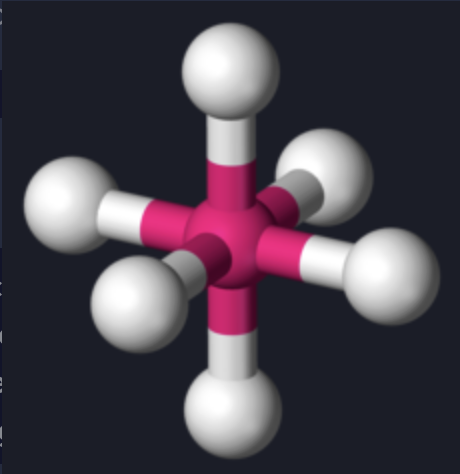

octahedral
6 electron domains
6 bonding domains
0 lone pairs
90 degree angles

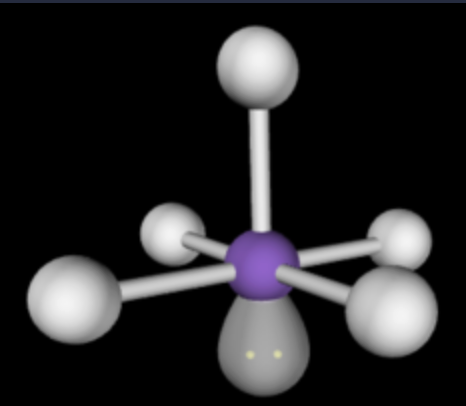

octahedral: square pyramidal
6 electron domains
5 bonding domains
1 lone pair
90 degree angles

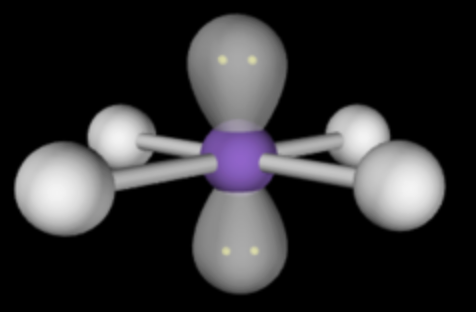

octahedral: square planar
6 electron domains
4 bonding domains
2 lone pairs
90 degree angles
