ma3 colours

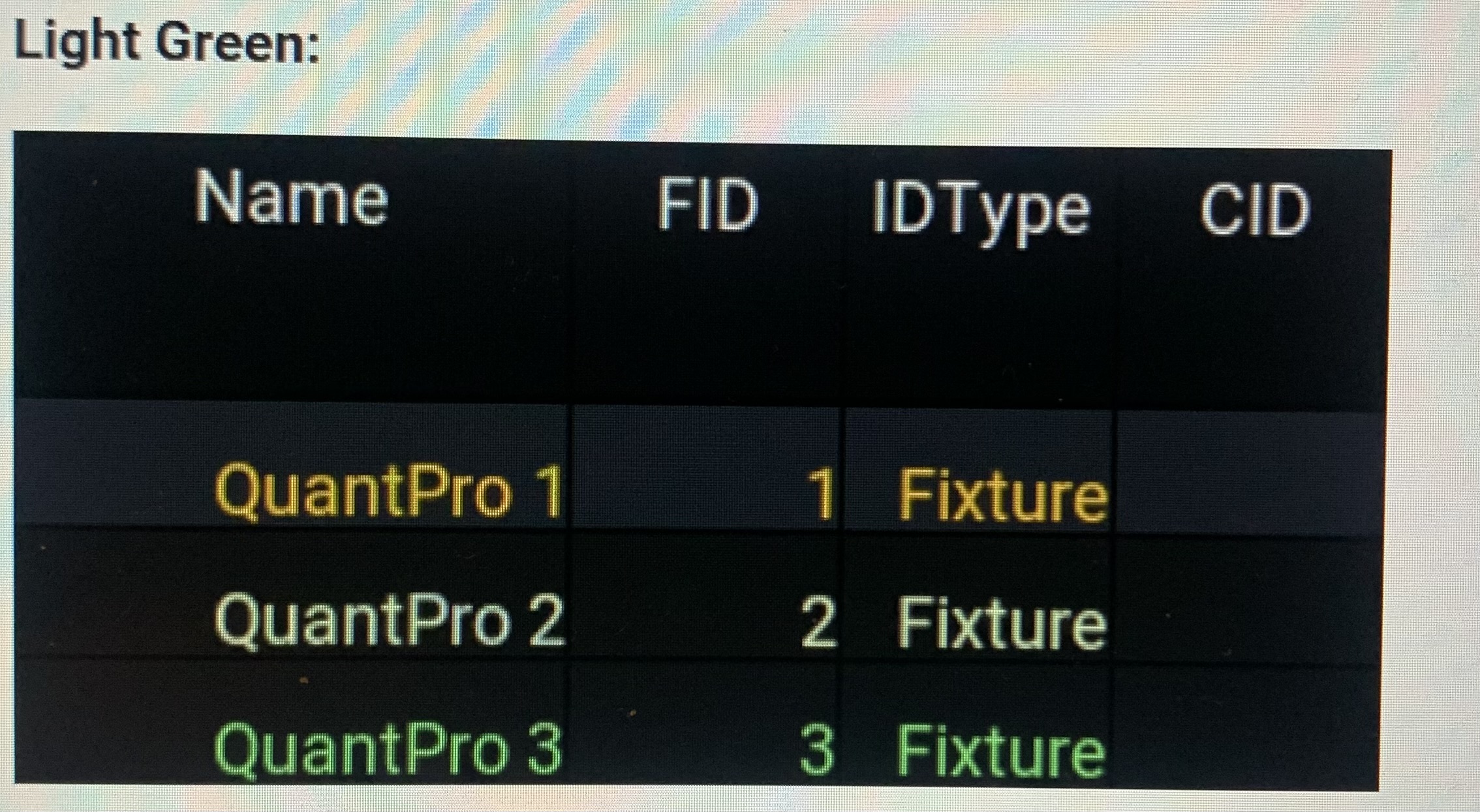

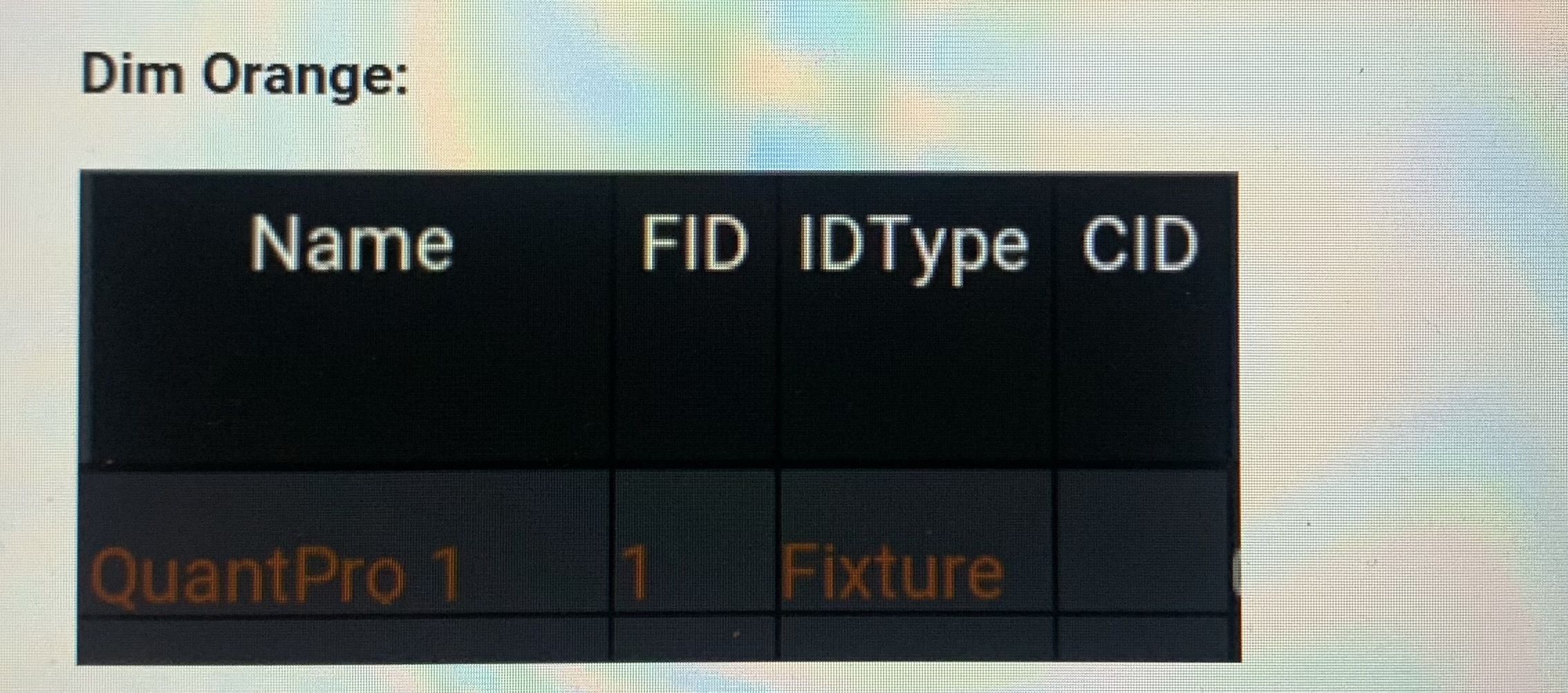

At least one multipatch instance of this pirmary fixture is selected.

Edge fixture

Fixtures with inverted encoder control of at least one attribute, based on MAtricks settings

Fixture that are not selected

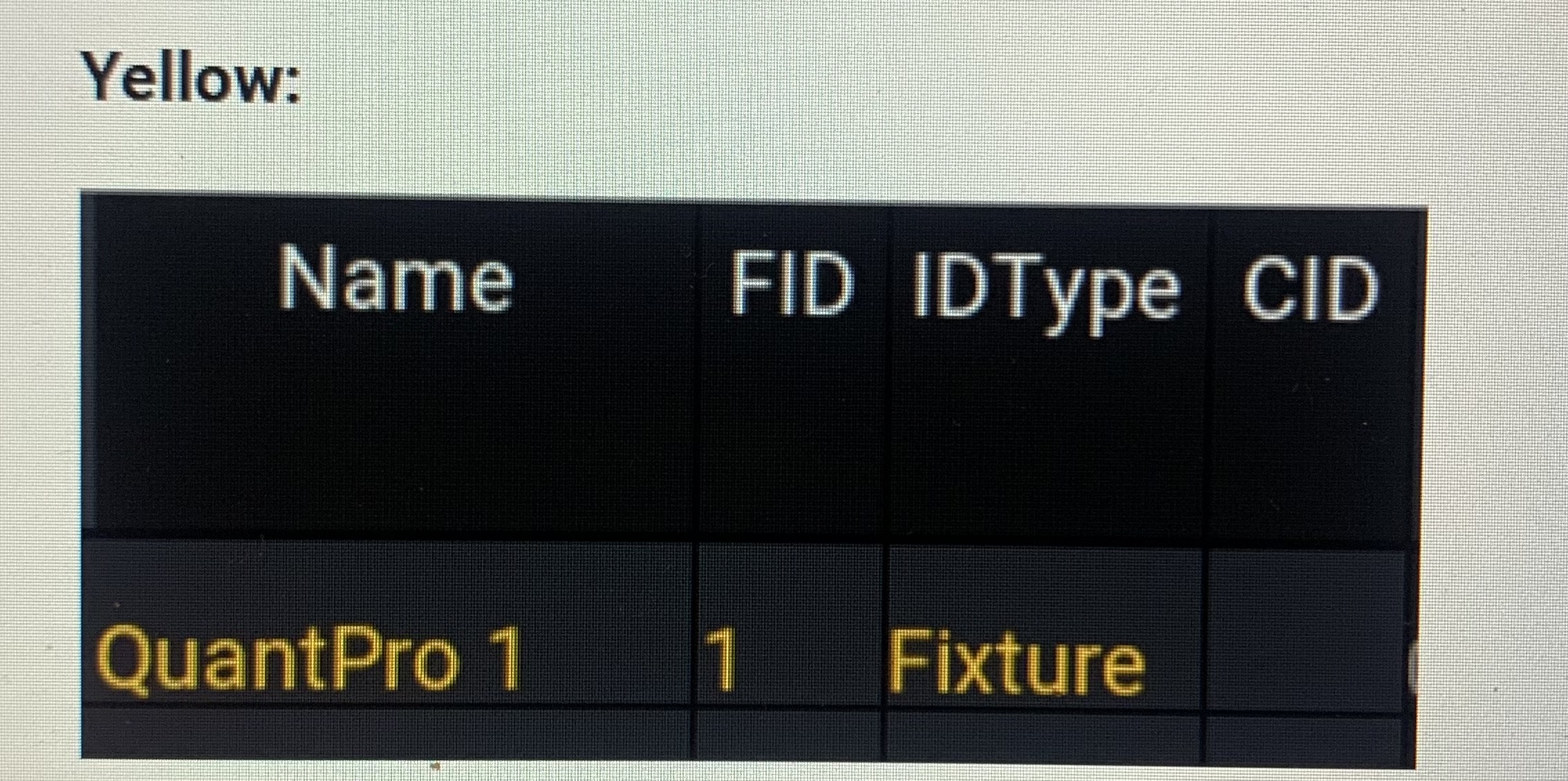

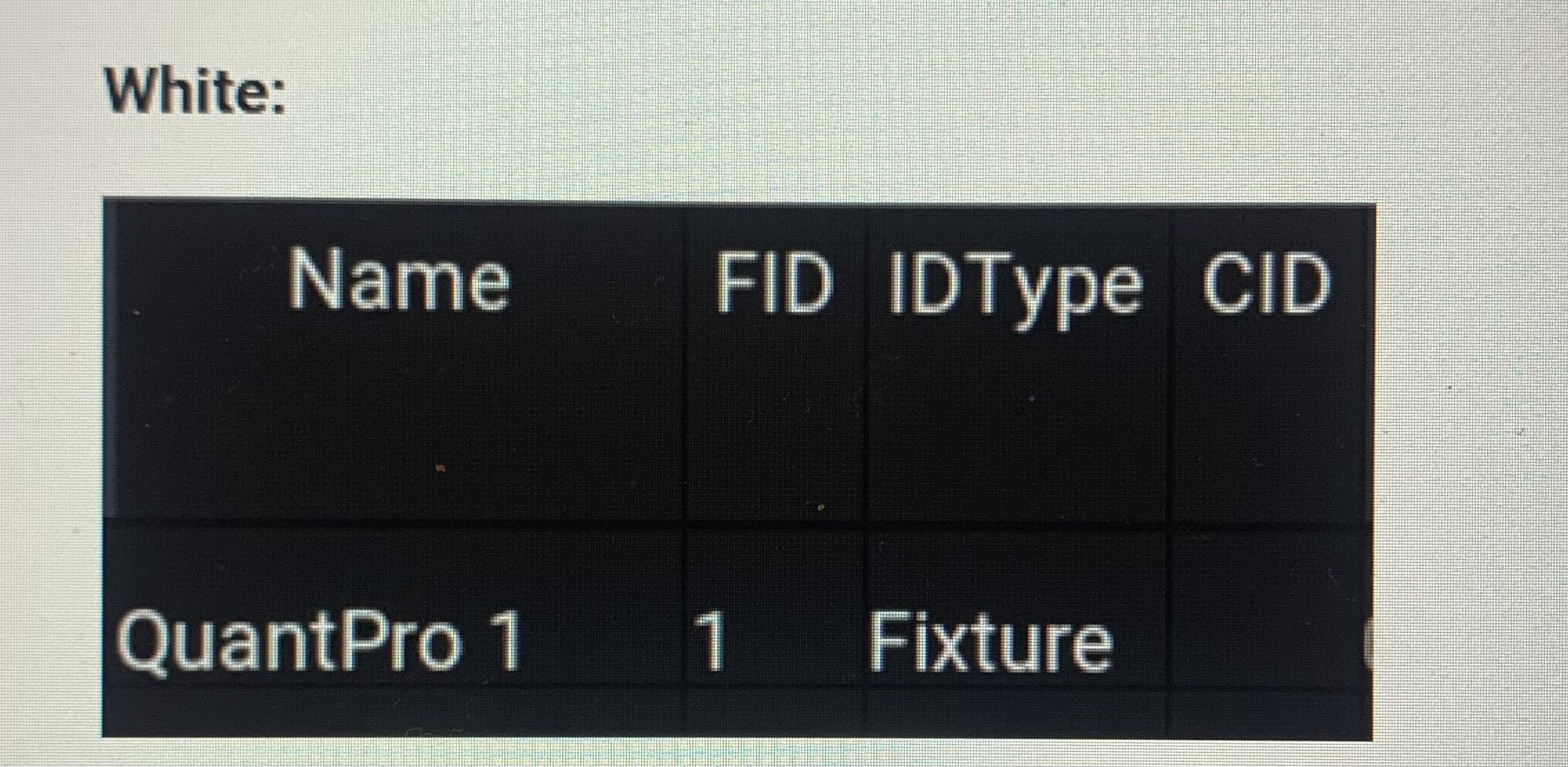

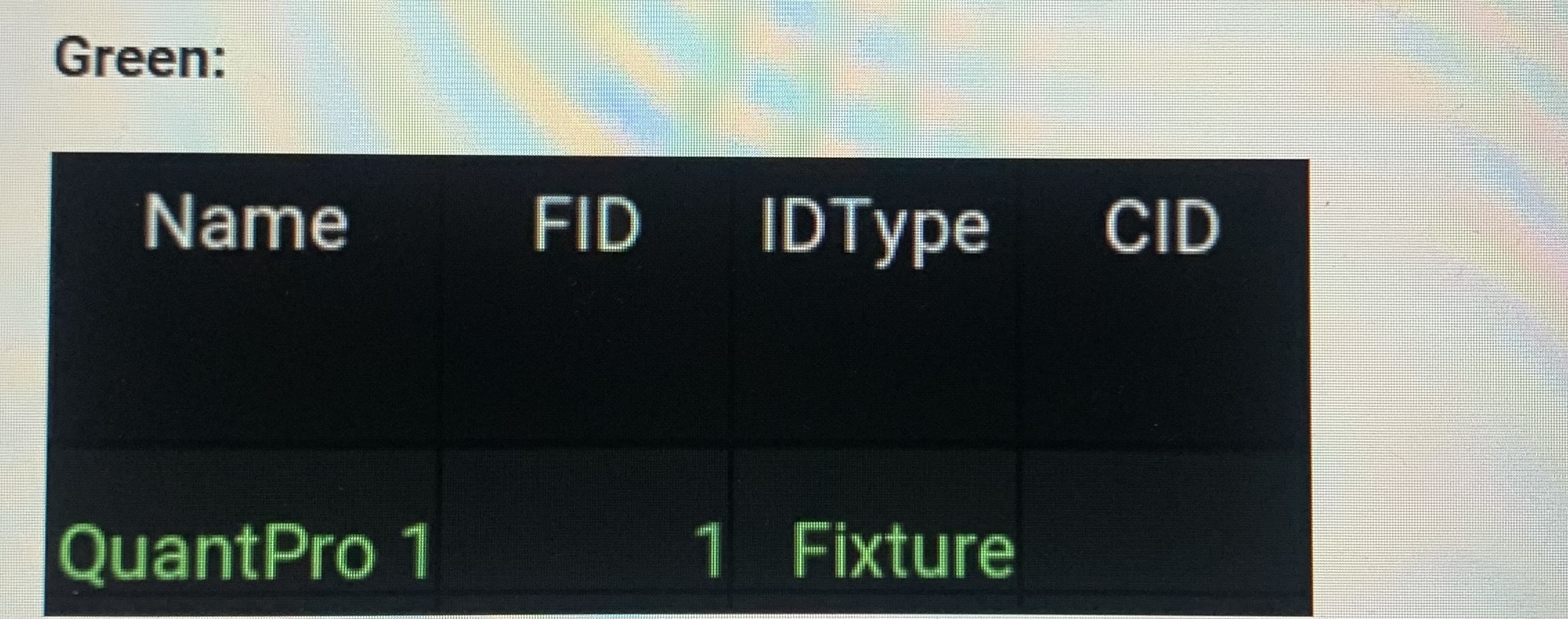

Fixtures that are selected

Fixtures that are in the current selection, but not the main current sub-selection.

No object to be edited

Default level

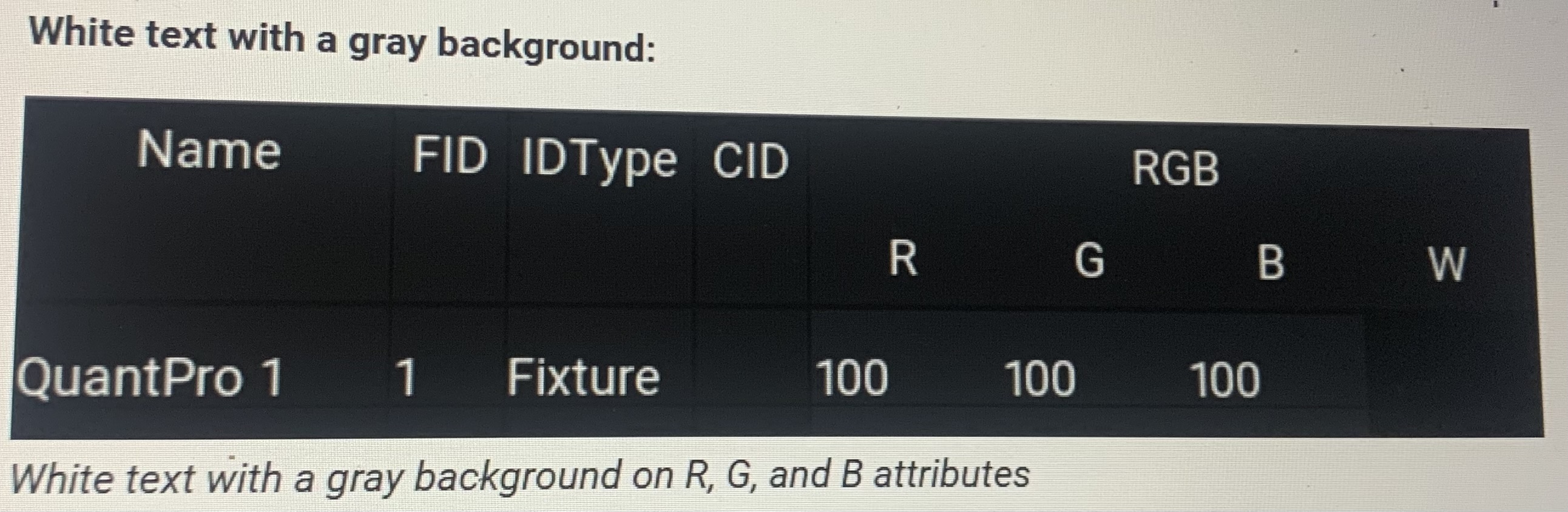

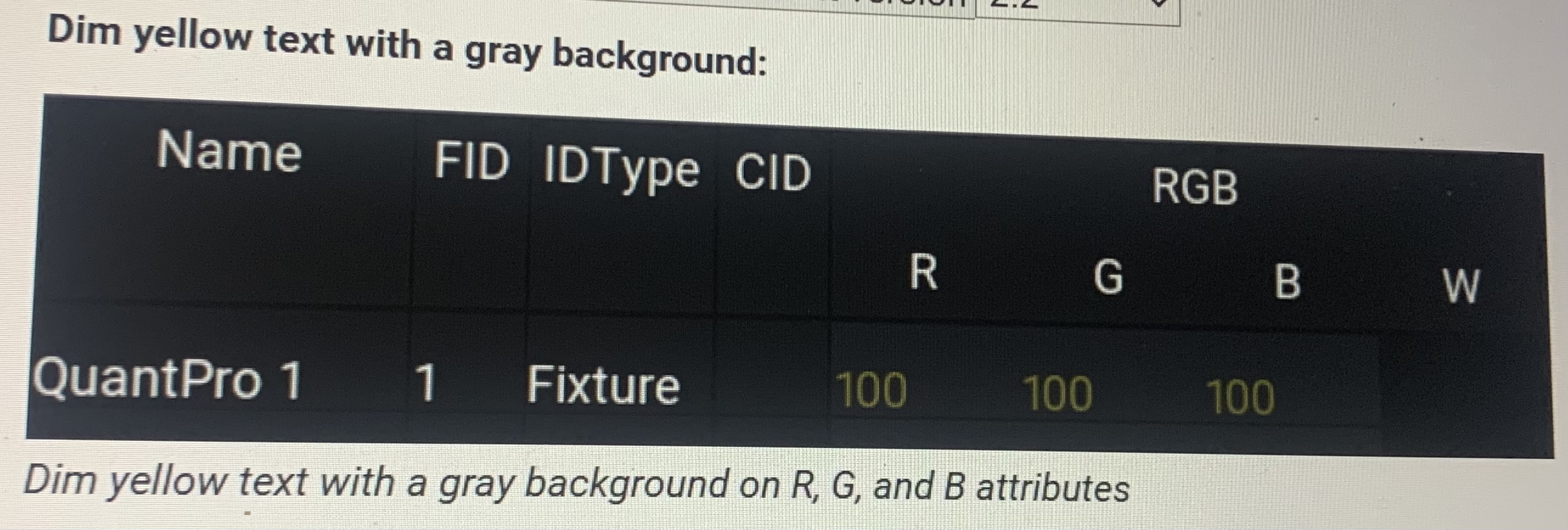

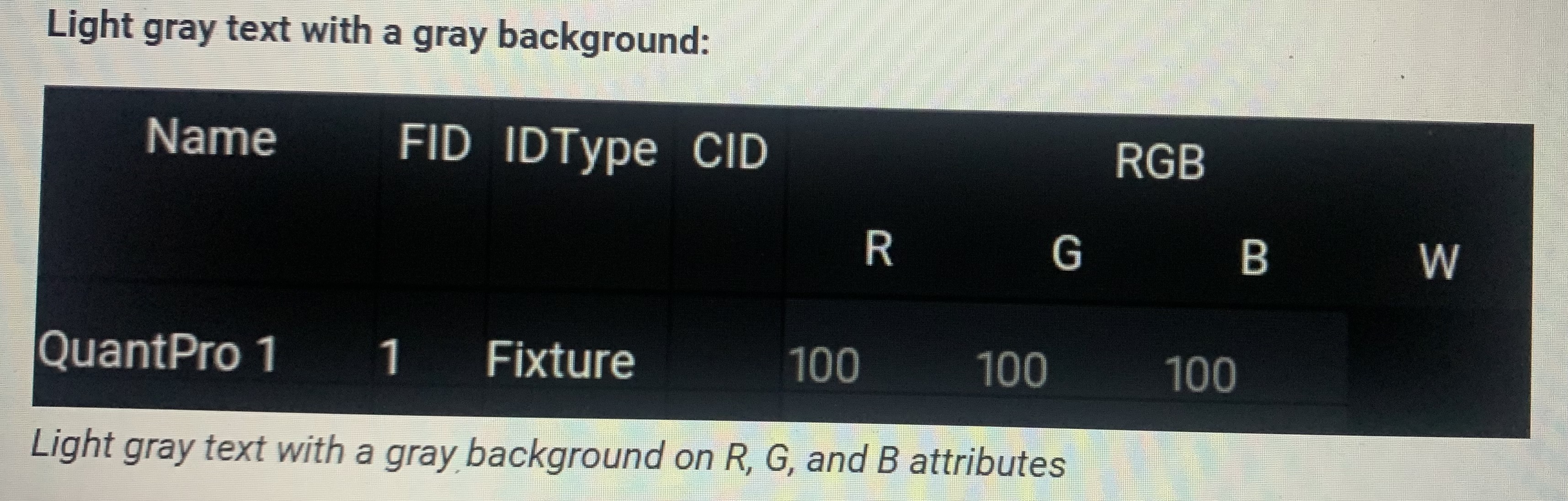

Have value in the programmer, but are not active. (They will not be included in store or update actions)

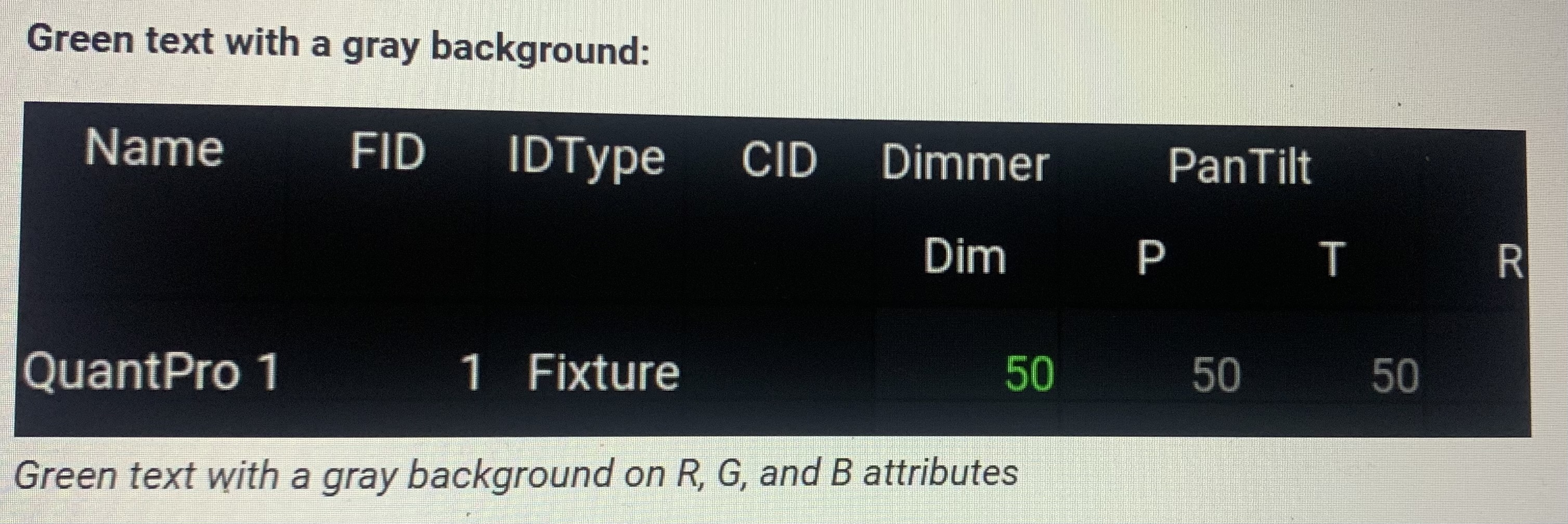

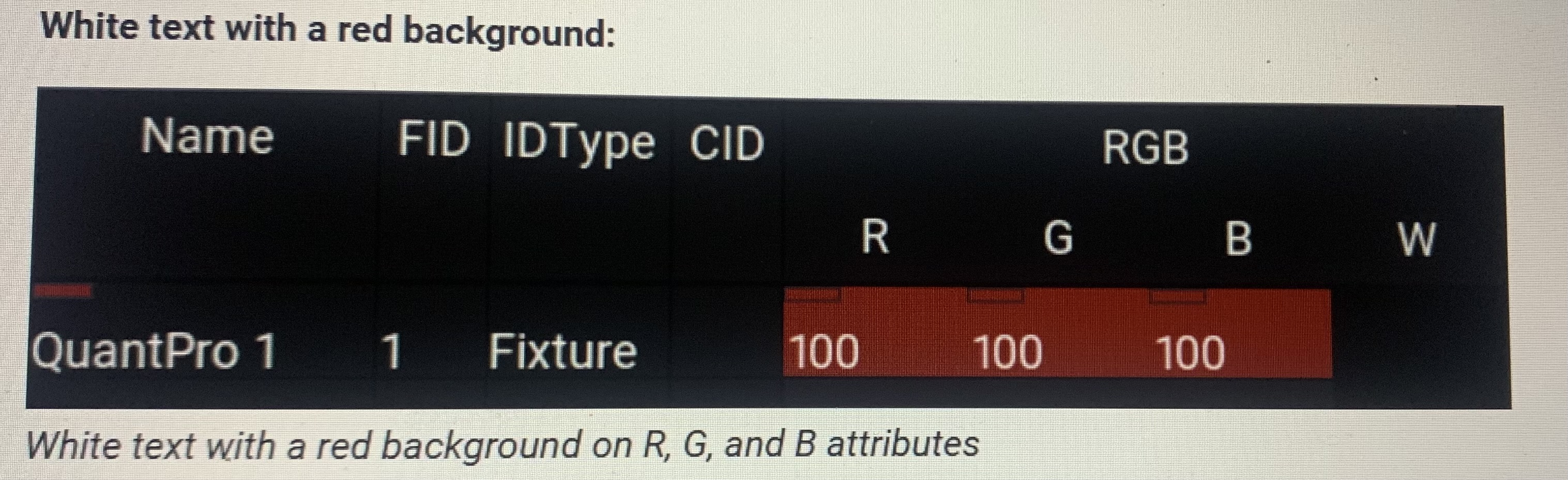

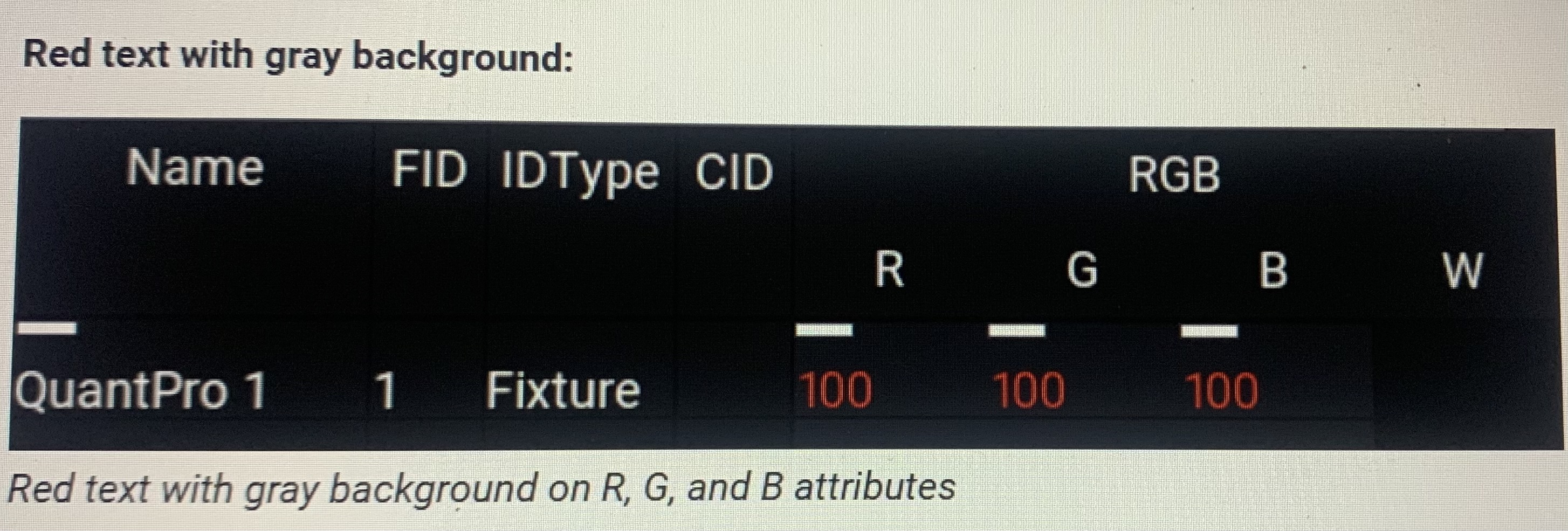

Active values in the programmer. Will be included in store or update actions

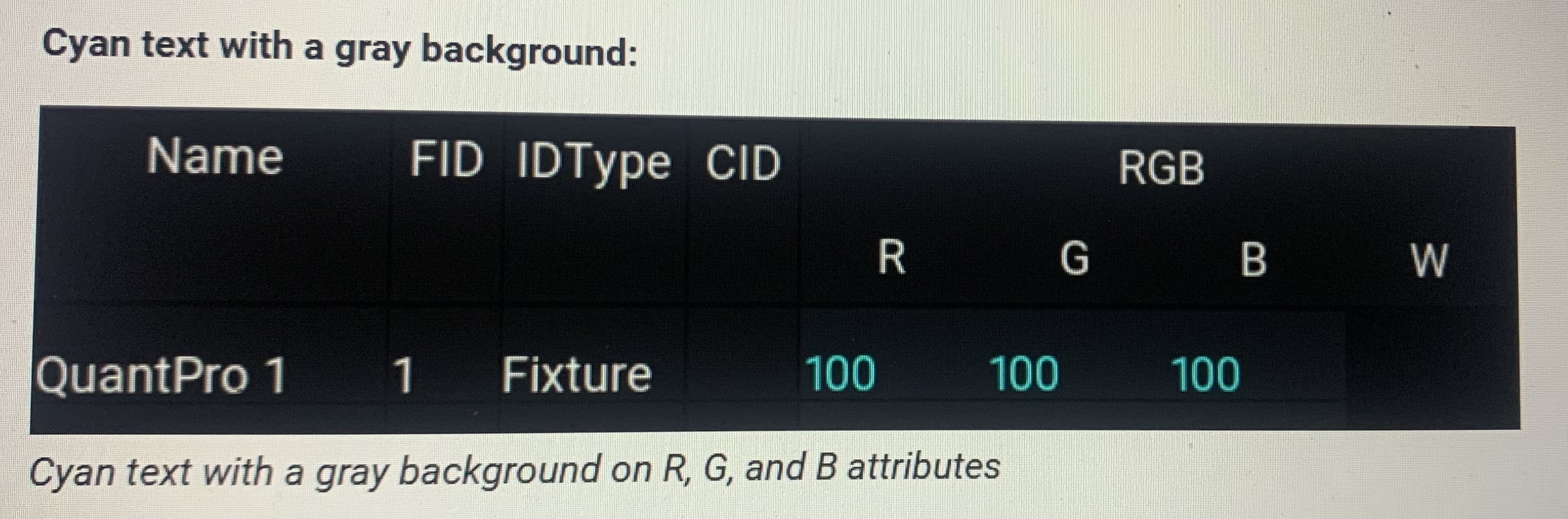

These attributes have new values in the current cue outputting from the selected sequence. A dimmer value with cyan text = a now higher value in the current cue outputting from the selected sequence

Dimmer value the indicates a new lower value in the current cue outputting from the selected sequence. Only descending values.

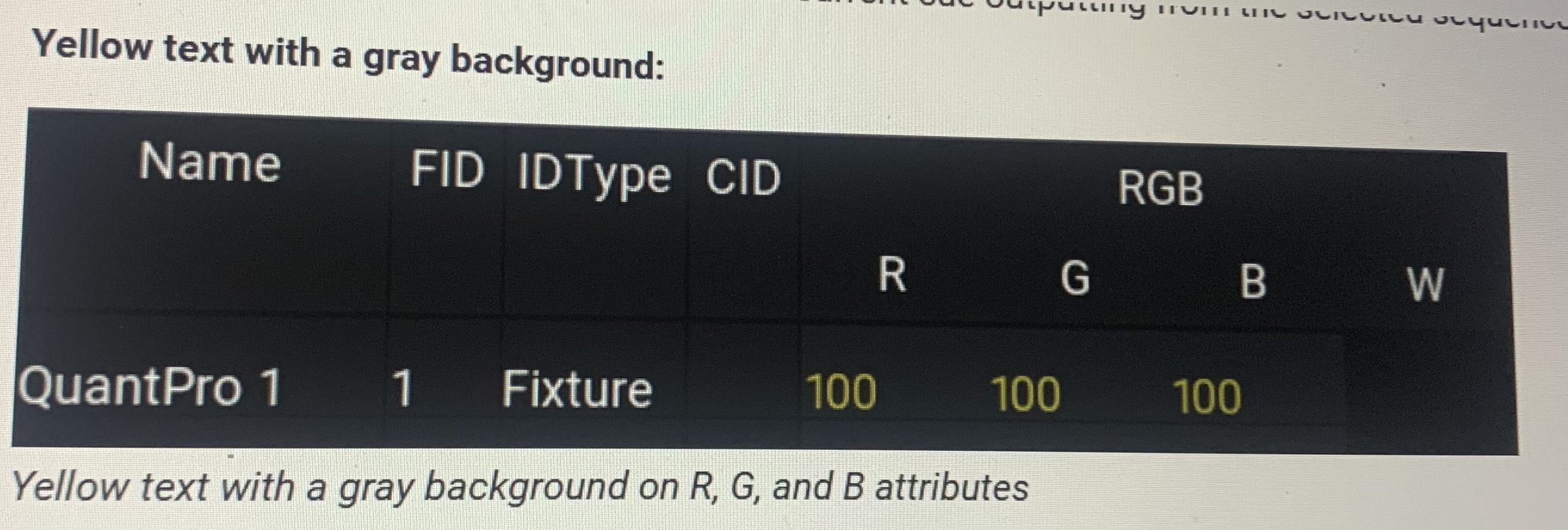

Have tracked values in the current cue outputting from the selected sequence.

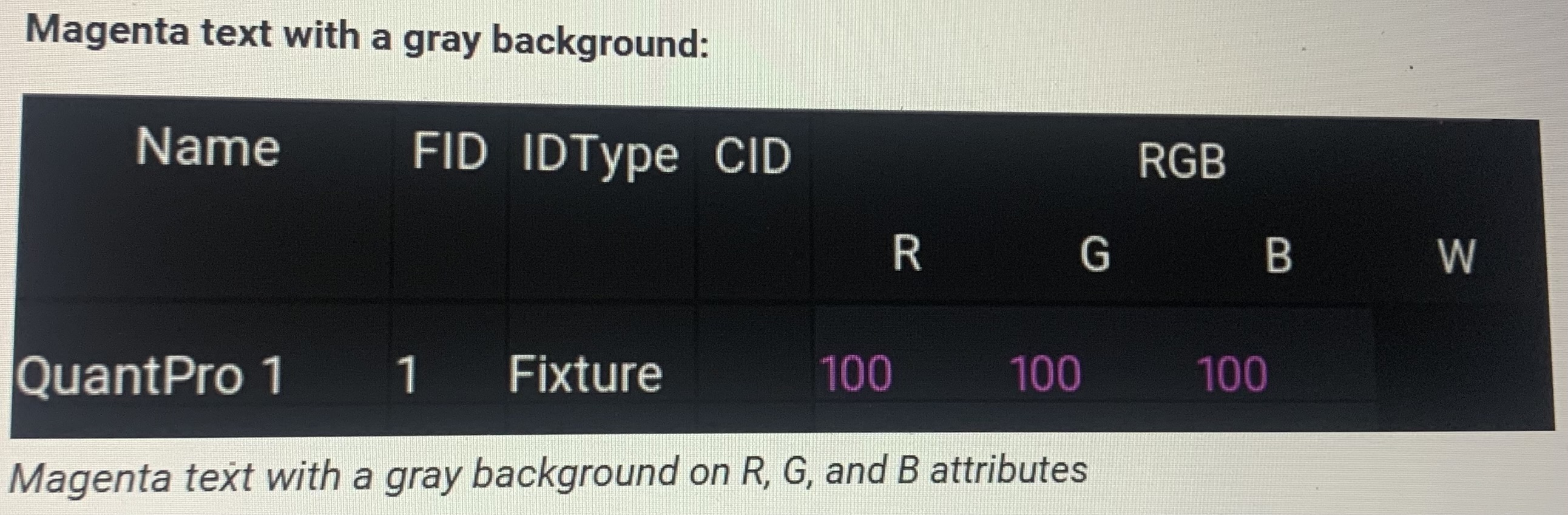

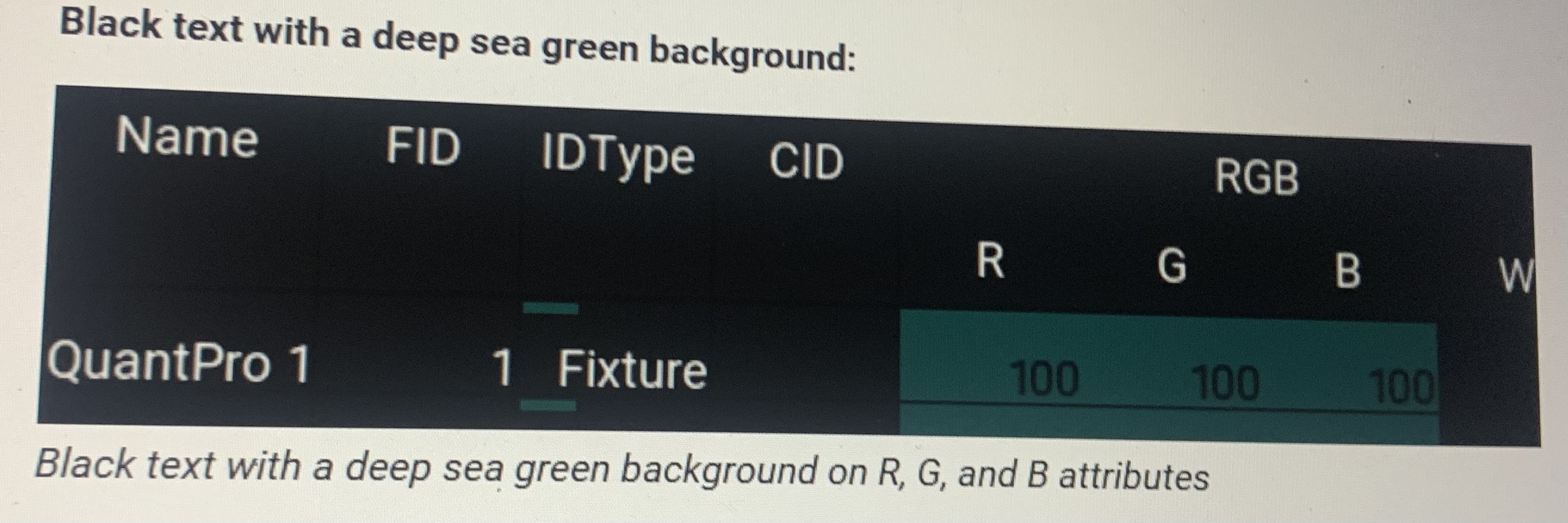

Blocked values in the current cue outputting from the selected sequence

New or blocked values in the current cue outputting form a sequence that is not selected.

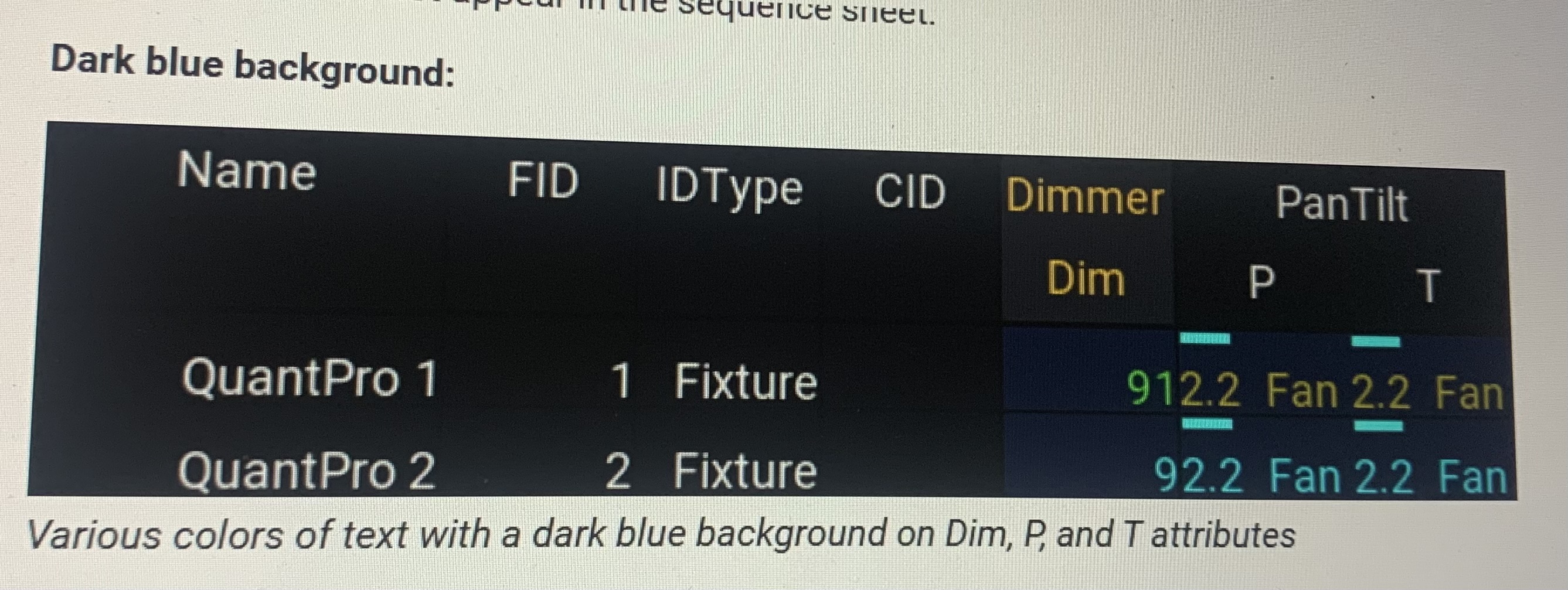

Have completed a move in black
