Week 1a: Imaging in Rehabilitation X-Ray

COMPLETE

Why should a PT study study imaging?

1.) A more comprehensive

2.) The information the physical therapy clinician seeks is often of a different nature from the information the physician seeks and even of a different nature from what may be described in the radiologist's report

*Professional Collaboration requires an understanding of what each party has to offer

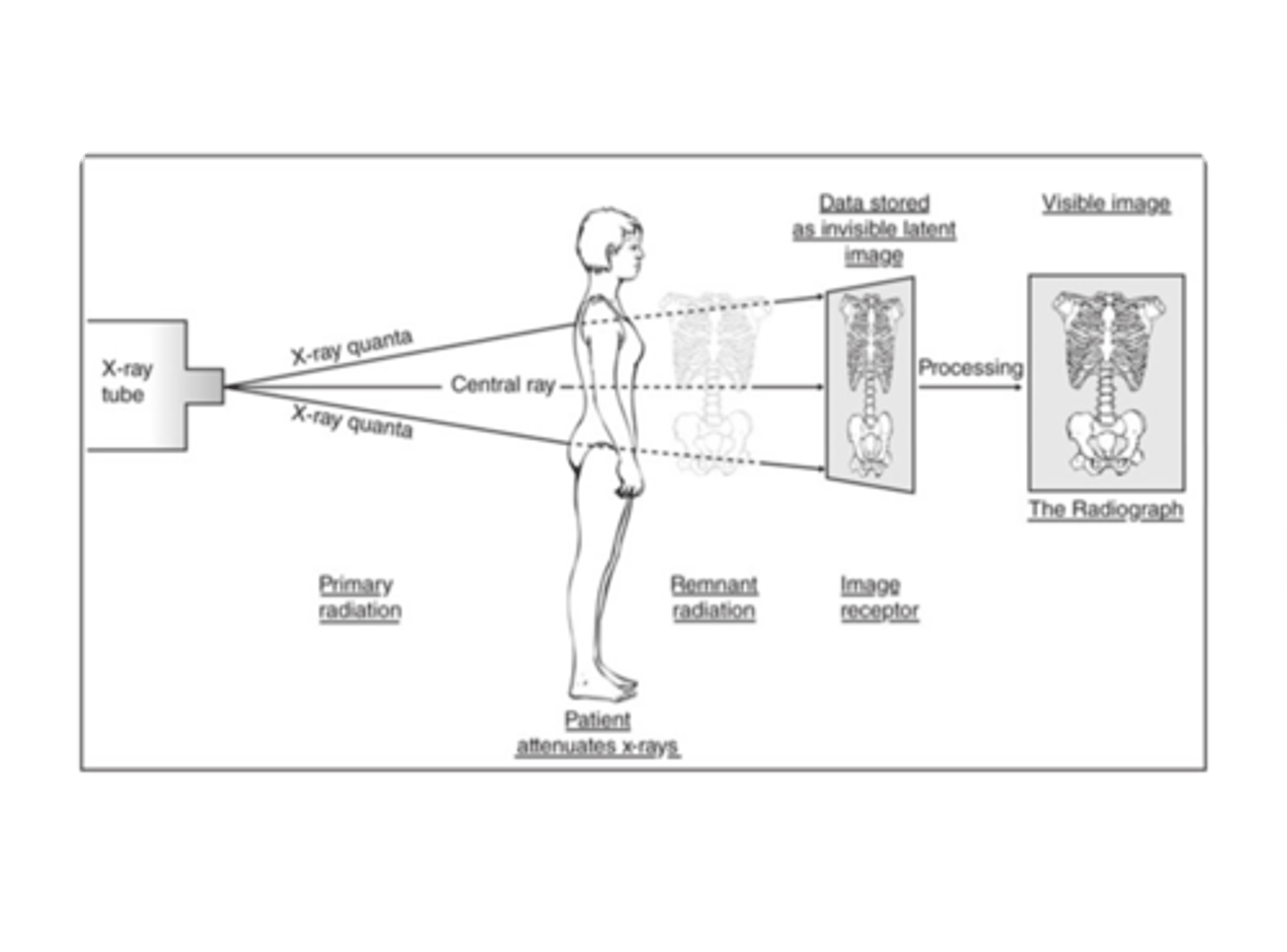

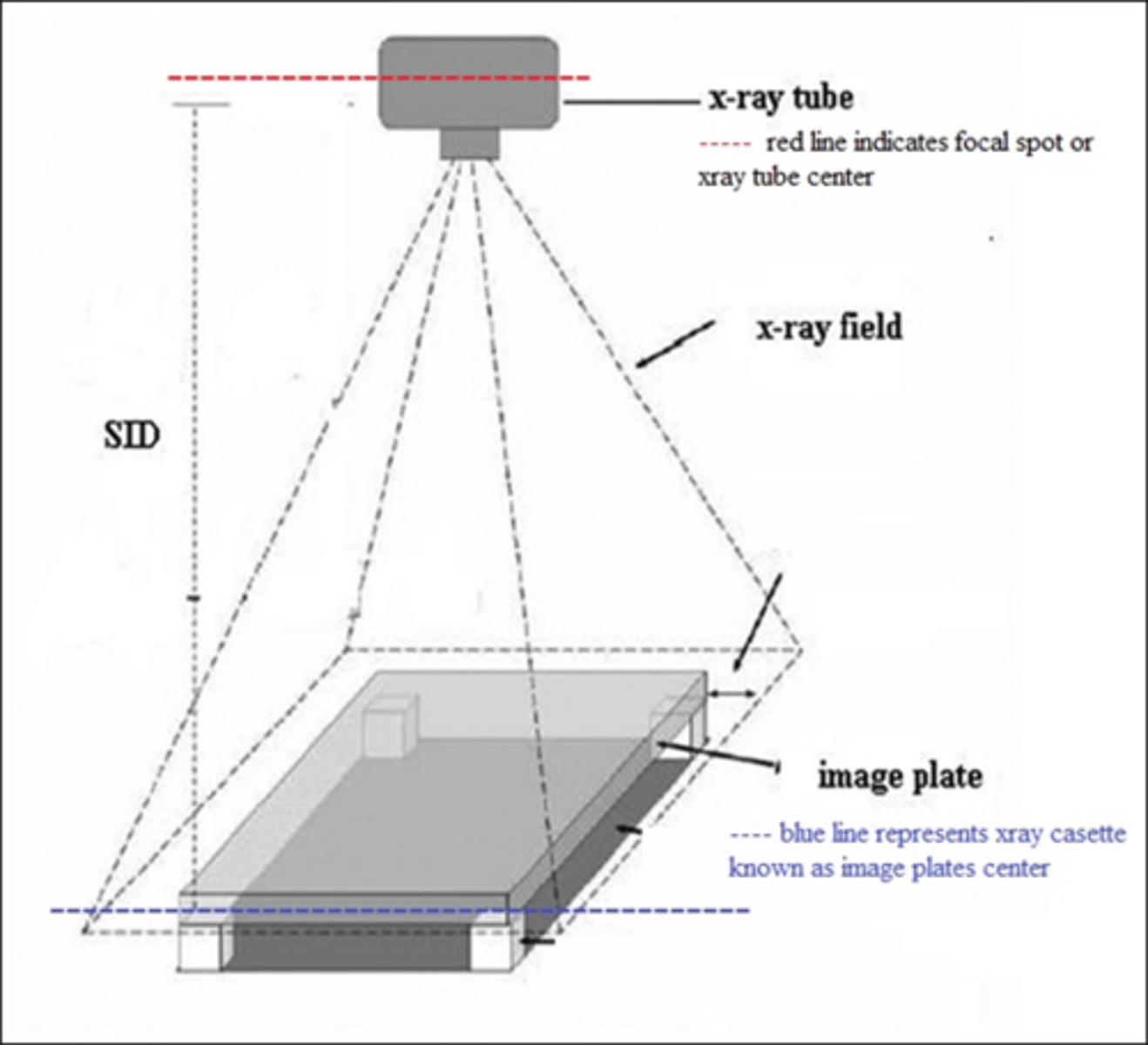

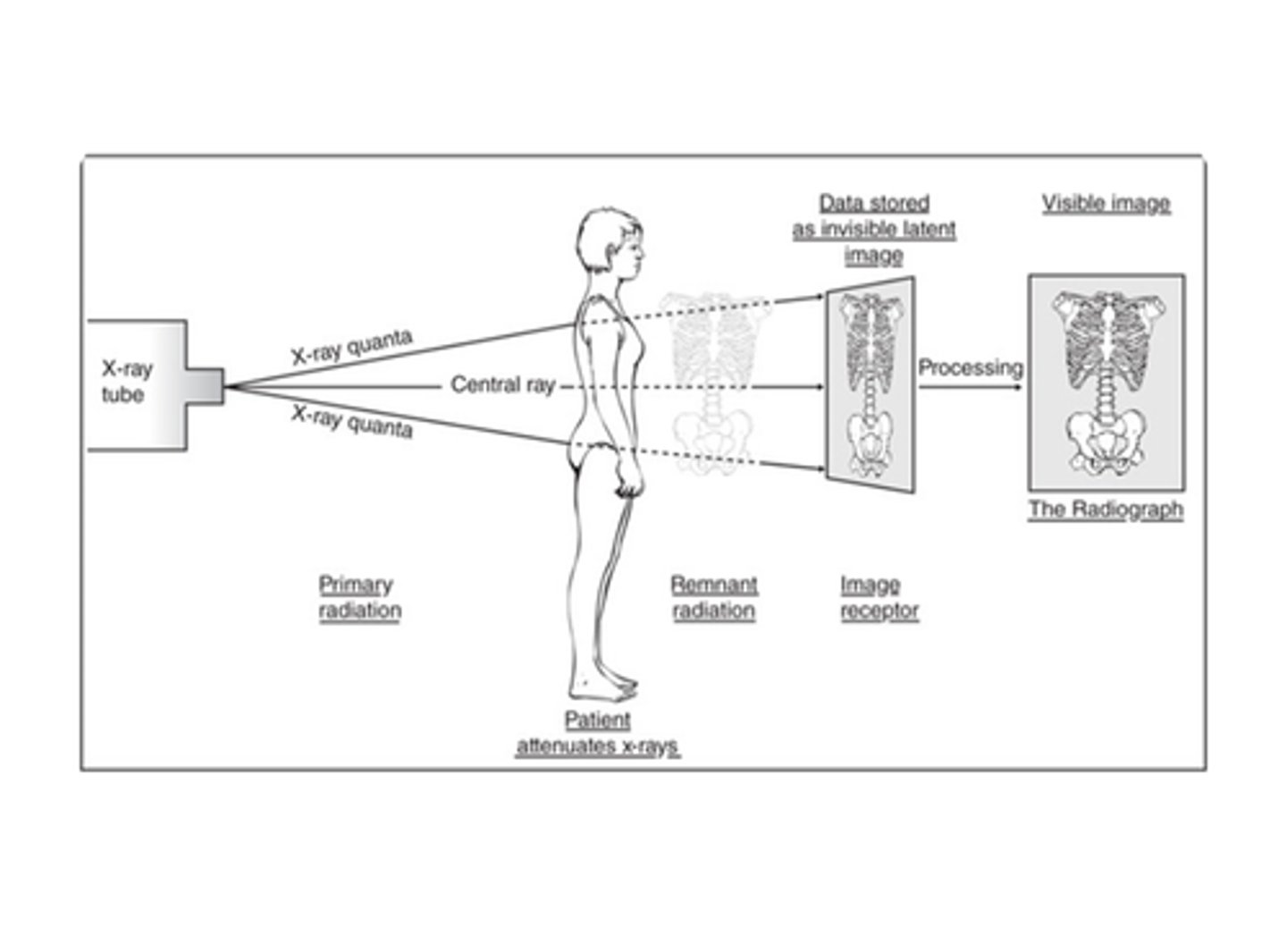

Basic X-Ray Imaging System

The X-ray beam is attenuated in different amount, depending on the density of the tissue it has passed through or not passed through. The remnant beam is intercepted by an interpretation device called the image receptor (latent image) and converted into a visible image based on shades of gray (4 main shades).

The receptors can be:

1) film or screen radiograph,

2) Fluoroscopic video,

3) Computer or digital image.

Who discovered X-Rays and was awarded the Nobel Prize in Physics in 1901?

Discovery of x-rays by Willhekm Conrad Rontgen in 1895

- Electromagnetic radiation in the wavelength range of X-rays

- Awarded the 1st Nobel Prize in Physics in 1901

Who discovered radioactive elements in 1898?

Marie Curie:

- The theory of radioactivity-isolated radioactive isotopes using polonium and radium

Definition of Radiograph?

A recorded image of an anatomic part acquired by the passage of x-ray through the body

What is the first imaging study done following a clinical examination?

Conventional Radiograph (X-Ray)

What is the most efficient image to look at bone and joint abnormalities?

Conventional Radiograph (X-ray)

What are the three things required to produce an X-Ray image?

- Source of electrons

- Force to move them rapidly

- Something to stop them rapidly

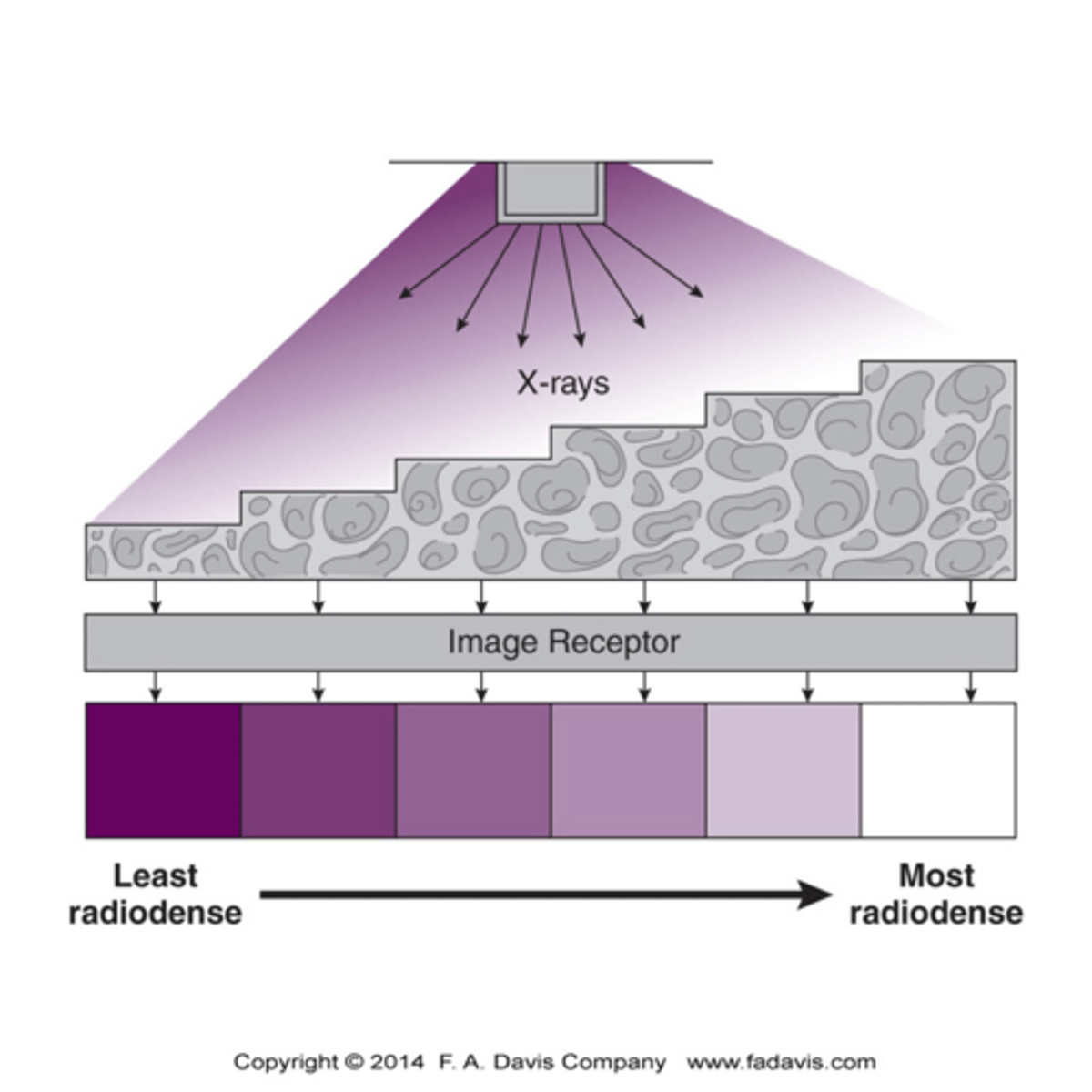

What are the shades of gray on a radiograph determined by?

Tissue Radiodensity

- More dense = More radiopaque (white/light)

- Less dense = More radiolucent (

What are the two determinants of radiodensity?

- Composition (atomic number and volume density)

- Thickness

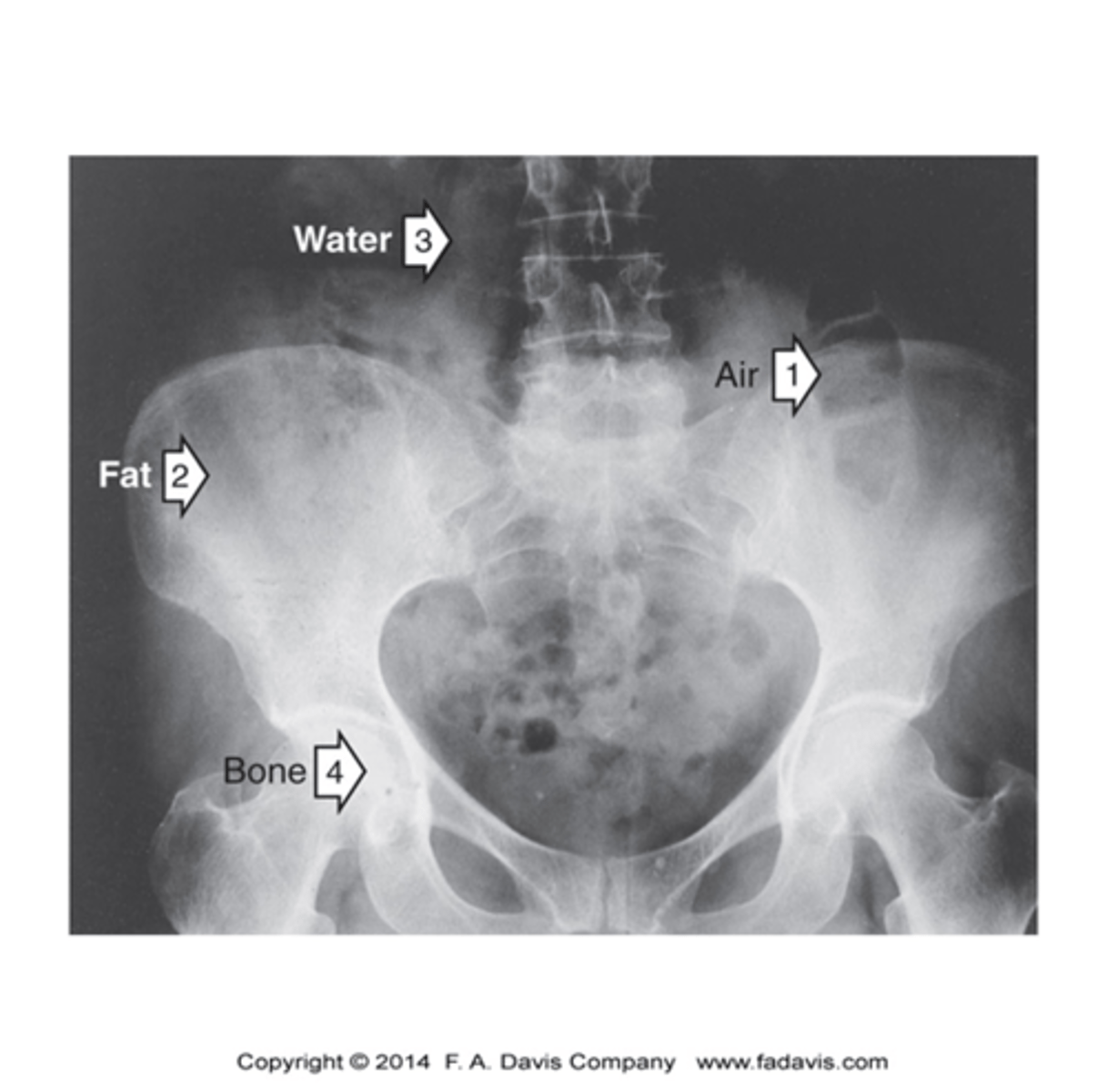

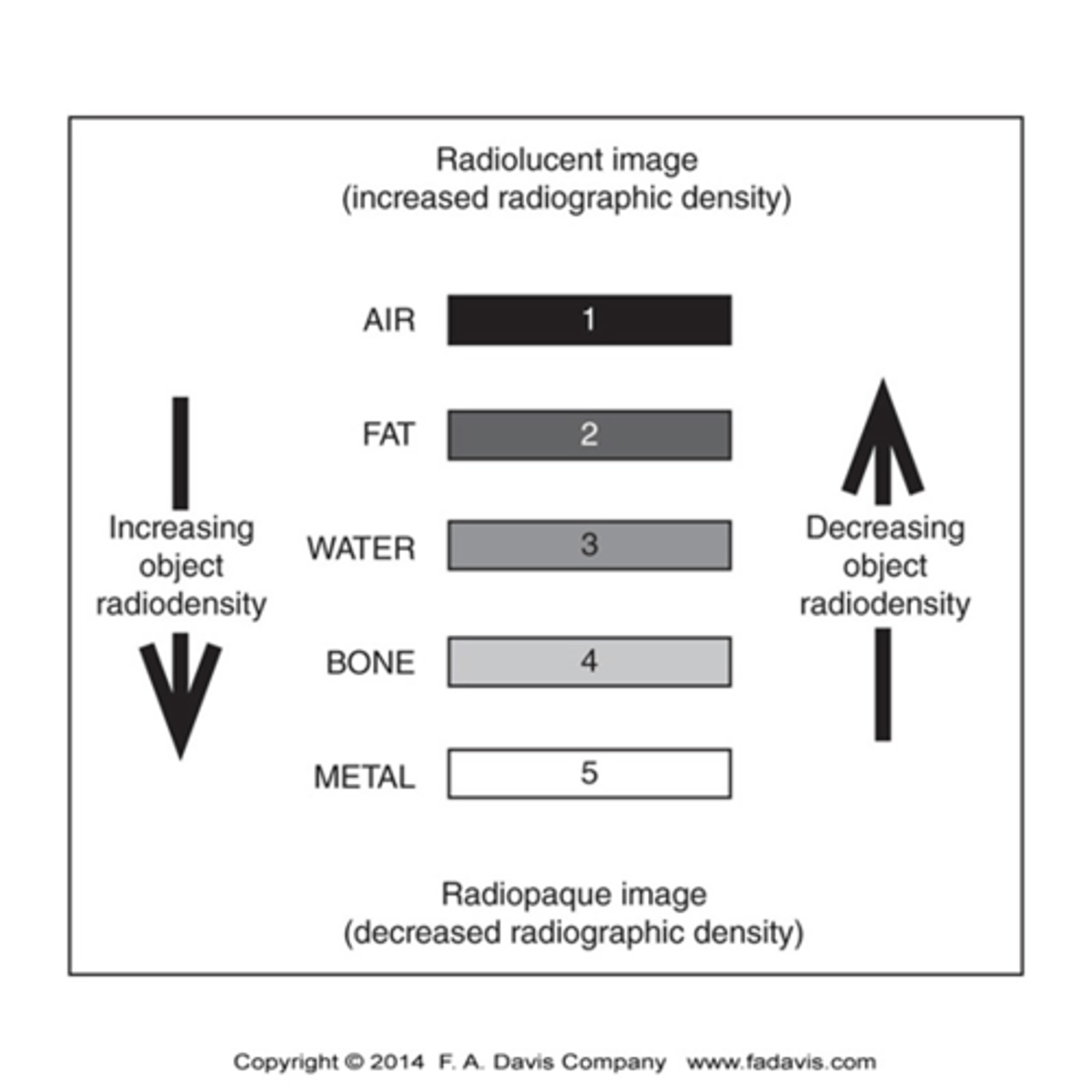

What are the four tissue radiodensities in the human body?

- Air (black)

- Fat (Gray-Black)

- Water: (Gray) All soft tissue and fluids (blood, muscles, nerves, cartilage, tendon, and ligaments)

- Bone (White)

What is the relationship between absorption of x-rays (amount of the object radiodensity)?

Inverse Relationship

- Radiopaque = Bone

- Radiolucent = Air

What is the relationship between radiodensity based on thickness?

The thicker an object is the more radiodensity it possesses relative to thinner object made of the same substance

What does radiopaque mean?

- Not easily penetrated by x-rays, therefore has a greater radiodensity

- Structures that absorb x-rays block them from reaching the receptor

- Appears white on radiograph

Examples of Radiopaque structures in body

Bone (borders, process, ridge, spine, tubercles, tuberosity)

What does radiolucent mean?

- Easily penetrated by x-rays, therefore has less radiodensity

- Structures that don't absorb x-rays and allow them to pass through (greater radiation reach the receptor)

- Appears Black/Dark

Examples of Radiolucent structures

Air and Fat

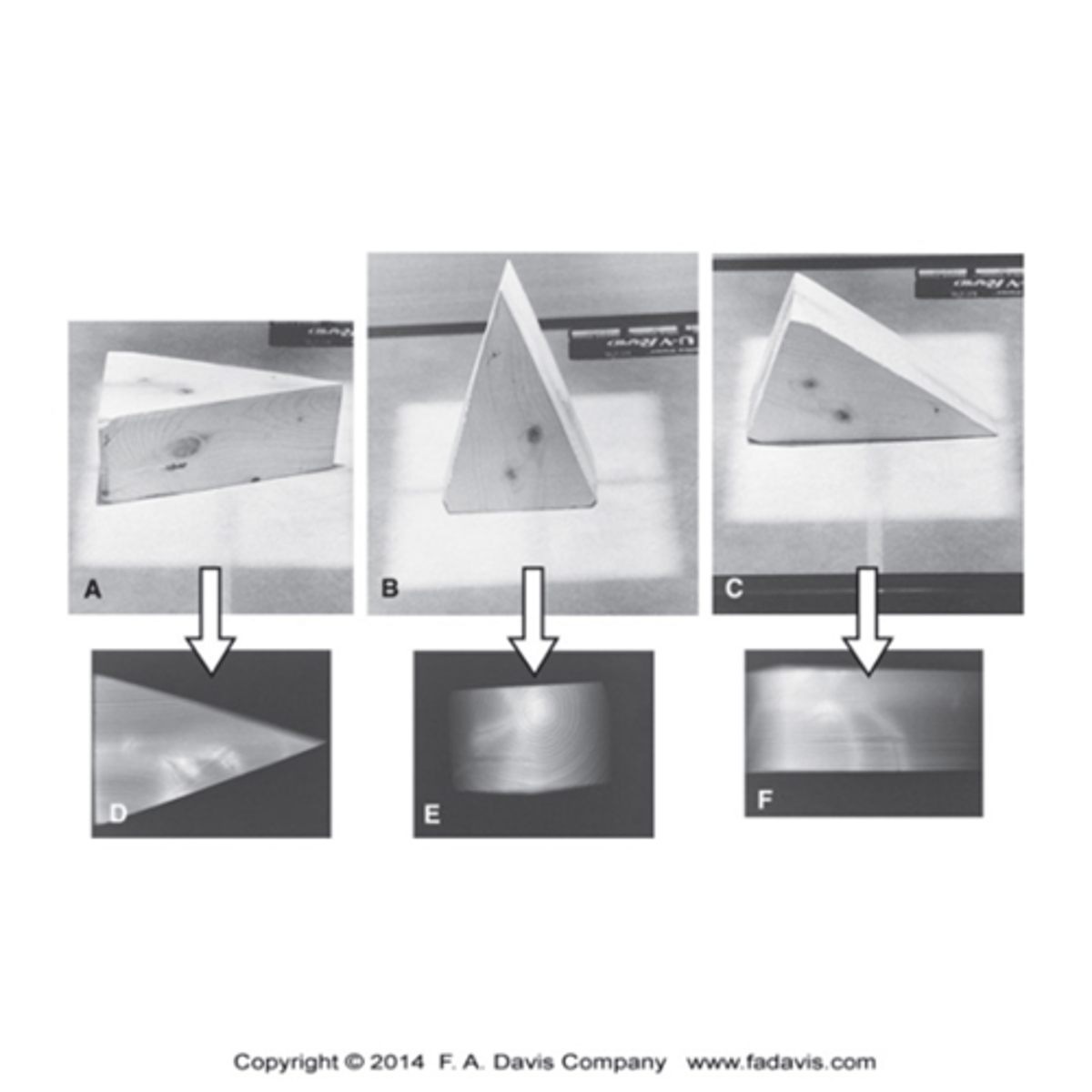

What is meant by the term, one view is no view?

At least TWO images, as close to 90 degrees are required to view all three dimensions of a structure

What are the 4 image quality factors that determine the quality of a radiograph and what property do they fall under?

Photographic Properties

- Density

- Contrast

Geometric Properties

- Details

- Distortion

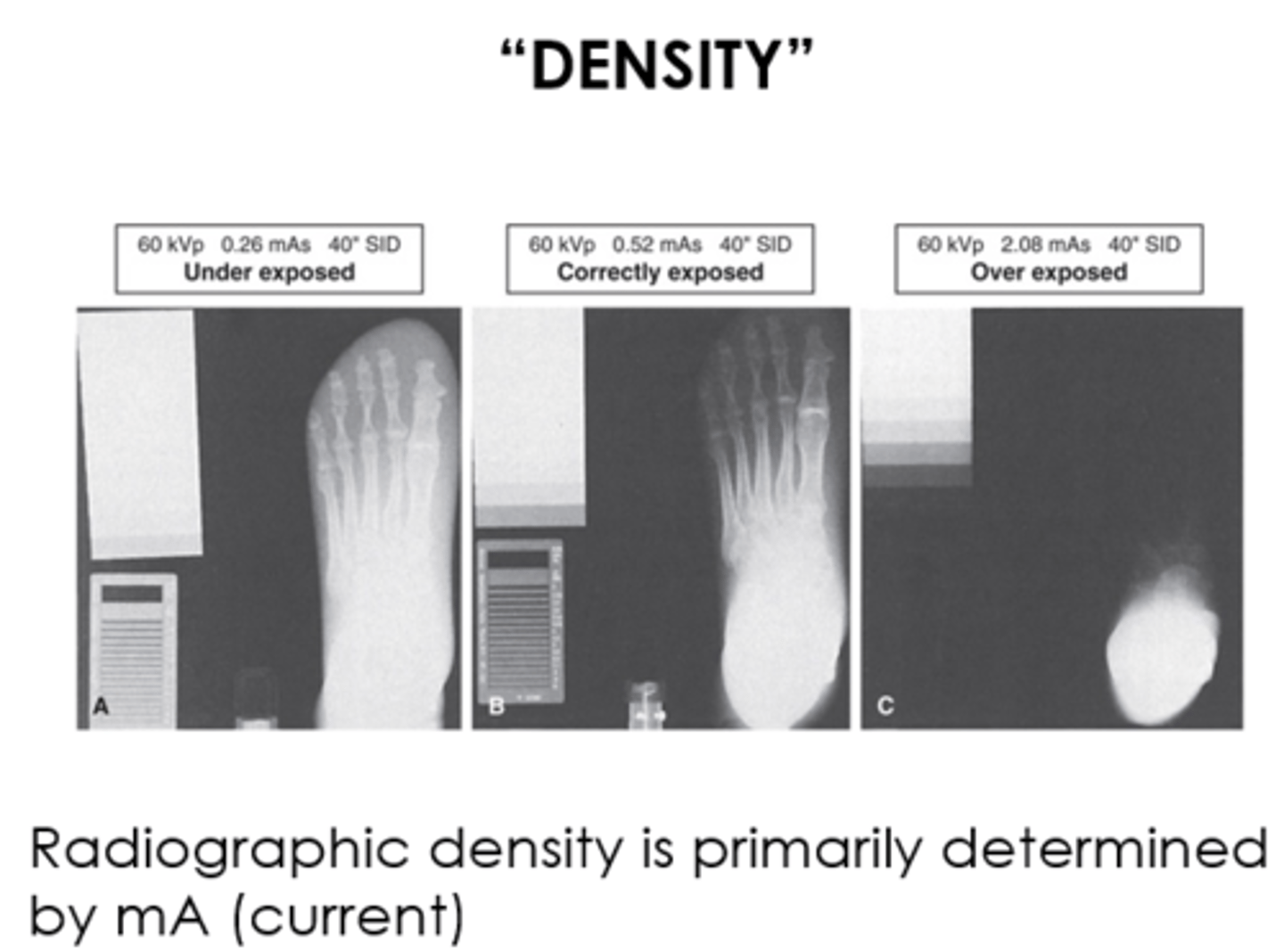

What is Density?

Defined as the amount of blackening on the radiograph, and it does this by varying the current and exposure time

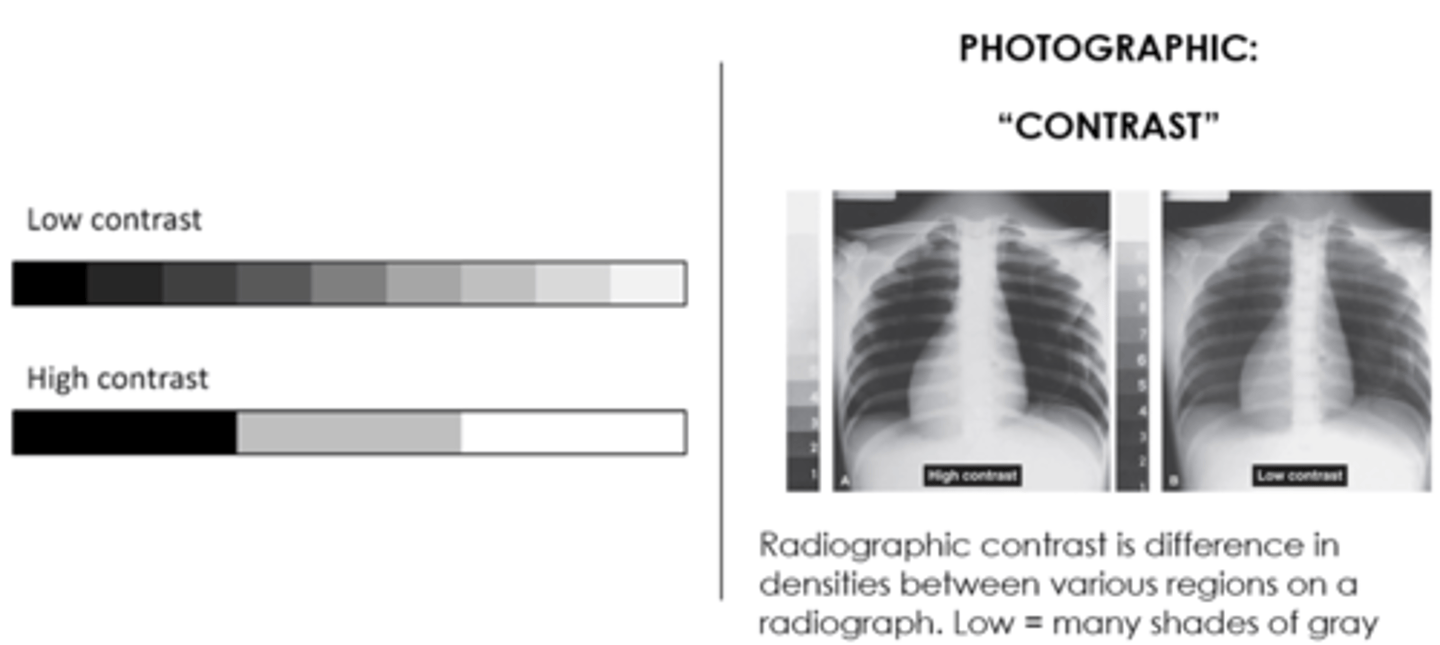

What is Radiographic contrast?

The difference among various adjacent radiographic densities

Greater variation = high contrast

Less variation = low contrast

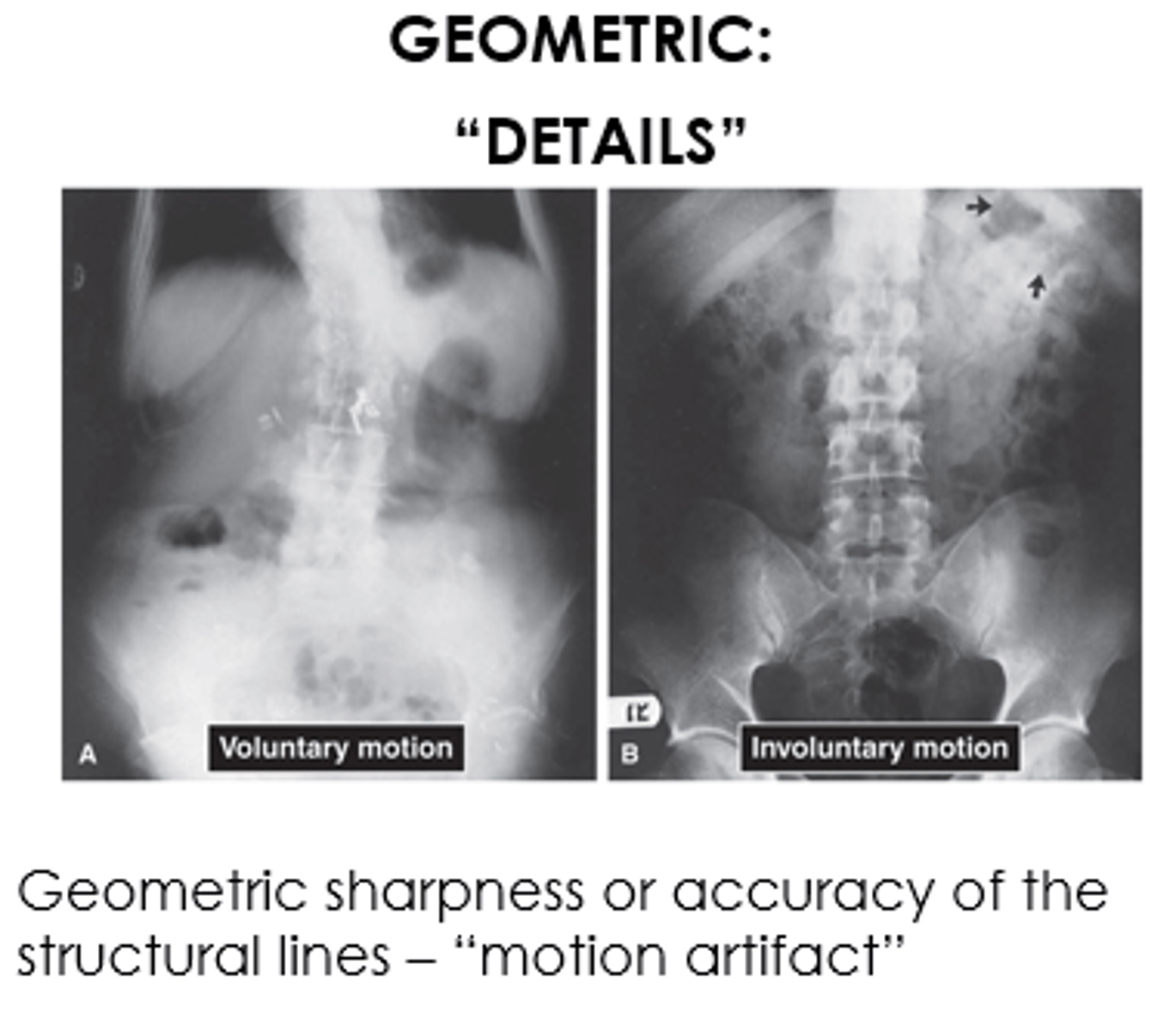

What is Detail?

- Geometric sharpness or accuracy of the structural lines recorded on the radiograph

- Usually because of motion artifact

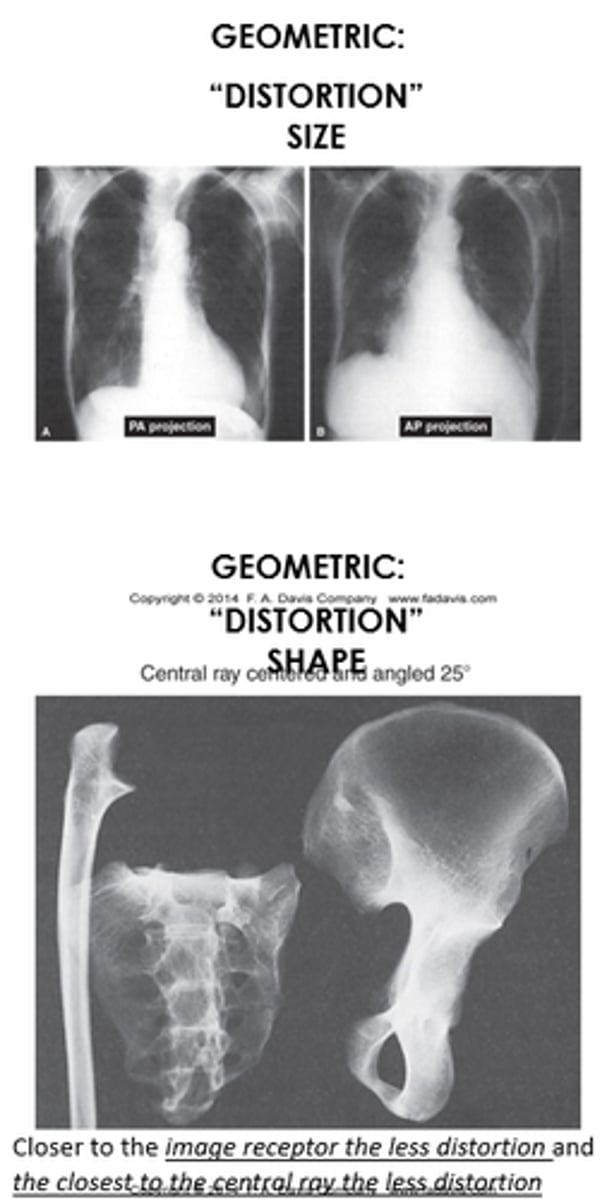

What is Distortion?

- Difference between actual object and the recorded object. Usually either size or shape distortion

- Closer to the image receptor the less distortion and the closest to the central ray the less distortion

What is Magnification?

Beam source - image receptor distance / beam source - patient distance.

Human vision can only see 32 shades of gray

Radiographic image interpretation requires what four things?

- Foundations in imaging technology

- Dimensional perception and knowledge of anatomy

- Organized search pattern

- Characteristic patterns of pathology

What does the ABCs stand for?

- Alignment

- Bone density

- Cartilage Spaces

- Soft Tissues

What are the factors involved in Alignment?

General Skeletal Architecture

- Gross size, appearance and number of bones

General Contour of Bone

- Normal shape and contour

Alignment of Bones to adjacent Bones

- Normal joint articulation and spatial relationship

What are the factors involved in Bone Density?

General Bone Density

- Contrast of soft tissue and bone (shades of grey)

- Contrast between cortical and cancellous bone

Textural Abnormalities

- Normal trabecular architecture

Local Bone Density Changes

- Sclerosis at areas of increased stress such as weight bearing surfaces or site of ligamentous, muscular, or tendon attachment

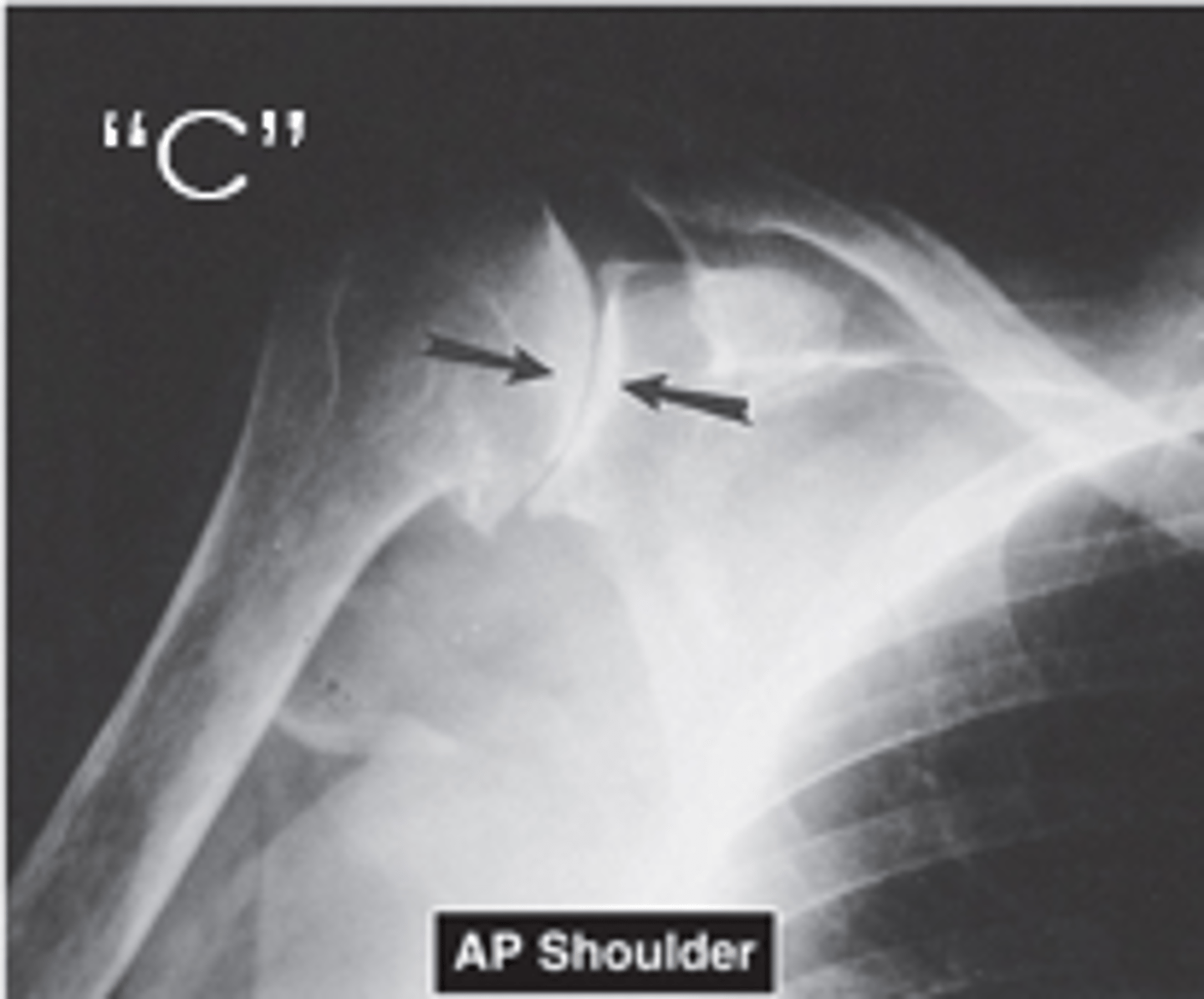

What are the factors involved in Cartilage Spaces?

Joint Space Width

- Well preserved joint spaces imply normal cartilage or disk thickness

Subchondral Bone

- Smooth surface

Epiphyseal Plates

- Normal size relative to epiphysis and skeletal age

What structures are Soft Tissue?

Muscles

- Look for wasting, swelling, edema, hemorrhage, or tumor

Fat pads and Fat lines

- Displacement is usually due to swelling

Joint Capsule

- Distended due to swelling or effusion

Periosteum

- Normally rather indistinct can have periosteal reaction

Miscellaneous

- Gas, calcification

What are the advantages of X-Rays?

- Fast

- Inexpensive

- Provides a relatively low radiation dose

- Provides an excellent definition of bone

- Screens for significant portion of pathologies

- Is valuable in directing which imaging study to use next if more information is needed to define a condition

What are the disadvantages of X-Rays?

- Radiographs can show only significant changes in bone density, Therefore, if a disease is slow to alter density, the evidence of the disease may not become visible until in its advanced stages

- Radiographs are 2-dimensional, and the 3rd dimension is limited by superimposition of tissues

- Soft tissue not well-defined

What are 3 diseases that may not become visible until in its advanced stages?

- Osteoporosis

- Avascular Necrosis

- Stress Fractures

What are examples of Non-Conventional X-Rays?

Fluoroscopy

Arthrography

Myelography

Arteriography & Angiography

Contrast-enhanced (inject or ingest a contrast medium)

What is Fluoroscopy?

A real time dynamic, continuous, or continuous radiographic exam used to guide interventional procedures

- Radiograph = Photograph

- Fluoroscopy = Movie

What is an Arthrography?

- An image made of a joint after it has been injected with a contrast

- There are conventional arthrography and MRI and CT arthrography

What is a Myelography?

- An image made with an injection of contrast medium into the subarachnoid space to examine the spinal cord and nerve roots

What is Arteriography & Angiography?

- Is an X-Ray examination of the arteries, or blood vessels. To make the arteries visible on x-ray, a type of dye called "contrast" is injected

- Is a medical imaging technique used to visualize the inside, or lumen, of blood vessels and organs of the body, with particular interest in the arteries, veins, and the heart chambers

What is Contrast-enhanced (inject or ingest a contrast medium)?

- Radiolucent = "Air", called a negative contrast

- Radiopaque = "Barium sulfate or iodine", called a positive contrast

What is the imaging chain?

- Humans play a critical role in the imaging system by their interpretation of the image and by their correlation of clinical findings with imaging information.

- The clinicians responsibility is to recognize always that if the results of any imaging study do not fit the physical findings, further clinical evaluation and diagnostic investigation are warranted.
