Microscope Parts

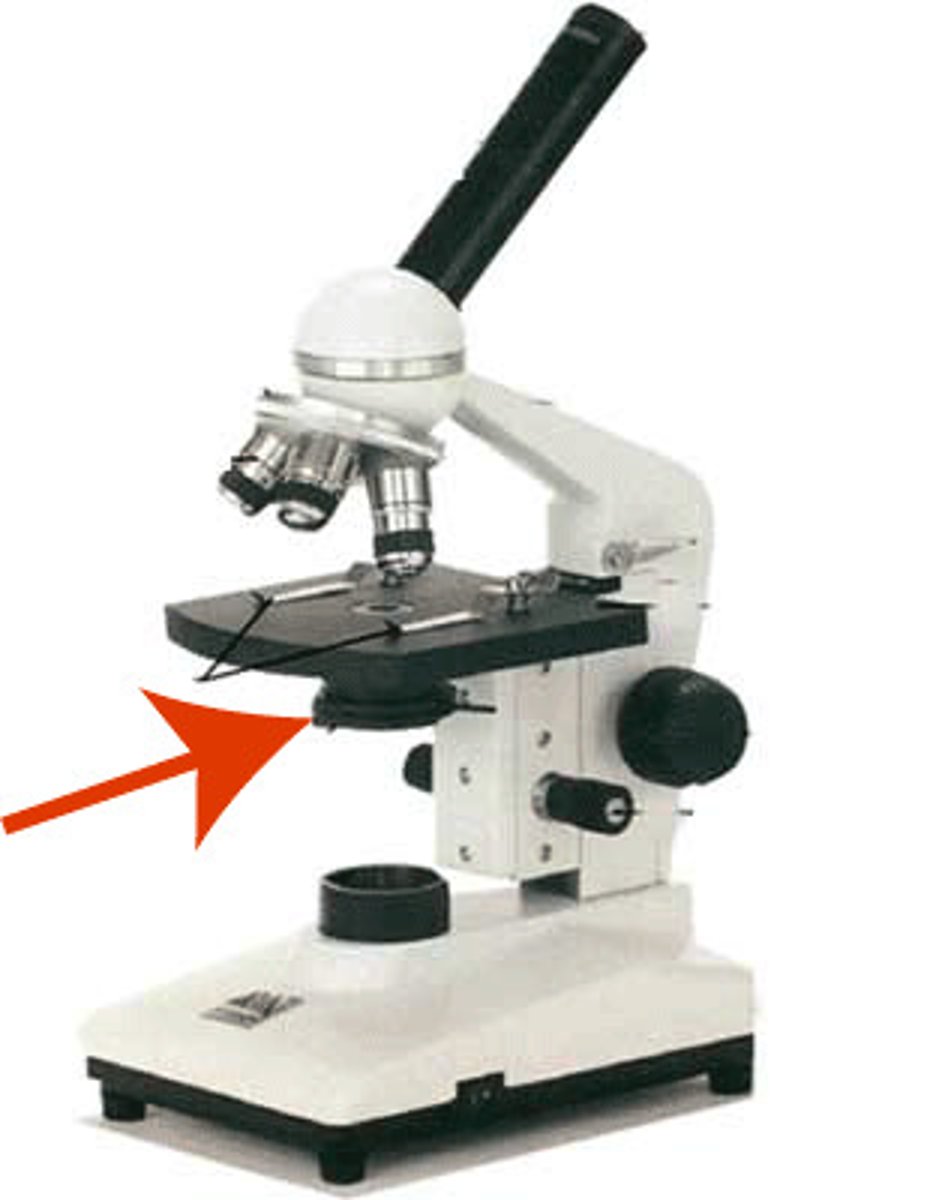

Diaphragm

regulates/controls the amount of light

Body Tube

located between the eyepiece and the nosepiece, separates the lenses

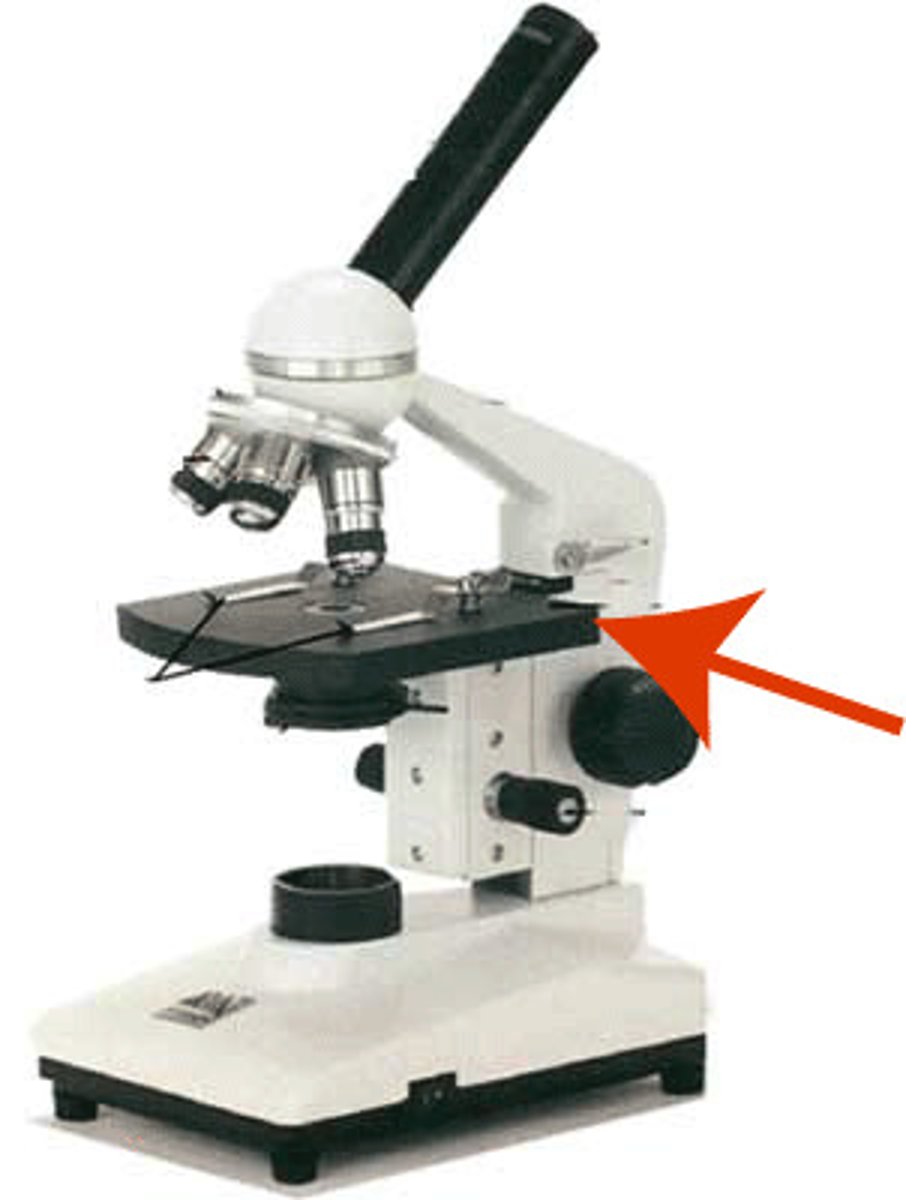

Stage

slide goes here, where the performance takes place

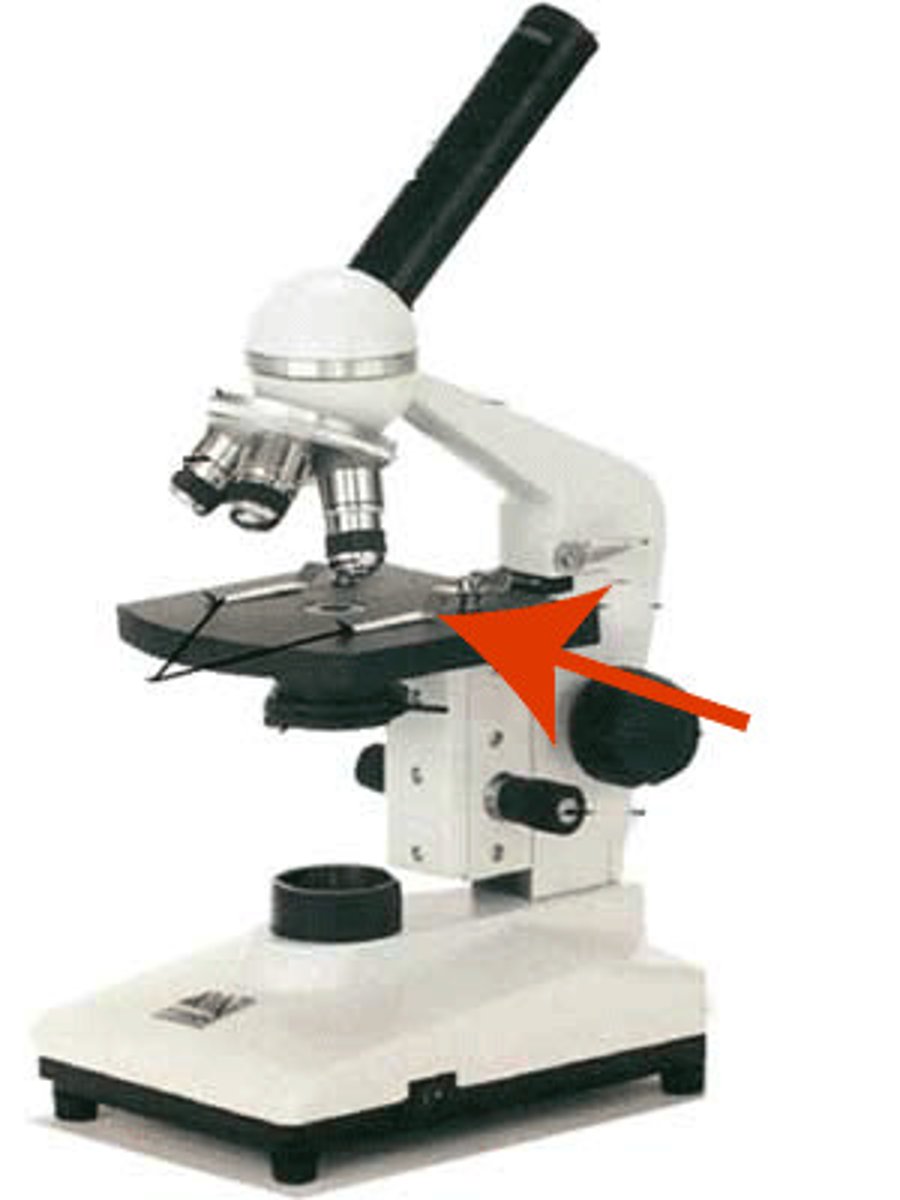

Stage Clips

holds the slide in place on the stage

High Power objective

(blue) magnifies about 40X found on the nosepiece

Middle Power Objective

(yellow) magnifies about 10X found on the nosepiece

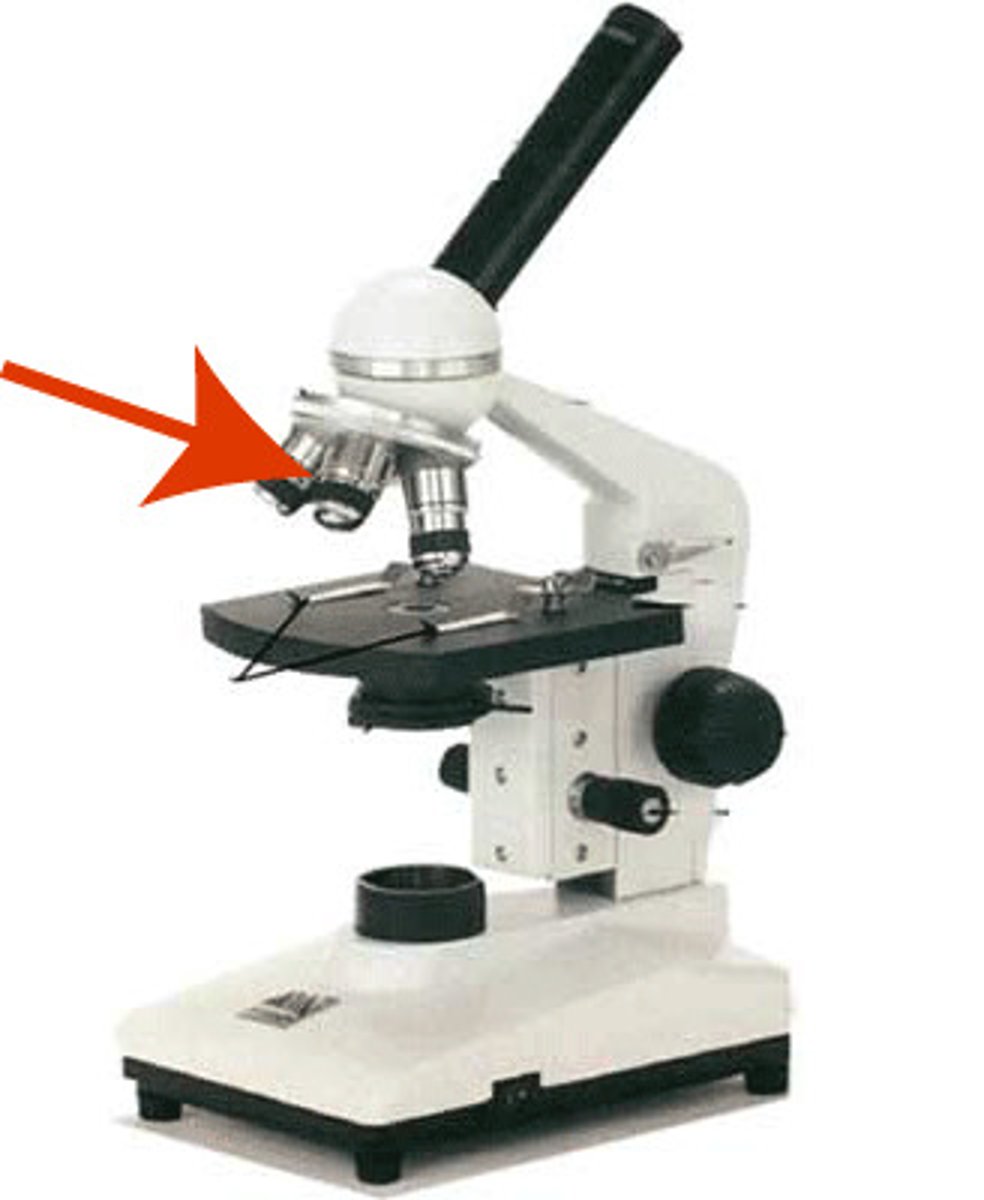

Low power objective

(red) magnifies about 4X found on the nosepiece

Base

bottom of the microscope, used to carry the microscope

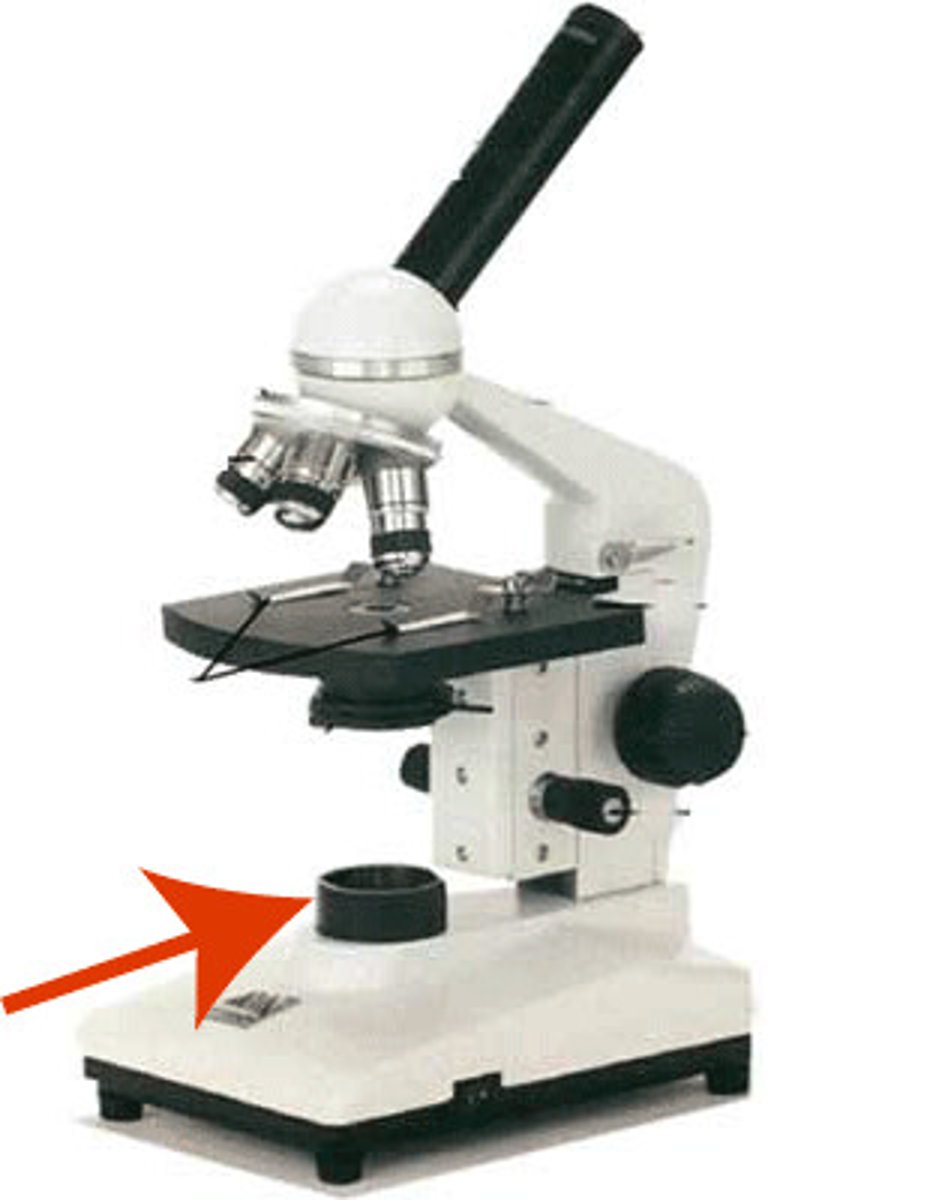

Light Source

gives us light to enable us to see the specimen on the slide

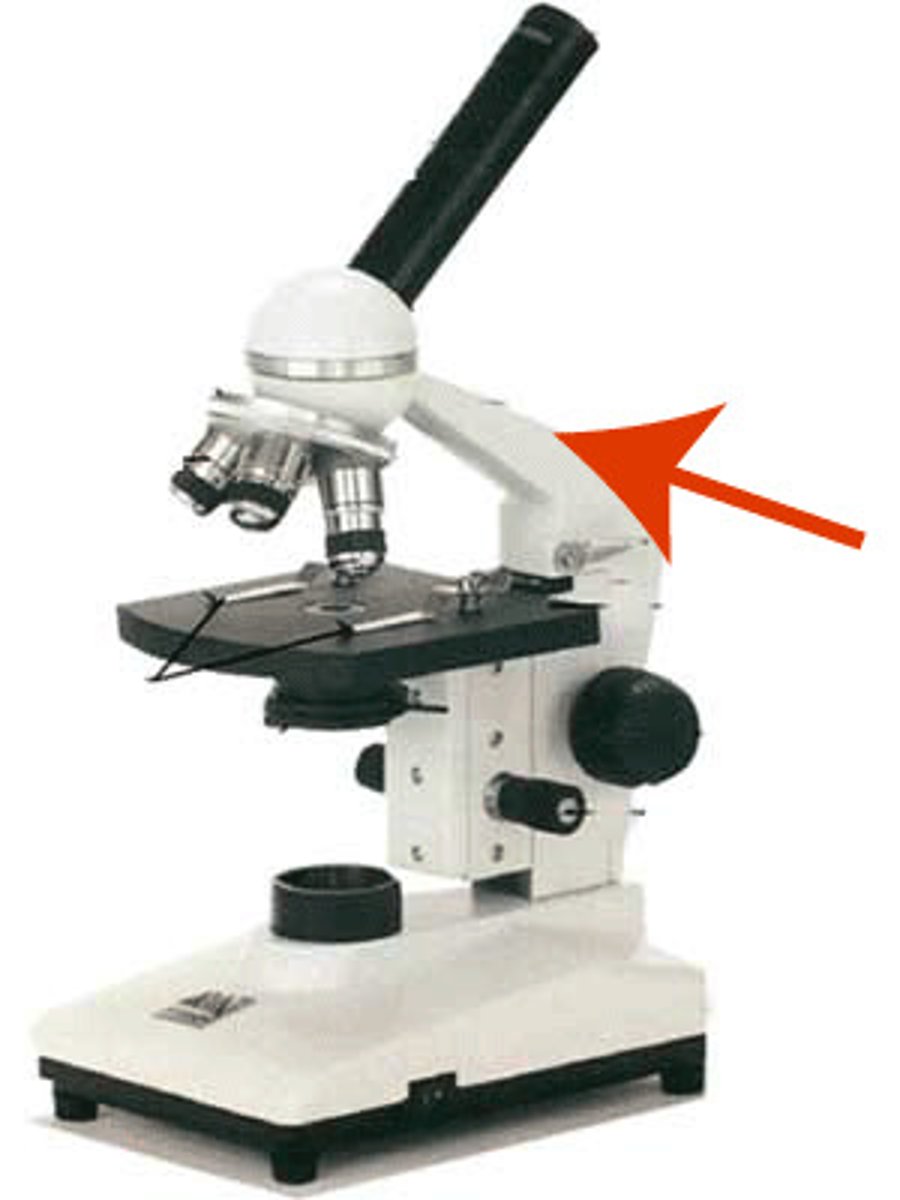

Arm

used in order to carry the microscope

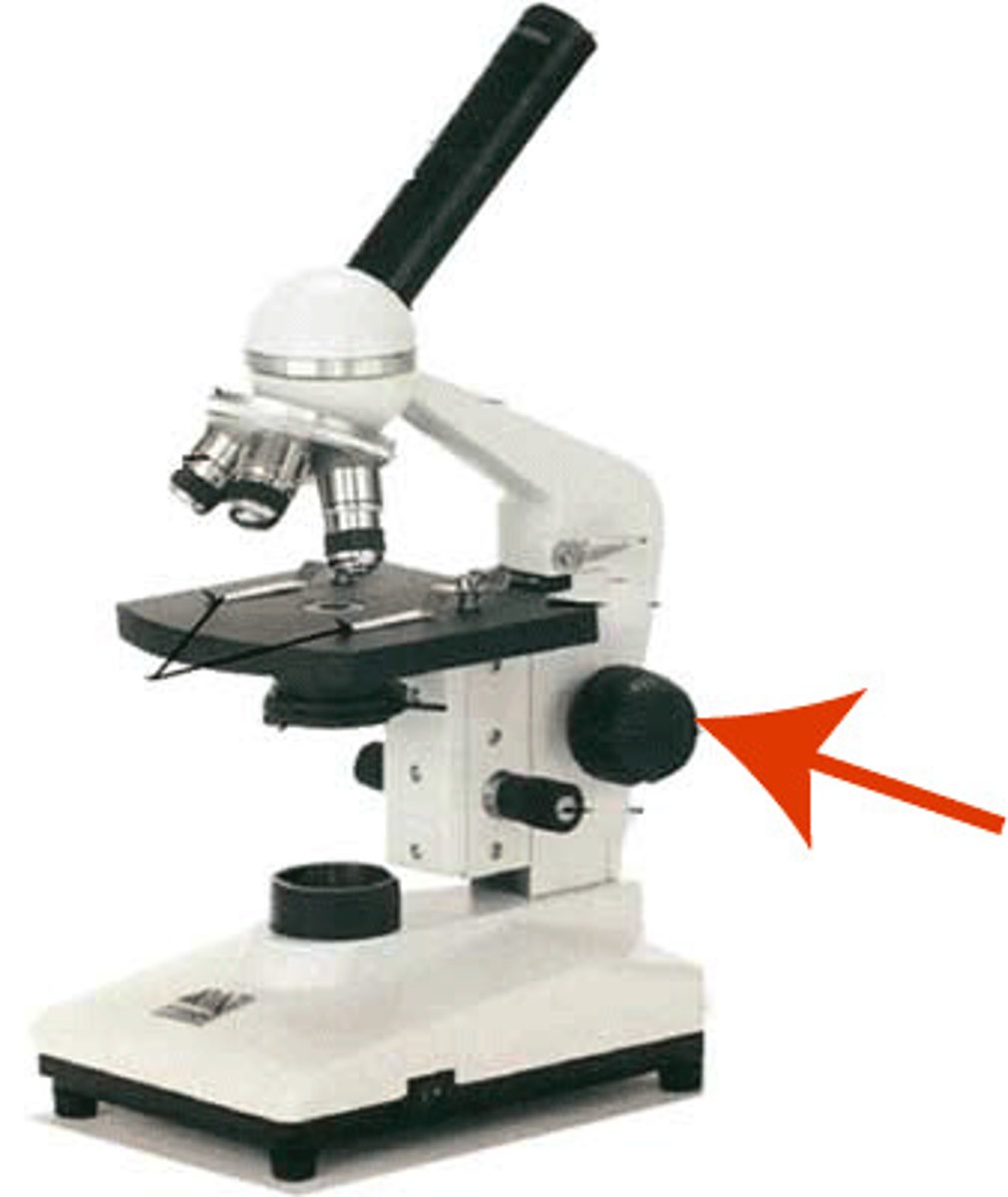

Coarse Adjustment Knob

moves the stage a lot, used first when viewing the slide. **NOT used when in high power

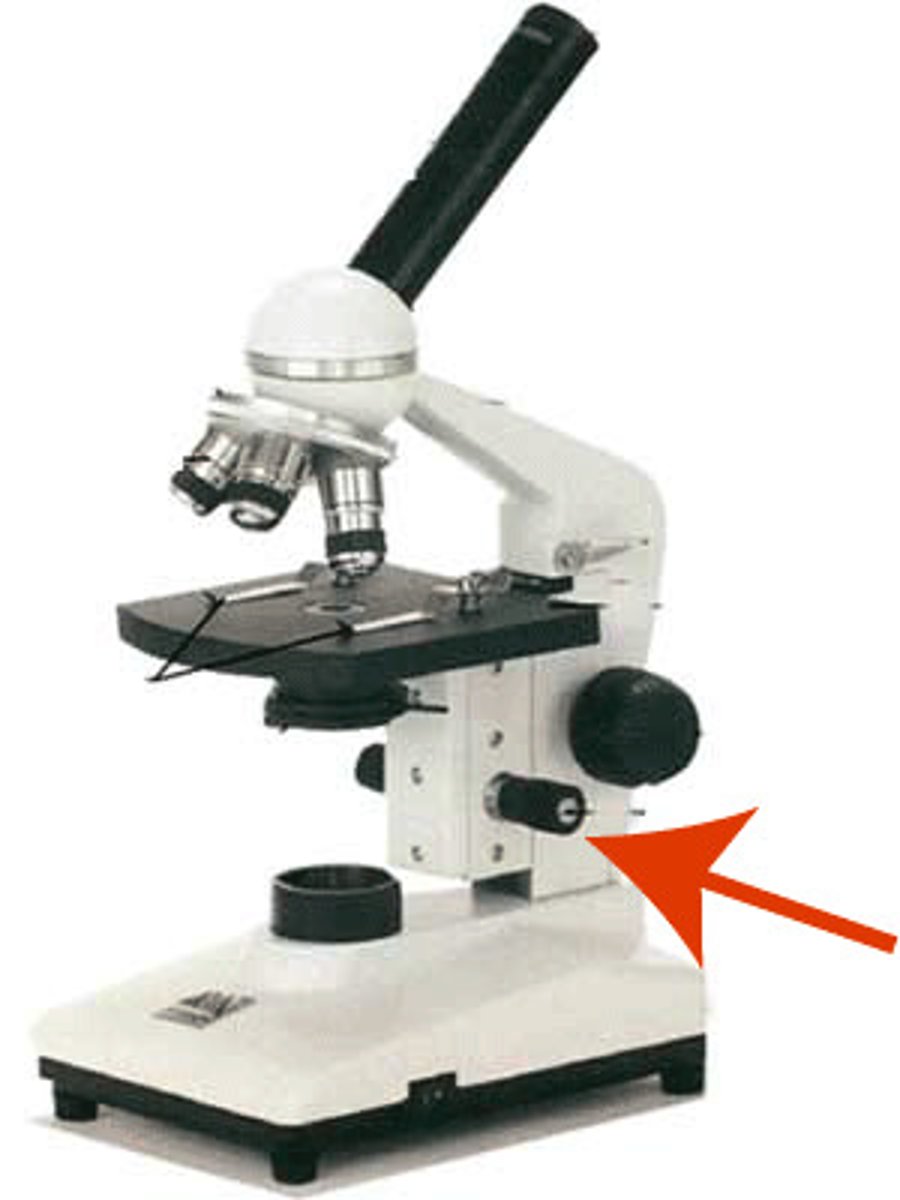

Fine Adjustment Knob

moves the stage a little, used to see details. When using high power this is the only knob used

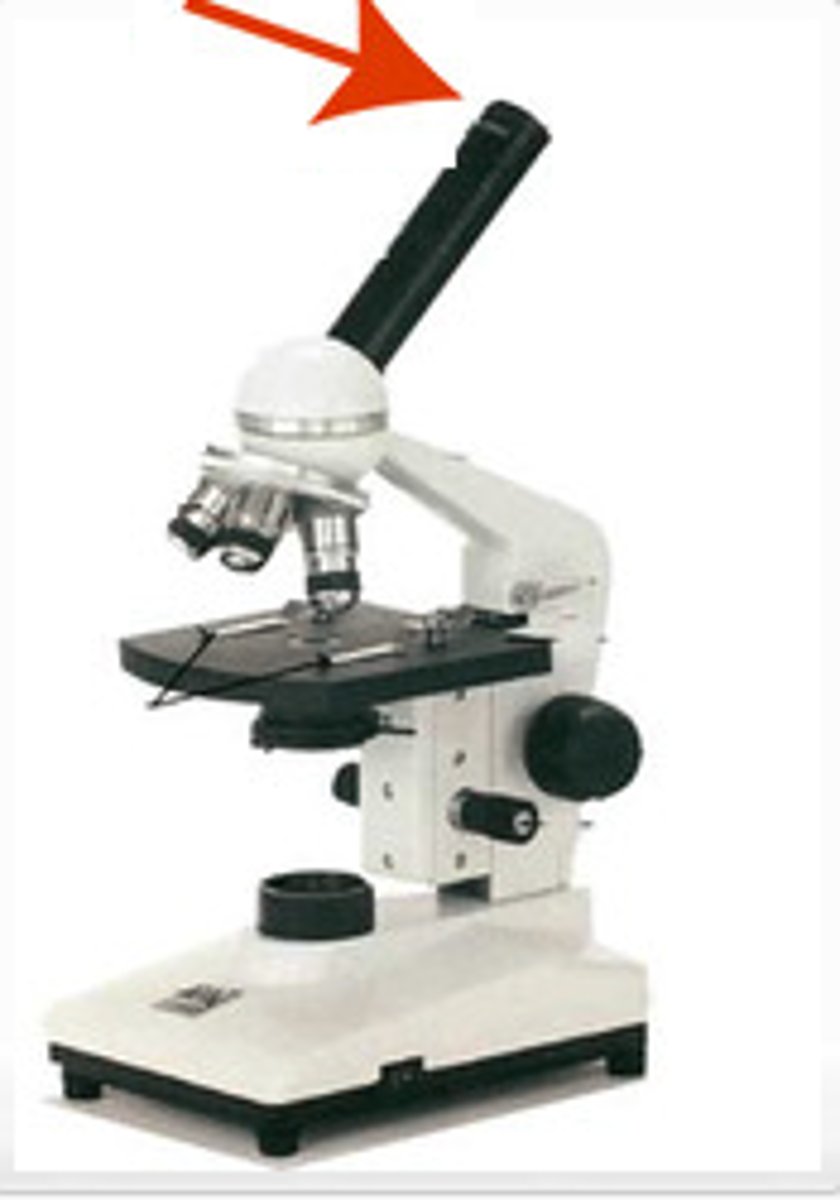

Eyepiece

used to view an object under the microscope, has a power of 10X

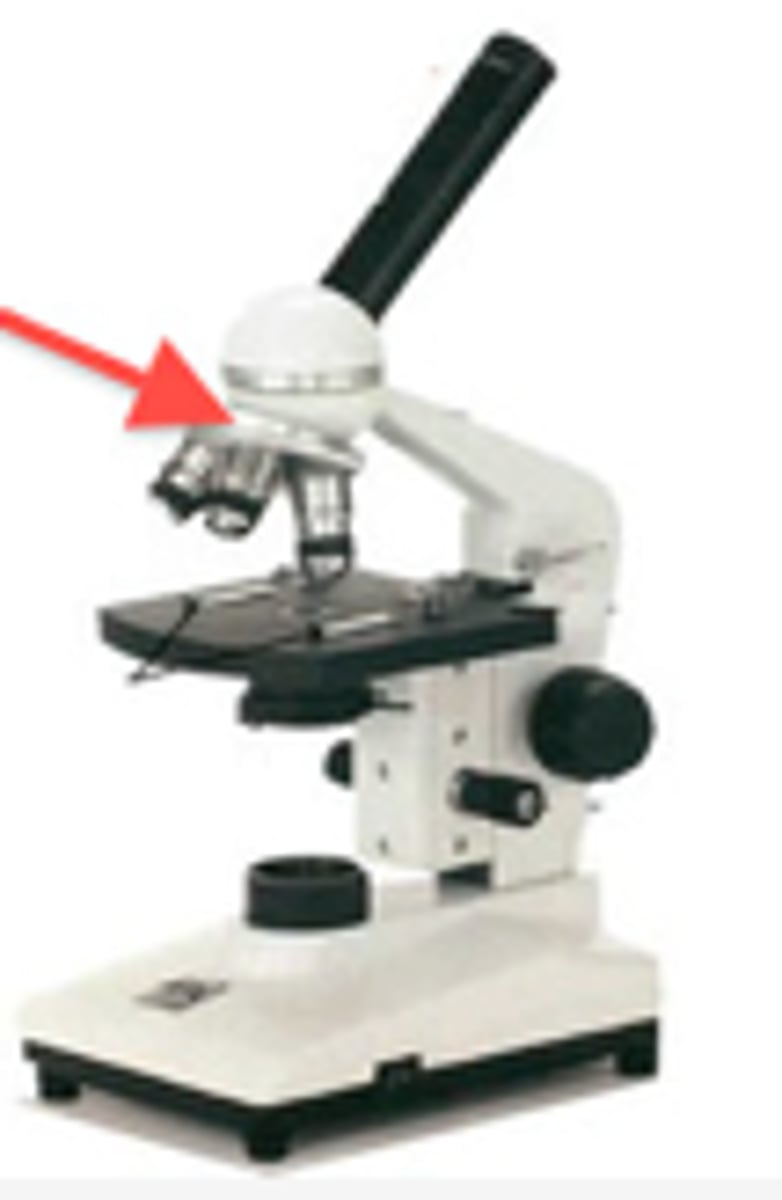

Revolving Nosepiece

Holds and rotates the objectives

Power of Eyepiece Lens

10X

Power of Scope on high power

400x

Power of only the low power objective lens

4x

Hold the microscope by the ...

arm and base.

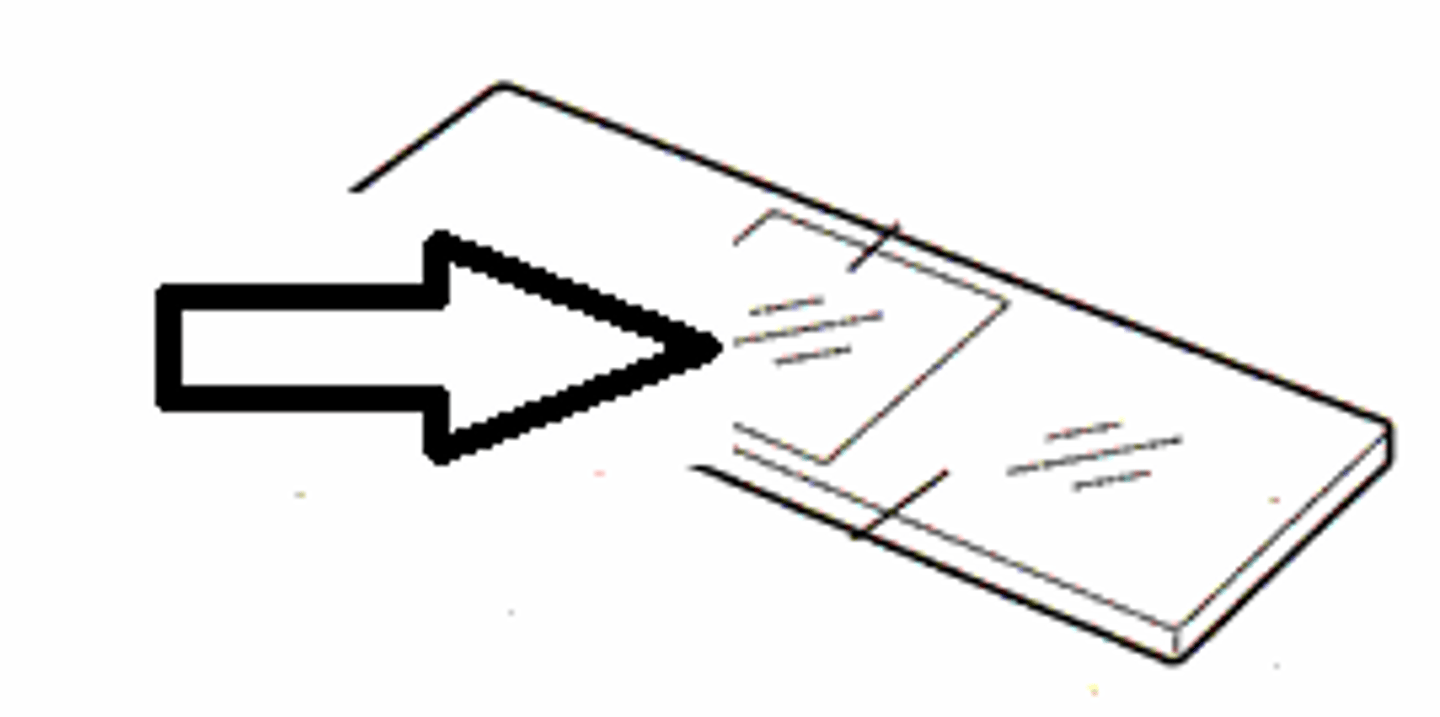

Cover Slip

Slide
