21 Terms

1
New cards
  • magnetic field strength = M_______ f___ d______

  • B= ____/____x_____

  • Measured in T____

  • magnetic flux density

  • B= force / I (current) x L (length)

  • Tesla

2
New cards
  • Magnetic field lines- Represent the force acting on a f___ i____ north pole

    • they stem from _____ and terminate at the ____

    • proximity relates to _____

  • free isolating

    • north , south

    • strength

3
New cards

A ______ charge creates an electromagnetic field

  • This charge takes a ______ path in a magnetic field. This is because the force and ________ __ ______ are __________

moving

circular

direction of motion , perpendicular

4
New cards

right hand rule?

  • _____ shows the direction of the current in the wire and your _____ , the direction of the magnetic field

thumb , fingers

5
New cards

motor effect?

  • when an _____ magnetic field interacts with an _____ one that travel in the same direction.

    • as they are v_____ they “merge” and create a magnetic field around a wire as the magnetic pressure is _____.

external, internal

vectoral , greater

6
New cards

No forces acting upon the wire?

  • when the two magnetic fields travel in opposite directions they ____ ___.

    • the magnetic field due to the ____ interacts with the ____ magnetic field

      • this means there is ___ force acting upon the wire so it ___

cancel out

wire, external

no , falls

7
New cards

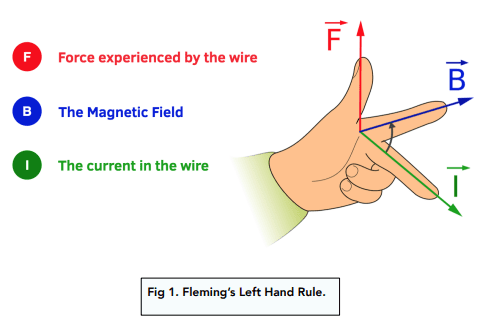

Flemings left hand rule?

  • shows the direction of the _____ acting on a ______ _____ acting on a magnetic field

force , positive charge

<p>force , positive charge</p>
8
New cards

B = f/IL equation manipulation

  • B = number of ____ _____ per ___ ___

    BA = phi = _______ ____ which is the number of ____ ____ passing through the ______ ___ perpendicular to the ____ ____

  • phi = flux which is measured in Wb (_____)

field lines , unit area

magnetic flux, field lines, surface area, surface area

webber

9
New cards

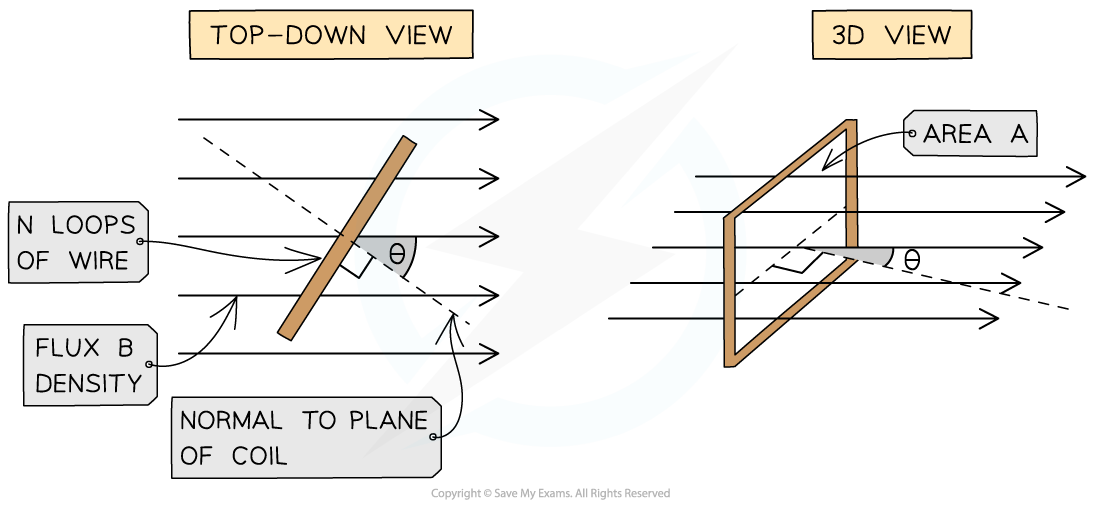

Flux linkage?

  • N phi or____ _______ = BANCos theta which is the ____ number of field lines passing through the surfaces that is perpendicular to the surface.

    • measured in Wb ____

flux linkage , total

turns

<p>flux linkage , total</p><p>turns</p>
10
New cards

Faradays Law?

  • EMF = - N d__/d_

    • which means the ____ __ _____ of flux linkage OR how quickly we ___ the _____ _____ OR how ______ do the ___ of field lines change

phi, t

rate in change

cut, field lines, quickly, number

11
New cards

Lenz’s Law?

  • The negative symbol in faradays law links to how the force ______ must be able to overcome the _____ force to conserve _____ in one direction.

applied , induced , energy

12
New cards

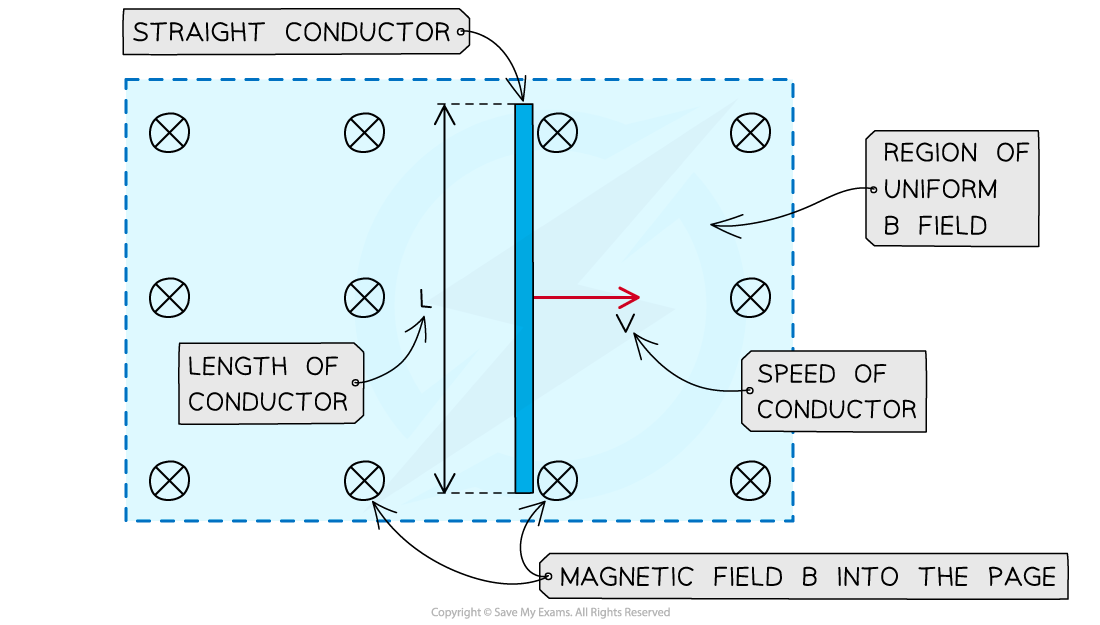

Moving wire in a magnetic field?

  • Moving the wire in the magnetic field creates a ____ __ ______ in the upwards (____) sense, therefore all of the ______ fall to the bottom creating a ________ ________.

  • The moving wire ____ the magnetic field lines.

  • If we place a bulb next to the wire and keep moving the wire then the lines will continue to be cut , creating a continuous ______ ___ so the bulb stays on.

  • Once we stop moving the wire , the _____ ___ will stop, the bulb will turn off, and the _____ will stop moving to the bottom and will now wish to ______ the charge in the wire.

  • Flemings _____ ___ ___ shows that the force applied is in the right direction however Flemings ____ ____ ___ shows that the force being opposed is in the opposite direction to fulfil _____ ___.

flow of electrons

positive, electrons

potential difference

cuts

induced emf

induced emf

electrons

neutralise

right hand rule

left hand rule

Lenz’s Law

<p>flow of electrons </p><p>positive, electrons </p><p>potential difference </p><p>cuts </p><p>induced emf</p><p>induced emf</p><p>electrons</p><p>neutralise</p><p>right hand rule</p><p>left hand rule</p><p>Lenz’s Law</p>
13
New cards

Work done in a moving wire in a magnetic field?

  • a force is applied upon some distance

    • W = F X D therefore, W = ___ x _

BIL x S

14
New cards

Faradays law and work done derivation? (1)

  • W = F x D

    • F = ___ therefore W = ___S however _= q/t so W = __q_/t

    • W/q = ___/t however W/q = EMF therefore EMF = ___/t

    • /t = V so EMF= __V

BILS , I

BLQS/t

BLS/t , BLS/t

s/t , BLV

15
New cards

Faradays law and work done derivation? (2)

  • F = ___ where _ = q/t

    • so F = __q/t

    • however _/t = V

    • F= ___

BIL , I

BLq/t

L/t

Bqv

16
New cards

AC?

  • Current flows in ___ _____

    • always generates a constantly ________ magnetic flux

Alternating current

both directions

changing

17
New cards

Transformers

  • Used to increase or decrease ______ in the next step by changing the ______ __ ____ in a coil

voltage

number of turns

18
New cards

Induced EMF in transformers

  • -n dphi/dt1 = -n dphi/dt2

  • If we _____ 100 field lines then 100 field lines must also be ___.

induce , cut

19
New cards

Voltage and number of turns

V_/ V_ = N_/ N_

VP/VS = NP/NS

20
New cards

Transformer efficiency

  • % = I- V- / I- V-

    • Increase efficiency- place ___ closer to increase the rate in change in ___ ______ to increase the _______ ___

    • or _____ the ___

      • Reduce heat energy loss- insulate the ___ core with ______ (_________) to reduce (_____) currents flowing to the ___ core

        • Reduce resistivity- use wires with a large ___-_______ ____ as R = __/_

  • % = IS VS / IP VP

    • coils

    • flux linkage , magnetic flux

    • overlap, coils

      • iron , plastic (lamination) , (eddy) , iron

        • cross-sectional area , R = rho x L / A
