Chemistry Molecule Shapes

EPN: 2

EPG: linear

EPN: 3

EPG: Trigonal Planar

EPN: 4

EPG: Tetrahedral

EPN: 5

EPG: Trigonal Bipyramidal

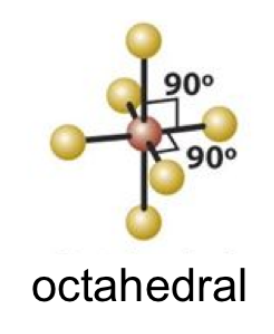

EPN: 6

EPG: Octahedral

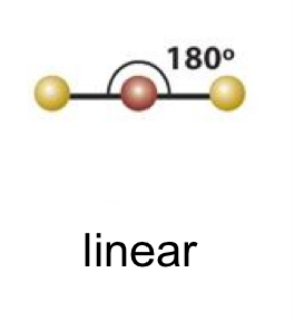

(2 bonds; 0 lone pairs)

linear 1

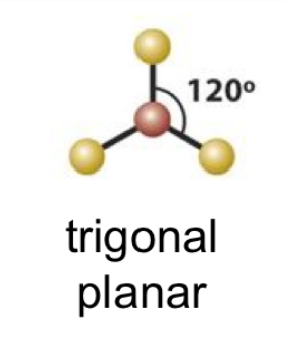

(3 bonds; 0 lone pairs)

trigonal planar

(2 bonds; 1 lone pair)

bent 1

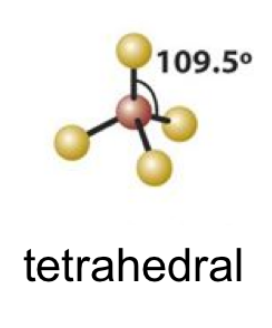

(4 bonds; 0 lone pairs)

tetraheadral

(3 bonds; 1 lone pair)

trigonal pyramidal

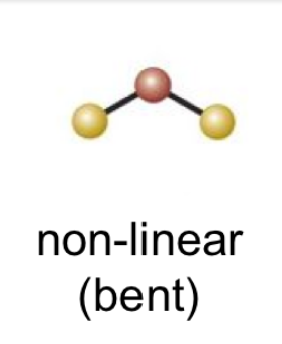

(2 bonds; 2 lone pairs)

bent 2

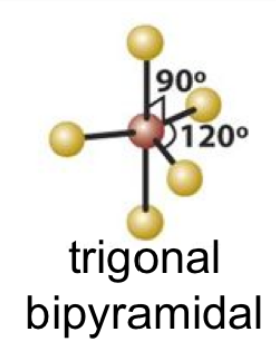

(5 bonds; 0 lone pairs)

trigonal bipyrimidal

(4 bonds; 1 lone pair)

seesaw

( 3 bonds; 2 lone pairs)

t shaped

(2 bonds; 3 lone pairs)

linear 2

(6 bonds; 0 lone pairs)

octahedral

(5 bonds; 1 lone pair)

square pyramidal

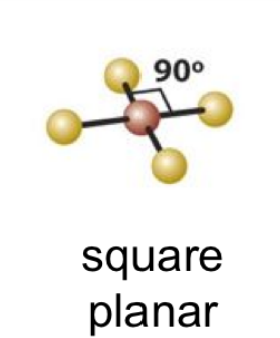

(4 bonds; 2 lone pairs)

square planar

linear bond angle

180

trigonal planar bond angle

120

tetrahedral bond angle

109.5

tigonal bipyrimadal and seesaw bond angles

90 and 120

t shapes bond angles

90

octahedral bond angle

90

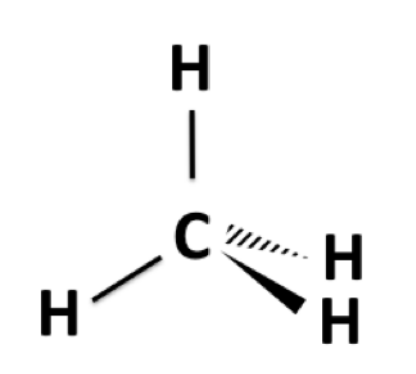

3D drawing
