physics - waves

What are waves?

a transfer of energy from one place to another through oscillations or vibrations, without transferring matter

What happens when a wave moves?

When a wave moves:

- The energy moves forward.

- The particles of the medium vibrate back and forth around a fixed position.

- Example: In ocean waves, the water doesn't travel across the ocean — it moves up and down while the energy travels forward.

What are the different types of waves?

transverse and longitudinal

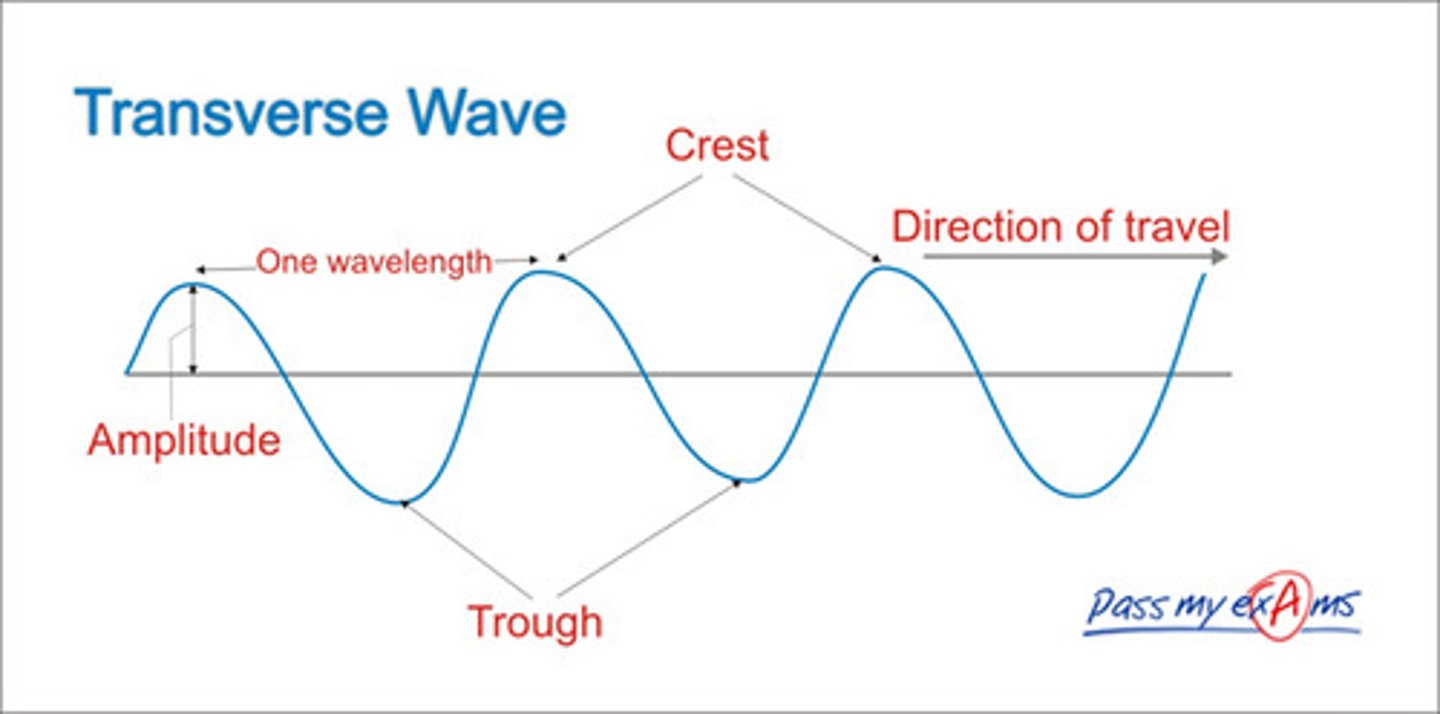

What are transverse waves?

- a type of wave where the oscillations occur at right angles (perpendicular) to the direction of energy transfer

What are oscillations?

repeated, back-and-forth vibrations of particles or fields about a central equilibrium position, transferring energy without transferring matter

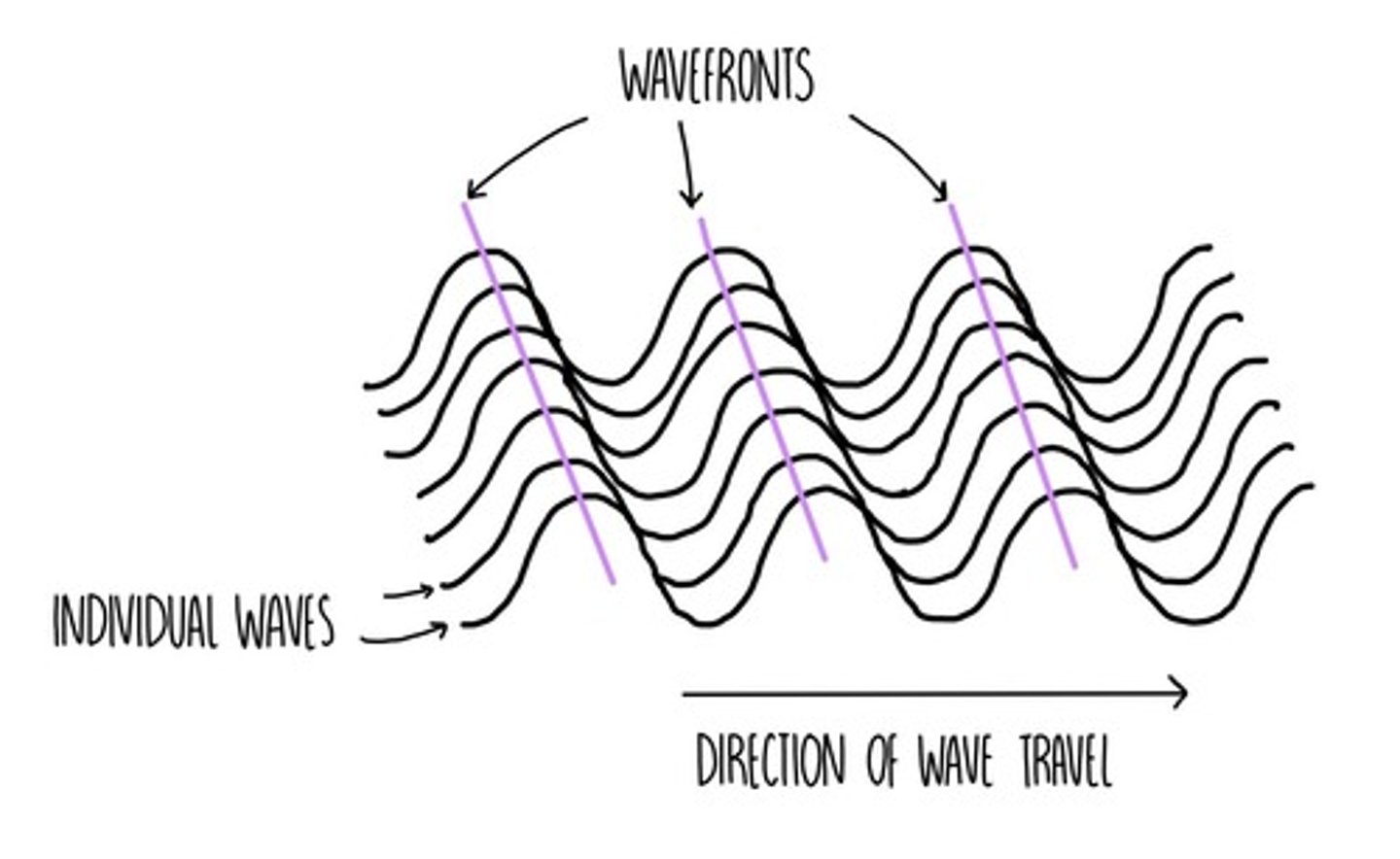

What is the wavefront of a wave?

an imaginary surface connecting all adjacent points on a wave that are in the same phase

Examples of transverse waves?

- electromagnetic waves

- Water waves

- Light waves

What are longitudinal waves?

a wave where the particles of the medium vibrate parallel (in the same direction) to the direction of energy transfer

Examples of longitudinal waves

- Sound waves

What are the key features of waves?

- Wavelength (λ)

- Frequency (f)

- Amplitude

- Wave Speed (v)

- Period

Features of transverse waves?

peaks and troughs

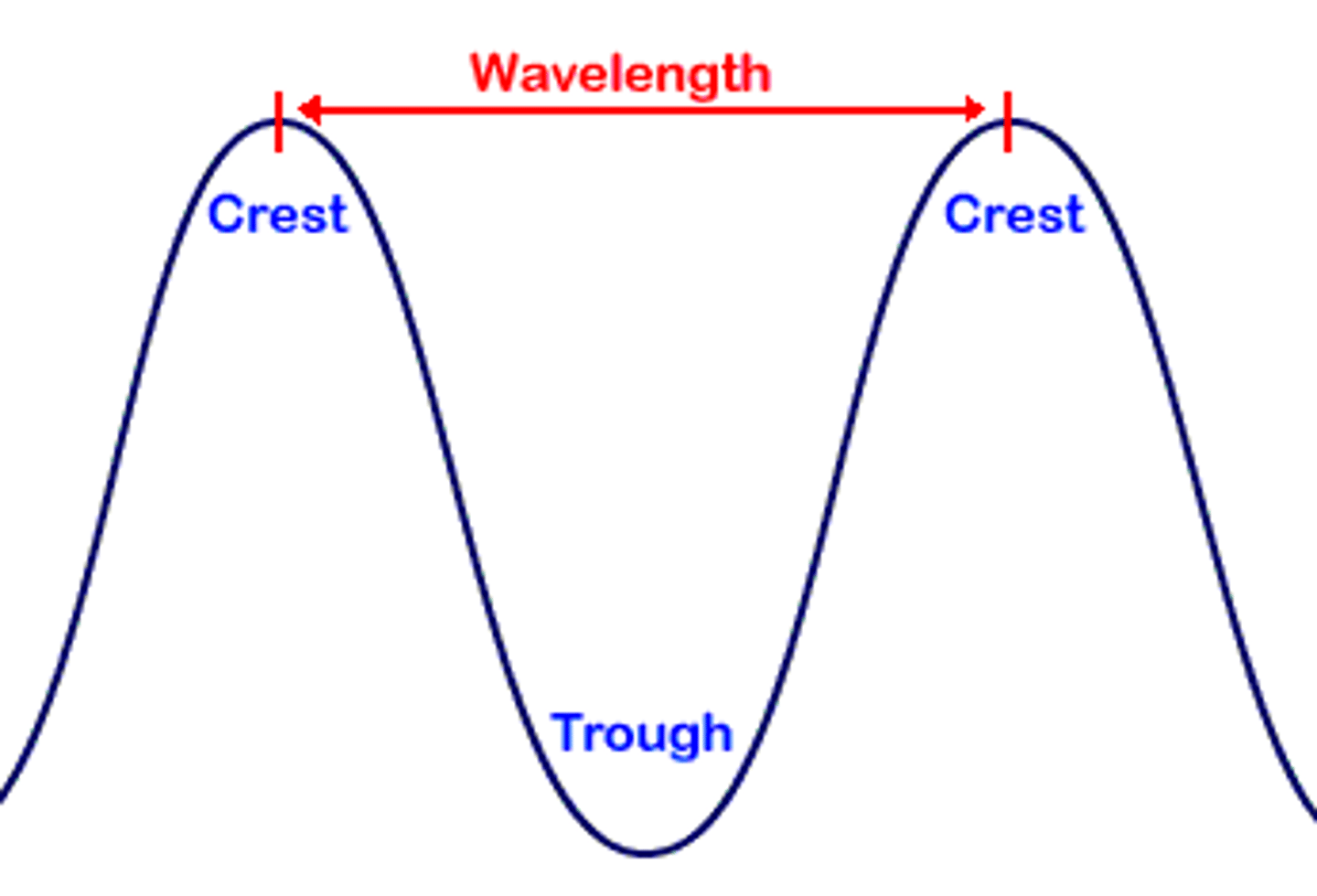

What is the peak/crest of the wave?

The highest point of a wave

What is the trough of a wave?

the lowest part of a wave

Do longitudinal waves have crests and troughs?

no

Features of longitudinal waves?

compressions and rarefactions

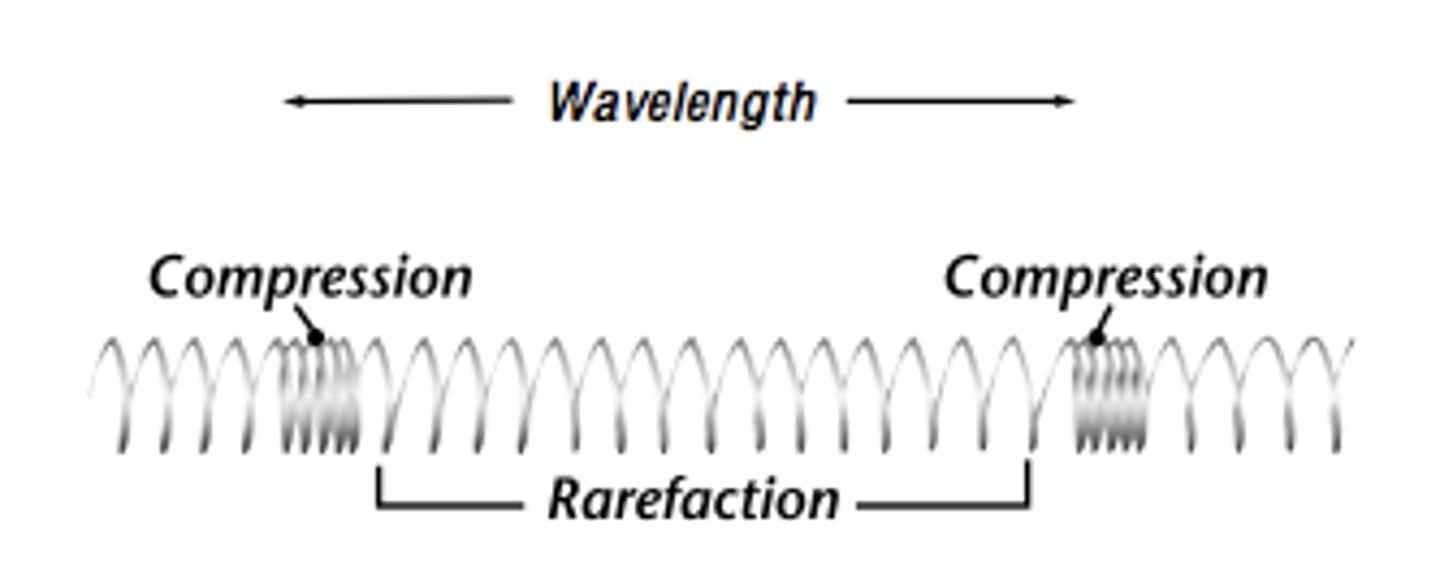

What are compressions of a wave?

regions in a longitudinal wave where the particles of the medium are pushed closest together, resulting in maximum density and high pressure

What is the rarefraction of a wave?

a region in a longitudinal wave (like sound) where the particles are spread furthest apart, creating an area of low pressure and low density. It is the opposite of compression

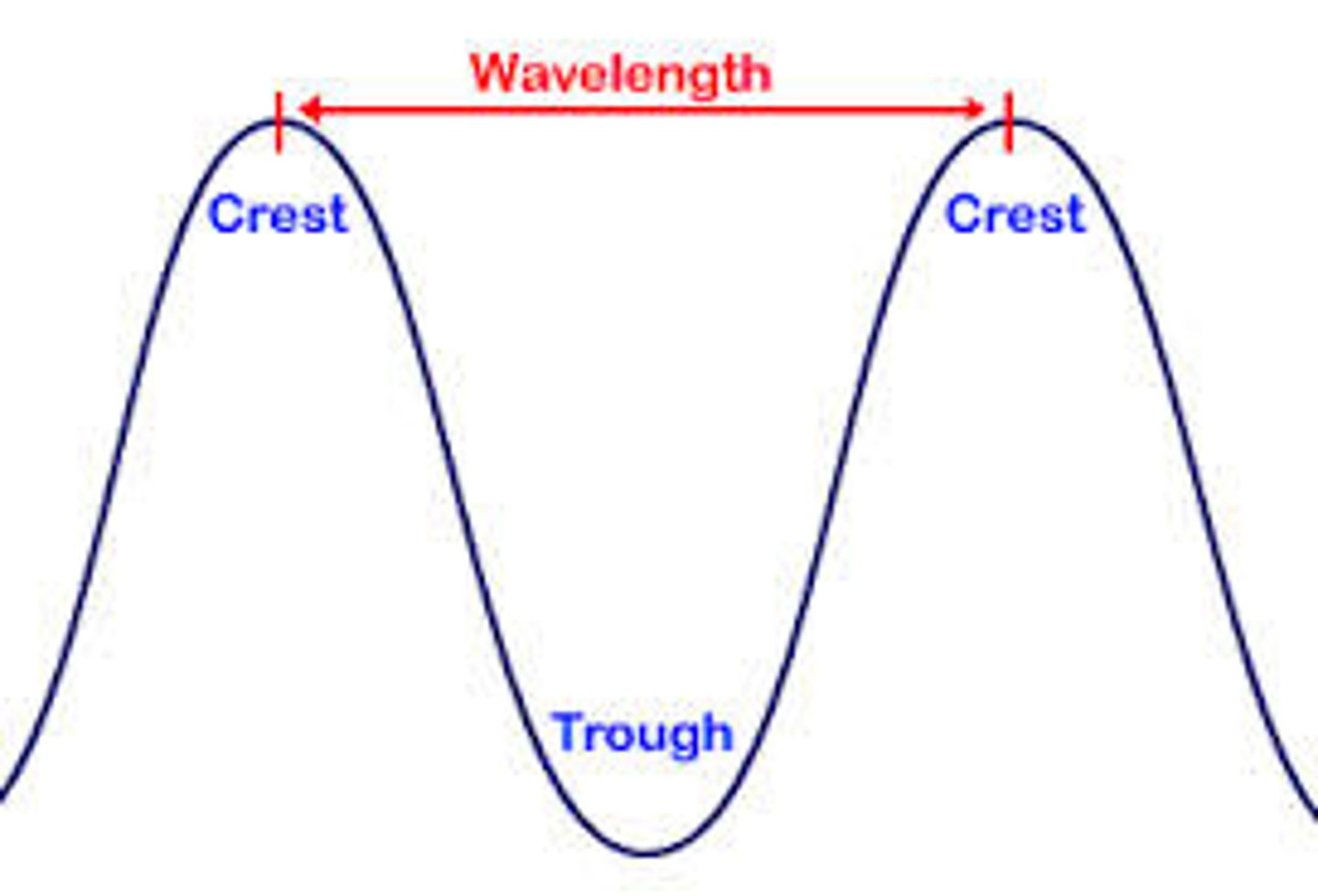

What is the wavelength (λ)?

- the distance from any point on a wave to an identical point on the next wave

- the distance between crests in transverse waves

- the distance between compression to compression in longitudinal waves

What is the frequency of a wave?

how many waves pass a point every second

What does a higher frequency mean?

More wave cycles pass a fixed point per second, resulting in a shorter wavelength and higher energy

it results in a higher pitch for sound

What is frequency measured in?

Hertz (Hz)

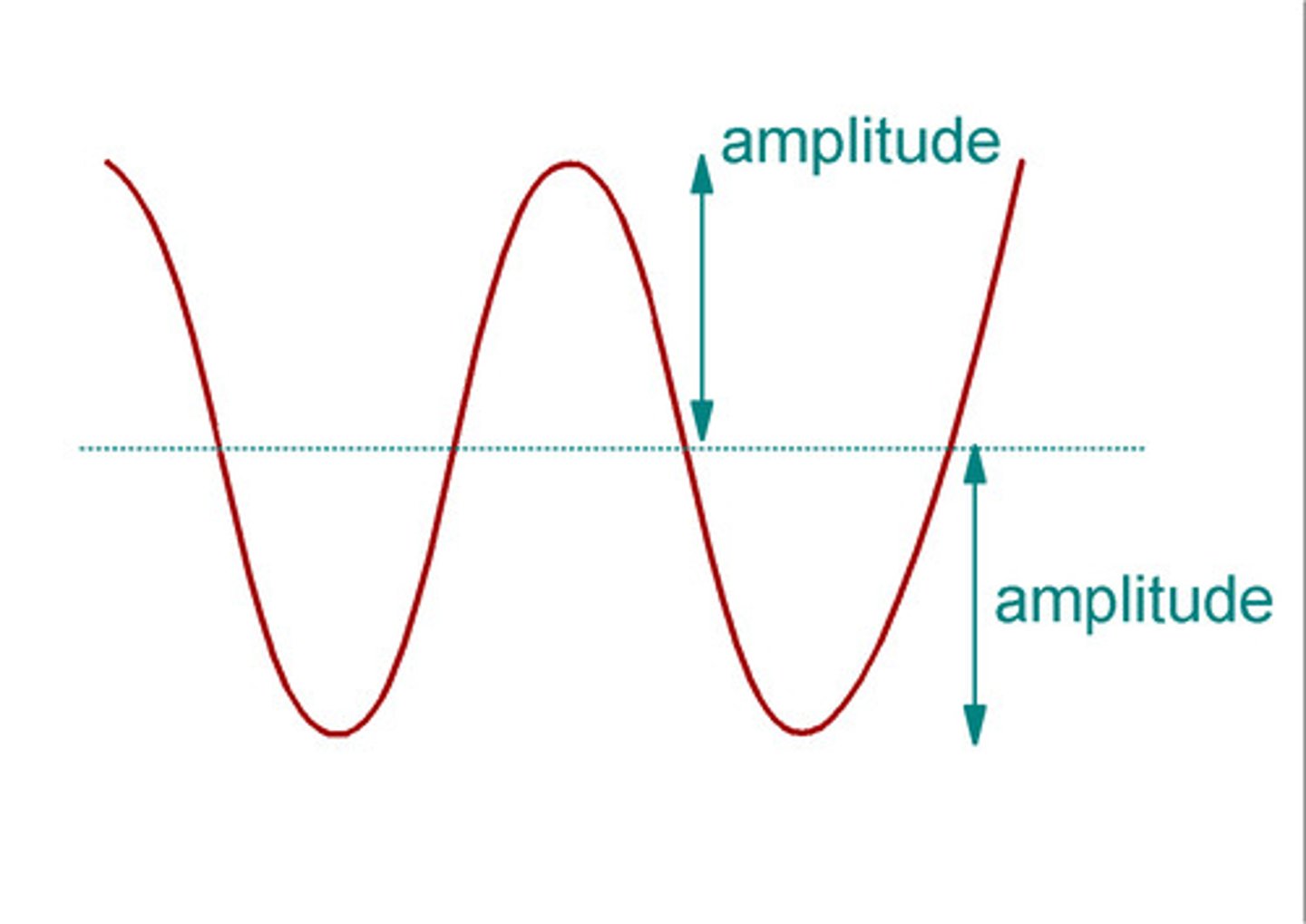

What is the amplitude of a wave?

- the maximum displacement or distance moved by a point on a wave from its undisturbed (rest) position

- the height of the wave from its rest position to its peak

- It shows how big the vibration is

What does a bigger amplitude mean?

The wave is carrying more energy which leads to a louder sound for sound waves or brighter light for light waves.

What is wavespeed (v)?

The speed at which energy is being transferred

What is the equilibrium position of a wave?

\- the central, undisturbed position of the medium's particles when they are not vibrating

- It represents the zero-displacement line where the medium would remain if no wave were passing through it

What is wavespeed measured in?

m/s

Formula for wavespeed?

wavespeed = frequency x wavelength

What is the period (T) of a wave?

the time it takes for one complete cycle, oscillation, or wavelength to pass a fixed point

What are mechanical waves?

waves that require a medium through which to travel

Examples of mechanical waves

sound waves, water waves, seismic waves

What type of waves are electromagnetic waves?

transverse waves

What are electromagnetic waves?

- transverse waves produced by oscillating electric and magnetic field

- they transfer energy from a source to an absorber

- They do not require a medium

How fast do electromagnetic waves travel in a vacuum?

they travel at the speed of light (3 x 10⁸)

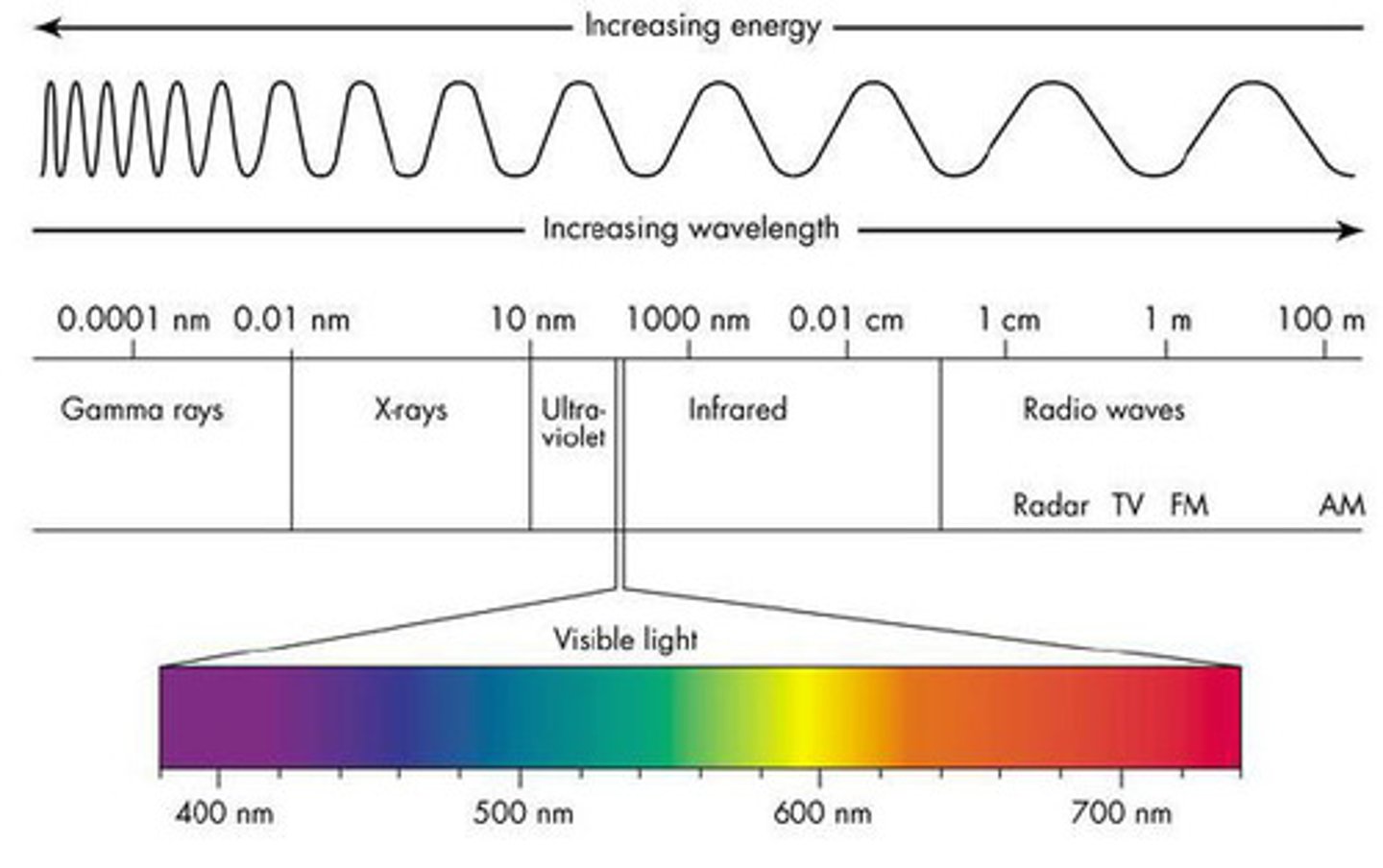

electromagnetic spectrum

Radio waves

Microwaves

Infrared

Visible light

Ultraviolet

X-rays

Gamma rays

What electromagnetic wave has the highest frequency?

Gamma rays

What electromagnetic wave has the lowest frequency?

Radiowaves

What electromagnetic wave has the most energy?

gamma rays

What electromagnetic wave has the least energy?

radiowaves

What electromagnetic wave has the longest wavelength?

radio waves

What electromagnetic wave has the shortest wavelength?

gamma rays

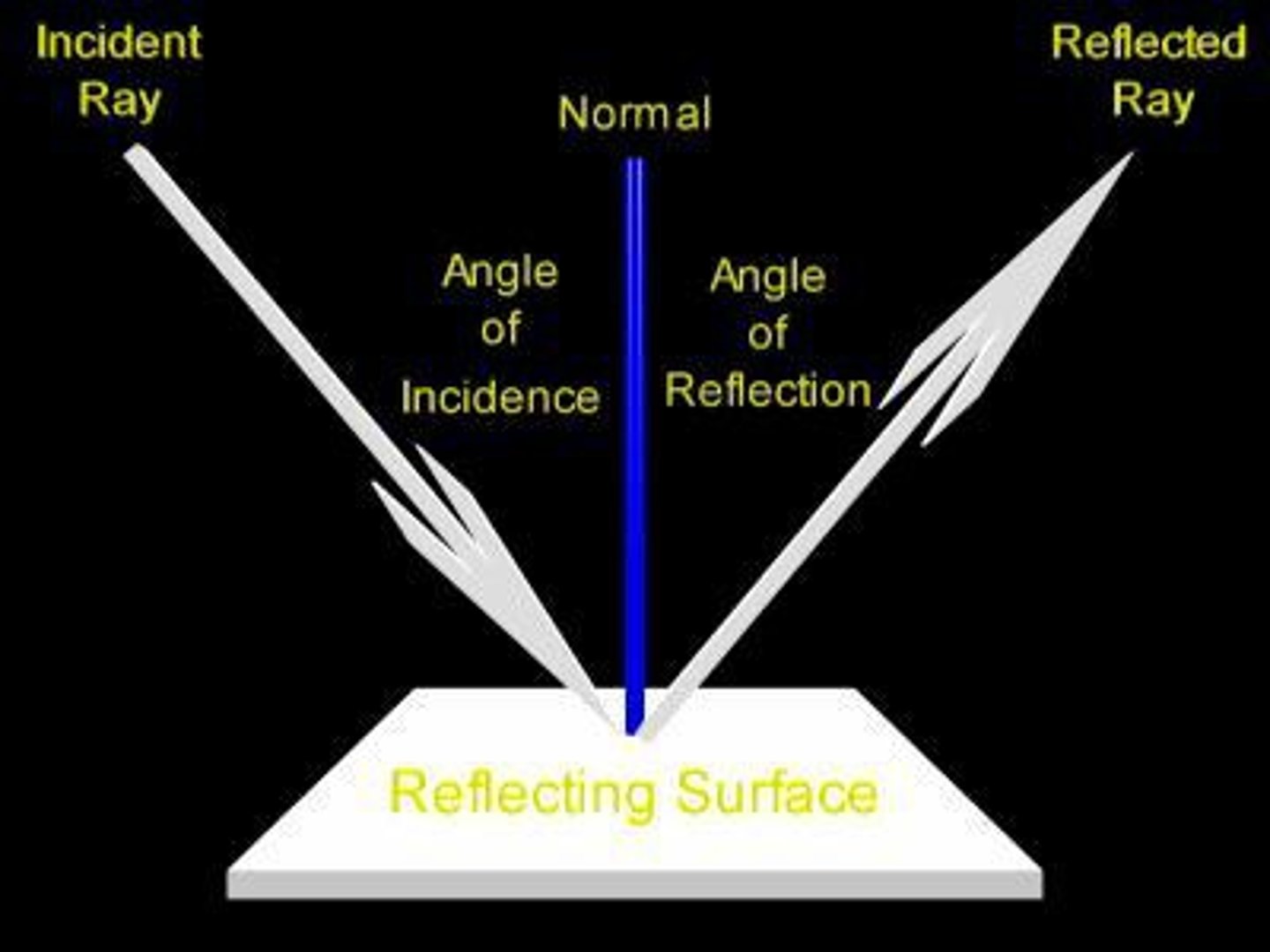

What is reflection?

the bouncing of waves (like light or sound) off a boundary between two materials, following the law that the angle of incidence equals the angle of reflection

What are the different types of reflection?

specular reflection and diffuse reflection

What is specular reflection?

When a wave is reflected in a single direction by a smooth surface

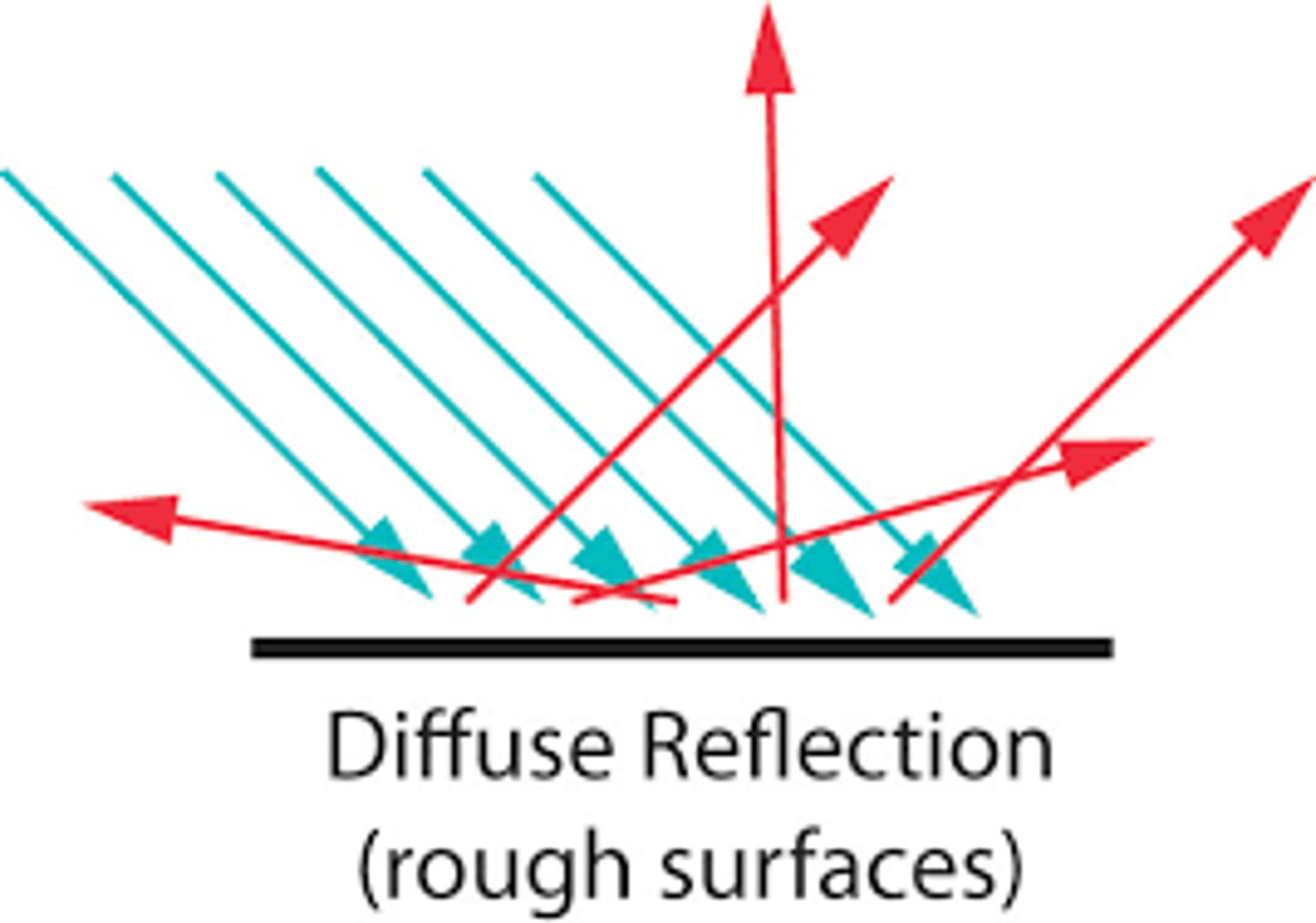

What is diffuse reflection?

- the scattering of light in many different directions when it strikes a rough or irregular surface, preventing the formation of a clear image

- it happens due to the normal being different for each incoming ray, therefore the angle of incidence is different for each ray

What is refraction?

- the bending of light (or other waves) as it passes at an angle from one transparent material into another

- This occurs because the speed of light changes depending on the density of the material, causing the light ray to change direction.

What is diffraction?

- the bending and spreading of waves when they encounter an obstacle, pass through a narrow gap, or graze an edge

- larger diffraction occurs if the gap is similar to the wavelength

What is the law of reflection?

angle of incidence = angle of reflection

What is interference?

the combination of two or more waves that results in a single wave

Does sound travel in a vacuum?

NO, sound requires a medium; if there is nothing to compress and expand, there can be no sound

Are sound waves a transverse or longitudinal wave?

longitudinal

How is sound made?

When an object vibrates it gives off energy producing a longitudinal wave.

What is pitch?

How high or low a sound is

What is pitch determined by?

- the frequency of sound waves (which refers to how rapidly an object vibrates.)

- Higher frequencies (more vibrations per second) produce a higher pitch

- while lower frequencies (fewer vibrations per second) produce a lower pitch.

In what state does sound travel the fastest?

in solids

What is pitch measured in?

Hertz (Hz)

Why does sound travel fastest through a solid?

because particles in a solid are packed tightly together and strongly bonded, allowing vibrations to pass between them rapidly

What does a bigger amplitude mean in sound waves?

The waves have more energy, producing a louder sound

How do we hear sound?

1. Sound waves enter the ear.

2. They make the eardrum vibrate.

3. Vibrations are passed to tiny bones in the middle ear.

4. The brain interprets the signals as sound.

What is the auidible range for humans?

frequencies between 20 Hz to 20,000 Hz (20 kHz)

What is infrasound?

Sound waves with a frequency below 20Hz

What is ultrasound?

Sound waves beyond the range of human hearing - 20,000Hz

What are ultrasounds used for?

- Medical scans (e.g. pregnancy scans)

- Detecting cracks in metals

- Measuring depth in water (SONAR)

How is ultrasound used in medical scans?

A transducer emits pulses that reflect off tissue boundaries; a computer calculates depth using the speed of sound and return time, displaying them as images

How is ultrasound used in measuring depth in water?

- A transducer on the bottom of a boat emits a pulse of ultrasound (sound with a frequency higher than 20,000 Hz) towards the seabed.

- The sound waves travel through the water and reflect (bounce back) when they hit the boundary between the water and the seabed.

- The same transducer, acting as a detector, records the time it takes for the echo to return to the boat

Formula for calculating depth using ultrasound

depth = speed of sound x time/2

advantages of using ultrasound

1. non-ionising

2. Good for imaging soft tissue + you can obtain real-time images (can be done using XR Fluroscopy but that uses a lot of ionising rad)

3. Relatively cheap and portable unlike MR scanners

4. Scan is quick and patient can move

Disadvantages of using ultrasound

1. Doesnt penetrate bone so cant be used to detect fractures

2. Cannot pass through air spaces so can't produce images from behind the lungs

3. Poor resolution

4. Cannot give info about solid masses found

What are seismic waves?

vibrations that travel through Earth carrying the energy released during an earthquake

What are the two types of seismic waves?

Primary (P) waves and Secondary (S) waves

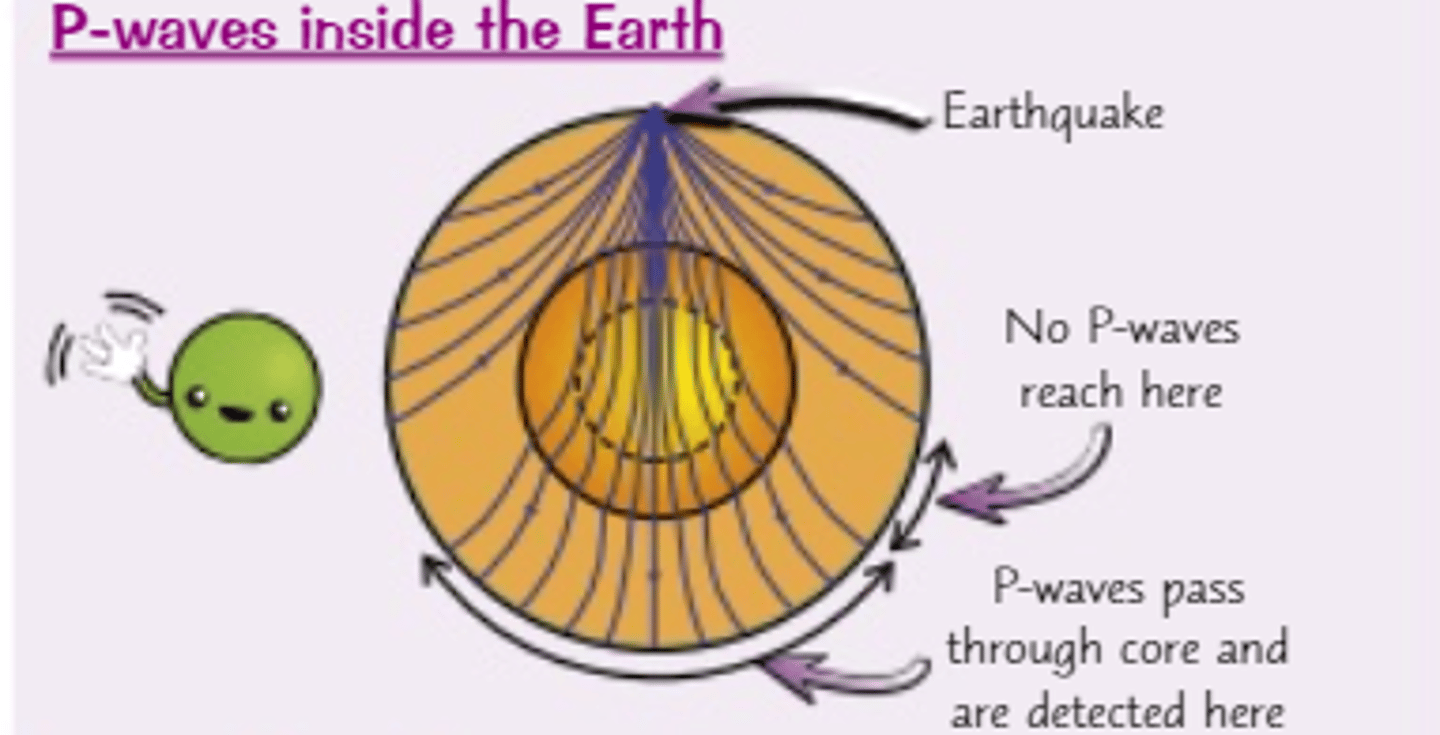

What are P waves?

- They are longitudinal, seismic waves produced by earthquakes

- their particles vibrate parallel to the direction of travel

- they can move through solids, liquids and gases

- they arrive first at seismic detectors

What type of seismic wave travels the fastest?

P wave

Which medium does a P wave travel through?

solids, liquids and gases

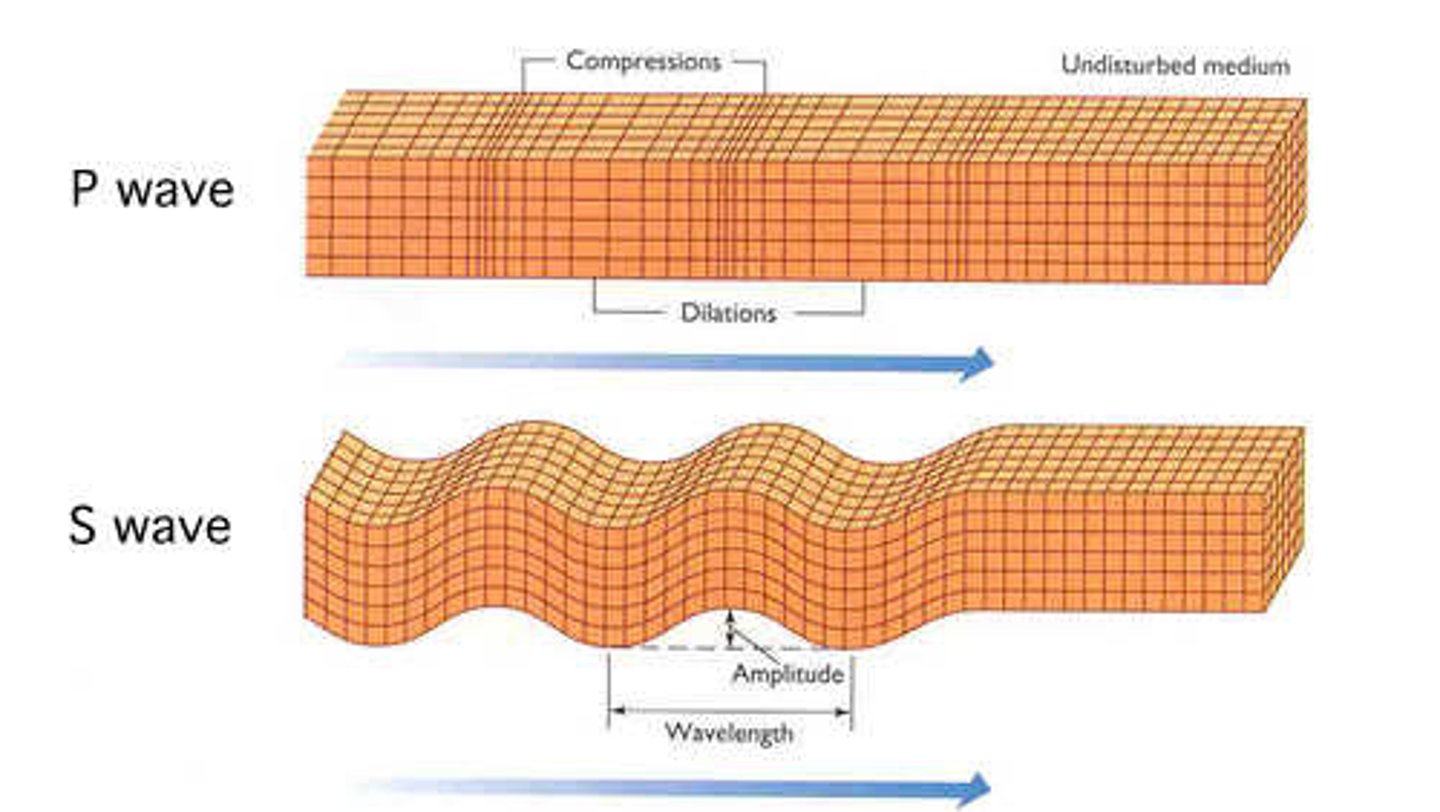

How do P-waves move the ground?

by compressing and expanding it in the same direction that the wave is travelling

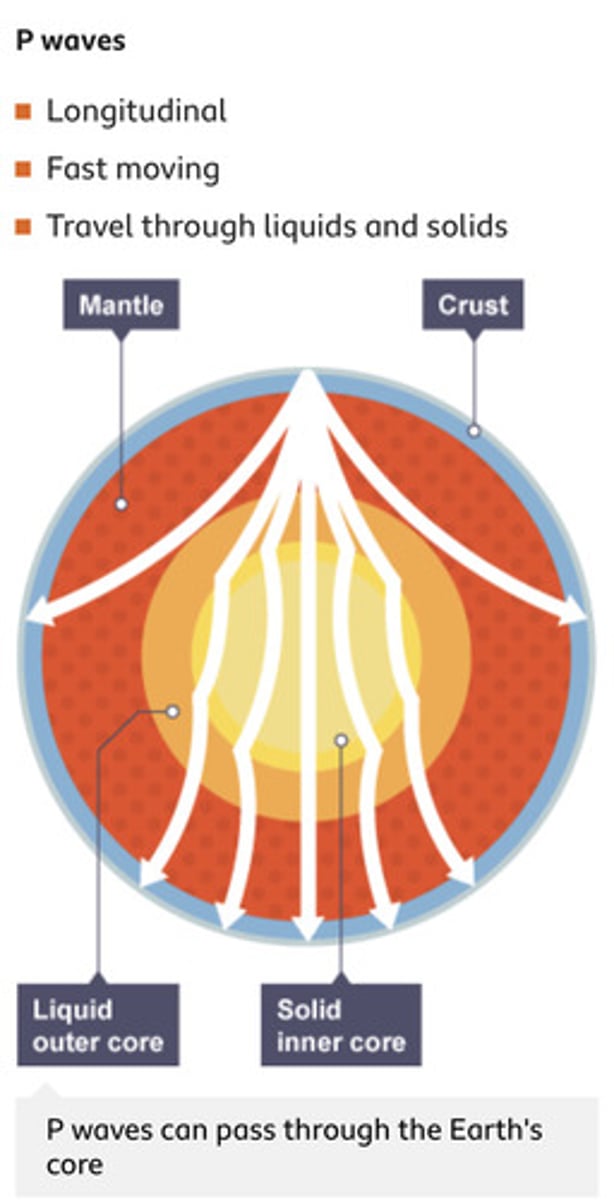

How do P-waves travel through the Earth?

Travel in curved paths, through the Earth's mantle and core, refracting (bending) as they change speed between different density layers.

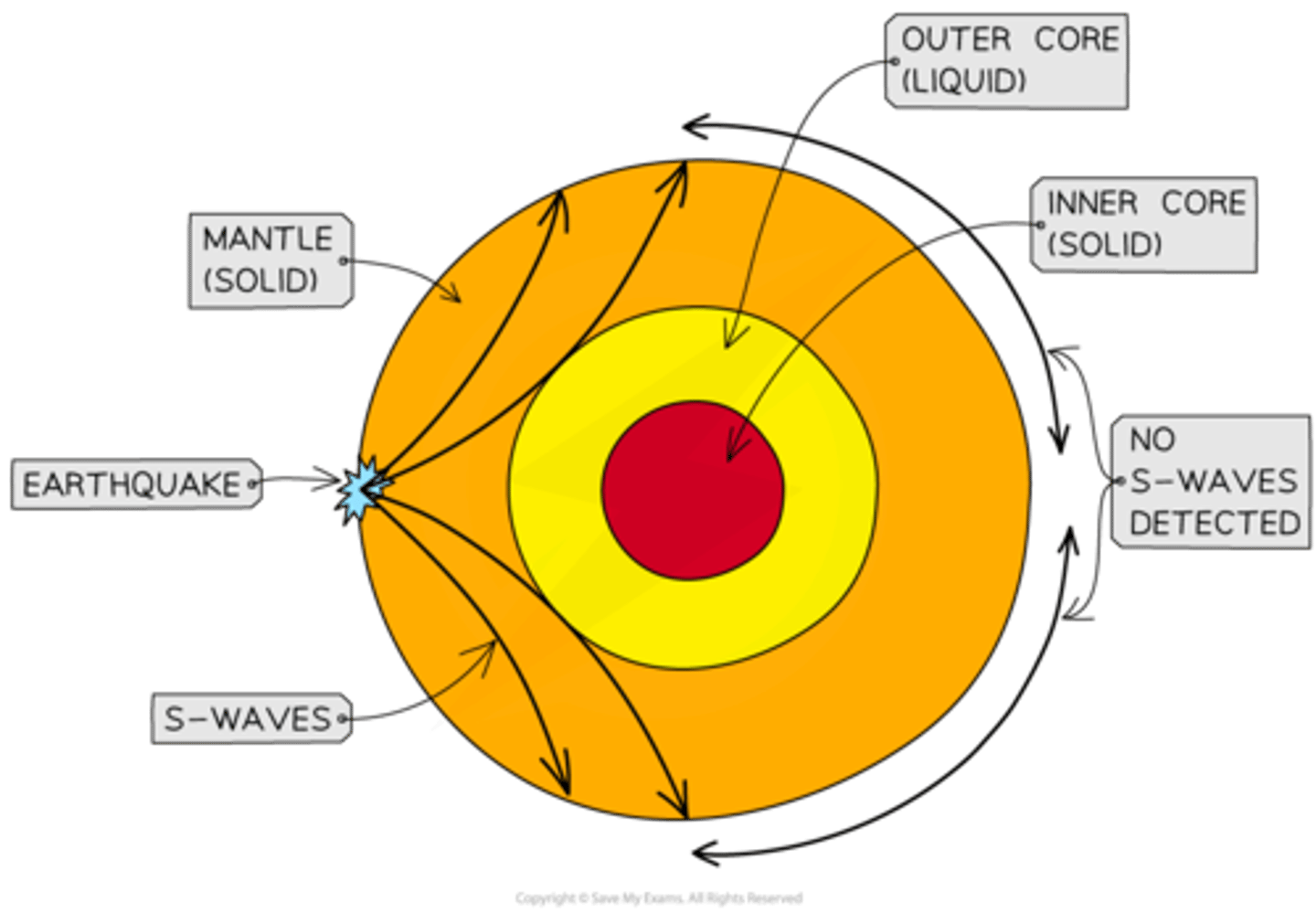

What are s-waves?

- Transverse, seismic waves produced by earthquakes

- the particles vibrate perpendicular to the direction of travel

- They travel slower than P-waves

- Can only move through solids

- Cannot travel through liquids

What part of the Earth do S-waves travel through?

The solid crust and mantle

What part of the Earth do p-waves travel through?

the solid crust, solid mantle, liquid outer core, and solid inner core

How do S-waves move the ground?

they shake the ground up-and-down or side-to-side, moving particles perpendicular to the direction of wave propagation

What are l-waves (surface waves)?

- Slow transverse waves that travel through the crust and cause violent movement.

- They are slower than P and S waves

-They cause the most damage during an earthquake

How are seismic waves detected?

Seismometers

Why do seismic waves bend as they travel through the mantle?

because the mantle's physical properties, like its density, temperature, and elasticity, change with depth, causing the wave velocity to increase as they go deepe

Why do waves move faster in denser materials?

because the molecules are packed more tightly together, allowing them to transfer kinetic energy and vibrational signals faster than in less dense, spread-out materials like gases.

Why do p-waves refract as they travel through the earth?

because they pass through layers of varying density and composition (crust, mantle, core), which change the wave's speed

What is a seisometre?

a scientific instrument used to detect and record ground vibrations (seismic waves) caused by earthquakes, volcanic eruptions, or explosions

What do seisometres measure?

- The time difference between P and S waves

- The size (amplitude) of the waves

This helps measure:

- The location of the earthquake

- Its magnitude

Why can't transverse waves travel through liquids?

- because liquids lack shear strength and cannot resist sideways displacement

- Unlike solids, liquid particles cannot transfer the sideways (perpendicular) displacement required for a transverse wave, causing them to flow rather than vibrate in place

Why are electromagnetic waves electromagnetic?

because they are made up of oscillating electric and magnetic fields that vibrate at right angles (perpendicular) to each other and vibrate at right angles to the direction the wave travels

What is the speed of light?

3 x 10^8 m/s

What is visible light?

The part of the electromagnetic spectrum that our eyes can detect

What are the colours of visible light spectrum?

red, orange, yellow, green, blue, indigo, violet

What colour of visible light spectrum has the longest wavelength?

red

What is the visible light spectrum?

The portion of the electromagnetic spectrum that is visible to the human eye

What colour of visible light spectrum has the shortest wavelength?

violet

What is the wavelength of visible light?

400 nanometres (violet) to 700 nanometres (red)

What happens when wavelength decreases?

the wave's frequency and energy increase

How can visible light be separated?

through dispersion

What is dispersion?

- The splitting of white light into its component colours when passing through a medium like a glass prism or raindrops.

- It occurs because different frequencies (colours) of light travel at different speeds in the material, causing them to refract by different amounts.

What colour refracts the most?

violet

What colour refracts the least?

red

Why does violet refract more than red?

Because violet light has a shorter wavelength so it slows down more than red light and it bends more, spreading the light into a spectrum.
