Anatomy and Physiology 1-Bone Practical

Dr. Dickson Cedarville University

Frontal bone

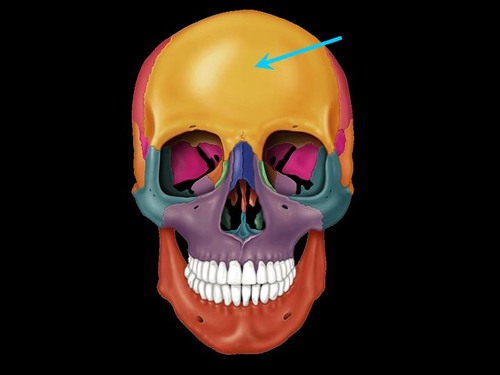

Frontal squama

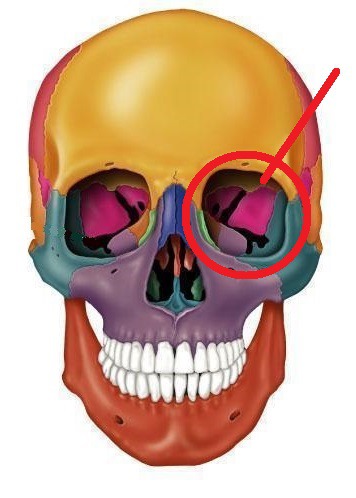

Orbits

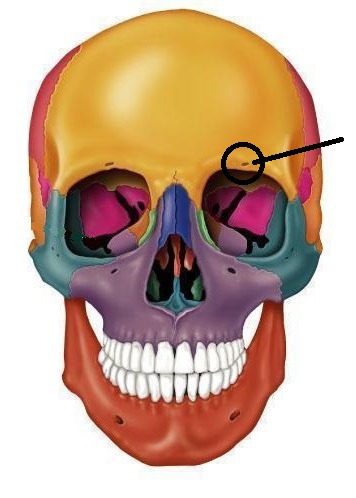

Supraorbital foramen

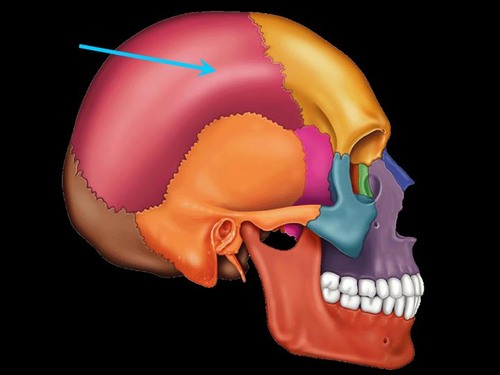

Parietal bone

Temporal bone

Temporal squama

upper part of the temporal bone

External auditory meatus/canal

Internal auditory meatus

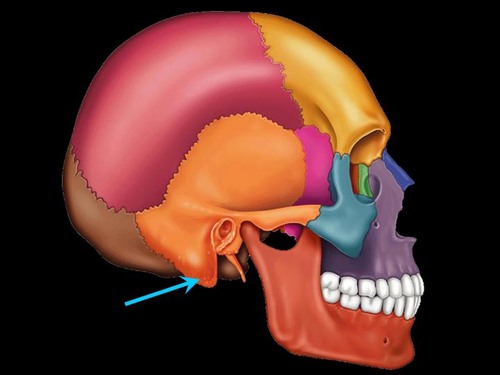

Mastoid process

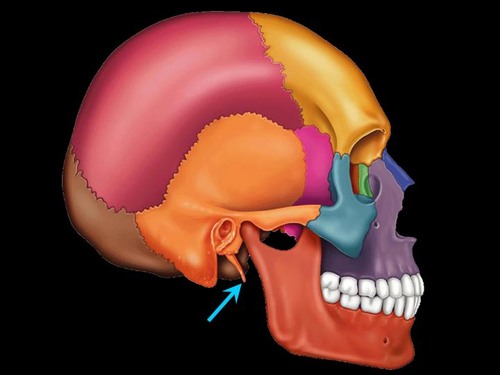

Styloid process

Zygomatic process of the temporal bone

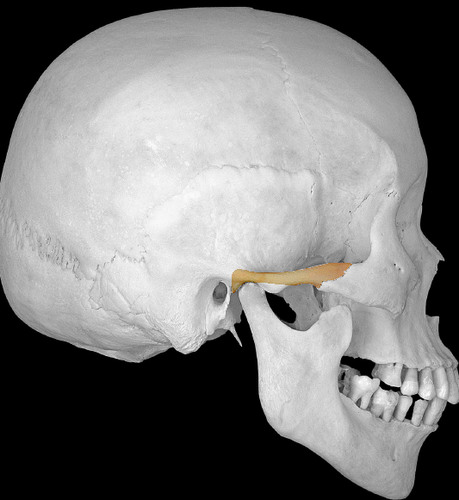

Zygomatic arch

cheek bone

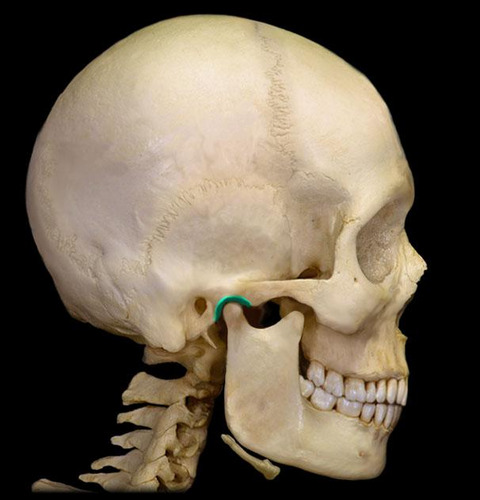

Mandibular fossa

Temporomandibular joint (TMJ)

Occipital bone

Foramen magnum

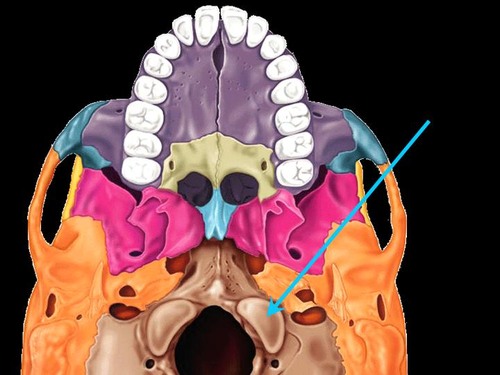

Occipital condyles

articulate with first cervical vertebra

Ethmoid bone

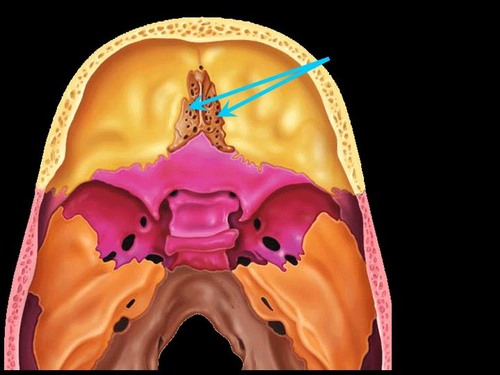

Crista galli

Cribriform plate

Superior nasal concha/turbinate

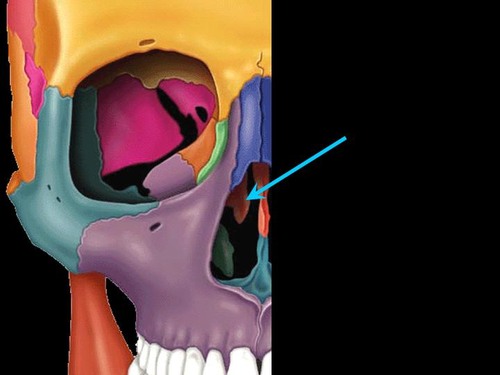

Middle nasal concha/turbinate

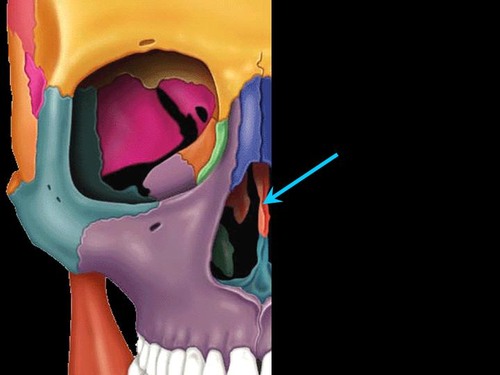

Perpendicular plate of the ethmoid bone

part of the nasal septum

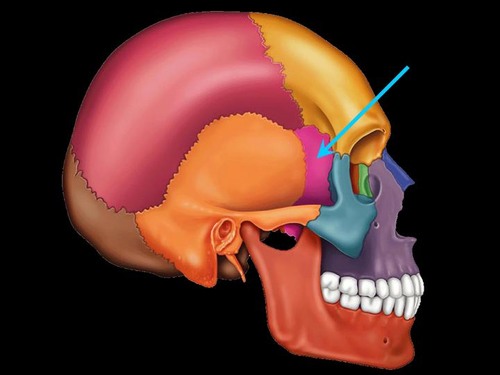

Sphenoid bone

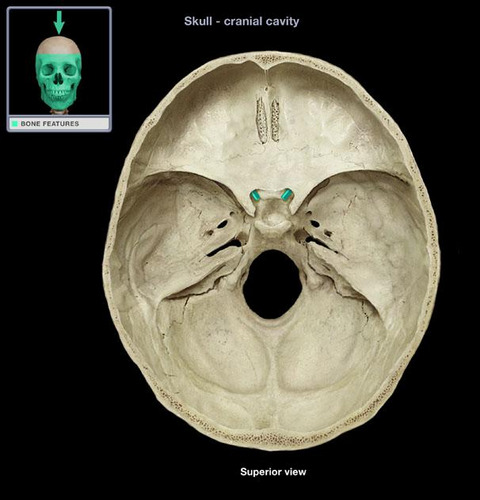

Optic foramen/canal

opening located just anterior to sella turcica to allow optic nerves to pass from eyes to brain

Sella turcica

cavity in the skull that contains the pituitary gland

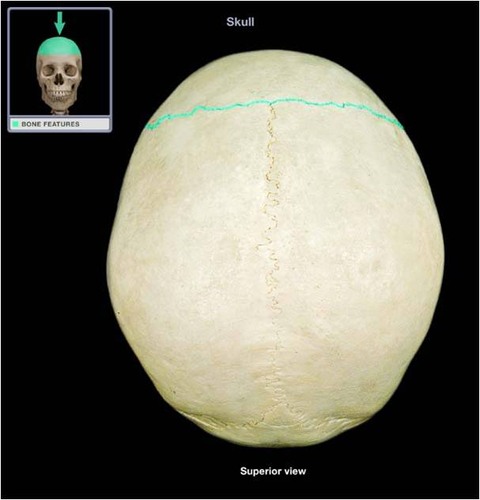

Coronal suture

between frontal and parietal bones

Sagittal suture

between the parietal bones

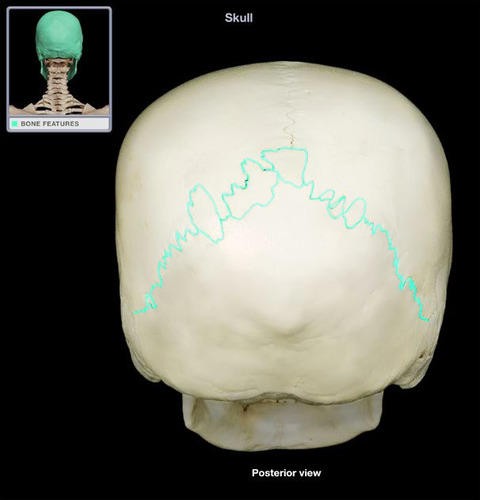

Lambdoid suture

between parietal bones and occipital bone

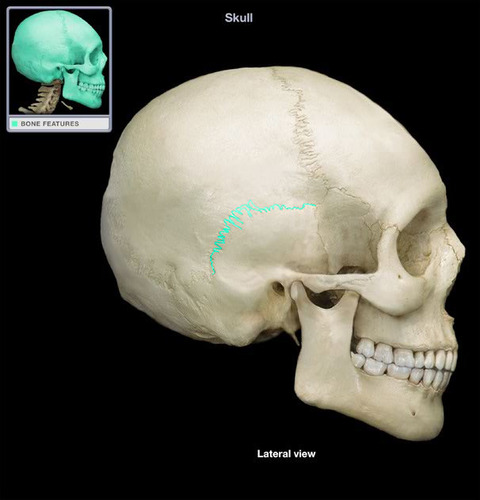

Squamous suture

Between parietal and temporal bones

Posterior fontanelle

junction of lambdoid and sagittal sutures (closes by 2 months)

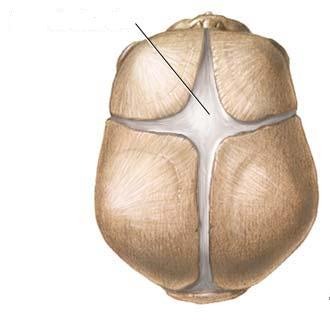

Anterior fontanelle

junction of the sagittal, coronal, and frontal sutures (closes by 2 years)

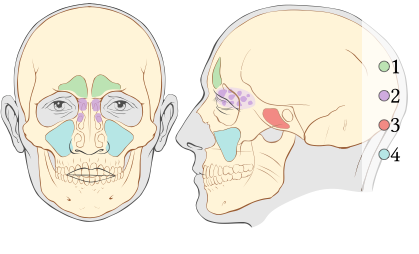

Paranasal sinuses

air-filled cavities lined with mucous membrane, located in the bones of the skull

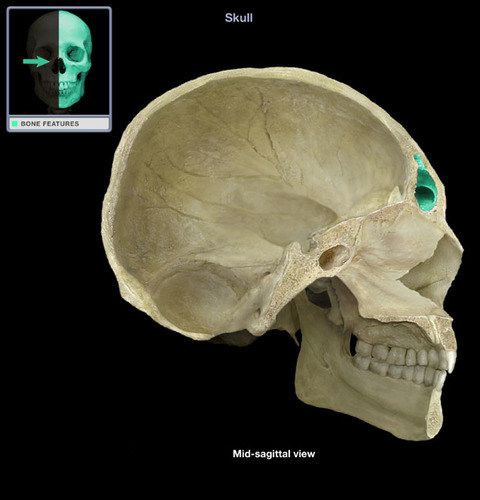

Frontal sinuses

air cavities within the frontal bone that open into the middle meatus of the nasal cavity

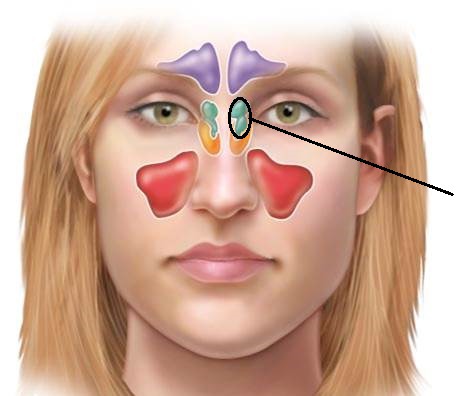

Ethmoidal sinuses

honeycomb of small spaces contained in the ethmoid bone, located between the eyes

Sphenoidal sinuses

Central part of sphenoid bone is riddled with air cavities.

Maxillary sinuses

largest of the paranasal sinuses

Nasal bones

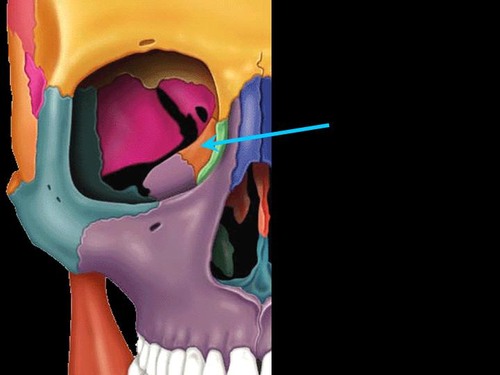

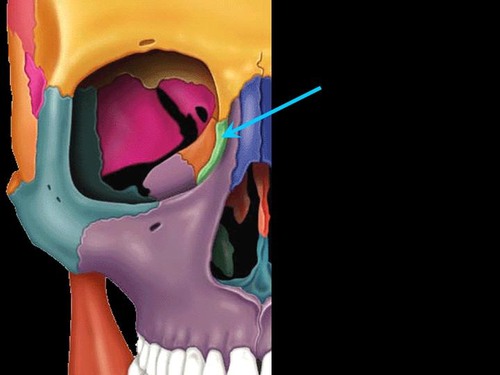

Lacrimal bones

Vomer

forms the inferior portion of the nasal septum

Inferior nasal conchae

The lowermost scroll-shaped bones on the sidewalls of the nasal cavity.

Maxillae

the two fused bones forming the upper jaw

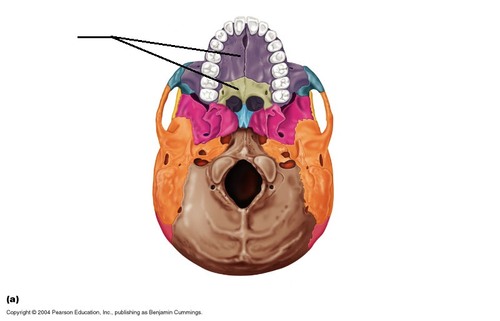

Hard palate

roof of the mouth

Palatine bones

form part of the hard palate of the mouth and the floor of the nose (vertical and horizontal plates)

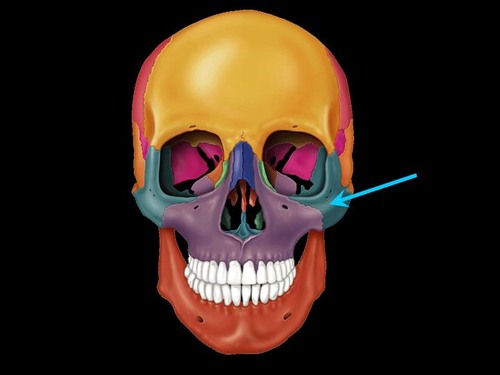

Zygomatic bones

known as the cheek bones, articulate with the frontal bone

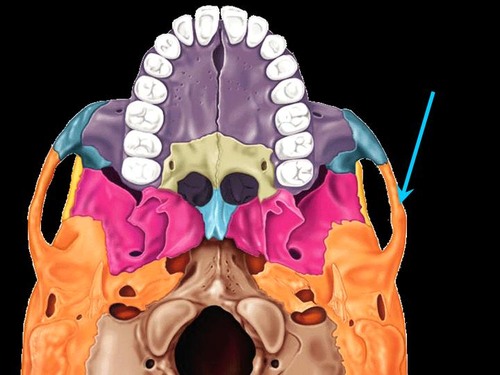

Temporal process of the zygomatic bone

points posteriorly and articulates with the zygomatic process of the temporal bone

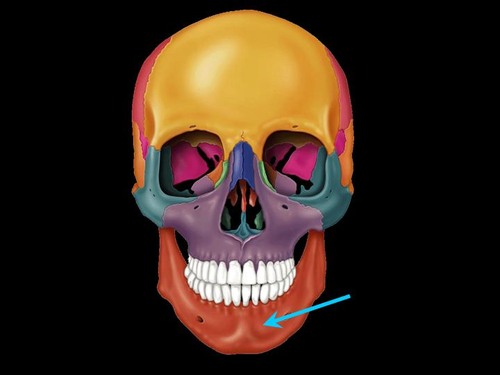

Mandible

lower jaw

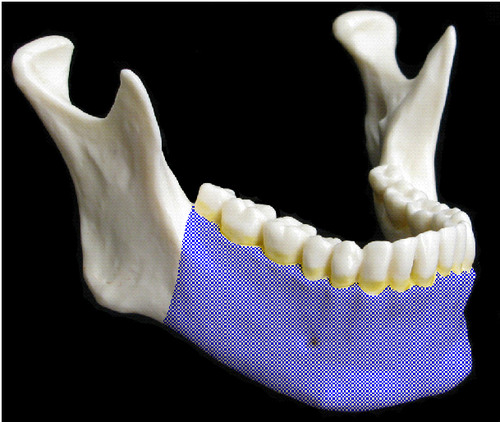

Body

Main part of the jaw bone, horizontal part, holds lower teeth

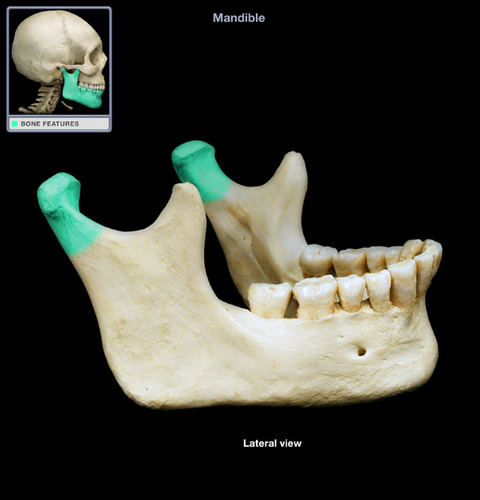

Mandibular condyle (condylar process)

articulates with the mandibular fossa of the temporal bone to form the TMJ

Coroniod process

Ramus

Angle

where the body and ramus of the mandible meet

Mental foramina

Hyoid bone

does not articulate with any other bones

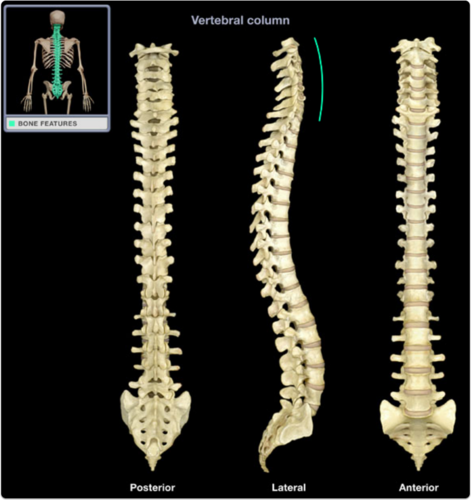

Vertebral column

Intervertebral discs

Annulus fibrosus

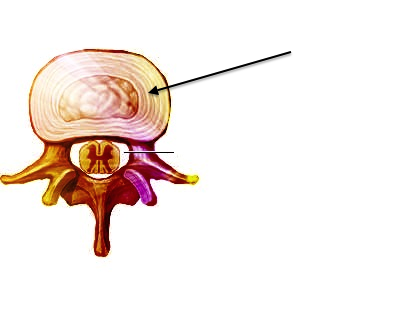

Nucleus pulposus

jelly-like center of the intervertebral disc which acts as a "shock absorber"

Herniation

an protrusion of the nucleus pulposus through a tear in the annulus fibrosus

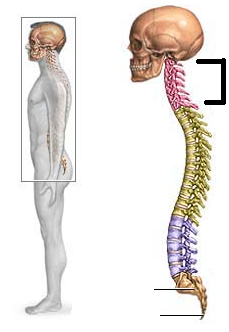

Cervical curvature

concave curvature

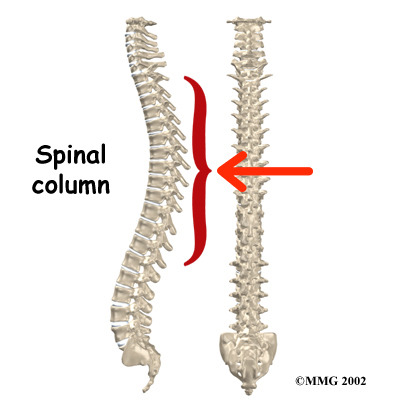

Thoracic curvature

convex curvature

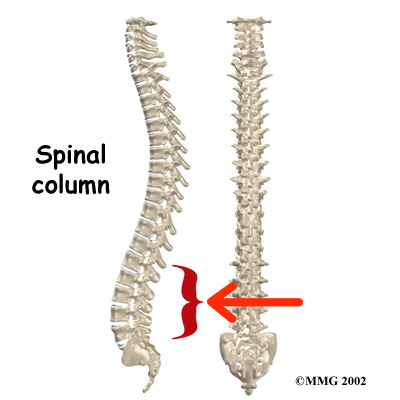

Lumbar curvature

concave curvature

Sacral curvature

convex curvature

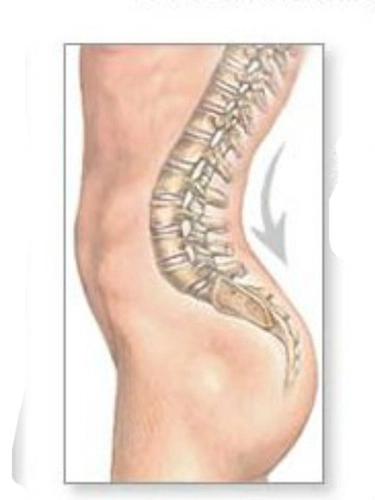

Lordosis

abnormal curvature

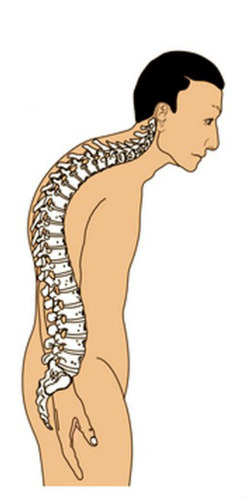

Kyphosis

abnormal curvature

Scoliosis

abnormal lateral curvature of the spine

Vertebra

Body

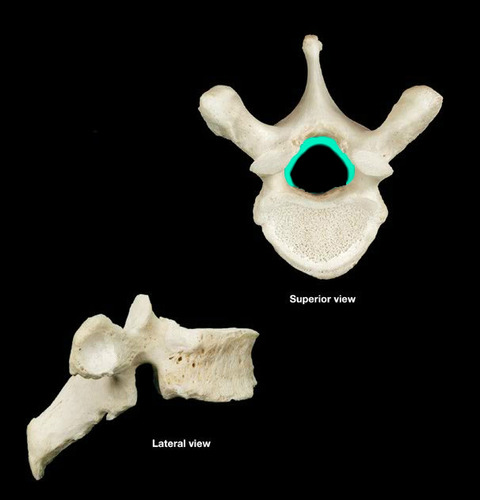

Vertebral arch

pedicle + lamina

Pedicle

Lamina

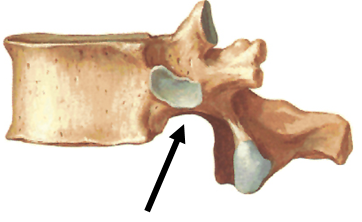

Intervertebral foramen

a "hole" when 2 vertebrae are stacked

Inferior vertebral notch

Superior vertebral notch

Superior articular process

Inferior articular process

Transverse process

Spinous process

Transverse foramina

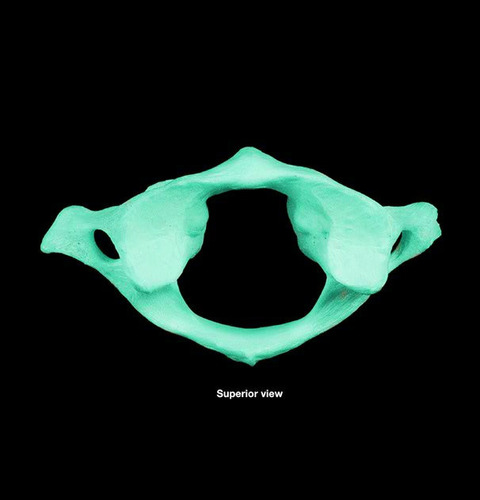

C1 Atlas

lacks body and spinous process, allows head to nod

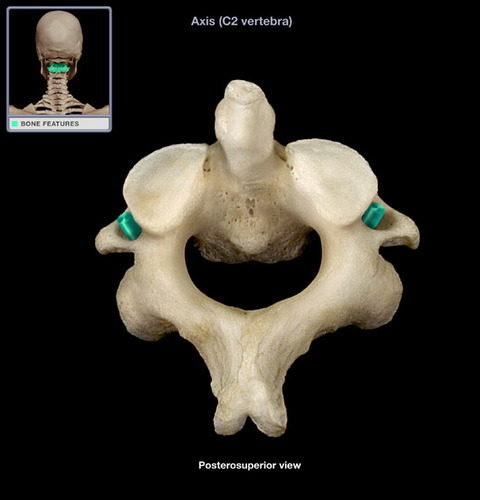

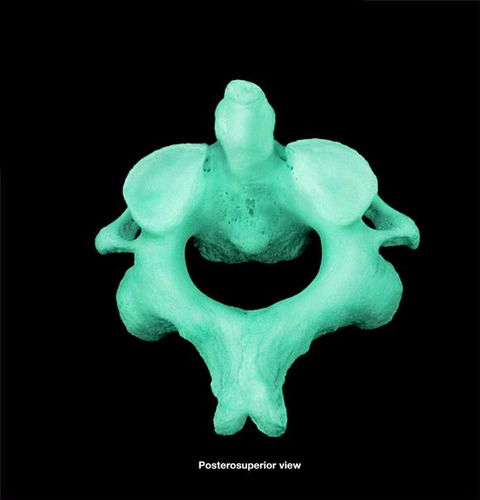

C2 Axis

has dens (odontoid process) for head rotation

Dens/odontoid process

AO (atlanto-occipital) joint

formed by the articulation of the superior articular facets of C1 and the occipital condyles

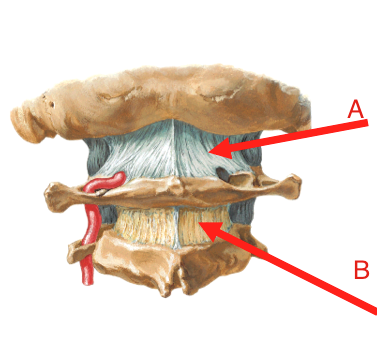

AA (atlanto-axial) joint

(B) a complex joint made up of three synovial joints, allowing mobile articulation of the spine

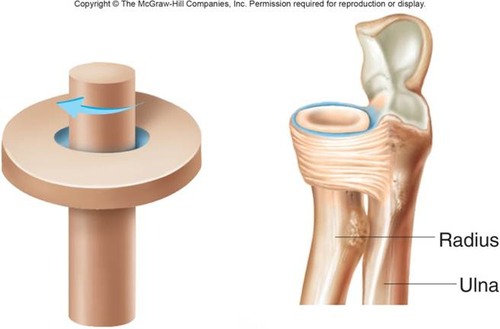

Pivot joint

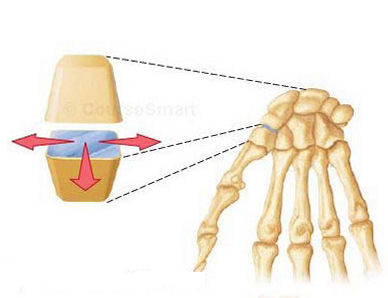

Plane joint

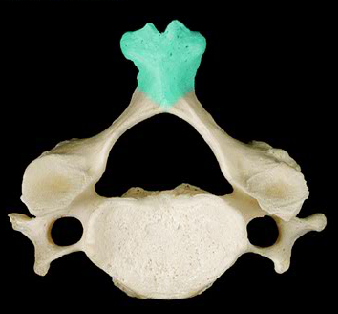

Bifid spinous process

on cervical vertebrae C2-C6

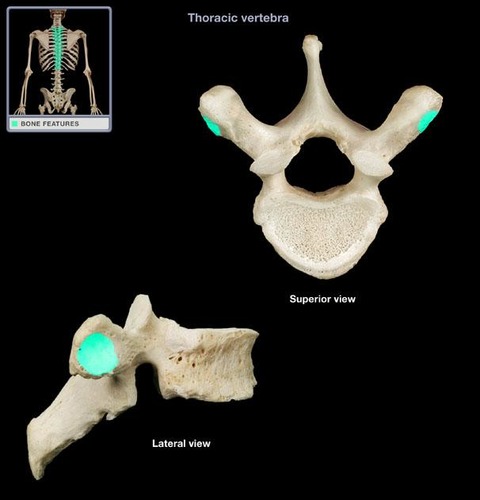

Transverse costal facets

Demifacet

superior and inferior

Lumbar vertebrae

L1-L5

Cervical vertebrae

C1-C7

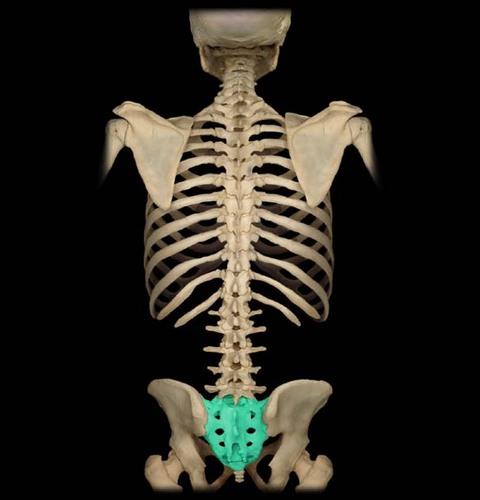

Sacrum

bone formed from five vertebrae fused together near the base of the spinal column

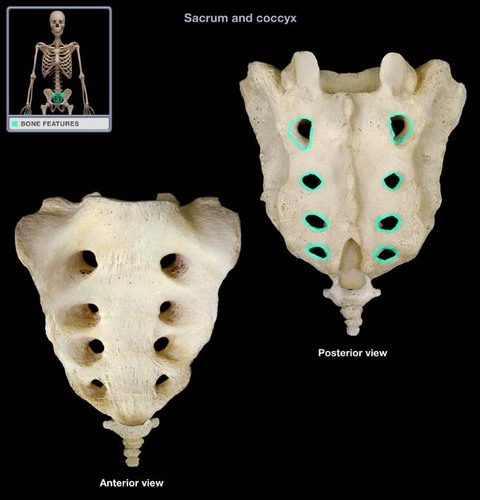

Sacral foramen

allow for spinal nerves to exit the spinal canal

Sacral promontory

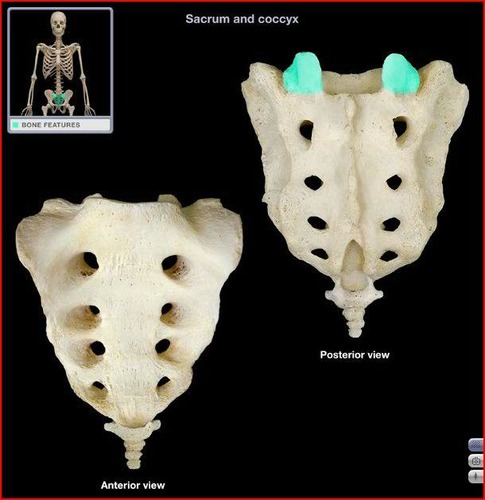

Superior articular process

Superior articular facet

flat surface of the superior articular process

Sacral hiatus

inferior opening of the sacral canal

Coccyx

tailbone

Sternum
