AP Physics C: Gauss's Law

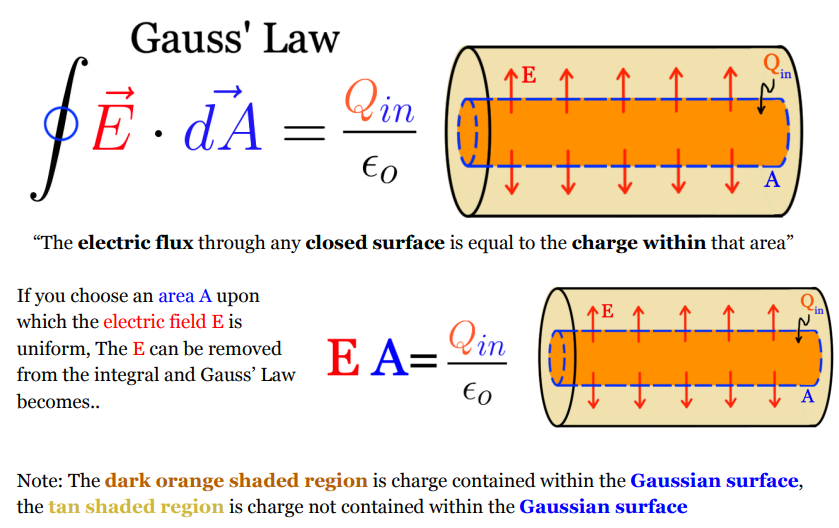

Gauss’s Law

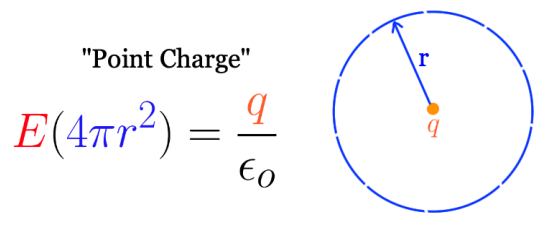

point charge

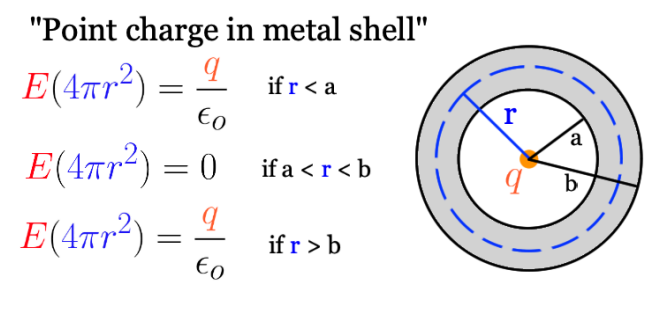

point charge in metal shell

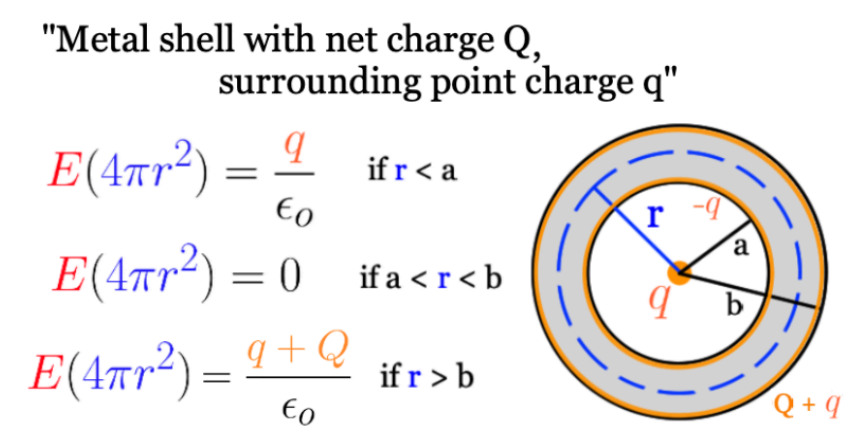

metal shell with net charge Q, surrounding point charge q

r<a

a<r<b

r>b

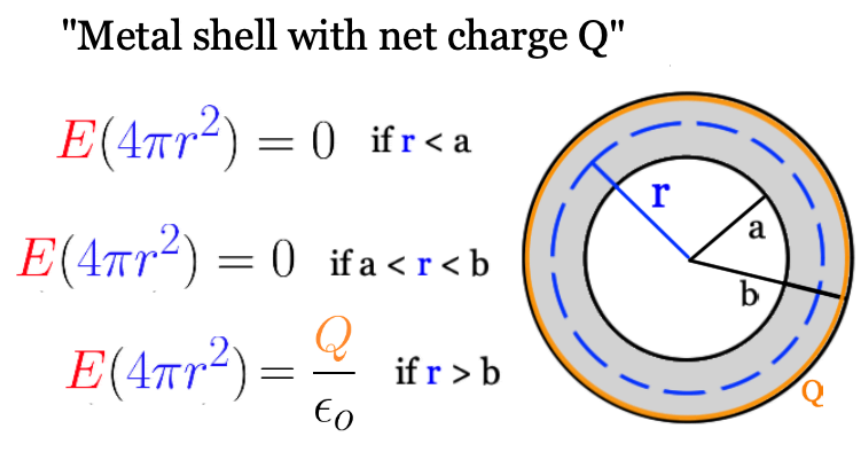

metal shell with net charge Q
r<a

a<r<b

r>b

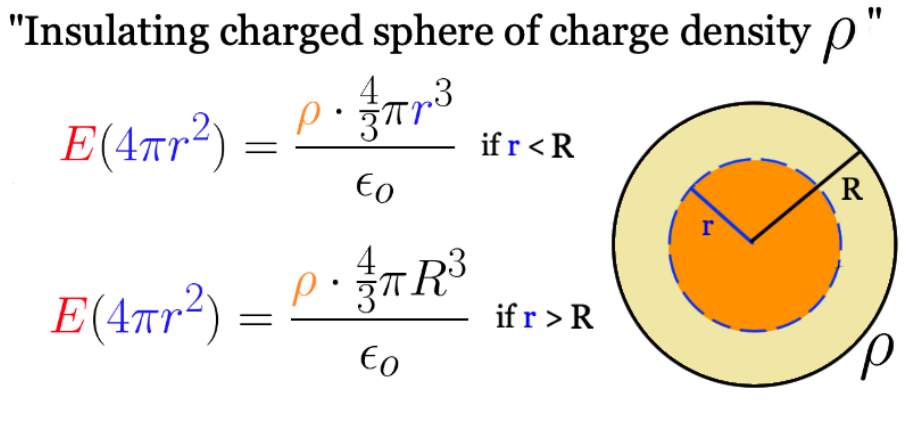

insulating charged sphere of charge density 𝜌

r<R
r>R

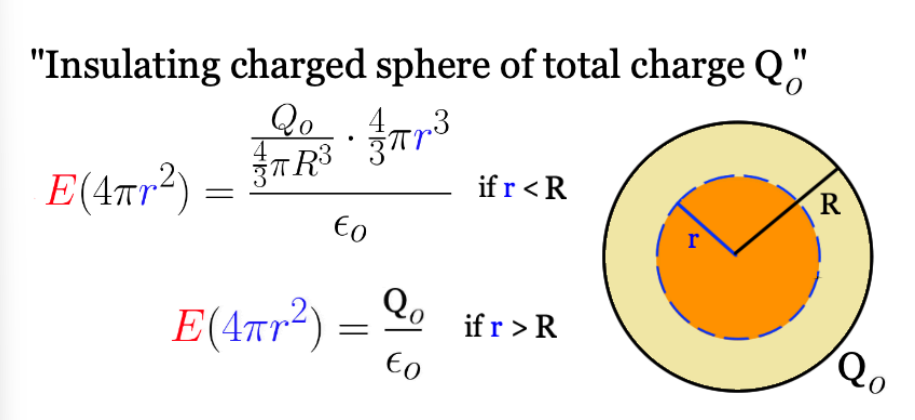

insulating charged sphere of total charge Q_o

r<R

r>R

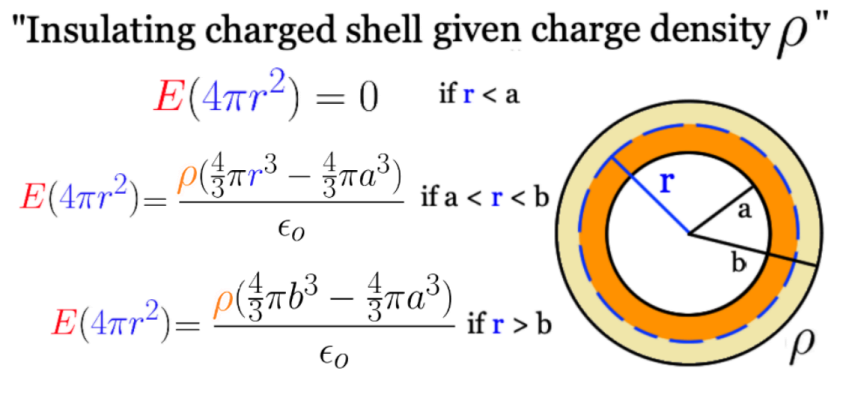

Insulating charged shell given charge density 𝜌

r<a

a<r<b

r>b

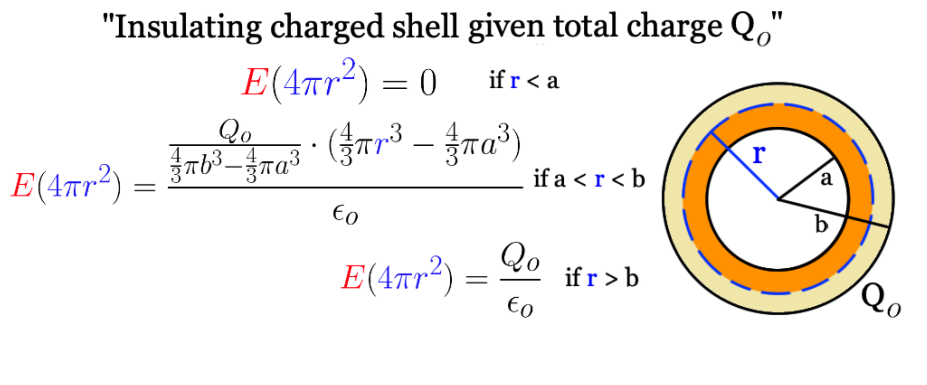

insulating charged shell given total charge Q_o

r<a

a<r<b

r>b

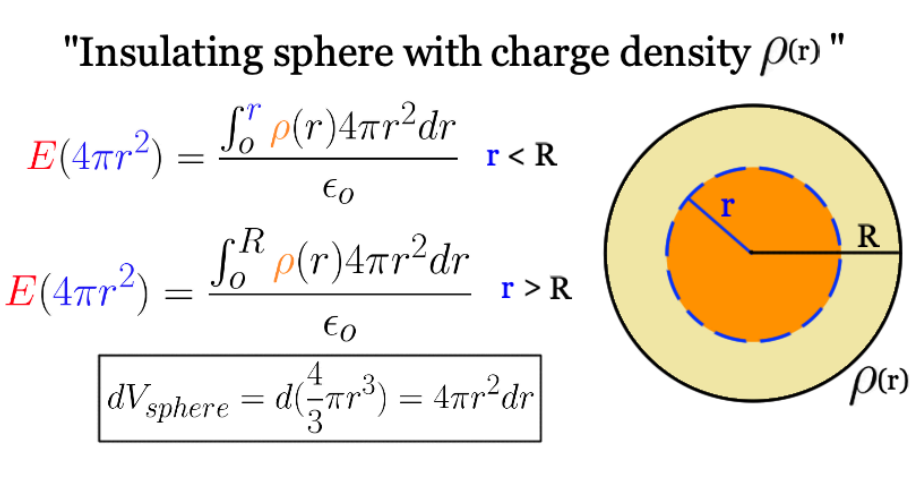

insulating sphere with charge density 𝜌(r)

r<R

r>R

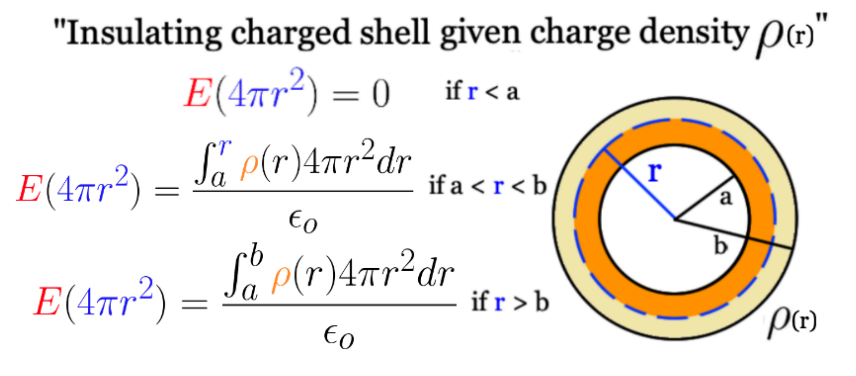

insulating charged shell given charge density 𝜌(r)

r<a

a<r<b

r>b

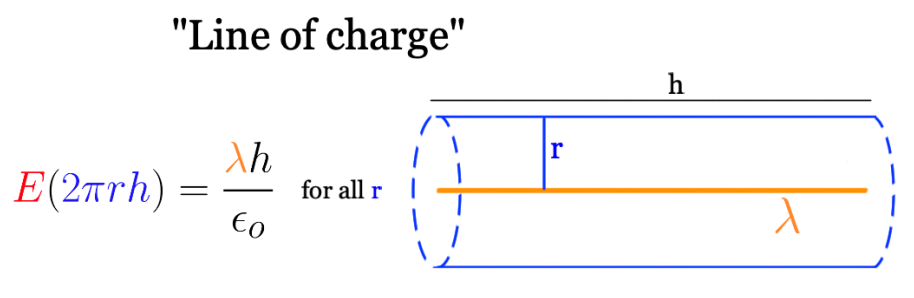

line of charge

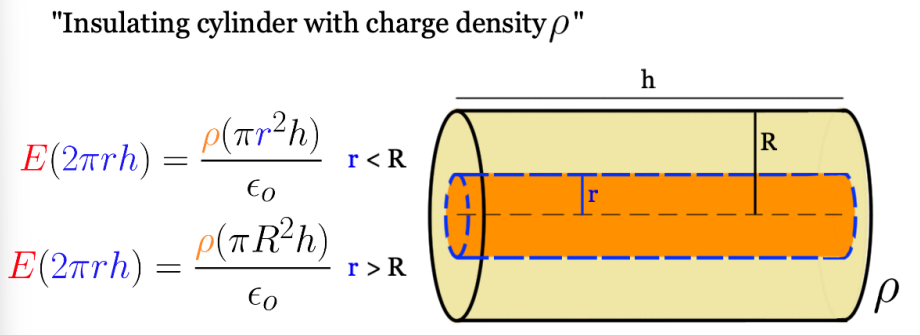

insulating cylinder with charge density 𝜌

r<R

r>R

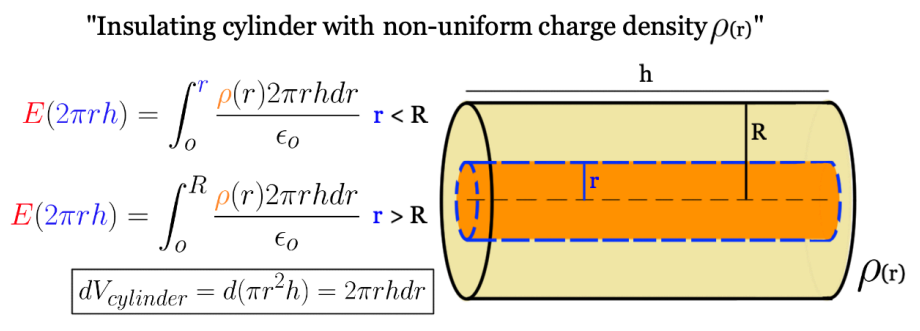

insulating cylinder with non-uniform charge density 𝜌(r)

r<R

r>R

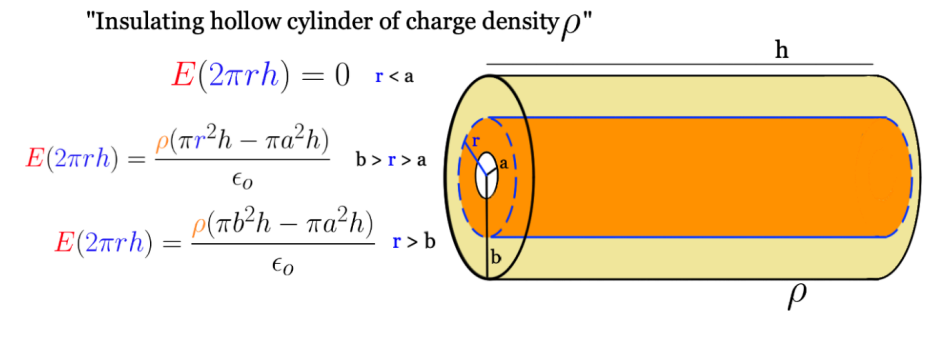

insulating hollow cylinder of charge density 𝜌

r<a

a<r<b

r>b

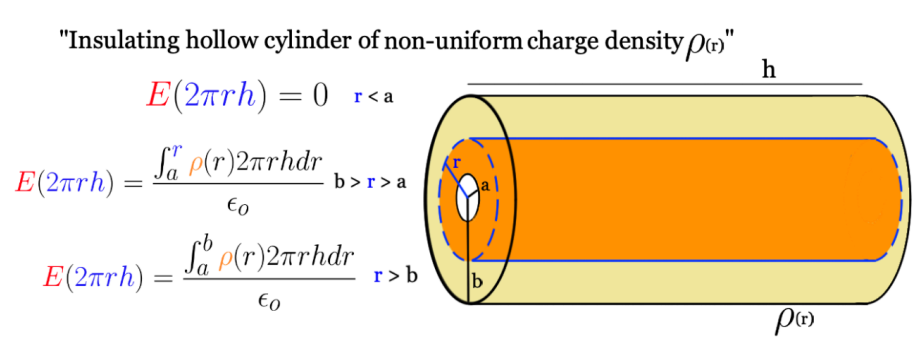

insulating hollow cylinder of non-uniform charge density 𝜌(r)

r<a

a<r<b

r>b

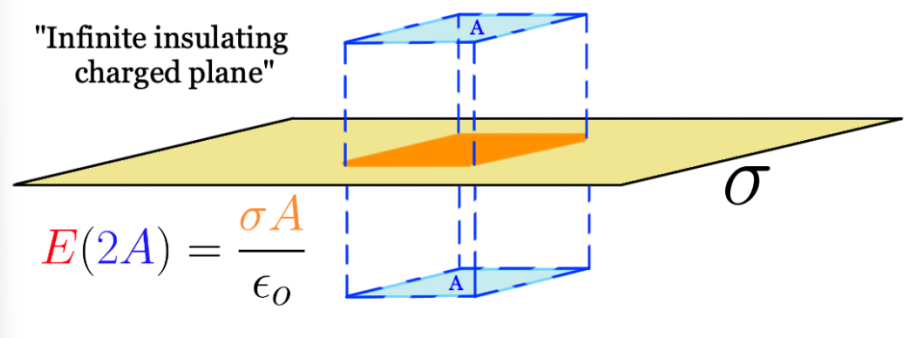

infinite insulating charged plane
