EOP-SDP-2 Response to Loss of RNS during Shutdown

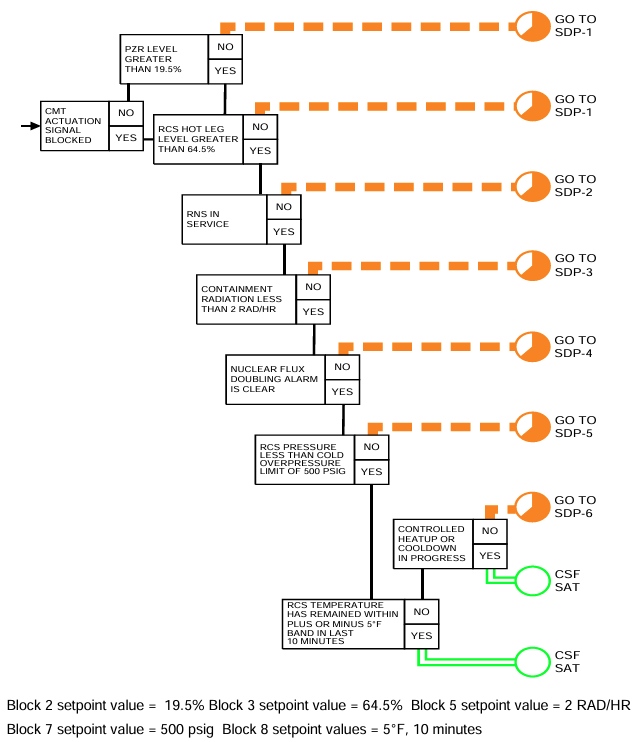

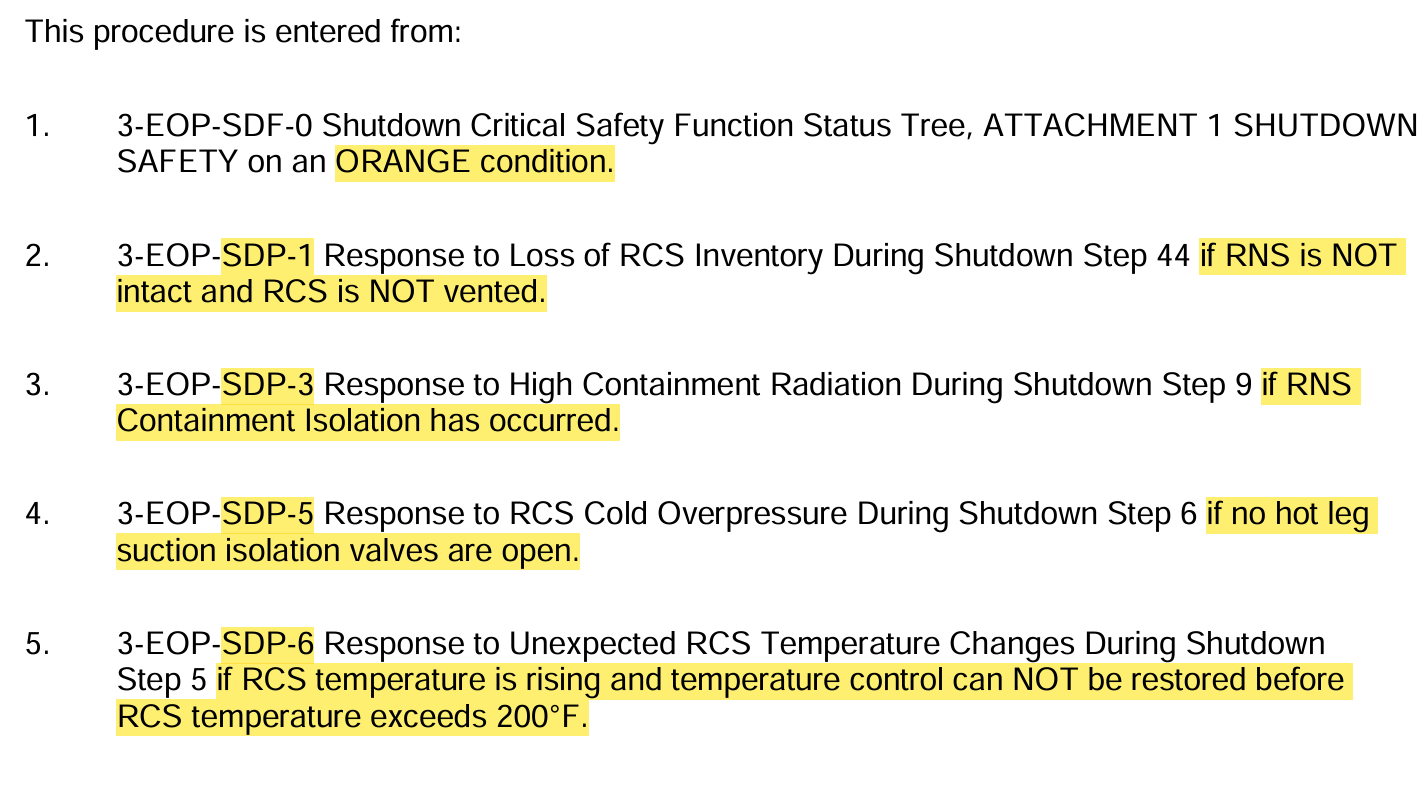

SDF-0 Entry Condition

Non SDF-0 Entry Conditions

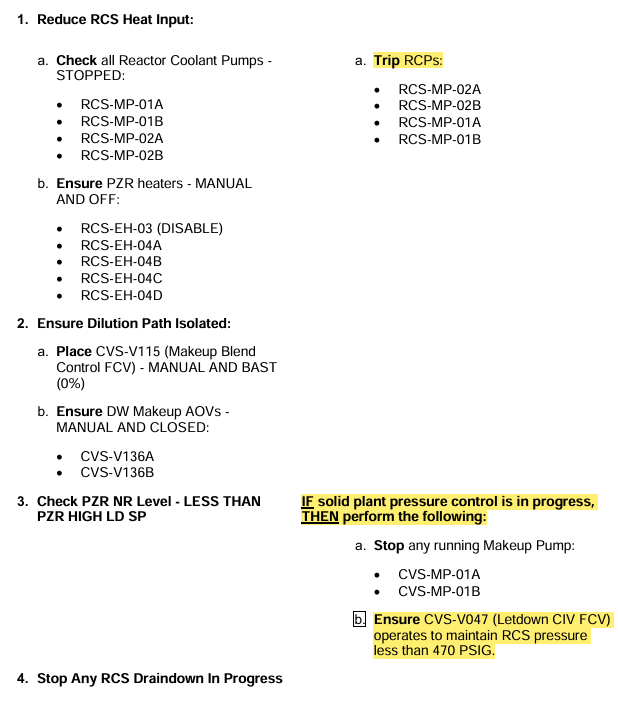

Reduce Heat Input, Isolate Dilution, etc.

(Steps 1-4)

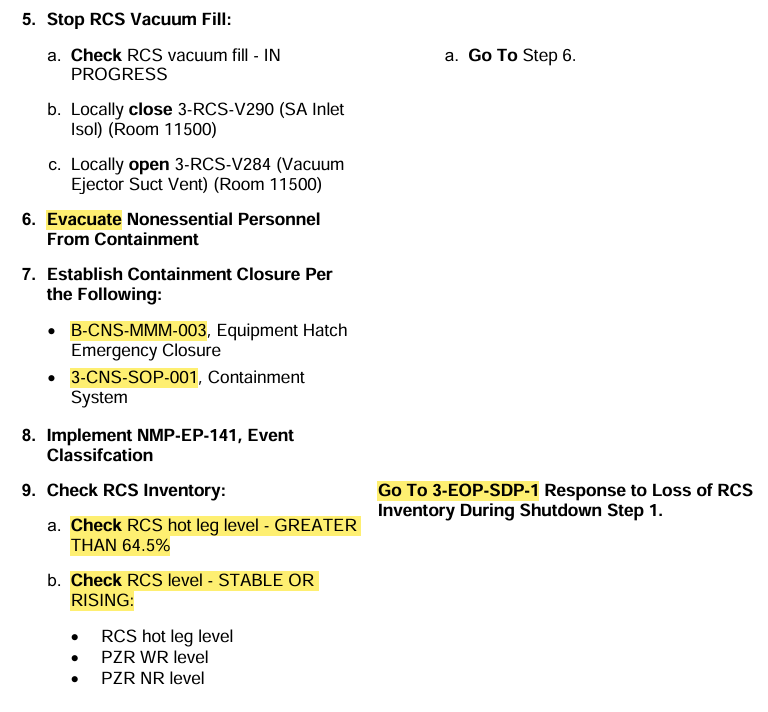

Stop Vac Fill, Close Containment, SDP-1 Assessment

(Step 5-9)

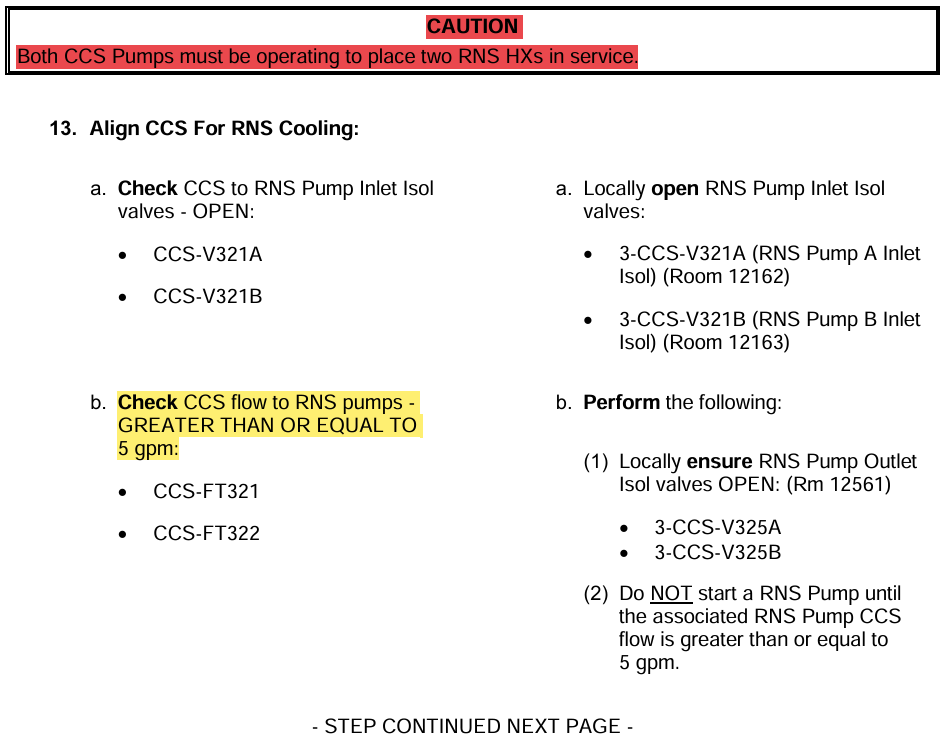

Aligning CCS for RNS Cooling

(Step 13)

c. RNS Hx Inlets OPEN

d. CCS Flow >2685gpm

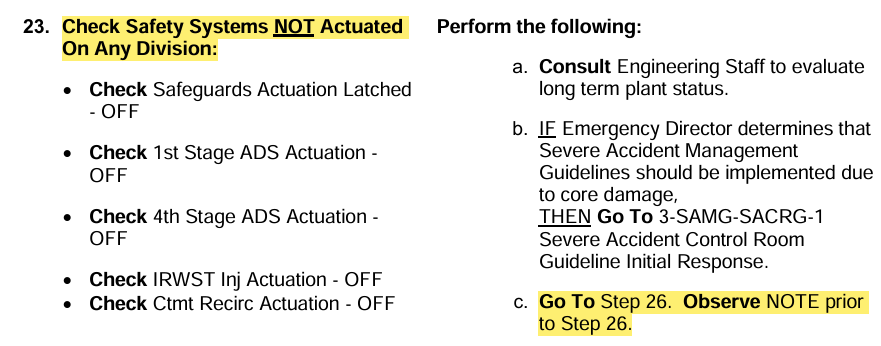

Safety System Actuation Direction

(Step 23)

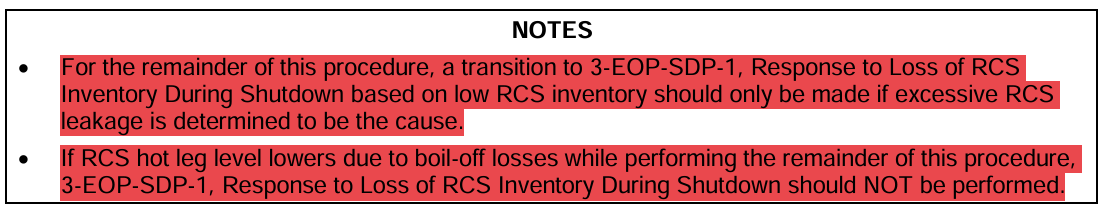

Conditions to ignore SDP-1 during subsequent steps

Unable to establish RNS and/or applicable support systems

OR

Actuation of ANY: “S”/1st Stage/4th Stage/IRWST Inj/Ctmt RR

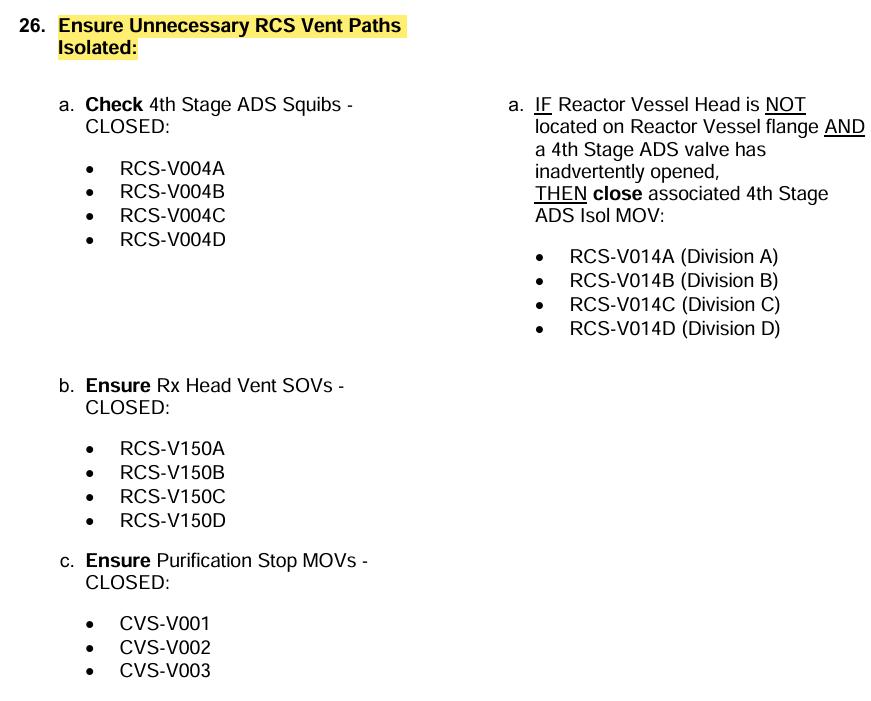

Isolating Unnecessary RCS Vent Paths

(Step 26)

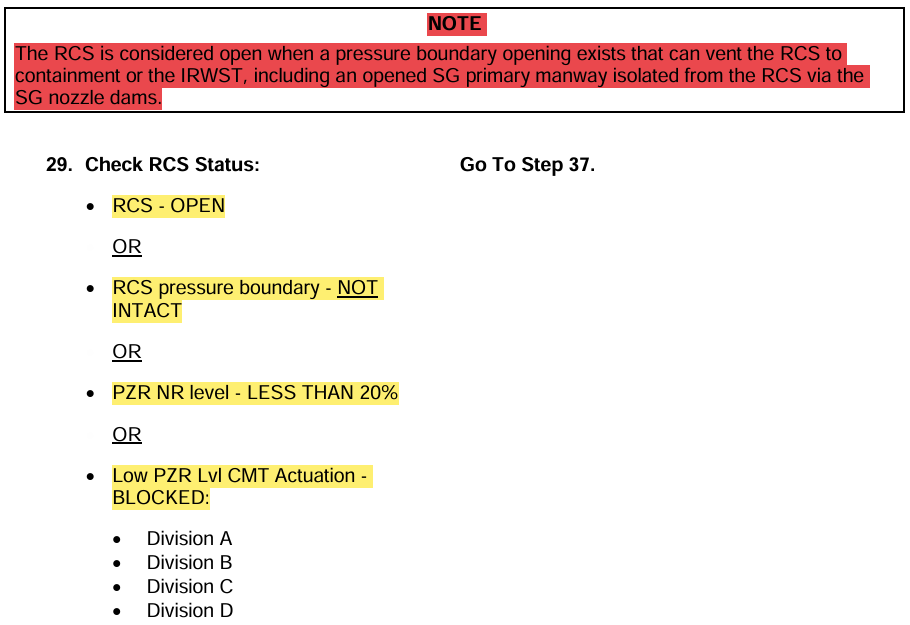

RCS Open Status

(Step 29)

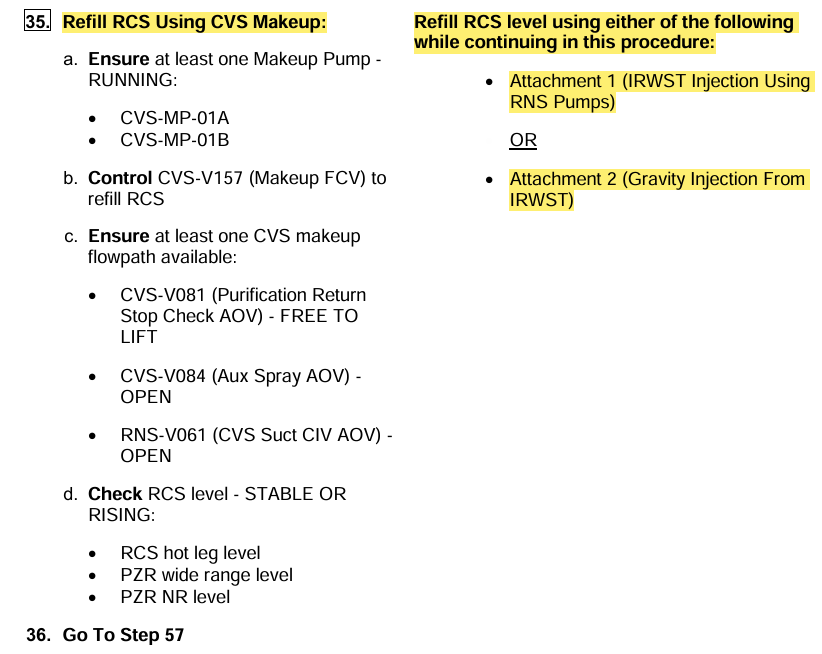

Refilling RCS

(Step 35 Branch)

*Step 37 carried out if RCS is NOT OPEN

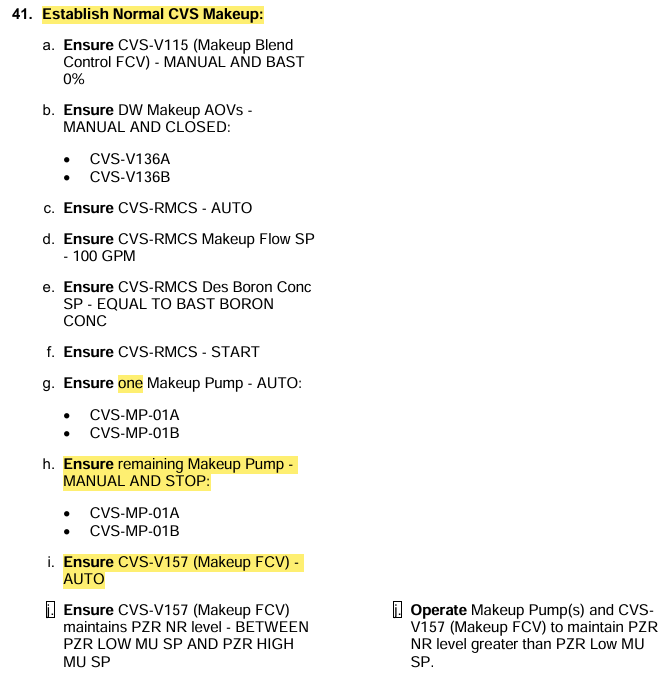

Establishing Normal CVS MU

(Step 41)

Notice:

If Bleed and Feed Required, then “S” Actuated CVS Maximum MU is utilized per step 47

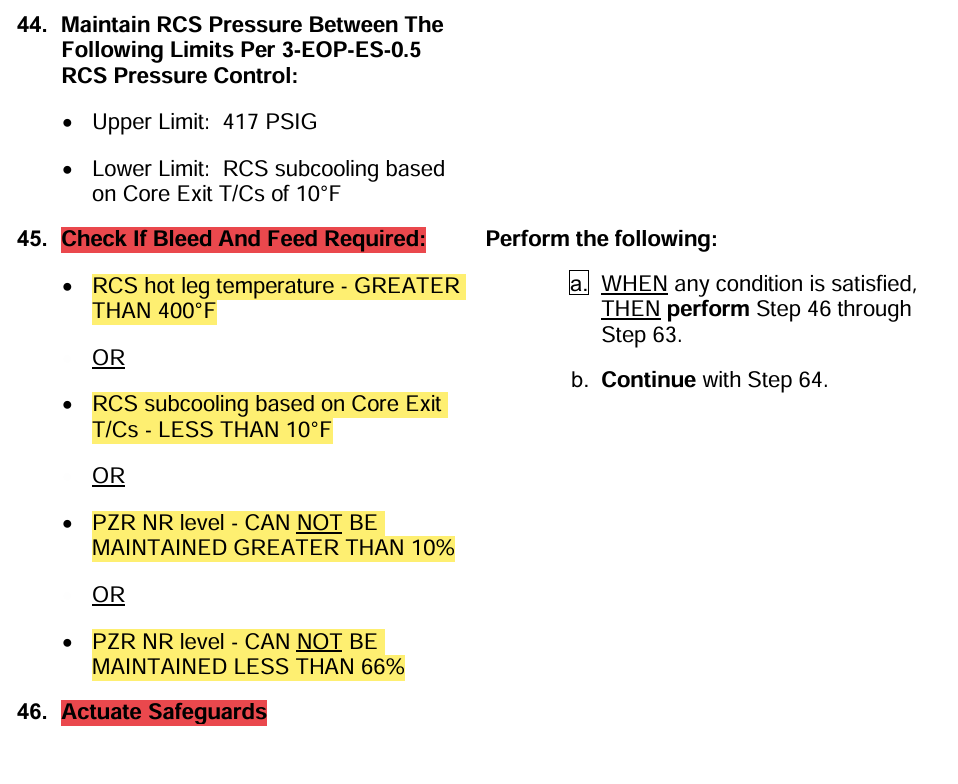

RCS Pressure Control Method

Bleed and Feed Criteria

(Steps 44-46)

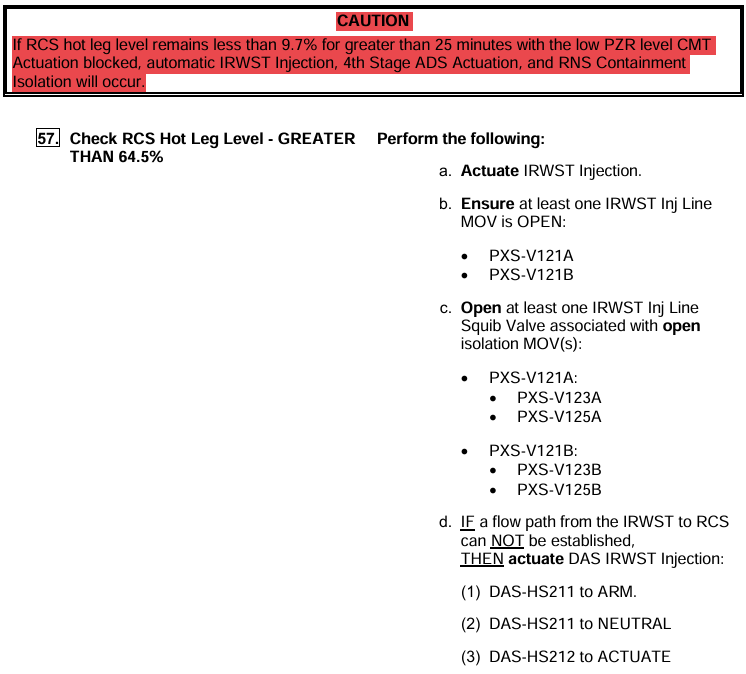

Hot Leg Level

(Step 57)

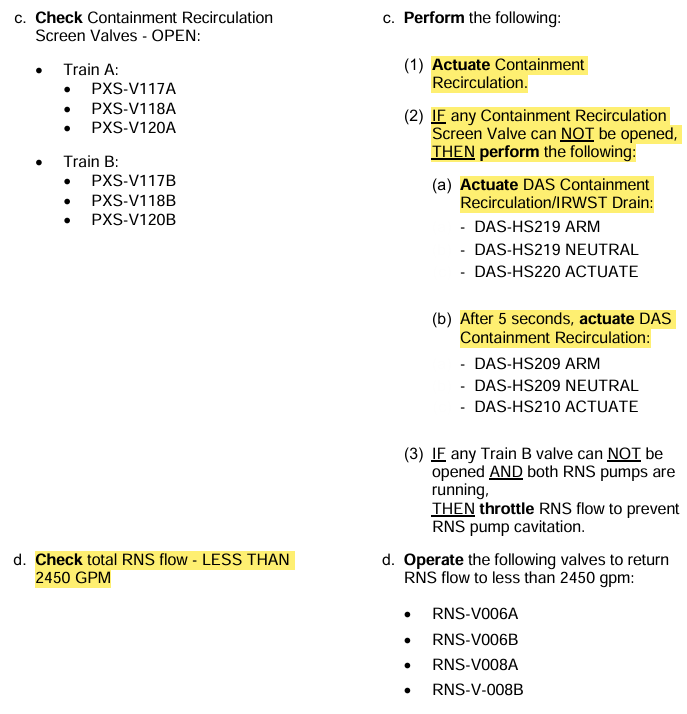

IRWST Containment Recirculation

(Step 62)

a. IRWST <25.7%

b. “S” RESET

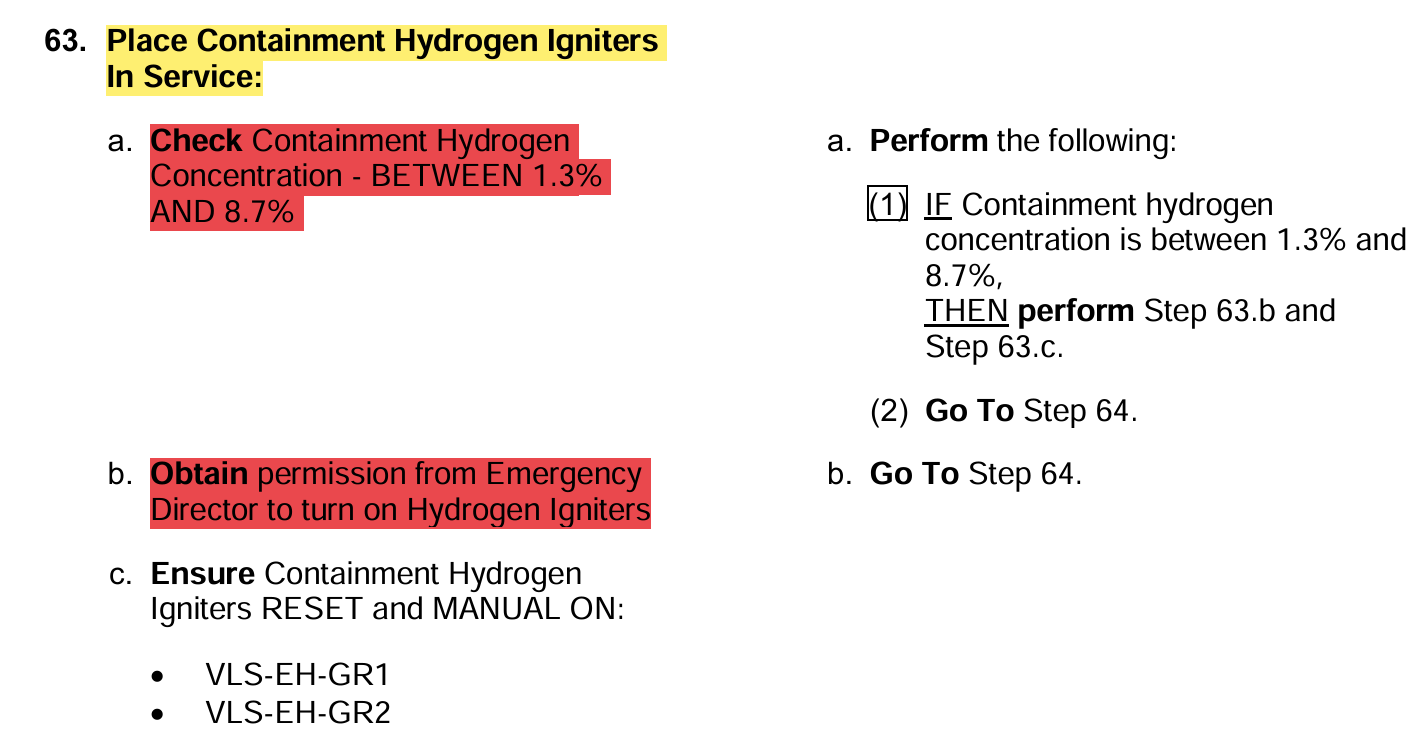

Hydrogen Igniters

(Step 63)

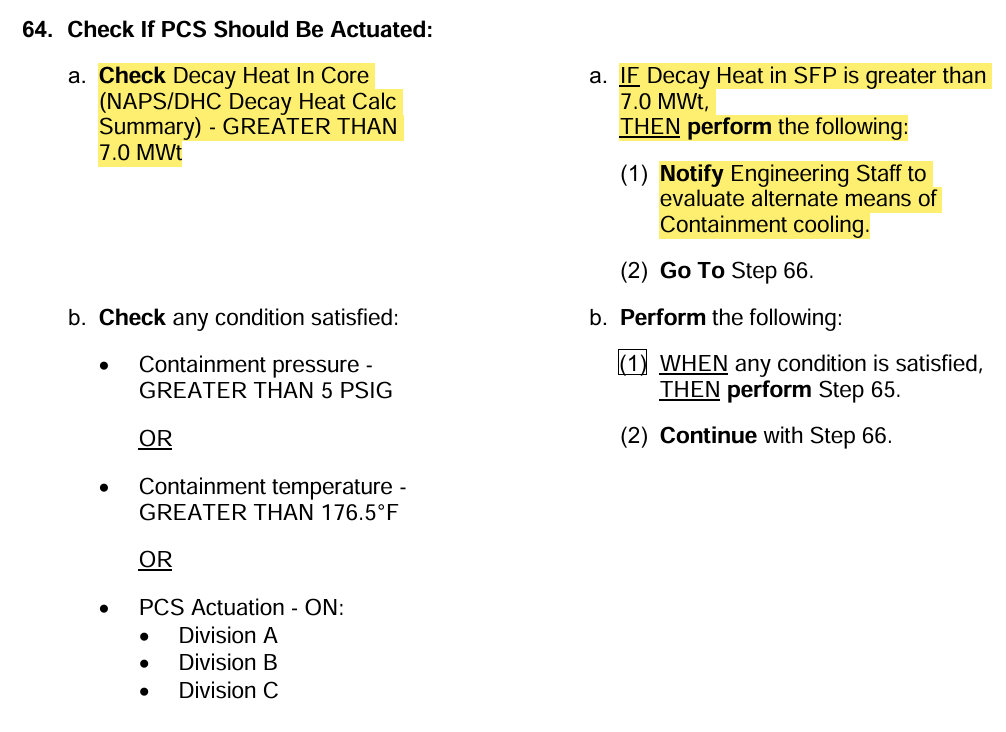

PCS Actuation

(Step 64)
