12 Terms

1
New cards

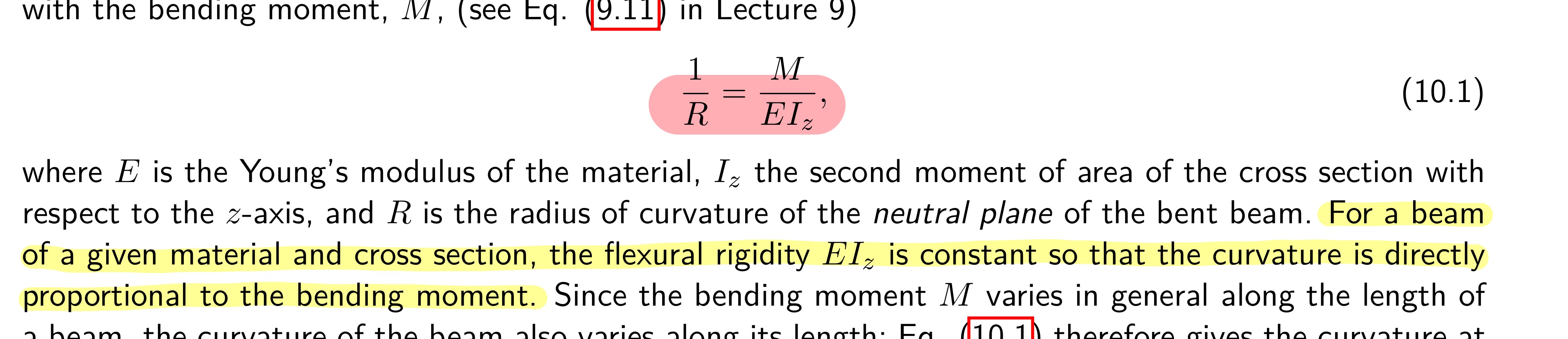

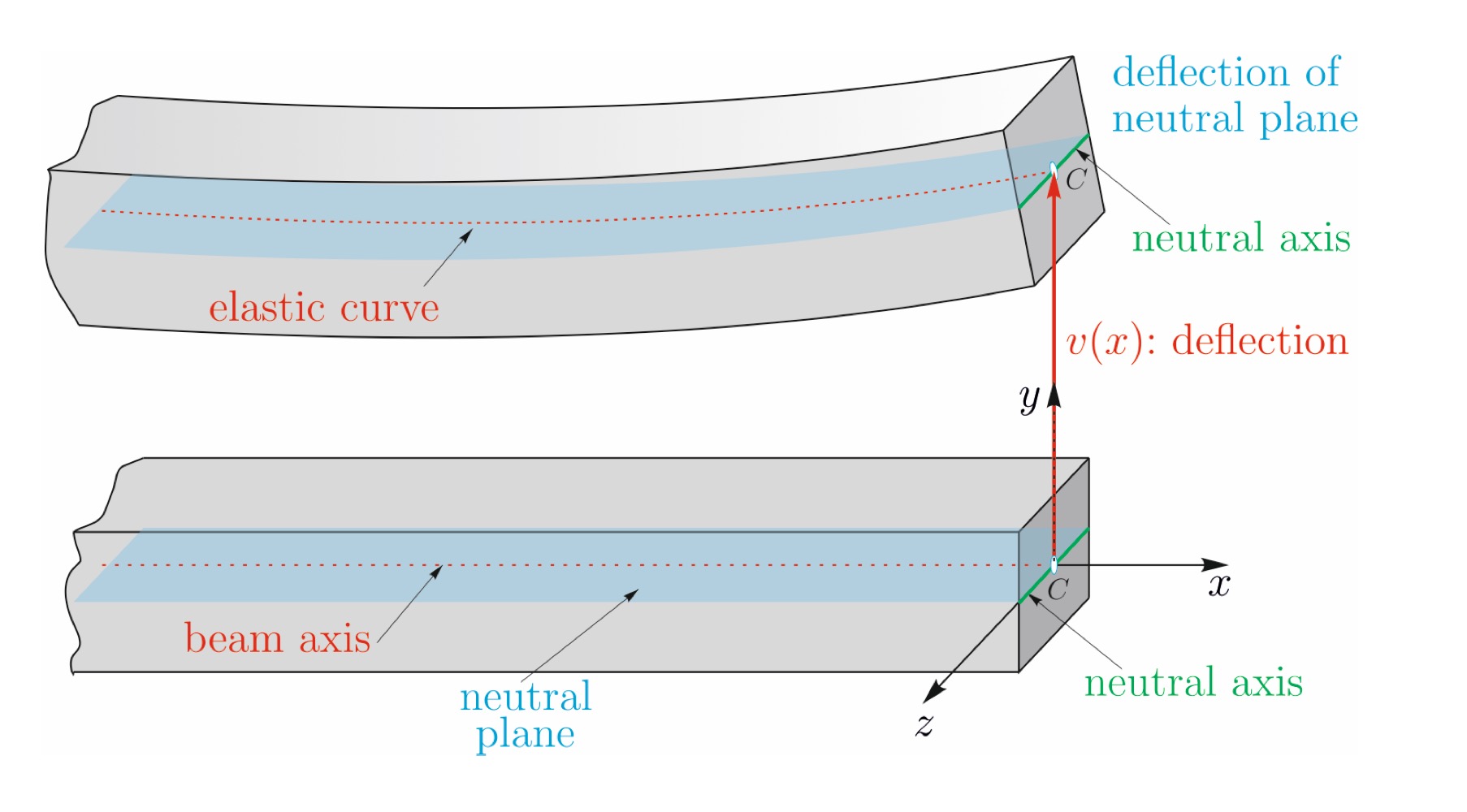

an expression relating the curvature, 1/R, of the neutral plane of the beam with the bending moment, M

knowt flashcard image
2
New cards

What is flexural rigidity

EIz

3
New cards
term image
knowt flashcard image
4
New cards
term image
knowt flashcard image
5
New cards

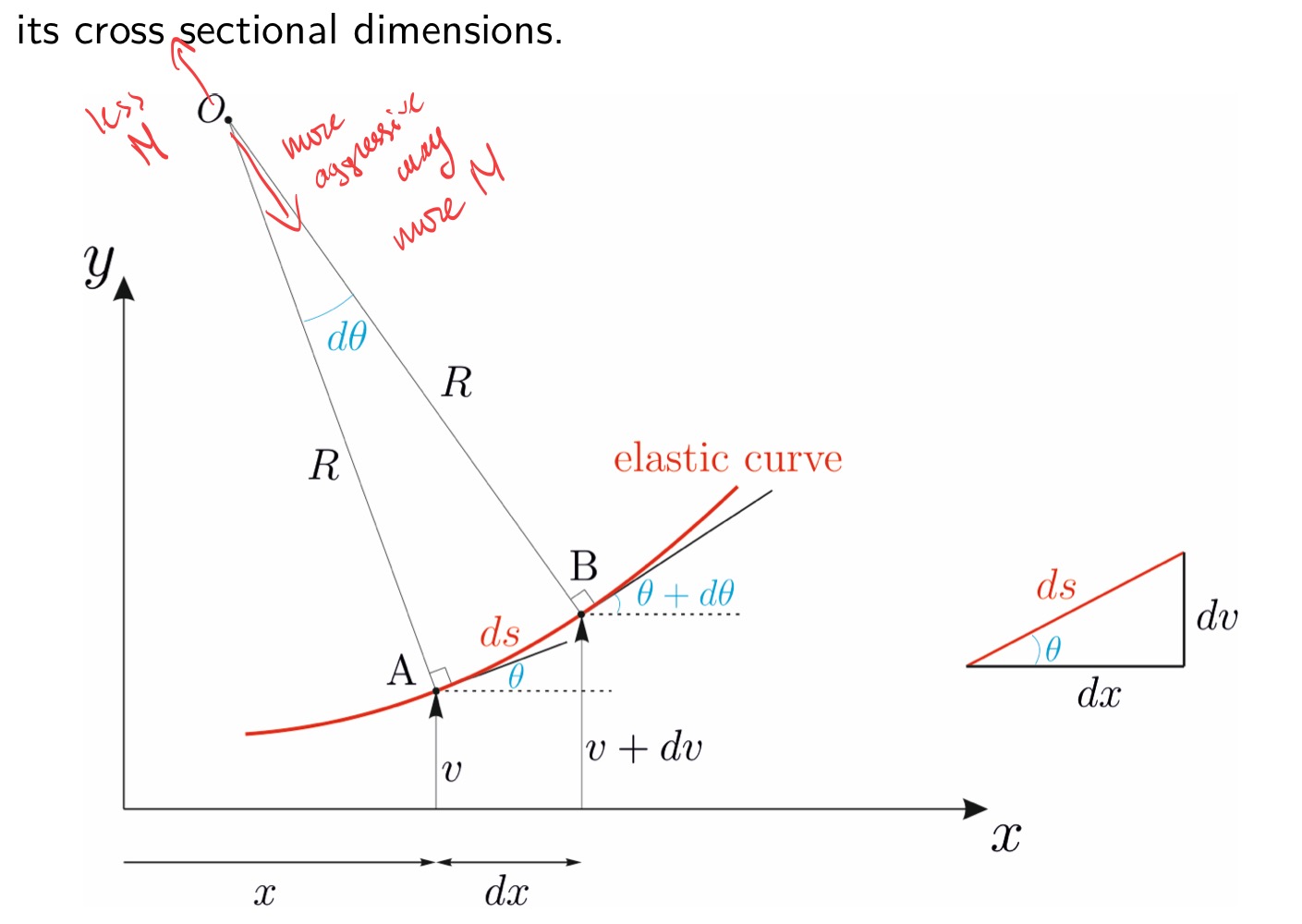

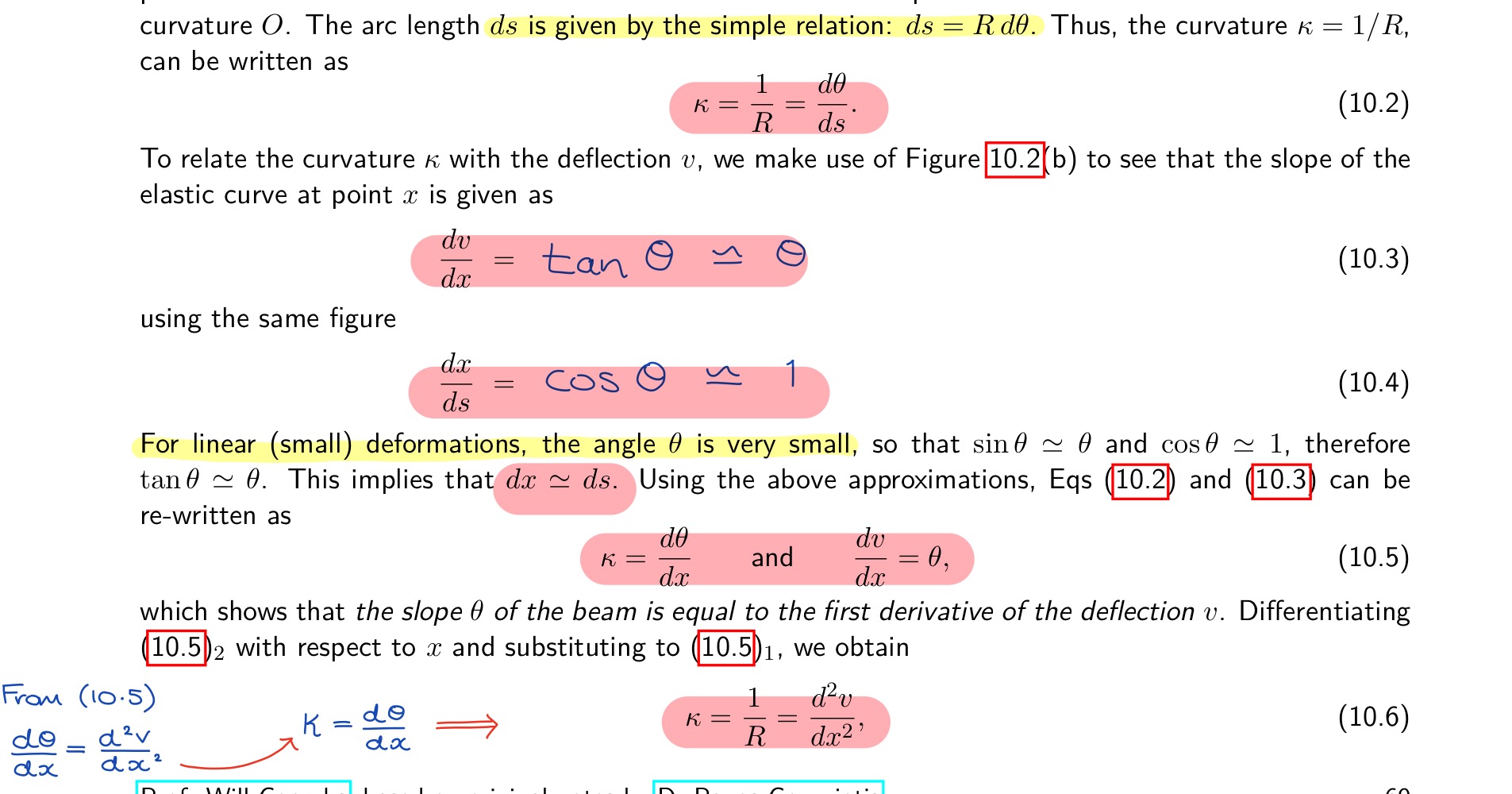

<p>What is equation of curvature k</p>

What is equation of curvature k

knowt flashcard image
6
New cards

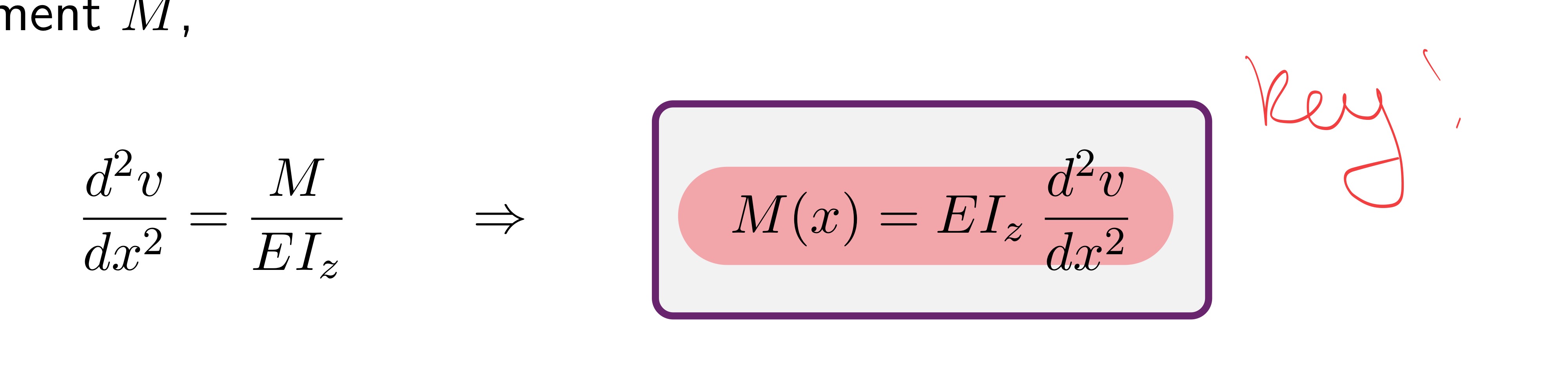

fundamental equation relating the curvature with the internal bending moment M

This is the moment-curvature equation that tells us that the moment is proportional to the curvature with coefficient of proportionality equal to the flexural rigidity EIz .

<p>This is the moment-curvature equation that tells us that the moment is proportional to the curvature with coefficient of proportionality equal to the flexural rigidity EIz . </p>
7
New cards

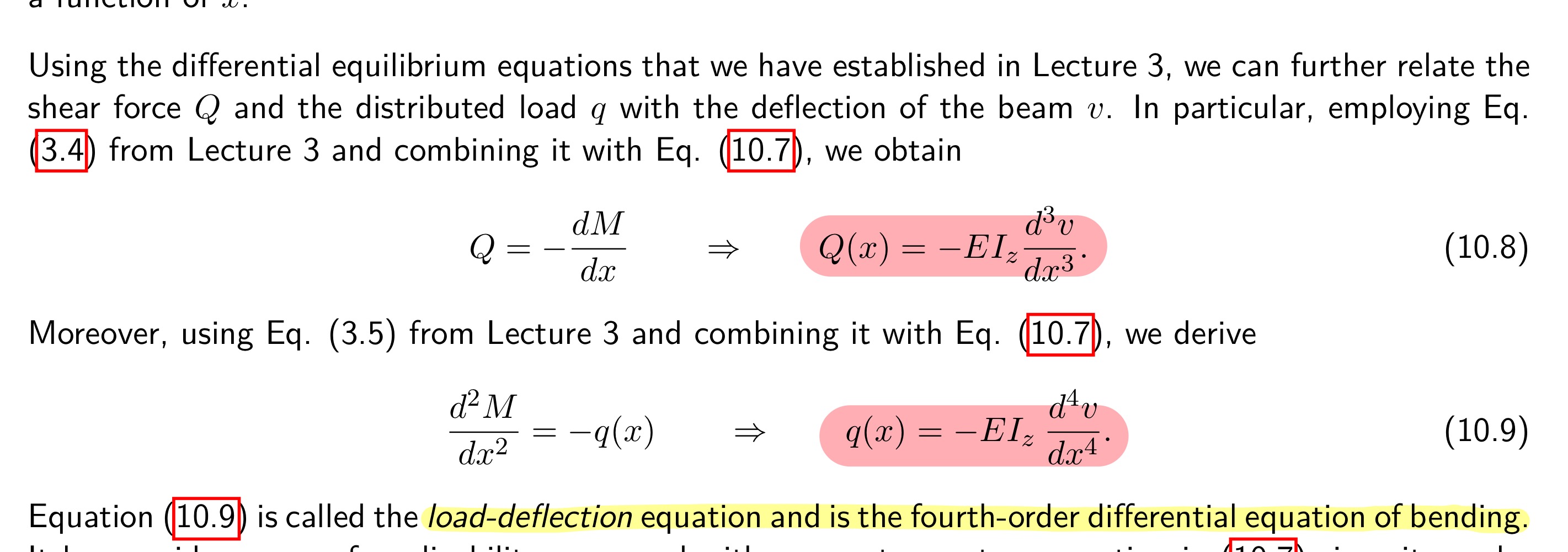

<p>What is equation of shear force and UDL then?</p>

What is equation of shear force and UDL then?

knowt flashcard image
8
New cards

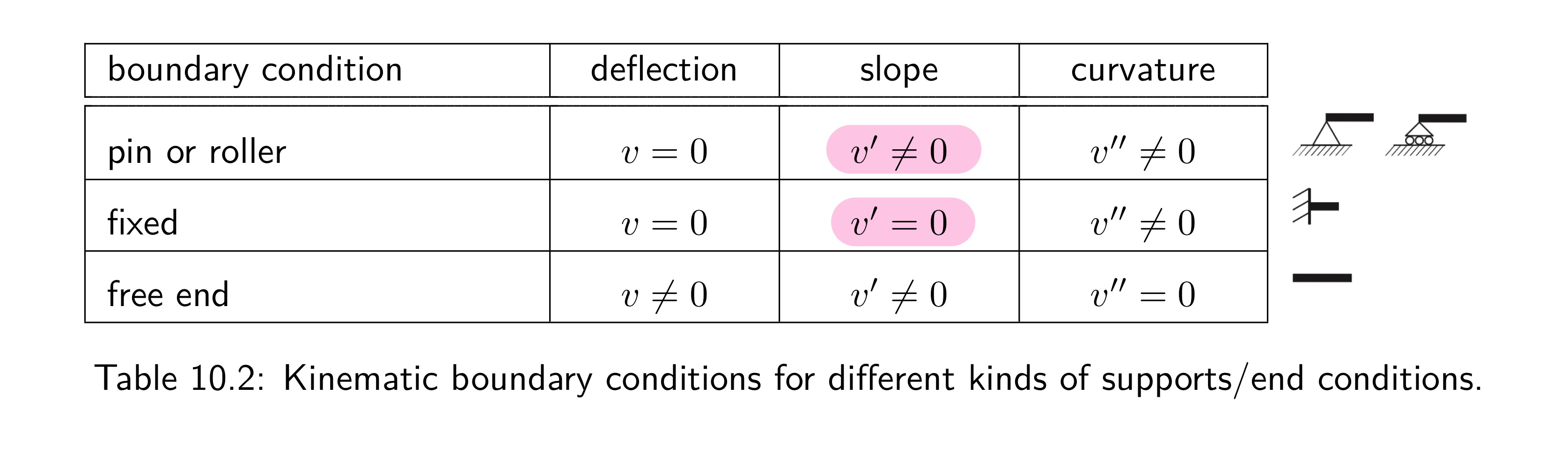

<p>What do we use this table for?</p>

What do we use this table for?

When determining constants of integration d1 and d2 to know when deflection v equals zero and when doesn’t

<p>When determining constants of integration d1 and d2 to know when deflection v equals zero and when doesn’t</p>
9
New cards
term image
knowt flashcard image
10
New cards
term image
knowt flashcard image
11
New cards
term image
knowt flashcard image
12
New cards
term image
knowt flashcard image
