Logic gates

Truth tables and symbols

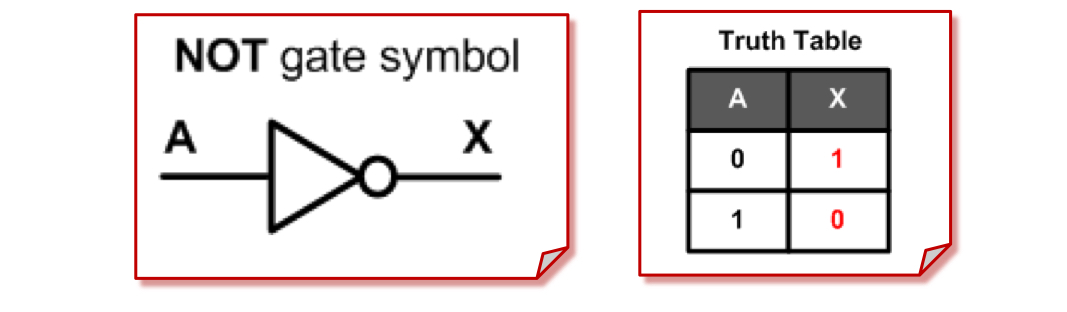

Not ( inverter)

Do: Output is the inverse of the input

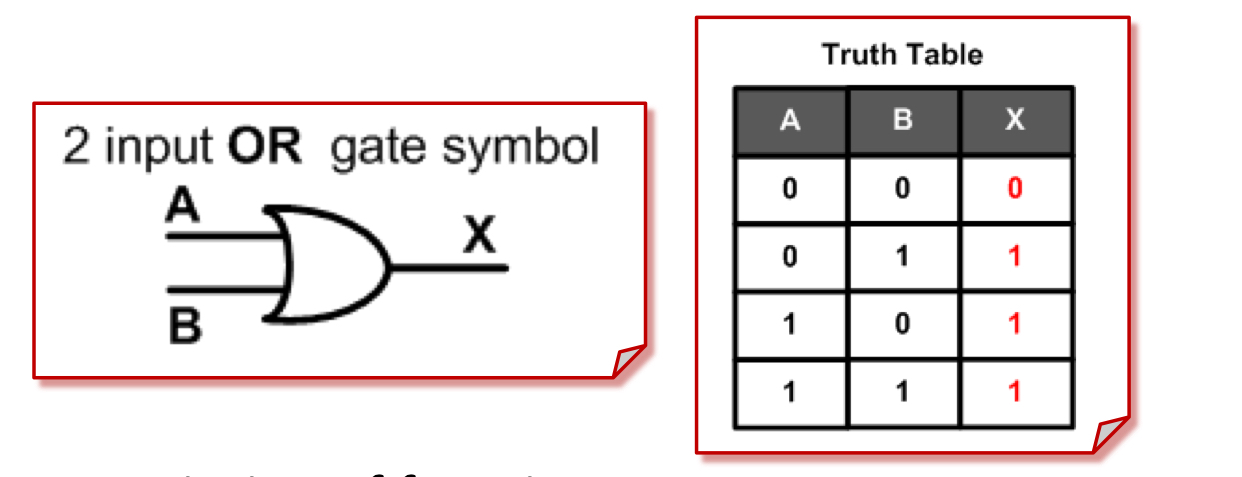

OR gate

Do: if Input A Is 1 or input B is 1 the output is =1 and if both input A and B are=1 output is also 1

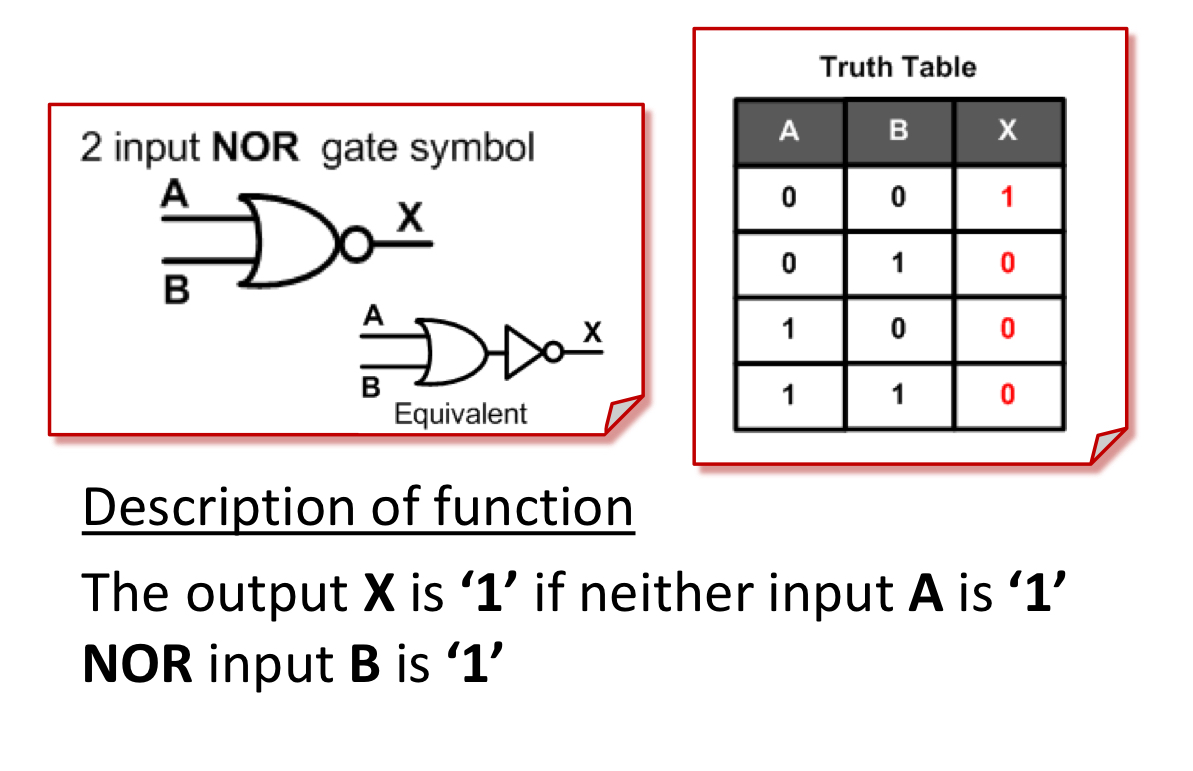

Not OR (NOR)

AND

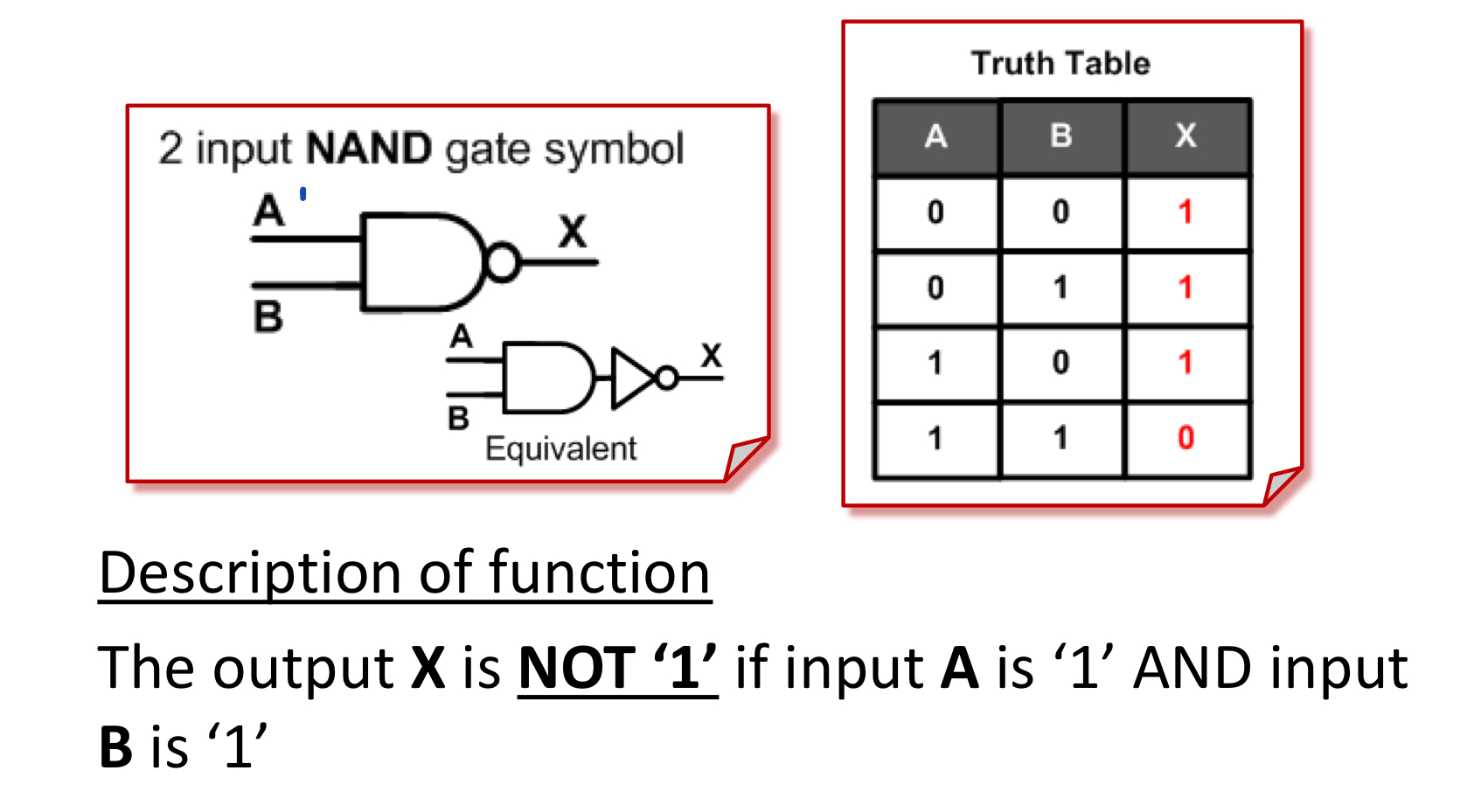

NOT AND (NAND)

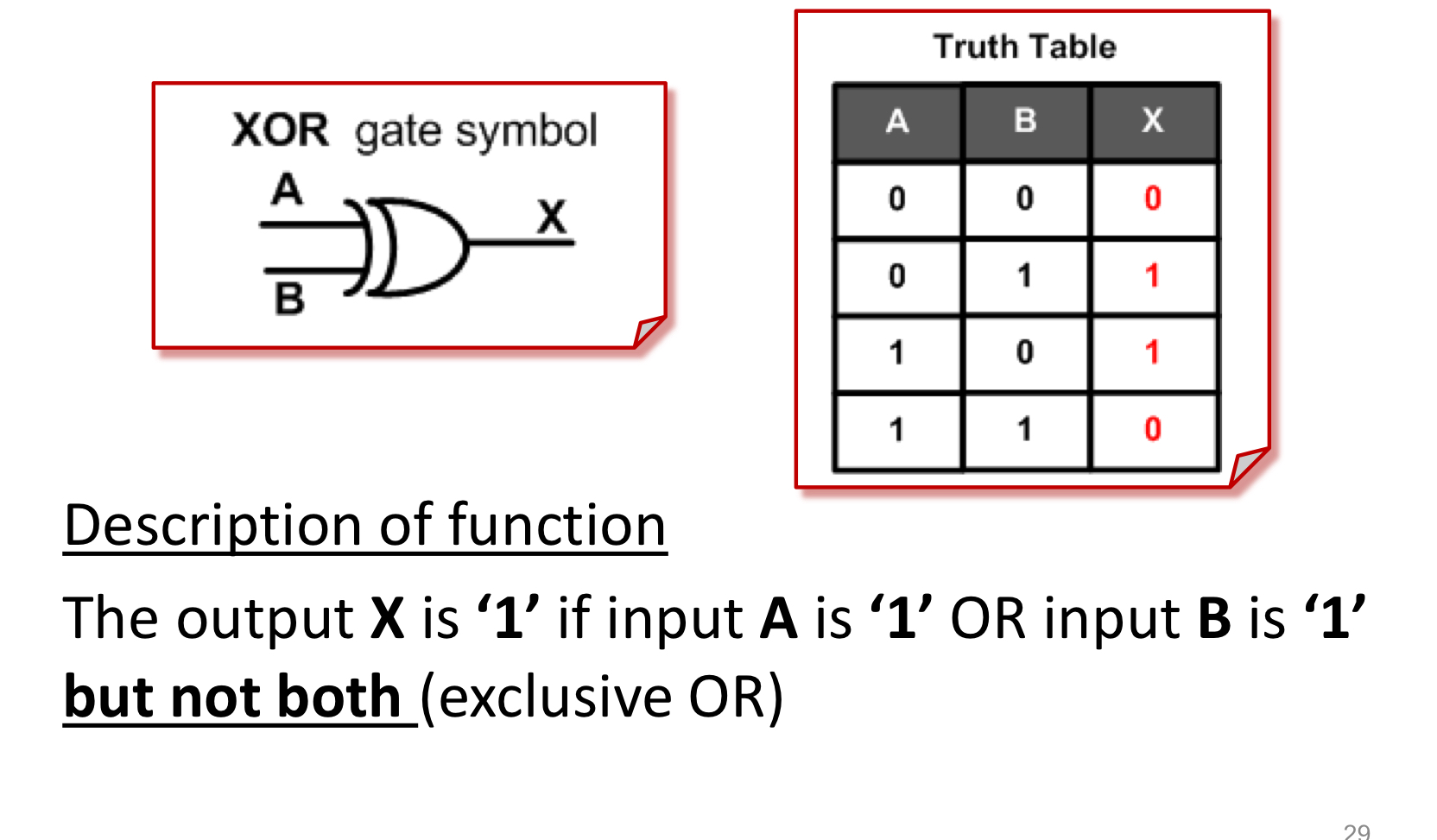

EXOR or XOR

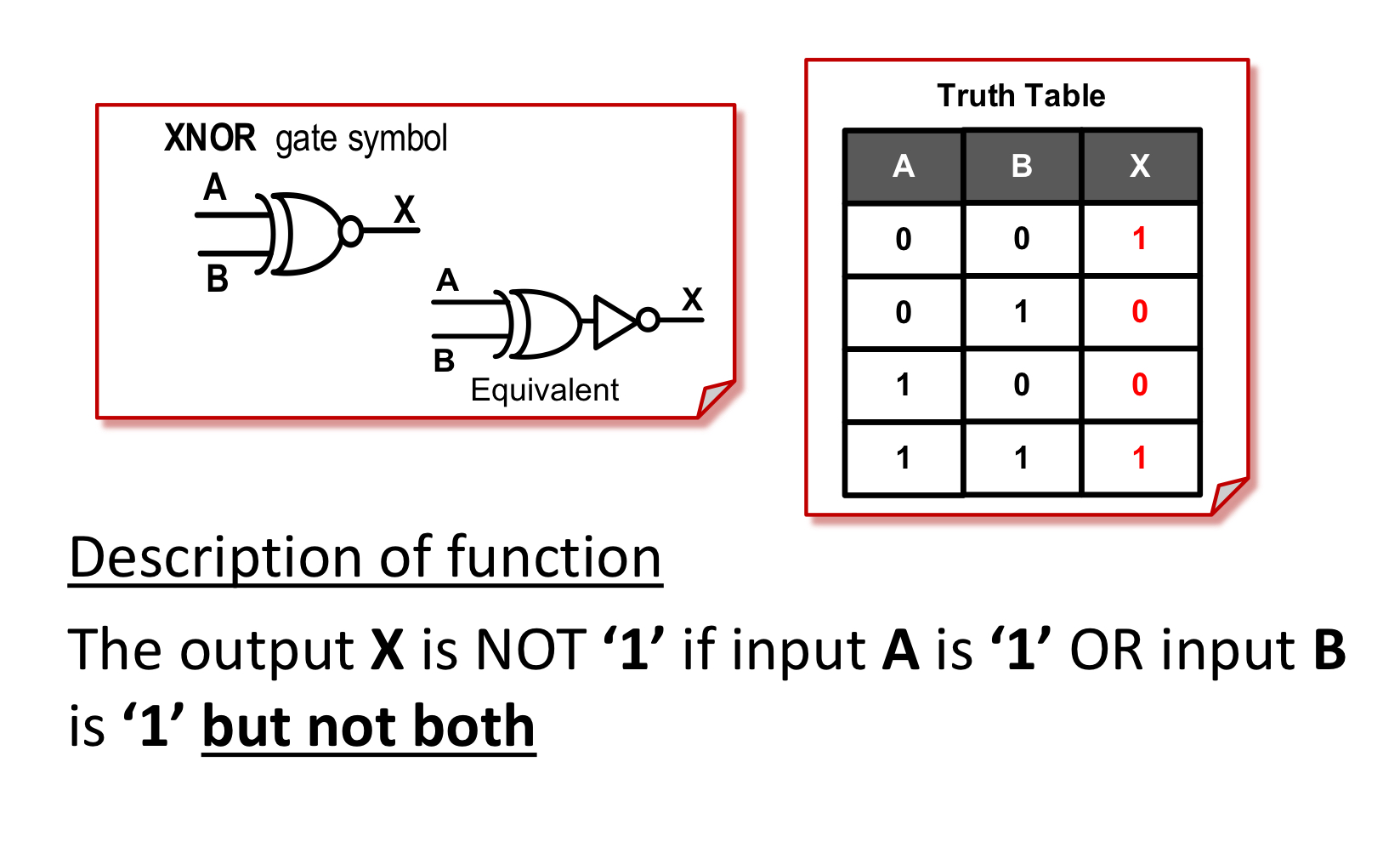

XNOR or EXNOR
