AP Microeconomics: Graphs!

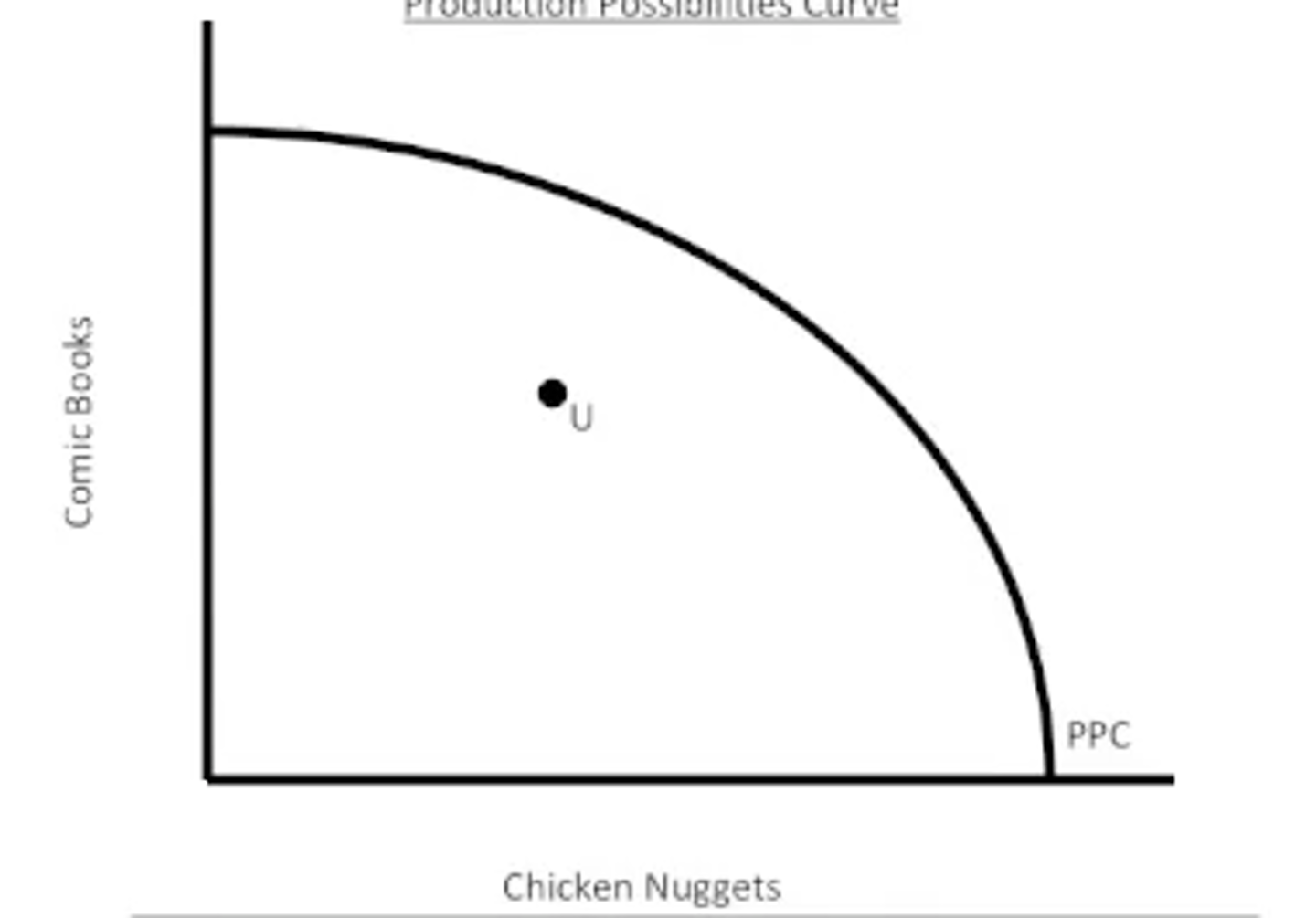

Production Possibilities; U is inefficient

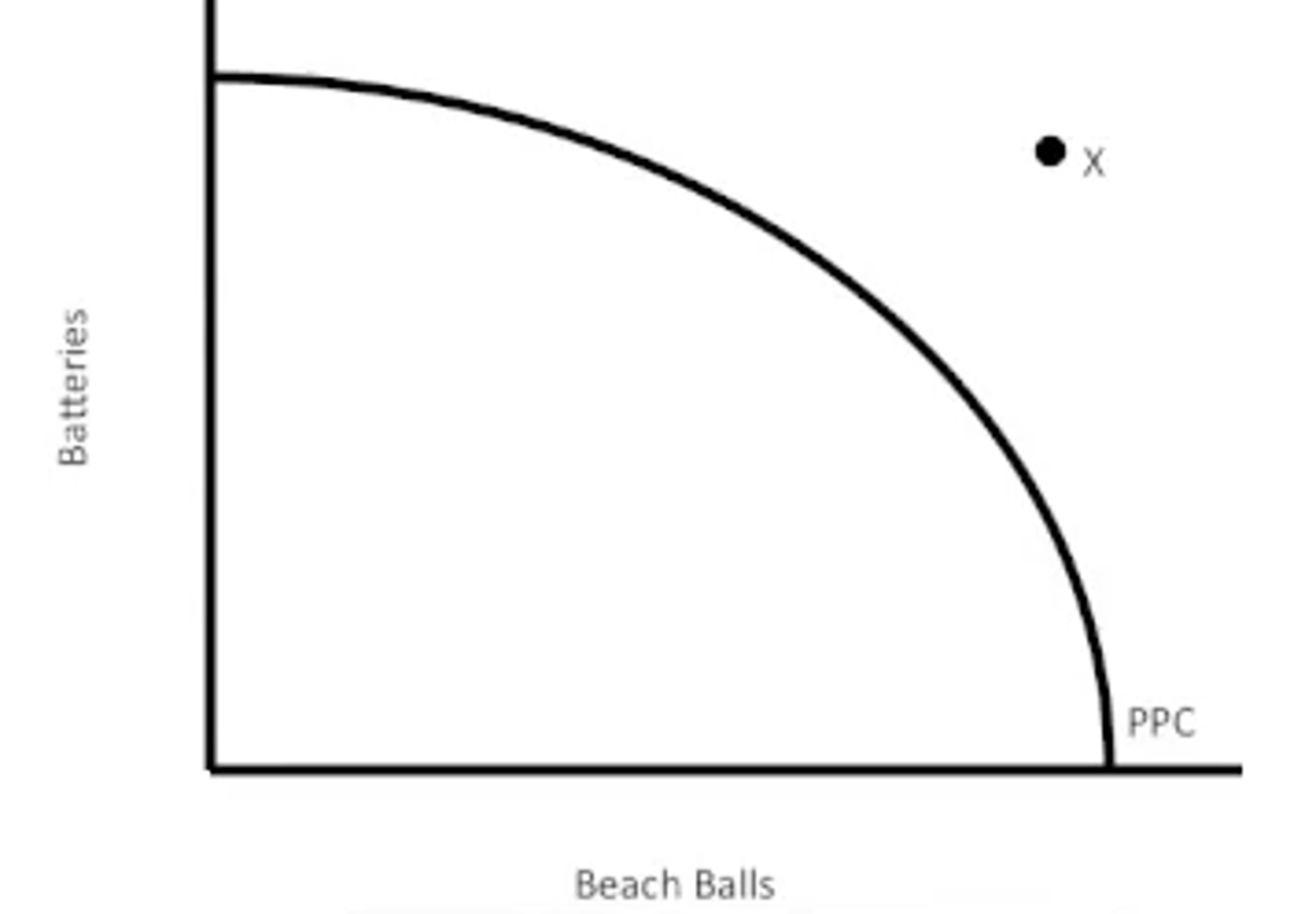

Production Possibilities; x is impossible

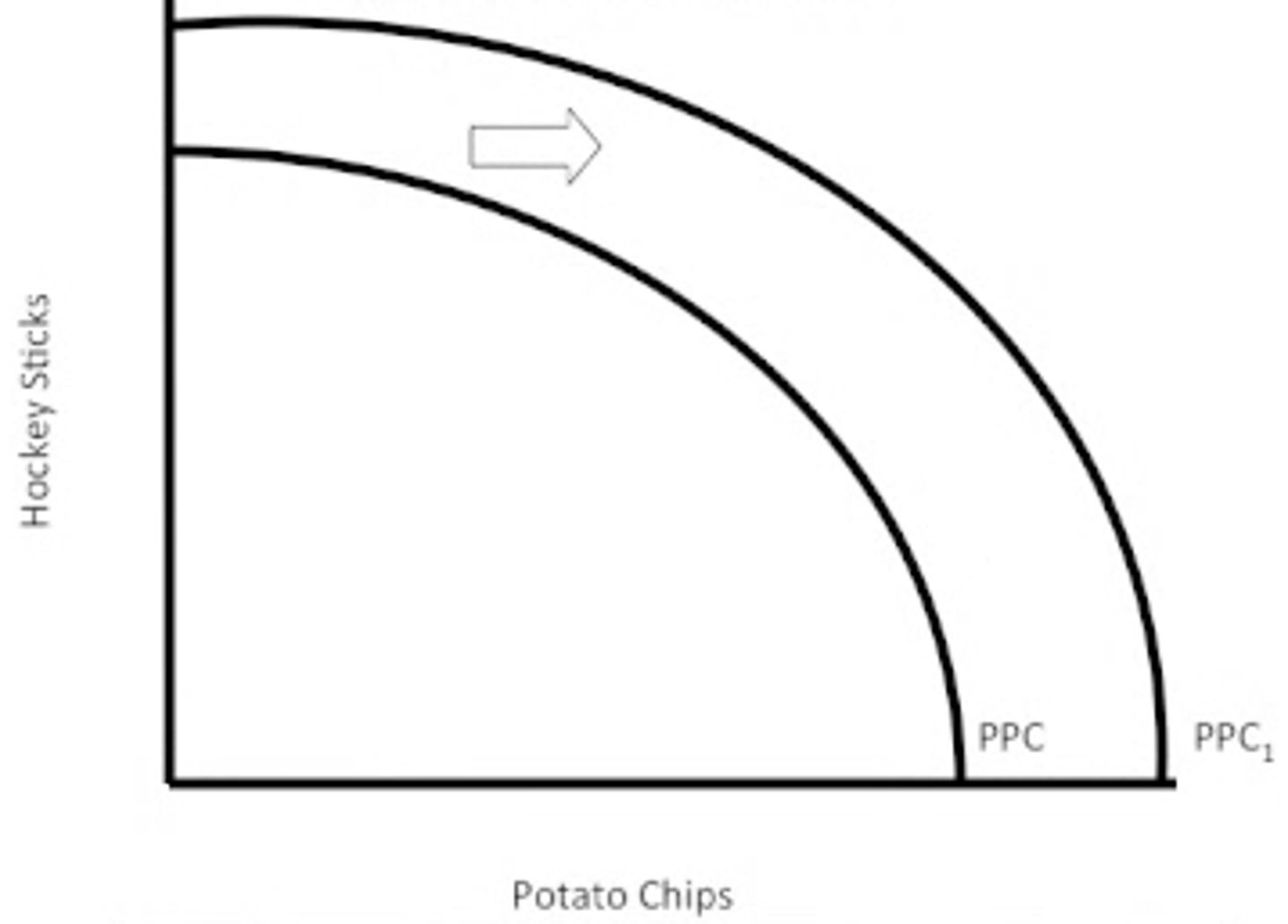

Production Possibilities; right shift indicates economic growth

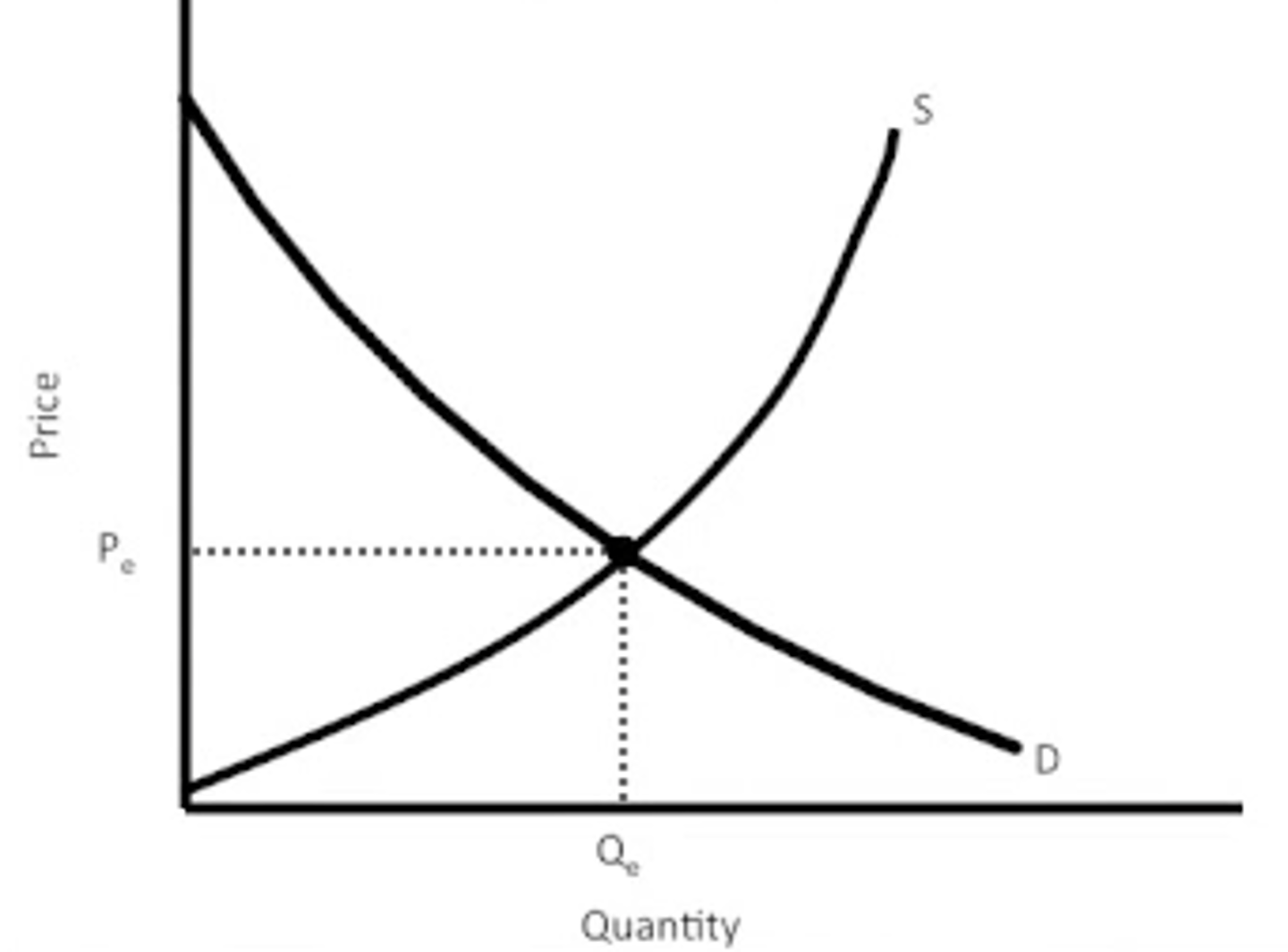

market equilibrium

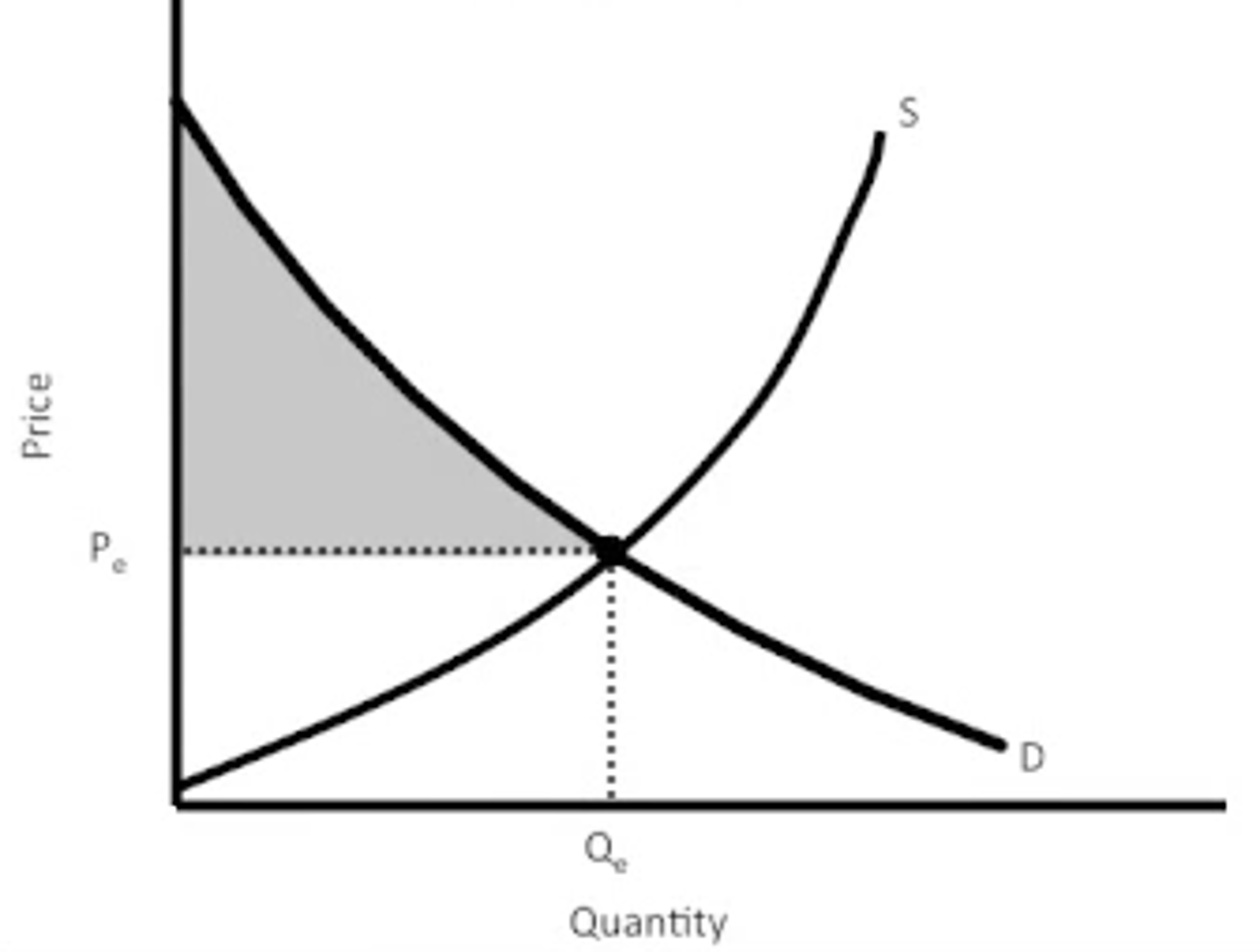

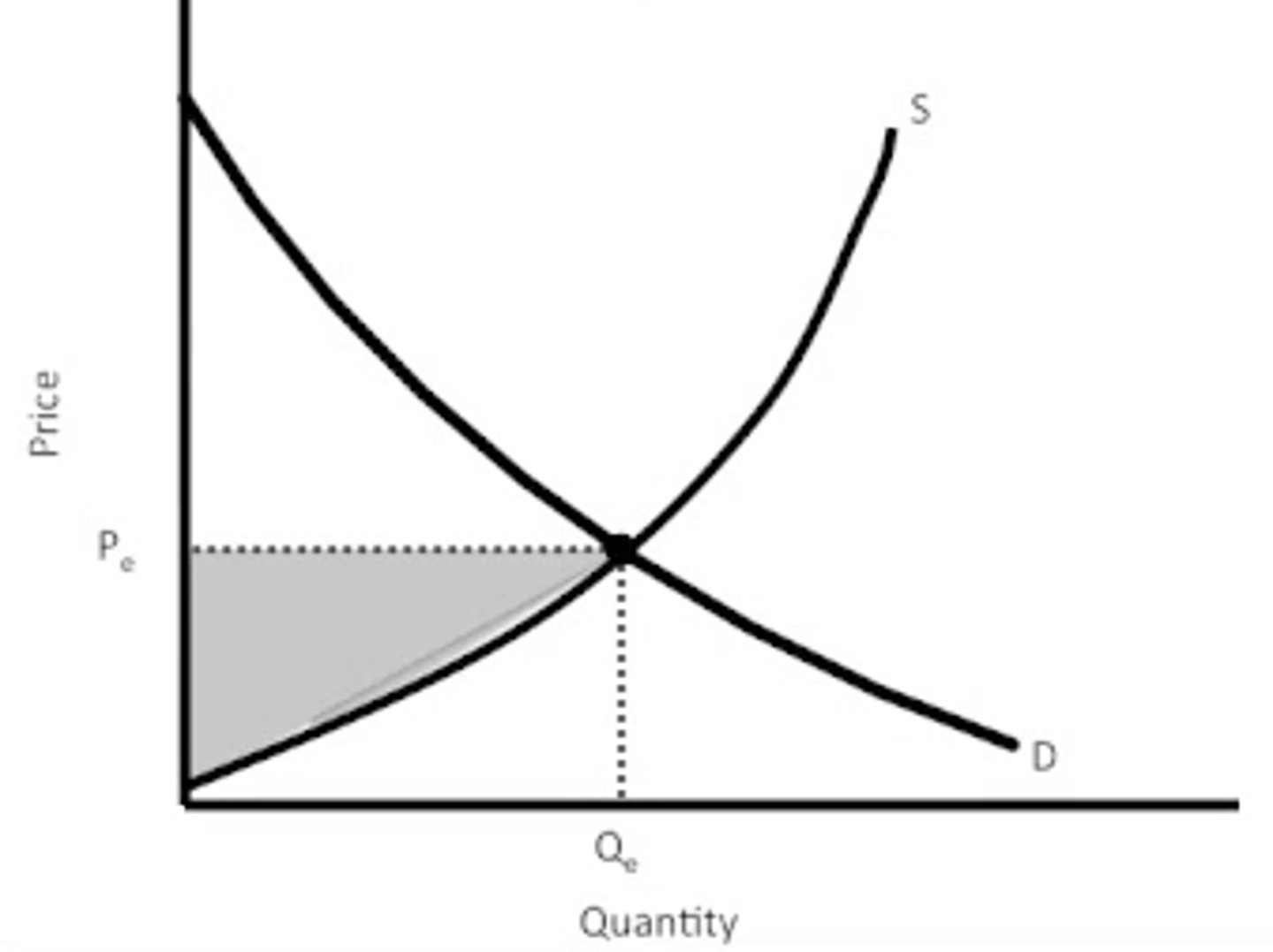

consumer surplus

producer surplus

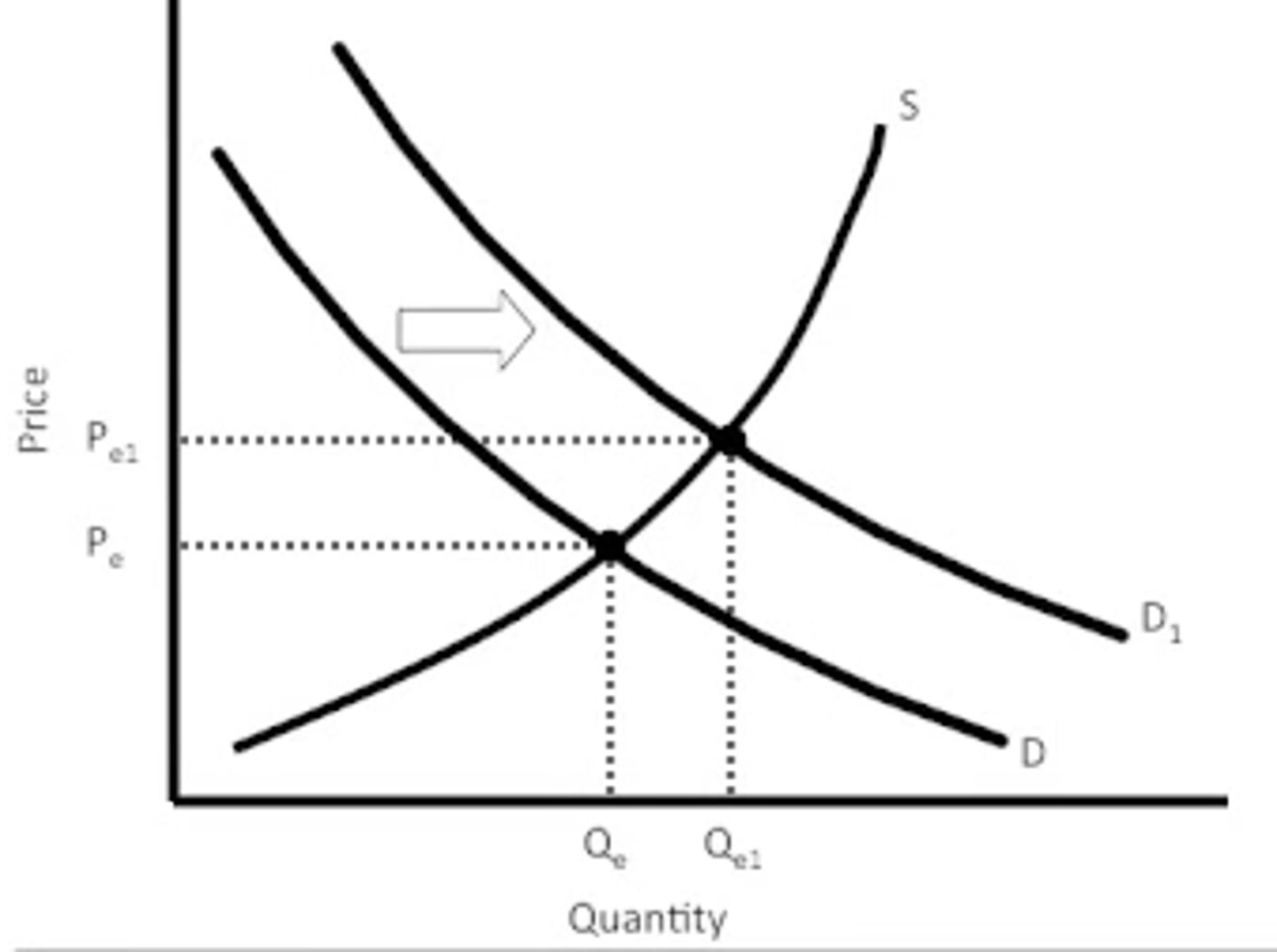

increased demand = higher price and quantity

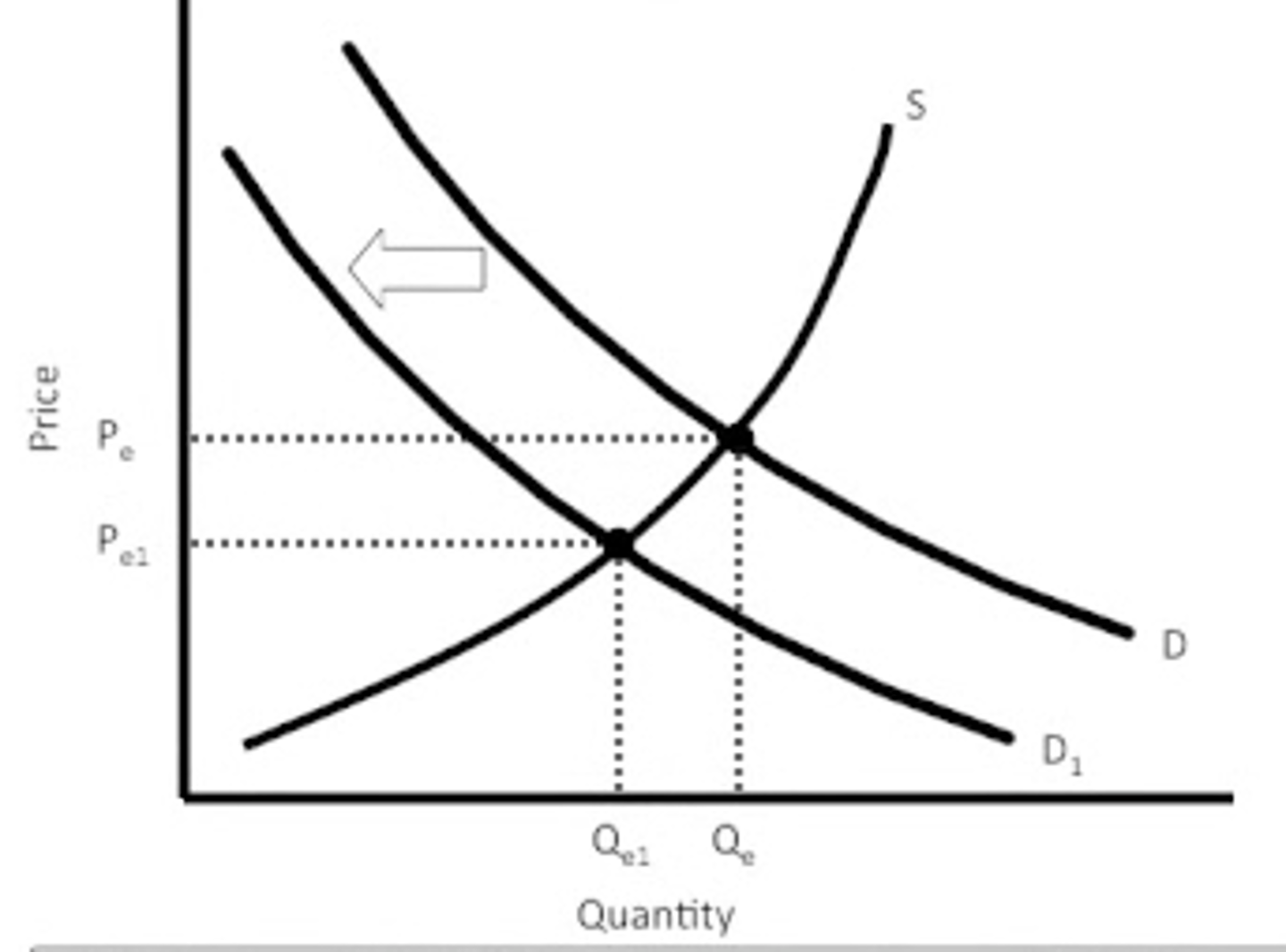

decreased demand = lower price and quantity

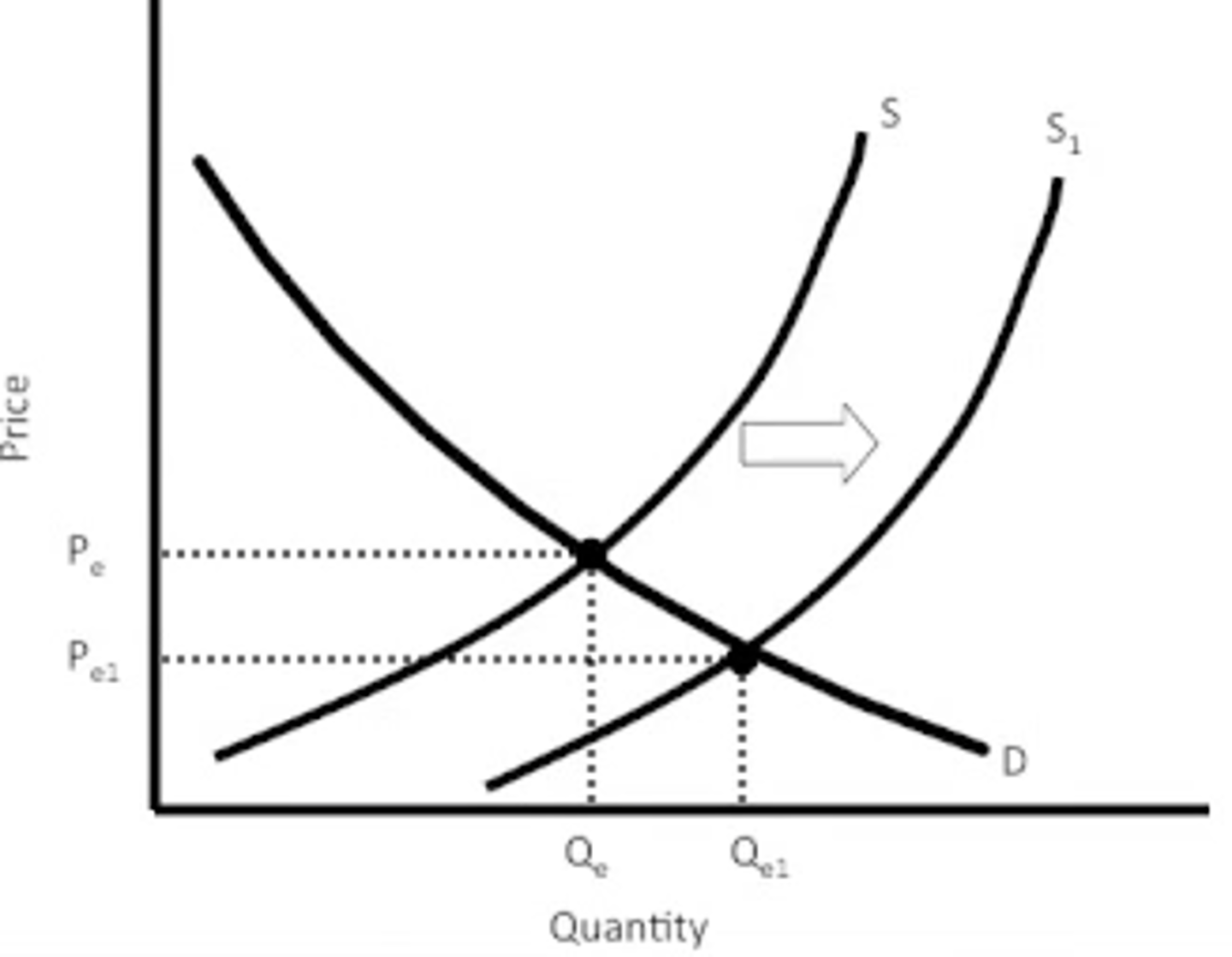

increased supply = lower $ and higher #

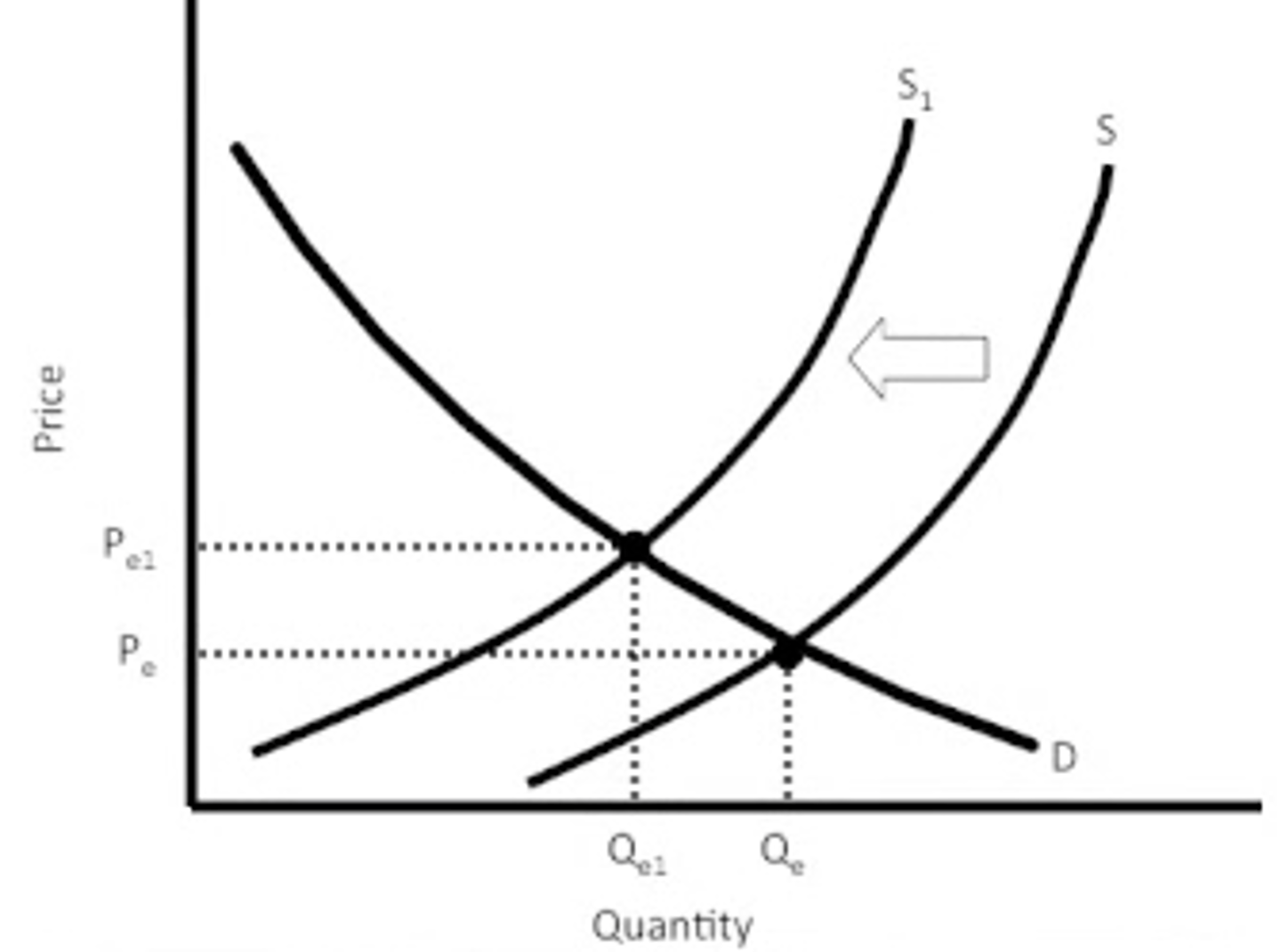

decreased supply = higher $ and lower #

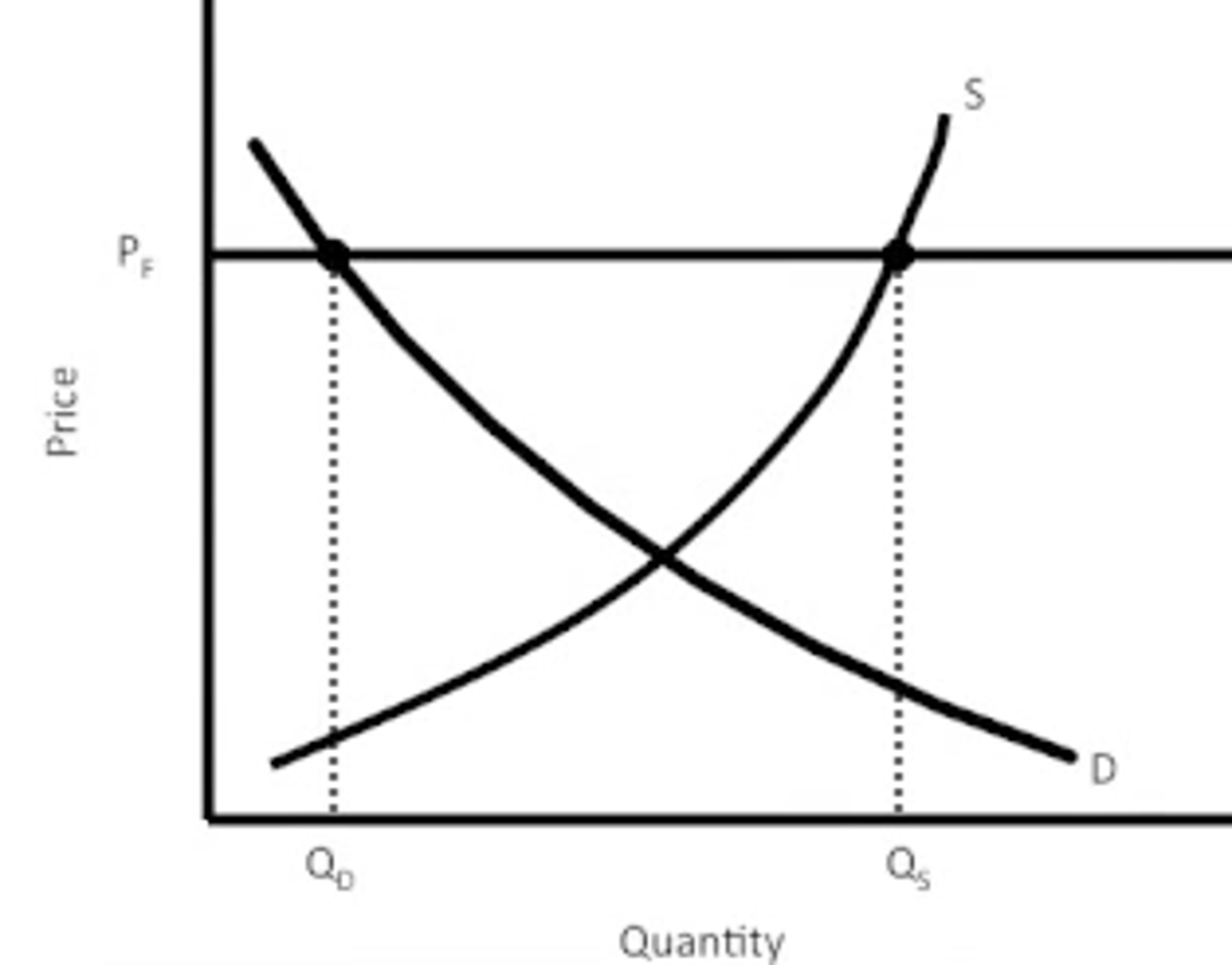

price floor; causes a surplus

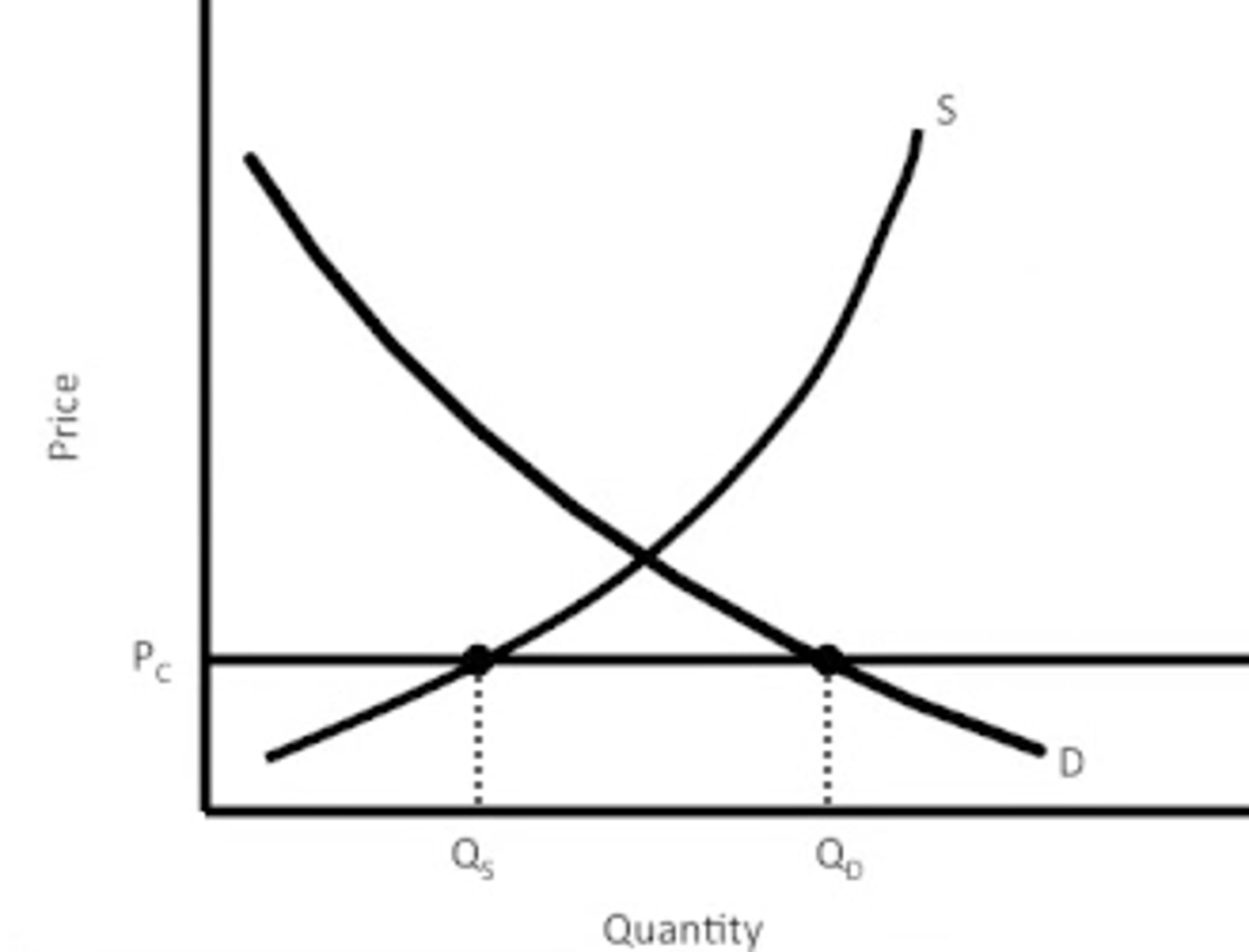

price ceiling; causes a shortage

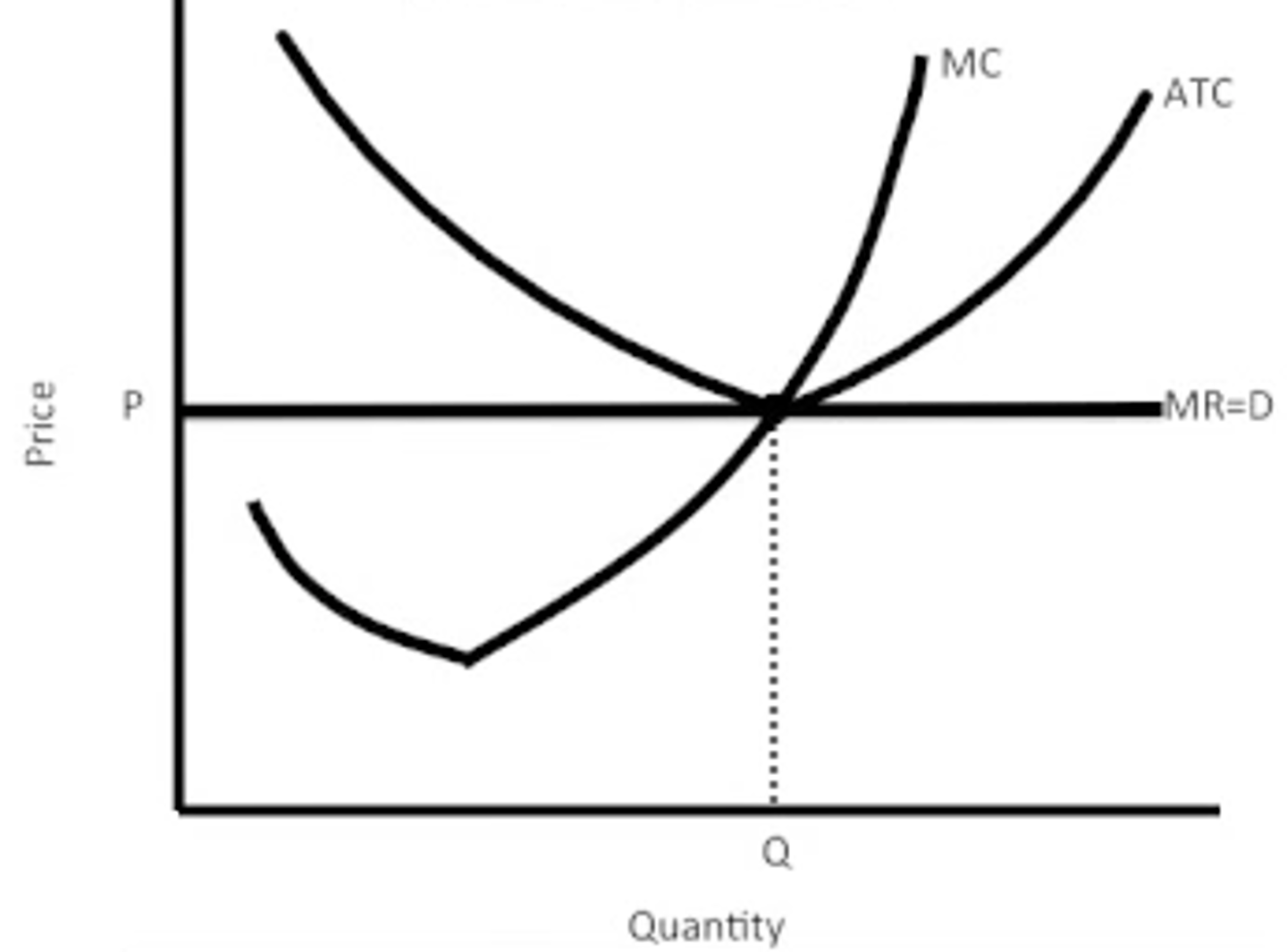

perfect competition at equilibrium

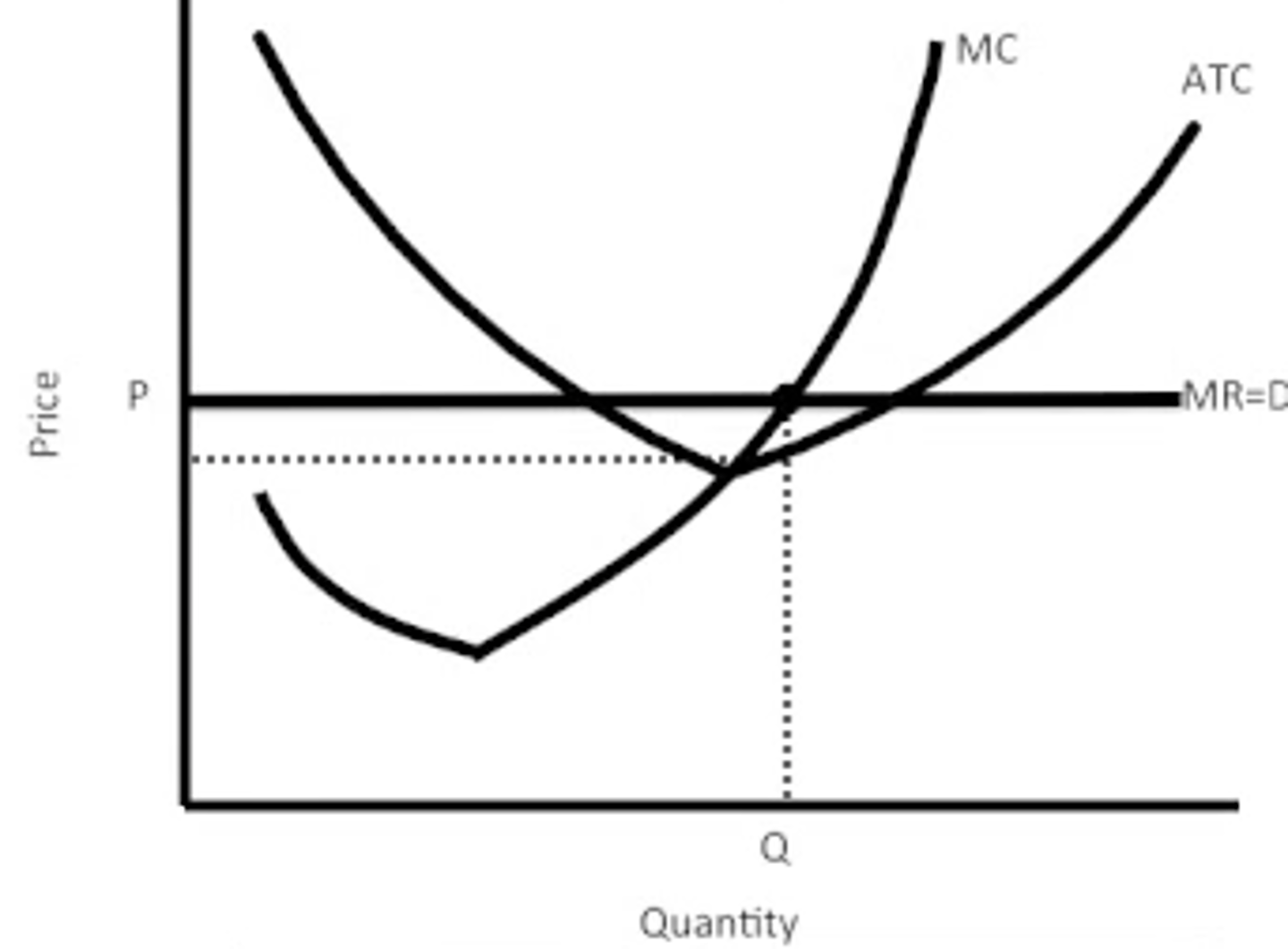

perfect competition making a profit

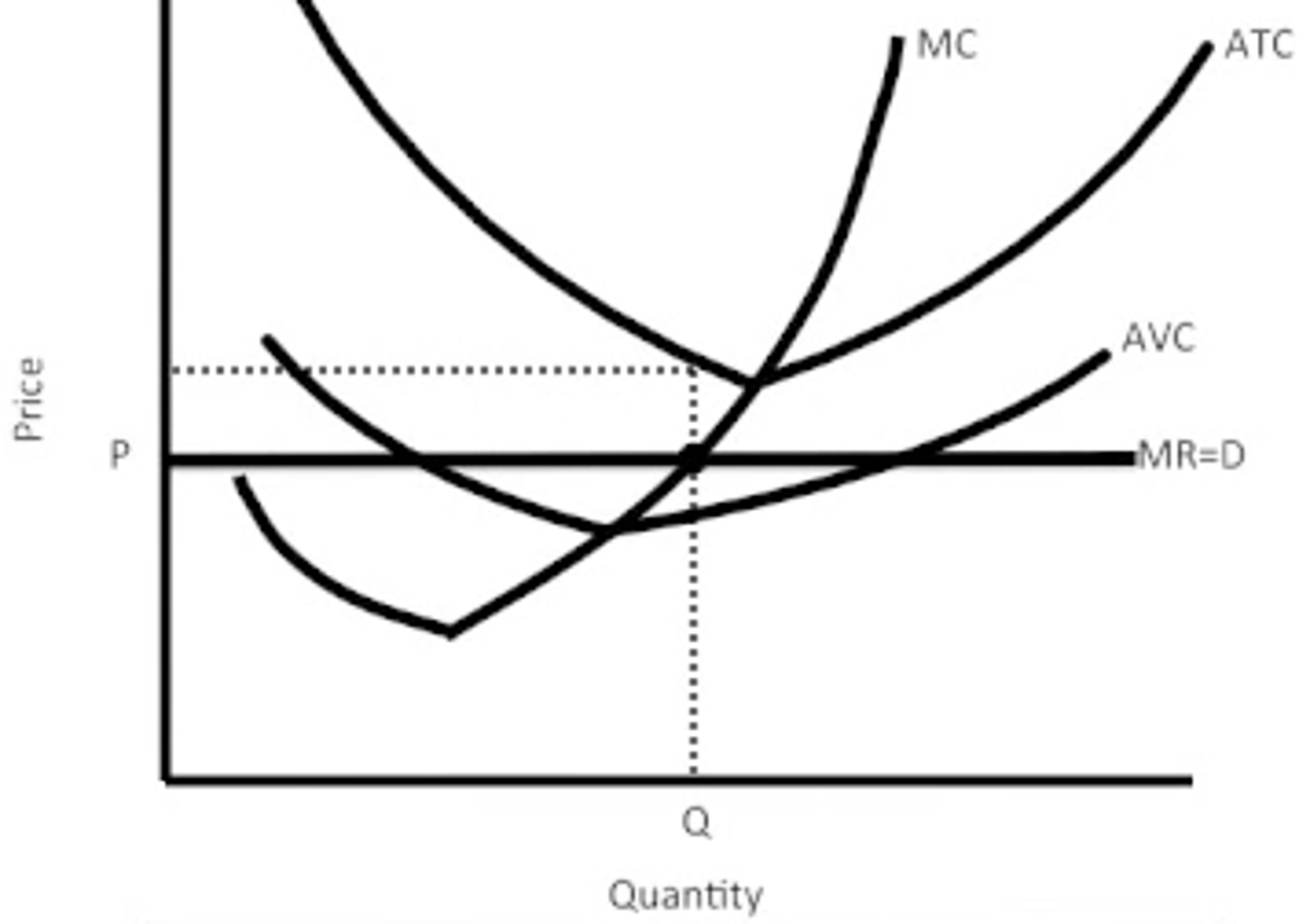

perfect competition making a loss

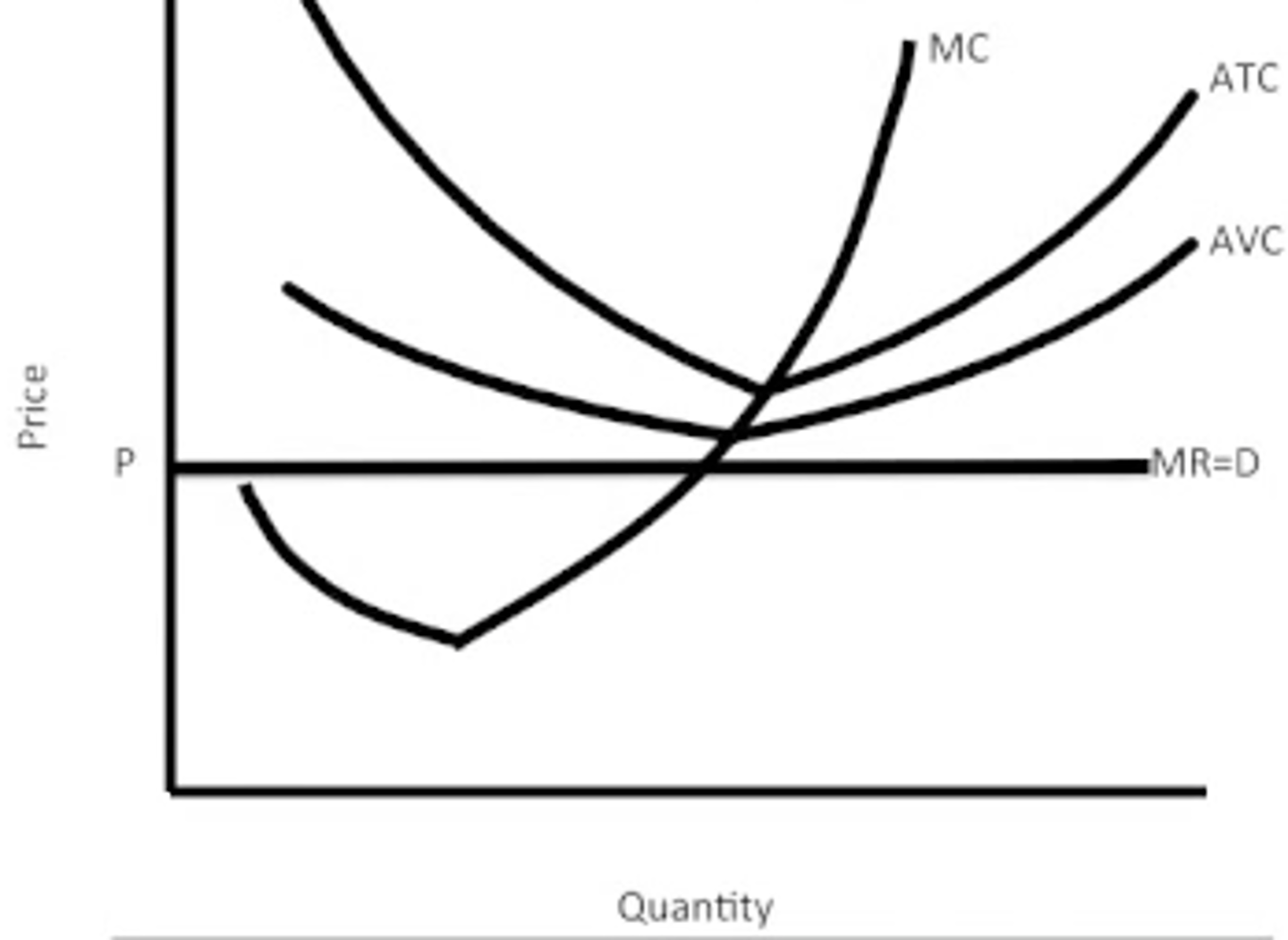

perfect competition in a "shut down" position

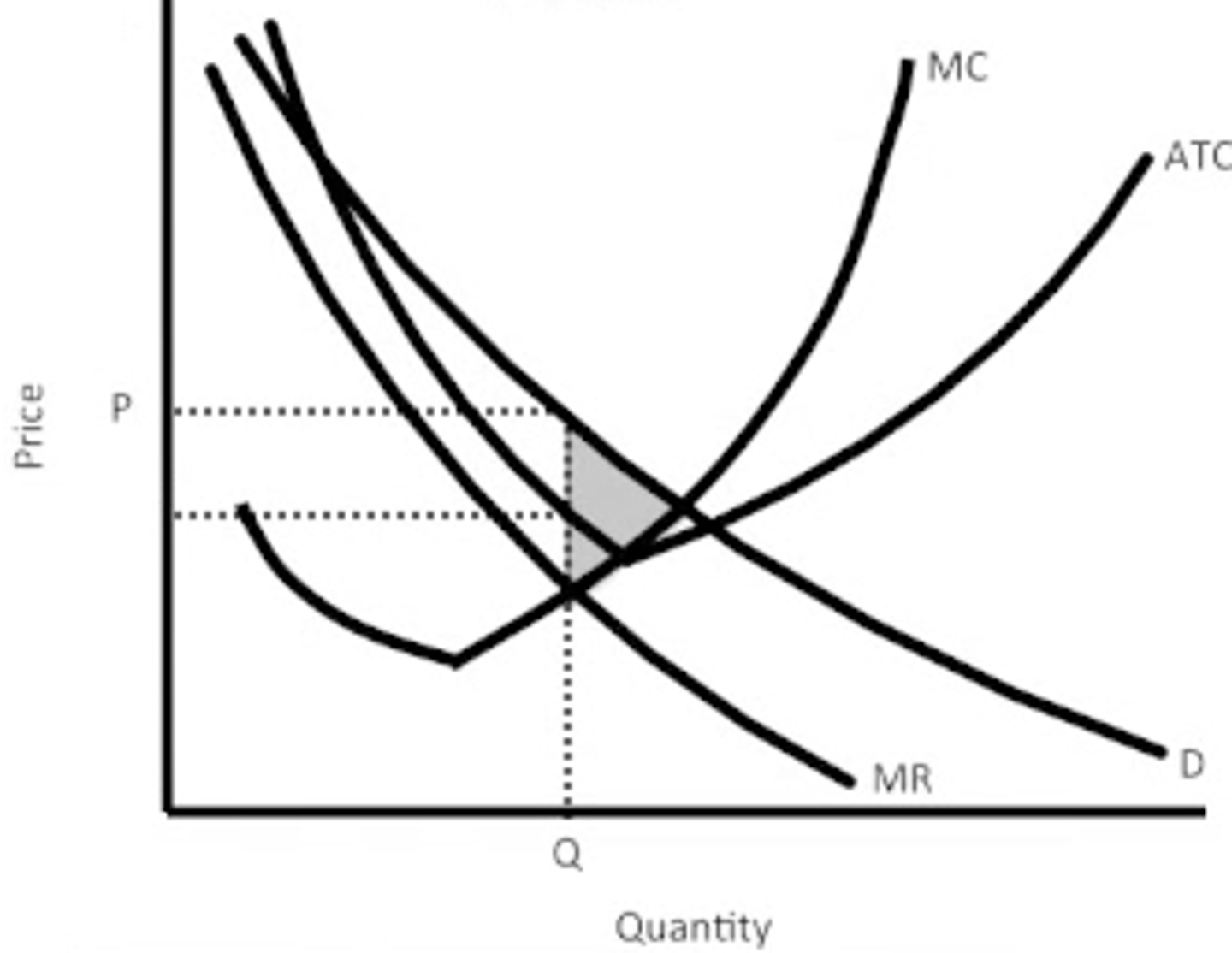

monopoly making a profit

monopoly making a loss

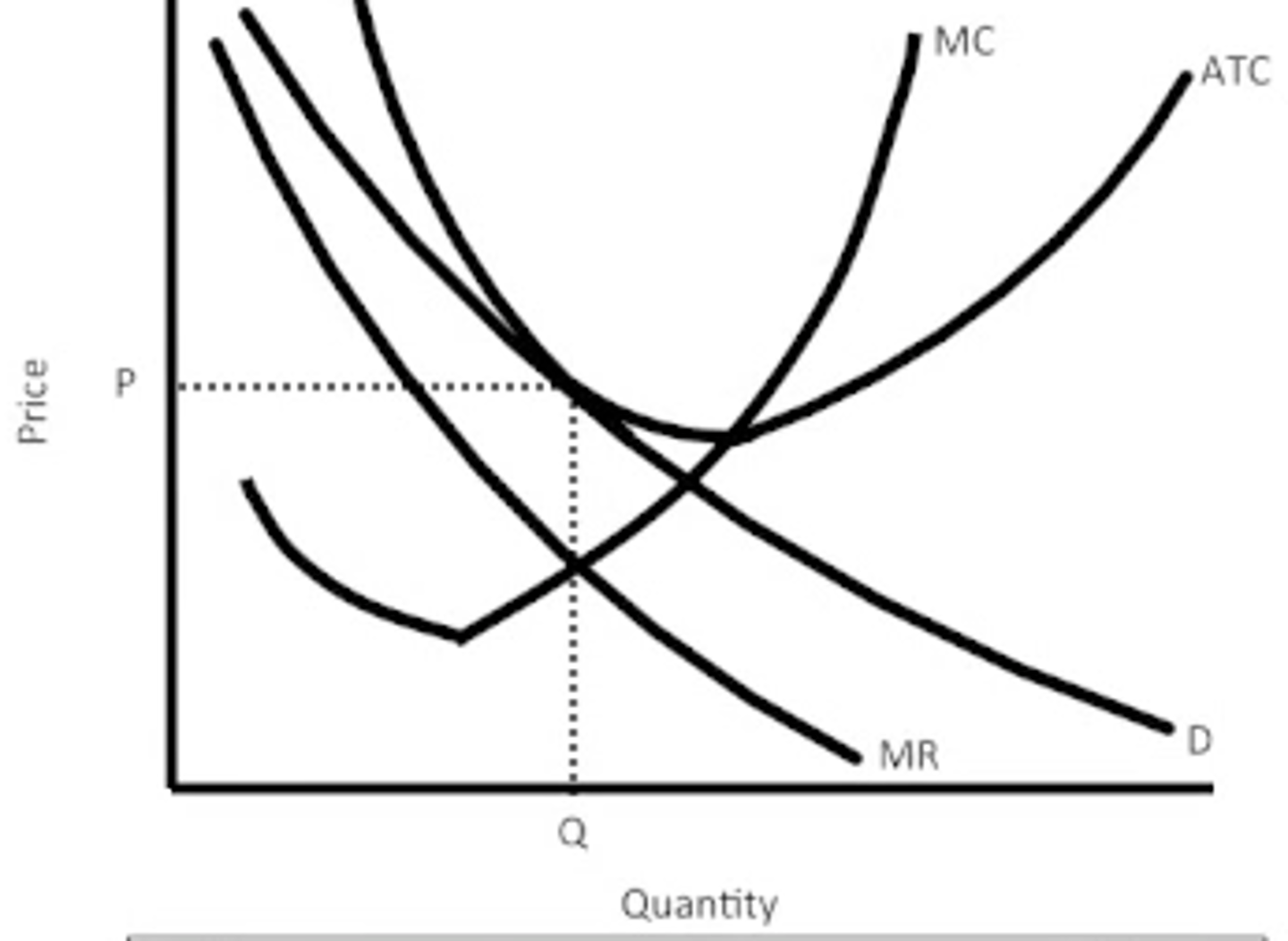

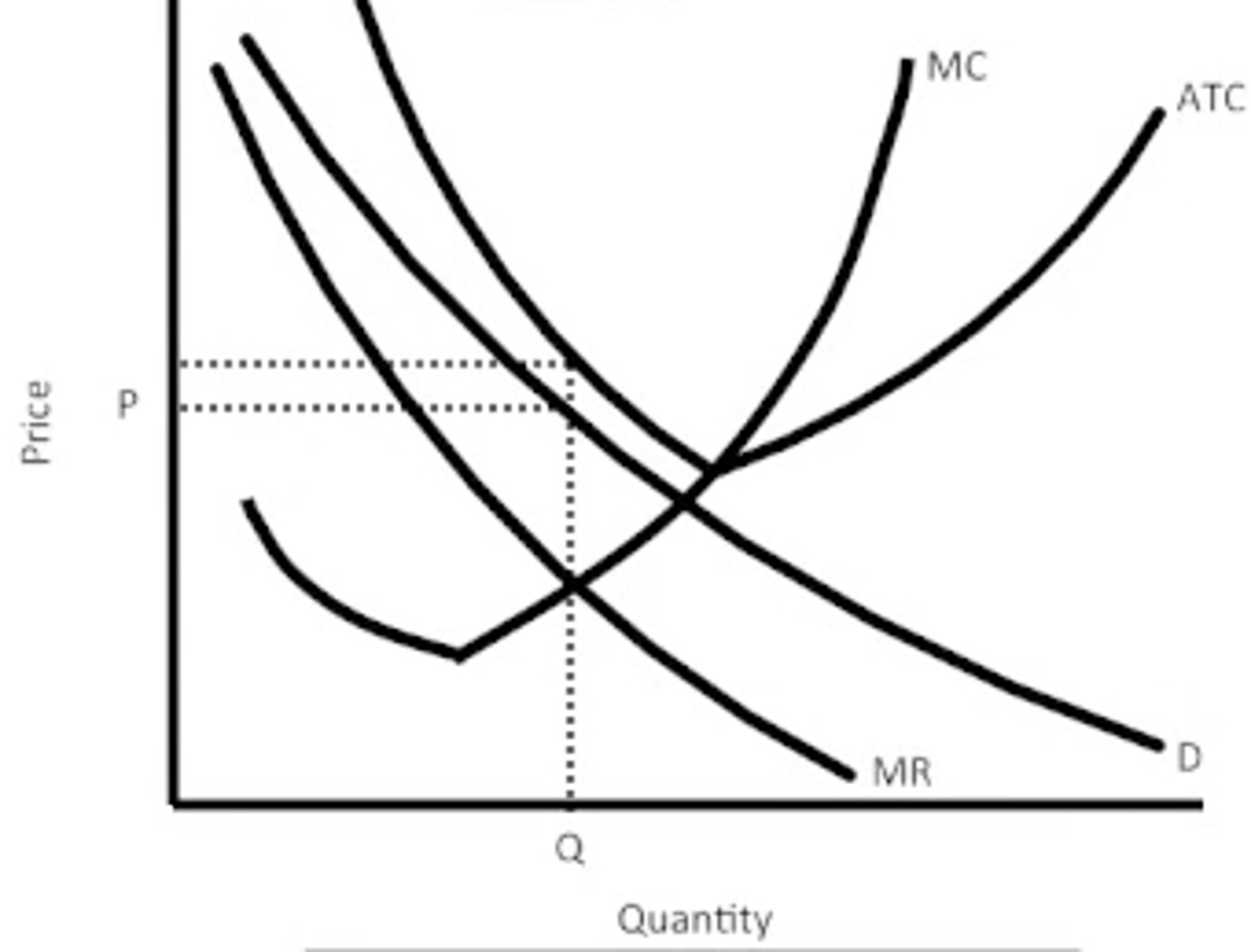

monopolistic competition at equilibrium

supply and demand for labor

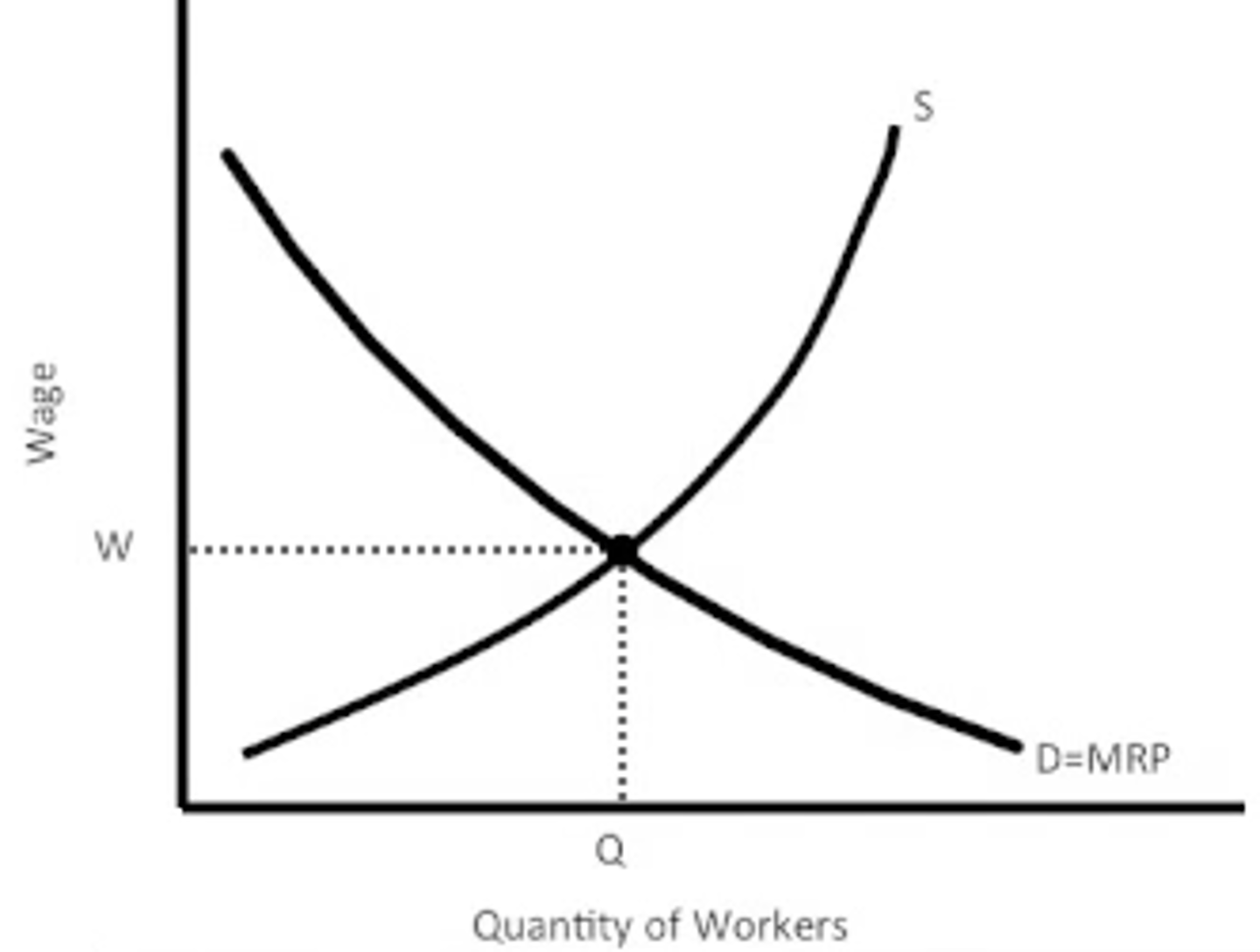

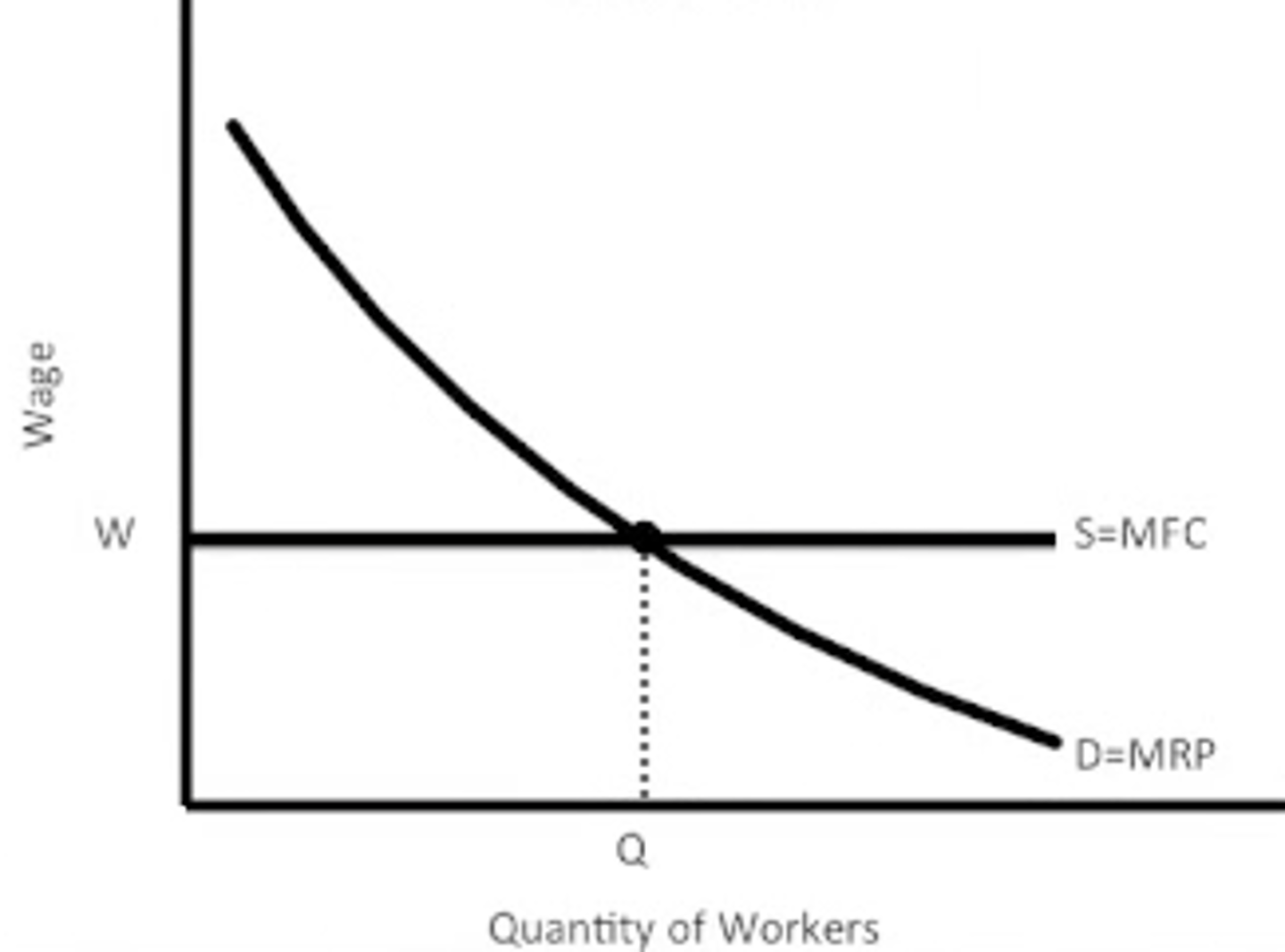

perfectly competitive demand for labor

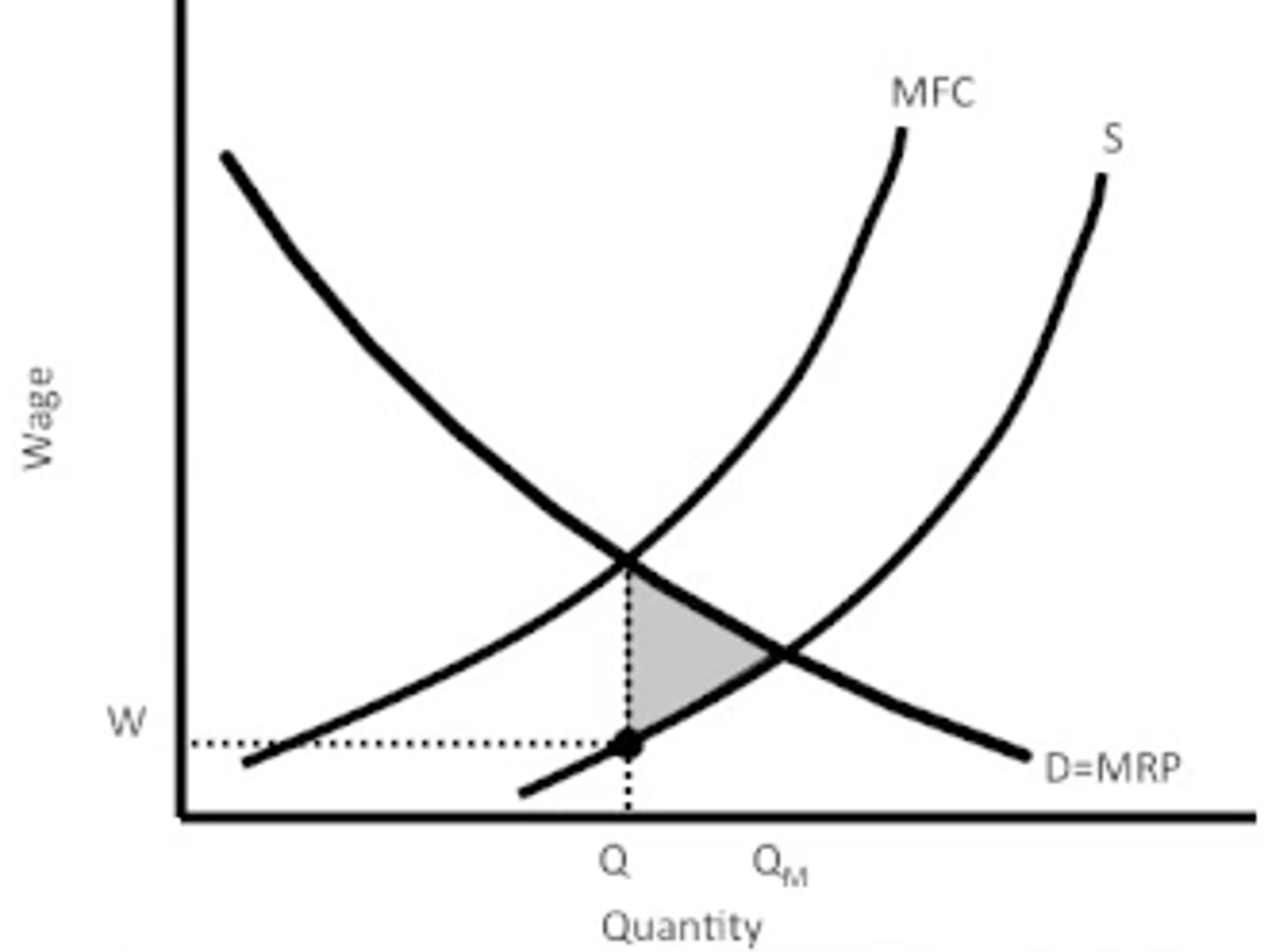

monopsonistic competition for labor

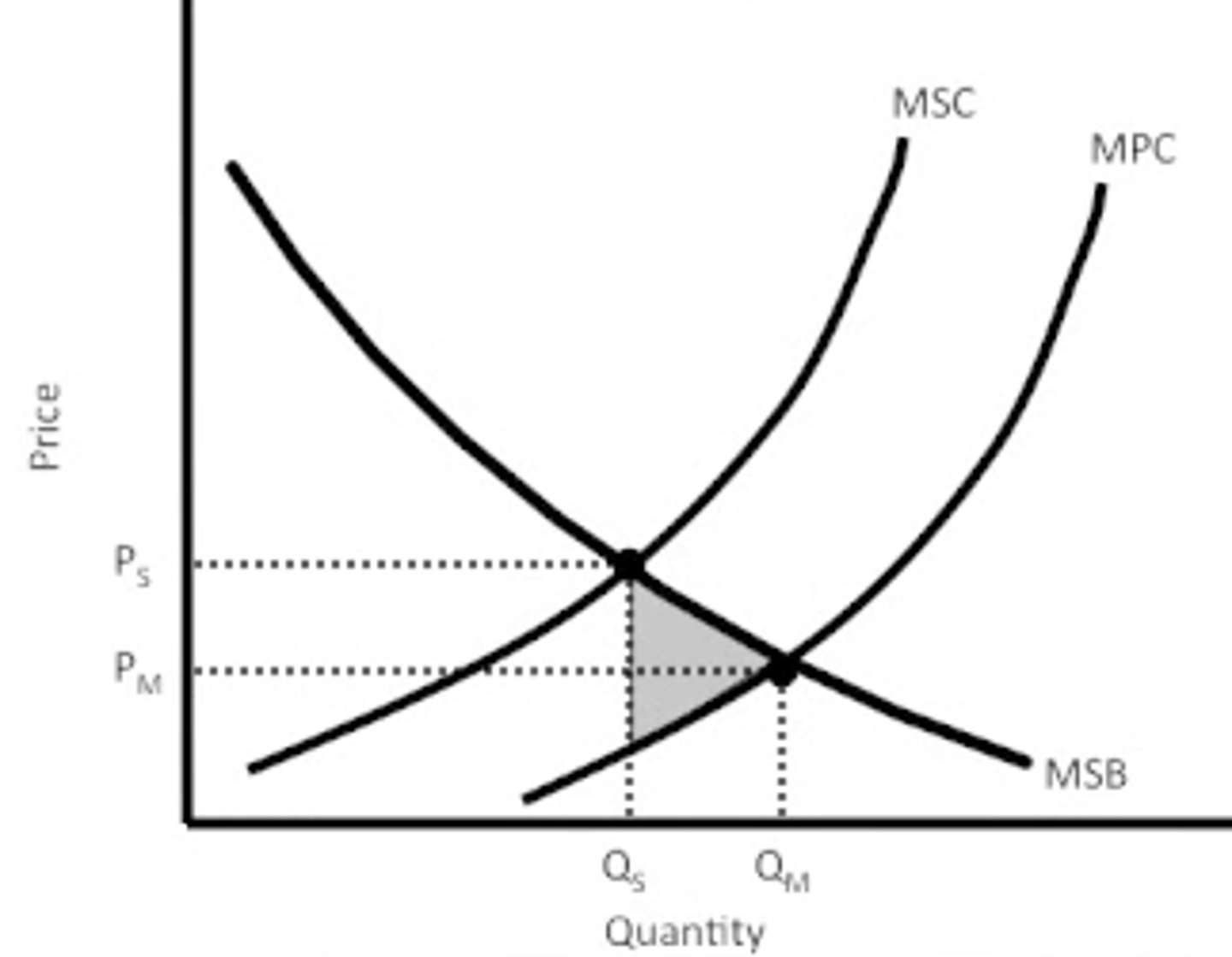

a negative externality causes too many to be produced at too low a price

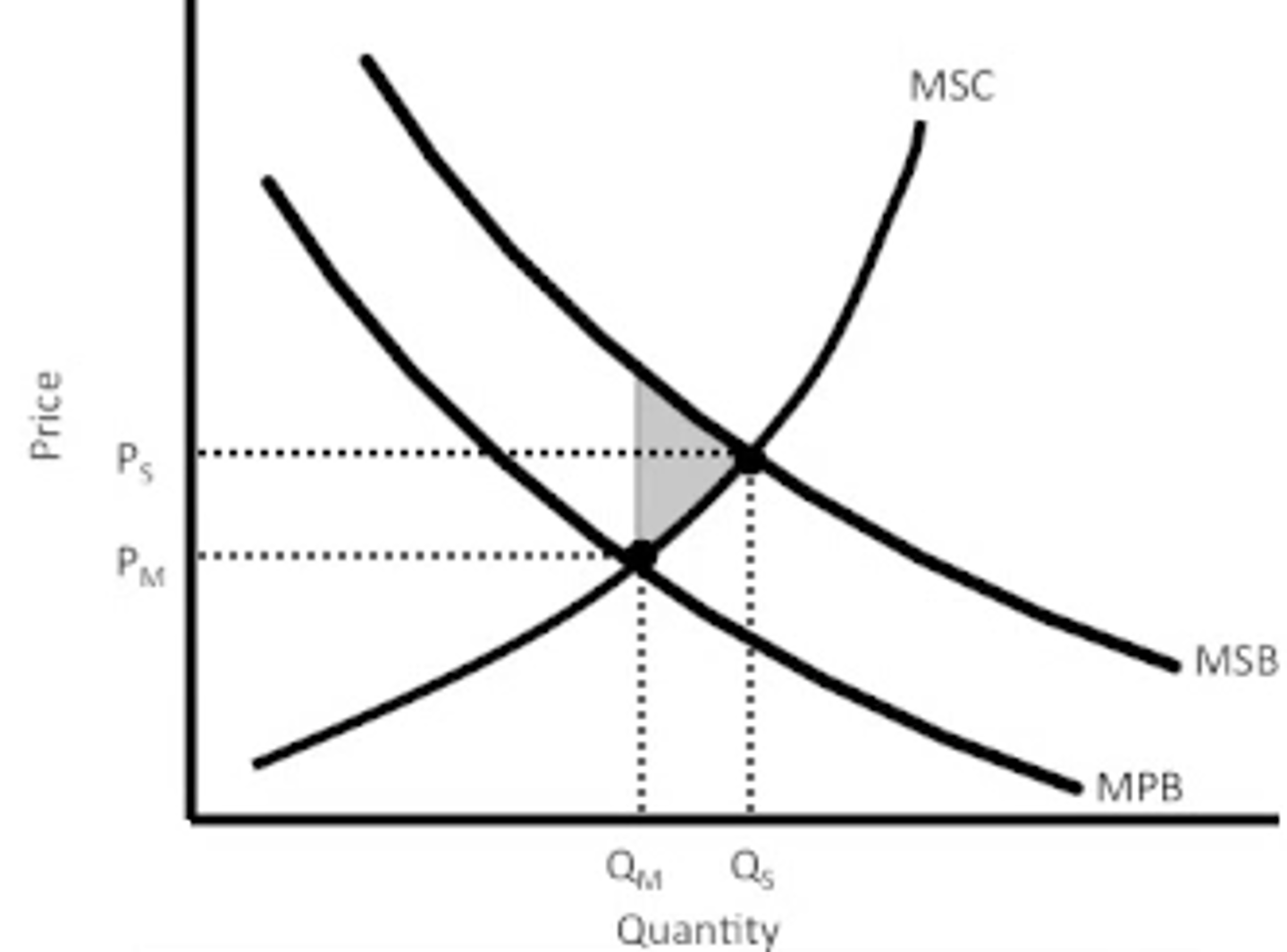

a positive externality causes too few to be produced at too low a price

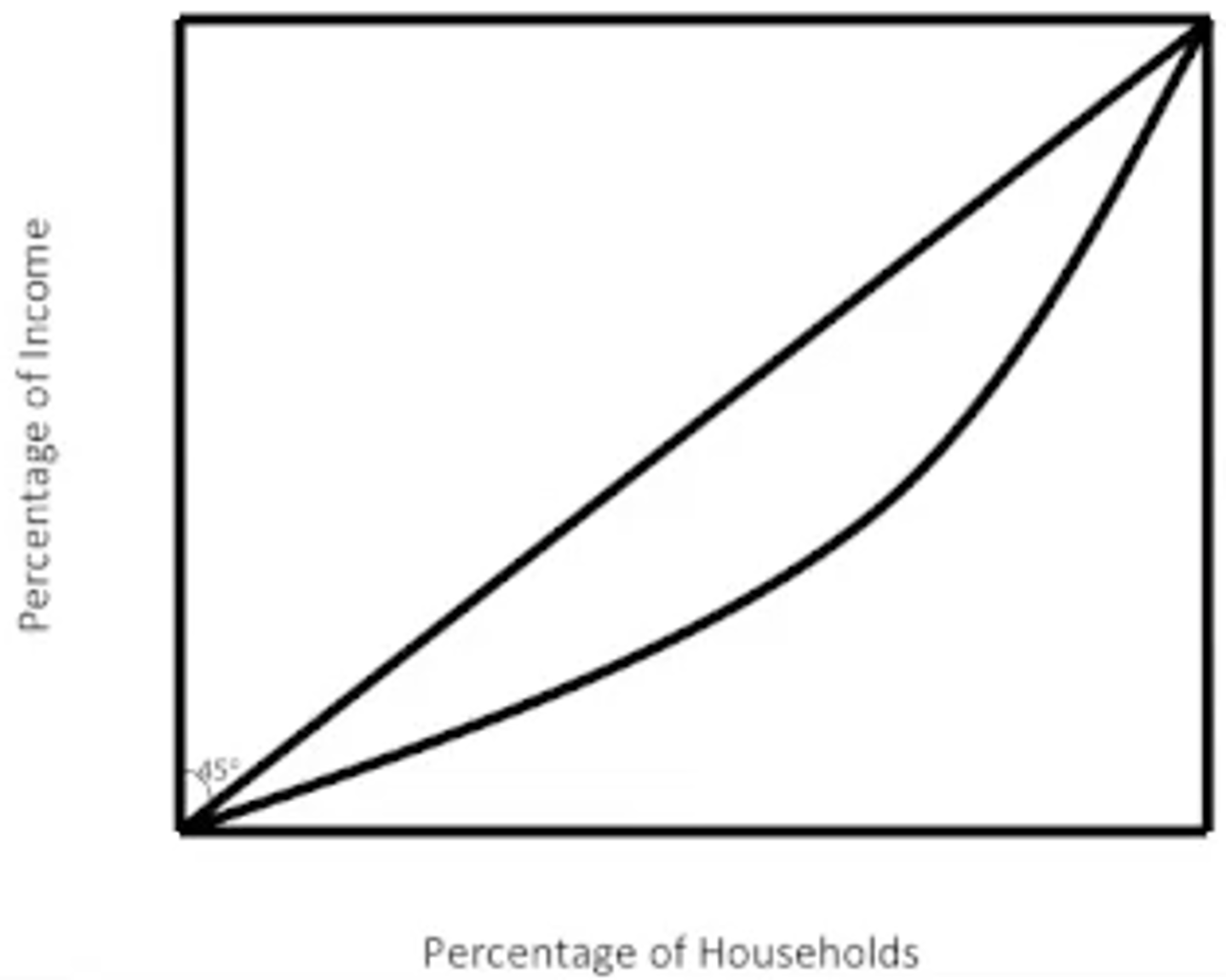

the lorenz curve; measures income inequality
