Wall Segments and Ultrasound Images

Identify this image.

A4C

Identify this image.

A2C

Identify this image.

A3C or LONG AXIS

Identify this image.

Base or top

Identify this image.

Mid

Identify this image.

Apex or bottom

What is the “scout view”?

First image taken with an increased depth to visualize effusion

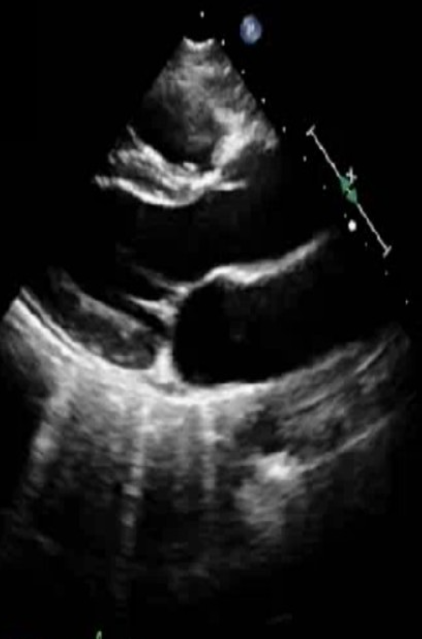

Identify this image.

PLAX

1. RV

2. LA

3. MV

4. LVOT

5. AV

6. Aortic root

7. Descending AO

Identify this image.

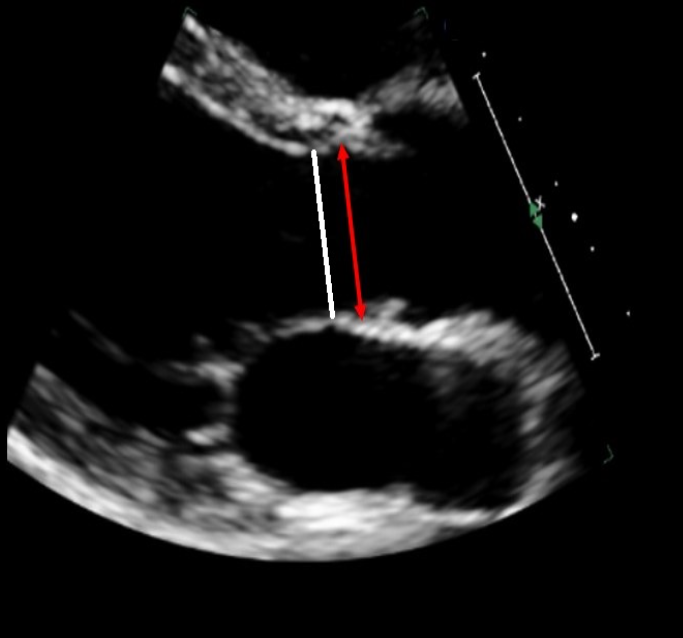

PLAX AV measurements during MID SYSTOLE

1. White: LVOT

2. Red: Aortic annulus

Identify this image.

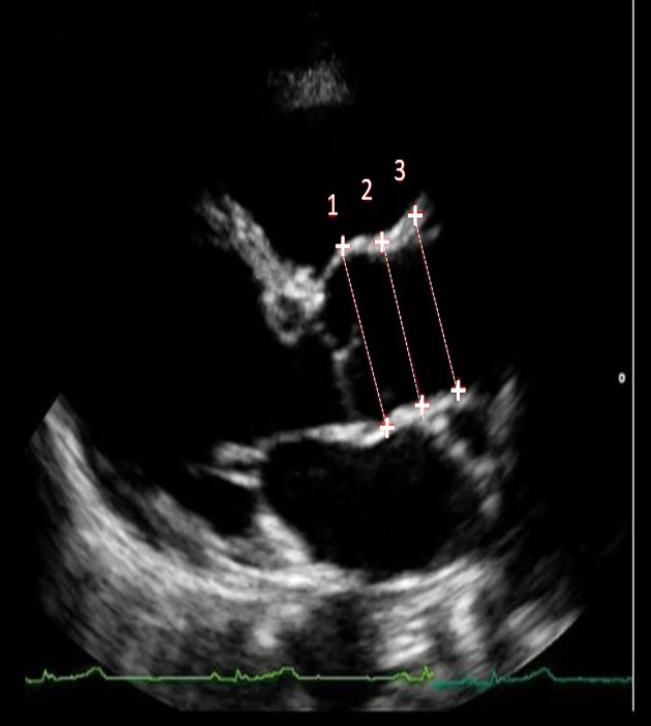

PLAX AV measurements during END DIASTOLE

1. Sinus of Valsalva or aortic root

2. Sinotubular junction (STJ)

3. Ascending aorta

Identify this image.

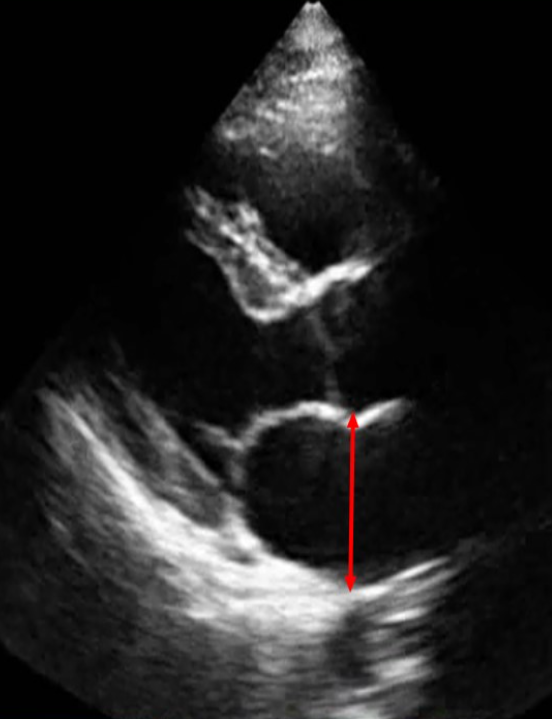

PLAX LA diameter measured during END SYSTOLE

Identify this image.

PLAX RVIT

A. RV

B. TV

C. RA

Identify this image.

PLAX RVOT

1. RVOT

2. PV

3. Main pulmonary artery

Identify this image.

PSAX AV Basal

1. Descending aorta

2. LA

3. IAS

4. RA

5. TV

6. RVOT

7. PV

8. Main pulmonary artery

9. Right coronary cusp (adjacent to RVOT)

10. Noncoronary cusp

11. Left coronary cusp (adjacent to LA)

Identify this image.

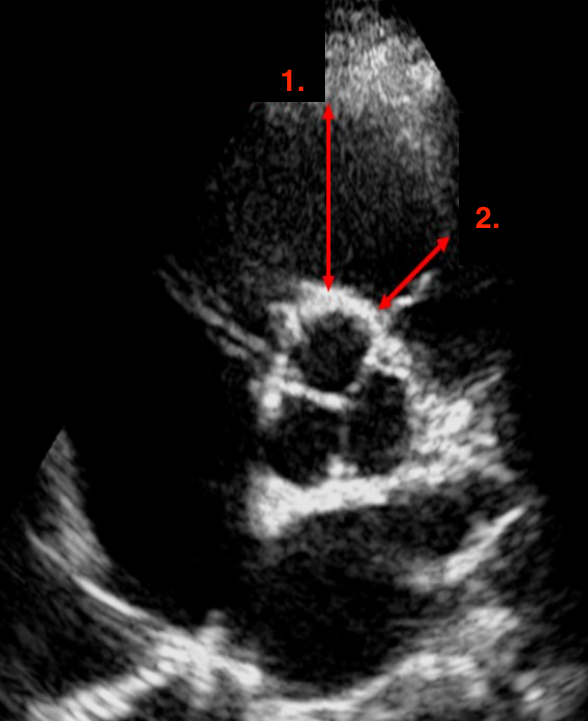

1. Proximal RVOT measured at END DIASTOLE

2. Distal RVOT measured at END DIASTOLE

Identify this image.

PSAX MV level

Identify this image.

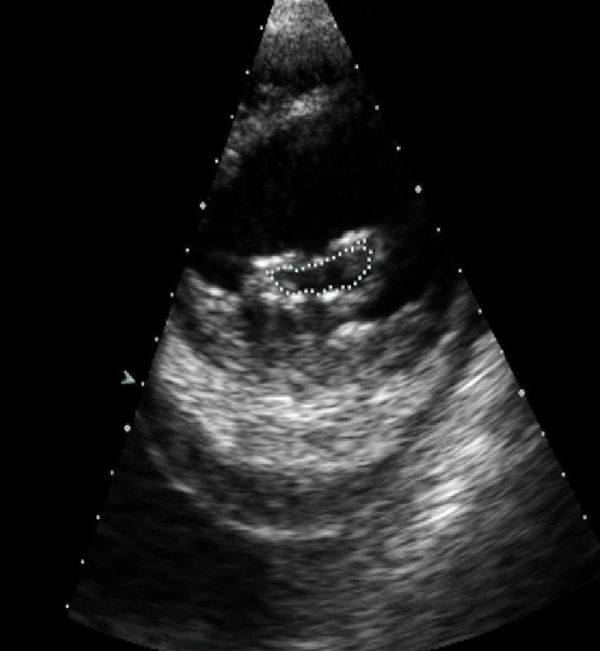

Planimetry or most accurate way to measure MVA

Identify this image.

PSAX LV

1. Papillary muscle

2. LV

Identify this image.

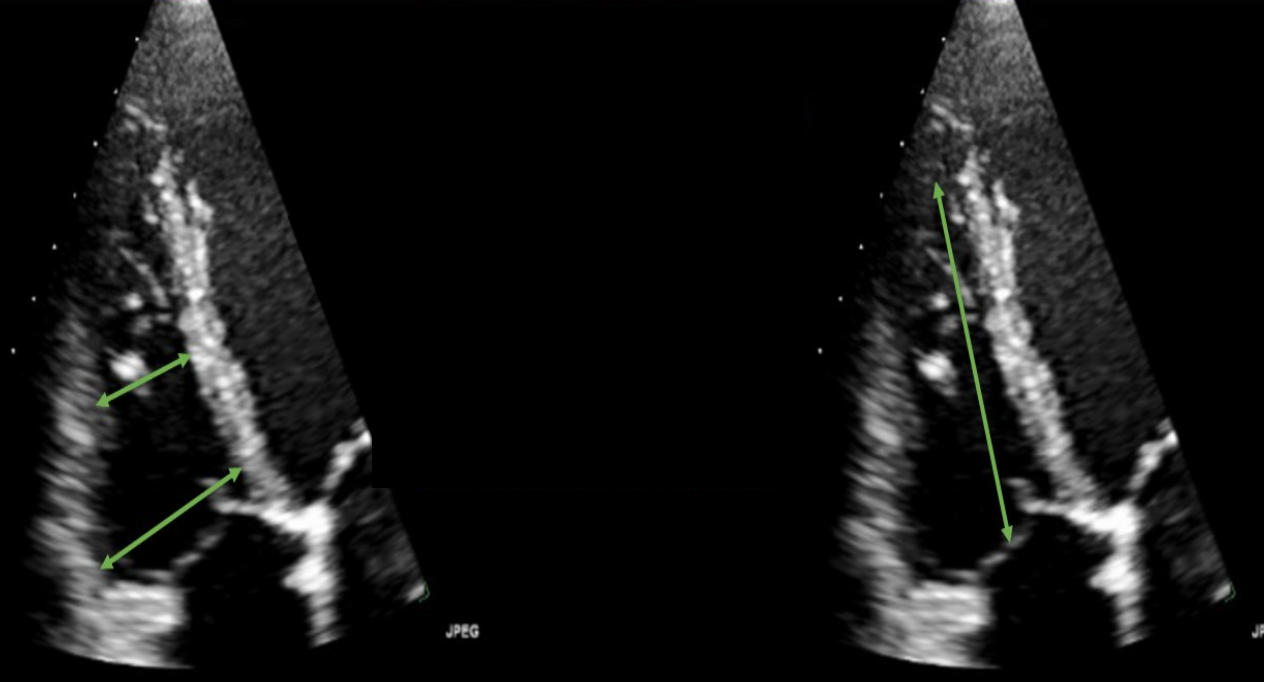

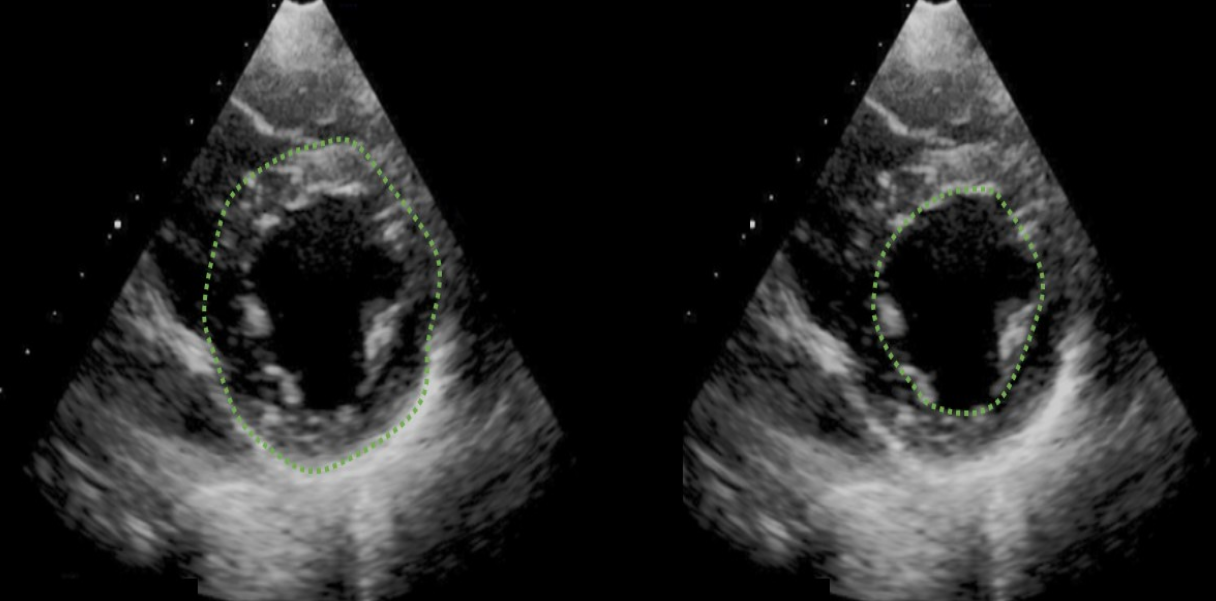

LV mass measured at END DIASTOLE

Identify this image.

A4C

1. LA

2. MV

3. LV

4. RA

5. TV

6. RV

Identify this image.

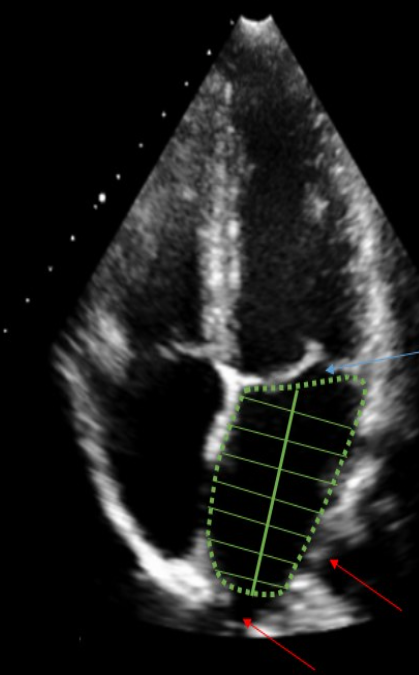

LA volume measured at END SYSTOLE

Identify this image.

RV dimensions measured at END DIASTOLE

Identify this image.

A2C

1. LA

2. MV

3. LV

Identify this image.

A5C

1. LA

2. LV

3. RA

4. RV

5. Ao

Identify this image.

A3C

1. LA

2. MV

3. LV

4. AV

5. Ao

Identify this image.

Suprasternal view of descending aorta

Identify this image.

IVC Subcostal

1. SVC

2. RA

3. IVC

4. RV

Identify this image.

Subcostal four chamber

1. LA

2. MV

3. LV

4. RA

5. TV

6. RV
