ASVAB Tools

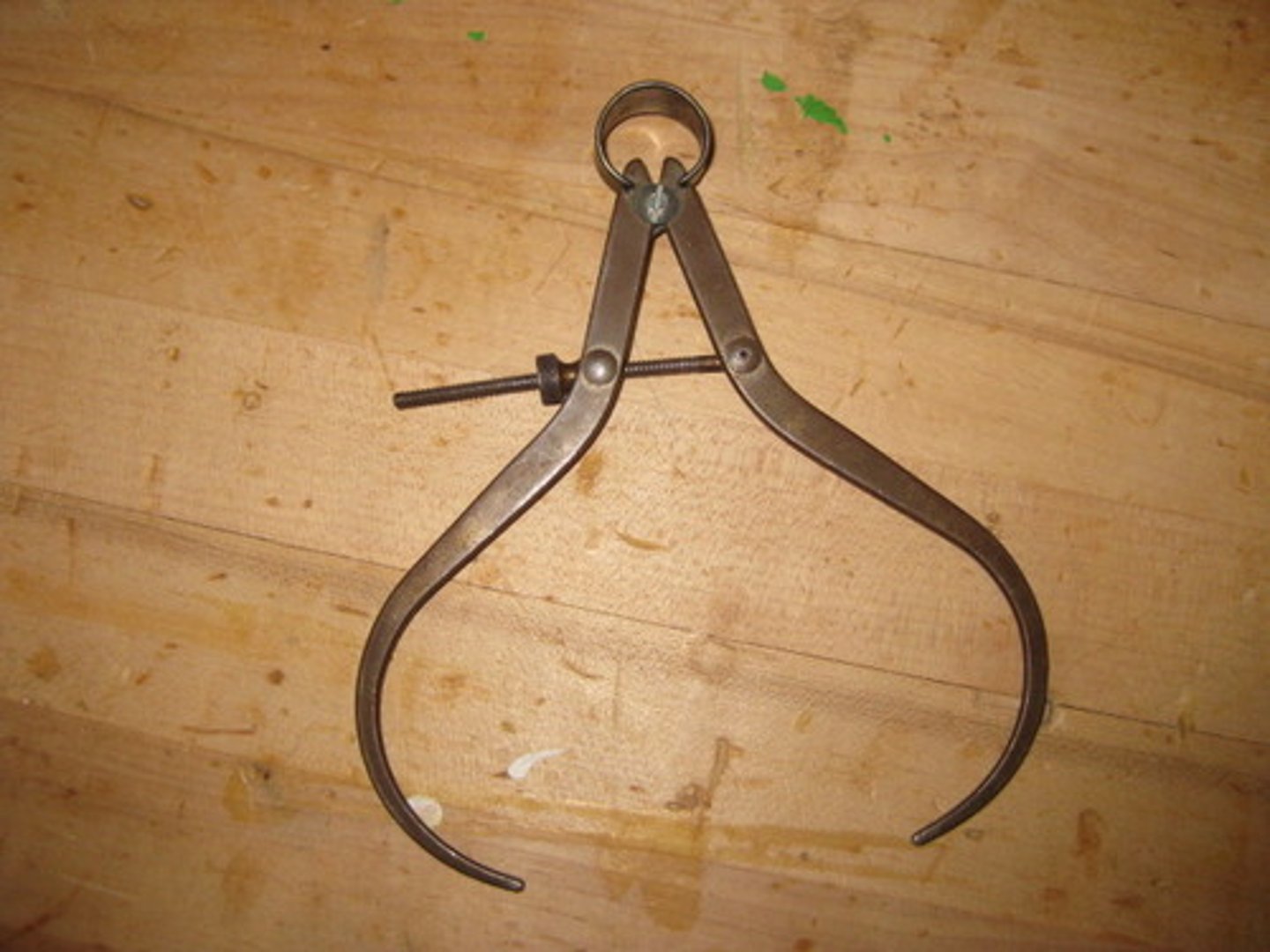

Tool used to measure the sides of an object

Calipers

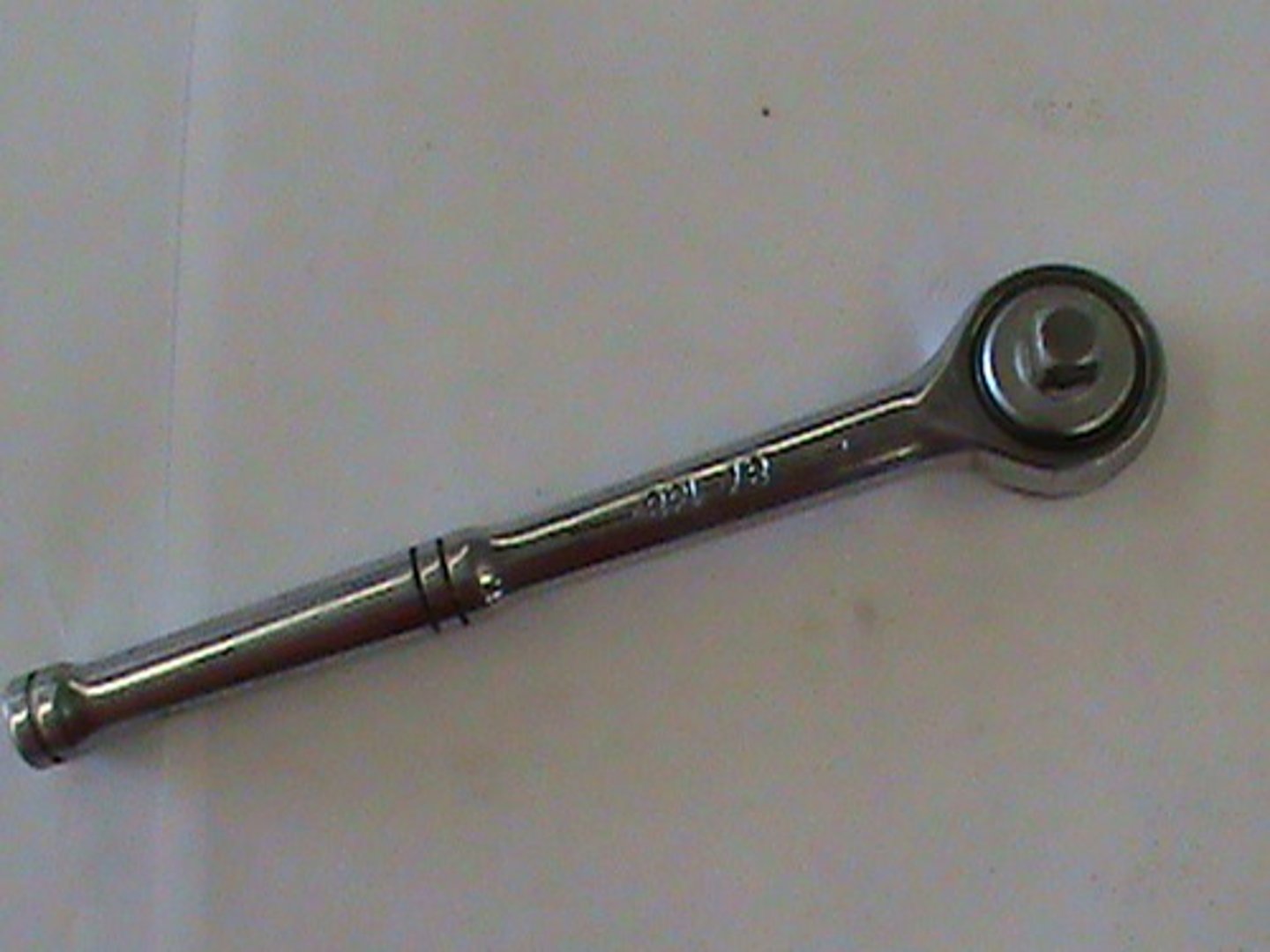

A drive tool used for tightening or loosening fasteners without having to remove and reposition the tool for every turn. Is reversible. Great for tight spaces. (One part of the socket wrench; the other part are the interchangeable sockets)

Ratchet Handle

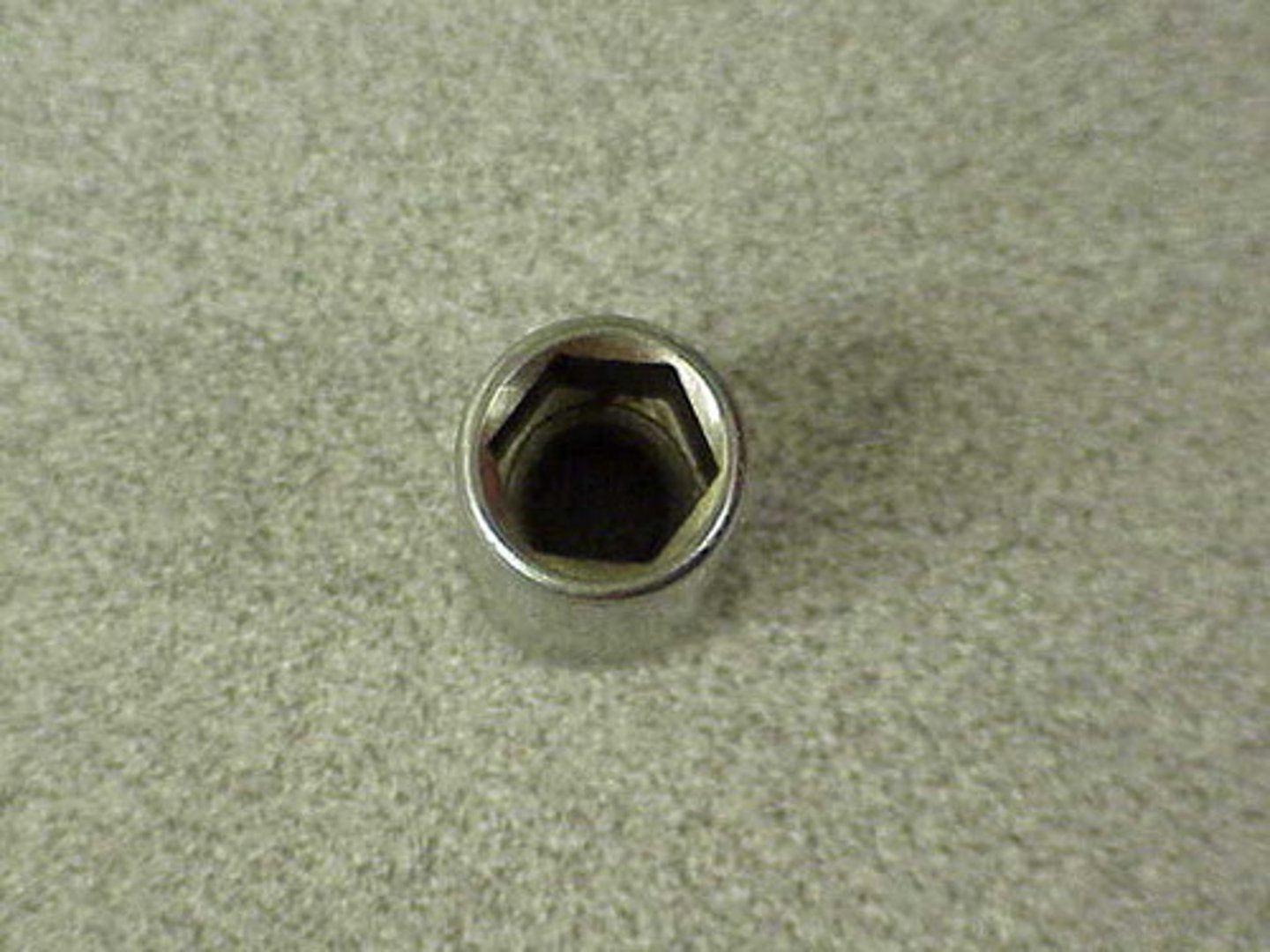

A socket with 6 sides. Has greater torque than its 12 point counterpart

6 point socket

Has less torque than its 6 point counterpart

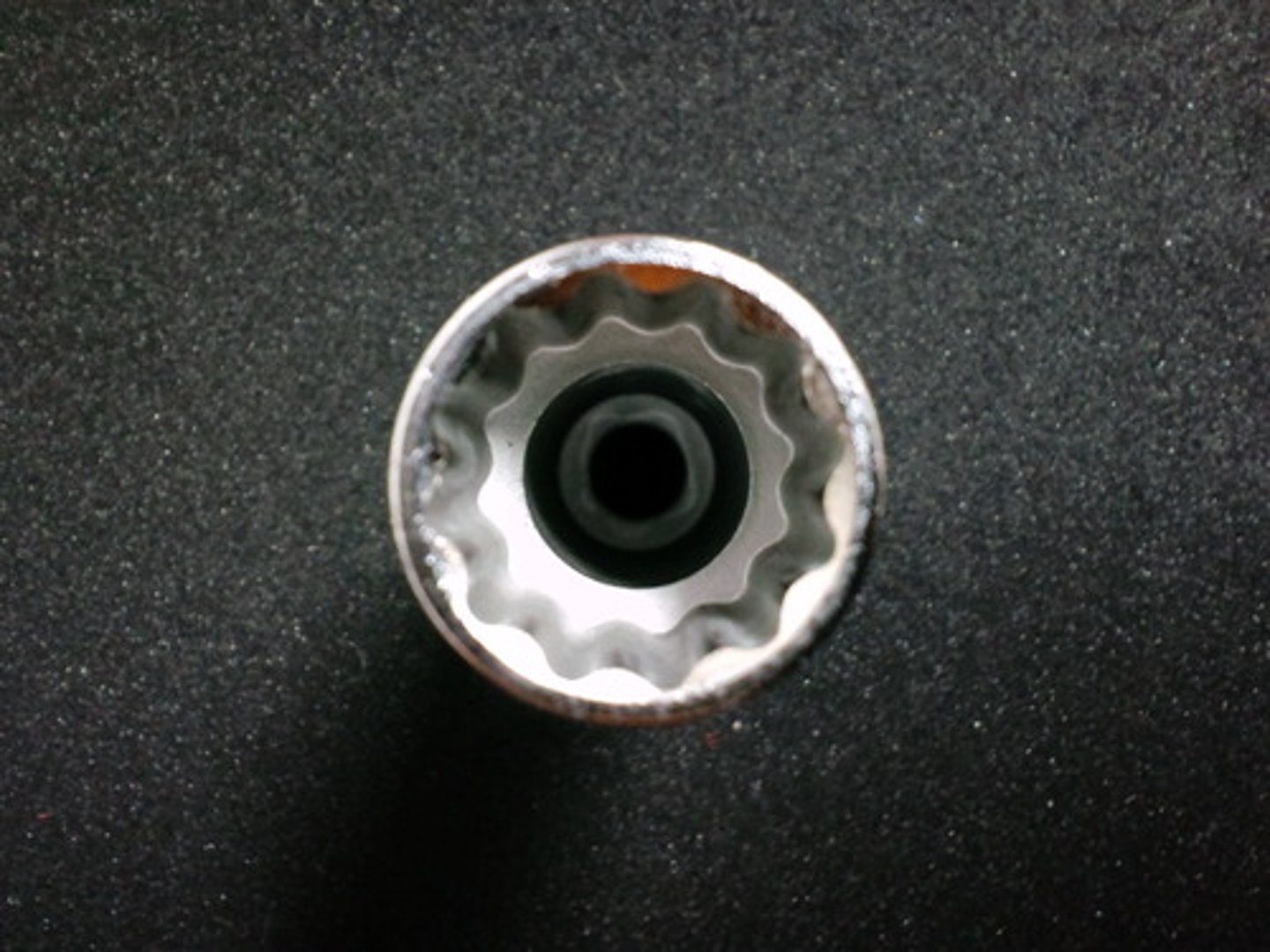

12 point socket

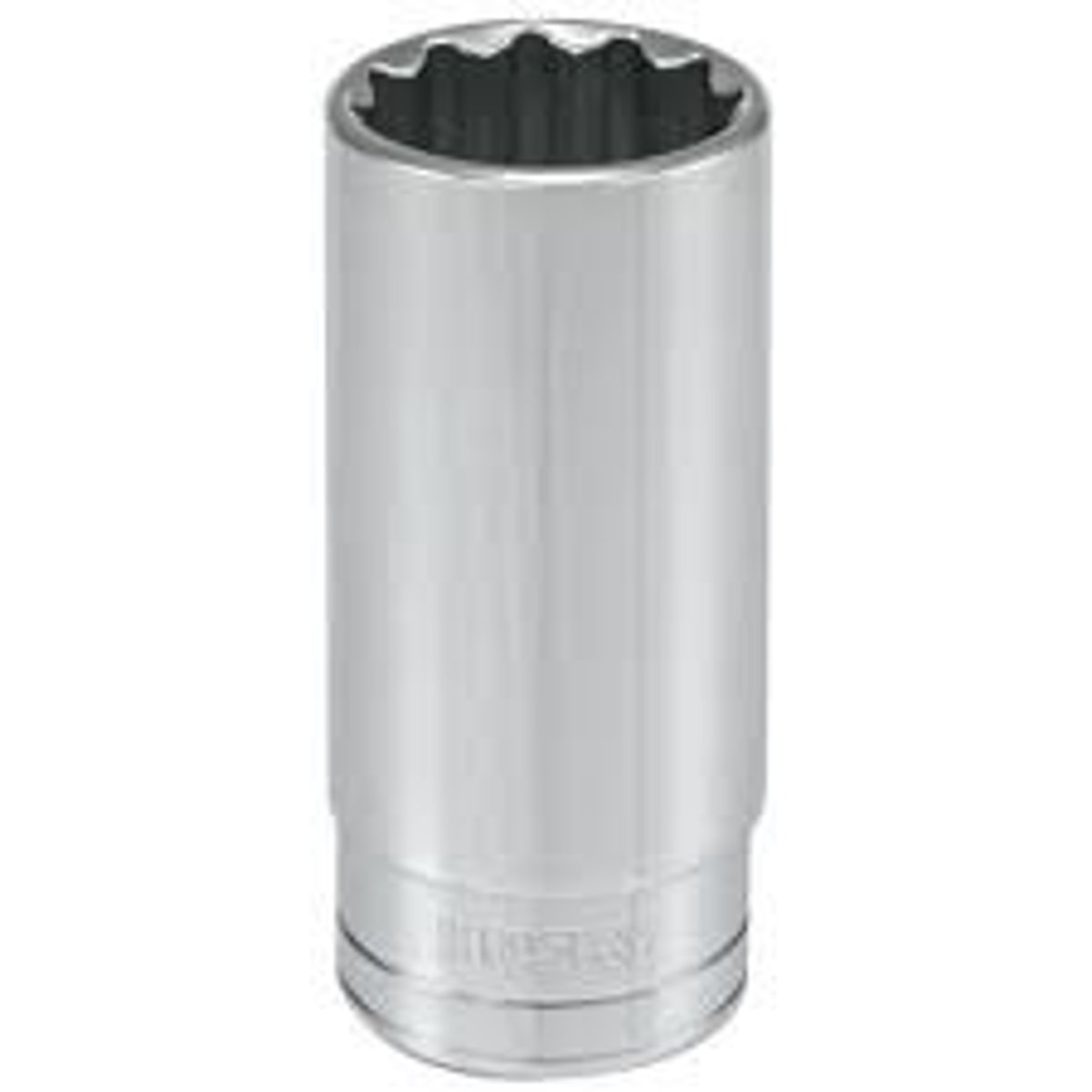

An extended socket

Deep socket

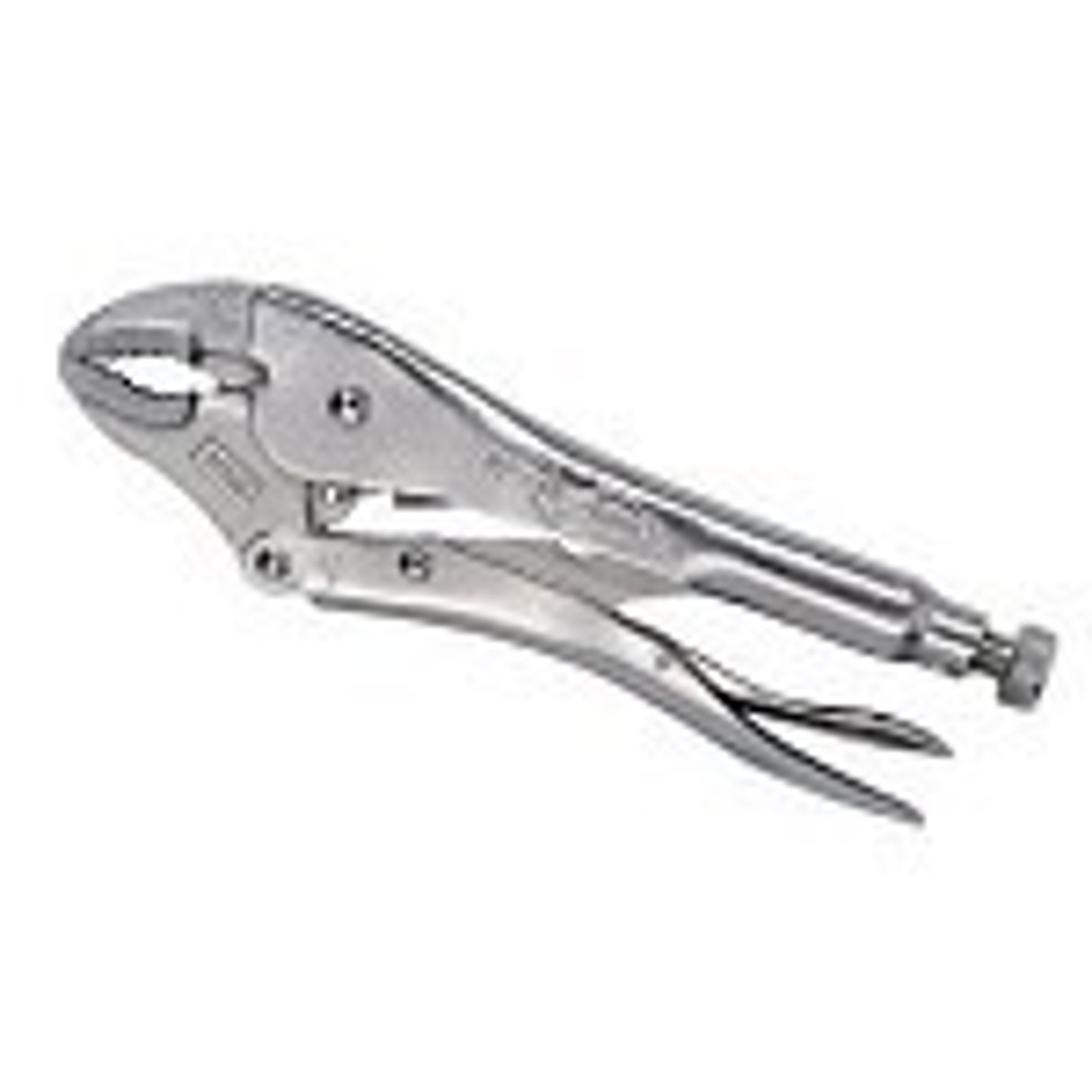

Vise grip pliers

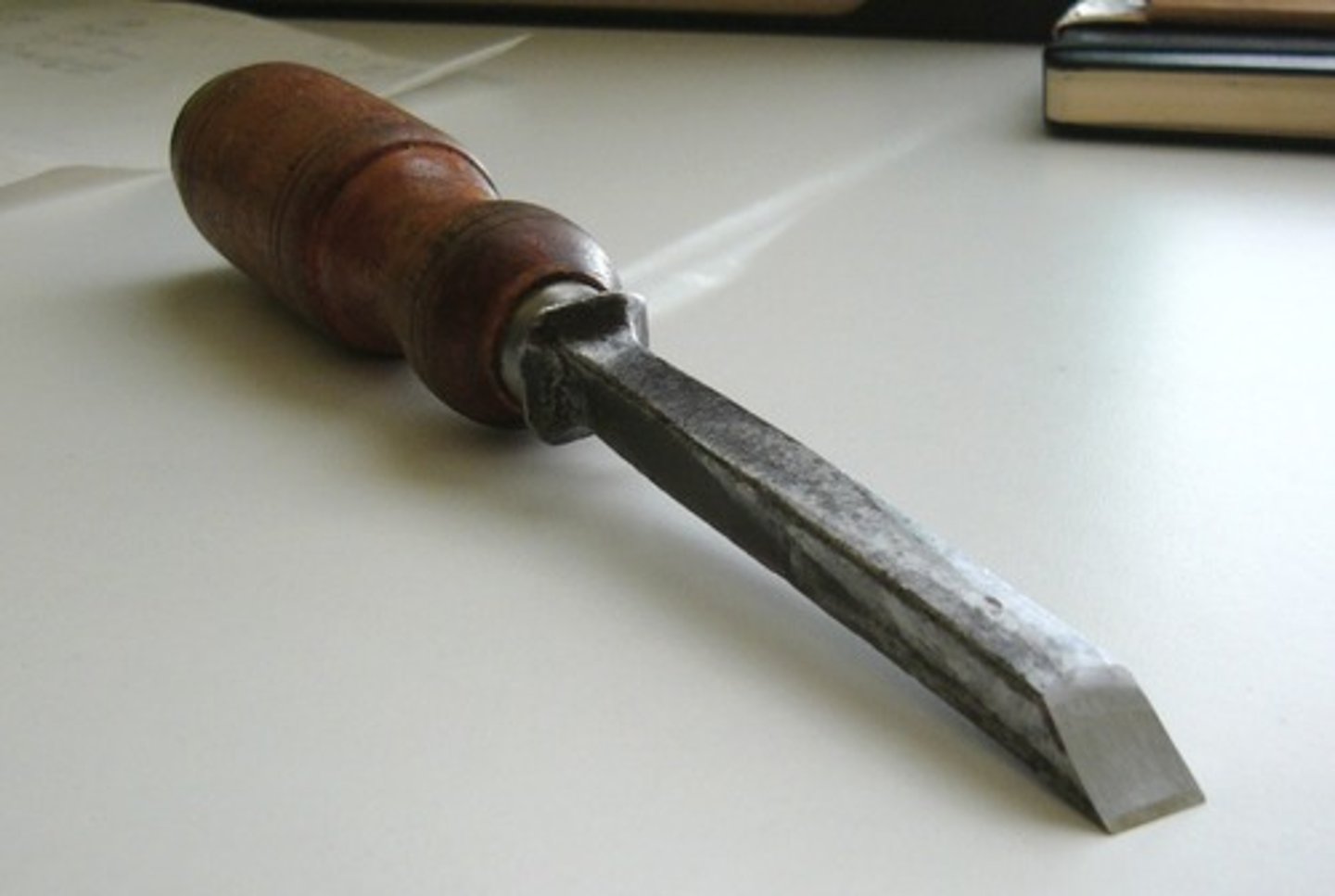

Used to cut square or rectangular holes into wood

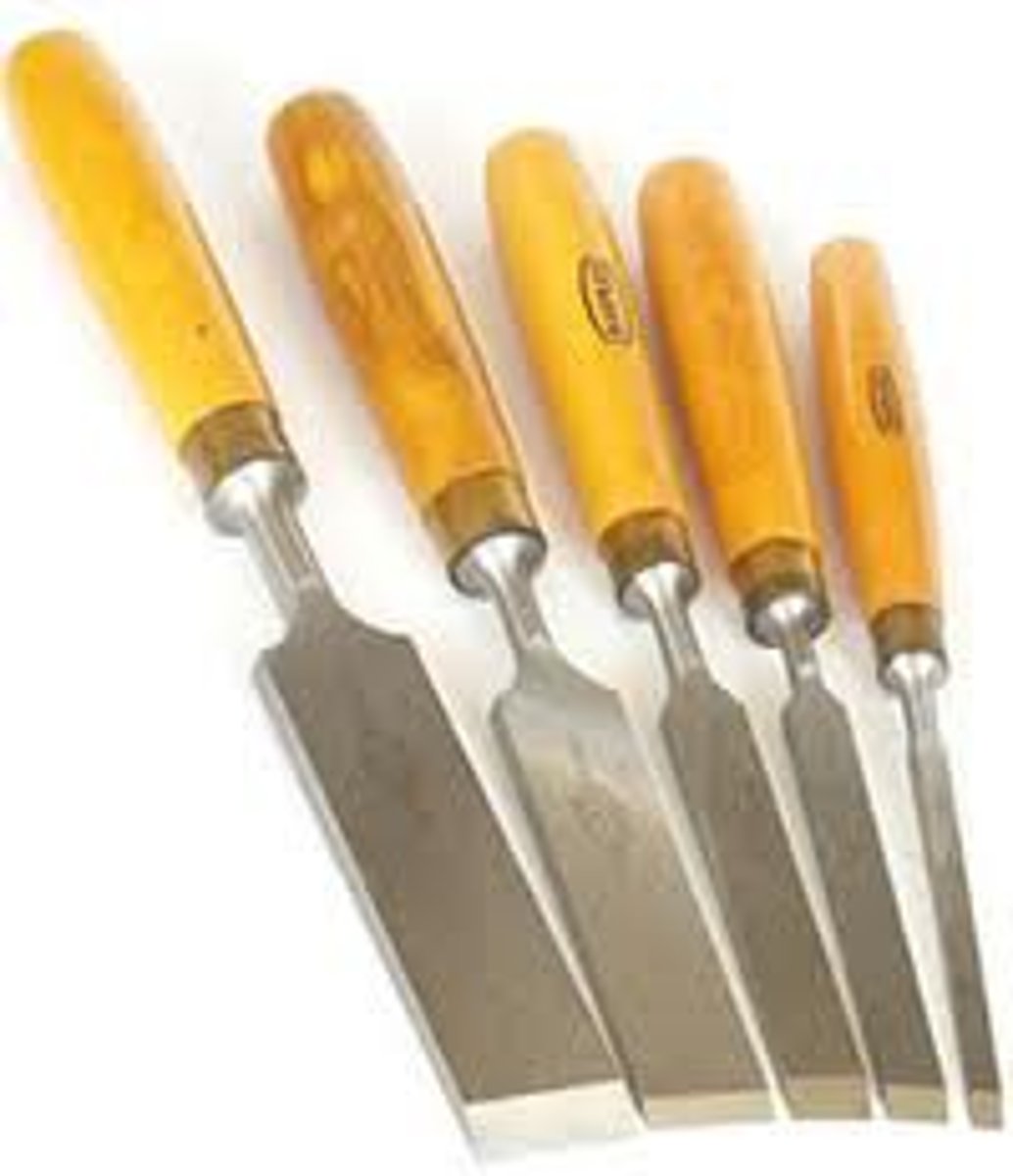

Mortising chisel

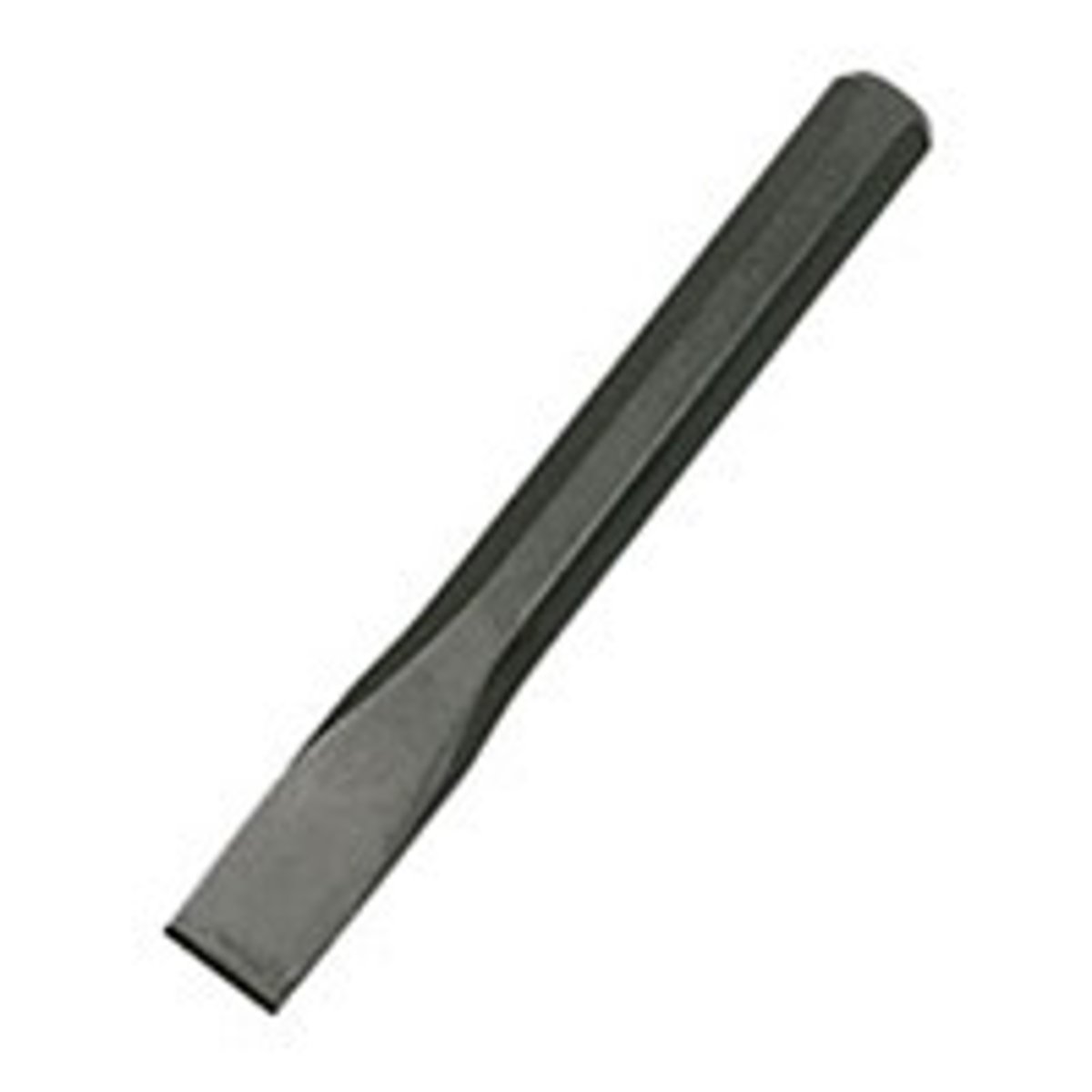

Used to cut bolt heads or separate 2 pieces of an assembly

Cold chisel

Socket chisel

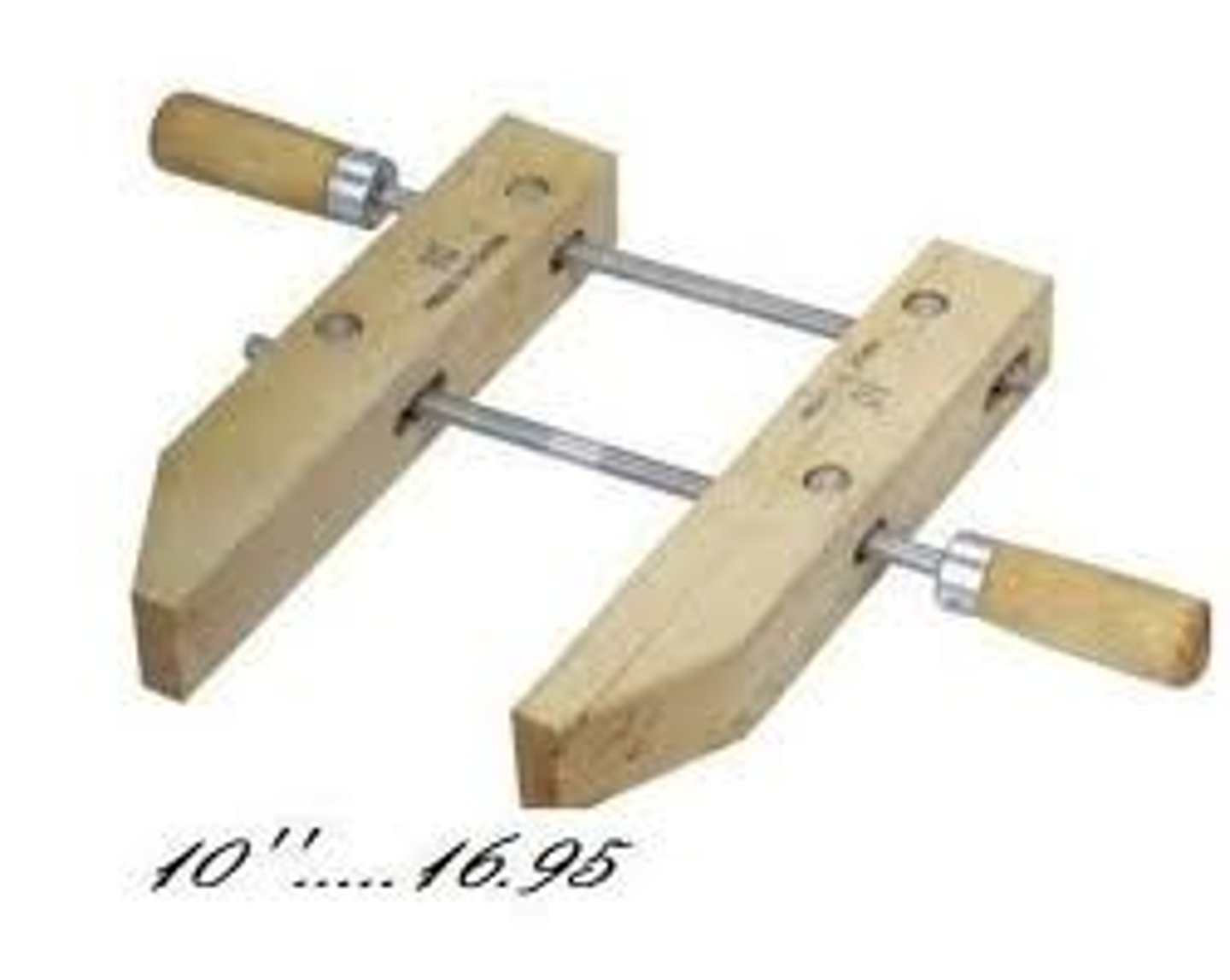

Handscrew Vise

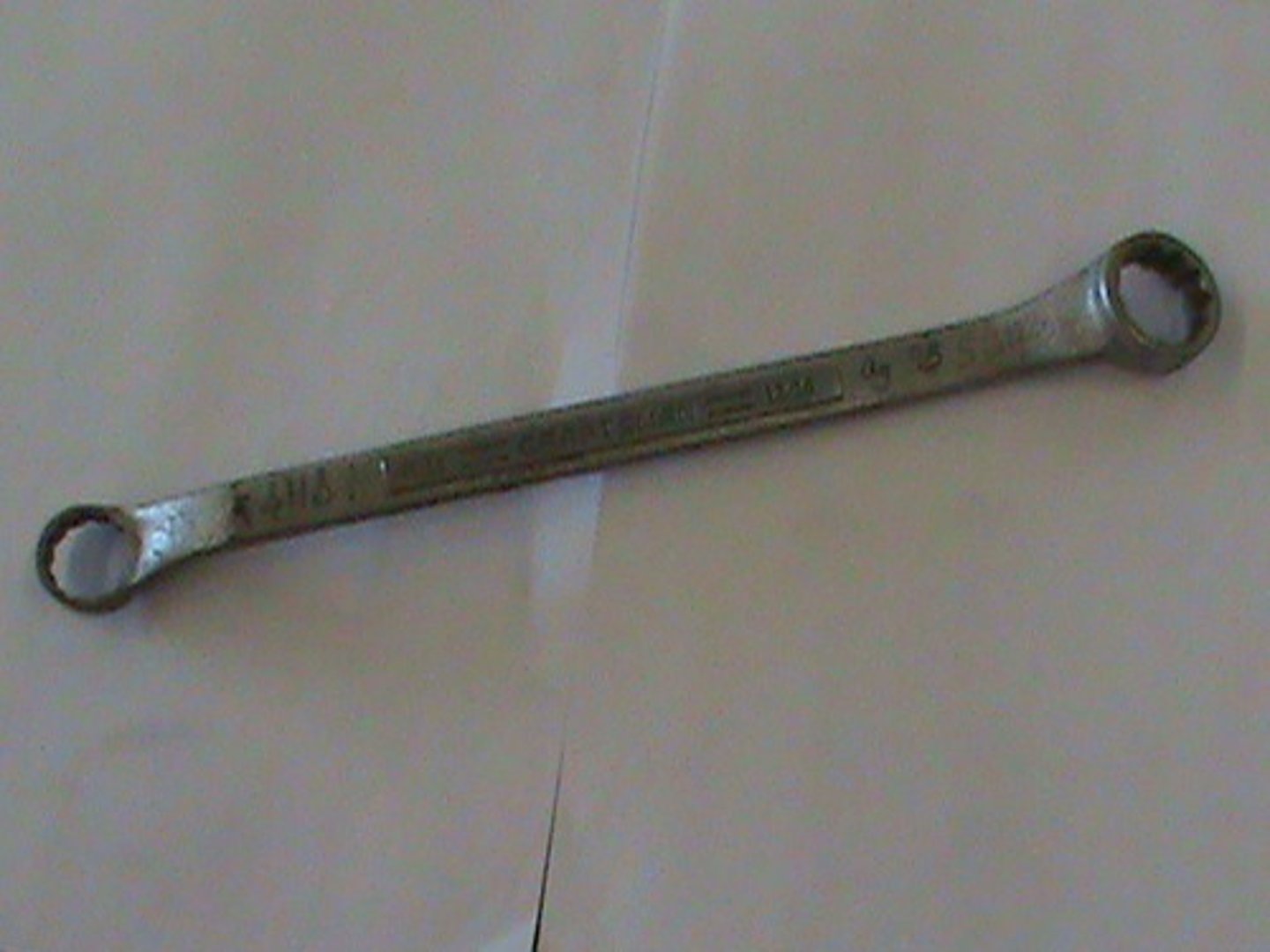

Box end wrench

Square nut

Nut with wings so you can hand screw it

Wing nut

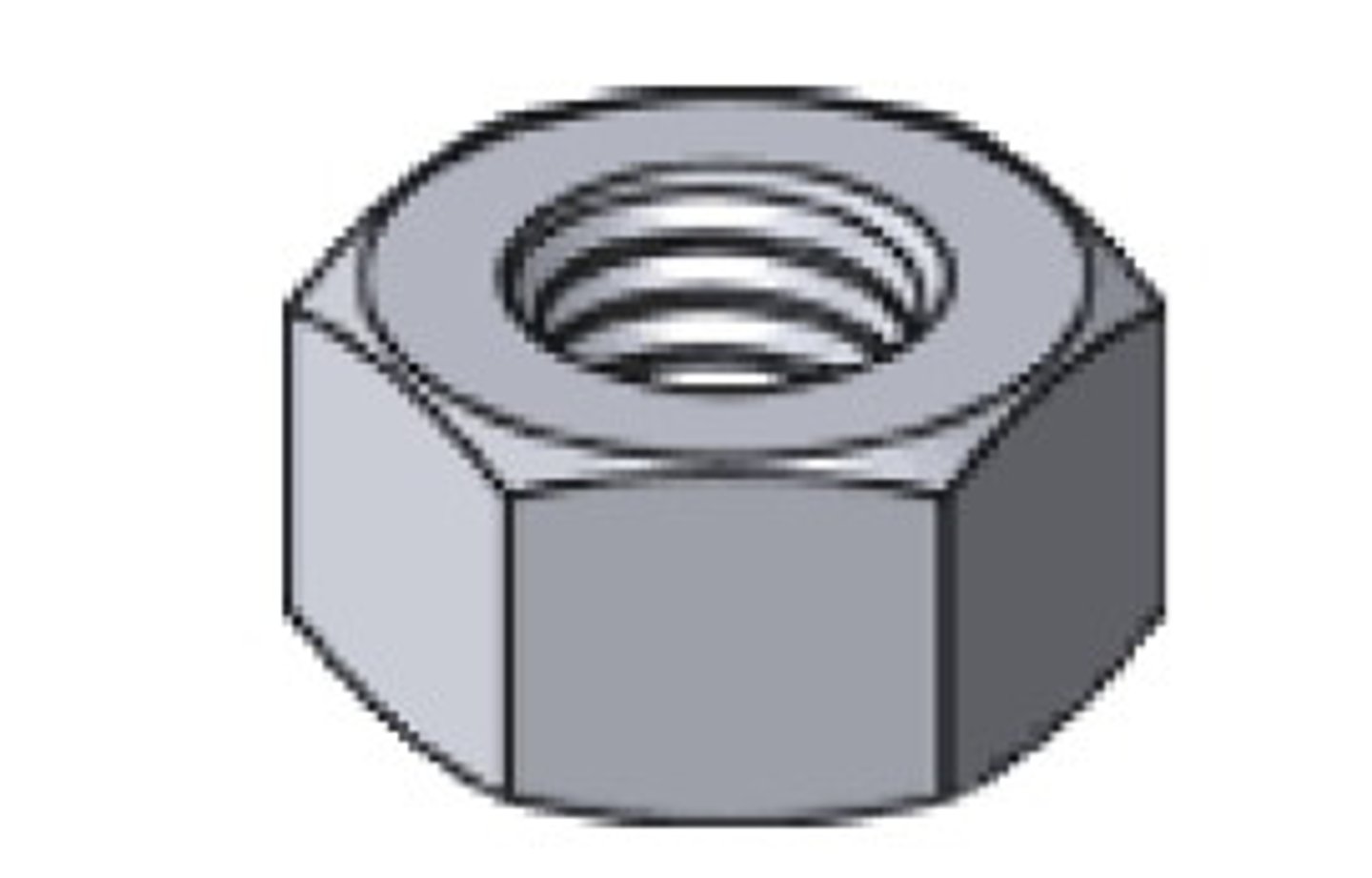

Nut with 6 sides

Hexagonal nut

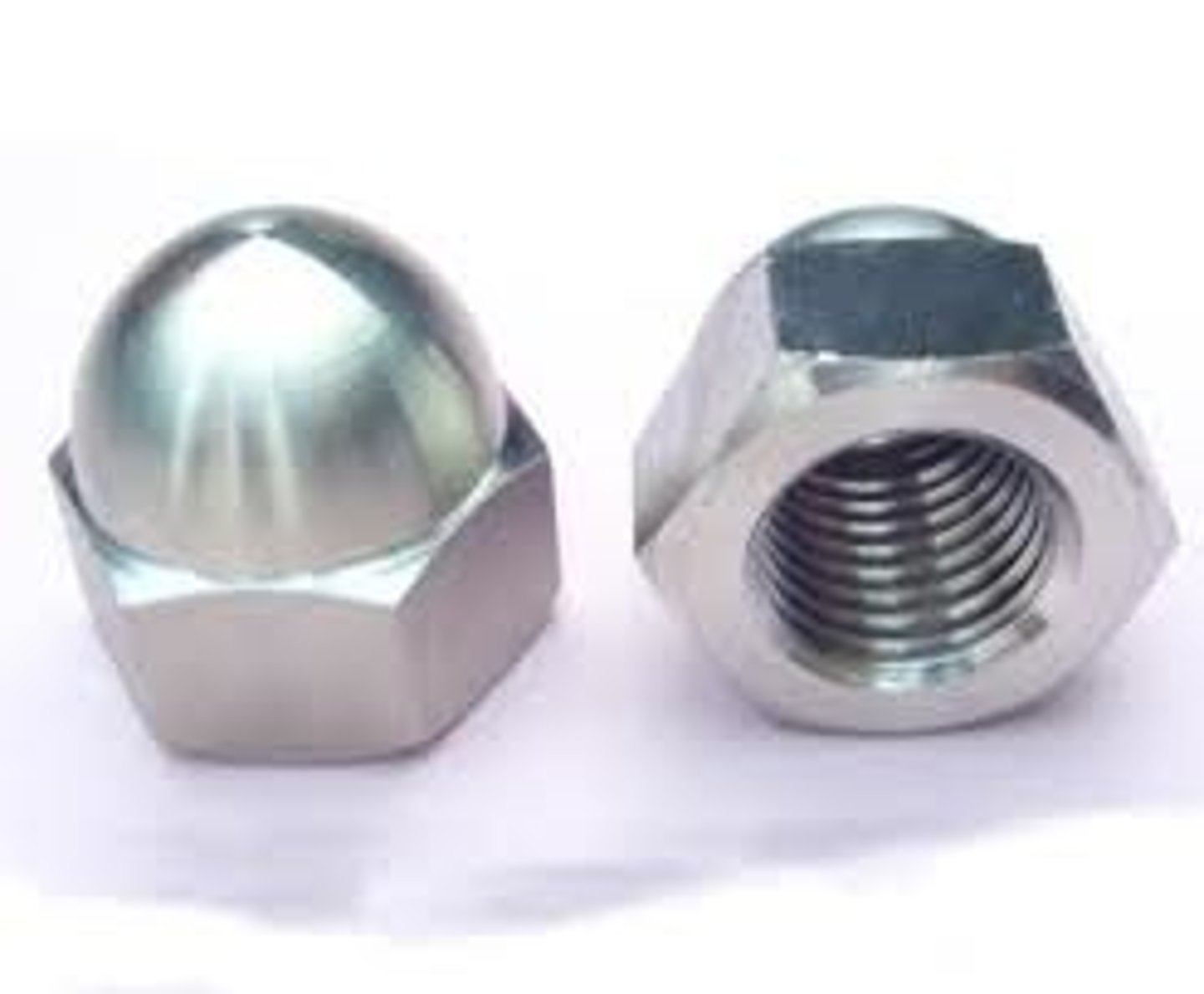

Nuts that cover the exposed threaded end of bolts. Protects from corrosion and prevents people from getting cut by sharp threads

Cap nut

Tools used for measuring

Tape measures, steel rule, micrometer, calipers, spirit levels, steel square

Striking Tools

Hammers, nails, rivets, chisels, punches, drifts

Turning tools

Screwdriver, wrench, sockets
