Open systems (first law of thermodynamics)

For a steady flow process, what is true about the mass?

the total amount of mass contained within a control volume doesn’t change with time

what does the conservation of mass require?

the total amount of mass entering a control volume = the total amount of mass leaving

what are the equations for mass flow rate in steady flow processes?

mass flow rate in = mass flow rate out ( = p1 x V1 x A1 = p2 x V2 x A2)

for an incompressible liquid, what is the mass balance?

Volume flow rate in = Volume flow rate out (=V1 x A1 = V2 x A2)

For the steady flow of liquids what is true?

volume flow rates and mass flow rates stay the same since liquids are essentially incompressible substances

what is flow work/flow energy?

the work required to push the mass into or out of the control volume. This work is necessary for maintaining a continuous flow through a control volume

what is the equation for work flow

Work (flow) = FL = PAL = PV

what is the sum of energy of a non-flowing fluid?

energy = u + ke + pe = u + V²/2 + gz

what is the sum in energy if a flowing fluid?

θ = PV + e = PV + (u +ke +pe)

what is the sum of energy including enthalpy

θ = h + ke + pe = h + V²/2 + gz

what is a steady flow process?

a process during which a fluid flows through a control volume steadily

show the energy balance for a steady-flow process

rate of energy in = rate of energy out

rate of heat (in) + rate of work (in) + rate of mass x energy (in) = [—-]out

what is the energy balance for a non-steady flow process?

rate of heat (in) + rate of work (in) + rate of mass x energy (in) = [—-]out + ΔE

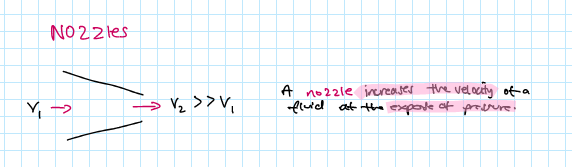

what is a nozzle? draw it!

a nozzle increases the velocity of a fluid at the expose of pressure

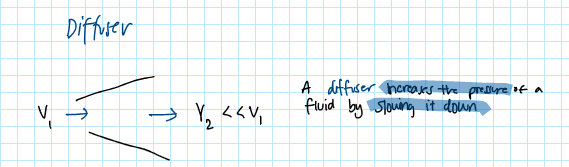

what is a diffuser? draw it!

a diffuser increases the pressure of a fluid by slowing it down

How does the CSA of a nozzle work to produce it’s function?

the CSA decreases in the flow direction for subsonic flows and increases for supersonic flows vice versa for diffusers

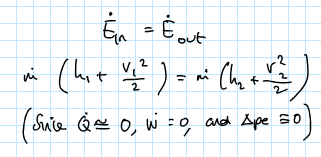

what is the energy balance for a nozzle/diffuser?

rate of energy in = rate of energy out

rate of mass flow x (h1 x V1²/2) = mass flow rate x (h2 x V2²/2)

what is a turbine?

drives the electric generator in steam, gas or hydroelectric power plants. as fluids passes through a turbine, work is done against the blades attached to the shaft, thus, the shaft rotates and the turbine produces work.

what is a compressor, pump or a fan?

increases the pressure of a fluid

work is supplied to these devices from an external source through a rotating shaft

what is the specific function of a fan?

increases the pressure of a gas slightly and is mainly used to mobilise a gas

what is the specific function of a compressor?

compresses the gas to higher pressures

what is the specific function of a pump?

compresses liquids to higher pressures

What is a throttling valve?

any flow-restricting device that causes a significant pressure drop in the fluid

In refrigeration and AC applications, why is a throttling valve used?

the pressure drop in the fluid is usually followed by a large drop in temperature

what is the energy balance for a throttling valve?

u1 + p1V1 = u2 + p2V2

for ideal gases in a throttling valve, what is true regarding temperature?

the temperature of the ideal gas doesn’t change ( h = constant)
