39 Terms
Linear (2 bonds)
Bonding-2, lone-0
Trigonal planar
Bonding-3, lone-0
Bent (3 bonds)
Bonding-2, lone-1
Tetrahedral
Bonding-4, lone-0
Trigonal pyramidal
Bonding-3, lone-1
Bent (4 bonds)
Bonding-2, lone-2
Trigonal bipyramidal
Bonding-5, lone-0
Seesaw
Bonding-4, lone-1
T shaped
Bonding-3, lone-2
Linear (5 bonds)
Bonding-2, lone-3
Octahedral
Bonding-6, lone-0
Square pyramidal
Bonding-5, lone-1
Square planar
Bonding-4, lone-2
120
Trigonal planar (degrees)
180
Linear(2,0) (degrees)
Less than 120
Bent(2,1) (degrees)
109.5
Tetrahedral (degrees)
107.5
Trigonal pyramidal (degrees)
104.5
Bent(2,2) (degrees)
120 in plane, 90 perpendicular
Trigonal bipyramidal (degrees)
Complex
Seesaw (degrees)
90
T shaped (degrees)
180
Linear(2,3) (degrees)
90
Octahedral (degrees)
90
Square pyramidal (degrees)
90
Square planar (degrees)

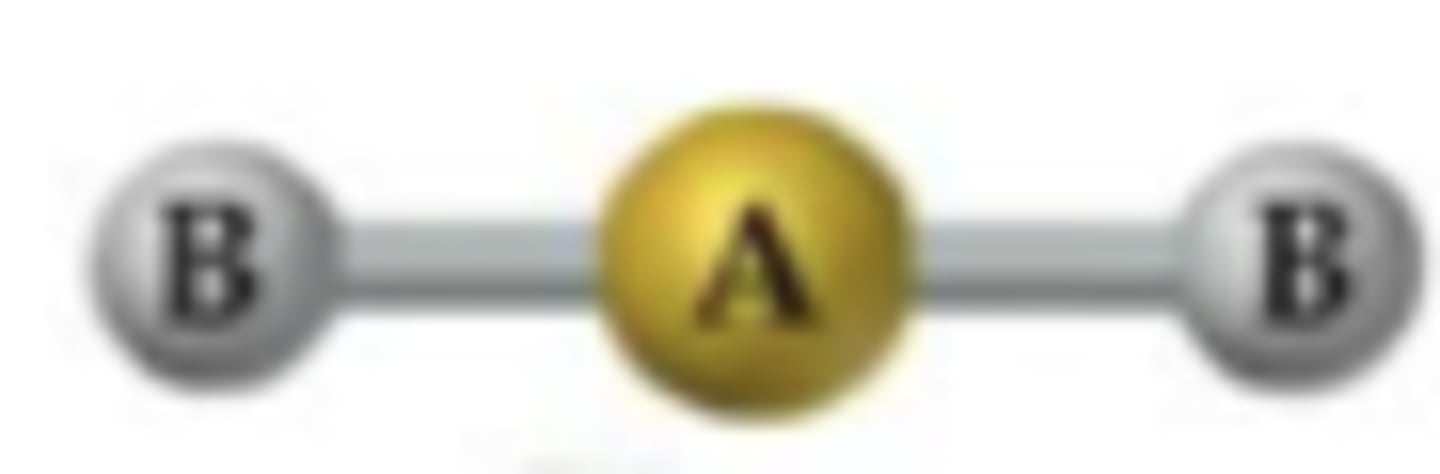

Linear
Trigonal planar

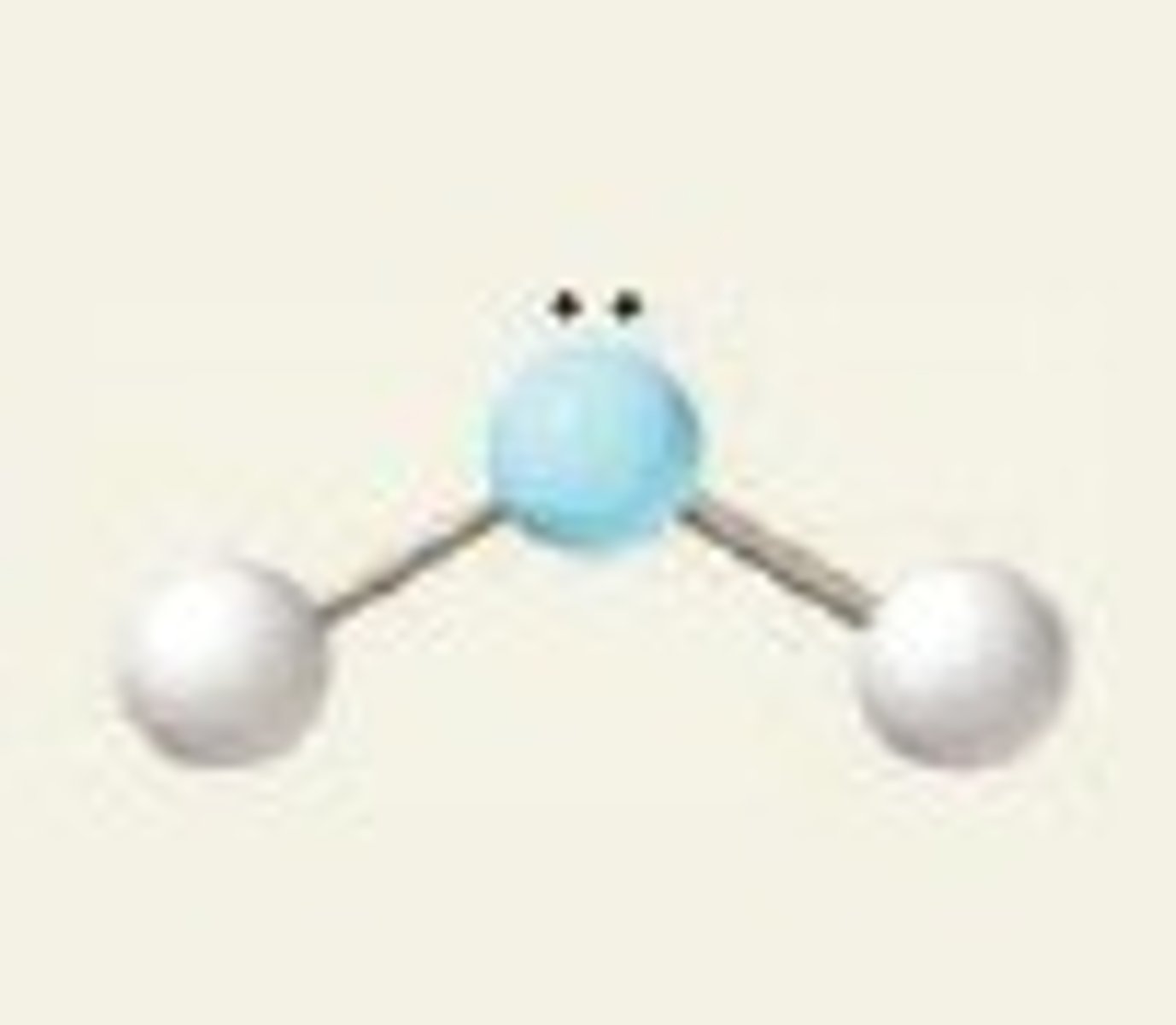

Bent

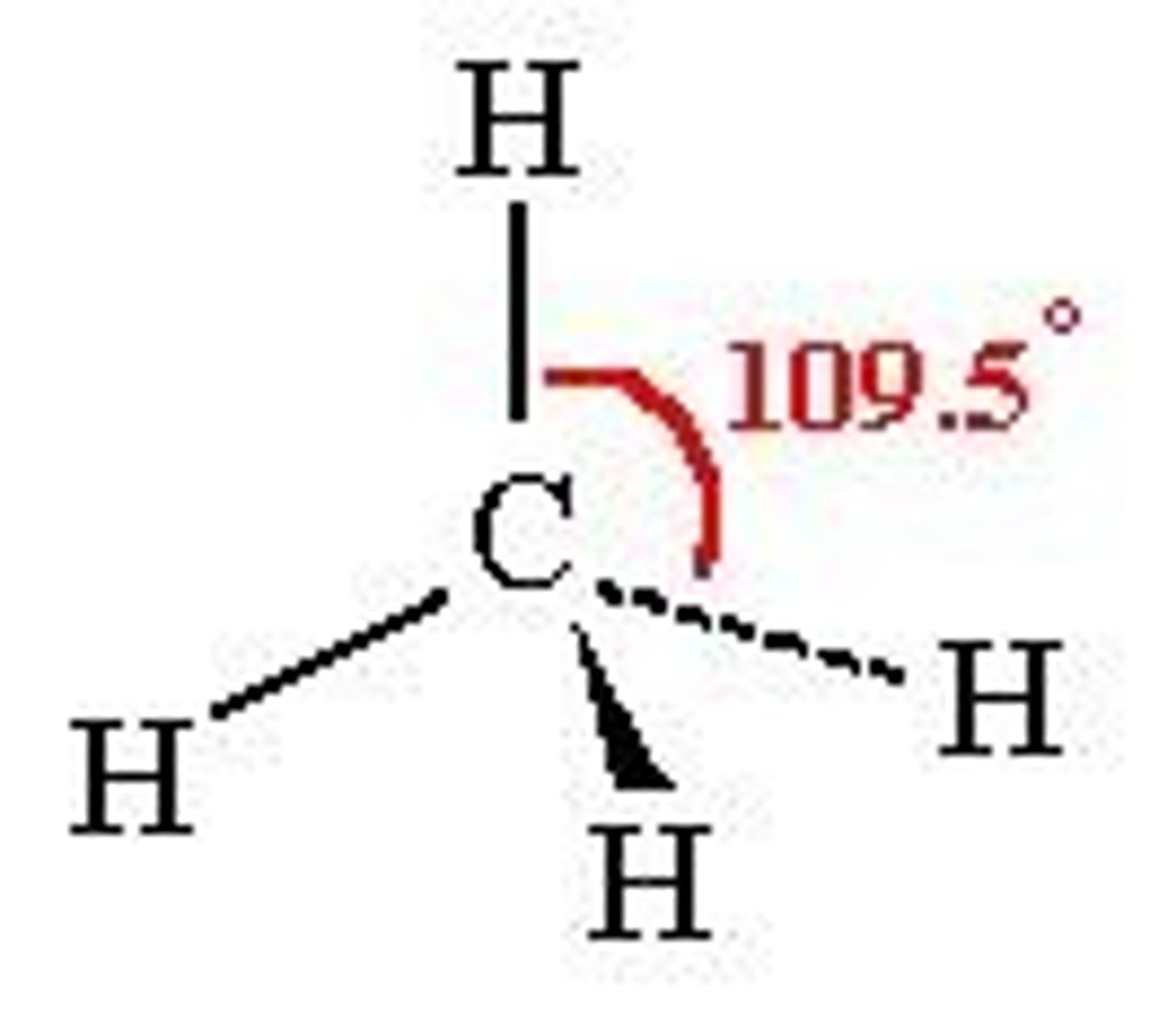

Tetrahedral
Trigonal pyramidal

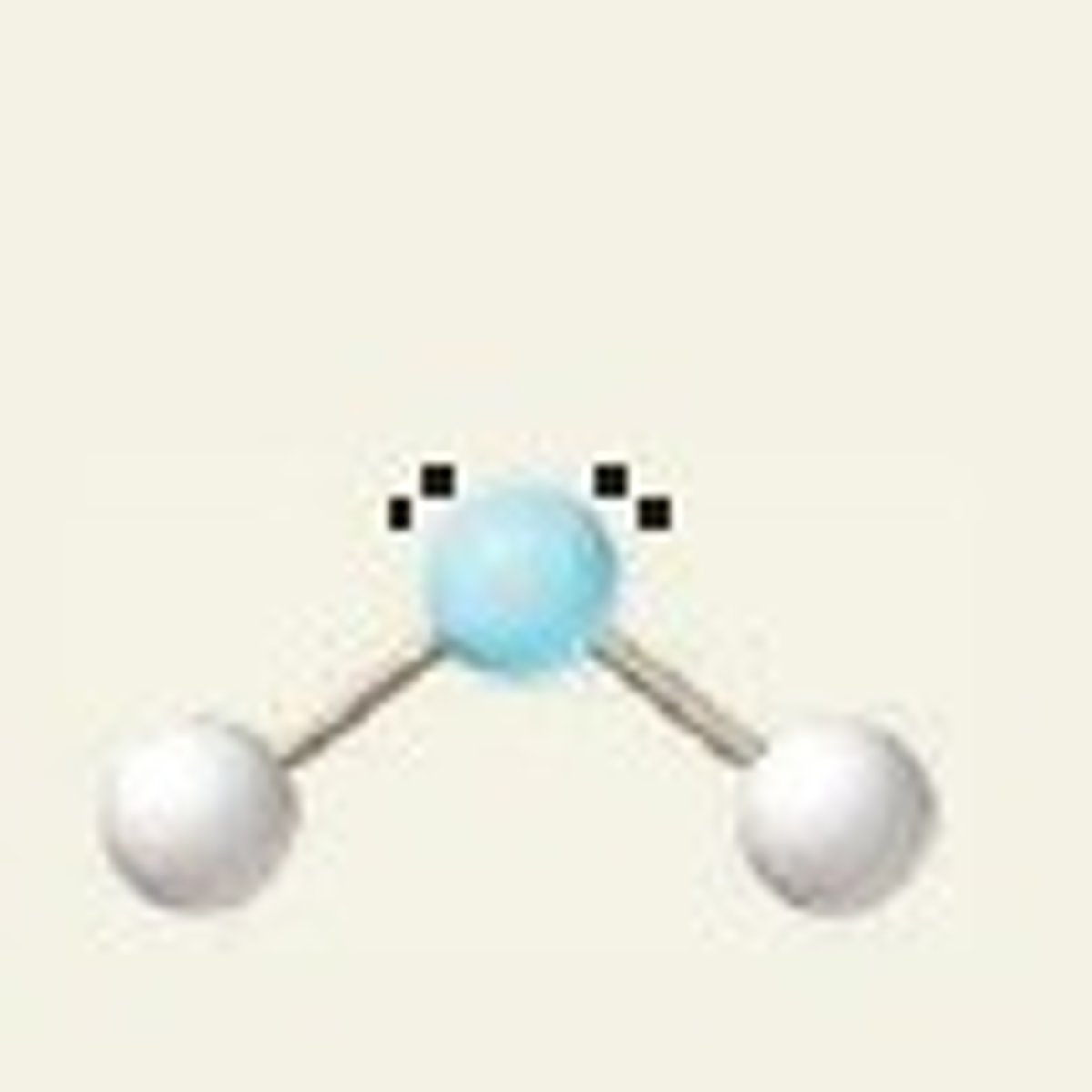

Bent

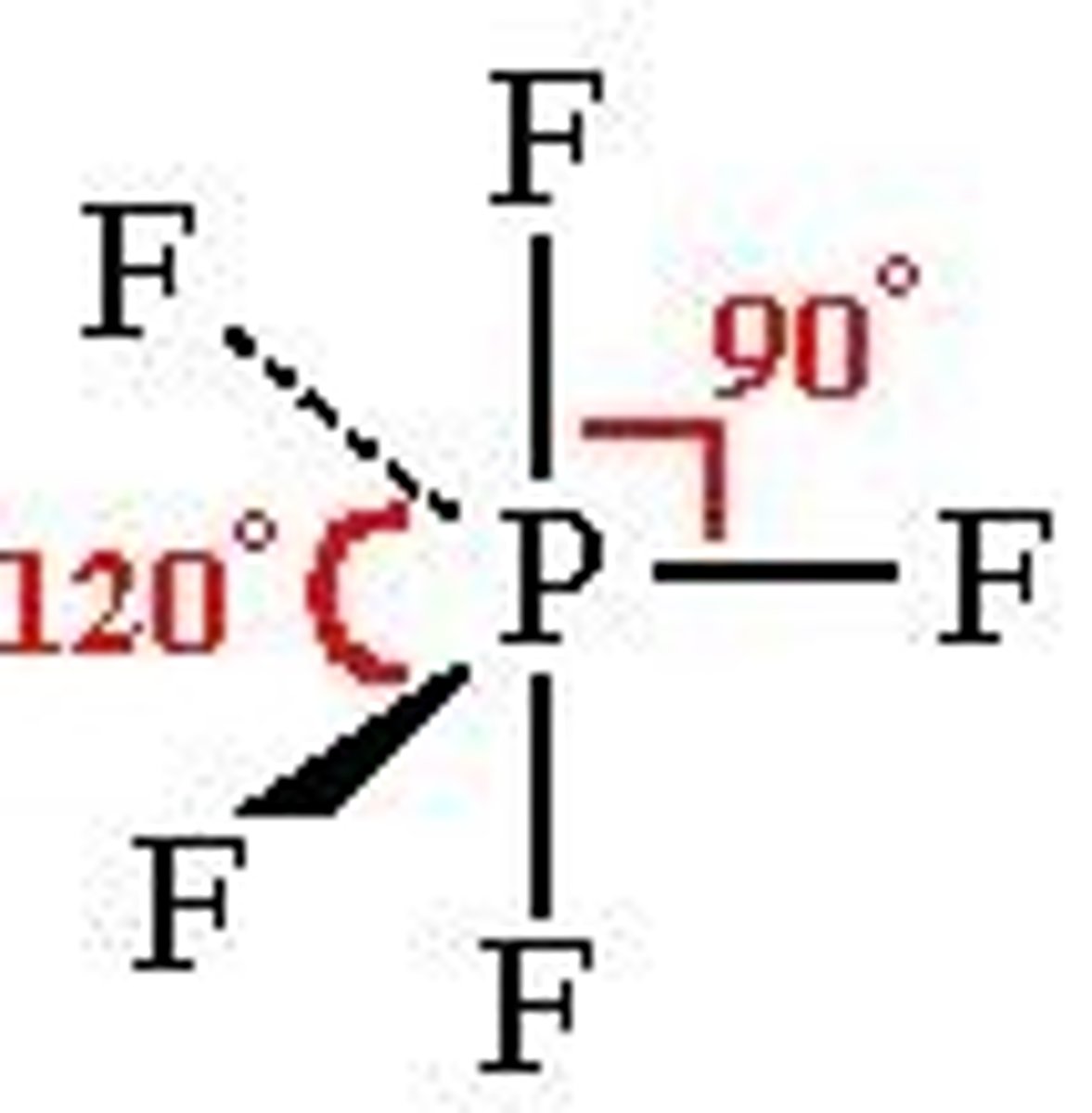

Trigonal bipyramidal

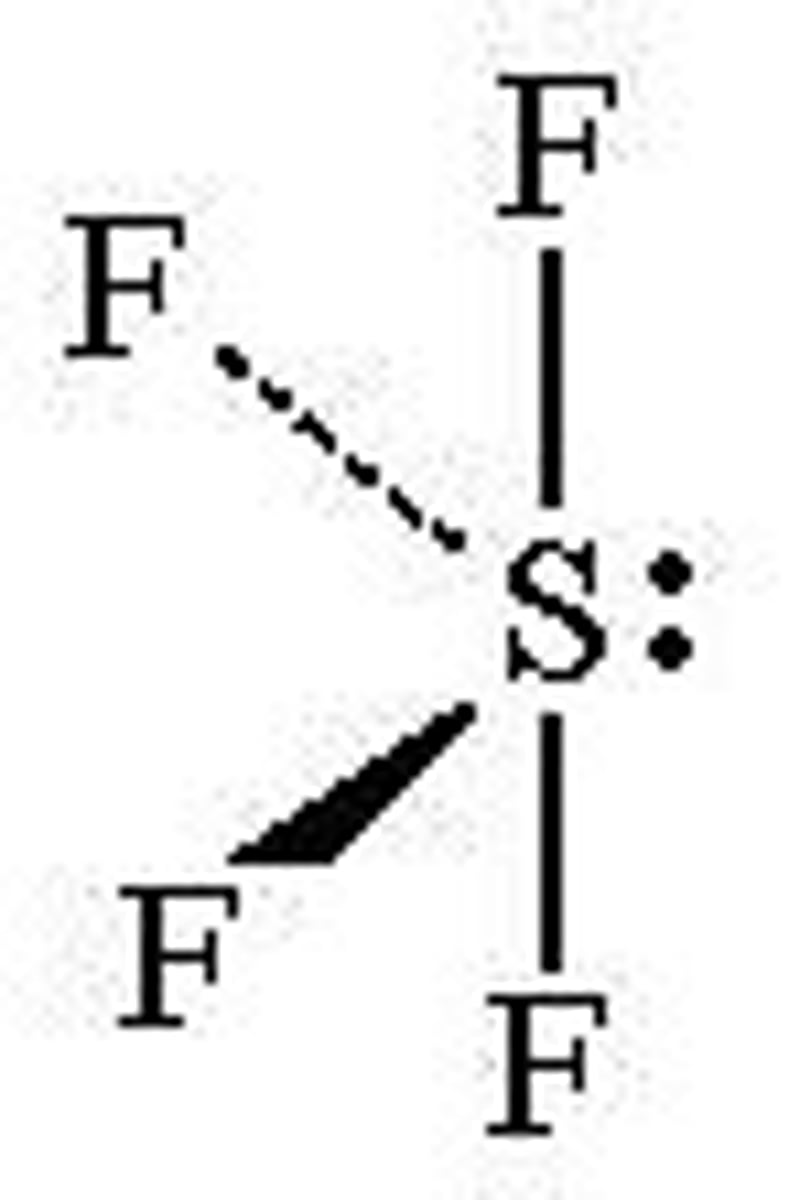

Seesaw

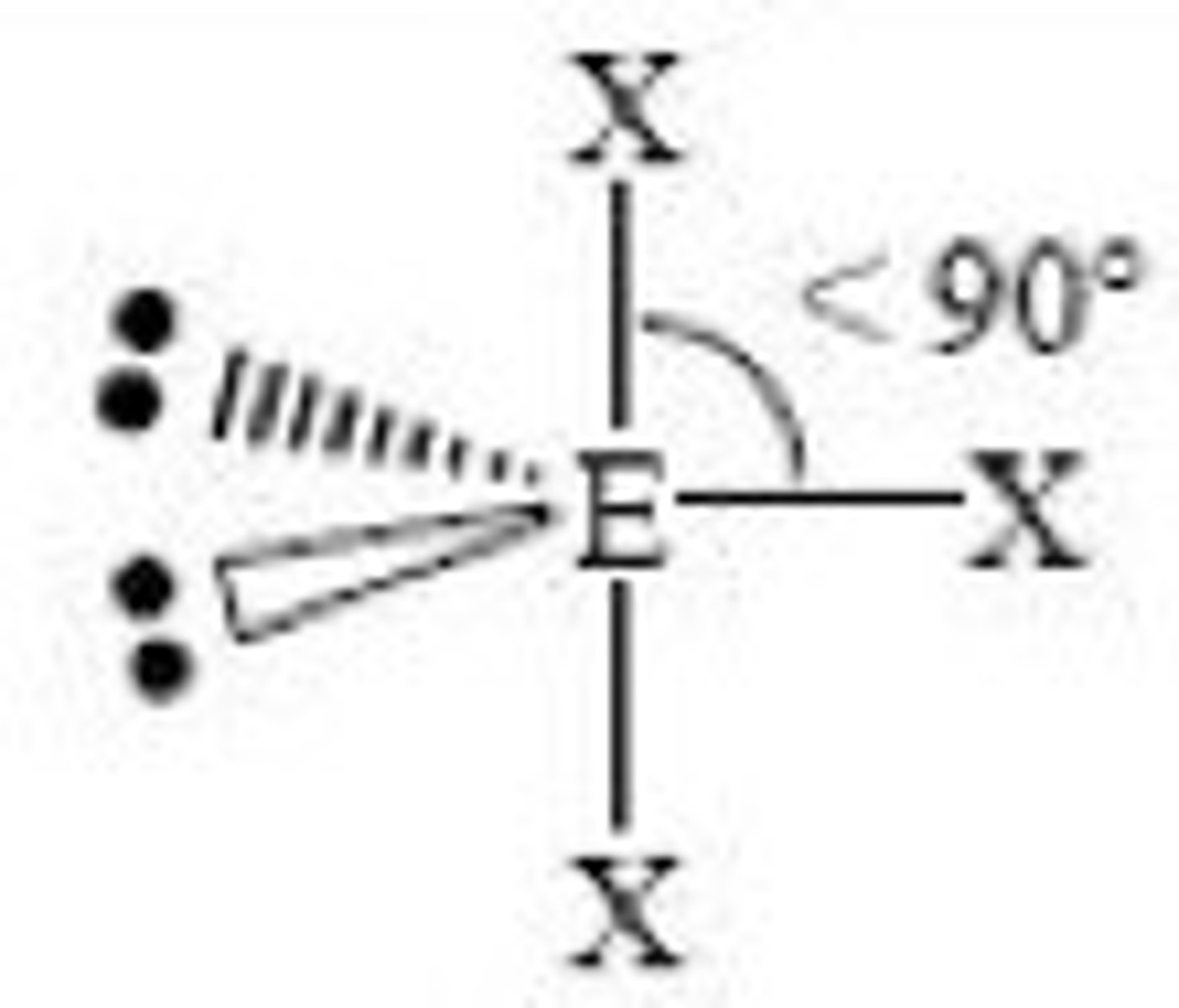

T shaped
Linear (5 bonds)

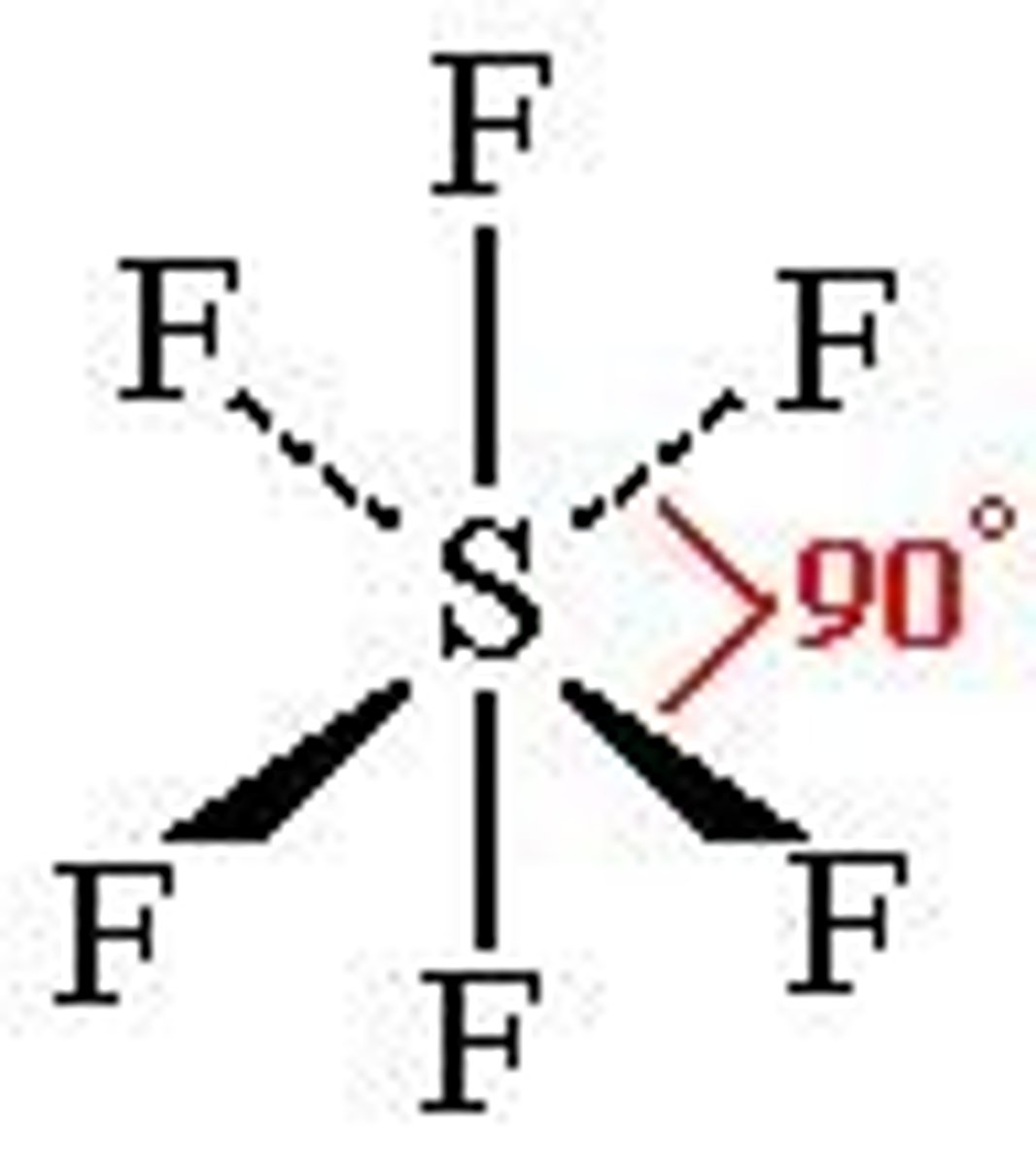

Octahedral

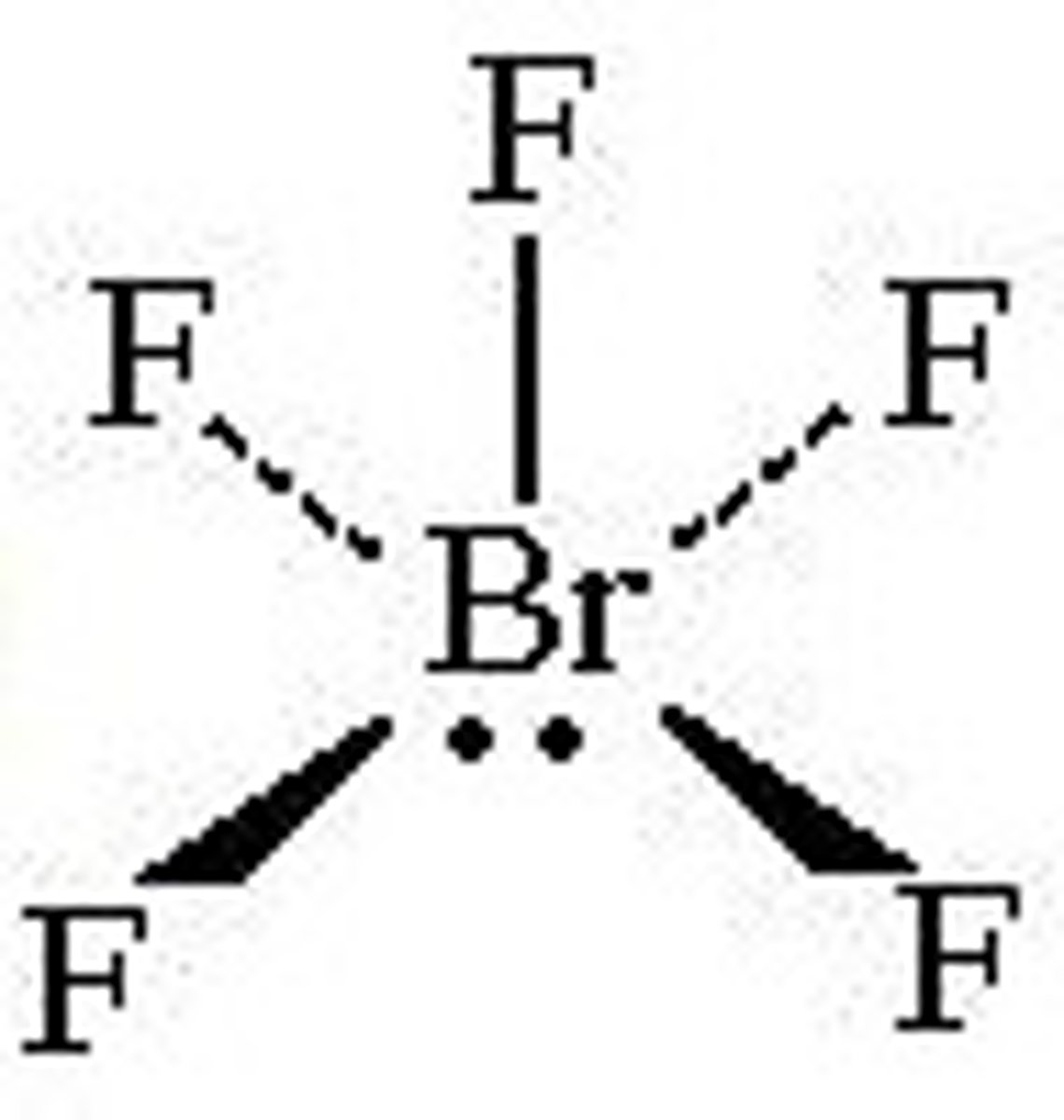

Square pyramidal

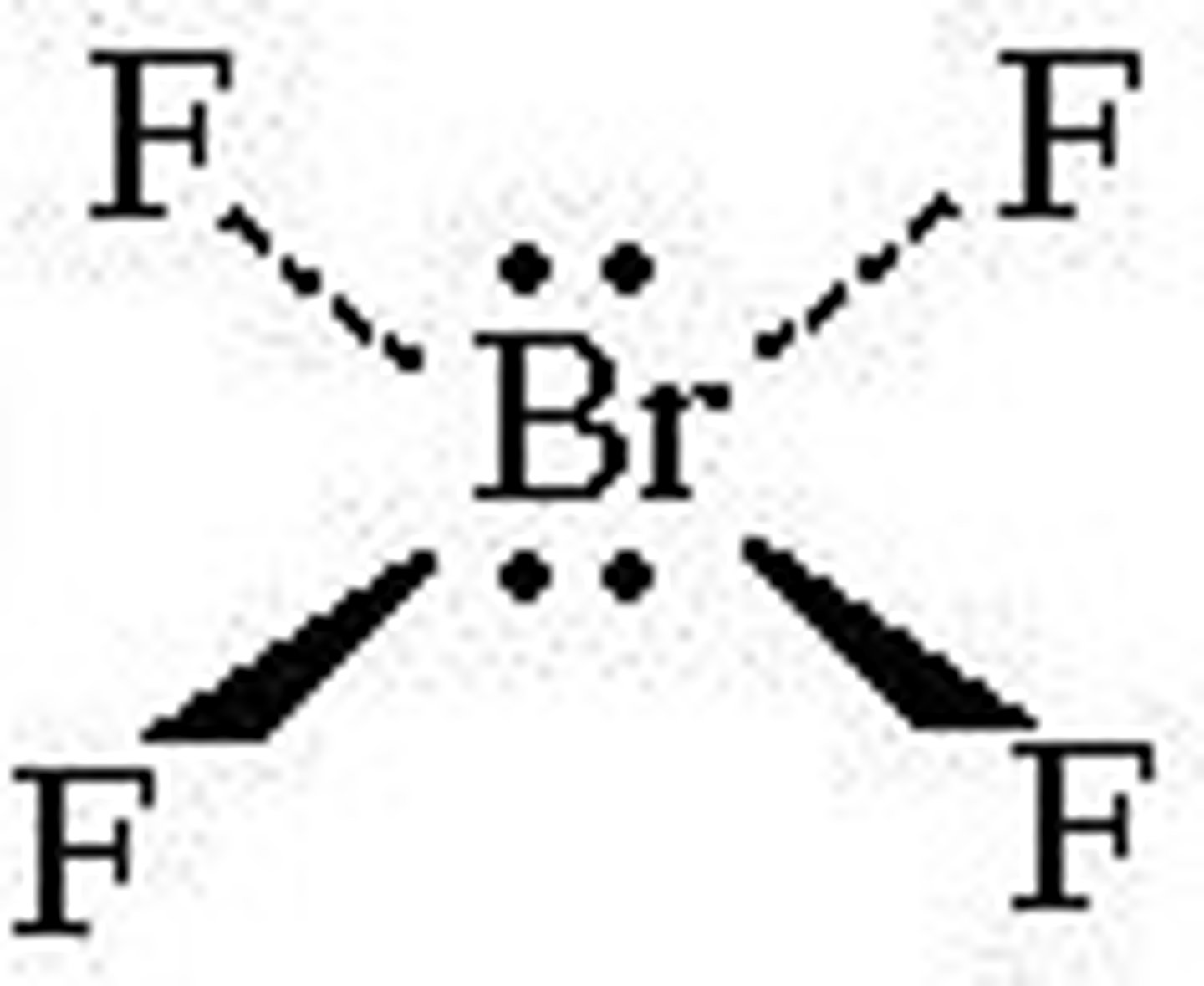

Square planar
