40 Terms

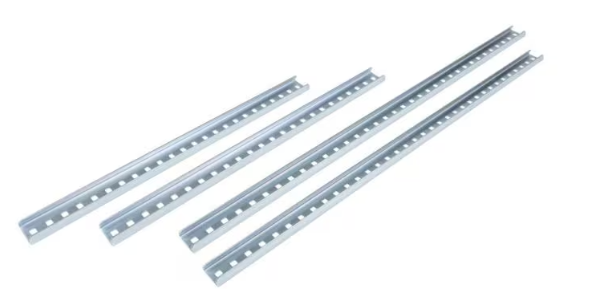

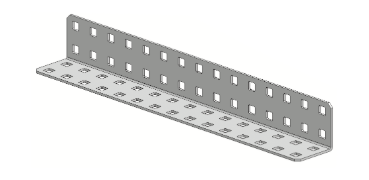

Chassis rail
Chassis bumper

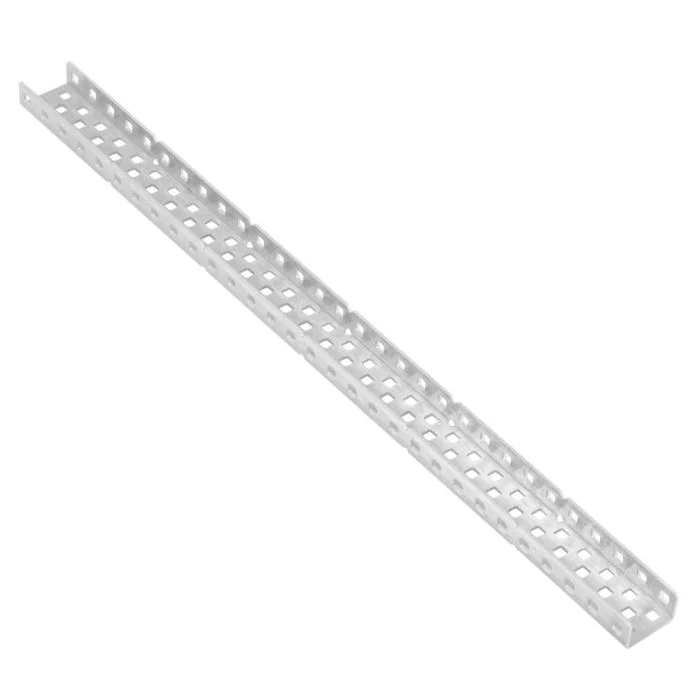

C-channel
84-tooth gear
60-tooth gear

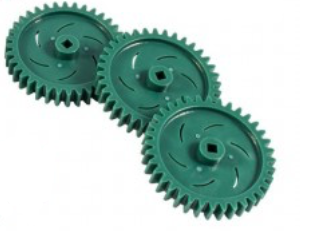

36-tooth gear
12-tooth gear
Rack gear

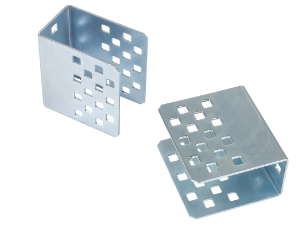

Pulley gearbox bracket
Inside slide
Outside slide
Slide bar
Large traction wheel
Small traction wheel
Large Omni wheel
Small Omni wheel
Keps nut
Motor controller

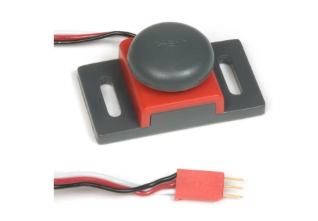

Bumper switch

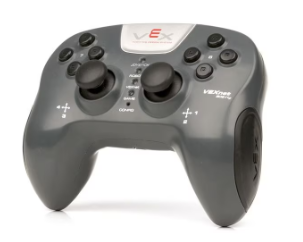

Wireless controller
Battery

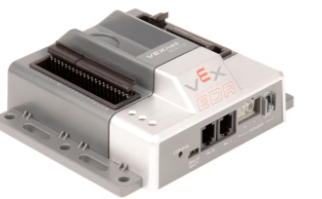

Cortex brain microcontroller

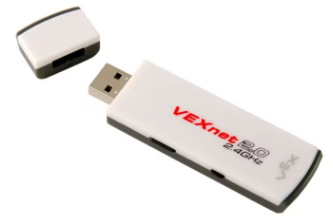

Wireless key
Motor

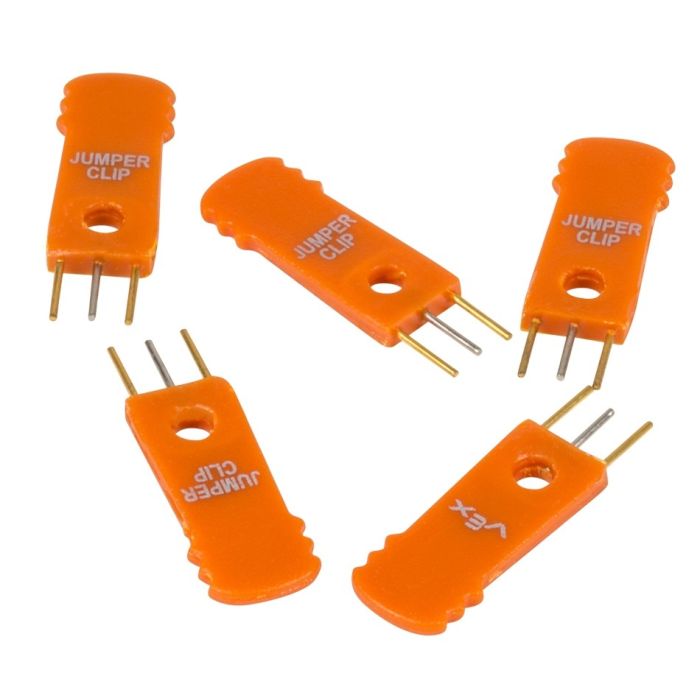

Jumper clip

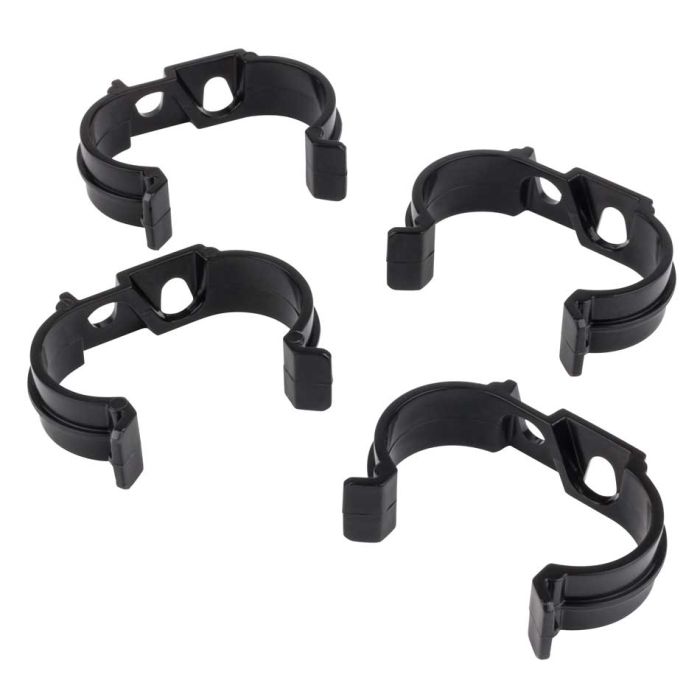

Battery clip

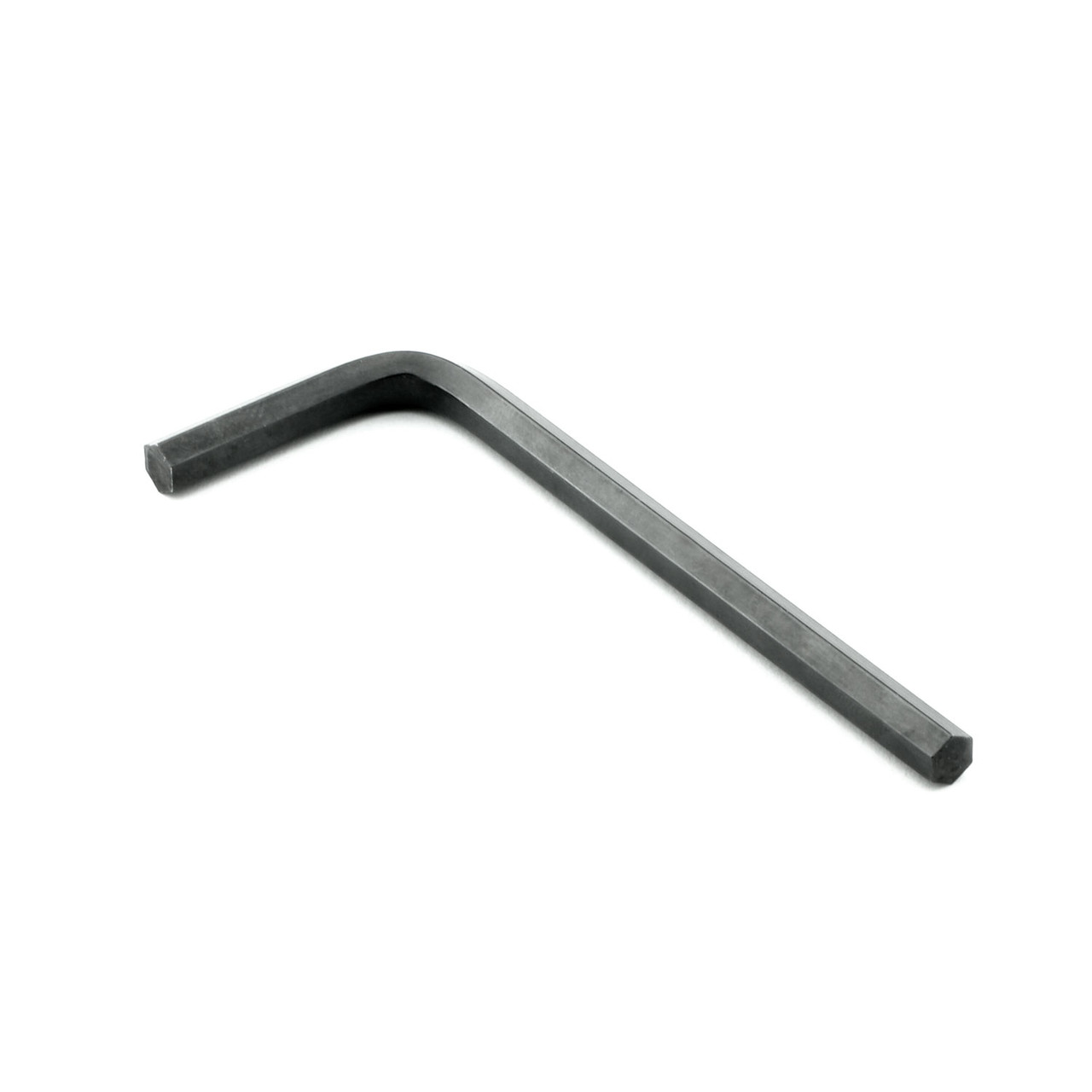

Hex wrench / Allen key

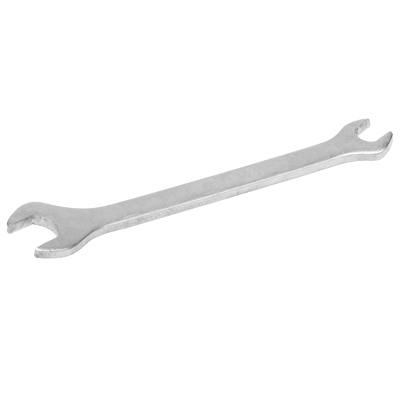

Open-ended wrench

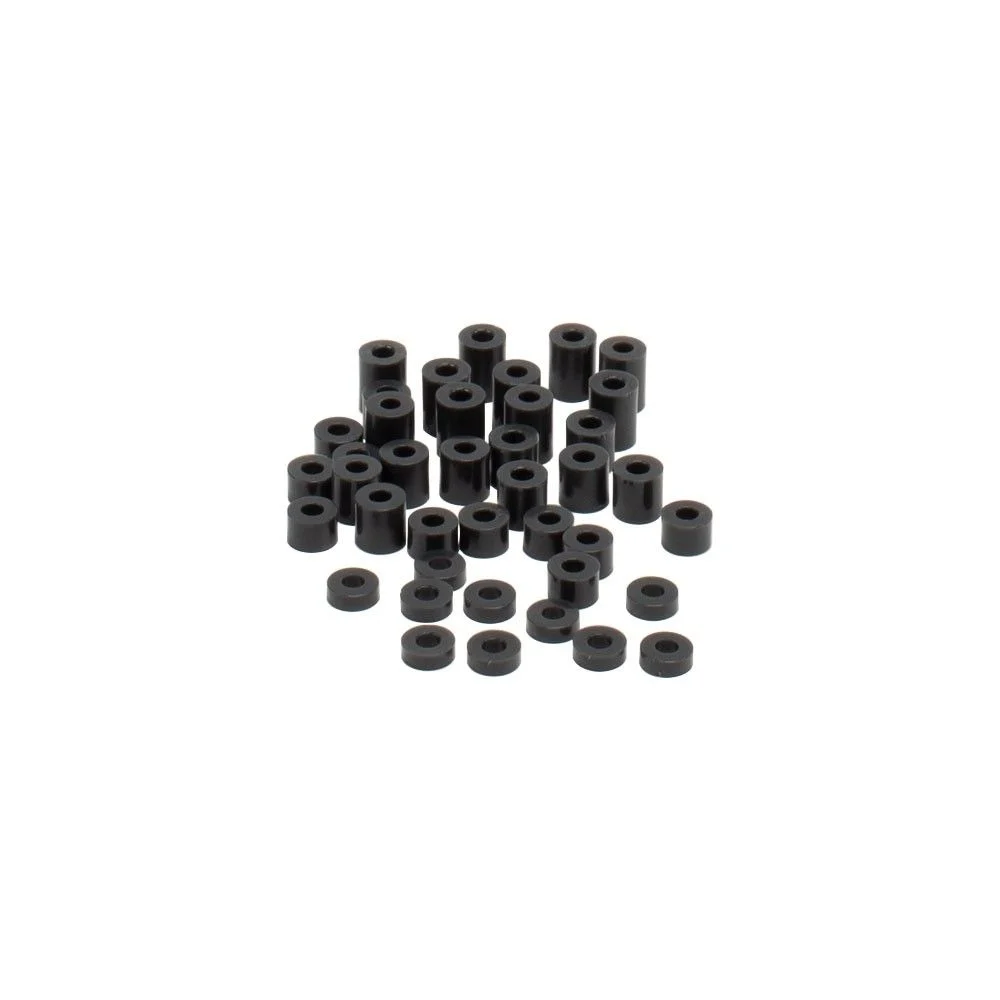

Spacer
Collar
Flat bearing
Bevel gear
allows rotational motion to be transferred at right angles
Worm gear
allows axles at right angles to transfer rotational motion

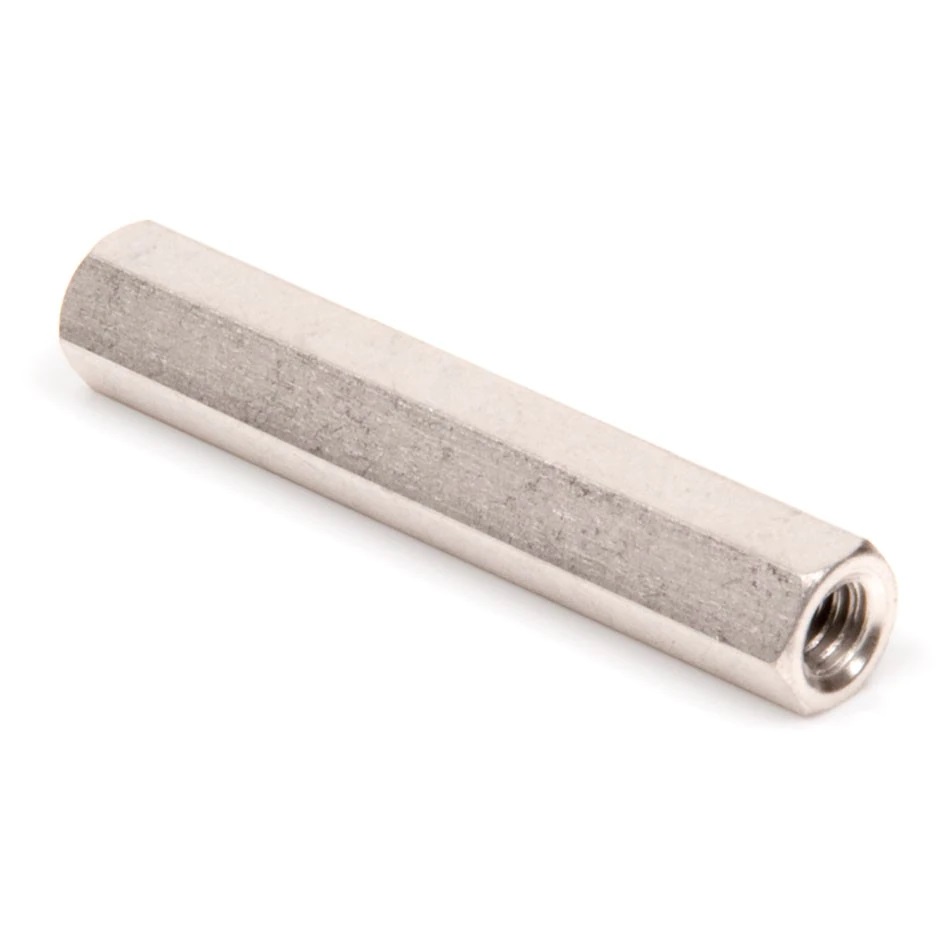

Standoff
Slot bar

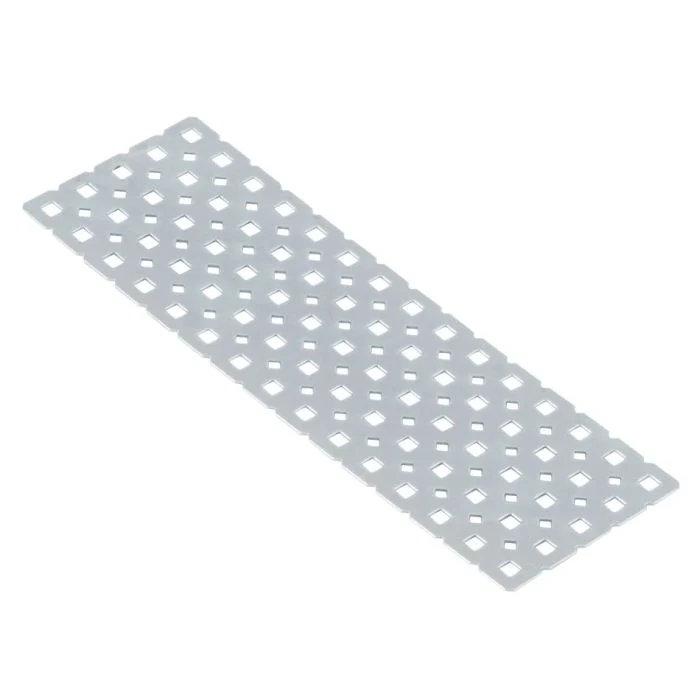

Base plate
Axel

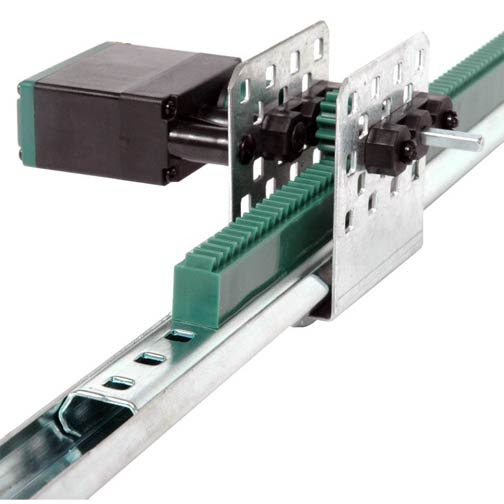

Rack and pinion gear
used to translate rotational motion into linear motion

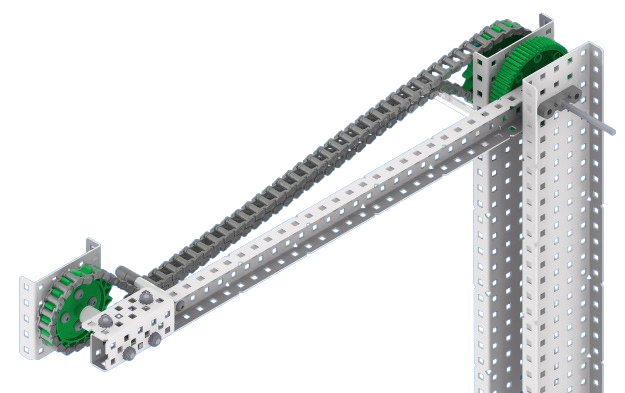

Sprockets and chains gear
sprockets inside the chain rotate the same direction as the chain
sprockets outside the chain rotate in the opposite direction as the chain
Differential gears
allows each of the axles to rotate at different speeds while supplying equal torque to each
