driving theory micellaneous

including: road studs, instrument panel lights

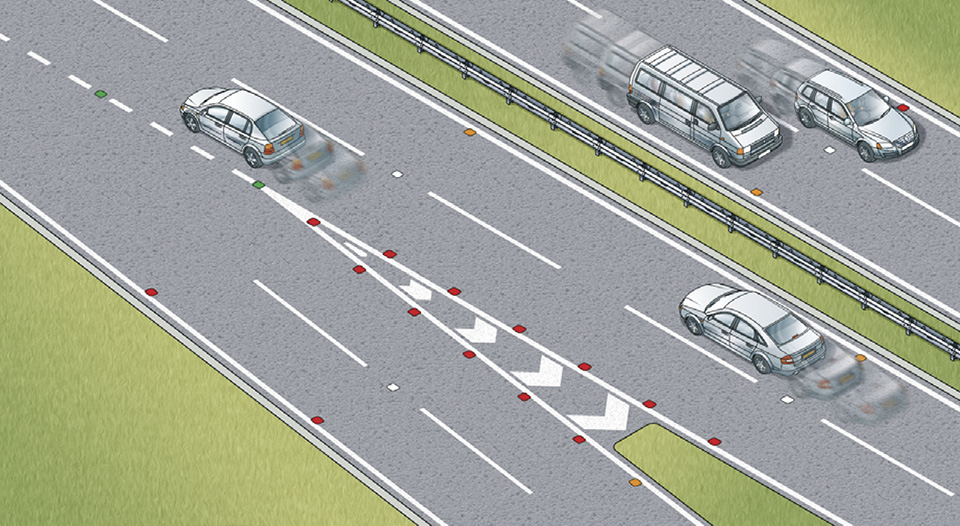

white studs

mark the lanes or the middle of the road

red studs

mark the left edge of the road

amber studs

mark the central reservation of a dual carriageway or motorway

green studs

mark the edge of the main carriageway at lay-bys and slip roads

green/yellow studs

indicate temporary adjustments to lane layouts, e.g. where roadworks are taking place

reflective road studs mark the lanes and edge of the carriageway

zebra crossings

• black and white walkway with two orange lights, spanning the width of the road

• zig zags on either sides of the road

• BELISHA BEACONS

• no light traffic signal to control traffic flow - right of way is automatically given to pedestrians

• if a crossing is split with a pedestrian refuge in the middle, they should be treated as two different crossings

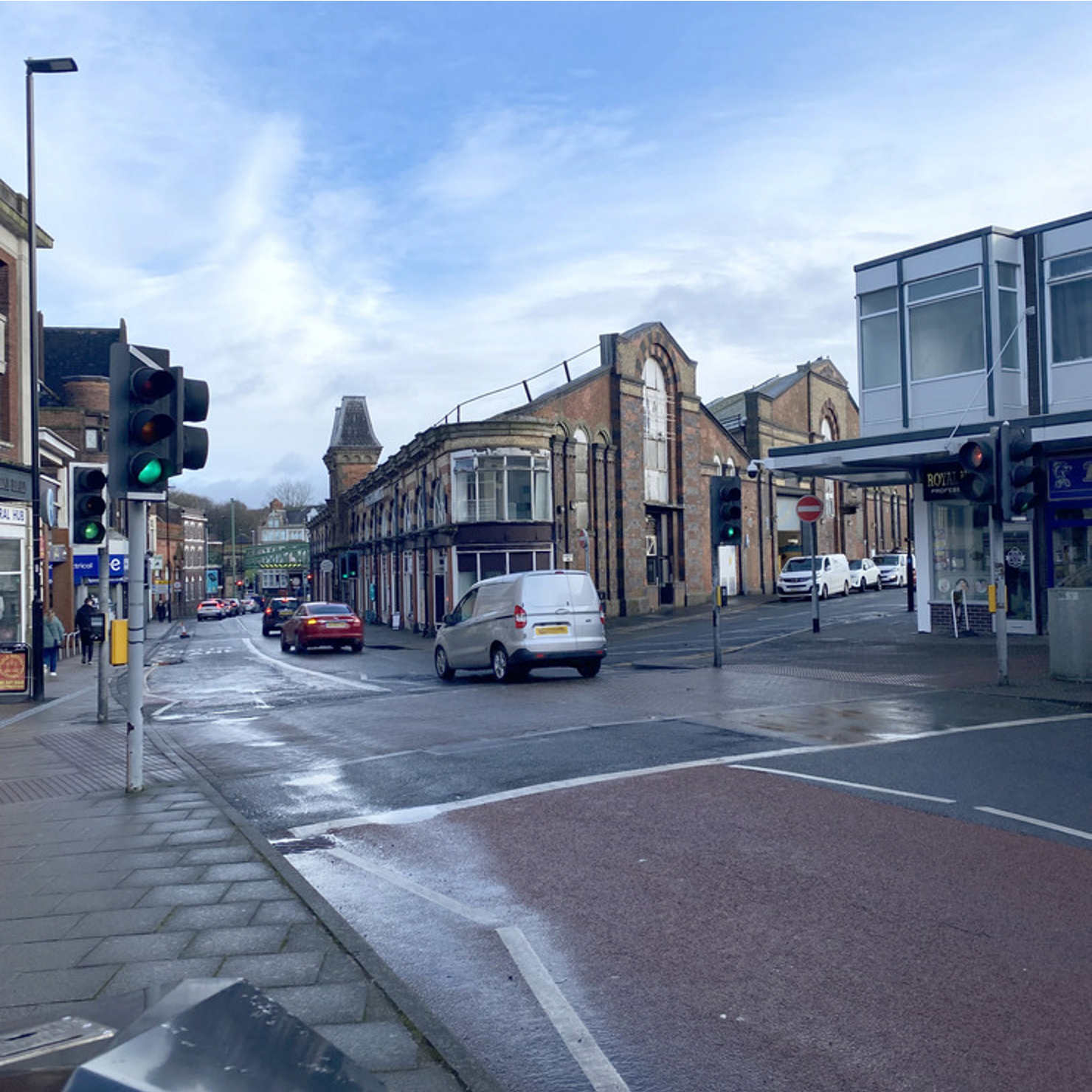

pelican crossing

• a set of traffic lights, with sets of zig zag lines before and after on either side of the road

• a box with a display and a button will be on each side of the crossing

• pedestrian activated

• has flashing amber light as part of its sequence (only crossing with this)

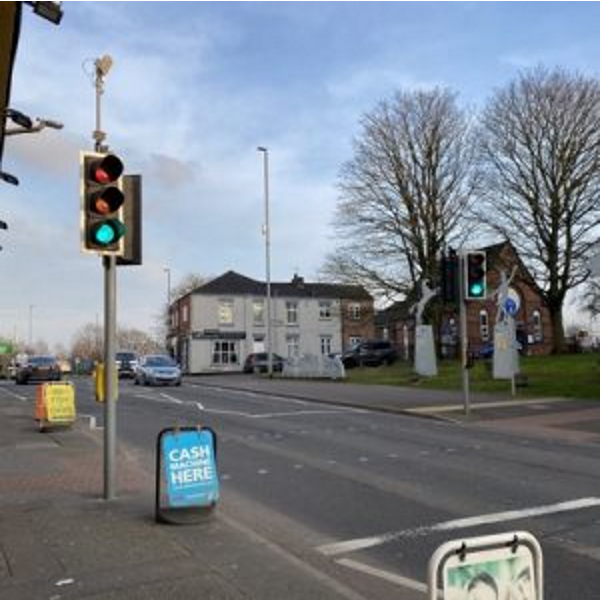

puffin crossing

• set of traffic lights with sets of zig zag lines before and after on either side of the road

• has a pedestrian crossing detector, and a pedestrian kerb detector - crossing becomes more efficient

• no flashing amber phase

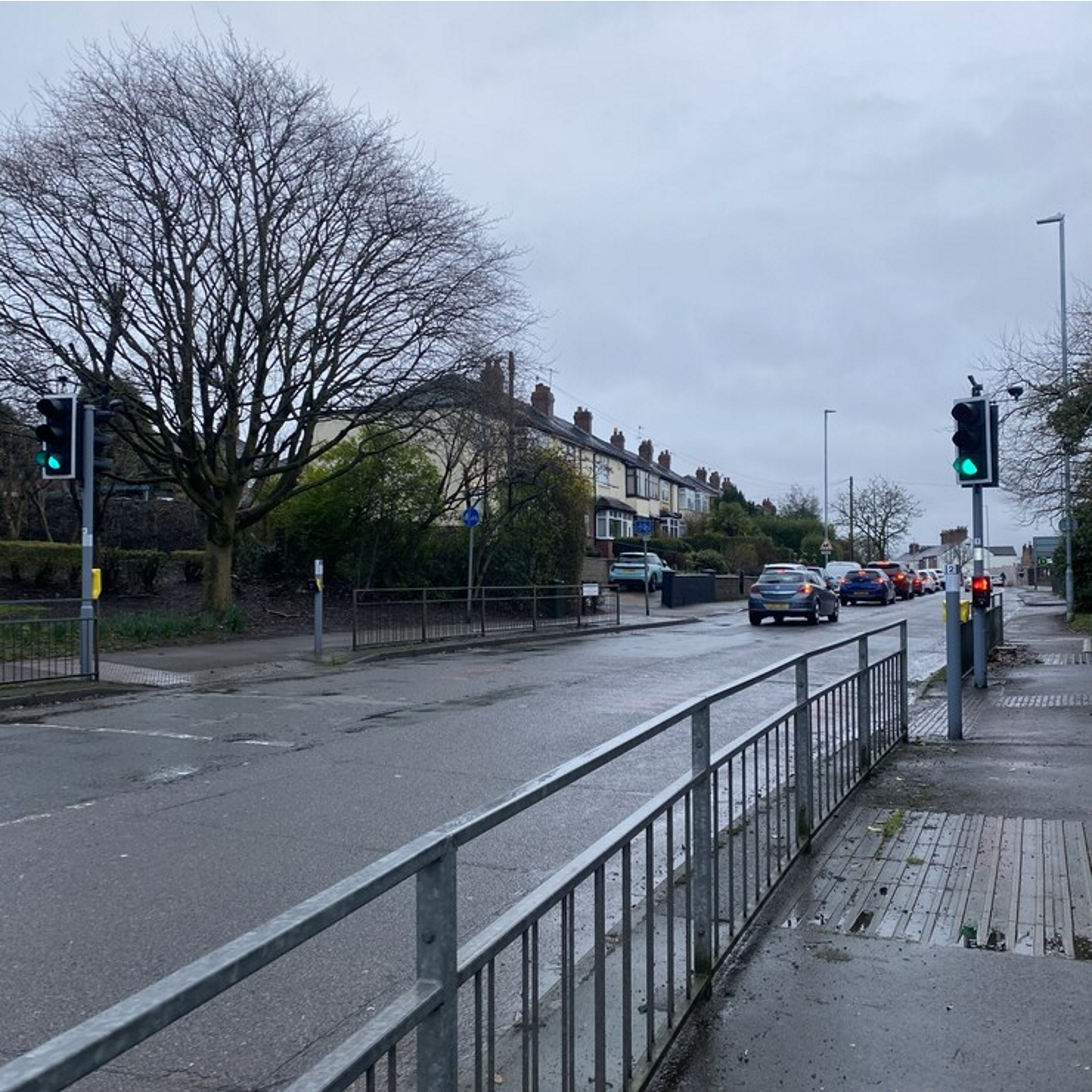

toucan crossing

• similar to pelican and puffin, but have an additional sign for bikes

• usually found on the outskirts of parks around 4m wide, compared to 2m

• to operate a toucan crossing, cyclists and pedestrians should press the control panel and wait for either the green man/bike to show

• no flashing amber stage

instrument panel warning lights - colour system

• red - urgent, needs immediate attention

• amber/yellow - less dangerous, should be addressed as soon as possible

• green, blue or white - indicate a system is in use or is functioning correctly

battery warning

brake system alert

hazard warning

oil pressure warning

seat belt reminder

power steering warning

hand brake on

brake pads fault

engine temperature warning

doors open

security system fault

transmission fault

SRS (Supplemental Restraint System) fault - indicates issue with air bags or seatbelt pretensioners

air bag switched off

bonnet open

air bag fault alert

brake fluid low

high transmission oil temperature

boot open reminder

washer fluid low indicator

check engine

low fuel warning

ESP (Electronic Stability Programme) fault warning - helps to prevent skidding

service check due

traction control system activated

side airbag fault

lane assist in operation

low oil level indicator

cruise control in operation

low on coolant

check in tyre pressure

water in fuel (diesel only)

glow plug indicator (diesel)

DPF (Diesel Particulate Filter) replacement due - traps soot to reduce emissions

4×4 low gear mode

4×4 high gear mode

catalytic converter warning - problem with exhaust control emission system

child safety lock on

RBS (Regenerative Braking System) hybrid fault - system that converts kinetic energy into electrical energy that recharges the vehicle’s battery

traction control system deactivated

ABS (Anti-lock Braking System) warning - prevents wheels from locking when you brake too hard or on a slippery surface

bulb failure

limited electric power indicator

vehicle electric charging

parking sensor in operation

eco mode activated

headlamps on

fog lights on

full beam lights on indicator

interior light on

coolant system too cold

indicators on

car ventilation indicator

windscreen wipers on

automatic hand brake on

side lights on

EV mode activated

electric car charging

stop/start system

sign on a school bus - can park anywhere, not just in bus stops
