Anatomy and Physiology Laboratory Study Material

The structure indicated by the arrow in the illustration below is the apex of the heart

True

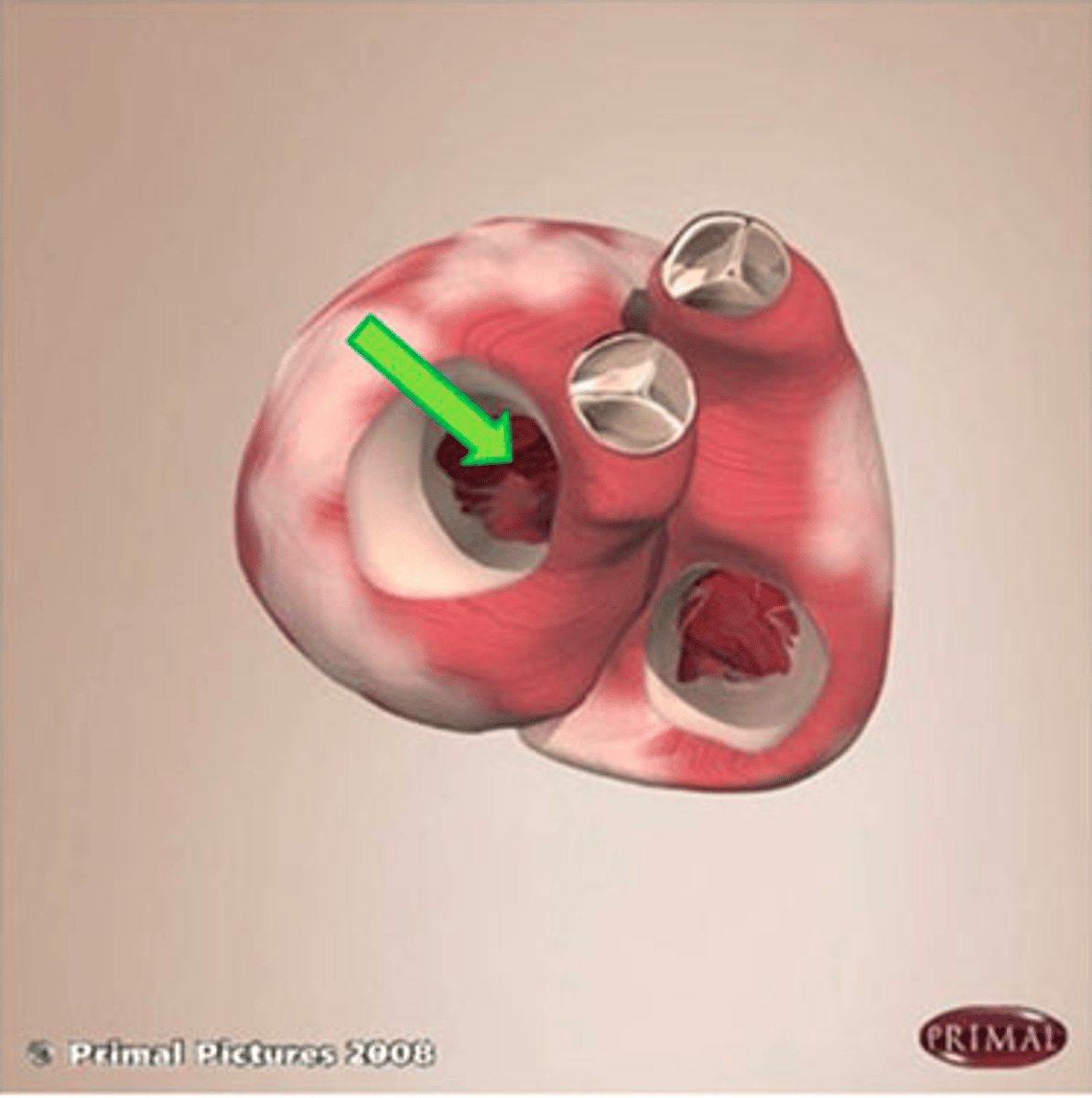

The structure indicated by the arrow in the illustration below is the left atrioventricular valve

True

The blue structure indicated by the blue arrow in the illustration below is the left subclavian artery

False

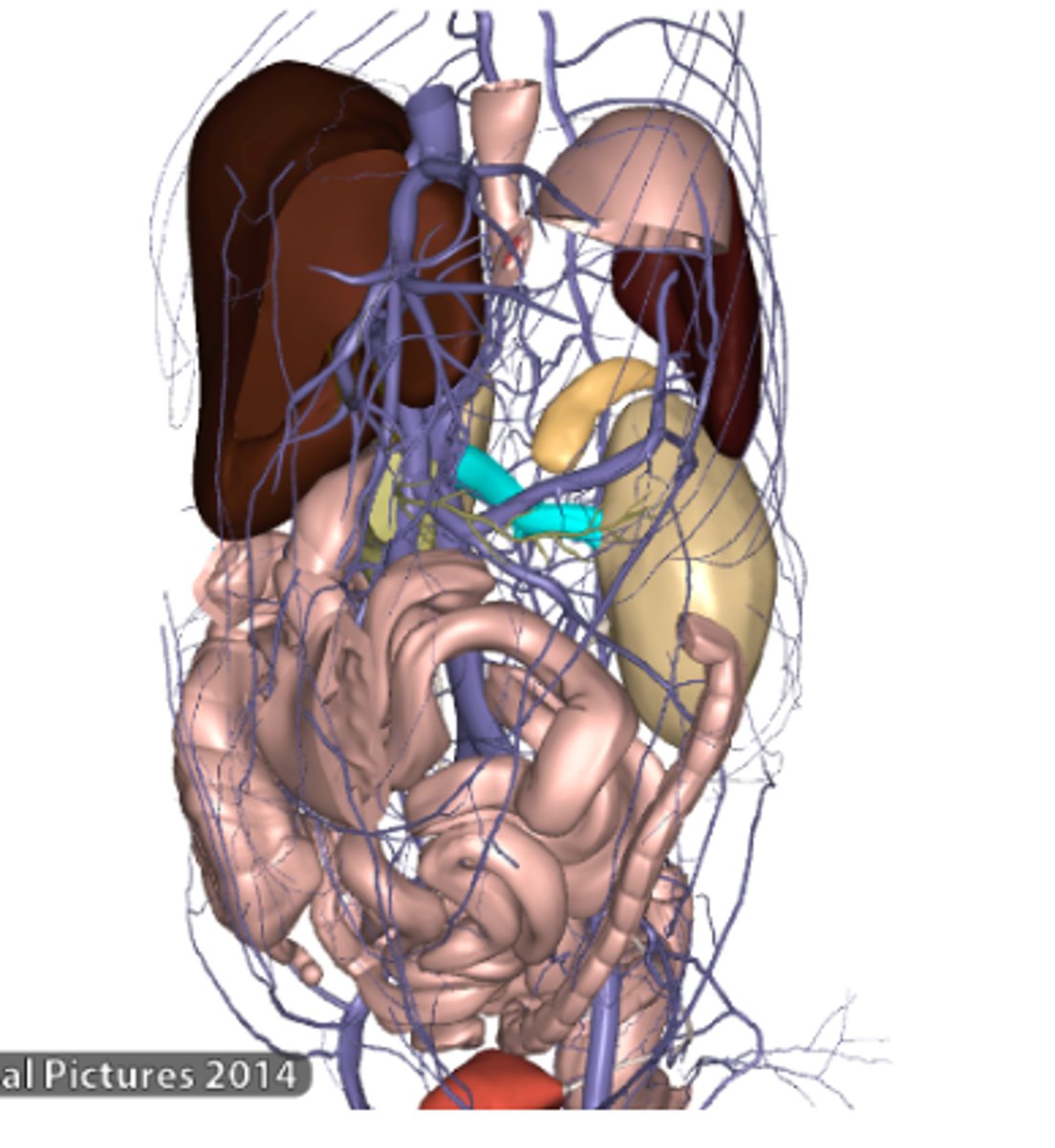

The structure indicated by the blue color in the illustration below is the ......

Left Renal Vein

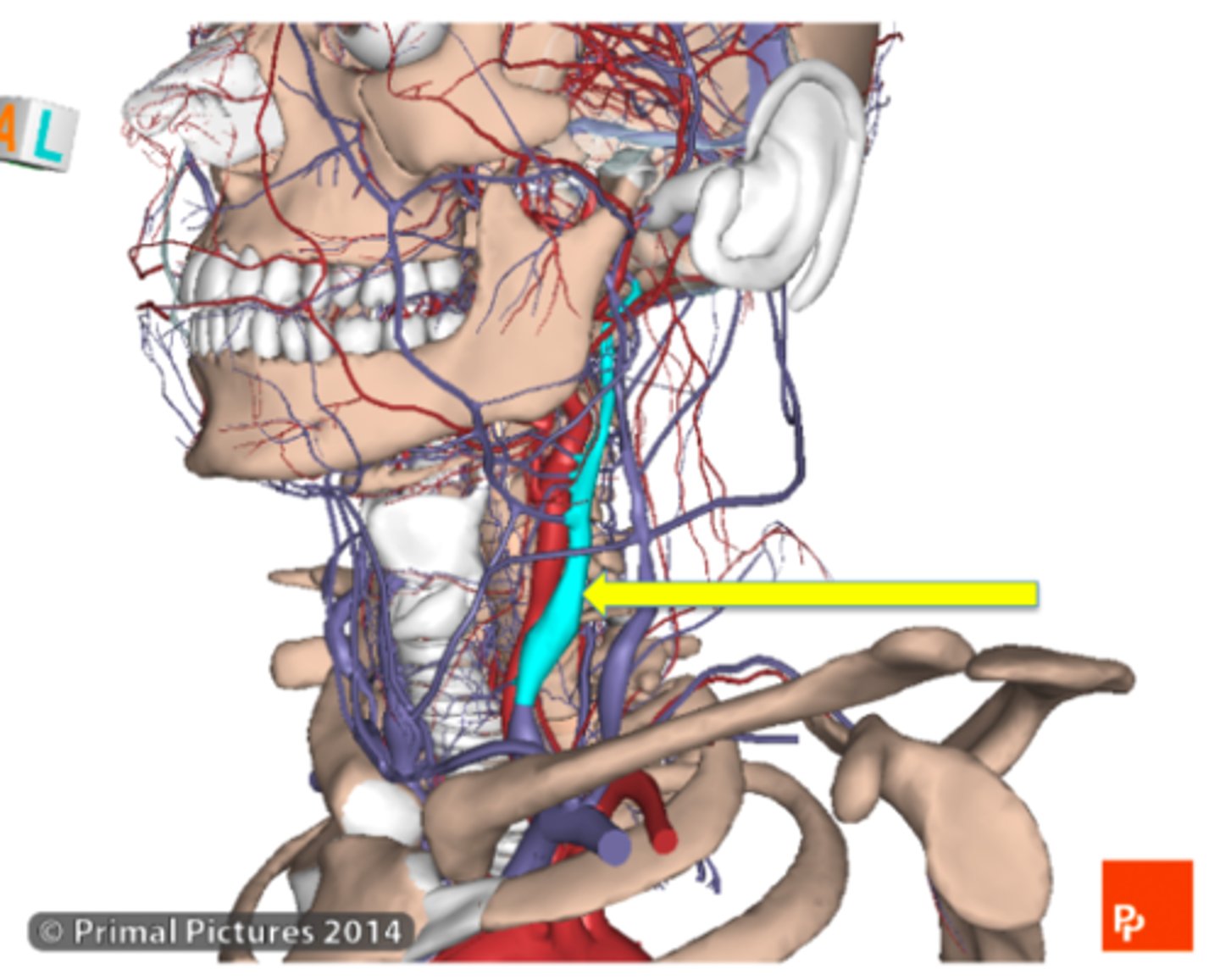

The structure indicated by the arrow in the illustration below is the ........

Internal jugular vein

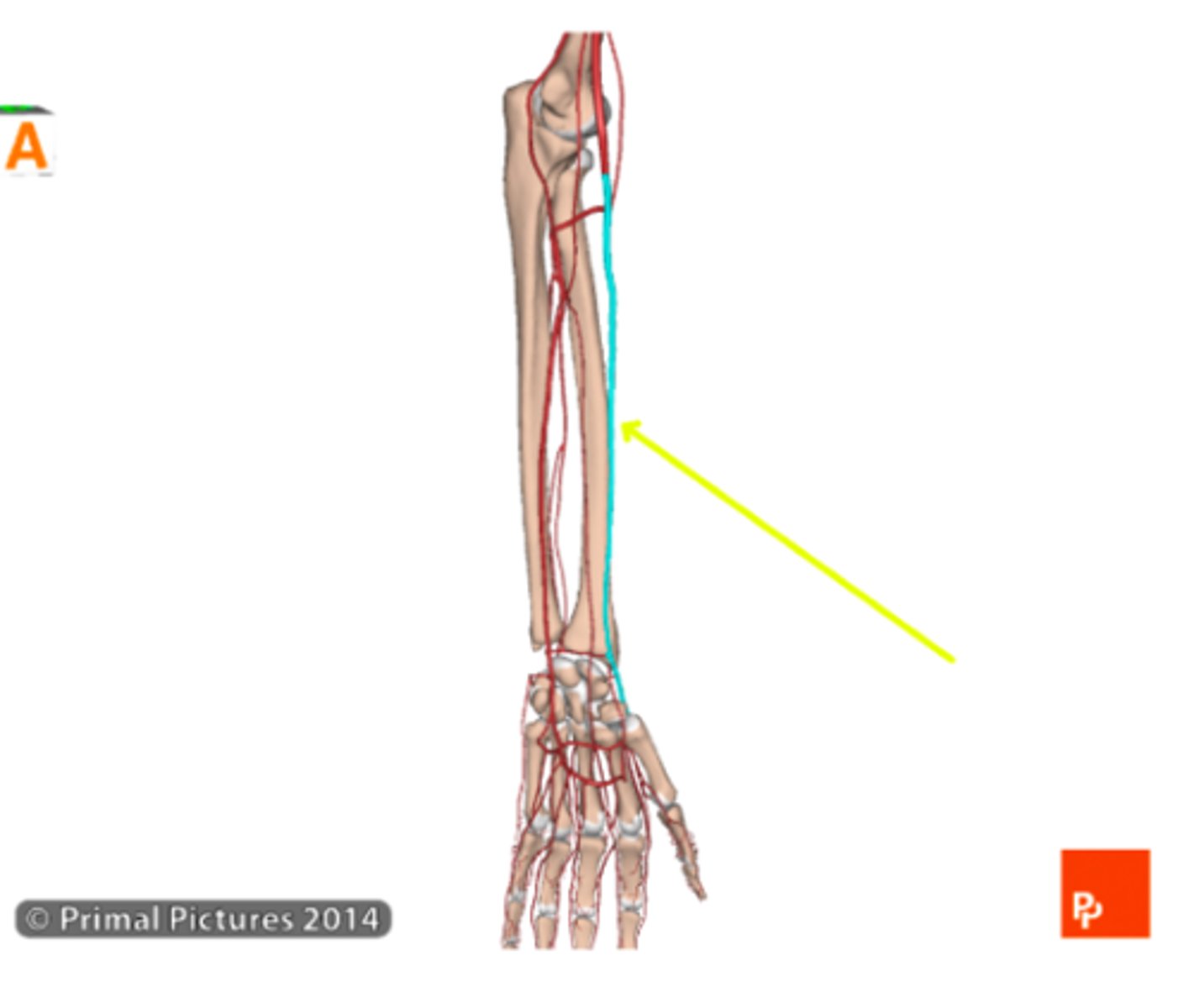

The structure indicated by the arrow in the illustration below is the ........

Radial artery

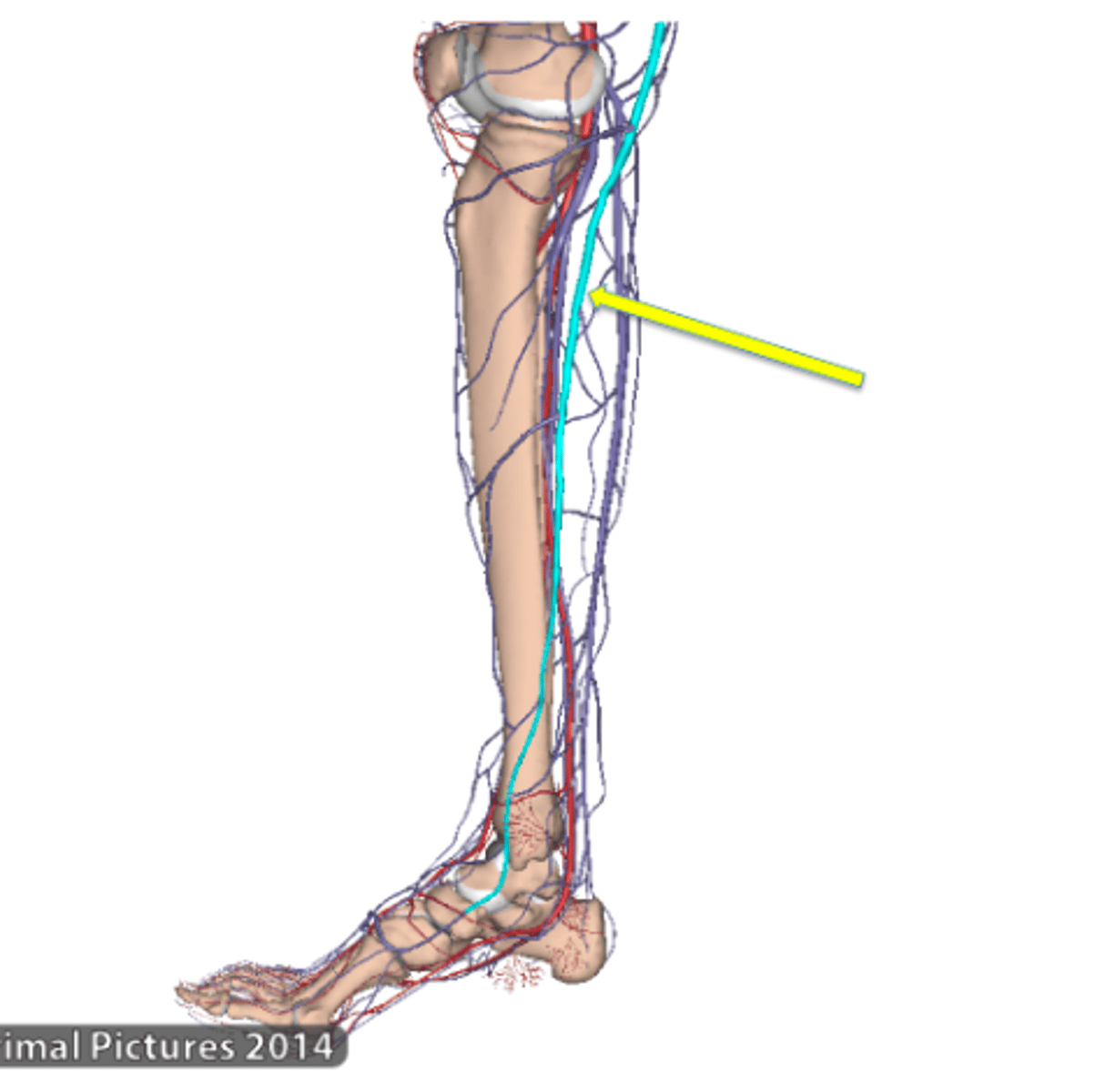

The structure indicated by the arrow in the illustration below is the ........

Long saphenous vein

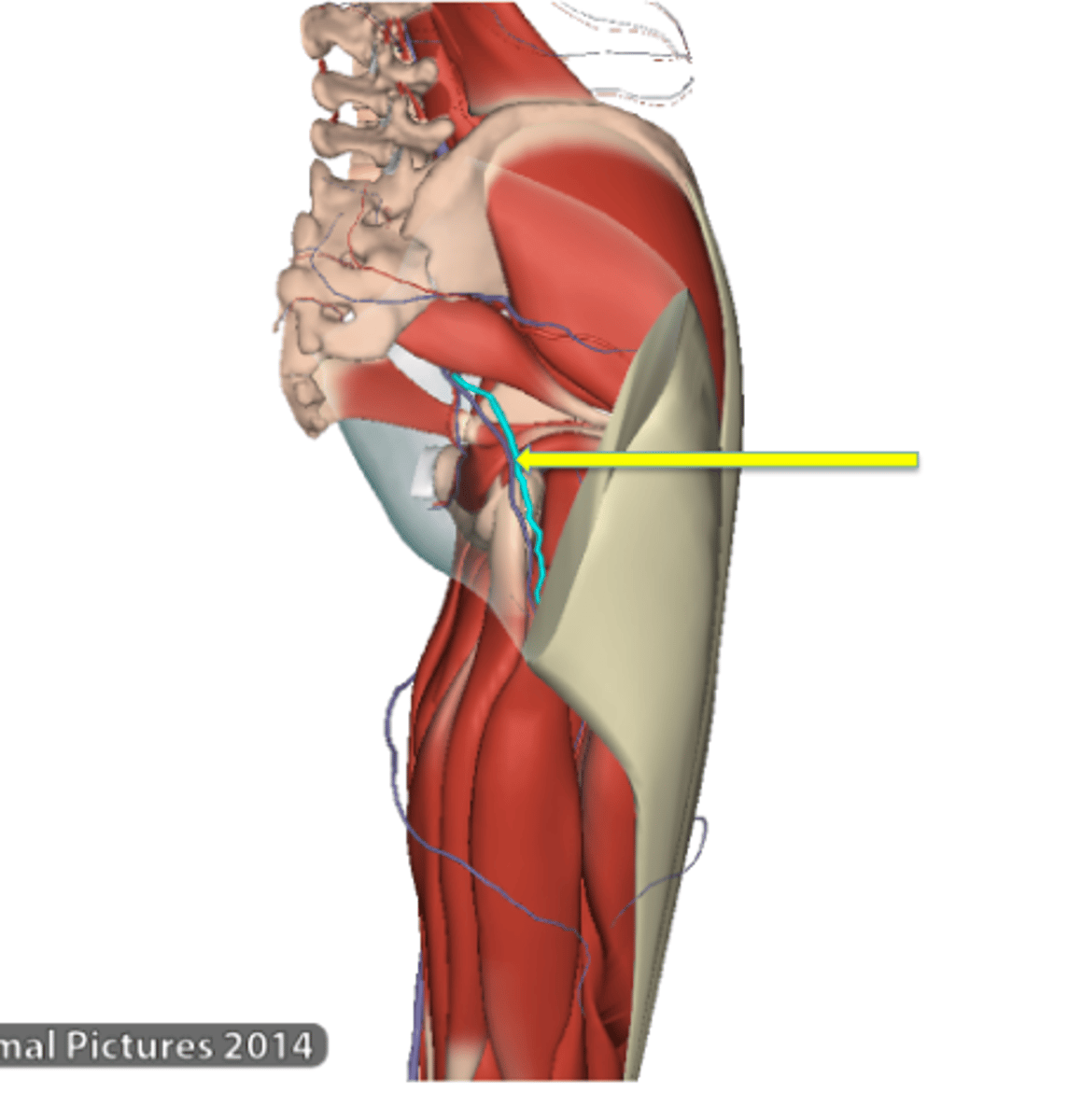

The structure indicated by the arrow in the illustration below is the ........

Inferior gluteal artery

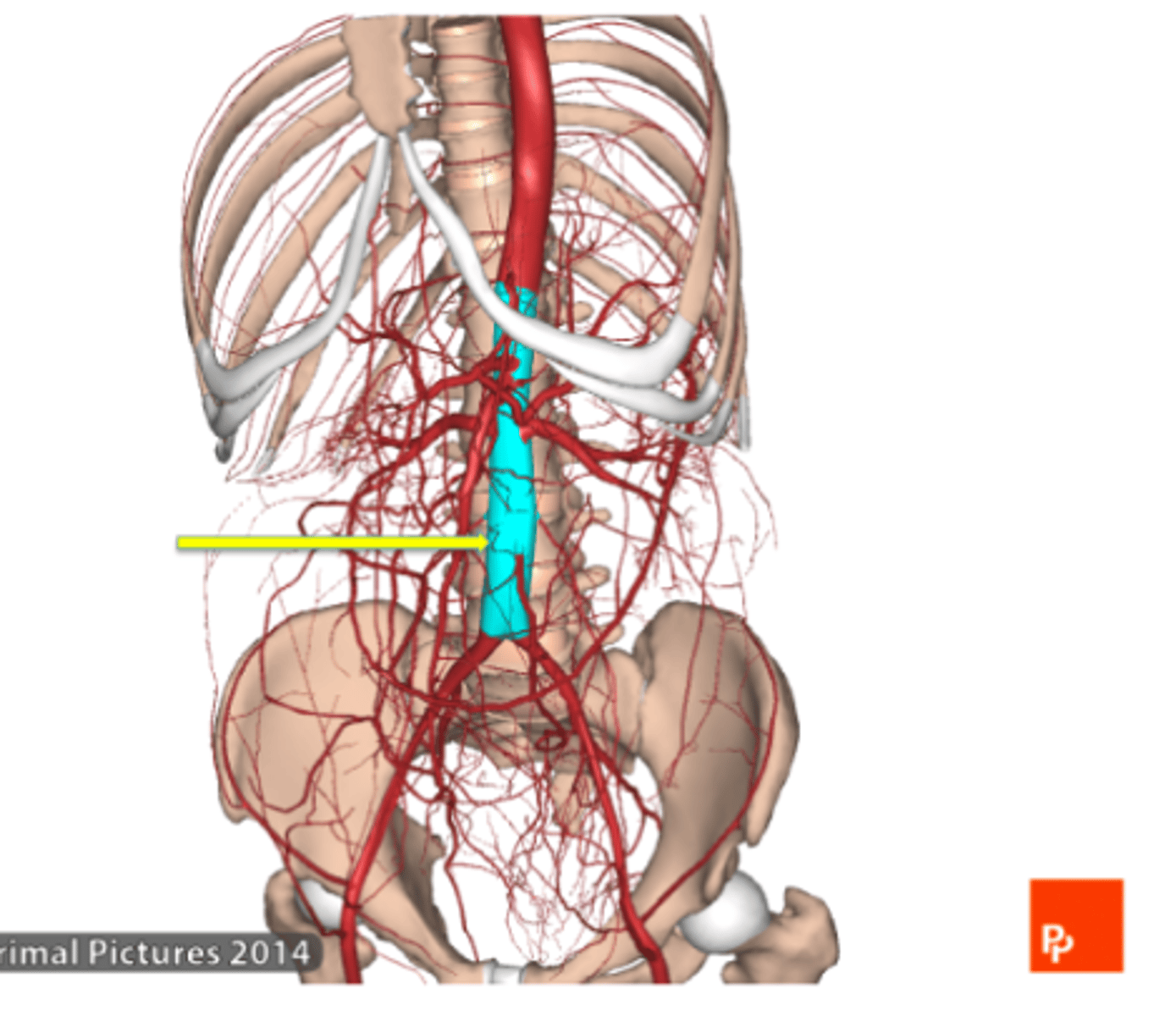

The structure indicated by the arrow in the illustration below is the ........

Abdominal aorta

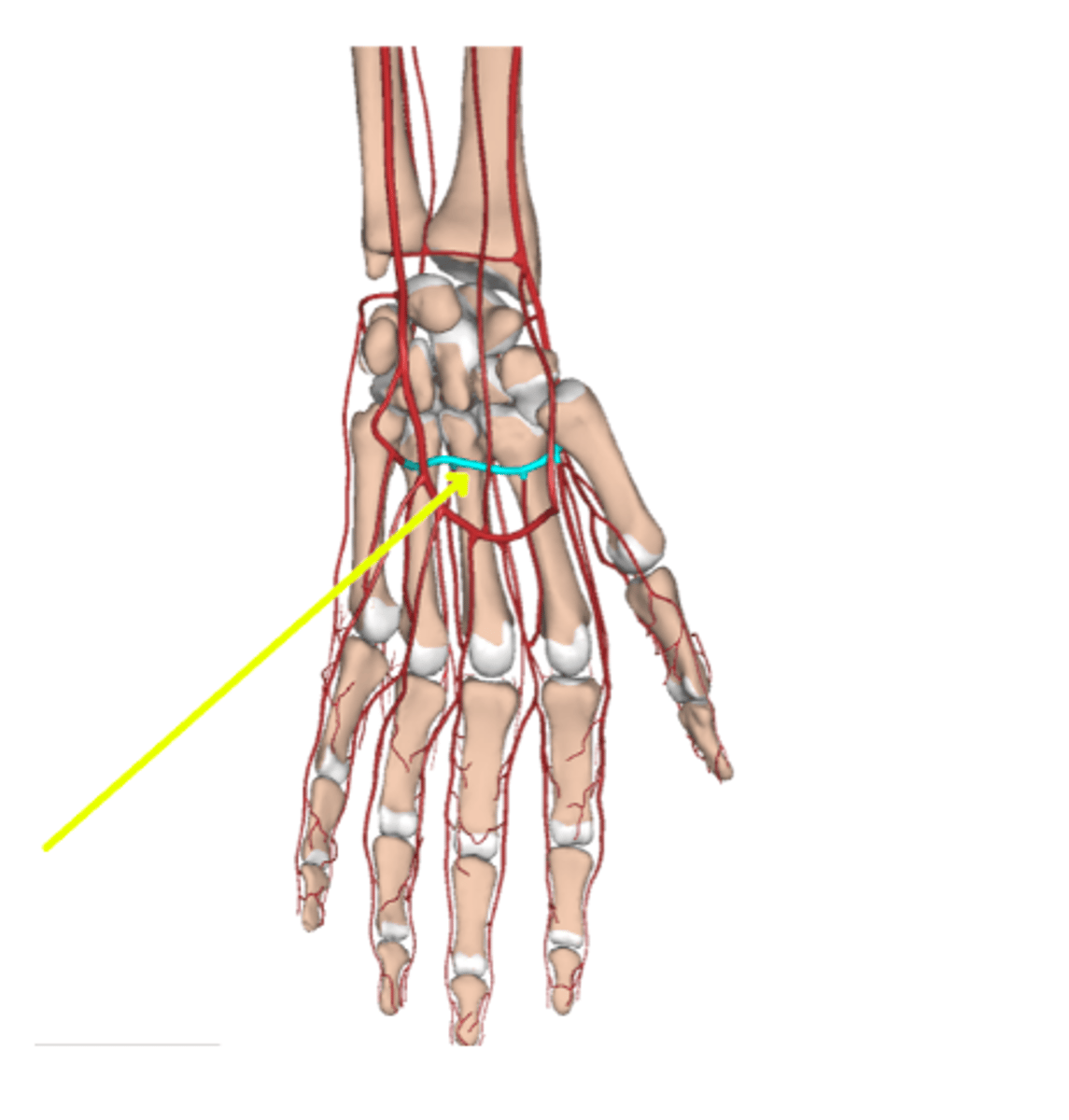

The structure indicated by the arrow in the illustration below is the ........

Deep palmar arch artery

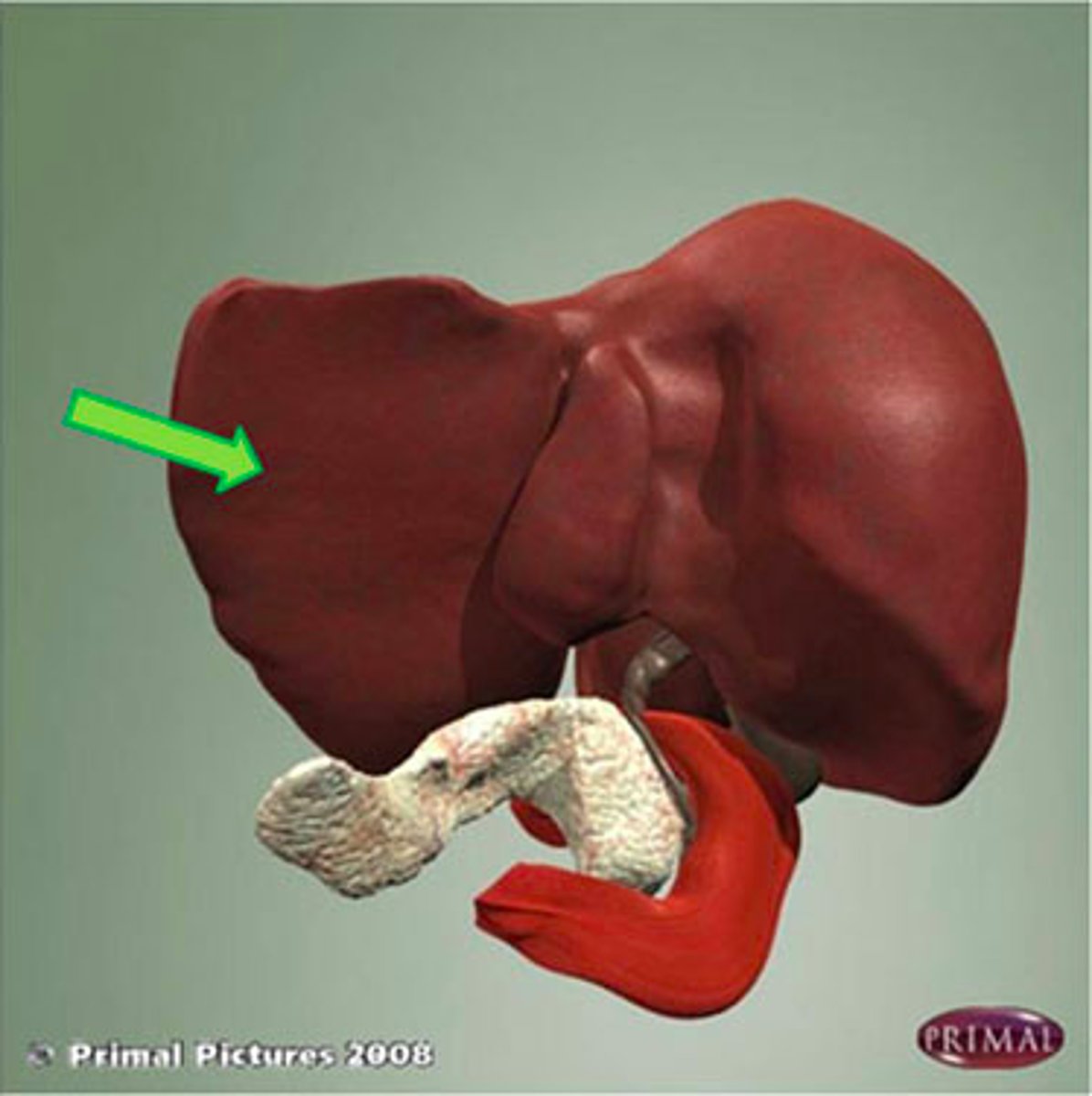

The structure indicated by the arrow in the illustration below is the right lobe of the liver

False

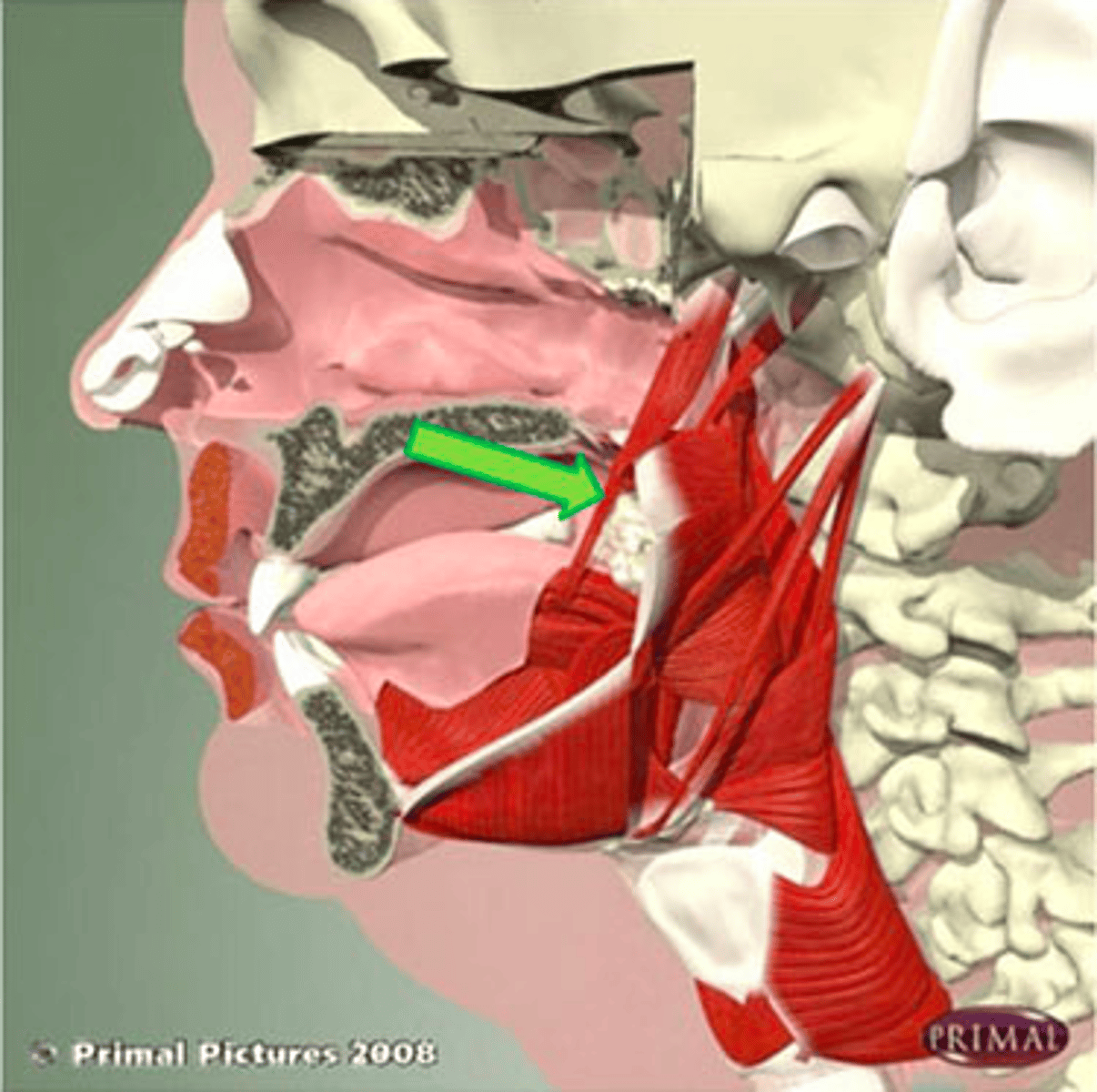

The structure indicated by the arrow in the illustration below is the palatoglossus muscle

True

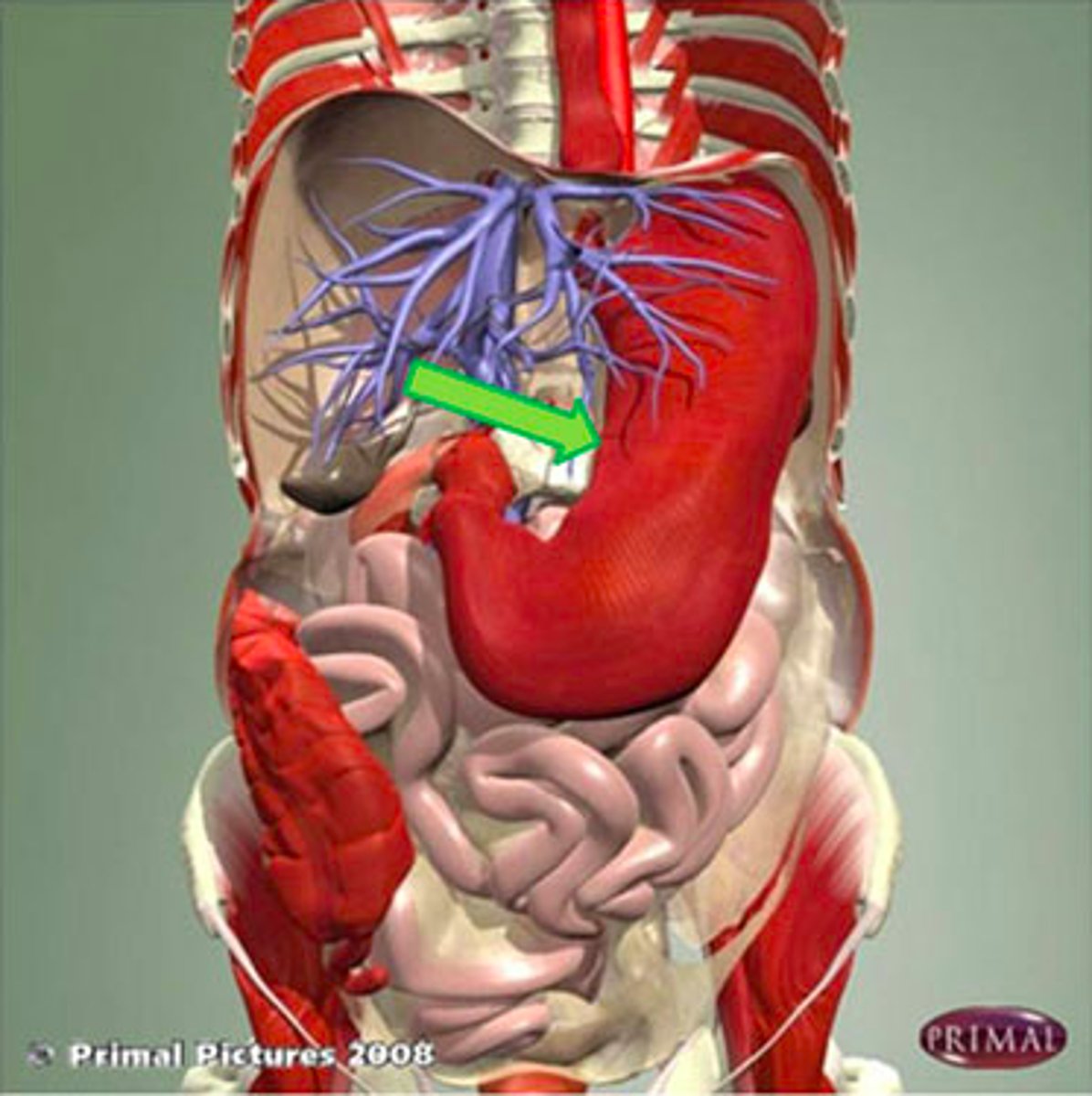

The structure indicated by the arrow in the illustration below is the greater curvature of the stomach

False

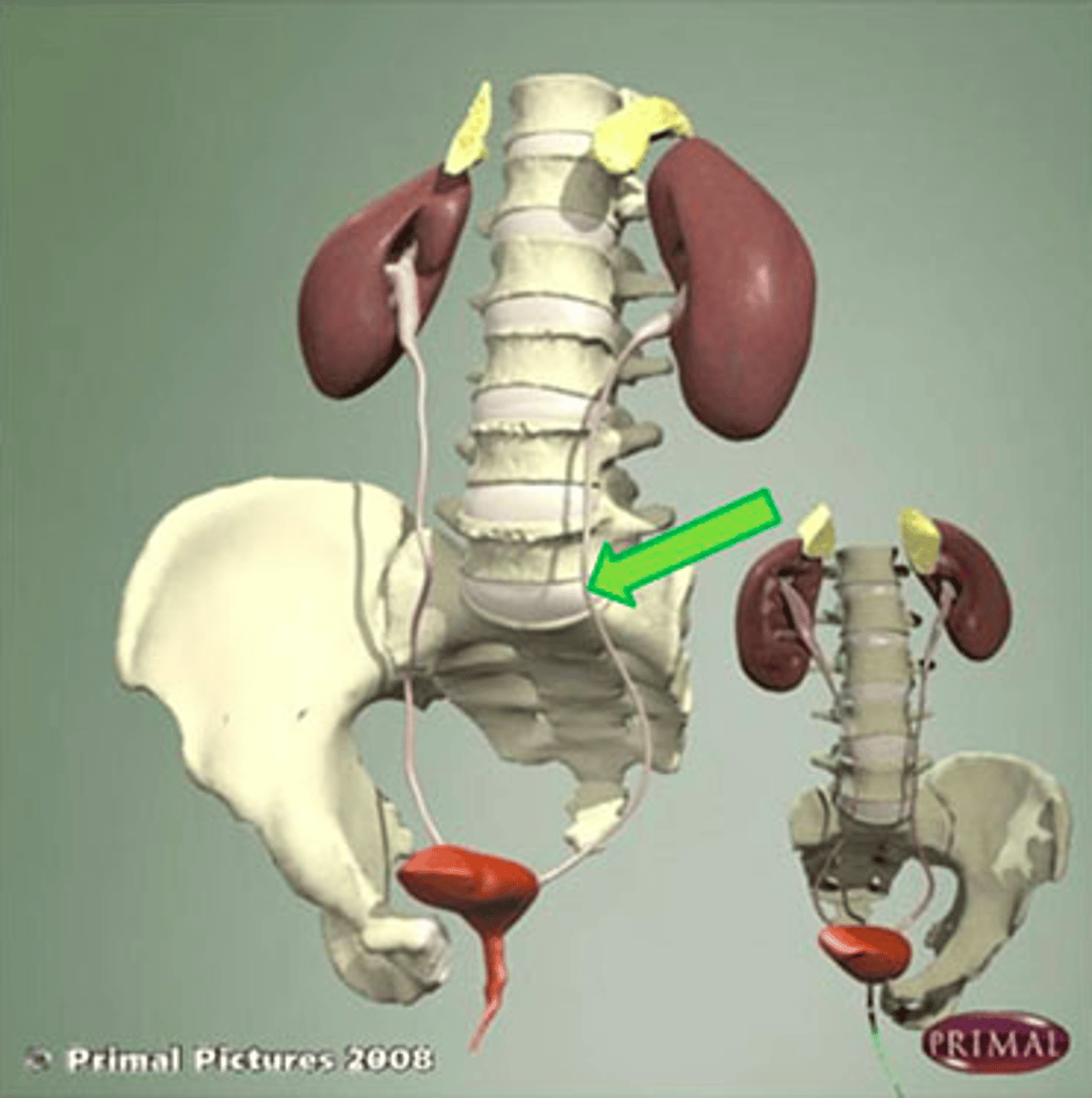

The structure indicated by the arrow in the illustration below is the ureter

True

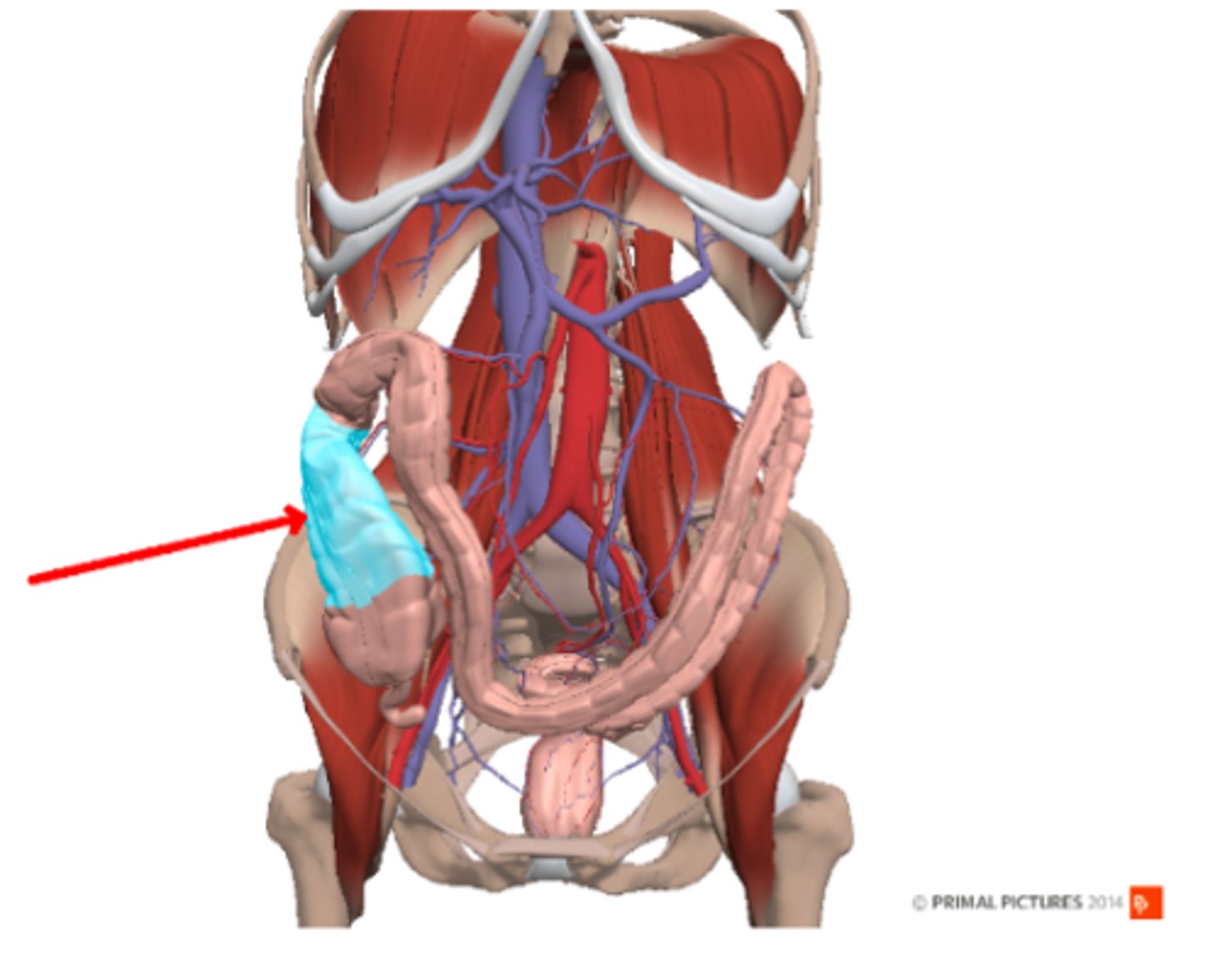

Identify the structure indicated by the arrow in the illustration below

Ascending colon

Identify the structure indicated by the arrow in the illustration below

Quadrate lobe

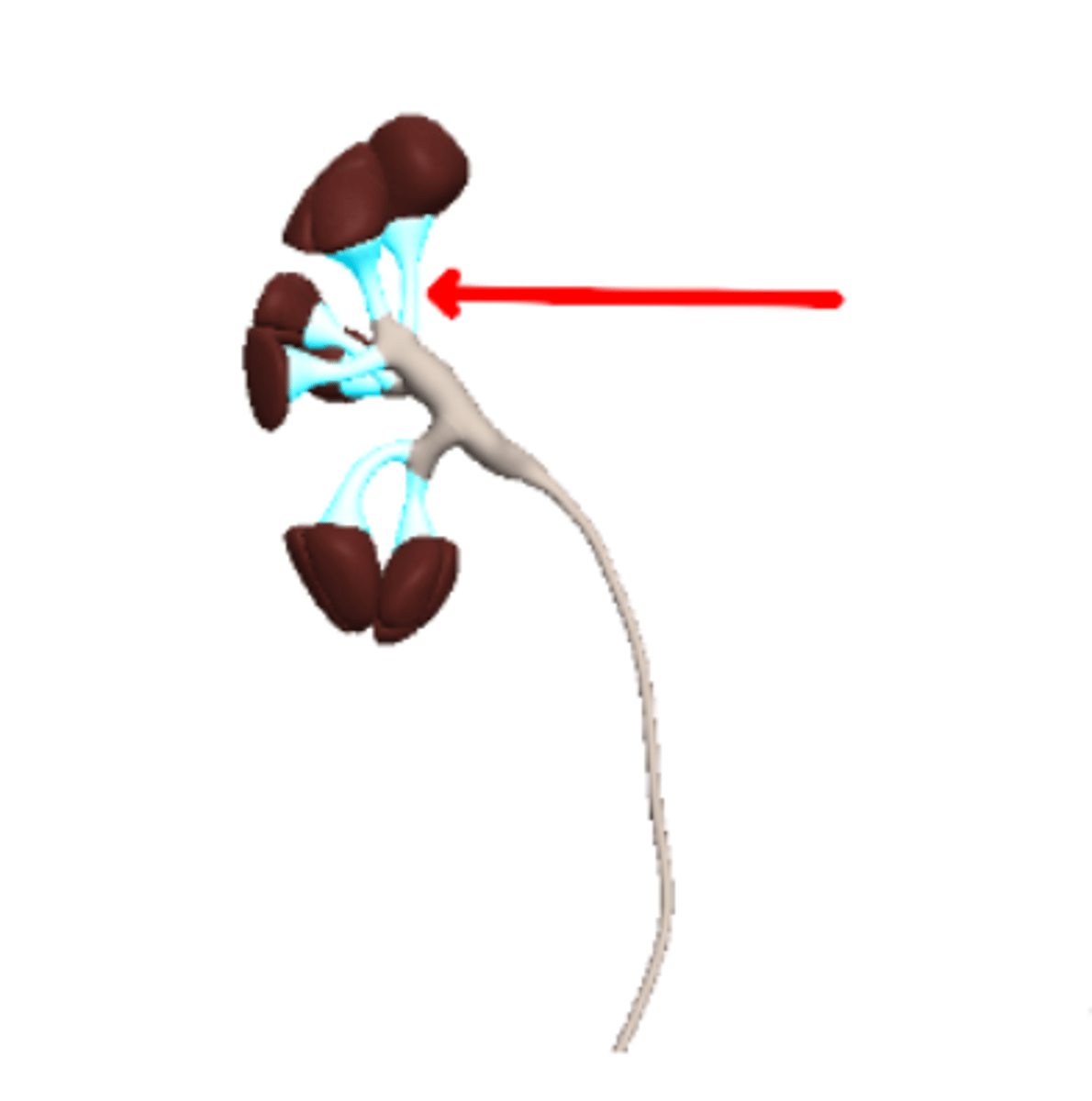

Identify the structure indicated by the arrow in the illustration below.

Renal minor calyces

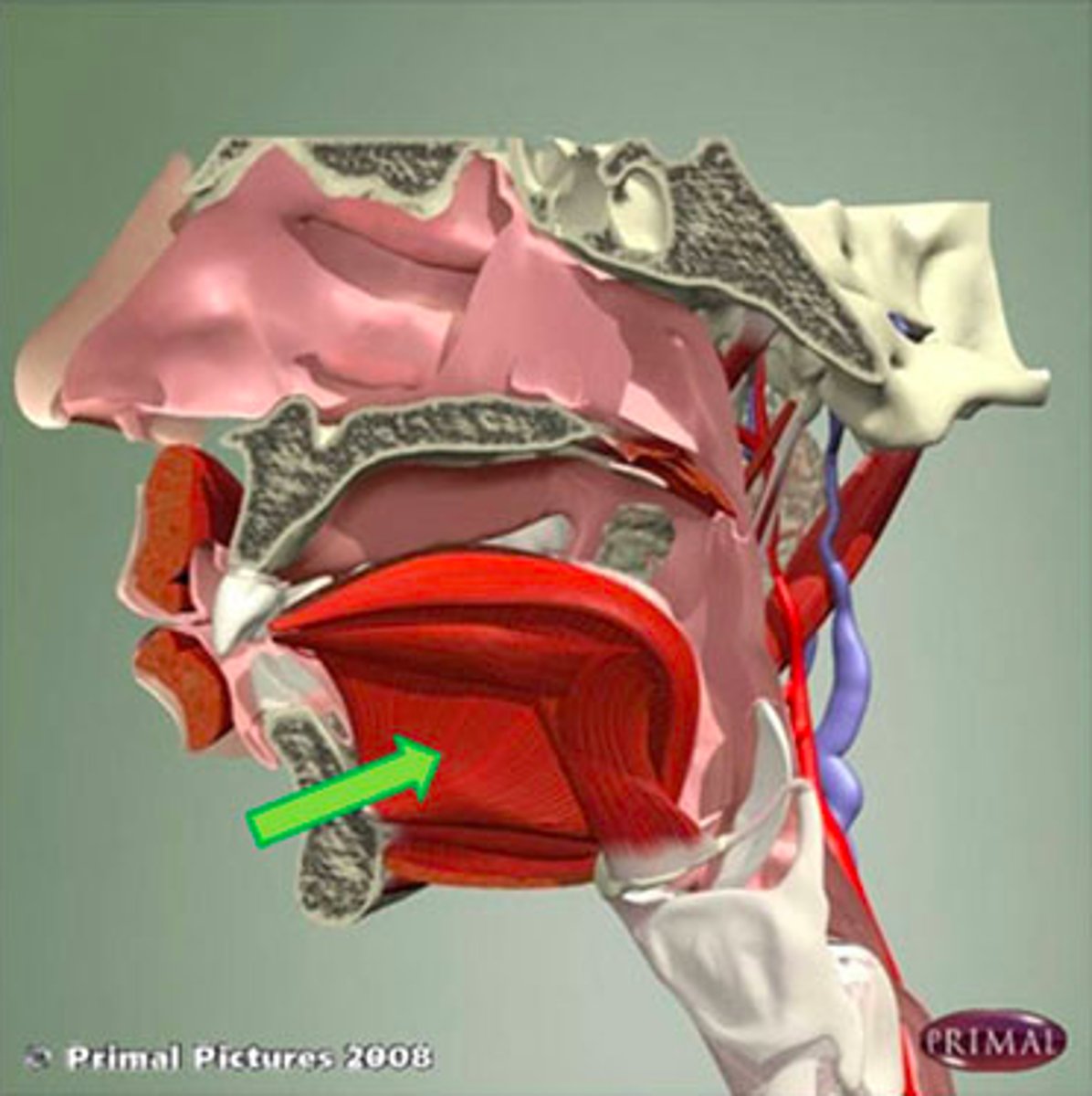

The structure indicated by the arrow in the illustration below is the genioglossus muscle

True

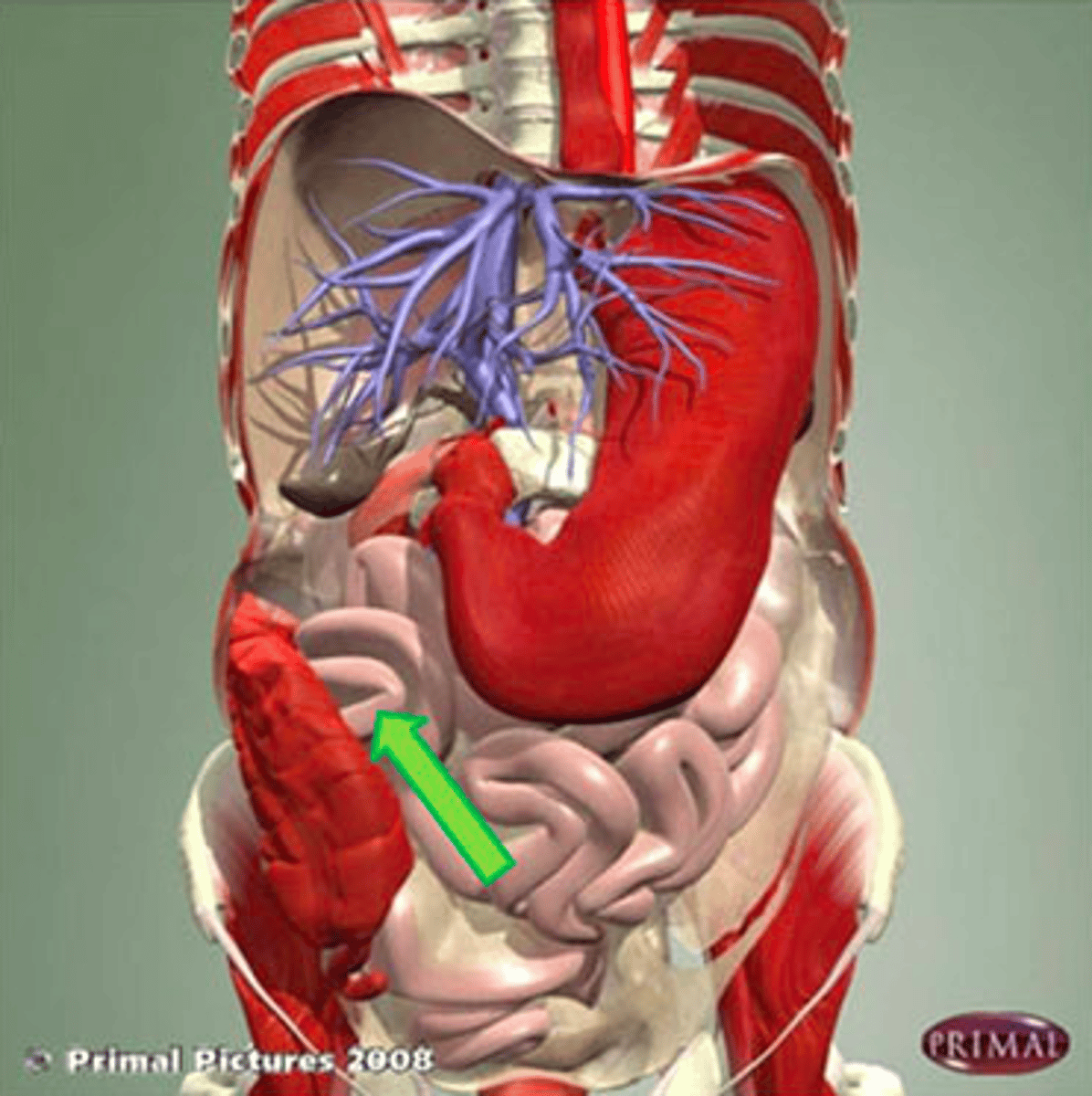

The structure indicated by the arrow in the illustration below is the ileum

True

The axillary lymph nodes are so called armpit lymph nodes

True

Lymph from the head and neck drains into a thick ......... that runs on the surface of sternocleidomastoid

Jugular trunk

Most of the lymphatic vessels from the abdomen terminate by draining into the .............

Thoracic duct

The tonsils are three masses of lymphatic tissue surrounding the entrance of the larynx

False

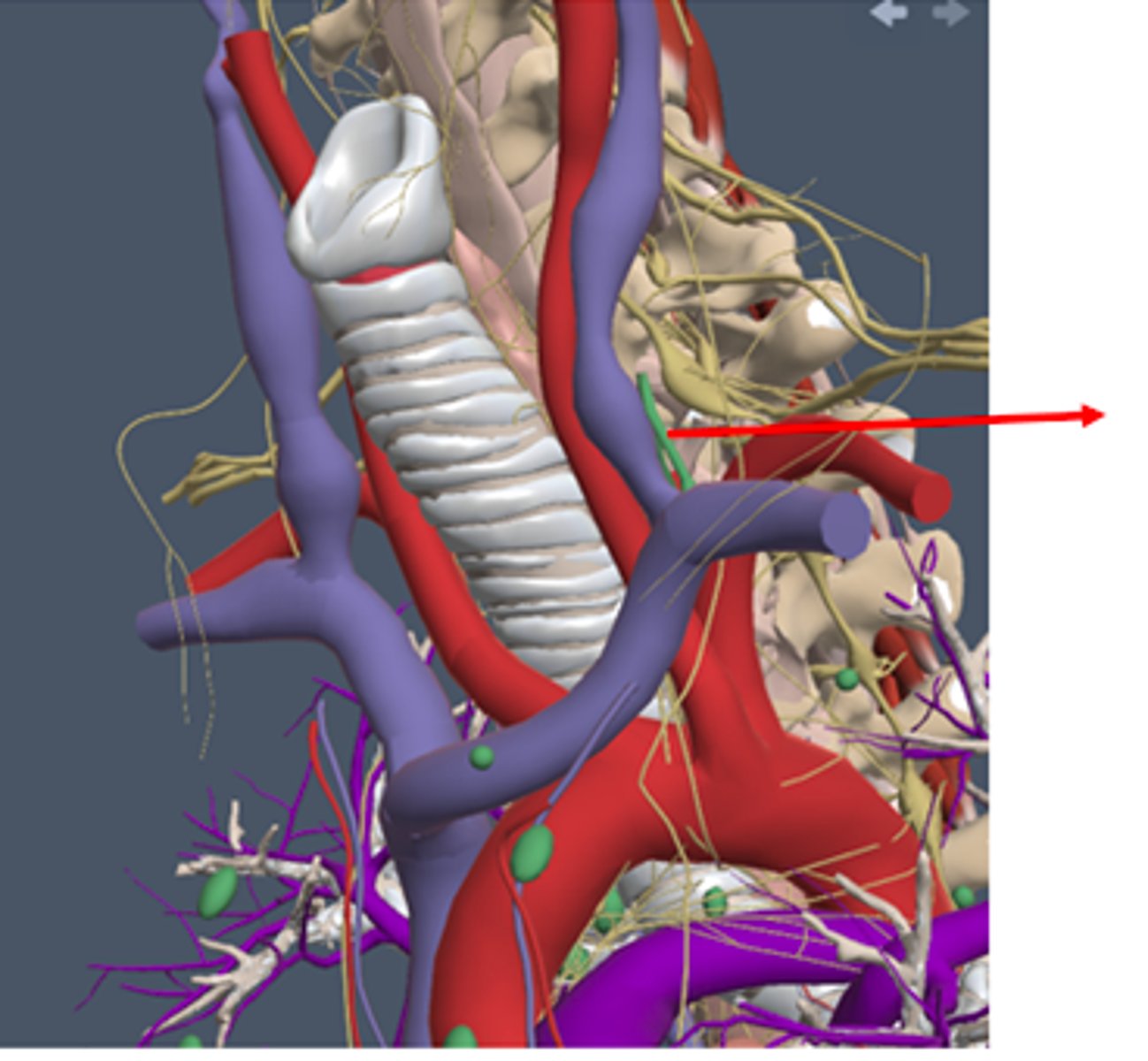

The green structure indicated by the blunt end of the arrow in the illustration below is the lymphatic duct

False

Lymphatic vessels are located all over the body except .........

All answers are correct

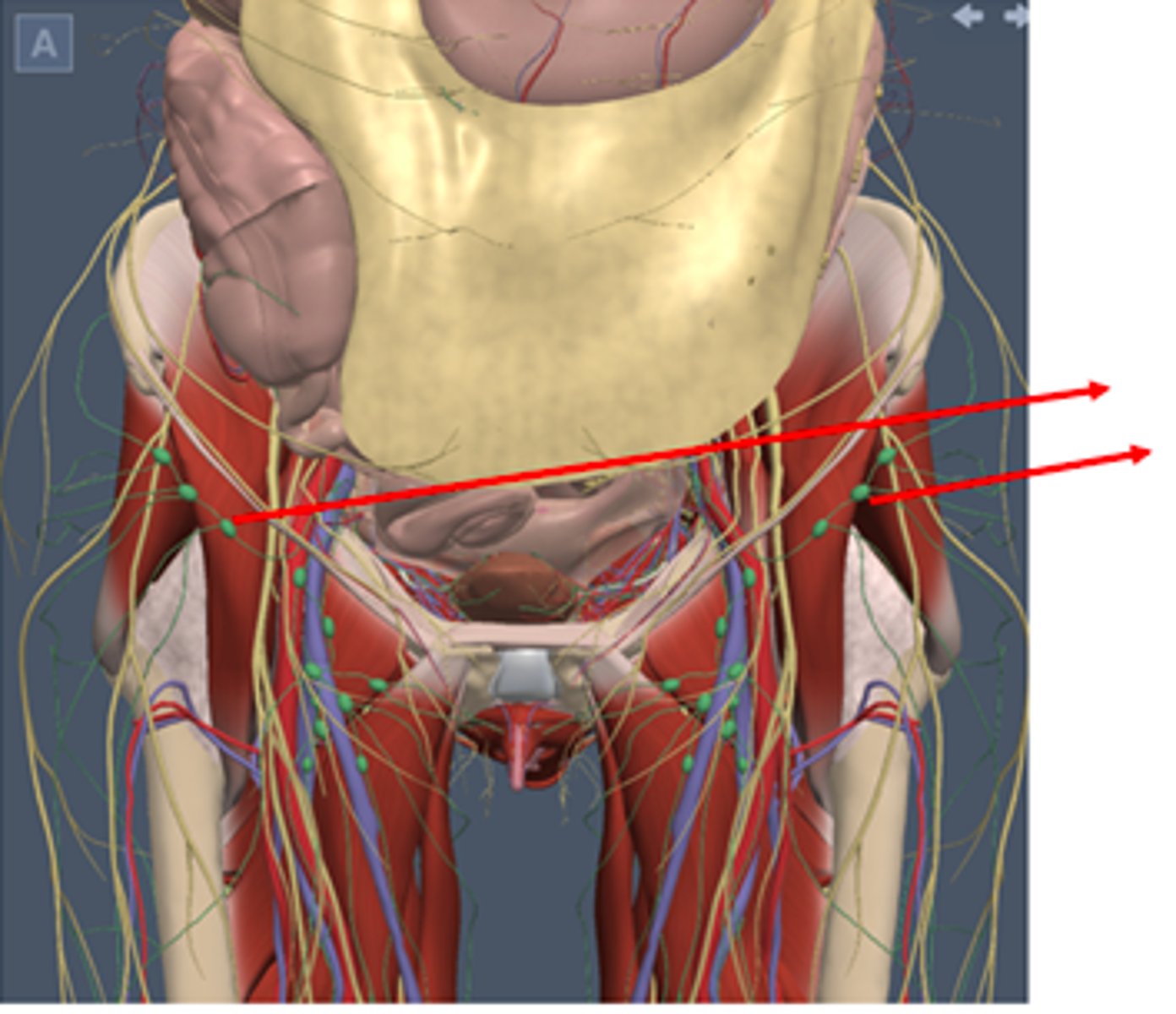

The green structure indicated by the blunt end of the arrow in the illustration below are the ........

Inguinal lymph nodes

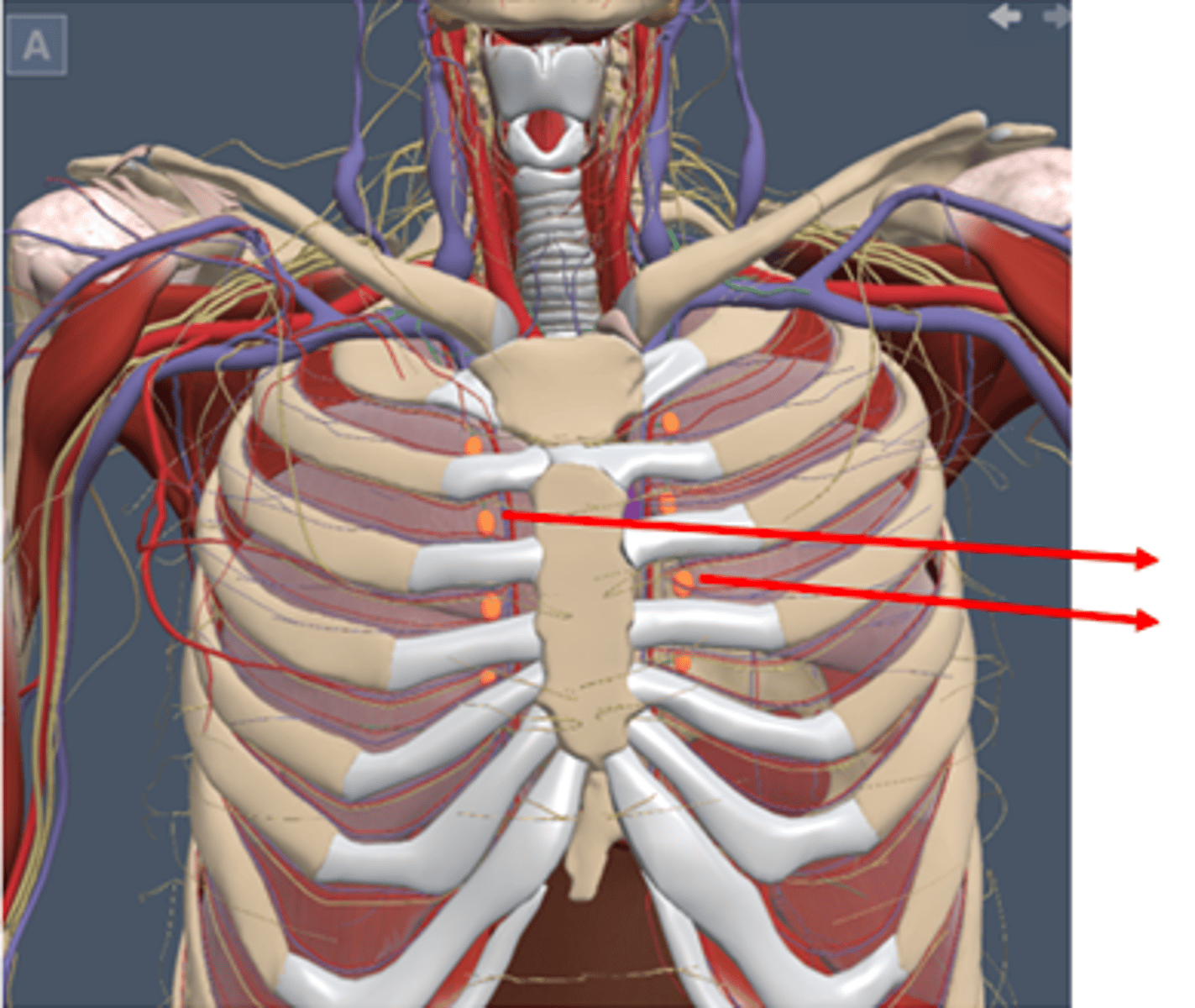

The orange structures indicated by the blunt end of the arrow in the illustration below are the ........

Throracic lymph nodes

What are the key functions of the lymphatic system?

Immunity, absorption of fats, and the maintenance of fluid balance

Lymphatic vessels from the lower limb accompany both the deep and superficial veins from the .........

Foot

The structure indicated by the arrow in the illustration below is the upper lobe of the right lung.

True

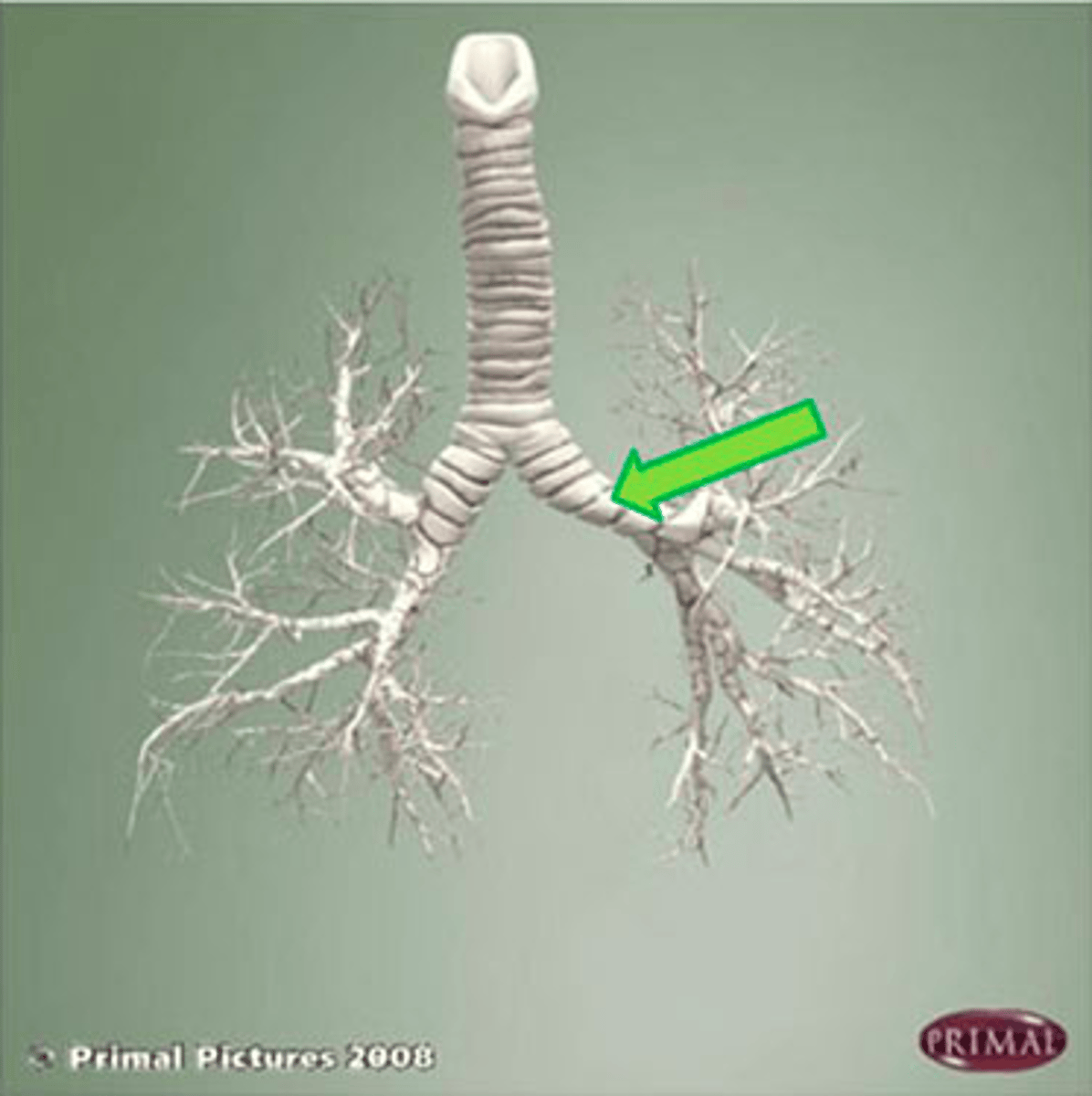

The structure indicated by the arrow in the illustration below is the primary bronchus

True

The visceral pleura is the serous membrane that is directly adhered to the outer surface of each lung.

True

The structure indicated by the green color in the illustration below is the transverse arytenoid muscle.

False

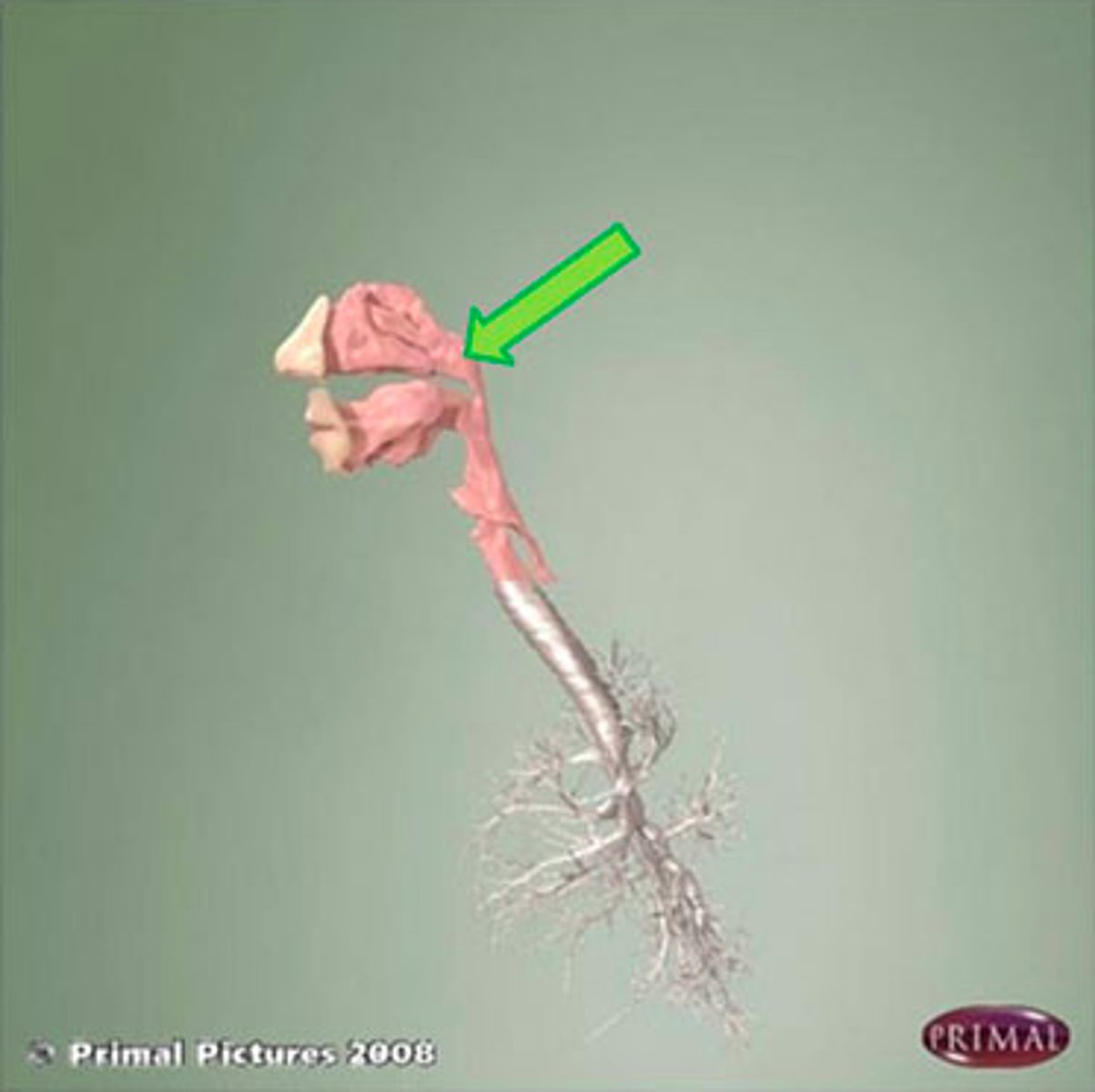

The structure indicated by the green color in the illustration below is the nasopharynx.

True

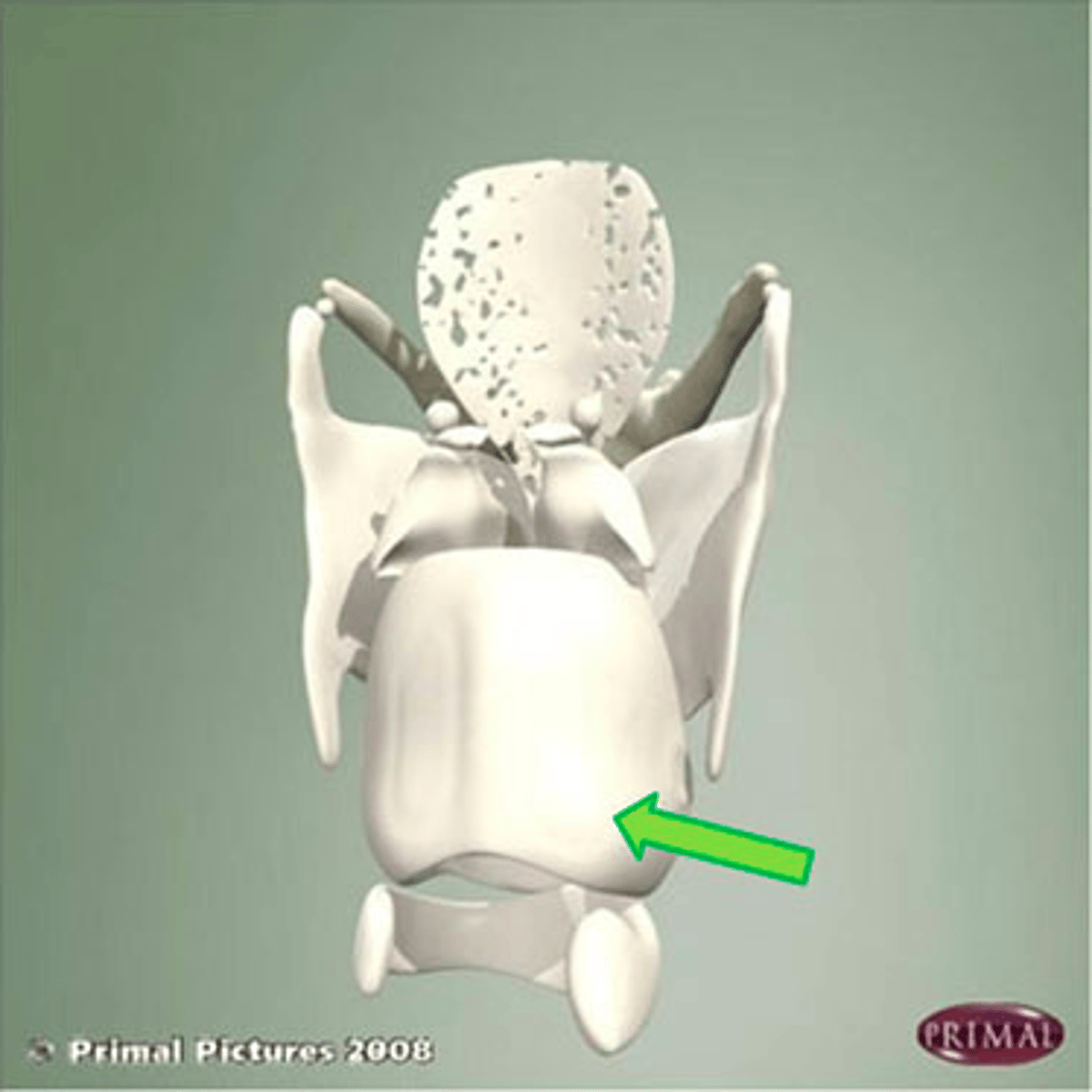

The structure indicated by the green color in the illustration below is the thyroid cartilage.

False

The structure indicated by the green color in the illustration below is the transverse arytenoid muscle.

False

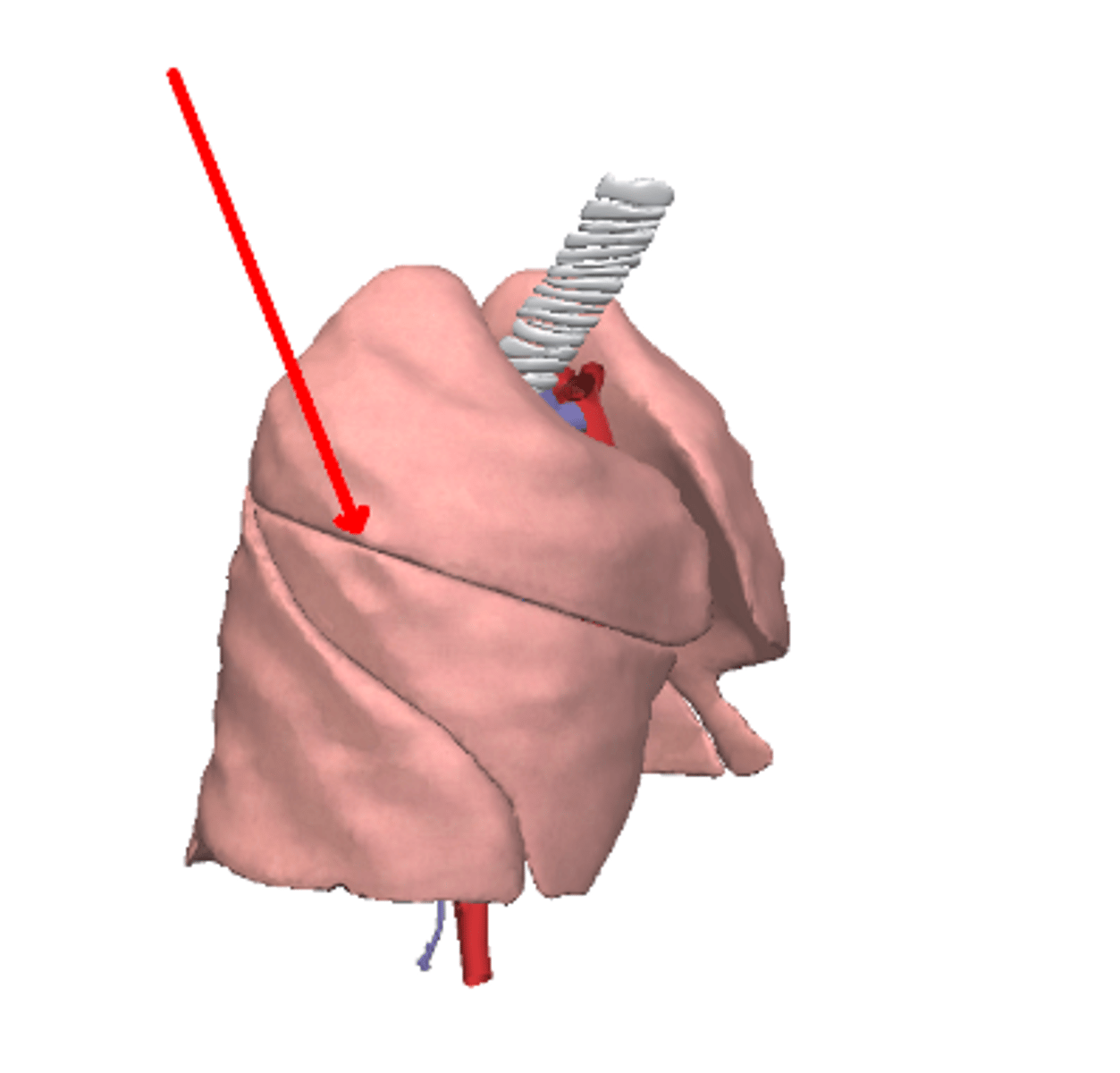

Identify the structure indicated by the arrow in the illustration below.

Right horizontal fissure

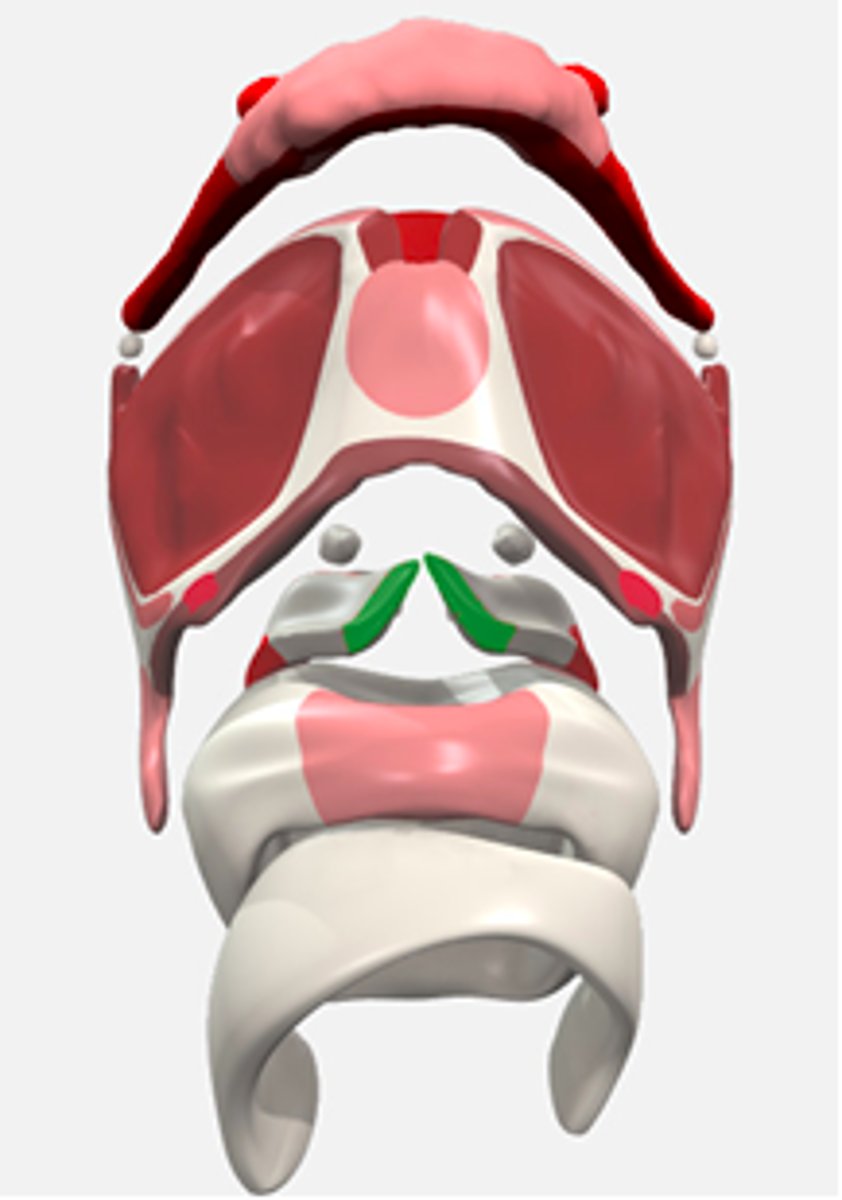

Identify the green structure in the illustration below.

Vocal process

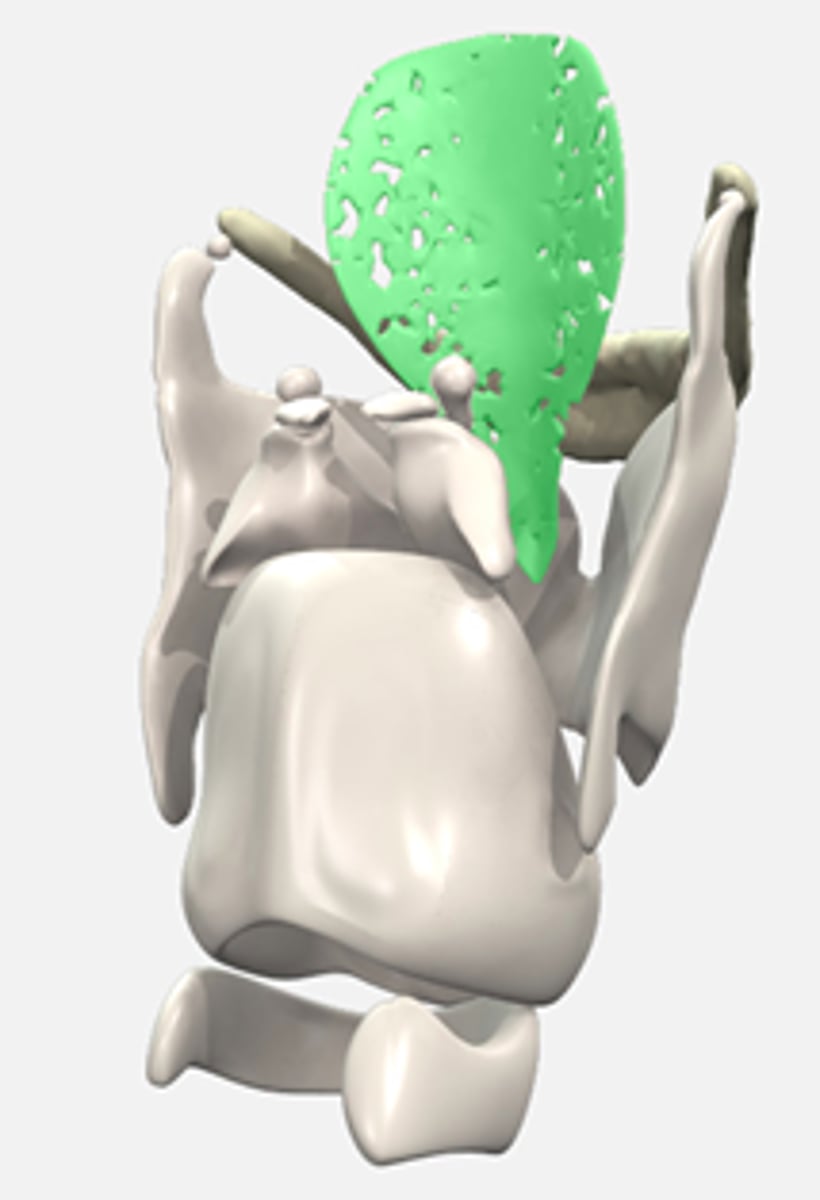

Identify the green structure in the illustration below.

Epiglottic cartilage

The structure indicated by the arrow in the illustration below is the fimbria of the uterine tube.

True

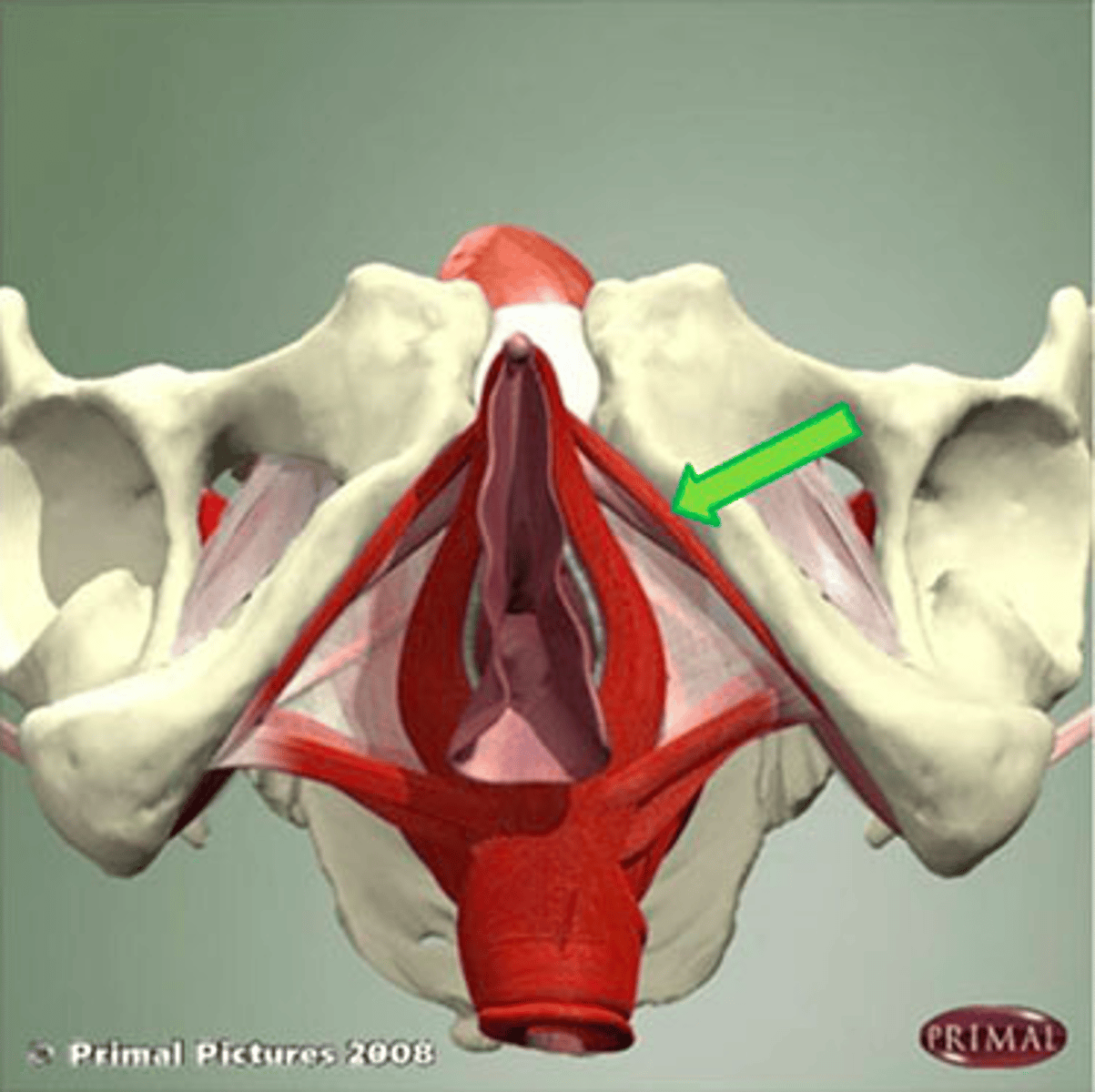

The structure indicated by the arrow in the illustration below is the bulbospongiosus muscle.

False

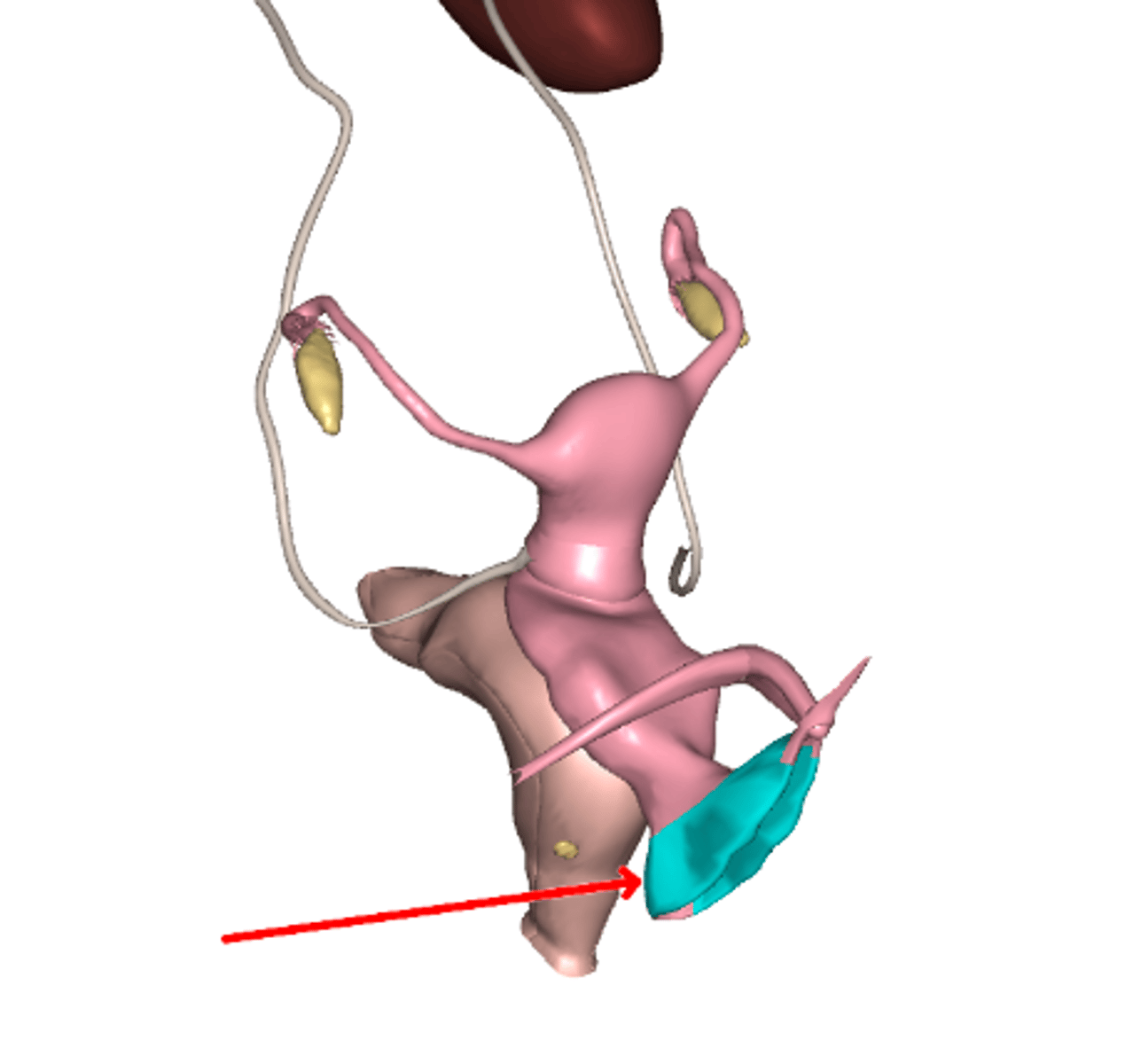

The structure indicated by the arrow in the illustration below is the labia majora.

True

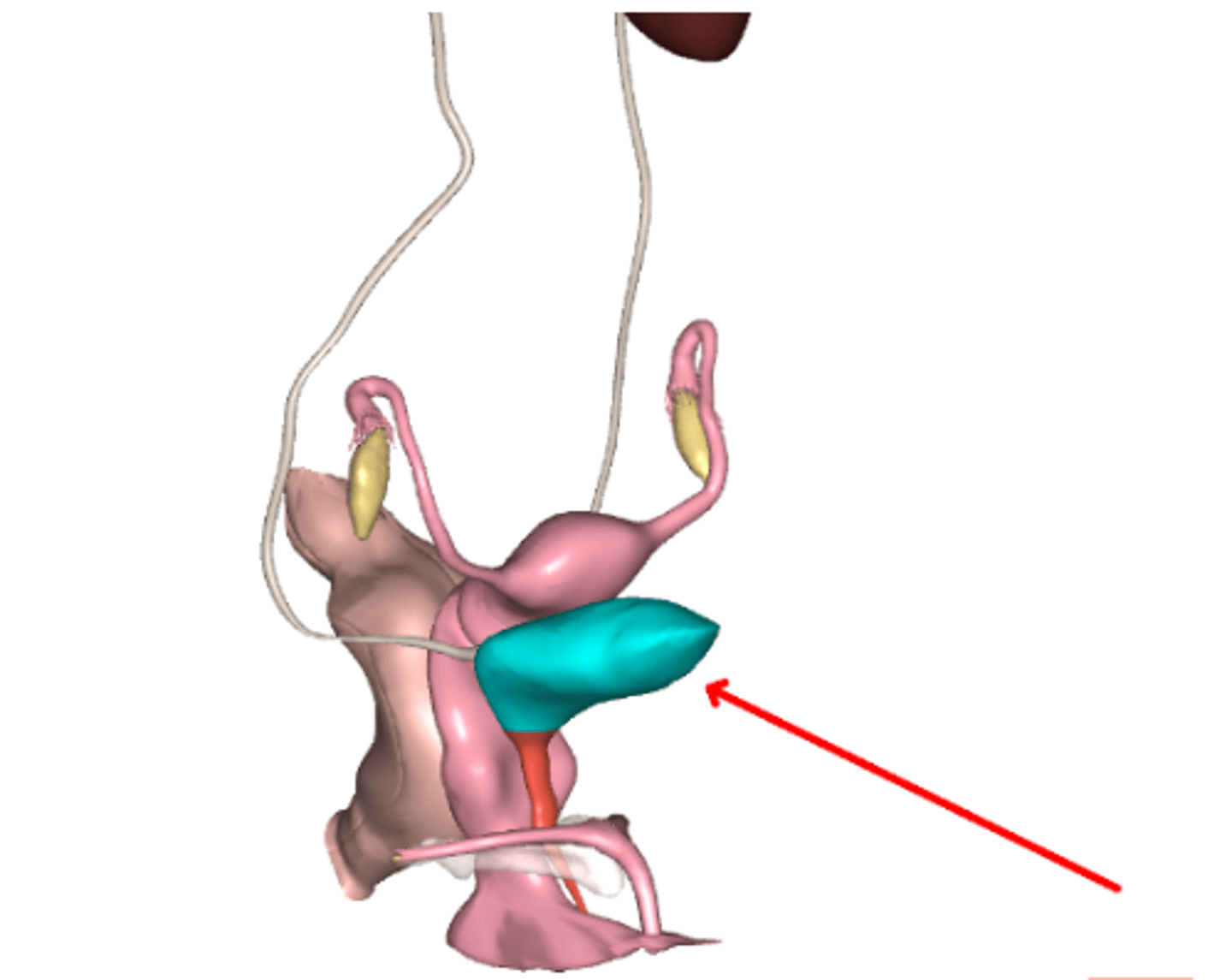

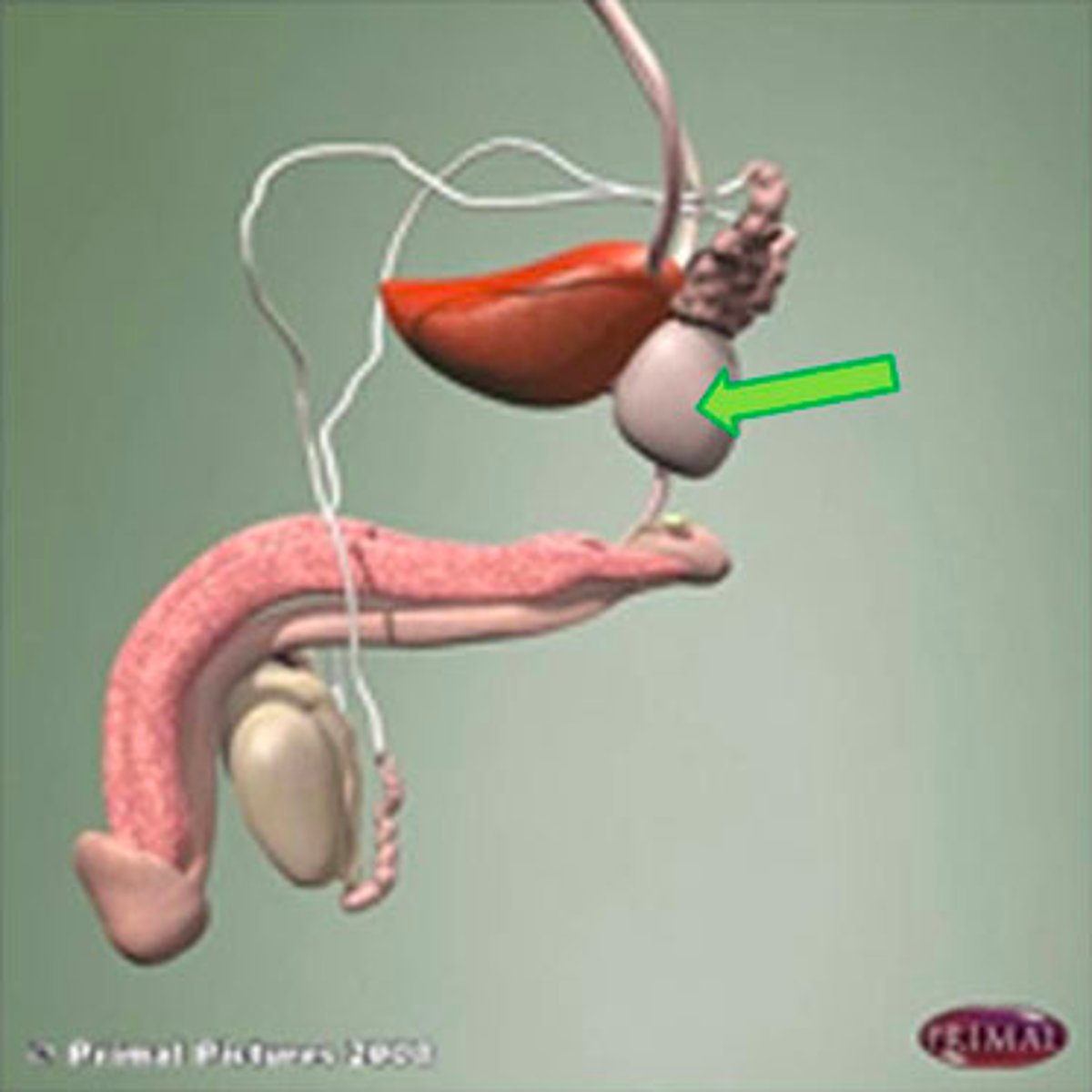

The structure indicated by the arrow in the illustration below is the .............

bladder

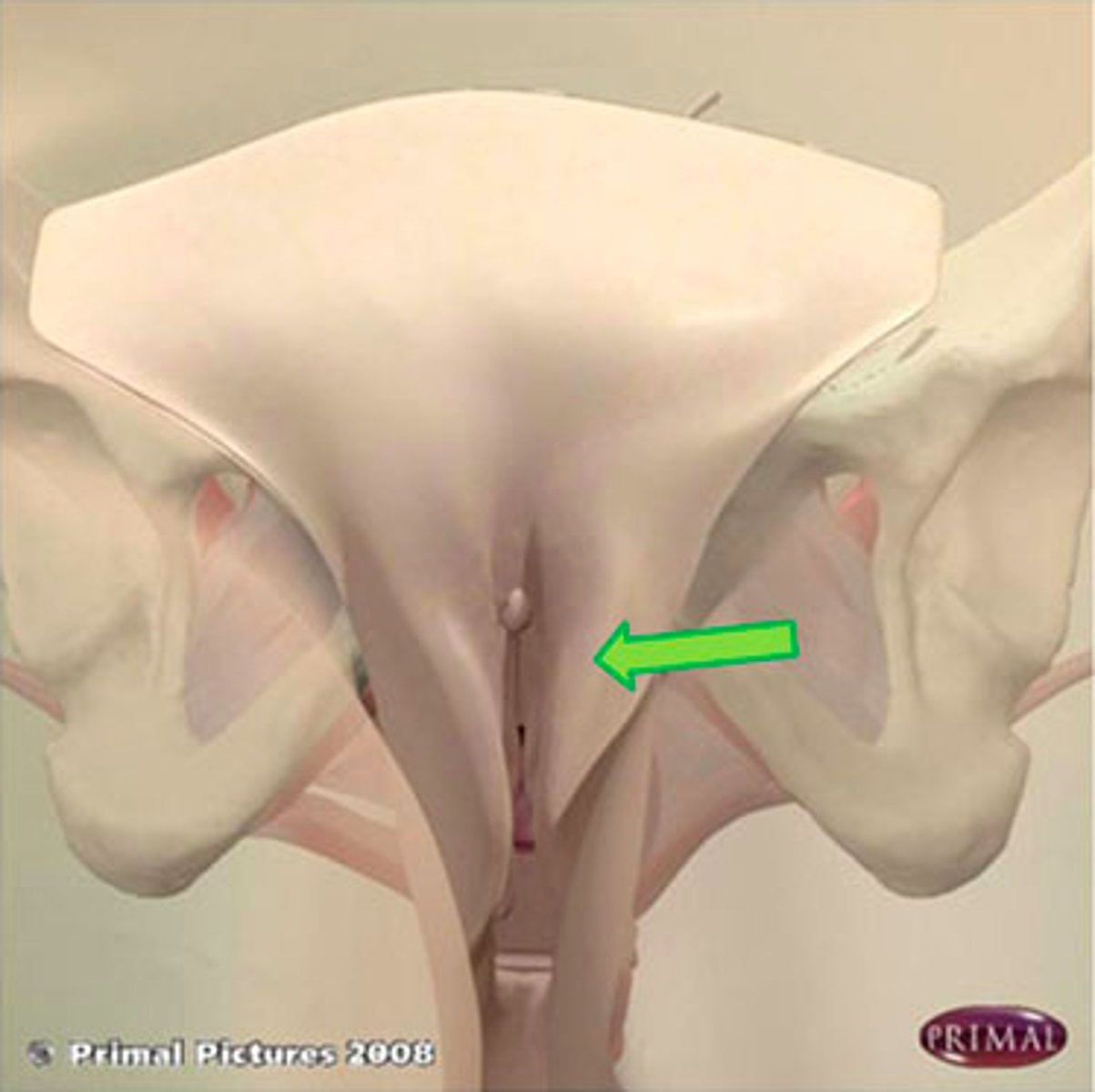

The structure indicated by the arrow in the illustration below is the .............

Labia minora

The structure indicated by the arrow in the illustration below is the seminal vesicle.

False

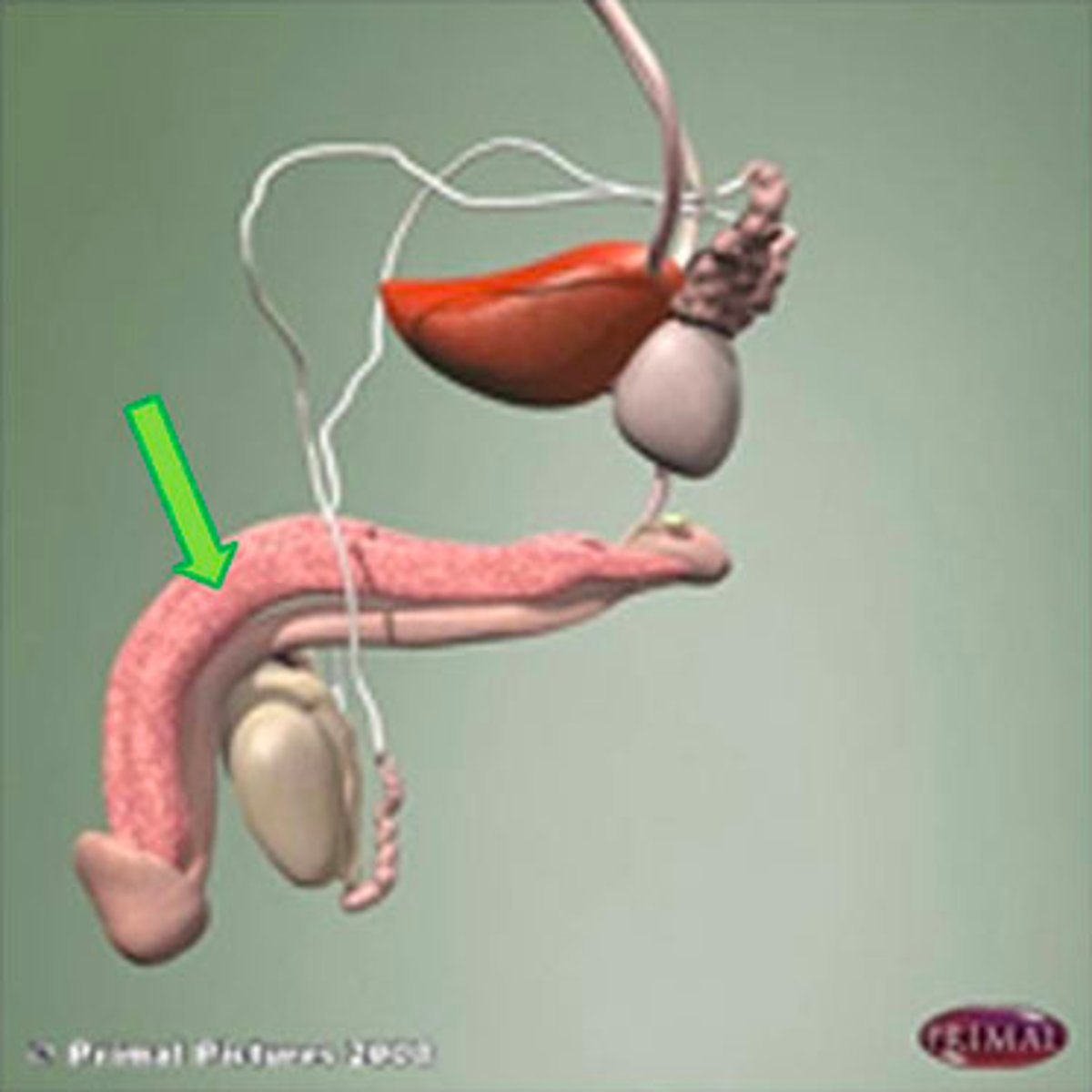

The structure indicated by the arrow in the illustration below is the corpora spongiosum

False

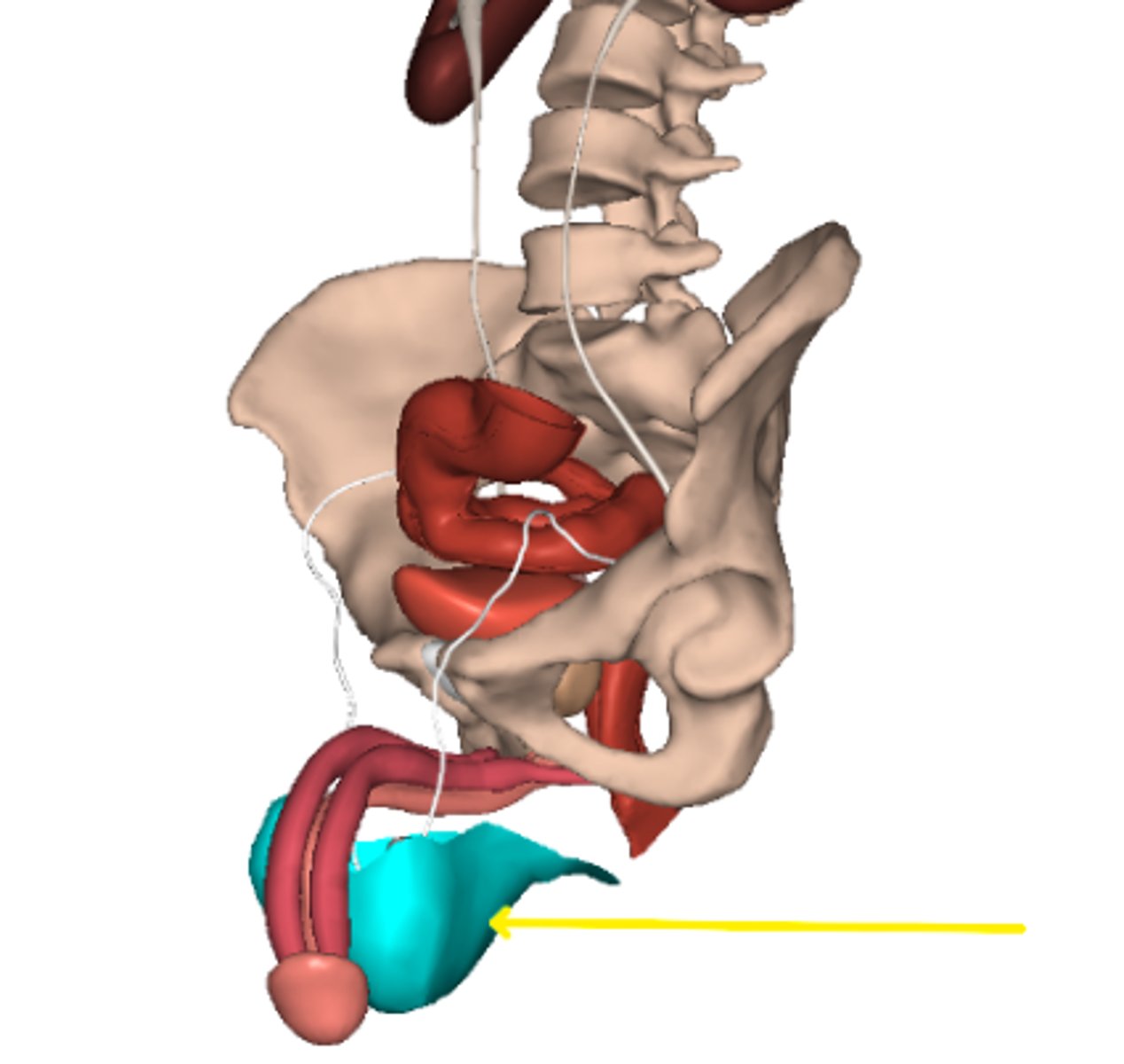

The structure indicated by the arrow in the illustration below is the ................

Scrotum

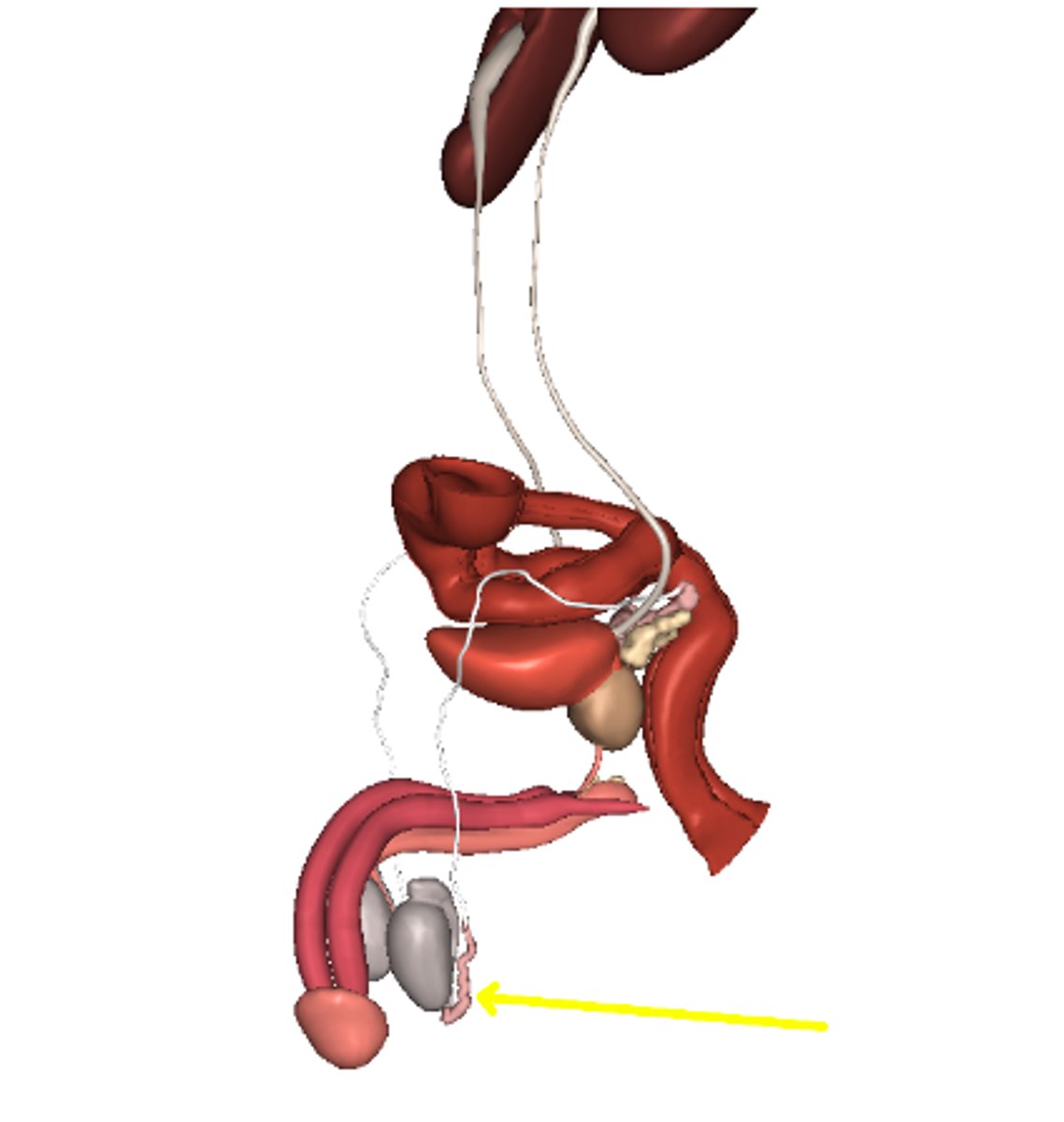

The structure indicated by the arrow in the illustration below is the ................

Epididymis

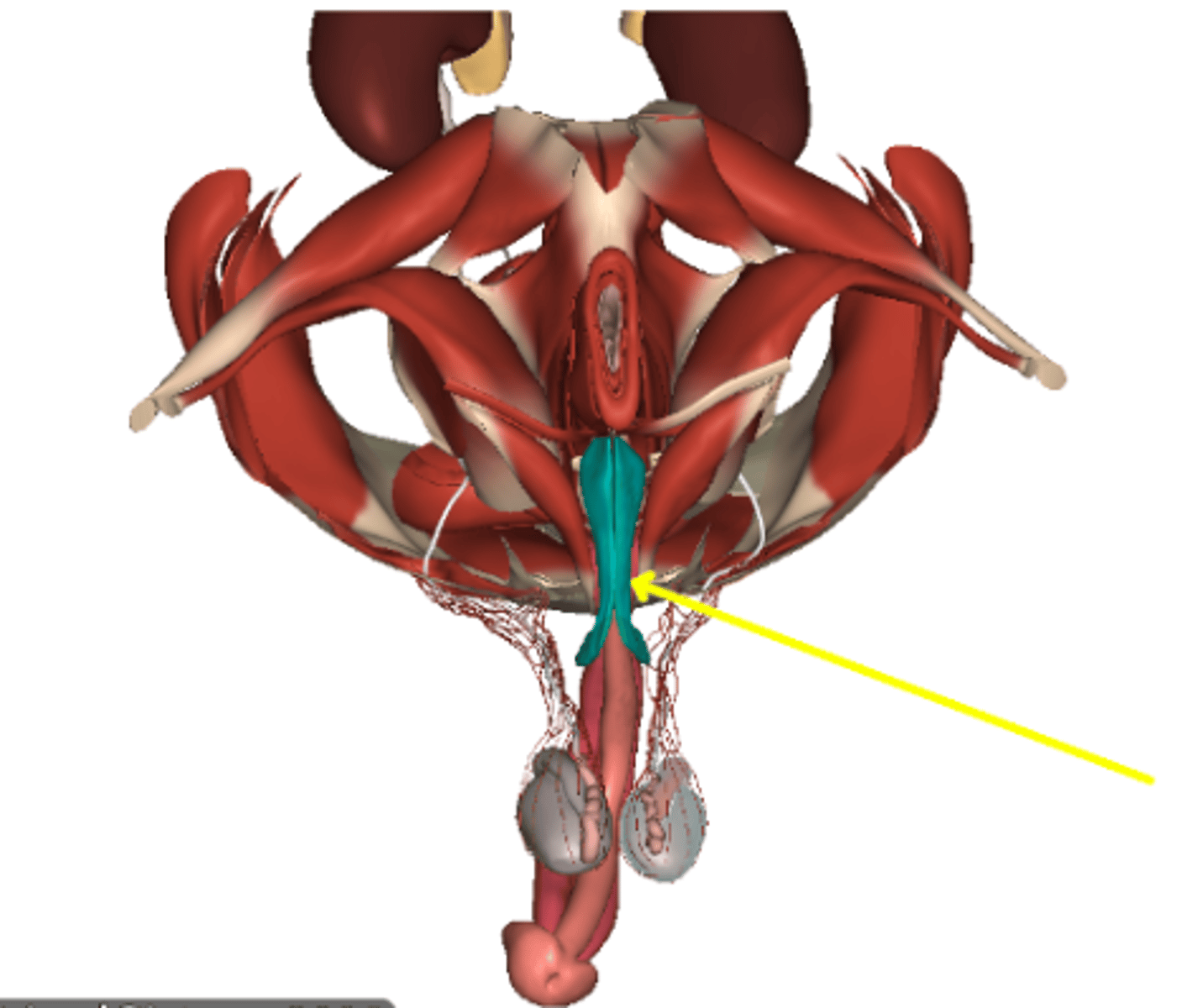

The structure indicated by the arrow in the illustration below is the ................

bulbospongiosus muscle

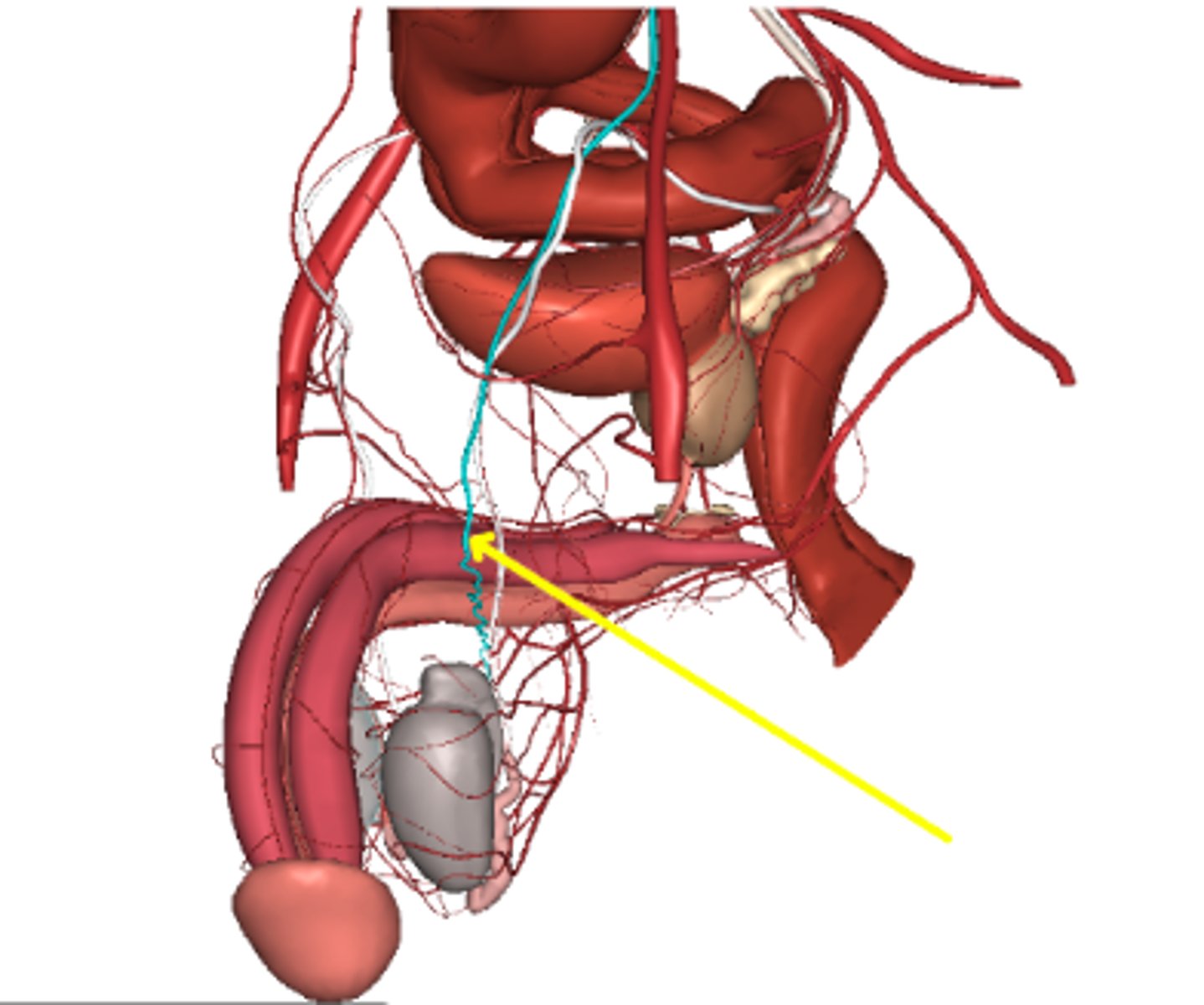

The structure indicated by the arrow in the illustration below is the ................

testicular artery

What is the female primary sex organ?

Ovaries

Where is the site for fertilization?

Uterine tube

The external genitalia of the female are collectively known as the vulva

True

The non-lactating breast is most commonly composed of adipose tissue.

True

Which of the following is not the male secondary sex organ?

Testes

......... nourish the sperm cell and produce hormones

Sertori cells

........ is an area of thin skin covering the testicles.

Scrotum

The spermatic ducts function to carry sperm from the testes to the urethra.

True

The male reproductive system is accompanied by ............ different glands that produce substances that constitute 95% of the semen.

3

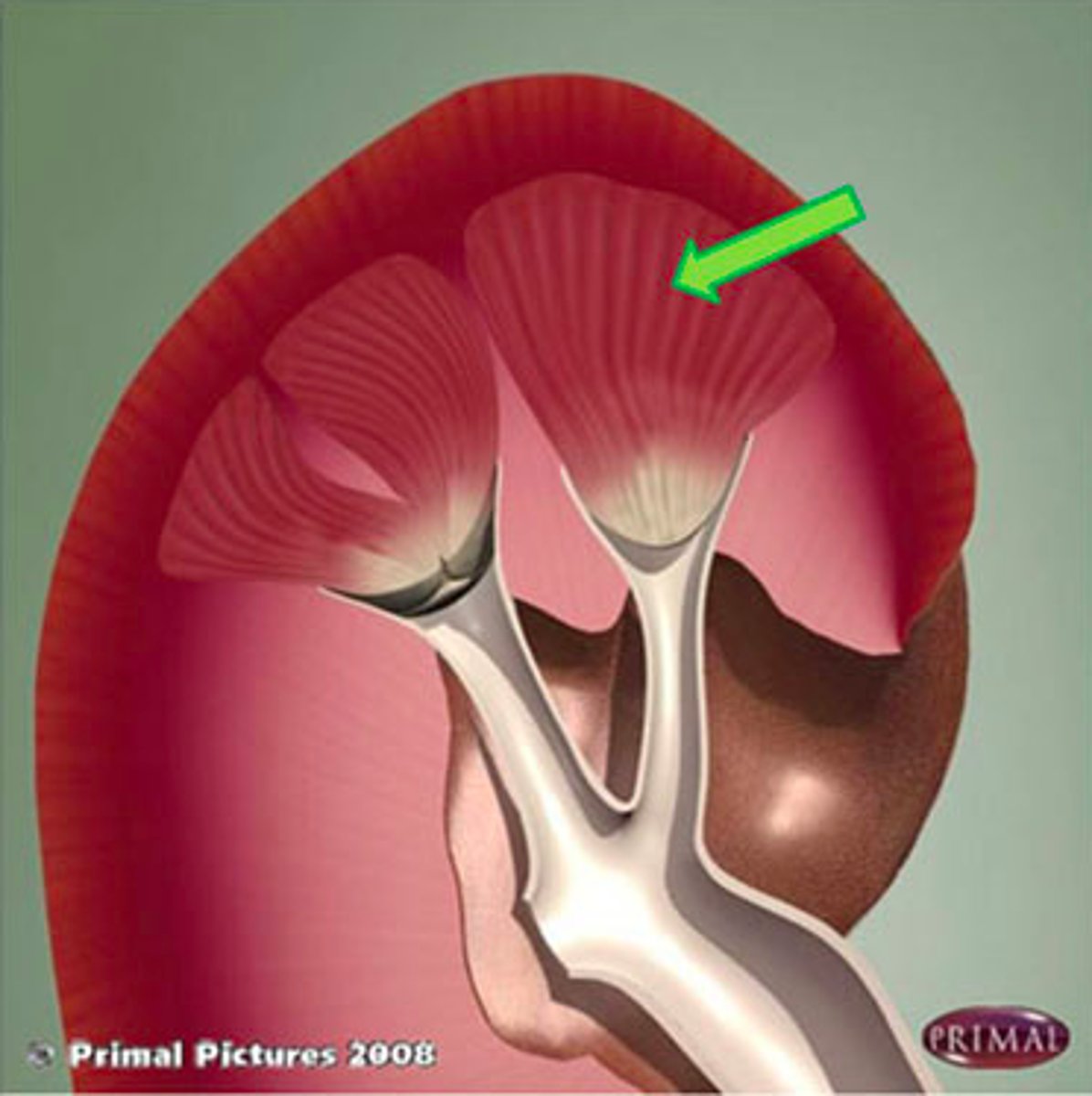

The structure indicated by the arrow in the illustration below is the renal cortex

False
