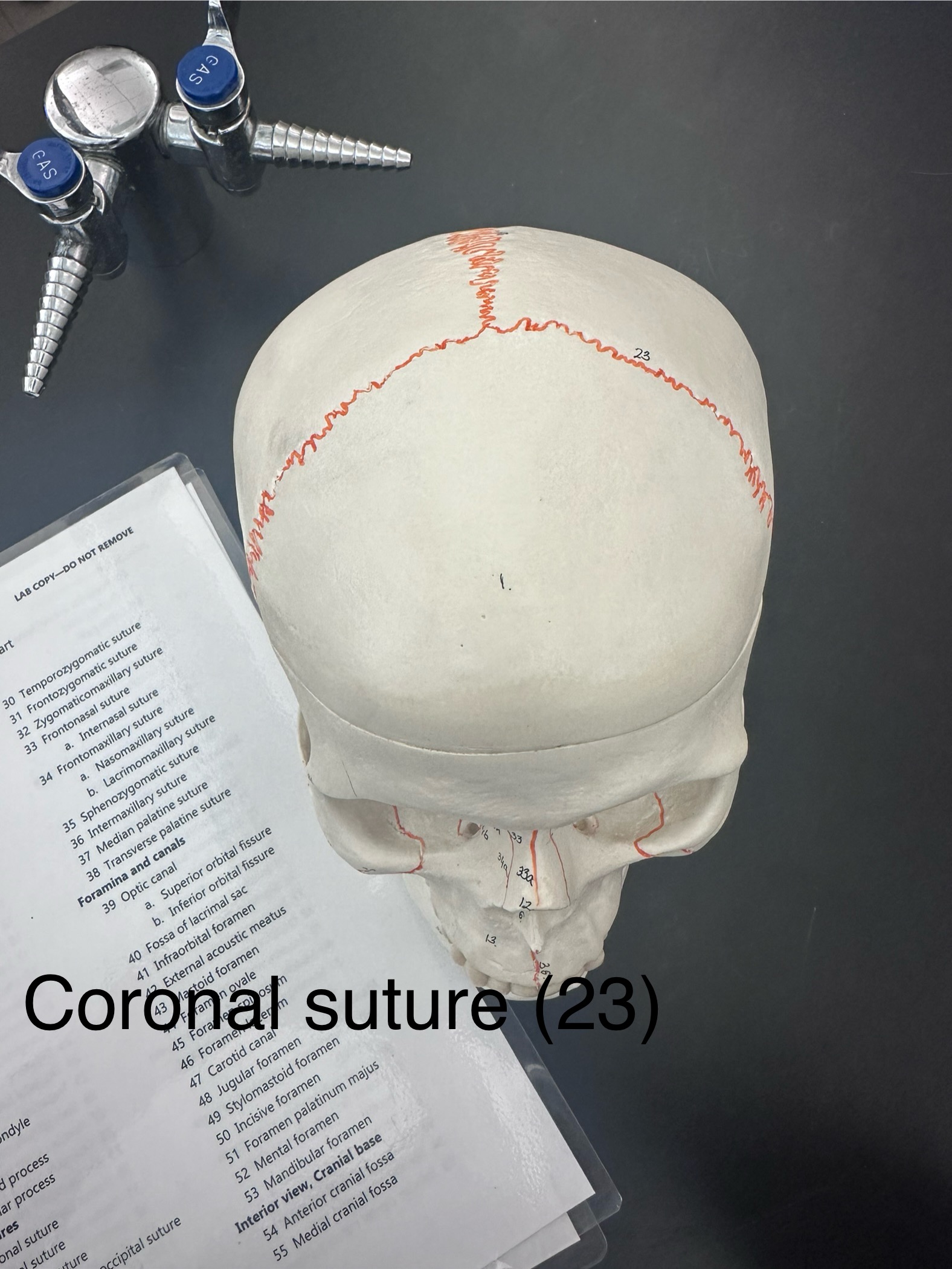

What is labeled 23?
Coronal Suture

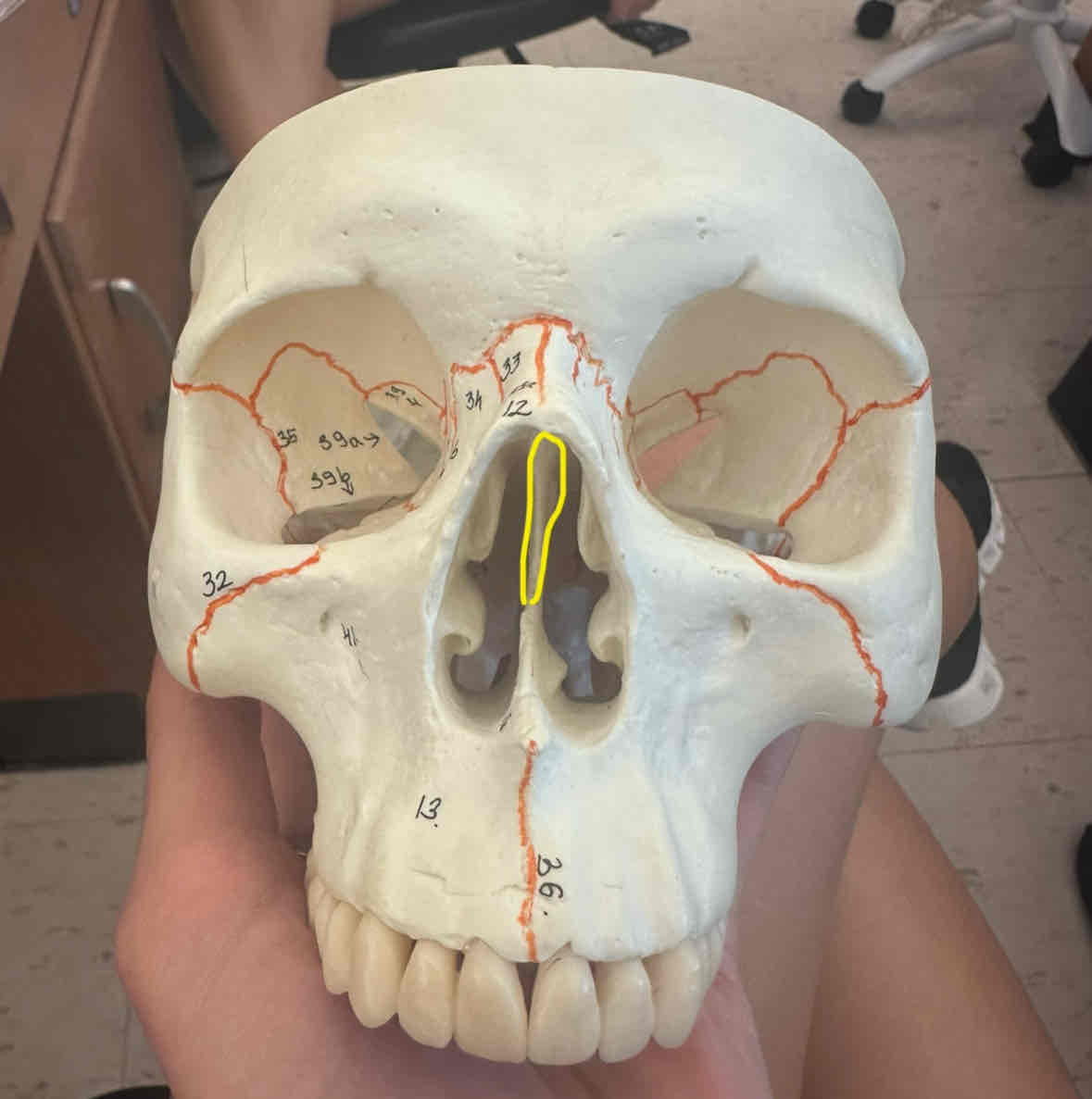

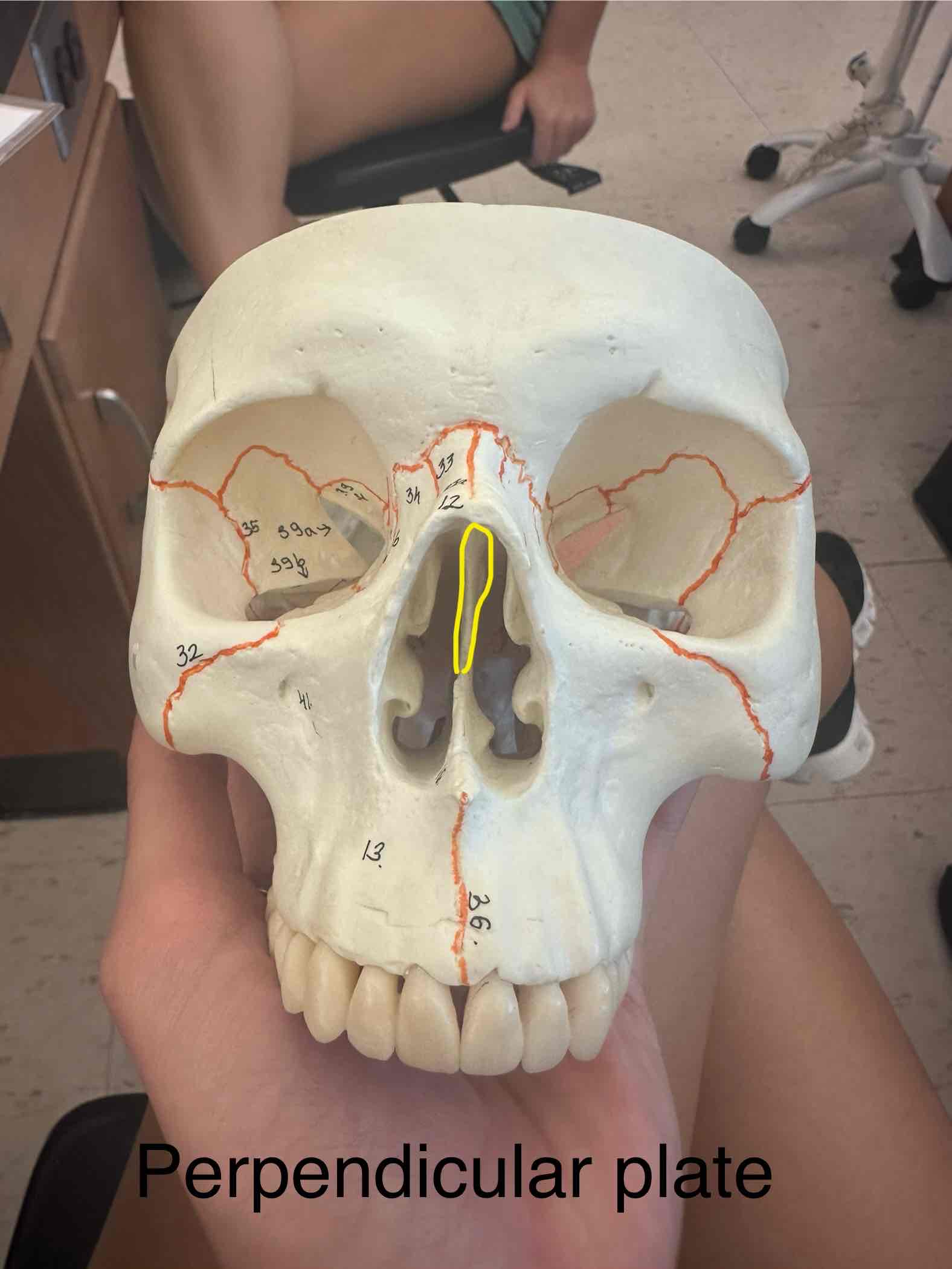

What is highlighted in yellow?
Perpendicular plate

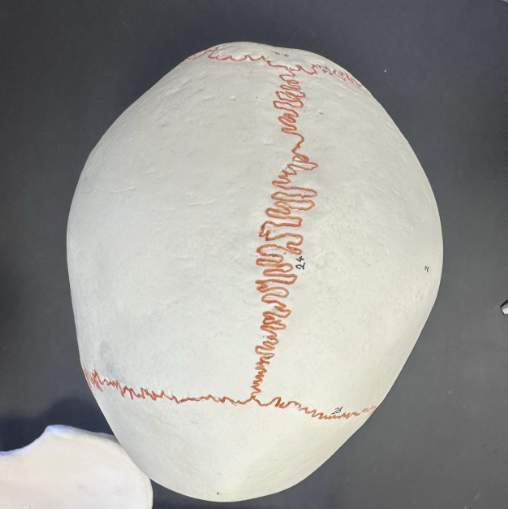

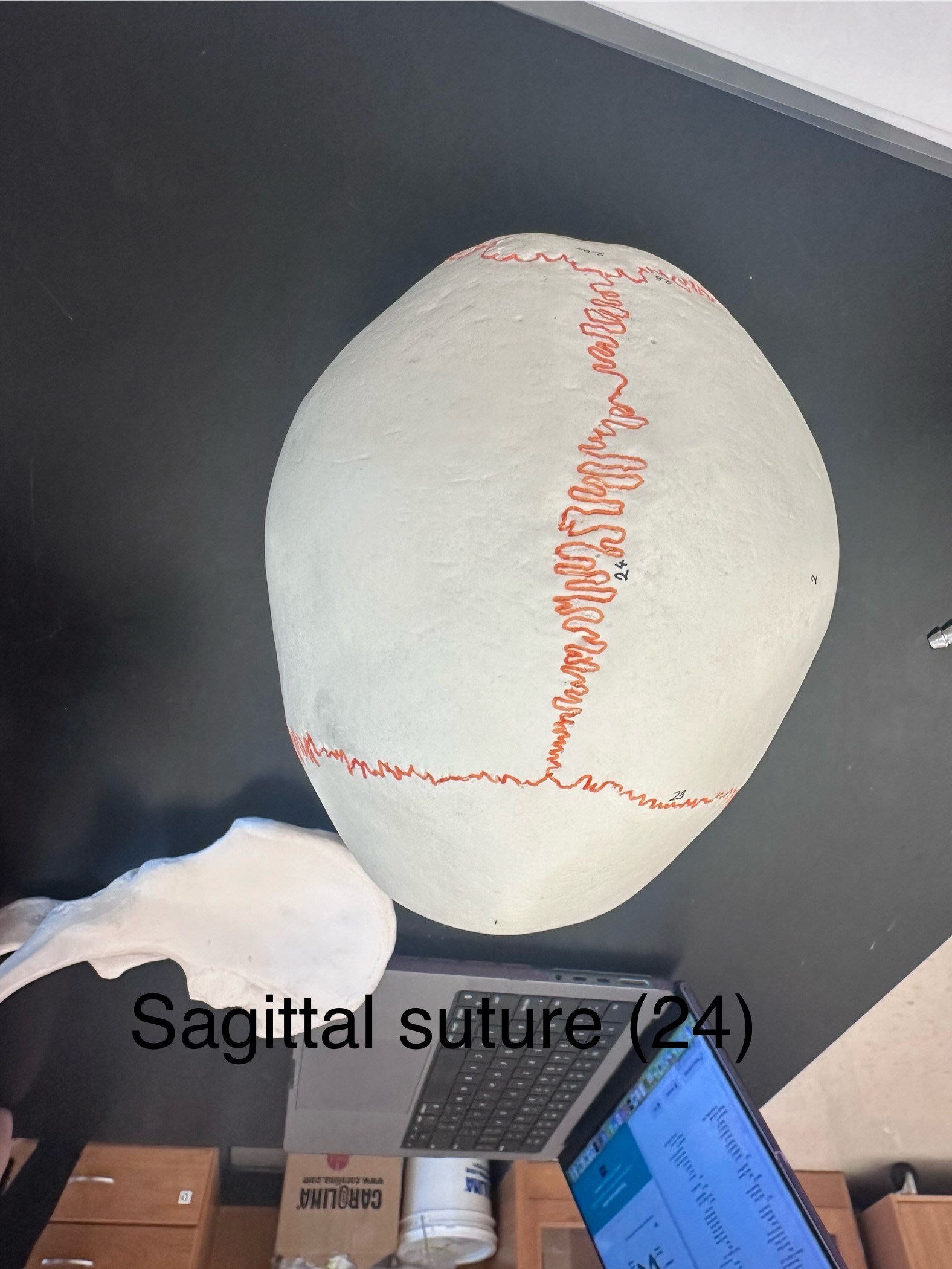

What is the suture labeled 24?
Sagittal Suture

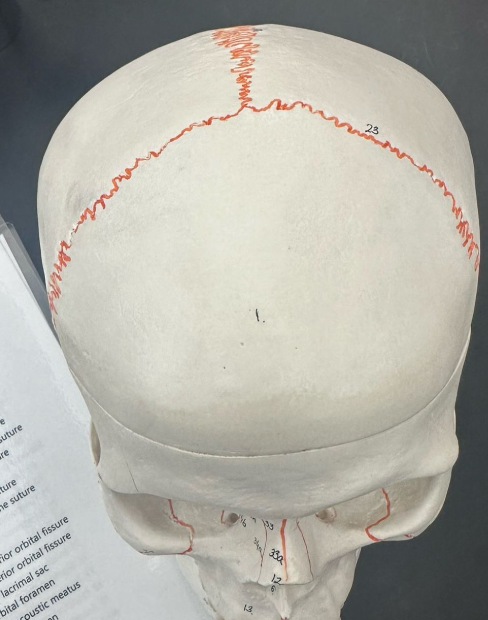

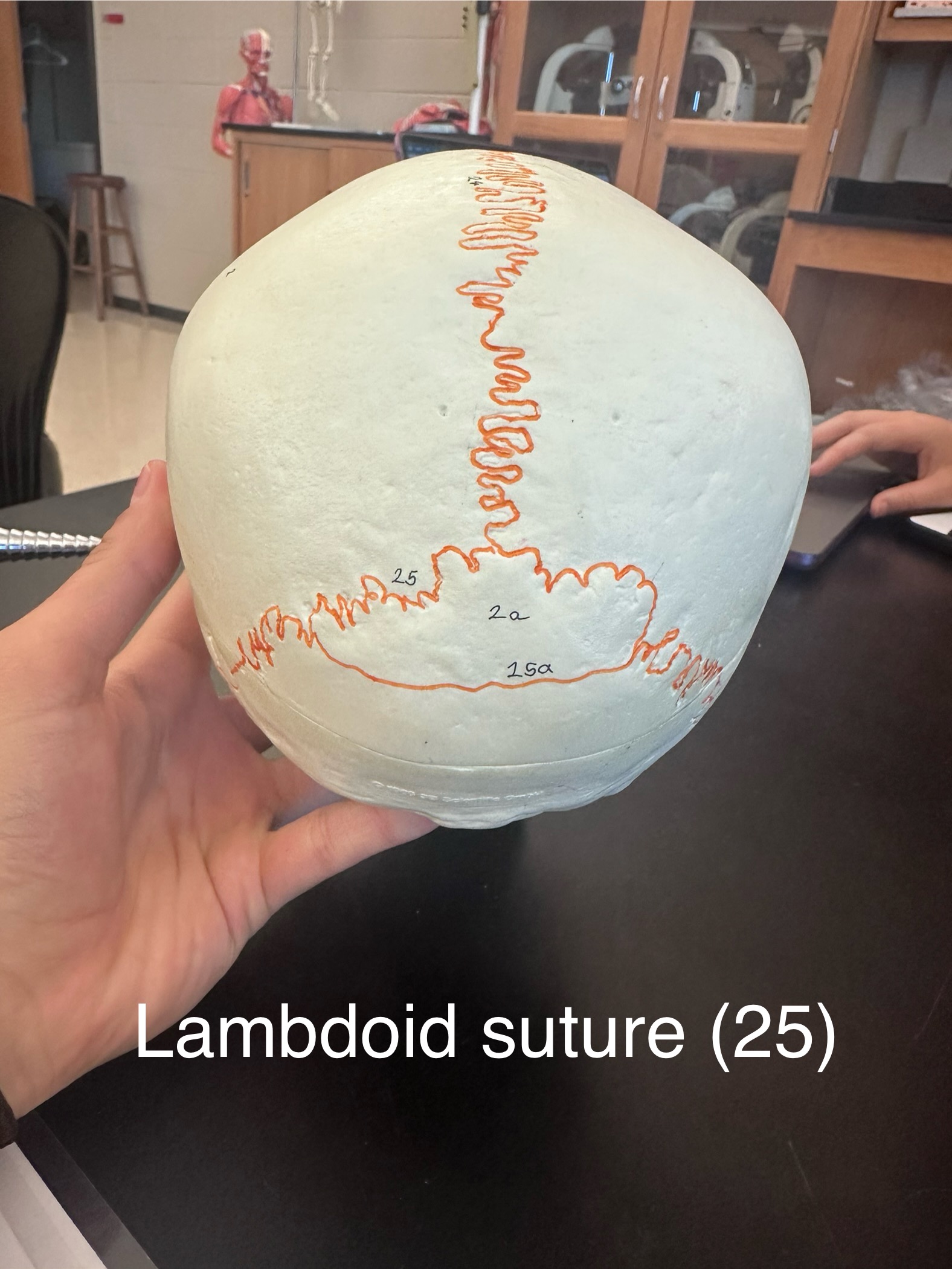

What is the suture labeled 25?
Lambdoid Suture

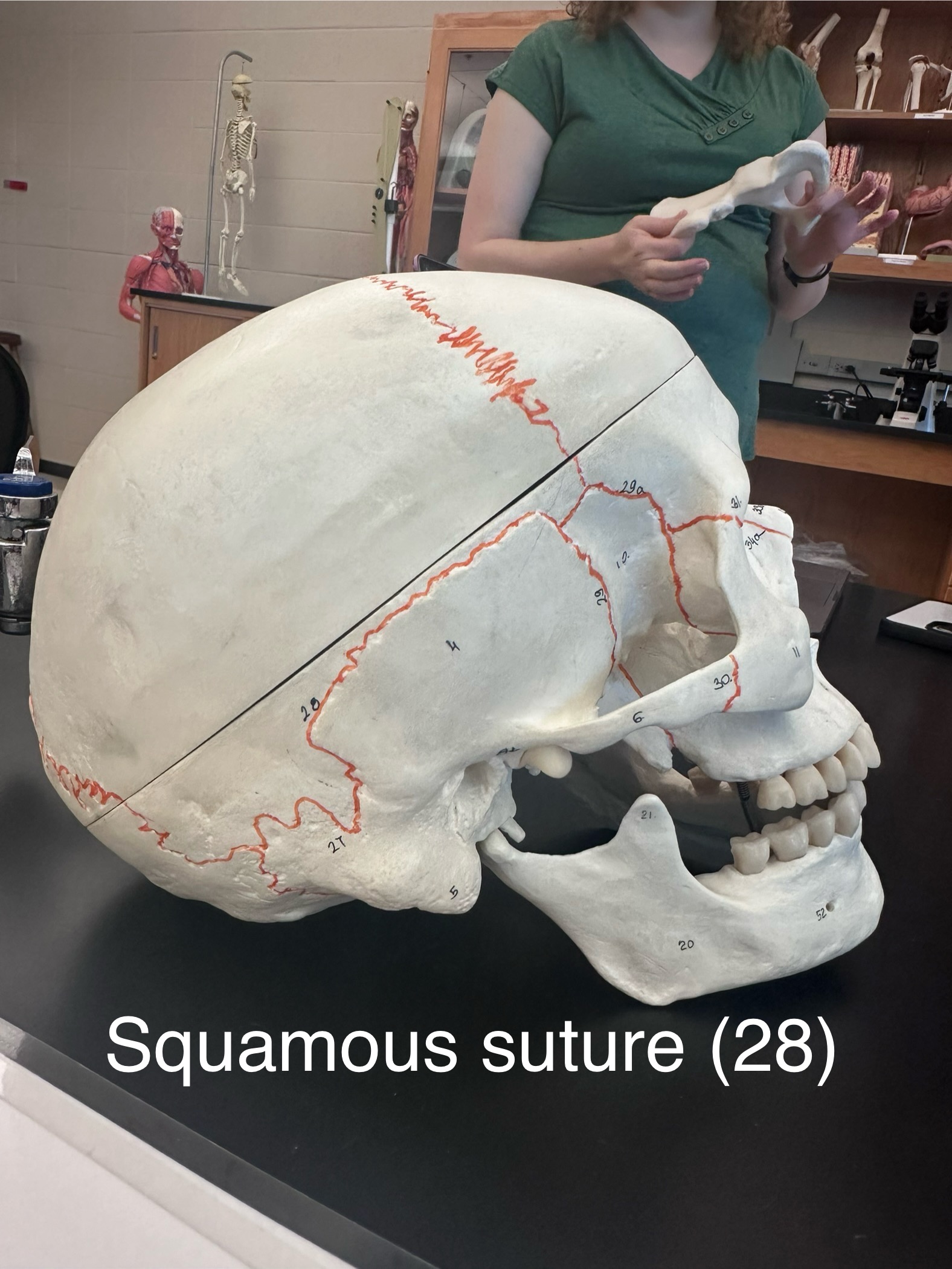

What is the suture labeled 28?
Squamous Suture

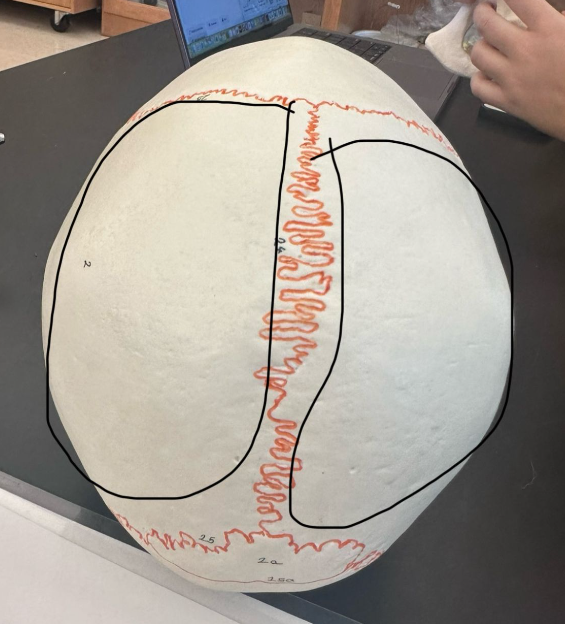

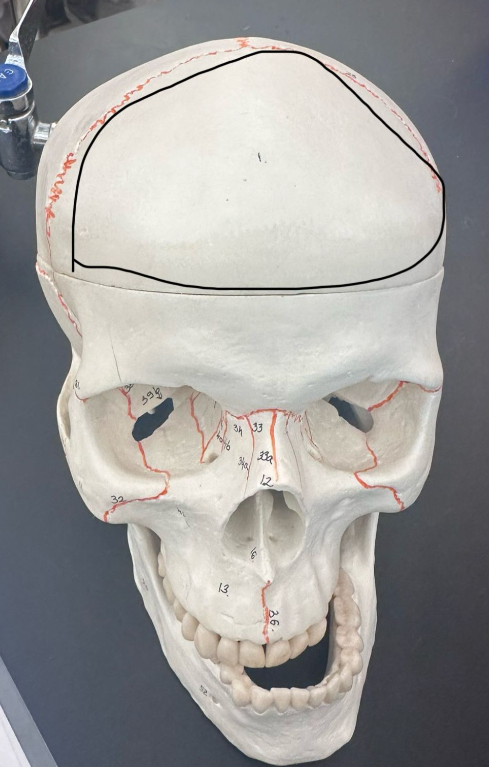

What is circled in black? Or labeled as 2?
Parietal Bones (2)

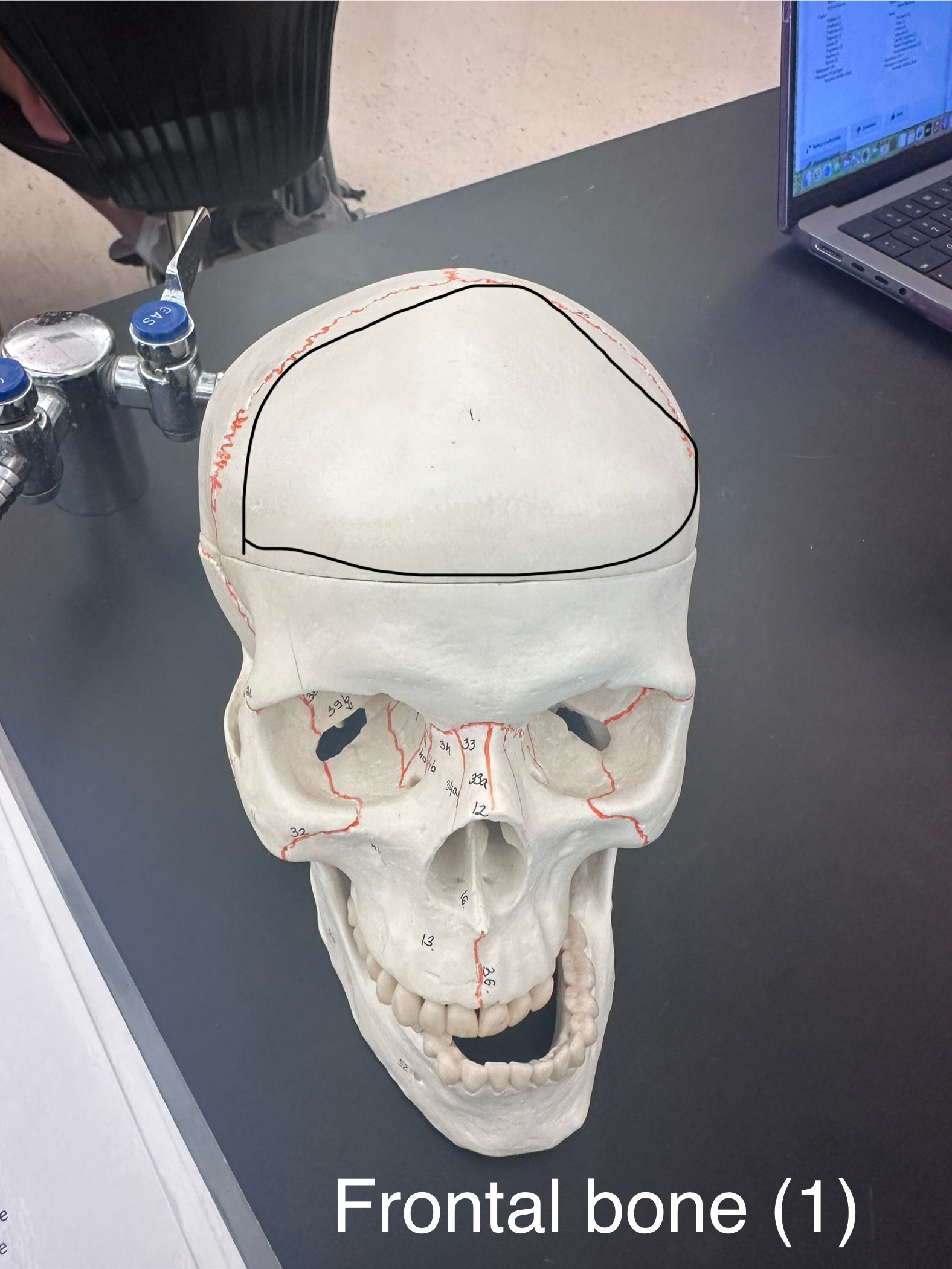

What is circled in black? Or labeled as 1?
Frontal Bone

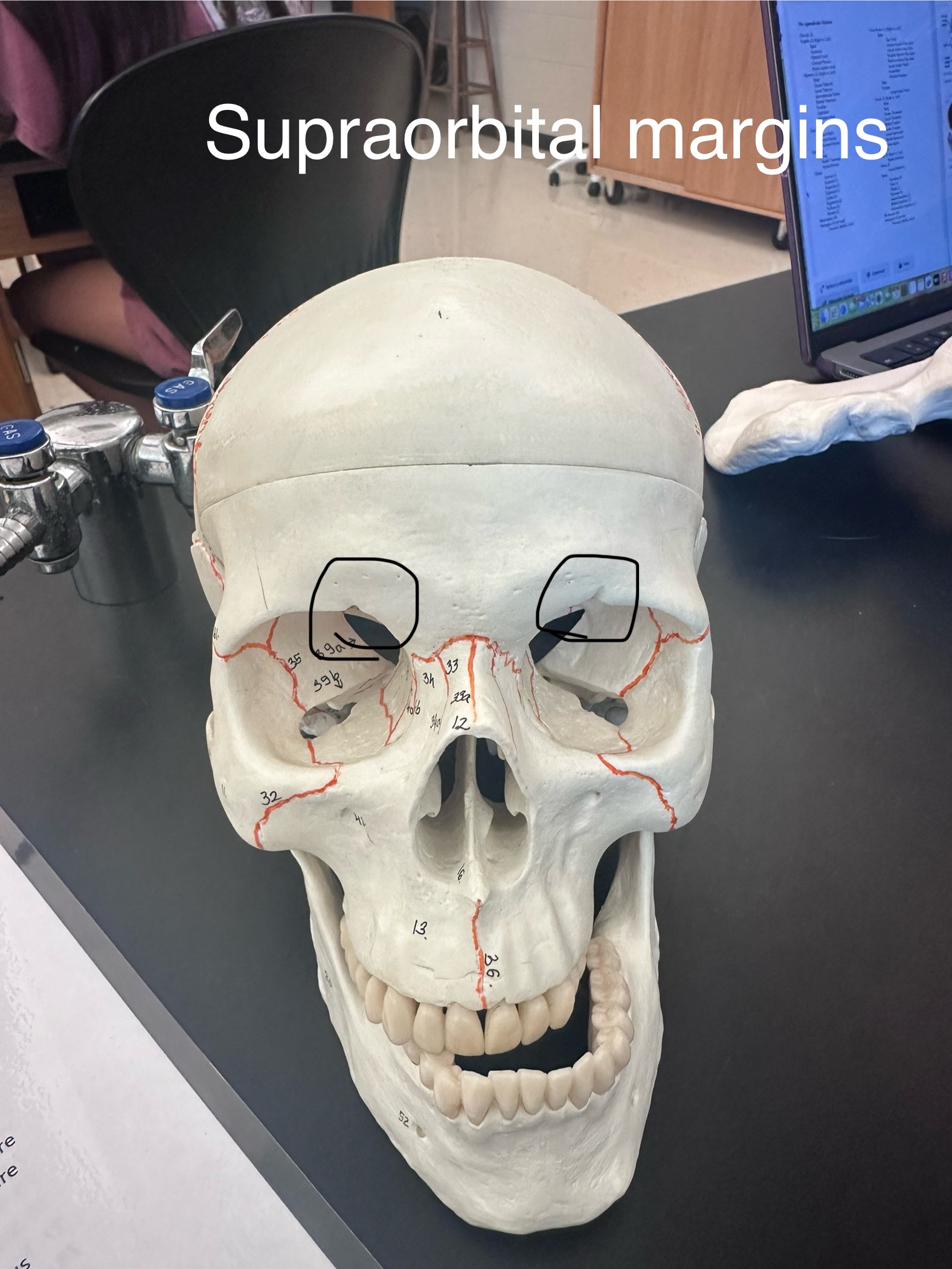

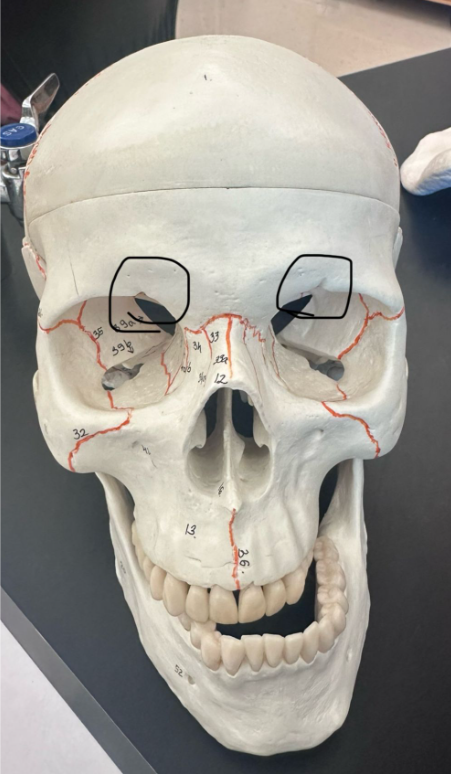

What is circled in black?
Supraorbital margins

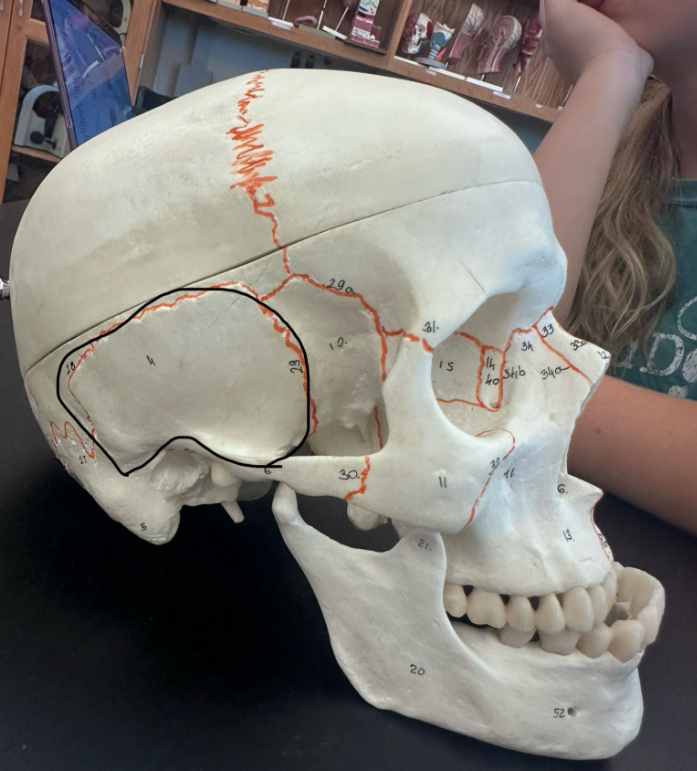

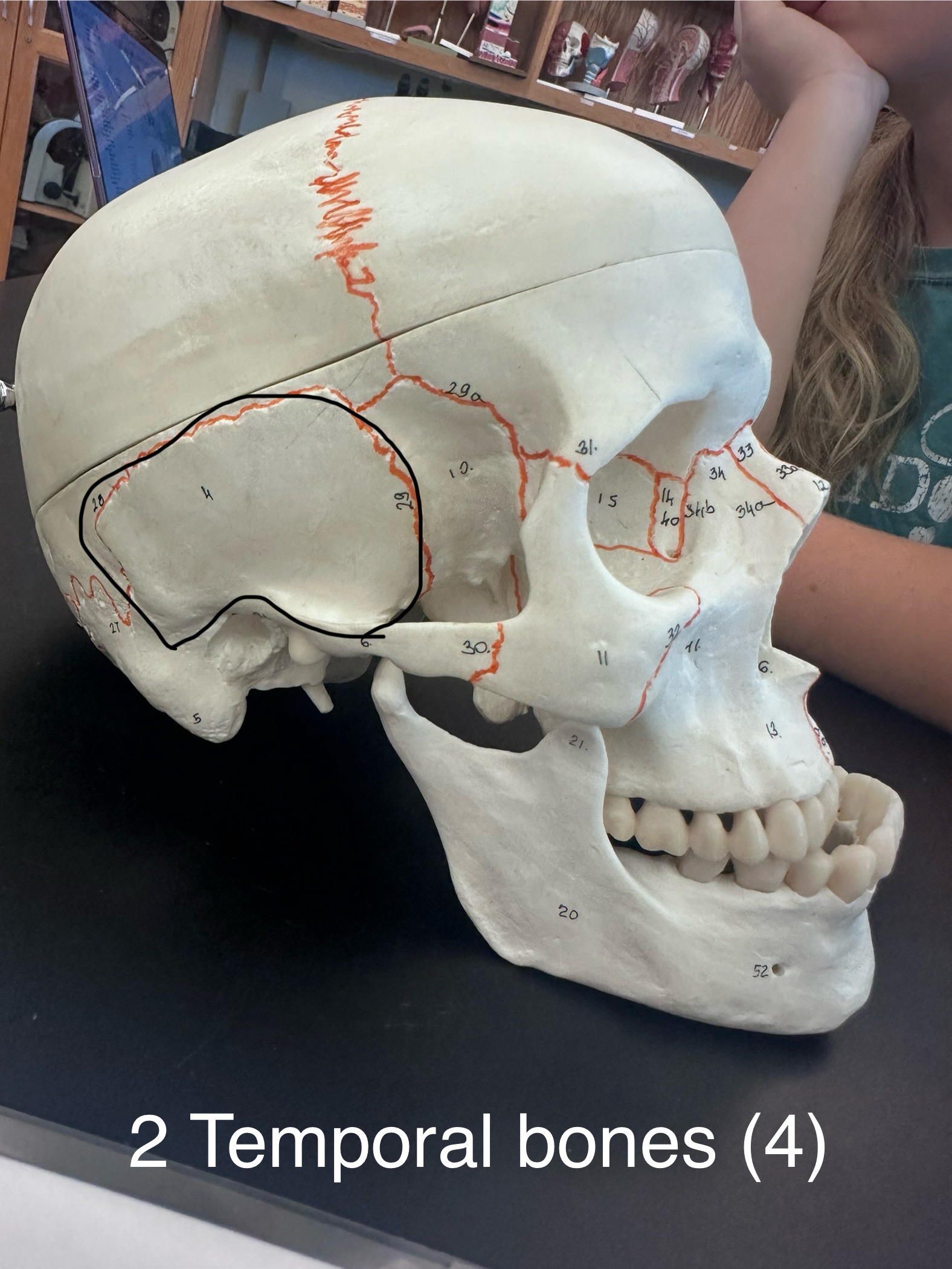

What is circled in black? Or labeled as 4?
Temporal Bones (2)

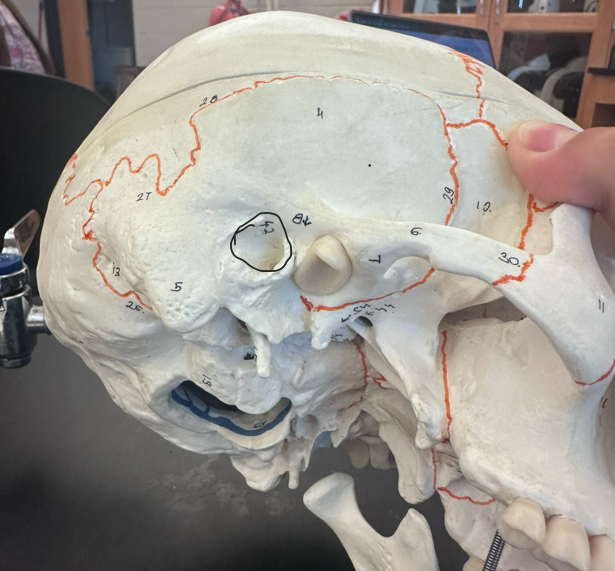

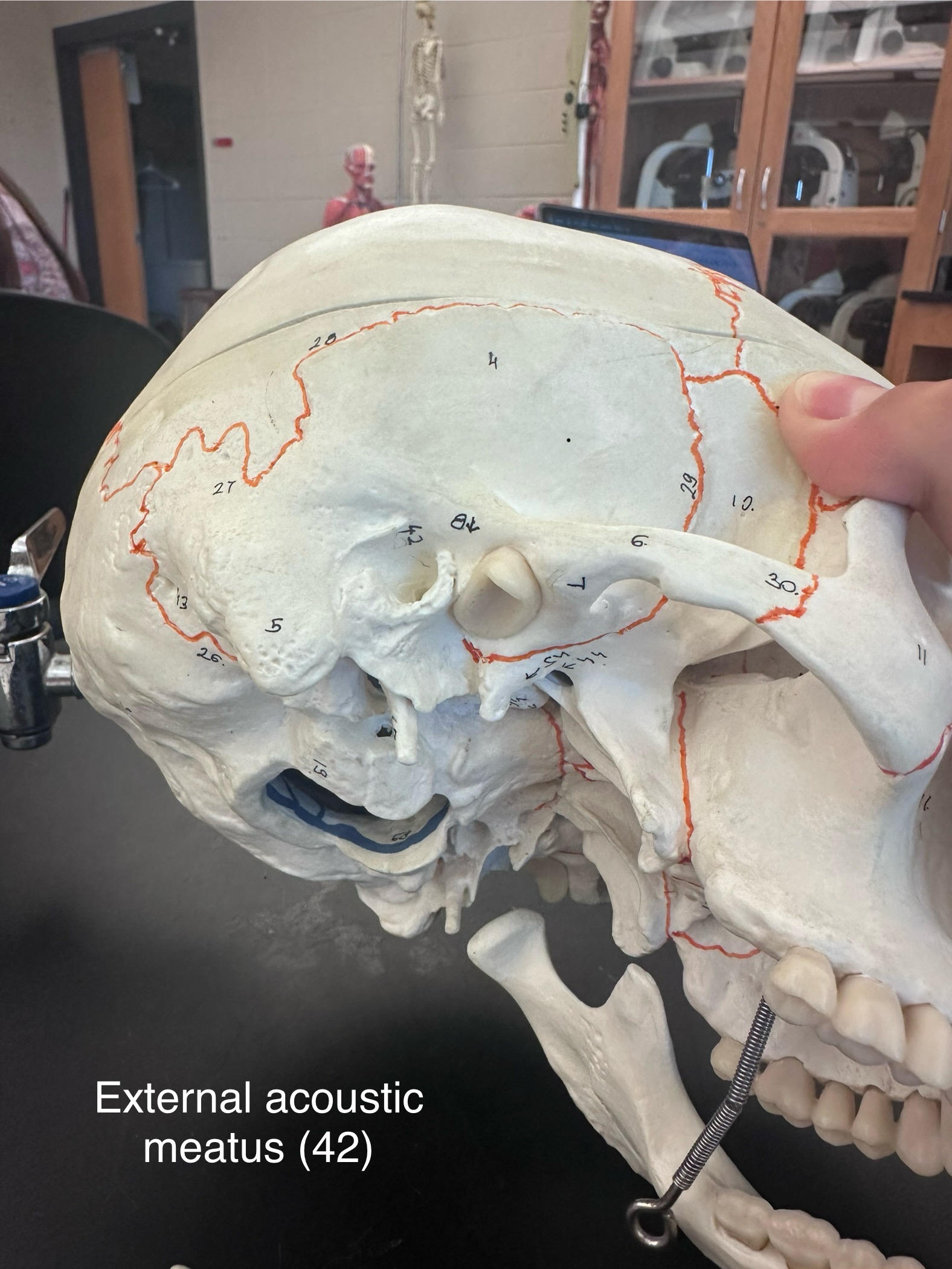

What is circled in black? Or labeled as 42?
External Acoustic Meatus

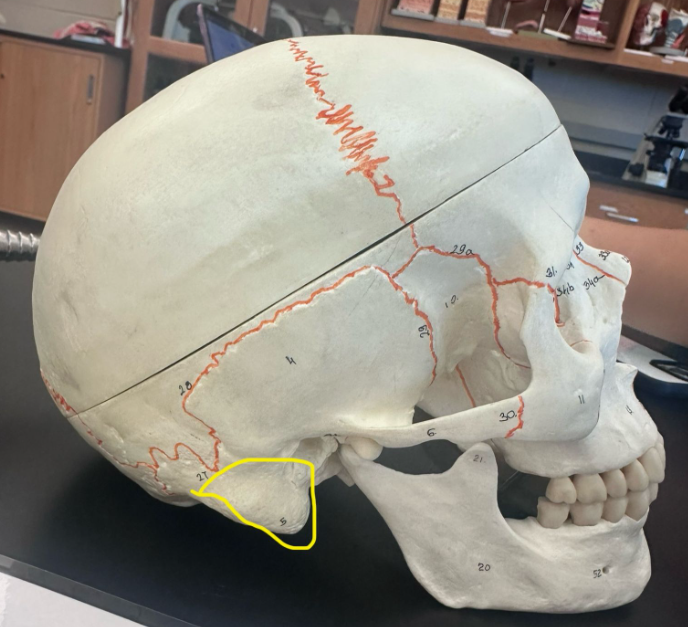

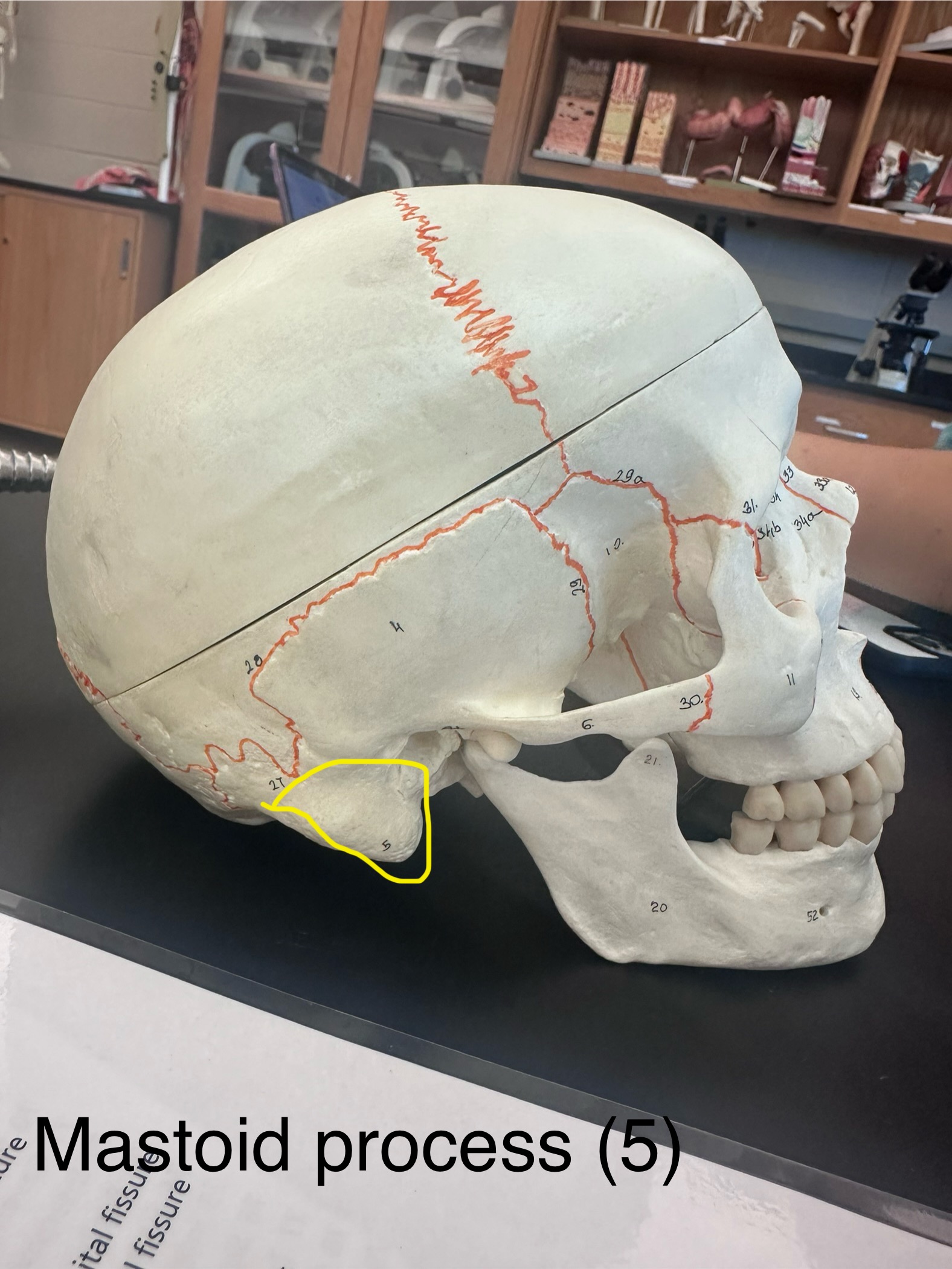

What is circled in yellow? Or labeled as 5?
Mastoid Process

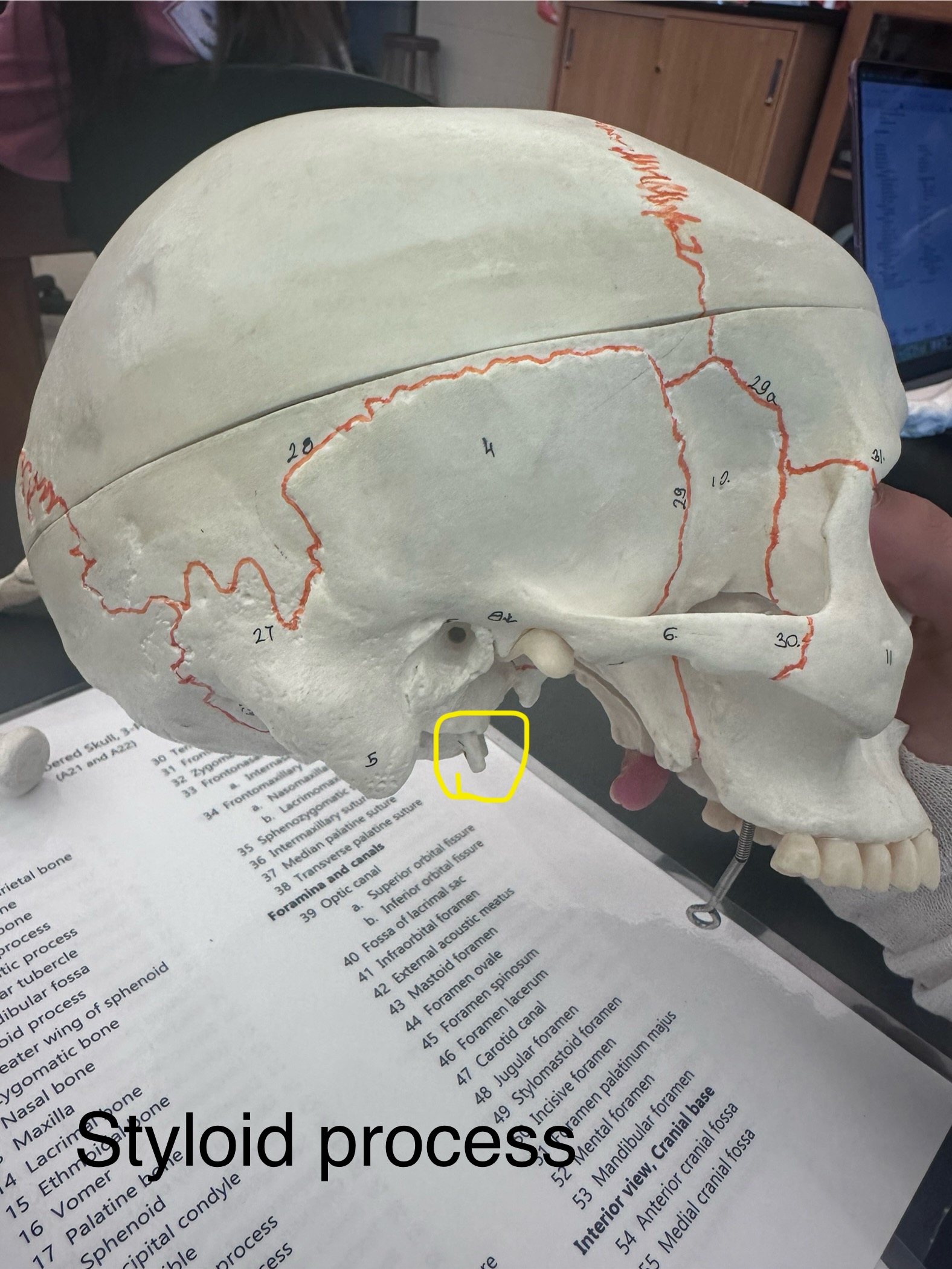

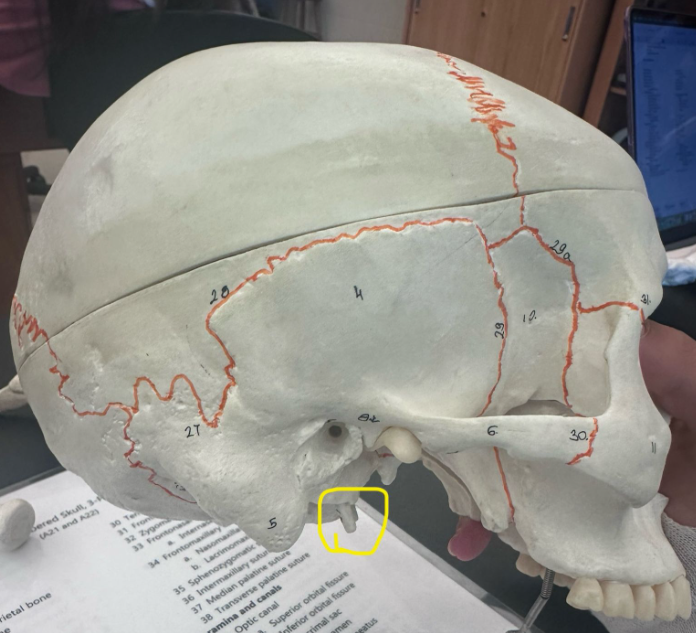

What is circled in yellow?
Styloid Process

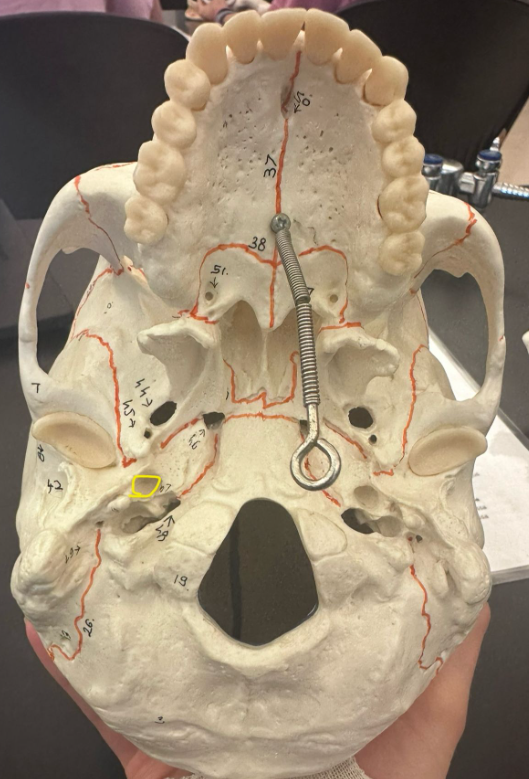

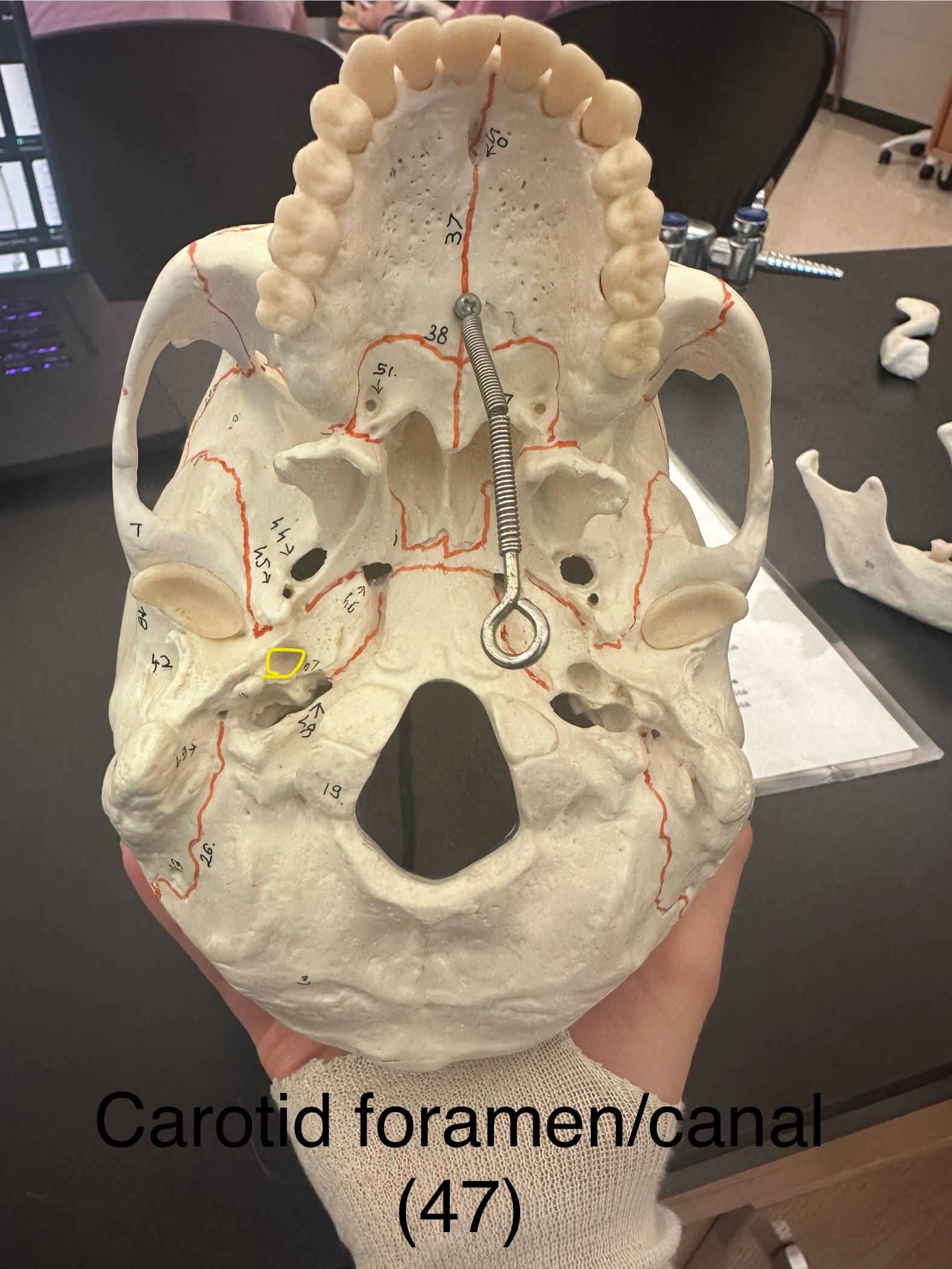

What is circled in yellow? Or labeled as 47?
Carotid Foramen (Canal)
What is circled in yellow? Or labeled as 48?
Jugular Foramen

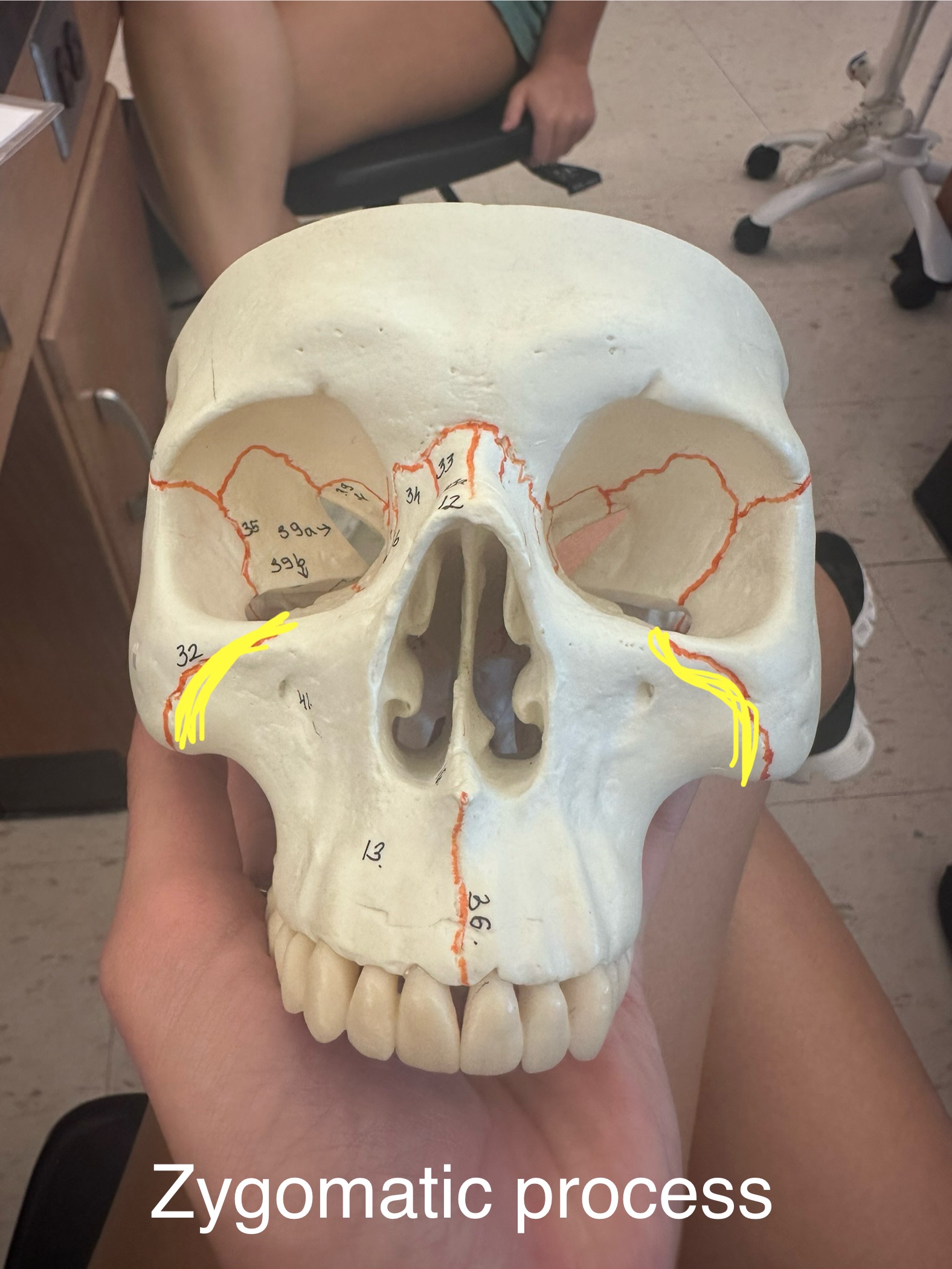

What is highlighted in yellow?
Zygomatic Process

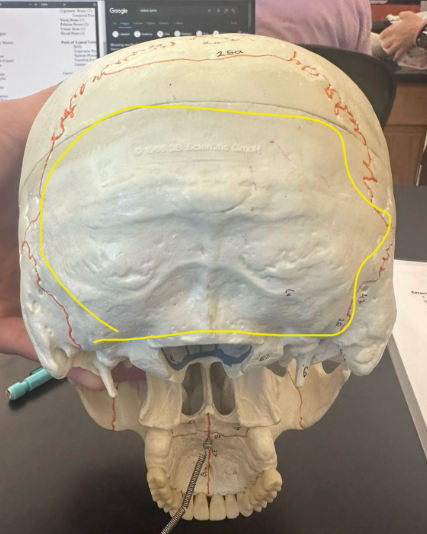

What is circled in yellow?
Occipital Bone

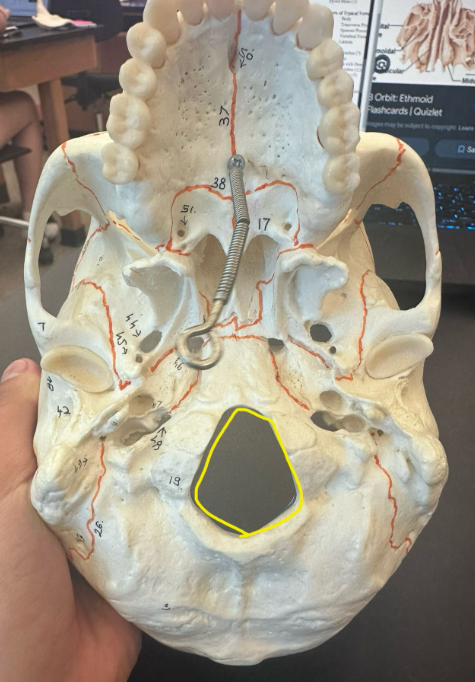

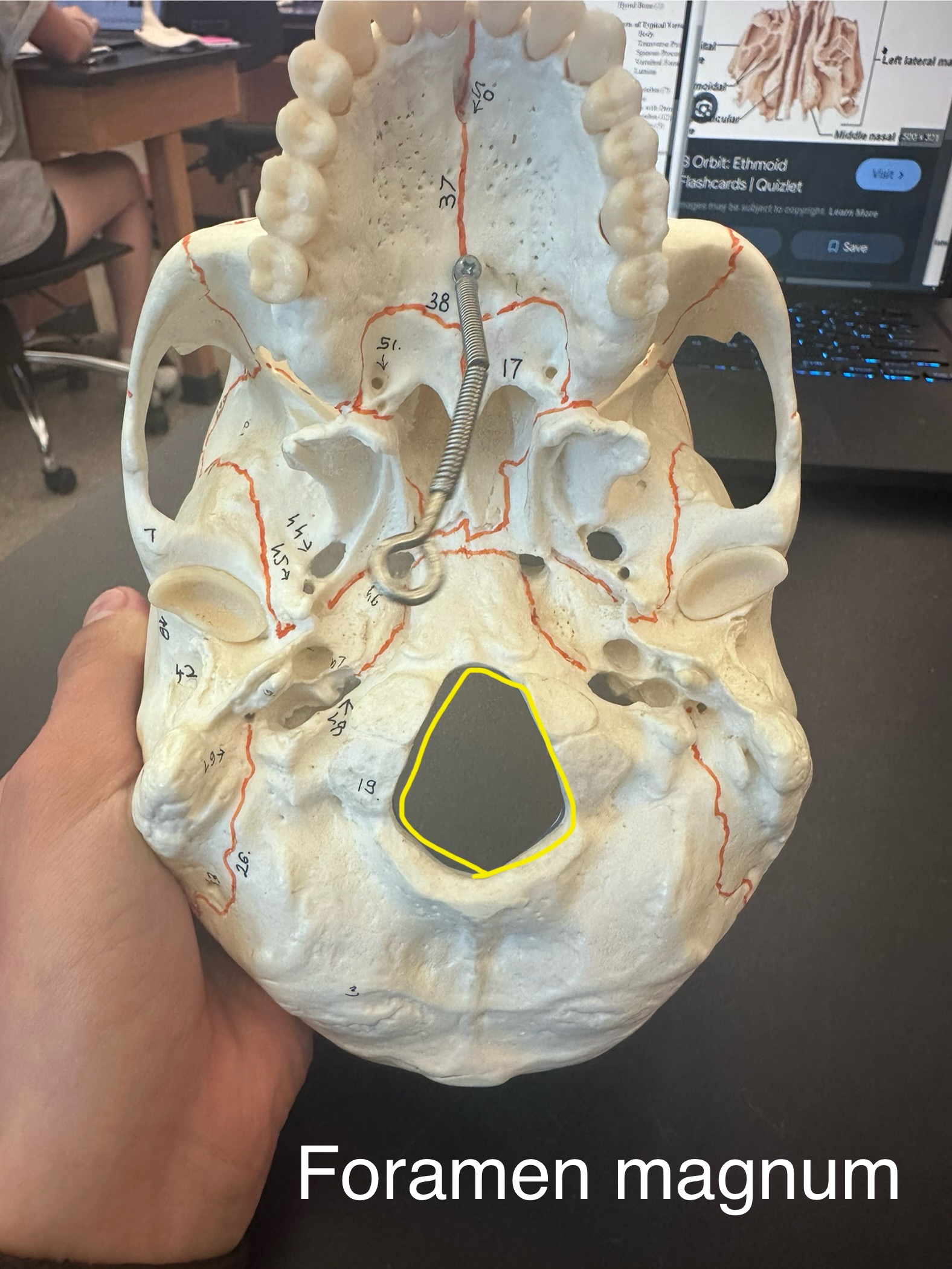

What is circled in yellow?
Foramen Magnum

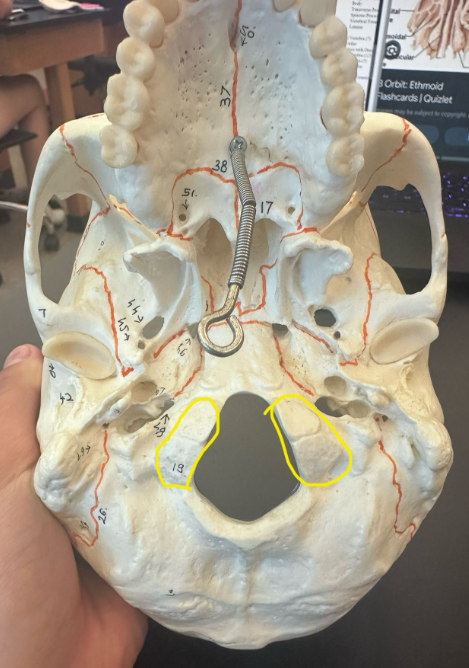

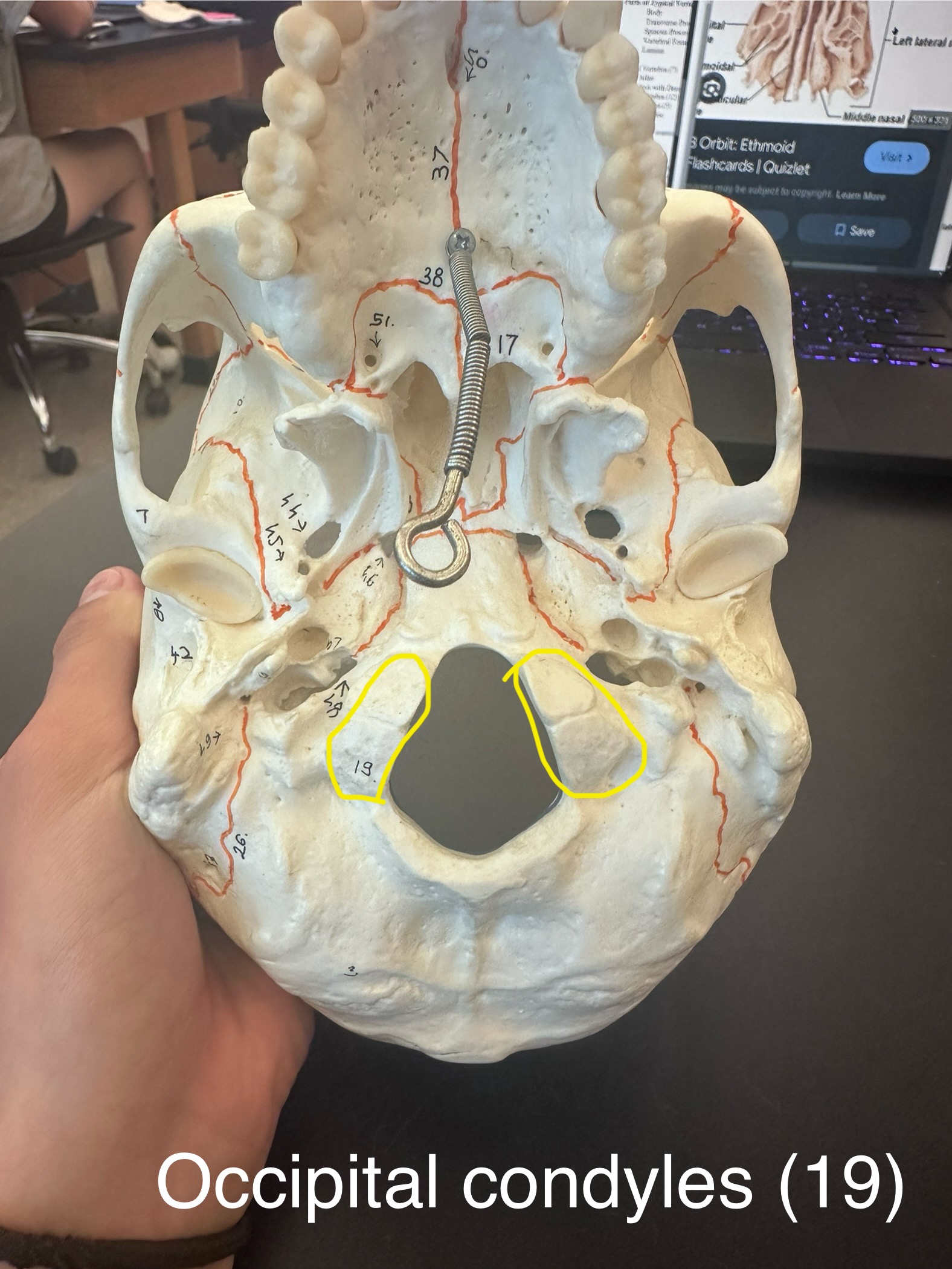

What is circled in yellow? Or labeled as 19?
Occipital Condyles

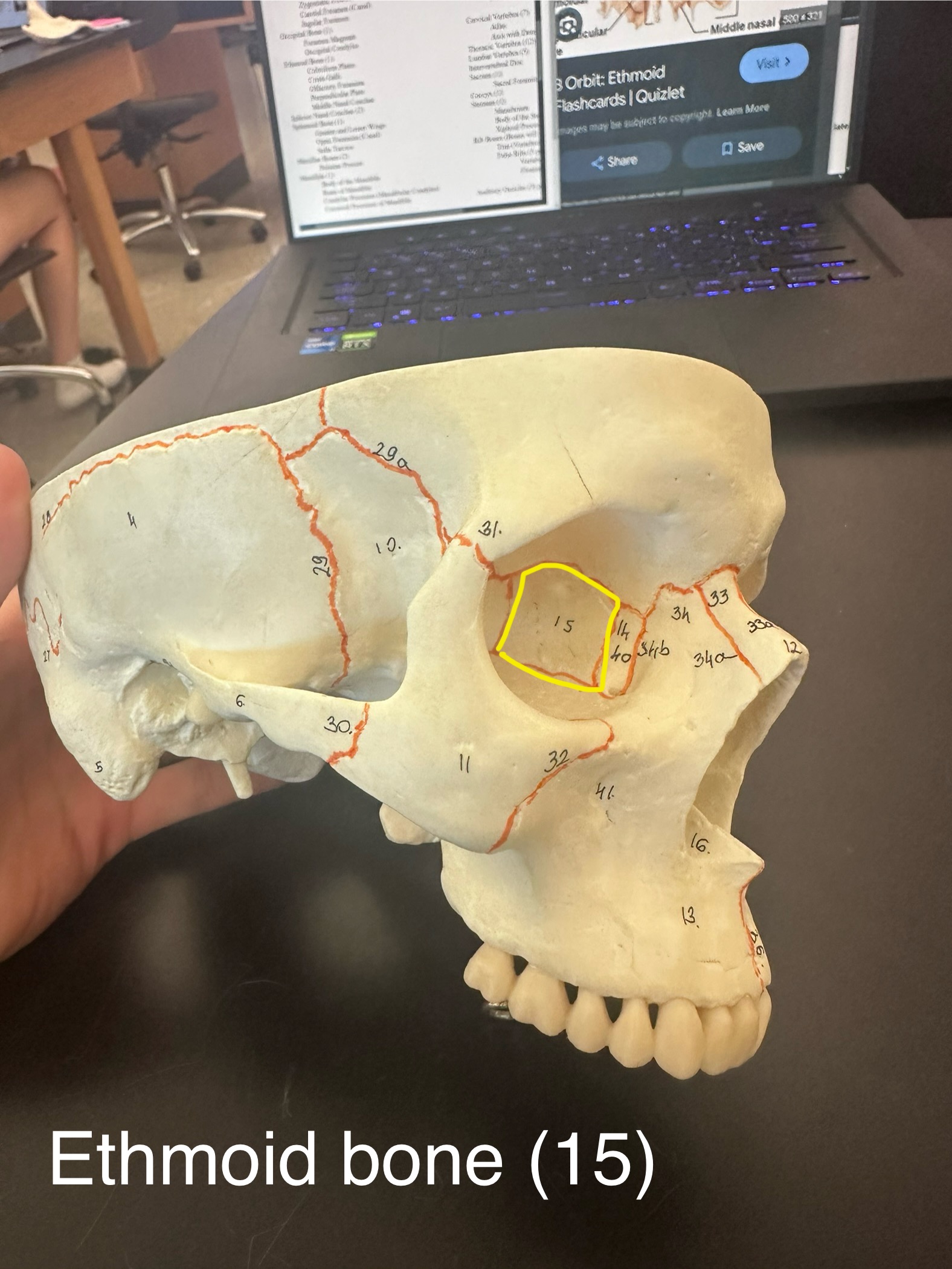

What is circled in yellow? Or labeled as 15?
Ethmoid Bone

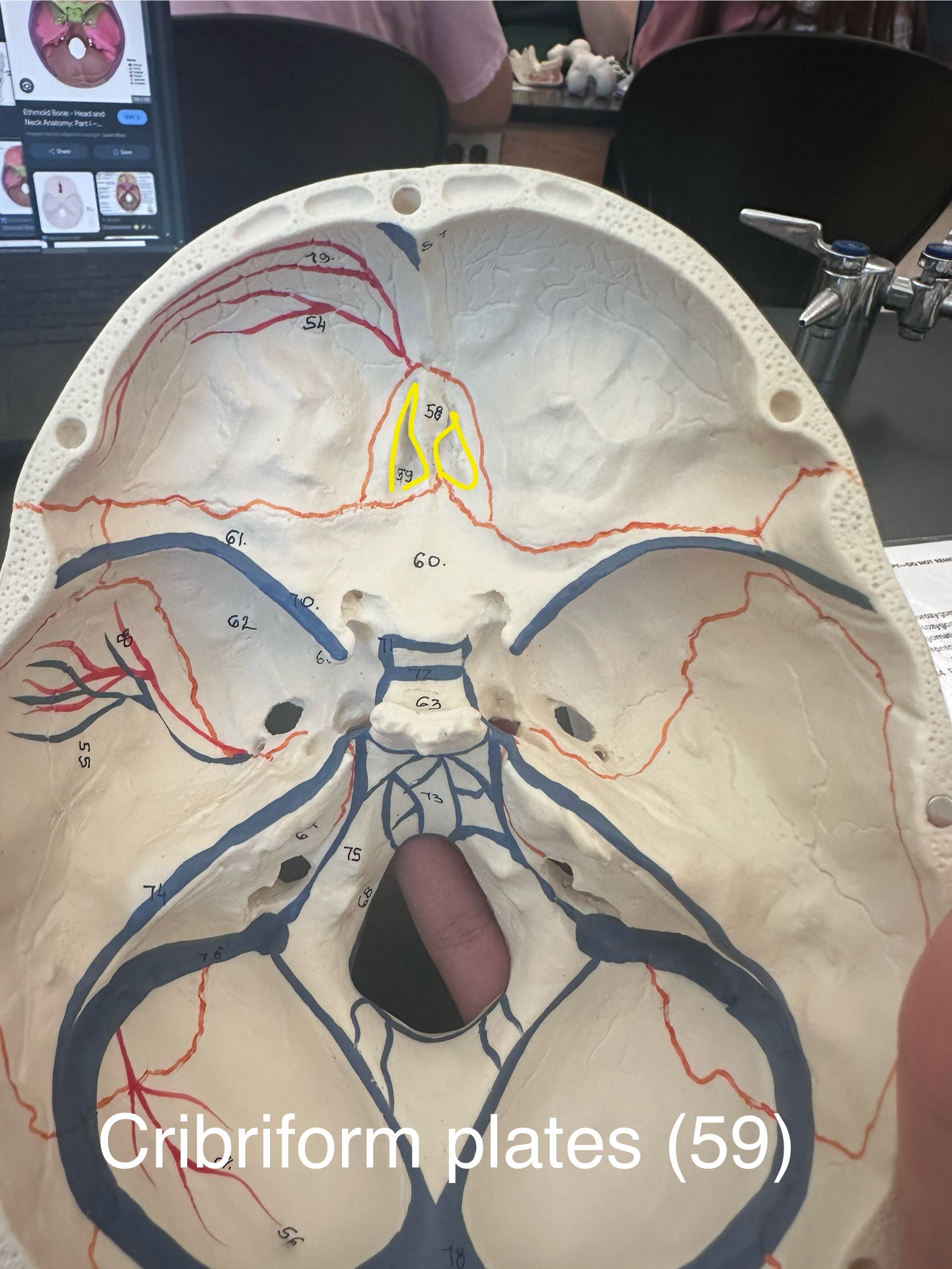

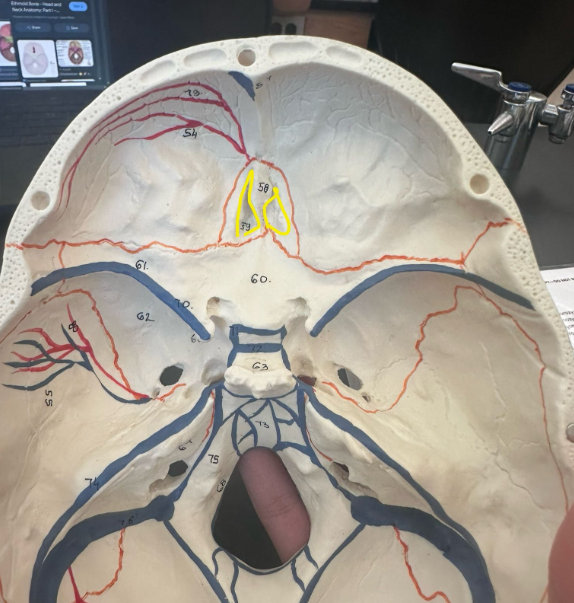

What is circled in yellow? Or labeled as 59?
Cribriform Plates

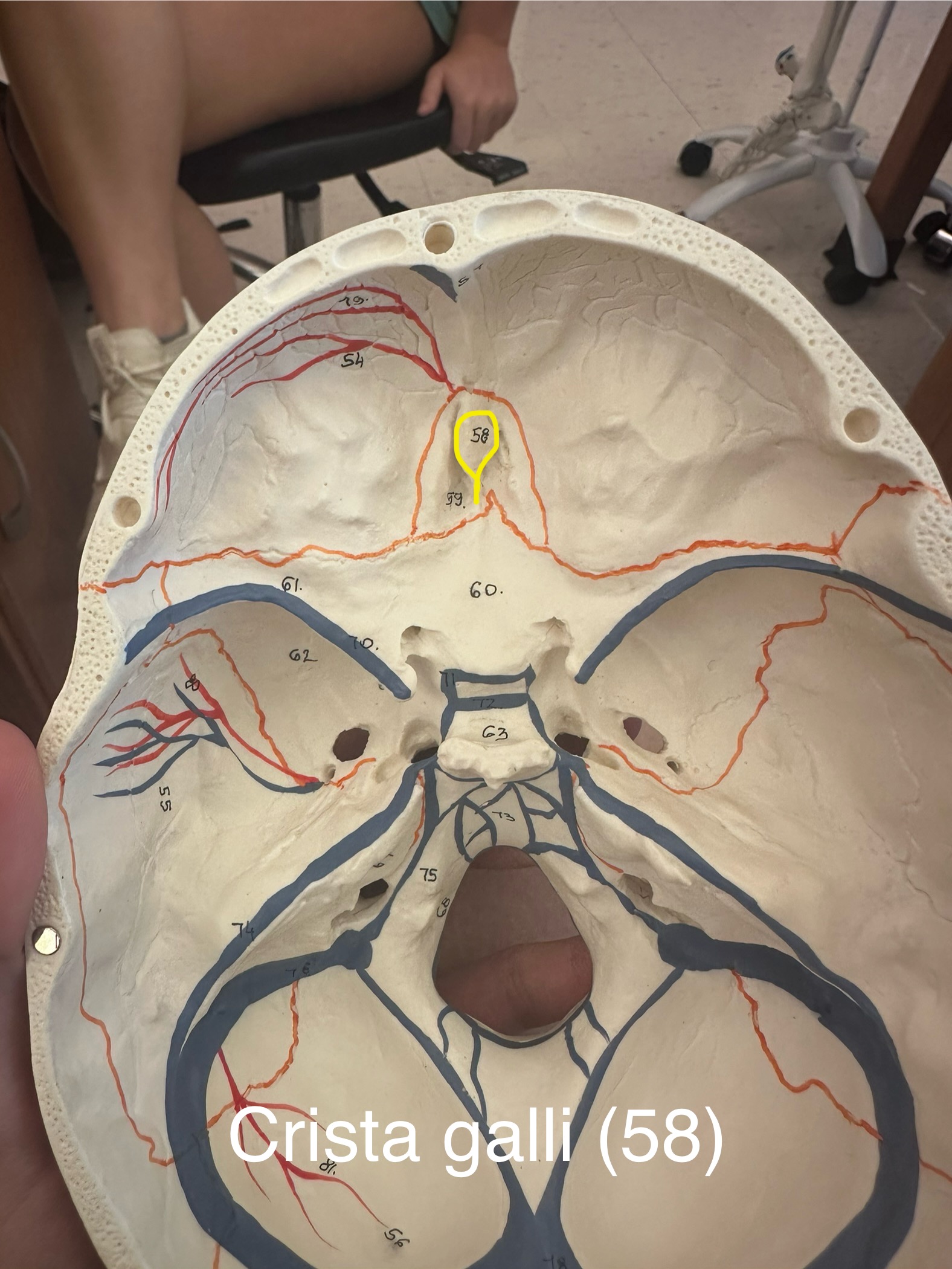

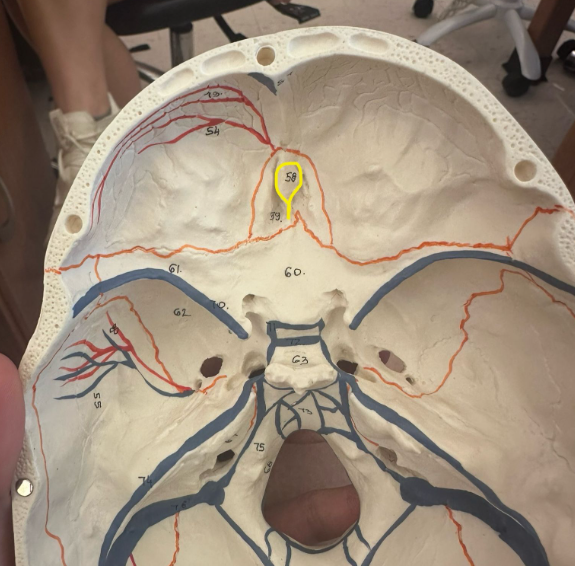

What is circled in yellow? Or labeled as 58?
Crista Galli

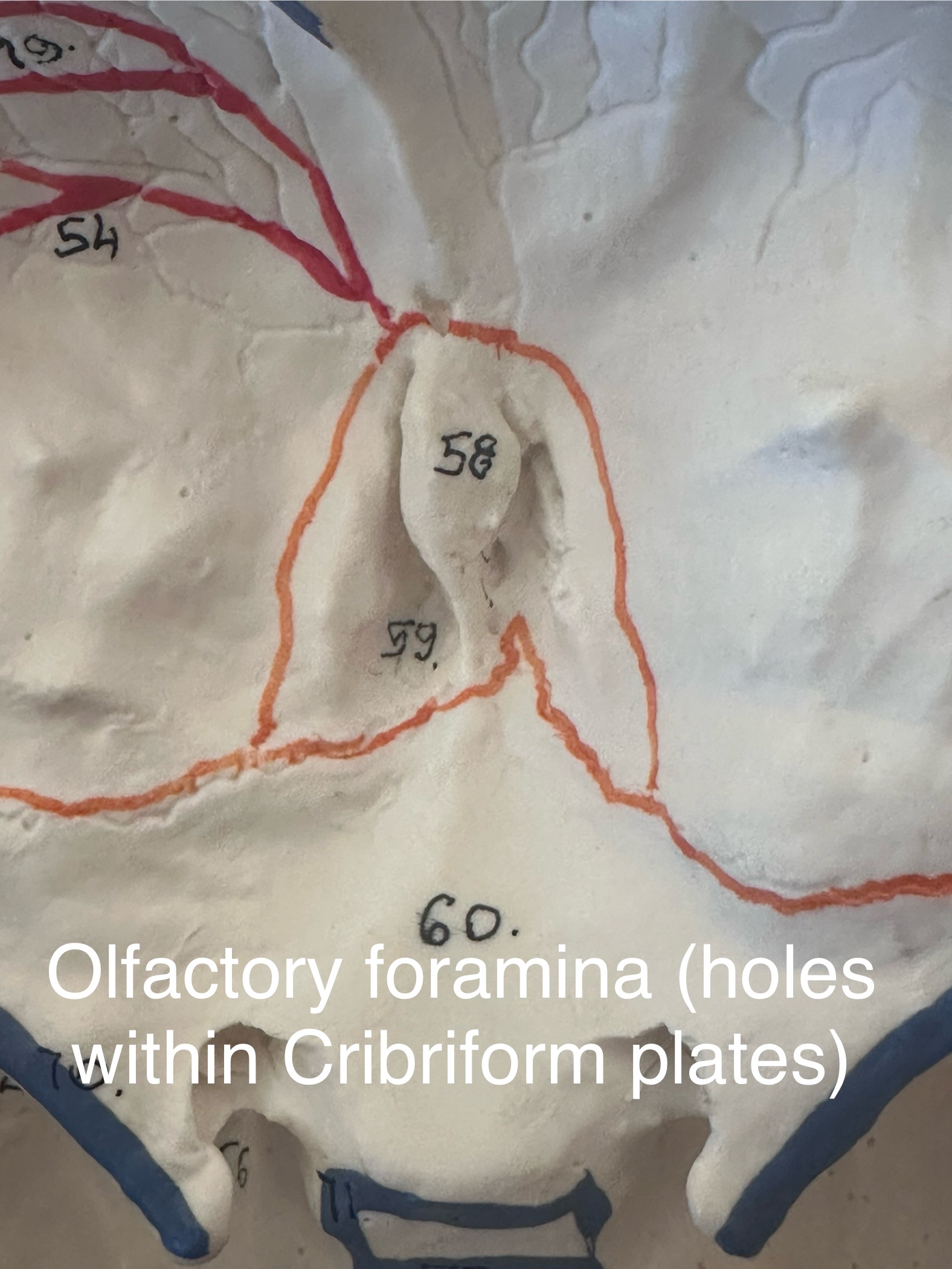

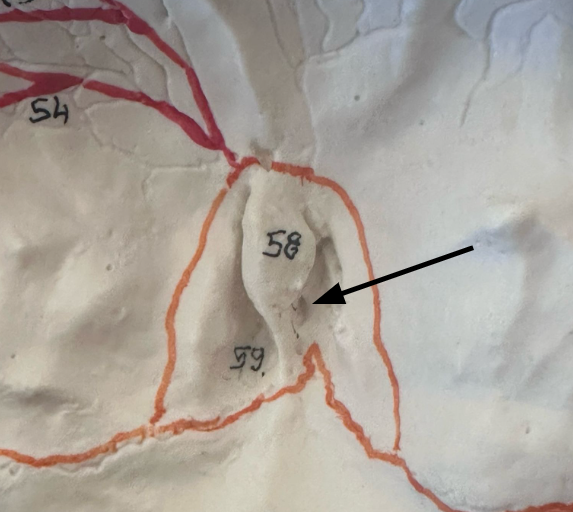

What is the arrow pointing at, that is within the cribriform plates?
Olfactory Foramina (holes within Cribriform plates)

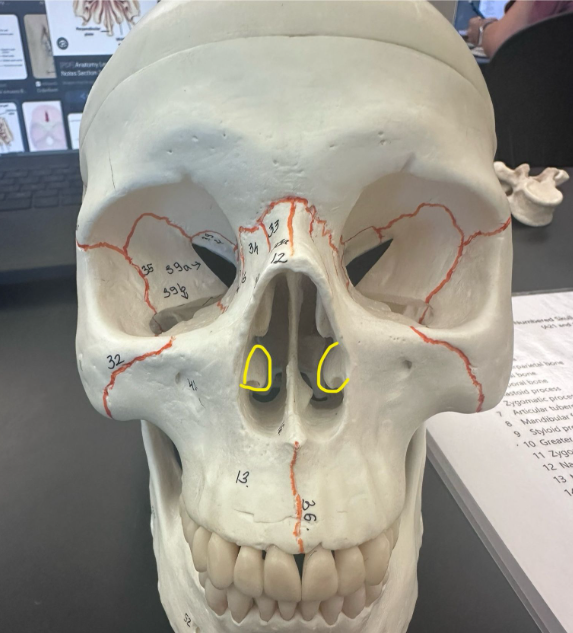

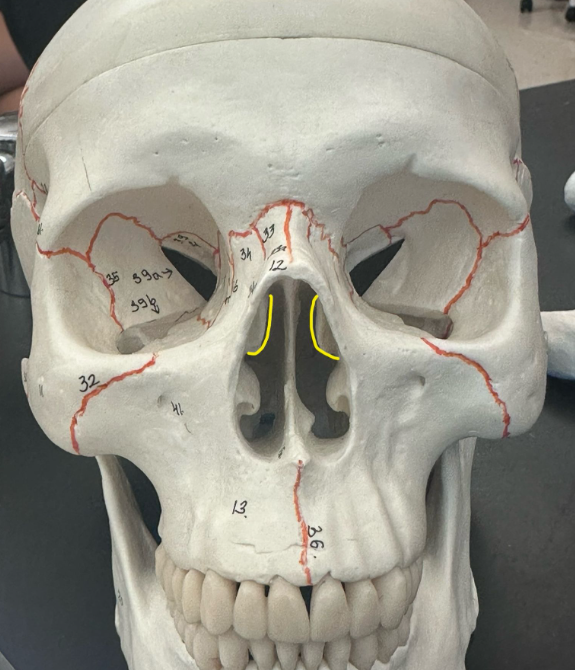

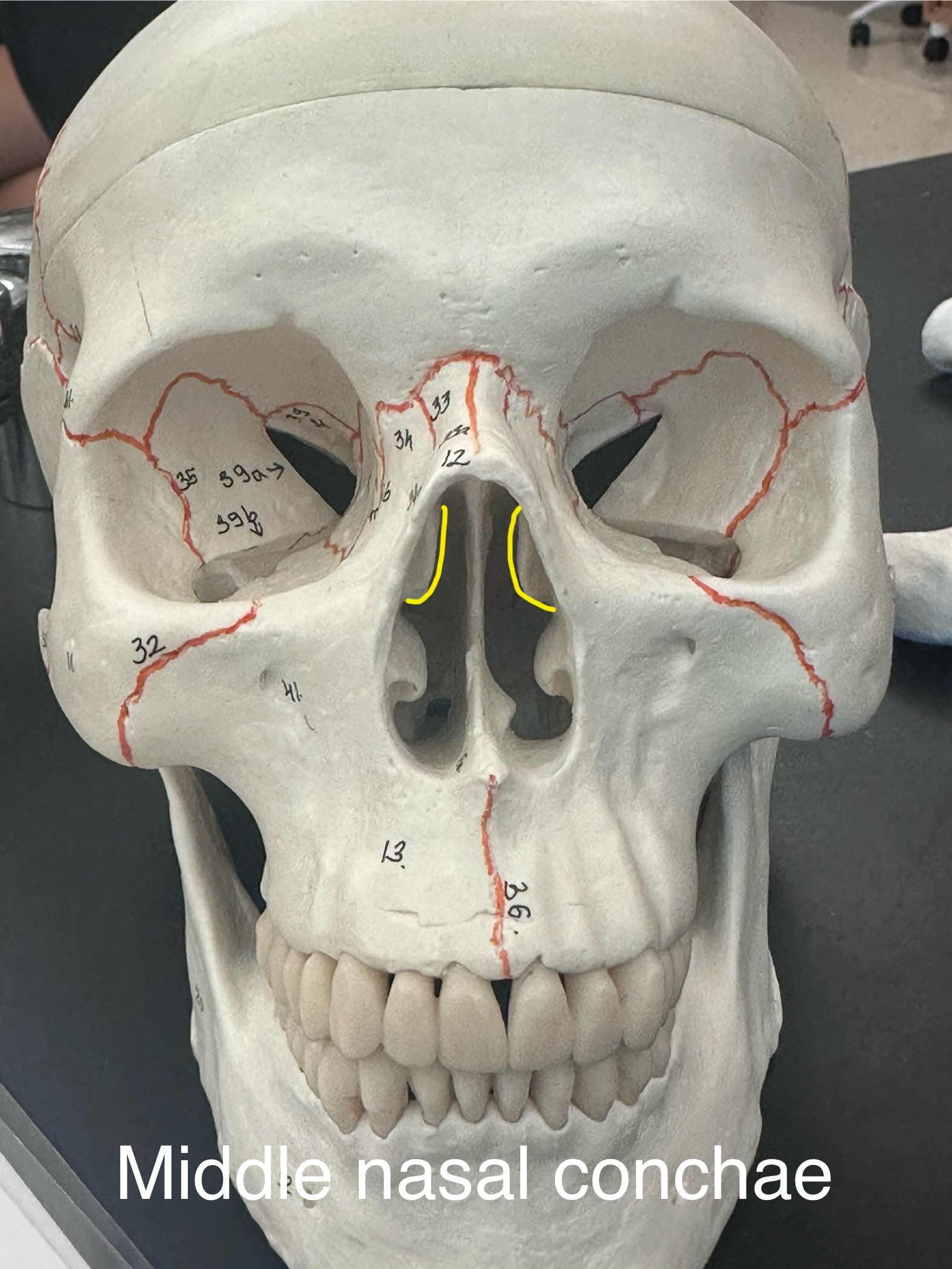

What is circled in yellow?
Middle Nasal Conchae

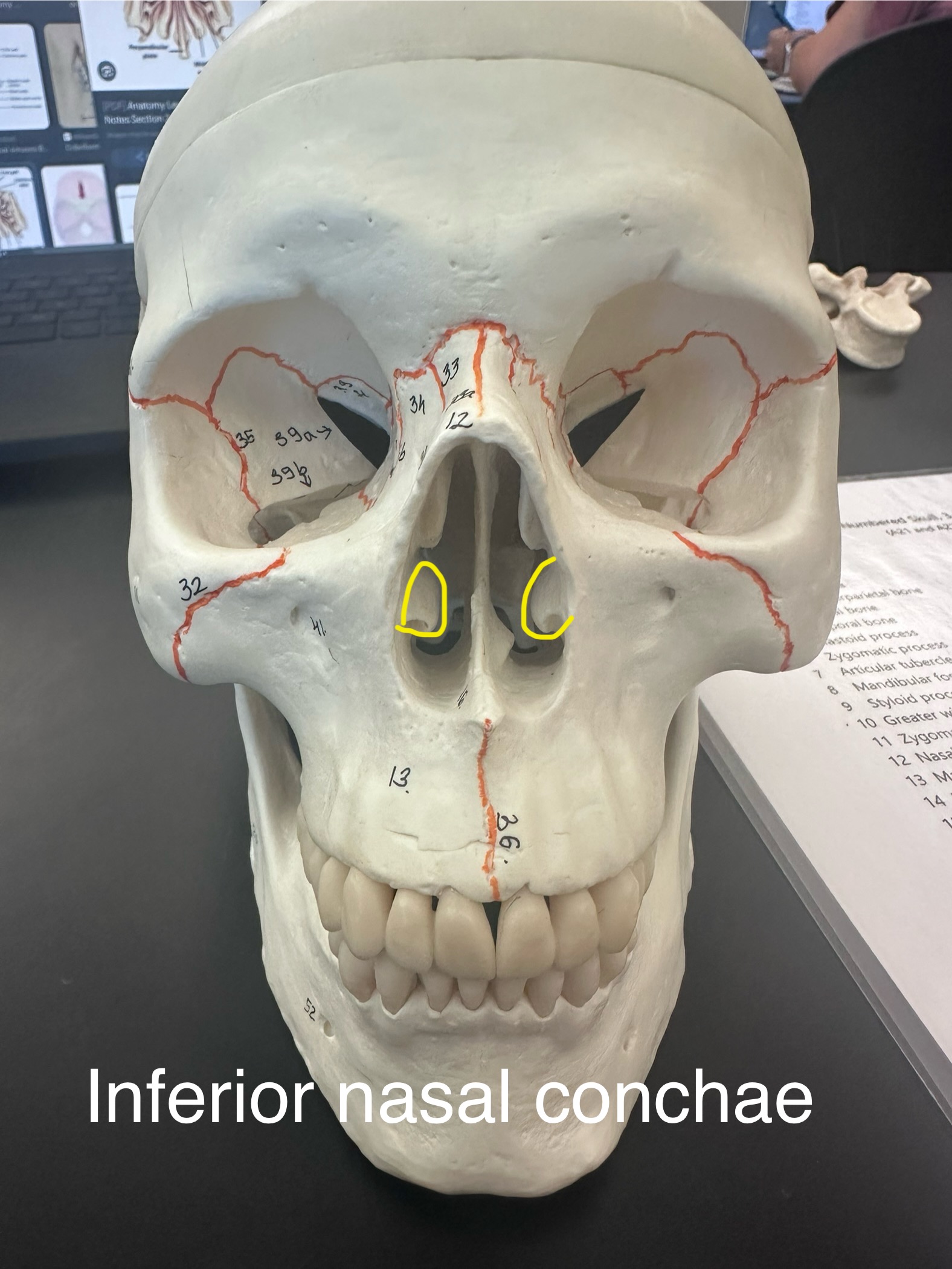

What is circled in yellow?
Inferior Nasal Conchae

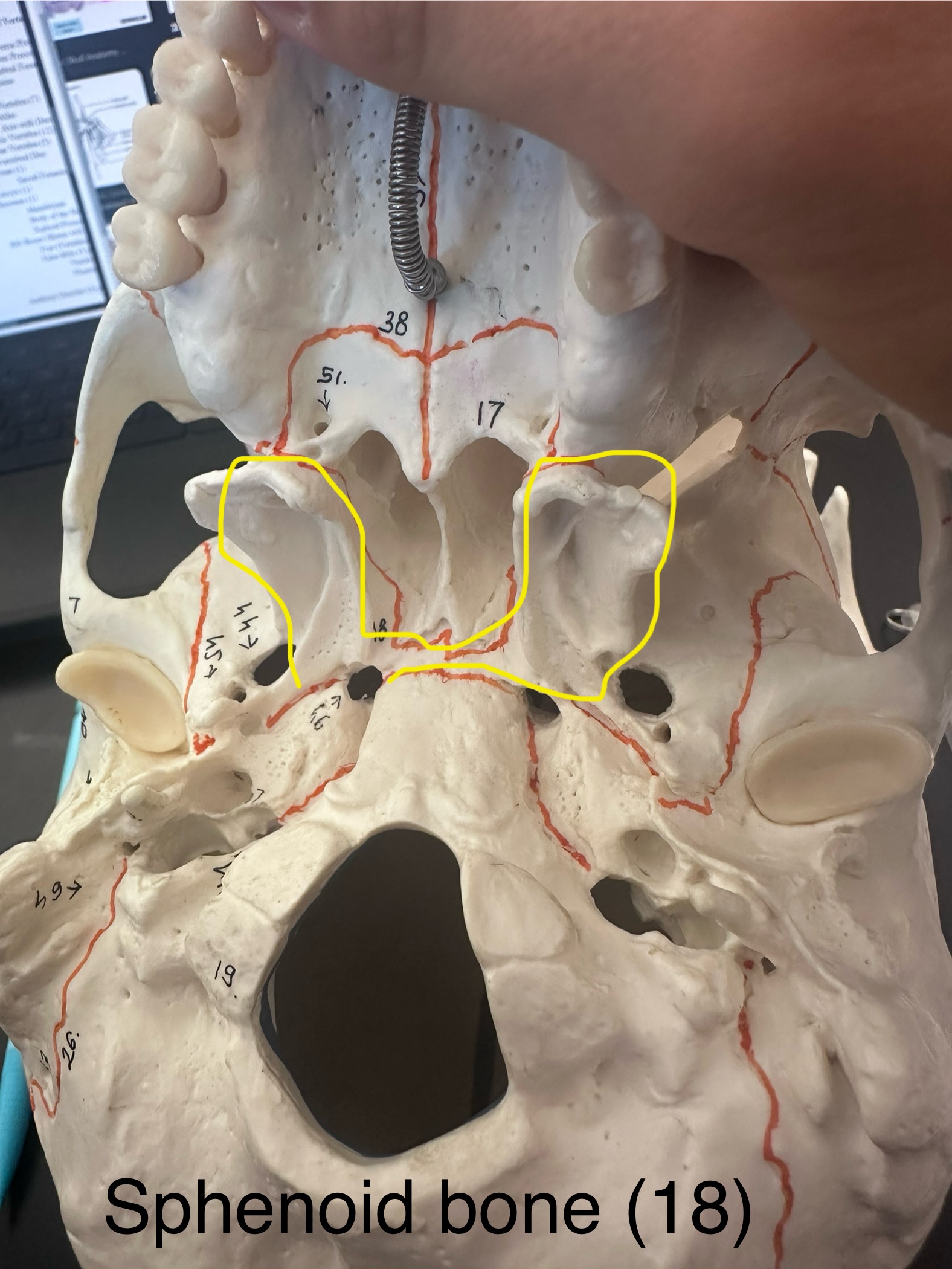

What is circled in yellow? Or labeled as 18?
Sphenoid Bone

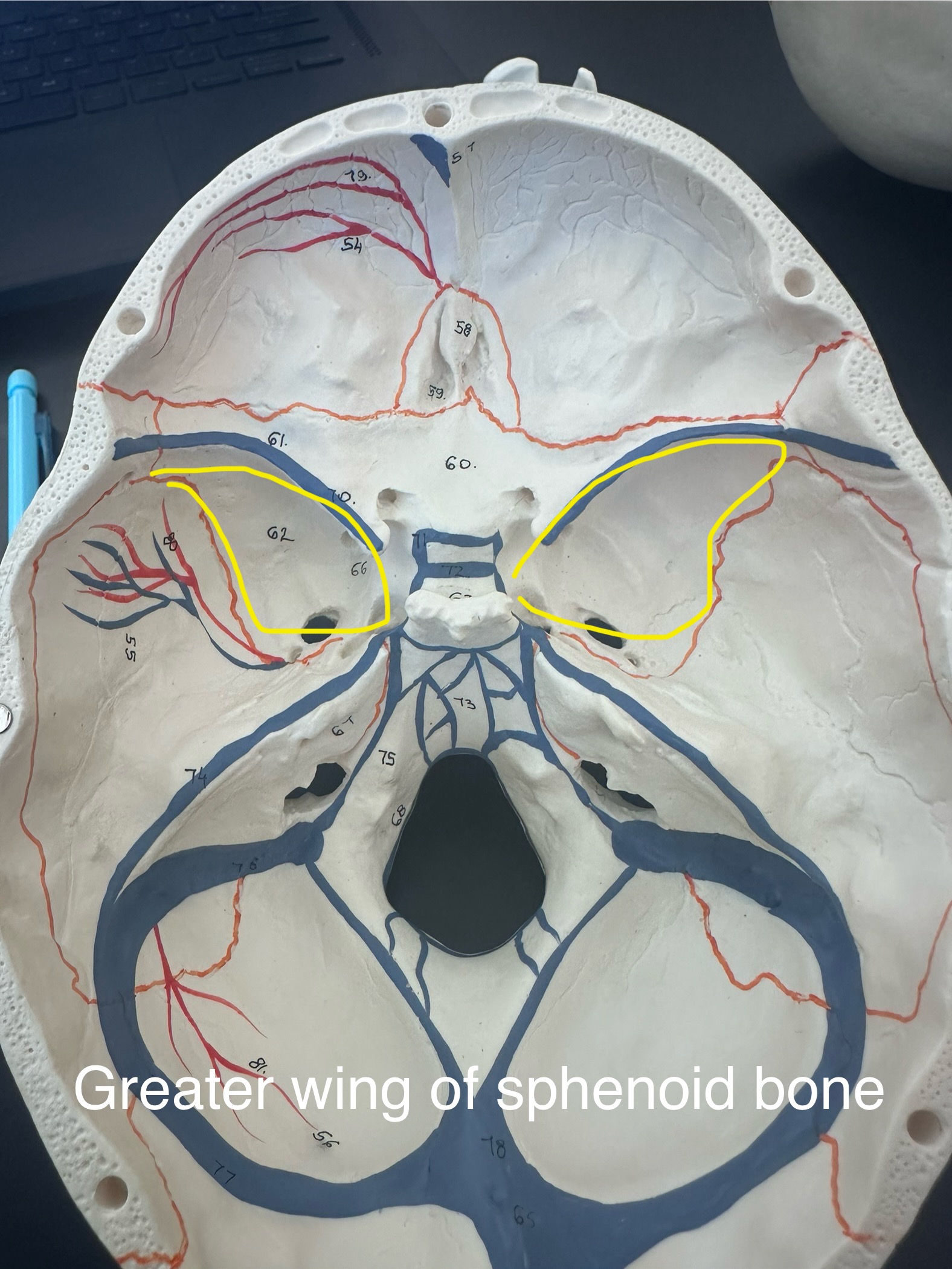

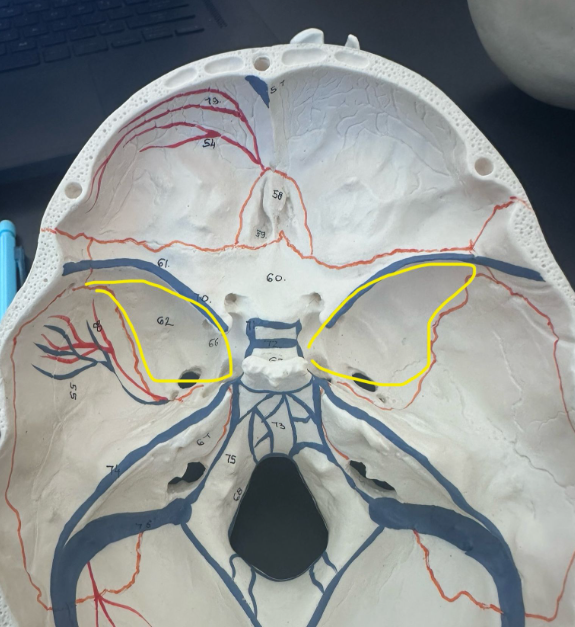

What is circled in yellow? Or labeled as 62?
Greater wing of sphenoid bone

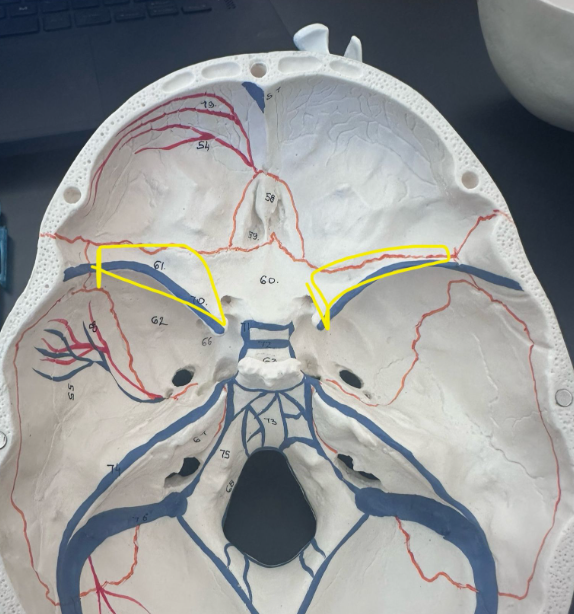

What is circled in yellow? Or labeled as 61?
Lesser wing of sphenoid bone

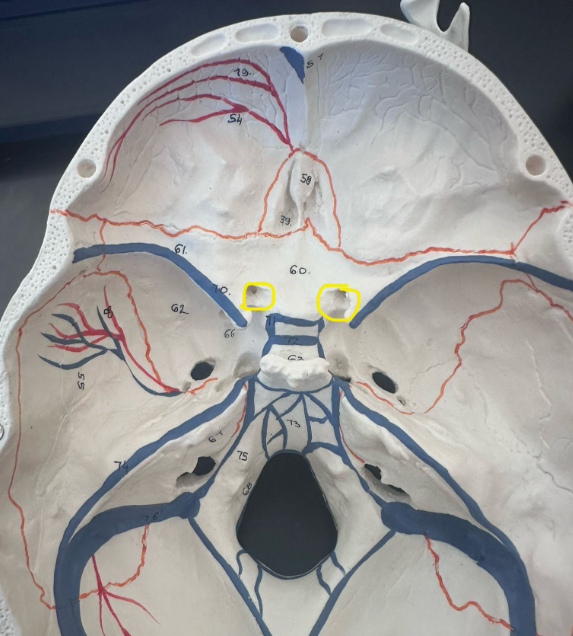

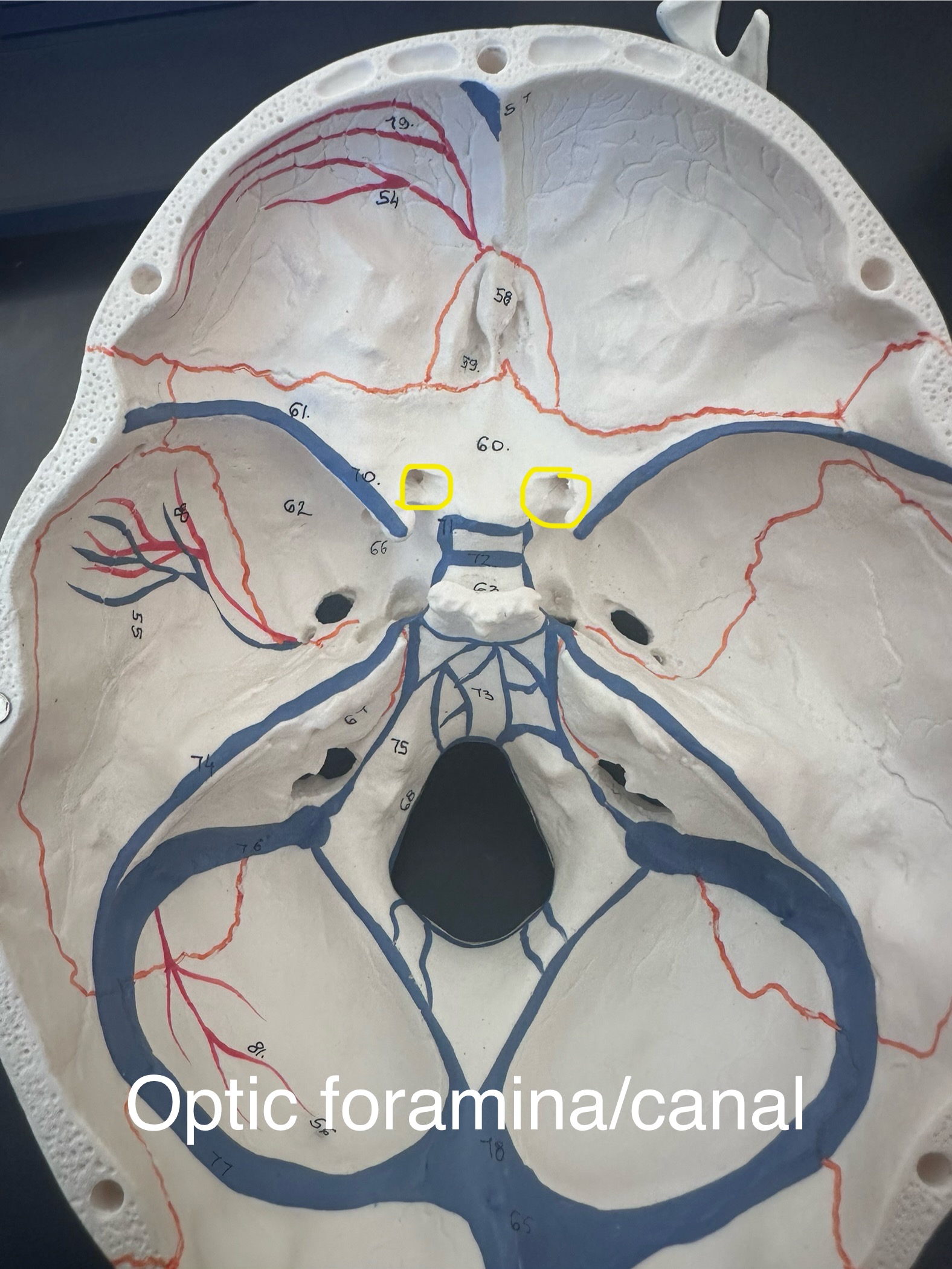

What is circled in yellow?
Optic Foramina (canal)

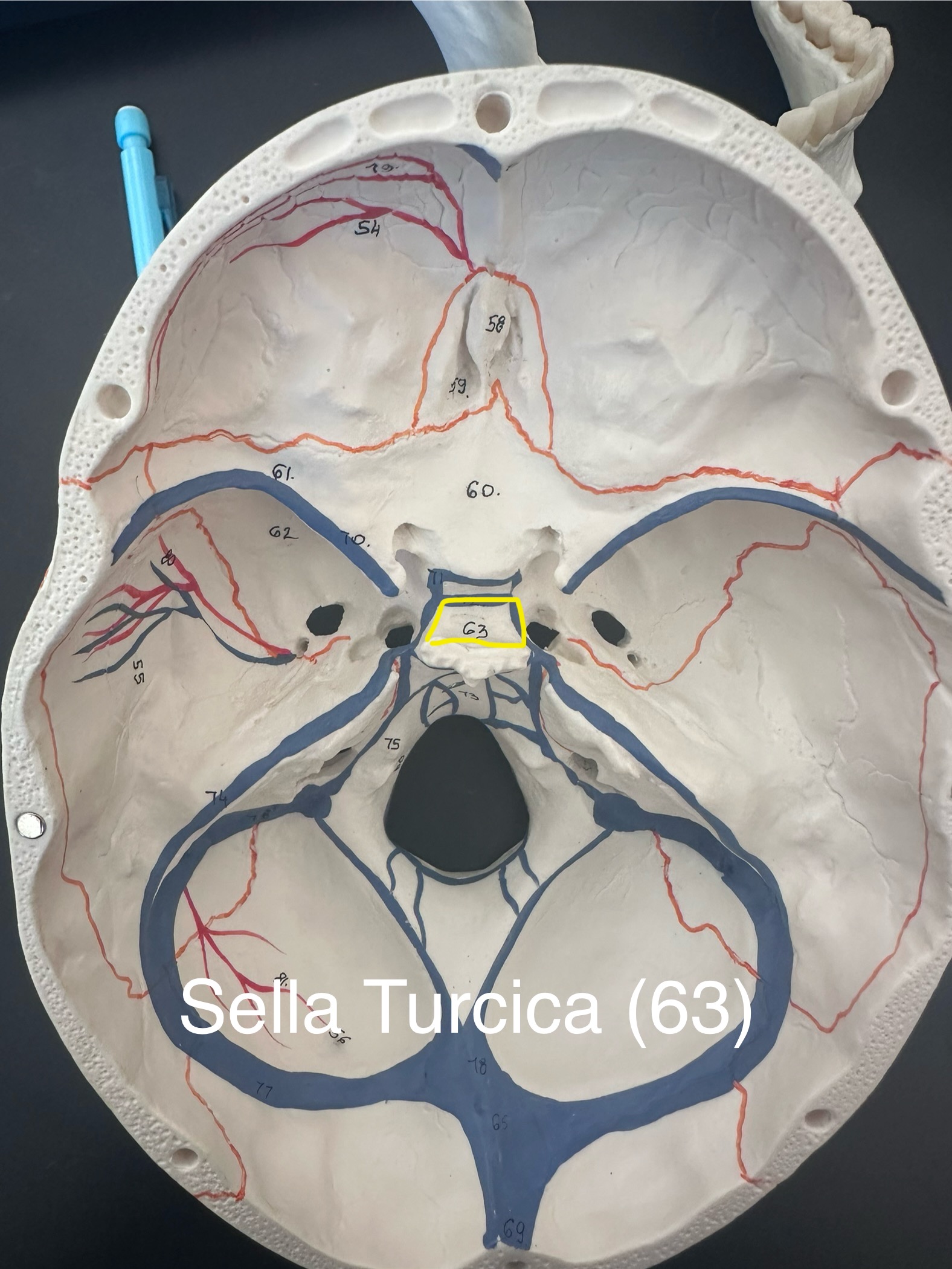

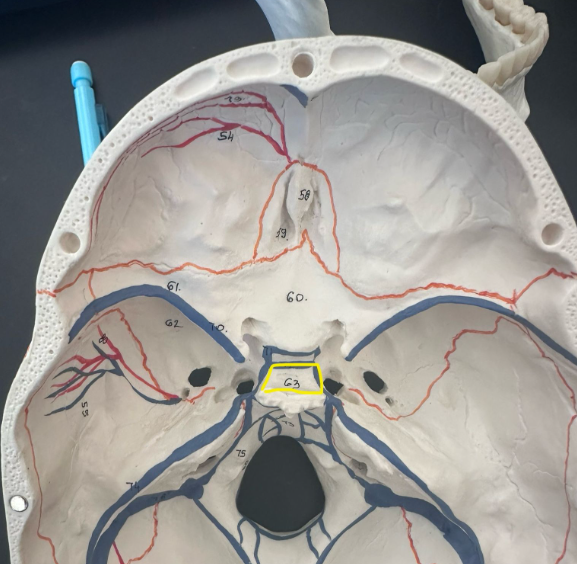

What is circled in yellow?
Sella Turcica

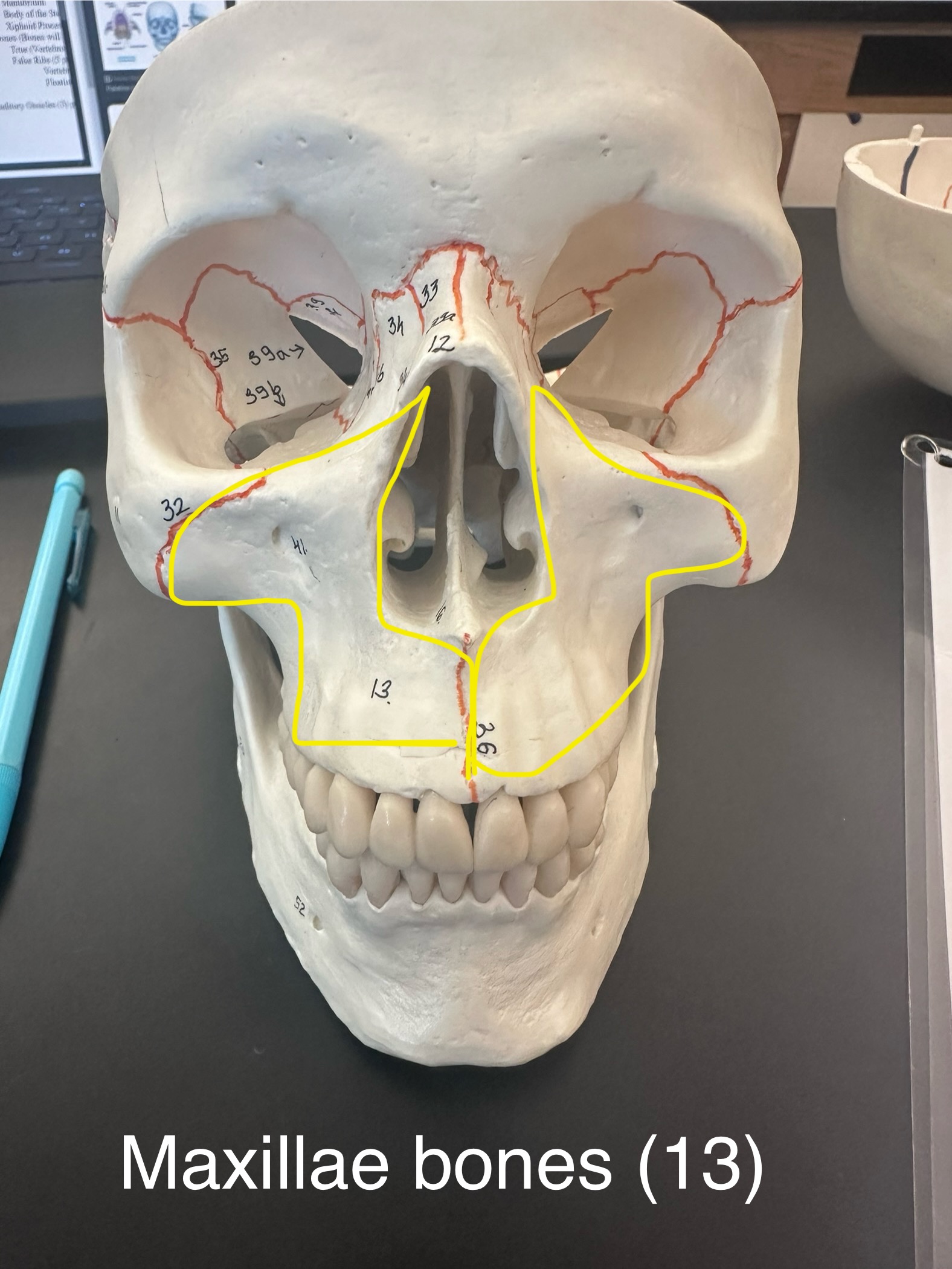

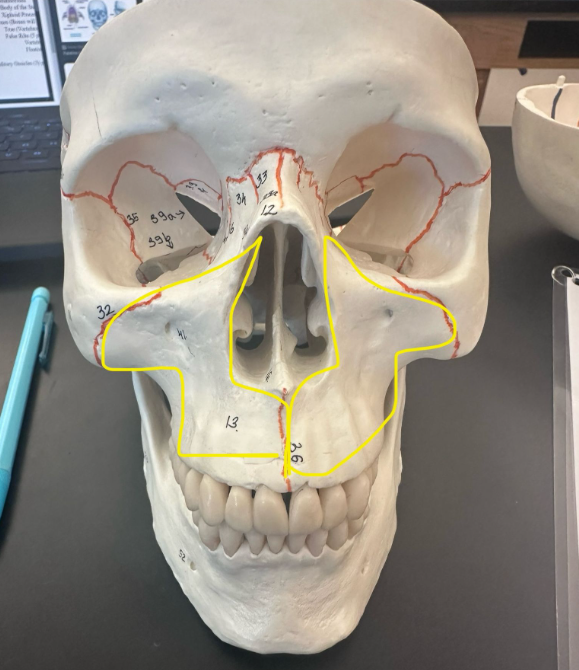

What is circled in yellow? Or labeled as 13?
Maxillae Bones

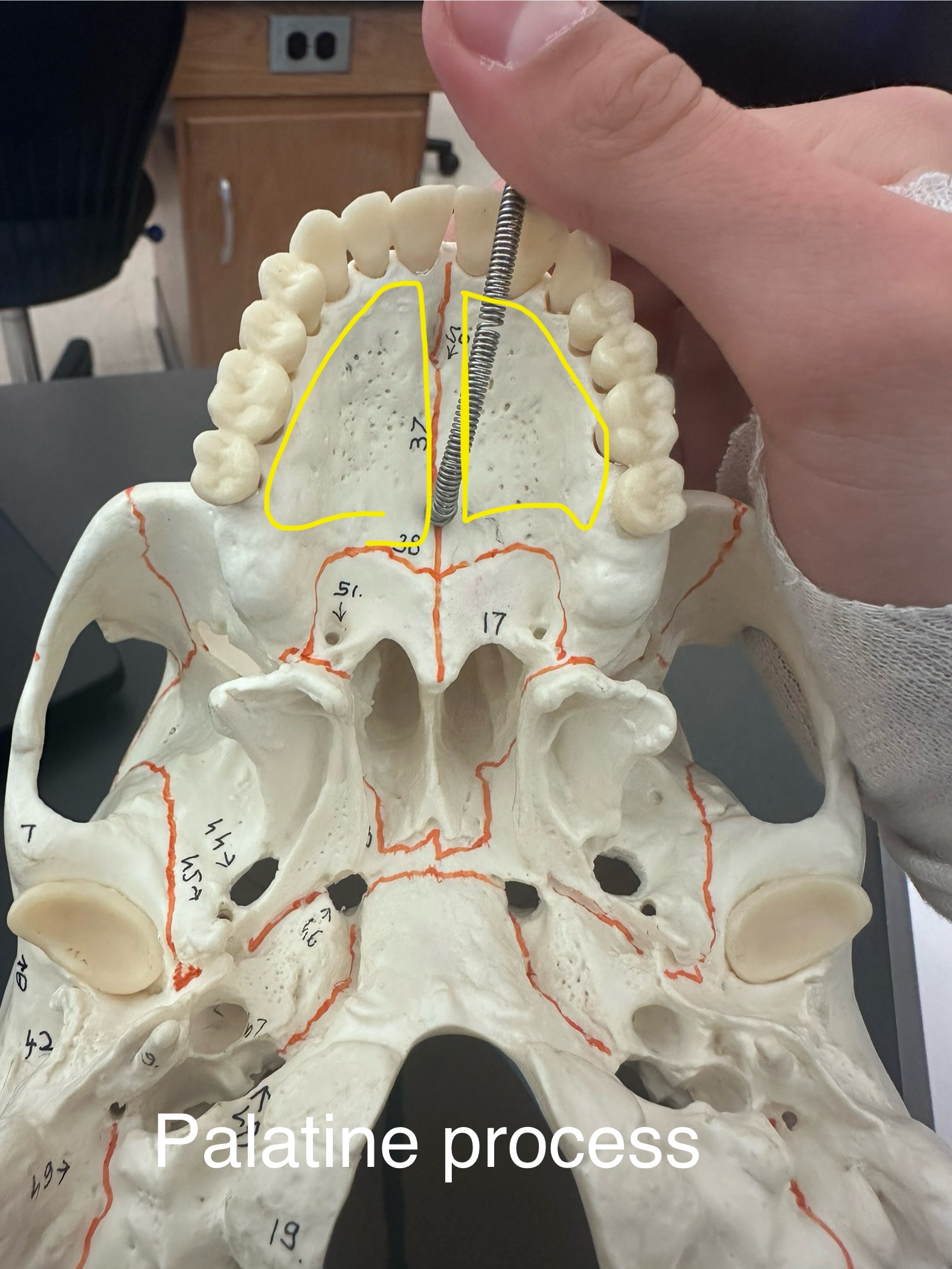

What is circled in yellow?
Palatine Process

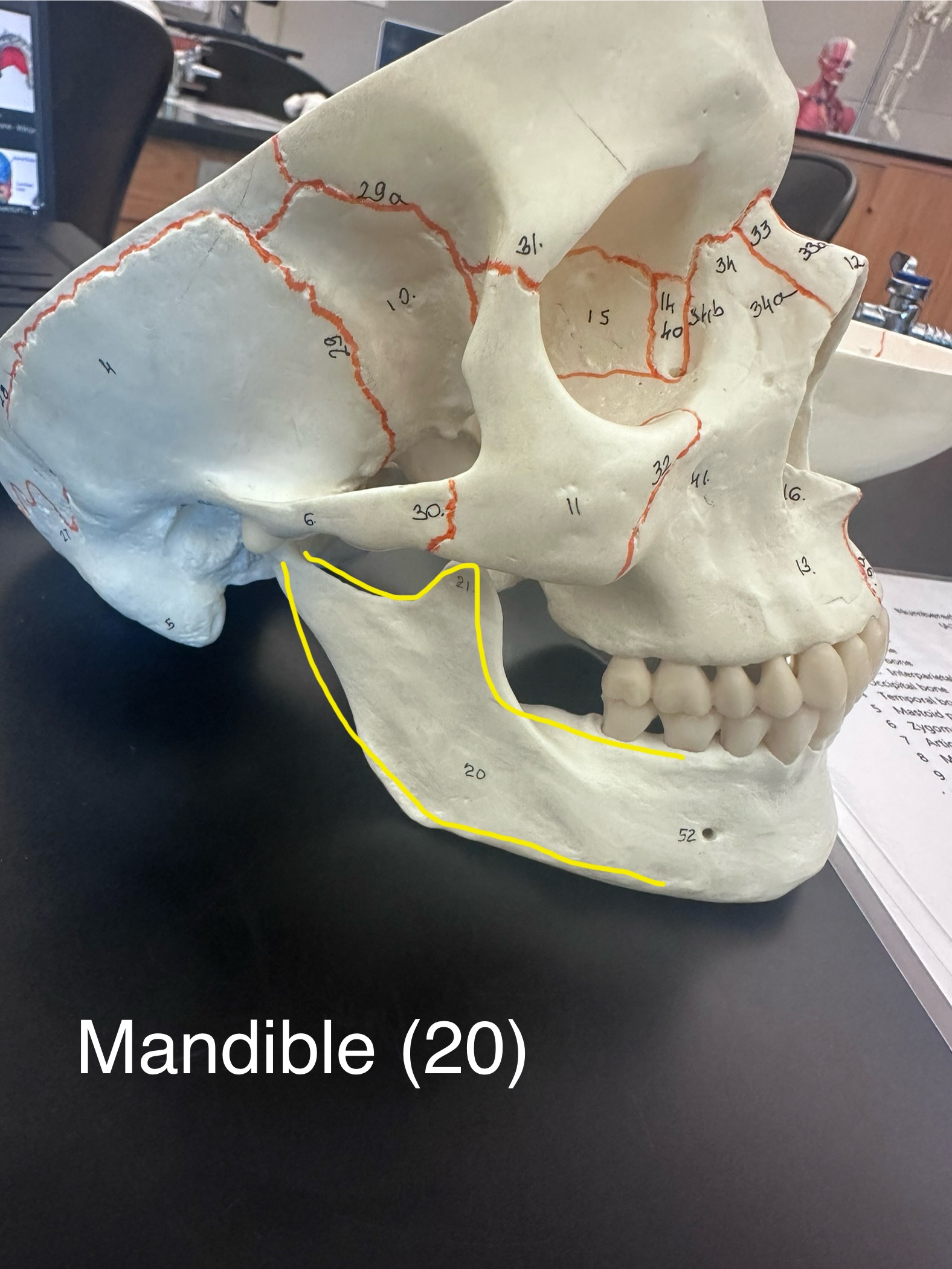

What is circled in yellow? Or labeled as 20?
Mandible

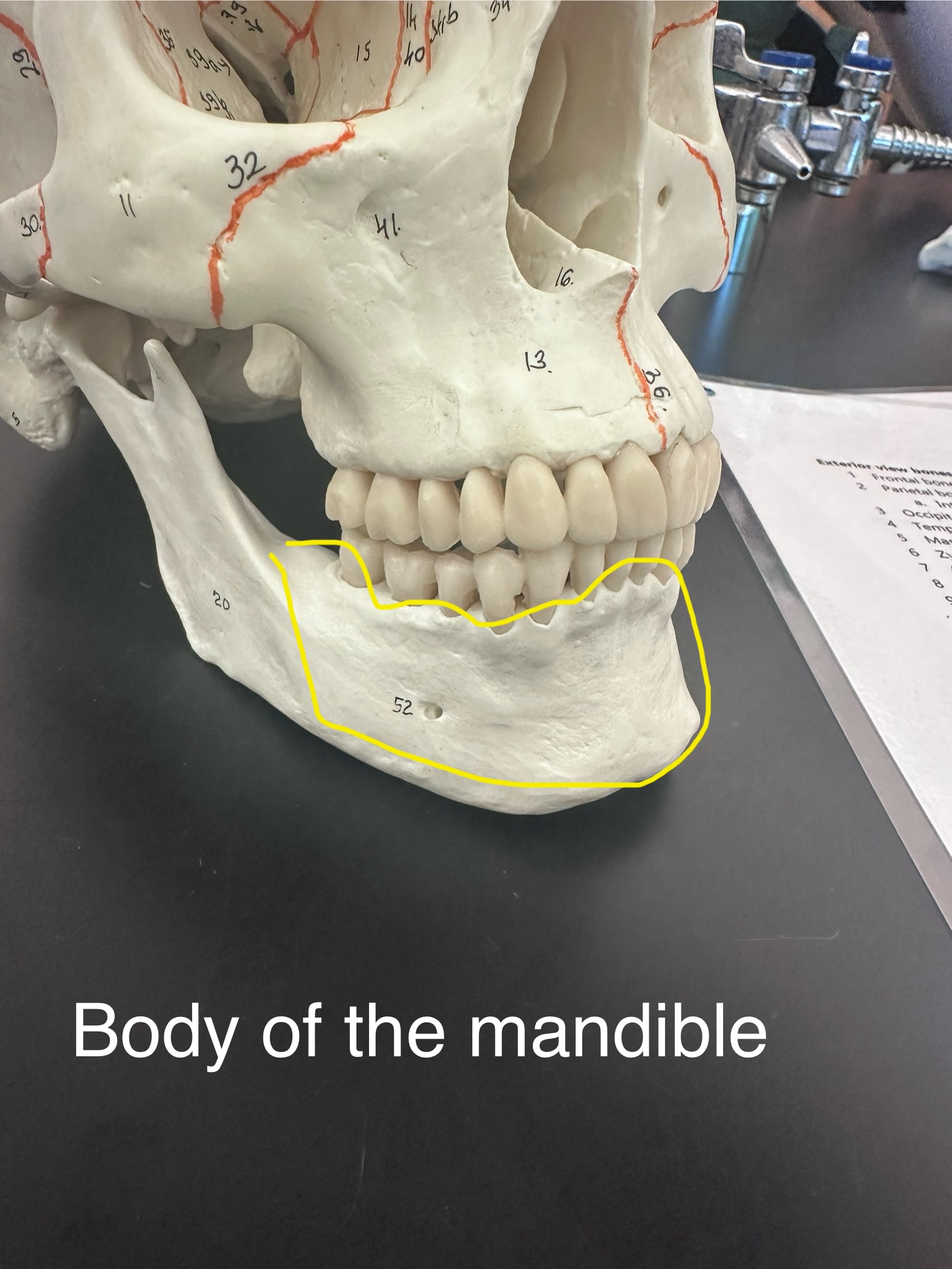

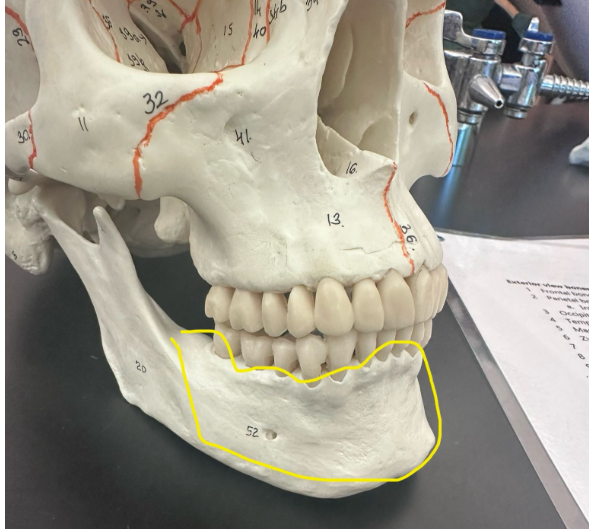

What is circled in yellow?
Body of the mandible

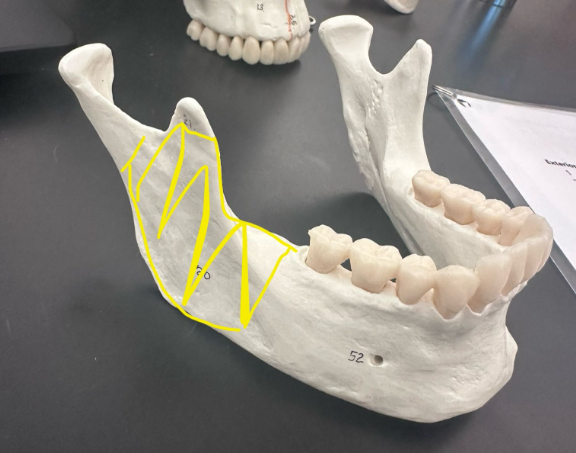

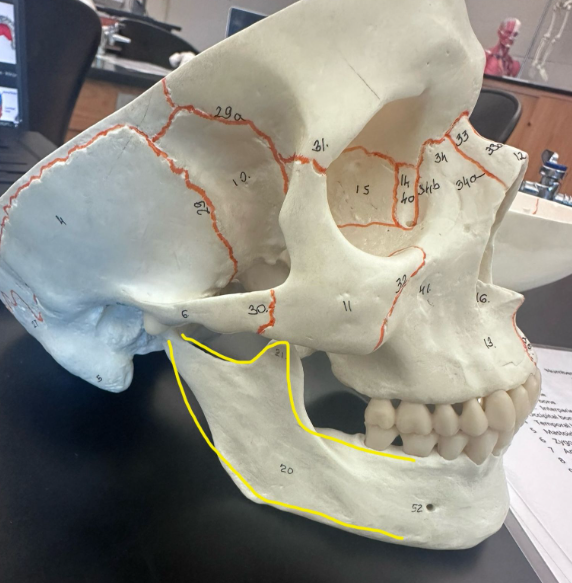

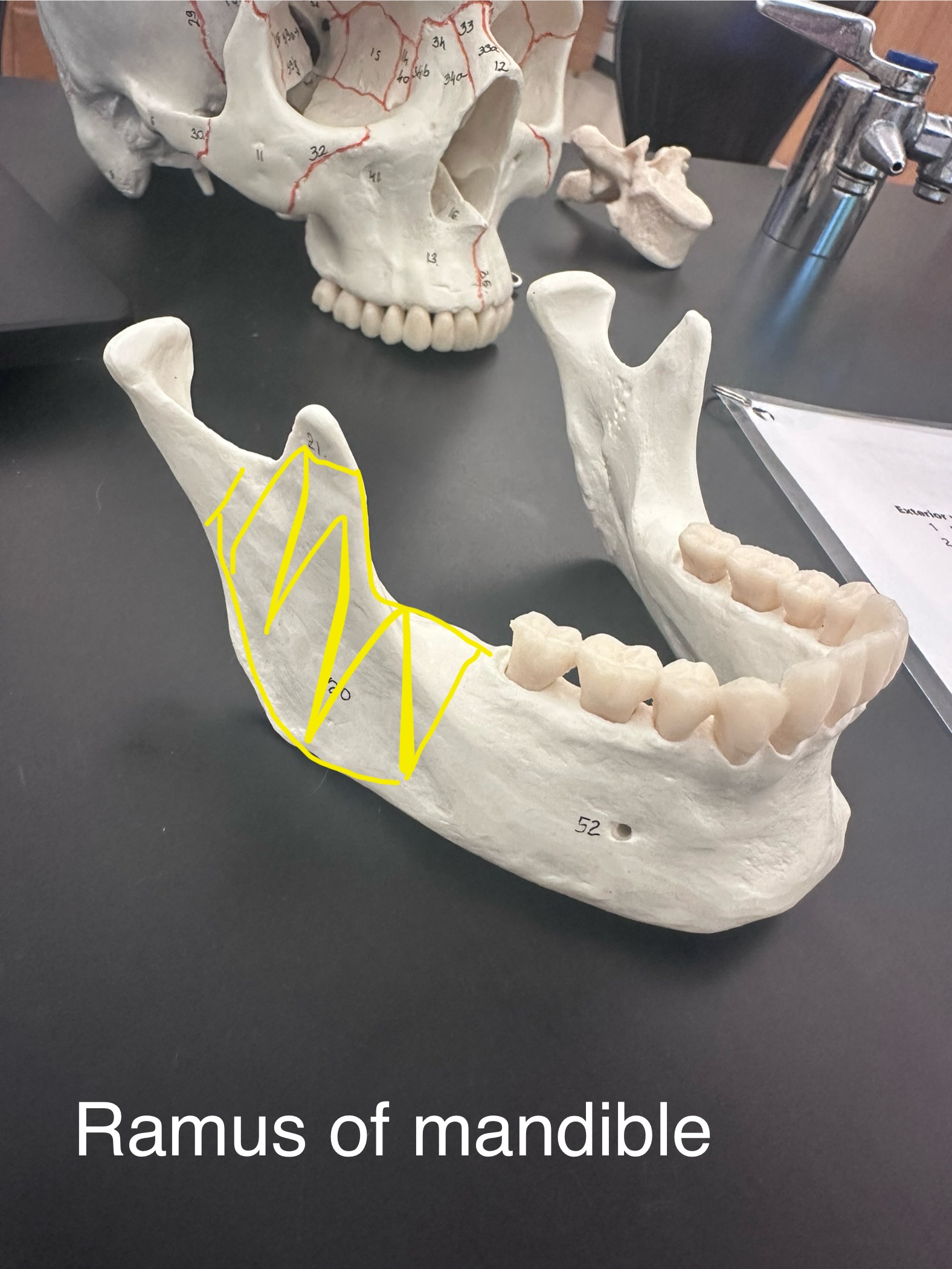

What is highlighted in yellow?
Ramus of mandible (rami for plural)

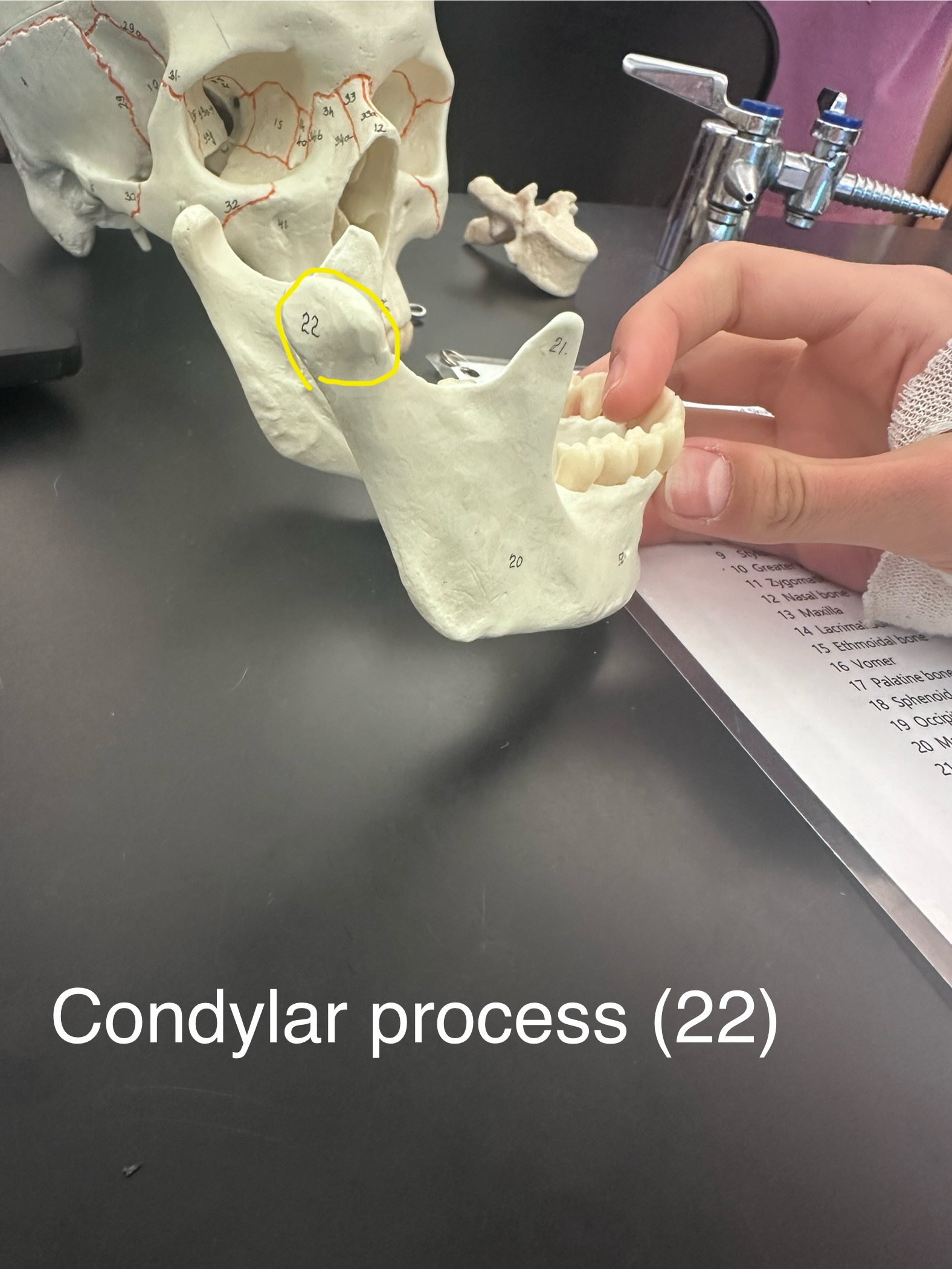

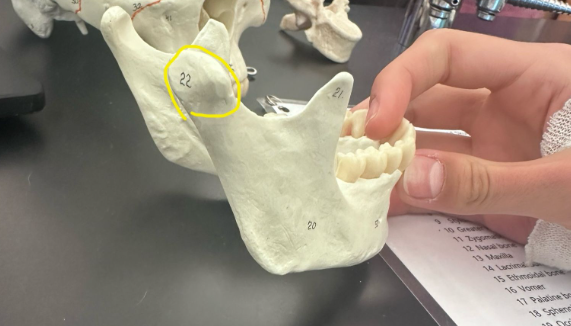

What is circled in yellow? Or labeled as 22?
Condylar processes (Mandibular Condyles)

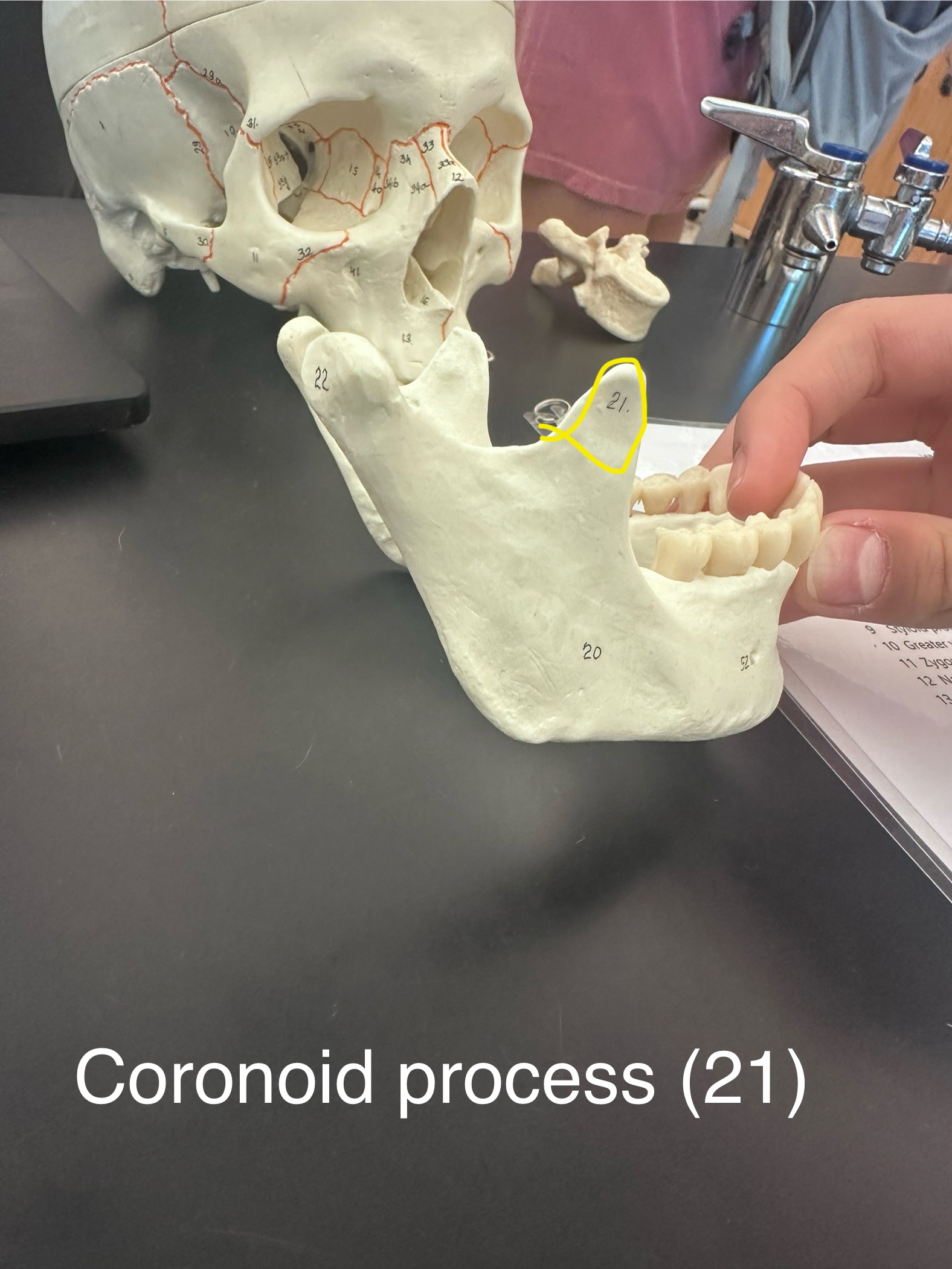

What is circled in yellow? Or labeled as 21?
Coronoid Processes of mandible

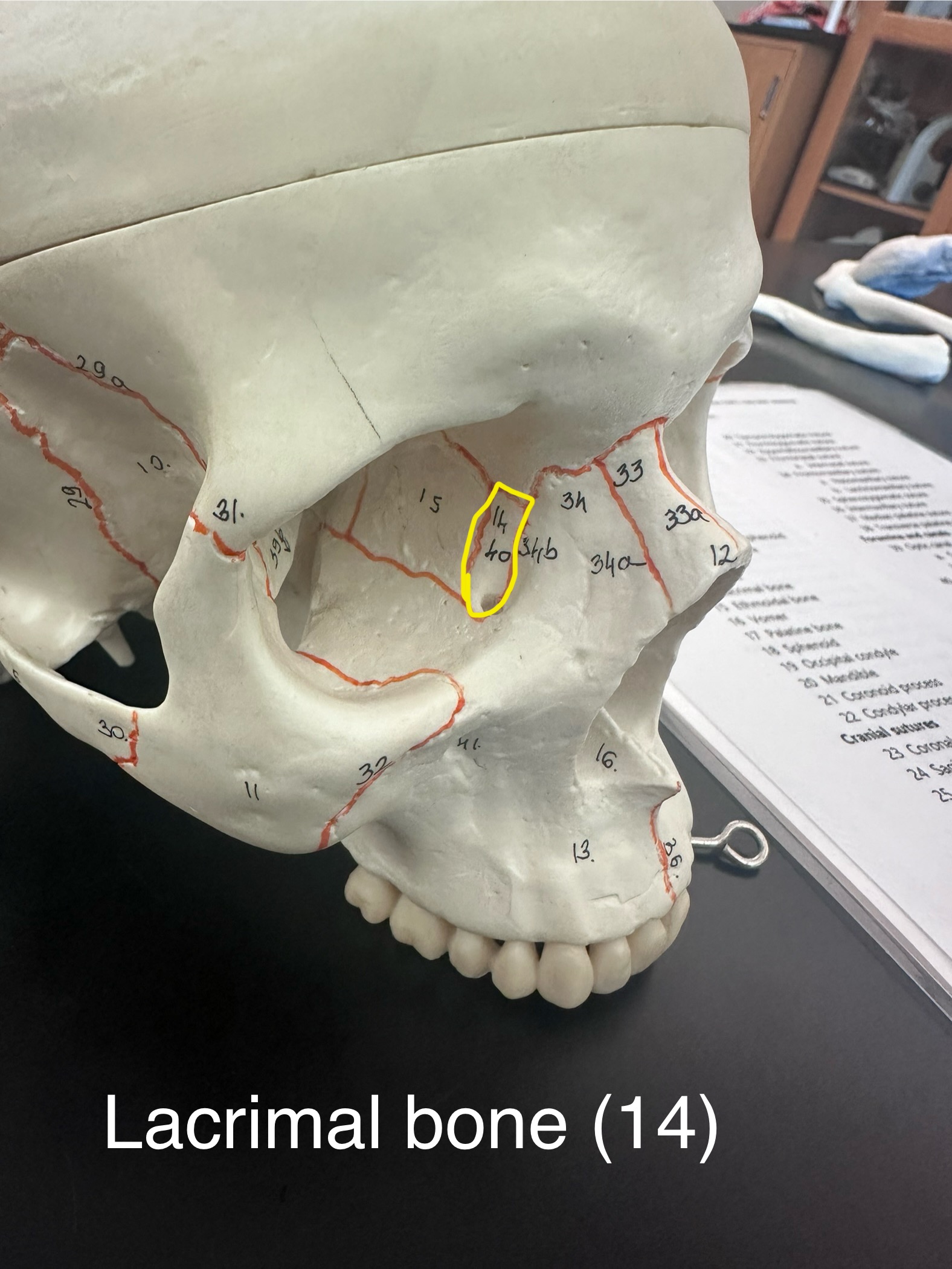

What is circled in yellow? Or labeled as 14?
Lacrimal Bone

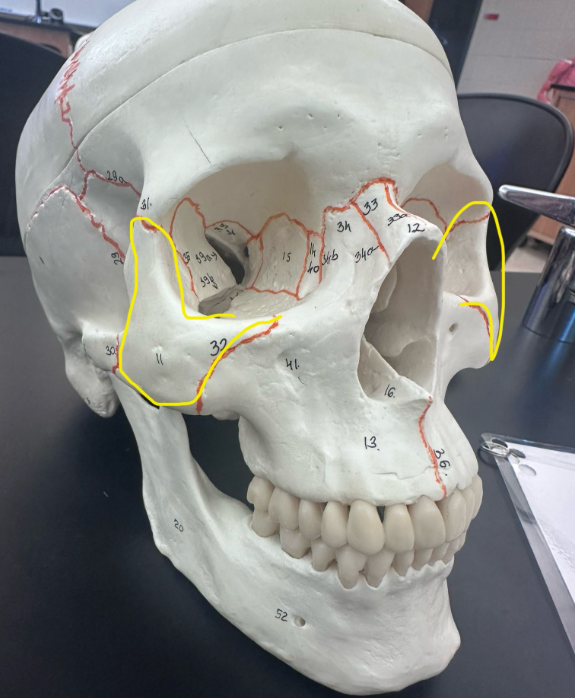

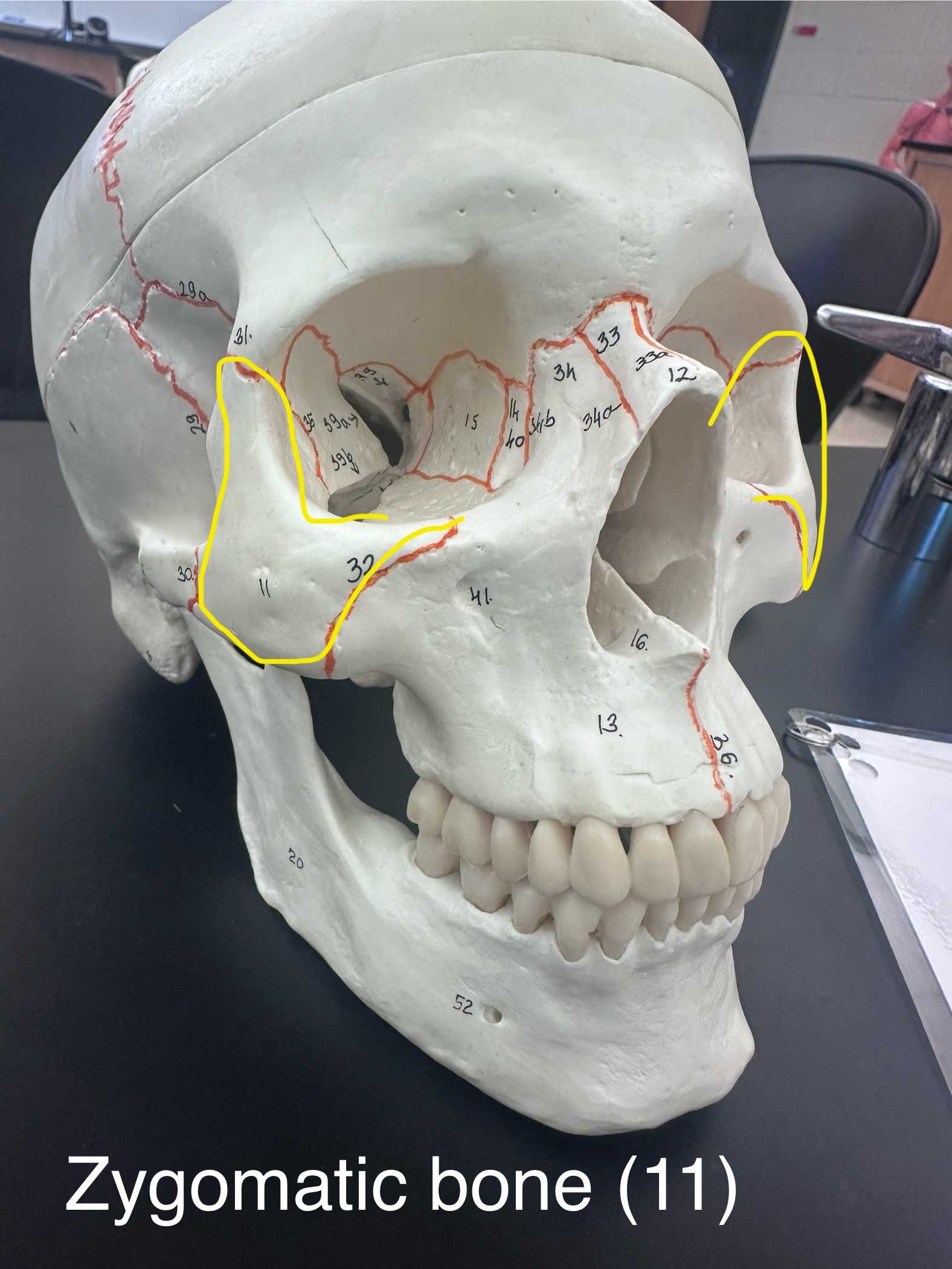

What is circled in yellow? Or labeled as 11?
Zygomatic Bone

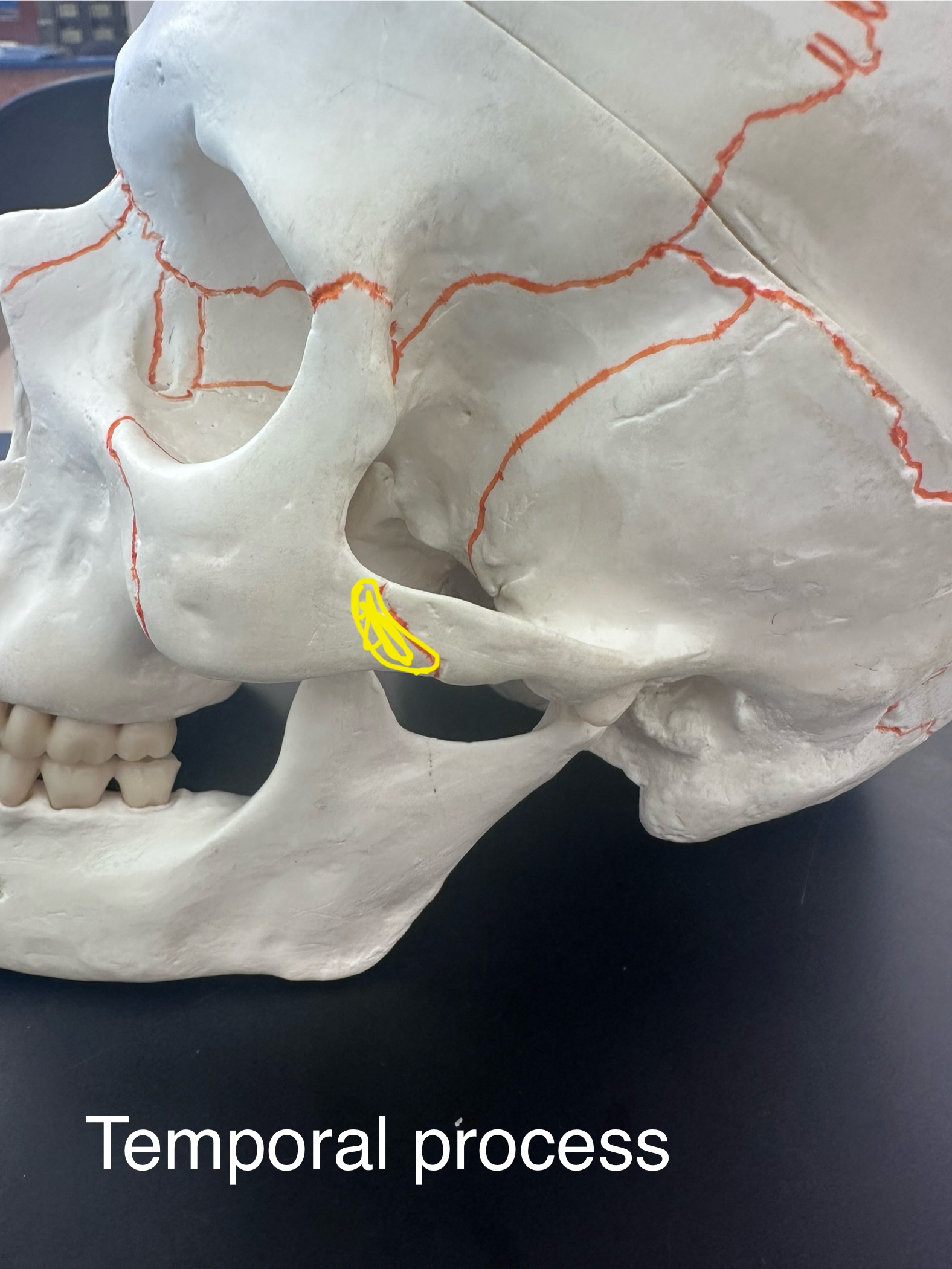

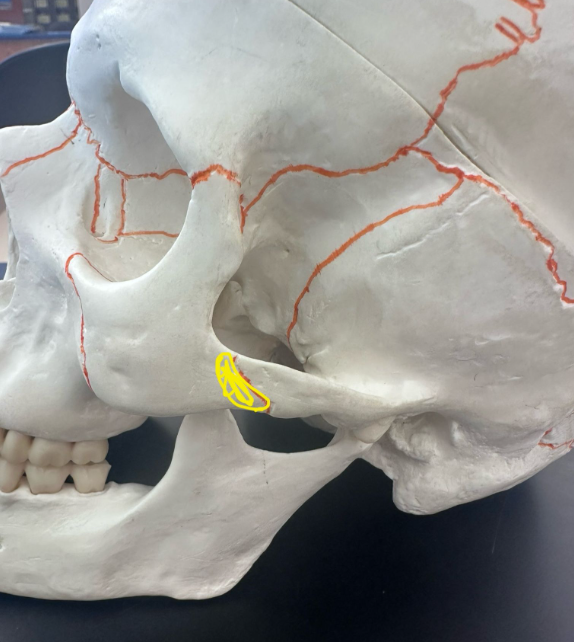

What is highlighted in yellow?
Temporal Process

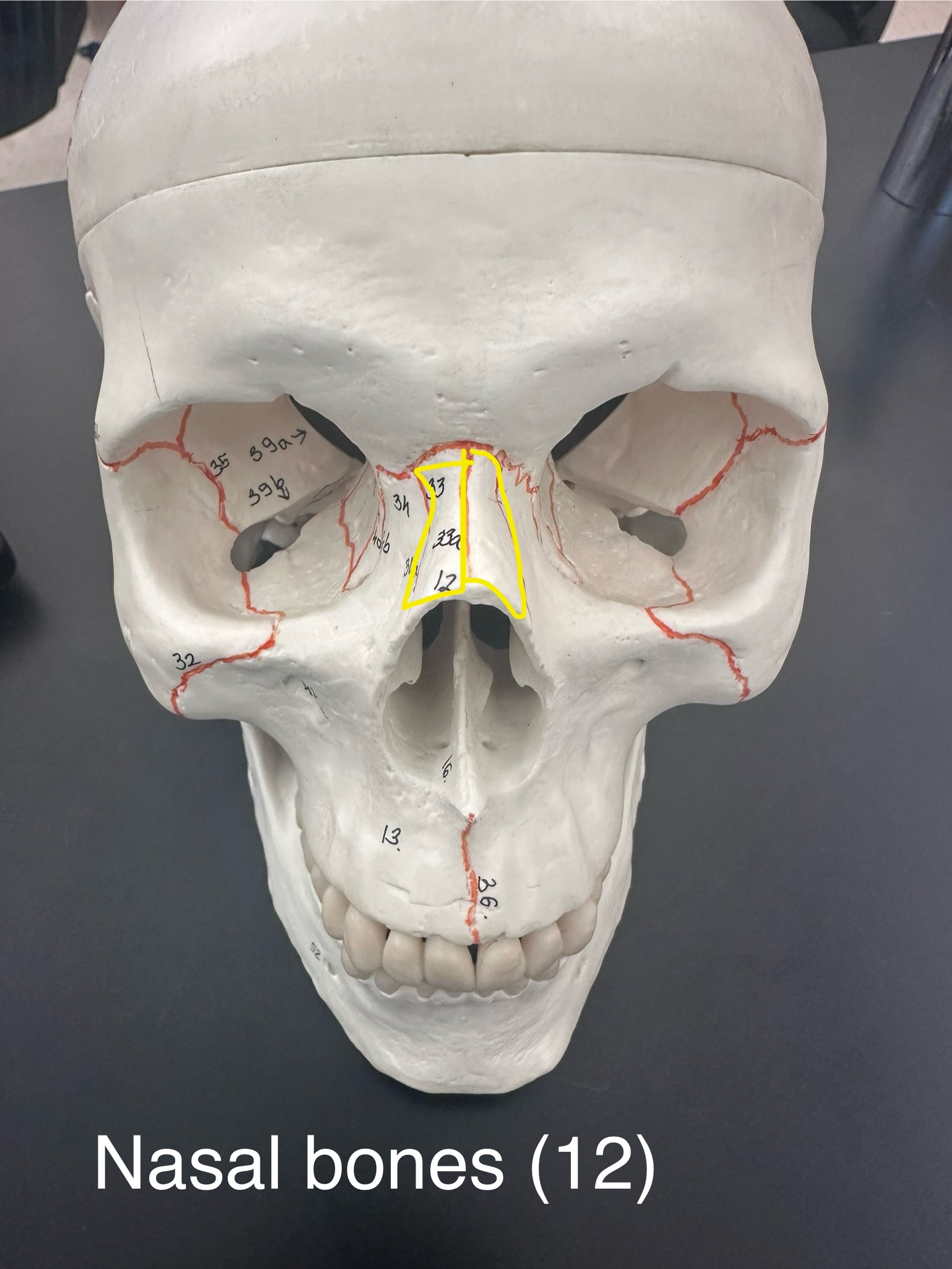

What is highlighted in yellow? Or labeled as 12?
Nasal Bones

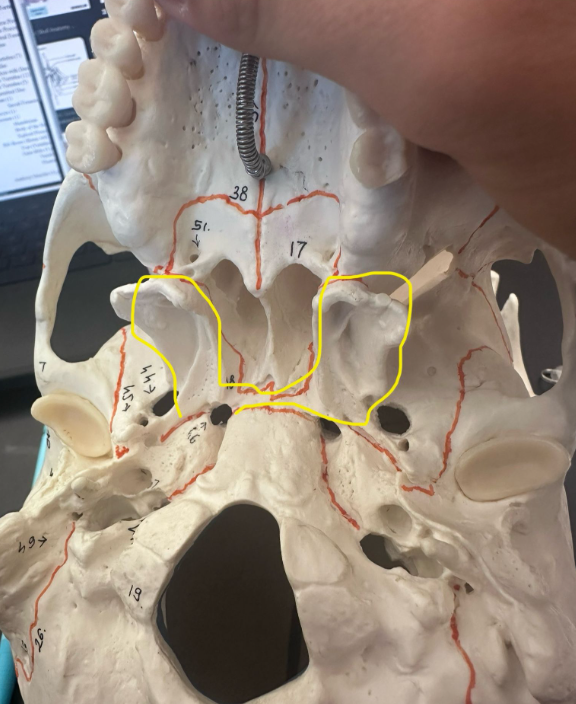

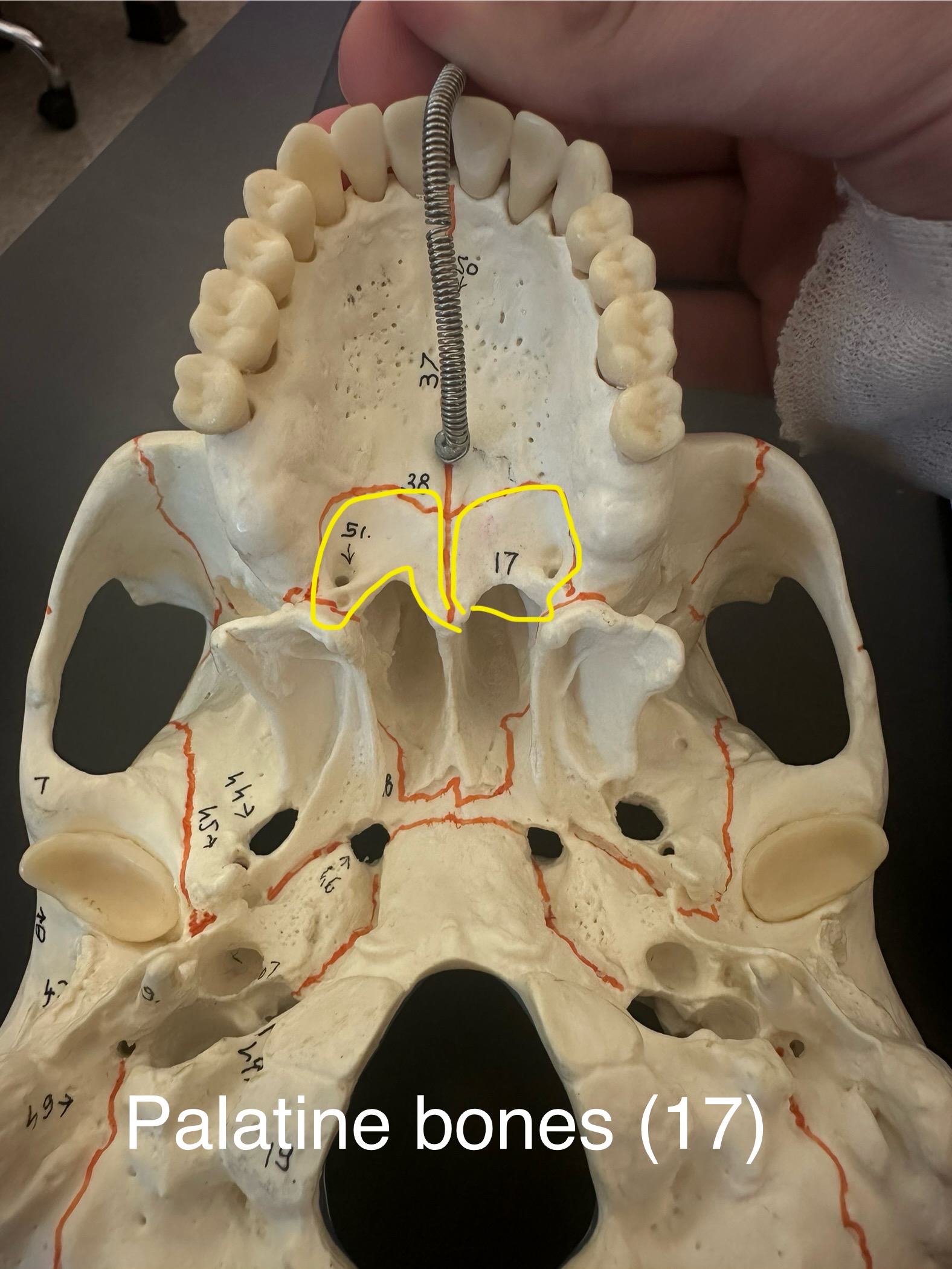

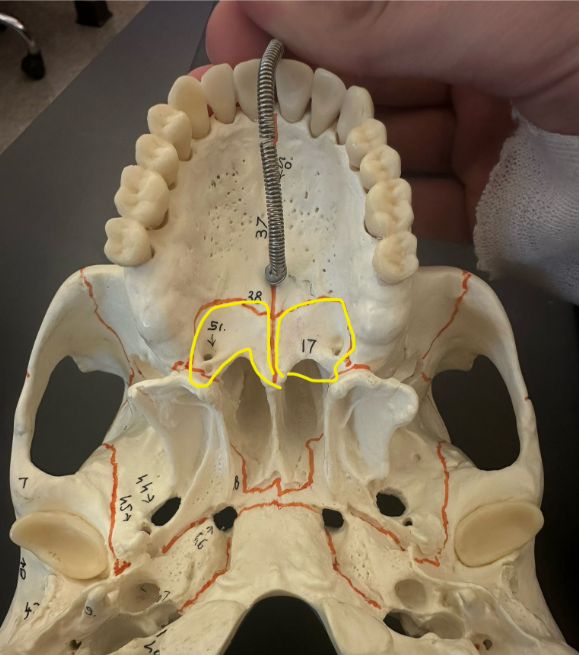

What is circled in yellow? Or labeled as 17?
Palatine Bones

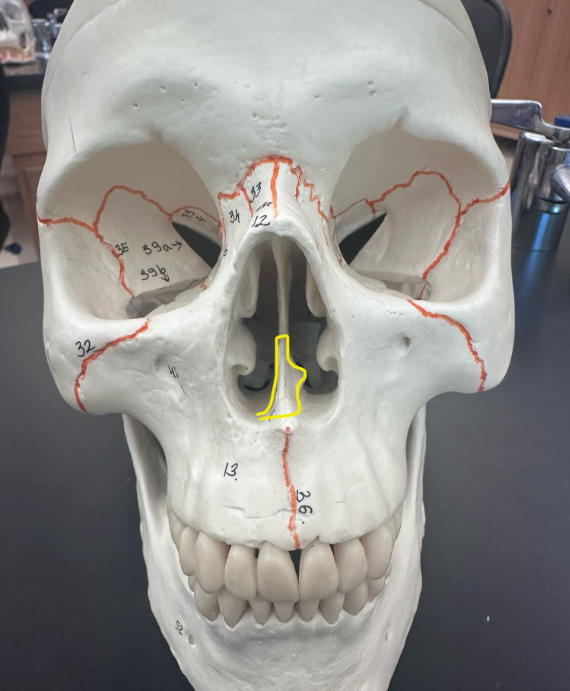

What is circled in yellow?
Vomer Bone
What is this?
Hyoid Bone

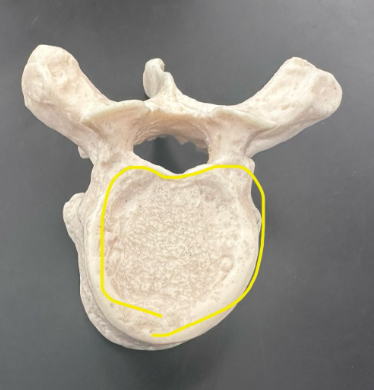

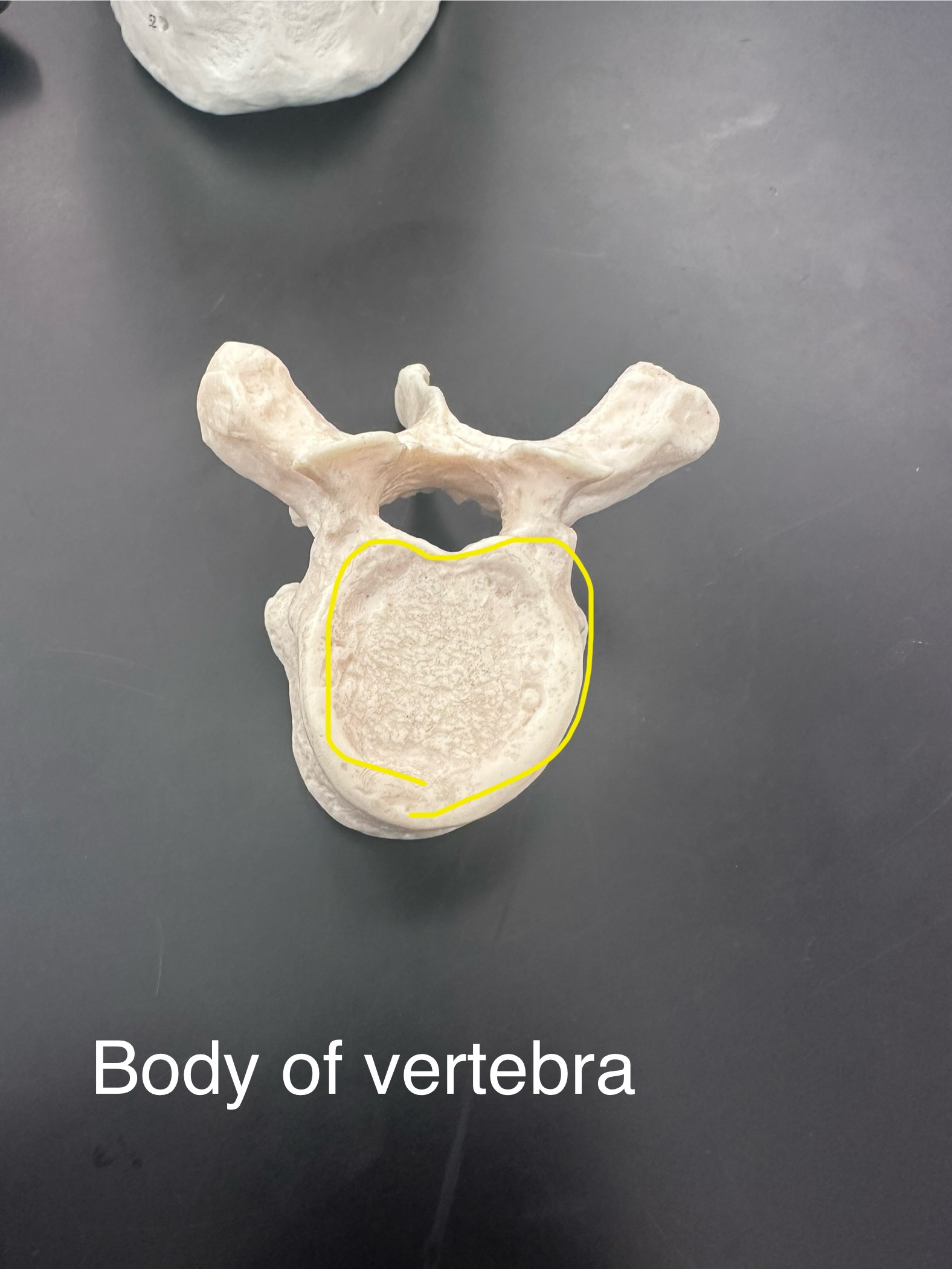

What is circled in yellow?
Body of vertebra

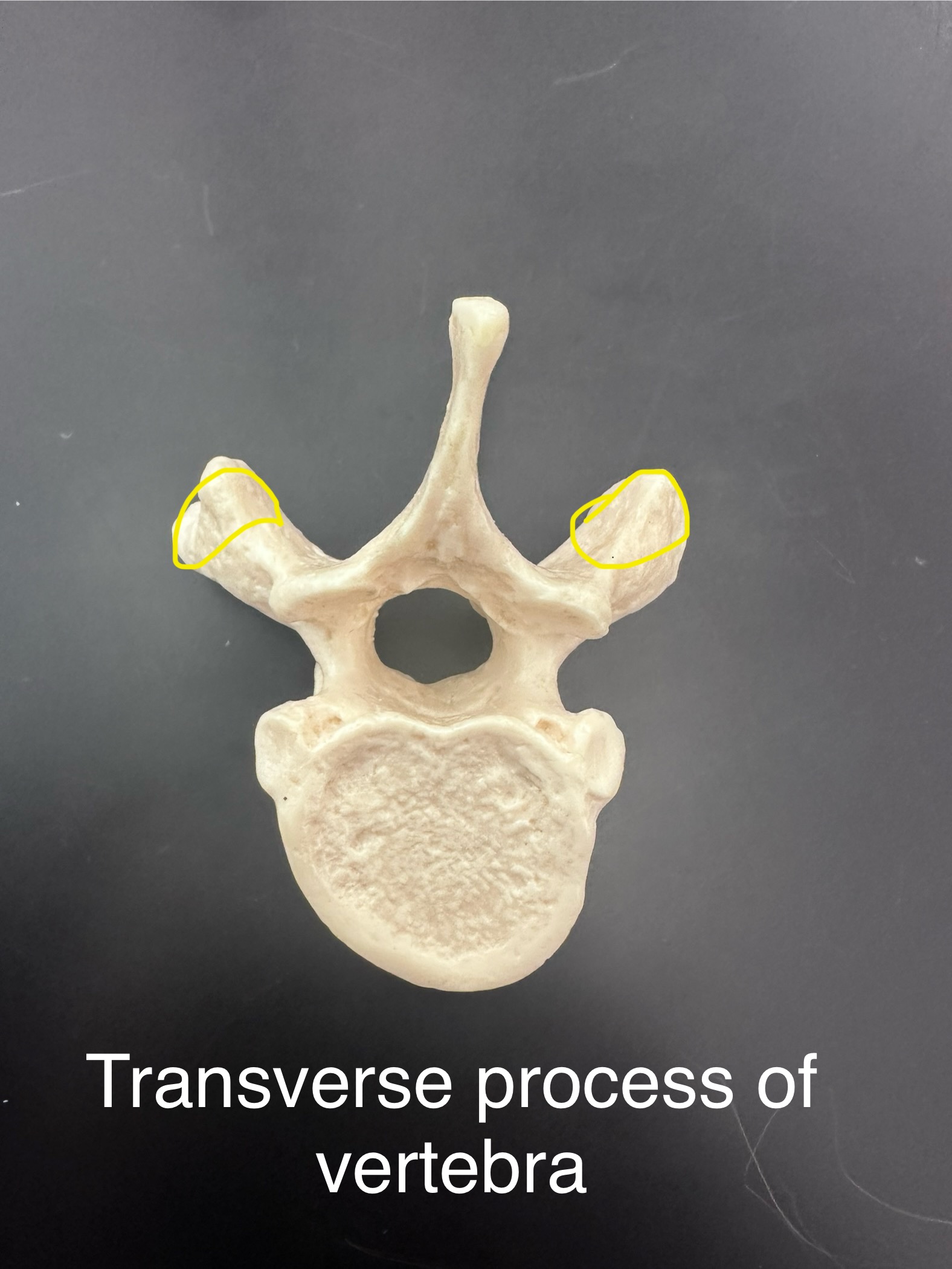

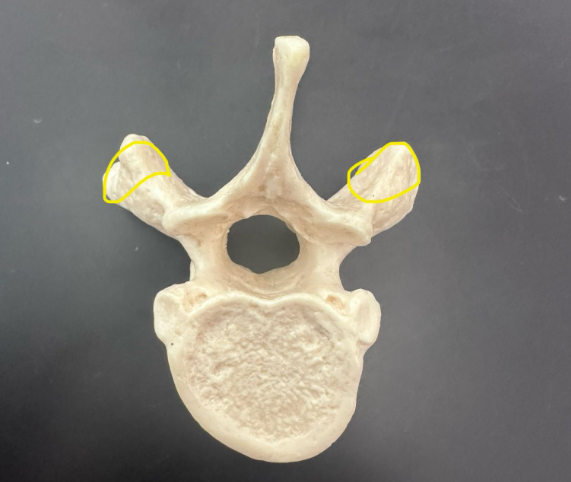

What is circled in yellow?
Transverse Process

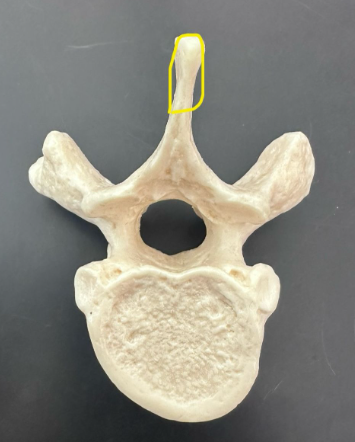

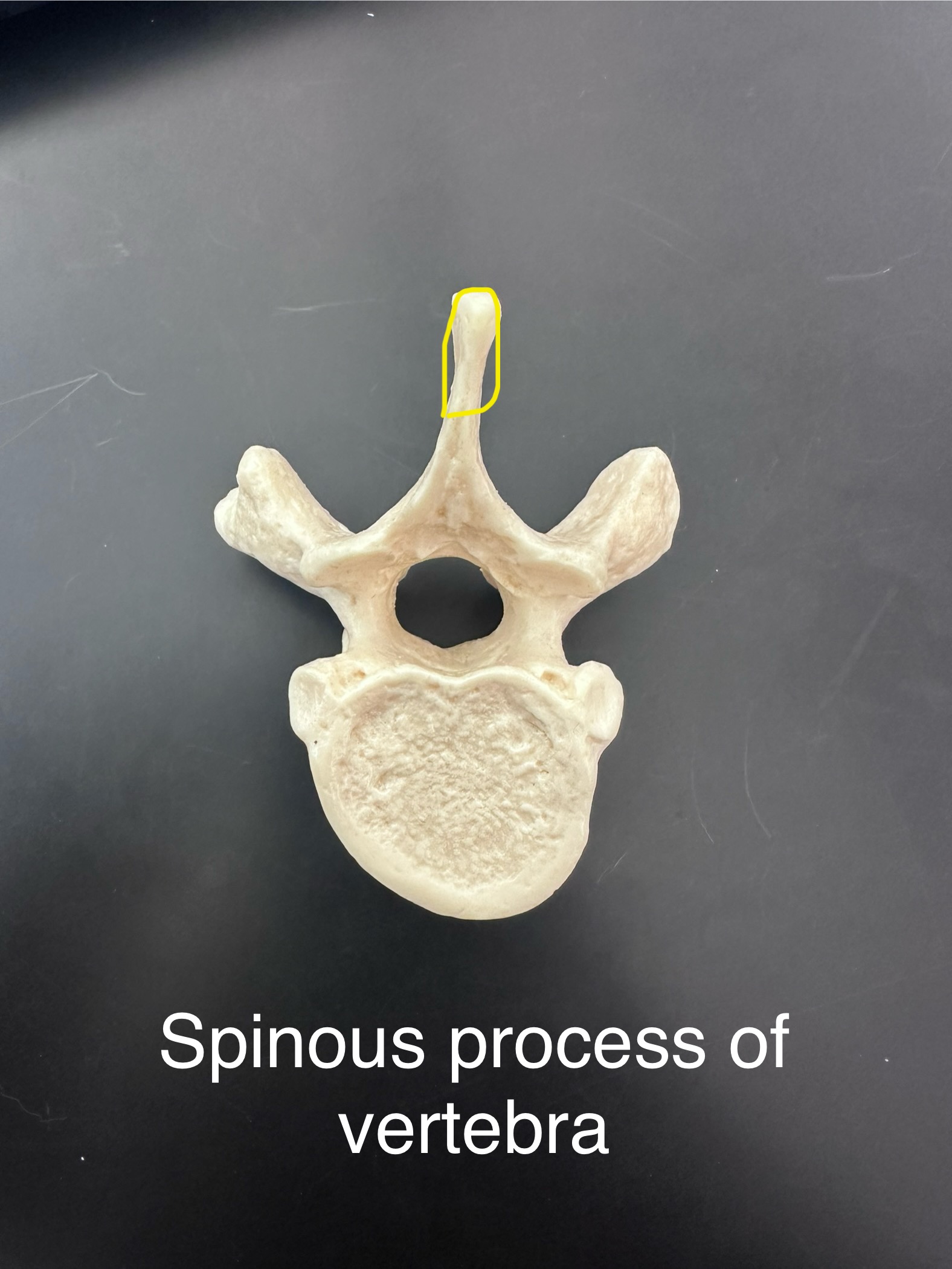

What is circled in yellow?
Spinous process

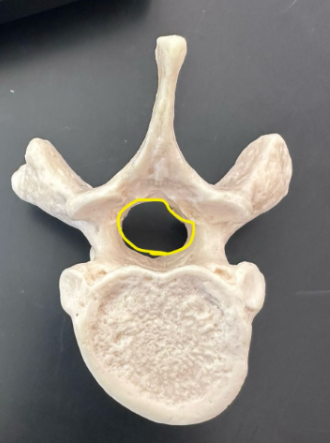

What is circled in yellow?
Vertebral Foramen

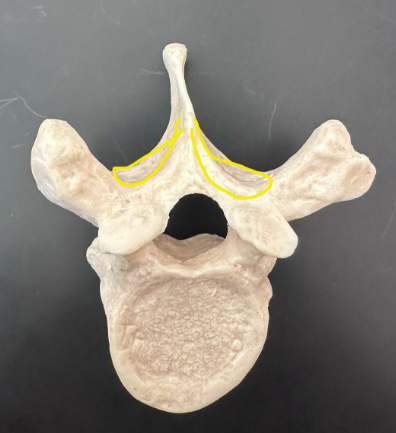

What is circled in yellow?
Lamina of vertebra

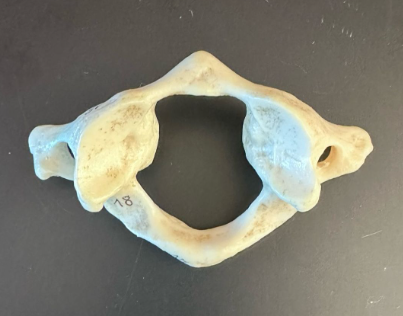

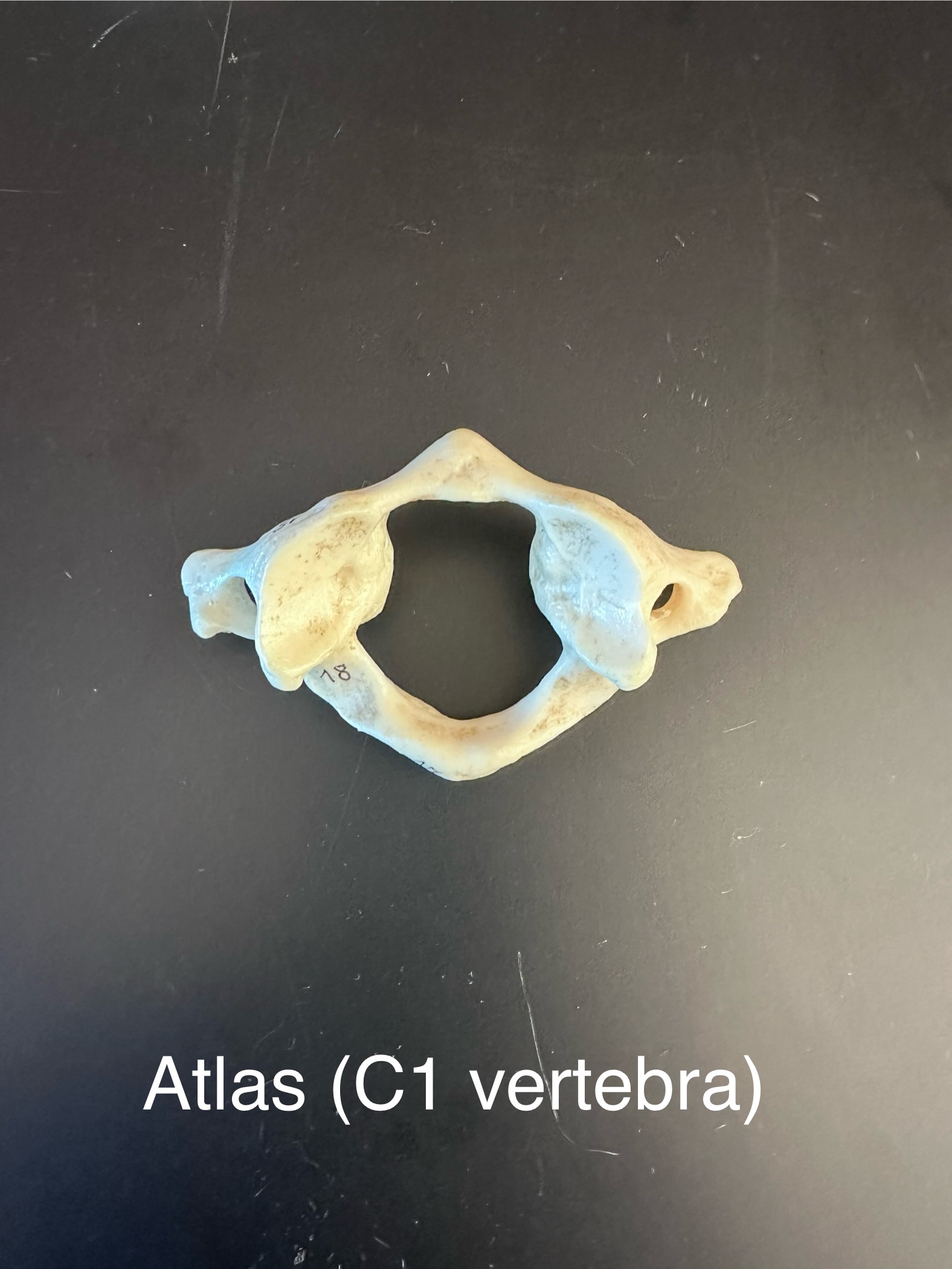

What is this bone?
Atlas (C1 of vertebra)

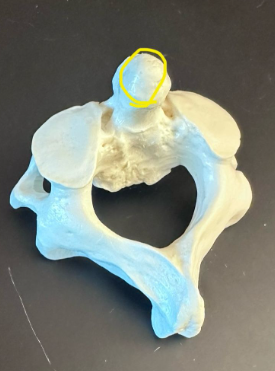

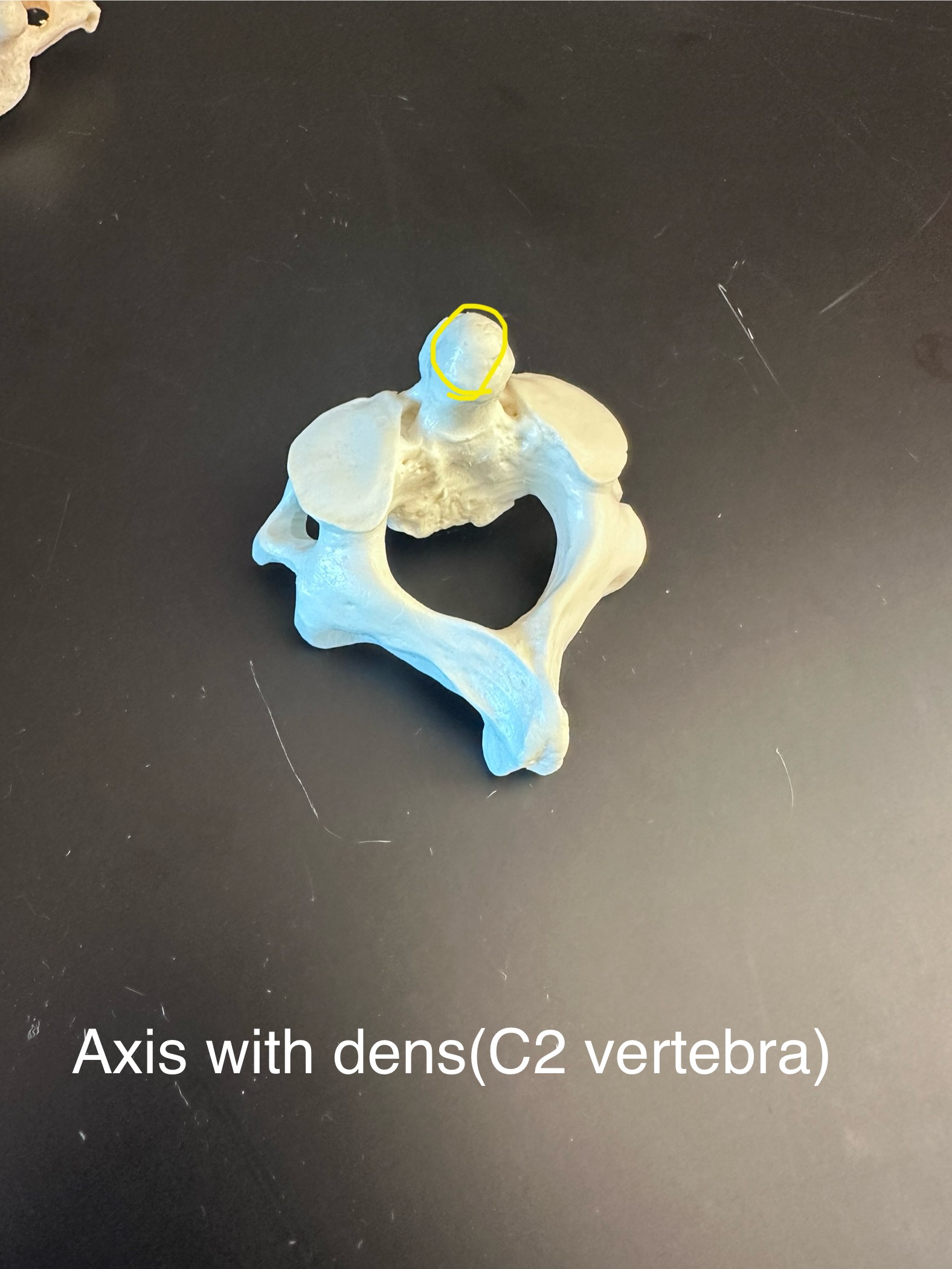

What is this bone and what is circled in yellow?
Axis with Dens (C2 vertebra)

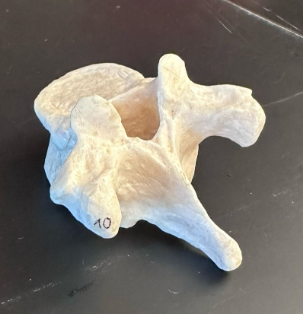

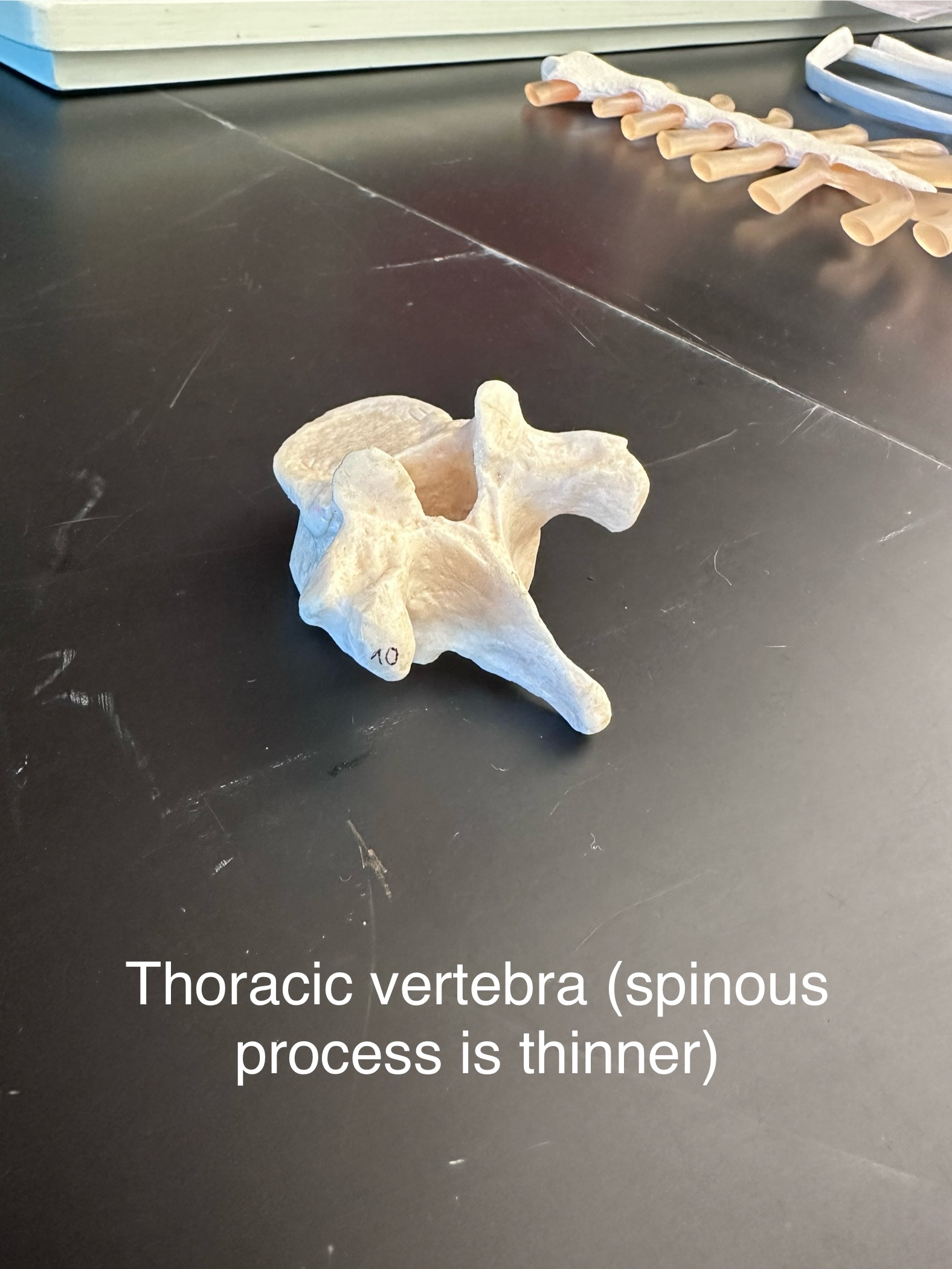

What is this bone?
Thoracic vertebra: you can tell by knowing the spinous process is thinner

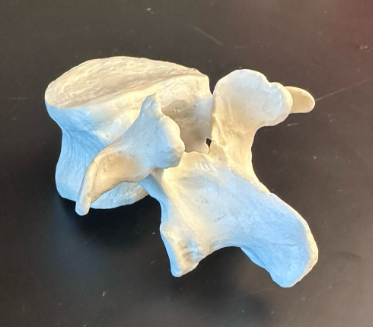

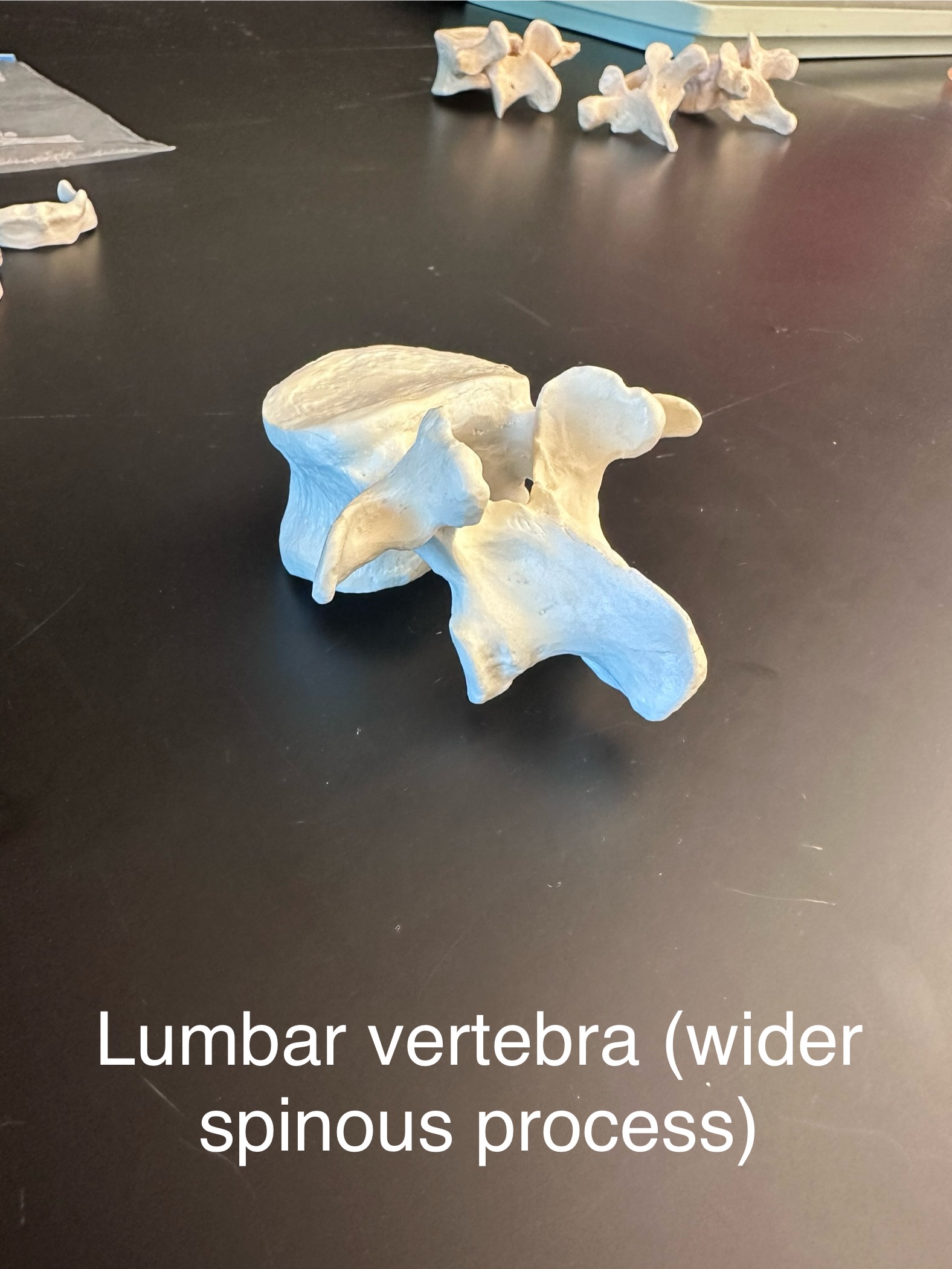

What is this bone?
Lumbar vertebra: you can tell by knowing the spinous process is wider

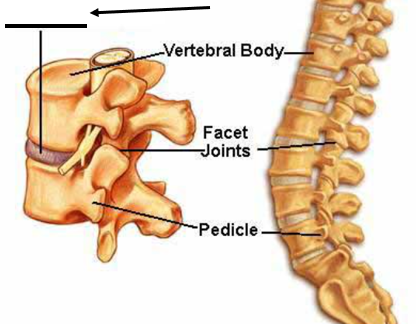

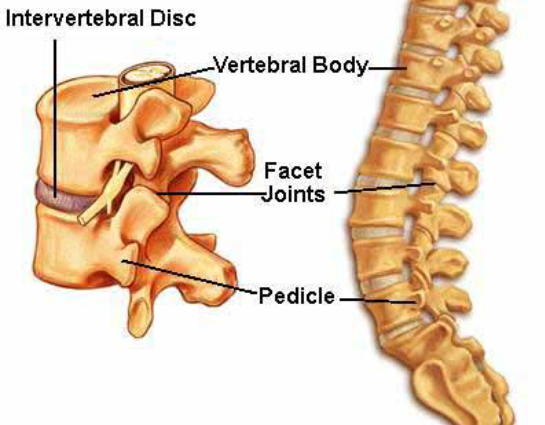

Fill in the blank where the black arrow is pointing.
Intervertebral disc

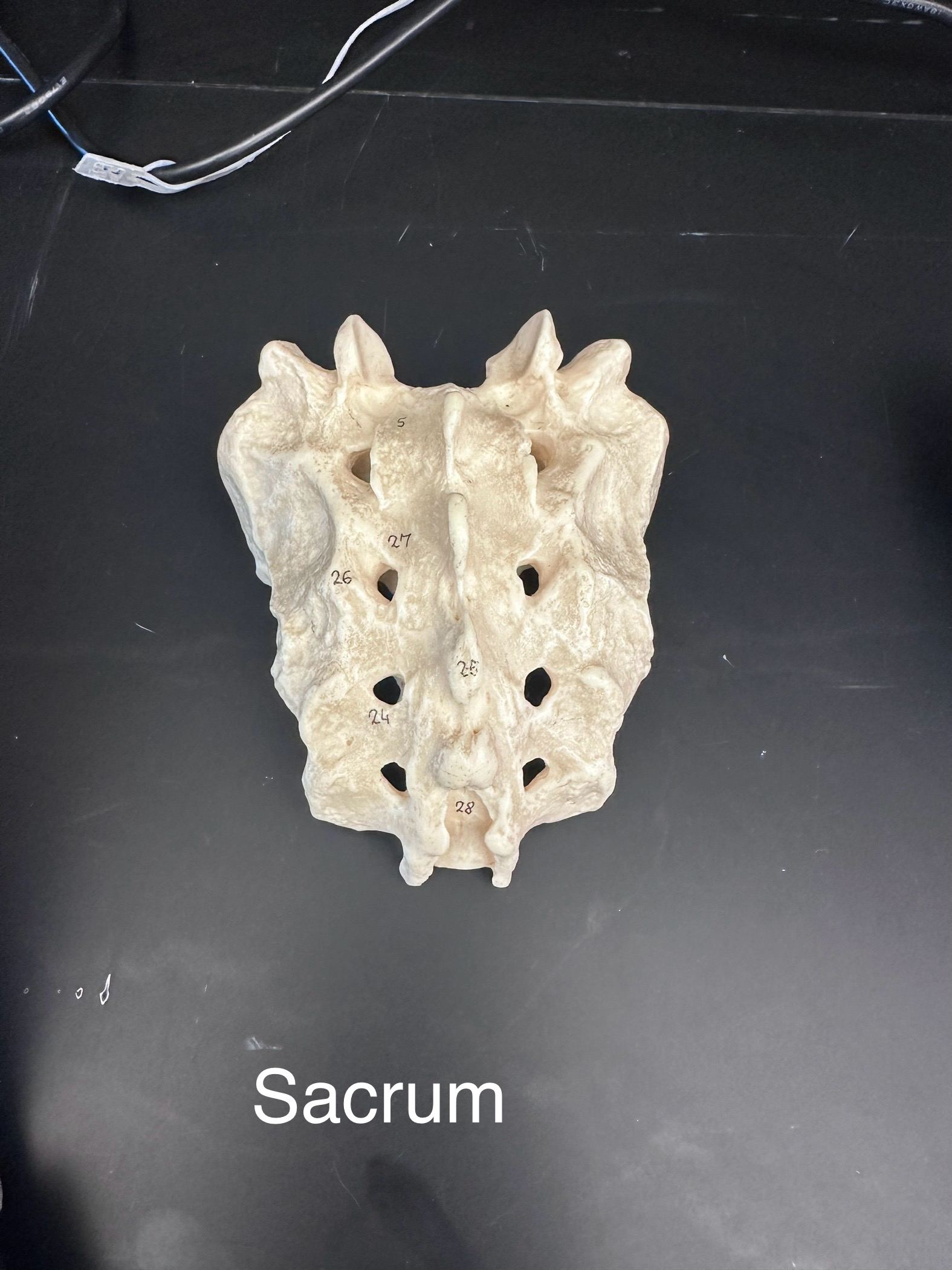

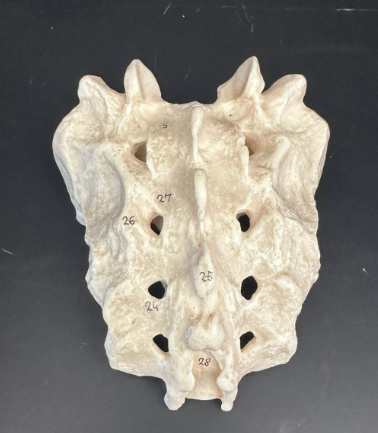

What is this bone?
Sacrum

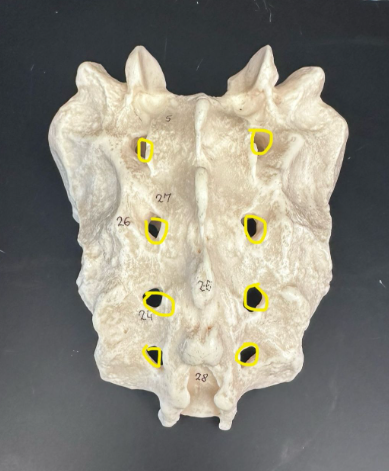

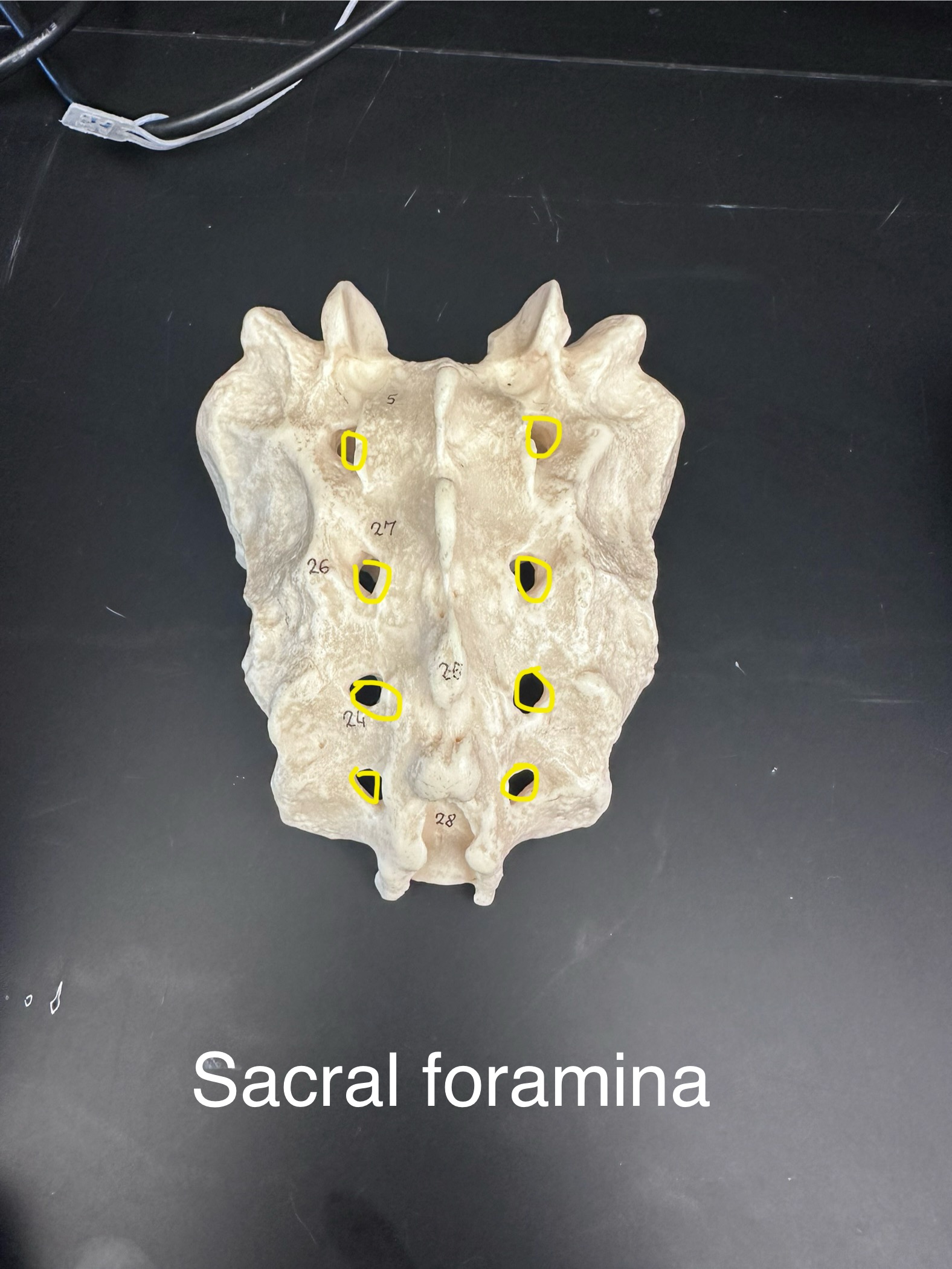

What is circled in yellow?
Sacral Foramina

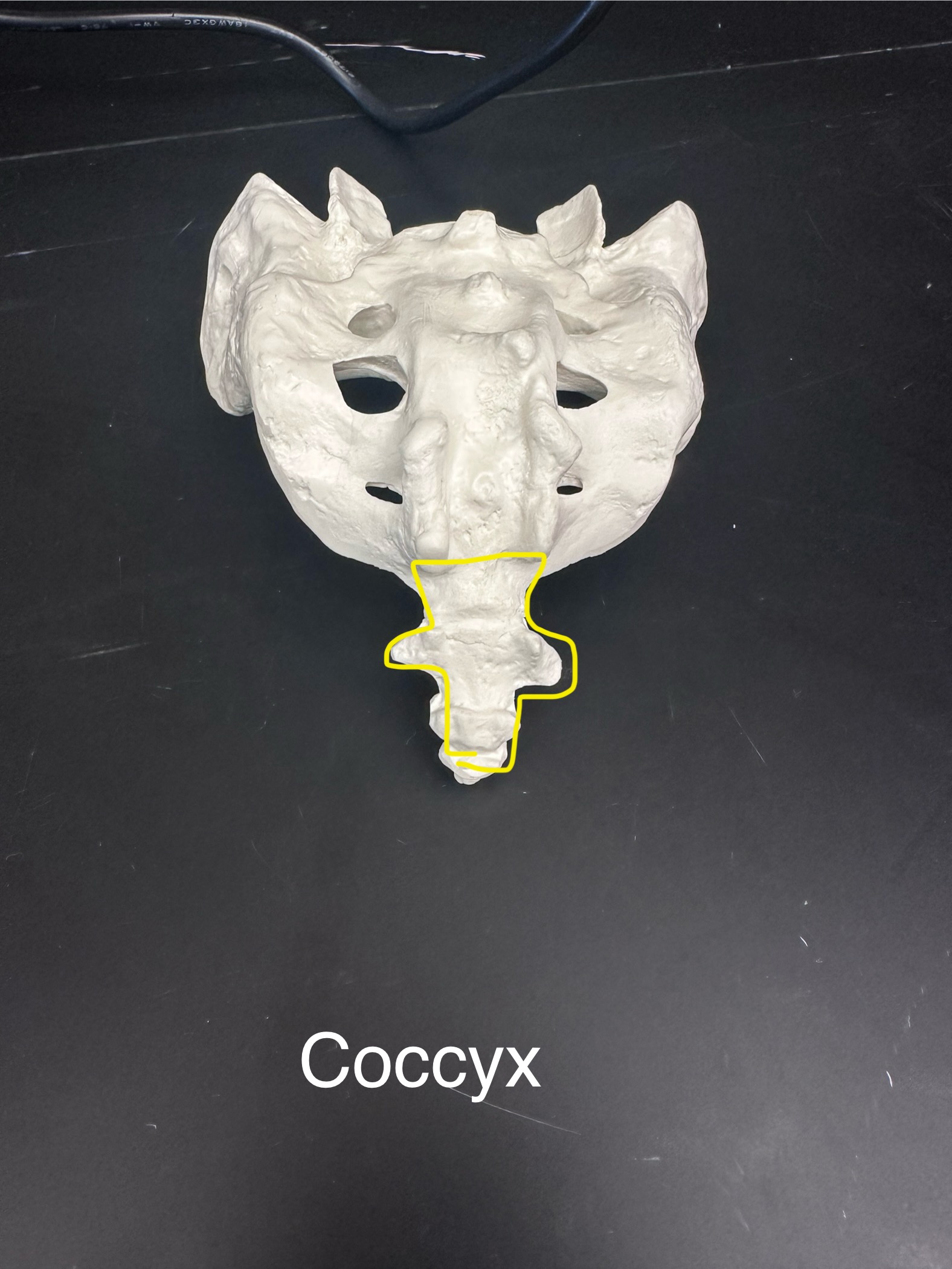

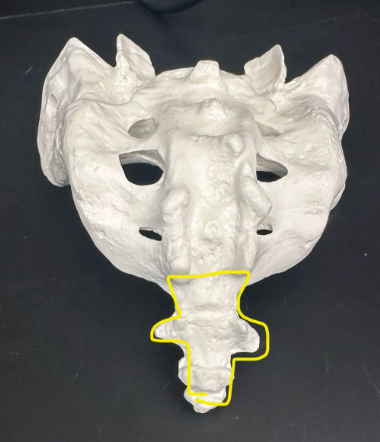

What is circled in yellow?
Coccyx

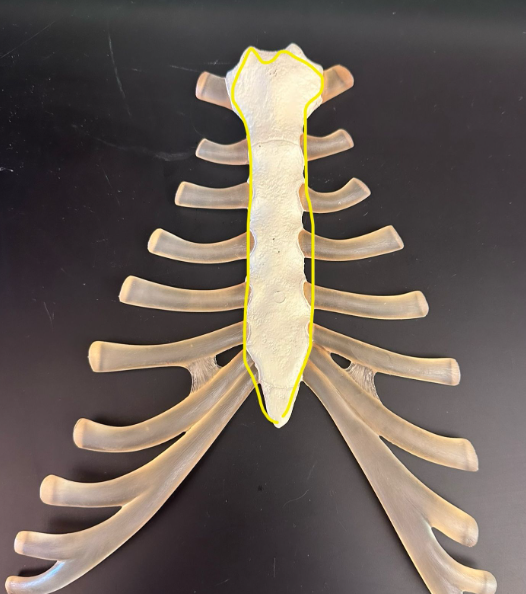

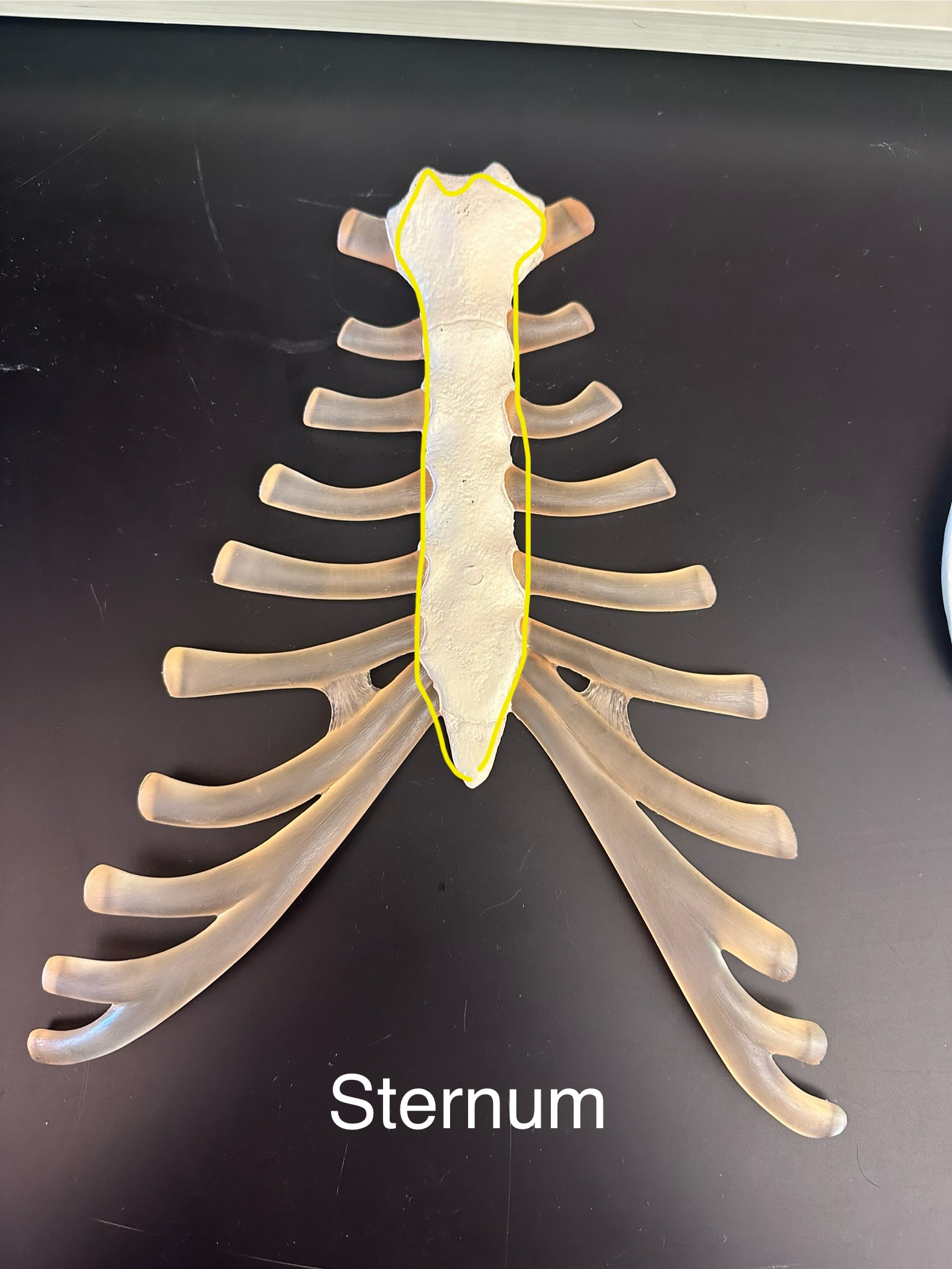

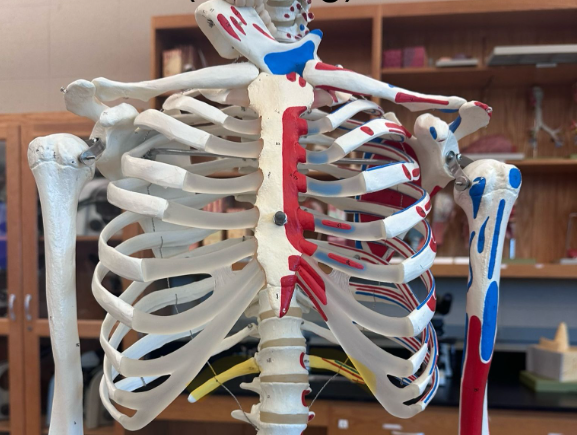

What is circled in yellow?
Sternum

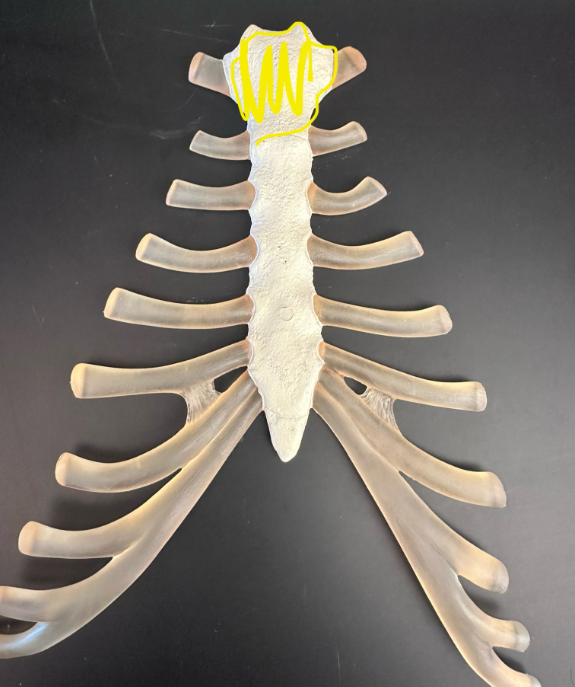

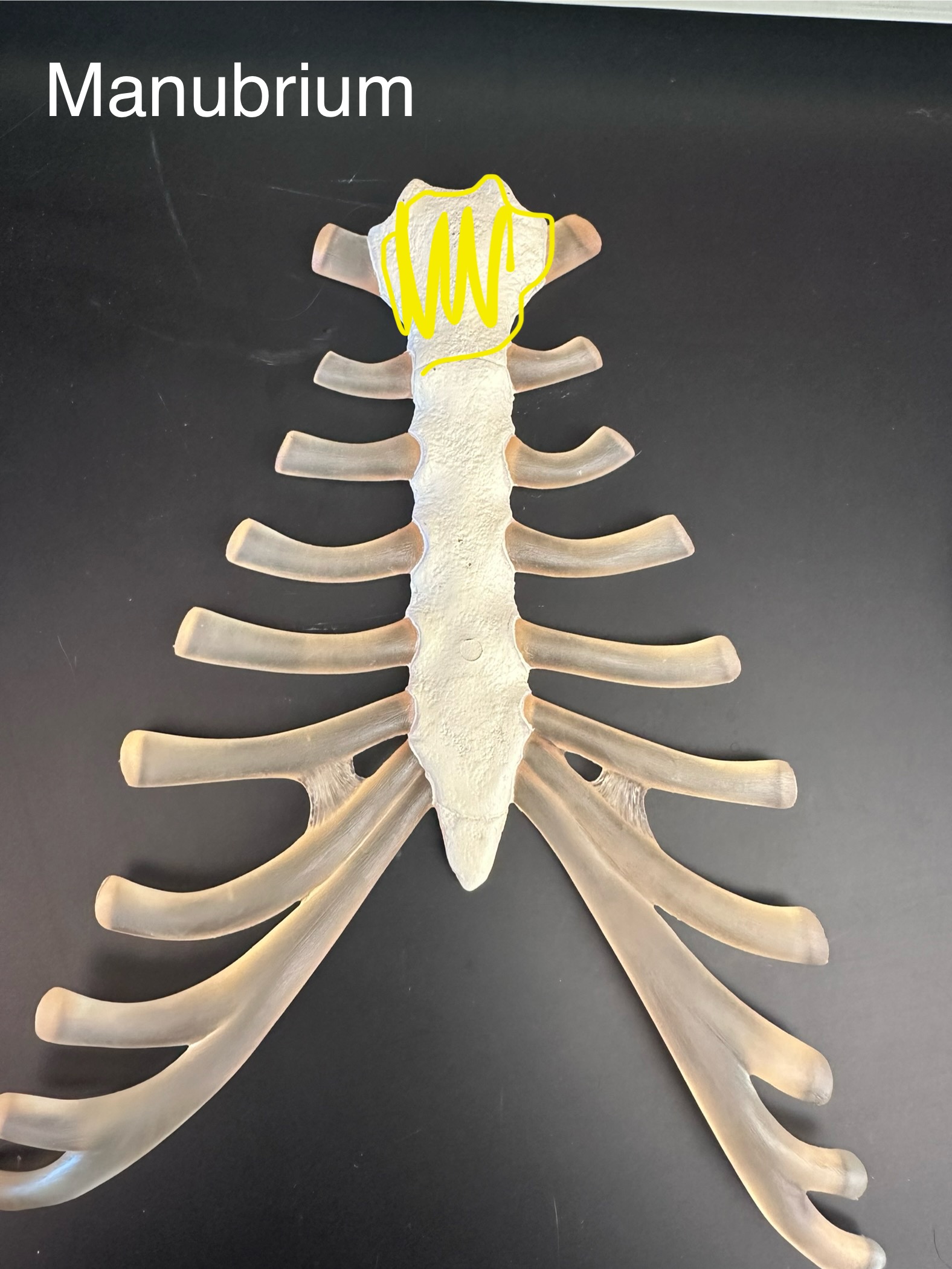

What is highlighted in yellow?
Manubrium

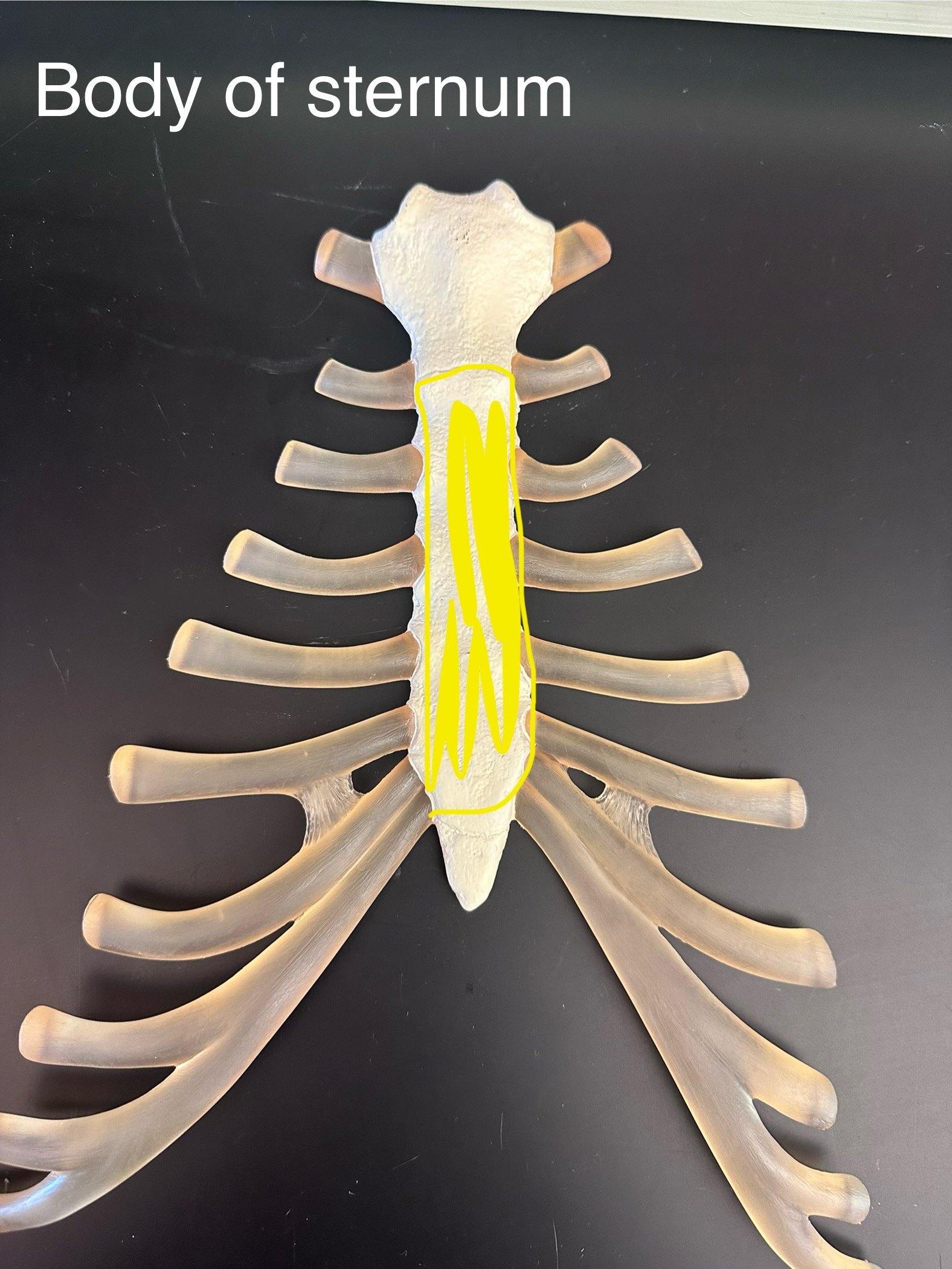

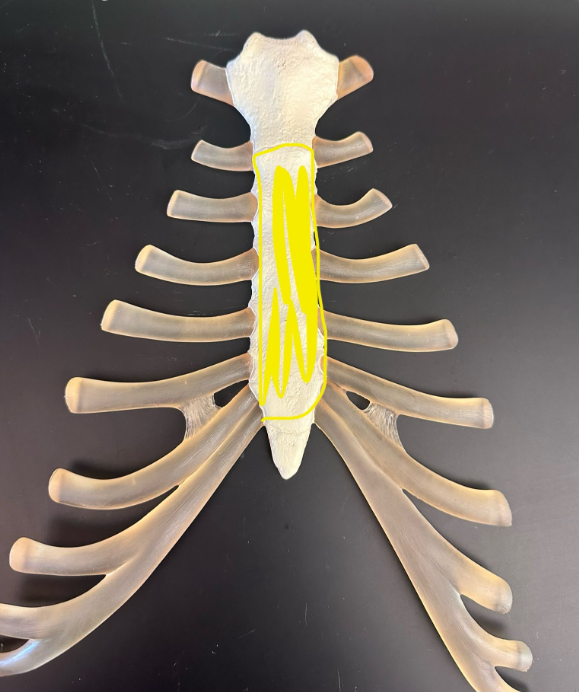

What is highlighted in yellow?
Body of the sternum

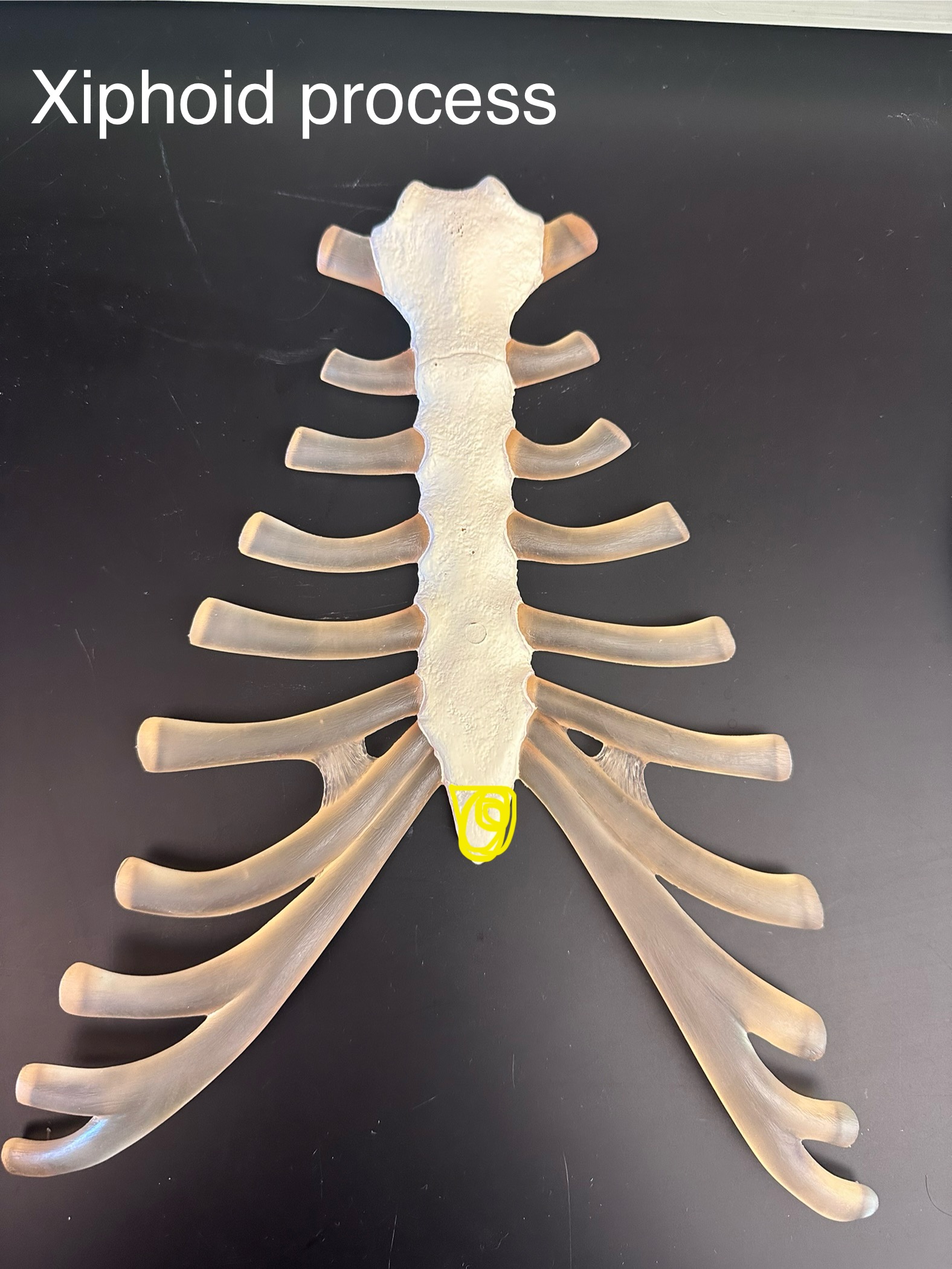

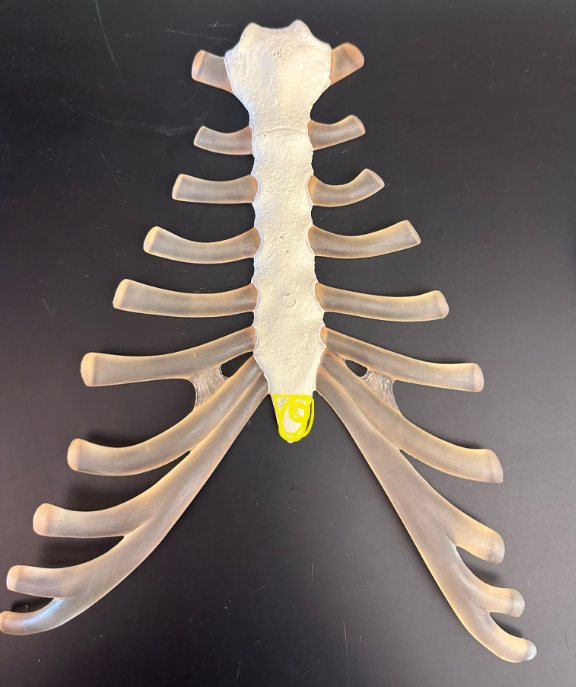

What is highlighted in yellow?
Xiphoid process

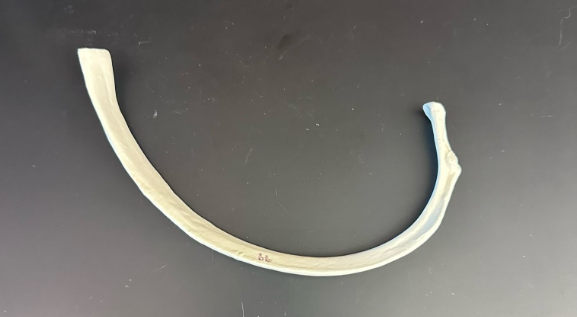

What is this bone?
Rib bone

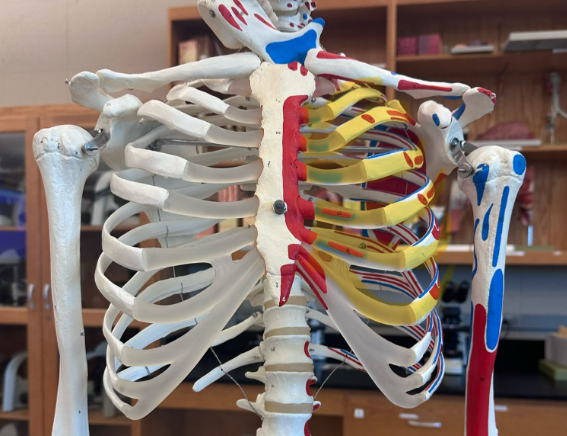

What is highlighted in yellow?
Vertebrosternal Ribs (true)

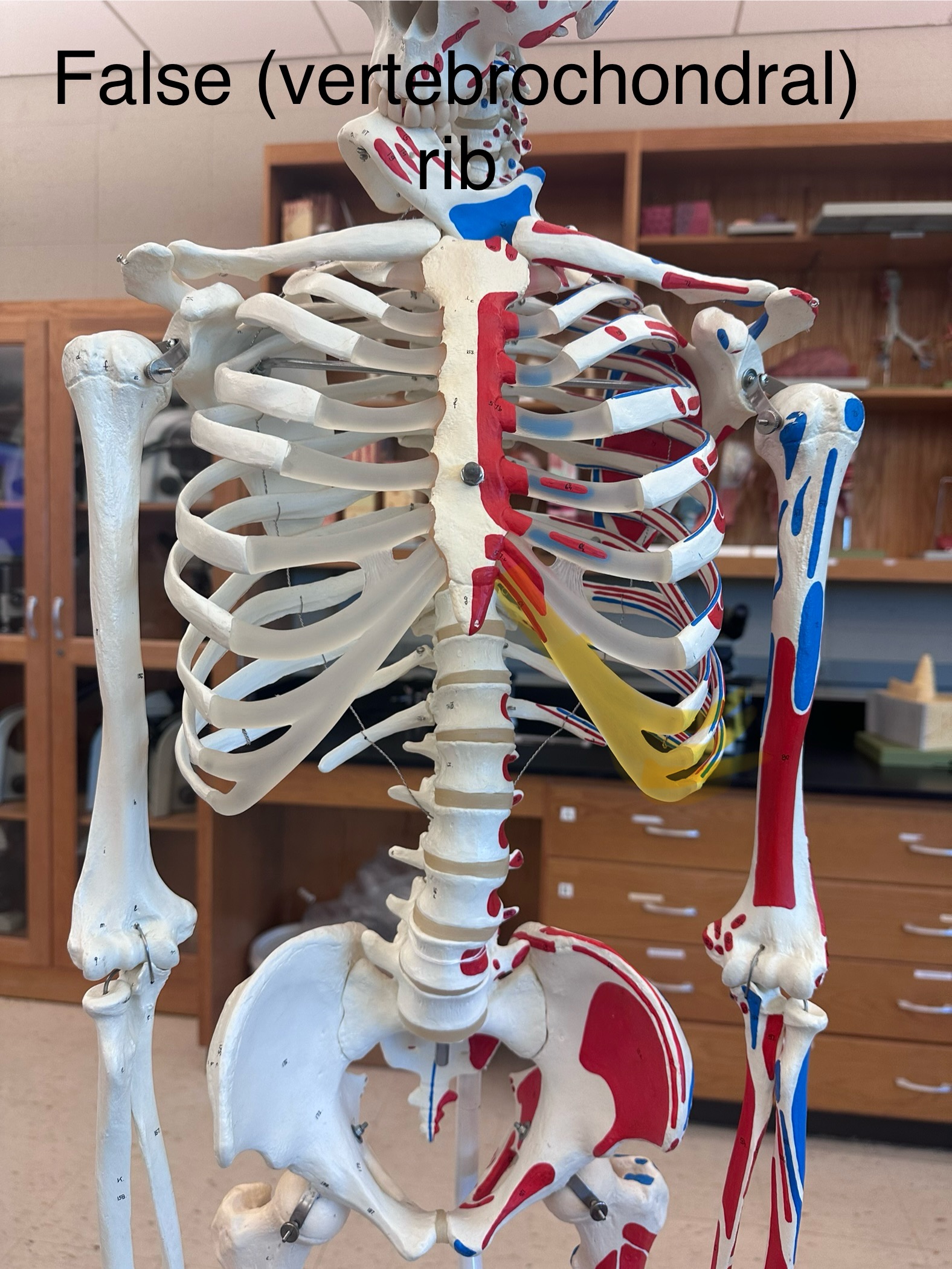

What is highlighted in yellow?
Vertebrochondral ribs (false)

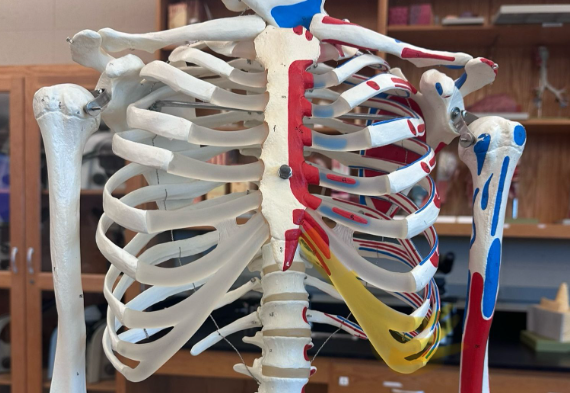

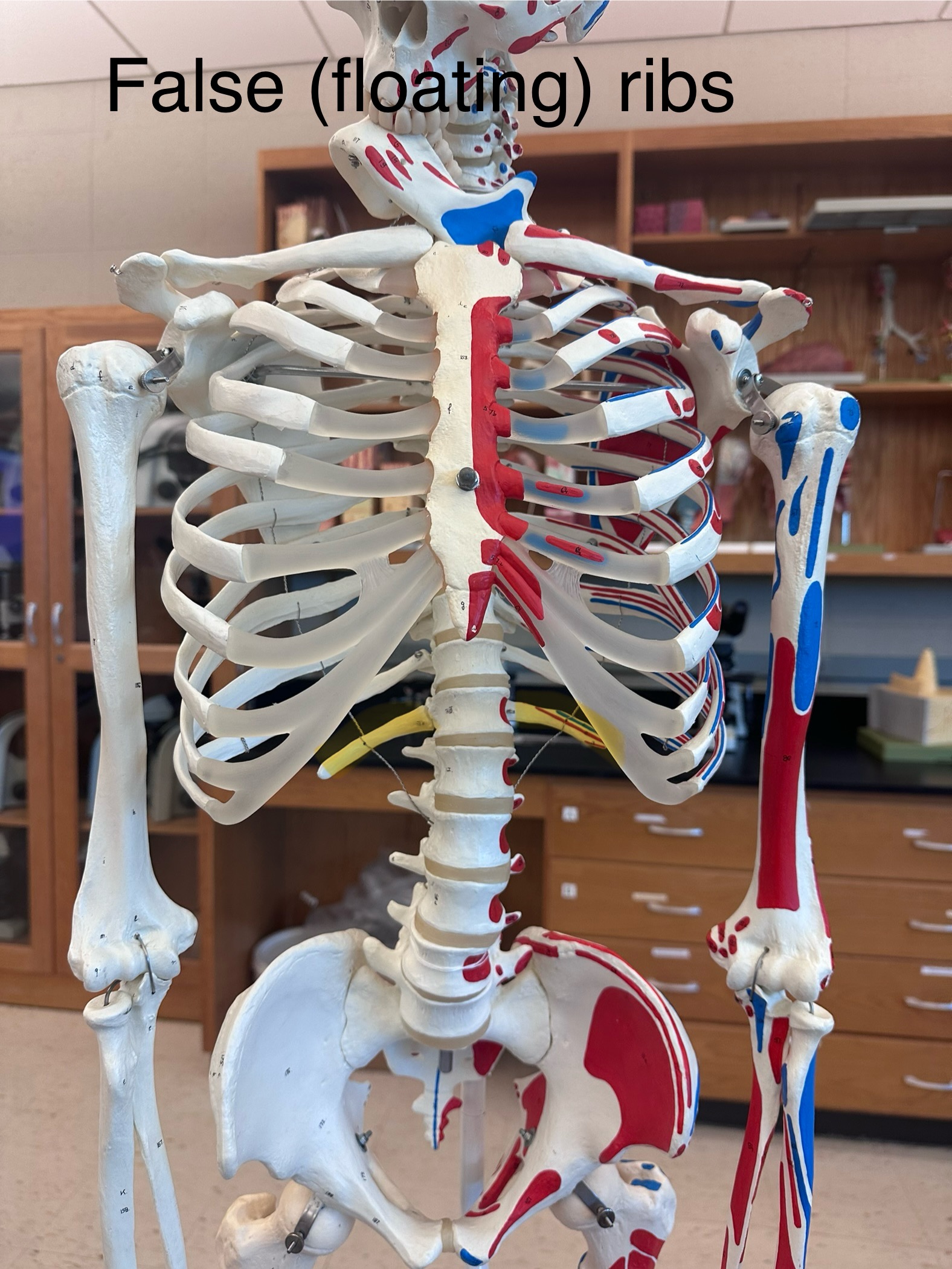

What is highlighted in yellow?
Floating ribs (false)

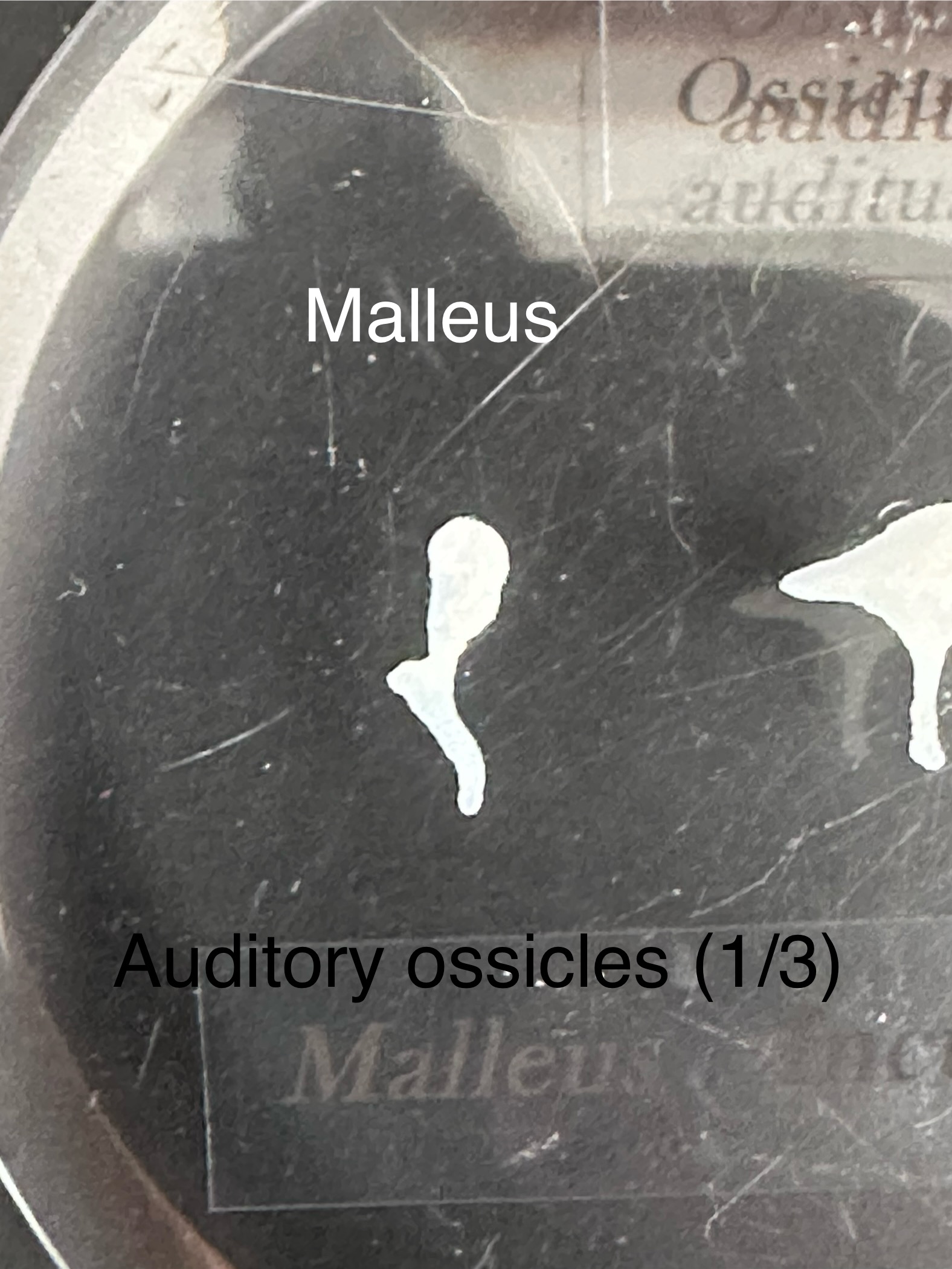

What is this bone?
Malleus: auditory ossicles

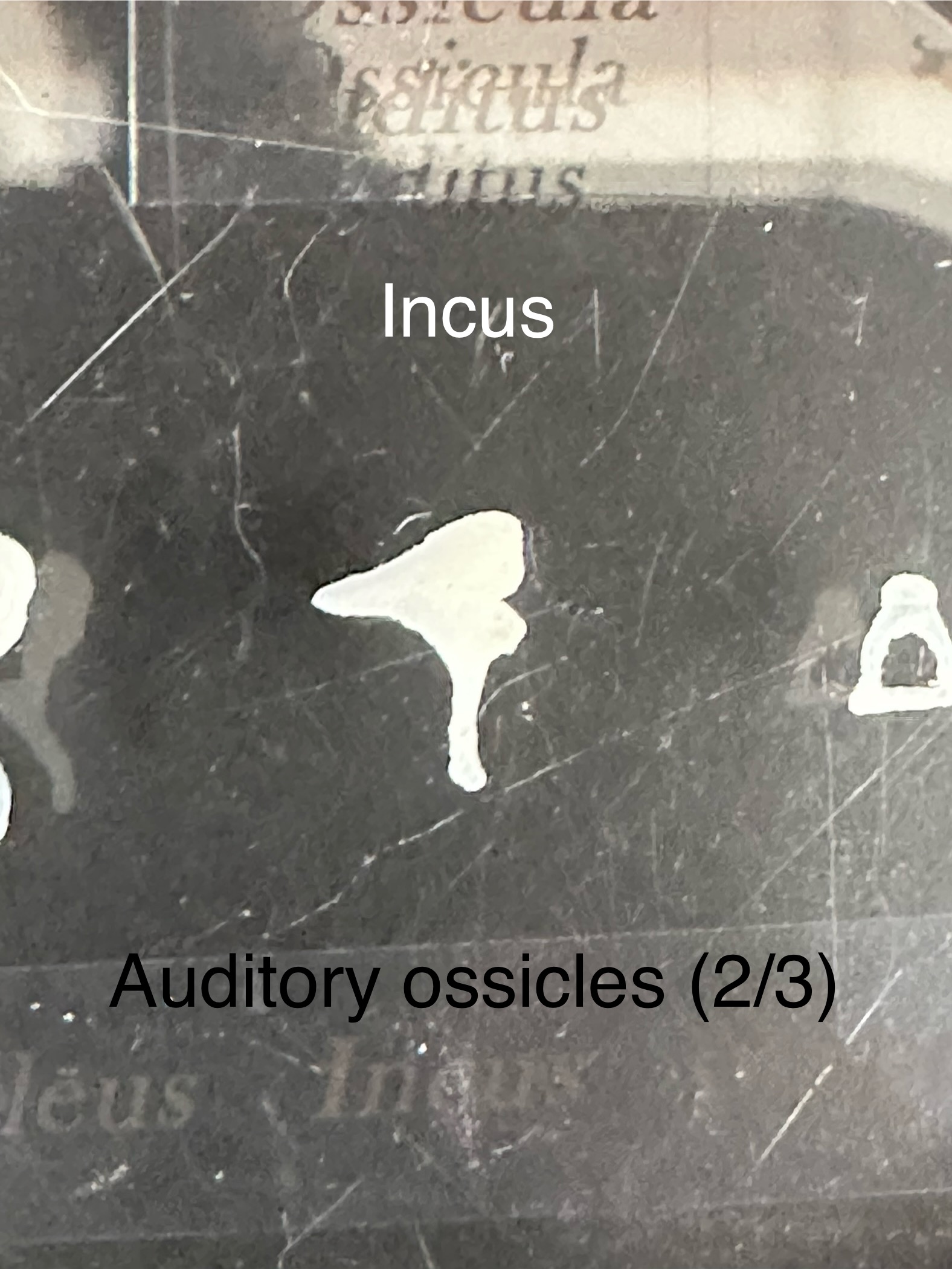

What is this bone?
Incus: auditory ossicles

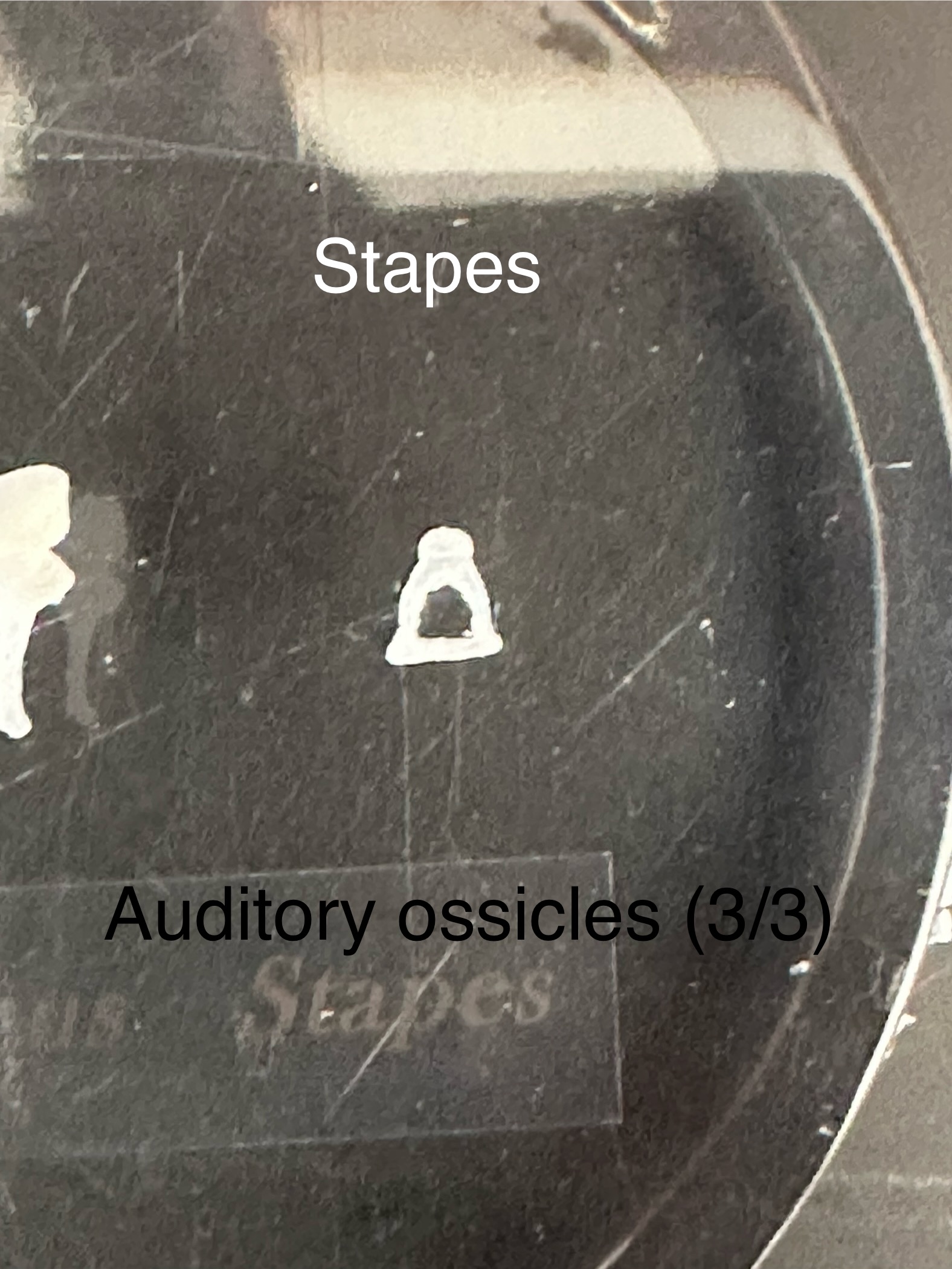

What is this bone?
Stapes: auditory ossicles

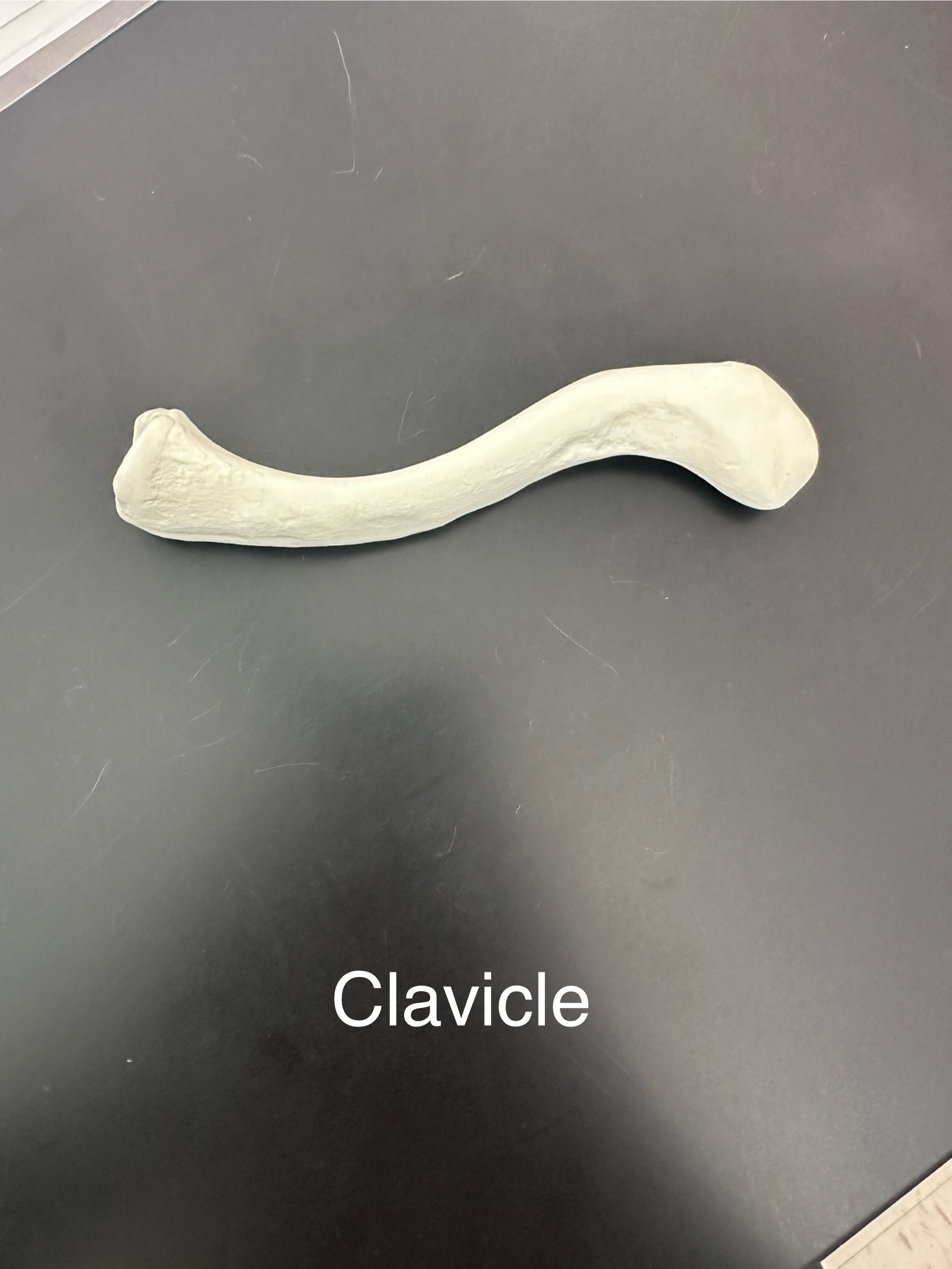

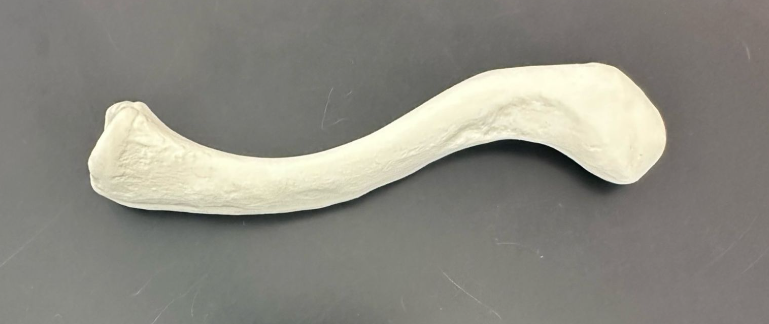

What is this bone?
Clavicle

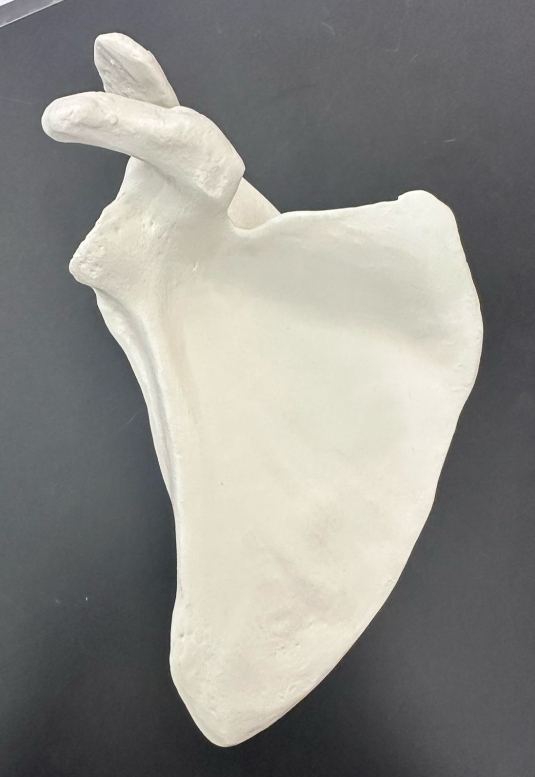

What is this bone and is it right or left?
Right scapula

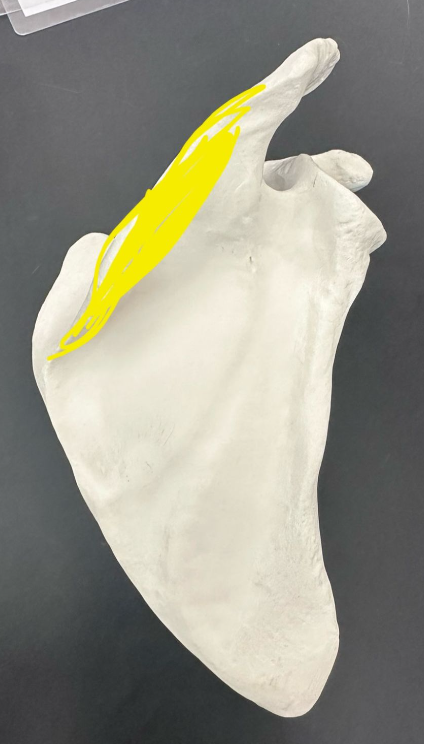

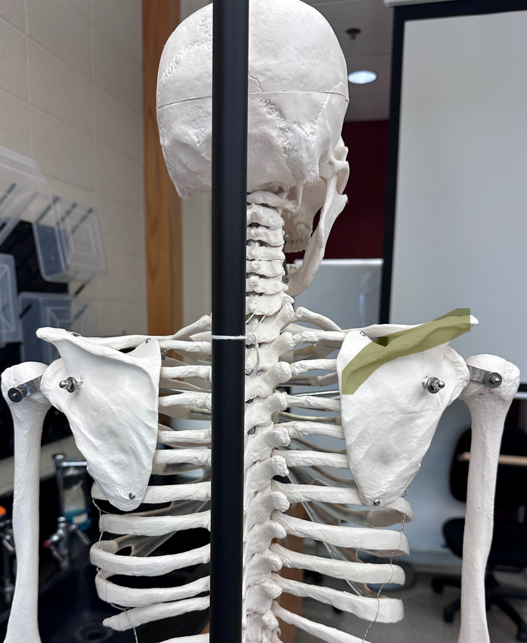

What is highlighted in yellow?
Spine of the right scapula

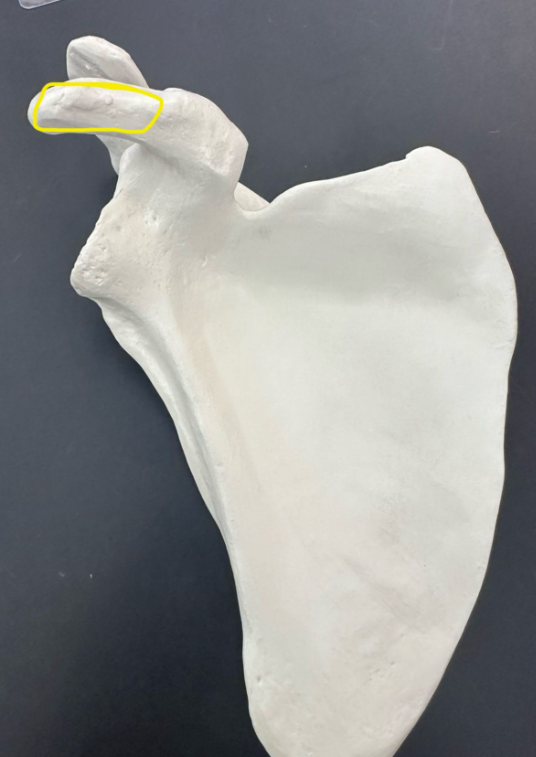

What is circled in yellow?
Acromion of scapula

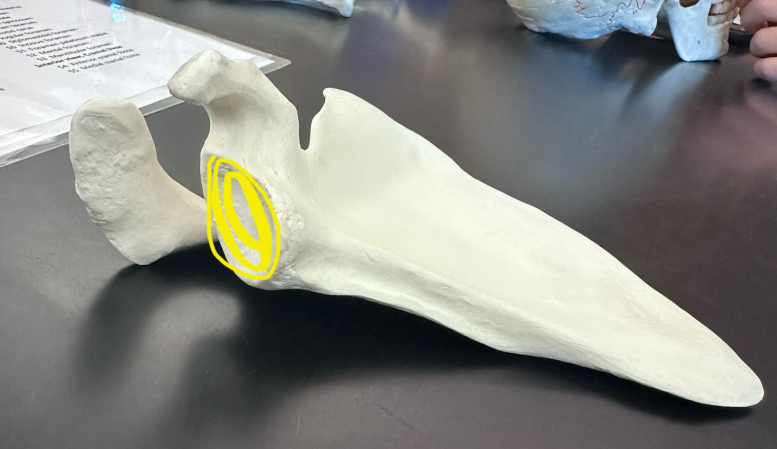

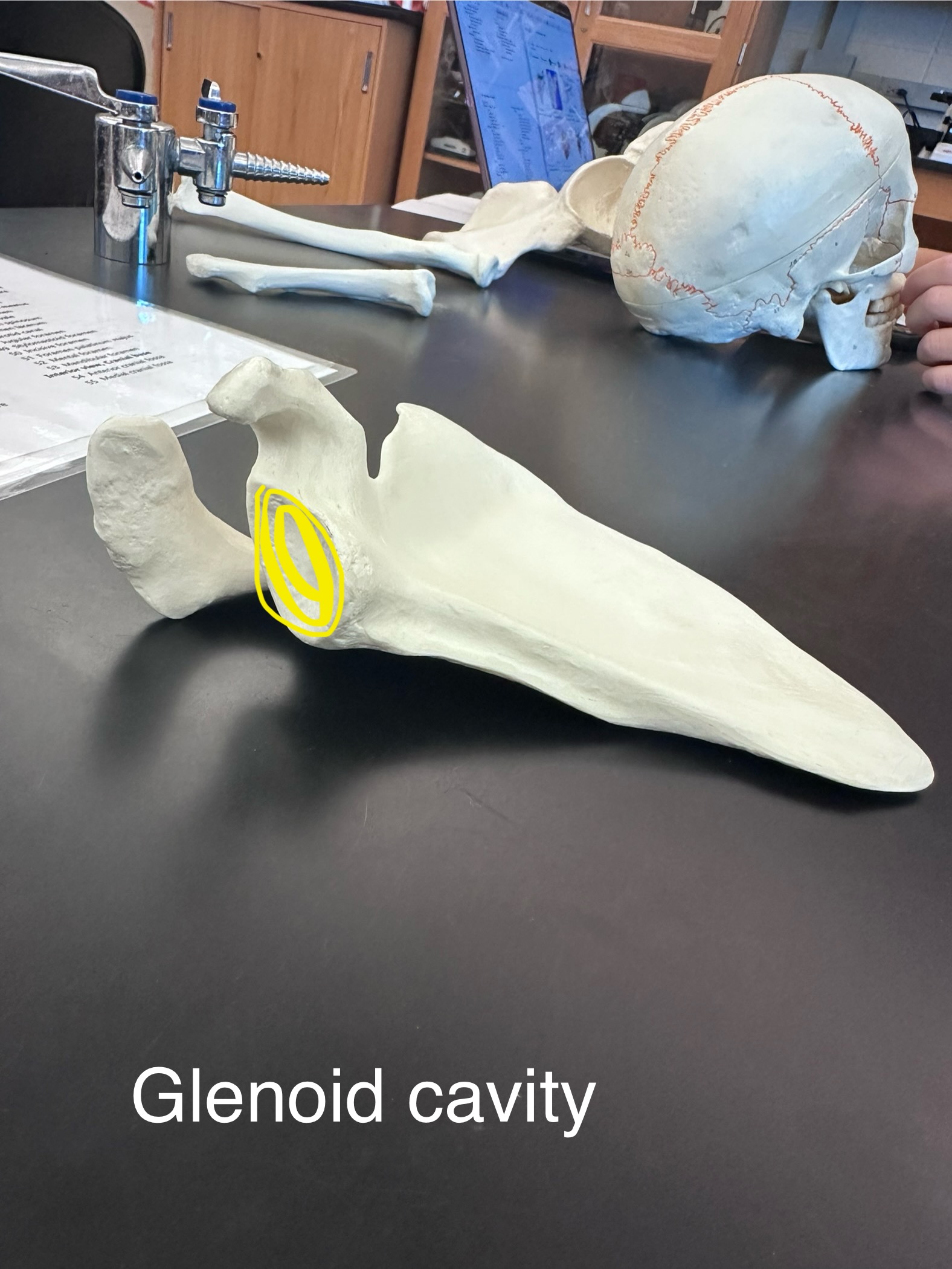

What is highlighted in yellow?
Glenoid Cavity

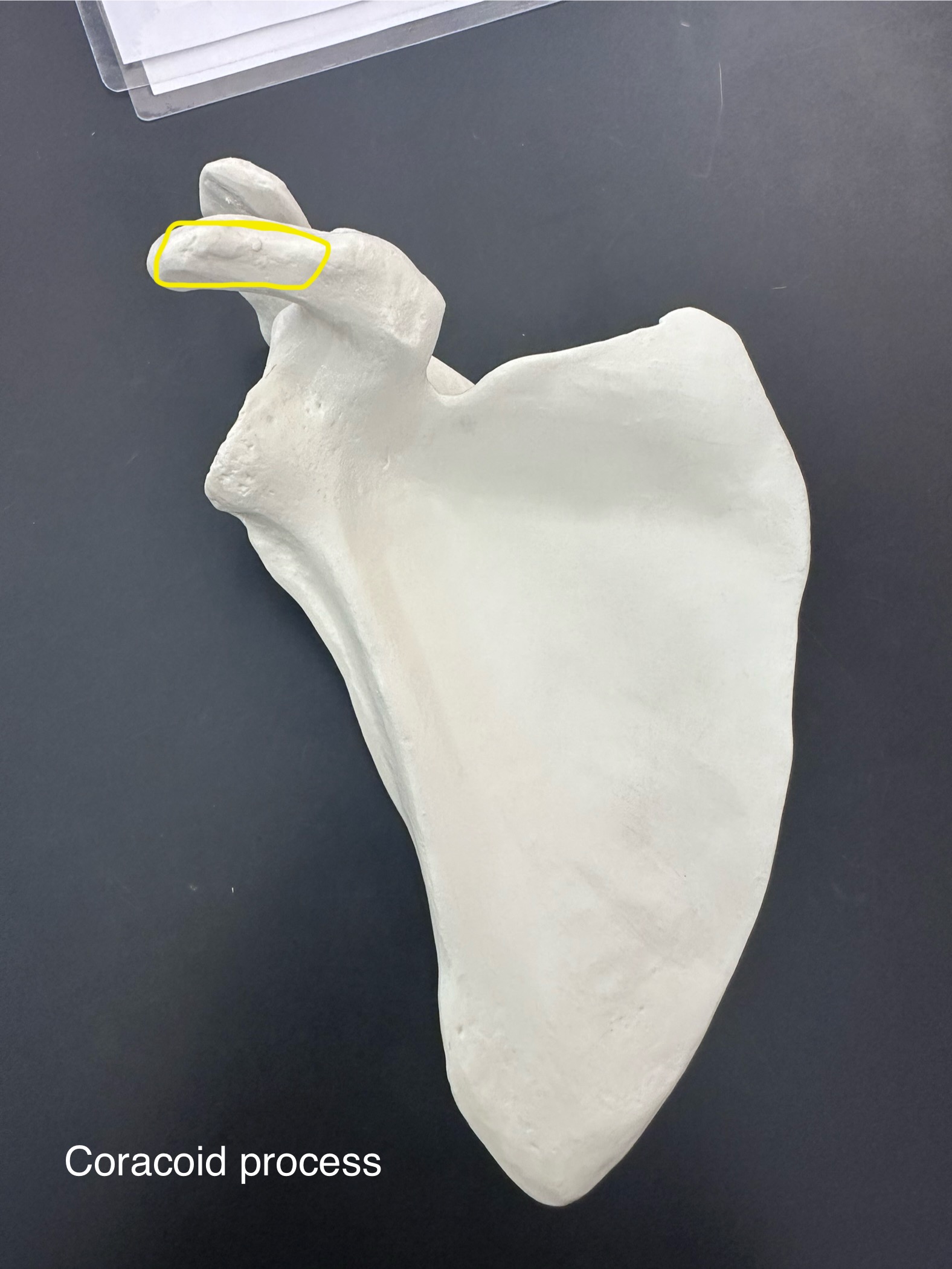

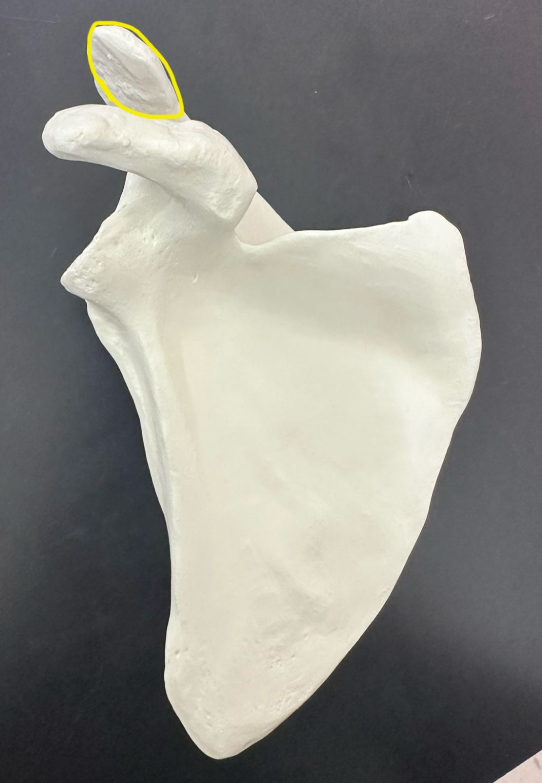

What is circled in yellow?
Coracoid Process of scapula

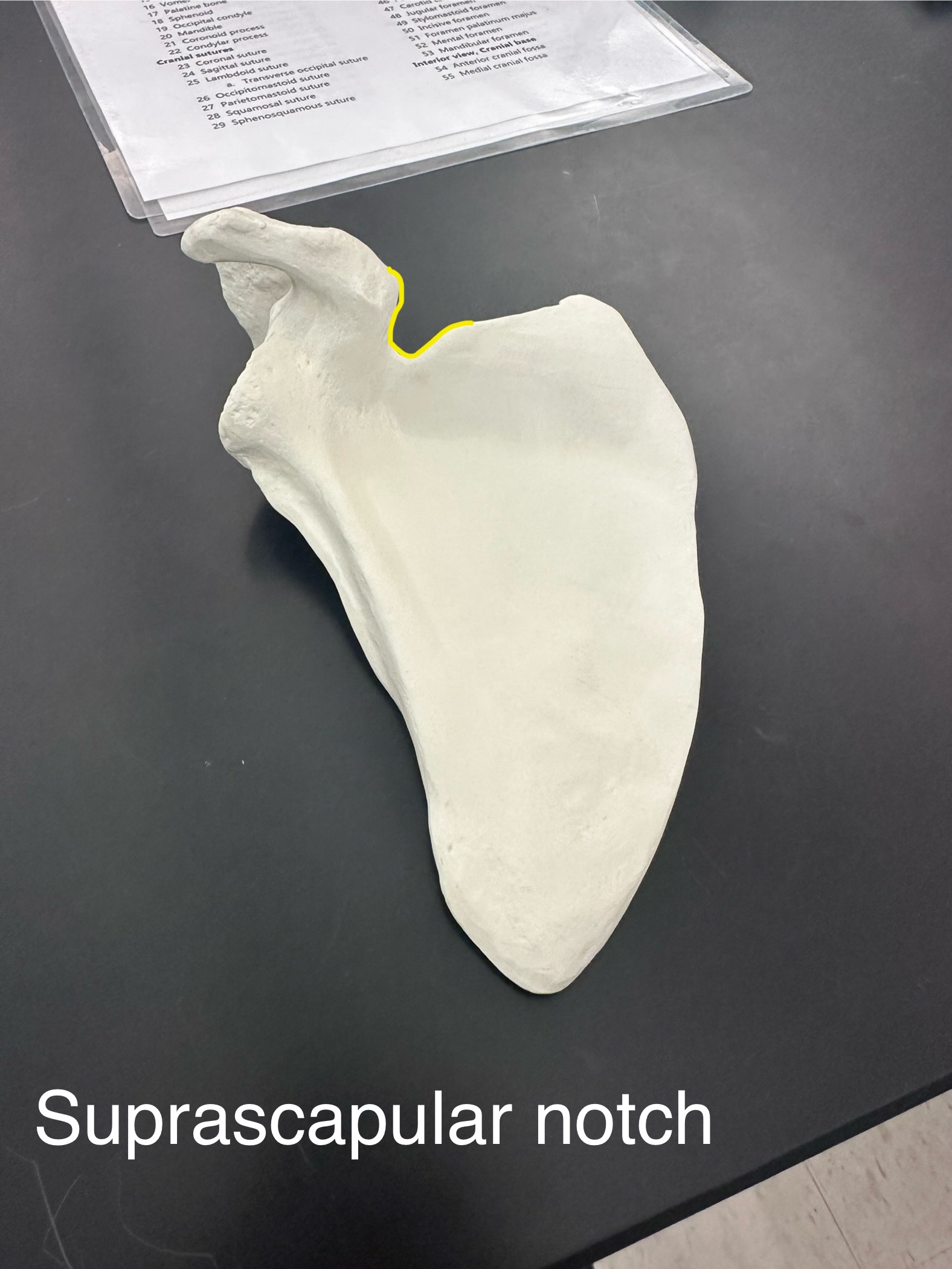

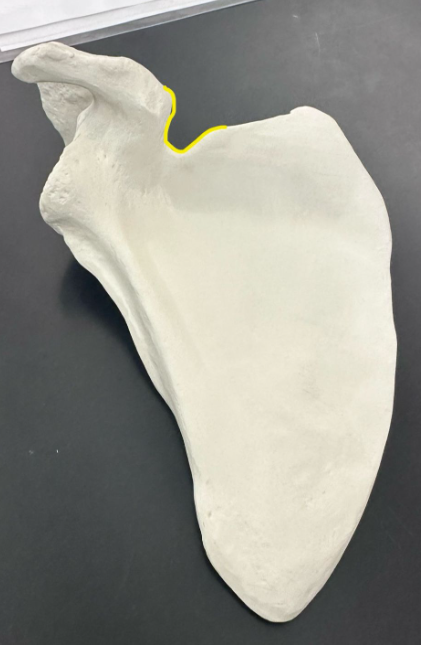

What is outlined in yellow?
Supra-scapular notch

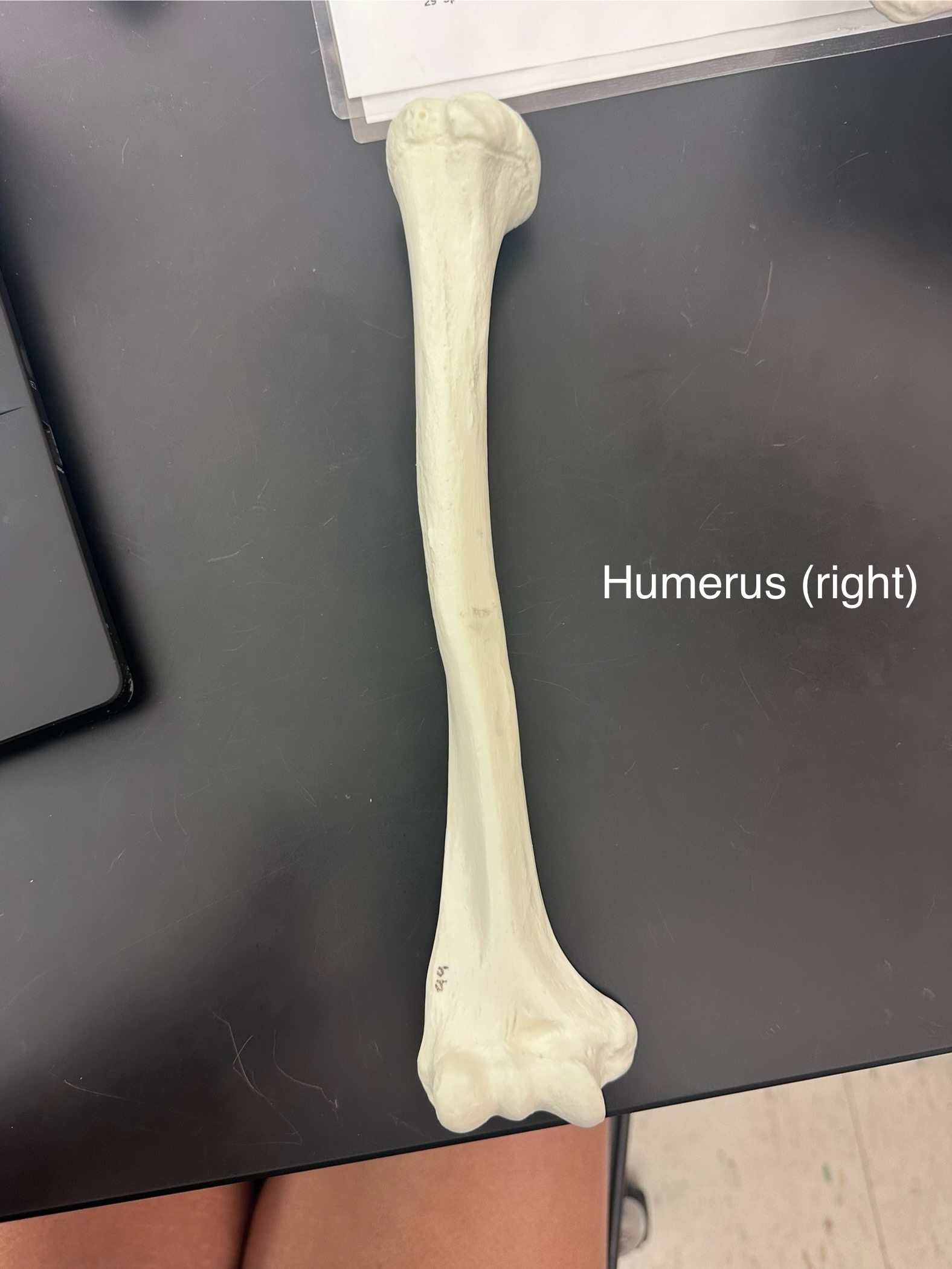

What is this bone and is it right or left?
Right humerus

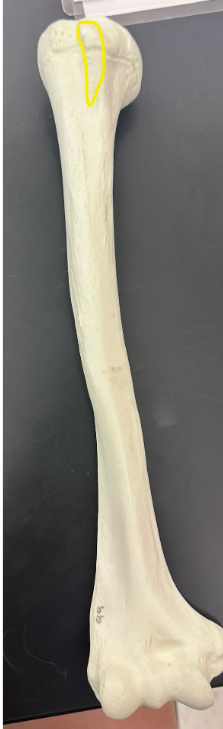

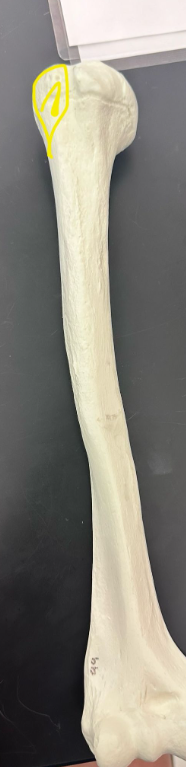

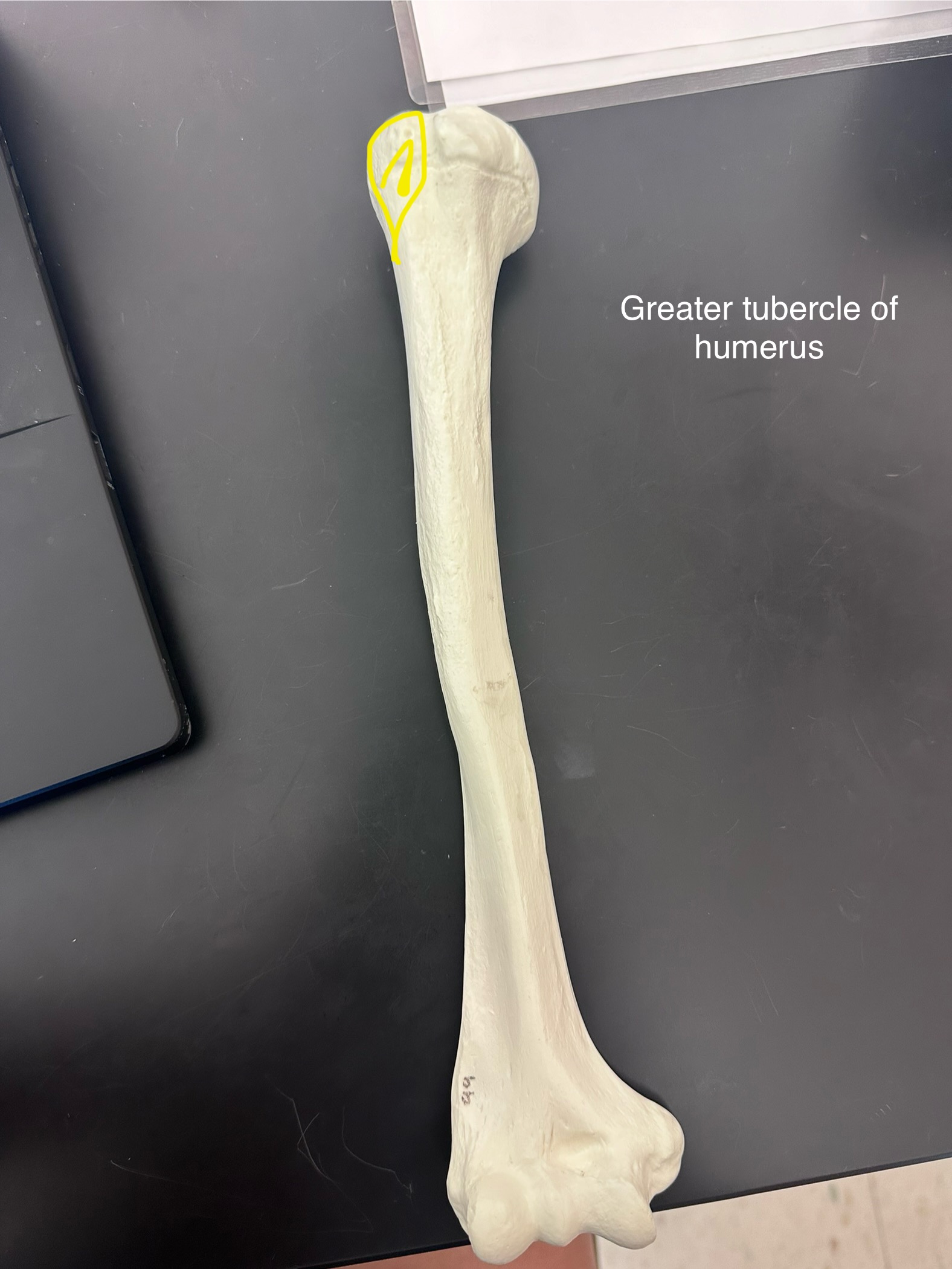

What is highlighted in yellow?
Greater tubercle of humerus

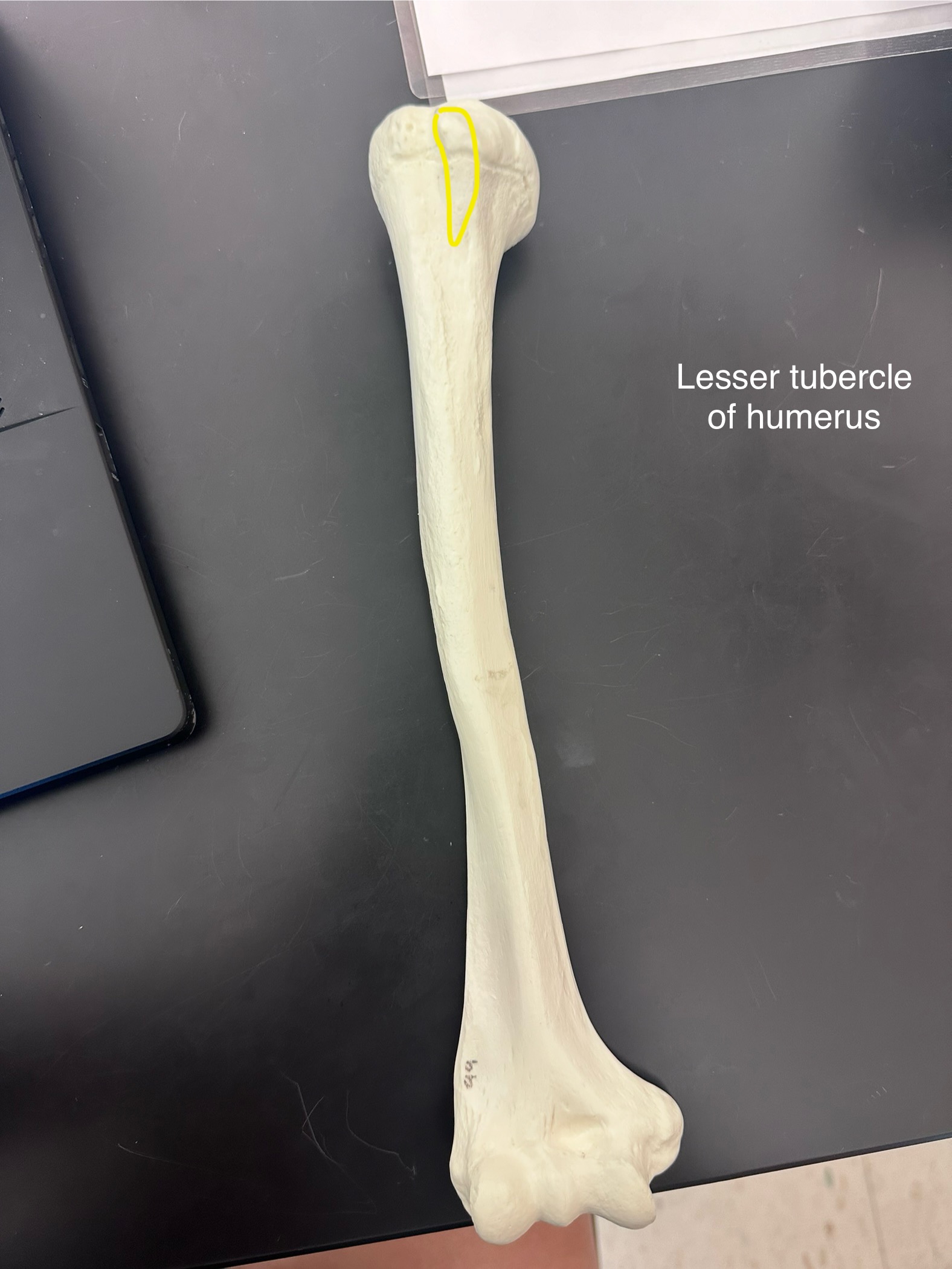

What is circled in yellow?
Lesser Tubercle of humerus

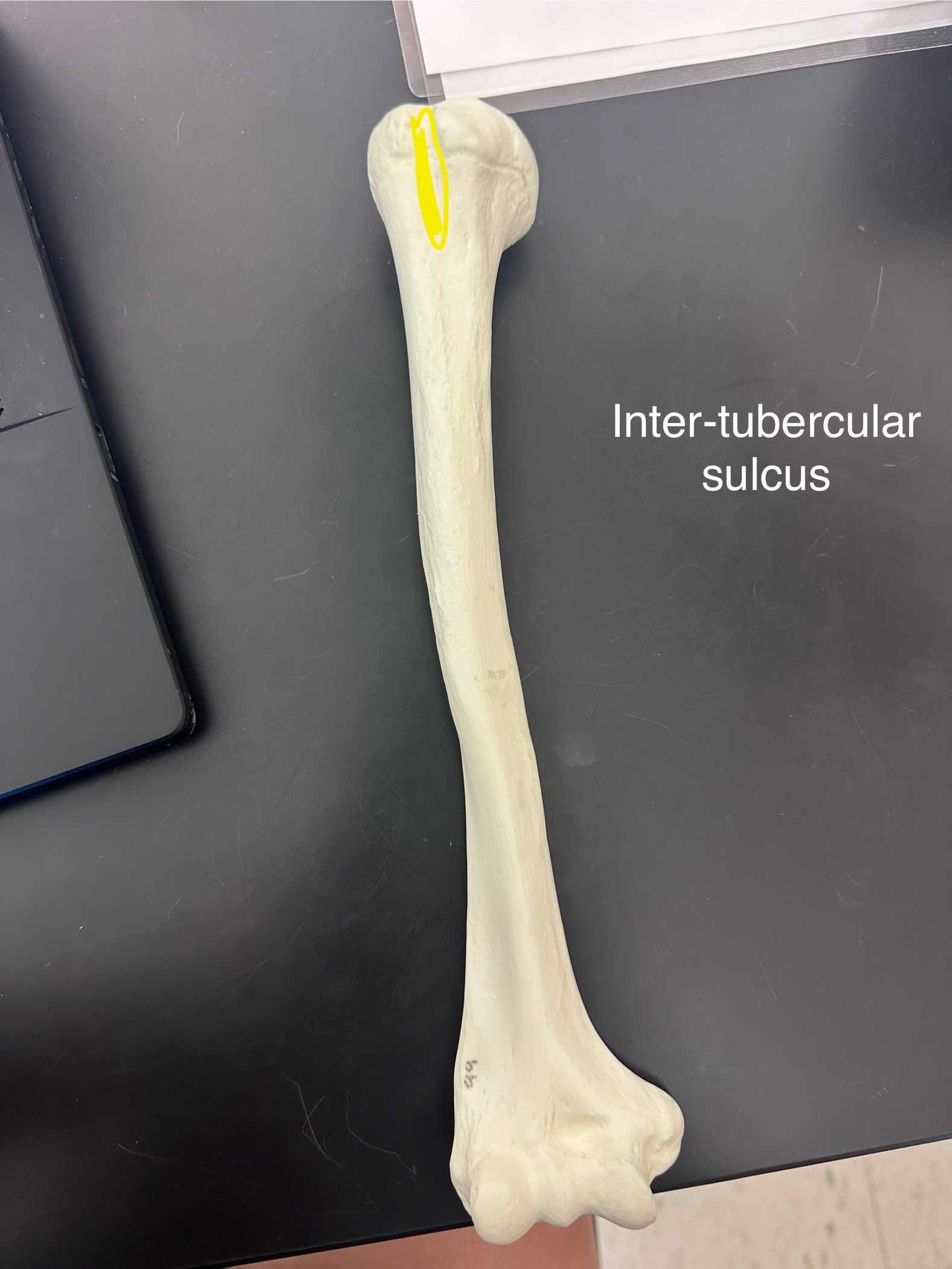

What is highlighted in yellow?
Inter-tubercular sulcus
What is outlined in yellow?
Deltoid Tuberosity

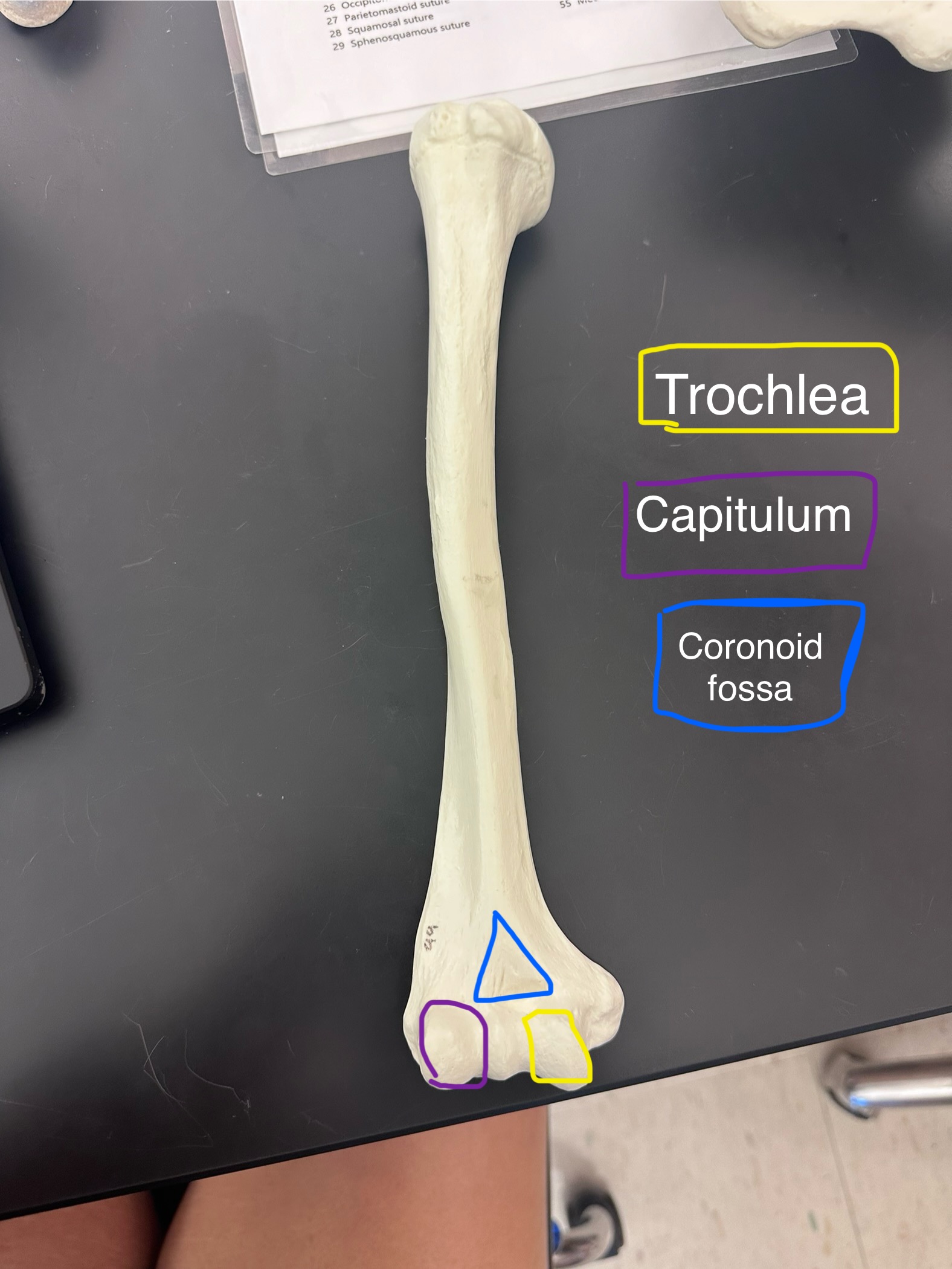

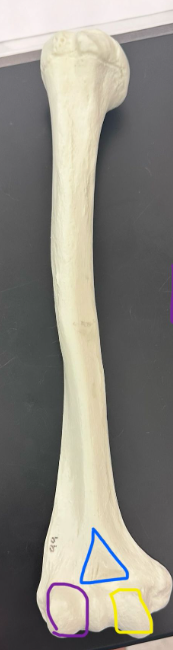

What is circled in yellow?
Trochlea
What is circled in purple?
Capitulum
What is circled in blue?
Coronoid Fossa

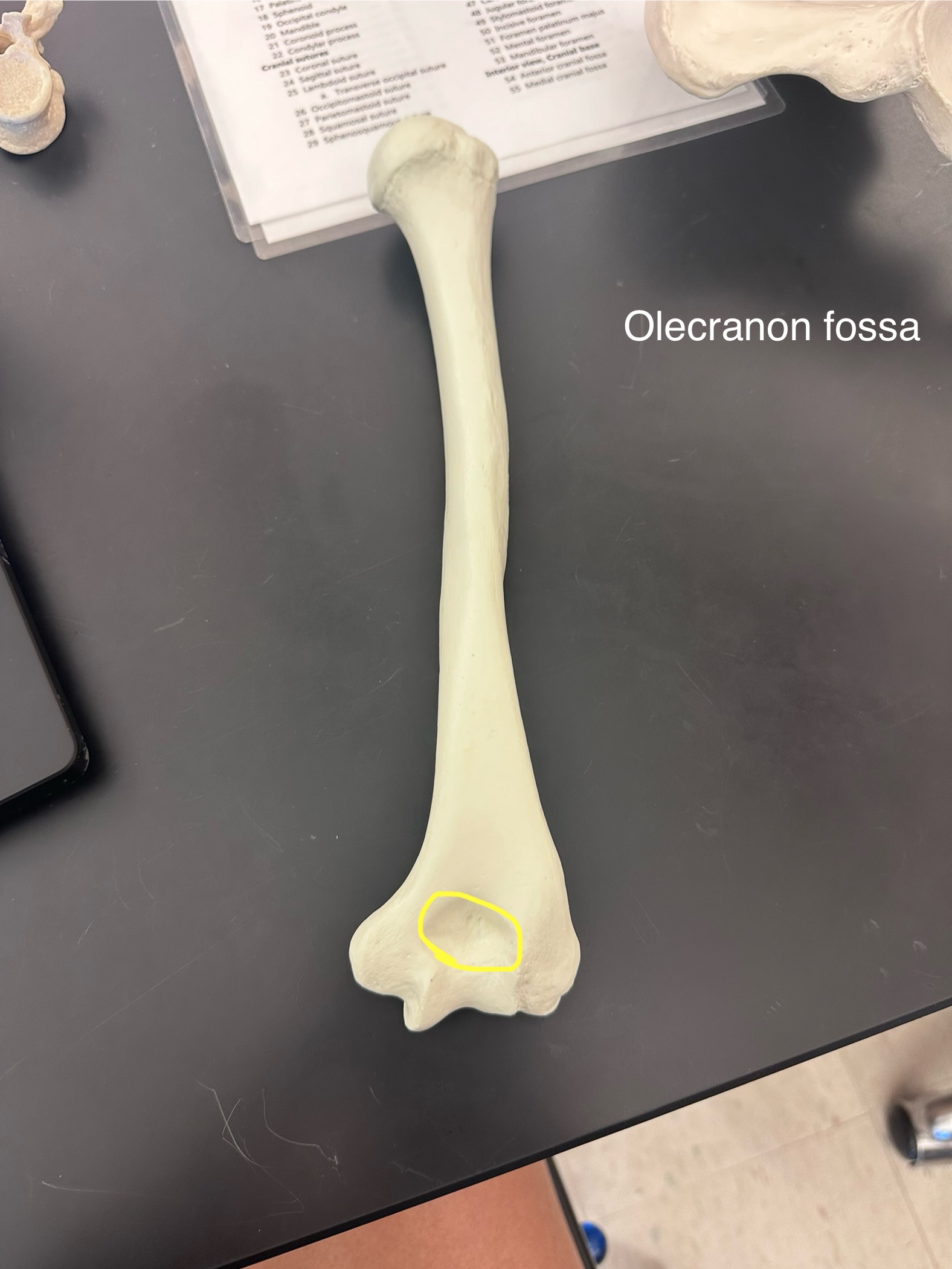

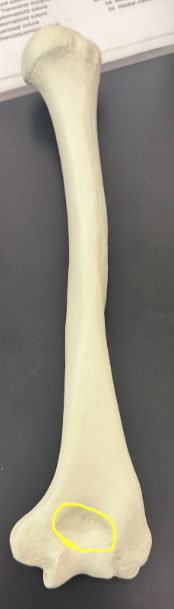

What is circled in yellow?
Olecranon Fossa

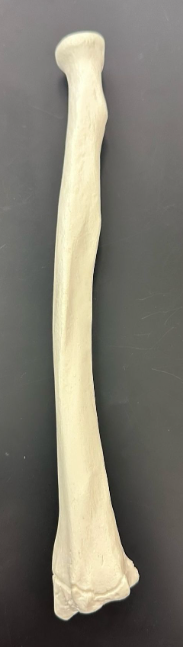

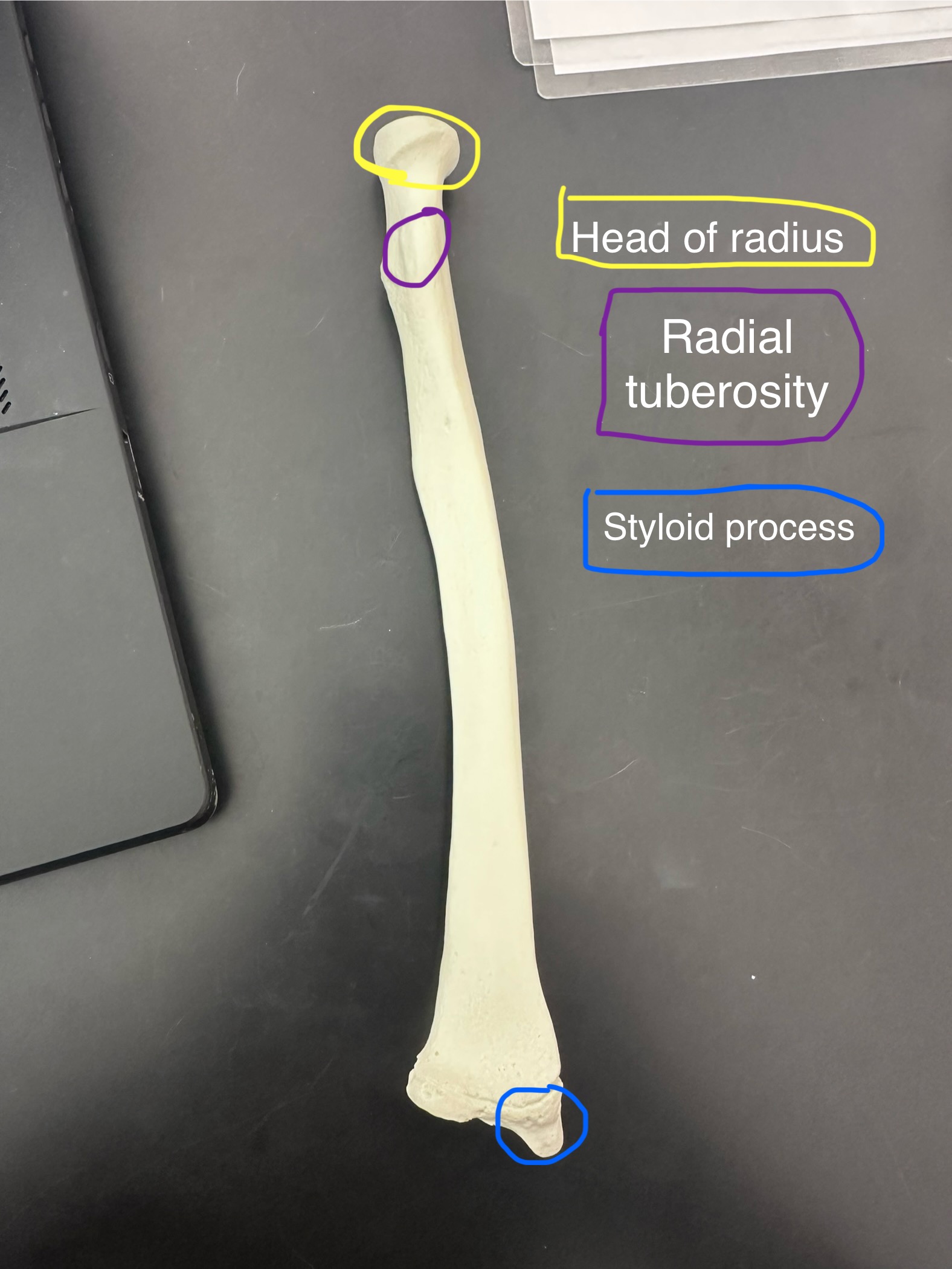

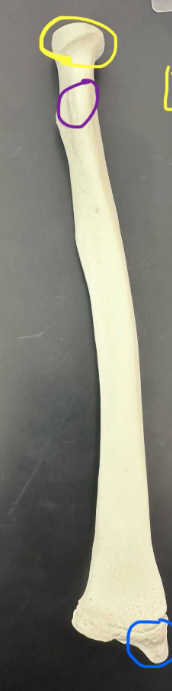

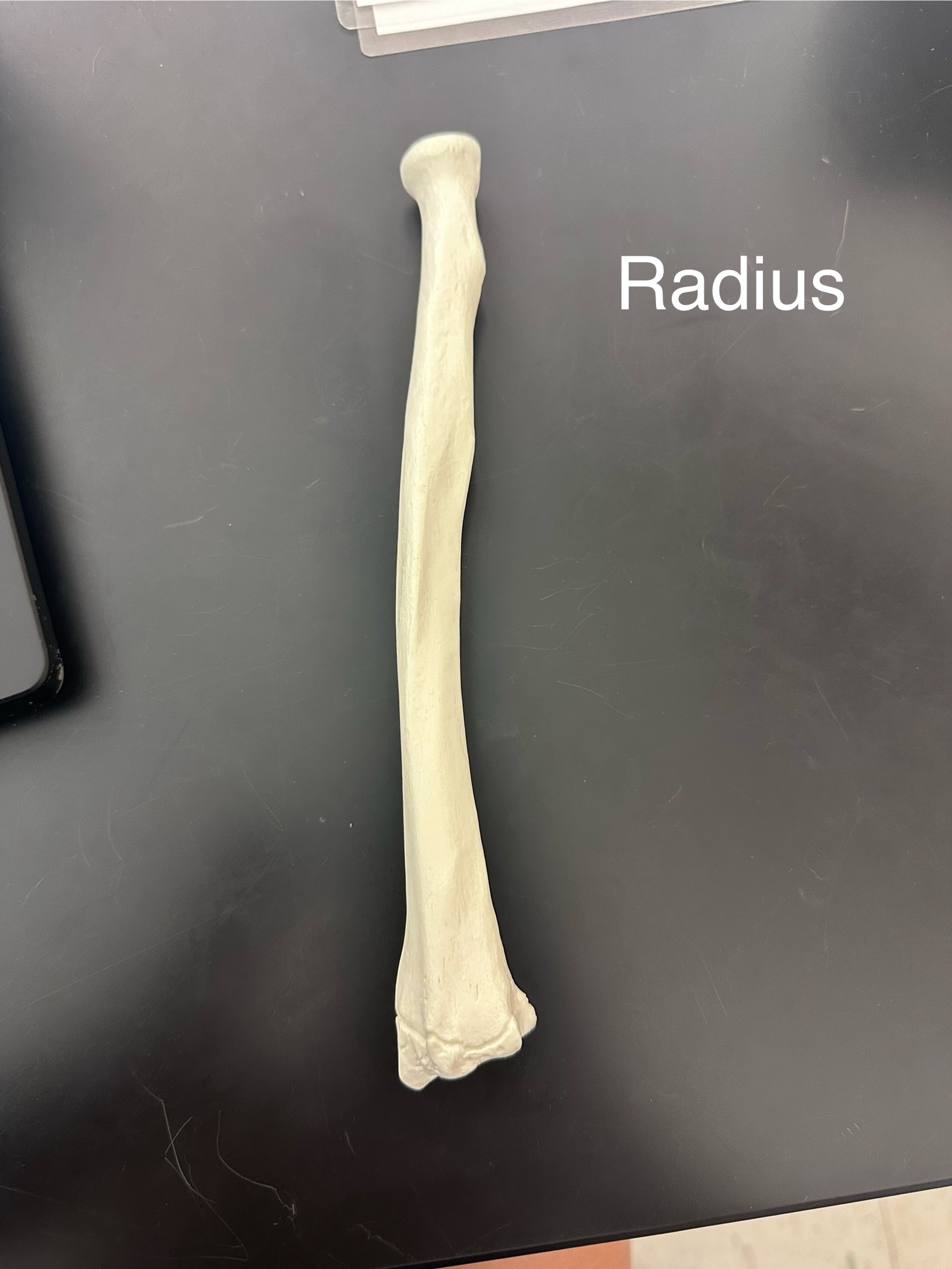

What is this bone?
Radius
What is circled in yellow?
Head of the radius
What is circled in purple?
Radial Tuberosity
What is circled in blue?
Styloid Process of radius

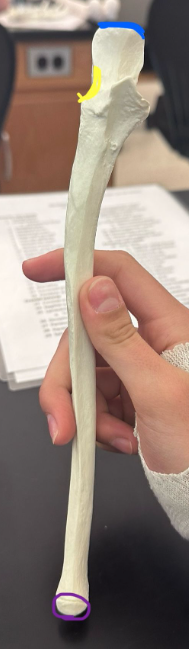

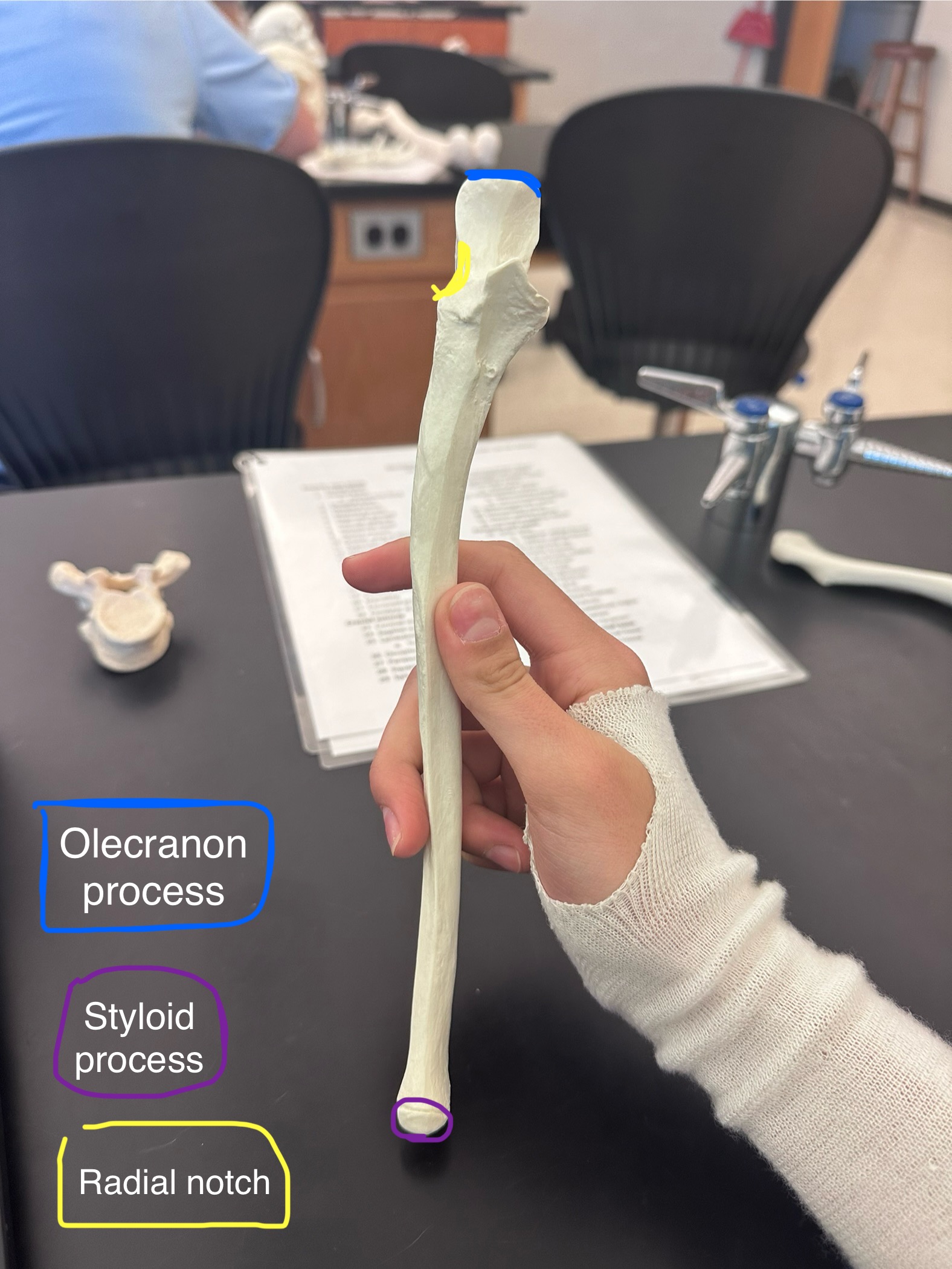

What is outlined in yellow?
Radial Notch
What is circled in purple?
Styloid Process of ulna
What is outlined in blue?
Olecranon process of ulna

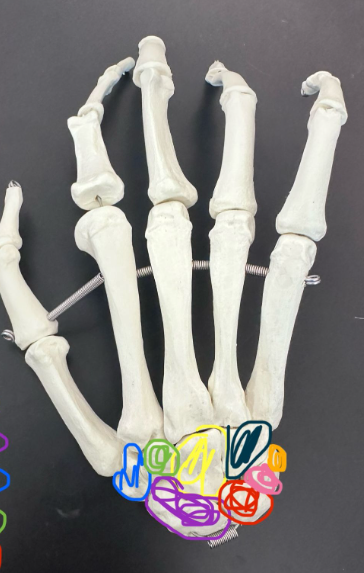

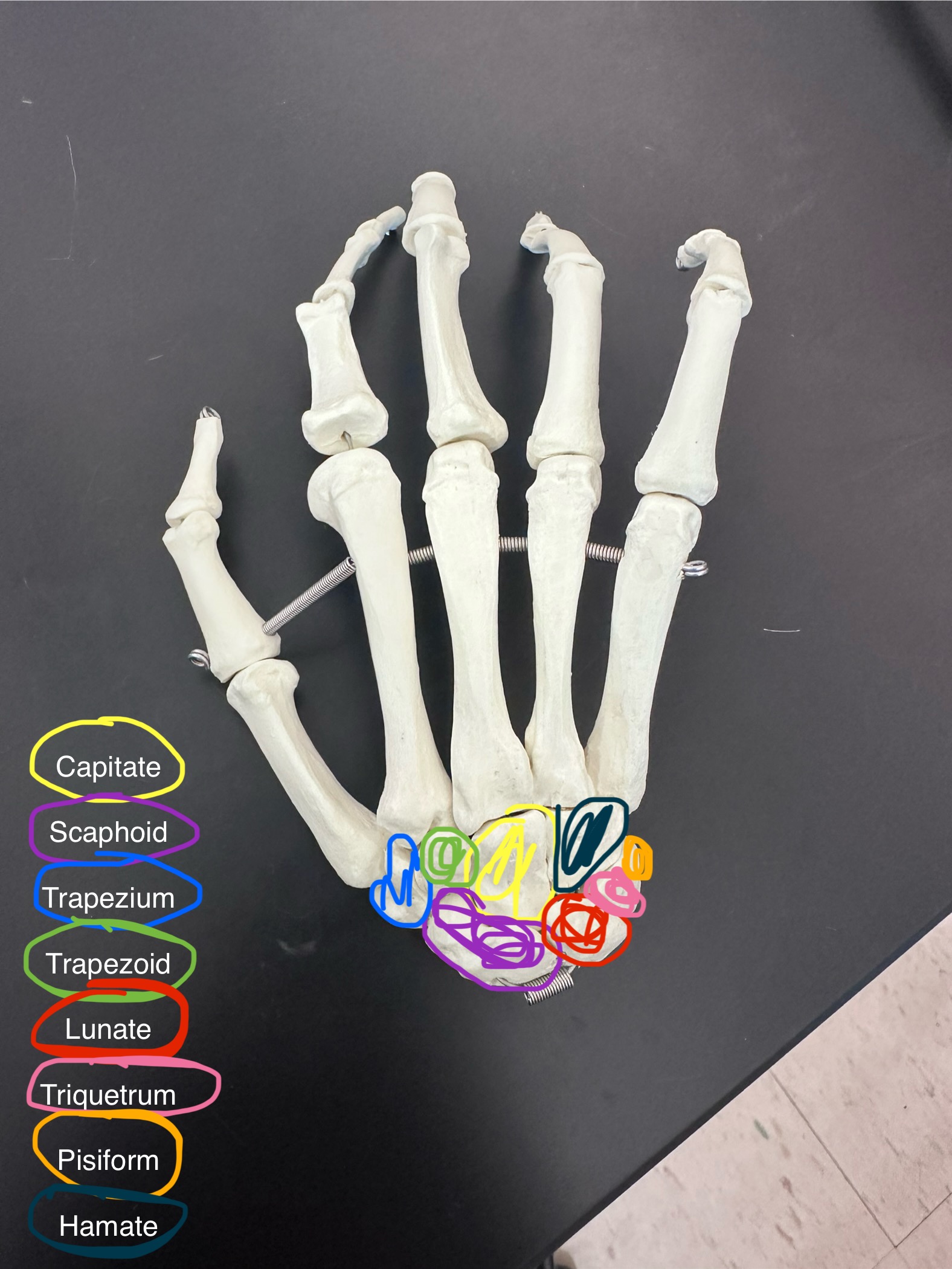

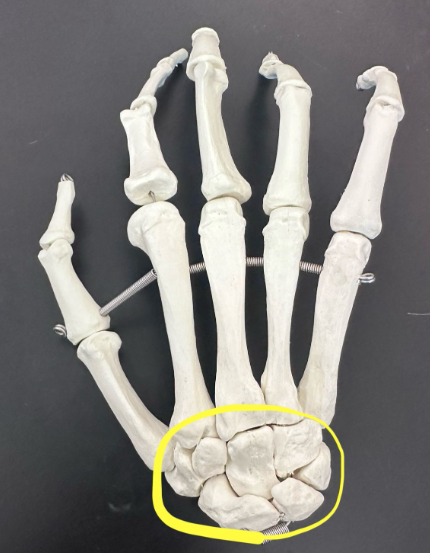

What are these bones circled in yellow called?
Carpus
What is highlighted in yellow?
Capitate
What is highlighted in purple?
Scaphoid
What is highlighted in blue?
Trapezium
What is highlighted in green?
Trapezoid
What is highlighted in red?
Lunate
What is highlighted in pink?
Triquetrum
What is highlighted in orange?
Pisiform
What is highlighted in navy?
Hamate

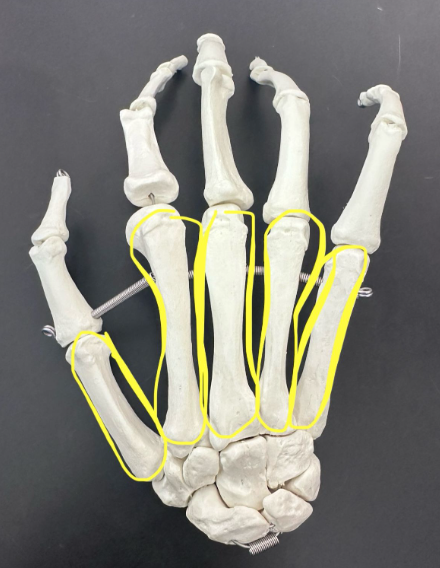

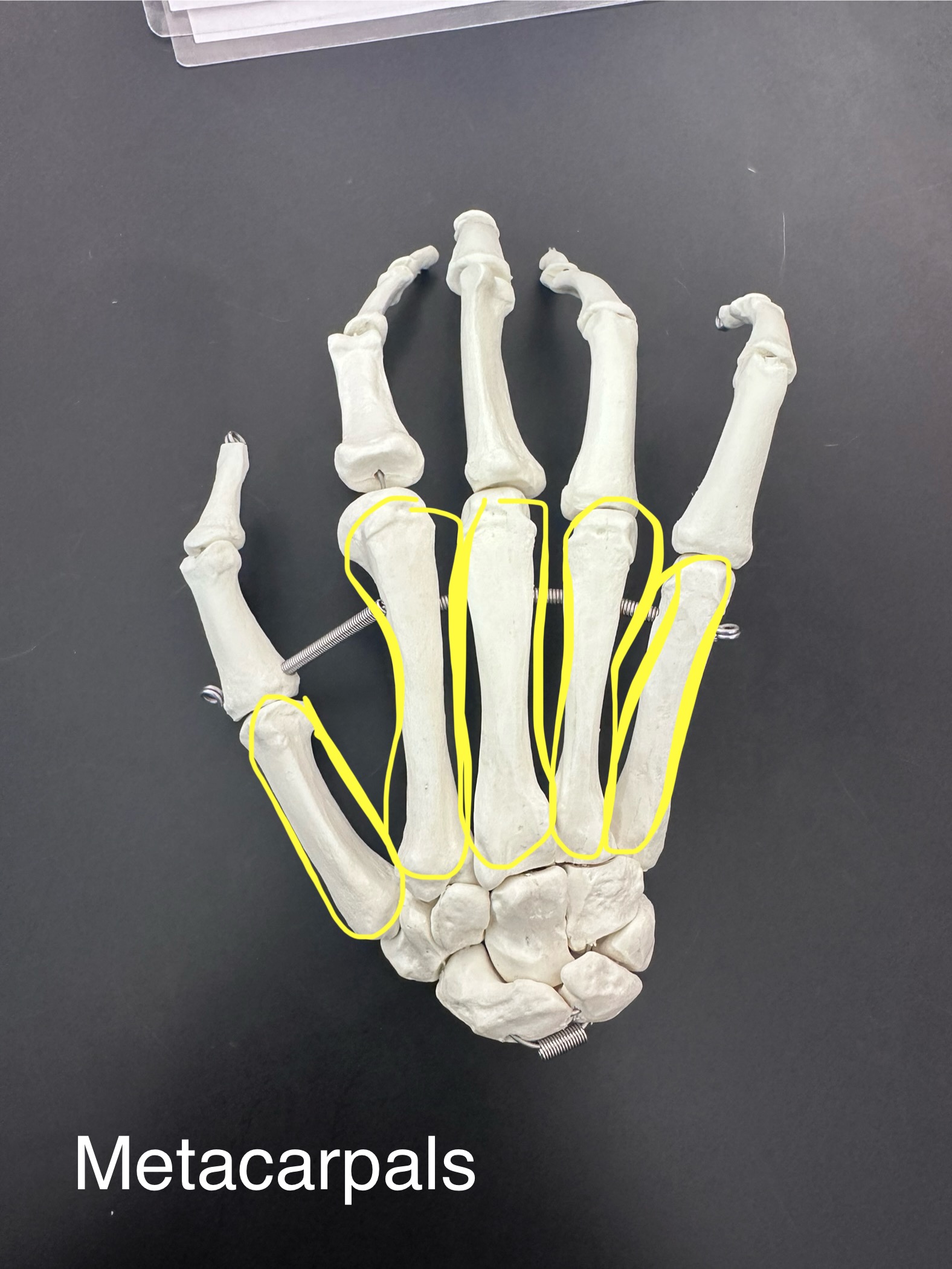

What is highlighted in yellow?
Metacarpals
