6.3 Manipulating Genomes

What is the general name for the process that determines the order of nucleotides in a length of DNA?

DNA sequencing

Main technique for sequencing DNA

Sanger sequencing / chain termination technique

Outline how DNA is sequenced

Extract DNA

Cut DNA into fragments of various lengths

Amplify

Sequence DNA fragments

Place fragments in order by matching overlapping regions

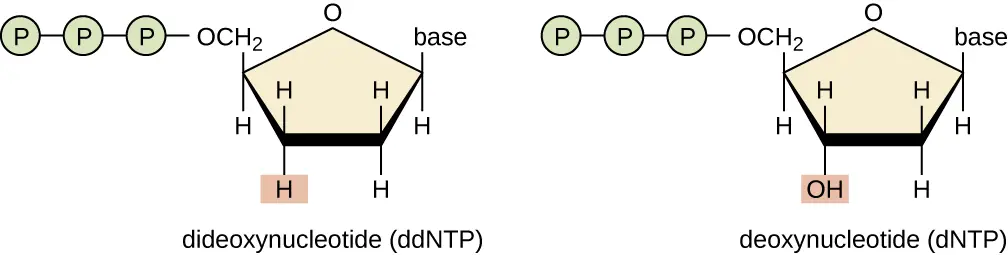

dNTP vs ddNTP

• dNTPs are nucleotides that are building blocks of DNA.

• ddNTPs are nucleotides that are used in the Sanger sequencing method.

What is the name used for ddNTP used in DNA sequencing because they prevent further elongation of the DNA molecule when they are inserted into the molecule?

Terminator bases

Sequencing DNA Full Process:

1. The DNA for sequencing is mixed with solutions. The solutions are:

   Primers

   DNA nucleotides

   DNA polymerase

   A Terminator base (A, G, C, or T)

2. Place the mixture in a thermal cycler. This rapidly changes temperature at programmed intervals in repeated cycles.

3. At 90C, the double stranded DNA separates into 2 single strands

4. At 50C, the primers anneal to the DNA strand

5. At 60C, DNA polymerase adds nucleotides with complementary bases to the single strand DNA template. This build up new DNA strands.

6. Each time a terminator base is incorporated (instead of a normal nucleotide), the synthesis of the DNA is terminated as no more bases can be added.

7. Terminating bases are present in lower amounts and are added at random, resulting in many DNA fragments of different lengths depending on where the terminating bases were added.

8. After many cycles, all possible DNA chains will be produced. The reaction will have stopped at every base.

9. The DNA fragments are then separated by length

10. Terminator bases have fluorescent markers.

    These markers are used to identify the final base on each fragment.

    Lasers detect the different colours, and thus the order of the sequence

11. The order of bases in the capillary tubes shows the sequence of the new complementary DNA strand that was made.

12. From that, we can figure out the original DNA sequence.

What's a way to separate fragments?

Gel electrophoresis

Electrophoresis Process

1. Pipette the 4 solutions containing the 4 different terminator bases into the different wells in the agarose gel.

2. Pass a current through the electrophoresis plate from negative to positive.

   DNA has a slightly negative charge so will be repelled by the cathode (-) and attracted to the anode (+)

3. Use an alkaline solution, as the solution carries charge to separate fragments.

4. Smaller fragments will travel further as they have less mass and therefore less resistance in the gel

5. Only run for a set amount of time, or else all the DNA will end up at the anode end.

6. Stain the gel then photograph the gel

2 ways to see the DNA after Gel Electrophoresis

• Southern blotting

• Radioactive/fluorescent probes

Southern blotting

Using radioactive DNA probes and x-rays.

It transfers fragments to a membrane.

Radioactive/fluorescent probes

These visualise bands/patterns

Difference between Electrophoresis and TLC

1. TLC separates by relative solubility

   Electrophoresis separates by size

2. TLC separates non-charged particles

   Electrophoresis only separates charged particles

3. TLC doesn’t use a buffer solution

   Electrophoresis uses a buffer solution

4. TLC uses dyes

   Electrophoresis uses radioactive / fluorescent tags

Faster techniques for DNA sequencing

• High throughput sequencing

• Next generation sequencing

• Shotgun sequencing

• Whole genome sequencing

• Pyrosequencing

• Massive parallel sequencing

Uses of DNA profiling

Paternity tests

Forensics

Assessing disease risk

Classification/species identification

Introns

Non-coding regions of the DNA

Explain why some regions of DNA can be described as non-coding

These regions are not present in mature mRNA and are not translated

Suggest why non coding regions of DNA show more variation

They aren’t selected against. They don’t affect survival.

Why do we use introns for genetic profiles?

- In most people, the genome is very similar

- Using coding sequences of DNA would not provide unique profiles

- Introns contain repeating sequences

STRs

Short tandem repeats

2-4 base pairs repeated 5-15 times

VNTRs

Variable number tandem repeats

20-50 base pairs repeated from 50 to several 100 times

What is the name for the sequence of bases that is repeated in Short tandem repeats (STRs) and variable number tandem repeats (VNTRs)?

The core sequence

DNA Profiling Process

1. Extract the DNA

2. Amplify the DNA fragment with PCR

3. Cut the DNA with restriction enzymes

4. Separate DNA fragments using electrophoresis. The DNA will be separated based on their mass.

5. Transfer fragments to paper

6. Apply a radioactive probe.

   Use x-rays to view the position of DNA fragments

7. As a result, you create genetic profiles, which can be used in paternity tests, forensics, and for analysis of disease risk.

What are restriction endonucleases?

Restriction enzymes

They are enzymes used to cut the desired gene from DNA.

What can the desired gene also be called?

cDNA

Genetic Engineering Process

1. Restriction endonucleases are used to cut the desired gene from DNA. This creates sticky ends, which makes it easier for the gene to be inserted elsewhere.

2. The plasmid in this process is a circular piece of DNA used as a vector

3. A plasmid is cut using the same restriction enzymes.

4. This produces complementary sticky ends that match the gene.

5. The desired gene (cDNA) is inserted into the plasmid.

6. The complementary base pairs anneals using the enzyme DNA ligase.

7. It forms recombinant DNA.

8. A marker is often included with the desired gene. This helps identify which cells have successfully taken up the new DNA. Examples of a marker include a fluorescent marker, and a gene for antibiotic resistance

9. The recombinant DNA is inserted into the host cell using electroporation.

10. An electric shock makes the cell surface membrane temporarily porous, so the plasmids can enter the host cell.

11. The host cell divides by mitosis, reproducing the recombinant DNA too and producing the desired protein.

12. Finally, scientists test the cells to check if the gene was successfully taken up.

    • If a fluorescent marker was used, they check for fluorescence

    • If an antibiotic resistance marker was used, they grow the cells in antibiotics. Only the ones with the gene will survive.


What’s electrofusion?

• Electrofusion combines 2 different cells.

• 1 cell with the desired gene, 1 host cell.

• The cells are placed next to each other and given an electric pulse.

• The electric shock will cause their membrane to temporarily break, allowing them to fuse into 1 hybrid cell.

• The new hybrid cell contains genetic material from both original cells.

• This hybrid can be grown into a GM organism.

Alternative methods to extract the desired gene

Using reverse transcriptase

Reverse transcriptase

You start with the mRNA (rather than the desired DNA) and you reverse it using reverse transcriptase to return to the cDNA (complementary DNA).

cDNA can now be inserted into a plasmid just like a normal gene.

What is recombinant DNA?

DNA combined from 2 sources

Vectors for Plants

Plasmid of Agrobacterium tumefaciens

Vectors for Bacteria

BAC (Bacteria artificial chromosome), virus

Vectors for Animals

BAC, plasmids, virus

Somatic gene therapy in cystic fibrosis

1. A harmless virus is genetically modified to carry a normal copy of the CFTR gene.

2. The virus is dripped into the lungs through a thin tube inserted into the nose.

3. Once inside the lungs, the virus enters the lung cells and delivers the healthy CFTR gene into the lung cell’s nucleus, where it becomes part of the cell’s DNA.

4. As the lung cells divide, they carry the normal gene, allowing them to produce functional CFTR protein, helping to relieve symptoms of cystic fibrosis.

What is computational biology?

A branch of biology that uses simulations and mathematical models to explore biological systems

What is bioinformatics?

An area of science uses computer technology to collect, store, analyse, and share biological data such as sequences of nucleotides in DNA or sequences of amino acids in proteins

List the uses of bioinformatics

• Rapid comparison of newly sequenced alleles with other sequences

• Amino acids sequences / protein structures are held in database

• Computer modelling of new protein structure from base sequences

• Allows access to large amounts of data on DNA and proteins.

• Information is universal

What field of science can bioinformatics be used in?

Epidemiology

What is epidemiology?

The study of how diseases spread, their patterns, causes, and their effects in populations.

What is a key aspect of modern epidemiology?

It allows the comparison of DNA sequences of viruses/bacteria to other known DNA sequences and structures.

How does gene sequencing now occur?

It occurs using “high throughput sequencing” and “next generation sequencing”, where multiple sets of DNA are sequenced together (massive parallel sequencing)

What does sequencing allow for?

Synthetic biology

What is synthetic biology?

A field of science that involves redesigning organisms for useful purposes by engineering them to have new abilities, solving problems in medicine, manufacturing, and agriculture.

Why is epidemiology beneficial?

It allows scientists to:

• Identify the source of the outbreak

• Identify vulnerable populations

• Design vaccination programmes to target certain individuals

Sequencing also allows for proteomics. What is proteomics?

The large scale study of a set of proteins produced in an organism, system, or biology context

Why compare genomes?

• The genome is universal

• Evolutionary relationships (phylogeny)

• Compare bases sequence to predict the function of an unknown protein

• Compare between and within species

What does PCR stand for?

Polymerase chain reaction

What is PCR used for?

Used to amplify DNA

What is a primer?

A short single-stranded sequence of DNA.

Primers anneal to a specific complementary sequence on the DNA strand we want to replicate.

PCR

1. Denaturation

2. Annealing

3. Elongation

4. Elongation

5. Final

1. Heat the DNA fragment to 95C to break the hydrogen bonds between the strands, separating them into single strands

2. Cool the solution to allow the primers to anneal to the specific DNA sequence to be replicated.

3. Once the primers has annealed to the DNA sequence, then heat the DNA to the optimum temperature of Taq DNA polymerase.

4. Taq DNA polymerase joins free nucleotides to the 3’ end of the primers, building the new DNA strand.

5. The result is 2 new DNA fragments.

Features of Taq DNA polymerase

Taq DNA polymerase is thermostable and does not denature at 95C, so PCR can be cycled repeatedly without stopping.

Amplifying DNA calculation

Each round, the number of DNA doubles. Therefore the formula 2ˣ can be used to calculate the number of strands. ˣ is the number of cycles.

What is the main advantage of PCR when it is used as a part of the process to sequence the genome of an endangered species?

Only a small sample of DNA is required

Gene Manipulation examples:

• Insect resistance in GM soya

• GM pathogens for research

• Pharming

• Insect resistance in GM soya

Soya is genetically modified to produce Bt proteins.

Bt proteins are toxic to many pests and resistant to weed killer.

This means farmers don’t need to spray insecticides, and can spray weed killer to get rid of weeds and don’t kill the soya.

Advantages of Insect resistance in GM soya

- Widely used in organic farming where no chemicals sprayed onto plants

- Results in higher crop yield

- Less expensive

- Less labour

Disadvantages of Insect resistance in GM soya

• Pollinators and predators may be damaged by the toxins from the Bt protein

• Insects might become resistant to the toxic Bt protein

• Genes might spread to wild populations, creating "superweeds"

• Reduces biodiversity

Ethical concerns with Insect resistance in GM soya

Patenting issues

• GM pathogens for research

Scientists can genetically modify pathogens to develop medical treatments

Advantages of GM pathogens for research

Used in medical and epidemiological research to find treatments

Disadvantages of GM pathogens for research

There are health and safety risks to the researcher and the wider public

Ethical concerns with GM pathogens for research

Used in biological warfare

State 1 valid concern people have about genetic modification

Increase in antibiotic resistance

• Pharming

The genetic modification of animal, creating transgenic organisms

Example of Pharming

Some pigs have been genetically engineered to express a fatty acid for higher levels of omega 3

Advantages with Pharming

Animals with the desired gene can lead to:

- Decreased disease risk

- Faster growth rate

- Production of a human protein in milk that we can harvest

Disadvantages with Pharming

Unknown risks of genetic modification

Ethical concerns with Pharming

• Ethically grey to put human genes into animals.

• Creating transgenic animals that might cause the animal harm.

• Welfare of the animal might be at risk.

Issues relating to patenting and technology transfer

e.g. Making genetically modified seeds available to poor farmers.

Patenting is where a company that creates a GM seed legally prevents others from using it without payment.

Advantages of patenting

Allows the company who created the GM seed to make profits on their design

Disadvantages of patenting

Patented seeds can only be used for the year, then new seeds have to be brought.

Ethical concerns with patenting

Poor farmers who actually need drought resistant crops cannot afford to buy the GM seeds.

Why are there few ethical concerns around genetically engineering bacteria?

Few animal rights issues to consider

Safety of genetic engineering in bacteria has been established

What is not a valid concern about genetic modification?

That the use of human embryos in stem cell production is unethical

Somatic Gene Therapy

The insertion of a normally functioning gene into a patient to cure a genetic disorder

What happens in somatic gene therapy?

The DNA of somatic cells (body cells) are changed.

What is cystic fibrosis?

The genetic disorder where an individual produces too much mucus and it's hard to clear

Advantages of Somatic Gene Therapy

• Targets specific tissues in need of treatment

• Extends life span

Disadvantages of Somatic Gene Therapy

• Cannot be passed to offspring

• Gene is introduced to a body cell (but not a reproductive cell)

• Only some cells get the functional gene

• It is temporary and needs repeating

What are germline cells?

Cells that eventually become sperm or eggs

Germ Line Cell Gene Therapy

A faulty allele is replaced with a functional allele in germ line cells or a very early embryo.

The effects of this are permanent and can be inherited.

Advantages of Germ Line Cell Gene Therapy

• Can be passed to offspring

• Gene is introduced to zygote

• All cells get functional allele

• Permanent

Disadvantages of Germ Line Cell Gene Therapy

• Cannot target a specific tissue

• Ethical implications

How does inserting a new gene into a chromosome affect the functioning of other genes in that chromosome?

• Frameshift

• Altered triplets

• Adjacent genes on the same chromosome switched on or off
