The Nervous System

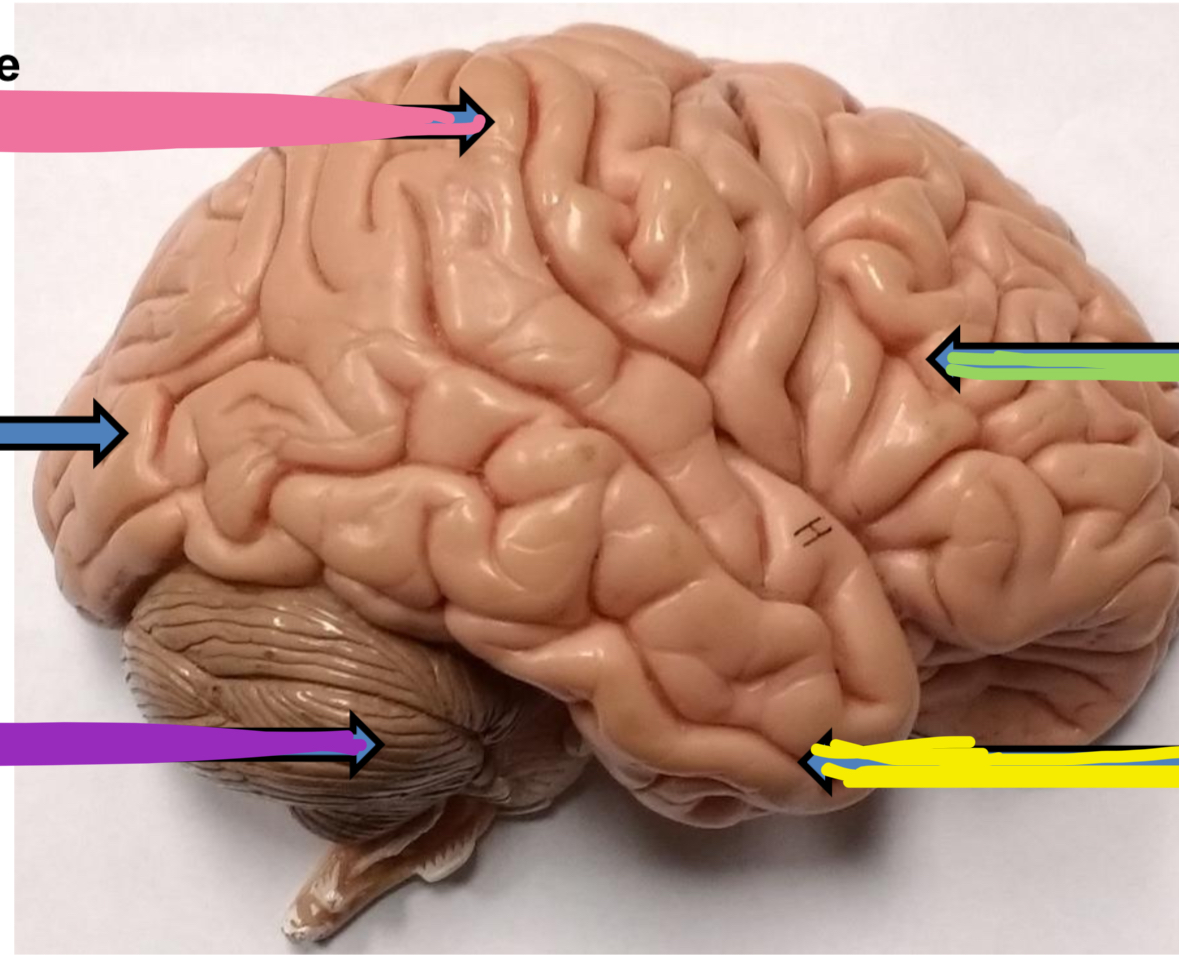

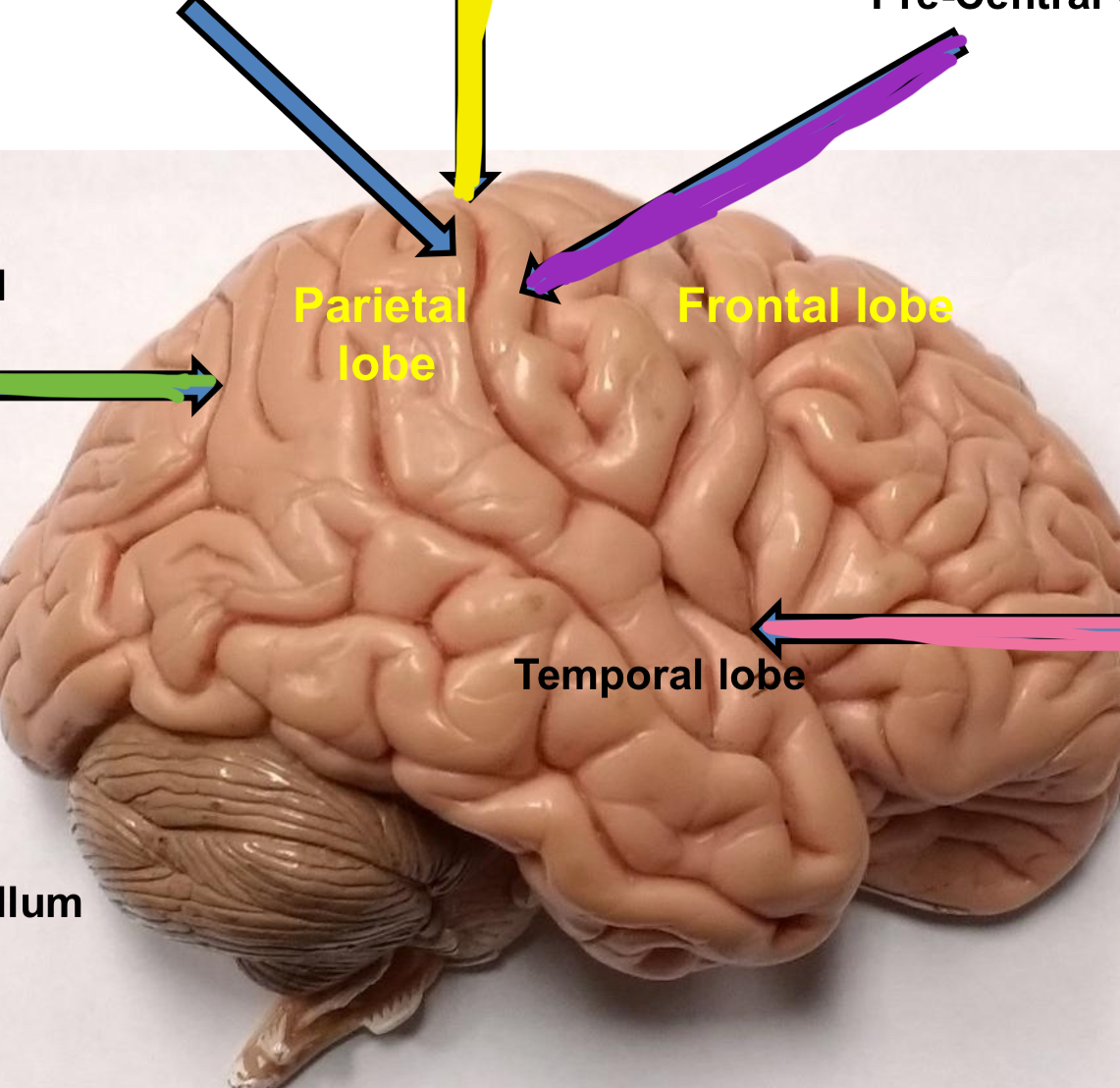

Green points to what lobe of the brain

Frontal lobe

Yellow points to what lobe of the brain

Temporal Lobe

Pink points to what lobe of the brain

Parietal Lobe

Blue points to what lobe of the brain

Occipital Lobe

Purple points to what lobe of the brain

Cerebellum

Blue points to what external part of the brain

Post Central Gyrus

Yellow points to what external part of the brain

Central Sulcus

Purple points to what external part of the brain

Pre Central Gyrus

Pink points to what external part of the brain

Lateral Sulcus

Green points to what external part of the brain

Parieto-Occipital Sulcus

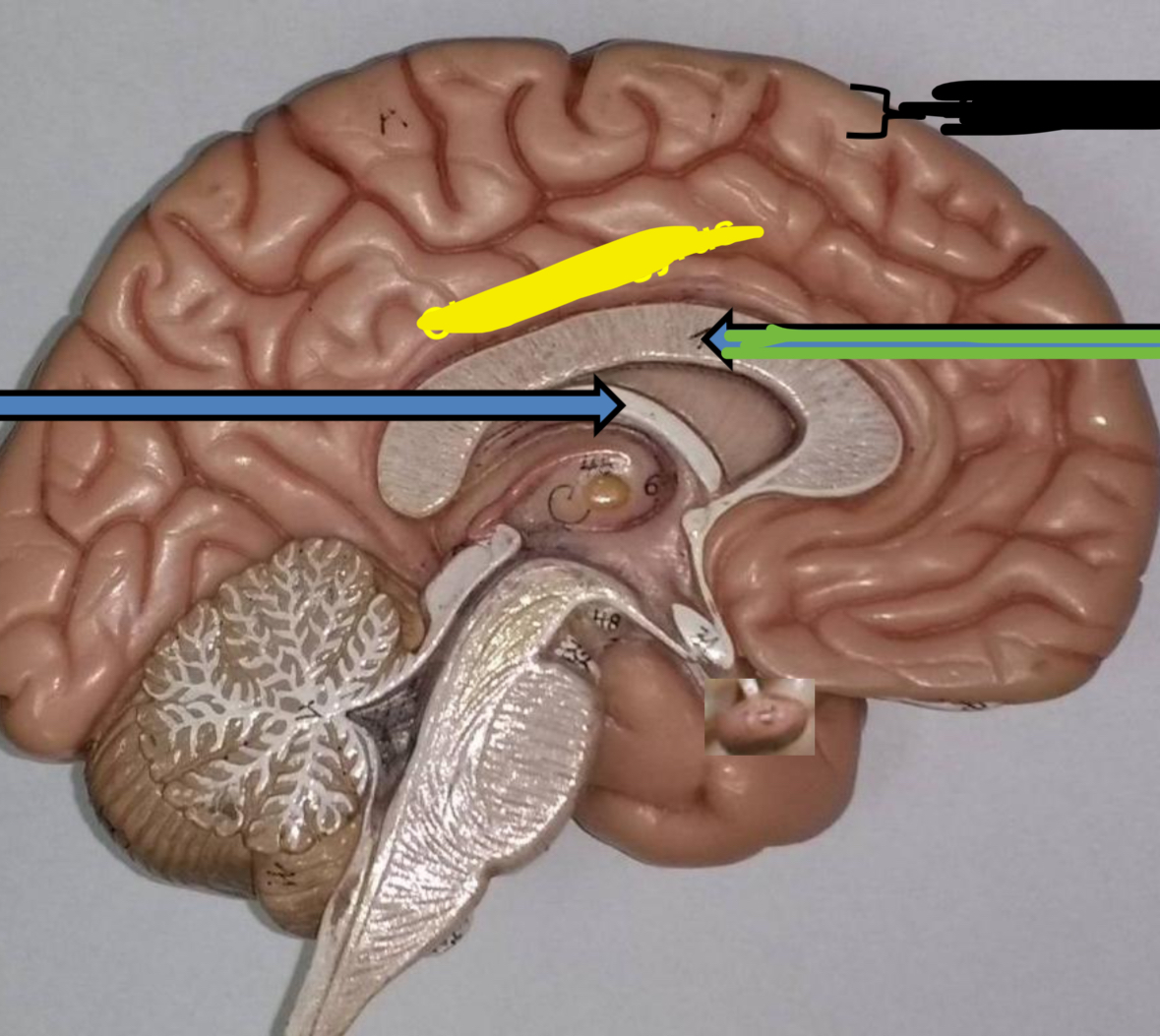

Black is what part of the cerebrum

Cerebral Cortex

Yellow is what part of the cerebrum

Cingulate Gyrus

Blue points to what part of the Cerebrum

Fornix

Green points to what part of the cerebrum

Corpus Callosum

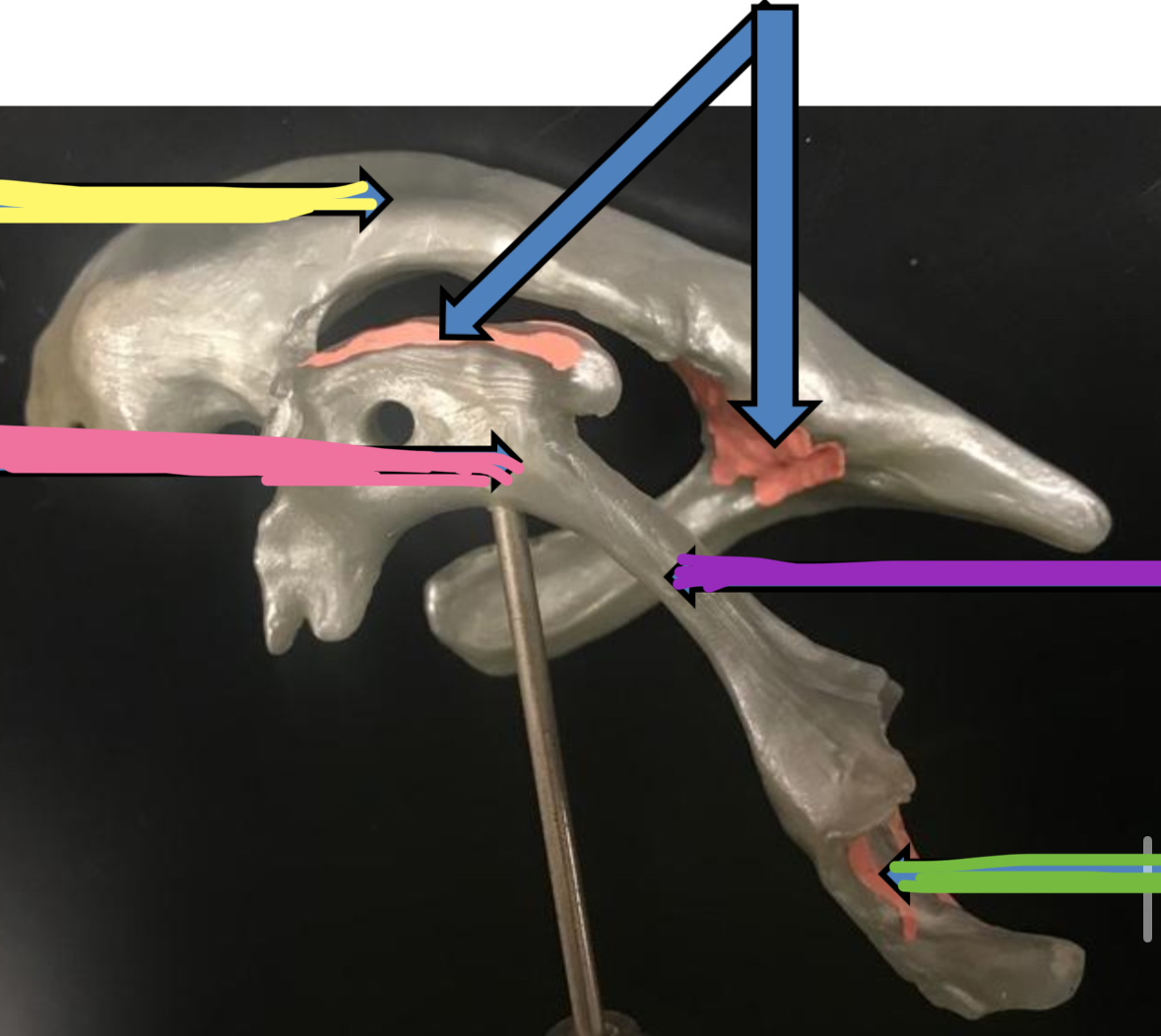

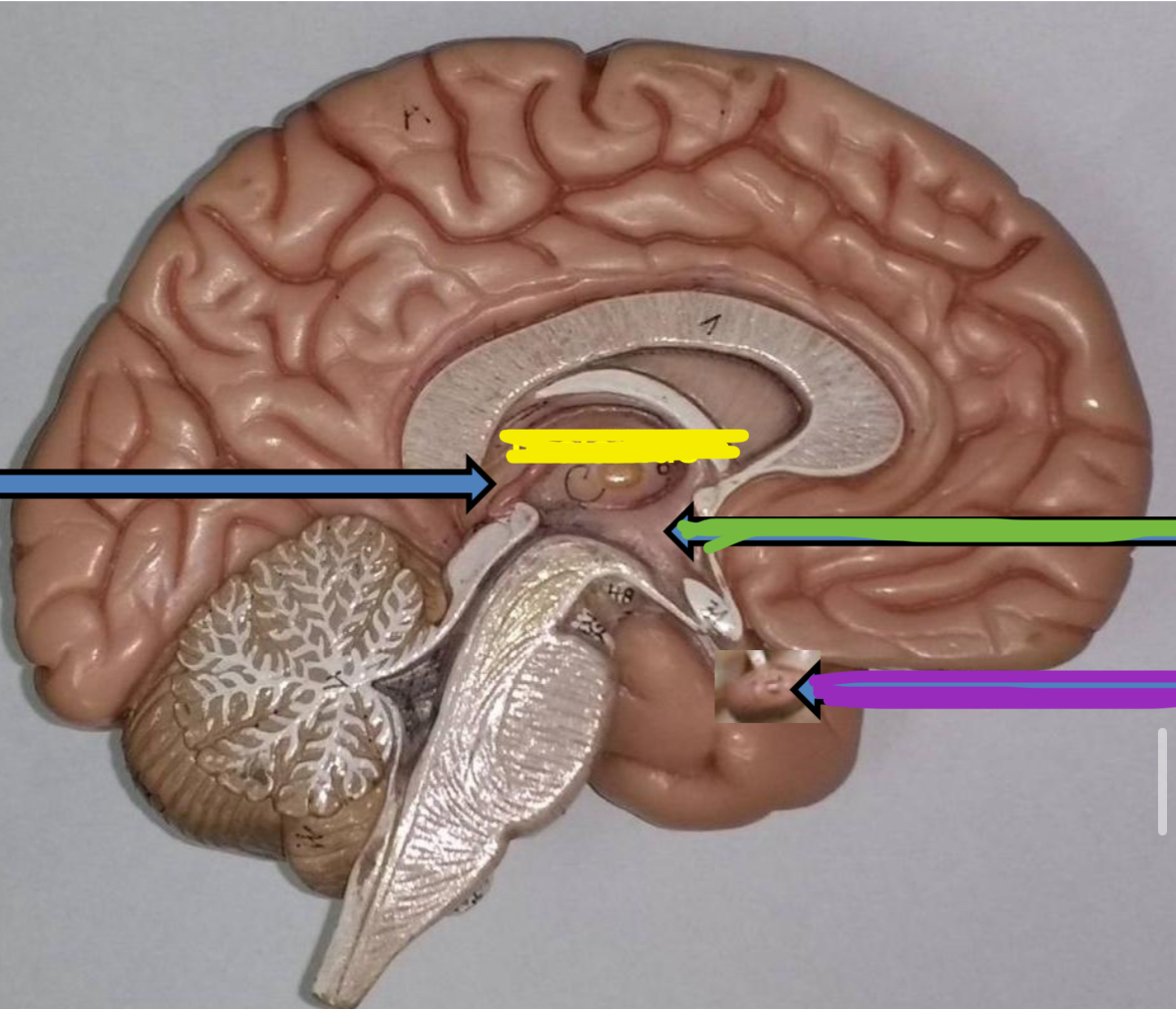

Yellow is what part of the diencephalon

Thalamus

Blue points to what part of the diencephalon

Pineal Gland

Green points to what part of the diencephalon

Hypothalamus

Purple points to what part of the diencephalon

Pituitary Gland

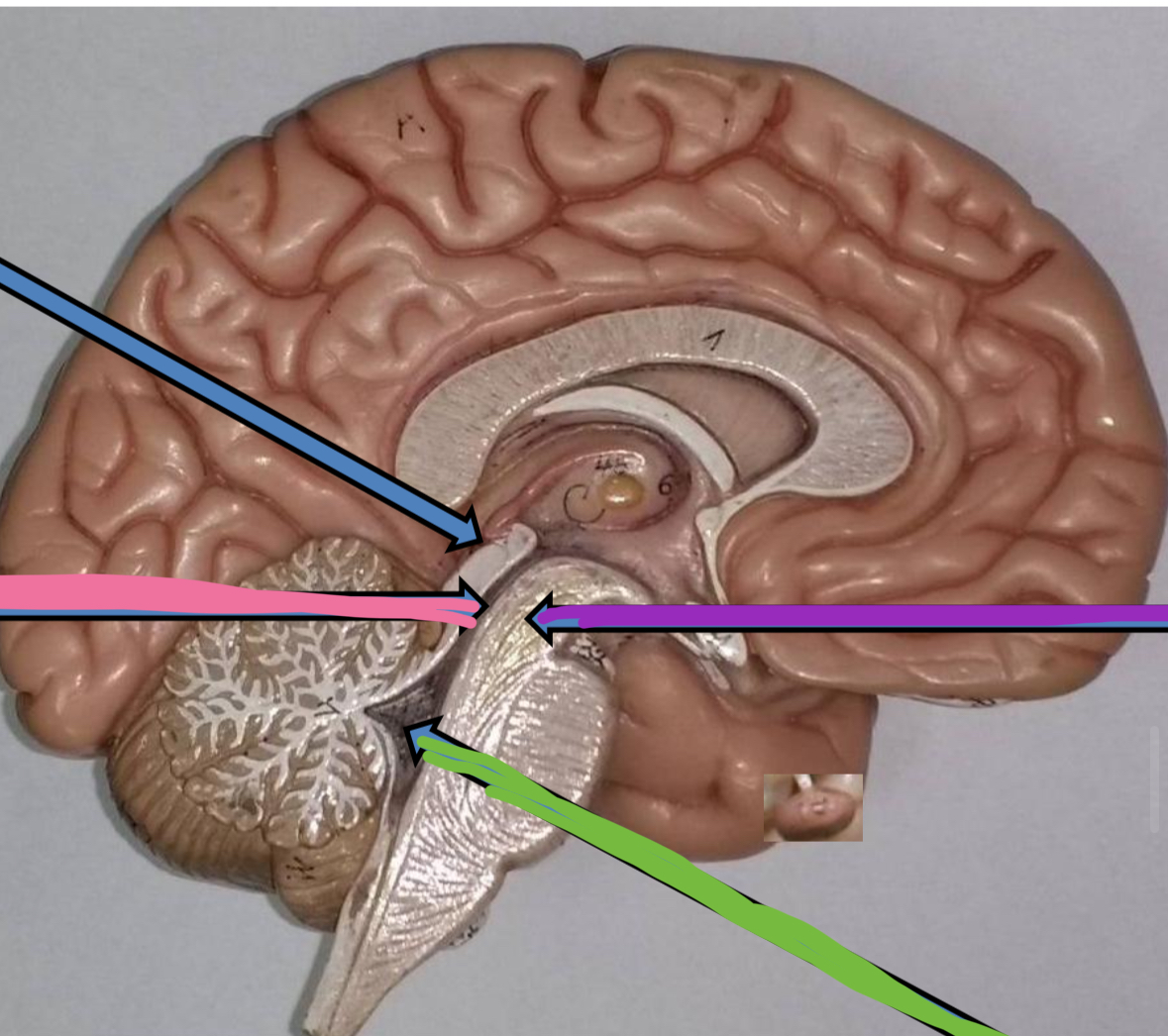

Blue points to what part of the Midbrain

Tectum

Pink points to what part of the Midbrain

Cerebral Aqueduct

Purple points to what part of the Midbrain

Cerebral Peduncle

Green points to what part of the Midbrain

4th Ventricle

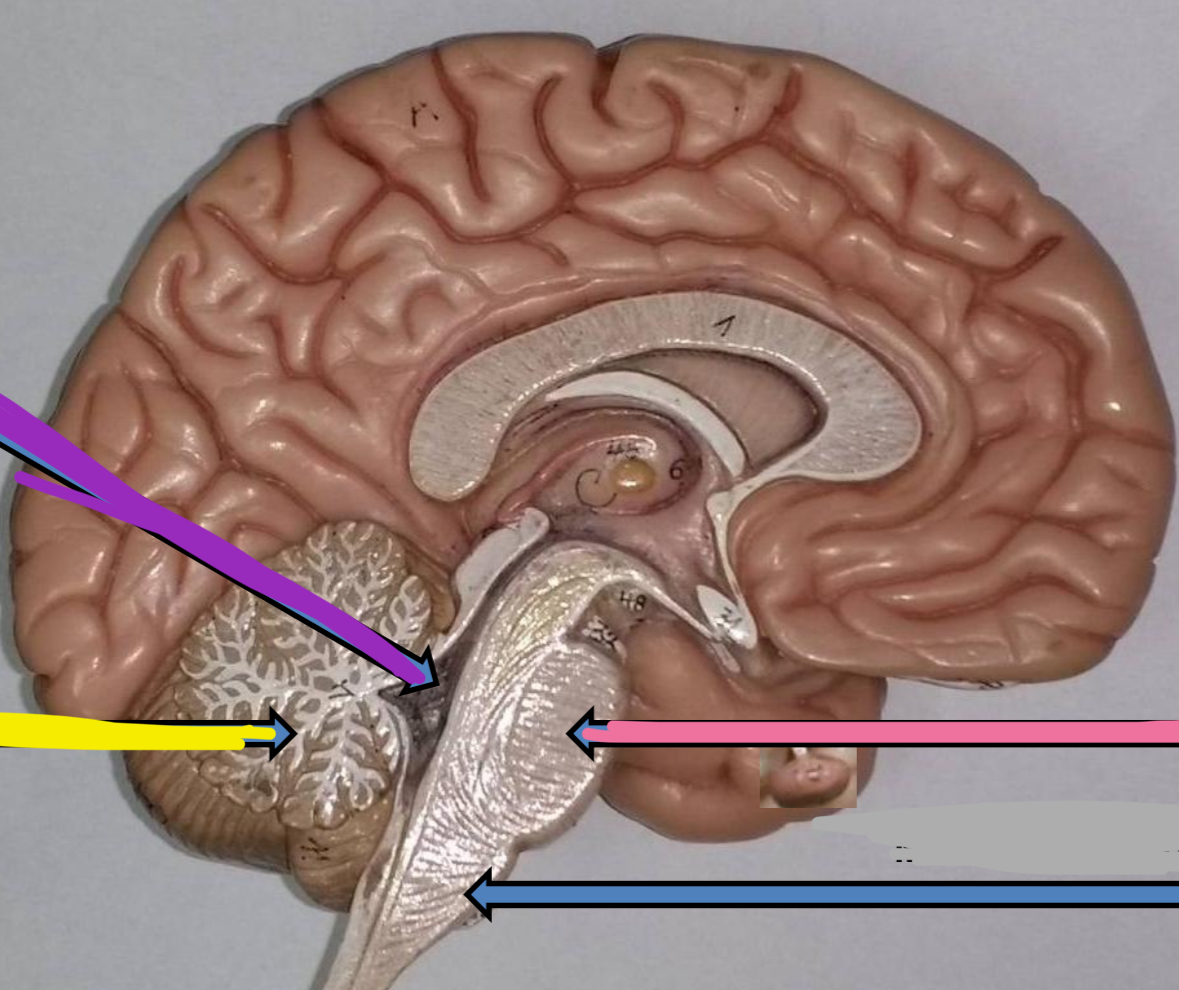

Pink points to what part of the Hindbrain

Pons

Blue points to what part of the Hindbrain

Medulla Oblongata

Pink points to what part of the ventricles of the brain

3rd Ventricle

Yellow points to what part of the ventricles of the brain

Lateral ventricle

Blue points to what part of the ventricles of the brain

Choroid Plexus

Purple points to what part of the ventricles of the brain

Cerebral Aqueduct

Green points to what part of the ventricles of the brain

4th Ventricle

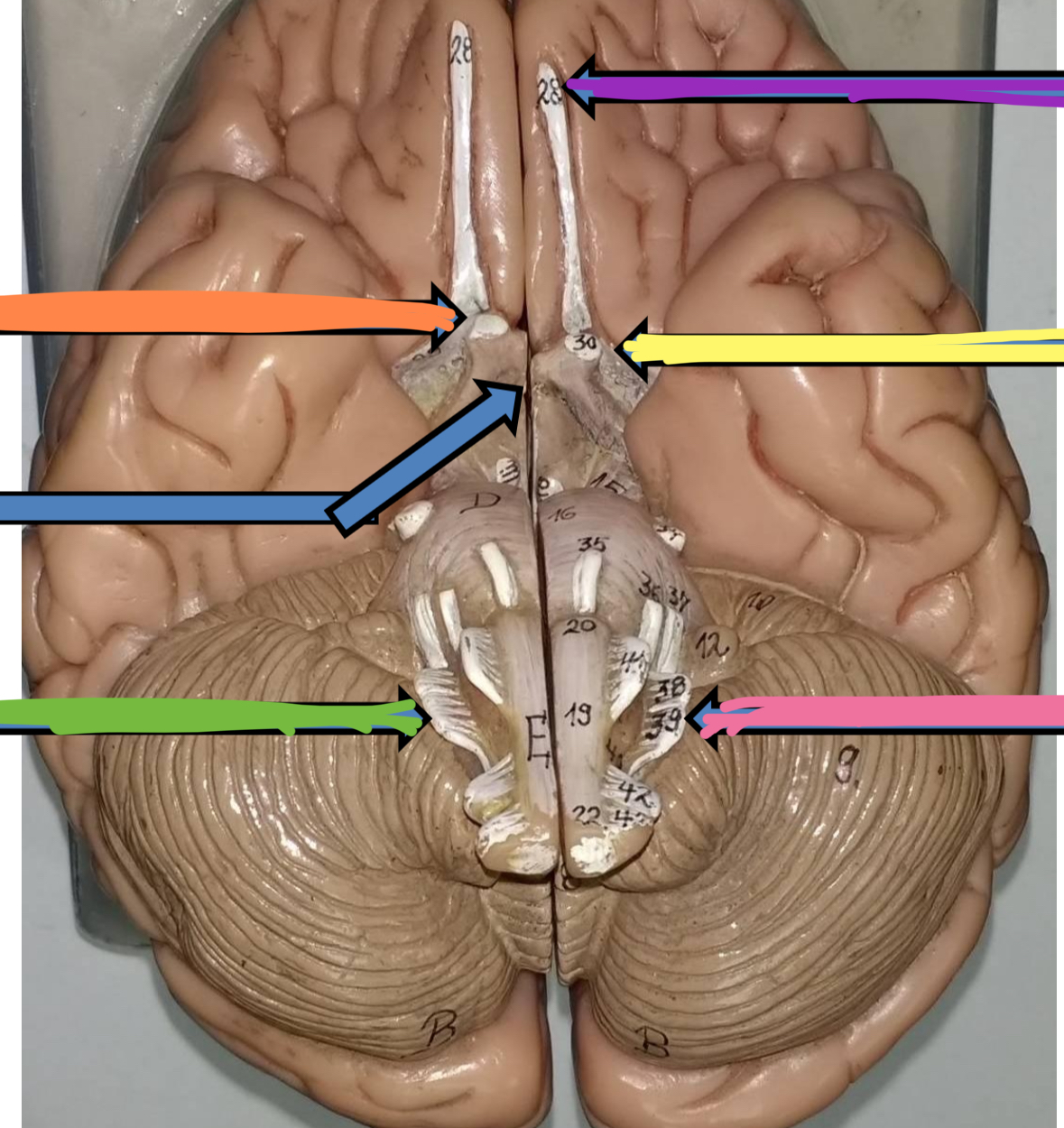

Orange AND Yellow point to what cranial nerve

Optic Nerve

Blue points to what cranial nerve

Optic Chiasm

Green AND Pink point to what cranial nerve

Vagus Nerve

Purple points to what part of the cranial nerves

Olfactory Bulb

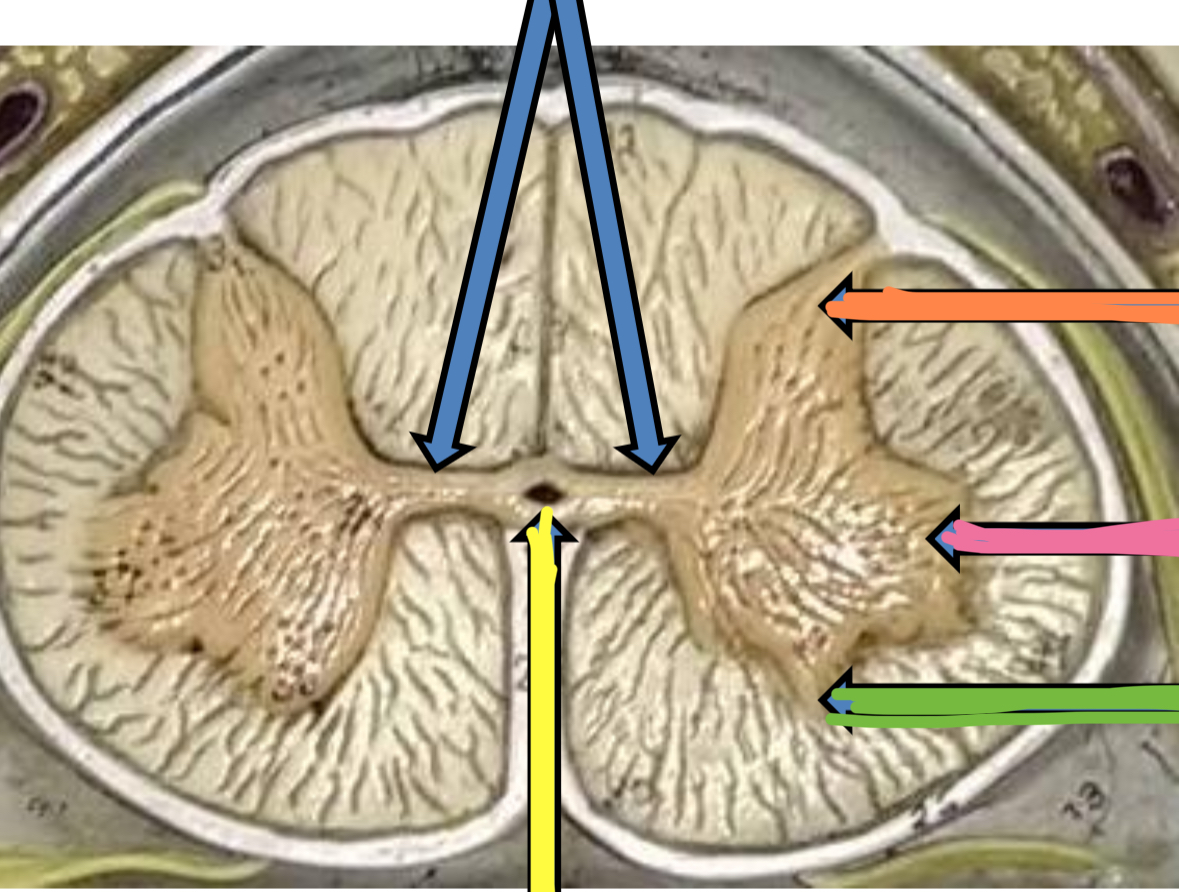

Blue points to what part of the spinal cord

Grey Commissure

Yellow points to what part of the spinal cord

Central Canal

Orange points to what spinal cord horn

Posterior Horn

Pink points to what spinal cord horn

Lateral Horn

Green points to what spinal cord horn

Anterior Horn

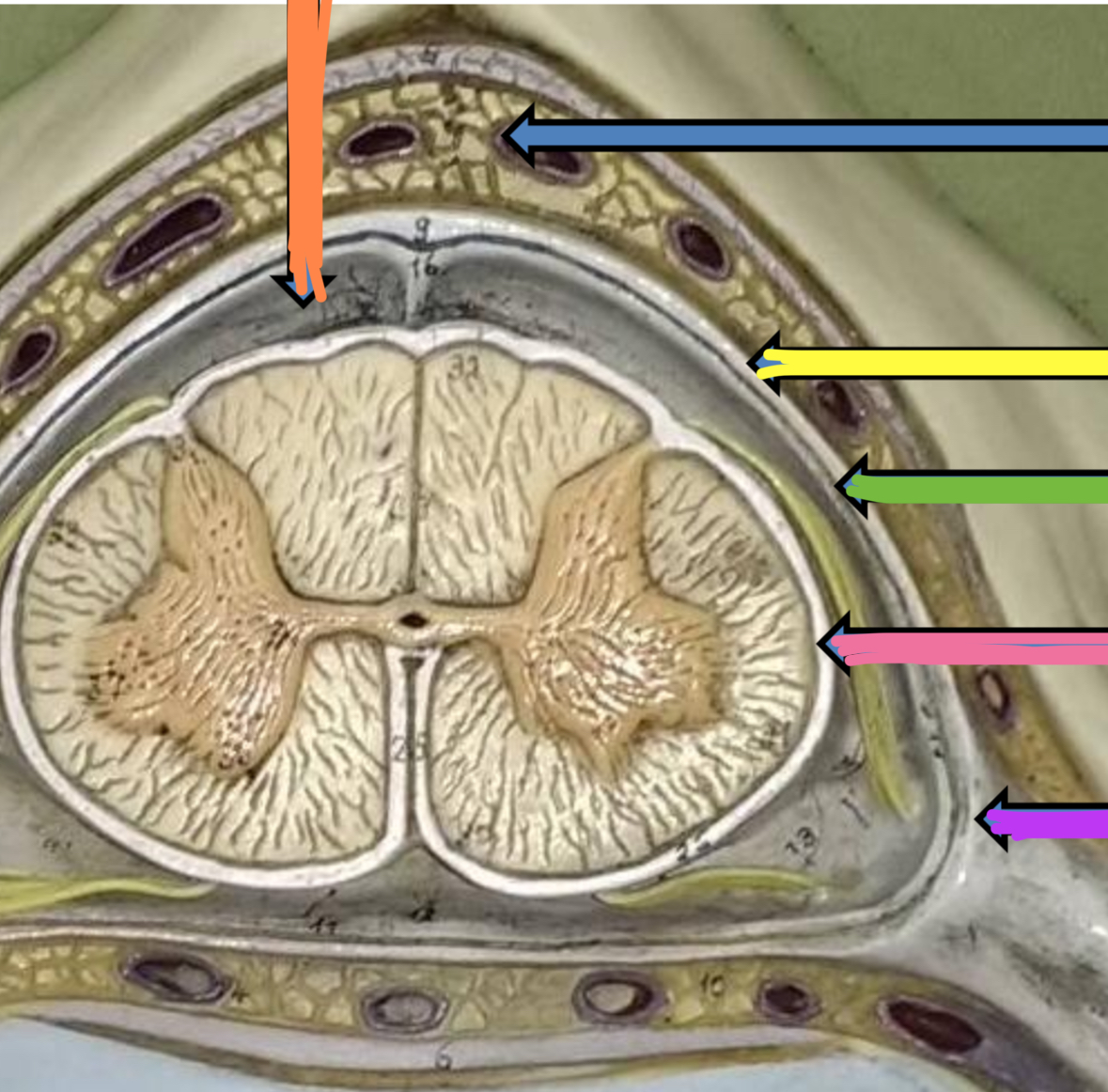

Orange points to what Meninge/meningeal space

Subarachnoid Space

Blue points to what Meninge/meningeal space

Epidural Space

Yellow AND Purple points to what Meninge/meningeal space

Dura Mater

Green points to what Meninge/meningeal space

Arachnoid Mater

Pink points to what Meninge/meningeal space

Pia Mater

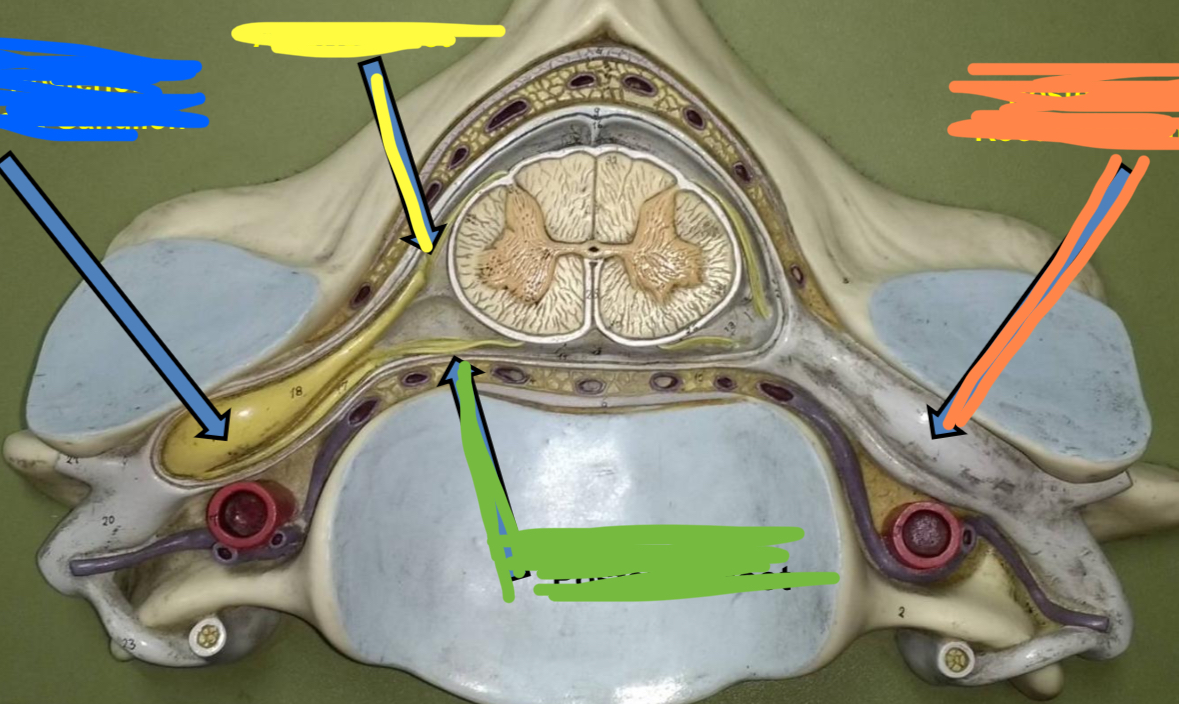

Blue AND Orange points to what part of the spinal nerves

Posterior Root Ganglion

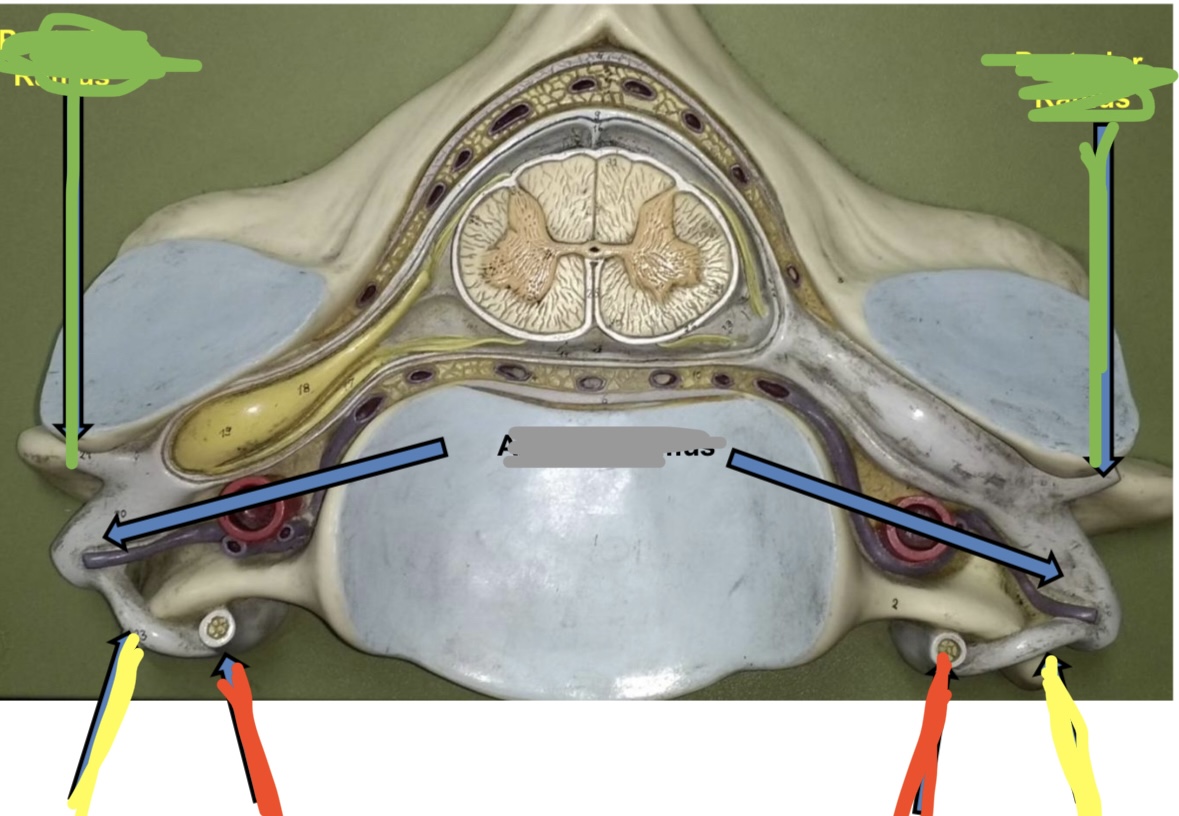

Yellow points to what part of the spinal nerves

Anterior Root

Green points to what part of the spinal nerves

Posterior Root

Green points to what part of the spinal nerves

Posterior Ramus

Blue points to what part of the spinal nerves

Anterior Ramus

Yellow points to what part of the spinal nerves

Rami Communicans

Red points to what part of the spinal nerves

Sympathetic Trunk Ganglion

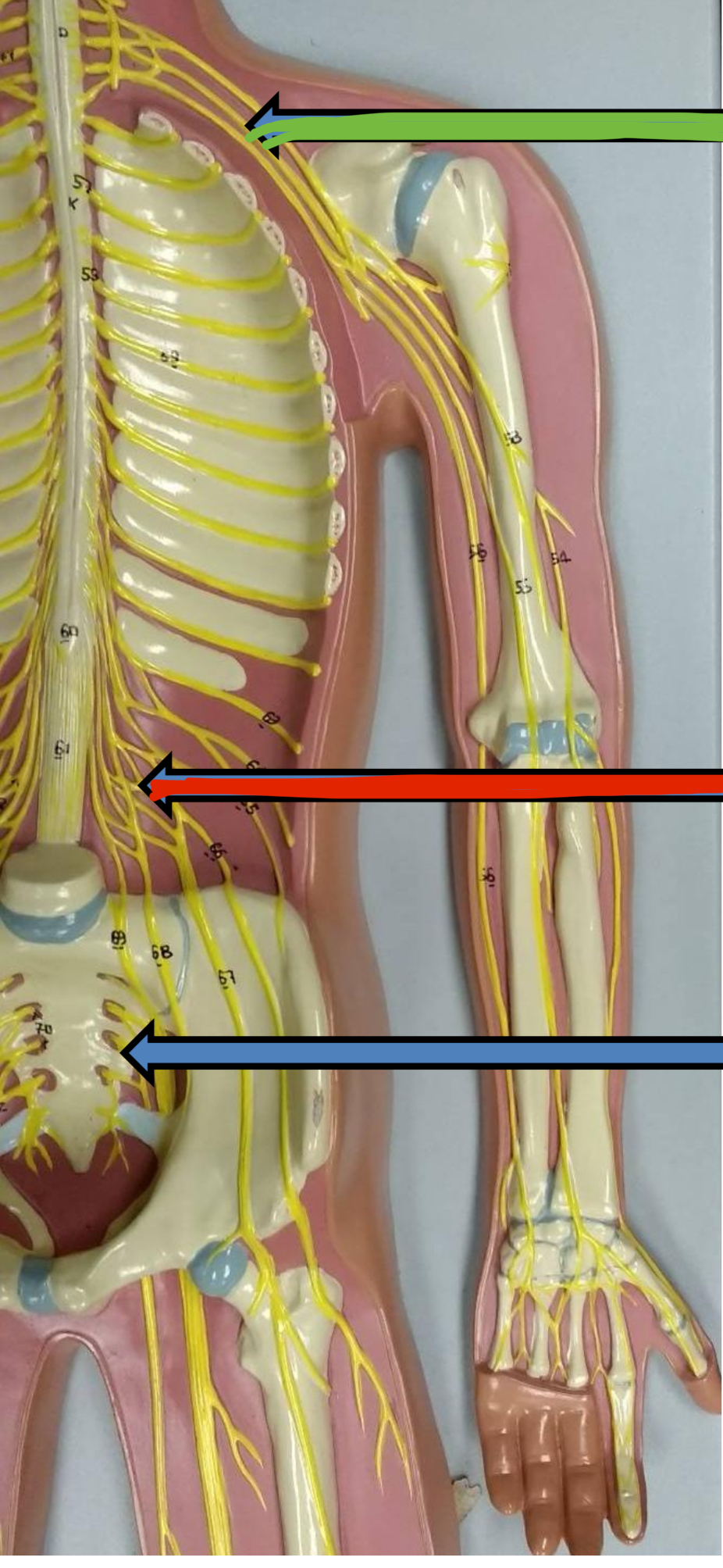

Green points to what nerve plexus

Brachial Plexus

Red points to what nerve plexus

Lumbar Plexus

Blue points to what nerve plexus

Sacral Plexus

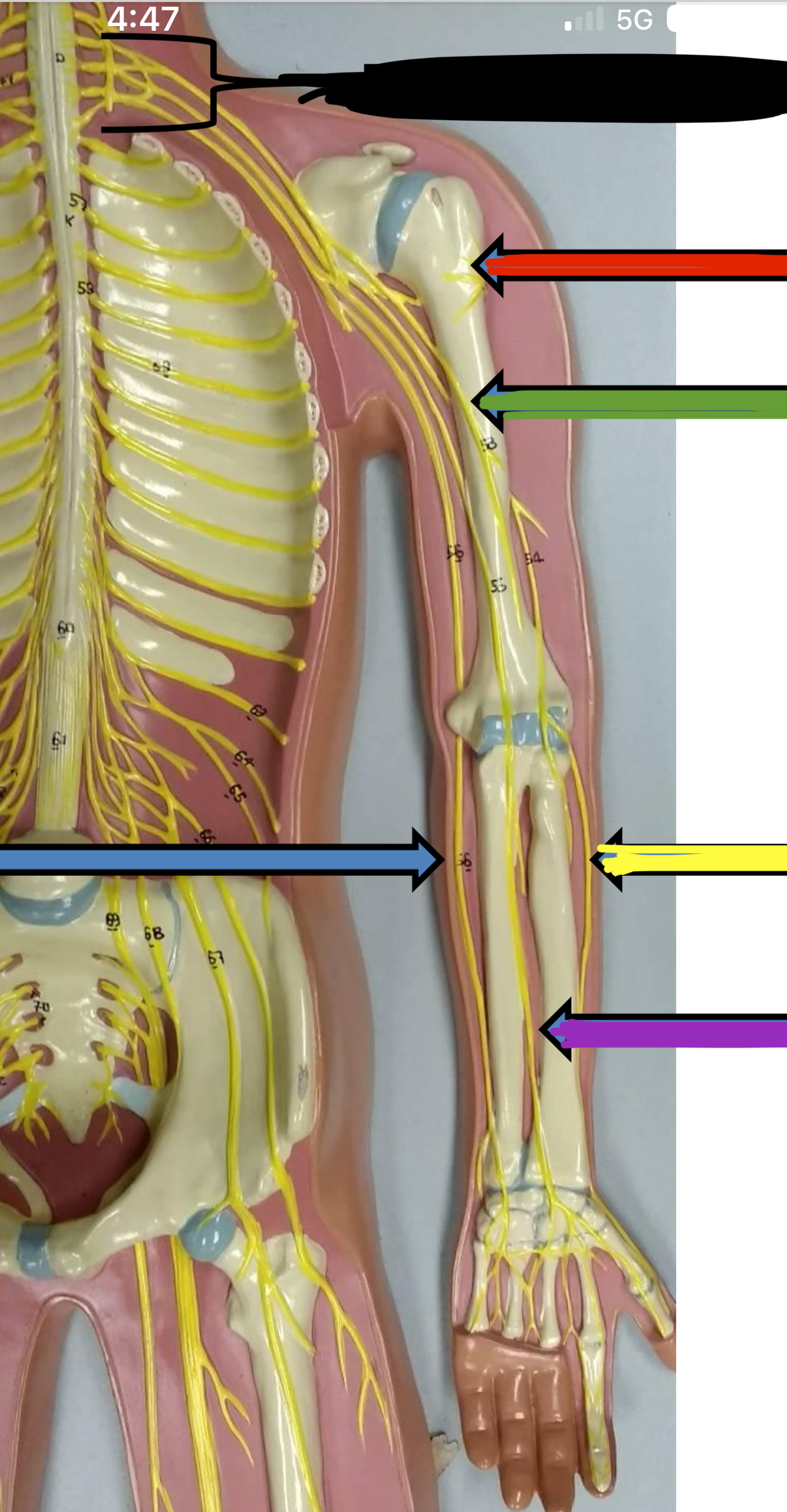

Red points to what nerve of the brachial plexus

Axillary Nerve

Green points to what nerve of the brachial plexus

Musculocutaneous Nerve

Yellow points to what nerve of the brachial plexus

Radial Nerve

Purple points to what nerve of the brachial plexus

Median Nerve

Blue points to what nerve of the brachial plexus

Ulnar Nerve

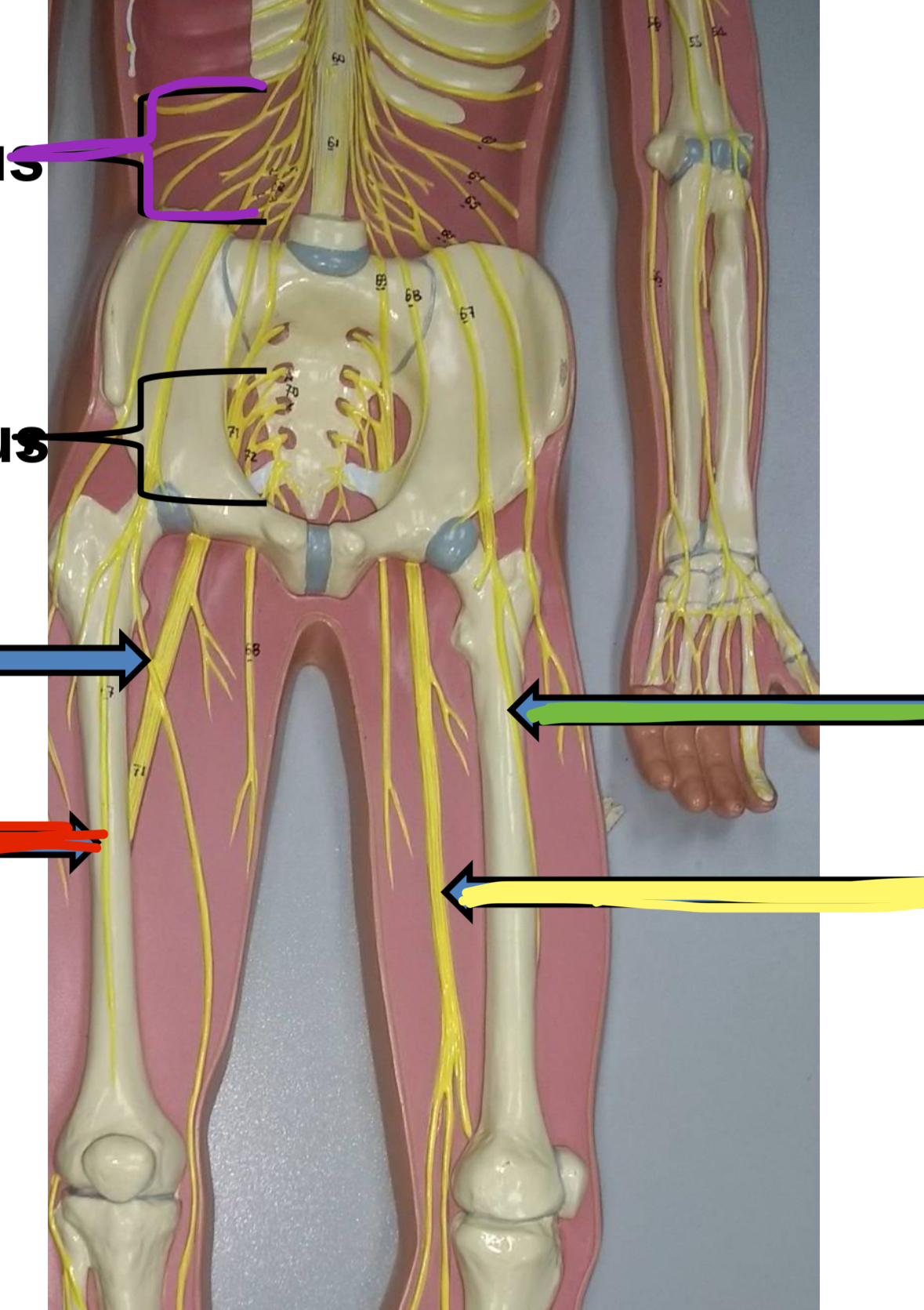

Red AND Green point to what lumbar plexus nerve

Femoral Nerve

Blue AND Yellow point to what sacral plexus nerve

Sciatic Nerve
